Reliable Nanofabrication of Single-Crystal Diamond Photonic Nanostructures for Nanoscale Sensing

Abstract

In this manuscript, we outline a reliable procedure to manufacture photonic nanostructures from single-crystal diamond (SCD). Photonic nanostructures, in our case SCD nanopillars on thin (<1 $\mathsf{\mu }$m) platforms, are highly relevant for nanoscale sensing. The presented top-down procedure includes electron beam lithography (EBL) as well as reactive ion etching (RIE). Our method introduces a novel type of inter-layer, namely silicon, that significantly enhances the adhesion of hydrogen silsesquioxane (HSQ) electron beam resist to SCD and avoids sample charging during EBL. In contrast to previously used adhesion layers, our silicon layer can be removed using a highly-selective RIE step, which is not damaging HSQ mask structures. We thus refine published nanofabrication processes to ease a higher process reliability especially in the light of the advancing commercialization of SCD sensor devices.

1. Introduction

In recent decades, the use of optically active point defect, i.e., color centers, in single-crystal diamond (SCD) as atom-sized, solid-based quantum systems has emerged in various fields [1,2]. Applications span from quantum metrology (temperature [3], strain [4], electric [5] and magnetic fields [6]) to using color centers as spin qubits in quantum computing [7] and single photon sources for quantum communication [8,9]. The outstanding color center in diamond is the NV${}^{-}$ center due to its optically readable spin [10] and usage as sensor. For many of these applications, color centers will be incorporated into photonic nanostructures e.g., nanopillars [9] to ease fluorescence detection from the color centers and to enable, e.g., scanning a color center close to a sample surface [6].

SCD’s wide indirect bandgap of ∼5.45 eV makes undoped SCD a good insulator [11]. Moreover, SCD shows a high chemical inertness. Both properties render fabricating SCD nanostructures challenging: Top-down methods for nanofabrication will use lithography, typically electron beam lithography (EBL), as well as etching. As the high chemical inertness of SCD prevents wet etching, only plasma etching, typically inductively coupled reactive ion etching (ICP-RIE), is applicable. Moreover, the insulating nature of SCD renders EBL highly challenging due to uncontrolled sample charging and the resulting deflection of the electron beam. A peculiarity of SCD nanofabrication arises also from the fact that only certain materials can efficiently serve as an etch mask in the high-bias, high-density plasmas necessary for anisotropic SCD etching [12]. The now state-of-the-art masks for SCD nanostructuring are EBL written structures consisting of hydrogen silsesquioxane (HSQ). HSQ is stable in anisotropic etch plasmas used for SCD etching; it etches an order of magnitude slower than SCD using typical etching recipes [12]. In general, HSQ enables creating very small mask structures down to 20 nm [13]. SCD structures etched using HSQ masks show smooth sidewalls [12]. Smooth sidewalls ensure low light scattering from photonic structures and defined waveguide properties. Consequently, HSQ masks enable etching almost cylindrical pillars with optimized shape and well-defined photonic properties [6,9,12,14,15]. On the other hand, we find that HSQ has a non-optimal adhesion to SCD. In previous work, this challenge has often been addressed using metallic inter-layers between HSQ and SCD, e.g., titanium [16]. However, even very thin (<1 nm) metallic residuals on SCD surfaces strongly disturb color centers placed shallowly below the surface [17]. Consequently, any metallic residues are detrimental for the process and a metal-free process is highly desirable. Often, removing the metallic layer also requires wet chemical removal [16] or the use of toxic etch gases such as chlorine [18]. The first can leave trace amounts of the etchant on the SCD surface and the second is technically demanding considering safety and reactor corrosion.

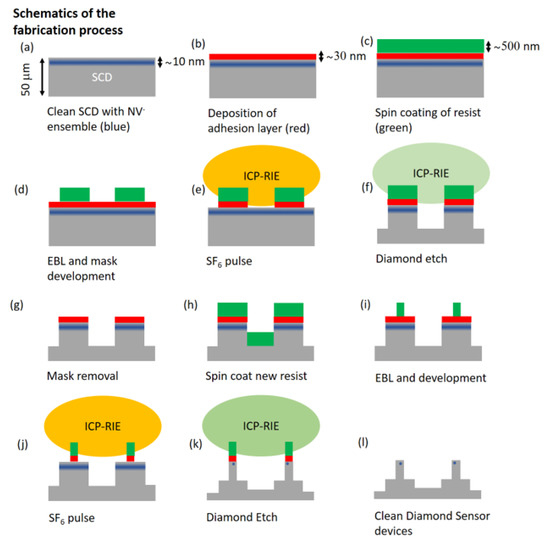

In this manuscript, we present a method to overcome two previously not satisfactorily addressed challenges in SCD nanofabrication, namely sample charging as well as non-optimal resist adhesion. We used the optimized process to fabricate SCD scanning probes, namely nanopillars on thin holding platforms [6,16]. We thus reliably fabricated SCD nanostructures easing, e.g., commercial fabrication of SCD scanning probes. Figure 1 depicts the steps of our nanofabrication process. We start with a clean SCD sample with a shallow NV${}^{-}$ layer (details on sample pre-treatment see Section 2) as mandatory for high resolution sensing. We use electron beam evaporation of silicon on SCD to form a de-charging and adhesive layer (Figure 1b, Section 3). This layer will enable highly reliable spin coating of HSQ (Figure 1c) as well as EBL (Figure 1d, Section 3). Subsequently, we remove the silicon adhesion layer selectively using ICP-RIE without damage to the HSQ mask (Figure 1e) and perform ICP-RIE of SCD to form the desired structures (Figure 1f, Section 4). Our method eases manufacturing complex structures, e.g., in our case, nanopillars (diameter 200 nm), on top of SCD platforms (size of the platform ∼ 3 × 20 $\mathsf{\mu }$m): In the first structuring step, we form the platforms (Figure 1f). The silicon adhesion layer survives the subsequent wet-chemical removal of the HSQ mask (Figure 1g) and can be reused for a second round of processing (Figure 1h–l). In this second processing, we form the pillars. We note that, when etching the platforms, the HSQ mask protects NV centers in the whole area of the micrometer-sized platform. During pillar etching, only NVs protected by the pillar mask survive the process and will be used as nanoscale sensors. The method presented here has been filed for a patent (EP19198772.6).

2. Sample Pre-Treatment

We purchased high-purity, (100)-oriented, chemical vapor deposited, SCD from Element Six (electronic grade quality, [N]${}^s$< 5 ppb, B < 1 ppb). As we aimed for free standing SCD devices consisting of nanopillars on platforms, the SCD plates (size $2\times 4$ mm${}^2$) were polished down to thickness of 50 $\mathsf{\mu }$m (Delaware Diamond Knives, Wilmington, DE, US). The SCD surface showed an initial roughness of R${}_a<3$ nm. As the mechanical polishing of the SCD can leave highly contaminated surfaces, we first wiped the sample surface using clean-room wipes and performed cleaning in an ultrasonic bath (solvents: isopropanol and acetone). We then cleaned the sample in boiling acids (1:1:1 mixture of sulfuric acid, perchloric acid and nitric acid, 5 mL each).

Mechanical polishing is suspected to introduce damage that potentially extends several micrometers deep into the SCD material [19,20]. To remove this potentially damaged and strained material, we applied ICP-RIE to our SCD samples. We avoided the use of toxic or corrosive gases in the process following our previously published routine [21]. We used a Plasmalab 100 ICP-RIE reactor (Oxford instruments, Abington, UK) and removed the topmost 3–5 $\mathsf{\mu }$m of SCD from each side. We used a combination of SF${}_6$,O${}_2$, Ar biased plasmas with mixed RF and ICP discharges. Following recent approaches [22,23], we terminated the etching using low-damage, 0 V bias plasma with pure oxygen. The use of such soft etching was motivated by the potential close-to-surface damage due to highly biased ICP etching [24]. We typically obtain very smooth surfaces with an rms roughness of ∼1 nm.

Using the above described procedure, we avoided creating NV centers in potentially damaged SCD. We formed a homogeneous layer of NV${}^{-}$ centers by implanting nitrogen ions with a density of $2\times {10}^{11}$ ions/cm${}^2$ and an energy of 6 keV. During the implantation, the sample was tilted by 7${}^{\circ }$ with respect to the ion beam to avoid ion channeling. The SCD sample was then annealed in vacuum at 800 °C followed by an acid clean. This treatment will typically leave our sample with a mixed oxygen termination on the surface [25]. We found a contact angle for water of 67${}^{\circ }$ [26], indicating a hydrophilic surface. As the electron beam resist we want to apply to the SCD was dissolved in methyl isobutyl ketone, a polar molecule, the resist’s solvent had high affinity to hydrophilic surfaces. Despite the, in principle, fitting surface termination of the SCD sample, we observed non-reliable adhesion when applying HSQ to the SCD surface.

3. Deposition of Adhesion Layer and HSQ Mask Structuring

Motivated by the lack of reliable adhesion of HSQ to clean SCD surfaces, we explored silicon as an inter-layer. We expect this layer to foster adhesion between polysilicate HSQ resist and the native oxide (SiO₂) on the layer. To deposit the silicon adhesion layer, we used electron beam evaporation at a pressure of 10⁻⁶ Torr and 10 kV acceleration voltage with elliptical beam scanning mode in an electron beam evaporator “Pfeiffer Classic 500 L” machine. For the present work, we chose a thickness of the silicon layer of 25 nm. We note that we also found sputtered silicon layers to efficiently foster adhesion between SCD and HSQ. However, the SCD surface was attacked during the sputtering process. This in our case led to excess blinking and bleaching of NV${}^{-}$ centers in the final sensing devices and rules out this approach for our application. We also note that we tested spin coating Ti-prime as an adhesion promoter but did not obtain reliable results. We furthermore tested chromium layers as alternative to quickly oxidizing titanium layers [16]. Using this approach, we faced micromasking effects most probably arising from the incomplete, non-reliable wet-chemical removal of chromium layers. We note that our silicon layers still enable efficient HSQ adhesion weeks after deposition and storage under ambient conditions. We consequently conclude that the formation of a native oxide layer on the silicon, which will occur during storage at ambient conditions, is not detrimental. Thus, technically speaking, evaporation of silicon layers can be performed in batch processes for several SCD samples, which eases the fabrication workflow and reduces machine time. The evaporated silicon layers are very uniform and show a low roughness, as evidenced by AFM. We note that adhesion of the silicon layer to SCD was very reliable and we never observed any hints of cracking or peeling throughout the whole process, deduced from AFM and SEM microscopy. We have processed more than 10 samples using the here described method and no SEM images showed peeling or cracking of the silicon layer. To avoid any damage of the surface caused by contact with the tip (AFM) or amorphous carbon deposition (from SEM chamber), no routine checks were performed prior each fabrication step. We note we also observed the surface topography of samples covered with HSQ layers. In case of any silicon peeling, this would be evident by folding of spin-coated HSQ.

To manufacture etch masks based on HSQ, we used Fox 16 resist (Dow Corning, Midland, MI, USA), which we spin-coated onto the SCD plate. To ease handling of our small SCD plates, we glued them to silicon carrier chips using crystalbond adhesive. We note that the silicon carrier can be removed at the end of our nanofabrication process using acetone to dissolve crystalbond without damage to the SCD nanostructures. Prior to spin coating, we heated the SCD sample on the silicon carrier for 10 min at 120 °C to remove any moisture from the surface. We applied roughly 0.3 mL of Fox 16 solution to the SCD plate and spin-coated it at 1000 rpm for 10 s then increasing rotation speed to 3300 rpm for 60 s. Subsequently, we pre-baked the sample at 90 °C for 5 min. We note that great care has been taken to not exceed the shelf life of the Fox 16 resist. As a result of the small size of our samples as well as the spin coating on already etched structures in the latter stages of our fabrication process, we can only estimate the thickness of the HSQ, which shows a significant variation from sample to sample. From SEM images of pillar masks on platforms, we estimate a HSQ layer thickness of ∼0.9 $\mathsf{\mu }$m. Consequently, considering a pillar diameter of ∼200 nm, we demonstrate reliable adhesion of HSQ masks with an aspect ratio of 4.5.

We inserted the SCD plate including the silicon carrier chip into our EBL machine (cold-cathode SEM, Hitachi S45000, Chiyoda, Japan, equipped with RAITH Elphy software). We note that EBL of the spin-coated HSQ layer has to be done directly after spin coating to avoid any reaction of HSQ with air. We performed EBL at 30 kV acceleration voltage and 20 $\mathsf{\mu }$A extracting current. The working distance is kept at 15.3 mm for 400 × 400 $\mathsf{\mu }$m${}^2$ fields. During our device fabrication, larger structures, namely the rectangular holding platforms (size ∼ 3 × 20 $\mathsf{\mu }$m${}^2$) as well as masks for nanopillars (diameter 200 nm), were of interest. We wrote platforms using longitudinal writing mode and pillars using concentric writing modes. The doses for large structures were established to be optimal as 0.49 mC/cm² and for pillar structures, with a variation with thickness of the HSQ layer, between 2.24 (planar SCD) and 7 mC/cm² (pre-structured SCD with, e.g., platforms).

We developed the HSQ in 25% TMAH solution without swirling the solution. After 20 s, the SCD sample was placed in ultra-pure 18 MOhm cm MiliQ water and subsequently immersed several times in acetone and isopropanol. We note that the development has to take place directly after removing the SCD plate from the EBL vacuum chamber.

4. Selective ICP-RIE of Adhesion Layer and SCD Structuring

A dedicated ICP/RIE plasma sequence based on O${}_2$-based etching of SCD, preceded by a short pulse of SF₆ plasma, was designed. This sequence first selectively removes the silicon layer between the HSQ-based mask structures and subsequently enables highly anisotropic etching of SCD. The parameters of the plasmas are summarized in

Table 1. Etching plasma parameters. SF₆ pulse used to selectively remove the evaporated silicon layer (5 s including plasma ignition step). The O₂ plasma is subsequently used as an anisotropic etch for SCD to form the platforms as well as the pillars (10–15 min etching time).

Plasma	ICP Power	RF Power	Gas Flux	Etch Rate	Pressure
	W	W	sccm	nm/min	Pa
SF6 pulse	300	100	SF6:25	Si: 1072 HSQ: 52	1.3
O2 plasma	500	200	O2: 50	104	1.5

. In the final process, we ran the above mentioned sequence without removing the sample from the ICP-RIE reactor in-between the plasma steps to avoid any contamination.

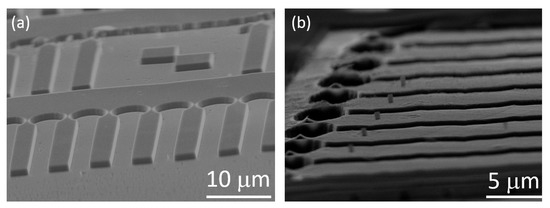

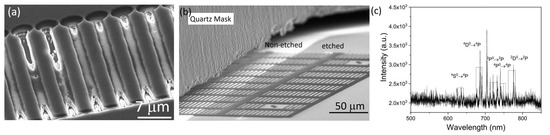

Reliably removing the silicon layer without any residuals is vital to our process: We observed a partial etch stop as well as strong micromasking when applying the O${}_2$-based plasma without applying the SF₆ pulse (see Figure 2a). We deduced a complete and reliable removal of the silicon adhesion layer from two facts: First, in SEM images taken directly after the SF₆ pulse (see Figure 2b), a clear contrast between etched and non-etched areas is visible. We also investigated the SF₆-based etching process by means of optical emission spectroscopy shown in Figure 2c. In the spectrum a series of emission lines corresponding to fluoride (F${}^{-}$) was observed [27]. We attributed the etching of silicon to this F${}^{-}$ ions. Second, knowing that the O${}_2$ plasma used to etch SCD was not etching the silicon layer, the absence of micromasking and very smooth surfaces in-between the etched structures (see Figure 3a) proved the complete removal of the silicon layer. We note that using pure SF₆ is vital to arrive at this result, as introduction of other gases (Argon or Oxygen) at this stage generated severe micromasking. Our SF₆ plasma removes the silicon layer while maintaining a 1:20 selectivity in favor of the HSQ mask. For our process, this means that, during removal of the 25 nm thick silicon adhesion layer, less than 2 nm of the HSQ mask, which in our case is several hundreds of nanometer thick, will be lost. This result corresponds well to similar plasmas obtained in different systems showing highly selective silicon etching while conserving SiO${}_2$ (in our case HSQ) [28]. We furthermore observed no or minor etching of SCD during the SF₆ pulse and no roughening of the exposed SCD surface. We confirmed full etching of the silicon layer using Raman spectroscopy and XPS, whereas the latter only showed C1s and O1s peaks. Using EDX, we checked that there is no silicon contamination on the etched SCD after the O${}_2$-based plasma (see Figure 4).

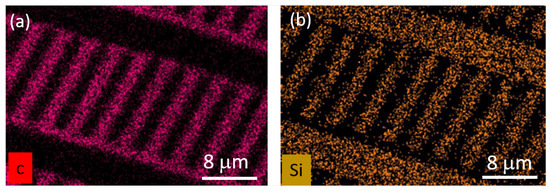

After successfully structuring our SCD platforms, we removed HSQ residuals using HF-based buffered oxide etch by immersion of SCD for 20 min in the solution. Although this step removed the native oxide from our silicon adhesion layer, the layer itself survived the process, as clearly discernible from the EDX imaging in Figure 4b. Consequently, it can be re-used for consecutive steps. We then spin-coated HSQ again, which in our case formed a layer on top as well as in-between the platforms. We then re-emploedy EBL to create pillar masks on the platforms (see Figure 3b). We repeated the etching to transfer the pillar mask into the SCD platform creating almost cylindrical pillars.

5. Final Devices and Device Characterization

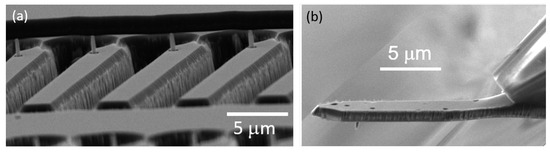

To obtain clean SCD devices, we removed all HSQ residuals using HF-based buffered oxide etch. We immersed the SCD into buffered oxide etch for 20 min which removes the HSQ as well as any native oxide on the silicon layer. Afterwards, we immersed the SCD sample in 3M potassium hydroxide at 80 °C for 30 min to remove the silicon adhesion layer and revealed the clean SCD structures. After this process, we repeated the three-acid cleaning described above before characterizing the photoluminescence (PL) of NV${}^{-}$ centers in the SCD nanostructures. Figure 5a displays devices obtained using this process. We note that, to obtain free standing devices, which we mounted to quartz capillaries as holders (see Figure 5b), the SCD plate has to be thinned from the non-structured side until the devices are fully released. For more details on the mounting, see Reference [16]. To this end, we employed previously published deep-etching routines [21] which are beyond the scope of this manuscript.

To investigate the photonic properties of our SCD nanostructures, we used a custom-built confocal microscope (numerical aperture 0.8). Details of the setup are given in References [22,29,30,31].

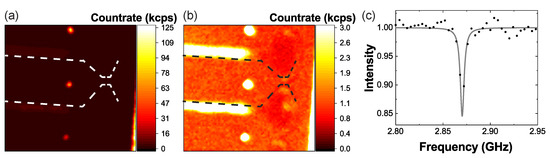

We first measured confocal PL maps of the structures (see Figure 6a,b) excited at 532 nm with a power of 500 $\mathsf{\mu }$W. We clearly observed intense PL (∼100 kcps) originating from single NV${}^{-}$ centers in the pillars (see Figure 6a). We estimated the maximum achievable PL of the NV${}^{-}$ centers to be >300 kcps comparable to previous work [16]. In addition, we investigated the background PL from the etched surface (∼1 kcps), which is negligible compared to the NV${}^{-}$ center PL from the pillar (see Figure 6b).

Keeping background PL from etched surfaces low is important as it limits the signal-to- background ratio and consequently the achievable magnetic field sensitivity [32]. Figure 6c shows an exemplary optically detected magnetic resonance (ODMR) measured on single NV${}^{-}$ centers in the structures. Here, we measured an ODMR contrast of ∼15%. By investigating the coherence of the NV${}^{-}$ centers in the nanostructures, we found a coherence time of T${}_2$ ≤10 $\mathsf{\mu }$s. We attributed this to the NV${}^{-}$ centers’ proximity to the surface which is in a good agreement with results from other groups measuring the coherence of shallow NV${}^{-}$ centers in three-acid-cleaned SCD [33]. Considering the already low T${}_2$, we cannot fully exclude a negative influence of the structuring on T${}_2$.

6. Summary and Conclusions

In this paper, we present a reliable technology for nanofabrication of SCD structures. We used our method to manufacture SCD scanning probes with shallowly embedded negative nitrogen vacancies. The method introduces an evaporated silicon adhesion layer on the SCD surface to ease adhesion and EBL with spin-coated HSQ-based Fox 16 resist. We present a methodology for the selective removal of our silicon adhesive/decharging layer with SF₆ plasma. In areas protected by the HSQ mask, silicon layer survives etching as well as wet chemical removal of the residual HSQ mask and can be re-used for further nanofabrication, in our case for pillars on SCD platform. The shallowly implanted NV${}^{-}$ centers survived the nanofabrication process. We found this method to be reliable, which is a considerable advancement in SCD nanofabrication technology that can be expanded to various kinds of SCD structures including SCD cantilever or cavity structures (e.g., photonic crystals).
