Piezoelectric MEMS Resonators for Cigarette Particle Detection

1
Microsystems, Actuators and Sensors Group, Universidad de Castilla-La Mancha, 13071 Ciudad Real, Spain
2
Institute of Semiconductor Technology (IHT), Technische Universität Braunschweig, Hans-Sommer-Straße 66, 38106 Braunschweig, Germany and Laboratory for Emerging Nanometrology (LENA), Langer Kamp 6a, 38106 Braunschweig, Germany
*
Author to whom correspondence should be addressed.
Micromachines 2019, 10(2), 145; https://doi.org/10.3390/mi10020145
Submission received: 29 January 2019 / Revised: 17 February 2019 / Accepted: 19 February 2019 / Published: 21 February 2019
(This article belongs to the Special Issue 10th Anniversary of Micromachines)

Abstract

:
In this work, we demonstrate the potential of a piezoelectric resonator for developing a low-cost sensor system to detect microscopic particles in real-time, which can be present in a wide variety of environments and workplaces. The sensor working principle is based on the resonance frequency shift caused by particles collected on the resonator surface. To test the sensor sensitivity obtained from mass-loading effects, an Aluminum Nitride-based piezoelectric resonator was exposed to cigarette particles in a sealed chamber. In order to determine the resonance parameters of interest, an interface circuit was implemented and included within both open-loop and closed-loop schemes for comparison. The system was capable of tracking the resonance frequency with a mass sensitivity of 8.8 Hz/ng. Although the tests shown here were proven by collecting particles from a cigarette, the results obtained in this application may have interest and can be extended towards other applications, such as monitoring of nanoparticles in a workplace environment.

1. Introduction

Microscopic particles are present in many environments, e.g., the aerospace, healthcare or pharmaceutical industries, and workplaces. For this reason, many studies have been reported about the adverse effects to human health due to their small size and the potential to cause respiratory diseases [1,2,3]. Therefore, there is an increasing need to detect and control the concentration of these particles in multiple contexts, motivating the development of a low-cost system capable of detecting these particles in real-time. Several research groups established various types of micro-/nanoelectromechanical systems (M/NEMS) as mass-sensitive sensors for this purpose [4,5,6,7]. The detection mechanisms and elements of the sensing systems have been varied, e.g., direct optical investigation inside a scanning electron microscope for vertical nanowire resonators [8], square full piezoresistive Wheatstone bridge for out-of-plane cantilevers [9], U-shape piezoresistive Wheatstone bridge for in-plane electrothermal cantilevers [10], and thin piezoelectric films for bulk acoustic devices [11,12].
Sampling of particulate matter for gravimetric detection usually requires a particle collector stage, e.g., an impactor [13,14], a thermophoretic [11] or electrostatic sampler [4,8,9], an adhesive layer [15], etc. Basically, that also applies to cigarette smoke particles, which were collected on a silicon cantilever resonator using thermophoresis [11], an impactor [13,14], or an electrostatic field [16]. However, smoke particulates could be sampled without additional measures for particle collection, which was not observed so far for other aerosols.
In this work, the sensor working principle is based on the resonance frequency shift induced by collected particles on a piezoelectric resonator surface [4,16]. For evaluating the sensor sensitivity, the resonator device was exposed to cigarette particles in a sealed chamber, in which the mass-loading effect could subsequently be proven and analyzed.

2. Materials and Setup

For this application, an aluminum nitride (AlN) based piezoelectric resonator was designed, fabricated and optimized for a high-order bending mode. It is well known that increasing mode order, the increase in Q-factor and resonance frequency as well as the decrease in effective mass improve the mass sensitivity of the resonator [17,18]. On the other hand, lower frequencies allow easier and cheaper electronic designs for the signal conditioning. In our case, the instrumentation amplifier shows a flat response in the gain curve up to approximately 10 MHz with a phase shift appearing above 1 MHz that affects the resolution of the system. Taking this limitation into account, we chose the fourth order roof-tile shaped vibration mode near 1 MHz. This features five nodal lines in one direction and zero nodal lines in the perpendicular direction. Considering Leissa´s nomenclature [19], the vibration mode is named as 05-mode [20].
For an efficient excitation of higher order vibration modes, an appropriate electrode layout is required so that the target mode is optimally excited and sensed. In particular, roof tile-shaped modes are optimally actuated using a stripped electrode design [12,21], which allows a two-port scheme. In order to prevent excessive damping associated with the substrate, the anchoring of the plates to the substrate frame was carefully designed to reduce the energy dissipation. Beam anchors were placed at the same position as the nodes for a 05-mode, and their resonance frequency was also coincident with that of the target mode.
One more aspect to consider in the device design is the magnitude of the area exposed to the particles. For this particular vibration mode, the resonance frequency is determined by the width of the anchored side. The length along the nodal lines is chosen to have both good signal to noise ratio [22] and a sensitive area much larger than the particles to be detected, to avoid edge effects. The fabricated resonator and its considered modal shape measured by a laser Doppler vibrometer are shown in Figure 1a,b, respectively. The resonator has a length of l = 3000 μm, a width of w = 900 μm and a thickness of t = 10 μm.
The top metallization has four striped electrodes that allow a selective excitation of the vibration modes and act as a filter for higher modes [23]. The resonator is excited by an anti-parallel connection of the electrodes (+−+−) to obtain the desired modal vibrations. In this case, two top electrodes connected in parallel (+) were used as actuation ports and the other two (−) as sensing ports (see Figure 1b). The structure is anchored with five supports in the nodal lines to resemble a free plate condition. Subsequently, this leads to an increased piezoelectric response compared to a single side clamped cantilever structure with the same geometry and quality factor [24]. The fabrication of the micro-plate resonator was carried out by MEMSCAP (Durham, NC, USA), following the PiezoMUMPs process [25]: a silicon on insulator (SOI) wafer with 10 μm-thick device layer was covered with a 500 nm-thick aluminum nitride (AlN) piezoelectric film. The silicon was doped to serve as both bottom electrode and structural layer. As a top electrode, a layer of aluminum (1 μm) was deposited at the final device processing step.
The values of the resonant parameters (i.e., resonance frequency (fr) and quality factor (Q-factor)), were registered in air before the deposition of cigarette particles, obtaining values of 1108 kHz and 185, respectively. For this work, only one device was used, but other devices from the same production batch were characterized in terms of fr and Q-factor. Structures with the same nominal dimensions showed values of 1108 ± 2 kHz and 189 ± 10 for fr and Q-factor, respectively.
In this work, no system has been implemented regarding the sampling of cigarette particles on the resonator surface [5]. The lack of additional sampling requirements is an advantage of our approach. However, after conducting several experiments, it was observed that despite removing the cigarette particles with N2, the initial value of the resonance frequency was shifted. This occurs because the ash particles coming from the cigarette can be easily cleaned with air or N2. However, other types of particles exist such as nicotine or tar (tobacco residue) that may adhere to the resonator surface. To avoid this problem, a cleaning process with isopropanol was implemented after different experiments. In addition, the resonator chip could be cleaned with isopropanol without needing to be removed before from its package. This is a clear advantage over approaches where the resonant device is considered to be disposable and, thus, has to be replaced before a decrease of particle capture efficiency is detected [15].
The resonant parameters change due to external environmental influences on the device and need to be determined in real-time. The detection of these parameters can be performed using several methods [4,26,27]. The real-time monitoring of the resonant parameters may be challenging due to the low-quality factors and parasitic effects present in the resonator [12,28]. For this reason, an interface circuit based on resonators in two-port configuration involving a parasitic compensation device and an instrumentation amplifier was used to cancel the parasitic effects (see Figure 2). However, our results show that a capacitive crosstalk across the actuation and sensing ports has a significant contribution to the output current. To minimize this parasitic component, a compensation (dummy) device was introduced [23]. This additional device duplicates the structure of the resonator, being basically an exact copy of the plate resonator, unreleased to prevent its vibration. As it can be observed in Figure 3, the application of the interface circuit results in a clear resonance, with low baseline and the necessary phase to meet the Barkhausen criterion for oscillation.
In addition, a closed-loop circuit, based on the phase-locked loop (PLL) integrated circuit 74HCT4046 [29], is implemented for tracking the resonant parameters of the resonator. This oscillator circuit is a feedback system composed of a phase comparator (PC2), a low-pass filter (Filter 1) and a voltage-controlled oscillator (VCO). Basically, this circuit is a feedback loop where the VCO can be automatically synchronized with the signal coming from the resonance of the piezoelectric resonator [30,31]. Besides, as it can be seen in Figure 4, the output signal of the VCO (fosc) was adapted with a low-pass filter (filter 2) since the VCO generates a digital signal. In this way, the excitation of the resonator is carried out with a filtered sinusoidal signal obtaining a higher stability of the oscillation frequency. This oscillator circuit allows us to obtain a reference signal (fref), which controls the frequency and phase of the oscillator. In this circuit, the feedback error signal is a phase lag, instead of a voltage or current as in conventional feedback systems. The self-correcting capability of this system allows the PLL to modify the oscillation frequency as a function of mass changes on the resonator surface due to the addition of particles.

3. Measurements and methods

To demonstrate the functionality of the system, the resonator is characterized with different open-loop and closed-loop configurations and experimental arrangements. Finally, the added mass of the cigarette particles on the resonator surface is estimated.

3.1. Open-Loop Measurements

Initially, the 05-mode was analyzed with an open-loop technique based on a USB data acquisition board, Digilent instrument Analog Discovery 2 (Digilent Inc., Pullman, WA, USA) [32], capable of performing sweep frequency measurements. This instrument is connected to a PC in order to calculate fr and Q-factor of the resonator since these parameters have a large influence on the sensitivity and efficiency of the mass concentration sensing principle. A schematic of the setup along with the interface circuit is presented in Figure 5. The sensor is separated by a distance of 10 cm from the cigarette. This prevents larger particles from depositing directly on the resonator surface. In addition, the sensor is located on the same printed circuit board (PCB) next to the interface circuit.
In the first step, the performance of the resonator was evaluated by collecting cigarette particles on the surface resonator for 15 minutes and subsequently measuring the frequency shift produced. As it can be observed in Figure 3, a frequency shift of around 10 kHz was detected after sampling the particles. Nevertheless, a phase shift of around −15° is observed due to differences between the dummy and resonator, and the bandwidth limitation of the instrumentation amplifier. However, this resonance curve is adequate for the later implementation of the oscillator circuit.
Once the behaviors of the resonator and electronic system were tested, two similar experiments for the detection of cigarette particles were performed. The main objective was to check the deposition rate of the cigarette particles and the reproducibility of the measurements. In this case, we carried out a frequency sweep every minute. In order to calculate the resonant parameters, the measured impedance spectrum was fitted to a modified Butterworth-Van-Dyke (BVD) equivalent circuit [33]. The frequency resolution measured of the resonator was 70 Hz, a rather high value compared with other results [12,20], associated with the open-loop configuration and the commercial instrument employed in the measurements.
In Figure 6 and Figure 7, the open-loop measurements are displayed showing the evolution of the resonant parameters with the deposition of cigarette particles. As expected from the previous results, fr and Q-factor decreased over time due to a higher concentration of cigarette particles on the surface resonator. More deposited cigarette particles result in higher frequency shifts. As it can be observed in Figure 6 and Figure 7, an almost linear decrease occurs for fr and Q-factor obtaining a decrease of around 625 ± 8 Hz/min and −0.55 ± 0.03 min−1, respectively.
The slight linear decrease of Q(t) observed in Figure 6 and Figure 7 indicates that the roof-tile-shaped vibration mode is sensitive to a damping effect by the deposited cigarette particles. This effect can be explained through Equation (1), which shows that an increase in Q-factor might be expected with the added mass of the cigarette particles (Δmcig) assuming a uniform deposition. [34]. However, their effect in Q-factor may also lead to an increased viscous damping ( c damp ), due to the presence of big particles with irregular shape [9] (see Figure 12).
Q - f a c t o r = 2 π f can m can 1 + Δ m cig m can c damp
where fcan, mcan and cdamp are the resonator frequency before particle deposition, mass resonator and viscous damping, respectively.
Regarding the evolution of resonance frequency with time, assuming both constant concentration of cigarette particles in the ambient air and constant adsorption rate of these particles on the resonator, we can expect a constant decrease rate Δfrt and thus a linear decrease of fr(t) as confirmed by our experiments in Figure 6 and Figure 7. The added mass will be estimated in Section 3.3.

3.2. Closed-Loop Measurements

In the previous section, we could check that the open-loop technique presents a poor frequency resolution. In addition, this technique requires a long measurement time, limiting the potential application in a real-time monitoring system. For this reason, a low-cost PLL-based oscillator circuit, utilizing the previously described 74HCT4046, was developed.
The implementation of an oscillator is challenging due to the hydrodynamic loading (damping in air) and parasitic effects of the resonator, which increase for larger surfaces. For this reason, the previously described interface circuit with dummy compensation was also included in the system. In this setup, the PLL circuit was combined with the resonator and the previous interface circuit as a closed-loop oscillator system as shown in Figure 8.
In order to obtain the resonant parameters, it was necessary to perform a calibration process [35]. In this process, the oscillator circuit outputs, oscillation frequency (fosc), and the circuit output gain (Gosc) were transformed into the mechanical magnitudes of the resonator, fr and Q-factor, using a resonator model [36]. In this case, the commercial instrument was able to obtain the circuit outputs, fosc and Gosc, with a rate of 5 samples/s obtaining a better frequency resolution of 1 Hz. To test the system performance, two different experiments were carried out with the closed-loop setup. In the first experiment, particles were collected as in the previous section obtaining a decrease rate for fr of around 621 Hz/min (see Figure 9).
In the second experiment, the sensitivity and response of the system were further checked. In order to do that, we introduced an additional cigarette in the chamber and opened and closed it several times, to assess the response of the system. As it can be observed in Figure 10, several peaks in the resonance curves were detected as a consequence of this. Besides, we could check that the deposition of particles was higher, with a decrease rate for fr of around 1690 Hz/min, when two cigarettes were introduced at the same time in the sealed chamber.
The open-loop measurements displayed in Figure 6 and Figure 7 as well as the closed-loop measurements in Figure 9, which were carried out with the smoke of one cigarette in the chamber, show almost monotonic decrease of fr and Q-factor with time. Fluctuations of both fr(t) and Q(t) about the fitted straight lines are visible in Figure 9, and Figure 10 shows even slight increases of both parameters caused by opening of the chamber and the corresponding concentration decrease of cigarette particles inside the chamber. We attribute this effect to a transient loss of deposited cigarette smoke from the resonator by evaporation, which is reasonable owing to the considerable amount semivolatile components in cigarette smoke, e.g., nicotine and water [37].
Figure 11 and Figure 12 show sensor top-view images obtained with a scanning electron microscope (SEM). The SEM images depict the resonator covered by particles of different sizes and shapes. The previous measurements show that these particles can be detected in real-time with a low-cost oscillator circuit.

3.3. Estimation of Added Mass

Once the performance of the resonator was tested with different open-loop and closed-loop techniques, the mass of the deposited cigarette particles, Δmcig, can be estimated through Equation (2) [16,38]:
Δ m cig 2 m can f can Δ f cig
where Δfcig, fcan, mcan are the frequency shift after particle deposition, resonator frequency before particle deposition, and mass, respectively.
This expression is under the assumption that the spring constant of the resonator is maintained and that the deposition of particles is uniform on the surfaces. The resonator used in this work has a mass of mcan = 62.91 µg and a resonance frequency in air of fcan = 1108 kHz. The added mass was estimated for the second open loop measurement presented in Figure 7. In that case, a frequency shift (Δfcig) of around 10 kHz was detected after collecting particles for 15 minutes, obtaining a value of Δmcig = 1.14 µg. Moreover, the mass-loading sensitivity of the sensor (Δfcig/Δmcig) was calculated obtaining a value of 8.8 Hz/ng. This sensitivity value is similar to that reported by Wasisto et al. of 0.15 Hz/ng for a cantilever sensor of smaller dimensions with a lower resonance frequency [38].
This sensitivity was obtained using a USB data acquisition board (Digilent instrument, Digilent Inc., Pullman, WA, USA) and the closed-loop technique with a frequency resolution of 1 Hz. A frequency resolution of around 8 mHz could be achieved with the same device but using a higher-cost instrument such as a lock-in amplifier [39]. With these two values for the resolution in the tracking of resonance frequency and the sensitivity given above, the limit of detection can be 114 pg or 1 pg for the two measurement configurations, respectively. The sensitivity of the resonator was also estimated and compared taking into consideration the surface of the resonator, obtaining a sensitivity ratio of 21.4 μm2/ng. This value is also similar to that reported by Wasisto et al. of 8.54 μm2/ng [4].

3.4. Discussion

M/NEMS-based gravimetric sensors for cigarette smoke detection have been already reported, with different strength and weaknesses. As it can be seen in Table 1, mass sensitivity up to several tens of Hz/pg and resolution of 29.8 fg have been stated, which are clearly better than the values of 8.8 Hz/ng and 114 pg, respectively, obtained in this work. However, our device has a larger surface compared to the size of the particles. In this way, edge effects can be neglected since the particles are uniformly distributed on the resonator surface.
Besides, the present approach has the advantage that no particle sampler is required due to the large surface of the sensor and frequency tracking is performed using an integrated, low-cost PLL circuit. Furthermore, in our case we can clean the resonator chip without needing to remove it from its package using N2 and isopropanol. These issues, although not stressed in the other studies, are directly related to the planned use of such sensors in portable applications, i.e. monitoring of personal aerosol exposure.

4. Conclusions

In conclusion, the development of a closed-loop circuit setup based on a piezoelectric micro-plate resonator and the integrated circuit 74HCT4046 has been demonstrated. The system is capable of tracking the resonance frequency and quality factor of the device, oscillating in a high order vibrational mode (05-mode), with a sensitivity of 8.8 Hz/ng and a resolution of 114 pg. In this case, the mass-loading effect tests were proven by collecting particles from a cigarette. Nevertheless, the results obtained in this application may have potential applications for the detection of nanoparticles in a workplace environment.

Author Contributions

Investigation, J.T.; Project administration, J.L.S.-R.; Supervision, V.R.-D., M.B., H.S.W., E.P. and J.L.S.-R.; Validation, J.T.; Writing—original draft, J.T.; Writing—review & editing, V.R.-D., M.B., H.S.W., E.P. and J.L.S.-R.

Funding

This work was supported by the Spanish Ministerio de Economía y Competitividad and FEDER project TEC2015-67470-P. Junta de Comunidades de Castilla-La Mancha project SBPLY/17/180501/000139 and through grant PEII-2014-010-P. Javier Toledo acknowledges financial support from the FPI-BES-2013-063743 grant. Hutomo Suryo Wasisto thanks the Lower Saxony Ministry for Science and Culture (N-MWK) for funding of LENA-OptoSense group. Maik Bertke acknowledges support from Niedersächsisches Vorab, Germany, through the Quantum and Nanometrology (QUANOMET) initiative within the project of NP 2-2.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Díaz-Soler, B.M.; Martínez-Aires, M.D.; López-Alonso, M. Emerging risk in the construction industry: Recommendations for managing exposure to nanomaterials. Dyna 2016, 83, 48–54. [Google Scholar] [CrossRef]
  2. Pini, M.; Salieri, B.; Ferrari, A.M.; Nowack, B.; Hischier, R. Human health characterization factors of nano-TiO2 for indoor and outdoor environments. Int. J. Life Cycle Assess. 2016, 21, 1452–1462. [Google Scholar] [CrossRef]
  3. Ramachandran, G. Assessing Nanoparticle Risks to Human Health, 2nd ed.; William Andrew: New York, NY, USA, 2011; ISBN 9781437778632. [Google Scholar]
  4. Wasisto, H.S.; Merzsch, S.; Waag, A.; Uhde, E.; Salthammer, T.; Peiner, E. Airborne engineered nanoparticle mass sensor based on a silicon resonant cantilever. Sens. Actuators B Chem. 2013, 180, 77–89. [Google Scholar] [CrossRef]
  5. Wasisto, H.S.; Merzsch, S.; Waag, A.; Uhde, E.; Salthammer, T.; Peiner, E. Evaluation of photoresist-based nanoparticle removal method for recycling silicon cantilever mass sensors. Sens. Actuators A Phys. 2013, 202, 90–99. [Google Scholar] [CrossRef]
  6. Beardslee, L.A.; Addous, A.M.; Heinrich, S.; Josse, F.; Dufour, I.; Brand, O. Thermal excitation and piezoresistive detection of cantilever in-plane resonance modes for sensing applications. J. Microelectromech. Syst. 2010, 19, 1015–1017. [Google Scholar] [CrossRef]
  7. Schmid, S.; Kurek, M.; Adolphsen, J.Q.; Boisen, A. Real-time single airborne nanoparticle detection with nanomechanical resonant filter-fiber. Sci. Rep. 2013, 3, 1288. [Google Scholar] [CrossRef] [PubMed]
  8. Wasisto, H.S.; Merzsch, S.; Stranz, A.; Waag, A.; Uhde, E.; Salthammer, T.; Peiner, E. Silicon resonant nanopillar sensors for airborne titanium dioxide engineered nanoparticle mass detection. Sens. Actuators B Chem. 2013, 189, 146–156. [Google Scholar] [CrossRef]
  9. Wasisto, H.S.; Merzsch, S.; Waag, A.; Uhde, E.; Salthammer, T.; Peiner, E. Portable cantilever-based airborne nanoparticle detector. Sens. Actuators B Chem. 2013, 187, 118–127. [Google Scholar] [CrossRef]
  10. Wasisto, H.S.; Merzsch, S.; Uhde, E.; Waag, A.; Peiner, E. Handheld personal airborne nanoparticle detector based on microelectromechanical silicon resonant cantilever. Microelectron. Eng. 2015, 145, 96–103. [Google Scholar] [CrossRef]
  11. Paprotny, I.; Doering, F.; Solomon, P.A.; White, R.M.; Gundel, L.A. Microfabricated air-microfluidic sensor for personal monitoring of airborne particulate matter: Design, fabrication, and experimental results. Sens. Actuators A Phys. 2013, 201, 506–516. [Google Scholar] [CrossRef]
  12. Toledo, J.; Manzaneque, T.; Ruiz-Díez, V.; Kucera, M.; Pfusterschmied, G.; Wistrela, E.; Schmid, U.; Sánchez-Rojas, J.L. Piezoelectric resonators and oscillator circuit based on higher-order out-of-plane modes for density-viscosity measurements of liquids. J. Micromech. Microeng. 2016, 26, 084012. [Google Scholar] [CrossRef]
  13. Maldonado-Garcia, M.; Kumar, V.; Wilson, J.C.; Pourkamali, S. Chip-scale implementation and cascade assembly of particulate matter collectors with embedded resonant mass balances. IEEE Sens. J. 2017, 17, 1617–1625. [Google Scholar] [CrossRef]
  14. Liu, T.-Y.; Sung, C.-A.; Weng, C.-H.; Chu, C.-C.; Zope, A.A.; Pillai, G.; Li, S.-S. Gated CMOS-MEMS thermal-piezoresistive oscillator-based PM2.5 sensor with enhanced particle. In Proceedings of the 2018 IEEE Micro Electro Mechanical Systems (MEMS) Conference, Belfast, UK, 21–25 January 2018; pp. 75–78. [Google Scholar]
  15. Qin, X.; Xian, X.; Deng, Y.; Wang, D.; Tsow, F.; Forzani, E.; Tao, N. Micro quartz tuning fork based PM 2.5 sensor for personal exposure monitoring. IEEE Sens. J. 2018, 1–8. [Google Scholar]
  16. Bertke, M.; Hamdana, G.; Wu, W.; Wasisto, H.S.; Uhde, E.; Peiner, E. Analysis of asymmetric resonance response of thermally excited silicon micro-cantilevers for mass-sensitive nanoparticle detection. J. Micromech. Microeng. 2017, 27, 064001. [Google Scholar] [CrossRef]
  17. Dohn, S.; Sandberg, R.; Svendsen, W.; Boisen, A. Enhanced functionality of cantilever based mass sensors using higher modes. Appl. Phys. Lett. 2005, 86, 233501. [Google Scholar] [CrossRef] [Green Version]
  18. Ghatkesar, M.K.; Barwich, V.; Braun, T.; Ramseyer, J.P.; Gerber, C.; Hegner, M.; Lang, H.P.; Drechsler, U.; Despont, M. Higher modes of vibration increase mass sensitivity in nanomechanical microcantilevers. Nanotechnology 2007, 18, 1–8. [Google Scholar] [CrossRef]
  19. Leissa, A.W. Vibration of plates; Scientific and Technical Information Division, National Aeronautics and Space Administration: Washington, DC, USA, 1969.
  20. Toledo, J.; Ruiz-Díez, V.; Schwarz, P.; Seidel, H.; Sánchez-Rojas, J.L. Oscillator circuit for monitoring the gas damping effect of piezoelectric microresonators. In Proceedings of the Smart Sensors, Actuators, and MEMS VIII, Barcelona, Spain, 8–10 May 2017; p. 102460M. [Google Scholar]
  21. Kucera, M.; Wistrela, E.; Pfusterschmied, G.; Ruiz-Díez, V.; Sánchez-Rojas, J.L.; Schalko, J.; Bittner, A.; Schmid, U. Characterisation of multi roof tile-shaped out-of-plane vibrational modes in aluminium-nitride-actuated self-sensing micro-resonators in liquid media. Appl. Phys. Lett. 2015, 107, 053506. [Google Scholar] [CrossRef]
  22. Ruiz-Díez, V.; Hernando-García, J.; Toledo, J.; Manzaneque, T.; Kucera, M.; Pfusterschmied, G.; Schmid, U.; Sánchez-Rojas, J.L. Modelling and characterization of the roof tile-shaped modes of AlN-based cantilever resonators in liquid media. J. Micromech. Microeng. 2016, 26, 084008. [Google Scholar] [CrossRef]
  23. Kucera, M.; Wistrela, E.; Pfusterschmied, G.; Ruiz-Díez, V.; Manzaneque, T.; Luis Sánchez-Rojas, J.; Schalko, J.; Bittner, A.; Schmid, U. Characterization of a roof tile-shaped out-of-plane vibrational mode in aluminum-nitride-actuated self-sensing micro-resonators for liquid monitoring purposes. Appl. Phys. Lett. 2014, 104, 233501. [Google Scholar] [CrossRef]
  24. Pfusterschmied, G.; Kucera, M.; Steindl, W.; Manzaneque, T.; Ruiz Díez, V.; Bittner, A.; Schneider, M.; Sánchez-Rojas, J.L.; Schmid, U. Roof tile-shaped modes in quasi free-free supported piezoelectric microplate resonators in high viscous fluids. Sens. Actuators B Chem. 2016, 237, 999–1006. [Google Scholar] [CrossRef]
  25. PiezoMUMPs Process MEMSCAP. Available online: http://www.memscap.com/products/mumps/piezomumps (accessed on 20 February 2019).
  26. Stark, R.W. Optical lever detection in higher eigenmode dynamic atomic force microscopy. Rev. Sci. Instrum. 2004, 75, 5053–5055. [Google Scholar] [CrossRef]
  27. Toledo, J.; Ruiz-díez, V.; Pfusterschmied, G.; Schmid, U.; Sánchez-rojas, J.L. Flow-through sensor based on piezoelectric MEMS resonator for the in-line monitoring of wine fermentation. Sens. Actuators B. Chem. 2017, 254, 291–298. [Google Scholar] [CrossRef]
  28. Toledo, J.; Ruiz-Díez, V.; Pfusterschmied, G.; Schmid, U.; Sánchez-Rojas, J.L. Characterization of oscillator circuits for monitoring the density-viscosity of liquids by means of piezoelectric MEMS microresonators. In Proceedings of the Smart Sensors, Actuators, and MEMS VIII, Barcelona, Spain, 8–10 May 2017; p. 102461I. [Google Scholar]
  29. CD74HCT4046A. High Speed CMOS Logic Phase-Locked-Loop with VCO. Available online: http://www.ti.com/product/CD74HCT4046A# (accessed on 20 February 2019).
  30. Hsieh, G.-C.; Hung, J.C. Phase-locked loop techniques. A survey. IEEE Trans. Ind. Electron. 1996, 43, 609–615. [Google Scholar] [CrossRef]
  31. Li, H.C.; Tseng, S.H.; Huang, P.C.; Lu, M.S.C. Study of CMOS micromachined self-oscillating loop utilizing a phase-locked loop-driving circuit. J. Micromech. Microeng. 2012, 22, 055024. [Google Scholar] [CrossRef]
  32. Digilent Instrument. Analog Discovery 2. Available online: https://store.digilentinc.com/analog-discovery-2-100msps-usb-oscilloscope-logic-analyzer-and-variable-power-supply/ (accessed on 20 February 2019).
  33. Arnau, A.; Sogorb, T.; Jimenez, Y. A continuous motional series resonant frequency monitoring circuit and a new method of determining Butterworth-Van Dyke parameters of a quartz crystal microbalance in fluid media. Rev. Sci. Instrum. 2000, 71, 2563–2571. [Google Scholar] [CrossRef]
  34. Grüter, R.R.; Khan, Z.; Paxman, R.; Ndieyira, J.W.; Dueck, B.; Bircher, B.A.; Yang, J.L.; Drechsler, U.; Despont, M.; McKendry, R.A.; et al. Disentangling mechanical and mass effects on nanomechanical resonators. Appl. Phys. Lett. 2010, 96, 1–3. [Google Scholar] [CrossRef]
  35. Manzaneque, T.; Ruiz-Díez, V.; Hernando-García, J.; Wistrela, E.; Kucera, M.; Schmid, U.; Sánchez-Rojas, J.L. Piezoelectric MEMS resonator-based oscillator for density and viscosity sensing. Sens. Actuators A Phys. 2014, 220, 305–315. [Google Scholar] [CrossRef]
  36. Toledo, J.; Manzaneque, T.; Ruiz-Díez, V.; Jiménez-Márquez, F.; Kucera, M.; Pfusterschmied, G.; Wistrela, E.; Schmid, U.; Sánchez-Rojas, J.L. Comparison of in-plane and out-of-plane piezoelectric microresonators for real-time monitoring of engine oil contamination with diesel. Microsyst. Technol. 2016, 22, 1781–1790. [Google Scholar] [CrossRef]
  37. Adamson, J.; Hughes, S.; Azzopardi, D.; McAughey, J.; Gaça, M.D. Real-time assessment of cigarette smoke particle deposition in vitro. Chem. Cent. J. 2012, 6, 98. [Google Scholar] [CrossRef] [Green Version]
  38. Wasisto, H.S.; Zhang, Q.; Merzsch, S.; Waag, A.; Peiner, E. A phase-locked loop frequency tracking system for portable microelectromechanical piezoresistive cantilever mass sensors. Microsyst. Technol. 2014, 20, 559–569. [Google Scholar] [CrossRef]
  39. HF2LI Lock-in Amplifier. Zurich Instruments. Available online: https://www.zhinst.com/products/hf2li (accessed on 20 February 2019).
  40. Wasisto, H.S.; Steib, F.; Merzsch, S.; Waag, A.; Peiner, E. Vertical silicon nanowire array-patterned microcantilever resonators for enhanced detection of cigarette smoke aerosols. Micro Nano Lett. 2014, 9, 676–679. [Google Scholar] [CrossRef]

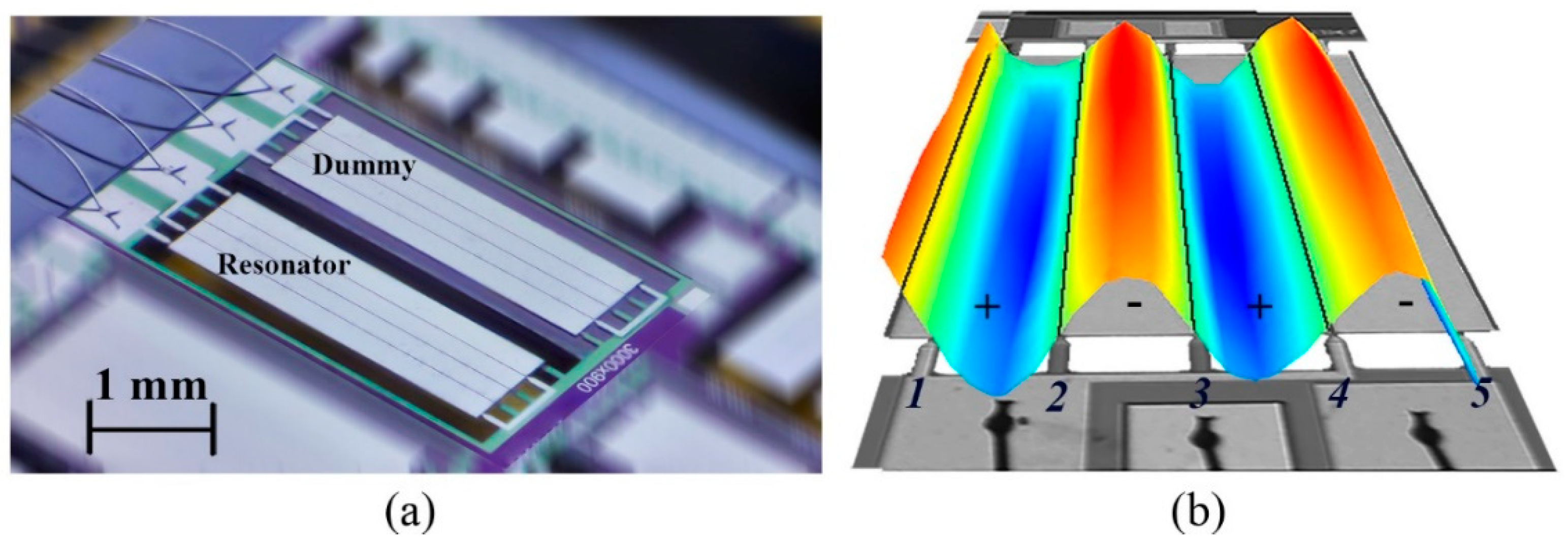

Figure 1. (a) Top-view micrograph of the resonator (3000 μm × 900 μm × 10 μm) and compensation device in a dual in-line package. (b) Modal shape measured with a laser Doppler vibrometer (05-mode).
Figure 1. (a) Top-view micrograph of the resonator (3000 μm × 900 μm × 10 μm) and compensation device in a dual in-line package. (b) Modal shape measured with a laser Doppler vibrometer (05-mode).
Micromachines 10 00145 g001

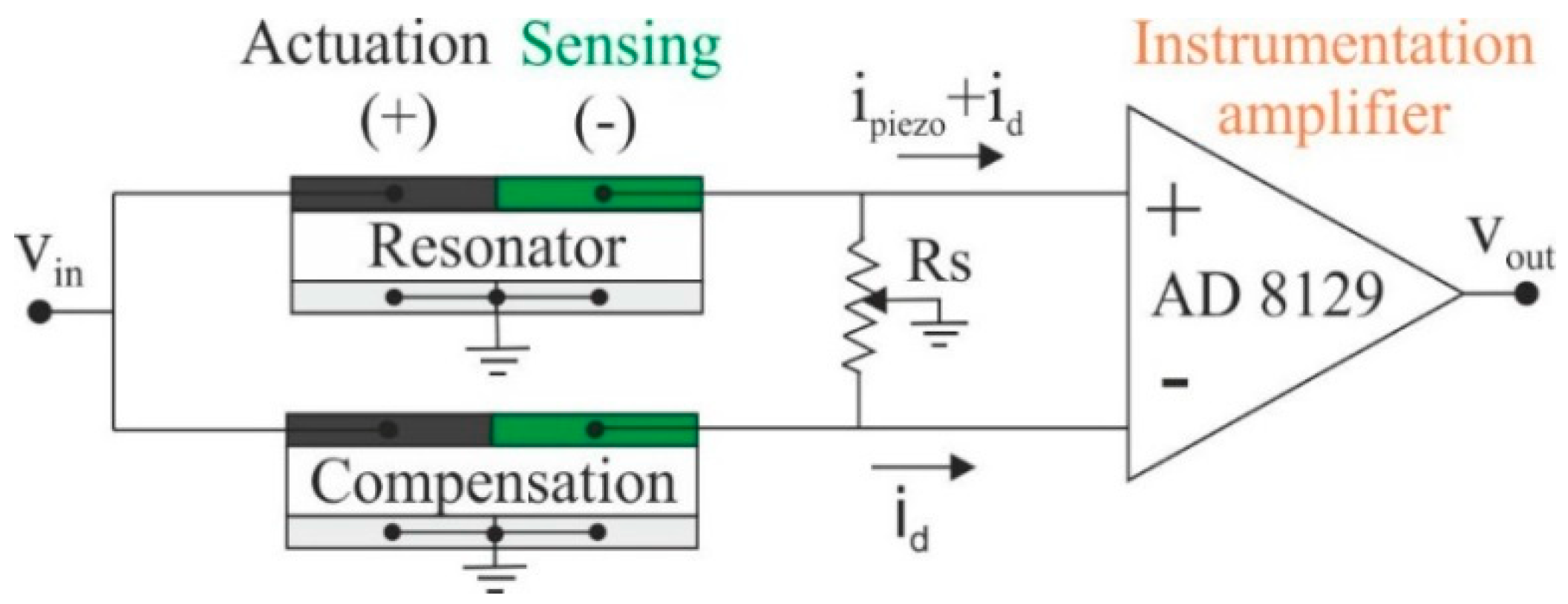

Figure 2. Schematic of interface circuit to measure the 05-mode response by cancelling the parasitic capacitance.
Figure 2. Schematic of interface circuit to measure the 05-mode response by cancelling the parasitic capacitance.
Micromachines 10 00145 g002

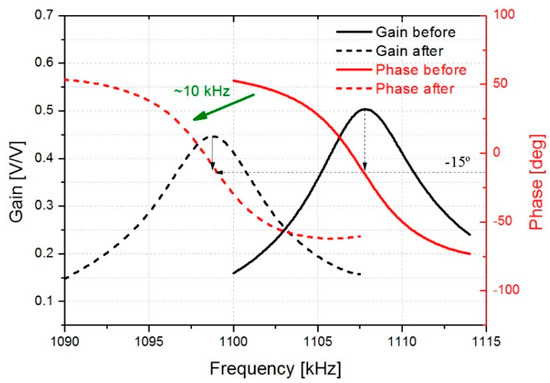

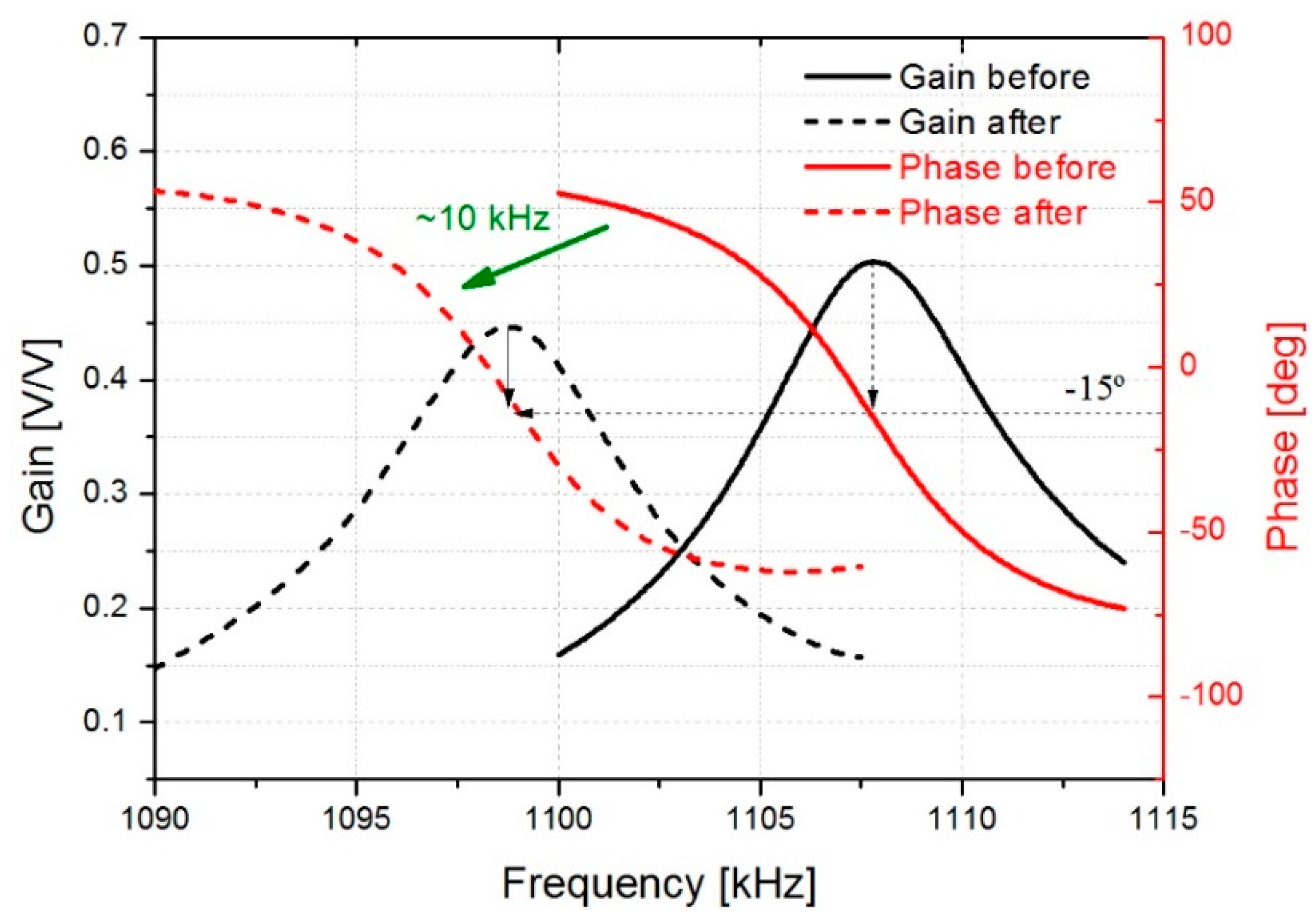

Figure 3. Open loop response of the interface circuit for the 05-mode. Gain-phase before represents the initial state of the resonator in air, and gain-phase after indicates the final state after the deposition of cigarette particles.
Figure 3. Open loop response of the interface circuit for the 05-mode. Gain-phase before represents the initial state of the resonator in air, and gain-phase after indicates the final state after the deposition of cigarette particles.
Micromachines 10 00145 g003

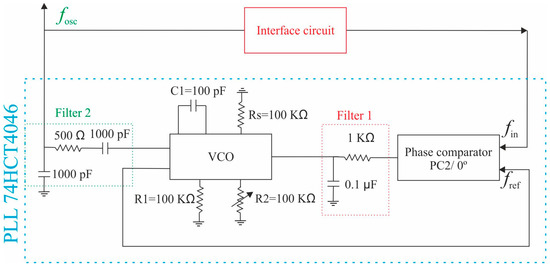

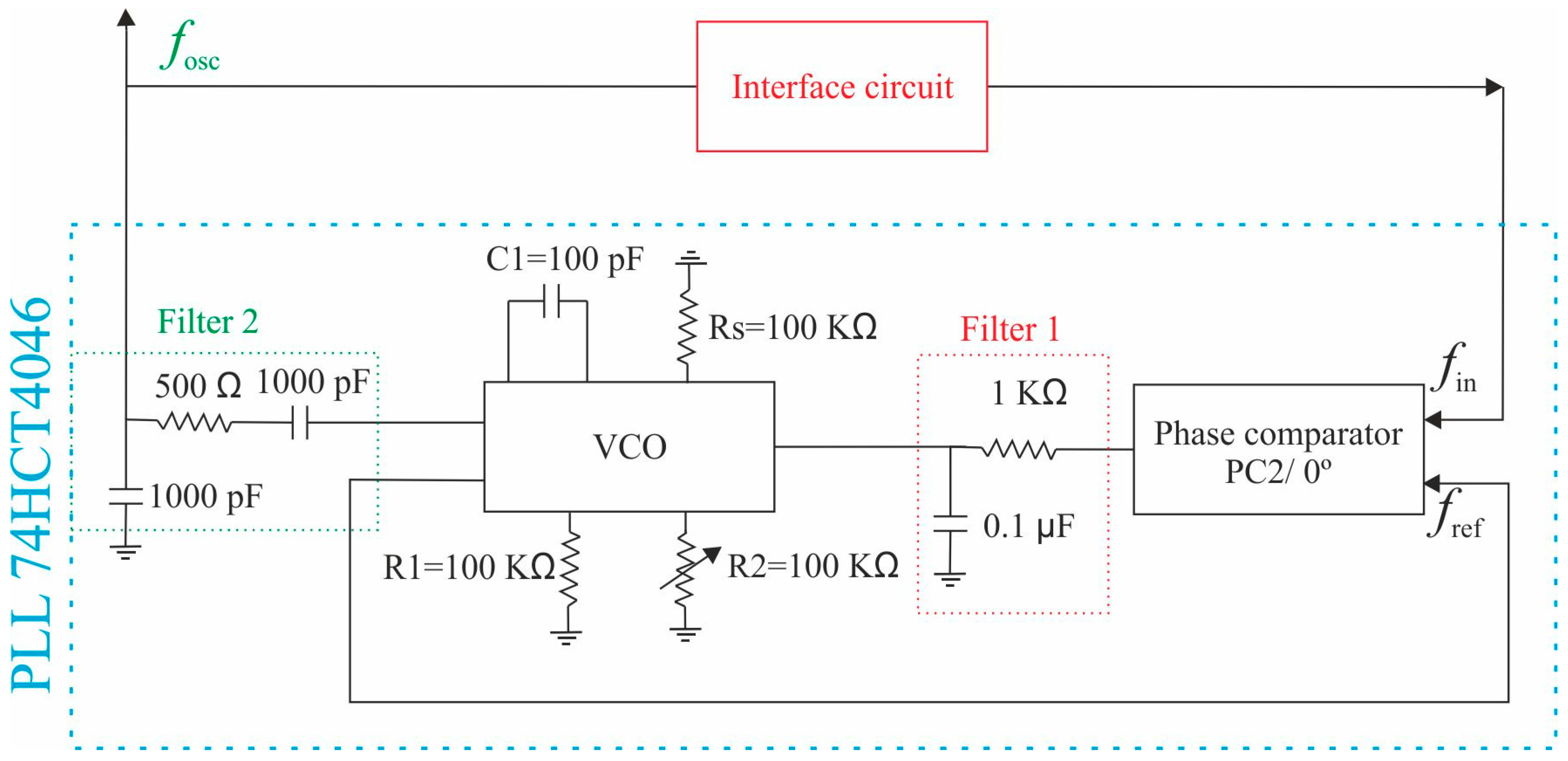

Figure 4. Schematic of phase-locked loop (PLL) 74HCT4046 oscillator circuit including the interface circuit.
Figure 4. Schematic of phase-locked loop (PLL) 74HCT4046 oscillator circuit including the interface circuit.
Micromachines 10 00145 g004

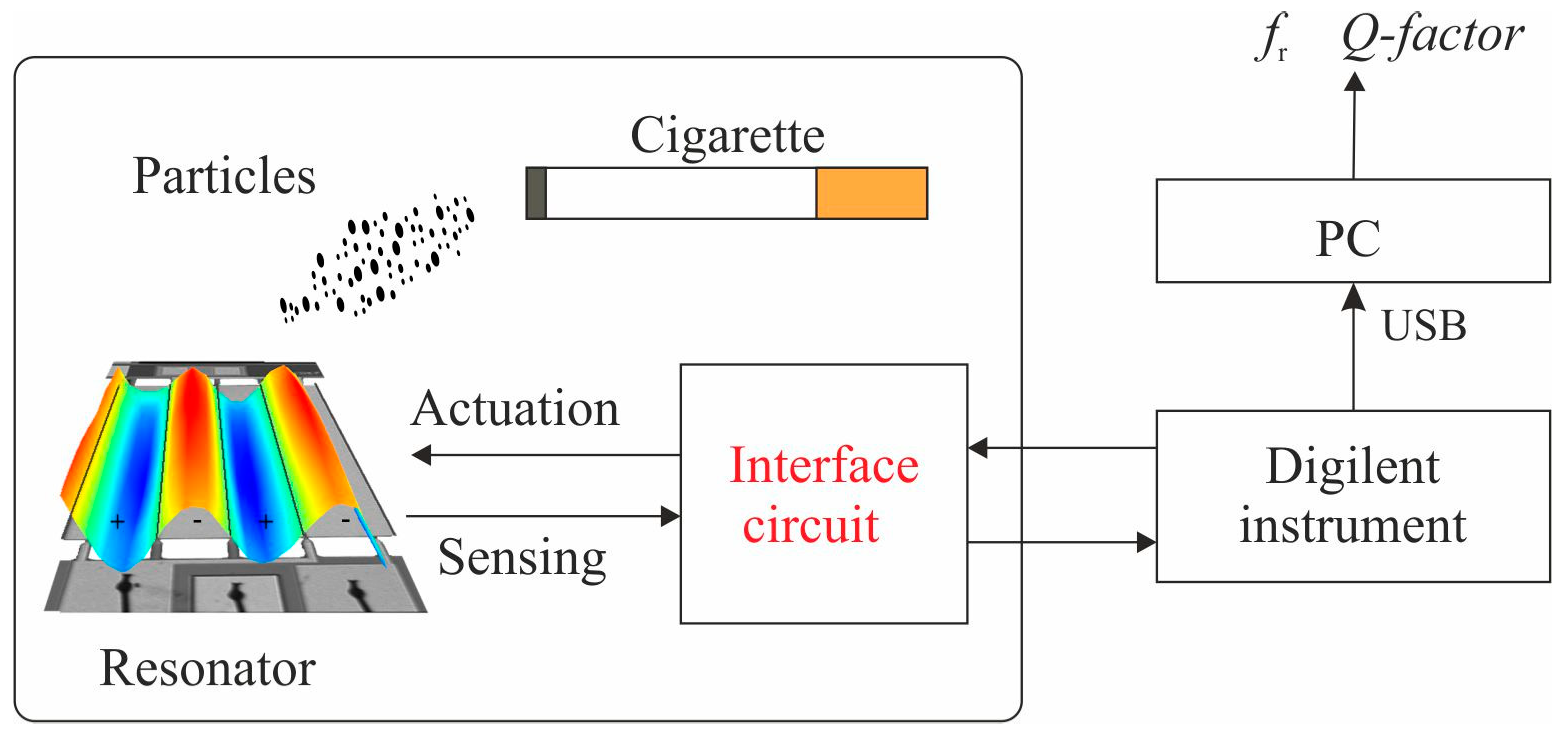

Figure 5. Schematic of the open-loop setup with the Digilent instrument.
Figure 5. Schematic of the open-loop setup with the Digilent instrument.
Micromachines 10 00145 g005

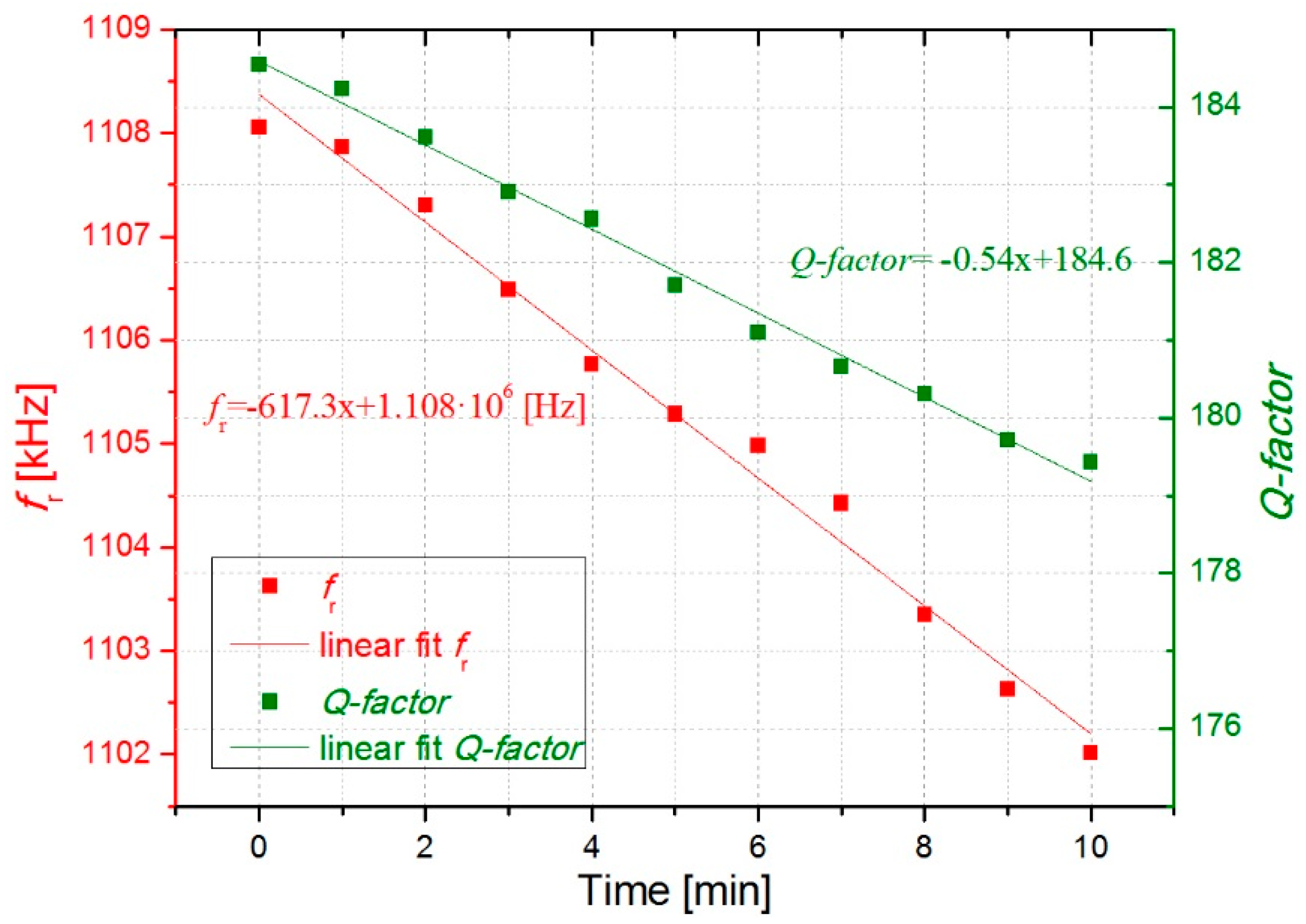

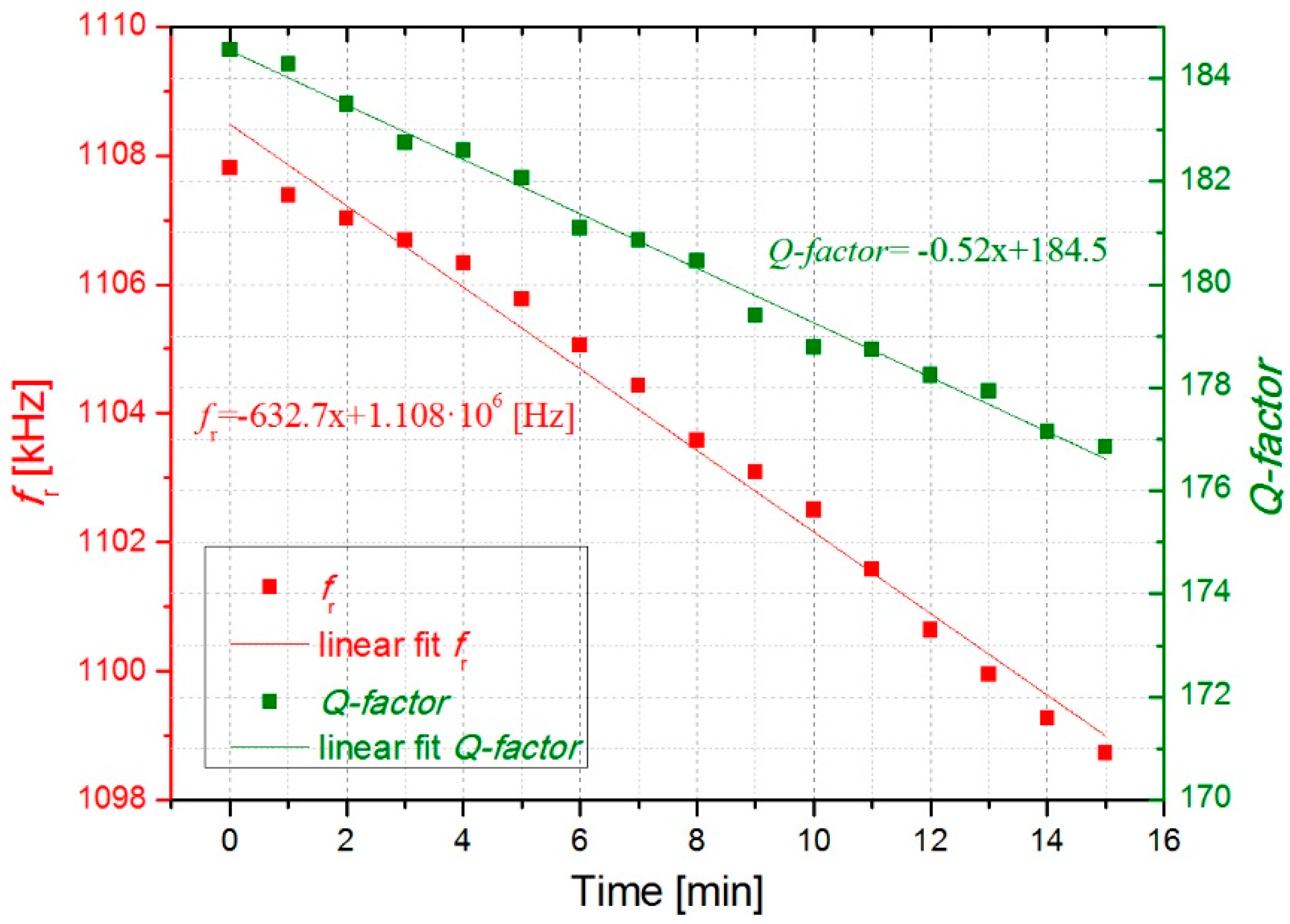

Figure 6. Open loop measurement showing the evolution of the resonant parameters with the deposition of cigarette particles for 10 minutes.
Figure 6. Open loop measurement showing the evolution of the resonant parameters with the deposition of cigarette particles for 10 minutes.
Micromachines 10 00145 g006

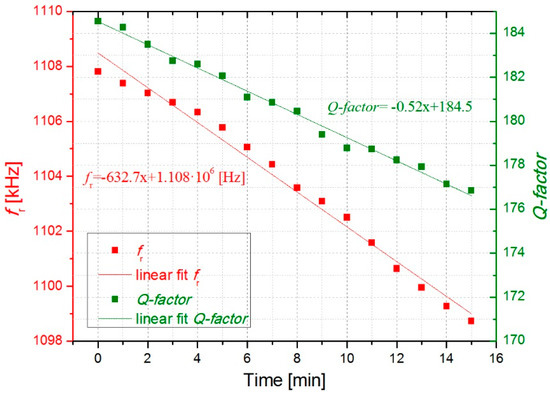

Figure 7. Open loop measurement showing the evolution of the resonant parameters with the deposition of cigarette particles for 15 minutes.
Figure 7. Open loop measurement showing the evolution of the resonant parameters with the deposition of cigarette particles for 15 minutes.
Micromachines 10 00145 g007

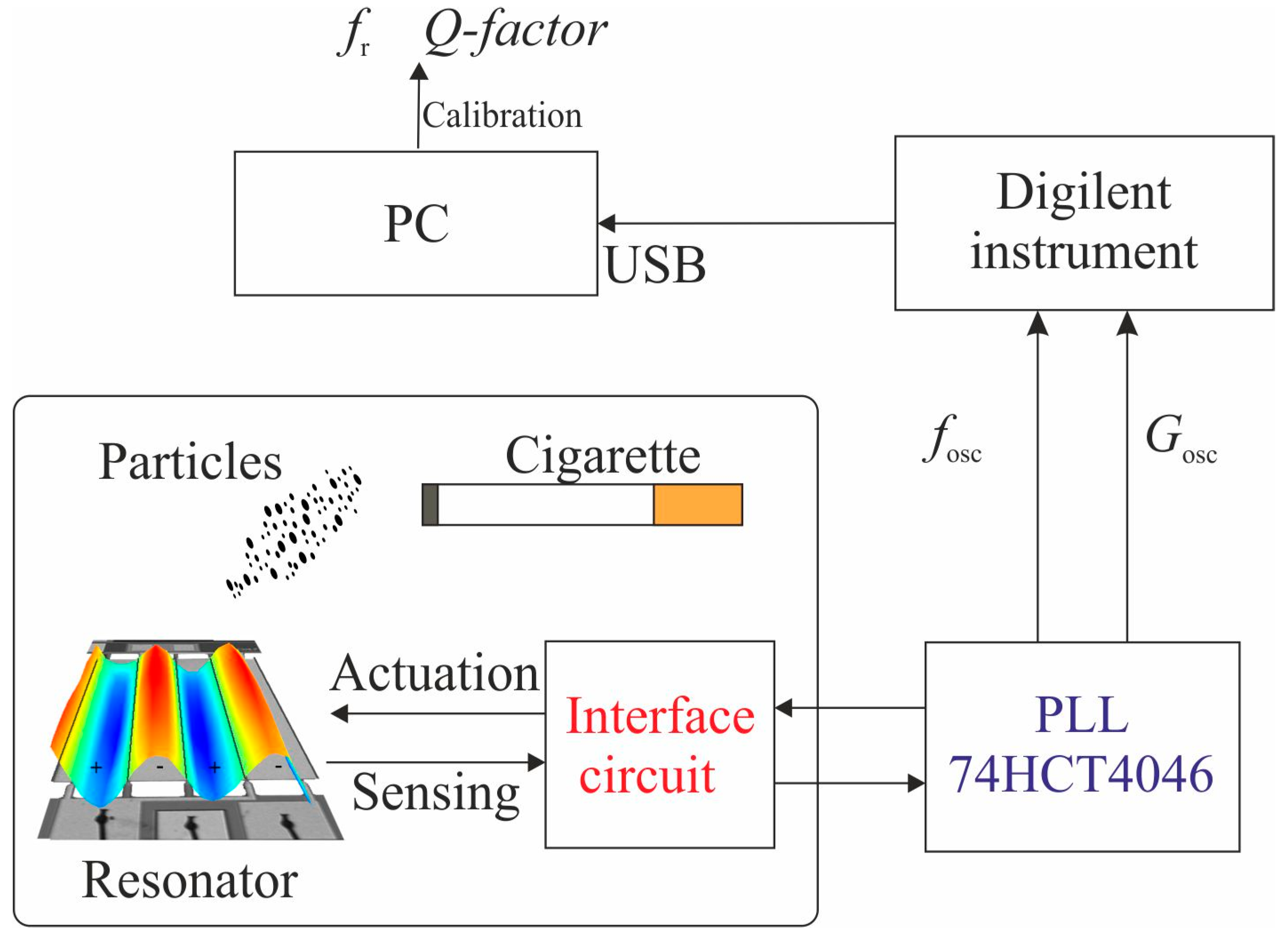

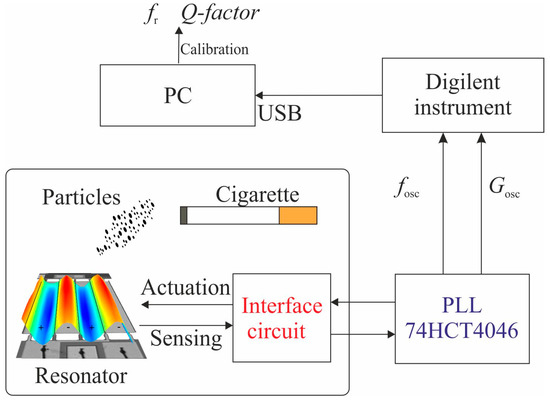

Figure 8. Schematic of the closed-loop setup with the PLL 74HCT4046.
Figure 8. Schematic of the closed-loop setup with the PLL 74HCT4046.
Micromachines 10 00145 g008

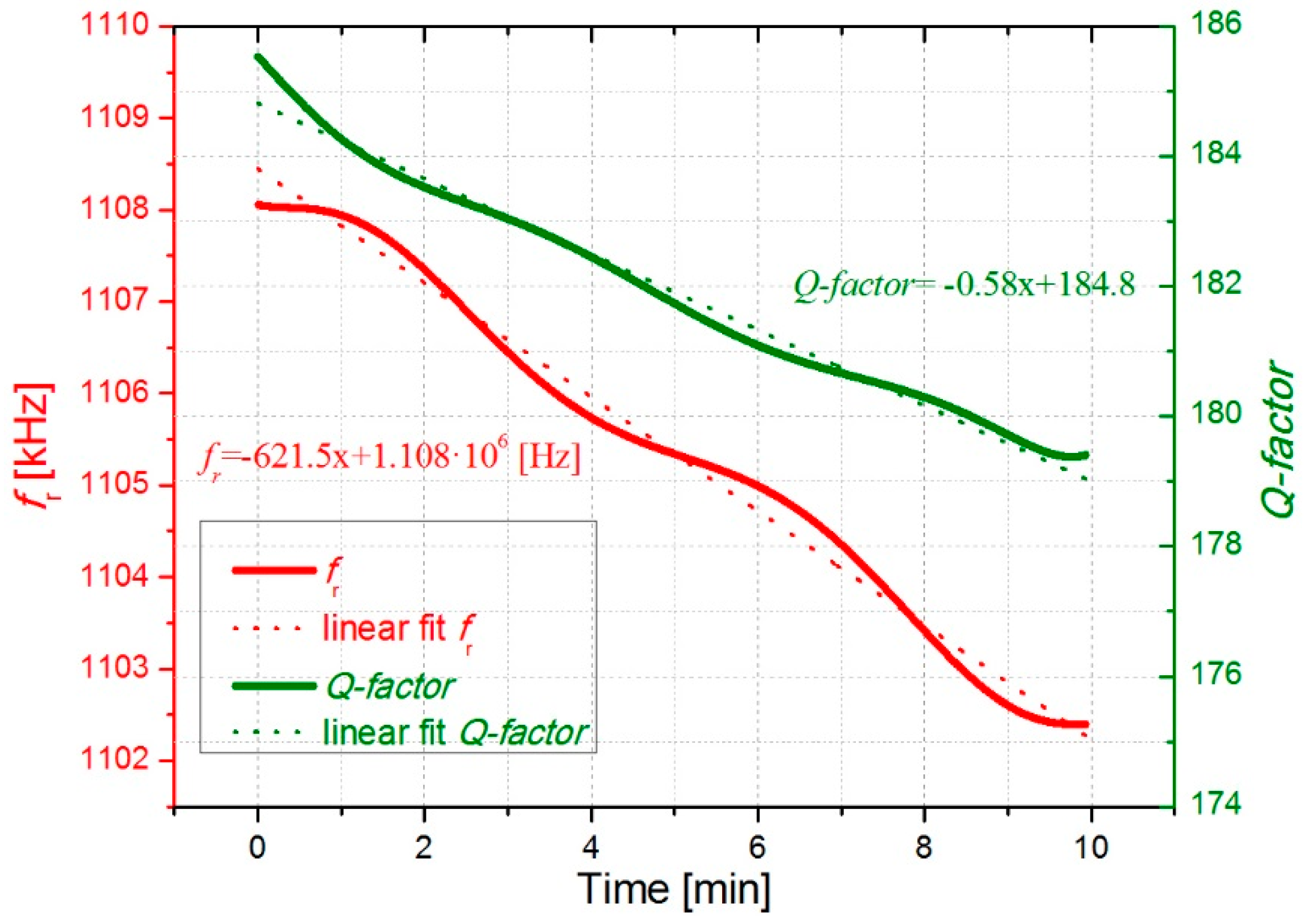

Figure 9. Closed loop measurement showing the evolution of the resonant parameters with the deposition of particles from one cigarette.
Figure 9. Closed loop measurement showing the evolution of the resonant parameters with the deposition of particles from one cigarette.
Micromachines 10 00145 g009

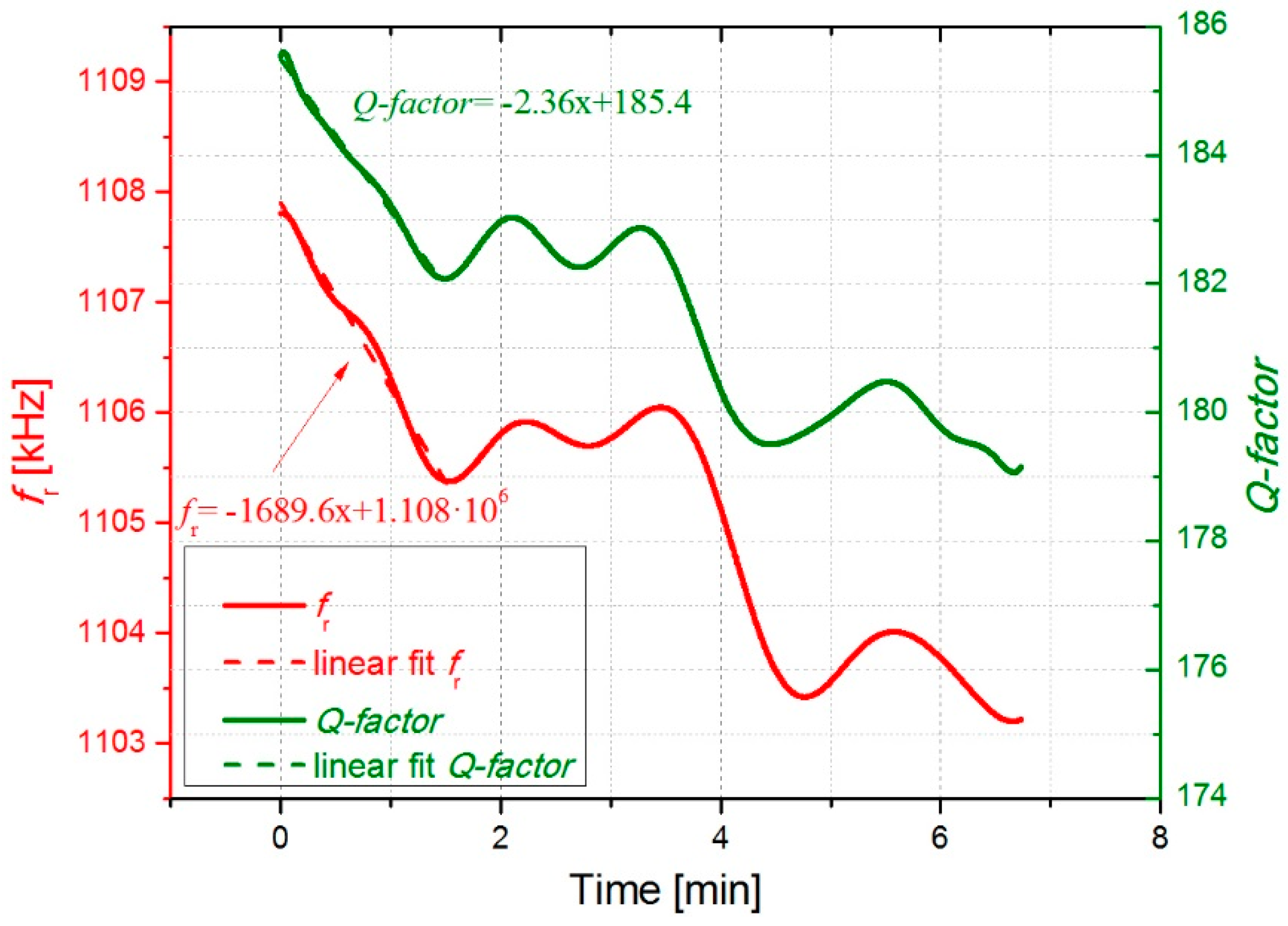

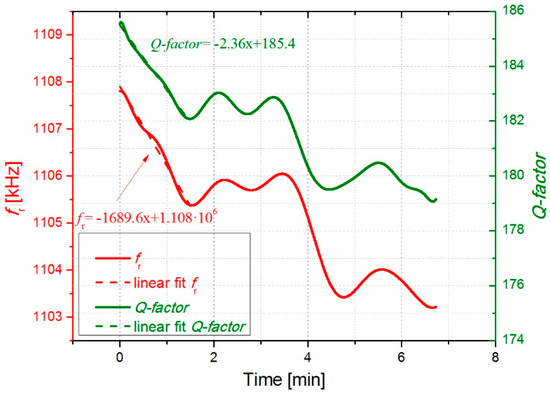

Figure 10. Closed loop measurement showing the evolution of the resonant parameters with the deposition of particles from two cigarettes.
Figure 10. Closed loop measurement showing the evolution of the resonant parameters with the deposition of particles from two cigarettes.
Micromachines 10 00145 g010

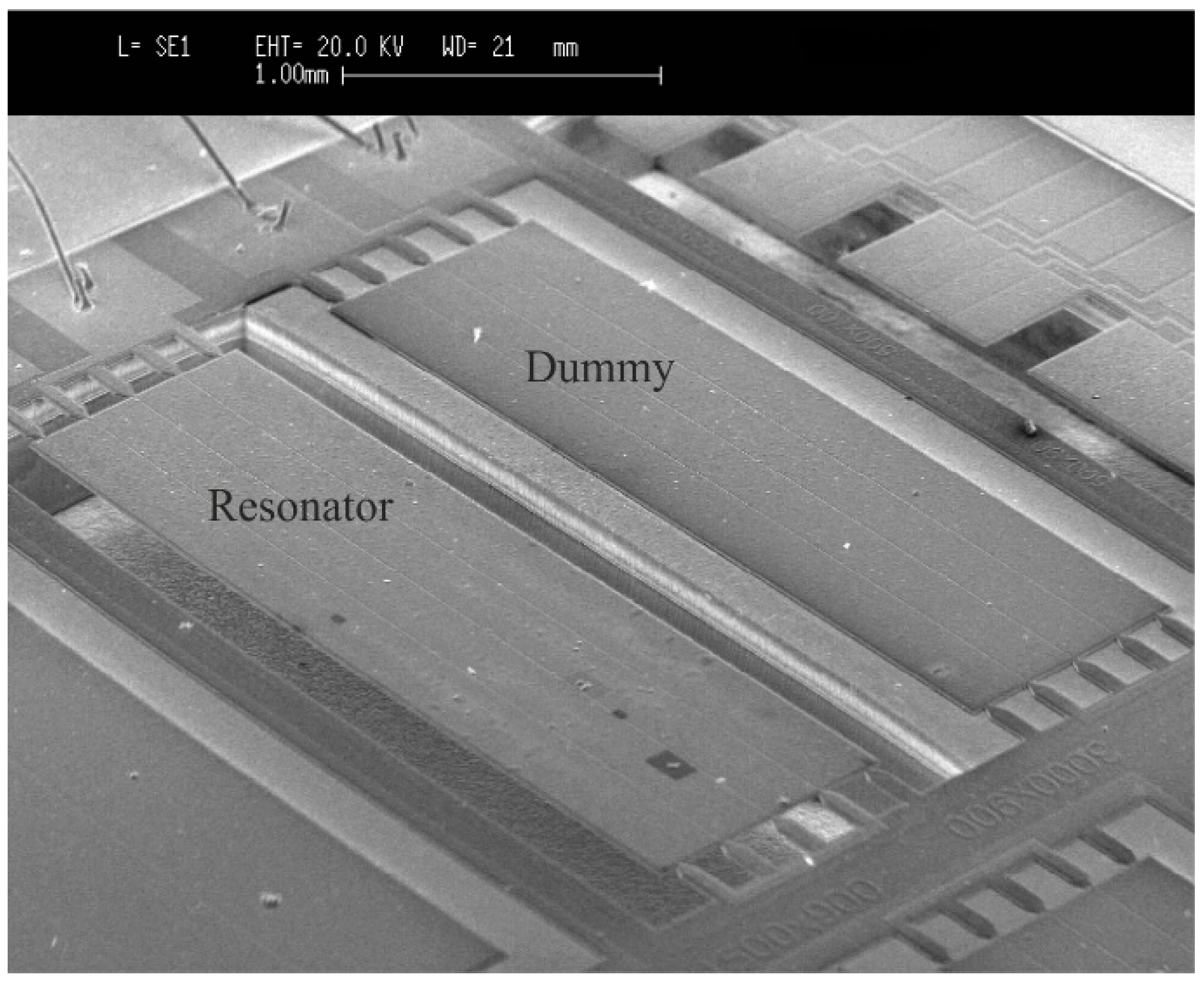

Figure 11. Micrograph of the 05-mode resonator and the dummy device with scanning electron microscope (SEM) after the deposition of cigarette particles.
Figure 11. Micrograph of the 05-mode resonator and the dummy device with scanning electron microscope (SEM) after the deposition of cigarette particles.
Micromachines 10 00145 g011

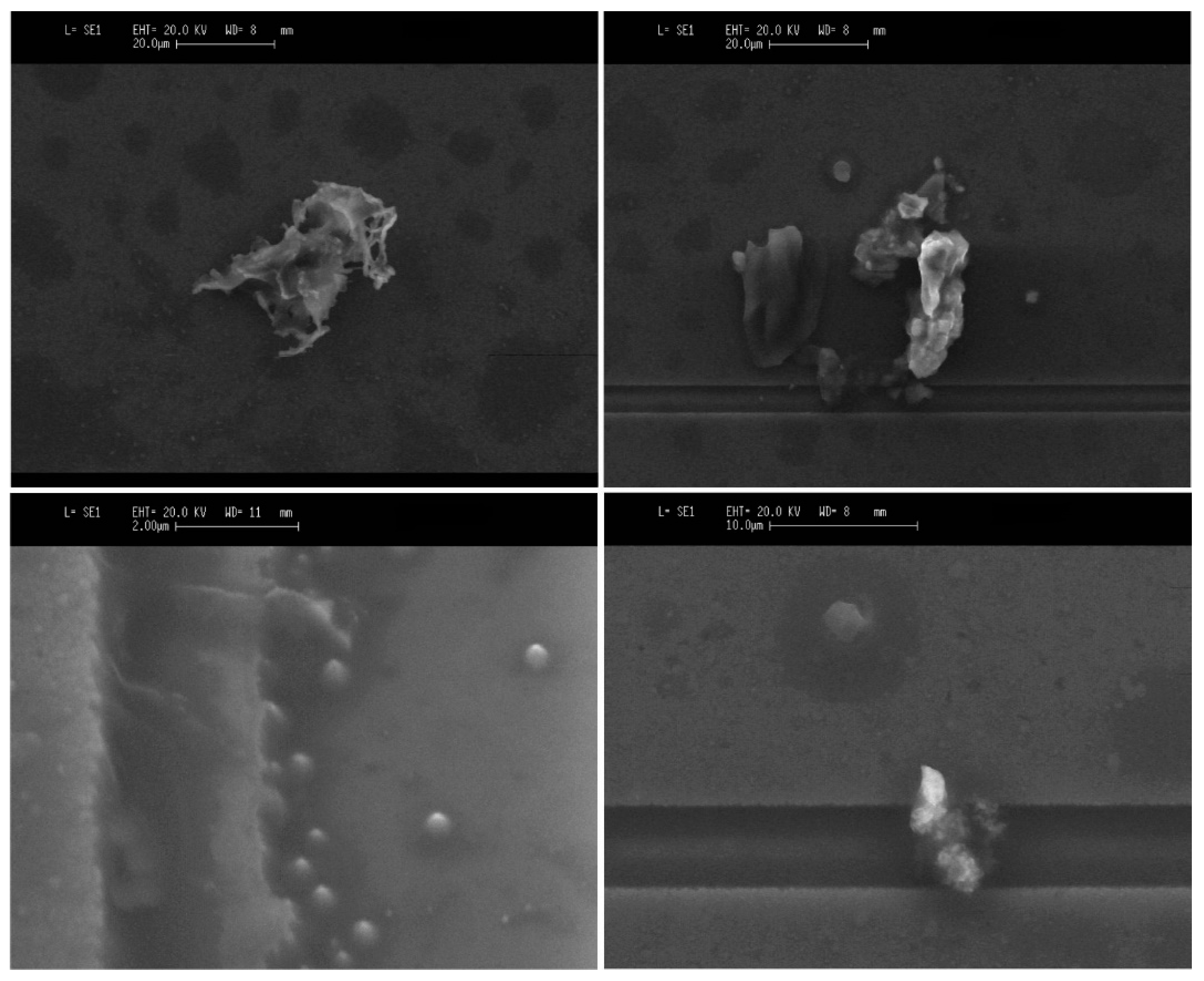

Figure 12. Micrographs of different cigarette particles deposited on the surfaces of a piezoelectric resonator.
Figure 12. Micrographs of different cigarette particles deposited on the surfaces of a piezoelectric resonator.
Micromachines 10 00145 g012
Table 1. M/NEMS-based resonators for gravimetric cigarette smoke detection.
Table 1. M/NEMS-based resonators for gravimetric cigarette smoke detection.
M/NEMS ResonatorParticle SamplerPLL for Frequency TrackingMass SensitivityMass ResolutionReference
FBAR 1thermophoreticintegratednot given2 µg/m3[11]
TPR 2impactornot given42 Hz/pgnot given[13]
TPR 2impactorexternal1.9 Hz/pg29.8 fg[14]
PCR-NWA 3nono20 Hz/ng50–100 pg[40]
PCR 4electrostaticintegrated12 Hz/ng76.2 pg[16]
PPR 5nointegrated8.8 Hz/ng114 pgThis work
1 FBAR: film bulk acoustic resonator. 2 TPR: thermal-piezoresistive resonator. 3 PCR-NWA: piezoresistive cantilever resonator with nanowire array. 4 PCR: piezoresistive cantilever resonator. 5 PPR: piezoelectric plate resonator.
