Surface Response Based Modeling of Liposome Characteristics in a Periodic Disturbance Mixer

1
Department of Electrical Engineering, École de technologie supérieure, 1100 Notre Dame-West, Montreal, QC H3C 1K3, Canada
2
School of Engineering and Sciences, Tecnológico de Monterrey, Av. Eugenio Garza Sada 2501 Sur, Monterrey 64849, N.L., Mexico
3
Department of Engineering, Universidad Autónoma de Querétaro Cerro de las Campanas s/n, Santiago de Querétaro 76010, Qro., Mexico
4
System on Chip Center, Department of Mechanical Engineering, Khalifa University, Abu Dhabi 127788, UAE
5
Department of Biological Sciences, Université du Québec à Montréal, 141 Président-Kennedy, Montreal, QC H2X 1Y4, Canada
6
Department of Mechanical and Industrial Engineering, Concordia University, 1455 de Maisonneuve Blvd. West, Montreal, QC H3G 1M8, Canada
*
Author to whom correspondence should be addressed.
Micromachines 2020, 11(3), 235; https://doi.org/10.3390/mi11030235
Submission received: 1 February 2020 / Revised: 20 February 2020 / Accepted: 22 February 2020 / Published: 25 February 2020
(This article belongs to the Special Issue Microfluidic Machines)

Abstract

:
Liposomes nanoparticles (LNPs) are vesicles that encapsulate drugs, genes, and imaging labels for advanced delivery applications. Control and tuning liposome physicochemical characteristics such as size, size distribution, and zeta potential are crucial for their functionality. Liposome production using micromixers has shown better control over liposome characteristics compared with classical approaches. In this work, we used our own designed and fabricated Periodic Disturbance Micromixer (PDM). We used Design of Experiments (DoE) and Response Surface Methodology (RSM) to statistically model the relationship between the Total Flow Rate (TFR) and Flow Rate Ratio (FRR) and the resulting liposomes physicochemical characteristics. TFR and FRR effectively control liposome size in the range from 52 nm to 200 nm. In contrast, no significant effect was observed for the TFR on the liposomes Polydispersity Index (PDI); conversely, FRR around 2.6 was found to be a threshold between highly monodisperse and low polydispersed populations. Moreover, it was shown that the zeta potential is independent of TFR and FRR. The developed model presented on the paper enables to pre-establish the experimental conditions under which LNPs would likely be produced within a specified size range. Hence, the model utility was demonstrated by showing that LNPs were produced under such conditions.

Graphical Abstract

1. Introduction

Liposomes are sphere-shaped vesicles with a range size from 20 nm to 2 µm. Liposomes are made of lipids that have an amphiphilic nature; this property allows them to self-assemble when an organic solvent, where initially they are dissolved in, is replaced by an aqueous solvent [1]. Liposomes are used for multiple biomedical applications such as drug delivery, medical imaging, gene delivery, and analysis [2].
The physicochemical properties of liposomes such as size, size distribution, and zeta potential determine how these vesicles interact with living entities. Inside the human body, liposome size influences to a high degree where liposomes will accumulate with a well-defined size range found to target specific organs [3], mostly the ones with the size below 150 nm. Accordingly, liposome size distribution is an essential factor as monodispersed liposome populations of the appropriate size will foster selective accumulation in higher percentages as opposed to those with highly polydispersed ones. Likewise, zeta potential is related to the net electric charge of the particle and the bulk fluid where particles are dissolved. Zeta potential is also known as electrokinetic potential. It determines the interaction between cells and particles, such as liposomes. These effects have been demonstrated in transfection applications [4,5]. Similarly, zeta potential values have shown to regulate the clearance rate in drug delivery applications where values range from -55 mV to 62 mV. A positive electrokinetic potential has shown to increase circulation time in in vivo models [6]. For these reasons, controlling final liposome characteristics is crucial for cargo delivery purposes.
The liposomes’ production method influences their final characteristics. Conventional liposome production methods such as thin-film hydration [7], ethanol injection [8], and reverse evaporation [9] usually lead to polydisperse liposomes, which require further homogenization steps such as sonication, extrusion, or solution handshaking [10]. These methods are complicated to scale-up and suffer from low batch to batch reproducibility. Micromixers offer an alternative method of liposome production, improving control over liposome properties. Typically, micromixers possess channels that are tens to hundreds of µm wide, where substances are mixed. At this scale, laminar flow commonly occurs, providing fluids with stable and uniform mixing interfaces, with mixing times in the millisecond range [11,12,13]. This mixing speed is essential for reactions where unstable intermediate states are produced as in the case of liposomes. Liposomes first form intermediate disk-shaped aggregates before self-assembly into spherical-shaped vesicles [14]. Furthermore, micromixers can operate in continuous flow conditions, increasing reproducibility. They can be easily parallelized in order to scale up production, resulting in process intensification as well as reducing waste and cost [15].
Micromixers based only on molecular diffusion or chaotic advection as mixing strategies have been extensively studied for liposome production [16,17]. However, these methods have shown limitations such as low final lipid concentration [16,18] and relatively poor device reliability [19]. Alternatives to such types of devices are Dean forces-based micromixers, which use curvilinear paths to induce centripetal forces, thus speeding up the mixing process [20,21,22]. Multiple micromixer designs using Dean forces have been previously proposed [19,23,24,25,26,27], showing promising results for lipid-based nanoparticles both in terms of increased yield (by reducing the Flow Rate Ratio (FRR) required to produce nanosized particles) as well as ease of fabrication of the microfluidic devices.
Furthermore, modeling and optimization of the produced liposome characteristics using advanced statistical tools have proved to be useful for finding the suitable flow conditions under which LNPs can be synthesized in micromixers such as the Staggered Herringbone Micromixer (SHM) for drug delivery systems [28,29] and the Micro Hydrodynamic Focusing Mixer (MHF) for gene delivery applications [30]. This statistical characterization is necessary, given the complicated relationship between the factors controlling liposomes’ properties. These properties vary from one micromixer to another, depending on their mixing principles, as well as other factors encountered at a molecular level [31]. To the best of our knowledge, no mathematical model connecting these variables has been established yet.
By contrast, such statistical methods have not been used in Dean forces-based micromixers other than in a study to assess the most influential variables among FRR, temperature, Total Flow Rate (TFR), lipid mixture, concentration, and micromixer geometry [32]. An advanced statistical study, as well as the use of these data for modeling, will provide useful information for controlling and modulating key liposome characteristics for biomedical applications.
In this work, we used a Dean forces-based micromixer with a novel design using a curvilinear mixing channel to induce an alternatively changing force vector, called a Periodic Disturbance Mixer (PDM). We used Design of Experiments (DoE) and Response Surface Methodology (RSM) to model and optimize liposome size, size distribution, and zeta potential (for a complete list of abbreviations and symbols please refer to Supplementary Materials Tables S1 and S2). This methodology enables us to rapidly screen, optimize, and predict final liposome characteristics that otherwise would be time-consuming, e.g., study one factor at the time. We demonstrated that our model was able to predict an experimental region where size-controlled liposomes ranging from 52 nm to 200 nm were produced. Finally, through numerical modeling, our work offers a glance at the relationship between the mixing performance of the proposed device and the properties of liposomes.

2. Materials and Methods

2.1. Micromixer Device Fabrication and Design

The PDM micromixer consists of two inlets in one extremity that convey fluid from a Y-shape into a mixing channel with 90 semicircular structures and an outlet at the other extremity, as shown in Figure 1A. The semicircular structures center of curvature changes in such a way that the centripetal forces vector changes by 180° within the plane of the flow main advection direction. Their radius was chosen to achieve 90% mixing efficiency in the order of hundreds to tens of milliseconds according to numerical models developed and run in COMSOL Multiphysics 5.5 software as further detailed in Section 2.5 and Section 3.7. The microchannel height was designed to be as large as possible to increase the potential liposome production yield while considering the aspect ratio microfabrication constraint, which in practice is typically up to 1:10. The final micromixer dimensions are as follows: the mixing channel height, as well as width, is 300 µm; the semicircles along the structure have a radius of 260 µm and, consequently, the narrowest mixing channel portion is 40 µm. The total micromixing channel length is 47.5 mm, as shown in Figure 1A. The Y-shaped inlet channels and the first two semicircular structures are shown in Figure 1B. Liquids flow from left to right as shown in Figure 1C.
The microfluidic device was fabricated using a standard soft-lithography process. The microfluidic device is made of Polydimethylsiloxane (PDMS) (Ellsworth Adhesives Canada, Stoney Creek, ON, Canada) plasma bonded (Glow Research, Tempe, AZ, USA) to a 75 × 25 mm microscope slide (Globe Scientific Inc., Mahwah, NJ, USA). Tygon® Tubing (Cole-Parmer, Montreal, QC, Canada) and stainless-steel fitters were used to connect the micromixer to syringes.

2.2. Lipid and Liposome Preparation

1,2-dimyristoyl-sn-glycero-3-phosphocholine (DMPC), cholesterol, and dicetyl phosphate (DHP) (Sigma-Aldrich, Oakville, ON, Canada) were mixed in a molar ratio 5:4:1. Reagents were first diluted in chloroform. Then the solvent was removed under an atmosphere free of oxygen using a nitrogen stream to avoid lipid degradation and to accelerate the process, as presented in previous works in the field [16]. The lipid mixture was stored under vacuum conditions for 24 h to remove solvent remnants. The mixture was then re-dissolved in ethanol to a final concentration of 5 mM. Then the lipid mixture was loaded into a syringe (Norm-Ject 10mL), while another syringe was loaded with ultrapure water filtered through the Mili-Q® Direct water purification system (Millipore Sigma, Oakville, ON, Canada), which removes particles, salts, and bacteria. All previously described liquids were filtered using 0.22 µm filters. The syringes were connected separately to each of the inlets in the previously described microfluidic device (Figure 1C) through 0.22 µm filters to avoid bubble generation and debris. The flows were controlled using two syringe pumps Harvard Apparatus 11 plus 70-2212 (Harvard Apparatus Canada, Montreal, QC, Canada). Liposomes were collected at the outlet for a total volume of 4 mL. The process temperature was set to 70 °C using a hot plate on which the micromixer was placed, this value considered the lipids transition temperature and, at the same time, it was set below ethanol’s boiling point, which is 78 °C. Another reason to choose this temperature was that previous studies have shown that increasing temperature reduces liposome size [33]. Finally, the solution containing the liposomes was collected on the hotplate, then it was cooled down for 15 min at room temperature to enable liposomes to anneal. Samples were stored at 4 °C to avoid degradation and to increase shelf life.
TFR is defined as the sum of flows of the two inlets in the device, while FRR is defined as the MiliQ water to ethanol flow rate ratio. The flows in the microfluidic device were calculated as follows.
Q as =   FRR · TFR ( 1   +   FRR )
Q os   =   TFR ( 1   +   FRR )
where Qas is the aqueous solvent flow (MiliQ Water), Qos is the organic solvent (ethanol plus diluted lipids), TFR is the total flow rate, and FRR is the flow rate ratio between the Qas and Qos. More details about how Equations (1) and (2) were derived can be found in Appendix A.

2.3. Liposome Characterization

Liposome size and size distribution were measured using Dynamic Light Scattering. This technique traces Brownian motion and relates this motion to particle size. The equipment used was the Zetasizer Nano S90 (Malvern, Worcestershire, UK). The equipment utilizes a He/Ne laser with emission at 632.8 nm, a power of 4 mW, and a 90° scattering detector. Measurements were performed at a stable temperature of 25 °C. Five hundred microliters of each sample was placed in a low-volume disposable cuvette. The average hydrodynamic diameter (Z-Average) and Polydispersity Index (PDI) of at least three independent measurements were recorded per sample. Liposomes collected from the outlet were further diluted for a final lipid concentration of 0.04 mg/mL. This concentration proved to yield high-quality measurement results. Liposome zeta potential was measured by placing each sample in a disposable cuvette (1850 µL). The measurements were performed using the ZetaPlus (Brookhaven Instrument Corp., Holtsville, NY, USA) at a stable temperature of 25 °C and a pH = 7.00. The measurement results were calculated based on the electrophoretic mobility of suspended particles under an electrical changing field. Zeta potential average is a result of 2 stable cycles and ten measurement repetitions.

2.4. Design of Experiments

Liposome final characteristics such as size, size distribution, and zeta potential relationship with flow conditions were modeled using RSM and DoE. RSM enables the evaluation of multiple factors or variables and their interactions influence on one or more responses, using regression analysis. This methodology allows us to predict and optimize process responses [34]. The use of DoE as opposed to One Factor At the Time (OFAT) allows interpreting interactions of two variables at the same time, as well as reducing the number of required experiments to model the liposome production process and time. In this work, TFR and FRR are considered factors independent process variables, while Z-Average (liposome diameter), PDI (size distribution), and zeta potential are considered responses.
The region of interest for the variables was delimited, considering the micromixer operational integrity and conditions under which a stable flow regime could be achieved. Table 1 shows the initial low and high values for each factor.
A two-variable Central Composite Circumscribed Rotatable (CCCR) Design was created using the software Minitab® 19, considering the values in Table 1. This experimental design predicted that the variance is only dependent on the distance from the center point. This design is used for quadratic models.
The optimized experimental design resulted in 29 experimental points, 4 axial points with 3 repetitions each that are the extreme values above and below the low and high settings, 4 cube points with 3 repetitions each that are the initial low and high values, and one center point with 5 repetitions that are in the middle between the cube points. The value α, which represents the distance between the center point and an axial point in coded units. The value was calculated as follows:
α   =   [ 2 k ] 1 4
where k is the number of factors, in this case, 2 for a final α = 1.41. The order of experimental runs was randomized. The continuous value for each experimental point was calculated by converting the coded value scale to the continuous value. Due to pumps resolution, values were rounded to 1 decimal position. Figure 2 shows the graphical representation of the experimental space and points for the two factors TFR and FRR.
Finally, a surface response model of second order with interactions was fitted for Z-average and PDI. Later, the model was assessed using Analysis of Variance (ANOVA) to identify the goodness of fit of R2, R2 (predicted), and model significance as well as each of the terms predicting liposome size and PDI (p = 0.05). The best model, among them, was chosen considering the statistics results. A post hoc Tukey test p = 0.05 was used to evaluate PDI and zeta potential groups. A paired t-test was used to assess liposome stability statistically. All previously described tests were performed using the software Minitab® 19.

2.5. Mixing Efficiency Using Numerical Modeling

The micromixing phenomenon was numerically modeled using Navier-Stokes equations coupled with the convection–diffusion equation, considering a single-phase flow using the software COMSOL Multiphysics 5.5. The next set of equations was solved until a steady state was reached.
ρ ( u · ) u   =   · [ pI   +   μ ( u + ( u ) T ) ]   +   F
ρ · ( u )   =   0
Where ρ is the fluid density,   u   is the flow velocity, p is the pressure,   μ is the dynamic viscosity, and F represents outer forces. The boundary conditions for the walls were set to no-slip condition. The velocity field that resulted from previous equations was used to solve the following set of equations, including the convection–diffusion equation.
· ( D c )   +   u · c   =   R
N   =   D c   +   uc
where c is the diluted species concentration, D is the mutual diffusion coefficient between water and ethanol, R is the net volumetric source for the species, and N is the molar flux.
In previous equations, D, ρ, and µ are in function of the solvent concentration c in the aqueous media. This approach allowed it to use a single-phase liquid with variable fluid characteristics to model a binary mixture. The equations approximating the mutual diffusion coefficient are described in the model by a 5th order polynomial fitting experimental data from the binary mixture ethanol–water [35,36].
Mixing Efficiency (ME) inside the channel was calculated by first dividing the given cross-sections normal to the main flow direction into a grid of 50 × 50 elements. Then, the Danckwert´s intensity of segregation concept was applied to the concentration of these cross-section elements [37]. ME was calculated using Equation (8).
ME   = [ 1 σ 2 σ 0 2 ] ×   100 %
where σ 0 2 is the variance of concentration at the beginning of the mixing channel, where liquids are completely unmixed and σ 2 is the variance of the concentration at a given cross-section.

3. Results and Discussion

The liposome characterization results from the CCDR experimental design were used to create through response surface methodology, a model capable of predicting Z-average, PDI, and zeta potential. Finally, model predictions were compared with an experimental validation run. These results were discussed and related to mixing efficiencies in the PDM.

3.1. Liposome Final Characteristics DoE results

We investigated the influence of FRR and TFR using the experimental design shown in Table 2. The coded values are in parenthesis. The resulting responses: i.e., liposome size (Z-average), PDI, and Zeta Potential, are given on the right side of the same table.
Liposome size ranged from 52 nm to 200 nm for the tested experimental conditions. PDI oscillated between 0.060 (highly monodisperse populations) to a maximum of 0.270 (low polydispersed populations). Lastly, zeta potential varied in a range from −37.7 mV to −24.6 mV.
Liposomes produced under the same experimental conditions showed a maximum standard deviation of 11.48 nm in size and a minimum of 0.43 nm. These variations might have been caused by batch to batch lipid preparation variations and unpredicted bubbles generated inside mixing channels that can disturb the stability of the flow’s interface.

3.2. Liposome Size (Z-Average) Modeling

First, a full quadratic surface response model was fitted using FRR and TFR as independent factors and Z-average (size) as a response. A one-way ANOVA analysis was performed for each term in the model. Then the model was reduced, considering the level of significance of each term. All terms with a p > 0.05 were ignored. A new surface response model was run to increase the prediction precision or R2-predicted. Equation (9) shows the final surface response model. Note that TFR2 and TFR·FRR were removed because they yielded a p > 0.05.
Z average   =   236 . 3     26 . 95   FRR   4 . 437   TFR   +   1 . 573 ( FRR ) 2
Figure 3 shows the surface response model derived from the data, as well as the R2, R2-adjusted, and R2-predicted. The linear factors TFR and FRR reduce liposome size; on the other hand, FRR2 avoids further liposome size reduction for a value above 8.56.
The factors FRR and TFR showed a considerable influence over final liposome size, this in accordance with previous works in the field for other types of mixers such as the Micro Hydrodynamic Focused (MHF) micromixer [38], the Staggered Herringbone Micromixer [17], and Dean Forces based micromixers [19,24]. Compared to other statistical models for SHM and MHF geometries [29,30], the R2 values are similar. Our model did not show curvature for TFR, indicating a simple linear interaction related to this variable and liposomes size. Considering that drug delivery systems require liposomes with a size range from 45 nm (DauXome®) to 180 nm (Myocet®) [28], we used the model to identify the flow conditions that could lead to this size range with an emphasis in finding the minimum realizable liposome size.
We used the model and optimized the factor values without restrictions within the experimental range to minimize the function, which, in this case, is liposome size (Z-average). The minimum average size predicted was 41.07 nm, with a 95% confidence range between 25.10 nm and 57.03 nm. The factors levels are FRR = 8.56 and TFR = 18 mL/h.

3.3. Polydispersity Index Modeling

The PDI range in the experimental results is from 0.06 to 0.27, or from highly monodisperse populations to low polydispersed populations. These values are comparable with MHF and SHM micromixers for liposome production.
We proceeded using a similar approach to analyze the influence of the two factors, FRR and TFR, over the response PDI. In this case, we also eliminated terms that are not statistically significant (p > 0.05), as in the previous model. The quadratic term TFR2 and the interaction term TFR·FRR were eliminated. Equation (10) shows the final model with four terms.
PDI   =   0.0663   +   0.03181   FRR   +   0.00319   TFR   0.001905   ( FRR ) 2
The surface response model for PDI is shown in Figure 4. Equation (10) shows that the value of the PDI is proportional to the FRR2 and TFR. Most of the model results for PDI are ranging between 0.1 and 0.3 for the experimental range.
To better understand the reasons behind R2 results, we performed a Tukey pairwise comparison to group the significantly different PDI means (95% confidence level), as shown in Table 3.
The comparison detected three entirely statistically different conditions among the nine tested in this work for the PDI, with a mean of 0.07, 0.18, and 0.24. It could be inferred from the experimental conditions that a low FRR value results in highly monodisperse populations; however, above FRR = 2.6, the PDI values are mostly the same and only when FRR = 12.0, another PDI population appears. This behavior might indicate that the PDM has well-delimited operation regimes.

3.4. Zeta Potential Relationship with TFR and FRR

Finally, the zeta potential values range was limited from −38.8 to −23.1 mV on average. The means of each condition are not statistically significantly different from each other, according to grouping information using the Tukey method and 95% confidence. Figure 5 shows the zeta potential for the nine different conditions. This factor showed itself to be independent of TFR and FRR; thus, the model was not significant.

3.5. Statistical Model for Controlling Liposome Characteristics

The statistical information, together with the models, indicate that liposome size could be tuned by modifying TFR and FRR. On the other hand, PDI has three different groups, which might be related to the micromixer operation regime. Finally, neither the TFR nor FRR has any influence over zeta potential results using a PDM. Results from other types of micromixers indicate that only composition plays a role in liposome zeta potential [5]. Table 4 shows a summary of the statistical models.

3.6. Model Prediction vs. Experimental Validation Run

The flow conditions which the model predicted would lead to the minimum liposome size were validated, as were the conditions in the vicinity of the prediction. The model predicted a minimum size at approximately FRR = 9 and TFR = 18 mL/h. The predicted size was 41 nm. Figure 6 shows the size immediately after production, after six months, and the predicted size using the model presented previously. The model predicted, with reasonable accuracy, the size for an FRR of 3, 5, and 12. The size for FRR of 1, 7, and 9 was out of the Standard Error (SE) fit value. Liposome size reduction reaches a plateau before reaching high FRR values. These results may represent the limit for the presented conditions and the PDM. This size plateauing at high FRR is found in other types of micromixers such as the Vertical Flow Focusing Device (VFF) [39] and recently published 3D printed devices for liposome production [40]. The asymptotic behavior of the liposome size is challenging to predict using a quadratic model.
Moreover, there was not a statistical difference in liposome size six months after production. This result indicates the high stability of the liposome nanoparticles produced, which suggests a suitable shelf life of such a product.
Finally, the PDI for measurements performed immediately after liposome production, six months after, and the model predictions were compared, as shown in Figure 7. The same figure shows the snapshots of videos taken using Nanoparticle Tracking Analysis (NTA) of two samples produced at FRR = 1 and FRR = 9 (Videos S1 and S2). The comparison between DLS and NTA results are shown in Table S3. In this case, even if the model is not a good fit (R2-predicted = 24.55), it predicted values that are close to the measured values due to the low variation of PDI and because of the change induced by FRR is minimal. It could be considered that PDI is independent of the experimental range for values above FRR = 3, indicating an intrinsic process property. Number-wise, PDI values do not change significantly. However, this variation has an impact on liposome population classification between monodispersed and low polydispersed populations.

3.7. Relationship Between the Mixing Process and Liposome Properties

To investigate further Z-average and PDI results, the mixing efficiencies inside the microchannel were evaluated using the numerical model detailed in Section 2.5. The experimental mixing performance of the device in function of FRR is shown in Videos S3–S8. Table S4 shows the flow conditions for each video. Liposomes are formed when lipids initially diluted in ethanol agglomerate first in intermediate disk-shaped structures due to the polarity change caused by the mix of ethanol and water. As the polarity continues to increase, as a consequence of a lower ethanol concentration in the binary mixture, these disk-shaped agglomerates are forced to close into spheres to avoid lipids tails exposure to a high polarity value media [41]. How fast the transition occurs from agglomeration to self-assembly highly determines liposome size [42]. The mixing speed and uniformity modulate this transition from low polarity to high polarity.
In the presented validation experiments, FRR modulated the speed at which ethanol and water mixed, as illustrated in Figure 8. The separation between where each condition crosses 90% of mixing efficiency is reduced at each step. This feature closely relates to liposome size decrease as shown in Figure 6. Moreover, the slope of the curve for FRR = 1 is very different compared to all the other conditions. The latter indicates that PDI might be modulated by the speed at which mixing efficiency increases.
The relationship between concentration profiles uniformity and PDI has been investigated for VFF mixers [39], where the aspect ratio controls the concentration profile uniformity. By contrast, in the PDM, FRR modulates the profile uniformity. PDI results indicate that a threshold value separating monodisperse populations and low polydisperse populations exist at FRR ≥ 3. These results could be related to a more uniform mixing profile at FRR = 1 compared with other FRR values. FRR defines the width of the diluted species at the beginning of the channel. Higher FRRs values mean a narrower ethanol interface, which allows a faster dispersion perpendicular to the main advection direction resulting in smaller liposomes. Although higher FRRs results in non-uniform concentration profiles that might result in more polydisperse populations. This difference in the concentration profile is illustrated in Figure 9 in different cross-sections for FRR = 1 and FRR = 3.

4. Conclusions

In this work, we used DoE and RSM to model, control, and optimize liposome properties in a Periodic Disturbance Mixer. FRR and TFR control liposome Z-average (size), as the model predicted. On the other hand, PDI showed three statistically distinct mean values, indicating likely operating regime ranges. One of these PDIs is remarkably different from the other two at low FRR. This behavior could suggest that centripetal forces start to produce Dean vortices only after specific flow conditions are reached in our proposed micromixer. Lastly, zeta potential values under different experimental conditions are not statistically different from each other, indicating that FRR and TFR do not influence this variable. These results also suggest that the liposomes’ zeta potential is controlled by another factor not studied in this work.
The size range of liposomes produced by our proposed device is comparable to currently available liposome formulations in the market.
Additionally, through numerical simulations, we investigated the relationship between the mixing conditions in the PDM and liposome properties such as size and PDI. Mixing time was related to liposome size, while the uniformity of the mixing profile was related to PDI.
Further studies are needed to understand why there are different flow regimes affecting size and PDI. Moreover, other properties influencing liposomes’ self-assembly at a molecular level should be addressed.

Supplementary Materials

The following are available online at https://www.mdpi.com/2072-666X/11/3/235/s1, Supplementary Information. Table S1: List of abbreviations, Table S2: List of symbols, Table S3: DLS vs. NTA measurements, Table S4: Video names and flow conditions, Video S1: NTA FRR = 1 TFR = 18, Video S2: NTA FRR = 9 TFR = 18, Video S3: FRR = 1 TFR = 18, Video S4: FRR = 3 TFR = 18, Video S5: FRR=5 TFR = 18, Video S6: FRR = 7 TFR = 18, Video S7: FRR = 9 TFR = 18, and Video S8 FRR = 12 TFR = 18.

Author Contributions

Conceptualization, R.R.L., I.O., I.S., and V.N.; methodology, R.R.L., I.O., and A.A.; formal analysis, R.R.L. and L.-M.S.; investigation, R.R.L., I.O., A.A., and L.-M.S.; resources, A.A., I.S., K.-F.B., C.M., and V.N.; data curation, R.R.L.; writing—original draft preparation, R.R.L.; writing—review and editing, R.R.L., I.O., L.-M.S., A.A., S.C.-L., K.-F.B., C.M., I.S., and V.N.; validation, L.-M.S.; visualization R.R.L. and I.O.; supervision, A.A., K.-F.B., C.M., I.S., and V.N.; project administration, R.R.L.; funding acquisition, A.A., C.M., I.S., and V.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by CONACyT-ETS (389081), CONACyT international mobility (859557), NSERC (REN253), Khalifa University (CIRA-2019-014), and ÉTS.

Acknowledgments

This work was supported by the grant CONACyT-ETS, CONACyT International Mobility Scholarship, Concordia University, NSREC, École de technologie supérieure, Khalifa University, and UQAM. CMC Microsystems supported this work through lending equipment and software. We would like to acknowledge the chemical department at UQAM, the NANOQAM, and COFAMIQ network for the training in the cleanroom, nanoparticle characterization, and equipment use. Especially to Ricardo Izquierdo, Alexandre Robichaud, Galyna Shul, Jacqueline Hue Tieu, and Luc Arsenault. Nanoparticle Tracking Analysis was performed in collaboration with Janusz Rak, Miguel Burnier and Julia Burnier Laboratory at McGill University Health Centre under the supervision of Laura Montermini and Thupten Tsering. Paula Gonzalez from Universitat Politècnica de Catalunya supported mixing imaging experiments. Prasun Lala from SARA Group ÉTS helped to proofread this article.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Appendix A

Flow Conditions Calculations
The Total Flow Rate (TFR) is defined as the sum of the flows entering the microchannels. In this case, the aqueous solvent flow (MiliQ water) Qas and the organic solvent flow (ethanol) Qos.
TFR   =   Q as +   Q os
The Flow Rate Ratio (FRR) is defined as the ratio between the aqueous solvent and the organic solvent.
FRR   =   Q a s Q o s
Solving for Qas and substituting in Equation (A1).
TFR   =   FRR · Q o s +   Q o s
Solving for Qos
Q o s   =   T F R 1 + F R R
Finally, solving for Qas in Equation (A4)
Q a s   =   F R R · T F R ( 1 + F R R )
The flow in each of the inlets is defined in terms of FRR and TFR, as stated in Equations (1) and (2) in Section 2.2.

References

  1. Lasič, D.D. A general model of vesicle formation. J. Theor. Biol. 1987, 124, 35–41. [Google Scholar] [CrossRef]
  2. Pattni, B.S.; Chupin, V.V.; Torchilin, V.P. New Developments in Liposomal Drug Delivery. Chem. Rev. 2015, 115, 10938–10966. [Google Scholar] [CrossRef] [PubMed]
  3. Blanco, E.; Shen, H.; Ferrari, M. Principles of nanoparticle design for overcoming biological barriers to drug delivery. Nat. Biotechnol. 2015, 33, 941–951. [Google Scholar] [CrossRef] [PubMed]
  4. Felgner, P.L.; Gadek, T.R.; Holm, M.; Roman, R.; Chan, H.W.; Wenz, M.; Northrop, J.P.; Ringold, G.M.; Danielsen, M. Lipofection: A highly efficient, lipid-mediated DNA-transfection procedure. Proc. Natl. Acad. Sci. USA 1987, 84, 7413–7417. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Shende, P.; Ture, N.; Gaud, R.S.; Trotta, F. Lipid- and polymer-based plexes as therapeutic carriers for bioactive molecules. Int. J. Pharm. 2019, 558, 250–260. [Google Scholar] [CrossRef] [PubMed]
  6. Khadke, S.; Roces, C.B.; Cameron, A.; Devitt, A.; Perrie, Y. Formulation and manufacturing of lymphatic targeting liposomes using microfluidics. J. Control. Release 2019, 307, 211–220. [Google Scholar] [CrossRef] [PubMed]
  7. Bangham, A.D.; De Gier, J.; Greville, G.D. Osmotic properties and water permeability of phospholipid liquid crystals. Chem. Phys. Lipids 1967, 1, 225–246. [Google Scholar] [CrossRef]
  8. Batzri, S.; Korn, E.D. Single bilayer liposomes prepared without sonication. Biochim. Biophys. Acta 1973, 298, 1015–1019. [Google Scholar] [CrossRef]
  9. Szoka, F.; Papahadjopoulos, D. Procedure for preparation of liposomes with large internal aqueous space and high capture by reverse-phase evaporation. Proc. Natl. Acad. Sci. USA 1978, 75, 4194–4198. [Google Scholar] [CrossRef] [Green Version]
  10. Akbarzadeh, A.; Rezaei-Sadabady, R.; Davaran, S.; Joo, S.W.; Zarghami, N.; Hanifehpour, Y.; Samiei, M.; Kouhi, M.; Nejati-Koshki, K. Liposome: Classification, preparation, and applications. Nanoscale Res. Lett. 2013, 8, 1–9. [Google Scholar] [CrossRef] [Green Version]
  11. Capreto, L.; Cheng, W.; Hill, M.; Zhang, X. Microfluidics: Technologies and Applications, 1st ed.; Bingcheng, L., Ed.; Springer: Berlin/Heidelberg, Germany; New York, NY, USA, 2011; Volume 304, p. 4. [Google Scholar]
  12. Nguyen, N.-T. Chapter 1—Introduction. In Micromixers, 2nd ed.; William Andrew Publishing: Norwich, NY, USA, 2012; pp. 1–8. [Google Scholar] [CrossRef]
  13. Nguyen, N.-T.; Wu, Z. Micromixers a review. J. Micromech. Microeng. 2005, 15, R1. [Google Scholar] [CrossRef]
  14. Jahn, A.; Lucas, F.; Wepf, R.A.; Dittrich, P.S. Freezing Continuous-Flow Self-Assembly in a Microfluidic Device: Toward Imaging of Liposome Formation. Langmuir 2013, 29, 1717–1723. [Google Scholar] [CrossRef] [PubMed]
  15. Shallan, A.I.; Priest, C. Microfluidic process intensification for synthesis and formulation in the pharmaceutical industry. Chem. Eng. Proc. Proc. Intensif. 2019, 142, 107559. [Google Scholar] [CrossRef]
  16. Jahn, A.; Stavis, S.M.; Hong, J.S.; Vreeland, W.N.; DeVoe, D.L.; Gaitan, M. Microfluidic Mixing and the Formation of Nanoscale Lipid Vesicles. ACS Nano 2010, 4, 2077–2087. [Google Scholar] [CrossRef] [PubMed]
  17. Belliveau, N.M.; Huft, J.; Lin, P.J.C.; Chen, S.; Leung, A.K.K.; Leaver, T.J.; Wild, A.W.; Lee, J.B.; Taylor, R.J.; Tam, Y.K.; et al. Microfluidic Synthesis of Highly Potent Limit-size Lipid Nanoparticles for In Vivo Delivery of siRNA. Mol. Ther. Nucleic Acids 2012, 1, e37. [Google Scholar] [CrossRef] [PubMed]
  18. Hood, R.R.; DeVoe, D.L.; Atencia, J.; Vreeland, W.N.; Omiatek, D.M. A facile route to the synthesis of monodisperse nanoscale liposomes using 3D microfluidic hydrodynamic focusing in a concentric capillary array. Lab Chip 2014, 14, 2403–2409. [Google Scholar] [CrossRef]
  19. Kimura, N.; Maeki, M.; Sato, Y.; Note, Y.; Ishida, A.; Tani, H.; Harashima, H.; Tokeshi, M. Development of the iLiNP Device: Fine Tuning the Lipid Nanoparticle Size within 10 nm for Drug Delivery. ACS Omega 2018, 3, 5044–5051. [Google Scholar] [CrossRef]
  20. Rhoades, T.; Kothapalli, C.R.; Fodor, P.S. Mixing Optimization in Grooved Serpentine Microchannels. Micromachines 2020, 11, 61. [Google Scholar] [CrossRef] [Green Version]
  21. Raza, W.; Ma, S.-B.; Kim, K.-Y. Single and Multi-Objective Optimization of a Three-Dimensional Unbalanced Split-and-Recombine Micromixer. Micromachines 2019, 10, 711. [Google Scholar] [CrossRef] [Green Version]
  22. Javaid, M.U.; Cheema, T.A.; Park, C.W. Analysis of Passive Mixing in a Serpentine Microchannel with Sinusoidal Side Walls. Micromachines 2018, 9, 8. [Google Scholar] [CrossRef] [Green Version]
  23. Lee, M.G.; Choi, S.; Park, J.-K. Rapid laminating mixer using a contraction-expansion array microchannel. Appl. Phys. Lett. 2009, 95, 051902. [Google Scholar] [CrossRef] [Green Version]
  24. Lee, J.; Lee, M.G.; Jung, C.; Park, Y.-H.; Song, C.; Choi, M.C.; Park, H.G.; Park, J.-K. High-throughput nanoscale lipid vesicle synthesis in a semicircular contraction-expansion array microchannel. BioChip J. 2013, 7, 210–217. [Google Scholar] [CrossRef]
  25. Valencia, P.M.; Basto, P.A.; Zhang, L.; Rhee, M.; Langer, R.; Farokhzad, O.C.; Karnik, R. Single-Step Assembly of Homogenous Lipid−Polymeric and Lipid−Quantum Dot Nanoparticles Enabled by Microfluidic Rapid Mixing. ACS Nano 2010, 4, 1671–1679. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Wu, Y.; Li, L.; Mao, Y.; Lee, L.J. Static Micromixer–Coaxial Electrospray Synthesis of Theranostic Lipoplexes. ACS Nano 2012, 6, 2245–2252. [Google Scholar] [CrossRef] [PubMed]
  27. Bottaro, E.; Mosayyebi, A.; Carugo, D.; Nastruzzi, C. Analysis of the Diffusion Process by pH Indicator in Microfluidic Chips for Liposome Production. Micromachines 2017, 8, 209. [Google Scholar] [CrossRef] [Green Version]
  28. Sedighi, M.; Sieber, S.; Rahimi, F.; Shahbazi, M.-A.; Rezayan, A.H.; Huwyler, J.; Witzigmann, D. Rapid optimization of liposome characteristics using a combined microfluidics and design-of-experiment approach. Drug Deliv. Transl. Res. 2019, 9, 404–413. [Google Scholar] [CrossRef]
  29. Kastner, E.; Kaur, R.; Lowry, D.; Moghaddam, B.; Wilkinson, A.; Perrie, Y. High-throughput manufacturing of size-tuned liposomes by a new microfluidics method using enhanced statistical tools for characterization. Int. J. Pharm. 2014, 477, 361–368. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Balbino, T.A.; Aoki, N.T.; Gasperini, A.A.M.; Oliveira, C.L.P.; Azzoni, A.R.; Cavalcanti, L.P.; de la Torre, L.G. Continuous flow production of cationic liposomes at high lipid concentration in microfluidic devices for gene delivery applications. Chem. Eng. J. 2013, 226, 423–433. [Google Scholar] [CrossRef]
  31. Bleul, R.; Thiermann, R.; Maskos, M. Techniques to Control Polymersome Size. Macromolecules 2015, 48, 7396–7409. [Google Scholar] [CrossRef]
  32. López Salazar, R.R.; Ocampo, I.; Bergeron, K.-F.; Alazzam, A.; Mounier, C.; Stiharu, I.; Nerguizian, V. Assessment of the Factors Influencing Liposome Size in Dean Forces Based µmixers. In Proceedings of the µTAS 2019 the 23rd International Conference on Miniaturized Systems for Chemistry and Life Sciences, Basel, Switzerland, 30 October 2019; pp. 366–367. [Google Scholar]
  33. Zook, J.M.; Vreeland, W.N. Effects of temperature, acyl chain length, and flow-rate ratio on liposome formation and size in a microfluidic hydrodynamic focusing device. Soft Matter 2010, 6, 1352–1360. [Google Scholar] [CrossRef]
  34. Silva, V. Statistical Approaches with Emphasis on Design of Experiments Applied to Chemical Processes; BoD–Books on Demand: Norderstedt, Germany, 2018. [Google Scholar]
  35. Pratt, K.C.; Wakeham, W.A. The Mutual Diffusion Coefficient of Ethanol-Water Mixtures: Determination by a Rapid, New Method. Proc. R. Soc. A 1974, 336, 393–406. [Google Scholar] [CrossRef]
  36. González, B.; Calvar, N.; Gómez, E.; Domínguez, Á. Density, dynamic viscosity, and derived properties of binary mixtures of methanol or ethanol with water, ethyl acetate, and methyl acetate at T = (293.15, 298.15, and 303.15)K. J. Chem. Thermodyn. 2007, 39, 1578–1588. [Google Scholar] [CrossRef]
  37. Danckwerts, P.V. The definition and measurement of some characteristics of mixtures. Appl. Sci. Res., Sect. A 1952, 3, 279–296. [Google Scholar] [CrossRef]
  38. Jahn, A.; Vreeland, W.; Locascio, L.; Gaitan, M. Controlled vesicle self-assembly in continuous two phase flow microfluidic channels. JACS 2004, 126, 2674–2675. [Google Scholar] [CrossRef] [PubMed]
  39. Hood, R.R.; DeVoe, D.L. High-Throughput Continuous Flow Production of Nanoscale Liposomes by Microfluidic Vertical Flow Focusing. Small 2015, 11, 5790–5799. [Google Scholar] [CrossRef] [PubMed]
  40. Chen, Z.; Han, J.Y.; Shumate, L.; Fedak, R.; DeVoe, D.L. High Throughput Nanoliposome Formation Using 3D Printed Microfluidic Flow Focusing Chips. Adv. Mater. Technol. 2019, 4, 1800511. [Google Scholar] [CrossRef]
  41. Lasic, D.D. The mechanism of vesicle formation. Biochem. J. 1988, 256, 1–11. [Google Scholar] [CrossRef]
  42. Maeki, M.; Fujishima, Y.; Sato, Y.; Yasui, T.; Kaji, N.; Ishida, A.; Tani, H.; Baba, Y.; Harashima, H.; Tokeshi, M. Understanding the formation mechanism of lipid nanoparticles in microfluidic devices with chaotic micromixers. PLoS ONE 2017, 12, e0187962. [Google Scholar] [CrossRef]

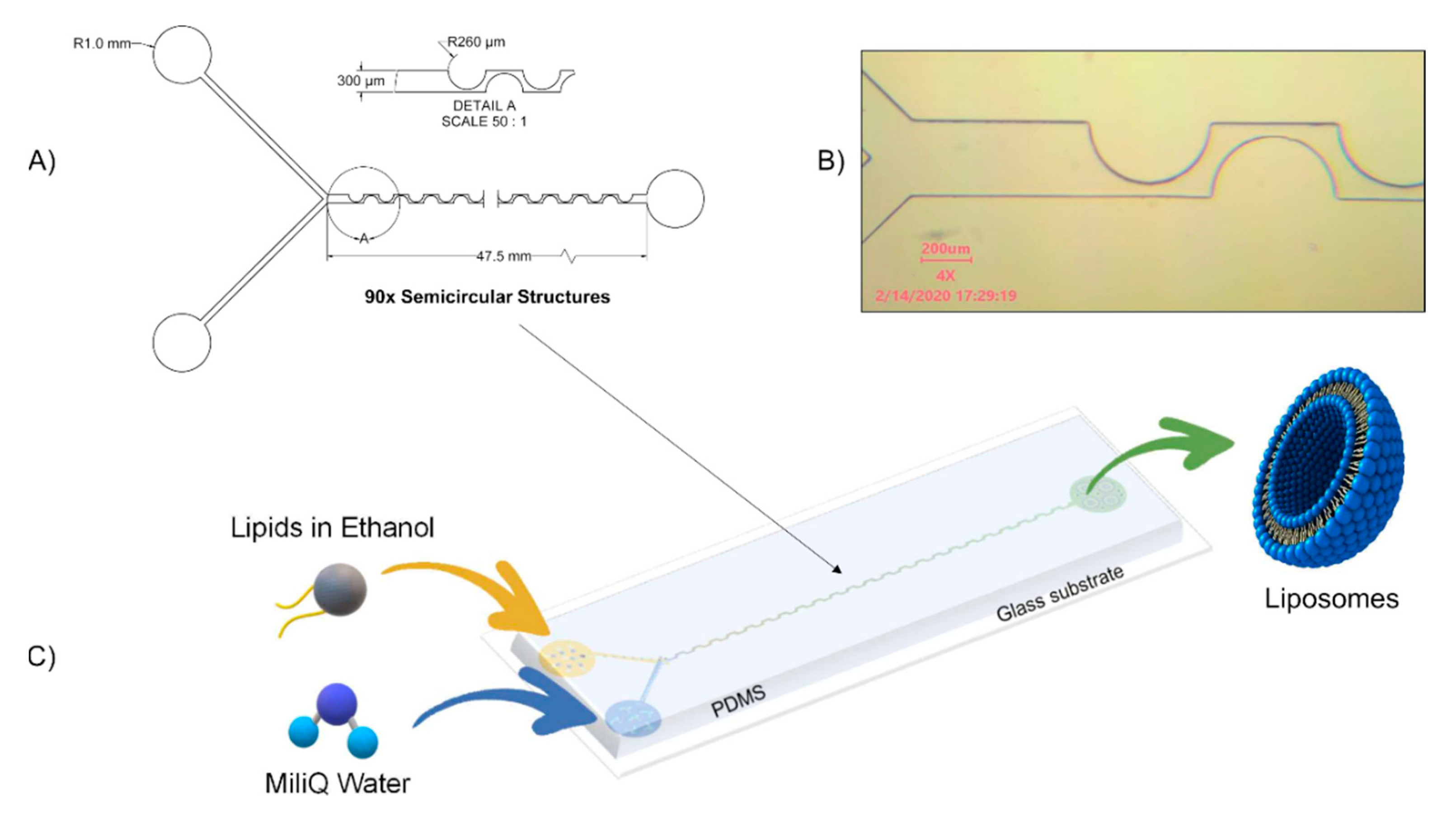

Figure 1. Periodic Disturbance Micromixer. (A) Microchannel dimensions. (B) Microscope image of the Periodic Disturbance Micromixer (PDM) device. (C) Schematic representation of the liposome formation process, lipids diluted in ethanol are injected in one inlet, while MiliQ water is injected in the second inlet. After passing through the mixing channel, liposomes are collected at the outlet.
Figure 1. Periodic Disturbance Micromixer. (A) Microchannel dimensions. (B) Microscope image of the Periodic Disturbance Micromixer (PDM) device. (C) Schematic representation of the liposome formation process, lipids diluted in ethanol are injected in one inlet, while MiliQ water is injected in the second inlet. After passing through the mixing channel, liposomes are collected at the outlet.
Micromachines 11 00235 g001

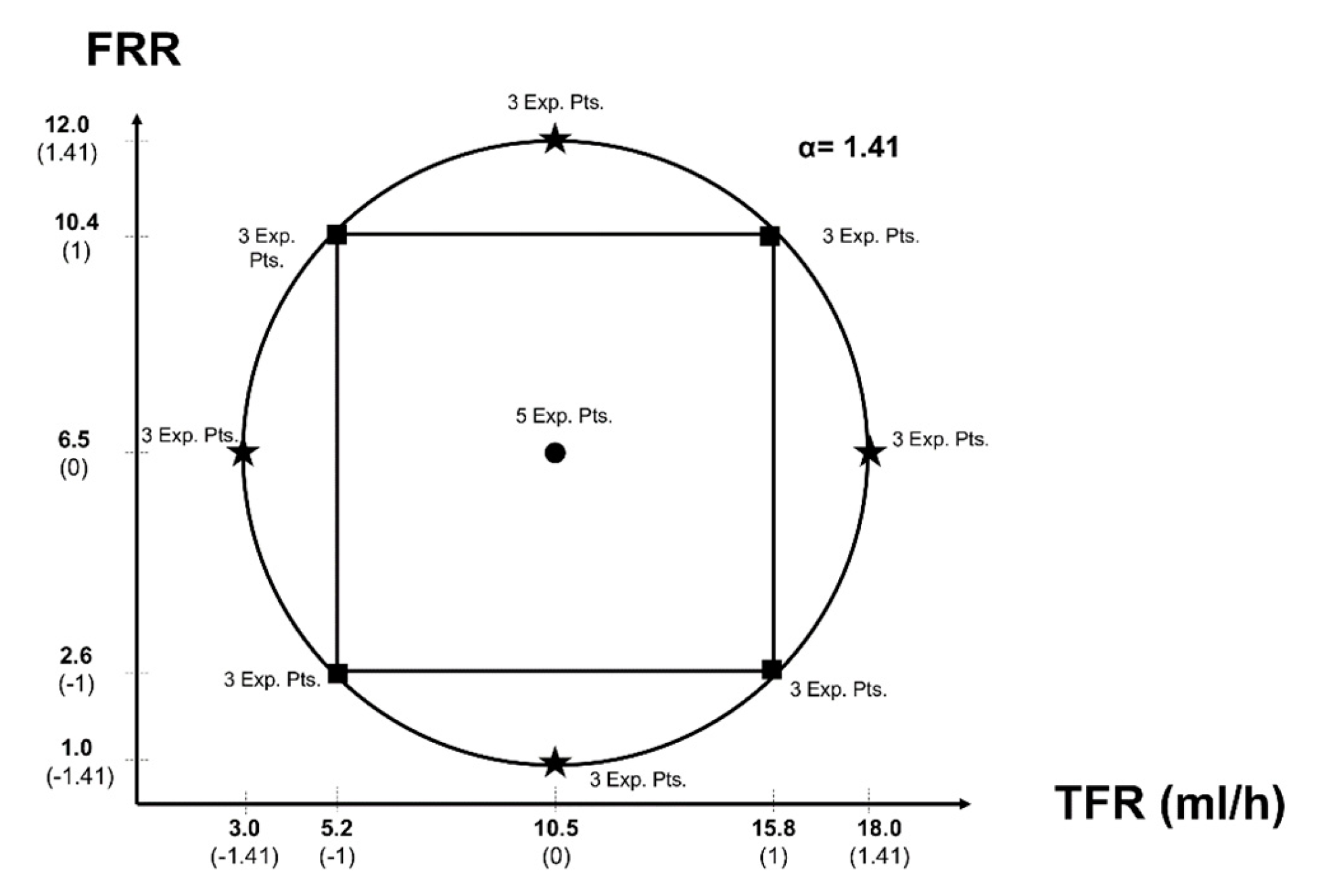

Figure 2. Central Composite Circumscribed Rotatable (CCCR) Design. All experimental points are at the same distance from the center. The experimental design has four axial points and four cubic points, each one with three repetitions and one central point with five repetitions. α = 1.41. Coded values are in parentheses.
Figure 2. Central Composite Circumscribed Rotatable (CCCR) Design. All experimental points are at the same distance from the center. The experimental design has four axial points and four cubic points, each one with three repetitions and one central point with five repetitions. α = 1.41. Coded values are in parentheses.
Micromachines 11 00235 g002

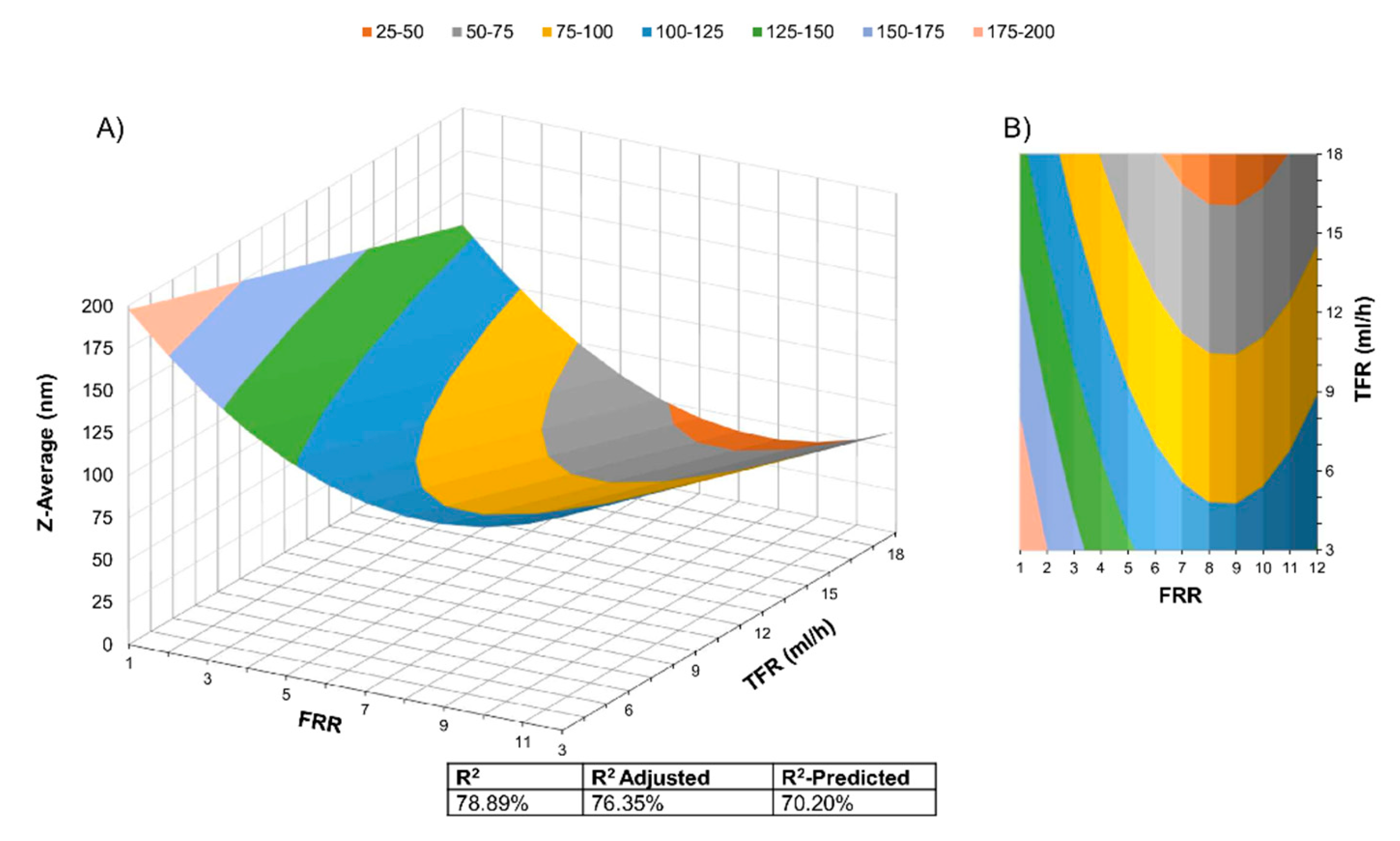

Figure 3. Surface Response Model derived from the Central Composite Circumscribed Rotatable Design Data. The model level of significance is p < 0.05. (A) 3-dimensional, (B) Contours representation.
Figure 3. Surface Response Model derived from the Central Composite Circumscribed Rotatable Design Data. The model level of significance is p < 0.05. (A) 3-dimensional, (B) Contours representation.
Micromachines 11 00235 g003
Figure 4. PDI Surface Response Model as well as the R2, R2-adjusted, and R2-predicted. The model has a p < 0.05. (A) 3-dimensional, (B) Contours representation.
Figure 4. PDI Surface Response Model as well as the R2, R2-adjusted, and R2-predicted. The model has a p < 0.05. (A) 3-dimensional, (B) Contours representation.
Micromachines 11 00235 g004

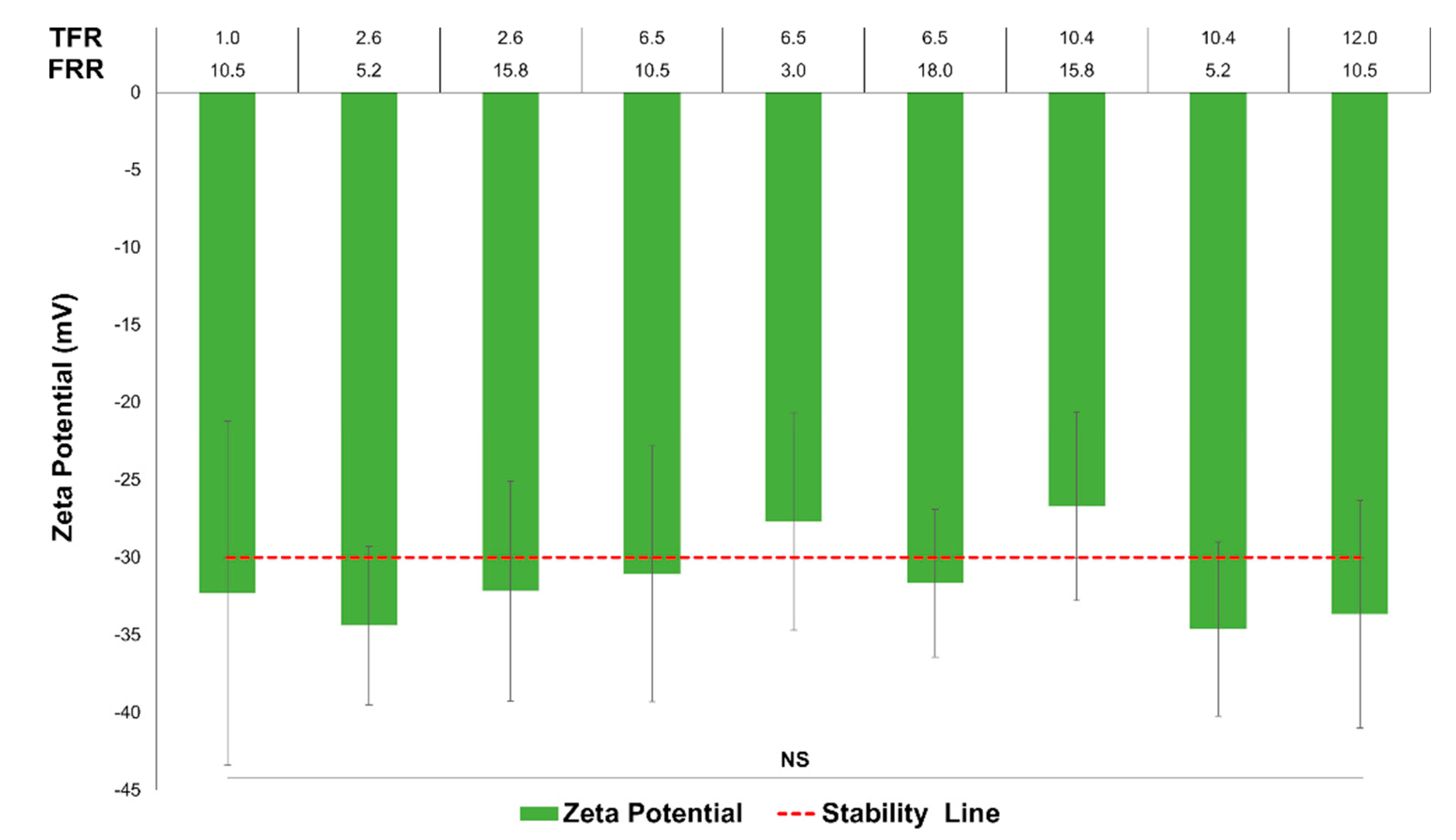

Figure 5. Zeta potential measurements result for the nine different conditions. The x-axis values correspond to TFR on the top and FRR on the bottom. The red line marks the stability line for particle dispersions (+/− 30 mV). The error bars show 1.96σ, indicating the limits of 95% confidence.
Figure 5. Zeta potential measurements result for the nine different conditions. The x-axis values correspond to TFR on the top and FRR on the bottom. The red line marks the stability line for particle dispersions (+/− 30 mV). The error bars show 1.96σ, indicating the limits of 95% confidence.
Micromachines 11 00235 g005

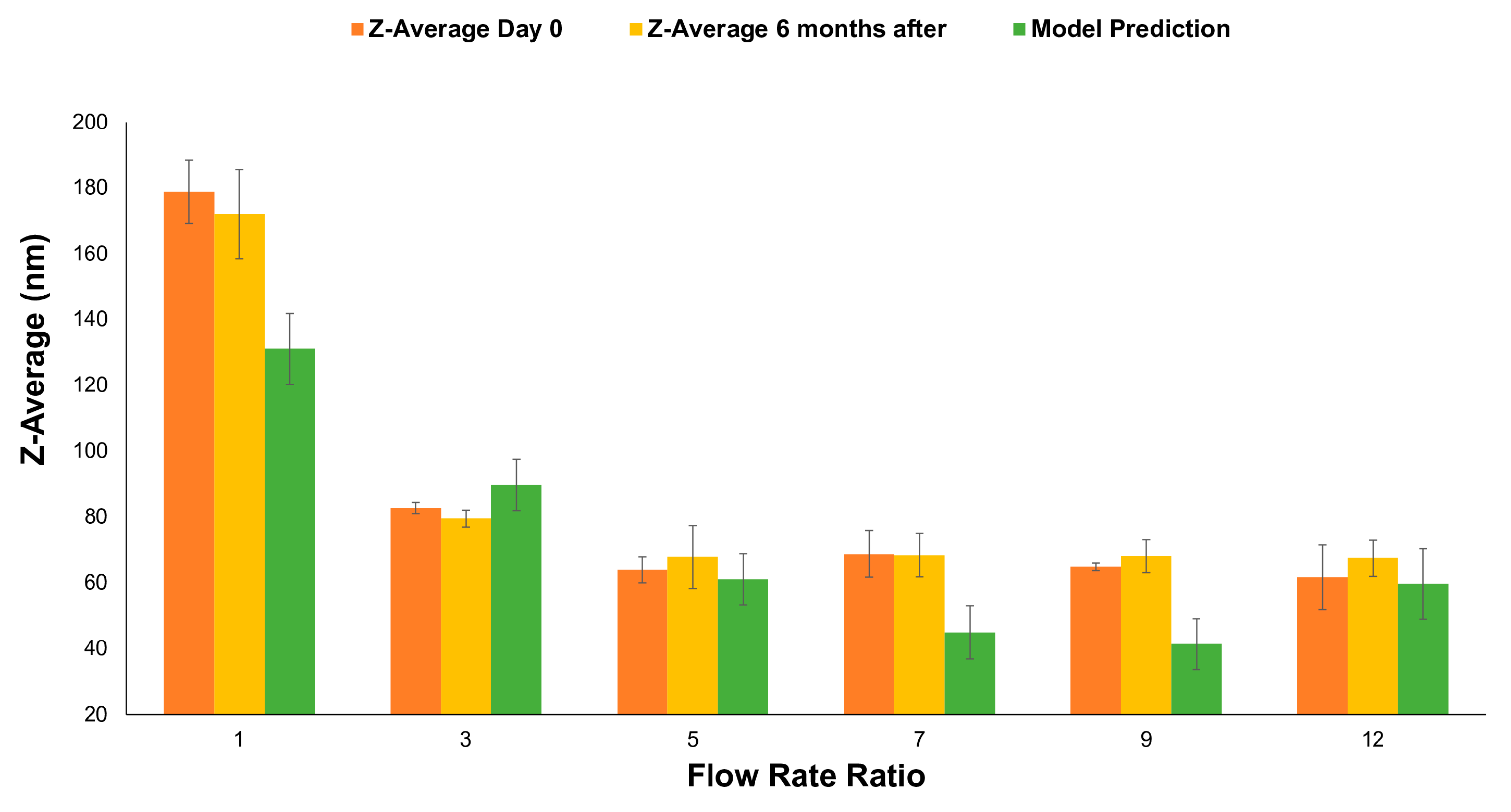

Figure 6. Z-average (nm) vs. FRR at a constant TFR = 18 mL/h. In orange, the Z-average immediately after production, in yellow six months after, and in green the model prediction. n = 3. Error bars indicate +/− 1 standard deviation (SD) for samples and SE fit for the model prediction.
Figure 6. Z-average (nm) vs. FRR at a constant TFR = 18 mL/h. In orange, the Z-average immediately after production, in yellow six months after, and in green the model prediction. n = 3. Error bars indicate +/− 1 standard deviation (SD) for samples and SE fit for the model prediction.
Micromachines 11 00235 g006

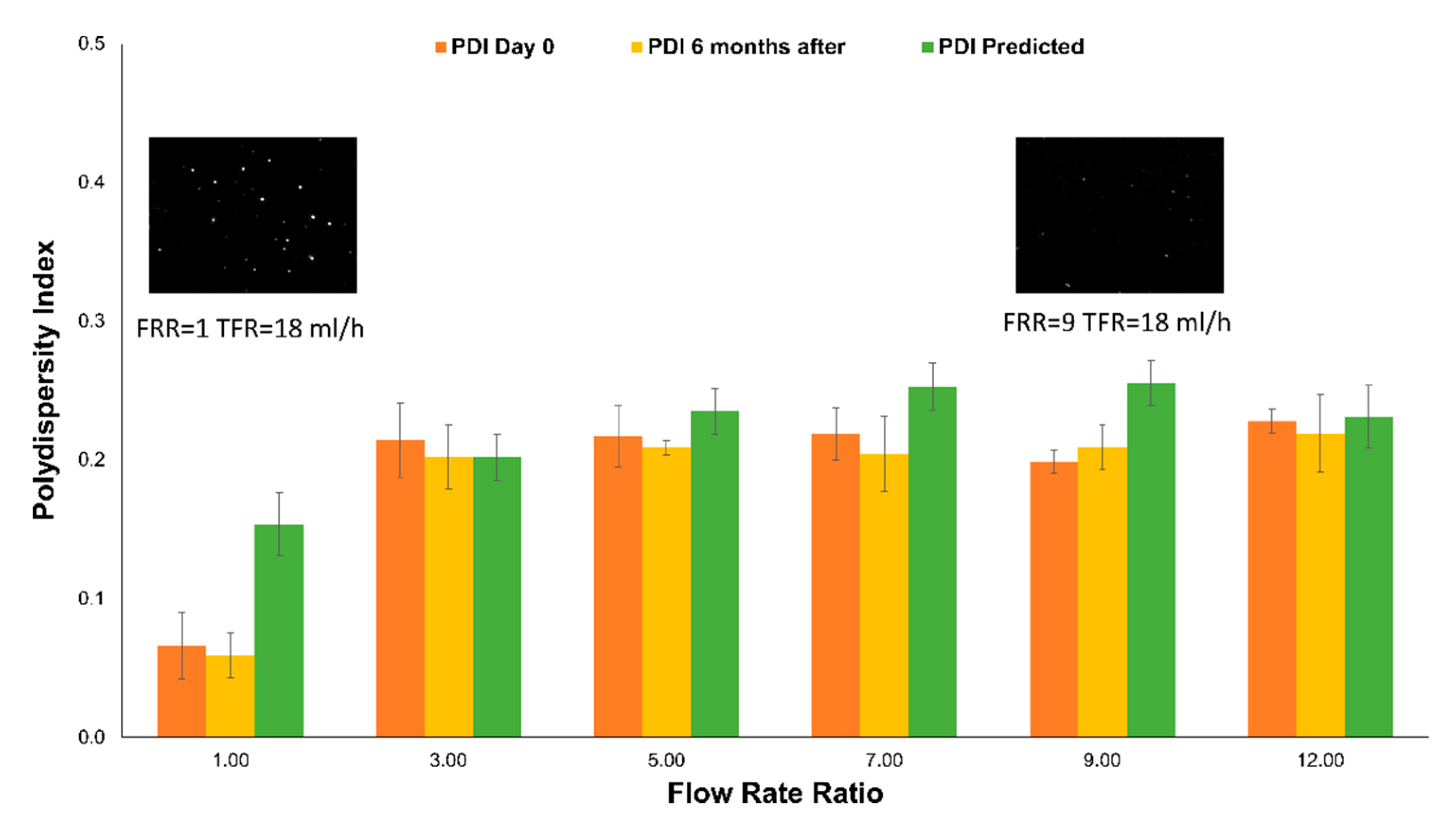

Figure 7. Liposomes PDI measurements immediately after production (orange), six months after (yellow), and the model prediction (green) at a constant TFR = 18 mL/h. n = 3, error bars indicate +/− 1 SD for samples and SE fit for the model prediction. Images are taken from videos using NTA, as shown in supporting material Videos S1 and S2.
Figure 7. Liposomes PDI measurements immediately after production (orange), six months after (yellow), and the model prediction (green) at a constant TFR = 18 mL/h. n = 3, error bars indicate +/− 1 SD for samples and SE fit for the model prediction. Images are taken from videos using NTA, as shown in supporting material Videos S1 and S2.
Micromachines 11 00235 g007

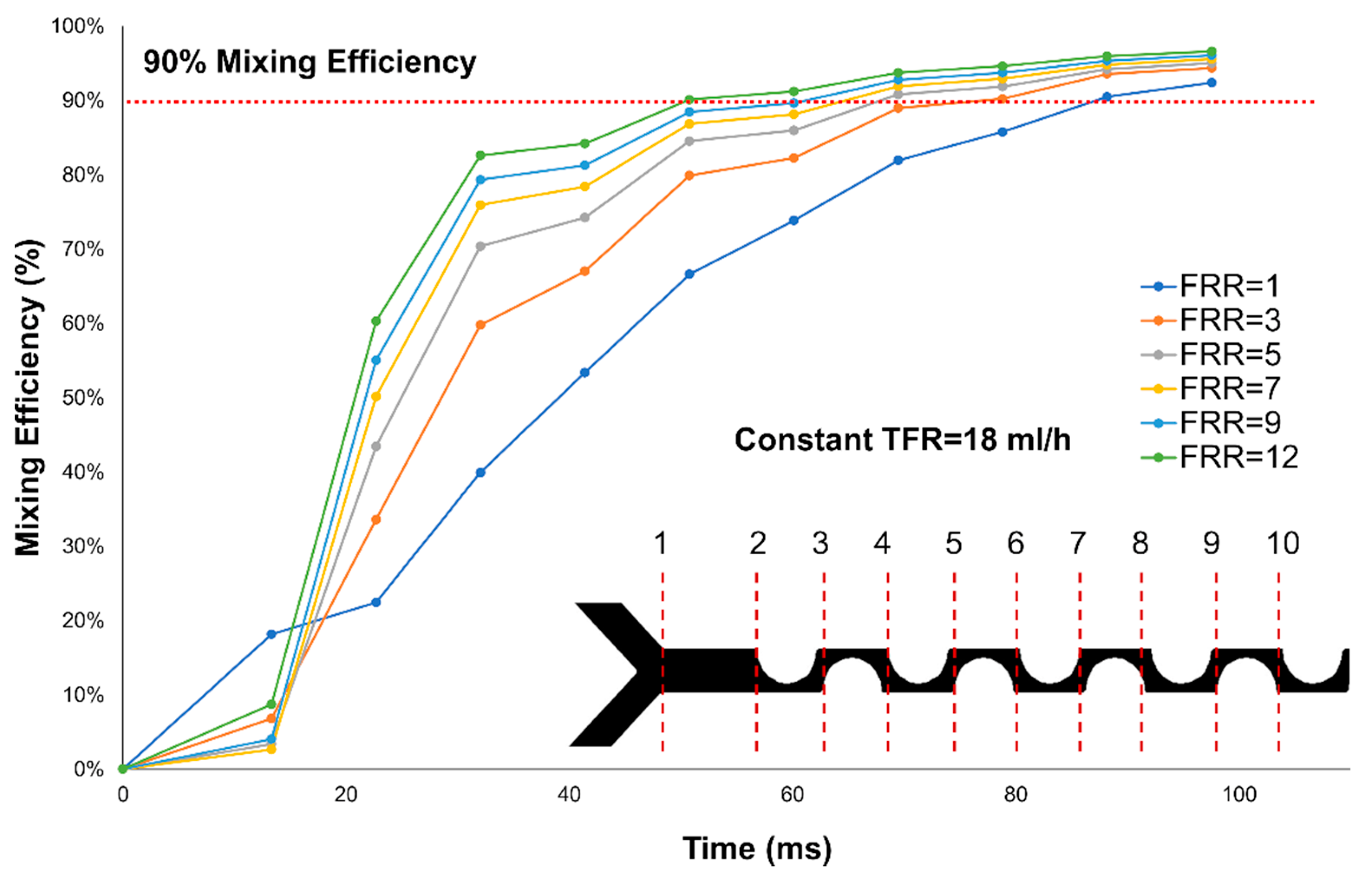

Figure 8. Mixing efficiency at different FRRs. Each data point corresponds to a cross-section for a total of 10 data points from 1–10.
Figure 8. Mixing efficiency at different FRRs. Each data point corresponds to a cross-section for a total of 10 data points from 1–10.
Micromachines 11 00235 g008

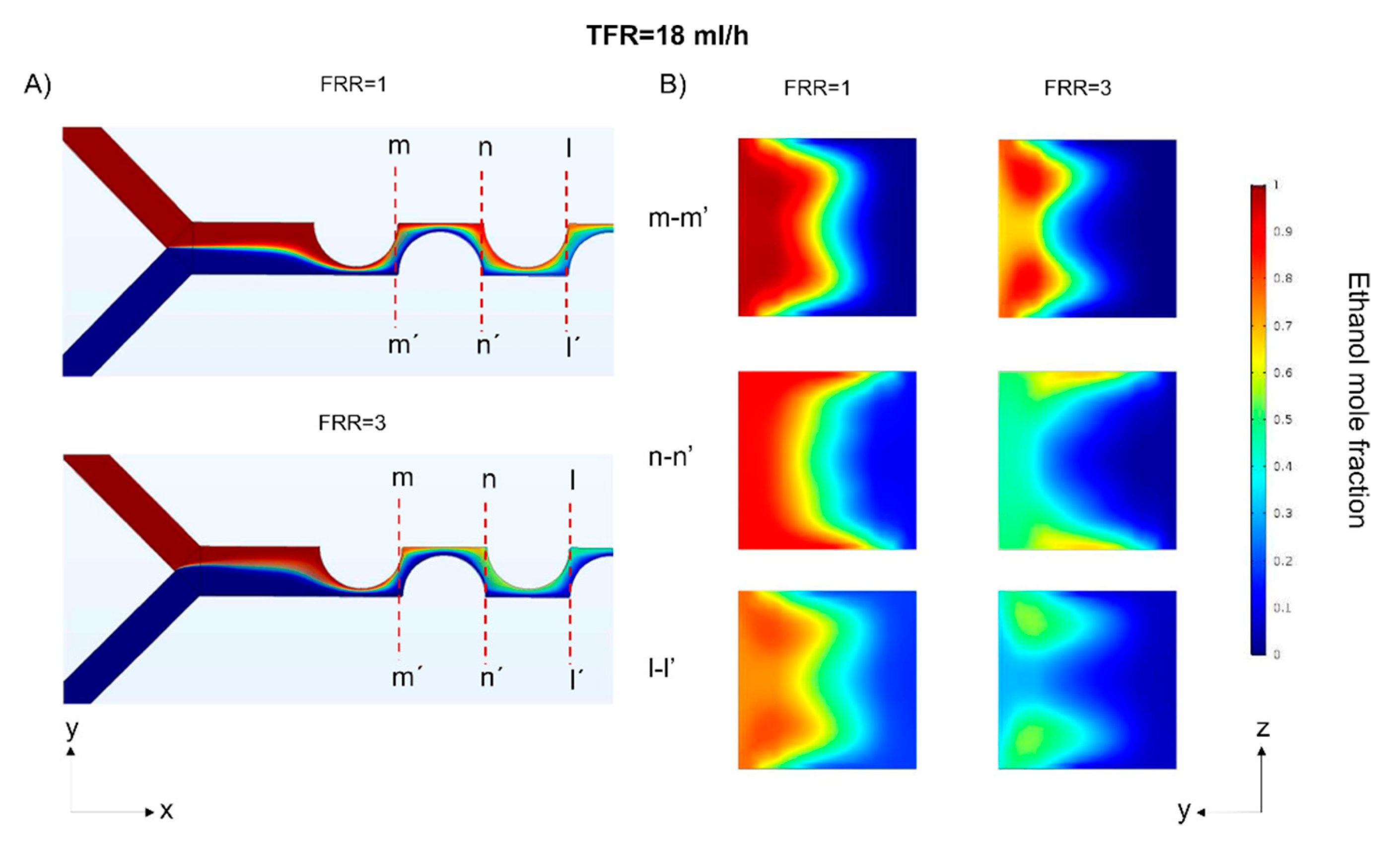

Figure 9. Numerical simulations comparing the concentration profiles at FRR = 1 and FRR = 3 at a constant TFR = 18 mL/h. (A) Upper view of the mixing channels and position of the cross-sections. (B) Cross-sections at different FRRs.
Figure 9. Numerical simulations comparing the concentration profiles at FRR = 1 and FRR = 3 at a constant TFR = 18 mL/h. (A) Upper view of the mixing channels and position of the cross-sections. (B) Cross-sections at different FRRs.
Micromachines 11 00235 g009
Table 1. Initial low and high experimental levels per variable.
Table 1. Initial low and high experimental levels per variable.
NameTypeLow (Coded Value)High (Coded Value)
FRRContinuous1.0 (−1)12.0 (1)
TFRContinuous3.0 mL/h (−1)18.0 mL/h (1)
Table 2. CCCR design results for the 29 runs. In parenthesis, the coded values are given. The factors are Flow Rate Ratio (FRR) and Total Flow Rate (TFR). The coded values are in parenthesis, as shown in Figure 2. The responses are the size (Z-average), Polydispersity Index (PDI), and zeta potential.
Table 2. CCCR design results for the 29 runs. In parenthesis, the coded values are given. The factors are Flow Rate Ratio (FRR) and Total Flow Rate (TFR). The coded values are in parenthesis, as shown in Figure 2. The responses are the size (Z-average), Polydispersity Index (PDI), and zeta potential.
Run OrderFactorsResponses
FRRTFR (mL/h)Z-Average (nm)PDIZeta Potential (mV)
16.5 (0)3.0 (−1.41)133.500.185−31.6
21.0 (−1.41)10.5 (0)190.700.060−38.8
310.4 (1)15.8 (1)67.520.202−23.1
46.5 (0)18.0 (1.41)66.630.185−29.8
512.0 (1.41)10.5 (0)75.090.232−37.9
610.4 (1)5.2 (−1)133.50.174−32.1
72.6 (−1)5.2 (−1)119.400.223−35.2
82.6 (−1)15.8 (1)86.480.217−29.9
96.5 (0)10.5 (0)81.810.207−32.3
106.5 (0)3.0 (−1.41)120.700.179−24.6
111.0 (−1.41)10.5 (0)197.000.072−28.5
1210.4 (1)15.8 (1)62.100.270−28.8
1310.4 (1)5.2 (−1)120.200.170−33.9
146.5 (0)18.0 (1.41)57.140.238−33.8
1512.0 (1.41)10.5 (0)74.140.245−30.7
162.6 (−1)5.2 (−1)122.40.207−31.5
172.6 (−1)15.8 (1)88.740.221−36.3
186.5 (0)10.5 (0)72.230.230−37.7
196.5 (0)10.5 (0)73.810.235−27.6
206.5 (0)3.0 (−1.41)116.000.189−26.9
211.0 (−1.41)10.5 (0)199.700.064−29.6
2210.4 (1)15.8 (1)52.710.228−28.2
2310.4 (1)5.2 (−1)110.4.0.184−37.7
246.5 (0)18.0 (1.41)52.140.265−34.4
2512.0 (1.41)10.5 (0)73.800.24732.4
262.6 (−1)5.2 (−1)131.600.206−36.5
272.6 (−1)15.8 (1)90.270.241−30.2
286.5 (0)10.5 (0)77.180.223−27.6
296.5 (0)10.5 (0)77.240.262−30.1
Table 3. Grouping information using the Tukey method at a 95% confidence level.
Table 3. Grouping information using the Tukey method at a 95% confidence level.
ConditionNMeanGrouping
9 (FRR = 12.0 TFR = 10.5)30.24A
6 (FRR = 6.5 TFR = 18.0)30.24AB
4 (FRR = 6.5 TFR = 10.5)50.23AB
3 (FRR = 2.6 TFR = 15.8)30.22AB
2 (FRR = 2.6 TFR = 5.2)30.22AB
7 (FRR = 10.4 TFR = 15.8)30.21AB
8 (FRR = 10.4 TFR = 5.2)30.18 B
5 (FRR = 6.5 TFR = 3.0)30.18 B
1 (FRR = 1.0 TFR = 10.5)30.07 C
Table 4. Statistically significant coefficients for each model (p < 0.05) and model statistics summary.
Table 4. Statistically significant coefficients for each model (p < 0.05) and model statistics summary.
ResponseSignificant CoefficientsR2p-ValueF-Value
SizeFRR, FRR2, TFR78.89%1 × 10−831.14
PDIFRR, FRR2, TFR46.22%0.0017.16
Zeta PotentialNoneNANANA

Share and Cite

MDPI and ACS Style

López, R.R.; Ocampo, I.; Sánchez, L.-M.; Alazzam, A.; Bergeron, K.-F.; Camacho-León, S.; Mounier, C.; Stiharu, I.; Nerguizian, V. Surface Response Based Modeling of Liposome Characteristics in a Periodic Disturbance Mixer. Micromachines 2020, 11, 235. https://doi.org/10.3390/mi11030235

AMA Style

López RR, Ocampo I, Sánchez L-M, Alazzam A, Bergeron K-F, Camacho-León S, Mounier C, Stiharu I, Nerguizian V. Surface Response Based Modeling of Liposome Characteristics in a Periodic Disturbance Mixer. Micromachines. 2020; 11(3):235. https://doi.org/10.3390/mi11030235

Chicago/Turabian Style

López, Rubén R., Ixchel Ocampo, Luz-María Sánchez, Anas Alazzam, Karl-F. Bergeron, Sergio Camacho-León, Catherine Mounier, Ion Stiharu, and Vahé Nerguizian. 2020. "Surface Response Based Modeling of Liposome Characteristics in a Periodic Disturbance Mixer" Micromachines 11, no. 3: 235. https://doi.org/10.3390/mi11030235

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
