Design and Performance Analysis of Capacitive Micromachined Ultrasonic Transducer Linear Array

by
Hongliang Wang
1,2,*,
Xiangjun Wang
1,
Changde He
2 and
Chenyang Xue
2
1
State Key Laboratory of Precision Measuring Technology and Instruments, MOEMS Education Ministry Key Laboratory, Tianjin University, Tianjin 300072, China
2
National Key Laboratory for Electronic Measurement Technology, Key Laboratory of Instrumentation Science & Dynamic Measurement (North University of China), Ministry of Education, North University of China, Taiyuan 030051, China
*
Author to whom correspondence should be addressed.
Micromachines 2014, 5(3), 420-431; https://doi.org/10.3390/mi5030420
Submission received: 2 May 2014 / Revised: 18 June 2014 / Accepted: 26 June 2014 / Published: 3 July 2014
Browse Figures
Versions Notes

Abstract

:
An ultrasonic transducer is a key component to achieve ultrasonic imaging. This paper designs a new type of Microelectromechanical Systems (MEMS) based capacitive ultrasonic transducer and a linear array based on the transducer. Through directivity analysis, it can be found that its directivity is weak due to the small size of the designed transducer, but the directivity of the designed linear array is very strong. In order to further suppress the sidelobe interference and improve the resolution of the imaging system and imaging quality, the Dolph-Chebyshev weighting method and the Taylor weighting method are used to process −40dB sidelobe suppression, and satisfactory results are obtained, which can meet actual requirements.

1. Introduction

Ultrasonic transducer is an important component to realize the conversion between acoustic energy and electrical energy, which is widely used in medical imaging, non-destructive evaluation, flow measurement, ultrasonic cleaning, distance measurement, etc. Meanwhile, the technology of using ultrasonic transducer to implement underwater acoustic imaging can be used in underwater topography detection, undersea resources survey, underwater operation monitoring, underwater archaeology, etc. Micromachined ultrasonic transducer (MUT) is a new form of ultrasonic transducer made by the technology of microelectronics and micromachining processing. From a processing technique perspective, MEMS technology, compared with thick film processing technology of the integrated piezoelectric diaphragm, controls the accuracy in micrometers (μm) magnitude, and it can effectively reduce error of the device structure size processing, so as to improve the consistency of device performance between the arrays. Meanwhile, in terms of the imaging principle, MEMS technology utilizes the silicon piezoresistivity or capacitance change to achieve the detection of acoustic signals, and it can meet the imaging requirements of devices in mall size, so that imaging resolution can be improved. Currently, MEMS technology has been developed internationally to produce an ultrasonic imaging sonar system. With the improvement of MUT design and micromachining technology, MUT has become a promising alternative to traditional ultrasonic transducer and is one of important research directions of the ultrasonic transducer. MUT research mainly includes piezoelectric MUT (PMUT) and capacitive MUT (CMUT). PMUT and CMUT have their own advantages, which are complementary and develop respectively [1].
Currently, PMUT is widely used as an ultrasonic transducer, which is generally made of a vibration membrane and piezoelectric thin film with the upper and lower electrodes. When the transducer is operating in the receiving model, deformation of vibration membrane occurs under the acoustic pressure. At the same time, due to deformation, a piezoelectric thin film on the vibration membrane will produce a corresponding charge, so that acoustic signals can be converted into electrical signals to realize the receiving function. When the transducer is applied to the transmitting model, voltage is applied in the two electrodes of the piezoelectric layer. Deformation of the piezoelectric layer occurs due to the inverse piezoelectric effect, producing the deformation of whole vibration membrane. When the voltage is alternating voltage, vibration of the vibration membrane will occur in the corresponding form, so that acoustic energy can be radiated outward, achieving the conversion from electrical energy to acoustic energy. In recent years, many scholars have carried out a lot of research work about PMUT, mainly including the selection of vibration membrane of the transducer and the piezoelectric layer materials, the improvement of the structure of the transducer and its technological process, etc., and have developed some ultrasonic transducers. For example, the Institute of Acoustics Chinese Academy of Sciences designed a kind of micro ultrasonic transducer based on ZnO thin films [2], of which the thickness of the ZnO thin film is 0.5 μm and the thickness of the vibration basement membrane is 1 μm. The shape of the transducer is square with 2 mm side length and its resonance frequency is 43.7 kHz. Meanwhile, Tsinghua University developed a micro ultrasonic transducer for handwriting input system based on PZT thin film [3,4], of which the sensitivity can be changed by adjusting the electrode parameters and the thickness of PZT thin film is 1.8 μm, the vibration membrane thickness is 1 μm. The transducer is square with 1 mm side length and its working frequency is 44 kHz. The Federal Institute of Technology in Sweden studied a piezoelectric ultrasonic transducer based on PZT thin film [5,6], of which the thickness of the PZT thin film is 1μm and the thickness of the vibration membrane is 10 μm. The transducer is circular with 150 μm radius and the resonance frequency is 1.2 MHz. Nanyang Technological University in Singapore also designed a piezoelectric ultrasonic transducer based on PZT thin film [7,8], of which the thickness of the PZT thin film is 7 μm and the thickness of the vibration membrane is 1.8 μm. The transducer is square with 2 mm side length and the working frequency is 41 kHz.
The impedance of traditional PMUT is quite high and ranges from 10–30 MRayl, close to the acoustic impedance of solid medium, which can decrease transmission loss of acoustic wave in the solid. Therefore, the desired test results can be obtained when it is used to detect solid medium. However, compared with PMUT impedance, the acoustic impedance of air and fluid medium is much smaller and both of them cannot match each other. As a result, satisfactory results cannot be obtained by PMUT in air and fluid medium, and the preparation of surface matching layer is usually required to overcome this defect, which can lead to complex process and increasing cost. In addition, traditional PMUT has a lot defects such as short detection distance, small operating temperature range, so there are many constraints in its development and application. In recent years, the capacitive micromachined ultrasonic transducer (CMUT) based on MEMS has gradually become a hot research topic. Ultrasonic emission source of CMUT is a pretty thin film, which makes its impedance lower and can match well the acoustic impedance of air and fluid medium. What is more, the defects of traditional PMUT impedance mismatch can be improved without adding the surface matching layer. CMUT based on MEMS is of small size, low noise and wide operating temperature range; therefore, pre-driver circuit, preamplifier and signal processing circuits can be integrated on a same silicon wafer, which can be widely used in ultrasonic nondestructive detection and medical imaging and many other fields [9,10,11,12,13,14]. In 1989, researchers in the NEC Corporation proposed an electrostatic ultrasonic transducer in an etched cavity of silicon substrate, which was already a prototype of micro capacitive ultrasonic transducer [15]. In 1994, Khuri-Yakub, research group of Stanford, E.L. Ginzton Laboratory (Stanford, CA, USA) used surface micromachined technology to produce a micro capacitive ultrasonic transducer [16], and in 1999, the same team developed air-coupled nondestructive evaluation using micromachined ultrasonic transducers [17]. In 2002, a linear CMUT array was developed by Oralkan et al. from Stanford University, and then the team developed a 2D CMUT array which could implement 3D ultrasonic imaging [18,19,20,21,22,23,24,25,26,27,28], and conducted preliminary simulation experiments on imaging. In 2006, Caronti et al. developed a one-dimensional array of ultrasonic transducers and detectors used in medical ultrasonic imaging [29]. Recently, some institutes in China have researched CMUT and made achievements. Tianjin University launched a research program, which used a CMUT array as the imaging planar array through MEMS [30]. Tian et al. from the Institute of Acoustics Chinese Academy of Sciences (Beijing, China) developed a micro capacitive microphone of circular structure [31]. Hao et al. from the Institute of Acoustics Chinese Academy of Sciences analyzed the CMUT resonant frequency through the finite element method [32]. Miao et al. from North University of China (Taiyuan, China) studied the method of designing MEMS capacitive ultrasonic transducer based on silicon wafer bonding process [33]. However, all these designs and research mentioned above did not involve actual manufacture of the device. Therefore, carrying out research into CMUT design, simulation, manufacture and test helps to promote the development of CMUT and improvement of related technologies, which is of great research value and practical significance.
In view of CMUT and its array research, this paper designs a type of CMUT composed of multiple small units, and linear CMUT array is designed by taking it as array element. As for this linear array, this paper analyzes the beam directivity, and studies methods of reducing its beam sidelobe.

2. MEMS Capacitive Ultrasonic Transducer and Linear Array Design

Based on an integrated vibration membrane structure, this paper designs a kind of CMUT consisting of 25 × 2 micro vibration units. Each unit consists of a substrate, insulating layer, vacuum cavity upper electrode, edge support and so on, and its structure is shown in Figure 1.
Micromachines 05 00420 g001 1024
Figure 1. Capacitive micromachined ultrasonic transducer (CMUT) structure of micro vibration unit: (a) profile view of CMUT micro vibration unit; (b) top view of CMUT micro vibration unit.
Figure 1. Capacitive micromachined ultrasonic transducer (CMUT) structure of micro vibration unit: (a) profile view of CMUT micro vibration unit; (b) top view of CMUT micro vibration unit.
Micromachines 05 00420 g001
In Figure 1, te is the thickness of the upper electrode, tm is the thickness of the film, tg is the thickness of the cavity, ti is the thickness of insulating layer, Rm is the radius of the vibrating film, Re is the radius of the upper electrode. The silicon wafer is taken as the substrate, and a thin metal layer is deposited as the lower electrode of vibration unit on the silicon substrate. The insulating layer plays a protective role during etching manufacture, and can also guarantee the electrical insulation characteristics between the upper and lower electrodes, which prevents short circuit from occurring caused by accidental engagement of the upper and lower electrodes. The edge support plays a supporting role on the vibration membrane, and helps form a capacitor. On the upper surface of the vibration membrane, a thin layer of metal deposition is taken as the upper electrode of the transducer. Voltage is applied between the upper electrode and the lower electrode to form micro capacitive ultrasonic unit with vibration membrane. Each CMUT Consists of 25 × 2 micro vibration units, and the diameter of each vibration unit is 290 μm, both the vertical distance and horizontal distance between the two vibration units are 30 μm, so the length of CMUT is 7970 μm, and the width is 610 μm.
In order to improve imaging resolution and imaging quality in an ultrasonic imaging system, one-dimensional or two-dimensional linear array ultrasonic transducer is often used to implement the ultrasonic imaging. This study makes 64 CMUT array elements integrated on a silicon wafer by MEMS technology, which compose a CMUT linear array, such CMUT called array element. In this paper, the center frequency of the linear array is 1 MHz, and acoustic velocity in water is 1540 m·s−1. Corresponding to the center frequency of the array, the wavelength λ is 1540/1,000,000 = 1540 μm, and the distance between two array elements’ center is half wavelength λ/2, which is 770 μm. Sixty four CMUT linear array structure is shown in Figure 2.
Micromachines 05 00420 g002 1024
Figure 2. Sixty four CMUT linear array structure.
Figure 2. Sixty four CMUT linear array structure.
Micromachines 05 00420 g002

3. CMUT Array Element and Linear Array Directivity Analysis

Directivity of an array element or an array refers to a characteristic, namely that the amplitude of its transmitting response or receiving response varies with the azimuth, and is also a kind of attribute in the far field [34,35,36,37,38]. This is usually described or evaluated by using the directivity function, directivity diagram, beam width and sidelobe level, and so on. The following analyses assume that array element or array are located on the x axis, which is in Oxy plane of 3D space coordinate system as shown in Figure 2, and its surface points to the Oxz plane (the plane formed by x axis and z axis).

3.1. CMUT Array Element Directivity Analysis

The micro vibration unit as shown in Figure 1 can be taken as a circular piston with radius r, and the directivity function of the circular piston in the Oxz plane is [34,35,38]:
Micromachines 05 00420 i001
where k is the wave number, r is the radius, θ is the angle between the acoustic line and the z axis, J1 (x) is the first-order Bessel function.
According to the Bridge product theorem, a CMUT array element can be regarded as a rectangular planar array composed of 25 × 2 micro vibration units, and in the Oxz plane its directivity function is:
Micromachines 05 00420 i002
where M is the number of columns of micro vibration cells inside the CMUT array element , and in this case it is 2, dx is the distance between the center of micro vibration units in the horizontal direction.
In this design, considering that the diameter of micro vibration unit inside of CMUT array element is very small and even smaller than the wavelength λ, and kr = 2πr/λ ≈ 0.59 < 1. According to the requirements of the acoustic source in the literature [38], a micro vibration unit can be approximately seen as a point acoustic source to calculate the directivity of CMUT array element. Then a CMUT array element is a planar array composed of 25 × 2 linear arrays, and in the Oxz plane its directivity function is [34]:
Micromachines 05 00420 i003
Considering that the distance between two vibration cells inside of the CMUT array element is very small, it can be described as negligible. Then, a CMUT array element can be regarded as a rectangular piston, of which the length is b and the width is a. Its directivity function in the Oxz plane is [34]:
Micromachines 05 00420 i004
According to Formula (1), in the polar coordinate system the directivity of circular piston micro vibration unit is shown in Figure 3 when r is 290 μm. From Figure 3, it can be found that the main lobe is very wide in the directivity diagram of micro vibration unit, and almost without directivity.
Micromachines 05 00420 g003 1024

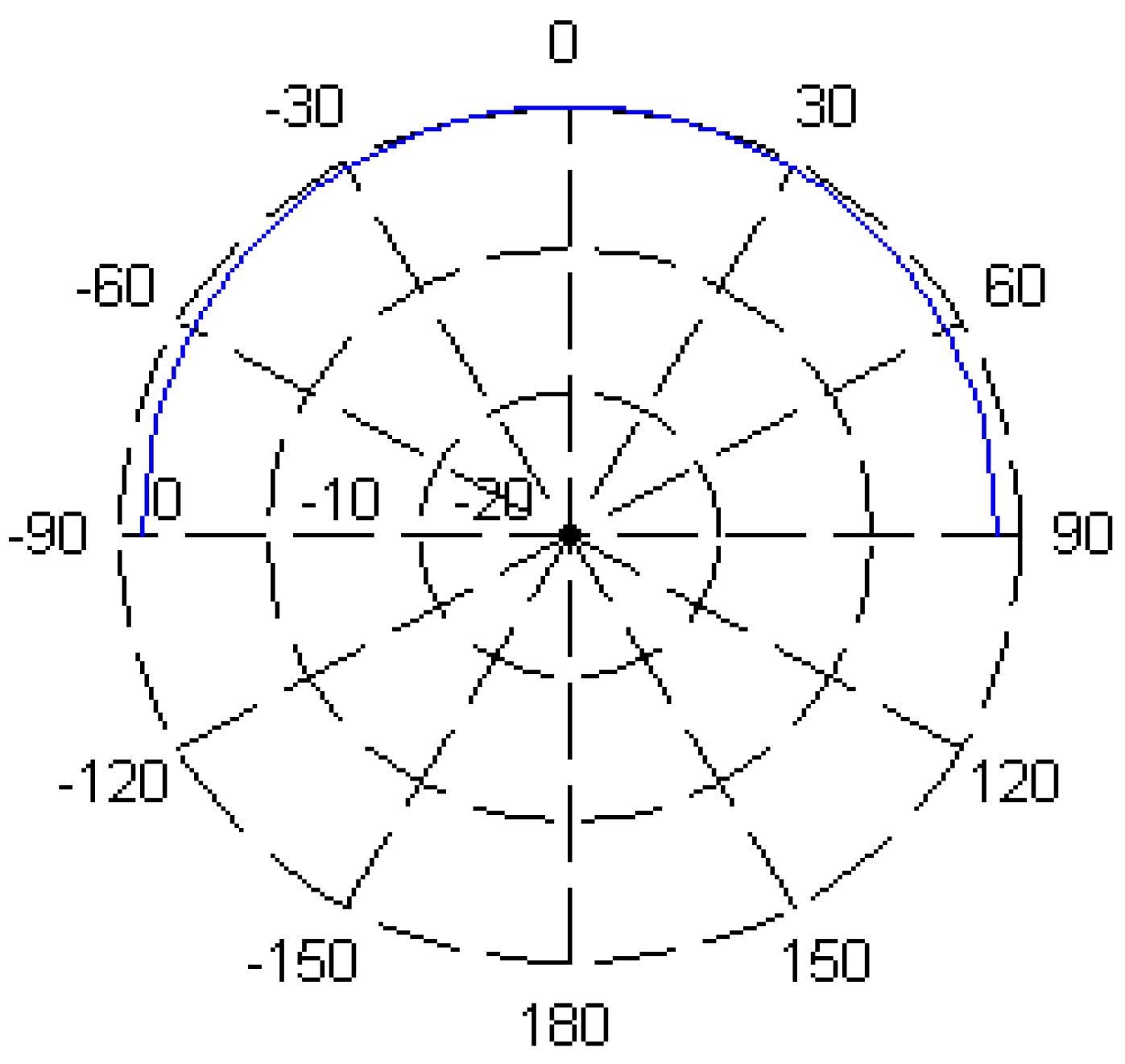

Figure 3. Directivity diagram of micro vibration unit.
Figure 3. Directivity diagram of micro vibration unit.
Micromachines 05 00420 g003
According to Formulas (2)–(4), the directivity of a CMUT array element in the polar coordinate system can be calculated as shown in Figure 4. From Figure 4, it can be seen that the shapes of these three directivity curves acquired according to three methods are quite similar, and according to Formulas (2) and (3), the obtained directivity diagrams almost overlap. Compared with the directivity of micro vibration unit, the directivity of CMUT array element is slightly improved. However, the main lobe in directivity diagram of CMUT array element is still wide no matter which method is adopted to calculate, and its directivity is weak. In order to get stronger directivity, CMUT array elements should be arranged in an array according to certain rules.
Micromachines 05 00420 g004 1024

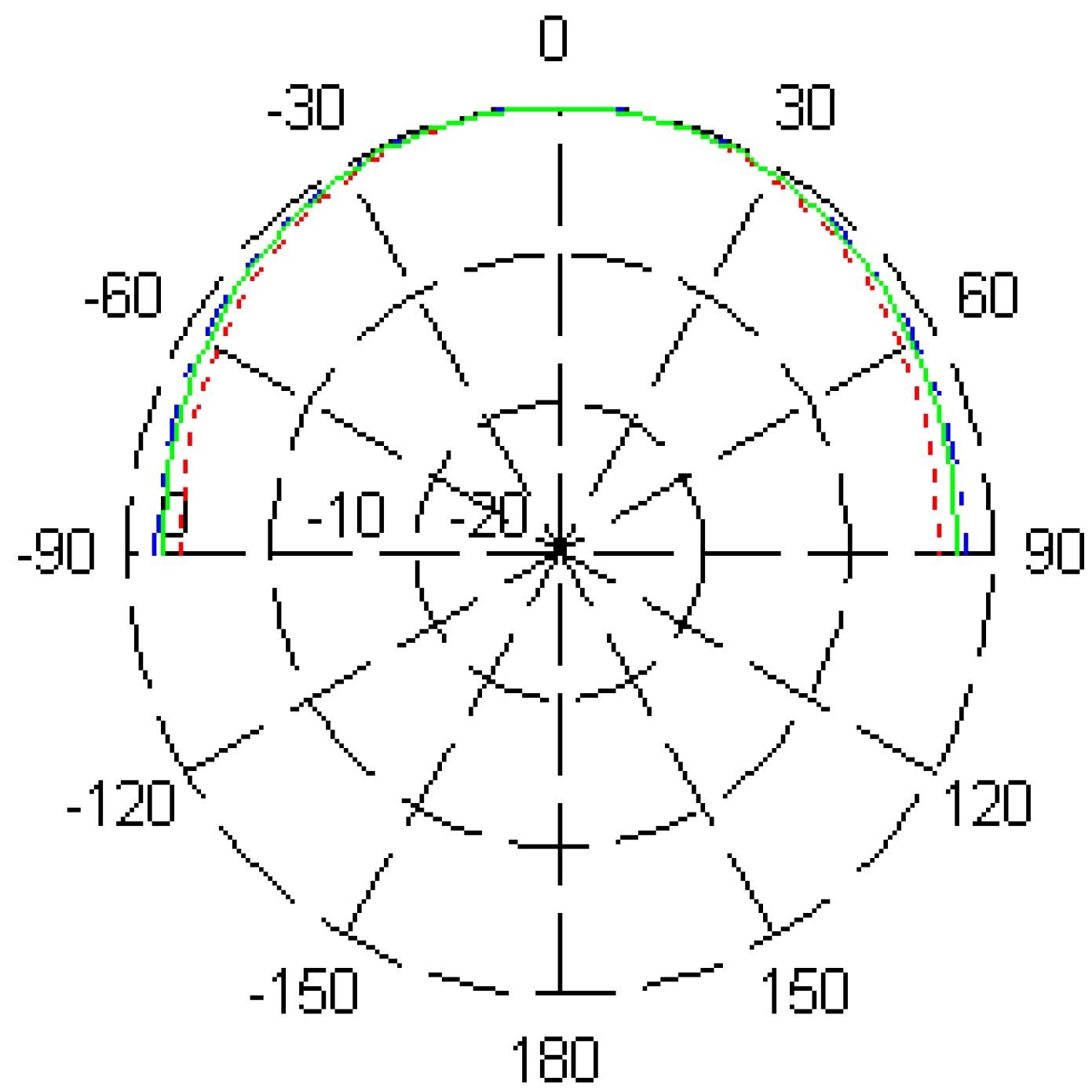

Figure 4. Directivity diagram of CMUT array element.
Figure 4. Directivity diagram of CMUT array element.
Micromachines 05 00420 g004

3.2. CMUT Linear Array Directivity Analysis

A CMUT array element can follow the Formulas (2)–(4). There are three functions that can be used in order to calculate and analyze its directivity, according to the Bridge product theorem. In addition, the size of the CMUT array element is relatively small and its width is shorter than the wavelength λ. Moreover, its directivity is weak. A CMUT array element can be approximately seen as a point acoustic source; therefore, another function used to calculate CMUT linear array directivity can be acquired. These four methods are used to calculate and analyze CMUT linear array directivity respectively, and simple comparisons are made between them.
CMUT array element is seen as a rectangular planar array composed of 25 × 2 micro vibration units and in the Oxz plane the CMUT linear array directivity function is:
Micromachines 05 00420 i005
The CMUT array element is seen as a planar array composed of 25 × 2 linear arrays and in the Oxz plane the CMUT linear array directivity function is:
Micromachines 05 00420 i006
The CMUT array element is seen as a rectangular piston, and in the Oxz plane the CMUT linear array directivity function is:
Micromachines 05 00420 i007
The CMUT array element is approximately seen as a point acoustic source, and in the Oxz plane the CMUT linear array directivity function is:
Micromachines 05 00420 i008
In the Formulas (5)–(8), N is the number of array elements in CMUT linear array, and in this case N is 64, d is the distance between the center of array elements in CMUT linear array, and it is λ/2 in this case.
Through calculation, the directivity of CMUT linear array can be obtained in Cartesian coordinate system and polar coordinate system, as is shown in Figure 5. Figure 6 shows comparisons of these four directivities. As can be seen from the figure, calculated by the above four methods, the main lobe width of these beam directivity diagrams is almost the same. Within the range from 0 dB to 30 dB, the sidelobe is consistent, and within the range from 30 dB to 60 dB the resulting sidelobe of directivity diagrams obtained by the Formulas (5)–(7) is similar, and it is slightly different compared with the sidelobe of directivity diagram obtained by Formula (8). In addition, it can be seen that the CMUT array element can approximately be seen as a point acoustic source to analyze CMUT linear array directivity without considering the impact of the length of CMUT array element. However, there still exists a sidelobe in the directivity diagram no matter which calculation method is used to calculate. In order to further improve the imaging accuracy and resolution, measures should be taken to reduce the sidelobe.
Micromachines 05 00420 g005 1024

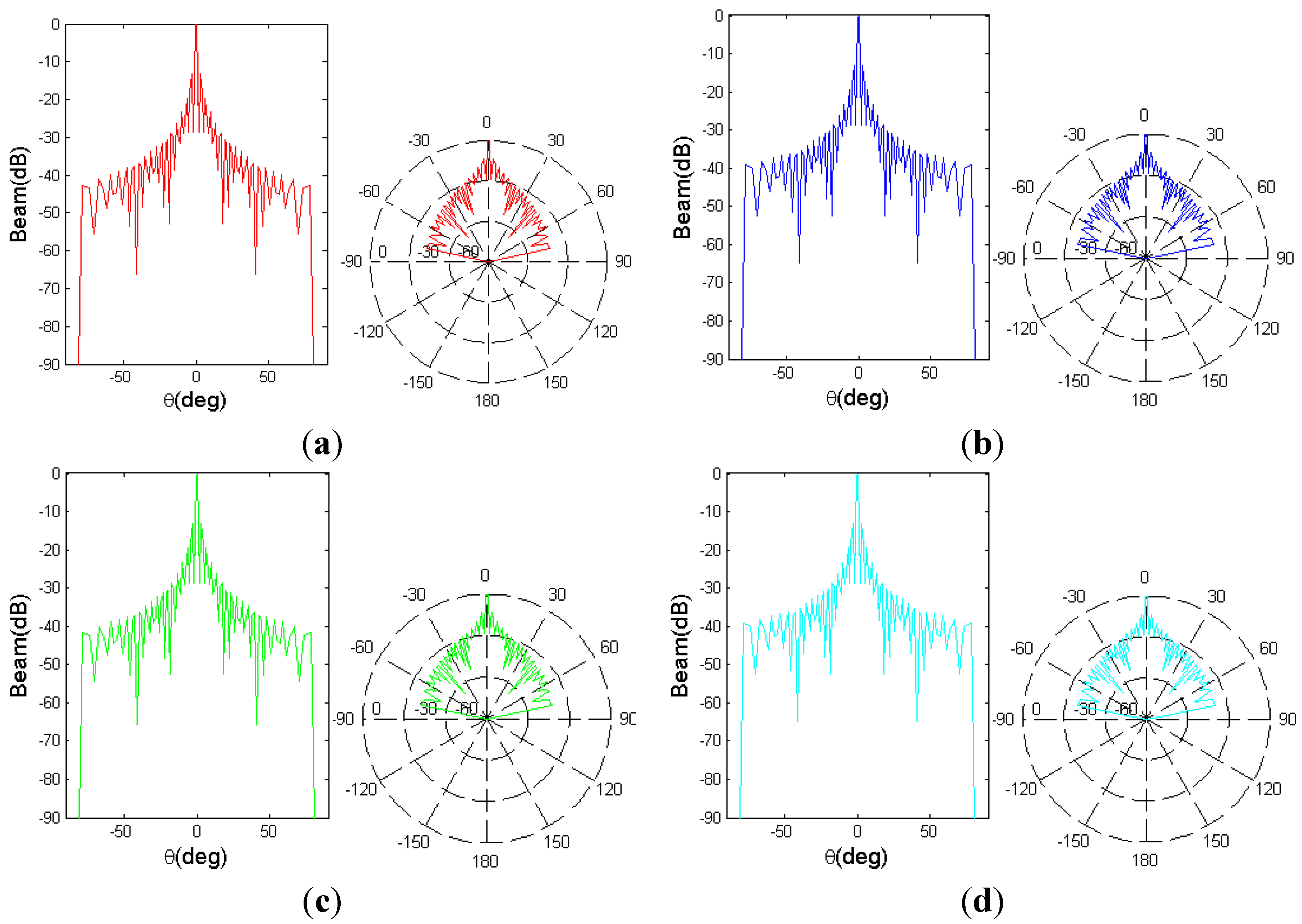

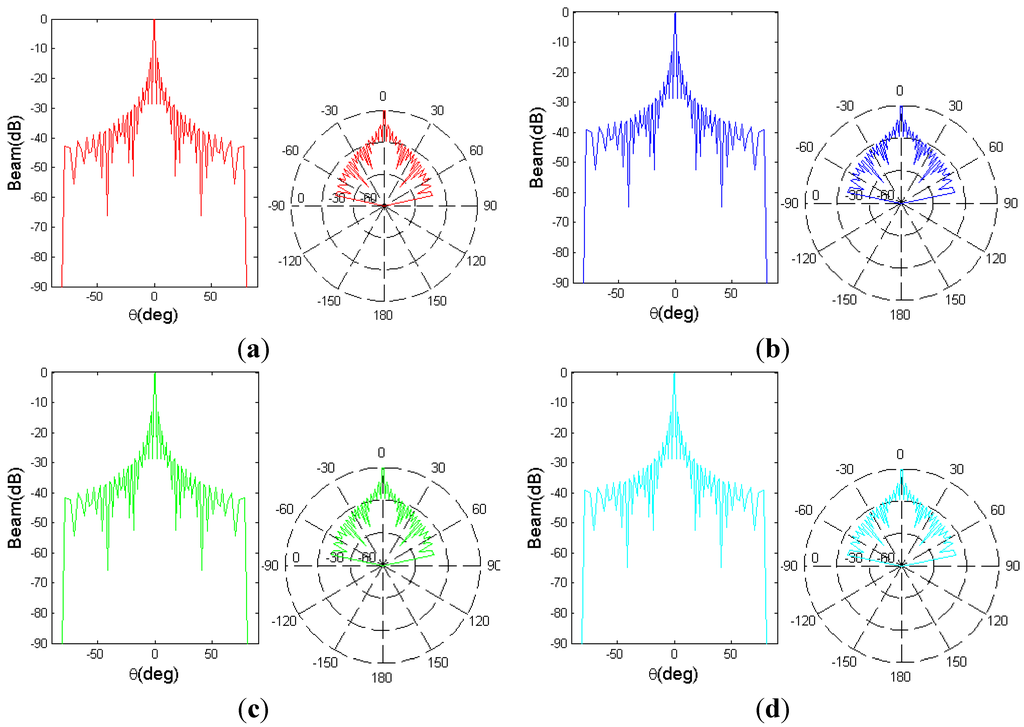

Figure 5. CMUT Linear Array Directivity Diagram: (a) directivity diagram calculated by Formula (5); (b) directivity diagram calculated by Formula (6); (c) directivity diagram calculated by Formula (7); and (d) directivity diagram calculated by Formula (8).
Figure 5. CMUT Linear Array Directivity Diagram: (a) directivity diagram calculated by Formula (5); (b) directivity diagram calculated by Formula (6); (c) directivity diagram calculated by Formula (7); and (d) directivity diagram calculated by Formula (8).
Micromachines 05 00420 g005
Micromachines 05 00420 g006 1024

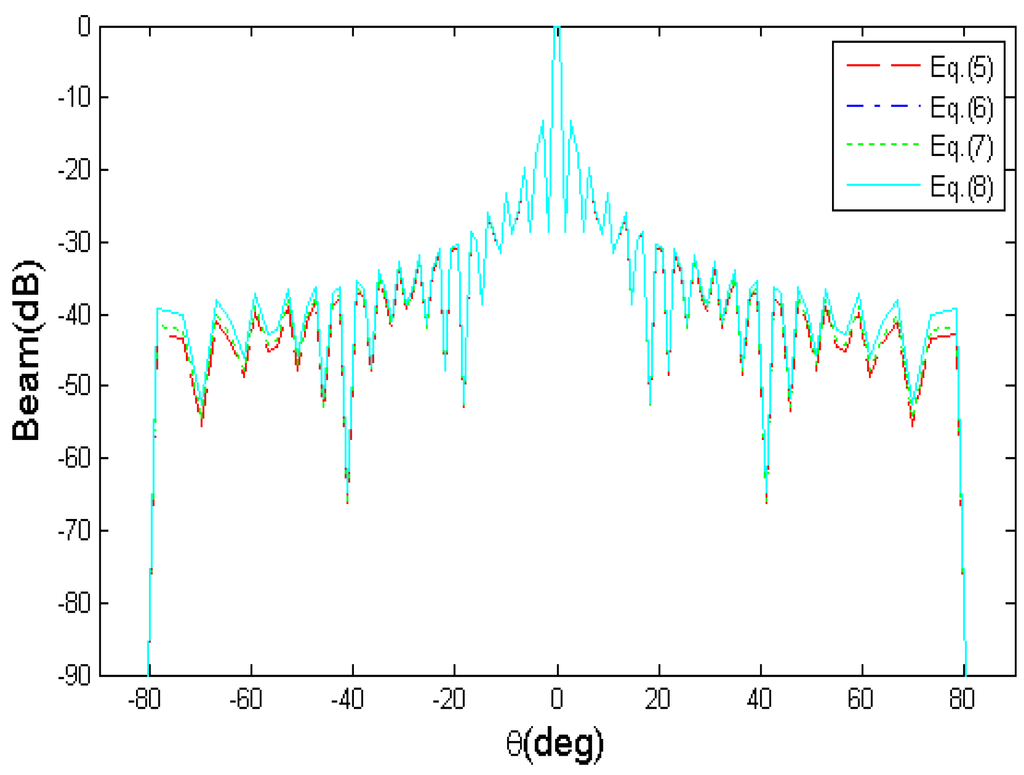

Figure 6. Directivity comparison.
Figure 6. Directivity comparison.
Micromachines 05 00420 g006

4. CMUT Linear Array Sidelobe Reduction Method and Implementation

There are many ways to achieve sidelobe suppression, and the weighting process is one of the most common and effective methods [39]. This paper adopts the Dolph-Chebyshev weighting method and the Taylor weighting method to carry out −40dB sidelobe suppression process respectively, and directivity after process is shown in Figure 7. As can be seen from the figure, the weighting process not only reduces the sidelobe compared with the directivity diagram without weighting process, but also the main lobe width remains constant, where the effect of the Taylor weighting method is particularly evident.
Micromachines 05 00420 g007 1024

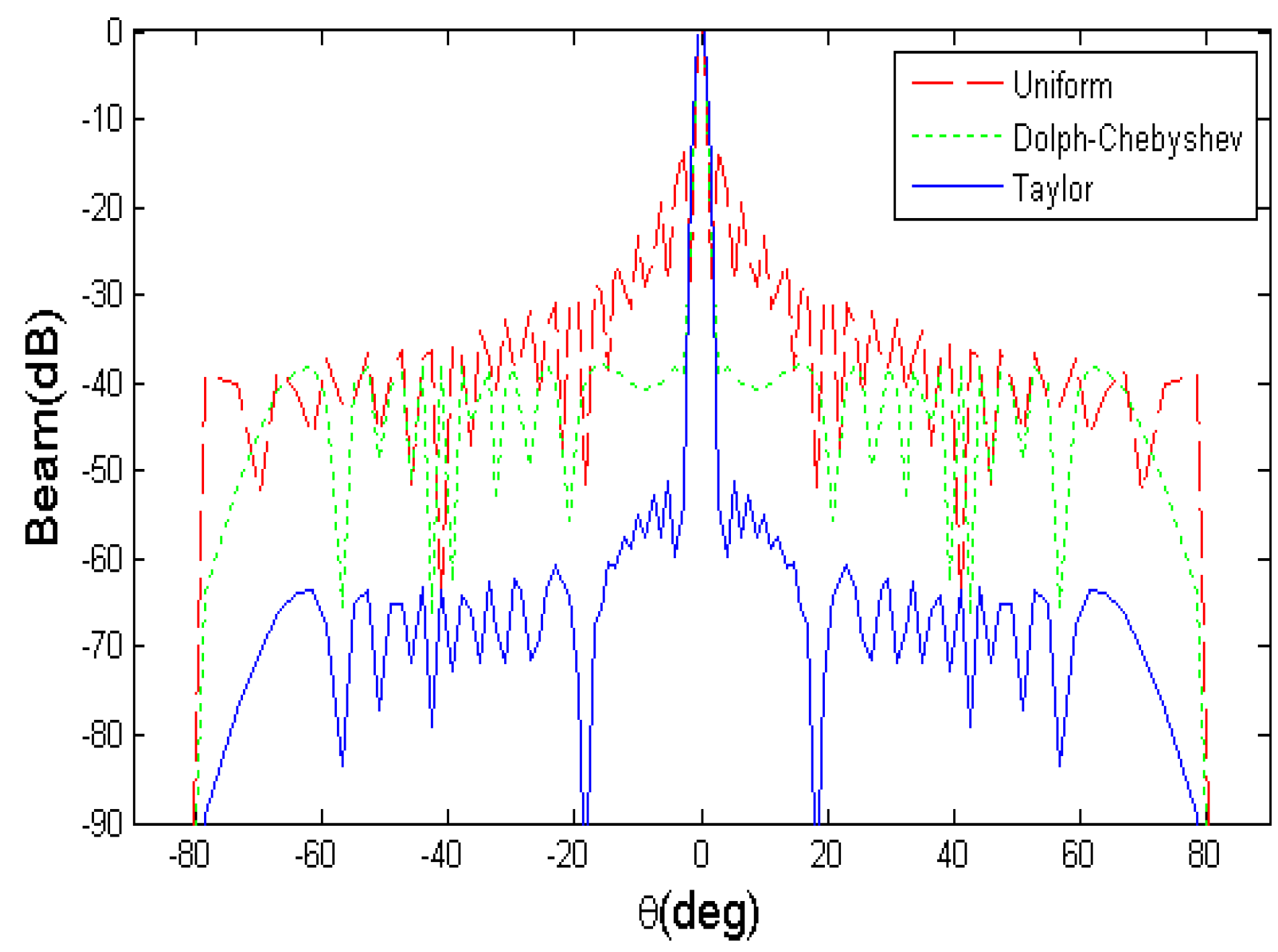

Figure 7. CMUT linear array directivity diagram after weighted treatment.
Figure 7. CMUT linear array directivity diagram after weighted treatment.
Micromachines 05 00420 g007

5. Conclusions

This paper adopts an integrated vibration membrane structure to design a type of CMUT composed of multiple micro vibration units, and finds that a micro vibration unit almost has no directivity through the directivity analysis. Moreover, the directivity of a single CMUT array element is very weak, so it should be composed into linear array to enhance the directivity. This paper has designed a linear array composed of 64 CMUT array elements and uses a variety of methods to analyze its directivity. Then, through the analysis, it finds that the directivity of designed CMUT linear array is quite strong. In order to reduce the sidelobe of CMUT linear array, the Dolph-Chebyshev weighting method and the Taylor weighting method are used to suppress the sidelobe effectively, and the imaging quality and resolution of the imaging system can be improved further.

Acknowledgments

The authors wish to thank the Special Fund of the National Natural Science Foundation for project support, funded project (61127008). And this work is supported in part by the National 863 Program (NO.2011AA040404).

Author Contributions

All work with relation to this paper has been accomplished by all authors’ efforts. The idea was proposed by Hongliang Wang. Analysis of the CMUT array was performed by Hongliang Wang and Xiangjun Wang. The CMUT structure was designed by Changde He. The design of the CMUT array was completed with the help from Chenyang Xue.

Conflicts of Interests

The authors declare that there is no conflict of interest.
