Motility Control of Bacteria-Actuated Biodegradable Polymeric Microstructures by Selective Adhesion Methods †
Abstract
:1. Introduction
2. Preparation of Microfabricated Structures and Bacteria-Tethering

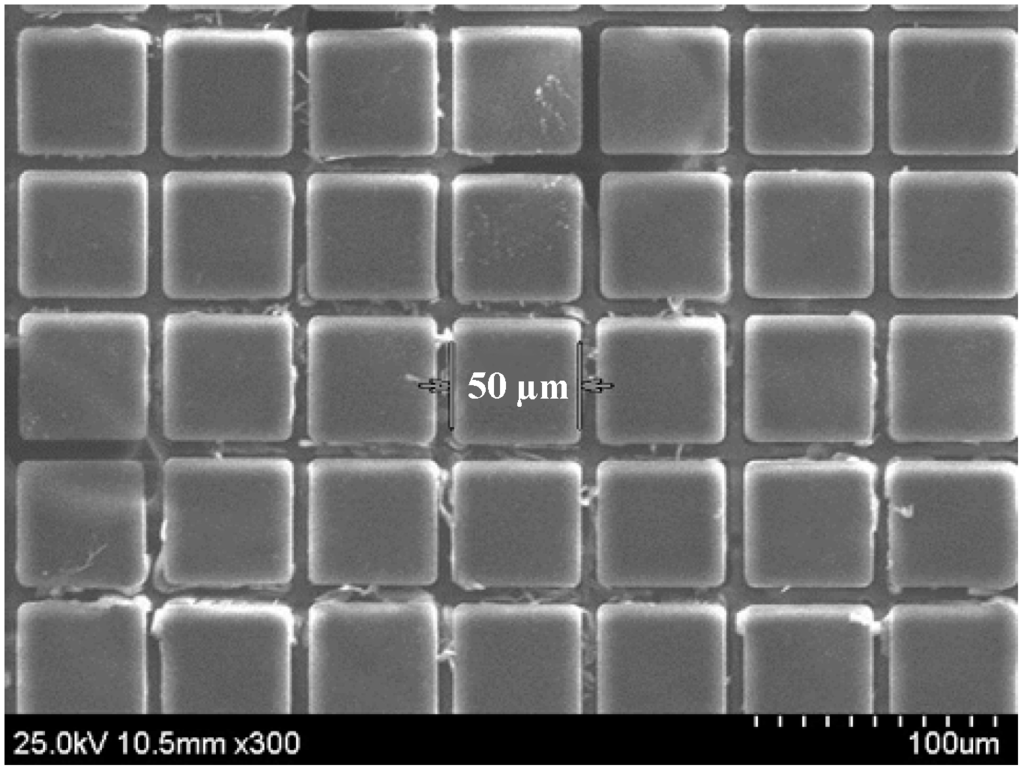

2.1. Biodegradable Polymeric Microstructures

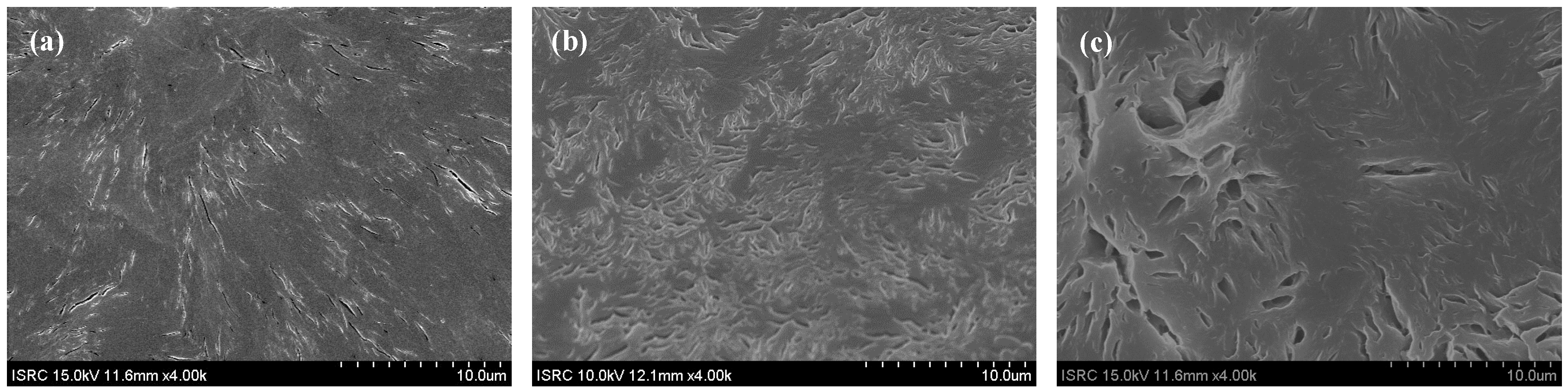

2.2. Preparation of Treated Microstructures

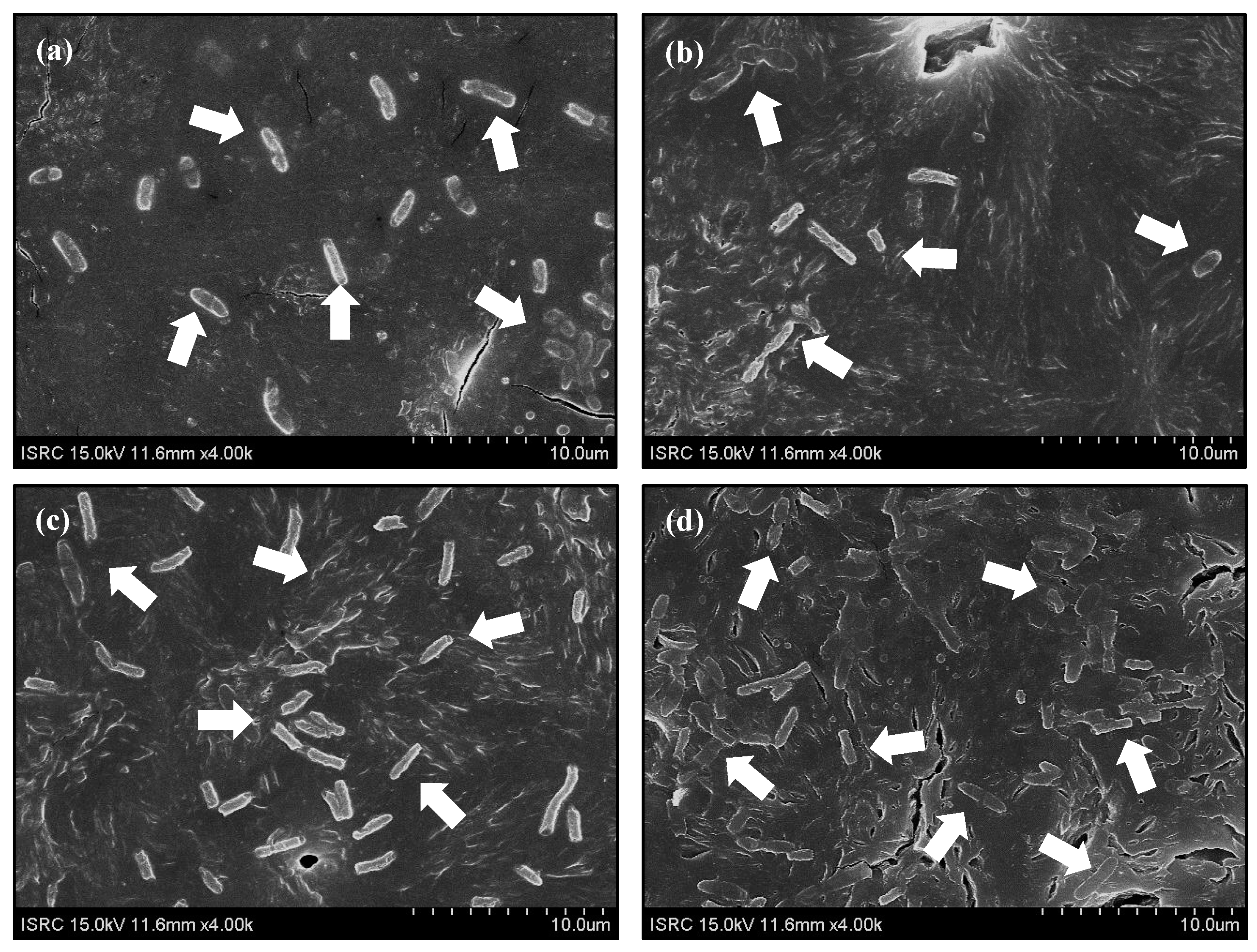

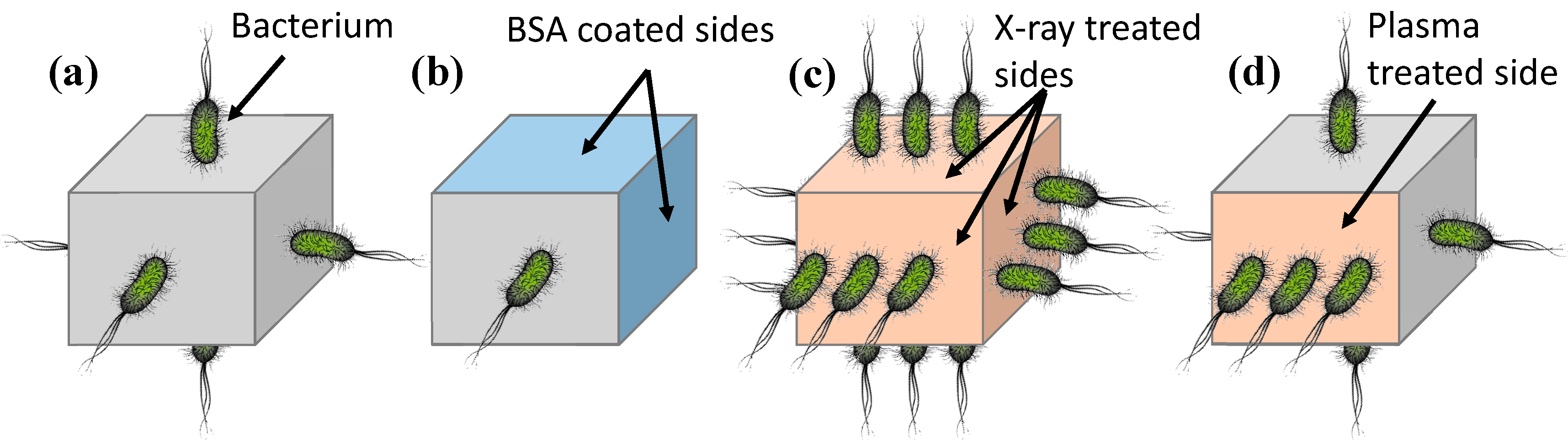

2.3. Bacteria Culture and Tethering
3. Motility Measurements

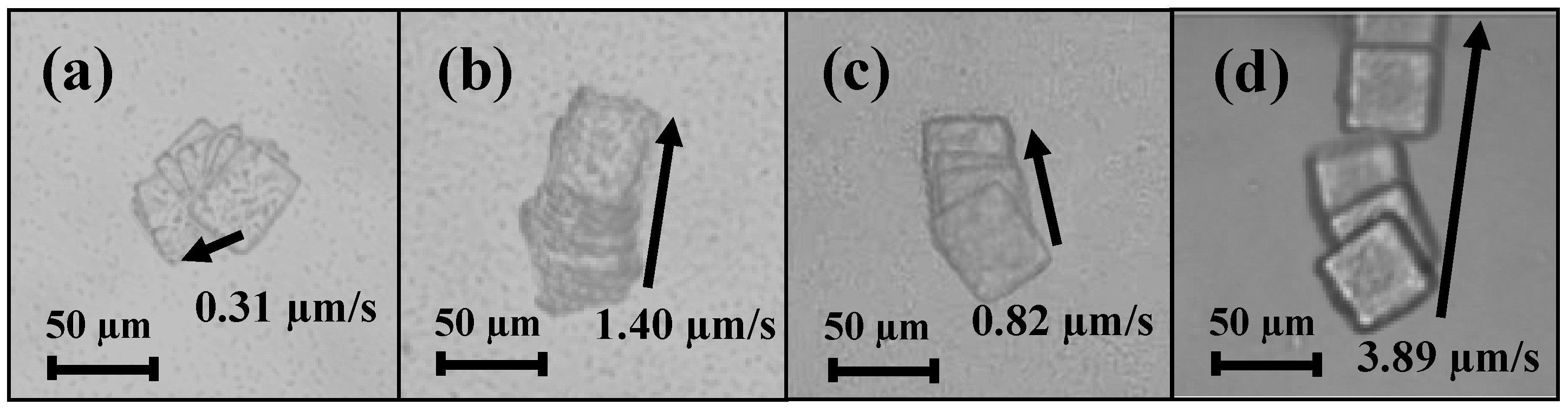

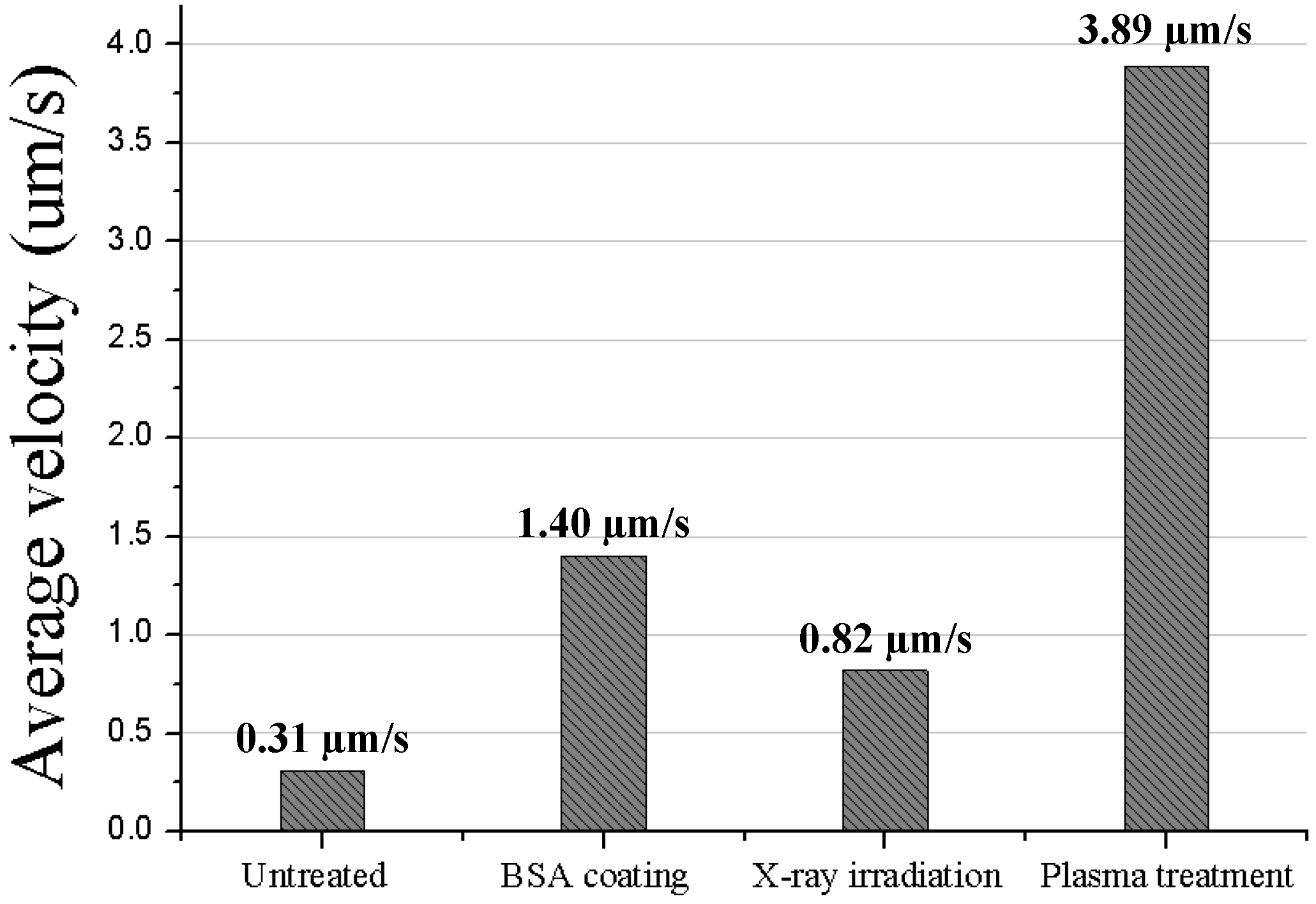

Preferential tethering method | Total directional moving distance during 1 min (μm) | Average velocity (μm/s) |
---|---|---|
Untreated | 18.6 | 0.31 |
BSA coating | 84 | 1.40 |
X-ray irradiation treatment | 49.2 | 0.82 |
Plasma treatment | 233.4 | 3.89 |
4. Conclusions
Acknowledgments
Author Contributions
Supplementary Materials
Conflicts of Interest
References
