Review

Homogeneous Catalyzed Valorization of Furanics: A Sustainable Bridge to Fuels and Chemicals

Department of Chemistry, Technical University of Denmark, DK-2800 Kongens Lyngby, Denmark
*
Authors to whom correspondence should be addressed.
Catalysts 2021, 11(11), 1371; https://doi.org/10.3390/catal11111371
Submission received: 30 October 2021 / Revised: 10 November 2021 / Accepted: 11 November 2021 / Published: 13 November 2021
(This article belongs to the Special Issue Women in Catalysts)

Abstract

:
The development of efficient biomass valorization is imperative for the future sustainable production of chemicals and fuels. Particularly, the last decade has witnessed the development of a plethora of effective and selective transformations of bio-based furanics using homogeneous organometallic catalysis under mild conditions. In this review, we describe some of the advances regarding the conversion of target furanics into value chemicals, monomers for high-performance polymers and materials, and pharmaceutical key intermediates using homogeneous catalysis. Finally, the incorporation of furanic skeletons into complex chemical architectures by multifunctionalization routes is also described.

1. Introduction

The transition from a fossil-based economy to a bio-based society represents a fundamental goal to diminish environmental issues and reduce the strong dependency on petrochemicals [1]. The replacement of fossil-based fuels and materials with biofuels and bioproducts is of paramount importance for this transition. Catalysis is the core of modern chemical conversions and a key component of sustainable chemistry. The production processes for the vast majority of our fuels and chemicals use catalysts [2].
However, two of the main drawbacks of the catalytic valorization of lignocellulosic biomass are the relatively low stored potential chemical energy as well as the high oxygen content [3]. Hence, there is great interest in valorizing biomass to value-added compounds. Towards this end, new catalytic processes with higher efficiencies, greater tolerance to diverse biomass feedstock, and longer catalyst lifetimes require significant development across disciplines [4,5].
In particular, homogeneous catalysis is a unifying technology, pursuing the yield of valuable feedstock from biomass with more efficient, selective, environmentally benign, and cost-effective catalytic systems [6,7]. A major new development in homogeneous catalysis is the application of organometallic complexes as catalysts [8,9,10,11]. Using new catalysts and atom-economical methodologies leads to potential benefit for both the organic synthesis and biomass valorization communities [12].
These new strategies promote the adoption of renewable chemicals produced from biomass as part of the establishment of biorefineries. In addition to converting biomass into alternative fuels and chemicals, this feedstock can be brought into play to render many other processes sustainable. Moreover, life cycle assessment models have shown that bio-based chemicals can have 60–95% lower carbon footprints compared with petroleum derived chemicals [13].
Biomass transformation involves multiple processing steps in which it gets depolymerized and converted to furfurals. The catalytic upgrading of furfurals is one of the most important steps to produce biofuels and renewable chemicals. Among many biomass-derived products, furanics have been extensively studied using biocatalysis [14], homogeneous [8,9,10,11] and heterogeneous catalysis [15], and electrocatalysis [16] in different reaction media. Furanics can be produced from non-edible biomass and provide opportunities for sustainable new products often with unique properties that can be used, for example, in the polymer, solvent, and surfactant industries [17,18].

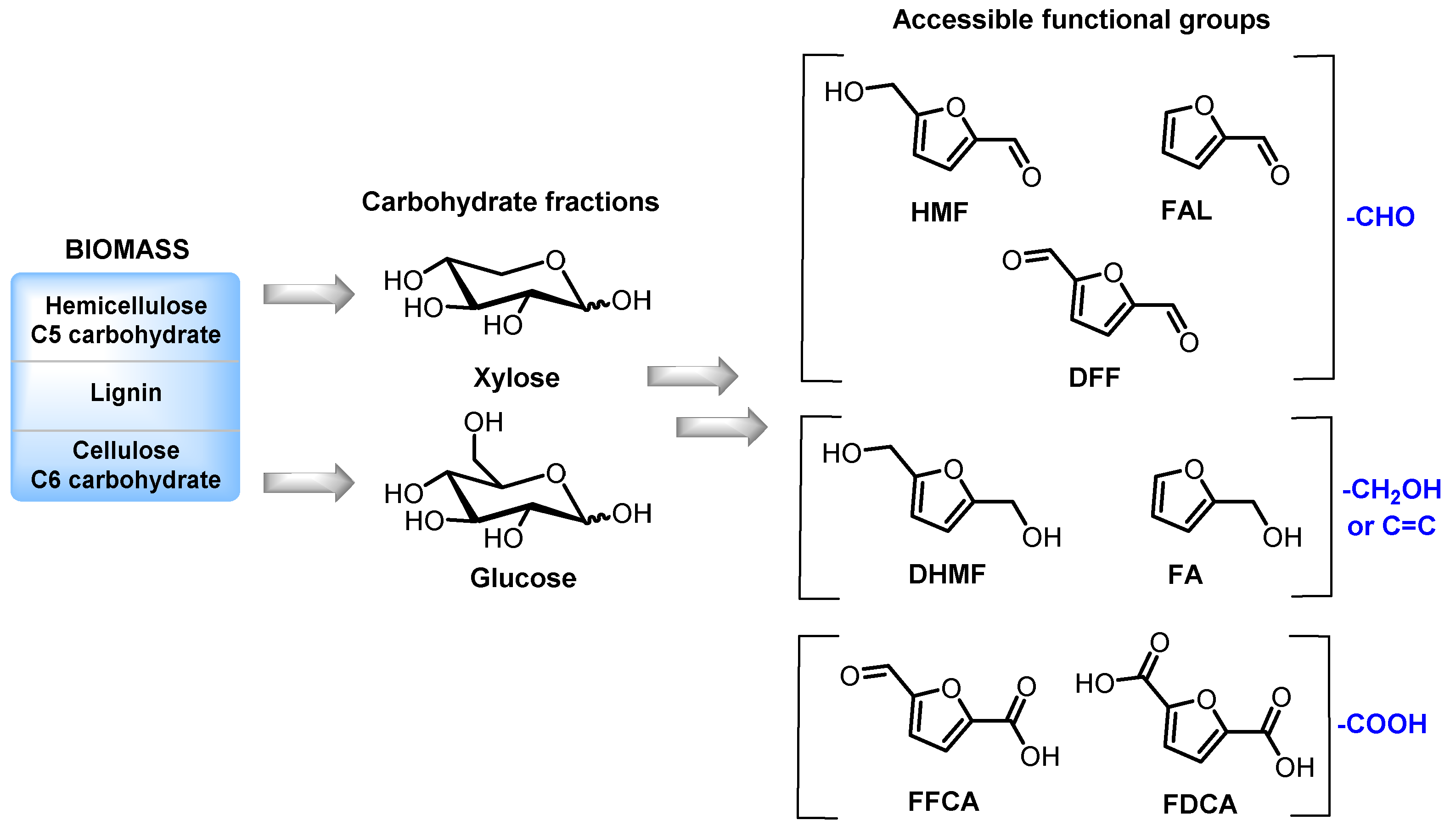

In this context, cellulose- and hemicellulose-derived furans, namely, furfural (FAL), methyl furfural (MF), 5-hydroxymethylfurfural (HMF), 2,5-furandicarboxylic acid (FDCA), 2,5-diformylfuran (DFF), 2,5-bis(hydroxymethyl)furan (DHMF), furfuryl alcohol (FA), 5-methyl furfuryl alcohol (MFA), and 2,5-dimethylfuran (DMF) already represent an important class of bio-based substrates for modern biorefineries (Figure 1) [19,20]. In fact, in the biorefinery strategy, HMF stands out as a sustainable alternative towards fuels, chemicals, and materials, and could eventually replace petroleum-derived products [21].
For instance, hydrodeoxygenation (HDO) and deoxygenation (DO) of furans (including HMF) produce value-added chemicals and liquid fuels [22,23,24]. In the HDO process, hydrocarbon components are generated from biomass derivatives with lower oxygen content via a catalytic reaction in the presence of H2 [25]. In the DO procedure, the modification of the hydrocarbon skeleton is carried out by the removal of oxygen through hydrogenation, decarboxylation, decarbonylation, and dehydration without hydrogen gas [26,27].
Furthermore, these furan derivatives are used as valuable C5/C6 resources for the synthesis of chemicals and biofuel components, such as levulinic acid (LA), succinic acid, 1,6-hexanediol, cyclopentatone, adipic acid, furoic acid, etc. [28]. Moreover, C5/C9 alkanes can also be produced by the hydrolytic ring opening and complete hydrogenation of furans and their aldol products [29].
This review highlights recent advances in which homogeneous catalyzed reactions transform biomass-derived furanics into renewable and more valuable platform chemicals. In particular, furanic-based derivatives produced by homogeneously catalyzed processes, such as hydrogenation, oxidation, amination, condensation, halogenation, esterification, decarbonylation, and ring opening, are described. We will illustrate the recent development of well-defined and selective catalysts whose performance and stability are positioning homogeneous catalysis as key technologies for biomass transformation.

2. Homogeneous Catalysts as a Toolbox for Biorefining

Nature has been refining catalysts for life-sustaining reactions for billions of years [30]. The design of robust non-biological catalysts enable fast and selective chemical transformations under conditions that are currently not possible.
Hence, there is an enormous opportunity for developing homogeneously catalyzed processes, to re- and defunctionalize biogenic substrates and deliver the production of high-value chemicals [31]. The use of catalysts has potential advantages, including using oxygenated functionalities present in biomass, avoiding the use of harmful reagents, and, in some cases, offering a high yield route [32]. This technology offers the opportunity to fulfill green chemistry requirements, particularly reduced energy consumption, the manufacture of bulk chemicals (which ensures high atom economies [3] or E factors), and the production of biodegradable substances [33].
Homogeneous catalysis often works at much lower temperatures than heterogeneous catalysis, which is highly advantageous when it comes to avoiding side reactions, such as condensation. In fact, noble-metal complexes are well established as catalysts for the catalytic conversions of key intermediates derived from biomass.
The significance of homogeneous catalysis is growing rapidly particularly in the area of the pharmaceutical and polymer industry. For instance, William. S. Knowles, Ryoji Noyori and K. Barry Sharpless received the Nobel Prize in 2001 for their achievements in the field of asymmetric homogeneous catalysis. Their discoveries contributed to the development of industrial syntheses of pharmaceutical products and other biologically active substances [34].

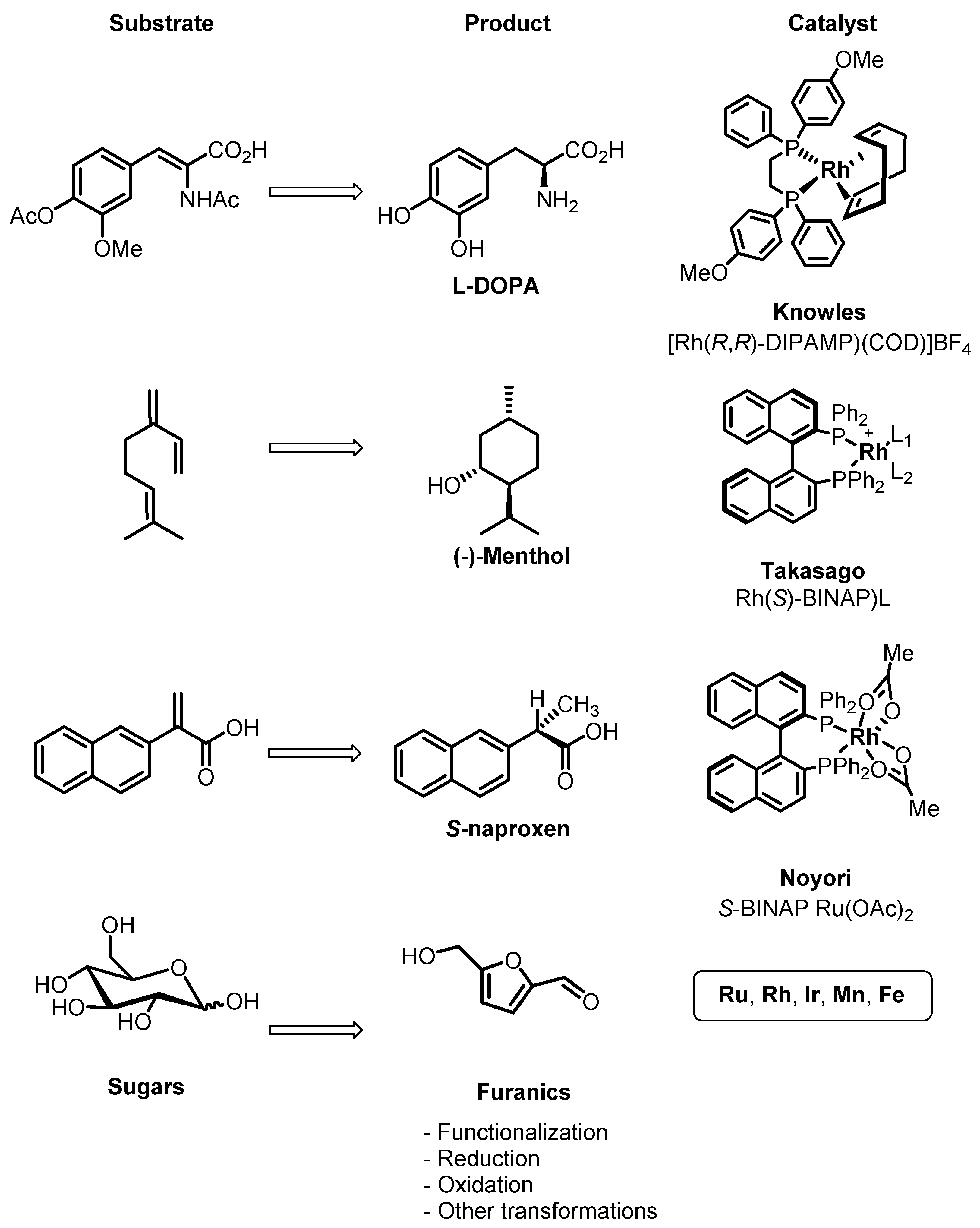

For example, the successful industrial synthesis of the amino acid L-DOPA was developed by Knowles at Monsanto. This chiral drug for treating Parkinson’s disease was synthesized using the [Rh((R,R)-DiPAMP)COD]BF4 complex in quantitative yield with 95% of enantiomeric excess (ee) [35,36,37].
The Takasago process catalyzed the asymmetric isomerization of an allylic amine to an enamine with the (S)-BINAP-Rh complex and furnished the industrial syntheses of the chiral aroma substance menthol [38,39] with approximately 1000 tons of the annual world production [40]. Another well-known example is the enantioselective hydrogenation or transfer hydrogenation of aldehydes and ketones. This method allows the industrial-scale production of optically active compounds, including medicines, agrochemicals, and perfumes.
Among them, Noyori type catalysts have shown high productivity (turnover number, TON up to 106), high turnover frequency (TOF) under mild conditions, and excellent enantioselectivity (95% ee) similar to enzymes [41]. This process constitutes one of the most efficient artificial catalytic reactions developed to date. A broader applications of Noyori’s catalyst includes Rh(I) and Ru(II) species, where BINAP-Ru is used as a catalyst in the industrial production of the anti-inflammatory naproxen (Figure 2) [42,43].
Considering these examples, the conversion of bio-based feedstocks represents a huge challenge for catalysis. The design of a catalyst for biomass transformations requires the development of water tolerant catalysts that are highly resistant to acidic and chelating media and to the impurities present in the fermentation broth [44]. Furthermore, catalysts with strong hydrogenation and finite deoxygenation abilities are necessary for the upgrading of biomass [45].
The catalytic deoxygenation of biomass is very important to produce highly functional intermediates, such as furanics with aldehyde and alcohol moieties [46]. Those chemicals can be produced via different processes. For example, the typical reactions that the furanic aldehyde functionality can undergo are reduction to alcohols by H2 or by hydrogen transfer (Meerwein–Ponndorf–Verley reduction) [47], decarbonylation [48], reductive amination to amines [49], oxidation to carboxylic acid [50], acetalization [51], aldol and Knoevenagel condensations [52], acylation, and Grignard reactions [53]. The second reactive functionality is the hydroxyl group that can undergo hydrogenolysis of the C−O bond, oxidation to an aldehyde or acid, etherification, acetalization, esterification, and halogenation reactions [54].
Finally, the furan ring can be transformed by hydrogenation, ring-opening, alkylation, oxidation, halogenation, and nitration reactions [55,56,57]. In general, these reactions lead to liquid alkanes, solvents, fuel additives, plasticizers, and resin precursors. These transformations involve at least one step of an addition of hydrogen to reduce an unsaturated double bond or simply promote the cleavage of a single bond.

3. Homogeneous Catalysts for the Production of FAL and HMF

Furanic energy platform chemicals, such as FAL and HMF, can be produced by hydrothermal conversion of biomass [58]. Both chemicals are extremely relevant for biofuel and bio-based chemical industries.
The development of process technologies and implementation of industrial-scale HMF production has been reported [59,60,61]. Compared to FAL, HMF is an important building block widely recognized for the production of liquid fuels, resins, solvents, pharmaceuticals, and fine chemicals [4,62,63]. The current commercial production of HMF mostly relies on the syrups extracted from energy crops [64,65]. However, the use of different biomass resources or food wastes as an alternative feedstock could enable more sustainable manufacturing practices.
For instance, AVA Biochem produces HMF from lignocellulose at various levels of purity (up to ≥99.9%) [66]. In this case, the hydrothermal carbonization of lignocellulose towards hydrochar is combined with the production of HMF. Thus, the lignocellulosic biomass is decomposed under high temperature (200–300 °C) and pressure to glucose and fructose in the presence of water. Further dehydration of fructose leads to a HMF-containing water mixture that is subjected to extraction and separation from the reaction mixture [58,67].
Likewise, FAL is an important renewable, non-petroleum based chemical feedstock. The industrial production of FAL is based on biomass hydrolysis and subsequent dehydration of the obtained pentoses using a homogeneous Brønsted acid catalyst in aqueous media [68]. The furanic platform chemicals are one of the most notable examples of the biorefinery process [69]. The worldwide production of FAL was estimated at nearly 500 kT per year [70]. However, the present yield of FAL in industrial processes is relatively low (approximately 50%) [58]. The condensation and degradation products as well as the formation of humins decrease the efficiency of the process. Many attempts to increase the yield have suggested the addition of ionic liquids, biphasic systems, and heterogeneous and homogeneous catalysts.

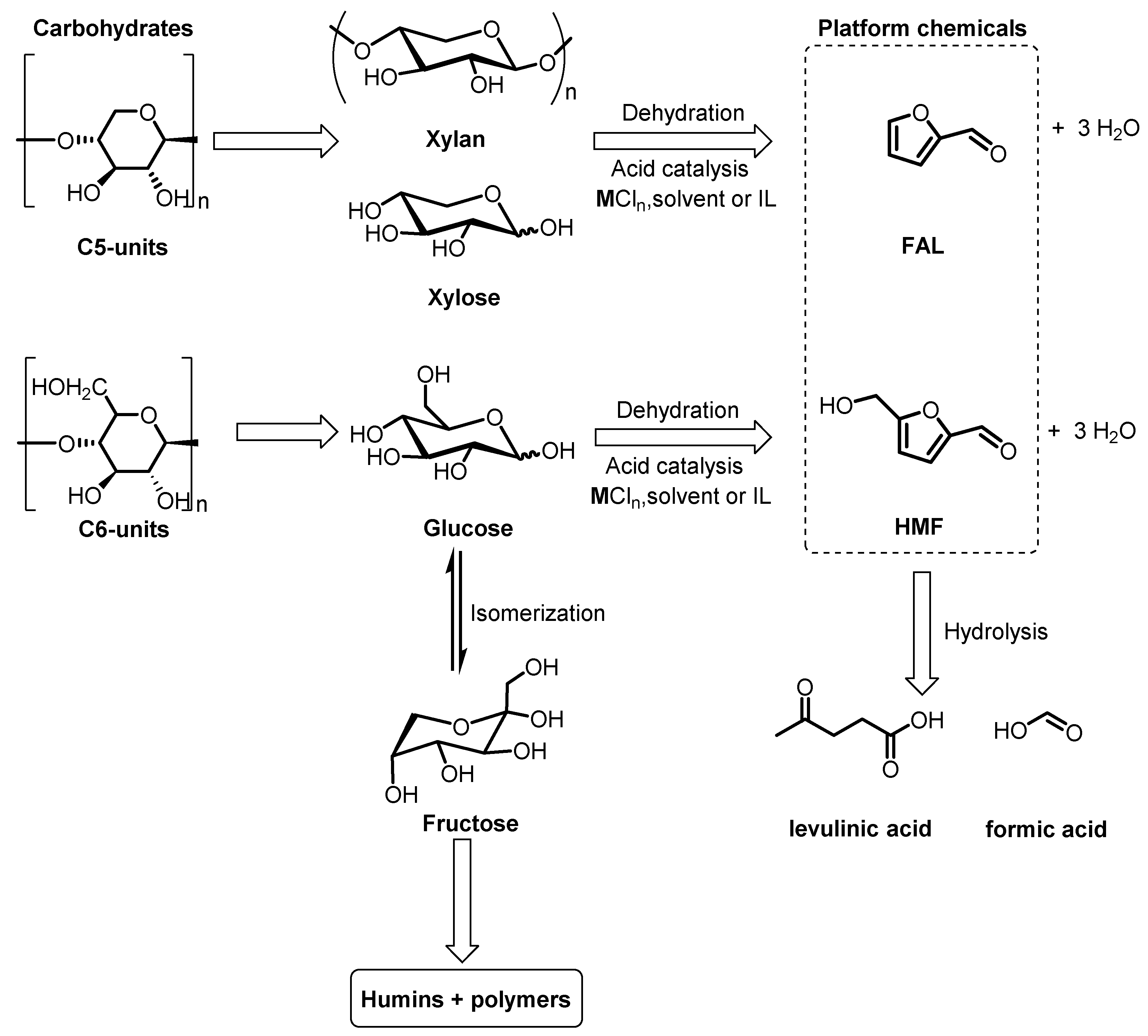

Diverse catalysts and methodologies are employed for the synthesis of HMF and FAL (Figure 3). In general, the dehydration of fructose produces HMF under acidic conditions at elevated temperatures in water. It is well known that fructose is the most convenient starting material for the preparation of HMF, while glucose is less reactive and undergoes isomerization to yield fructose before the dehydration [71]. Likewise, the subsequent rehydration of HMF may occur, and its rearrangement leads to the formation of LA and formic acid [72].
This pathway can influence the overall efficiency of the process leading to the formation of humin-like furanic polymers due to the low stability of HMF [73,74]. To prevent this, Ishida reported the reaction in DMSO, affording high yields of HMF in the presence of Lewis acids, such as LaCl3 at 140 °C [72,75]. Another strategy for the direct production of HMF from various carbohydrates is the use of ionic liquids (ILs) in the presence of a series of relatively eco-friendly metal chlorides.
For instance, Zhao described a pioneering work of the use of [EMIM]Cl with various metal chlorides, such as CrCl2, FeCl2, FeCl3, VCl3, MoCl3, PdCl2, PtCl4, RuCl3, and RhCl3 achieving high catalytic activities for the dehydration of fructose to HMF with yields ranging from 60–83% at 80 °C [76]. Interestingly, CrCl2 showed better activity for the conversion of glucose to HMF with a 70% yield in 3 h at 100 °C. In fact, CrCl2 reacts with the IL to form active species [EMIM]CrCl2, which facilitates sugar isomerization and dehydration [77].
Other metal chlorides, including SnCl4 [78], CuCl4 [79], RuCl3 [80], IrCl3 [81], ZrCl4 [82], ZrOCl2 [83], HfCl4 [84], NbCl5 [85], and YCl3 [86], have been reported as catalysts for the transformation of carbohydrates into HMF in different solvents. This methodology represents an important advance in the use of lignocellulose for the production of primary furanics via a green process without volatile organic solvents [74,87].
The transition metal chlorides with Lewis acidity promote the aldose–ketose isomerization during the sugar conversion and yield furan platform chemicals (HMF and FAL) with relatively low catalyst loading [53]. The use of ionic liquids as a solvent/additive has been proposed as alternative to promote the hydrothermal conversion of biomass in an indirect recycling of the reaction phase.
Wrigsted explored the use of CrCl3 in the presence of mineral acids and alkali metals salts for the dehydration of glucose and fructose in a water–THF mixture [88]. The addition of acid prevents the formation of a chromium-glucose chelate complex hampering the isomerization of glucose and leading to similar yields of HMF and FAL (53% and 59%, respectively).
Lin explored the use of a relatively low-toxic, recyclable, and inexpensive catalytic system with chromium(III) chloride (CrCl3·6H2O) and tetraethylammonium chloride (TEAC) ionic liquid. The efficient conversion of glucose into HMF was achieved in 71% at 130 °C in 10 min [73].
Yadav and coworkers reported the transformation of glucose into HMF promoted by cobalt-based metallophthalocyanines [89]. The results demonstrated high catalytic activity of the cobalt phthalocyanine (Co-PC) with an electron-withdrawing nitro group. Subsequent studies with this catalytic system suggested that stronger Lewis acidity in combination with ionic liquids ([EMIM]Cl or [BMIM]Cl) could improve the conversion of glucose into HMF in high yields (>88%) at 100 °C after 3 h.
Among these examples, metal triflates constitute a viable alternative for the production of HMF with much lower corrosion and environmental pollution. In particular, Wang and coworkers investigated the catalytic activity of various triflate salts from which Sc(OTf)3 and Yb(OTf)3 showed an 80% yield in DMSO at 120 °C and 2 h [90]. Likewise, Li investigated the production of HMF from glucose when using Hf(OTf)4 in sec-butyl phenol at 165 °C and 25 min. The higher valence state of the metal cations involves stronger Lewis acidities facilitating the isomerization of glucose and the dehydration of fructose while improving the yield of HMF.
Other substrates, like xylose, can be subjected to similar reactions with HCl/CrCl3 catalytic mixture in aqueous media producing FAL in 39% yield [91]. Marcotullio [92,93] and Liu [94] found that the use of FeCl3 increased the rate of conversion of xylose or xylotriose in water or water-CPME (cyclopentyl methyl ester) mixtures at 180 °C. The conversion rate was improved under these reaction conditions, reaching a 65–74% yield for of xylose and 78% for xylotriose. Overall, furans produced from carbohydrates have high potential for the synthesis of useful monomers based on renewable sources. In the next sections, we will discuss the most relevant transformation of bio-based furanics, such as FAL and HMF compounds, by homogeneous catalysts.

4. Catalytic Reduction of Furanics

The currently forecasted transition to a hydrogen economy allows the use of renewable hydrogen as clean energy source for many applications [95]. For example, green and sustainable organo synthesis can use renewable hydrogen to achieve the chemical reduction of carbohydrate-based feedstocks and convert the highly unsaturated biomass to value-added chemicals. Thus, the efficient hydrogenation of carbonylic functionalities in biomass derived substrates, such as HMF, FAL, and MF, represent a good strategy in organic synthesis for the sustainable production of fuels or building block chemicals [96].
In fact, the selective hydrogenation of HMF into DHMF is very similar to the reduction of α,β-unsaturated aldehydes or ketones to the corresponding unsaturated alcohols [97]. This reductive process has been achieved by different hydrogenation methodologies, including electrocatalytic hydrogenation [98] or in the presence of heterogeneous catalysts at high temperatures and pressures [99].
However, most of the catalysts compromise the activity to attain high selectivity by modifying the active metal with second components or introducing additives or oxide supports. In particular, Tomishige reported a heterogeneous multicomponent-based Ir-Re catalyst supported on SiO2 for the selective hydrogenation of HMF to DHMF in high yield (99%) under 8 bar H2 at 30 °C [96,100].
Moreover, DHMF is an important starting molecule for the polymerization or etherification processes (biodiesel, polyester, and polyurethane foams) [98]. Other bulk chemicals are derived from FAL, such as FA, methyl-tetrahydrofuran (MTHF), THF, and maleic acid (MA) [26].
Conventionally, furfuryl alcohol is produced over copper-chromite catalysts, which are highly toxic and cause serious environmental issues [101]. Therefore, the exploration of non-chromium catalysts for the green catalysis of FAL hydrogenation to FA is ongoing. For example, heteropolyacid catalysts have shown potential for this hydrogenation process, which is of great interest as a building block for resins [102]. An alternative to these solid Lewis acid catalysts is the addition of mineral acids (H2SO4, HCl, and H3PO4) and salts with transition metals (CrCl3 and SnCl4) in aqueous media [103].
Even though these catalytic advances in the production of biomass-derived furanic alcohols provide green alternatives to stoichiometric reducing agents, homogeneous catalysis that, in principle, might improve selectivity under mild reaction conditions, have been scarcely investigated. A gradual evolution of the catalytic hydrogenation of HMF to DHMF by homogeneous catalysts has been described using high-pressure H2 gas or other hydrogen sources and an inorganic/organic base (Figure 4).
For example, Elsevier studied the catalytic hydrogenation of HMF with a half-sandwich Ru-NHC complex (0.5 mol%) in the presence of KOtBu and THF under 50 bar H2 at 70 °C [104]. This catalytic system showed a 99% conversion after 2 h and was successfully extended to other key biomass-derived substrates, such as cinnamaldehyde or dimethyl oxalate. Furthermore, Hashmi investigated the same reductive process using Ru(methylallyl)2COD (4.5 mol%) combined with an NHC-based ligand at 10 bar H2 and 120 °C [105]. The reaction afforded 92% yield of DHMF and 12% of the side product THFDM after 16 h.
Mazzoni reported the use of the dimeric Shvo’s catalyst (0.1 mol%) to produce DHMF in toluene/H2O under 10 bar H2 at 90 °C in 99% yield [106]. Recently, Nielsen reported the highly effective and selective hydrogenation of the bio-based furanic aldehydes, such as HMF and MF under mild reaction conditions to the corresponding alcohols catalyzed by Ru-PNP and Ir-PNP complexes under 30 bar H2 at 25 °C and 60 °C, respectively [107]. This methodology allowed a high conversion rate up to TOF >1900 min−1 and the quantitative isolated yield of DHMF and MFA.
This work showed solvent-free catalytic reactions in large scale, which is important to reduce costs and the environmental impact as well as to improve the efficiency [108]. In another attempt, Beller demonstrated the use of a base-metal PNP-Mn complex (1 mol%) for the production of DHMF in toluene under 30 bar H2 at 100 °C, affording 90% conversion after 24 h [109]. Unfortunately, efforts to isolate the product remained cumbersome during the purification yielding 64% of the product due to decomposition.
There is also an important need for the development of environmentally benign technologies to improve the catalytic efficiency of FA production. Currently, FA is the most important monomer in furfural-based polymers [110]. Some technologies propose the production of bifunctionalized monomers from FA and its derivatives as precursors for po- lymer synthesis. In fact, biorenewable C5 alcohols are considered important commodity chemicals for the production of polyesters, polyurethanes, polyethers, and fuel additives [68].
In this sense, there are several promising alternatives for the production of FA. For example, Li [111], Bhanage [112], and Rothenberg [113,114] used a Ru-catalyst for the reduction of FAL to FA at a low temperature in the presence of different solvents. Mika also reported Ru(acac)3 pre-catalyst in the presence of a bidentade ligand DPPB (1,4-bis(diphenylphosphino)butane) at 160 °C in EtOAc for 0.6 h with a maximum TOF = 6273 h−1 and 99% conversion [115]. Ladipo explored the activity of cis-[Ru(6,6′-Cl2(bpy)2(OH2)2](CF3SO3)2 (1 mol%) for the production of FA at 100 °C, 51 bar H2 in EtOH [116]. The results displayed good selectivity (99%) and conversion (99%) after 2 h.
Deng and Fu reported high turnover numbers, up to 13,877 h−1 and 50% yield for the transformation of FAL to FA using iridium half-sandwich catalyst (0.0083 mol%) in the presence of a phosphate buffer solution at 120 °C, 10 bar H2 and 4 h [117]. The side products LA (41%) and gamma-valerolactone (GVL, 9%) were also observed. Choudhury accomplished the catalytic reduction of FAL using a neutral iridium half-sandwich system at 30 °C, 1 bar H2 in EtOH/H2O mixture, producing a 94% yield after 2 h [118].
Additionally, an efficient catalytic hydrogenation of FAL using Triphos-Ru(CO)H2 has been reported by Grainger an coworkers. A catalyst loading of 0.05 mol% gave full conversion after 16 h at 120 °C and 30 bar H2 [119]. The combination of relatively low catalyst loading of Ru-PNP (0.05–0.1 mol%) promoted the effective catalytic conversion of FAL to FA in 99% after 30 min employing mild conditions and green solvents [107].
Among these examples, Makhubela reported the selective production of bio-based alcohols, including FA using a Pt(II) complex (0.2 mol%) containing a Schiff base ligand. The catalyst displayed complete conversion of the substrate at 140 °C, 20 bar H2 with good selectivity towards FA in EtOH and 88% yield after 10 h [120]. The pre-catalyst showed enhanced activity and selectivity in the presence of HCOOH affording a highest TOF of 1060 h−1. Recently, Aguirre studied the activity of Ru-NPN pincer complex with 0.033 mol%, producing FA in high yield (99%) at 120 °C under 20 bar H2 in iPrOH [121].

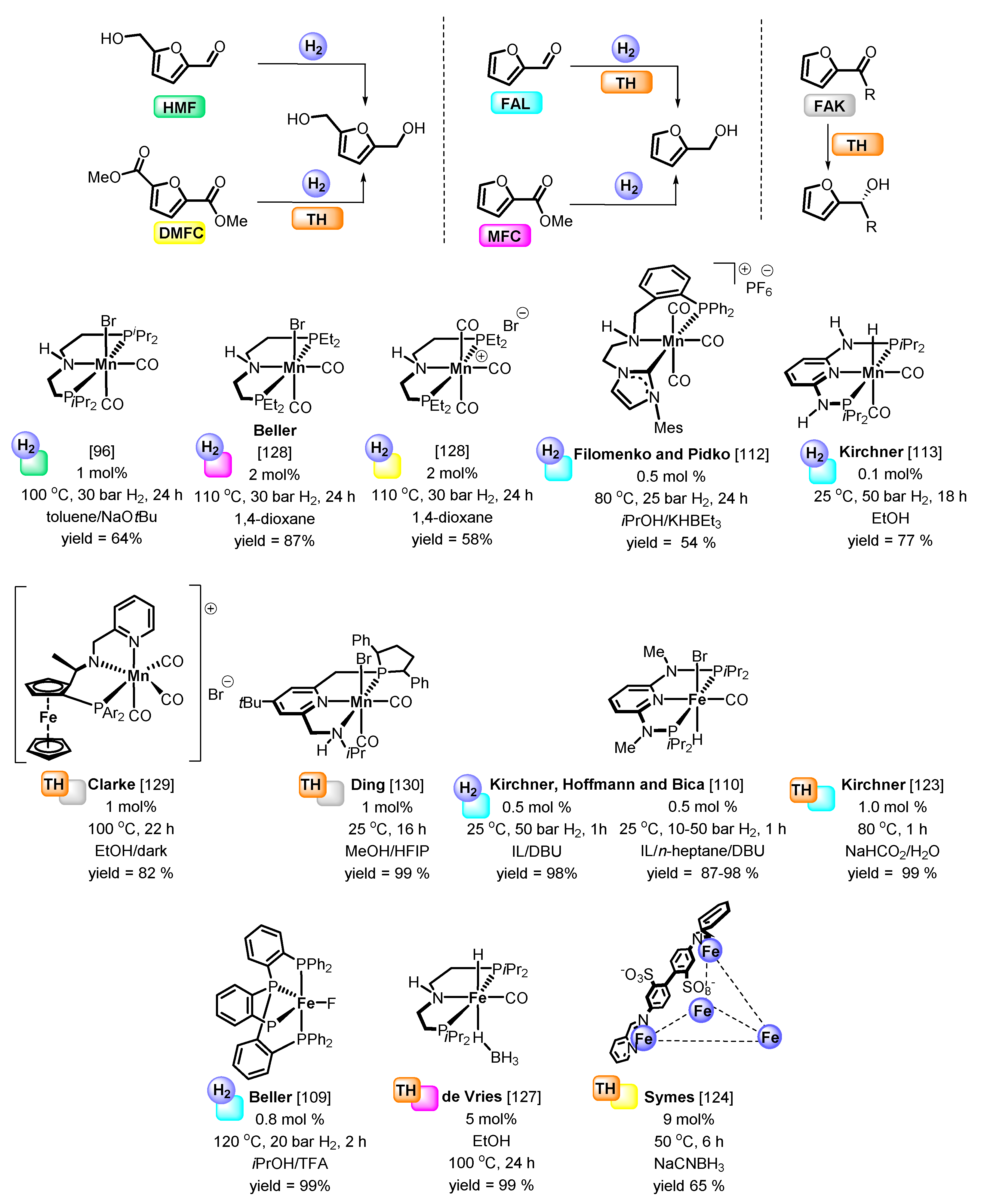

Within this context, the replacement of precious metal catalysts by earth-abundant metals results in a beneficial practice in terms of green chemistry [122]. For instance, Beller reported the first example of a base-metal catalyzed hydrogenation of furanic aldehydes. The Fe(II) tetraphos system [FeFP(PhPPh2)3][BF4] (0.8 mol%) exhibited full chemoselectivity for the reduction of FAL to FA in iPrOH/TFA (trifluoroacetic acid) mixture at 120 °C, 20 bar H2 and 2 h.
The desired alcohol was obtained with a 99% yield [123]. Kirchner studied the same reductive process with Fe-PNP (0.05 mol%) and DBU (1 mol%) at 40 °C, 30 bar H2, and 16 h. The combination of this catalyst with a supported ionic liquid phase (SILP) promoted the hydrogenation of aldehydes. Kirchner, Hoffmann, and Bica reported the catalytic activity of this system for the reduction of FAL to FA in a mixture of IL/n-heptane in 87–98% yield under 10–50 bar H2 at 25 °C in 1 h [124,125,126].
In the case of manganese catalysts, the hydrogenation of carbonyl compounds proceed at relatively high catalyst loading at elevated temperatures in the presence of strong bases [127]. Filonenko and Pidko reported manganese-based hydrogenation catalysis for the conversion of carbonyl derivatives including biomass aldehydes, such as FAL [128]. The Mn(I)-CNP precatalyst (50 ppm) is activated in the presence of a hydride donor promoter KHBEt3 (1 mol%) and 25 bar H2, 24 h at 80 °C in iPrOH. The desired alcohol (FA) was isolated in 54% yield (Figure 5). Kirchner improved the yield up to 77% by using a monohydride Mn-PNP complex (0.1 mol%) and H2 pressure of 50 bar at 25 °C and 18 h [129].
To avoid the use of high-pressure reactors and harsh reaction conditions for classical hydrogenation, catalytic transfer hydrogenation is considered an attractive alternative. This process involves the transfer of a proton and a hydride from the donor molecule to the unsaturated substrate. There are examples of sacrificial hydrogen donors, such as formic acid, iPrOH, EtOH, and MeOH. In fact, the replacement of molecular dihydrogen as a reducing agent by a sacrificial hydrogen donor/solvent, such as EtOH, is an ecofriendly and safe option.
The first example of transfer hydrogenation of carbonyl compounds is the well-known Meerwein–Ponndorf–Verley reduction, which involved the use of aluminum alkoxide as a promoter for the reduction of a ketone in the presence of a secondary alcohol as a sacrificial hydrogen source [130]. Although this process has been widely utilized in both academic and industrial processes, the major drawbacks of this protocol are the requirement of a large amount of aluminum alkoxide reagent, unwanted side reactions, and the moisture sensitivity of aluminum alkoxides [131]. The catalytic TH is a relatively new process in biomass value addition with outstanding results for the production of biofuels. Furthermore, this synthetic procedure decreases the risk of overpressure in the system and simplifies the reactor design.
Several iridium and ruthenium-based catalysts have been reported for the selective transfer hydrogenation of aldehydes using water as solvent and formates as hydrogen source. On the other hand, secondary alcohols have a higher tendency to release hydrogen than primary alcohols [132,133]. Often the combination of a hydrogen donor and H2 gas is necessary to avoid the oxidized product of the raw material or aldehydes and ketones from the alcoholic hydrogen donor.
The chemoselective reduction of FAL to the corresponding alcohol was achieved by Baratta and coworkers using benzo[h]quinoline RuCl2(CNNPh)(PP) pincer complex (0.01 mol%) and HCOONH4 as a hydrogen donor. The heteroaromatic aldehyde was selectively reduced to FA with a conversion of 98% at 90 °C in toluene/water after 20 h [134].
O’Connor established a proof of concept for TH of HMF under base-free conditions employing iPrOH as a source of hydrogen. The complete reduction of the aldehyde functionality was carried out with a Cp*Ir(pyridinesulfonamide)Cl complex (1 mol%) at 85 °C in 30 min. Both HMF and FAL were reduced with 99% and 95% yields, respectively. This represents one of the few examples for the selective hydrogenation of furanic aldehydes without base or formation of side products [135]. In contrast, Xiao explored the TH of HMF using a rhodaclycle (1 mol%) with MeOH and Cs2CO3 as base. The productivity of this complex along with its high stability provided 82% yield at 90 °C in 1 h [136].
Similarly, de Vries reported using Ru-MACHO-BH (0.1 mol%) complex for the TH of FAL using iPrOH or EtOH as a hydrogen source [137]. The desired product was isolated in 79% yield after 16 h under reflux. A contrasting system was developed by Bagh and coworkers for the TH of FAL using a phosphine-free air-stable ruthenium(II)-triazole complex (2 mol%) in the presence of EtOH and K2CO3 at 70 °C. The reaction provided a 90% yield of FA [138].
Makhubela tested the efficiency of pyridyl-imine iridium(III) for the production of FA with HCOOH as the source of hydrogen using a catalyst loading as low as 0.025 mol% and Et3N as a base [139]. The catalyst showed good selectivity with TOF of 1481 h−1 and 74% conversion at 140 °C.
The expansion of catalytic reduction of aldehydes can also use base-metal catalytic systems. For example, Kirchner used Fe-PNP hydride complex for the TH of FAL employing NaHCO2/H2O at 80 °C producing a 99% yield of FA after 1 h [140]. Symes reported the combination of the reducing agent NaCNBH3 as hydride source and Nitschke’s Fe4L6 cage as an enzyme-like catalyst. The encapsulation of furfural inside a supramolecular cage prevents the oligomerization of reactive intermediates and selective production of FA and 2-methylfuran [141].
Other outcomes for the hydrogenation of aldehydes enabled the reduction of carbonylic moieties, such as esters. In particular, de Vries demonstrated the effective ester hydrogenation of methyl furan 1-carboxylate (MFC) to FA with 0.05 mol% of Ru-NNS complex. Presumably, the use of toluene maximizes the conversion and yield of FAL to 80% at 80 °C, 50 bar H2, and 10 h [142].
Similarly, Beller described the use of a PNP-Ir complex for the reduction of MFC to the corresponding alcohol. The reaction was carried out with 2 mol% catalyst loading in the presence of NaOMe under 50 bar H2 and 130 °C. The product was isolated in 89% yield after 18 h [143].
Parallel to these works, de Vries explored the hydrogenation of esters catalyzed by PNP-pincer base metal complexes. In this regard, Fe-MACHO-BH (5 mol%) promoted the reduction of MFC to FA (99% yield) in EtOH at 100 °C and 24 h [144]. Interestingly, high yields of FA (87%) were also observed with the PNP-Mn catalyst (2 mol%) in 1,4-dioxane at 110 °C and 30 bar H2 [128]. In addition, the hydrogenation of dimethyl furan-2,5-dicarboxylate (DMFC) towards BHMF was afforded with a 58% yield by using the cationic Mn-PNP tricarbonyl complex (2 mol%) under similar reaction conditions [109,145].
Clarke used a Mn-PNN complex for the TH of MFC at 100 °C in the presence of KOtBu and EtOH. A catalyst loading of 1 mol% achieved an 82% yield after 22 h [146]. Likewise, the enantioselective ketone hydrogenation has been demonstrated in recent years. For instance, Ding reported a lutidine-based chiral Mn-PNN complex for the asymmetric hydrogenation of 2-acetylfuran employing 1 mol% of the catalyst under milder reaction condition [147]. The heteroaromatic ketone was reduced to the corresponding chiral alcohol in 99% yield and 85% ee.
Among these examples, other processes and catalytic systems have been developed for the transformation of furanic aldehydes into hydrogenation/ring opening products such as ketoacids and diketones. For instance, 1-hydroxyhexane-2,5-dione (HHD) is one of the ketone derivatives obtained from HMF (Figure 6). It is considered an important intermediate generated in-situ for the formation of cyclopentanone-based chemicals through aldol-condensation [148].

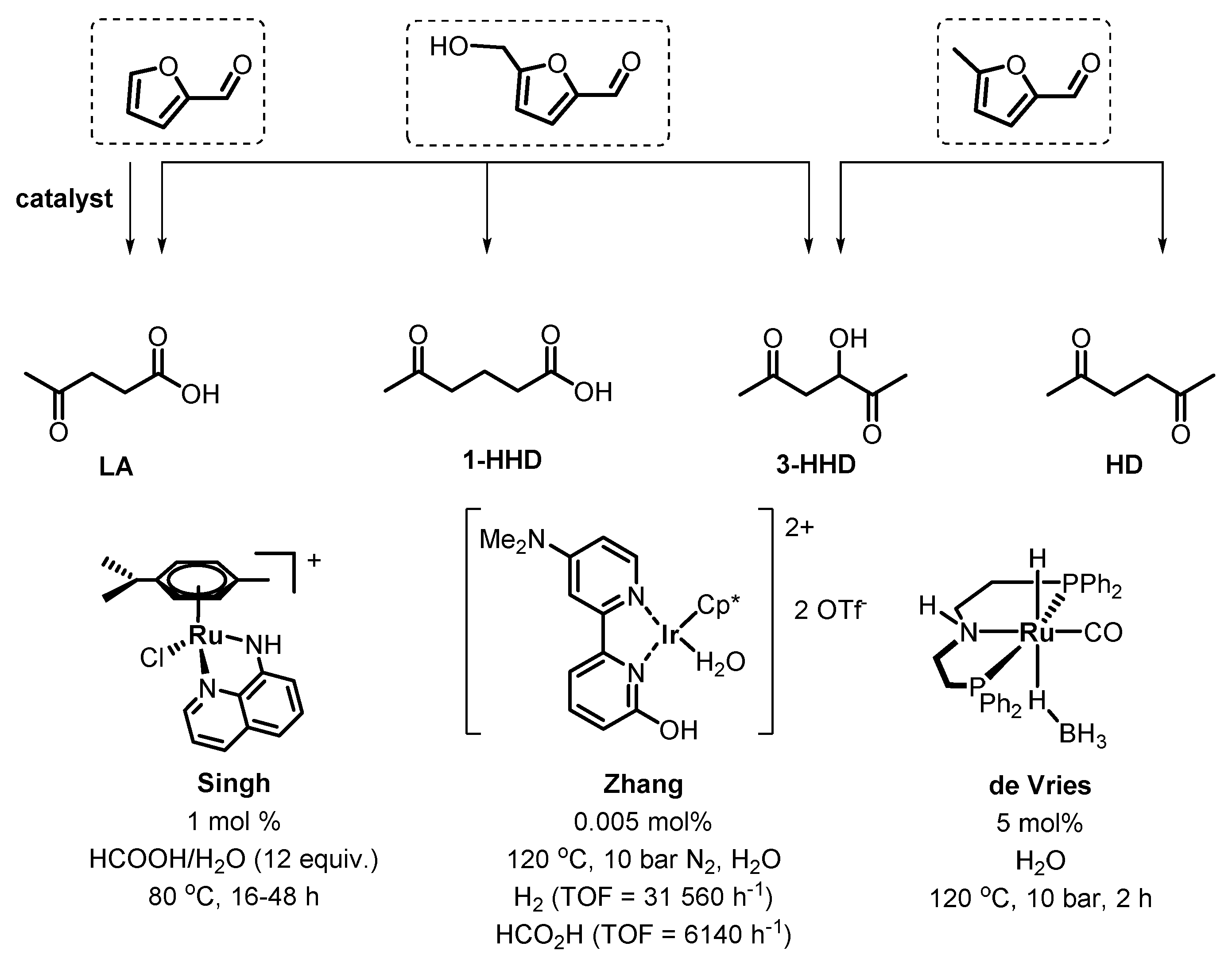

The transformation of furans (HMF, FAL, and MF) to ketoacids and diketones was studied by Singh and coworkers employing the water soluble 8-aminoquinoline arene-ruthenium (II) complex [149]. This one pot catalytic transformation allows the production of levulinic acid, 1-hydroxy-hexane-2,5-done (1-HHD), 3-hydroxyhexane-2,5-dione (3-HHD) and hexane-2,5-dione (HD) in the presence of 1 mol% catalyst and an excess of HCOOH at 80–100 °C. This H-donor source is non-toxic organic acid and in combination with water as solvent, facilitate the hydrolytic ring opening of furans.
Zhang investigated the catalytic hydrogenation of HMF using a family of bipyridine Cp*Ir(III)complexes [150]. Thus, the hydrogenation and hydrolytic ring opening of HMF with the half-sandwich complex (0.26 mol%) in H2O under 20 bar H2 at 110 °C for 1 h, produced 86% of HHD. Further studies with analogous Cp*Ir(III) precatalyst containing a functionalized bipyridine and lower catalyst loading (0.00083 mol%) afforded a TOF = 31,560 h−1 and 67% yield at 120 °C, 35 bar H2 for 6 h under acidic conditions. The HHD formation was also possible in the presence of HCO2H as hydrogen donor with TOF = 6140 h−1 and 64% yield [151].
Within this context, de Vries presented a protocol for the one-pot synthesis of 2-hydroxy-3-methylcyclopent-2-enone (MCP) via ring opening of HMF to HHD in the presence of half-sandwich Cp*Ir(dpa)Cl (dpa=dipyridylamine) in H2O/KOH at 120 °C, 10 bar H2 and 2 h. The MCP was isolated in 55% yield. Interestingly, the presence of base promoted aldol condensation leading to MCP instead of the expected 3-(hydroxymethyl)cyclopent-2-en-1-one (HCPEN) [152]. The subsequent hydrogenation of MCP towards 3-methyl-1,2-cyclopentanediol was also tested with Ru-MACHO-BH (0.5 mol%) in THF at 100 °C, 20 bar H2 affording 96% yield. Noteworthy, the use of this Ru-PNP catalyst for the direct ring opening of HMF diminished the yield of HHD to 5% under similar reaction conditions (Figure 6).

Hydrodeoxygenation of Furanics

Biodiesel and ethanol have been promoted over the past decade as a sustainable substitute for fossil fuels [153]. As result, there is a growing incentive to identify new strategies for converting non-edible biomass to biofuels. Among those examples, furanic derived fuels (or drop-in fuel compounds) also constitute a sustainable alternative to fossil-based products [154].
The upgrading of biomass-derived furanics to furanic biofuels is carried out by catalytic hydrogenation and hydrodeoxygenation (HDO) [155]. In this regards, the catalytic HDO of HMF or other chemical modifications allow the synthesis of more suitable liquid biofuels. In both types of reactions, the hydrogen atoms are added to the molecule to decrease the degree of unsaturation or cleave C–O bonds.
In fact, FAL and 5-HMF, which are generated by the corresponding dehydration of C5 and C6 sugars in the acid hydrolysis of lignocellulose, produce 2-methylfuran (2-MF), and 2,5-dimethylfuran (DMF), as hydrodeoxygenation (HDO) products. The other drop-in fuels compounds include 2,5-dimethyltetrahydrofuran (DMTHF), 5-ethoxymethylfurfural (EMF), ethyl levulinate (EL), GVL, distillate range hydrocarbons and aromatic aviation fuel additive [156].
Thus, the selective HDO of HMF is a general approach to produce the liquid biofuel DMF, which has combustion properties comparable to those of gasoline, [157] representing an alternative fuel with many desirable characteristics that overcome the drawbacks of low-carbon alcohols such as ethanol and n-butanol [158]. For example, DMF has the highest research octane numbers (RON = 119) of the mono-oxygenated C6 compounds, while preserving a high energy density (30 kJ cm−3) and ideal boiling point (92−95 °C) [159]. In general, ethers can be blended into petroleum-derived diesel up to 17% with no adverse effects on engine performance and decreasing particulate emissions [160].
One of the most promising transportation biofuel is 5-ethoxymethylfurfural (EMF) with energy density of (30.3 MJ/L), which is similar to gasoline (31.3 MJ/L) and diesel (33.6 MJ/L) [161]. This chemical is usually synthesized from biomass sugars (glucose, fructose, or inulin) over an acid catalyst in ethanol. In comparison with the traditional hydrolysis, the use of the ethanolic system minimize the waste-water treatment and discharge [162]. The reported homogeneous catalysts for the synthesis of EMF include inorganic acids and soluble metal salts.
For instance, Liu reported the use of SnCl4·5H2O, FeCl3, and CrCl3·6H2O for the production of EMF with yield up to 33% [163]. Zhang and Deng reported the one-pot conversion of fructose into EMF using FeCl3 in the presence of ethanol-[BMIM] Cl as solvent. This methodology improved the production of EMF in 91% yield after 4 h at 100 °C. Presumably, the ionic liquid stabilize HMF and improve the selectivity of the reaction [164]. HMF is often used as a precursor for liquid hydrocarbon fuels via the production of linear alkene aldol condensation and HDO producing hydrocarbons in the approximate molecular weight range for diesel and jet fuel [165].
HDO of sugars and furans have been reported with heterogeneous hydrogenation and hydrogenolysis catalytic systems. However, the homogeneous catalyst systems based on transition metal complexes is scarcely studied. The atom economy for the hydrogenation and HDO processes is extremely high, and only water is formed as byproduct [155]. However, the activation energies of the hydrogenation and HDO steps can lead to a mixture of partially hydrogenated products and intractable mixtures limiting its use [166]. The HDO of highly polar and reactive sugar-derived furans forces the use of a polar liquid reaction medium, such as H2O. The high temperatures used for this process (>150 °C) are required to trigger any dehydration or hydrolysis steps [167].
It is known that the selective hydrogenolysis of the hydroxymethyl moiety of HMF forms 5-methylfurfural (5-MF), which has potential applications as a fuel oxygenate and a chemical intermediate. Further reduction of 5-MF leads to 2,5-dimethylfuran (DMF) via 2-(hydroxymethyl)-5-methylfuran (HMMF). As a promising biofuel, DMF has similar physicochemical properties to gasoline and also a green solvent. It has also been demonstrated as a crucial chemical intermediate to produce p-xylene for terephthalate polymers [168].
Hydrogenation of the furan ring in DMF produces 2,5-dimethyltetrahydrofuran (DMTHF), which is a promising fuel oxygenate and a renewable substitute for tetrahydrofuran (Figure 7). Schlaf reported the use of the [(4′-Ph-terpy)Ru(H2O)3](OTf) catalyst and its iridium analogue (4′-Ph-terpy)Ir(OTf)3 for the conversion of DMF to hydrodeoxygenated products DMTHF and 2,5-hexanediol (2,5-HD), 2,5-hexanedione (2,5-HDO) and hexane in aqueous acidic medium at high temperature (175–225 °C) and 55 bar H2 [169]. However, the aqueous acidic medium and high temperatures eventually can decompose the catalysts. Depending on reaction conditions, the ruthenium system with 0.1 mol% loading, leads to 2,5-HD (69% at 175 °C) or DMTHF (80% at 200–225 °C) with the concomitant generation of small amounts of 2-hexanone and hexane.
Both catalyst were deactivated by formation of unreactive bis-chelate complexes [M(4′-Ph-terpy)2]n+ (M = Ru, Ir; n  =  2 or 3) diminishing the catalytic activity under HDO harsh reaction conditions. The same author evaluated the catalyst [Ru(2,2′-dipicolylamine)(OH2)3] (OTf)2 yielding 55% of 2,5-dimethyltetrahydrofuran in the presence of acid co-catalyst (H3PO4) at 150 °C.
Most of the intermediates and HDO products observed with homogeneous systems are limited to furfural. For instance, Sen and coworkers used RhCl3/HI (1/1.5) system to the direct conversion of xylose in a biphasic water/chlorobenzene mixture at 140 °C and 20 bar H2, producing 80% yield of 2-MF accompanied with the production of I2 [170].
In other attempt, Ladipo showed a cascade hydrodeoxygenation reaction of FAL employing an active Ru(II)-bis(diimine) complex. The catalyst cis-[Ru(6,6′-Cl2bpy)2(OH2)2](BArF)2 (1 mol%) displayed good selectivity leading from FAL into FA (93%) at 85 °C, 51 bar H2 and 2 h. Further transformation of FA at 130 °C, led to a very useful chemical precursor THFA (99%) via hydrogenation. The subsequent hydrogenolysis yielded 2-MF under similar reaction conditions [116].
Makhubela reported a Pd(II)-Schiff base complex for the conversion of FAL towards FA (88%) and THFA as a second product (12%). The reaction was carried out using 0.2 mol% catalyst loading with 20 bar H2 at 140 °C and 10 h [120].
Under catalytic conditions, the ring opening of furfuryl alcohol can happen in two sides of the furanic ring. The reductive ring opening next to the hydroxyl group leads to 1,5-pentanediol formation, whereas the opposite side ring opening gives 1,2-pentanediol. [53] There is not such a catalytic process to control the selectivity of this reaction, because the chemical environments of the two furanic C–O bonds are similar. The opposite is true for the hydrogenation tetrahydrofurforyl alcohol, where the formation of 1,5-pentanediol is favored.

5. Oxidative Transformations

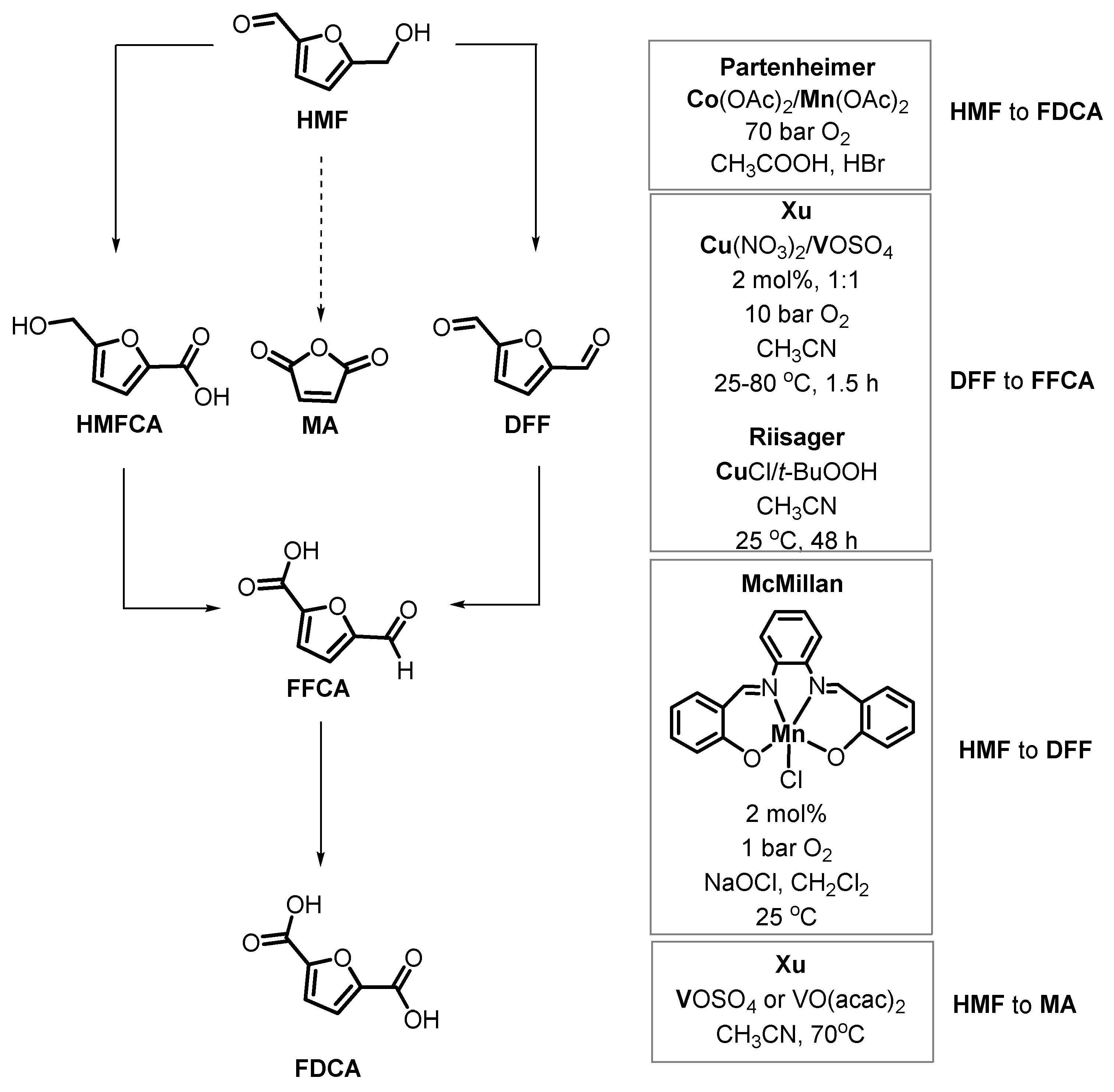

Oxidative transformation of HMF lead to 2,5-diformylfuran (DFF), and/or 2,5-furandicarboxylic acid (FDCA). In this regard, the selective oxidation of HMF to the industrial precursor 2,5-diformylfuran (DFF) is relevant for the synthesis of pharmaceuticals, fungicides, and functional polymers [171]. In fact, selective oxidation reactions of HMF are currently viewed as attractive routes to 2,5-furandicarboxylic acid (FDCA) and/or 2,5-diformylfuran (DFF) and 5-formyl-2-furancarboxylic acid (FFCA), monomers for furan-containing polymers and materials with special properties [172].
While a variety of oxidants have been used for oxidation of HMF to FDCA and DFF, only few reports describe catalytic oxidations of HMF with oxygen or air, the most economical oxidants [173]. Recently, much progress has been made in the development of homogeneous catalytic systems for this transformation (Figure 8). For example, Corma reported the use of immobilized vanadyl–pyridine complexes affording 82% conversion and high selectivity (≥99%) at 130 °C [37,174].
In general, the efficient and selective formation of DFF can be achieved by using vanadium-catalyzed systems. Xu reported a homogeneous catalytic mixture of Cu(NO3)2/VOSO4 (2 mol%, 1:1 ratio) for the selective oxidation of HMF to DFF under mild reaction conditions (25–80 °C, 1.5 h, 10 bar O2) in CH3CN [175,176]. The inorganic catalyst is easily removed from the reaction mixture. Nevertheless, the instability and high cost of HMF limit the production of DFF [177]. A sustainable option is the catalytic conversion of carbohydrates to DFF without further purification of HMF.
The commercialization of FDCA produced from fructose-derived HMF is one example of the successful use of biomass [178]. In this industrial process, fructose is dehydrated in methanol solvent to the HMF analogue methoxymethylfurfural (MMF). Then, MMF is oxidized to FDCA using the homogeneous oxidation catalyst [179].
Moreover, FDCA has significantly wide attention particularly as a substitute of pe- trochemical-derived terephthalic acid in the synthesis of useful polymers [180]. In fact, FDCA can undergo coupling with mono-ethylene glycol to produce polyethylene furanoate (PEF), a green replacement for polyethylene terephthalate (PET) [181]. Even though, several methods for the synthesis of FDCA have been reported such as electrochemical oxidation and biocatalytic oxidation, synthesis of FDCA is mainly carried out via catalytic methods using heterogeneous or homogeneous catalysts.
Thus, HMF has been oxidized with O2 to FDCA in the presence of heterogeneous Pt catalysts with stoichiometric amounts of alkali [182,183] and to DFF with TEMPO radicals [183] or supported vanadium catalysts [157]. On the other hand, homogeneous catalytic system for the synthesis of FDCA has been scarcely reported when compared to heterogeneous catalysts.
Partenheimer described the first examples of aerobic HMF oxidation reactions, catalyzed with homogeneous metal/bromide systems. The aerobic oxidation of HMF to FDCA was achieved at 125 °C under 70 bar air pressure in acetic acid solvent using Co(OAc)2, Mn(OAc)2, and HBr as the catalysts, commonly known as the Amoco Mid-Century (MC) catalyst [184]. They observed that HMF can be oxidized to DFF or 2,5-furandicarboxylic acid with high selectivity by tuning the reaction conditions. The oxidation of HMF with the MC catalyst proceeded via the formation of peroxyl radical in the chain propagation step.
The peroxyl radicals were formed through the abstraction of H-atom of HMF by the bromide radical, generated in the catalytic cycle by the oxidation of HBr with Co(III) or Mn(III), followed by reaction of aryl alkyl radical with O2. Although both hydroxymethyl and aldehyde groups of HMF could be simultaneously oxidized, the authors proposed that the OH group of HMF is selectively oxidized by dioxygen and metal/bromide catalysts to obtain 2,5-diformylfuran (DFF) in 57% isolated yield. HMF can be also oxidized via a network of identified intermediates to 2,5-furandicarboxylic acid (FDCA) in 60% yield. For comparison, benzyl alcohol gives benzaldehyde in 80% using the same catalytic system.
Similarly, Abu-Omar reported the use of Co(OAc)2/Zn(OAc)2/NaBr mixture for the aerobic oxidation of HMF into FDCA [185]. DFF was observed as the only oxidation product without an acid additive, but FDCA was obtained in a yield of 60% with trifluoroacetic acid as an additive. McMillan proposed an efficient methodology for the efficient oxidation of HMF to DFF using a Mn(III)-salen (2 mol%) complex in the presence of NaOCl as oxidant under 1 bar O2 in CH2Cl2 at 25 °C. The yield of the expected product was improved up to 89% [186].
The use of other oxidant such as tert-butyl hydroperoxide (t-BuOOH) was also studied for the transformation of HMF into FDCA. Riisager reported the oxidation of HMF into FDCA in CH3CN with t-BuOOH as the oxidant and copper salts as catalyst [187]. The use of CuCl together with LiBr as the additive yielded 43% of FDCA after 48 h at room temperature, whereas using CuCl2 as the catalyst afforded 45% without additive.
Another important chemical intermediate derived from HMF is maleic anhydride (MA), which is mainly used for the synthesis of unsaturated polyester resins [188]. In fact, FA is the starting material for the production of maleic anhydride or maleic acid, via oxidation. Xu and co-workers reported the selective oxidation of HMF to MA using vanadyl complexes such as VOSO4 and VO(acac)2 without proceeding through any oxidized furan intermediates [189]. The reaction was performed at 70 °C in CH3CN affording 52% yield of MA. To the best of our knowledge, the heteropolyacid catalyst H3PMo12O40 modified with VO(acac)2 have shown the best catalytic performance towards the formation of MA in 56% yield [190,191].
Interestingly, Pd(OAc)2 catalyst showed a 16% yield to furoic acid, while only traces of this compound were observed over other metal catalysts. However, the major compe- titive process for the selective oxidation is the polymerization of furfural to generate resins under the oxidative conditions. The by-product of furfural oxidation in gas phase is furan. In fact, furan is the first intermediate in the mechanism of the furfural oxidation and an important intermediate in chemical industry. Hence, even though it cannot be produced directly from biomass, it is produced from FA [192].

6. Other Chemical Transformation of Furanics

6.1. Catalytic Carbonyl Coupling of Furanics with Nucleophilic Nitrogen Sources

The introduction of nitrogen-containing functionalities in biomass-derived compounds, add value and expand their industry applicability [193]. In fact, reductive amination of HMF constitutes an important basic route for the sustainable production of nitrogen-containing compounds from biorenewables [194]. HMF can be converted into valuable N-containing furanyl compounds through the reductive amination of aldehyde groups (Figure 9).
N-Substituted 5-(hydroxymethyl)-2-furfuryl amines have a wide application in pharmaceutical industry, e.g., for the production of calcium antagonists, muscarinic agonists, cholinergic agents, and carcinogenesis inhibitors [195]. These structures are conventionally prepared by a Mannich-type reaction starting from FAL or FA with primary amines under harsh reaction conditions [196]. However, the C2 aldehyde group makes the C5 position of furan ring difficult for addition because of the deactivating effect [197].
The use of a metal catalysts is a prerequisite for efficient reductive amination via two reaction routes, including initial reduction to alcohols followed by amination or first the amination to form coupled imines and subsequent hydrogenation [198]. Zhang reported an optimal Ru-based catalyst Ru(DMP)2Cl2, (DMP) dichlorobis(2,9-dimethyl-1,10-phenanthroline)ruthenium(II) for the reductive amination of HMF with aniline. N-phenyl-5-(hydroxymethyl)-2-furfuryl amine was obtained in 68% yield at 50 °C with 12 bar H2 in 5 h.
H2 is employed as the reducing agent, which improves the atom economy of the reaction in the presence of bio-based EtOH as solvent making the process more sustainable [199]. Particularly, the catalytic performance of Ru(DMP)2Cl2 was more effective at 60 °C with a sharp increase in the yield (up to 98%). Hence, this catalytic system was efficient for synthesizing a number of new aminomethyl-hydroxymethylfurans with primary and secondary amines.

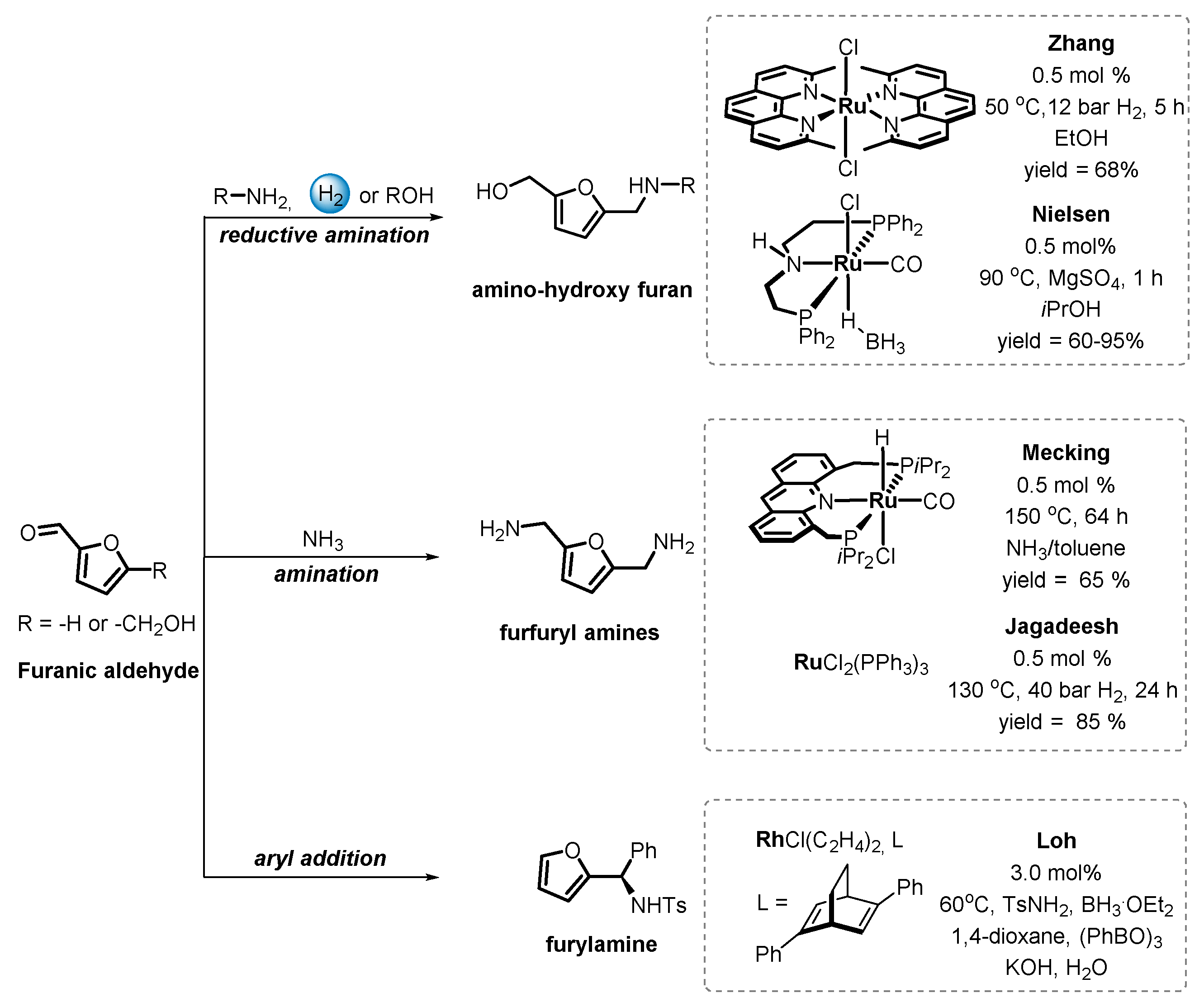

Homogeneous catalysis can promote the direct amination and reductive amination of furanic aldehydes and its derived alcohols into polymers. Mecking described the reductive amination of HMF with ammonia in the presence of the Milstein Ru-acridine diphosphine complex (Figure 9) to furfuryl diamines. This reaction led to the desired product 2,5-bis(aminomethyl)furan in 65% yield at 150 °C after 4 h with 2.5 bar of H2 [200]. The monoamine derivative 2,5-bis(aminomethyl)furan is also an important monomer for the manufacture of long-chain polyamides. Bis(hydroxylmethylfurfuryl)amine is a key furan-based monomer for the synthesis of functional biopolymers, which can be synthesized from the reductive amination of HMF.
Thus, the reductive amination of HMF with n-heptylamine was achieved with the already described Ru(DMP)2Cl2 catalyst. The bis(hydroxylmethylfurfuryl)amine was obtained in 90% yield at 110 °C with 0.2 bar of H2 and 12 h [201]. The condensation of HMF with the alkylamine followed by hydrogenation forms the amine, which yielded bis(hydroxylmethylfurfuryl)amine after subsequent addition reaction, dehydration and hydrogenation. The authors claimed through comparison experiments and X-ray photoelectron spectroscopy analysis that the synergistic effect of Ru (II) and DMP ligand was accountable for the remarkable catalytic performance of the Ru-based catalyst.
Furfurylamines derived from the selective reductive amination of furfurals exhibits diverse applications in the industry, including the preparation of pharmaceutical, such as antiseptic agents, antihypertensives, and diuretics as well as agrochemicals, pesticides, and synthetic resins and polymers [202]. The synthesis of furfurylamines from furfurals by reductive amination has been investigated using various reducing agents and catalysts. Reducing agents such as hydrogen gas, silanes, borohydrides, and formic acid have been reported in the literature.
Jagadeesh described the use of RuCl2(PPh3)3 for the reductive amination of furfural with ammonia, providing 85% yield of furfurylamine in 24 h and 130 °C under 40 bar of H2 [203]. Noteworthy, the Ru-hydride species RuH2(PPh3)3 or RuHCl(PPh3)3, formed in the reaction served as active catalytic species reacting with formed furfuryl imine. Recently, Nielsen reported an efficient, chemoselective, and base free transfer hydrogenation of furfural to furfuryl amines employing Ru-MACHO-BH as catalyst and iPrOH as H-donor. A relatively low catalyst loading (0.5 mol%) in the presence of MgSO4 as drying agent resulted in full conversion of furfural to furfuryl amines at 90 °C after 1 h [204]. The general applicability of this method was tested with various amines affording moderate to excellent yield.
Loh described the asymmetric arylation of FAL in the presence of a rhodium-catalyst [RuCl(C2H4)]2L (L = (1R,4R)-2,5-Diphenylbicyclo[2.2.2]octa-2,5-diene) to produce furylamine with 97% yield and 99% ee [205]. This methodology provides highly functionalized amines, which can be converted to piperidone-based pharmaceuticals.

6.2. Functionalization of Furanics and C–C Bond Formation

Furan-derived compounds are accessible intermediates for many other transformations in organic synthesis and constitute structural motifs in natural products or biologically drug molecules [206,207]. For example, Sheldon reported the palladium-catalyzed carbonylation of HMF with PdCl2/TPPTS system in water at 70 °C and 5 bar CO (Figure 10) [208]. In addition to 4-formyl-2-furancarboxylic acid, they observed MF as byproduct from the reduction of HMF.
The decarbonylation/reduction of HMF was explored by Klankermayer and Leitner [209]. The reaction was carried out with a catalytic system IrCl(cod)2 (cod=1,5-cyclooctadiene) as the metal precursor in the presence of a phosphine ligand (PCy3) in boiling 1,4-dioxane resulting in 41% conversion with 97% selectivity towards DHMF after 48 h. Interestingly, the addition of CO2 increased the conversion up to 99%, suppressing the formation of humins. The substitution of solvent with THFA converted all the mixture into a single product stream of THFA.
The elongating of carbon chains of biomass-derived furanic compounds to produce fuel precursors or furan-based platform molecules can be achieved using several strategies, including aldol condensation [210,211], hydroxyalkylation/alkylation [212,213], Knoevenagel condensation [214], benzoin condensation [215], and Diels−Alder reaction [216].
The benzoin condensation of furfural is a well-known process for the synthesis of furoin. This class of compound is relevant for the preparation of alkane fuels via the HDO process. Leeuwen described the asymmetric reduction of the carbonyl group of furoin with a chiral catalyst RuCl(p-cymene)((S,S)-TsDPEN) (0.5 mol%) to produce hydrofuroin with a 96% yield [217].
In general, aldol condensation reactions involve the enolization of a carbonyl group containing an α-C-H followed by C–C coupling with another carbonyl and subsequent dehydration. Some homogeneous catalysts have been successfully applied in the synthesis of diesel-fuel-range multi-carbon precursors via aldol condensation. For instance, Zhang reported various metal chlorides catalysts, such as NiCl2, CoCl2, CrCl3, VCl3, and FeCl3, for the aldol condensation of furfural with acetone in [BMIM]Cl (1-butyl-3-methylimidazolium chloride) at 140 °C and 1.5 h [218]. The enhanced catalytic activity was observed with VCl3 in the presence of ethanol, giving a 38% yield of furfurylideneacetone (FAc) and a 52% yield of (2-furanyl)-1,4-pentadien-3-one (F2Ac) at 160 °C and 1.5 h. Apparently, the acetal reaction of furfural with ethanol reduced the formation of side reactions of furfural.
Van der Eycken and Noël used HMF as acyl surrogates for the direct C-2 acylation of indoles at ambient temperature via dual photoredox/transition-metal catalysis in both batch and flow conditions [219]. The reaction was carried out in the presence of Pd(OAc)2 (10 mol%), fac-[Ir(ppy)3], (2 mol%), N-(tert-butoxycarbonyl)-L-valine (Boc-Val-OH, 20 mol%) in CH3CN (0.1 M) under argon, and exposed to light source for 24 h at 25 °C. Thus, the heteroatomic aldehydes, such as FAL and 2-thenaldehyde (TA), led to the corresponding 2-acylindole with a relatively moderate yield (68−85%). Interestingly, HMF showed low reactivity and a lower yield (34%). Presumably, this detrimental effect is due to the poor compatibility of the hydroxymethyl group with an oxidative single electron transfer pathway.
Finally, Aydin described the asymmetric Henry reaction of FAL with nitromethane catalyzed by Cu(OTf)2 (5 mol%) in the presence of an excess of a chiral oxazoline base ligand and iPrOH at 0 °C. The product furfural nitroaldol was isolated with a 72% yield and 80% ee. This β-nitro alcohol can be converted into other key building block molecules of natural products or pharmaceuticals [220].

6.3. Undirected C–H Activation

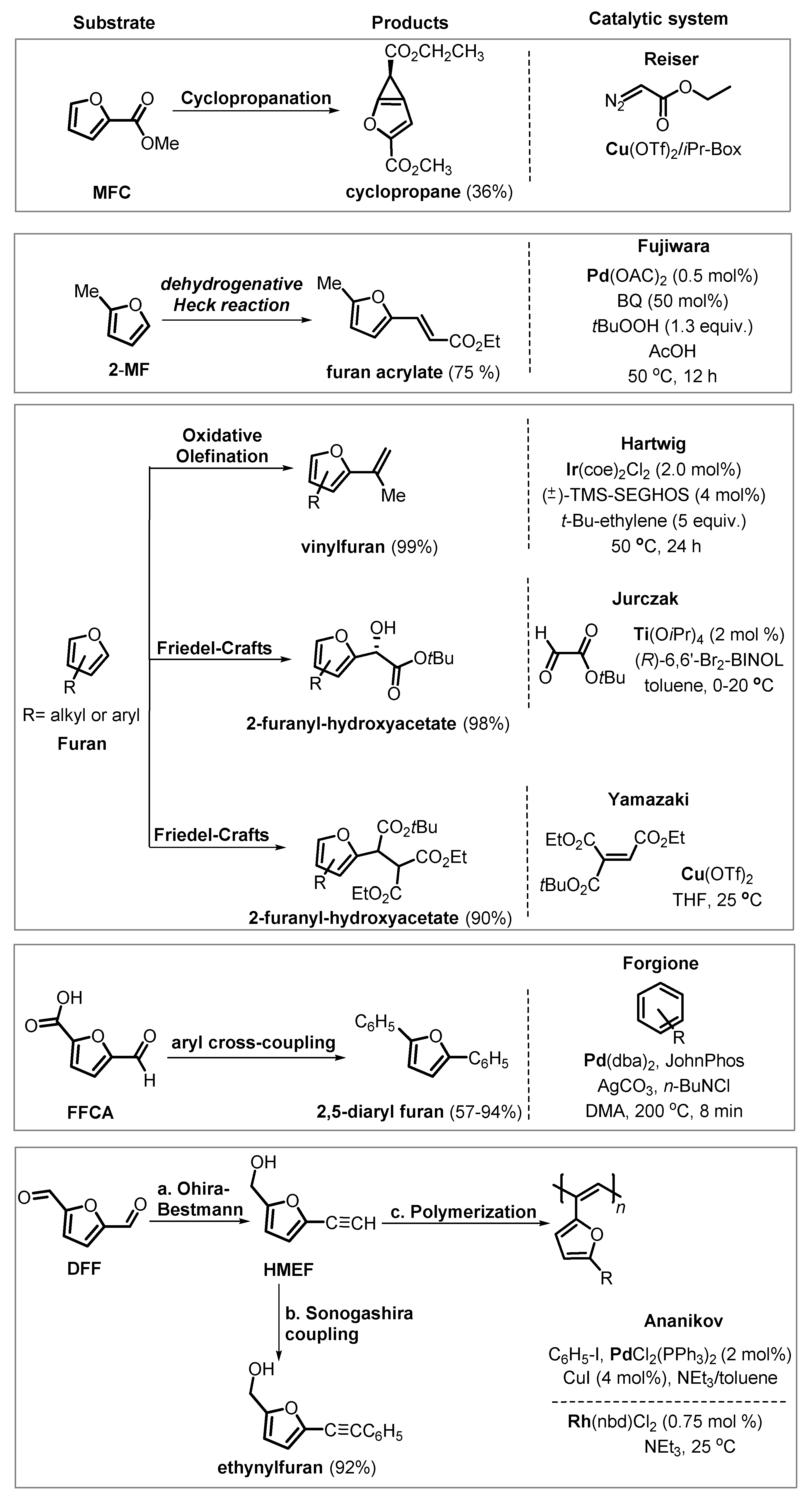

The catalytic activation of aromatic C−H bonds leading to the formation of a C−C bond is extremely relevant for chemical and pharmaceutical industries. In this regard, furans constitute key substrates for the synthesis of functionalized synthons. For example, Reiser and coworkers explored the transformation of furfuryl ester to cyclopropane in 36% yield and 91% ee employing a chiral CuBox catalyst Cu(OTf)2iPr-Box (Figure 11). In general, cyclopropanes are valuable synthetic building blocks in organic synthesis for the construction of natural products and drugs [221].
Fujiwara reported Pd-catalyzed intermolecular dehydrogenative Heck reactions of furans with activated olefins in the presence of Pd(OAc)2 giving styrene-type products with a 75% yield with catalyst loadings as low as 0.5 mol% in AcOH-dioxane [222]. Since then, other systems have been reported to increase the TON with various oxidants, additives and solvents.
Hartwig reported the Ir-catalyzed oxidative coupling of furans with unactivated olefins to produce branched vinylfurans in the presence of a second alkene as the hydrogen acceptor [223]. The catalytic system Ir(coe)2Cl2 complex (2 mol%) and the air-stable bisphosphine ligand (±)-TMS-SEGPHOS (4 mol%) were combined to carry out the reaction at 50 °C for 24 h in tert-butylethylene (TBE) as a sacrificial hydrogen acceptor. Higher yields (up to 99%) and selectivities were reported with furans containing electron-donating groups at C-2 on the furan.
Other synthetic methodologies for the production of bio-based synthons, such as 2-furanyl-hydroxyacetates, have been reported. For example, Jurczak published examples of efficient Friedel−Crafts reactions of a series of furans with alkyl glyoxylates promoted by a 6,6′-dibromo-BINOL/Ti(IV) complex (2–5 mol%) in toluene at 20 °C affording up to 98% yields of 2-furanyl-hydroxyacetates with high enantioselectivity (90–97% ee) [224]. Yamazaki also described the Friedel-Crafts process using Cu(OTf)2 (10 mol%) in THF at 25 °C [225]. The reaction gave yields of up to 90% with 60% ee for the substituted furan.
Forgione described the modification of biomass-derived 2,5-furandicarboxylic acid to produce 2,5-diaryl furans through the highly regioselective decarboxylative cross-coupling reaction with Pd(dba)2 with high catalyst loadings (15 mol%) in dimethylformamide (DMF) [226]. The addition of silver-containing base, Ag2CO3 (1.5 equiv) and (2-biphenylyl)di-tert-butylphosphine (JonhPhos) increased the yield to 80% at 200 °C. The same approach was applied for the synthesis of the muscle relaxant dantrolene from HMF [227].
Terminal alkynes are important precursors of substituted polyacetylenes, which exhibit unique optical, mechanical, magnetic, and electrical properties [228]. The conventional alkynylation of aldehydes requires harsh basic conditions, making the process unsuitable for HMF. Ananikov established that an alternative to, e.g., the Corey–Fuchs or the Seyferth–Gilbert reactions, is the Sonogashira coupling of 2-hydroxymethyl-5-ethynylfuran (HMEF) with iodobenzene in the presence of PdCl2(PPh3) (2 mol%) at 60 °C overnight. The corresponding alkyne was produced at a 92% yield [229]. The polymerization of terminal alkynes is feasible in the presence of Rh-based catalytic systems. Thus, ethynyl derivatives derived from HMF were subjected to the polymerization reaction catalyzed by Rh(nbd)Cl2 (nbd=norbornadiene) (0.75 mol%) in triethylamine at 25 °C.

7. Conclusions

Biomass is the most accessible and low-cost economical solution for the production of sustainable transportation fuels as well as the only non-petroleum route to organic molecules for the manufacture of bulk and fine chemicals. However, designing a sustainable and cost-effective biorefinery remains a great challenge. The upgrading of biomass feedstock involves chemical transformations, such as hydrolysis, dehydration, isomerization, oxidation, hydrogenation, deoxygenation, and hydrodeoxygenation.
Effective catalysts are critical for developing efficient and clean chemical processes in industry. Thus, the design of catalysts for such transformations require new classes of homogeneous catalyst that are compatible with the highly oxygenated nature of biomass. In addition, low-temperatures (<200 °C), the aqueous-phase processing of sugars, the development of effective homogeneous catalysts with earth-abundant metals, and reductions in the use of harmful reagents are desired.
The use of furanic molecules (HMF, FAL, BHMF, DFF, and FDCA) as starting materials for synthetic applications is highly attractive for the scientific community and for industrial applications. Over the past years, significant advances have been reported for the production of biofuels with new catalysts. The highlighted examples in this review demonstrated the range of potential chemical transformations that can occur for biomass-derived platform molecules employing homogeneous catalysis. With the widespread application of these synthetic methodologies, further progress is expected in this field.

Author Contributions

Conceptualization, R.P.; writing—original draft preparation, R.P. and S.K.; writing—review and editing, R.P., S.K. and M.N.; visualization, R.P., S.K. and M.N.; project administration, M.N.; funding acquisition, M.N. All authors have read and agreed to the published version of the manuscript.

Funding

The authors thank VILLUM FONDEN (19049) and Novo Nordisk Foundation (NNF20OC0064560) for funding this research.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yang, L.; Wang, X.-C.; Dai, M.; Chen, B.; Qiao, Y.; Deng, H.; Zhang, D.; Zhang, Y.; Villas Bôas de Almeida, C.M.; Chiu, A.S.F.; et al. Shifting from Fossil-Based Economy to Bio-Based Economy: Status Quo, Challenges, and Prospects. Energy 2021, 228, 120533. [Google Scholar] [CrossRef]
  2. Nelson, A.E. Fundamentals of Industrial Catalytic Processes, 2nd Edition. C. H. Bartholomew and Robert J. Farrauto John Wiley and Sons, Hoboken, NJ, 966 pp., 2006. Can. J. Chem. Eng. 2008, 85, 127–128. [Google Scholar] [CrossRef]
  3. Wilson, K.; Lee, A.F. Catalyst Design for Biorefining. Philo. Trans. R. Soc. A 2016, 374, 20150081. [Google Scholar] [CrossRef]
  4. Antonetti, C.; Licursi, D.; Raspolli Galletti, A.M. New Intensification Strategies for the Direct Conversion of Real Biomass into Platform and Fine Chemicals: What Are the Main Improvable Key Aspects? Catalysts 2020, 10, 961. [Google Scholar] [CrossRef]
  5. Lin, L.; Han, X.; Han, B.; Yang, S. Emerging Heterogeneous Catalysts for Biomass Conversion: Studies of the Reaction Mechanism. Chem. Soc. Rev. 2021, 50, 11270–11292. [Google Scholar] [CrossRef]
  6. Walker, T.W.; Motagamwala, A.H.; Dumesic, J.A.; Huber, G.W. Fundamental Catalytic Challenges to Design Improved Biomass Conversion Technologies. J. Catal. 2019, 369, 518–525. [Google Scholar] [CrossRef]
  7. Deuss, P.J.; Barta, K.; de Vries, J.G. Homogeneous Catalysis for the Conversion of Biomass and Biomass-Derived Platform Chemicals. Catal. Sci. Technol. 2014, 4, 1174–1196. [Google Scholar] [CrossRef] [Green Version]
  8. Sordakis, K.; Tang, C.; Vogt, L.K.; Junge, H.; Dyson, P.J.; Beller, M.; Laurenczy, G. Homogeneous Catalysis for Sustainable Hydrogen Storage in Formic Acid and Alcohols. Chem. Rev. 2018, 118, 372–433. [Google Scholar] [CrossRef] [PubMed]
  9. Piccirilli, L.; Lobo Justo Pinheiro, D.; Nielsen, M. Recent Progress with Pincer Transition Metal Catalysts for Sustainability. Catalysts 2020, 10, 773. [Google Scholar] [CrossRef]
  10. Crabtree, R.H. An Organometallic Future in Green and Energy Chemistry? Organometallics 2011, 30, 17–19. [Google Scholar] [CrossRef]
  11. Dixneuf, P.H. Organometallics for Green Catalysis, 1st ed.; Springer: Cham, Switzerland, 2019; ISBN 978-3-030-10954-7. [Google Scholar]
  12. Bender, T.A.; Dabrowski, J.A.; Gagné, M.R. Homogeneous Catalysis for the Production of Low-Volume, High-Value Chemicals from Biomass. Nat. Rev. Chem. 2018, 2, 35–46. [Google Scholar] [CrossRef]
  13. Dahiya, S.; Katakojwala, R.; Ramakrishna, S.; Mohan, S.V. Biobased Products and Life Cycle Assessment in the Context of Circular Economy and Sustainability. Mater. Circ. Econ. 2020, 2, 7. [Google Scholar] [CrossRef]
  14. Yuan, H.; Liu, H.; Du, J.; Liu, K.; Wang, T.; Liu, L. Biocatalytic Production of 2,5-Furandicarboxylic Acid: Recent Advances and Future Perspectives. Appl. Microbiol. Biotechnol. 2020, 104, 527–543. [Google Scholar] [CrossRef]
  15. Long, J.; Xu, Y.; Zhao, W.; Li, H.; Yang, S. Heterogeneous Catalytic Upgrading of Biofuranic Aldehydes to Alcohols. Front. Chem. 2019, 7, 529. [Google Scholar] [CrossRef]
  16. Nilges, P.; Schröder, U. Electrochemistry for Biofuel Generation: Production of Furans by Electrocatalytic Hydrogenation of Furfurals. Energy Environ. Sci. 2013, 6, 2925. [Google Scholar] [CrossRef]
  17. Gallezot, P. Conversion of Biomass to Selected Chemical Products. Chem. Soc. Rev. 2012, 41, 1538–1558. [Google Scholar] [CrossRef]
  18. Scarlat, N.; Dallemand, J.-F.; Monforti-Ferrario, F.; Nita, V. The Role of Biomass and Bioenergy in a Future Bioeconomy: Policies and Facts. Environ. Dev. 2015, 15, 3–34. [Google Scholar] [CrossRef]
  19. Takkellapati, S.; Li, T.; Gonzalez, M.A. An Overview of Biorefinery-Derived Platform Chemicals from a Cellulose and Hemicellulose Biorefinery. Clean Technol. Environ. Policy 2018, 20, 1615–1630. [Google Scholar] [CrossRef]
  20. Kohli, K.; Prajapati, R.; Sharma, B. Bio-Based Chemicals from Renewable Biomass for Integrated Biorefineries. Energies 2019, 12, 233. [Google Scholar] [CrossRef] [Green Version]
  21. Hou, Q.; Qi, X.; Zhen, M.; Qian, H.; Nie, Y.; Bai, C.; Zhang, S.; Bai, X.; Ju, M. Biorefinery Roadmap Based on Catalytic Production and Upgrading 5-Hydroxymethylfurfural. Green Chem. 2021, 23, 119–231. [Google Scholar] [CrossRef]
  22. Li, S.; Ma, Q.; Zhong, W.; Zhao, X.; Wei, X.; Zhang, X.; Liu, Q.; Wang, C.; Ma, L.; Zhang, Q. One-Pot Hydrodeoxygenation of Bioderived Furans into Octane at Low Temperatures via an Octanediol Route. Green Chem. 2021, 23, 4741–4752. [Google Scholar] [CrossRef]
  23. Dutta, S. Hydro(Deoxygenation) Reaction Network of Lignocellulosic Oxygenates. ChemSusChem 2020, 13, 2894–2915. [Google Scholar] [CrossRef] [PubMed]
  24. Yan, L.; Zhang, Q.; Deng, W.; Zhang, Q.; Wang, Y. Catalytic valorization of biomass and bioplatforms to chemicals through deoxygenation. In Advances in Catalysis; Elsevier: Amherst, MA, USA, 2020; Volume 66, pp. 1–108. ISBN 978-0-12-820369-9. [Google Scholar]
  25. De, S.; Saha, B.; Luque, R. Hydrodeoxygenation Processes: Advances on Catalytic Transformations of Biomass-Derived Platform Chemicals into Hydrocarbon Fuels. Bioresour. Technol. 2015, 178, 108–118. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Gandarias, I.; Luis, P. Hydrotreating Catalytic Processes for Oxygen Removal in the Upgrading of Bio-Oils and Bio-Chemicals. In Liquid, Gaseous and Solid Biofuels—Conversion Techniques; Fang, Z., Ed.; InTech: London, UK, 2013; ISBN 978-953-51-1050-7. [Google Scholar]
  27. Rogers, K.A.; Zheng, Y. Selective Deoxygenation of Biomass-Derived Bio-Oils within Hydrogen-Modest Environments: A Review and New Insights. ChemSusChem 2016, 9, 1750–1772. [Google Scholar] [CrossRef]
  28. Kong, X.; Zhu, Y.; Fang, Z.; Kozinski, J.A.; Butler, I.S.; Xu, L.; Song, H.; Wei, X. Catalytic Conversion of 5-Hydroxymethylfurfural to Some Value-Added Derivatives. Green Chem. 2018, 20, 3657–3682. [Google Scholar] [CrossRef]
  29. Kucherov, F.A.; Romashov, L.V.; Galkin, K.I.; Ananikov, V.P. Chemical Transformations of Biomass-Derived C6-Furanic Platform Chemicals for Sustainable Energy Research, Materials Science, and Synthetic Building Blocks. ACS Sustain. Chem. Eng. 2018, 6, 8064–8092. [Google Scholar] [CrossRef]
  30. Thomas, J.M. The Societal Significance of Catalysis and the Growing Practical Importance of Single-Site Heterogeneous Catalysts. Proc. R. Soc. A 2012, 468, 1884–1903. [Google Scholar] [CrossRef]
  31. Huber, G.W.; Iborra, S.; Corma, A. Synthesis of Transportation Fuels from Biomass: Chemistry, Catalysts, and Engineering. Chem. Rev. 2006, 106, 4044–4098. [Google Scholar] [CrossRef] [Green Version]
  32. Delidovich, I.; Palkovits, R. Catalytic versus Stoichiometric Reagents as a Key Concept for Green Chemistry. Green Chem. 2016, 18, 590–593. [Google Scholar] [CrossRef]
  33. Cornils, B.; Herrmann, W.A. Concepts in Homogeneous Catalysis: The Industrial View. J. Catal. 2003, 216, 23–31. [Google Scholar] [CrossRef]
  34. Jess, A.; Wasserscheid, P. Chemical Technology: From Principles to Products, 2nd ed.; Wiley: Weinheim, Germany, 2020; ISBN 978-3-527-34421-5. [Google Scholar]
  35. Knowles, W.S.; Sabacky, M.J. Catalytic Asymmetric Hydrogenation Employing a Soluble, Optically Active, Rhodium Complex. Chem. Commun. 1968, 1445–1446. [Google Scholar] [CrossRef]
  36. Knowles, W.S. Asymmetric Hydrogenations (Nobel Lecture). Angew. Chem. Int. Ed. 2002, 41, 1998–2007. [Google Scholar] [CrossRef]
  37. Knowles, W.S.; Sabacky, M.J.; Vineyard, B.D. US Patent 4 005.127, 1977. US Patent 4 005.127, 1977. [Google Scholar]
  38. Noyori, R. Asymmetric Catalysis: Science and Opportunities (Nobel Lecture). Angew. Chem. Int. Ed. 2002, 41, 2008–2022. [Google Scholar] [CrossRef]
  39. Federsel, H.-J. Asymmetry on Large Scale: The Roadmap to Stereoselective Processes. Nat. Rev. Drug Discov. 2005, 4, 685–697. [Google Scholar] [CrossRef]
  40. Pan, J.; Dang, N.-D.; Zheng, G.-W.; Cheng, B.; Ye, Q.; Xu, J.-H. Efficient Production of L-Menthol in a Two-Phase System with SDS Using an Immobilized Bacillus Subtilis Esterase. Bioresour. Bioprocess. 2014, 1, 12. [Google Scholar] [CrossRef] [Green Version]
  41. Knowles, W.S.; Sabacky, M.J.; Vineyard, B.D.; Weinkauff, D.J. Asymmetric Hydrogenation with a Complex of Rhodium and a Chiral Bisphosphine. J. Am. Chem. Soc. 1975, 97, 2567–2568. [Google Scholar] [CrossRef]
  42. Wolfson, A.; Vankelecom, I.F.J.; Geresh, S.; Jacobs, P.A. The Role of the Solvent in the Asymmetric Hydrogenation of β-Keto Esters with Ru-BINAP. J. Mol. Catal. A Chem. 2003, 198, 39–45. [Google Scholar] [CrossRef]
  43. Kumobayashi, H.; Miura, T.; Sayo, N.; Saito, T.; Zhang, X. Recent Advances of BINAP Chemistry in the Industrial Aspects. Synlett 2001, 2001, 1055–1064. [Google Scholar] [CrossRef] [Green Version]
  44. Clark, J.H. Green Chemistry for the Second Generation Biorefinery—Sustainable Chemical Manufacturing Based on Biomass. J. Chem. Technol. Biotechnol. 2007, 82, 603–609. [Google Scholar] [CrossRef]
  45. Hu, L.; Lin, L.; Wu, Z.; Zhou, S.; Liu, S. Recent Advances in Catalytic Transformation of Biomass-Derived 5-Hydroxymethylfurfural into the Innovative Fuels and Chemicals. Renew. Sustain. Energy Rev. 2017, 74, 230–257. [Google Scholar] [CrossRef]
  46. Shylesh, S.; Gokhale, A.A.; Ho, C.R.; Bell, A.T. Novel Strategies for the Production of Fuels, Lubricants, and Chemicals from Biomass. Acc. Chem. Res. 2017, 50, 2589–2597. [Google Scholar] [CrossRef] [Green Version]
  47. Ruiz, J.; Jimenez-Sanchidrian, C. Heterogeneous Catalysis in the Meerwein-Ponndorf-Verley Reduction of Carbonyl Compounds. COC 2007, 11, 1113–1125. [Google Scholar] [CrossRef]
  48. Meng, Q.; Zheng, H.; Zhu, Y.; Li, Y. Study on the Reaction Pathway in Decarbonylation of Biomass-Derived 5-Hydroxymethylfurfural over Pd-Based Catalyst. J. Mol. Catal. A Chem. 2016, 421, 76–82. [Google Scholar] [CrossRef]
  49. Yuan, H.; Li, J.-P.; Su, F.; Yan, Z.; Kusema, B.T.; Streiff, S.; Huang, Y.; Pera-Titus, M.; Shi, F. Reductive Amination of Furanic Aldehydes in Aqueous Solution over Versatile NiyAlOx Catalysts. ACS Omega 2019, 4, 2510–2516. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Merino, P.; Tejero, T.; Delso, J.I.; Matute, R. Furan Oxidations in Organic Synthesis: Recent Advances and Applications. COC 2007, 11, 1076–1091. [Google Scholar] [CrossRef]
  51. da Silva, M.J.; Teixeira, M.G.; Natalino, R. Highly Selective Synthesis under Benign Reaction Conditions of Furfural Dialkyl Acetal Using SnCl2 as a Recyclable Catalyst. New J. Chem. 2019, 43, 8606–8612. [Google Scholar] [CrossRef]
  52. Xu, M.; Richard, F.; Corbet, M.; Marion, P.; Clacens, J.-M. Upgrading of Furfural by Knoevenagel Condensation over Functionalized Carbonaceous Basic Catalysts. Catal. Commun. 2019, 130, 105777. [Google Scholar] [CrossRef]
  53. Kumar, P.; Dutta, S.; Kumar, S.; Bahadur, V.; Van der Eycken, E.V.; Vimaleswaran, K.S.; Parmar, V.S.; Singh, B.K. Aldehydes: Magnificent Acyl Equivalents for Direct Acylation. Org. Biomol. Chem. 2020, 18, 7987–8033. [Google Scholar] [CrossRef]
  54. Galkin, K.I.; Ananikov, V.P. The Increasing Value of Biomass: Moving From C6 Carbohydrates to Multifunctionalized Building Blocks via 5-(Hydroxymethyl)Furfural. ChemistryOpen 2020, 9, 1135–1148. [Google Scholar] [CrossRef]
  55. Fernando, S.; Adhikari, S.; Chandrapal, C.; Murali, N. Biorefineries: Current Status, Challenges, and Future Direction. Energy Fuels 2006, 20, 1727–1737. [Google Scholar] [CrossRef]
  56. Catoire, L.; Yahyaoui, M.; Osmont, A.; Gökalp, I.; Brothier, M.; Lorcet, H.; Guénadou, D. Thermochemistry of Compounds Formed during Fast Pyrolysis of Lignocellulosic Biomass. Energy Fuels 2008, 22, 4265–4273. [Google Scholar] [CrossRef]
  57. Ruppert, A.M.; Weinberg, K.; Palkovits, R. Hydrogenolysis Goes Bio: From Carbohydrates and Sugar Alcohols to Platform Chemicals. Angew. Chem. Int. Ed. 2012, 51, 2564–2601. [Google Scholar] [CrossRef] [PubMed]
  58. Chen, S.; Wojcieszak, R.; Dumeignil, F.; Marceau, E.; Royer, S. How Catalysts and Experimental Conditions Determine the Selective Hydroconversion of Furfural and 5-Hydroxymethylfurfural. Chem. Rev. 2018, 118, 11023–11117. [Google Scholar] [CrossRef] [Green Version]
  59. Bhaumik, P.; Dhepe, P.L. Solid Acid Catalyzed Synthesis of Furans from Carbohydrates. Cataly. Rev. 2016, 58, 36–112. [Google Scholar] [CrossRef]
  60. Zhang, Z.C. Chapter 3—Emerging Catalysis for 5-HMF Formation from Cellulosic Carbohydrates. In New and Future Developments in Catalysis; Elsevier: Amsterdam, The Netherlands, 2013; pp. 53–71. ISBN 978-0-444-53878-9. [Google Scholar]
  61. Thoma, C.; Konnerth, J.; Sailer-Kronlachner, W.; Solt, P.; Rosenau, T.; Herwijnen, H.W.G. Current Situation of the Challenging Scale-Up Development of Hydroxymethylfurfural Production. ChemSusChem 2020, 13, 3544–3564. [Google Scholar] [CrossRef] [PubMed]
  62. Jing, Y.; Guo, Y.; Xia, Q.; Liu, X.; Wang, Y. Catalytic Production of Value-Added Chemicals and Liquid Fuels from Lignocellulosic Biomass. Chem 2019, 5, 2520–2546. [Google Scholar] [CrossRef]
  63. Kunkes, E.L.; Simonetti, D.A.; West, R.M.; Serrano-Ruiz, J.C.; Gartner, C.A.; Dumesic, J.A. Catalytic Conversion of Biomass to Monofunctional Hydrocarbons and Targeted Liquid-Fuel Classes. Science 2008, 322, 417–421. [Google Scholar] [CrossRef]
  64. Rosatella, A.A.; Simeonov, S.P.; Frade, R.F.M.; Afonso, C.A.M. 5-Hydroxymethylfurfural (HMF) as a Building Block Platform: Biological Properties, Synthesis and Synthetic Applications. Green Chem. 2011, 13, 754. [Google Scholar] [CrossRef]
  65. Scapin, E.; Rambo, M.K.D.; Viana, G.C.C.; Marasca, N.; Lacerda, G.E.; Rambo, M.C.D.; Fernandes, R.d.M.N. Sustainable Production of Furfural and 5-Hidroximetilfurfural from Rice Husks and Soybean Peel by Using Ionic Liquid. Food Sci. Technol. 2020, 40, 83–87. [Google Scholar] [CrossRef] [Green Version]
  66. Kläusli, T. AVA Biochem: Commercialising Renewable Platform Chemical 5-HMF. Green Process. Synth. 2014, 3, 235–236. [Google Scholar] [CrossRef]
  67. Yan, K.; Wu, G.; Lafleur, T.; Jarvis, C. Production, Properties and Catalytic Hydrogenation of Furfural to Fuel Additives and Value-Added Chemicals. Renew. Sustain. Energy Rev. 2014, 38, 663–676. [Google Scholar] [CrossRef]
  68. Simeonov, S.P.; Lazarova, H.I.; Marinova, M.K.; Popova, M.D. Achmatowicz Rearrangement Enables Hydrogenolysis-Free Gas-Phase Synthesis of Pentane-1,2,5-Triol from Furfuryl Alcohol. Green Chem. 2019, 21, 5657–5664. [Google Scholar] [CrossRef]
  69. Zhu, J.; Yin, G. Catalytic Transformation of the Furfural Platform into Bifunctionalized Monomers for Polymer Synthesis. ACS Catal. 2021, 11, 10058–10083. [Google Scholar] [CrossRef]
  70. Carniti, P.; Gervasini, A.; Marzo, M. Absence of Expected Side-Reactions in the Dehydration Reaction of Fructose to HMF in Water over Niobic Acid Catalyst. Catal. Commun. 2011, 12, 1122–1126. [Google Scholar] [CrossRef]
  71. Song, J.; Fan, H.; Ma, J.; Han, B. Conversion of Glucose and Cellulose into Value-Added Products in Water and Ionic Liquids. Green Chem. 2013, 15, 2619. [Google Scholar] [CrossRef]
  72. Seri, K.; Inoue, Y.; Ishida, H. Catalytic Activity of Lanthanide(III) Ions for the Dehydration of Hexose to 5-Hydroxymethyl-2-Furaldehyde in Water. BCSJ 2001, 74, 1145–1150. [Google Scholar] [CrossRef]
  73. Hu, L.; Sun, Y.; Lin, L. Efficient Conversion of Glucose into 5-Hydroxymethylfurfural by Chromium(III) Chloride in Inexpensive Ionic Liquid. Ind. Eng. Chem. Res. 2012, 51, 1099–1104. [Google Scholar] [CrossRef]
  74. Li, C.; Zhang, Z.; Zhao, Z.K. Direct Conversion of Glucose and Cellulose to 5-Hydroxymethylfurfural in Ionic Liquid under Microwave Irradiation. Tetrahedron Lett. 2009, 50, 5403–5405. [Google Scholar] [CrossRef]
  75. Hu, L.; Wu, Z.; Jiang, Y.; Wang, X.; He, A.; Song, J.; Xu, J.; Zhou, S.; Zhao, Y.; Xu, J. Recent Advances in Catalytic and Autocatalytic Production of Biomass-Derived 5-Hydroxymethylfurfural. Renew. Sustain. Energy Rev. 2020, 134, 110317. [Google Scholar] [CrossRef]
  76. Zhao, H.; Holladay, J.E.; Brown, H.; Zhang, Z.C. Metal Chlorides in Ionic Liquid Solvents Convert Sugars to 5-Hydroxymethylfurfural. Science 2007, 316, 1597–1600. [Google Scholar] [CrossRef]
  77. Dunn, E.F.; Liu, D.; Chen, E.Y.-X. Role of N-Heterocyclic Carbenes in Glucose Conversion into HMF by Cr Catalysts in Ionic Liquids. Appl. Catal. A Gen. 2013, 460–461, 1–7. [Google Scholar] [CrossRef]
  78. Enslow, K.R.; Bell, A.T. SnCl4-Catalyzed Isomerization/Dehydration of Xylose and Glucose to Furanics in Water. Catal. Sci. Technol. 2015, 5, 2839–2847. [Google Scholar] [CrossRef] [Green Version]
  79. Liu, F.; Audemar, M.; De Oliveira Vigier, K.; Cartigny, D.; Clacens, J.-M.; Costa Gomes, M.F.; Pádua, A.A.H.; De Campo, F.; Jérôme, F. Selectivity Enhancement in the Aqueous Acid-Catalyzed Conversion of Glucose to 5-Hydroxymethylfurfural Induced by Choline Chloride. Green Chem. 2013, 15, 3205. [Google Scholar] [CrossRef]
  80. Yan, L.; Ma, R.; Wei, H.; Li, L.; Zou, B.; Xu, Y. Ruthenium Trichloride Catalyzed Conversion of Cellulose into 5-Hydroxymethylfurfural in Biphasic System. Bioresour. Technol. 2019, 279, 84–91. [Google Scholar] [CrossRef] [PubMed]
  81. Wei, Z.; Li, Y.; Thushara, D.; Liu, Y.; Ren, Q. Novel Dehydration of Carbohydrates to 5-Hydroxymethylfurfural Catalyzed by Ir and Au Chlorides in Ionic Liquids. J. Taiwan Inst. Chem. Eng. 2011, 42, 363–370. [Google Scholar] [CrossRef]
  82. Liu, B.; Zhang, Z.; Zhao, Z.K. Microwave-Assisted Catalytic Conversion of Cellulose into 5-Hydroxymethylfurfural in Ionic Liquids. Chem. Eng. J. 2013, 215–216, 517–521. [Google Scholar] [CrossRef]
  83. Dutta, S.; De, S.; Alam, M.I.; Abu-Omar, M.M.; Saha, B. Direct Conversion of Cellulose and Lignocellulosic Biomass into Chemicals and Biofuel with Metal Chloride Catalysts. J. Catal. 2012, 288, 8–15. [Google Scholar] [CrossRef]
  84. Zhang, Z.; Liu, B.; Zhao, Z.K. Catalytic Conversion of Carbohydrates into 5-Hydroxymethylfurfural by Hafnium(IV) Chloride in Ionic Liquids. Starch Stärke 2012, 64, 770–775. [Google Scholar] [CrossRef]
  85. Mittal, N.; Nisola, G.M.; Chung, W.-J. Facile Catalytic Dehydration of Fructose to 5-Hydroxymethylfurfural by Niobium Pentachloride. Tetrahedron Lett. 2012, 53, 3149–3155. [Google Scholar] [CrossRef]
  86. Beckerle, K.; Okuda, J. Conversion of Glucose and Cellobiose into 5-Hydroxymethylfurfural (HMF) by Rare Earth Metal Salts in N,N′-Dimethylacetamide (DMA). J. Mol. Catal. A Chem. 2012, 356, 158–164. [Google Scholar] [CrossRef]
  87. Zhang, Y.; Du, H.; Qian, X.; Chen, E.Y.-X. Ionic Liquid−Water Mixtures: Enhanced Kw for Efficient Cellulosic Biomass Conversion. Energy Fuels 2010, 24, 2410–2417. [Google Scholar] [CrossRef]
  88. Wrigstedt, P.; Keskiväli, J.; Leskelä, M.; Repo, T. The Role of Salts and Brønsted Acids in Lewis Acid-Catalyzed Aqueous-Phase Glucose Dehydration to 5-Hydroxymethylfurfural. ChemCatChem 2015, 7, 501–507. [Google Scholar] [CrossRef]
  89. Yadav, K.K.; Ahmad, S.; Chauhan, S.M.S. Elucidating the Role of Cobalt Phthalocyanine in the Dehydration of Carbohydrates in Ionic Liquids. J. Mol. Catal. A Chem. 2014, 394, 170–176. [Google Scholar] [CrossRef]
  90. Wang, F.; Shi, A.-W.; Qin, X.-X.; Liu, C.-L.; Dong, W.-S. Dehydration of Fructose to 5-Hydroxymethylfurfural by Rare Earth Metal Trifluoromethanesulfonates in Organic Solvents. Carbohydr. Res. 2011, 346, 982–985. [Google Scholar] [CrossRef] [PubMed]
  91. Choudhary, V.; Sandler, S.I.; Vlachos, D.G. Conversion of Xylose to Furfural Using Lewis and Brønsted Acid Catalysts in Aqueous Media. ACS Catal. 2012, 2, 2022–2028. [Google Scholar] [CrossRef]
  92. Marcotullio, G.; De Jong, W. Chloride Ions Enhance Furfural Formation from D-Xylose in Dilute Aqueous Acidic Solutions. Green Chem. 2010, 12, 1739. [Google Scholar] [CrossRef]
  93. Danon, B.; Marcotullio, G.; de Jong, W. Mechanistic and Kinetic Aspects of Pentose Dehydration towards Furfural in Aqueous Media Employing Homogeneous Catalysis. Green Chem. 2014, 16, 39–54. [Google Scholar] [CrossRef] [Green Version]
  94. Liu, C.; Wyman, C.E. The Enhancement of Xylose Monomer and Xylotriose Degradation by Inorganic Salts in Aqueous Solutions at 180 °C. Carbohydr. Res. 2006, 341, 2550–2556. [Google Scholar] [CrossRef]
  95. Hart, D. Hydrogen, End Uses and Economics. In Encyclopedia of Energy; Elsevier: London, UK, 2004; pp. 231–239. ISBN 978-0-12-176480-7. [Google Scholar]
  96. Nakagawa, Y.; Tamura, M.; Tomishige, K. Catalytic Reduction of Biomass-Derived Furanic Compounds with Hydrogen. ACS Catal. 2013, 3, 2655–2668. [Google Scholar] [CrossRef]
  97. Ralphs, K.; McCourt, É.; Ormandy, C.; Carneiro de Souza, T.A.; Nockemann, P.; Jacquemin, J.; Manyar, H.G. Highly Selective Reduction of α, β-Unsaturated Aldehydes and Ketones under Ambient Conditions Using Tetraalkylphosphonium-based Ionic Liquids. ChemistrySelect 2018, 3, 11706–11711. [Google Scholar] [CrossRef] [Green Version]
  98. Zhang, J.; Wang, T.; Tang, X.; Peng, L.; Wei, J.; Lin, L. Methods in the synthesis and conversion of 2,5-Bis-(hydroxylmethyl)furan from bio-derived 5-hydroxymethylfurfural and its great potential in polymerization. BioResources 2018, 13, 7137–7154. [Google Scholar] [CrossRef]
  99. Wang, T.; Zhang, J.; Xie, W.; Tang, Y.; Guo, D.; Ni, Y. Catalytic Transfer Hydrogenation of Biobased HMF to 2,5-Bis-(Hydroxymethyl)Furan over Ru/Co3O4. Catalysts 2017, 7, 92. [Google Scholar] [CrossRef] [Green Version]
  100. Nakagawa, Y.; Tamura, M.; Tomishige, K. Supported Metal Catalysts for Total Hydrogenation of Furfural and 5-Hydroxymethylfurfural. J. Jpn. Pet. Inst. 2017, 60, 1–9. [Google Scholar] [CrossRef] [Green Version]
  101. Corma, A.; Iborra, S.; Velty, A. Chemical Routes for the Transformation of Biomass into Chemicals. Chem. Rev. 2007, 107, 2411–2502. [Google Scholar] [CrossRef]
  102. Koley, P.; Rao, B.S.; Sabri, Y.M.; Bhargava, S.K.; Tardio, J.; Lingaiah, N. Selective Conversion of Furfural into Tetrahydrofurfuryl Alcohol Using a Heteropoly Acid-Based Material as a Hydrogenation Catalyst. Sustain. Energy Fuels 2020, 4, 4768–4779. [Google Scholar] [CrossRef]
  103. Yang, F.; Fu, J.; Mo, J.; Lu, X. Synergy of Lewis and Brønsted Acids on Catalytic Hydrothermal Decomposition of Hexose to Levulinic Acid. Energy Fuels 2013, 27, 6973–6978. [Google Scholar] [CrossRef]
  104. Jansen, E.; Jongbloed, L.S.; Tromp, D.S.; Lutz, M.; de Bruin, B.; Elsevier, C.J. Ligand Effects on the Hydrogenation of Biomass-Inspired Substrates with Bifunctional Ru, Ir, and Rh Complexes. ChemSusChem 2013, 6, 1737–1744. [Google Scholar] [CrossRef]
  105. Cadu, A.; Sekine, K.; Mormul, J.; Ohlmann, D.M.; Schaub, T.; Hashmi, A.S.K. Homogeneous Catalysed Hydrogenation of HMF. Green Chem. 2018, 20, 3386–3393. [Google Scholar] [CrossRef]
  106. Pasini, T.; Solinas, G.; Zanotti, V.; Albonetti, S.; Cavani, F.; Vaccari, A.; Mazzanti, A.; Ranieri, S.; Mazzoni, R. Substrate and Product Role in the Shvo’s Catalyzed Selective Hydrogenation of the Platform Bio-Based Chemical 5-Hydroxymethylfurfural. Dalton Trans. 2014, 43, 10224–10234. [Google Scholar] [CrossRef] [PubMed]
  107. Padilla, R.; Koranchalil, S.; Nielsen, M. Efficient and Selective Catalytic Hydrogenation of Furanic Aldehydes Using Well Defined Ru and Ir Pincer Complexes. Green Chem. 2020, 22, 6767–6772. [Google Scholar] [CrossRef]
  108. Dach, R.; Song, J.J.; Roschangar, F.; Samstag, W.; Senanayake, C.H. The Eight Criteria Defining a Good Chemical Manufacturing Process. Org. Process. Res. Dev. 2012, 16, 1697–1706. [Google Scholar] [CrossRef]
  109. Elangovan, S.; Topf, C.; Fischer, S.; Jiao, H.; Spannenberg, A.; Baumann, W.; Ludwig, R.; Junge, K.; Beller, M. Selective Catalytic Hydrogenations of Nitriles, Ketones, and Aldehydes by Well-Defined Manganese Pincer Complexes. J. Am. Chem. Soc. 2016, 138, 8809–8814. [Google Scholar] [CrossRef] [PubMed]
  110. Falco, G.; Guigo, N.; Vincent, L.; Sbirrazzuoli, N. FA Polymerization Disruption by Protic Polar Solvents. Polymers 2018, 10, 529. [Google Scholar] [CrossRef] [Green Version]
  111. Huang, F.; Li, W.; Lu, Q.; Zhu, X. Homogeneous Catalytic Hydrogenation of Bio-Oil and Related Model Aldehydes with RuCl2(PPh3)3. Chem. Eng. Technol. 2010, 33, 2082–2088. [Google Scholar] [CrossRef]
  112. Bhor, M.D.; Panda, A.G.; Nandurkar, N.S.; Bhanage, B.M. Synthesis of Alkyl Iodides/Nitriles from Carbonyl Compounds Using Novel Ruthenium Tris(2,2,6,6-Tetramethyl-3,5-Heptanedionate) as Catalyst. Tetrahedron Lett. 2008, 49, 6475–6479. [Google Scholar] [CrossRef]
  113. Strassberger, Z.; Mooijman, M.; Ruijter, E.; Alberts, A.H.; de Graaff, C.; Orru, R.V.A.; Rothenberg, G. A Facile Route to Ruthenium–Carbene Complexes and Their Application in Furfural Hydrogenation. Appl. Organomet. Chem. 2009, 24, 142–146. [Google Scholar] [CrossRef]
  114. Strassberger, Z.; Mooijman, M.; Ruijter, E.; Alberts, A.H.; Maldonado, A.G.; Orru, R.V.A.; Rothenberg, G. Finding Furfural Hydrogenation Catalysts via Predictive Modelling. Adv. Synth. Catal. 2010, 352, 2201–2210. [Google Scholar] [CrossRef] [Green Version]
  115. Tukacs, J.M.; Bohus, M.; Dibó, G.; Mika, L.T. Ruthenium-Catalyzed Solvent-Free Conversion of Furfural to Furfuryl Alcohol. RSC Adv. 2017, 7, 3331–3335. [Google Scholar] [CrossRef] [Green Version]
  116. Gowda, A.S.; Parkin, S.; Ladipo, F.T. Hydrogenation and Hydrogenolysis of Furfural and Furfuryl Alcohol Catalyzed by Ruthenium(II) Bis(Diimine) Complexes: Ru(II)-Catalyzed Hydrogenation and Hydrogenolysis of Furfural. Appl. Organomet. Chem. 2012, 26, 86–93. [Google Scholar] [CrossRef]
  117. Wu, W.-P.; Xu, Y.-J.; Chang, S.-W.; Deng, J.; Fu, Y. PH-Regulated Aqueous Catalytic Hydrogenation of Biomass Carbohydrate Derivatives by Using Semisandwich Iridium Complexes. ChemCatChem 2016, 8, 3375–3380. [Google Scholar] [CrossRef]
  118. Garhwal, S.; Maji, B.; Semwal, S.; Choudhury, J. Ambient-Pressure and Base-Free Aldehyde Hydrogenation Catalyst Supported by a Bifunctional Abnormal NHC Ligand. Organometallics 2018, 37, 4720–4725. [Google Scholar] [CrossRef]
  119. Christie, F.; Zanotti-Gerosa, A.; Grainger, D. Hydrogenation and Reductive Amination of Aldehydes Using Triphos Ruthenium Catalysts. ChemCatChem 2018, 10, 1012–1018. [Google Scholar] [CrossRef]
  120. Moyo, P.S.; Matsinha, L.C.; Makhubela, B.C.E. Pd(II) and Pt(II) Catalysed Selective Synthesis of Furfuryl Alcohol: Solvent Effects and Insights into the Mechanism. J. Organomet. Chem. 2020, 922, 121362. [Google Scholar] [CrossRef]
  121. Valdebenito, G.; Parra-Melipán, S.; López, V.; Aranda, B.; García, E.; Vega, A.; Negrete-Vergara, C.; Moya, S.A.; Aguirre, P. Selective Hydrogenation of Furfural to Furfuryl Alcohol Catalysed by Ruthenium Complexes Containing Phosphorus-nitrogen Ligands. Appl. Organomet. Chem. 2021, 35, e6382. [Google Scholar] [CrossRef]
  122. Bullock, R.M. Abundant Metals Give Precious Hydrogenation Performance. Science 2013, 342, 1054–1055. [Google Scholar] [CrossRef]
  123. Wienhöfer, G.; Westerhaus, F.A.; Junge, K.; Ludwig, R.; Beller, M. A Molecularly Defined Iron-Catalyst for the Selective Hydrogenation of α,β-Unsaturated Aldehydes. Chem. Eur. J. 2013, 19, 7701–7707. [Google Scholar] [CrossRef]
  124. Gorgas, N.; Stöger, B.; Veiros, L.F.; Kirchner, K. Highly Efficient and Selective Hydrogenation of Aldehydes: A Well-Defined Fe(II) Catalyst Exhibits Noble-Metal Activity. ACS Catal. 2016, 6, 2664–2672. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  125. Weber, S.; Brünig, J.; Zeindlhofer, V.; Schröder, C.; Stöger, B.; Limbeck, A.; Kirchner, K.; Bica, K. Selective Hydrogenation of Aldehydes Using a Well-Defined Fe(II) PNP Pincer Complex in Biphasic Medium. ChemCatChem 2018, 10, 4386–4394. [Google Scholar] [CrossRef] [PubMed]
  126. Csendes, Z.; Brünig, J.; Yigit, N.; Rupprechter, G.; Bica-Schröder, K.; Hoffmann, H.; Kirchner, K. Influence of the Ionic Liquid on the Activity of a Supported Ionic Liquid Phase Fe II Pincer Catalyst for the Hydrogenation of Aldehydes: Influence of the Ionic Liquid on the Activity of a Supported Ionic Liquid Phase Fe II Pincer Catalyst for the Hydrogenation of Aldehydes. Eur. J. Inorg. Chem. 2019, 3503–3510. [Google Scholar] [CrossRef] [Green Version]
  127. Mukherjee, A.; Milstein, D. Homogeneous Catalysis by Cobalt and Manganese Pincer Complexes. ACS Catal. 2018, 8, 11435–11469. [Google Scholar] [CrossRef]
  128. Yang, W.; Chernyshov, I.Y.; van Schendel, R.K.A.; Weber, M.; Müller, C.; Filonenko, G.A.; Pidko, E.A. Robust and Efficient Hydrogenation of Carbonyl Compounds Catalysed by Mixed Donor Mn(I) Pincer Complexes. Nat. Commun 2021, 12, 12. [Google Scholar] [CrossRef]
  129. Glatz, M.; Stöger, B.; Himmelbauer, D.; Veiros, L.F.; Kirchner, K. Chemoselective Hydrogenation of Aldehydes under Mild, Base-Free Conditions: Manganese Outperforms Rhenium. ACS Catal. 2018, 8, 4009–4016. [Google Scholar] [CrossRef] [PubMed]
  130. Klomp, D.; Hanefeld, U.; Peters, J.A. Transfer Hydrogenation Including the Meerwein-Ponndorf-Verley Reduction. In The Handbook of Homogeneous Hydrogenation; de Vries, J.G., Elsevier, C.J., Eds.; Wiley: Weinheim, Germany, 2006; pp. 585–630. ISBN 978-3-527-61938-2. [Google Scholar]
  131. Gladiali, S.; Taras, R. Reduction of Carbonyl Compounds by Hydrogen Transfer. In Modern Reduction Methods; Andersson, P.G., Munslow, I.J., Eds.; Wiley: Weinheim, Germany, 2008; pp. 135–157. ISBN 978-3-527-62211-5. [Google Scholar]
  132. Gliński, M.; Ulkowska, U. Reactivity of Alcohols in Chemoselective Transfer Hydrogenation of Acrolein over Magnesium Oxide as the Catalyst. Catal. Lett. 2011, 141, 293–299. [Google Scholar] [CrossRef] [Green Version]
  133. Scholz, D.; Aellig, C.; Hermans, I. Catalytic Transfer Hydrogenation/Hydrogenolysis for Reductive Upgrading of Furfural and 5-(Hydroxymethyl)Furfural. ChemSusChem 2014, 7, 268–275. [Google Scholar] [CrossRef]
  134. Baldino, S.; Facchetti, S.; Nedden, H.G.; Zanotti-Gerosa, A.; Baratta, W. Chemoselective Transfer Hydrogenation of Aldehydes with HCOONH4 Catalyzed by RuCl(CNNPh)(PP) Pincer Complexes. ChemCatChem 2016, 8, 3195–3198. [Google Scholar] [CrossRef]
  135. Townsend, T.M.; Kirby, C.; Ruff, A.; O’Connor, A.R. Transfer Hydrogenation of Aromatic and Linear Aldehydes Catalyzed Using Cp*Ir(Pyridinesulfonamide)Cl Complexes under Base-Free Conditions. J. Organomet. Chem. 2017, 843, 7–13. [Google Scholar] [CrossRef]
  136. Aboo, A.H.; Bennett, E.L.; Deeprose, M.; Robertson, C.M.; Iggo, J.A.; Xiao, J. Methanol as Hydrogen Source: Transfer Hydrogenation of Aromatic Aldehydes with a Rhodacycle. Chem. Commun. 2018, 54, 11805–11808. [Google Scholar] [CrossRef]
  137. Farrar-Tobar, R.A.; Wei, Z.; Jiao, H.; Hinze, S.; de Vries, J.G. Selective Base-Free Transfer Hydrogenation of α,β-Unsaturated Carbonyl Compounds Using i PrOH or EtOH as Hydrogen Source. Chem. Eur. J. 2018, 24, 2725–2734. [Google Scholar] [CrossRef] [PubMed]
  138. Ghosh, R.; Jana, N.C.; Panda, S.; Bagh, B. Transfer Hydrogenation of Aldehydes and Ketones in Air with Methanol and Ethanol by an Air-Stable Ruthenium–Triazole Complex. ACS Sustain. Chem. Eng. 2021, 9, 4903–4914. [Google Scholar] [CrossRef]
  139. Oklu, N.K.; Makhubela, B.C.E. Chemoselective and Efficient Catalytic Hydrogenation of Furfural by Iridium and Ruthenium Half-Sandwich Complexes. New J. Chem. 2020, 44, 9382–9390. [Google Scholar] [CrossRef]
  140. Gorgas, N.; Ilic, A.; Kirchner, K. Chemoselective Transfer Hydrogenation of Aldehydes in Aqueous Media Catalyzed by a Well-Defined Iron(II) Hydride Complex. Monatsh. Chem. 2019, 150, 121–126. [Google Scholar] [CrossRef] [Green Version]
  141. Paul, A.; Shipman, M.A.; Onabule, D.Y.; Sproules, S.; Symes, M.D. Selective Aldehyde Reductions in Neutral Water Catalysed by Encapsulation in a Supramolecular Cage. Chem. Sci. 2021, 12, 5082–5090. [Google Scholar] [CrossRef]
  142. Stadler, B.M.; Puylaert, P.; Diekamp, J.; van Heck, R.; Fan, Y.; Spannenberg, A.; Hinze, S.; de Vries, J.G. Inexpensive Ruthenium NNS-Complexes as Efficient Ester Hydrogenation Catalysts with High C=O vs. C=C Selectivities. Adv. Synth. Catal. 2018, 360, 1151–1158. [Google Scholar] [CrossRef]
  143. Junge, K.; Wendt, B.; Jiao, H.; Beller, M. Iridium-Catalyzed Hydrogenation of Carboxylic Acid Esters. ChemCatChem 2014, 6, 2810–2814. [Google Scholar] [CrossRef]
  144. Farrar-Tobar, R.A.; Wozniak, B.; Savini, A.; Hinze, S.; Tin, S.; de Vries, J.G. Base-Free Iron Catalyzed Transfer Hydrogenation of Esters Using EtOH as Hydrogen Source. Angew. Chem. Int. Ed. 2019, 58, 1129–1133. [Google Scholar] [CrossRef]
  145. Elangovan, S.; Garbe, M.; Jiao, H.; Spannenberg, A.; Junge, K.; Beller, M. Hydrogenation of Esters to Alcohols Catalyzed by Defined Manganese Pincer Complexes. Angew. Chem. Int. Ed. 2016, 55, 15364–15368. [Google Scholar] [CrossRef]
  146. Widegren, M.B.; Harkness, G.J.; Slawin, A.M.Z.; Cordes, D.B.; Clarke, M.L. A Highly Active Manganese Catalyst for Enantioselective Ketone and Ester Hydrogenation. Angew. Chem. Int. Ed. 2017, 56, 5825–5828. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  147. Zhang, L.; Tang, Y.; Han, Z.; Ding, K. Lutidine-Based Chiral Pincer Manganese Catalysts for Enantioselective Hydrogenation of Ketones. Angew. Chem. Int. Ed. 2019, 58, 4973–4977. [Google Scholar] [CrossRef] [PubMed]
  148. Shono, T.; Matsumura, Y.; Hamaguchi, H. Easy Synthesis of 2-Hydroxy-3-Methylcyclopent-2-Enone. J. Chem. Soc. Chem. Commun. 1977, 712–713. [Google Scholar] [CrossRef]
  149. Gupta, K.; Tyagi, D.; Dwivedi, A.D.; Mobin, S.M.; Singh, S.K. Catalytic Transformation of Bio-Derived Furans to Valuable Ketoacids and Diketones by Water-Soluble Ruthenium Catalysts. Green Chem. 2015, 17, 4618–4627. [Google Scholar] [CrossRef]
  150. Xu, Z.; Yan, P.; Xu, W.; Liu, X.; Xia, Z.; Chung, B.; Jia, S.; Zhang, Z.C. Hydrogenation/Hydrolytic Ring Opening of 5-HMF by Cp*-Iridium(III) Half-Sandwich Complexes for Bioketones Synthesis. ACS Catal. 2015, 5, 788–792. [Google Scholar] [CrossRef]
  151. Xu, Z.; Yan, P.; Li, H.; Liu, K.; Liu, X.; Jia, S.; Zhang, Z.C. Active Cp*Iridium(III) Complex with Ortho -Hydroxyl Group Functionalized Bipyridine Ligand Containing an Electron-Donating Group for the Production of Diketone from 5-HMF. ACS Catal. 2016, 6, 3784–3788. [Google Scholar] [CrossRef]
  152. Wozniak, B.; Spannenberg, A.; Li, Y.; Hinze, S.; de Vries, J.G. Cyclopentanone Derivatives from 5-Hydroxymethylfurfural via 1-Hydroxyhexane-2,5-Dione as Intermediate. ChemSusChem 2018, 11, 356–359. [Google Scholar] [CrossRef] [PubMed]
  153. Hill, J.; Nelson, E.; Tilman, D.; Polasky, S.; Tiffany, D. Environmental, Economic, and Energetic Costs and Benefits of Biodiesel and Ethanol Biofuels. Proc. Natl. Acad. Sci. USA 2006, 103, 11206–11210. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  154. Cai, C.M.; Zhang, T.; Kumar, R.; Wyman, C.E. Integrated Furfural Production as a Renewable Fuel and Chemical Platform from Lignocellulosic Biomass: Furfural Production from Lignocellulosic Biomass. J. Chem. Technol. Biotechnol. 2014, 89, 2–10. [Google Scholar] [CrossRef]
  155. Vinod, N.; Dutta, S. Energy Densification of Biomass-Derived Furfurals to Furanic Biofuels by Catalytic Hydrogenation and Hydrodeoxygenation Reactions. Sustain. Chem. 2021, 2, 521–549. [Google Scholar] [CrossRef]
  156. Makhubela, B.C.E.; Darkwa, J. The Role of Noble Metal Catalysts in Conversion of Biomass and Bio-Derived Intermediates to Fuels and Chemicals. Johns. Matthey Technol. Rev. 2018, 62, 4–31. [Google Scholar] [CrossRef]
  157. Tian, G.; Daniel, R.; Li, H.; Xu, H.; Shuai, S.; Richards, P. Laminar Burning Velocities of 2,5-Dimethylfuran Compared with Ethanol and Gasoline. Energy Fuels 2010, 24, 3898–3905. [Google Scholar] [CrossRef]
  158. Nagpure, A.S.; Lucas, N.; Chilukuri, S.V. Efficient Preparation of Liquid Fuel 2,5-Dimethylfuran from Biomass-Derived 5-Hydroxymethylfurfural over Ru–NaY Catalyst. ACS Sustain. Chem. Eng. 2015, 3, 2909–2916. [Google Scholar] [CrossRef]
  159. Román-Leshkov, Y.; Barrett, C.J.; Liu, Z.Y.; Dumesic, J.A. Production of Dimethylfuran for Liquid Fuels from Biomass-Derived Carbohydrates. Nature 2007, 447, 982–985. [Google Scholar] [CrossRef]
  160. Sezer, İ. Thermodynamic, Performance and Emission Investigation of a Diesel Engine Running on Dimethyl Ether and Diethyl Ether. Int. J. Therm. Sci. 2011, 50, 1594–1603. [Google Scholar] [CrossRef]
  161. Liu, X.; Wang, R. Upgrading of Carbohydrates to the Biofuel Candidate 5-Ethoxymethylfurfural (EMF). Int. J. Chem. Eng. 2018, 2018, 1–10. [Google Scholar] [CrossRef] [Green Version]
  162. Chen, B.; Yan, G.; Chen, G.; Feng, Y.; Zeng, X.; Sun, Y.; Tang, X.; Lei, T.; Lin, L. Recent Progress in the Development of Advanced Biofuel 5-Ethoxymethylfurfural. BMC Energy 2020, 2, 2. [Google Scholar] [CrossRef]
  163. Liu, J.; Tang, Y.; Wu, K.; Bi, C.; Cui, Q. Conversion of Fructose into 5-Hydroxymethylfurfural (HMF) and Its Derivatives Promoted by Inorganic Salt in Alcohol. Carbohydr. Res. 2012, 350, 20–24. [Google Scholar] [CrossRef]
  164. Zhou, X.; Zhang, Z.; Liu, B.; Zhou, Q.; Wang, S.; Deng, K. Catalytic Conversion of Fructose into Furans Using FeCl3 as Catalyst. J. Ind. Eng. Chem. 2014, 20, 644–649. [Google Scholar] [CrossRef]
  165. Lee, R.; Vanderveen, J.R.; Champagnffe, P.; Jessop, P.G. CO2-Catalysed Aldol Condensation of 5-Hydroxymethylfurfural and Acetone to a Jet Fuel Precursor. Green Chem. 2016, 18, 5118–5121. [Google Scholar] [CrossRef]
  166. Si, Z.; Zhang, X.; Wang, C.; Ma, L.; Dong, R. An Overview on Catalytic Hydrodeoxygenation of Pyrolysis Oil and Its Model Compounds. Catalysts 2017, 7, 169. [Google Scholar] [CrossRef] [Green Version]
  167. Schlaf, M. Homogeneous Catalysts for the Hydrodeoxygenation of Biomass-Derived Carbohydrate Feedstocks. In Reaction Pathways and Mechanisms in Thermocatalytic Biomass Conversion II; Schlaf, M., Zhang, Z.C., Eds.; Green Chemistry and Sustainable Technology; Springer: Singapore, 2016; pp. 13–38. ISBN 978-981-287-768-0. [Google Scholar]
  168. Dedsuksophon, W.; Champreda, V.; Laosiripojana, N. Study of Liquid Alkanes Production from Biomass-Derived Carbohydrates by Aldol-Condensation and Hydrogenation Processes. EJ 2010, 14, 1–10. [Google Scholar] [CrossRef]
  169. Sullivan, R.J.; Latifi, E.; Chung, B.K.-M.; Soldatov, D.V.; Schlaf, M. Hydrodeoxygenation of 2,5-Hexanedione and 2,5-Dimethylfuran by Water-, Air-, and Acid-Stable Homogeneous Ruthenium and Iridium Catalysts. ACS Catal. 2014, 4, 4116–4128. [Google Scholar] [CrossRef]
  170. Yang, W.; Grochowski, M.R.; Sen, A. Selective Reduction of Biomass by Hydriodic Acid and Its In Situ Regeneration from Iodine by Metal/Hydrogen. ChemSusChem 2012, 5, 1218–1222. [Google Scholar] [CrossRef]
  171. Mishra, D.K.; Cho, J.K.; Kim, Y.J. Facile Production of 2,5-Diformylfuran from Base-Free Oxidation of 5-Hydroxymethyl Furfural over Manganese–Cobalt Spinels Supported Ruthenium Nanoparticles. J. Ind. Eng. Chem. 2018, 60, 513–519. [Google Scholar] [CrossRef]
  172. Wang, F.; Yuan, Z.; Liu, B.; Chen, S.; Zhang, Z. Catalytic Oxidation of Biomass Derived 5-Hydroxymethylfurfural (HMF) over Ru III -Incorporated Zirconium Phosphate Catalyst. J. Ind. Eng. Chem. 2016, 38, 181–185. [Google Scholar] [CrossRef]
  173. Saravanamurugan, S.; Pandey, A.; Sangwan, R.S. Biomass-Derived HMF Oxidation with Various Oxidants. In Biofuels; Agarwal, A.K., Agarwal, R.A., Gupta, T., Gurjar, B.R., Eds.; Green Energy and Technology; Springer: Singapore, 2017; pp. 51–67. ISBN 978-981-10-3790-0. [Google Scholar]
  174. Navarro, O.C.; Canós, A.C.; Chornet, S.I. Chemicals from Biomass: Aerobic Oxidation of 5-Hydroxymethyl-2-Furaldehyde into Diformylfurane Catalyzed by Immobilized Vanadyl-Pyridine Complexes on Polymeric and Organofunctionalized Mesoporous Supports. Top. Catal 2009, 52, 304–314. [Google Scholar] [CrossRef]
  175. Jia, X.; Ma, J.; Wang, M.; Du, Z.; Lu, F.; Wang, F.; Xu, J. Promoted Role of Cu(NO3)2 on Aerobic Oxidation of 5-Hydroxymethylfurfural to 2,5-Diformylfuran over VOSO4. Appl. Catal. A Gen. 2014, 482, 231–236. [Google Scholar] [CrossRef]
  176. Ma, J.; Du, Z.; Xu, J.; Chu, Q.; Pang, Y. Efficient Aerobic Oxidation of 5-Hydroxymethylfurfural to 2,5-Diformylfuran, and Synthesis of a Fluorescent Material. ChemSusChem 2011, 4, 51–54. [Google Scholar] [CrossRef]
  177. Dai, J. Synthesis of 2,5-Diformylfuran from Renewable Carbohydrates and Its Applications: A Review. Green Energy Environ. 2021, 6, 22–32. [Google Scholar] [CrossRef]
  178. Dessbesell, L.; Souzanchi, S.; Venkateswara Rao, K.T.; Carrillo, A.A.; Bekker, D.; Hall, K.A.; Lawrence, K.M.; Tait, C.L.J.; Xu, C. (Charles) Production of 2,5-furandicarboxylic Acid (FDCA) from Starch, Glucose, or High-fructose Corn Syrup: Techno-economic Analysis. Biofuels Bioprod. Bioref. 2019, 13, 1234–1245. [Google Scholar] [CrossRef]
  179. Cong, H.; Yuan, H.; Tao, Z.; Bao, H.; Zhang, Z.; Jiang, Y.; Huang, D.; Liu, H.; Wang, T. Recent Advances in Catalytic Conversion of Biomass to 2,5-Furandicarboxylic Acid. Catalysts 2021, 11, 1113. [Google Scholar] [CrossRef]
  180. Zhang, Z.; Deng, K. Recent Advances in the Catalytic Synthesis of 2,5-Furandicarboxylic Acid and Its Derivatives. ACS Catal. 2015, 5, 6529–6544. [Google Scholar] [CrossRef]
  181. Meraldo, A. Introduction to Bio-based Polymers. In Multilayer Flexible Packaging, 2nd ed.; Wagner, J.R., Ed.; Academic Press: New York, NY, USA, 2016; pp. 47–52. [Google Scholar] [CrossRef]
  182. Verdeguer, P.; Merat, N.; Gaset, A. Oxydation Catalytique Du HMF En Acide 2,5-Furane Dicarboxylique. J. Mol. Catal. 1993, 85, 327–344. [Google Scholar] [CrossRef]
  183. Hong, M.; Min, J.; Wu, S.; Cui, H.; Zhao, Y.; Li, J.; Wang, S. Metal Nitrate Catalysis for Selective Oxidation of 5-Hydroxymethylfurfural into 2,5-Diformylfuran under Oxygen Atmosphere. ACS Omega 2019, 4, 7054–7060. [Google Scholar] [CrossRef] [PubMed]
  184. Partenheimer, W.; Grushin, V.V. Synthesis of 2,5-Diformylfuran and Furan-2,5-Dicarboxylic Acid by Catalytic Air-Oxidation of 5-Hydroxymethylfurfural. Unexpectedly Selective Aerobic Oxidation of Benzyl Alcohol to Benzaldehyde with Metal/Bromide Catalysts. Adv. Synth. Catal. 2001, 343, 102–111. [Google Scholar] [CrossRef]
  185. Saha, B.; Dutta, S.; Abu-Omar, M.M. Aerobic Oxidation of 5-Hydroxylmethylfurfural with Homogeneous and Nanoparticulate Catalysts. Catal. Sci. Technol. 2012, 2, 79–81. [Google Scholar] [CrossRef]
  186. Amarasekara, A.S.; Green, D.; McMillan, E. Efficient Oxidation of 5-Hydroxymethylfurfural to 2,5-Diformylfuran Using Mn(III)–Salen Catalysts. Catal. Commun. 2008, 9, 286–288. [Google Scholar] [CrossRef]
  187. Hansen, T.S.; Sádaba, I.; García-Suárez, E.J.; Riisager, A. Cu Catalyzed Oxidation of 5-Hydroxymethylfurfural to 2,5-Diformylfuran and 2,5-Furandicarboxylic Acid under Benign Reaction Conditions. Appl. Catal. A Gen. 2013, 456, 44–50. [Google Scholar] [CrossRef]
  188. Song, S.; Wu, G.; Guan, N.; Li, L. Upgrading of Biomass-Derived Furans into Value-Added Chemicals. In Production of Biofuels and Chemicals with Bifunctional Catalysts; Fang, Z., Smith, R.L., Li, H., Eds.; Biofuels and Biorefineries; Springer: Singapore, 2017; Volume 8, pp. 273–303. ISBN 978-981-10-5136-4. [Google Scholar]
  189. Du, Z.; Ma, J.; Wang, F.; Liu, J.; Xu, J. Oxidation of 5-Hydroxymethylfurfural to Maleic Anhydride with Molecular Oxygen. Green Chem. 2011, 13, 554. [Google Scholar] [CrossRef]
  190. Guo, H.; Yin, G. Catalytic Aerobic Oxidation of Renewable Furfural with Phosphomolybdic Acid Catalyst: An Alternative Route to Maleic Acid. J. Phys. Chem. C 2011, 115, 17516–17522. [Google Scholar] [CrossRef]
  191. Langeslay, R.R.; Kaphan, D.M.; Marshall, C.L.; Stair, P.C.; Sattelberger, A.P.; Delferro, M. Catalytic Applications of Vanadium: A Mechanistic Perspective. Chem. Rev. 2019, 119, 2128–2191. [Google Scholar] [CrossRef] [PubMed]
  192. Wojcieszak, R.; Santarelli, F.; Paul, S.; Dumeignil, F.; Cavani, F.; Gonçalves, R.V. Recent Developments in Maleic Acid Synthesis from Bio-Based Chemicals. Sustain. Chem Process. 2015, 3, 9. [Google Scholar] [CrossRef] [Green Version]
  193. Li, H.; Guo, H.; Su, Y.; Hiraga, Y.; Fang, Z.; Hensen, E.J.M.; Watanabe, M.; Smith, R.L. N-Formyl-Stabilizing Quasi-Catalytic Species Afford Rapid and Selective Solvent-Free Amination of Biomass-Derived Feedstocks. Nat. Commun. 2019, 10, 699. [Google Scholar] [CrossRef] [Green Version]
  194. Petri, A.; Masia, G.; Piccolo, O. Biocatalytic Conversion of 5-Hydroxymethylfurfural: Synthesis of 2,5-Bis(Hydroxymethyl)Furan and 5-(Hydroxymethyl)Furfurylamine. Catal. Commun. 2018, 114, 15–18. [Google Scholar] [CrossRef]
  195. Feriani, A.; Gaviraghi, G.; Toson, G.; Mor, M.; Barbieri, A.; Grana, E.; Boselli, C.; Guarneri, M.; Simoni, D.; Manfredini, S. Cholinergic Agents Structurally Related to Furtrethonium. 2. Synthesis and Antimuscarinic Activity of a Series of N-[5-[(1’-Substituted-Acetoxy)Methyl]-2-Furfuryl]Dialkylamines. J. Med. Chem. 1994, 37, 4278–4287. [Google Scholar] [CrossRef]
  196. Froidevaux, V.; Negrell, C.; Caillol, S.; Pascault, J.-P.; Boutevin, B. Biobased Amines: From Synthesis to Polymers; Present and Future. Chem. Rev. 2016, 116, 14181–14224. [Google Scholar] [CrossRef] [PubMed]
  197. Cukalovic, A.; Stevens, C.V. Production of Biobased HMF Derivatives by Reductive Amination. Green Chem. 2010, 12, 1201. [Google Scholar] [CrossRef]
  198. Nuzhdin, A.L.; Bukhtiyarova, M.V.; Bukhtiyarov, V.I. Two-Step One-Pot Reductive Amination of Furanic Aldehydes Using CuAlOx Catalyst in a Flow Reactor. Molecules 2020, 25, 4771. [Google Scholar] [CrossRef] [PubMed]
  199. Xu, Z.; Yan, P.; Xu, W.; Jia, S.; Xia, Z.; Chung, B.; Zhang, Z.C. Direct Reductive Amination of 5-Hydroxymethylfurfural with Primary/Secondary Amines via Ru-Complex Catalyzed Hydrogenation. RSC Adv. 2014, 4, 59083–59087. [Google Scholar] [CrossRef]
  200. Pingen, D.; Schwaderer, J.B.; Walter, J.; Wen, J.; Murray, G.; Vogt, D.; Mecking, S. Diamines for Polymer Materials via Direct Amination of Lipid- and Lignocellulose-Based Alcohols with NH3. ChemCatChem 2018, 10, 3027–3033. [Google Scholar] [CrossRef] [Green Version]
  201. Xu, Z.; Yan, P.; Liu, K.; Wan, L.; Xu, W.; Li, H.; Liu, X.; Zhang, Z.C. Synthesis of Bis(Hydroxylmethylfurfuryl)Amine Monomers from 5-Hydroxymethylfurfural. ChemSusChem 2016, 9, 1255–1258. [Google Scholar] [CrossRef]
  202. He, J.; Chen, L.; Liu, S.; Song, K.; Yang, S.; Riisager, A. Sustainable Access to Renewable N-Containing Chemicals from Reductive Amination of Biomass-Derived Platform Compounds. Green Chem. 2020, 22, 6714–6747. [Google Scholar] [CrossRef]
  203. Senthamarai, T.; Murugesan, K.; Schneidewind, J.; Kalevaru, N.V.; Baumann, W.; Neumann, H.; Kamer, P.C.J.; Beller, M.; Jagadeesh, R.V. Simple Ruthenium-Catalyzed Reductive Amination Enables the Synthesis of a Broad Range of Primary Amines. Nat. Commun. 2018, 9, 4123. [Google Scholar] [CrossRef] [Green Version]
  204. Pinheiro, D.; Nielsen, M. Base-Free Synthesis of Furfurylamines from Biomass Furans Using Ru Pincer Complexes. Catalysts 2021, 11, 558. [Google Scholar] [CrossRef]
  205. Koh, P.-F.; Wang, P.; Huang, J.-M.; Loh, T.-P. Biomass Derived Furfural-Based Facile Synthesis of Protected (2S)-Phenyl-3-Piperidone, a Common Intermediate for Many Drugs. Chem. Commun. 2014, 50, 8324–8327. [Google Scholar] [CrossRef] [Green Version]
  206. Hazra, C.K.; Gandhamsetty, N.; Park, S.; Chang, S. Borane Catalysed Ring Opening and Closing Cascades of Furans Leading to Silicon Functionalized Synthetic Intermediates. Nat. Commun. 2016, 7, 13431. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  207. Dong, J.; Du, H.; Xu, J. Regiospecific Synthesis of Polysubstituted Furans with Mono- to Tricarboxylates from Various Sulfonium Acylmethylides and Acetylenic Esters. RSC Adv. 2019, 9, 25034–25038. [Google Scholar] [CrossRef] [Green Version]
  208. Papadogianakis, G.; Maat, L.; Sheldon, R.A. Catalytic Conversions in Water: A Novel Carbonylation Reaction Catalysed by Palladium Trisulfonated Triphenylphosphine Complexes. J. Chem. Soc. Chem. Commun. 1994, 2659–2660. [Google Scholar] [CrossRef]
  209. Geilen, F.M.A.; vom Stein, T.; Engendahl, B.; Winterle, S.; Liauw, M.A.; Klankermayer, J.; Leitner, W. Highly Selective Decarbonylation of 5-(Hydroxymethyl)Furfural in the Presence of Compressed Carbon Dioxide. Angew. Chem. Int. Ed. 2011, 50, 6831–6834. [Google Scholar] [CrossRef]
  210. Li, X.; Sun, J.; Shao, S.; Hu, X.; Cai, Y. Aldol Condensation/Hydrogenation for Jet Fuel from Biomass-Derived Ketone Platform Compound in One Pot. Fuel Process. Technol. 2021, 215, 106768. [Google Scholar] [CrossRef]
  211. Wu, L.; Moteki, T.; Gokhale, A.A.; Flaherty, D.W.; Toste, F.D. Production of Fuels and Chemicals from Biomass: Condensation Reactions and Beyond. Chem 2016, 1, 32–58. [Google Scholar] [CrossRef] [Green Version]
  212. Ramírez, E.; Soto, R.; Bringué, R.; Iborra, M.; Tejero, J. Catalytic Hydroxyalkylation/Alkylation of 2-Methylfuran with Butanal to Form a Biodiesel Precursor Using Acidic Ion-Exchange Resins. Ind. Eng. Chem. Res. 2020, 59, 20676–20685. [Google Scholar] [CrossRef]
  213. Nie, G.; Zhang, X.; Pan, L.; Wang, M.; Zou, J.-J. One-Pot Production of Branched Decalins as High-Density Jet Fuel from Monocyclic Alkanes and Alcohols. Chem. Eng. Sci. 2018, 180, 64–69. [Google Scholar] [CrossRef]
  214. Anbu, N.; Maheswari, R.; Elamathi, V.; Varalakshmi, P.; Dhakshinamoorthy, A. Chitosan as a Biodegradable Heterogeneous Catalyst for Knoevenagel Condensation between Benzaldehydes and Cyanoacetamide. Catal. Commun. 2020, 138, 105954. [Google Scholar] [CrossRef]
  215. Liu, D.; Chen, E.Y.-X. Integrated Catalytic Process for Biomass Conversion and Upgrading to C12 Furoin and Alkane Fuel. ACS Catal. 2014, 4, 1302–1310. [Google Scholar] [CrossRef]
  216. Tao, L.; Yan, T.-H.; Li, W.; Zhao, Y.; Zhang, Q.; Liu, Y.-M.; Wright, M.M.; Li, Z.-H.; He, H.-Y.; Cao, Y. Toward an Integrated Conversion of 5-Hydroxymethylfurfural and Ethylene for the Production of Renewable p-Xylene. Chem 2018, 4, 2212–2227. [Google Scholar] [CrossRef] [Green Version]
  217. Kabro, A.; Escudero-Adán, E.C.; Grushin, V.V.; van Leeuwen, P.W.N.M. Biomass Conversion to High Value Chemicals: From Furfural to Chiral Hydrofuroins in Two Steps. Org. Lett. 2012, 14, 4014–4017. [Google Scholar] [CrossRef] [PubMed]
  218. Li, H.; Xu, Z.; Yan, P.; Zhang, Z.C. A Catalytic Aldol Condensation System Enables One Pot Conversion of Biomass Saccharides to Biofuel Intermediates. Green Chem. 2017, 19, 1751–1756. [Google Scholar] [CrossRef]
  219. Sharma, U.K.; Gemoets, H.P.L.; Schröder, F.; Noël, T.; Van der Eycken, E.V. Merger of Visible-Light Photoredox Catalysis and C–H Activation for the Room-Temperature C-2 Acylation of Indoles in Batch and Flow. ACS Catal. 2017, 7, 3818–3823. [Google Scholar] [CrossRef]
  220. Ebru Aydin, A.; Yuksekdanaci, S. Asymmetric Henry Reactions Catalyzed by Metal Complexes of Chiral Oxazoline Based Ligands. Tetrahedron Asymmetry 2013, 24, 14–22. [Google Scholar] [CrossRef]
  221. Böhm, C.; Schinnerl, M.; Bubert, C.; Zabel, M.; Labahn, T.; Parisini, E.; Reiser, O. A new strategy for the stereoselective synthesis of 1,2,3-trisubstituted cyclopropanes. Eur. J. Org. Chem. 2000, 2000, 2955–2965. [Google Scholar] [CrossRef]
  222. Asano, R.; Moritani, I.; Fujiwara, Y.; Teranishi, S. Aromatic Substitution of Olefins. XIX. Reaction of Five-Membered Heterocyclic Aromatic Compounds with Styrene. BCSJ 1973, 46, 663–664. [Google Scholar] [CrossRef] [Green Version]
  223. Sevov, C.S.; Hartwig, J.F. Iridium-Catalyzed Oxidative Olefination of Furans with Unactivated Alkenes. J. Am. Chem. Soc. 2014, 136, 10625–10631. [Google Scholar] [CrossRef] [Green Version]
  224. Majer, J.; Kwiatkowski, P.; Jurczak, J. Highly Enantioselective Synthesis of 2-Furanyl-Hydroxyacetates from Furans via the Friedel−Crafts Reaction. Org. Lett. 2008, 10, 2955–2958. [Google Scholar] [CrossRef] [PubMed]
  225. Yamazaki, S.; Kashima, S.; Kuriyama, T.; Iwata, Y.; Morimoto, T.; Kakiuchi, K. Enantioselective Friedel–Crafts Reactions of Ethenetricarboxylates and Substituted Pyrroles and Furans and Intramolecular Reaction of Benzene Derivatives. Tetrahedron Asymmetry 2009, 20, 1224–1234. [Google Scholar] [CrossRef]
  226. Chacón-Huete, F.; Mangel, D.; Ali, M.; Sudano, A.; Forgione, P. High-Value Biomass-Derived 2,5-Furandicarboxylic Acid Derivatives Obtained by a Double Decarboxylative Cross-Coupling. ACS Sustain. Chem. Eng. 2017, 5, 7071–7076. [Google Scholar] [CrossRef]
  227. Chacón-Huete, F.; Lasso, J.D.; Szavay, P.; Covone, J.; Forgione, P. Synthesis of 2,5-Diaryl Nonsymmetric Furans C6-Platform Chemicals via Catalytic Conversion of Biomass and the Formal Synthesis of Dantrolene. J. Org. Chem. 2021, 86, 515–524. [Google Scholar] [CrossRef] [PubMed]
  228. Masuda, T. Substituted Polyacetylenes: Synthesis, Properties, and Functions. Polym. Rev. 2017, 57, 1–14. [Google Scholar] [CrossRef]
  229. Romashov, L.V.; Ananikov, V.P. Alkynylation of Bio-Based 5-Hydroxymethylfurfural to Connect Biomass Processing with Conjugated Polymers and Furanic Pharmaceuticals. Chem. Asian J. 2017, 12, 2652–2655. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Examples of furanic substrates and target functionalities.
Figure 1. Examples of furanic substrates and target functionalities.
Catalysts 11 01371 g001
Figure 2. Examples of homogeneous catalyzed processes in industry.
Figure 2. Examples of homogeneous catalyzed processes in industry.
Catalysts 11 01371 g002
Figure 3. Upgrading of lignocellulosic polysaccharides to the primary furanics FAL and HMF.
Figure 3. Upgrading of lignocellulosic polysaccharides to the primary furanics FAL and HMF.
Catalysts 11 01371 g003
Figure 4. Well-defined precious-metal complexes for the selective hydrogenation/transfer hydrogenation of furanic aldehydes and esters to alcohols.
Figure 4. Well-defined precious-metal complexes for the selective hydrogenation/transfer hydrogenation of furanic aldehydes and esters to alcohols.
Catalysts 11 01371 g004
Figure 5. Base-metal complexes for the selective hydrogenation/transfer hydrogenation of furanic ketones as well as aldehydes and esters to alcohols.
Figure 5. Base-metal complexes for the selective hydrogenation/transfer hydrogenation of furanic ketones as well as aldehydes and esters to alcohols.
Catalysts 11 01371 g005
Figure 6. Ring opening reduction of furanic aldehydes with transition metal catalysts.
Figure 6. Ring opening reduction of furanic aldehydes with transition metal catalysts.
Catalysts 11 01371 g006
Figure 7. Catalytic HDO of HMF and catalyzed by transition metal complexes.
Figure 7. Catalytic HDO of HMF and catalyzed by transition metal complexes.
Catalysts 11 01371 g007
Figure 8. Methods of oxidation of furanics.
Figure 8. Methods of oxidation of furanics.
Catalysts 11 01371 g008
Figure 9. Synthesis of N-containing building blocks via reductive amination of furanics.
Figure 9. Synthesis of N-containing building blocks via reductive amination of furanics.
Catalysts 11 01371 g009
Figure 10. Biomass derived furanic-based intermediate for drugs syntheses.
Figure 10. Biomass derived furanic-based intermediate for drugs syntheses.
Catalysts 11 01371 g010
Figure 11. Catalytic functionalization of furanics in the presence of homogeneous catalytic systems.
Figure 11. Catalytic functionalization of furanics in the presence of homogeneous catalytic systems.
Catalysts 11 01371 g011
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Padilla, R.; Koranchalil, S.; Nielsen, M. Homogeneous Catalyzed Valorization of Furanics: A Sustainable Bridge to Fuels and Chemicals. Catalysts 2021, 11, 1371. https://doi.org/10.3390/catal11111371

AMA Style

Padilla R, Koranchalil S, Nielsen M. Homogeneous Catalyzed Valorization of Furanics: A Sustainable Bridge to Fuels and Chemicals. Catalysts. 2021; 11(11):1371. https://doi.org/10.3390/catal11111371

Chicago/Turabian Style

Padilla, Rosa, Sakhitha Koranchalil, and Martin Nielsen. 2021. "Homogeneous Catalyzed Valorization of Furanics: A Sustainable Bridge to Fuels and Chemicals" Catalysts 11, no. 11: 1371. https://doi.org/10.3390/catal11111371

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
