Article

Highly CO Selective Trimetallic Metal-Organic Framework Electrocatalyst for the Electrochemical Reduction of CO2

by
Tran-Van Phuc
,
Jin-Suk Chung
and
Seung-Hyun Hur
*
School of Chemical Engineering, University of Ulsan, Daehak-ro 93, Nam-gu, Ulsan 44610, Korea
*
Author to whom correspondence should be addressed.
Catalysts 2021, 11(5), 537; https://doi.org/10.3390/catal11050537
Submission received: 24 March 2021 / Revised: 21 April 2021 / Accepted: 21 April 2021 / Published: 22 April 2021
(This article belongs to the Special Issue Non-Precious Metal Electrocatalysts: Synthesis, Characterization, and Application)
Browse Figures
Review Reports Versions Notes

Abstract

:
Pd, Cu, and Zn trimetallic metal-organic framework electrocatalysts (PCZs) based on benzene-1,3,5-tricarboxylic were synthesized using a simple solvothermal synthesis. The as-synthesized PCZ catalysts exhibited as much as 95% faradaic efficiency towards CO, with a high current density, low onset potential, and excellent long-term stability during the electrocatalytic reduction of CO2.

Graphical Abstract

1. Introduction

The expanding quantity of CO2 emissions has also created significant environmental issues such as global warming and severe weather, and hence considerable attempts have been made to decrease the amount of CO2 in the atmosphere in order to address these problems. Of the different approaches, the electrochemical reduction of CO2 (ERC) is one of the best since CO2 can be transformed by the ERC process into useful chemicals such as alcohols, hydrocarbons, and formic acids [1,2,3].
The designing of efficient electrocatalysts is a key factor in the ERC. Recently, metal-organic frameworks (MOFs) have been widely studied in the areas of separation [4,5,6,7,8], catalysis [9,10,11,12,13], sensors [14,15], water treatment [16,17,18], and drug delivery [19,20,21] because their diversity of metal ion and organic ligand combinations result in porous structures. MOFs also can be a good candidate for the electrode materials of the ERC due to their large surface area and excellent CO2 adsorption capability [22,23,24,25].
Noble metals have been widely used as effective electrocatalysts because of their high catalytic activity and excellent stability. However, their high cost and non-abundance in the earth are regarded as huge disadvantages in terms of their usage for the economical ERC electrode materials [26,27,28]. Recent studies have shown that non noble metals such as Cu and Zn components could be good candidates for the ERC electrode materials because of their high electrocatalytic activity and high abundance in the earth, but it still needs improvement in terms of CO selectivity [29,30,31,32,33,34,35].
In this study, benzene-1,3,5-tricarboxylic (BTC)-based Pd, Cu, and Zn trimetallic MOF electrocatalysts (PCZs) were synthesized with a simple solvothermal synthesis. Increases in ERC activity, low onset potential, low Tafel slope, and an outstanding selectivity of CO inside ERC were greatly improved with the addition of Pd to the Cu and Zn bimetallic MOF. The findings showed that up to 95% of faradaic CO efficiency can be obtained by using an optimized PCZ as an ERC electrode, which was around two times the bimetallic-BTC value (≈49%) and the comparable value of previously recorded ERC electrodes, as outlined in Table S1. The increased area of surface and electron transfer from Pd to Cu by adding Pd could lead to improved ERC properties.

2. Result and Discussion

2.1. Characterization of the PCZs

The morphology and microstructure were characterized by magnified field emission scanning electron microscope (FE-SEM) and transmission electron microscope (TEM). As shown in Figure 1, all PCZs exhibited porous morphology but PCZ-2 showed the most porous structures among as-synthesized PCZs. The N2 adsorption–desorption isothermal experiment was conducted to analyze the specific surface area and pore structure of as-synthesized PCZs and BM-3 (Figure S1). The specified surface area and the pore volume of PCZ-1, PCZ-2, PCZ-3, and BM-3 were determined to be 126.11, 271.40, 40.74, and 22.15 m2g−1, and 0.32, 0.45, 0.11, and 0.11 cm3g−1, respectively (Table S2). The PCZ-2 exhibited the largest specific surface area and pore volume among all catalysts, which was in good agreement with SEM results.
The TEM images indicated the uniformly distributed metal components of as-synthesized PCZs (Figure 2). In addition, we could clearly observe the lattice fringes of Cu (111), Zn (002), and Pd (111) in the high-resolution transmission electron microscope (HR-TEM) images of as-synthesized the PCZs. It is worth noting that three metal components were very close to each other instead of isolating, which indicated possible interactions among them.
The X-ray diffraction (XRD) was performed to investigate crystal structures of the as-synthesized catalysts. As shown in Figure 3, all PCZs exhibited the clear MOF patterns of Cu-BTC (JCPDS 00-064-0936), which indicated the successful formation of MOF structures of as-synthesized PCZs.
In addition, Pd, Cu, and Zn metallic peaks were dominated for all PCZs instead of metal oxide-related peaks in the BM-3 (Figure S2), which revealed the interaction among metal components during the synthesis of PCZs.
The X-ray photoelectron spectroscopy (XPS) was used to analyze the chemical composition and oxidation status of as-synthesized PCZs and BM-3. As shown in the XPS survey spectra (Figure 4A), metal components of Pd, Cu, and Zn were clearly observed in all the PCZs, but only Cu and Zn were observed in the BM-3 (Figure S3).
As shown in Figures S4 and S5, the Zn 2p peaks of PCZs were observed at 1021 and 1046 eV, which can be assigned to Zn 2p3/2 and Zn 2p1/2, respectively, indicating that Zn is in the ionic state in PCZs [36,37]. Two range peaks at the binding energies of (933.7 to 935.1 eV) and (952.8 to 954.7 eV) can be attributed to the Cu 2p3/2 and Cu 2p1/2, respectively [13,38]. The two pairs of Pd 3d signals of PCZ-2 were observed at (341.6 to 343.4 eV, Pd 3d3/2) and (336.5 to 337.8 eV, Pd 3d5/2), which can be assigned to the Pd and PdO species, respectively [39]. It has been observed that Pd has selectivity towards CO formation; hence, with the increased Pd/Cu ration, the product selectivity towards CO would increase. It is interesting to note that the positions of both the Pd 3d and Cu 2p peaks shifted with the change in ratio in the PCZs (Figure 4B,C). These opposite shifts can be attributed to the electron transfer between Pd and Cu atoms during catalyst formation. The different surface composition might result in different CO selectivity [40,41,42]. It was reported that different Cu to Pd ratio leads to the different electrocatalytic activity due to the different orientations of the intermediates on the surface and changing the chemisorption energy of reactant molecules on the surface of Pd atoms by the effect of the different surface composition and elemental distribution of Pd and Cu on the surface [43]. We believe that this kind of synergetic effect between Pd and Cu might enhance the ERC activity of as-synthesized PCZ catalysts.

2.2. ERC Properties of PCZs and BM-3 Catalysts

Figure 5A shows the electrochemical response of PCZs and BM-3 performed by linear sweep voltammetry (LSV) with the potential range from −0.35 to −1.85 V vs. RHE. With the addition of Pd, the current density increased significantly, and PCZ-2 exhibited best ERC activity among them. In addition, the positive shift of onset potential was also observed, and PCZ-2 showed about 235 mV more positive onset potential than that of BM-3. We believe that large BET surface area and electronic interaction between Pd and Cu of PCZ-2 may result in enhanced ERC properties. With the increased ratio of Pd ions, catalytic performance became better due to the increased porosity in the structure, and with the small amount of Pd in catalyst, electrocatalytic ability decreased as the holes collapsed in the structure [44,45]. The chronoamperometry test conducted at a constant potential (−0.75 V vs. RHE) and Tafel slope also showed similar results with that of LSV experiments. The PCZ-2 exhibited the highest current density and lowest Tafel slope among all catalysts with stable output (Figure 5B,C).
The electrochemical active surface area (ECSA) was measured by cyclic voltammetry (CV) at a potential ranging from 0.75 to 0.85 V vs. RHE. The ECSA was obtained by the equation of ECSA = Cdl/Cs, where Cdl is the slope of the linear regression between the current density difference and the scan rates, and Cs is the specific capacitance of the standard electrode material on a unit surface area [1,46,47]. As shown in Figure S5, the ESCA value of PZC-2 ( 311.72   c m E C S A 2 ) was about one order higher than those of PCZ-1 and PCZ-3 ( 9.10   c m E C S A 2 and 0.123   c m E C S A 2 , respectively), which might lead to an excellent ERC activity of PCZ-2.
To confirm that the electrocatalytic current was originated from the CO2 reduction, we performed the electrocatalytic reaction under CO2 and N2 atmospheres. As shown in Figure 5D, only negligible current was observed at around −0.85 V vs. RHE under the N2, which indicates that the largest part of the electrochemical current of PCZ-2 near the onset potential came from the CO2 reduction. The current increase at high potential was due to the hydrogen evolution reaction.
The faradaic efficiency (FE) for different products during the ERC under the various potential was evaluated by analyzing the gas and liquid phase components with gas chromatography and 1H NMR, respectively. As shown in Figure 6, PCZ-2 catalyst exhibited as high as 95% FE for CO at −0.75 V vs. RHE, which was higher than any other FEs obtained by other catalyst value. For all tested catalysts, the sum of FE of H2 and CO was approximately 100% under the potential range from −0.25 V to −1.05 V vs. RHE. No other product in the liquid phase could be detected by 1H NMR, even after 10 h chronoamperometric test (Figure S6), which revealed that only CO and H2 could be obtained with high CO selectivity when PCZ-2 was used as an ERC electrode. It was observed that Pd has selectivity towards CO formation; hence, with the increased Pd/Cu ration, the product selectivity towards CO would increase. The different surface composition might result in the different CO selectivity [48,49].
The stability of the PCZ-2 catalyst was evaluated by a 10-h chronoamperometry test conducted at a constant potential (−0.75 V vs. RHE). As shown Figure 7, both the current density and FE of CO were almost constant even after 10 h ERC operation, which indicates the excellent stability of as-prepared PCZ-2 towards ERC.
To explore the stability of PCZ-2 further, we analyzed the PCZ-2 catalyst with XRD, SEM, and XPS after a 10-h chronoamperometry test. As shown in Figures S7–S10, no obvious changes in the morphology, electronic state, and crystal structure were observed, which also indicates an excellent stability of as-prepared PCZ-2 catalyst.

3. Materials and Methods

3.1. Materials

Zinc nitrate hexahydrate (Zn(NO3)2·6H2O, 99%), 2-methylimidazole (2-MeIm, 99%), palladium(II) chloride (PdCl2,99.9%), copper (II) nitrate trihydrate (Cu(NO3)2·3H2O, 99%), benzene-1,3,5 tricarboxylic acid (BTC, 95%), N,N′-dimethylformamide (DMF) (99.5%), methanol (CH3OH, ≥99.9%), and ethanol (C2H5OH) were purchased from Sigma-Aldrich. Throughout this job, DI water was used.

3.2. Characterization Techniques

The XRD analysis was carried out on a (D/MAZX 2500 V/PC model, Rigaku, Japan) using Cu K radiation (40 kV, 30 mA, λ = 1.5415). Thermo ESCALAB 250 Xi, Thermo Fished Scientific of the USA, with Al Kα X-ray radiation (1486.6 eV) was used to collect the catalyst X-ray photoelectron spectroscopy (XPS). PCZ powder morphologies were performed by means of field-emission electron microscopy (FE-SEM, JEOL JSM-600F, Tokyo, Japan). A thermal conductivity detection (TCD) and a column of HP-PLOT U were injected into a gas chromatograph (YOUNG LIN-Acme 6100 GC, Anyang, Korea). Liquid goods at room temperature were distinguished by 1H NMR spectrometer (400.13 MHz for 1H, 100.61 MHz for 13C). An electrochemical workstation was used to electrochemically reduction CO2 (Bio-Logic, SP-50, Knoxville, TN, USA).

3.3. Synthesis of ZIF-8 and Pd, Cu, and Zn Trimetallic MOF Electrocatalysts (PCZs)

3.3.1. Synthesis ZIF-8

Typically, Zn(NO3)2·6H2O (3 g) and 2-MeIm (7 g) were dissolved in 200 mL methanol separately under magnetic stirring for 15 min for each solution. Both formulas blended quickly for 24 h under magnetic stirring. At 10,000 rpm, the mixture was separated in centrifugation for 5 min. Finally, the sample was collected and washed 3 times under a vacuum with methanol (30 mL) and dried for 12 h at 80 °C.

3.3.2. Synthesis of PCZs

The PCZs were synthesized via a solvothermal process by the following the previous report [50] with some modifications, as shown in Scheme 1. In brief, ZIF-8 was synthesized following the procedure reported by Chen et al. with some modifications [51]. Typically, Cu(NO3)2, PdCl2, and BTC were dissolved into the 45 mL mixed solution of H2O/ethanol/N,N′-dimethylformamide (DMF) and stirred in the air for 15 min with magnetic bar, and the PCZs were obtained after reaction time. Then, the solution was transferred to Teflon-autoclave and was kept at 85 °C for 20 h. The final product was filtered and washed 3 times with methanol. Finally, it was dried at 90 °C 24 h in the vacuum oven. The samples were named as PCZ-n (n = 1–3) depending on the molar ratio of Pd/Cu/Zn. The molar ratios of PCZ-1, PCZ-2, and PCZ-3 were 0.25:0.75:1, 0.5:0.5:1, and 0.75:0.25:1, respectively. For the comparison, Cu and Zn bimetallic electrocatalysts (BM-3) were also synthesized by the same procedure with the 1:1 molar ratio of Zn to Cu.

3.4. Preparation of the Working Electrodes

First, 5 mg of PCZs or BM-3 was weighted and suspended in a 3 mL Nafion/isopropyl alcohol mixture solution. The ultrasonic bath (Jeio-Tech Co., Daejeon, Korea) was utilized to blend the dispersant thoroughly for a total of 15 min to ensure dispersion of the mixture before application to the electrode (2 mm diameter). The drying chamber was made hotter with a hot air gun for 10 minutes before the electrode (volume = 0.079 mg/cm2) was used up.

3.5. Electrochemical Measurements

The catalysis of the PCZs and BM-3 was carried out using a linear sweep voltameter (LSV) with a potential range of −0.35 to −1.85 V vs. RHE with 0.1 M KHCO3 that was CO2-saturated at a scan rate of 20 mV s−1. Using an H-type cell, we expanded the cells, wherein the electrolytes had been placed on one side, with a Nafion 115 membrane separating the anode and cathode compartments. In order to ensure the electrodes had no harmful interactions, we had cathodic and anodic compartments, one for the glassy carbon electrode (GCE) and the standard calomel reference electrode (SCE), and one for a counter electrode made of Pt mesh. The electrochemical reduction reactions were carried out at room temperature in a 0.1 M KHCO3 aqueous solution. Prior to ERC, CO2 was continuously bubbled into the cathode compartment at a flow rate of 2 mL min−1 for 30 min to saturate the 0.1 M aqueous KHCO3 electrolyte. Potentials versus RHE (reversible hydrogen electrode) were transformed into SCE (saturated calomel electrode) according to the Nernst equation, with pH value = 6.9 (ERHE = ESCE + 0.244 + 0.059 * pH). The excess capacity was used at room temperature and 1 atm for gaseous materials from −0.25 V to −1.05 V (vs. RHE). A gas chromatographer examined the outlet gas product each 25 min (YOUNG LIN-Acme 6100 GC, Anyang, Korea).

4. Conclusions

The Pd, Cu, and Zn trimetallic metal-organic framework electrocatalysts (PCZs) were synthesized using a simple solvothermal synthesis. The optimally synthesized PCZ catalyst exhibited a very high CO selectivity with excellent ERC properties, including low overpotential, high current density, and long-term stability. The increased surface area, electrochemical active surface area, and the electronic interaction by the addition of Pd enhanced the electrocatalytic activity and faradaic efficiency of the Cu and Zn metal-organic framework electrocatalyst towards CO.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/catal11050537/s1, Figure S1: N2 adsorption–desorption isothermal curves of PCZs and BM-3. Figure S2: XRD patterns of BM-3. Figure S3: The XPS spectra (a) Cu 2p and (b) Zn 2p of BM-3. Figure S4: The XPS spectra Pd 3d, Cu 2p, and Zn 2p of (a,d,g) PCZ-1, (b,e,h) PCZ-2, and (c,f,i) PCZ-3. Figure S5: The measured capacitive currents as a function of scan rate for PCZ catalysts. Figure S6: 1H-NMR spectra of the electrolyte after CO2 reduction electrolysis at -1.4 V vs. SCE for long-term test. Figure S7: XRD patterns of PCZ-2 after long-term test. Figure S8: The SEM image of PCZ-2 after long-term test. Figure S9: The XPS spectra (a) Pd 3d, (b) Cu 2p, and (c) Zn 2p of PCZ-2 after long-term test. Figure S10: XPS survey spectra of PCZ-2 after long-term test. Table S1: CO selectivity using among various catalysts. Table S2: Surface area and pore size of PCZ-n (n= 1–3) and BM-3 samples.

Author Contributions

Conceptualization, T.-V.P. and S.-H.H.; methodology, T.-V.P.; validation, J.-S.C. and S.-H.H.; formal analysis, T.-V.P.; investigation, T.-V.P.; resources, J.-S.C. and S.-H.H.; writing—original draft preparation, T.-V.P.; writing—review and editing, J.-S.C. and S.-H.H.; supervision, J.-S.C. and S.-H.H.; project administration, J.-S.C. and S.-H.H.; funding acquisition, J.-S.C. and S.-H.H. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported the National Research Foundation of Korea (NRF) grant funded by the Korean government (MSIT) (2020R1A4A4079954).

Data Availability Statement

Data available on request.

Conflicts of Interest

The authors report no declarations of interest.

References

  1. Li, C.W.; Ciston, J.; Kanan, M.W. Electroreduction of carbon monoxide to liquid fuel on oxide-derived nanocrystalline copper. Nature 2014, 508, 504–507. [Google Scholar] [CrossRef] [PubMed]
  2. Nakata, K.; Ozaki, T.; Terashima, C.; Fujishima, A.; Einaga, Y. High-Yield Electrochemical Production of Formaldehyde from CO2 and Seawater. Angew. Chem. Int. Ed. 2014, 53, 871–874. [Google Scholar] [CrossRef]
  3. Costentin, C.; Robert, M.; Savéant, J.-M. Catalysis of the electrochemical reduction of carbon dioxide. Chem. Soc. Rev. 2013, 42, 2423–2436. [Google Scholar] [CrossRef]
  4. Chen, B.; Ockwig, N.W.; Millward, A.R.; Contreras, D.S.; Yaghi, O.M. High H2 Adsorption in a Microporous Metal-Organic Framework with Open Metal Sites. Angew. Chem. Int. Ed. 2005, 44, 4745–4749. [Google Scholar] [CrossRef] [PubMed]
  5. Bae, T.-H.; Lee, J.S.; Qiu, W.; Koros, W.J.; Jones, C.W.; Nair, S. A High-Performance Gas-Separation Membrane Containing Submicrometer-Sized Metal-Organic Framework Crystals. Angew. Chem. Int. Ed. 2010, 49, 9863–9866. [Google Scholar] [CrossRef]
  6. Mason, J.A.; Veenstra, M.; Long, J.R. Evaluating metal-organic frameworks for natural gas storage. Chem. Sci. 2014, 5, 32–51. [Google Scholar] [CrossRef] [Green Version]
  7. Rodenas, T.; Luz, I.; Prieto, G.; Seoane, B.; Miro, H.; Corma, A.; Kapteijn, F.; Llabrés i Xamena, F.X.; Gascon, J. Metal-organic framework nanosheets in polymer composite materials for gas separation. Nat. Mater. 2015, 14, 48–55. [Google Scholar] [CrossRef]
  8. Farha, O.K.; Eryazici, I.; Jeong, N.C.; Hauser, B.G.; Wilmer, C.E.; Sarjeant, A.A.; Snurr, R.Q.; Nguyen, S.T.; Yazaydın, A.Ö.; Hupp, J.T. Metal-Organic Framework Materials with Ultrahigh Surface Areas: Is the Sky the Limit? J. Am. Chem. Soc. 2012, 134, 15016–15021. [Google Scholar] [CrossRef] [Green Version]
  9. Gong, Y.; Wu, T.; Jiang, P.G.; Lin, J.H.; Yang, Y.X. Octamolybdate-Based Metal-Organic Framework with Unsaturated Coordinated Metal Center as Electrocatalyst for Generating Hydrogen from Water. Inorg. Chem. 2013, 52, 777–784. [Google Scholar] [CrossRef]
  10. Jiang, M.; Li, L.; Zhu, D.; Zhang, H.; Zhao, X. Oxygen reduction in the nanocage of metal-organic frameworks with an electron transfer mediator. J. Mater. Chem. A 2014, 2, 5323–5329. [Google Scholar] [CrossRef]
  11. Kornienko, N.; Zhao, Y.; Kley, C.S.; Zhu, C.; Kim, D.; Lin, S.; Chang, C.J.; Yaghi, O.M.; Yang, P. Metal-Organic Frameworks for Electrocatalytic Reduction of Carbon Dioxide. J. Am. Chem. Soc. 2015, 137, 14129–14135. [Google Scholar] [CrossRef] [Green Version]
  12. Van Phuc, T.; Kang, S.G.; Chung, J.S.; Hur, S.H. Highly CO selective Ca and Zn hybrid metal-organic framework electrocatalyst for the electrochemical reduction of CO2. Curr. Appl. Phys. 2021, 27, 31–37. [Google Scholar] [CrossRef]
  13. Van Phuc, T.; Kang, S.G.; Chung, J.S.; Hur, S.H. Highly selective metal-organic framework-based electrocatalyst for the electrochemical reduction of CO2 to CO. Mater. Res. Bull. 2021, 138, 111228. [Google Scholar] [CrossRef]
  14. Guo, Z.; Xu, H.; Su, S.; Cai, J.; Dang, S.; Xiang, S.; Qian, G.; Zhang, H.; O’Keeffe, M.; Chen, B. A robust near infrared luminescent ytterbium metal-organic framework for sensing of small molecules. Chem. Comm. 2011, 47, 5551–5553. [Google Scholar] [CrossRef]
  15. Kung, C.-W.; Li, Y.-S.; Lee, M.-H.; Wang, S.-Y.; Chiang, W.-H.; Ho, K.-C. In situ growth of porphyrinic metal-organic framework nanocrystals on graphene nanoribbons for the electrocatalytic oxidation of nitrite. J. Mater. Chem. A 2016, 4, 10673–10682. [Google Scholar] [CrossRef]
  16. Torad, N.L.; Hu, M.; Ishihara, S.; Sukegawa, H.; Belik, A.A.; Imura, M.; Ariga, K.; Sakka, Y.; Yamauchi, Y. Direct Synthesis of MOF-Derived Nanoporous Carbon with Magnetic Co Nanoparticles toward Efficient Water Treatment. Small 2014, 10, 2096–2107. [Google Scholar] [CrossRef] [PubMed]
  17. Kumar, P.; Bansal, V.; Kim, K.-H.; Kwon, E.E. Metal-organic frameworks (MOFs) as futuristic options for wastewater treatment. J. Ind. Eng. Chem. 2018, 62, 130–145. [Google Scholar] [CrossRef]
  18. Hasan, Z.; Jhung, S.H. Removal of hazardous organics from water using metal-organic frameworks (MOFs): Plausible mechanisms for selective adsorptions. J. Hazard. Mater. 2015, 283, 329–339. [Google Scholar] [CrossRef]
  19. Taylor-Pashow, K.M.L.; Della Rocca, J.; Xie, Z.; Tran, S.; Lin, W. Postsynthetic Modifications of Iron-Carboxylate Nanoscale Metal−Organic Frameworks for Imaging and Drug Delivery. J. Am. Chem. Soc. 2009, 131, 14261–14263. [Google Scholar] [CrossRef] [Green Version]
  20. Horcajada, P.; Chalati, T.; Serre, C.; Gillet, B.; Sebrie, C.; Baati, T.; Eubank, J.F.; Heurtaux, D.; Clayette, P.; Kreuz, C.; et al. Porous metal-organic-framework nanoscale carriers as a potential platform for drug delivery and imaging. Nat. Mater. 2010, 9, 172–178. [Google Scholar] [CrossRef]
  21. Huxford, R.C.; Della Rocca, J.; Lin, W. Metal-organic frameworks as potential drug carriers. Curr. Opin. Chem. Biol. 2010, 14, 262–268. [Google Scholar] [CrossRef] [Green Version]
  22. Wang, Z.-L.; Li, C.; Yamauchi, Y. Nanostructured nonprecious metal catalysts for electrochemical reduction of carbon dioxide. Nano Today 2016, 11, 373–391. [Google Scholar] [CrossRef] [Green Version]
  23. Senthil Kumar, R.; Senthil Kumar, S.; Anbu Kulandainathan, M. Highly selective electrochemical reduction of carbon dioxide using Cu based metal organic framework as an electrocatalyst. Electrochem. Commun. 2012, 25, 70–73. [Google Scholar] [CrossRef]
  24. Kang, X.; Zhu, Q.; Sun, X.; Hu, J.; Zhang, J.; Liu, Z.; Han, B. Highly efficient electrochemical reduction of CO2 to CH4 in an ionic liquid using a metal-organic framework cathode. Chem. Sci. 2016, 7, 266–273. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Palomino Cabello, C.; Gómez-Pozuelo, G.; Opanasenko, M.; Nachtigall, P.; Čejka, J. Metal-Organic Frameworks M-MOF-74 and M-MIL-100: Comparison of Textural, Acidic, and Catalytic Properties. ChemPlusChem 2016, 81, 828–835. [Google Scholar] [CrossRef]
  26. Hu, J.; Yang, Q.; Yang, L.; Zhang, Z.; Su, B.; Bao, Z.; Ren, Q.; Xing, H.; Dai, S. Confining Noble Metal (Pd, Au, Pt) Nanoparticles in Surfactant Ionic Liquids: Active Non-Mercury Catalysts for Hydrochlorination of Acetylene. ACS Catal. 2015, 5, 6724–6731. [Google Scholar] [CrossRef]
  27. Xing, Z.-M.; Gao, Y.-X.; Shi, L.-Y.; Liu, X.-Q.; Jiang, Y.; Sun, L.-B. Fabrication of gold nanoparticles in confined spaces using solid-phase reduction: Significant enhancement of dispersion degree and catalytic activity. Chem. Eng. Sci. 2017, 158, 216–226. [Google Scholar] [CrossRef]
  28. Karimi, B.; Khorasani, M.; Vali, H.; Vargas, C.; Luque, R. Palladium Nanoparticles Supported in the Nanospaces of Imidazolium-Based Bifunctional PMOs: The Role of Plugs in Selectivity Changeover in Aerobic Oxidation of Alcohols. ACS Catal. 2015, 5, 4189–4200. [Google Scholar] [CrossRef]
  29. Wang, X.; Zhang, B.; Zhang, W.; Yu, M.; Cui, L.; Cao, X.; Liu, J. Super-light Cu@Ni nanowires/graphene oxide composites for significantly enhanced microwave absorption performance. Sci. Rep. 2017, 7, 1584. [Google Scholar] [CrossRef]
  30. Nguyen, D.L.T.; Jee, M.S.; Won, D.H.; Jung, H.; Oh, H.-S.; Min, B.K.; Hwang, Y.J. Selective CO2 Reduction on Zinc Electrocatalyst: The Effect of Zinc Oxidation State Induced by Pretreatment Environment. ACS Sustain. Chem. Eng. 2017, 5, 11377–11386. [Google Scholar] [CrossRef]
  31. Qin, B.; Li, Y.; Fu, H.; Wang, H.; Chen, S.; Liu, Z.; Peng, F. Electrochemical Reduction of CO2 into Tunable Syngas Production by Regulating the Crystal Facets of Earth-Abundant Zn Catalyst. ACS Appl. Mater. Interfaces 2018, 10, 20530–20539. [Google Scholar] [CrossRef] [PubMed]
  32. Li, Q.; Fu, J.; Zhu, W.; Chen, Z.; Shen, B.; Wu, L.; Xi, Z.; Wang, T.; Lu, G.; Zhu, J.-j.; et al. Tuning Sn-Catalysis for Electrochemical Reduction of CO2 to CO via the Core/Shell Cu/SnO2 Structure. J. Am. Chem. Soc. 2017, 139, 4290–4293. [Google Scholar] [CrossRef]
  33. Scholten, F.; Sinev, I.; Bernal, M.; Roldan Cuenya, B. Plasma-Modified Dendritic Cu Catalyst for CO2 Electroreduction. ACS Catal. 2019, 9, 5496–5502. [Google Scholar] [CrossRef] [Green Version]
  34. Arán-Ais, R.M.; Rizo, R.; Grosse, P.; Algara-Siller, G.; Dembélé, K.; Plodinec, M.; Lunkenbein, T.; Chee, S.W.; Cuenya, B.R. Imaging electrochemically synthesized Cu2O cubes and their morphological evolution under conditions relevant to CO2 electroreduction. Nat. Commun. 2020, 11, 3489. [Google Scholar] [CrossRef] [PubMed]
  35. Reske, R.; Mistry, H.; Behafarid, F.; Roldan Cuenya, B.; Strasser, P. Particle Size Effects in the Catalytic Electroreduction of CO2 on Cu Nanoparticles. J. Am. Chem. Soc. 2014, 136, 6978–6986. [Google Scholar] [CrossRef] [PubMed]
  36. Lupan, O.; Emelchenko, G.A.; Ursaki, V.V.; Chai, G.; Redkin, A.N.; Gruzintsev, A.N.; Tiginyanu, I.M.; Chow, L.; Ono, L.K.; Roldan Cuenya, B.; et al. Synthesis and characterization of ZnO nanowires for nanosensor applications. Mater. Res. Bull. 2010, 45, 1026–1032. [Google Scholar] [CrossRef]
  37. Saáedi, A.; Yousefi, R.; Jamali-Sheini, F.; Zak, A.K.; Cheraghizade, M.; Mahmoudian, M.R.; Baghchesara, M.A.; Dezaki, A.S. XPS studies and photocurrent applications of alkali-metals-doped ZnO nanoparticles under visible illumination conditions. Phys. E Low Dimens. Syst. Nanostruct. 2016, 79, 113–118. [Google Scholar] [CrossRef]
  38. Biesinger, M.C.; Lau, L.W.M.; Gerson, A.R.; Smart, R.S.C. Resolving surface chemical states in XPS analysis of first row transition metals, oxides and hydroxides: Sc, Ti, V., Cu and Zn. Appl. Surf. Sci. 2010, 257, 887–898. [Google Scholar] [CrossRef]
  39. Zhou, W.; Lee, J.Y. Particle Size Effects in Pd-Catalyzed Electrooxidation of Formic Acid. J. Phys. Chem. C 2008, 112, 3789–3793. [Google Scholar] [CrossRef]
  40. Hu, S.; Scudiero, L.; Ha, S. Electronic effect on oxidation of formic acid on supported Pd–Cu bimetallic surface. Electrochim. Acta 2012, 83, 354–358. [Google Scholar] [CrossRef]
  41. Takashima, T.; Suzuki, T.; Irie, H. Electrochemical carbon dioxide reduction on copper-modified palladium nanoparticles synthesized by underpotential deposition. Electrochim. Acta 2017, 229, 415–421. [Google Scholar] [CrossRef]
  42. Takashima, T.; Suzuki, T.; Irie, H. Electrochemical Reduction of Carbon Dioxide to Formate on Palladium-Copper Alloy Nanoparticulate Electrode. Electrochemistry 2019, 87, 134–138. [Google Scholar] [CrossRef] [Green Version]
  43. Ma, S.; Sadakiyo, M.; Heima, M.; Luo, R.; Haasch, R.T.; Gold, J.I.; Yamauchi, M.; Kenis, P.J.A. Electroreduction of Carbon Dioxide to Hydrocarbons Using Bimetallic Cu–Pd Catalysts with Different Mixing Patterns. J. Am. Chem. Soc. 2017, 139, 47–50. [Google Scholar] [CrossRef]
  44. Chen, A.; Ostrom, C. Palladium-Based Nanomaterials: Synthesis and Electrochemical Applications. Chem. Rev. 2015, 115, 11999–12044. [Google Scholar] [CrossRef] [Green Version]
  45. Li, M.; Wang, J.; Li, P.; Chang, K.; Li, C.; Wang, T.; Jiang, B.; Zhang, H.; Liu, H.; Yamauchi, Y.; et al. Mesoporous palladium–copper bimetallic electrodes for selective electrocatalytic reduction of aqueous CO2 to CO. J. Mater. Chem. A 2016, 4, 4776–4782. [Google Scholar] [CrossRef]
  46. Zheng, X.; De Luna, P.; García de Arquer, F.P.; Zhang, B.; Becknell, N.; Ross, M.B.; Li, Y.; Banis, M.N.; Li, Y.; Liu, M.; et al. Sulfur-Modulated Tin Sites Enable Highly Selective Electrochemical Reduction of CO2 to Formate. Joule 2017, 1, 794–805. [Google Scholar] [CrossRef] [Green Version]
  47. Zheng, X.; Ji, Y.; Tang, J.; Wang, J.; Liu, B.; Steinrück, H.-G.; Lim, K.; Li, Y.; Toney, M.F.; Chan, K.; et al. Theory-guided Sn/Cu alloying for efficient CO2 electroreduction at low overpotentials. Nat. Catal. 2018. [Google Scholar] [CrossRef]
  48. Siahrostami, S.; Verdaguer-Casadevall, A.; Karamad, M.; Deiana, D.; Malacrida, P.; Wickman, B.; Escudero-Escribano, M.; Paoli, E.A.; Frydendal, R.; Hansen, T.W.; et al. Enabling direct H2O2 production through rational electrocatalyst design. Nat. Mater. 2013, 12, 1137–1143. [Google Scholar] [CrossRef] [Green Version]
  49. Nørskov, J.K.; Bligaard, T.; Rossmeisl, J.; Christensen, C.H. Towards the computational design of solid catalysts. Nat. Chem. 2009, 1, 37–46. [Google Scholar] [CrossRef]
  50. Zhang, C.; Liao, P.; Wang, H.; Sun, J.; Gao, P. Preparation of novel bimetallic CuZn-BTC coordination polymer nanorod for methanol synthesis from CO2 hydrogenation. Mater. Chem. Phys. 2018, 215, 211–220. [Google Scholar] [CrossRef]
  51. Venna, S.R.; Jasinski, J.B.; Carreon, M.A. Structural Evolution of Zeolitic Imidazolate Framework-8. J. Am. Chem. Soc. 2010, 132, 18030–18033. [Google Scholar] [CrossRef] [PubMed]
Catalysts 11 00537 g001 550

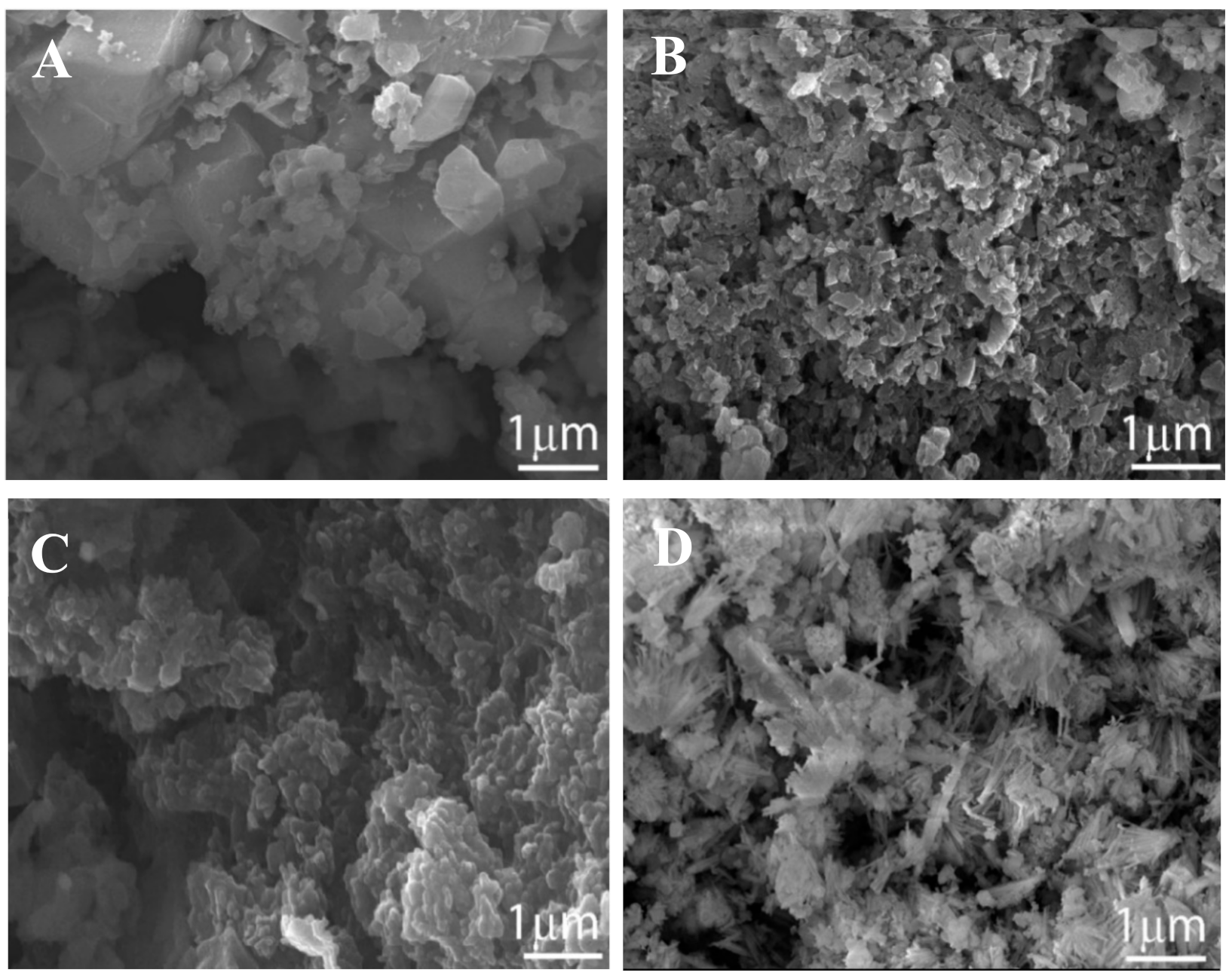

Figure 1. The SEM images of (A) PCZ-1, (B) PCZ-2, (C) PCZ-3, and (D) BM-3.
Figure 1. The SEM images of (A) PCZ-1, (B) PCZ-2, (C) PCZ-3, and (D) BM-3.
Catalysts 11 00537 g001
Catalysts 11 00537 g002 550

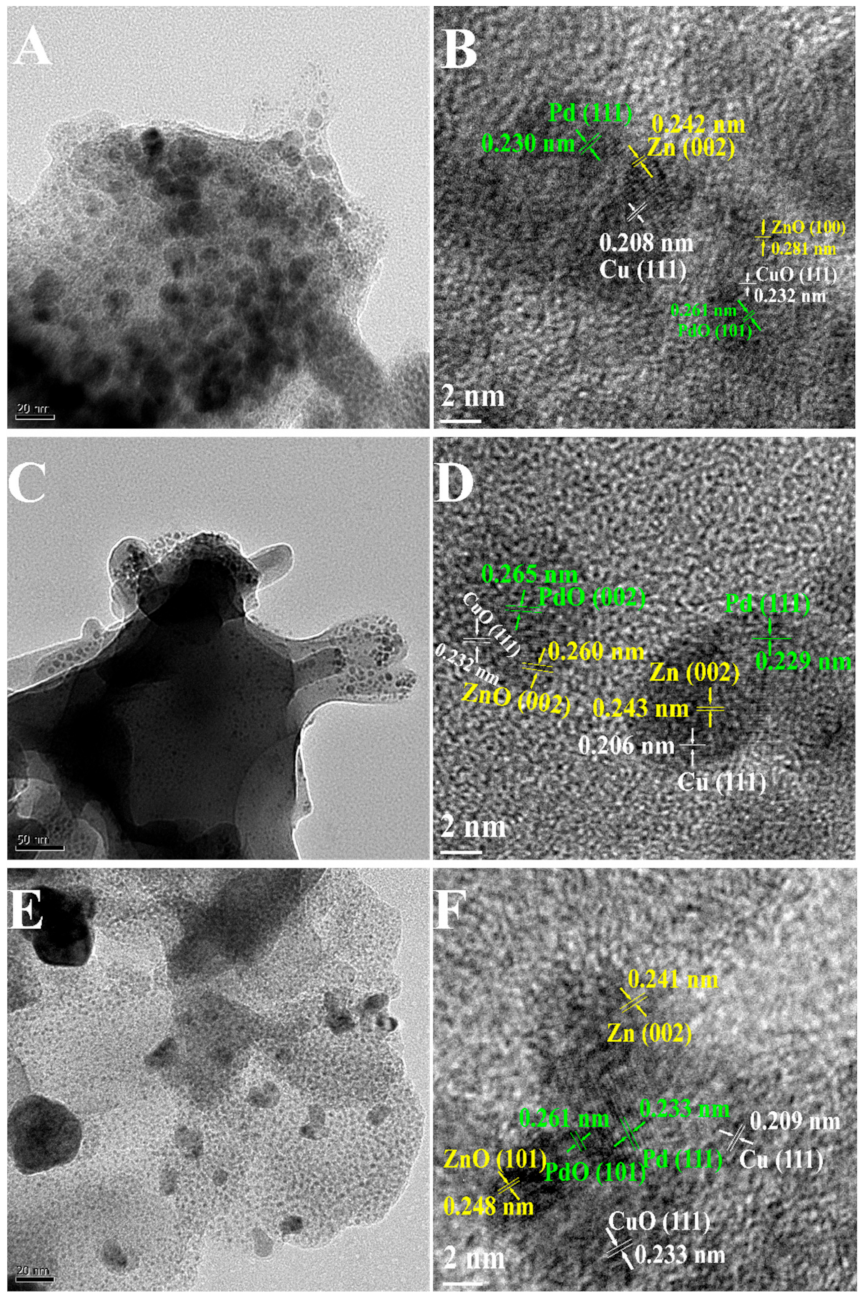

Figure 2. The TEM and HR-TEM images of (A,B) PCZ-1, (C,D) PCZ-2, and (E,F) PCZ-3.
Figure 2. The TEM and HR-TEM images of (A,B) PCZ-1, (C,D) PCZ-2, and (E,F) PCZ-3.
Catalysts 11 00537 g002
Catalysts 11 00537 g003 550

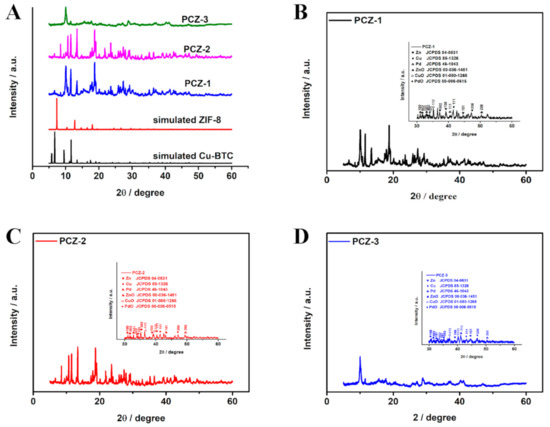

Figure 3. (A) XRD patterns of PCZs and simulated XRD patterns of ZIF-8 and Cu-BTC. XRD and PXRD (inset) patterns of PCZs (B–D).
Figure 3. (A) XRD patterns of PCZs and simulated XRD patterns of ZIF-8 and Cu-BTC. XRD and PXRD (inset) patterns of PCZs (B–D).
Catalysts 11 00537 g003
Catalysts 11 00537 g004 550

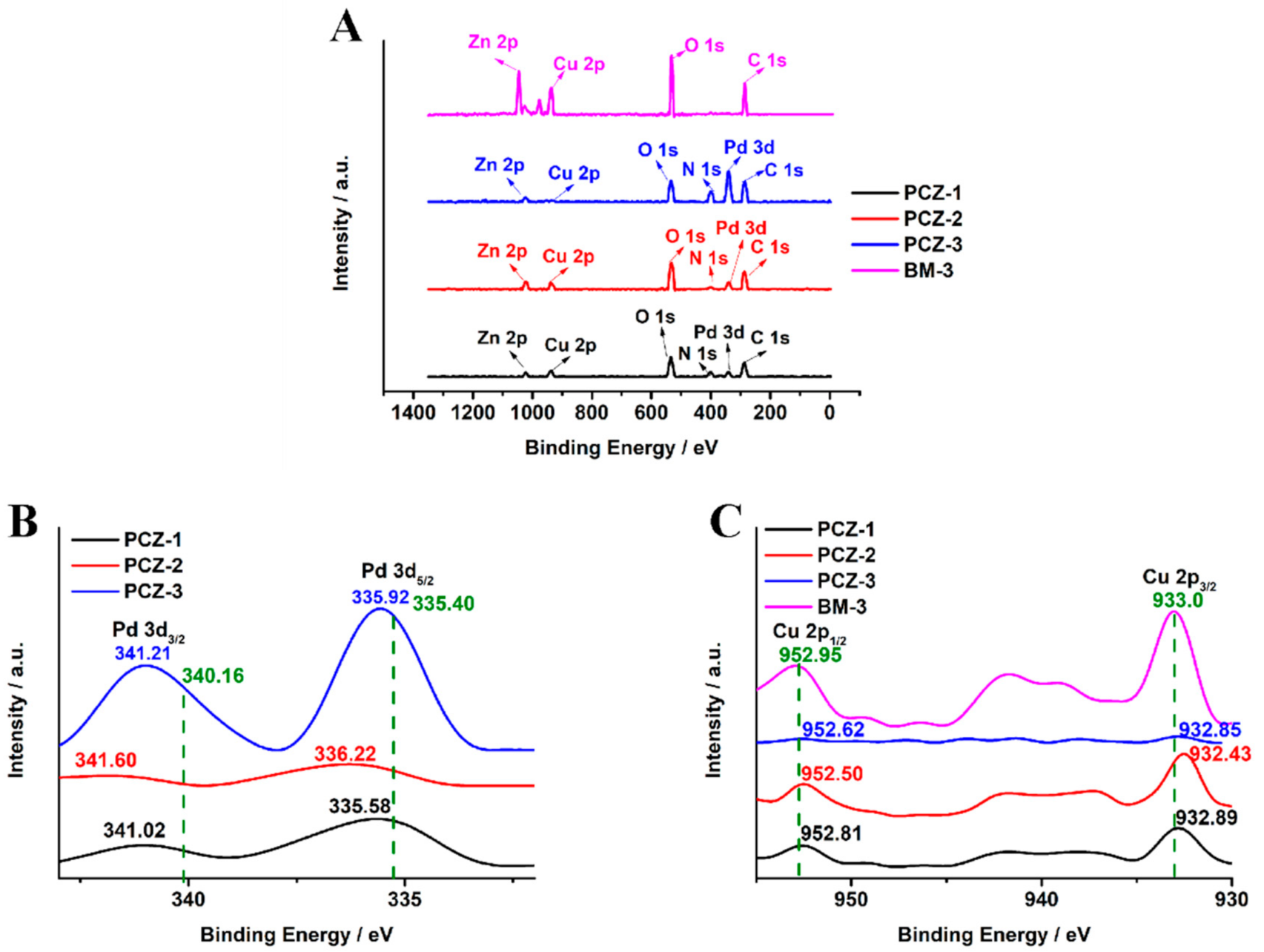

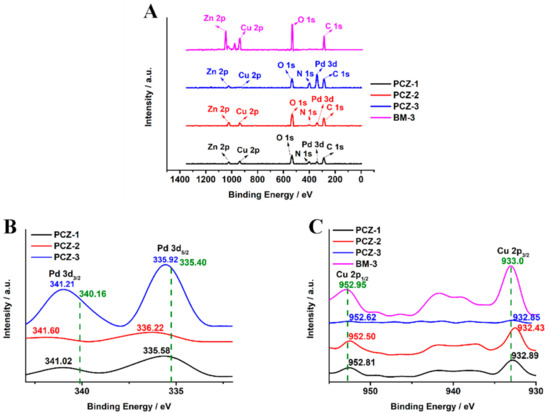

Figure 4. (A) XPS survey spectra, (B) Pd 3d, and (C) Cu 2p of PCZs and BM-3 (the dashed line (…) marks the peak position of monometallic Pd and Cu).
Figure 4. (A) XPS survey spectra, (B) Pd 3d, and (C) Cu 2p of PCZs and BM-3 (the dashed line (…) marks the peak position of monometallic Pd and Cu).
Catalysts 11 00537 g004
Catalysts 11 00537 g005 550

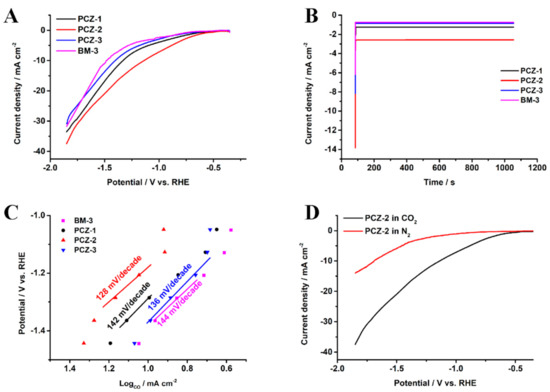

Figure 5. (A) LSV curves and (B) chronoamperometry PCZs and BM-3 at −0.75 V vs. RHE. (C) Tafel plots with a linear fit of PCZs and BM-3 catalysts. (D) LSV curves of PCZ-2 in N2 and CO2. We used 0.1 M KHCO3 aqueous solution as an electrolyte for all experiments.
Figure 5. (A) LSV curves and (B) chronoamperometry PCZs and BM-3 at −0.75 V vs. RHE. (C) Tafel plots with a linear fit of PCZs and BM-3 catalysts. (D) LSV curves of PCZ-2 in N2 and CO2. We used 0.1 M KHCO3 aqueous solution as an electrolyte for all experiments.
Catalysts 11 00537 g005
Catalysts 11 00537 g006 550

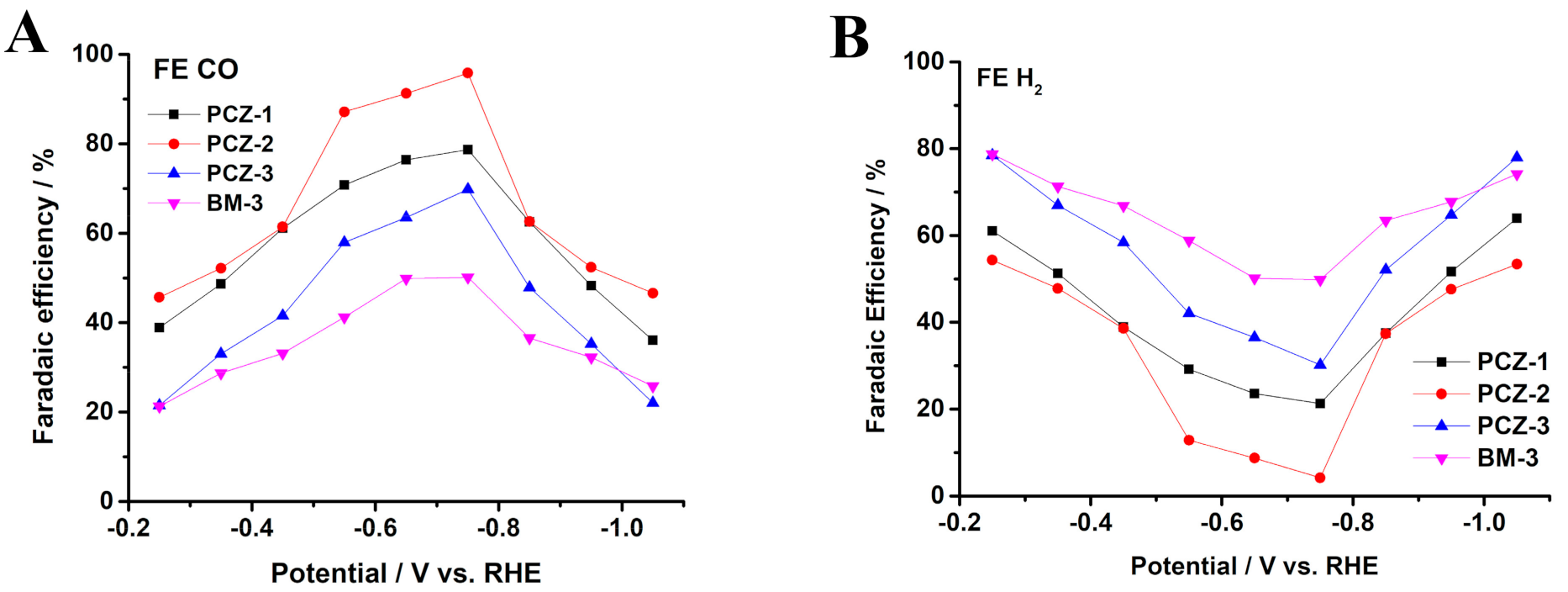

Figure 6. The faradaic efficiency (FE) for (A) CO and (B) H2 of the PCZs and BM-3 catalysts at various potentials.
Figure 6. The faradaic efficiency (FE) for (A) CO and (B) H2 of the PCZs and BM-3 catalysts at various potentials.
Catalysts 11 00537 g006
Catalysts 11 00537 g007 550

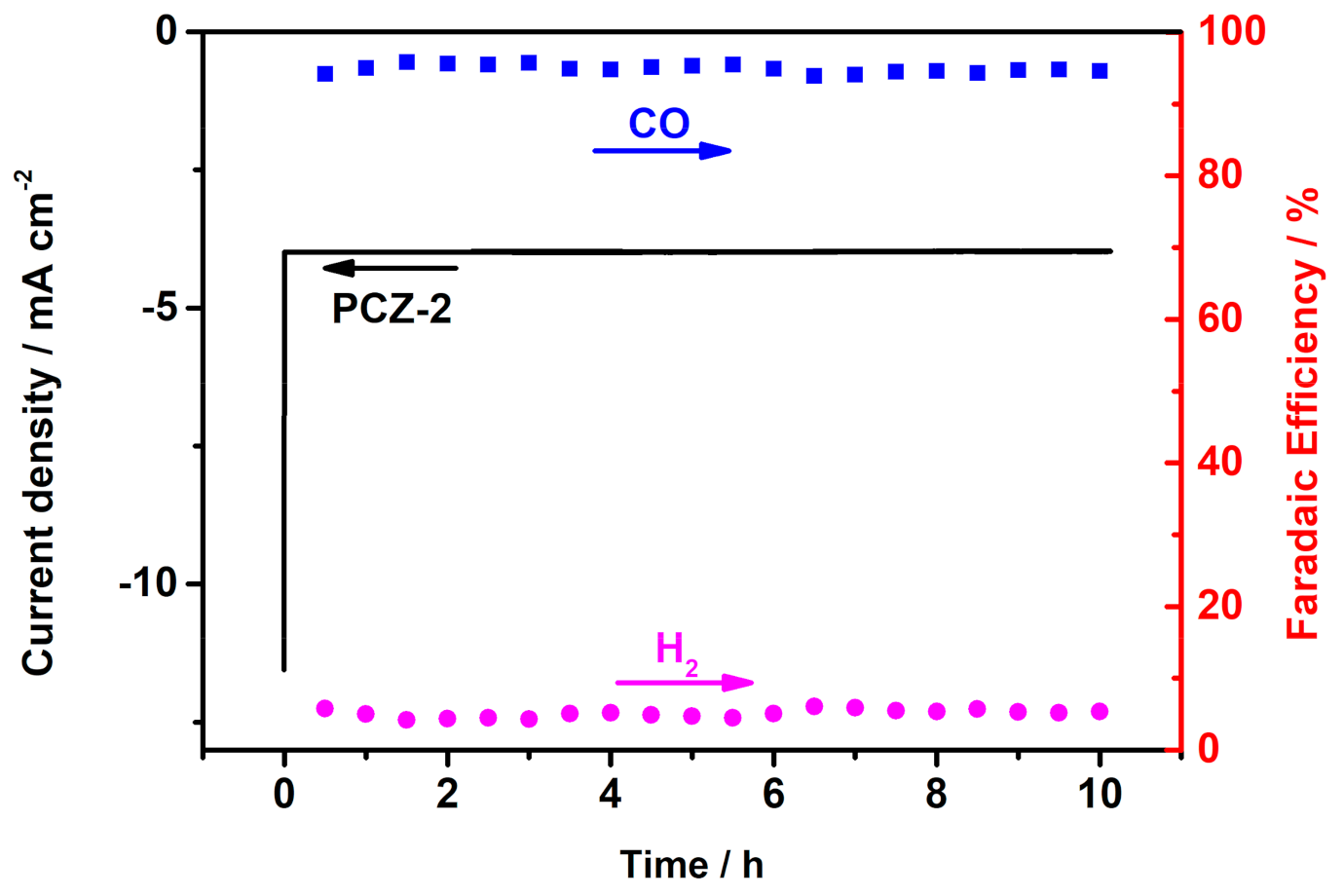

Figure 7. Chronoamperometric long term stability test of PCZ-2 during the electrochemical reduction of CO2 process for long-term test.
Figure 7. Chronoamperometric long term stability test of PCZ-2 during the electrochemical reduction of CO2 process for long-term test.
Catalysts 11 00537 g007
Catalysts 11 00537 sch001 550

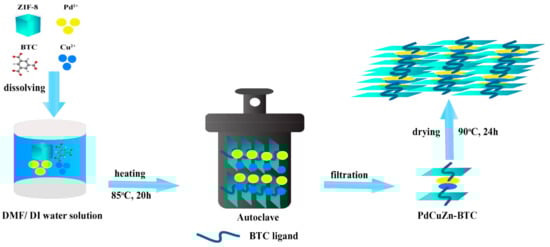

Scheme 1. The schematic illustration of PCZ synthesis.
Scheme 1. The schematic illustration of PCZ synthesis.
Catalysts 11 00537 sch001
