Membrane-Less Ethanol Electrooxidation over Pd-M (M: Sn, Mo and Re) Bimetallic Catalysts

Abstract

The effect of the addition of three oxophilic co-metals (Sn, Mo and Re) on the electrochemical performance of Pd in the ethanol oxidation reaction (EOR) was investigated by performing half-cell and membrane-less electrolysis cell experiments. While the additions of Sn and Re were found to improve significantly the EOR performance of Pd, Mo produced no significant promotional effect. When added in significant amounts (50:50 ratio), Sn and Re produced a 3–4 fold increase in the mass-normalized oxidation peak current as compared to the monometallic Pd/C material. Both the electrochemical surface area and the onset potential also improved upon addition of Sn and Re, although this effect was more evident for Sn. Cyclic voltammetry (CV) measurements revealed a higher ability of Sn for accommodating OH- species as compared to Re, which could explain these results. Additional tests were carried out in a membrane-less electrolysis system. Pd₅₀Re₅₀/C and Pd₅₀Sn₅₀/C both showed higher activity than Pd/C in this system. Chronopotentiometric measurements at constant current were carried out to test the stability of both catalysts in the absence of a membrane. Pd₅₀Sn₅₀/C was significantly more stable than Pd₅₀Re₅₀/C, which showed a rapid increase in the potential with time. Despite operating in the absence of a membrane, both catalysts generated a high-purity (e.g., 99.99%) hydrogen stream at high intensities and low voltages. These conditions could lead to significant energy consumption savings compared to commercial water electrolyzers.

1. Introduction

The reduction of anthropogenic carbon dioxide emissions is a priority worldwide. However, most of the energy consumed is currently supplied by fossil fuels, which inevitably results in growing concentrations of carbon dioxide in the atmosphere. The utilization of hydrogen in fuel-cell driven electrochemical devices is a promising strategy to decarbonize important sectors such as transportation and industry. Efforts are currently focused on developing technologies allowing generation of hydrogen from renewable sources instead of fossil fuels [1]. In this sense, water electrolysis is one of the most studied and used methods for obtaining green hydrogen [2,3,4]. However, despite the important advances made in this field, the high energy required to break the water molecule represents an important barrier and increases the production costs significantly. Recently, electrochemical reforming of alcohols (alcohols electrolysis) has demonstrated potential for producing pure hydrogen at lower potentials than those required for water electrolysis, thereby allowing significant energy savings [5,6]. For instance, the higher chemical reactivity of ethanol compared to water allows generating hydrogen with electrical energy savings higher than 50% (2.3 vs. 4.7 kW h/Nm³ H₂).

Since ethanol can be obtained from renewable sources (i.e., biomass) by well-developed and simple fermentation technologies, this compound has been commonly used to generate green hydrogen by means of this technology. The ethanol electrooxidation reaction (EOR) has been historically carried out in acidic media over platinum-based electrocatalysts [7,8]. However, recent studies have demonstrated that carrying out the EOR in alkaline media can be advantageous [9], with Pd showing high activity under these conditions [10]. With the aim to explain the high EOR activity of Pd in alkaline media, Liang et al. [11] proposed a four-step mechanism (Equations (1)–(4)). In this mechanism, OH^- species adsorbed over Pd (i.e., OH_ads) were proposed to play a key role in the overall process by facilitating the oxidization of intermediate organic species strongly adsorbed on Pd (Equation (3)). This reaction has been identified as the rate-determining step of the overall process by several authors in previous works [11,12,13,14]. Once oxidized, these organic species are more easily released, allowing Pd sites to be recovered for a new oxidation cycle (Equation (4)).

$$\mathrm{Pd}+{\mathrm{CH}}_3{\mathrm{CH}}_2\mathrm{OH} \leftrightarrow \mathrm{Pd}-{\left({\mathrm{CH}}_3{\mathrm{CH}}_2\mathrm{OH}\right)}_{\mathrm{ads}}$$

(1)

$$\mathrm{Pd}-{\left({\mathrm{CH}}_3{\mathrm{CH}}_2\mathrm{OH}\right)}_{\mathrm{ads}}+3{\mathrm{OH}}^{-}\to \mathrm{Pd}-{\left({\mathrm{CH}}_3\mathrm{CO}\right)}_{\mathrm{ads}}+3{\mathrm{H}}_2\mathrm{O}+3{\mathrm{e}}^{-}$$

(2)

$$\mathrm{Pd}-{\left({\mathrm{CH}}_3\mathrm{CO}\right)}_{\mathrm{ads}}+\mathrm{Pd}-{\mathrm{OH}}_{\mathrm{ads}}\to \mathrm{Pd}-{\mathrm{CH}}_3\mathrm{COOH}+\mathrm{Pd} \mathrm{rate} \mathrm{determining} \mathrm{step}$$

(3)

$$\mathrm{Pd}-{\mathrm{CH}}_3{\mathrm{COO}}^{-}+{\mathrm{H}}_2\mathrm{O}\to \mathrm{Pd}+{\mathrm{CH}}_3{\mathrm{COO}}^{-}+{\mathrm{H}}_2\mathrm{O}$$

(4)

According to this mechanism, the presence of OH_ads species in the vicinities of Pd can help increase both the EOR activity and stability of the noble metal. In line with this approach, the addition of a second metal able to accommodate OH⁻ species has been commonly used to improve the EOR performance of Pd. Metals such as Ru, Cu, Ni, Pb, Ag, Au and Sn have been typically added to Pd, resulting in catalysts with improved EOR performance as compared to their monometallic counterparts [15,16,17,18,19,20,21,22,23,24,25,26]. This strategy has also allowed us to significantly reduce the Pd content of the electrocatalysts, which is desirable in view of the high cost and low abundance of this noble metal.

While Sn has been widely studied as a EOR Pd co-metal in basic media [20,27,28,29,30], other co-metals such as Mo and Re have received significantly less attention despite their well-known oxophilicity and their outstanding ability to accommodate hydroxyl species [31,32,33,34,35,36]. Mo has been used in combination with Pt to electrooxydize several biomass-derived oxygenated molecules such as ethanol [31] and glycerol [32]. Pd-Mo catalysts have demonstrated high activity towards the electrooxidation of ethylene glycol [33]. Lim et al. [34] studied the electrooxidation of methanol and ethanol in alkaline media over different MoO_x-Pd materials and found a significant improvement in the mass activity as compared to monometallic Pd/C. With regard to Re, in addition to its ability to adsorb OH_ads species, it has also demonstrated significant activity to promote C–C cleavage of oxygenated molecules such as glycerol when combined with Pt [36]. In this sense, the addition of Re to Pt/C and Pt-Sn/C catalysts improved the ethanol electrooxidation activity of these materials, and this was ascribed to the ability of Re to promote C–C breaking of intermediates adsorbed on the noble metal [36].

In this work, we explored the effects of Mo and Re on the EOR performance of Pd in alkaline media (mostly activity and stability). These effects were compared with those produced by a more common and well-known additive such as Sn. The structures of the bimetallic catalysts prepared were studied by X-ray diffraction (XRD), and their electrooxidation performances were evaluated by cyclic voltammetry (CV) measurements via half-cell experiments. The performance of the most promising catalysts was additionally studied in detail in a membrane-less electrolysis cell [6]. This membrane-less configuration uses a liquid electrolyte instead of commercial polymeric membranes. This configuration is interesting in that it allows operating without membranes, which are one of the critical components of electrolysers, being responsible for the high prices and limited life-times of these devices. Thus, a membrane-less electrolyser can potentially overcome mechanical, chemical or electrochemical failures produced by membrane degradation while reducing the capital costs of these devices [37,38,39].

2. Results and Discussion

2.1. Structural Characterization

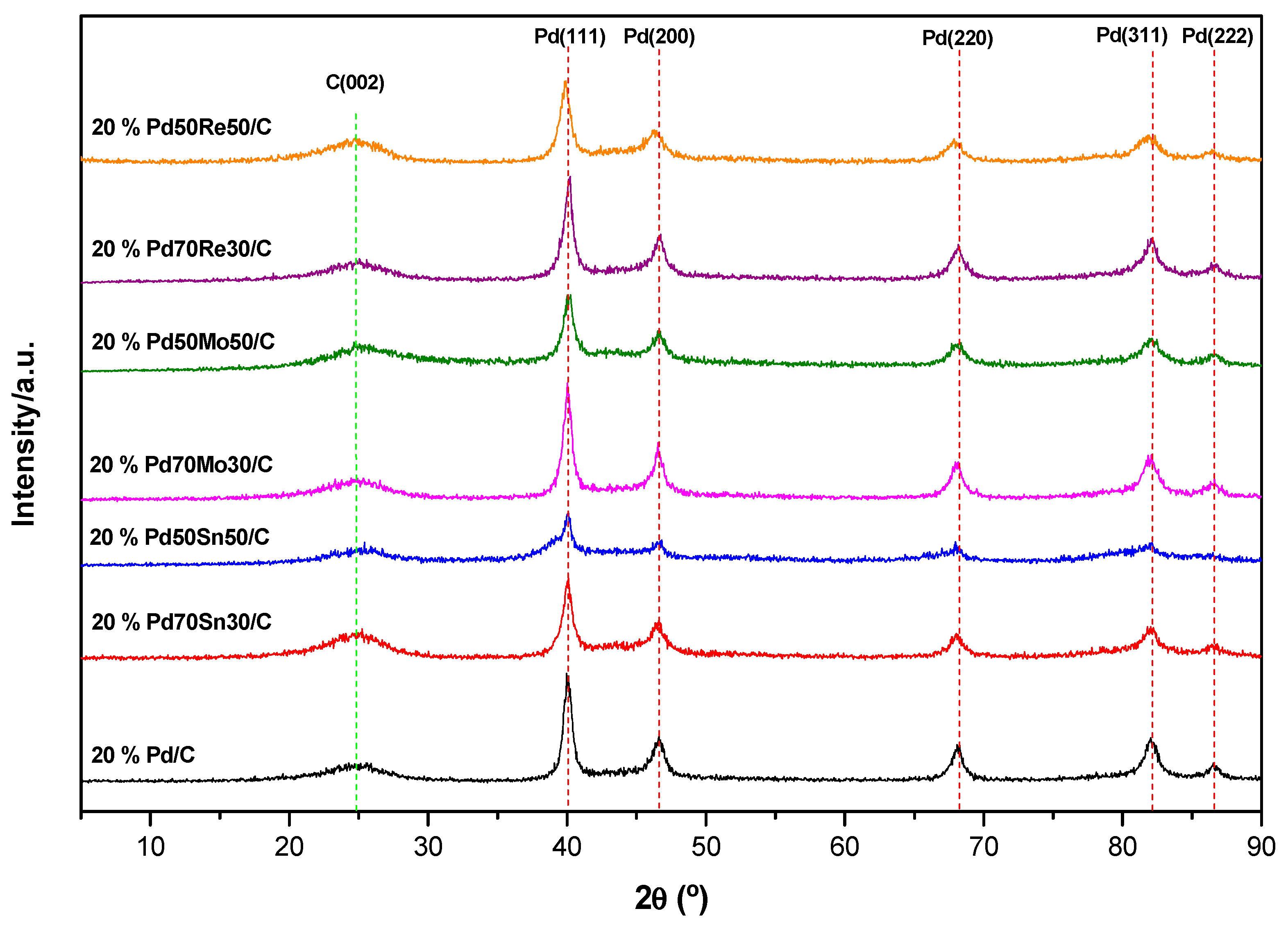

The diffraction patterns of 20% Pd/C and the bimetallic 20% Pd-metal/C materials are shown in Figure 1. Additionally, the XRD patterns of monometallic Sn, Re and Mo catalysts and C Vulcan are shown in Figure S1 for the sake of comparison. As shown in Figure 1, all the samples showed a peak at ca. 25°, which was ascribed to the (002) plane of the hexagonal structure of the carbon material used as a support (denoted as C (002)). The presence of Pd nanoparticles with a face-centered cubic (fcc) structure was confirmed by their characteristic peaks at ca. 40, 47, 68 and 83°, corresponding to the (111), (200), (220), (311) and (222) planes, respectively. No significant shifts in the diffraction angles of these Pd diffraction peaks were observed upon addition of any of the co-metals tested herein. A slight shift (below 0.14°) was found in the case of 20% Pd50Re50/C. However, this shift is not high enough to be considered as a proof of an alloy formation, according to previous works [29]. The intensity of the Pd diffraction peaks decreased when increasing the co-metal loading from a 70:30 to 50:50 ratio. As shown in

Table 1. Crystallite size obtained from X-ray diffraction analyses and electrochemical surface area (ECSA) obtained from electrochemical measurements.

Catalyst.	FWHM (°)	Pd mean Crystallite Size (nm)	ECSA (m2 g−1)
20% Pd/C	0.8826	9.580	6.78
20% Pd70Sn30/C	0.9999	8.456	9.17
20% Pd50Sn50/C	0.7537	11.218	67.61
20% Pd70Mo30/C	0.8314	10.172	4.80
20% Pd50Mo50/C	1.0331	8.186	5.52
20% Pd70Re30/C	0.8633	9.798	2.44
20% Pd50Re50/C	0.9738	8.680	21.22

, the addition of a second metal to Pd resulted in slight changes in the Pd crystallite size. These particle sizes were calculated by the Scherrer equation using the full width at half maximum (FWHM) of the Pd(111) peak (Table 1). Both the decrease in intensity of the Pd diffraction peaks and the changes in particle size revealed a certain degree of interaction between Pd and the co-metal. No evidence of peaks ascribed to co-metals used (i.e., Sn, Mo and Re) or their oxides was found in the diffractograms. However, it is likely that they were present as amorphous oxide or hydroxide phases or formed alloys with Pd, as previously reported in similar Pd-metals systems [27,29,40].

2.2. Electrochemical Measurements

2.2.1. CV in Aqueous KOH

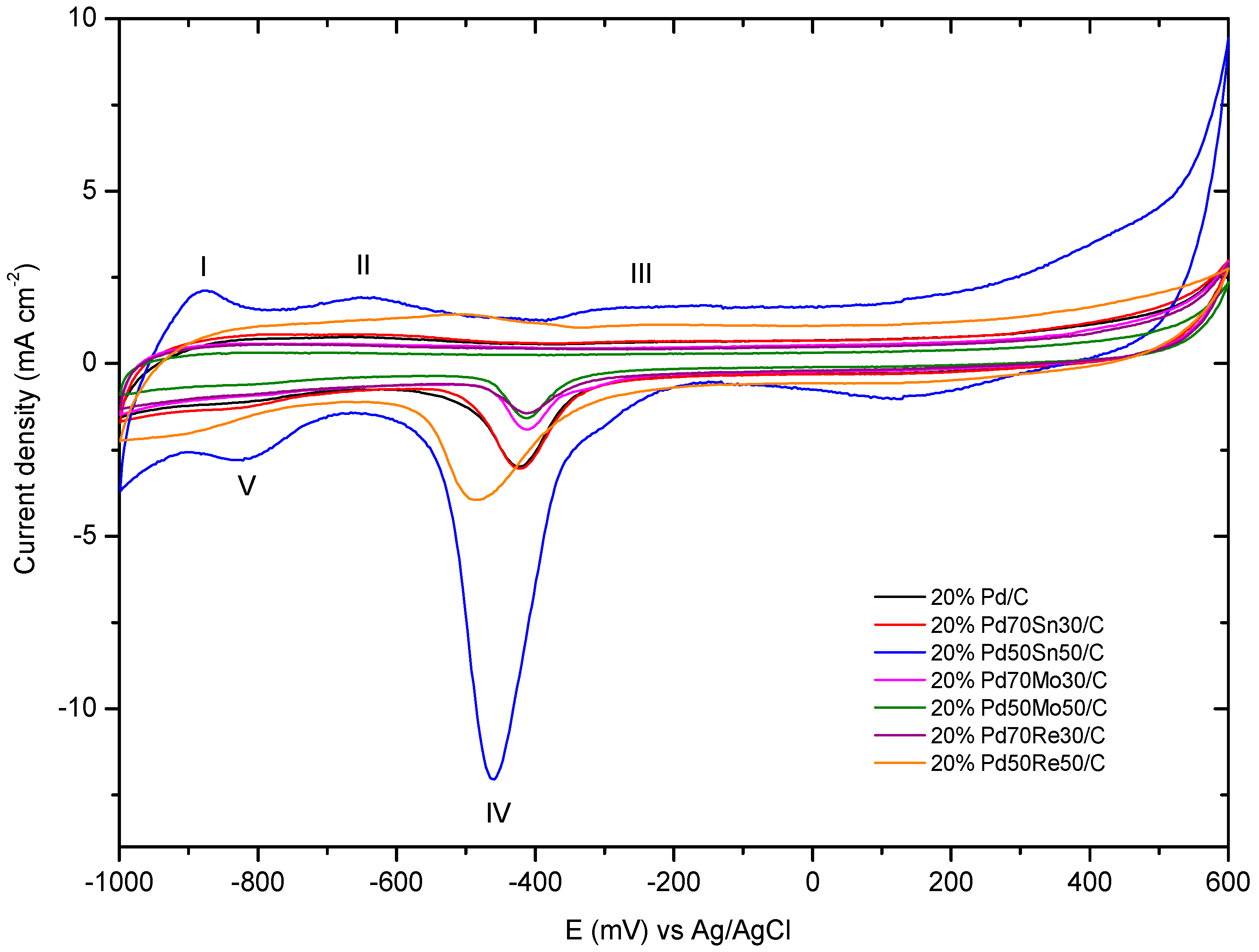

Figure 2 and Figure S3 show the CV profiles of the different catalysts prepared herein.

Five different peaks were observed in the CV profiles, in line with previous works [11,41]. As shown in Figure 2, the positive-scan revealed three oxidation peaks (I, II and III). Peak I between −900 and −800 mV was ascribed to the electrochemical oxidation of the hydrogen adsorbed on Pd, according to the following Equation:

$$\mathrm{Pd}-{\mathrm{H}}_{\mathrm{abs}-\mathrm{ads}}+{\mathrm{OH}}^{-}\to \mathrm{Pd}+{\mathrm{H}}_2\mathrm{O}+{\mathrm{e}}^{-}$$

(5)

Peak II, centered at around −650 mV, corresponds to the adsorption of hydroxyl groups on Pd:

$$\mathrm{Pd}+{\mathrm{OH}}^{-}\to \mathrm{Pd}-{\mathrm{OH}}_{\mathrm{ads}}+{\mathrm{e}}^{-}$$

(6)

Peak III at ca. −300 mV was ascribed to the formation of Pd (II) oxide in virtue of processes (7) and (8):

$$\mathrm{Pd}-{\mathrm{OH}}_{\mathrm{ads}}+{\mathrm{OH}}^{-}\to \mathrm{Pd}-\mathrm{O}+{\mathrm{H}}_2\mathrm{O}+{\mathrm{e}}^{-}$$

(7)

$$\mathrm{Pd}-{\mathrm{OH}}_{\mathrm{ads}}+\mathrm{Pd}-{\mathrm{OH}}_{\mathrm{ads}}\to \mathrm{Pd}-\mathrm{O}+{\mathrm{H}}_2\mathrm{O}$$

(8)

In regard to the cathodic scan, an intense and well-defined peak was observed at ca. −450 mV (peak IV). This large peak was ascribed to the reduction of the Pd oxide layers previously formed by Equations (7) and (8).

$$\mathrm{Pd}-\mathrm{O}+{\mathrm{H}}_2\mathrm{O}+2{\mathrm{e}}^{-}\to \mathrm{Pd}+2{\mathrm{OH}}^{-}$$

(9)

An additional reduction peak (peak V) was observed during the backward scan. This reduction peak was ascribed to the adsorption of hydrogen on Pd.

The electrochemical surface area of the catalysts (ECSA, Table 1) was calculated from the CV curves in Figure 2, considering the area under the large reduction current of PdO (peak IV) [14,29,42,43]. These ECSA values were obtained as follows:

$$\mathrm{ECSA} =\frac{\mathrm{Q}\left(\mathsf{\mu }\mathrm{C}\right)}{{\mathrm{Q}}_{\mathrm{PdO}}\left(\mathsf{\mu }\mathrm{C}·{\mathrm{cm}}_{\mathrm{Pd}}^{-2}\right)·{\mathrm{Pd}}_{\mathrm{loading}}\left(\mathrm{mg}\right)·10}$$

(10)

where Q_PdO is the charge required to reduce a PdO monolayer (405 μC cm⁻²) [14,29], Q is the columbic charge estimated as the area under the reduction peak IV and Pd_loading is the mass of Pd of the electrode. Note that the contribution of cometal oxides to the reduction peak IV have been neglected (Sn and Mo) and/or corrected (Re) according to the CV tests developed with 20% Sn/C, 20% Mo/C and 20% Re/C in a solution of KOH 1 M (Figure S2). Remarkably, 20% Pd₅₀Sn₅₀/C and 20% Pd₅₀Re₅₀/C showed ECSA values significantly higher than the rest of catalysts, including monometallic 20% Pd/C. As shown in Table 1, ECSA followed the trend 20% Pd₅₀Sn₅₀/C > 20% Pd₅₀Re₅₀/C > 20% Pd₇₀Sn₃₀/C > 20% Pd/C > 20% Pd₅₀Mo₅₀/C > 20% Pd₇₀Mo₃₀/C > 20% Pd₇₀Re₃₀/C.

2.2.2. EOR Performance in KOH-EtOH Aqueous Solutions

The EOR electrochemical activity of the synthesized catalysts was investigated in a half-cell at room temperature in KOH–ethanol aqueous solutions. The CV profiles of the catalysts are shown in Figure 3, and the most relevant electrochemical parameters obtained from these CV curves are summarized in

Table 2. Main electrochemical parameters for the different catalysts studied obtained from cyclic voltammograms in KOH 1.0 mol L⁻¹ solution containing EtOH 1.0 mol L ⁻¹. (Scan rate = 50 mV s⁻¹ at room temperature).

Catalyst	Eonset (mV) a	im (mA μgPd−1) b
20% Pd/C	−700	0.063
20% Pd70Sn30/C	−725	0.216
20% Pd50Sn50/C	−750	0.292
20% Pd70Mo30/C	−670	0.063
20% Pd50Mo50/C	−660	0.068
20% Pd70Re30/C	−680	0.060
20% Pd50Re50/C	−740	0.237

^a Onset potential (mV vs. Ag/AgCl 3 M). ^b Mass-normalized peak current (mA μgPd⁻¹).

. For the sake of comparison, we performed CV analyses over monometallic Sn, Mo and Re catalysts (Figure S4). As shown in Figure S4, monometallic Sn, Mo and Re materials showed no EOR activity. As can be inferred from Figure S4, the support (carbon Vulcan) was unreactive towards the EOR.

As shown in Figure 3a, ethanol oxidation started below −600 mV for the most active catalysts. At this point, ethanol is adsorbed, generating intermediate species as a result of the oxidation process (Equation (2)). Hydroxyl groups are also adsorbed at this range of potential (Equation (6)), favoring the desorption of intermediates and allowing electrooxidation to proceed continuously before reaching the maximum of the current density (peak A). At this point, the build-up of Pd-O (Equations (7) and (8)) at higher potentials blocks Pd active sites and the current density drops as a result. Nonetheless, the electro activity of the catalyst is recovered during the backward scan, as evidence by the presence of a further peak (peak B) generated by the oxidation of the reaction intermediates [11,17]. As shown in Figure 3a, the addition of Sn and Re (at 50:50 ratio) significantly increased the EOR activity of Pd. When expressed in terms of mass of Pd (mA μg Pd⁻¹; Figure 3b), the promotional effects of Sn and Re are clearly appreciated. Sn-containing catalysts and 20% Pd₅₀Re₅₀/C showed mass-normalized peak currents (i_m) 3–4 times higher than that of 20% Pd/C, whereas the rest of catalysts showed peak currents similar to that of the monometallic material. In the case of 20% Pd₅₀Sn₅₀/C, this high electrooxidation activity correlates well with the presence of an intense peak II (Figure 2) corresponding to the adsorption of OH_ads species. As indicated previously, these OH_ads species can subsequently participate in the oxidation of intermediates strongly adsorbed on Pd. Peak II was less prominent for the 20% Pd₇₀Sn₃₀/C and 20% Pd₅₀Re₅₀/C catalysts. Remarkably, 20% Pd₅₀Re₅₀/C showed current densities comparable to those of 20% Pd₅₀Sn₅₀/C despite having three times lower ECSA (Table 1).

As pointed out in the Introduction, the electrochemical reforming of ethanol can be highly beneficial, since it happens at lower potentials than water electrolysis, resulting in a reduction in the electrical power necessary to produce hydrogen. Hence, the lower the onset potential, the higher the potential beneficial effect. Table 2 shows the onset potential (obtained from Figure S5) for the monometallic Pd and the bimetallic catalysts. Additionally, 20% Pd₅₀Sn₅₀/C, 20% Pd₅₀Re₅₀/C and 20% Pd₇₀Sn₃₀/C showed onset potentials 50, 40 and 25 mV lower than that of 20% Pd/C, respectively. It is interesting to note that the onset potential trend agrees well with that of the ECSA.

Unlike Sn and Re, the addition of Mo produced no significant promotional effect on the EOR performance of Pd: 20% Mo-containing bimetallic catalysts showed similar mass-normalized peak currents and slightly higher onset potentials than 20% Pd/C (Table 2). Thus, despite its high oxophilicity [44], Mo did not increase significantly the EOR activity of Pd. Previous results from Robinson et al. pointed out that, when added in large amounts, Mo tends to form molybdenum oxide, which can block active Pd surface sites [45,46]. Similarly, Ordoñez et al. [47] found that high loadings of Mo decreased the activity of Pt during the electrooxidation of methanol in acidic medium.

2.2.3. Membrane-Less Electrochemical Reforming Experiments.

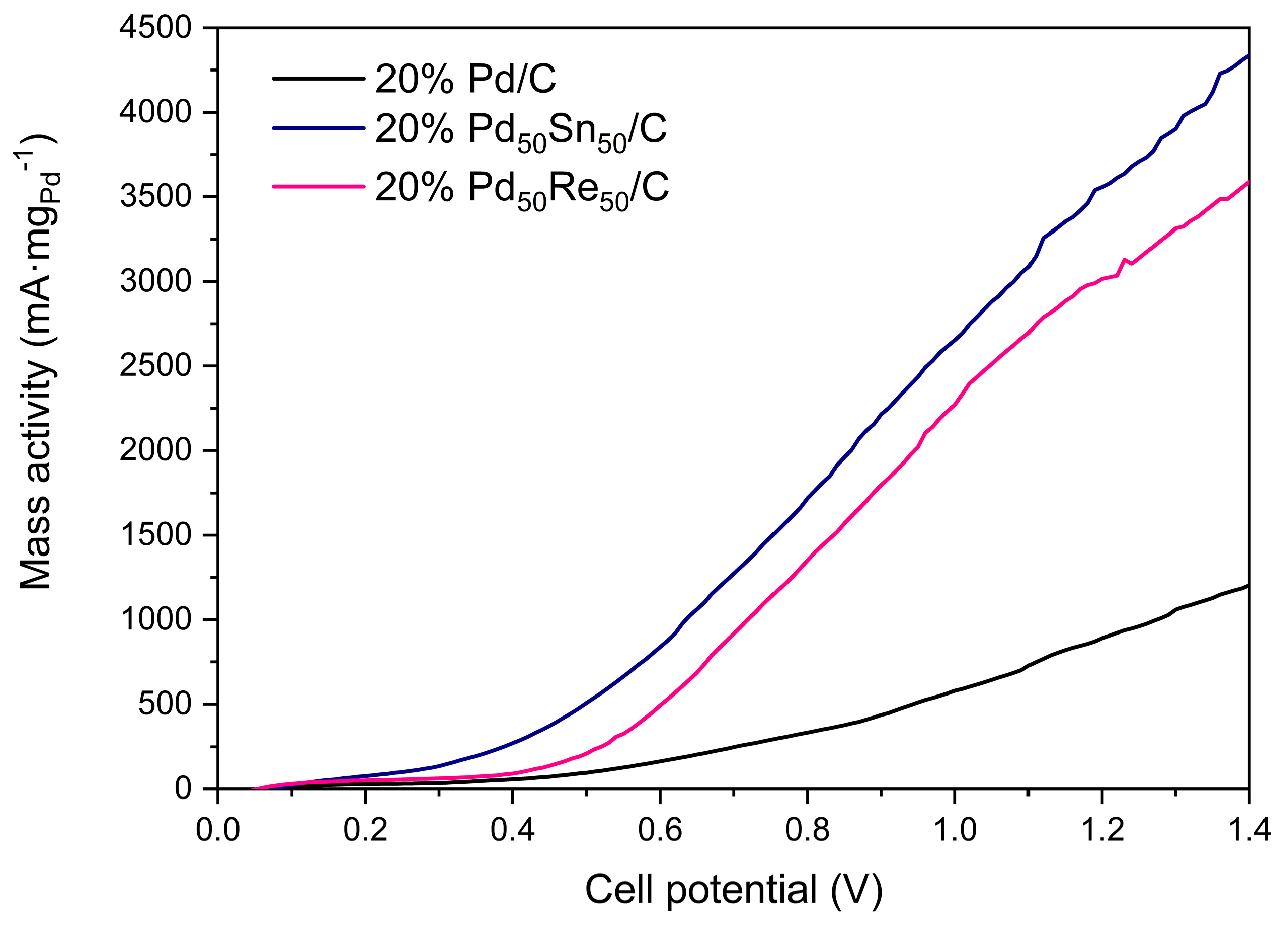

We selected the most promising catalysts in terms of ECSAs, onset potentials and mass-normalized peak current (20% Pd₅₀Sn₅₀/C and 20% Pd₅₀Re₅₀/C) for subsequent membrane-less ethanol electrolysis experiments. The performance of these catalysts was compared with that of 20% Pt/C. The electrochemical tests were carried out under optimal conditions, which were identified in a previous study [6]. The linear sweep voltammetry profiles of the three catalysts are shown Figure 4. None of the catalysts showed mass transfer limitations, with both bi-metallic catalysts showing higher mass activity than Pd/C, in line with half-cell experiments.

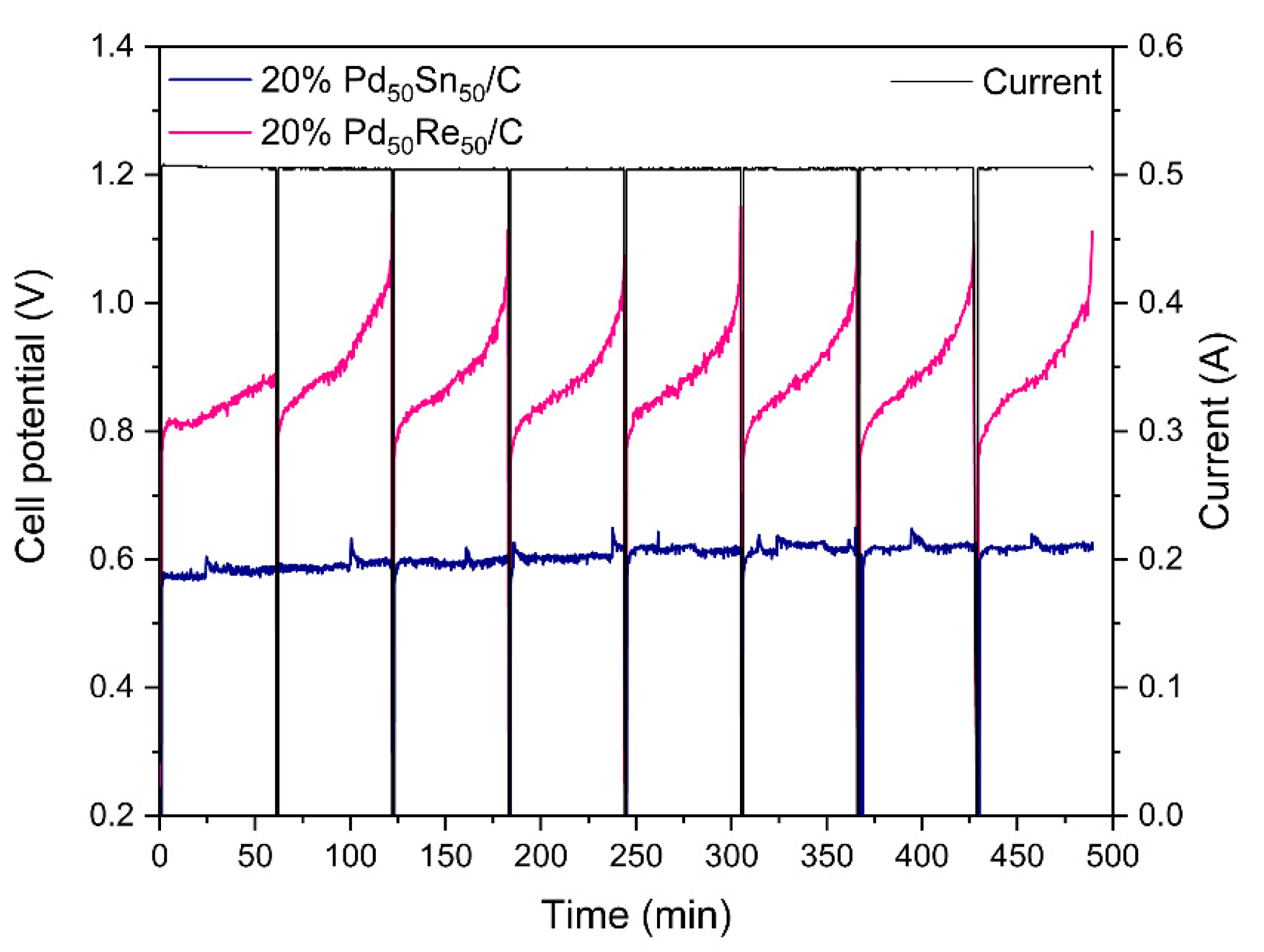

We tested the stability of both bimetallic catalysts by monitoring the variation of the potential versus time at constant intensity (0.5 A). Eight cycles of 1 h duration were carried out (Figure 5). Open circuit conditions were applied for 30 s after each cycle.

As shown in Figure 5, 20% Pd₅₀Sn₅₀/C was significantly more stable than Pd₅₀Re₅₀/C, which showed a continuous increase in voltage with time. This behavior has been previously ascribed to intermediate species remaining adsorbed on the catalyst surface, increasing the anodic polarization resistance as a result [6,43,46]. Open circuit conditions allowed these intermediates to desorb, recovering the initial voltage values. These results are in line with those reported by Bonarowska et al. [48]. These authors reported higher hydrocarbon hydrogenolysis activities and lower stability of Pd/Al₂O₃ catalysts upon addition of Re. The poorer stability of the bimetallic materials was ascribed to deactivation of the catalyst surface by strongly adsorbed reaction intermediates. The lower ECSA of the 20% Pd₅₀Re₅₀/C catalyst compared to 20% Pd₅₀Sn₅₀/C (22 vs. 67 m² g⁻¹) can also explain its faster deactivation. The 20% Pd₅₀Sn₅₀/C catalysts maintained good stability with time while operating at voltages significantly lower than Pd₅₀Re₅₀/C. As revealed by the CV profiles (peak II in Figure 2), 20% Pd₅₀Sn₅₀/C showed higher affinity for OH_ads species than its Re counterpart, and this could facilitate the release of adsorbed reaction intermediates during the electrooxidation process, avoiding anodic polarization resistance issues.

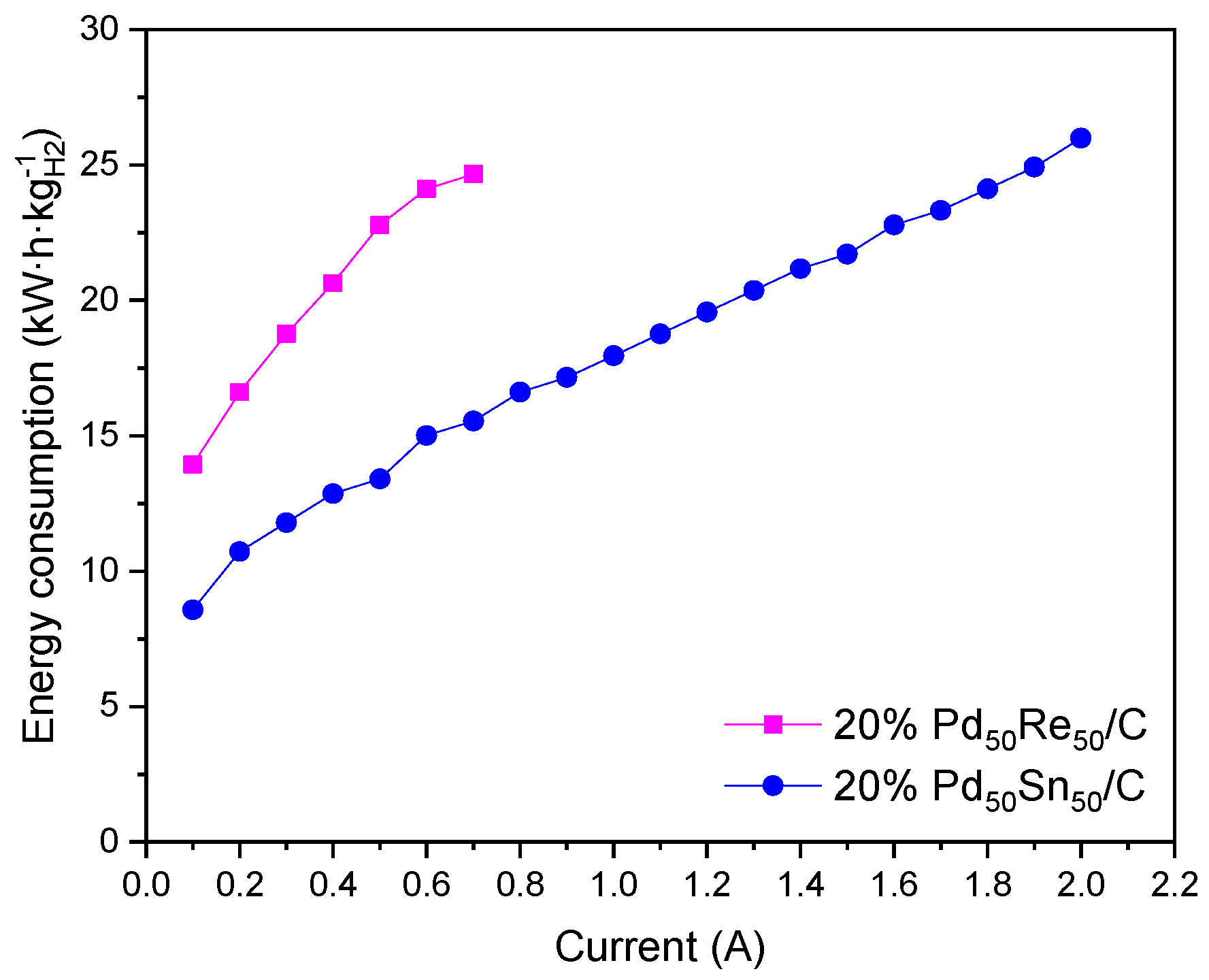

One of the key elements of the EOR technology is the possibility of producing hydrogen at voltages significantly lower than those required for water electrolysis, thereby reducing the energy consumption. The energy requirements for the production of 1 kg of hydrogen over both bimetallic catalysts were calculated and the results are shown in Figure 6. Galvanostatic transients were carried from 0.1 to 0.7 A for 20% Pd₅₀Re₅₀/C and from 0.1 to 2.0 A for 20% Pd₅₀Sn₅₀/C. These limits were set to avoid high voltages leading to water oxidation. The hydrogen production rate was experimentally measured, obtaining faradaic values in all cases. Despite operating without a separating membrane, high purity (99.99%) hydrogen was obtained in the cathodic chamber in all cases. As shown in Figure 6, Pd₅₀Sn₅₀/C showed lower energy consumption values than Pd₅₀Re₅₀/C over the entire range of intensities tested herein. However, both catalysts present energy consumption well below those reported for commercial water PEM or alkaline electrolyzers (50–60 kWh·kg_H2⁻¹) [47]. Remarkably, the membrane-less configuration tested herein showed similar energy consumptions than ethanol electrolyzers containing a membrane as an electrolyte and operating under similar conditions (18–30 kWh·kg_H2⁻¹) [49,50].

3. Materials and Methods

3.1. Synthesis and Characterization of Pd-Based Catalyst Powders

The synthesis of the different mono and bimetallic catalysts was carried out by the co-reduction method of mixed precursor salts as described elsewhere [51,52]. Firstly, the corresponding active phase precursors were diluted in 50 mL of ethylene glycol. The active precursors used were PdCl₂ (Sigma Aldrich, St. Louis, MO, United States), H₂₄Mo₇N₆O₂₄·4H₂O (Fluka Analytical, München, Germany), NH₄ReO₄ (Sigma Aldrich, St. Louis, MO, United States) and C₄H₆O₄Sn (Alfa Aesar, Kandel, Germany). Sodium hydroxide was added to the solution to prepare a 0.2 M NaOH (basic pH close to 9). The resulting solutions were stirred for 2 h at 190 °C, achieving a colloidal suspension. Carbon Vulcan XC-72 with a typical bulk density of 96 kg/m³ (6 lbs/ft³) and an average particle size of 50 nm (Fuel Cell Store) was added to the colloidal suspension and the resulting suspension was stirred for additional 48 h at room temperature. The catalysts powder obtained was washed with water, filtered and dried before use.

The three different co-metals used herein (Sn, Mo and Re) were added to Pd in varying amounts. Moreover, monometallic Pd (reference catalyst) Sn, Mo and Re catalysts were also synthesized for the sake of comparison. All these catalysts were supported on carbon Vulcan XC-72, and the overall metal loading was 20 wt% in all cases. The actual metal loadings were close to the nominal values, as determined by inductively coupled plasma (ICP) (nominal value ± 0.4%). ICP analyses were developed using a VARIAN Liberty RL sequential ICP-AES. Prior to the analysis, 0.5 g of the samples were treated with 2 mL of hydrochloric acid, 3 mL of hydrofluoric acid and 2 mL of hydrogen peroxide, followed by microwave digestion at 250 °C.

Table 3. Nominal catalysts metal composition and nomenclature.

Catalyst Nomenclature	Pd Content (%*)	Sn Content (%*)	Mo Content (%*)	Re Content (%*)
20% Pd/C	100	-	-	-
20% Sn/C	-	100	-	-
20% Mo/C	-	-	100	-
20% Re/C	-	-	-	100
20% Pd70Sn30/C	70	30	-	-
20% Pd50Sn50/C	50	50	-	-
20% Pd70Mo30/C	70	-	30	-
20% Pd50Mo50/C	50	-	50	-
20% Pd70Re30/C	70	-	-	30
20% Pd50Re50/C	50	-	-	50

* All percentages were referred only to the metal phase, which constituted a 20% of the total weight of the catalyst.

lists all the catalysts prepared and their corresponding metal contents.

XRD analysis was performed to identify the different crystalline structures of the synthesized catalysts. A PHILIPS PW-1710 diffractometer (Almelo, The Netherlands) with nickel-filtered Cu-K_α radiation (λ = 1.5404 Å) was used herein. Samples were scanned at a rate of 0.02°·step⁻¹ over the range 5° ≤ 2θ ≤ 90° (scan time = 2 s·step⁻¹). The average crystallite size of each sample was calculated from the peak position and full width at half maximum (FWHM) of the peak corresponding to Pd (111) by using the Scherrer equation.

3.2. Electrochemical Characterization in Half-Cell Configuration

Electrochemical characterization was performed on a half-cell configuration three-electrode system. In this system, a glass cell contained three electrodes namely, a glassy carbon working electrode, where the catalyst ink was deposited with a geometric area of 0.303 cm² (Metrohm), an Ag/AgCl reference electrode (KCl, 3 M, Metrohm) and a Pt foil counter electrode (Metrohm). Optical microscopy images of the catalysts supported over the glassy carbon electrode were taken before and after the electrochemical reaction to verify the integrity of the different catalysts studied (Figure S6).

The deposited catalyst ink was prepared by mixing 7 mg of catalyst powder, 20 µL of a 5 wt% Nafion solution, 0.25 mL of milli-Q water and 0.75 mL of isopropanol solvent. The mixture was sonicated for 1 h until a homogeneous catalyst ink was formed. 10 µL of this ink were deposited on the glassy carbon electrode surface and dried at room temperature. Lastly, 2 µL of a 5 wt% Nafion solution was also deposited on the surface in order to immobilize the catalyst ink.

Electrochemical tests were performed on a Voltalab PGZ 301 potentiostat–galvanostat (Radiometer Analytical, Loveland, CO, USA). All the CV measurements were conducted at room temperature. CV measurements from −1.0 V to 0.6 V at 50 mV·s⁻¹ in 1.0 mol l⁻¹ KOH solution were carried out in order to measure the electrochemical active surface area of the catalysts. Afterward, for EOR measurement, CV measurements in 1 M EtOH and 1 mol L⁻¹ KOH solution were carried out from −1.0 V to 0.6 V at 10 mV·s⁻¹. All the solutions were purged with nitrogen before the measurements. In order to ensure that the steady state was reached, more than 40 consecutive cycles were performed for each voltammogram, and results for 30 and 35 cycles are shown in Figure S7.

3.3. Electrochemical Performance in a Membrane-Less Electrolyzer

A membrane-less electrochemical electrolyzer with a geometric electrode area of 10.5 cm² and a liquid solution as electrolyte was used to test the performance of the electrocatalysts. In this system (described in detail elsewhere [6]), the cathode and the anode were arranged in a single chamber reactor configuration where both electrodes were in contact with the same fuel-electrolyte mixture solution. Electrodes (distanced 3.5 mm from each other) were placed between ethylene propylene diene monomer (EPDM) gaskets and Teflon (PTFE) frames, being contact with the bipolar plates which served as current collectors. Two external Teflon plates covered with metallic end plates finally sealed the uniformly tight cell.

Commercial Pt on carbon black (20% Pt/C; Alfa Aesar) was used as the cathodic catalyst, and the different synthesized catalysts served as anodes. In each case, a catalyst ink was prepared (by mixing each catalyst powder with isopropanol) and then dispersed on the carbon paper (Fuel Cell Earth) using a preeflow eco-SPRAY controlled by ecocontrol SC1200 and ecocontrol EC200 (ViscoTEC). The metal loading was controlled by weight measurements until it reached a value of 1 mg·cm⁻² for each electrode.

Electrochemical tests were performed using a Vertex 5 A.DC potentiostat–galvanostat electrochemical analyser (Ivium Technologies, Eindhoven, Netherlands). The anodic and cathodic compartments were fed with 1 M EtOH and 4 M KOH aqueous solutions at a constant flow rate of 23 mL·min⁻¹ using a peristaltic pump (Pumpdrive 5001, Heidolph, Schwabach, Germany). The gas phase of the outlet-stream was separated from the liquid one (by condensation) and measured by a gas volumetric flowmeter. In order to check the purity of the H₂ gas-flow rate obtained, the outlet-stream was also analyzed via gas chromatography (Bruker 450-GC, Bruker Daltonik GmbH, Bremen, Germany). Then, the measured H₂ gas-flow rate was crosschecked via Faraday’s Law calculations, based on the cell current. The liquid feed streams were recirculated to the feeding reservoirs with an overall solution volume of 2 L. Three kinds of electrochemical tests were performed at 85 °C: linear sweep voltammetry measurements at a scan rate of 10 mV·s⁻¹ in a potential range between 0 and 1.4 V, galvanostatic transients from 0 to 1 A (to experimentally measure hydrogen production rates) and a chronopotentiometry test at 0.5 A for 8 h for stability analysis.

4. Conclusions

The effects of the addition of several oxophilic co-metals (i.e., Sn, Re and Mo) on the EOR performance of Pd were compared herein. XRD revealed slight changes in the size of the Pd nanoparticles upon addition of these co-metals, with no signs of Sn, Re or Mo crystalline phases. The three co-metals tested herein changed the EOR activity of Pd significantly. Sn and Re were found to improve the EOR activity of Pd to a large extent, resulting in normalized peak currents 3–4 times higher than those of the monometallic Pd/C catalyst. When added in significant amounts (50:50 ratio), Sn and Re also increased the electrochemical surface area of Pd while allowing the oxidation process at lower E_onset potentials compared to monometallic Pd/C. Overall, Sn was more effective than Re in promoting the EOR activity of Pd, in line with CV measurements revealing a higher ability of Sn to adsorb OH species. Unlike Sn and Re, Mo did not improve the EOR activity of Pd.

The most promising catalysts (Pd₅₀Re₅₀/C and Pd₅₀Sn₅₀/C) were additionally tested on a membrane-less electrochemical cell. Both catalysts showed higher activities than the monometallic catalysts in the absence of a membrane, although Pd₅₀Re₅₀/C was significantly more stable than Pd₅₀Re₅₀/C. Both catalysts generated high-purity hydrogen at high intensity and low voltage conditions, which could lead to significant energy consumption savings compared to commercial water electrolyzers.
