Hollow-Shell-Structured Mesoporous Silica-Supported Palladium Catalyst for an Efficient Suzuki-Miyaura Cross-Coupling Reaction

by
Abdulelah Taher Ali Mohammed
,
Lijian Wang
,
Ronghua Jin
,
Guohua Liu
and
Chunxia Tan
*
Key Laboratory of Resource Chemistry of Ministry of Education, Shanghai Key Laboratory of Rare Earth Functional Materials, Shanghai Normal University, Shanghai 200234, China
*
Author to whom correspondence should be addressed.
Catalysts 2021, 11(5), 582; https://doi.org/10.3390/catal11050582
Submission received: 30 March 2021 / Revised: 28 April 2021 / Accepted: 29 April 2021 / Published: 30 April 2021
(This article belongs to the Special Issue Advances in Catalytic Coupling Reactions)
Browse Figures
Versions Notes

Abstract

:
The construction of a high stability heterogeneous catalyst for privileged common catalysis is a benefit in regard to reuse and separation. Herein, a palladium diphenylphosphine-based hollow-shell-structured mesoporous catalyst (HS@PdPPh2@MSN) was prepared by immobilizing bis((diphenylphosphino)ethyltriethoxysilane)palladium acetate onto the inner wall of a mesoporous organicsilicane hollow shell, whose surface was protected by a –Si(Me)3 group. Electron microscopies confirmed its hollow-shell-structure, and structural analyses and characterizations revealed its well-defined single-site active species within the silicate network. As presented in this study, the newly constructed HS@PdPPh2@MSN enabled an efficient Suzuki-Miyaura cross-coupling reaction for varieties of substrates with up to 95% yield in mild conditions. Meanwhile, it could be reused at least five times with good activity, indicating its excellent stability and recyclability. Furthermore, the cost-effective and easily synthesized HS@PdPPh2@MSN made it a good candidate for employment in fine chemical engineering.

Graphical Abstract

1. Introduction

The development of specific porous materials for improving the atom-effectiveness of the privileged catalysts is an important issue in organic synthesis [1,2,3]. Palladium catalysts are well-known for their high activity in coupling reactions [4,5,6,7], especially for the Suzuki-Miyaura cross-coupling reaction, which is an essential method to construct biaryls in pharmaceuticals, polymers, and agrochemical compounds [8,9,10,11,12]. Currently, considerable studies have been processed in exploiting palladium-based homogeneous [13,14,15,16,17,18,19,20,21,22] and/or heterogeneous catalysts [23,24,25,26,27,28,29,30,31,32] with high activities and universals for the ranges of the substrate in synthesis biaryls. However, the palladium-based homogeneous catalysts are always expensive and difficult to separate from the reaction limiting their application in the industry [22]. In comparison, palladium-based heterogeneous catalysts, prepared by immobilizing catalytic activity sites on supports such as silica [23,24,25], supramolecular [26,27], polymers [28,29,30], and metal-organic porous materials [31,32], have shown excellent advantages in stability and recyclability, whereas some of these heterogeneous Pd catalysts show a lower activity due to the impeding access between catalytic-active sites and substrates compared to their corresponding homogeneous species [33]. Therefore, exploiting suitable methods and specific materials to construct efficient palladium-based heterogeneous catalysts has no doubt arouse a research interest in recent years.
Hollow-shell structures are distinctive woid shell configuration materials [34,35,36,37]. In recent years, they have attracted tremendous interest in nanoreactors [38], biomedicine [39], lithium-ion batteries [40,41,42], and photocatalysis [43]. Benefiting from the hierarchical porous structures of the shell, the confined functionality of the inner shell showed good substance-loading properties, as well as faster mass diffusion [16]. Thus, the affinity of the substrates and the catalytic-active site improved within hollow shells, making them good candidates as highly active catalytic materials. Significantly, the immobilization of the catalytic active site onto the specific skeleton mesoporous silica materials was extensively employed for improving its activity and recyclability [44,45,46]. For example, the silica gel-supported N-heterocyclic carbene-Pd (NHC-Pd) [25] and the core-shell hybrid Fe3O4@SiO2@Pd catalyst [24,47] compared to those reported mesoporous silica-supported Pd catalysts, the functionality of the hollow in the shell-structure has rarely been studied in regard to Suzuki-Miyamura cross-coupling reactions. By protecting the outer wall of the hollow shells by specific hydrophobic groups, the catalytically active sites could be accurately located on the inner wall, while the hollow provided a relatively homogeneous space that was isolated by a permeable shell, thereby providing a promising platform for heterogeneous catalysis application [48,49].
Inspired by the unique hollow-shell structure and high stability of porous organosilane-assisted materials, we modified the inner wall with 2-(diphenylphosphino)ethyltriethoxysilane and cross-linked the derivatives diphenylphosphine with Pd(OAc)2 to construct hollow-shell-structured mesoporous silica-based heterogeneous catalyst HS@PdPPh2@MSN. The structural analyses and characterizations indicated the well-defined single-site Pd2+ active species within the inner shell, and the afforded HS@PdPPh2@MSN exhibited excellent catalytic capacity and activity compared to those of related homogeneous controls and other core/hollow shell solid catalysts. Furthermore, HS@PdPPh2@MSN possessed excellent stability and recyclability, which could be reused at least five times without a significant loss of activity. The easy and cost-effective construction of this heterogeneous HS@PdPPh2@MSN made it a candidate for applications in fine chemical engineering.

2. Results and Discussion

2.1. Synthesis and Structural Characterization of the Hollow-Shell Catalyst

Hollow-shell-structured (PPh2)2Pd(OAc)2-functionalized mesoporous silica nanoparticles, abbreviated as HS@PdPPh2@MSN (3), were synthesized through a simple post-grafting-complexation three-step procedure, as shown in Scheme 1. The first step was the co-condensation of tetraethoxysilane (TEOS) and 1,2-bis(triethoxysilyl)ethane, followed by the modification of hexamethyldisilazane (HMDS) leading to silylated core-shell-structured nanoparticles Me@SiO2@NPs. The second step was the post grafting of diphenyl(2-(triethoxysilyl)ethyl)phosphane within the inner surface of the silylated Me@HS@MSN (1), which was obtained by an etching process in toluene for 12 h under refluxing condition. The third step was the direct complexation of the immobilized diphenyl(2-(triethoxysilyl)ethyl)phosphane with Pd(OAc)2 in the cavity of the hollow-shell-structured mesoporous silica and producing of the coarse catalyst 3, which was subjected to a Soxhlet extraction to remove the unreactive materials providing its pure form as a gray powder. For comparison, an analog (catalyst 3′) of catalyst 3, which was unprotected by hexamethyldisilazane, was also prepared by a similar procedure (see Supplementary Information in the Experimental Section, and Figures S1–S2). The thermal gravimetric (TG) analysis revealed that the PdPPh2-loadings in catalyst 3 was 97.47 mg (0.92 mmol) per gram catalyst, which was in accordance with the mole amount of Pd-loadings (1.03 mmol (110.6 mg) per gram catalyst 3) detected by using an inductively coupled plasma optical emission spectrometer (ICP-OES) analysis.
The solid-state 13C cross-polarization (CP)/magic angle spinning (MAS) NMR spectroscopy was collected to confirm the incorporation of the (PPh2)2Pd(OAc)2-functionality within the inner sphere of the hollow shell of three. As shown in Figure 1, the strong carbon signals around 5.6 ppm belonged to the –SiCH2CH2Si– groups for the ethylene-bridged moiety in catalyst 3, suggesting its ethylene-bridged network of the organosilicate shell. Especially, the characteristic peaks at 26.9 and 188.5–174.3 ppm for the carbon atoms of –CH2P and –PC6H5 groups were presented in catalyst 3, similar to those of its homogeneous counterpart [50]. Further, in the spectrum of three, the strong signals for the carbon atoms of the aromatic ring could be observed clearly, while all these peaks were absent in the spectrum of one, revealing that three had the same well-defined single-site active species as its homogeneous counterpart. Moreover, its solid-state 31P CP MAS spectrum (Figure 2) also demonstrated the same well-defined single-site active species as its homogeneous counterpart [51].
Additionally, the solid-state 29Si MAS NMR spectroscopy was collected and confirmed the organosilicate network and composition of catalyst 3. As shown in Figure 3, there were a few differences among the precursors (1 and 2) and catalyst 3 in the solid-state 29Si MAS NMR spectra, and two typical signals (where Q signals were attributed to inorganosilica, while T signals corresponded to organosilica) were distributed broadly from −40 to −150 ppm. As compared to those typical isomer shift values in the literature [9], the T2 signal of the T-series at 57.1 ppm presented the {(R–Si(OSi)2(OH))} or {(R–Si(OSi)2(CH2CH3))}, where R = alkyl-linked PPh2Pd(OAc)2 in three and/or ethylene-bridged group in one and two, and the strongest T3 signal of the T-series at −67.6 ppm suggested R–Si(OSi)3 organosilicate species. In the silica wall of the hollow-shell silica, the intensity of T signals was markedly higher than that of Q signals, and the other three Q signals at −91, −102, and −111 ppm were attributed to Q2 ((Me3Si–O)4Si), Q3 (Si(OSi)3(OH)), and Q4 (Si(OSi)4) species coming from the TEOS precursor. The above results demonstrated that the incorporated precursors were covalently converted within its organosilica network.
The morphology and ordered mesostructure of three were further investigated by scanning electron microscopy (SEM), transmission electron microscopy (TEM), and nitrogen adsorption-desorption measurements. As shown in Figure 4, the nitrogen adsorption-desorption isotherm of three showed a typical type IV isotherm with an H1 hysteresis loop and a visible step at P/P0 = 0.45–0.95 demonstrating its mesoporous structure. The pore size distribution of catalyst 3 revealed that it had uniform mesopores of about 6.3 nm (see Supplementary Information in Figure S3), which were similar to that of the corresponding pure Me@HS@MSN and HS@PPh2@MSN materials, except for the reduced surface area (64.72 m2/g for HS@PPh2@MSN, 51.23 m2/g for catalyst 3, versus 74.72 m2/g for Me@HS@MSN), and pore volume (0.14 cm3/g for HS@PPh2@MSN, 0.08 cm3/g for catalyst 3, versus 0.17 cm3/g for Me@HS@MSN) suggesting that the decoration of the PPh2 and the complexation of Pd with PPh2 led to nanopore narrowing in catalyst 3. Figure 5 presented the hollow-shell-structured morphology of catalyst 3. Its SEM images showed that the nanospheres were uniformly dispersed; its average particle size was ~445 nm (Figure 5a). The TEM images were also collected and showed that each nanosphere had a cavity of ~369 nm diameter, and the thickness of the silica shell was about 82 nm (Figure 5b). Further, in the TEM images, under a large-scale bar, we could find that Pd was concentrated on the inner sphere; however, the particle size of Pd was still ambiguous. This might be due to Pd2+ ions being coordinated with diphenyl(2-(triethoxysilyl)ethyl)phosphane. This phenomenon further confirmed that there were no Pd nanoparticles dispersed in the hollow cavity. Furthermore, a TEM image with chemical mapping was (Figure 5c) also collected, demonstrating that palladium active centers were successfully entrapped within the inner cavity.

2.2. Catalytic Performance of the Heterogeneous Catalyst

With the obtained well-established heterogeneous catalyst on hand, a series of Suzuki-Miyaura cross-coupling reactions were optimized, as shown in Table 1. During this process, we chose the Suzuki-Miyaura cross-coupling reaction of 1-iodo-4-methoxybenzene (4a) and phenylboronic acid (5a) as a model reaction, wherein the reaction was carried out by using 1.0 mol% of Pd-loading in three as a catalyst at 35 °C for the optimization of the reaction conditions. In the case of the screen of bases, we found that the Na2CO3 was the optimal base because the reaction produced the targeted product 4-methoxy-1,1′-biphenyl (6a) in a 95% isolated yield, which was better than those with other bases (Table 1, entry 1 versus entries 2–6). Additionally, a series of co-solvents were screened, and the results showed that the activity of the catalyst 3 for the Suzuki-Miyaura reaction was better in the hydrophilic solvent (Table 1, entries 7–9) than in the hydrophobic solvent (Table 1, entries 10–12), and the optimal co-solvent was MeOH/H2O (v/v = 2/1). Especially, differing from the traditional high temperature for Suzuki-coupling, the catalysis activity of the catalyst 3 did not increase with increasing temperature (Table 1, entries 13–16). Those findings demonstrated that the Suzuki-Miyaura cross-coupling reaction catalyzed by catalyst 3 with 1 mol% Pd-loading in 3.0 mL of the co-solvent MeOH/H2O (v/v = 2/1) at 35 °C gave the best result. It was worth mentioning that the model reaction catalyzed by three had an obviously higher yield than that obtained with the homogenous Pd(OAc)2, and even than that with a mixture of Pd(OAc)2 and PPh3 (Table 1, entry 1 versus entries 2–5).
To elucidate the benefit of the surface protection of –Si(Me)3 for the designed silica-supported heterogeneous catalyst 3, the kinetic reaction profiling for the Suzuki-Miyaura cross-coupling reaction catalyzed by Pd(OAc)2, three, and 3′ (the three capped with-Si(CH3)3 groups was obtained by silanization of 3′ and hexamethyldisilazane) were compared to demonstrate their differences in the catalytic performance (Figure 6). It was found that three had a higher reaction speed and yield than that attained with the others, elucidating that surface silanols in catalyst 3 could promote synergistically cross-coupling by concentrating reactants inside the hollow shell. This observation was strongly similar to that reported in the literature [52,53], disclosing the superiority of the designed catalyst 3.
Having established the above catalytic system, the general applicability of the Suzuki-Miyaura cross-coupling reaction was further investigated with a series of substituted aryl boronic acid and aryl halide as substrates (Table 2). As expected, catalyst 3 could convert various two-component substrates smoothly into the responding biphenyl derivatives in good yields (85–95%), bearing both electron-donating and electron-withdrawing substituents on the meta/para-position except the aryl halide derivatives with nitro on the ortho-position, which got a relatively low yield (85%; Table 2, entry 4), similar to those reported in the literature [38].
Beyond the aim of the construction of a site-isolated heterogeneous catalyst 3 for the Suzuki-Miyaura cross-coupling reaction, another important consideration in the design of heterogeneous catalyst was the ease of separation by simple centrifugation and the ability to retain its catalytic activity and enantioselectivity after multiple recycles. It was found that the heterogeneous catalyst 3 could be easily recovered by simple centrifugation. It was found that, in five consecutive reactions, the recycled catalyst 3 could still give 90% ee in the Suzuki-Miyaura cross-coupling reaction of 1-iodo-4-methoxybenzene and phenylboronic acid (see Supplementary Information Figure S10).

3. Experimental

3.1. Characterization

The Fourier transform infrared (FTIR) spectra were collected by using the KBr method on a Nicolet Magna 550 spectrometer. Nitrogen adsorption isotherms were measured at 77 K with a Quantachrome Nova 4000 analyzer. The samples were measured after being outgassed at 423 K overnight. Pore size distributions were calculated by using the BJH model. The specific surface areas (SBET) of samples were determined from the linear parts of the BET plots (P/P0 = 0.05–0.3). Solid-state NMR experiments were explored on a Bruker AVANCE spectrometer at a magnetic field strength of 9.4 T with an 1H frequency of 400.1 MHz, a 13C frequency of 100.5 MHz, and a 29Si frequency of 79.4 MHz with 4 mm rotor at two spinning frequencies of 5.5 kHz and 8.0 kHz; TPPM decoupling was applied during the acquisition period. 1H cross-polarization in all-solid-state NMR experiments was employed using a contact time of 2 ms and the pulse lengths of 4 μs. Scanning electron microscopy (SEM) images were obtained using a JEOL JSM-6380LV microscope operating at 29 kV. Transmission electron microscopy (TEM) images were performed on a JEOL JEM2010 electron microscope at an acceleration voltage of 220 kV.

3.2. Preparation of the Catalyst 3

The silicate yolk was synthesized according to the method descibed in the literature. First, dissolving the cetyltrimethylammonium bromide (CTAB, 0.10 g, 0.27 mmol) completely in an aqueous sodium hydroxide (45.0 mL, 0.35 mmol, 2.0 N), and stirring the mixture for 0.5 h at 80 °C. Subsequently, tetraethoxysilane (TEOS, 0.46 mL, 2.07 mmol) was dropped under vigorous stirring at room temperature. Finally, ethyl acetate (0.40 mL) was added, and the mixture was stirred for 2 h at 80 °C. The second step was to coat the above silicate yolk. After cooling down the above reaction mixture to 38 °C, an aqueous solution containing water (80 mL), ethanol (50 mL), CTAB (0.30 g, 0.82 mmol), and NH3·H2O (25 wt%, 1.0 mL) was added. The mixture was stirred again at 38 °C for 0.5 h, an additional part of the TEOS (0.5 mL, 2.26 mmol) was added, and the mixture was stirred for another 2 h at 38 °C. Then, 3 mL of a mixture solution containing H2O (3.0 mL), CTAB (0.080 g, 0.22 mmol), and NH3·H2O (25 wt%, 0.20 mL) was added and stirred at 38 °C for 0.5 h. Finally, 1,2-bis(triethoxysilyl)ethane (0.89 g, 0.70 mmol) were added and the reactant was vigorously stirred for 2.0 h. After filtering and washing with H2O and EtOH three times and dried at 60 °C in a vacuum drying oven, the SiO2@NPs (about 1 g) were obtained. SiO2@NPs (1 g) were added into a 100 mL schlenk tube in an argon atmosphere; then, 25 mL anhydrous toluene containing hexamethyldisiloxane (HMDS, 5.0 mL, 0.025 mmol) was dropped into the schlenk tube, and stirred at room temperature for 24 h. The solid (Me@SiO2@NPs) was obtained after filtration and washed with acetone. The third step was the selective etching to remove the surfactant and form the yolk-shell-structured mesoporous nanoparticles. Immersing the collected solids (1.0 g) in an ammonium nitrate (80 mg, 1.0 mmol) solution of ethanol (120 mL, 95%) and stirring the mixture at 60 °C for 12 h left the target hollow-shell structures of Me@HS@MSN (1) as a white powder (0.65 g) after filtering and washing it with excess water and ethanol, and drying it at ambient temperature in a vacuum overnight. (IR (KBr) cm−1: 3433.1 (w), 2924.4 (m), 2853.9 (s), 2360.65 (m), 2340.9 (m), 1636.7 (s), 1372.43 (s), 1164.3 (s), 1055.2 (w), 785.6 (s), 457.3 (m). 13C CP MAS NMR (161.9 MHz): 67.9–59.9 (CH2 of –OCH2CH3), 29.7−25.7 (C of −SCH2,), 4.9 (C of –Si(CH3)3 group) ppm. 29Si MAS NMR (79.4 MHz): T2 (δ = −57.3 ppm), T3 (δ = −66.1 ppm), Q2 (δ = −91.0 ppm), Q3 (δ = −102.4 ppm), Q4 (δ = −112.2 ppm)). The fourth step was the thiol-ene click reaction. A dried 50 mL schlenk tube was charged with Me@HS@MSN (1) (0.725 g), 2-(diphenylphosphino)ethyltriethoxysilane (0.25 mL), and anhydrous toluene (20 mL) in an argon atmosphere. The mixture was stirred at 137 °C for 24 h, then filtered and rinsed with excess toluene. The homogeneous and unreacted starting materials were removed after Soxhlet extraction for 24 h in toluene, and the obtained solid HS@PPh2@MSN (2; 0.5 g, light-yellow powder) was dried at 60 °C in a vacuum overnight. IR (KBr) cm−1: 3400.8 (w), 3127.3 (w), 2925.1 (s), 2854.5 (s), 1771.9(s), 1686.0 (s), 1400.7 (w), 1269.2 (s), 1161.3 (s), 1062.4 (s), 789.7 (m), 699.3 (m), 456.2 (m). 13C CP MAS NMR (161.9 MHz): 191.1−177.8 (C of C=O groups), 154.8–127.2 (C of Ph), 63.5 (CH2 of –OCH2CH3), 31.3 26.9 (C of CH2P(Ph)2), 23.4–17.2 (C of OCH2CH3), 6.49 (C of –SCH2, –Si(CH3)2 ppm. 29Si MAS NMR (79.4 MHz): T2 (δ = −56.7 ppm), T3 (δ = −66.5 ppm), Q2 (δ = −92.7 ppm), Q3 (δ = −102.5 ppm), Q4 (δ = −111.7 ppm). 31P CP/MAS NMR: 37.3 ppm. The fifth step was to immobilize the Pd2+ on the inner sphere by thiol-ene click reaction. A dried 50 mL schlenk tube was charged with HS@PPh2@MSN (2; 0.50 g), Pd(OAc)2 (50 mg), and anhydrous DCM (dichloromethane) (20 mL) in an argon atmosphere. The mixture was stirred at room temperature for 12 h; then filtered and washed with excess EtOH three times. The unreacted Pd(OAc)2 was removed by Soxhlet extraction for 24 h in DCM, and then the solid was dried at 60 °C in a vacuum to retrieve the target HS@PdPPh2@MSN (3; 0.5 g) as a light-yellow powder. The inductively coupled plasma (ICP) analysis showed that the Pd loading amount was 110.6 mg (1.03 mmol) per gram catalyst. IR (KBr) cm−1: 3403.2 (s), 3166.5 (m), 3144.6 (w), 2925.3 (w), 2855.2 (s), 2360.3 (m), 2340.2 (m), 1649.7 (m), 188.4 (s), 1400.8 (m), 1269.6 (s), 1160.6 (w), 1066.6 (s), 786.7 (m), 694.3 (m), 456.1 (m). 13C CP MAS NMR (161.9 MHz): 188.5–174.3 (C of C=O groups), 152.0–121.0 (C of Ph), 63.4 (CH2 of –OCH2CH3), 26.9 (C of CH2P(Ph)2), 18.9 (C of CH3CO and OCH2CH3), 5.6 (C of –SCH2, –Si(CH3)2 ppm. 29Si MAS NMR (79.4 MHz): T2 (δ = −57.1 ppm), T3 (δ = −67.63 ppm), Q2 (δ = −91.0 ppm), Q3 (δ = −103.0 ppm), Q4 (δ = −112.3 ppm). 31P CP/MAS NMR (169.3 MHz): 39.9 ppm.

3.3. General Procedure for the Suzuki-Miyaura Cross-Coupling

Catalyst 3 (5.0 μmol of Pd based on the ICP analysis, 5.0 mg, 1 mol%), aryl boronic acid (0.75 mmol), aryl halide (0.5 mmol), K2CO3(1.0 mmol), and 3.0 mL MeOH/H2O (v/v = 2/1) co-solvent were added into a 10 mL round-bottom flask; then the mixture was allowed to react for 1–3 h at 35 °C. The reaction was monitored by TLC (thin layer chromatography) to determine the completion of the reaction. Then the catalyst was separated by centrifugation (10,000 rpm) for the recycling experiment, while the aqueous solution was extracted by Et2O (3 × 3.0 mL). Further, the combined organic phase was washed by brine and dehydrated with Na2SO4. After the concentration, the desired product was purified by column chromatography.

4. Conclusions

In conclusion, a palladium diphenylphosphine-based hollow-shell-structured mesoporous silica heterogeneous catalyst 3 was prepared. The structure of catalyst 3 was analyzed by 13C CP/MAS NMR, BET, FTIR, ICP, XPS, and electron microscopy. As presented in this study, catalyst 3 realized an efficient Suzuki-Miyaura cross-coupling of 1-iodo-4-methoxybenzene and phenylboronic acid to afford a range of biaryls with up to 95% yield; the activity was comparable to those of related homogeneous and other core/hollow shell solid catalysts. Additionally, catalyst 3 could be recovered after filtering and washing and maintained its high activity in four consecutive reactions in Suzuki-Miyaura coupling. This work offered a perspective approach to design heterogeneous catalysts for high catalytic activity and cost-effective catalysis.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/catal11050582/s1, Figure S1: FT-IR spectra of Catalyst 1, PMOs, ArDPEN@PMOs and Catalyst 2; Figure S2: Solid-state 13C CP/MAS NMR spectra of Catalyst 3′, Figure S3: Solid-state 13C CP/MAS NMR spectra of Me@HS@MSN, HS@PPh2@MSN and Catalyst 3, Figure S4: Solid-state 29Si MAS NMR spectra of Me@HS@MSN, HS@PPh2@MSN and Catalyst 3, Figure S5: Solid-state 31P CP/MAS NMR spectra of Me@HS@MSN, HS@PPh2@MSN and Catalyst 3, Figure S6: SEM image of Catalyst 3, Figure S7: TEM images and the corresponding EDS mapping of Catalyst 3, Figure S8: XPS spectra of the Catalyst 3, Figure S9: TGA of the Me@HS@MSN (1), HS@PPh2@MSN (2) and Catalyst 3, Figure S10: Reusability of Catalyst 3 in the Suzuki- Miyaura cross-coupling reaction of 1-iodo-4-methoxybenzene and phenylboronic acid, Figure S11: 1H NMR spectra.

Author Contributions

A.T.A.M. prepared the heterogeneous catalyst and finished the corresponding characterization and catalysis. L.W. is responsible for the NMR analysis, R.J. and G.L. are responsible for the characterization analysis, and C.T. finished the writing. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by [the China National Natural Science Foundation] grant number [22071154, 22001171], [the Shanghai Sciences and Technologies Development Fund] grant number [20070502600], and [the Shanghai Sailing Program] grant number [2020YF1435200].

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Acknowledgments

We are grateful to the China National Natural Science Foundation (22071154, 22001171), the Shanghai Sciences and Technologies Development Fund (20070502600), and the Shanghai Sailing Program (2020YF1435200) for financial support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, B.W.J.; Xu, L.; Mavrikakis, M. Computational Methods in Heterogeneous Catalysis. Chem. Rev. 2021, 121, 1007–1048. [Google Scholar] [CrossRef] [PubMed]
  2. Mizuno, N.; Misono, M. Heterogeneous Catalysis. Chem. Rev. 1998, 98, 199–218. [Google Scholar] [CrossRef] [PubMed]
  3. Corma, A.; Garcí, H.; Xamena, F.X.L.I. Engineering Metal-Organic Framework for Heterogeneous Catalysis. Chem. Rev. 2010, 110, 4606. [Google Scholar] [CrossRef]
  4. Miyaura, N.; Suzuki, A. Palladium-Catalyzed Cross-Coupling Reactions of Organoboron Compounds. Chem. Rev. 1995, 95, 2457–2483. [Google Scholar] [CrossRef] [Green Version]
  5. Nicolaou, K.C.; Bulger, P.G.; Sarlah, D. Palladium-Catalyzed Cross-Coupling Reactions in Total Synthesis. Angew. Chem. Int. Ed. 2005, 44, 4442–4489. [Google Scholar] [CrossRef] [PubMed]
  6. Leblond, C.R.; Andrews, A.T.; Sun, Y.; Sowa, J.R. Activation of Aryl Chlorides for Suzuki Cross-Coupling by Ligandless, Heterogeneous Palladium. Org. Lett. 2001, 3, 1555–1557. [Google Scholar] [CrossRef]
  7. Seechurn, C.C.C.J.; Kitching, M.O.; Colacot, T.J.; Snieckus, V. Palladium-Catalyzed Cross-Coupling: A Historical Contextual Perspective to the 2010 Nobel Prize. Angew. Chem. Int. Ed. 2012, 51, 5062–5085. [Google Scholar] [CrossRef]
  8. Kotha, S.; Lahiri, K.; Kashinath, D. Recent applications of the Suzuki–Miyaura cross-coupling reaction in organic synthesis. Tetrahedron 2002, 58, 9633–9695. [Google Scholar] [CrossRef] [Green Version]
  9. Chatterjee, A.; Ward, T.R. Recent Advances in the Palladium Catalyzed Suzuki–Miyaura Cross-Coupling Reaction in Water. Catal. Lett. 2016, 146, 820–840. [Google Scholar] [CrossRef] [Green Version]
  10. Marin, R.; Buchwald, S.L. Palladium-Catalyzed Suzuki-Miyaura Cross Coupling Reactions Employing Dialkylbiaryl Phosphine Ligands. Acc. Chem. Res. 2008, 41, 1461. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Lennox, A.J.J.; Lloyd-Jones, G.C. Selection of boron reagents for Suzuki–Miyaura coupling. Chem. Soc. Rev. 2014, 43, 412–443. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Maluenda, I.; Navarro, O. Recent Developments in the Suzuki-Miyaura Reaction: 2010–2014. Molecules 2015, 20, 7528–7557. [Google Scholar] [CrossRef] [PubMed]
  13. Shen, X.; Jones, G.O.; Watson, D.A.; Bhayana, B.; Buchwald, S.L. Enantioselective Synthesis of Axially Chiral Biaryls by the Pd-Catalyzed Suzuki−Miyaura Reaction: Substrate Scope and Quantum Mechanical Investigations. J. Am. Chem. Soc. 2010, 132, 11278–11287. [Google Scholar] [CrossRef] [Green Version]
  14. Lebel, H.; Janes, M.K.; Charette, A.A.B.; Nolan, S.P. Structure and Reactivity of “Unusual” N-Heterocyclic Carbene (NHC) Palladium Complexes Synthesized from Imidazolium Salts. J. Am. Chem. Soc. 2004, 126, 5046–5047. [Google Scholar] [CrossRef] [PubMed]
  15. Chalker, J.M.; Wood, C.S.C.; Davis, B.G. A Convenient Catalyst for Aqueous and Protein Suzuki−Miyaura Cross-Coupling. J. Am. Chem. Soc. 2009, 131, 16346–16347. [Google Scholar] [CrossRef] [Green Version]
  16. Lima, C.F.R.A.C.; Rodrigues, A.S.M.C.; Silva, A.M.S.; Santos, L. Role of the Base and Control of Selectivity in the Suzuki-Miyaura Cross-Coupling Reaction. ChemCatChem 2014, 6. [Google Scholar] [CrossRef]
  17. Zapf, A.; Ehrentraut, A.; Beller, M. A New Highly Efficient Catalyst System for the Coupling of Nonactivated and Deactivated Aryl Chlorides with Arylboronic Acid. Angew. Chem. Int. Ed. 2000, 39, 4153. [Google Scholar] [CrossRef]
  18. Wünsche, M.A.; Mehlmann, P.; Witteler, T.; Buß, F.; Rathmann, P.; Dielmann, F. Imidazolin-2-ylidenaminophosphines as Highly Electron-Rich Ligands for Transition-Metal Catalysts. Angew. Chem. Int. Ed. 2015, 54, 11857–11860. [Google Scholar] [CrossRef]
  19. Fujihara, T.; Yoshida, S.; Ohta, H.; Tsuji, Y. Triarylphosphanes with Dendritically Arranged Tetraethylene Glycol Moieties at the Periphery: An Efficient Ligand for the Palladium-Catalyzed Suzuki-Miyaura Coupling Reaction. Angew. Chem. Int. Ed. 2008, 47, 8310–8314. [Google Scholar] [CrossRef]
  20. Botella, L.; Naájera, C. A Convenient Oxime-CarbapalladacycleCatalyzed Suzuki Cross-Coupling of Aryl Chlorides in Water. Angew. Chem. Int. Ed. 2002, 41, 179. [Google Scholar] [CrossRef]
  21. Snelders, D.J.M.; van Koten, G.; Gebbink, R.J.M.K. Hexacationic Dendriphos Ligands in the Pd-Catalyzed Suzuki−Miyaura Cross-Coupling Reaction: Scope and Mechanistic Studies. J. Am. Chem. Soc. 2009, 131, 11407–11416. [Google Scholar] [CrossRef] [PubMed]
  22. George, S.M. Introduction: Heterogeneous Catalysis. Chem. Rev. 1995, 95, 475–476. [Google Scholar] [CrossRef]
  23. Crudden, C.M.; Sateesh, M.; Lewis, R. Mercaptopropyl-Modified Mesoporous Silica: A Remarkable Support for the Preparation of a Reusable, Heterogeneous Palladium Catalyst for Coupling Reactions. J. Am. Chem. Soc. 2005, 127, 10045–10050. [Google Scholar] [CrossRef] [PubMed]
  24. Jin, M.-J.; Lee, D.-H. A Practical Heterogeneous Catalyst for the Suzuki, Sonogashira, and Stille Coupling Reactions of Unreactive Aryl Chlorides. Angew. Chem. Int. Ed. 2010, 49, 1119–1122. [Google Scholar] [CrossRef]
  25. Qiu, H.; Sarkar, S.M.; Lee, D.-H.; Jin, M.-J. Highly effective silica gel-supported N-heterocyclic carbene–Pd catalyst for Suzuki–Miyaura coupling reaction. Green Chem. 2008, 10, 37–40. [Google Scholar] [CrossRef]
  26. Liu, Y.; Lou, B.; Shangguan, L.; Cai, J.; Zhu, H.; Shi, B. Pillar[5]arene-Based Organometallic Cross-Linked Polymer: Synthesis, Structure Characterization, and Catalytic Activity in the Suzuki-Miyaura Coupling Reaction. Macromolecules 2018, 51, 1351. [Google Scholar] [CrossRef]
  27. Noh, T.H.; Hong, W.; Lee, H.; Jung, O.-S. Indistinguishability and distinguishability between amide and ester moieties in the construction and properties of M 6 L 8 octahedral nanocages. Dalton Trans. 2014, 44, 787–794. [Google Scholar] [CrossRef]
  28. Iwai, T.; Harada, T.; Hara, K.; Sawamura, M. Threefold Cross-Linked Polystyrene-Triphenylphosphane Hybrids: Mono-P-Ligating Behavior and Catalytic Applications for Aryl Chloride Cross-Coupling and C(sp3)-H Borylation. Angew. Chem. Int. Ed. 2013, 52, 12322–12326. [Google Scholar] [CrossRef]
  29. Zhang, C.; Wang, J.-J.; Liu, Y.; Ma, H.; Yang, X.-L.; Xu, H.-B. Main-Chain Organometallic Microporous Polymers Based on Triptycene: Synthesis and Catalytic Application in the Suzuki-Miyaura Coupling Reaction. Chem. A Eur. J. 2013, 19, 5004–5008. [Google Scholar] [CrossRef]
  30. Chen, J.; Zhang, J.; Zhu, D.; Li, T. Porphyrin-based polymer-supported palladium as an excellent and recyclable catalyst for Suzuki-Miyaura coupling reaction in water. Appl. Organomet. Chem. 2018, 32, e3996. [Google Scholar] [CrossRef]
  31. Yuan, B.; Pan, Y.; Li, Y.; Yin, B.; Jiang, H. A Highly Active Heterogeneous Palladium Catalyst for the Suzuki-Miyaura and Ullmann Coupling Reactions of Aryl Chlorides in Aqueous Media. Angew. Chem. Int. Ed. 2010, 49, 4054–4058. [Google Scholar] [CrossRef] [PubMed]
  32. Zhu, N.; Wei, Z.; Chen, C.; Wang, D.; Cao, C.; Qiu, Q.; Jiang, J.; Wang, H.; Su, C. Self-Generation of Surface Roughness by Low-Surface-Energy Alkyl Chains for Highly Stable Superhydrophobic/Superoleophilic MOFs with Multiple Functionalities. Angew. Chem. 2019, 131, 17189–17196. [Google Scholar] [CrossRef]
  33. Li, G.; Yang, H.; Lia, W.; Zhang, G. Rationally designed palladium complexes on a bulky N-heterocyclic carbene-functionalized organosilica: An efficient solid catalyst for the Suzuki–Miyaura coupling of challenging aryl chlorides. Green Chem. 2011, 13, 2939. [Google Scholar] [CrossRef]
  34. Lou, X.W.; Archer, L.A.; Yang, Z. Hollow Micro-/Nanostructures: Synthesis and Applications. Adv. Mater. 2008, 20, 3987–4019. [Google Scholar] [CrossRef]
  35. Lee, J.; Park, J.C.; Song, H. A Nanoreactor Framework of a Au@SiO2 Yolk/Shell Structure for Catalytic Reduction of p-Nitrophenol. Adv. Mater. 2008, 20, 1523. [Google Scholar] [CrossRef]
  36. Van Gough, D.; Wolosiuk, A.; Braun, P.V. Mesoporous ZnS Nanorattles: Programmed Size Selected Access to Encapsulated Enzymes. Nano Lett. 2009, 9, 1994–1998. [Google Scholar] [CrossRef] [PubMed]
  37. Kamata, K.; Lu, Y.; Xia, Y. Synthesis and Characterization of Monodispersed Core−Shell Spherical Colloids with Movable Cores. J. Am. Chem. Soc. 2003, 125, 2384–2385. [Google Scholar] [CrossRef]
  38. Liu, J.; Qiao, S.Z.; Hartono, S.B.; Lu, G.Q. (Max) Monodisperse Yolk-Shell Nanoparticles with a Hierarchical Porous Structure for Delivery Vehicles and Nanoreactors. Angew. Chem. Int. Ed. 2010, 49, 4981–4985. [Google Scholar] [CrossRef]
  39. Teng, Z.; Su, X.; Zheng, Y.; Sun, J.; Chen, G.; Tian, C.; Wang, J.; Li, H.; Zhao, Y.; Lu, G. Mesoporous Silica Hollow Spheres with Ordered Radial Mesochannels by a Spontaneous Self-Transformation Approach. Chem. Mater. 2013, 25, 98–105. [Google Scholar] [CrossRef]
  40. Liu, J.; Xia, H.; Xue, D.F.; Lu, L. Double-Shelled Nanocapsules of V2O5-Based Composites as High-Performance Anode and Cathode Materials for Li Ion Batteries. J. Am. Chem. Soc. 2009, 131, 12086. [Google Scholar] [CrossRef]
  41. Lou, X.W.; Li, C.M.; Archer, L.A. Designed Synthesis of Coaxial SnO2@carbon Hollow Nanospheres for Highly Reversible Lithium Storage. Adv. Mater. 2009, 21, 2536–2539. [Google Scholar] [CrossRef] [Green Version]
  42. Lee, K.T.; Jung, Y.S.; Oh, S.M. Synthesis of Tin-Encapsulated Spherical Hollow Carbon for Anode Material in Lithium Secondary Batteries. J. Am. Chem. Soc. 2003, 125, 5652–5653. [Google Scholar] [CrossRef]
  43. Zhang, W.M.; Hu, J.S.; Guo, Y.G.; Zheng, S.F.; Zhong, L.S.; Song, W.G.; Wan, L.J. Tin-Nanoparticles Encapsulated in Elastic Hollow Carbon Speheres for High-Performance Anode Material in Lithium-Ion Batteries. Adv. Mater. 2008, 20, 1160. [Google Scholar] [CrossRef]
  44. Li, H.X.; Bian, Z.F.; Zhu, J.; Huo, Y.N.; Li, H.X.; Lu, Y.F. Mesoporous Titania Spheres with Tunable Chamber Stucture and Enhanced Photocatalytic Activity. J. Am. Chem. Soc. 2007, 129, 8406. [Google Scholar] [CrossRef]
  45. Chang, F.; Wang, S.; Zhao, Z.; Wang, L.; Cheng, T.; Liu, G. Enantioselective Dual-Catalysis: A Sequential Michael Addition/Asymmetric Transfer Hydrogenation of α-Nitrosulfone and Enones. ACS Catal. 2020, 10, 10381. [Google Scholar] [CrossRef]
  46. Meng, J.; Chang, F.; Su, Y.; Liu, R.; Cheng, T.; Liu, G. Switchable Catalysts Used to Control Suzuki Cross-Coupling and Aza–Michael Addition/Asymmetric Transfer Hydrogenation Cascade Reactions. ACS Catal. 2019, 9, 8693–8701. [Google Scholar] [CrossRef]
  47. Woo, H.; Lee, K.; Park, K.H. Optimized Dispersion and Stability of Hybrid Fe3O4/Pd Catalysts in Water for Suzuki Coupling Reactions: Impact of Organic Capping Agents. ChemCatChem 2014, 6, 1635–1640. [Google Scholar] [CrossRef]
  48. Zhang, X.; Zhao, Y.; Xu, S.; Yang, Y.; Liu, J.; Wei, Y.; Yang, Q. Polystyrene sulphonic acid resins with enhanced acid strength via macromolecular self-assembly within confined nanospace. Nat. Commun. 2014, 5, 3170. [Google Scholar] [CrossRef] [PubMed]
  49. Yang, Y.; Liu, X.; Li, X.; Zhao, J.; Bai, S.; Liu, J.; Yang, Q. A Yolk-Shell Nanoreactor with a Basic Core and an Acidic Shell for Cascade Reactions. Angew. Chem. Int. Ed. 2012, 51, 9164–9168. [Google Scholar] [CrossRef]
  50. Baer, H.H.; Urbas, L. The Chemistry of Nitro and Nitroso Groups; Patai, S., Ed.; Interscience: New York, NY, USA, 1970; p. 117. [Google Scholar]
  51. Krőcher, O.; Kőppel, O.A.; Frőba, M.; Baiker, A. Silica Hybrid Gel Catalysts Containing Group(VIII) Transition Metal Complexes: Preparation, Structural, and Catalytic Properties in the Synthesis of N,N-Dimethylformamide and Methyl Formate from Supercritical Carbon Dioxide. J. Catal. 1998, 178, 284. [Google Scholar] [CrossRef]
  52. Yang, S.; He, J. Heterogeneous asymmetric Henry–Michael one-pot reaction synergically catalyzed by grafted chiral bases and inherent achiral hydroxyls on mesoporous silica surface. Chem. Commun. 2012, 48, 10349. [Google Scholar] [CrossRef] [PubMed]
  53. Shiju, N.R.; Alberts, A.H.; Khalid, S.; Brown, D.R.; Rothenberg, G. Mesoporous Silica with Site-Isolated Amine and Phosphotungstic Acid Groups: A Solid Catalyst with Tunable Antagonistic Functions for One-Pot Tandem Reactions. Angew. Chem. 2011, 123, 9789. [Google Scholar] [CrossRef] [Green Version]
Catalysts 11 00582 sch001 550

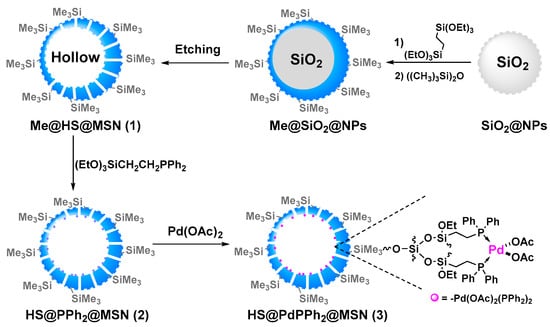

Scheme 1. Preparation of catalyst 3.
Scheme 1. Preparation of catalyst 3.
Catalysts 11 00582 sch001
Catalysts 11 00582 g001 550

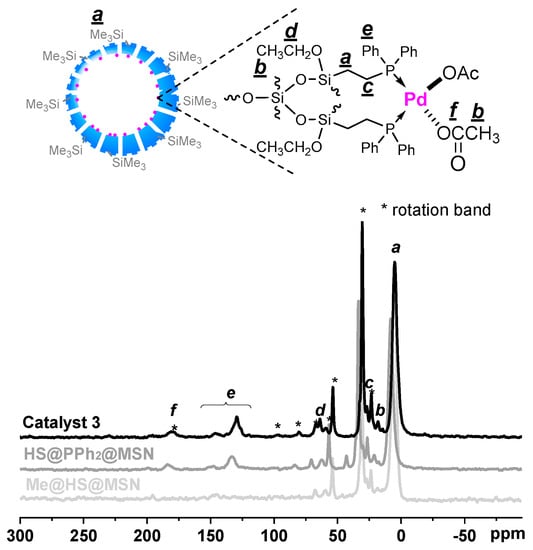

Figure 1. The solidstate 13C CP MAS NMR spectra of one and catalyst 3.
Figure 1. The solidstate 13C CP MAS NMR spectra of one and catalyst 3.
Catalysts 11 00582 g001
Catalysts 11 00582 g002 550
Figure 2. The solid-state 29Si MAS NMR spectrum of catalyst 3.
Figure 2. The solid-state 29Si MAS NMR spectrum of catalyst 3.
Catalysts 11 00582 g002
Catalysts 11 00582 g003 550

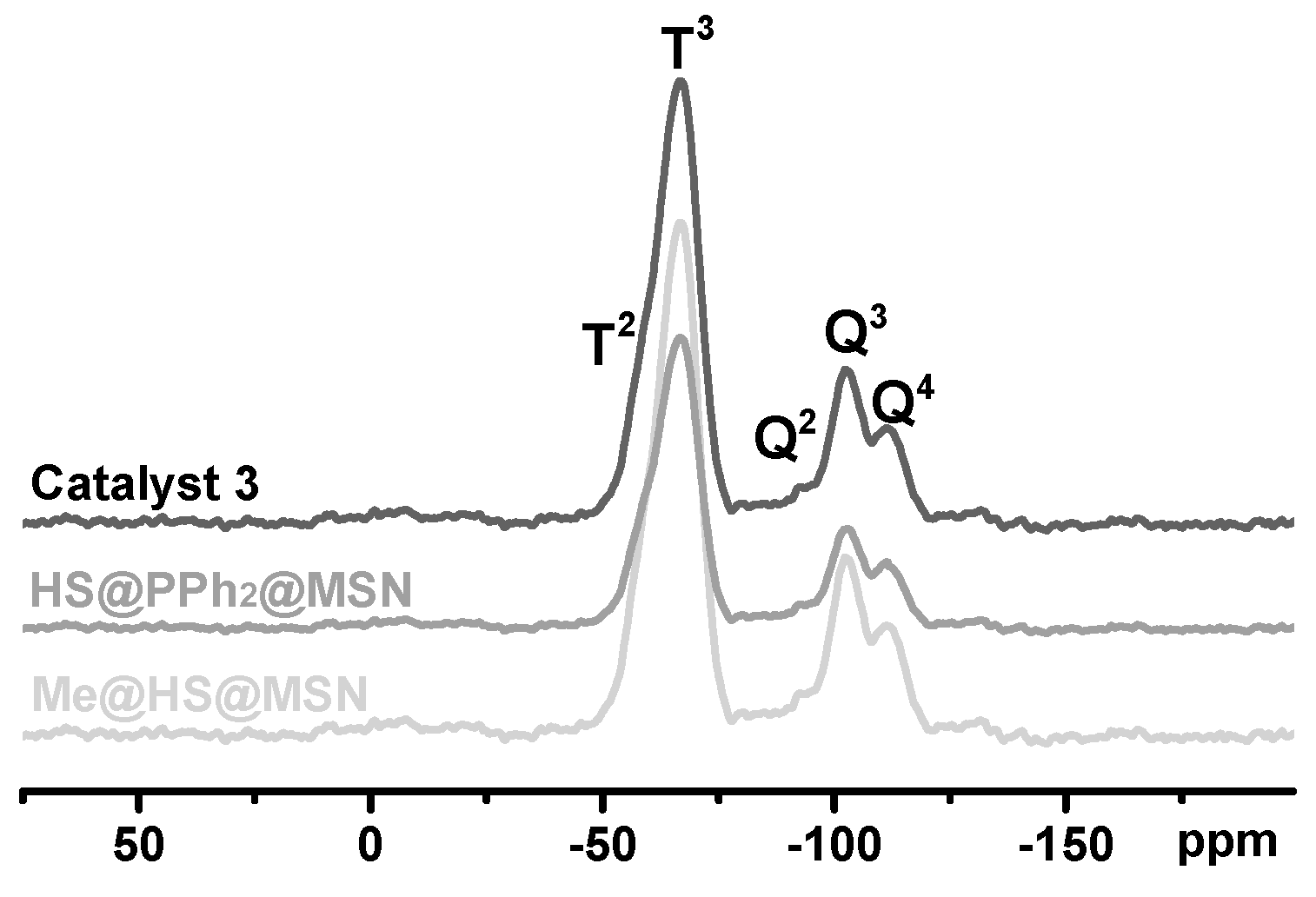

Figure 3. The solid-state 29Si MAS NMR spectrum of catalyst 3.
Figure 3. The solid-state 29Si MAS NMR spectrum of catalyst 3.
Catalysts 11 00582 g003
Catalysts 11 00582 g004 550

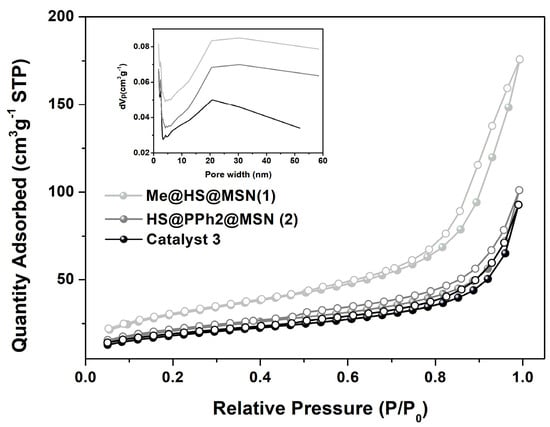

Figure 4. The nitrogen adsorption-desorption isotherms of one and catalyst 3.
Figure 4. The nitrogen adsorption-desorption isotherms of one and catalyst 3.
Catalysts 11 00582 g004
Catalysts 11 00582 g005a 550Catalysts 11 00582 g005b 550

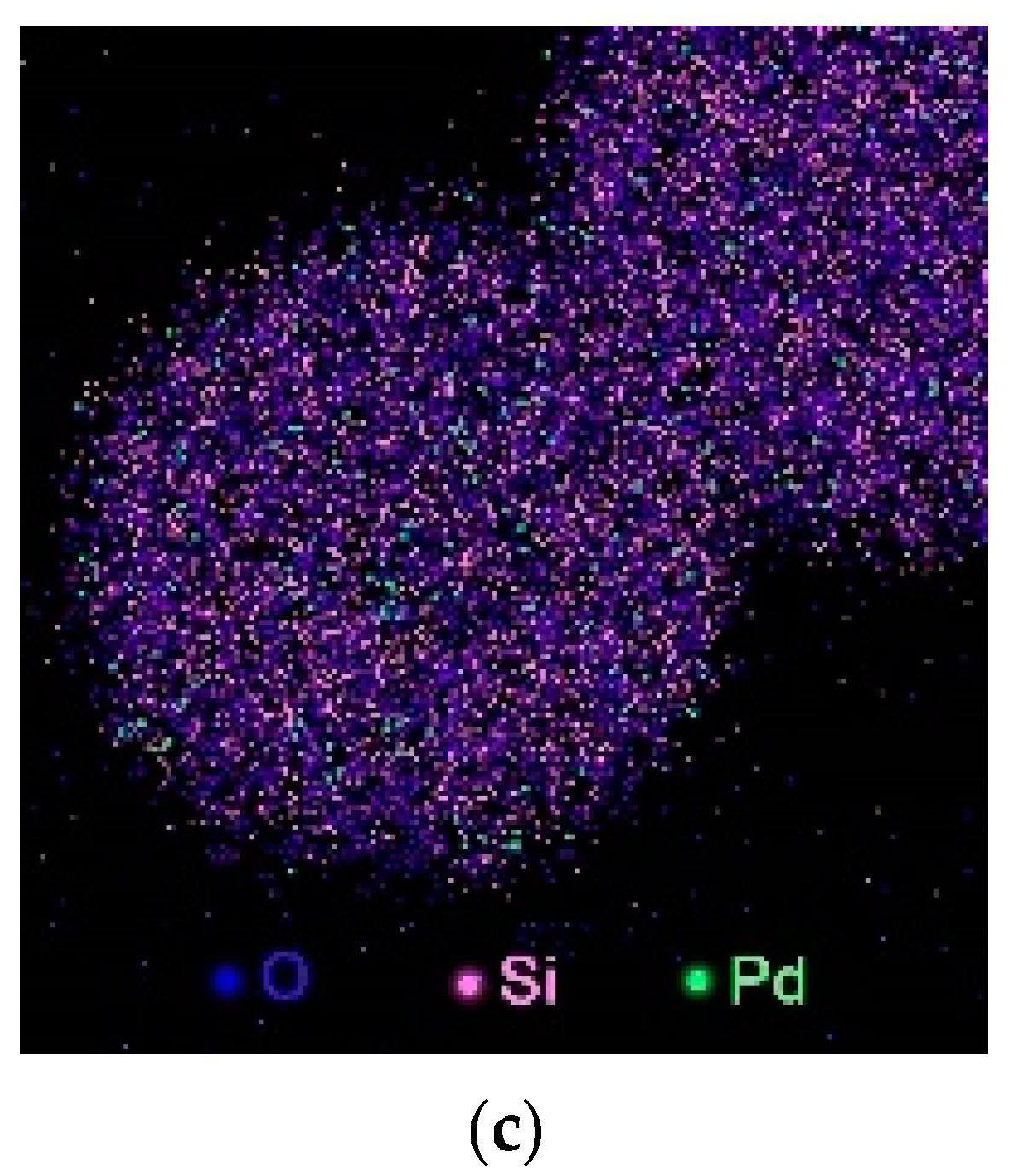

Figure 5. (a) The scanning electron microscopy (SEM) images of catalyst 3, (b) the transmission electron microscopy (TEM) images of catalyst 3, (c) a TEM image with the chemical mapping of 3 showing the distribution of Si (pink), O (blue), and Pd (green).
Figure 5. (a) The scanning electron microscopy (SEM) images of catalyst 3, (b) the transmission electron microscopy (TEM) images of catalyst 3, (c) a TEM image with the chemical mapping of 3 showing the distribution of Si (pink), O (blue), and Pd (green).
Catalysts 11 00582 g005aCatalysts 11 00582 g005b
Catalysts 11 00582 g006 550

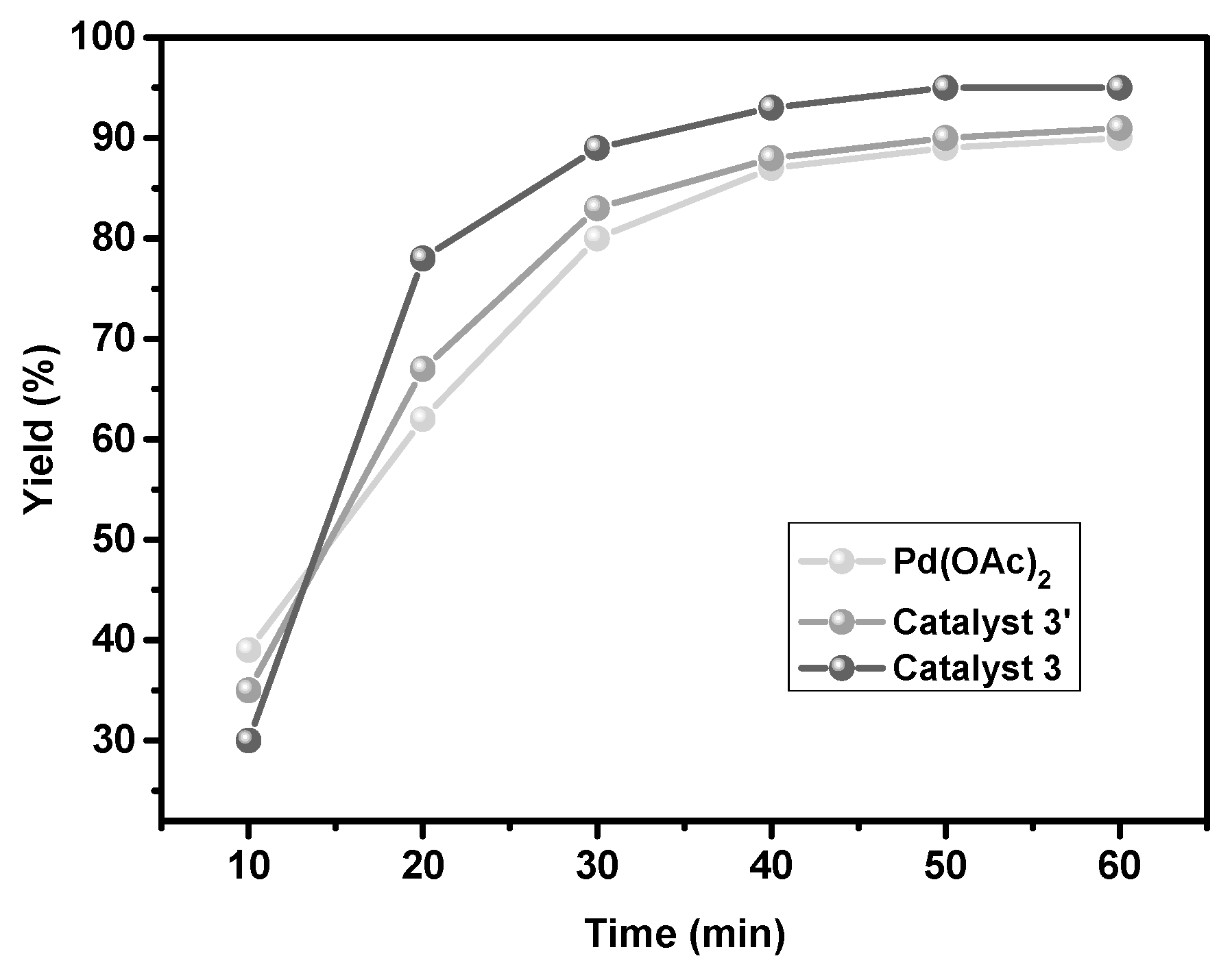

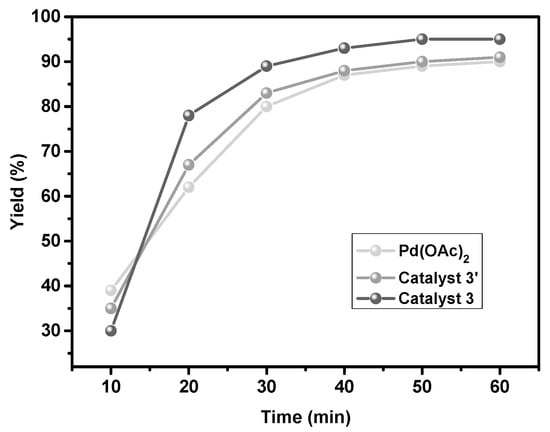

Figure 6. Kinetic results of the Suzuki-Miyaura cross-coupling reaction of 1-iodo-4-methoxybenzene and phenylboronic acid.
Figure 6. Kinetic results of the Suzuki-Miyaura cross-coupling reaction of 1-iodo-4-methoxybenzene and phenylboronic acid.
Catalysts 11 00582 g006
Table
Table 1. Optimization of reaction conditions a.
Table 1. Optimization of reaction conditions a.
Catalysts 11 00582 i001
Entry.SolventBaseTime (h)Temperature (°C)Yield (%) b
1MeOH/H2OK2CO313595
2MeOH/H2ONaHCO313550
3MeOH/H2OEt3N13540
4MeOH/H2ONaOH135-
5MeOH/H2ODABCO135-
6MeOH/H2ODBU135-
7EtOH/H2OK2CO313590
8iPrOH/H2OK2CO31.53590
9Acetone/H2OK2CO31.53590
10DCM/H2OK2CO323510
11EA/H2OK2CO323536
121,4-dioxaneK2CO323579
13MeOH/H2OK2CO312560
14MeOH/H2OK2CO314595
15MeOH/H2OK2CO315595
16MeOH/H2OK2CO316596
17 cMeOH/H2OPd(OAc)213590
18 dMeOH/H2OPd(OAc)2 + PPh313550
19 eMeOH/H2O3′13590
a Reaction conditions: catalyst 3 (5.0 mg, 1 mol%, 5.0 μmol of Pd based on the inductively coupled plasma (ICP) analysis), aryl boronic acid (0.75 mmol), aryl halide (0.5 mmol), and K2CO3 (1.0 mmol) in 3.0 mL of the co-solvent MeOH/H2O (v/v = 2/1), at 35 °C, 1–3 h. b Isolated yields. c Data were obtained using Pd(OAc)2 as a catalyst. d Data were obtained using the mixed Pd(OAc)2 and PPh3 as a catalyst. e Data were obtained using the analog 3′ of catalyst 3 without the protection of –Si(Me)3 as a catalyst.
Table
Table 2. The scope of the 3-catalyzed Suzuki-Miyaura cross-coupling reaction a.
Table 2. The scope of the 3-catalyzed Suzuki-Miyaura cross-coupling reaction a.
Catalysts 11 00582 i002
EntryXR1R2Time (h)Yield (%) b
1I4-COMeH195
2I4-ClH190
3I4-MeH190
4Br4-NO2H185
5Br4-ClH195
6Br4-OMeH190
7Br2-MeH190
8Br4-CNH192
9Br4-CH3H192
10Br4-Cl4-CF3195
11Br4-CN4-CF3485
12Br4-Me4-CF3193
13Br4-OMe4-OMe1.590
14Br4-CN4-OMe195
15Br4-Me4-OMe1.594
16Br4-Cl4-OMe192
17Br4-OHH195
18BrH4-OMe195
19BrH4-CF3195
20BrCOMeH195
21BrCOMe4-OMe195
a Reaction conditions: catalyst 3 (5.0 mg, 1 mol%, 5.0 μmol of Pd based on the ICP analysis), aryl boronic acid (0.75 mmol), aryl halide (0.5 mmol), and K2CO3 (1.0 mmol) in 3.0 mL of the co-solvent MeOH/H2O (v/v = 2/1), at 35 °C, 1–3 h. b Isolated Yield.
