Microwave-Assisted Biodiesel Production Using UiO-66 MOF Derived Nanocatalyst: Process Optimization Using Response Surface Methodology

Abstract

The present work is on the transesterification of soybean oil to biodiesel under microwave irradiation using a biomass and MOF−derived CaO−ZrO₂ heterogeneous catalyst. The optimisation of different parameters was processed by adopting a central composite design for a response−surface methodology (RSM). The experimental data were fitted to a quadratic equation employing multiple regressions and investigated by analysis of variance (ANOVA). The catalyst was exhaustively characterised by XRD, TGA, FTIR BET, SEM, TEM, CO₂ TPD and XPS. In addition, the synthesized biodiesel was characterized by ¹H and ¹³C NMR, GCMS. The physicochemical properties of the biodiesel were also reported and compared with the ASTM standards. The maximum yield that was obtained after optimization using RSM was 97.22 ± 0.4% with reaction time of 66.2 min, at reaction temperature of 73.2 °C, catalyst loading of 6.5 wt.%, and methanol−to−oil ratio of 9.7 wt.%.

1. Introduction

Environmental concerns have risen because of the massive use of conventional resources, prompting calls for green and alternative resources [1]. Biodiesel production is vital all over the world, due to the pressures of decreasing fossil energy and a worsening environment. Biodiesels are long−chain fatty acids of methyl esters and are promising alternatives for conventional diesel engines, which can be synthesised by the transesterification of triglycerides with methanol [2,3]. For biodiesel production, traditional homogeneous catalysts are being phased out in favour of newly developed catalysts [4,5] Although homogeneous catalysts have been used, their low recyclability and strong corrosivity necessitate adequate disposal methods. Furthermore, homogeneous catalysts for biodiesel purification are expected to need a significant amount of water [6,7]. Heterogeneous catalysts, on the other hand, are profitable due to the relative ease with which they can be separated for reusability and to restrict mass exchange. Increasing the activity and efficiency of heterogeneous catalysts is crucial for green chemistry and sustainable biorefining [8,9,10]. In order to overcome the shortcomings of homogeneous catalysts, heterogeneous catalysts such as horn−shell−derived CaO [11], Ca−lipase@ZIF−67 [12], waste snail−shell−derived CaO [13], peanut−shell biochar [14], Fe₃O₄@SiO₂−SO₃H [1] and ZrSiW/UiO−66 [15], have been reported recently. Metals and their oxides (MMO) are often combined to develop new catalysts [16]. With each species functioning in synergy for greater catalytic performance, these mixed metal oxides can address issues that heterogeneous catalysts confront. In addition to structural characteristics such as surface area, pore size, or stability, this may enhance the activity of the catalytic site or the magnetic separability [17]. Some of the mixed metal oxides that have been used recently for biodiesel production are Si−Ti MMO [18], CuO−CaO [19], Zn/MgAl(O) [20] and Co/Fe MMO [21]. CaO catalysts have a few drawbacks, such as leaching and deteriorations in stability [22]. To improve the stability and eliminate these catalysts’ weaknesses, CaO can be immobilized on suitable carriers such as zeolites, alumina, silica, and MOFs [23]. The birch−templating pathway approach was designed to improve the pore structure of the catalyst and promote its reusability [24], as the pore structure would control the dispersity of the active site on the support [25]. ZrO₂ is a well−known amphoteric heterogeneous catalyst and catalytic support, possessing outstanding potential for performing simultaneous esterification–transesterification reactions of high−FFA feedstock to biodiesel [26]. Bellido et al. [27] reported the effect on nickel−catalyst activity of adding CaO to a ZrO₂ support in the dry reforming of methane, where ionic conductivity was claimed to exploited by the extrinsic defects created by the replacement of Zr⁴⁺ cations in the lattice by Ca²⁺, with subsequent generation of oxygen vacancies to maintain electroneutrality. Xia et al. [28] prepared a CaO−ZrO₂ solid−base catalyst for biodiesel synthesis using a urea−nitrate combustion method for biodiesel synthesis with a conversion of 93.9%.

Metal−organic frameworks (MOFs) have demonstrated intrinsic characteristics such as a large specific surface area, a crystalline open structure, and tunable functions as an improved porous material for the fabrication of solid catalysts [29]. MOF−based solid catalysts are frequently created via post−synthesis modification of MOFs by loading different acid−base species [30]. UiO−66 MOF is one of the most explored MOFs and has been used in various fields of science in recent years. UiO−66 is made up of Zr₆O₄(OH)₄ nodes with six Zr⁴⁺ ions in octahedral geometry and four oxygen atoms or hydroxyls at the facet centres. Each Zr atom is coordinated with eight oxygen atoms in a square antiprismatic geometry by twelve terephthalate (BDC) ligands [31].

Creating a new approach to metal oxide synthesis/porous carbon nanocomposite techniques has received much attention over time as the materials possess high porosity and a modifiable shape and pore size without any additional carbon sources [32]. However, the use of waste materials as a catalyst source reduces the overall cost of biodiesel synthesis while also enabling for the recycling of natural mineral supplies, making the process green and environmentally beneficial. Thus, in the present work there is a reconciliation of ZrO₂−supported, biomass−derived CaO, a heterogeneous catalyst, to explore its MOF application. UiO−66 is used as a precursor and template to produce ZrO₂/C material as a support to snail−shell−derived CaO, which provides a synergistic effect, owing to the amphoteric nature of ZrO₂ and the basic trait of CaO, to produce biodiesel from soybean oil by means of a transesterification process. The maximum biodiesel yield from soybean oil was investigated by a statistical optimization process using response−surface methodology (RSM). The influence of process−input variables such as temperature, catalyst loading, methanol/oil ratio (MTOR) and reaction time, as well as their interactions, on biodiesel yield were evaluated using central composite design (CCD).

2. Results and Discussion

2.1. Catalyst Optimization

Effect of CaO Loading and Activation Temperature on Catalytic Activity

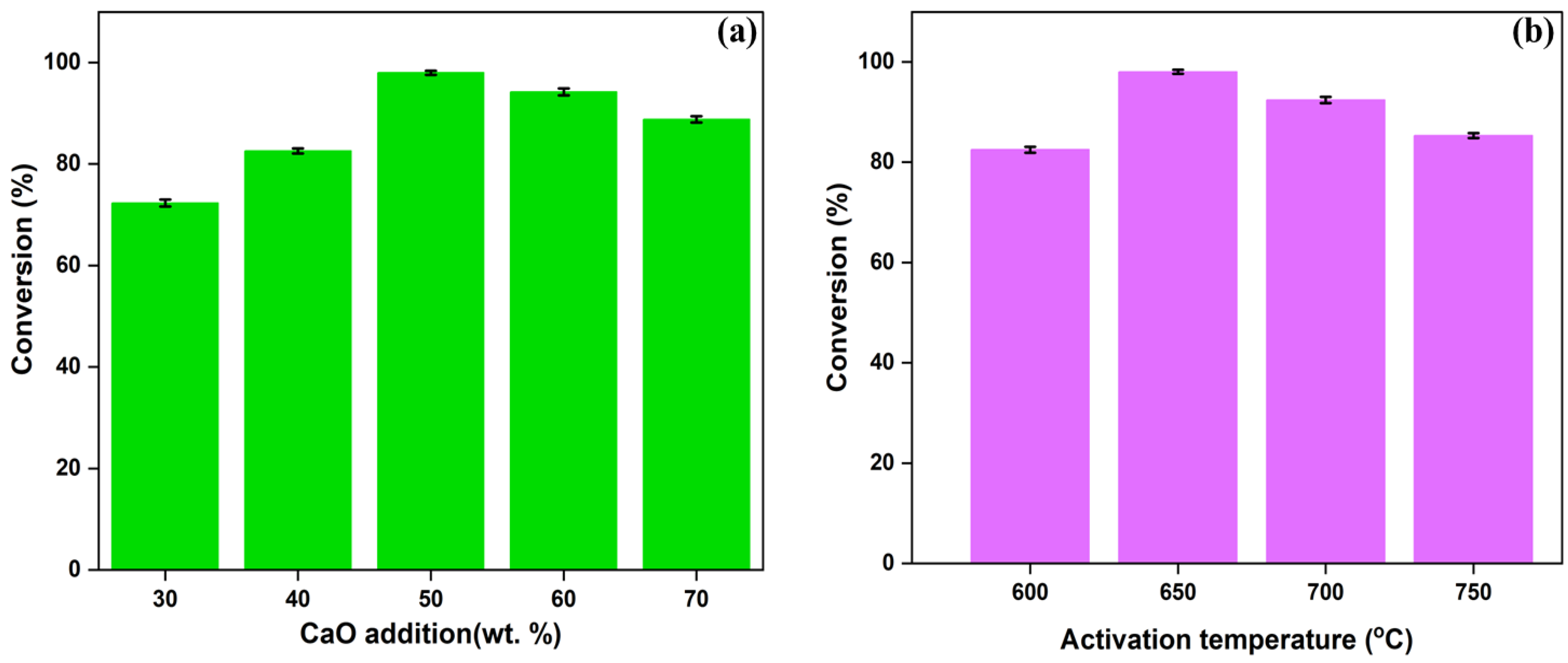

The optimum CaO loading, and activation temperature required for the catalyst preparation was investigated by adding CaO in a range of 30–70 wt.% and the activation temperature varied from 600–750 °C, respectively (shown in Figure 1). The conversion of soybean oil to biodiesel was found to be increased with the increase in CaO loading from 30–50 wt.%, while further increment to 60 and 70 wt.% caused a decrease in the conversion rate. Thus, the CaO loading of 50 wt.% under the optimised condition resulting in the conversion of 98.03% was chosen to be the equilibrium amount of CaO required for the preparation of the high−conversion−providing catalyst. Activation temperature, on other hand, also has a vital role in the catalyst preparation, where the activation temperature also showed a similar kind of trend upon moving from 600 °C to 750 °C. The conversion at 600 °C was 82.5%, which increased to 98.03% upon increasing the temperature to 650 °C. Further, activating at 700 and 750 °C resulted in a decrease in conversion to 92.4 and 85.3%, respectively. Thus, 650 °C was chosen to be the equilibrium activation temperature for the effective working of the catalyst.

2.2. Catalyst Characterisation

2.2.1. XRD and TGA

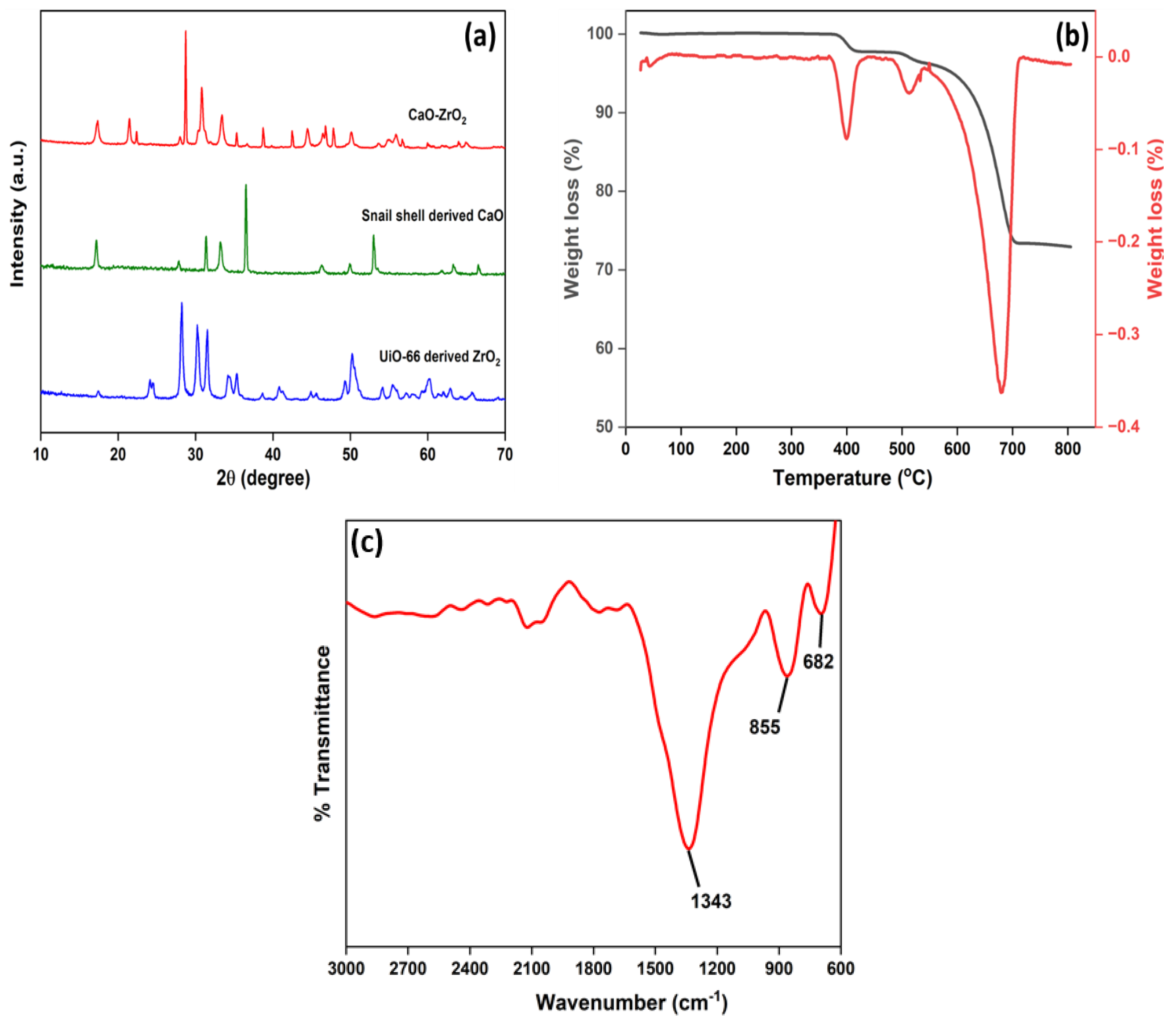

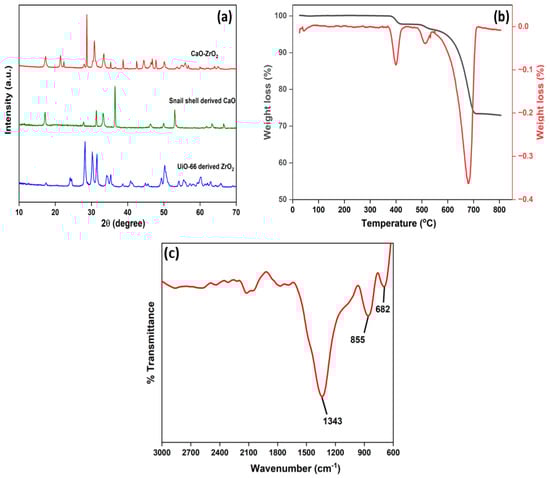

The XRD of the CaO−ZrO₂ catalyst confirmed the successful incorporation of CaO into the lattice of ZrO₂ as the major peaks of snail−shell−derived CaO were absent (as shown in Figure 2a) in the XRD pattern of CaO−ZrO₂, which is in line with the reported literature [33]. The snail−shell−derived CaO used in this study was compared with pure CaO (Figure S2a) and coincides with all the XRD peaks of pure CaO, while a few peaks of Ca(OH)₂ also appeared due to uptake of moisture. In this study, UiO−66 was used as sacrificial template to form mixed phases of monoclinic zirconia (m−ZrO₂) and tetrahedral zirconia (t−ZrO₂). Jannah et al. [34] reported that UiO−66 calcination between 500–800 °C results in the formation of mixed phase zirconia. Thus, in Figure S2b, it can be clearly distinguished that the UiO−66 derived ZrO₂ consisted of both XRD peaks of m−ZrO₂ and t−ZrO_2. The XRD pattern of CaO−ZrO₂ nanocatalyst has diffraction peaks at 17.9°, 24.06°, 24.46°, 29.6°, 32.2°, 39.69°, 43.30°, 47.50°, 55.11° and 64.32° that correspond to m−ZrO₂ planes of (100), (011), (110), (11$\overline{1}$), (111), (21$\overline{1}$), (102), (21$\overline{2}$), (221) and (032), respectively (JCPDS file No. 79−1769), while diffraction peaks at 31.4°, 36.09°, 50.5° and 63.18° corresponding to t−ZrO₂ planes of (101), (110), (200) and (202), respectively (JCPDS file No. 78−1807).

As depicted in Figure 2b, the mass loss of the nanocatalyst precursor was observed in three stages, where the first mass loss was in the range 380–420 °C due to the decomposition of Ca(OH)_2. The second stage of mass loss was observed in the range 490–540 °C and attributed to the degradation of UiO−66 (Zr) [35] and the third mass loss was observed due to the decomposition of CaCO₃ [13] that possibly could have resulted from the uptake of dissolved CO₂ by CaO in water during wet impregnation or while drying in the oven during the precursor−synthesis processes. However, further calcination of the precursor at 650 °C in the presence of an inert environment for 2 h during the catalyst synthesis would reconvert traces of CaCO₃ to CaO.

The FT−IR spectra of the catalyst in Figure 2c showed three major peaks of CaO−ZrO₂ where the 1200–1500 cm⁻¹ region peak could be ascribed to the overlapping of Ca−O and Zr−O stretching vibrations while the other two peaks at 682 and 855 cm⁻¹ profoundly confirmed the generation of Ca−O−Zr heterolinkages as Zr⁴⁺ ions partly substituted by Ca²⁺ ions and the transition of conventional m−ZrO₂ to t−ZrO₂, respectively. This was speculated by Zhang et al. [36] and is also quite in agreement with the XRD patterns of the catalyst.

2.2.2. BET

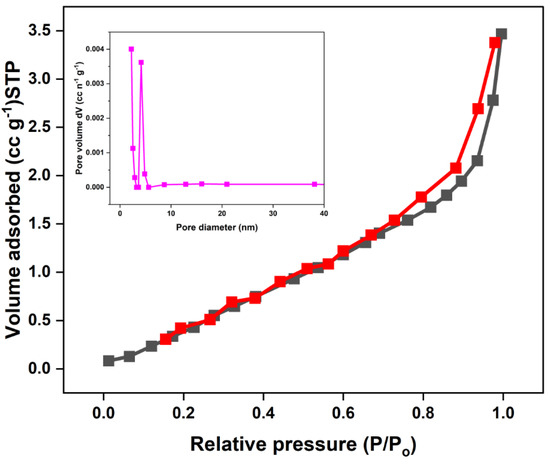

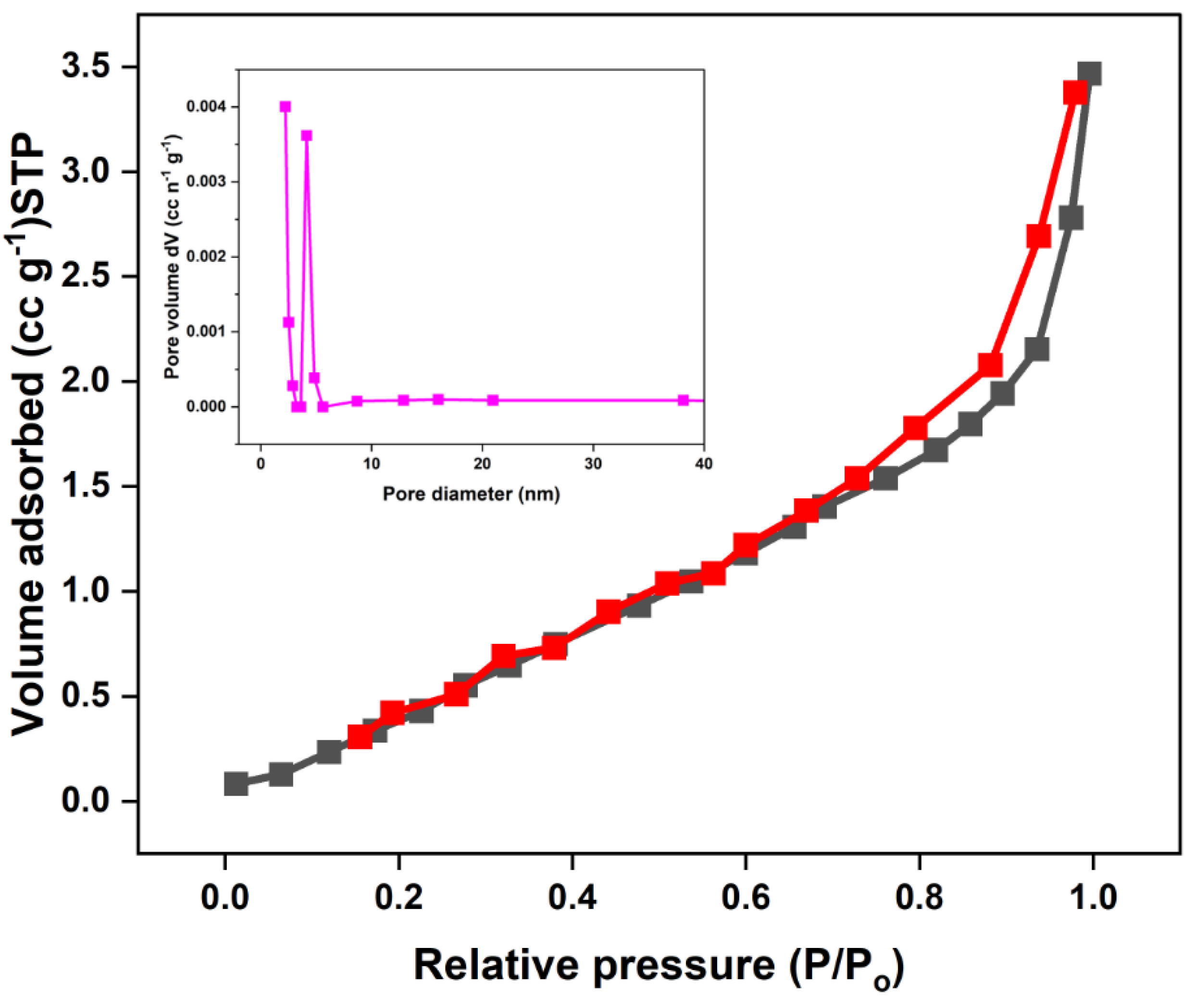

The catalyst’s specific surface area and pore volume were determined by its N₂ adsorption/desorption isotherm, which indicated a type IV isotherm. (Figure 3) [35]. The surface area and pore volume of the catalyst CaO−ZrO₂ was found to be 7.9 m² g⁻¹ and 0.013 cc g⁻¹. The pore−size distribution analysis (inset, Figure 3) for the catalyst revealed a pore diameter of 2.2 nm.

2.2.3. Basicity of Catalyst

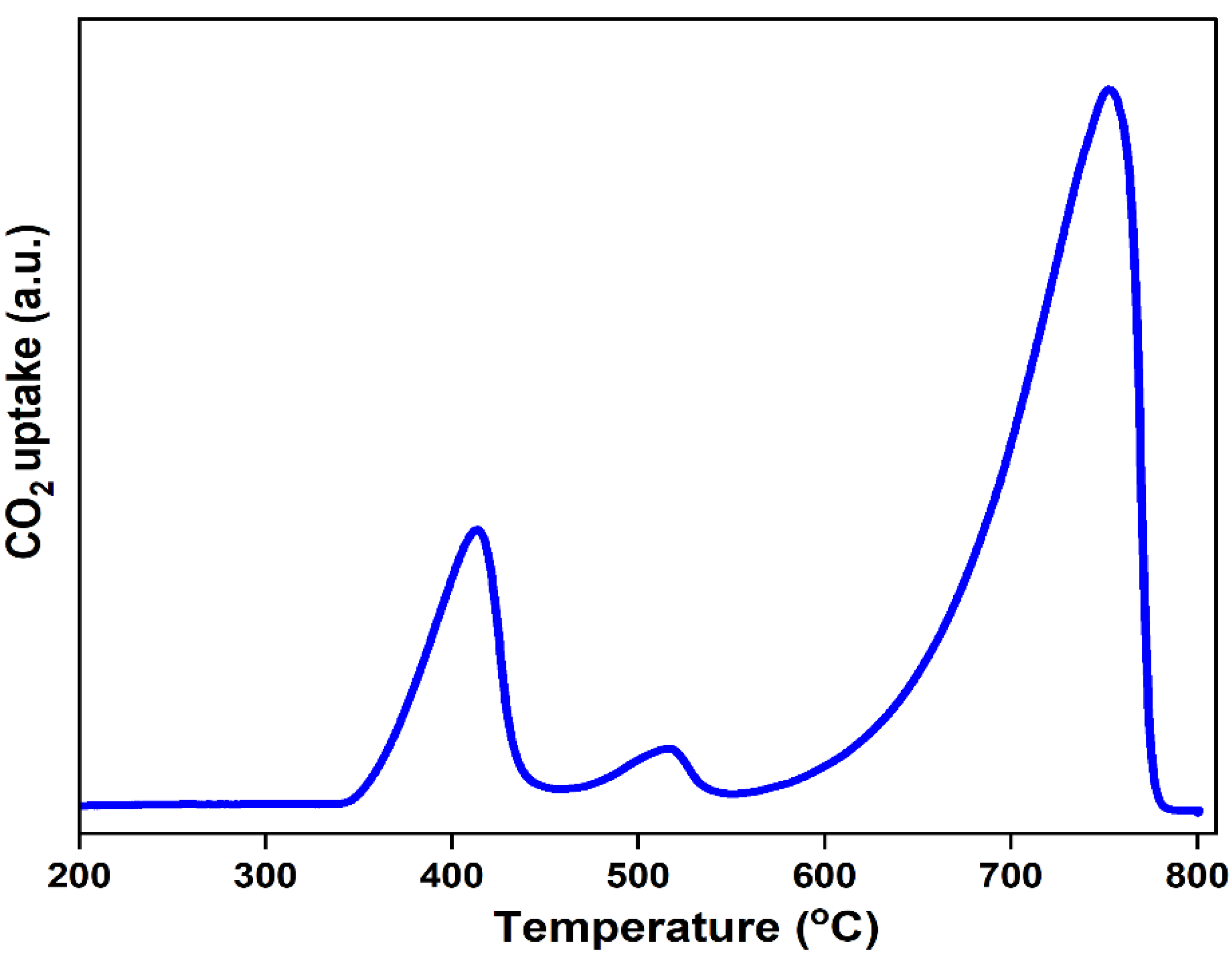

The basic strength and the relative amount of surface basic sites on the CaO–ZrO₂ catalyst were studied by CO₂−TPD. There were three desorption peaks, indicating the coexistence of three different types of adsorption sites with distinct basicity on the surface of the solid catalyst (Figure 4). The peaks at 415 °C and 520 °C could be ascribed to weak basic sites of ZrO₂ because of the coexistence of two zirconia phases (t−ZrO₂ and m−ZrO₂) [34,37]. This result was also corroborated by the XRD patterns, as shown in Figure S2b. The peak at 710 °C could be ascribed to the strong basic site upon introducing CaO loading to the ZrO₂ support [33,38]. The total basicity from the three basic sites was found to be 3.9 mmol g⁻¹.

2.2.4. SEM−EDS

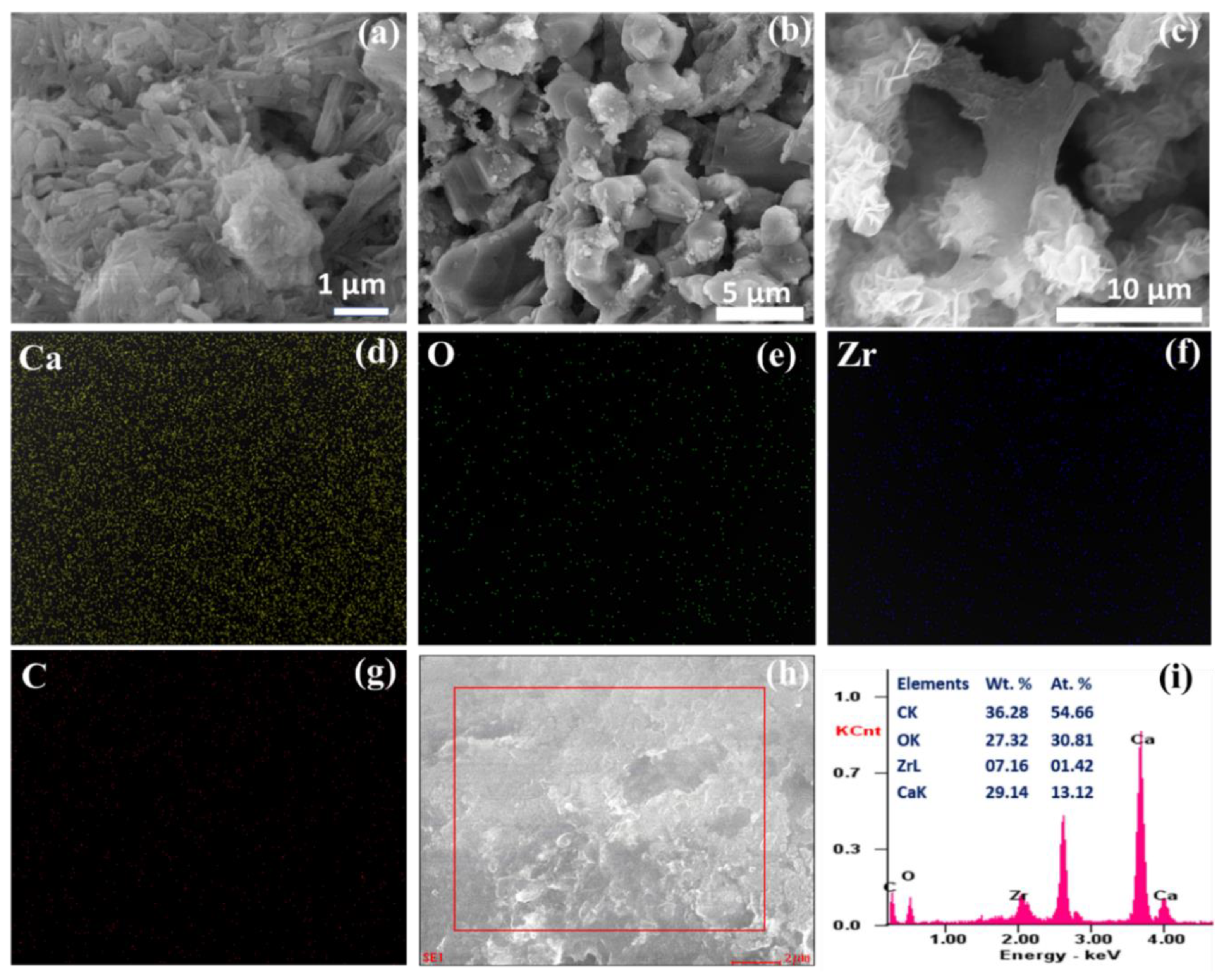

SEM−EDS analysis (Figure 5a–c) was used to investigate the surface morphology of the CaO−ZrO₂ catalyst. After being loaded with calcium oxide and activated at 650 °C, homogeneous, although not perfect, size distribution of spherical particles was generated for CaO−ZrO₂ (Figure 5c). The EDX was also shown in Figure 5i, which highlighted the presence of Ca, O, Zr and C with relative atomic ratios and weight percentages of 29.14, 27.32, 7.16 and 36.38, respectively. The corresponding EDX elemental maps (Figure 5d–f) showed the distribution of calcium (yellow), oxygen (green), zirconium (pink) and carbon (red) in the CaO−ZrO₂ catalyst.

2.2.5. TEM

To study the structural features, TEM studies were performed and represented in Figure 6. The obtained TEM micrograph showed uniform distribution of nanoparticles with an average particle size of 33.98 nm (Figure 6c). It confirmed the spherical size of particles supporting the SEM micrograph results and displayed lattice fringes, shown in Figure 6a.

2.2.6. XPS

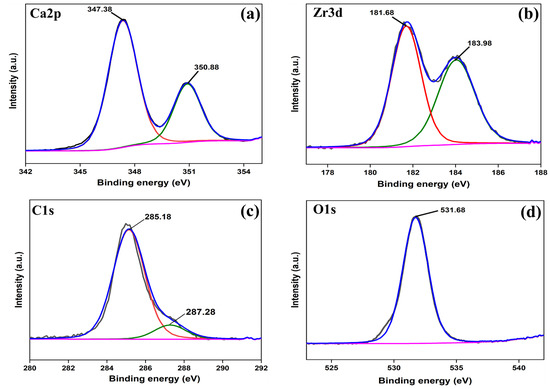

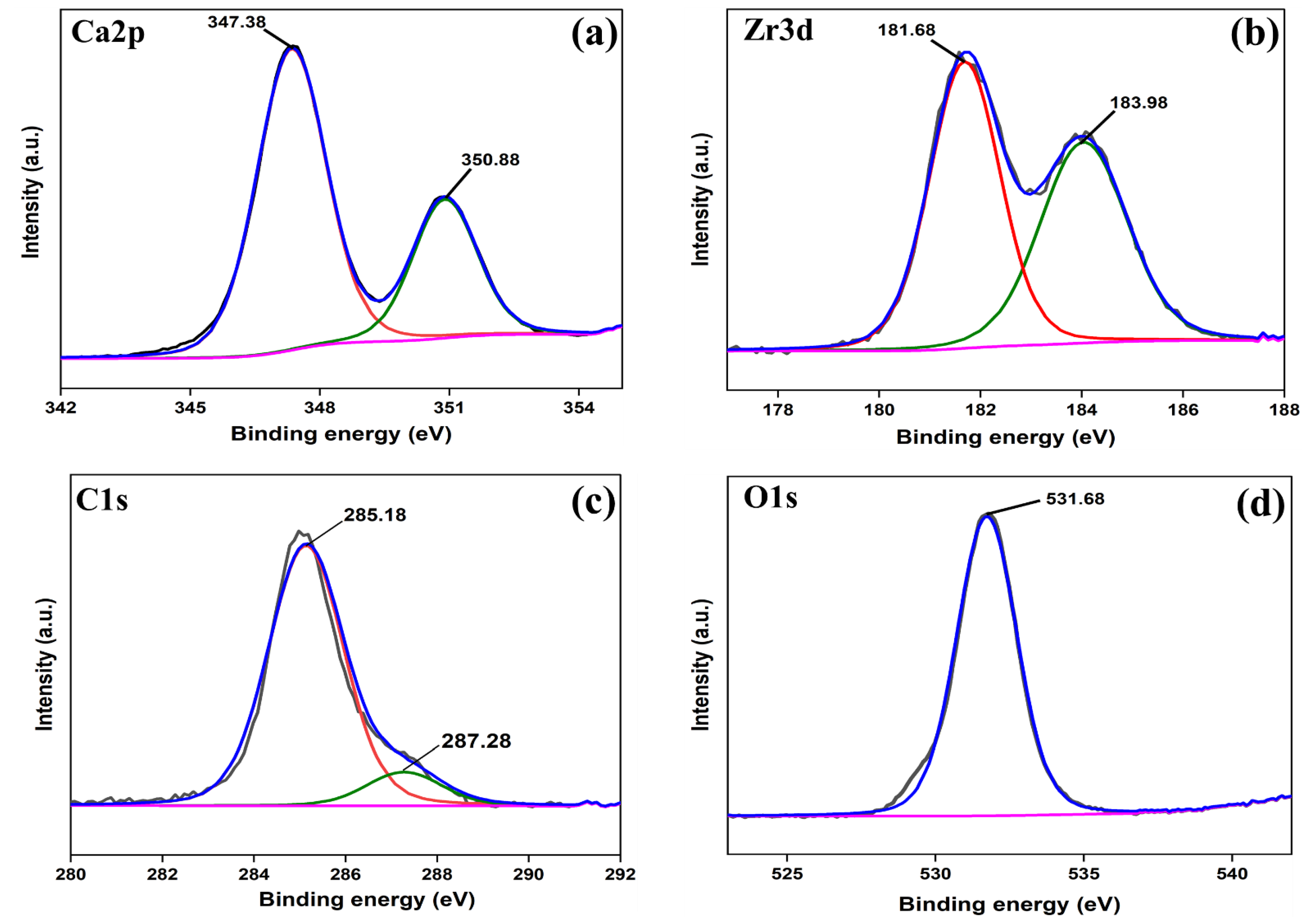

The wide XPS spectrum showed the peaks of Ca2p, Zr3d, C1s and O1s in carbon−supported CaO−ZrO₂ catalyst (Figure S1). The Ca spectrum of CaO−ZrO₂ catalyst exhibited two peaks at 347.38 and 350.88 eV (Figure 7a) corresponding to Ca2p_3/2 and Ca2p_1/2, respectively. The binding−energy separation due to spin−orbit splitting of Ca2p is 3.5 eV, which is in agreement with the CaO−MIL−100 (Fe) catalyst reported by Li et al. [39]. The two characteristic signals of Zr3d (Figure 7b) at 181.68 and 183.98 eV are ascribed to Zr−O bonds representing 3d_5/2 and 3d_3/2, respectively [40,41]. The presence of carbon (C1s, Figure 7c) as support from the catalyst exhibits a strong peak at 285.8 eV and a weak peak at 287.28 eV, attributed to the presence of carbonate [39]. The O1s exhibit a single broad overlapped peak (due to CaO and ZrO₂) representing the metal−oxide lattice oxygen species [35,42].

2.3. Transesterification of Soybean Oil

The formation of biodiesel from soybean oil was estimated by employing the CaO−ZrO₂ catalyst. The ¹H and ¹³C NMR spectra of the synthesized biodiesel are shown in Figure S3. The conversion of soybean oil to biodiesel was determined by the ratio of the integrated areas of the peaks at 3.61 ppm (methoxy protons) and 2.31 ppm (α−CH₂ protons). The multiplets at 5.3 and 4.08 ppm indicate the presence of olefinic and glyceridic protons, respectively. Additionally, the presence of the sharp peak at 3.61 ppm for the methyl protons of ester confirms the formation of fatty acid methyl esters (FAMES). The following mentioned formula was used for evaluating soybean−oil conversion to biodiesel.

$$\mathrm{Conversion}\left(\mathrm{C}\right)\%=100\times \left(\frac{2{\mathrm{A}}_{\mathrm{Me}}}{3{\mathrm{A}}_{{\mathrm{CH}}_2}}\right)$$

(1)

where ${\mathrm{A}}_{\mathrm{Me}}$ is the integral area portion of −OCH₃ and ${\mathrm{A}}_{{\mathrm{CH}}_2}$ the area of −CH₂. The biodiesel yield was calculated by Equation (2) [43].

$$Yield (\%)=\frac{Weight of biodiesel produced}{Weight of soybean oil used}\times 100$$

(2)

The FT−IR peaks of biodiesel shown in Figure S4 were similar to the reported literatures of Laskar et al. [13,43] and Kaewdaeng et al. [44]. The major peak region from 1800–1700 cm⁻¹ ascribed to C=O stretching while 1452 and 1182 cm⁻¹ peaks corresponded to asymmetric stretching of −CH₃ and O−CH₃ stretching, respectively.

GC−MS of Synthesized Biodiesel

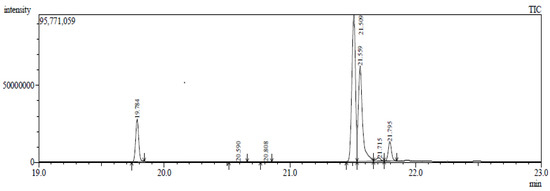

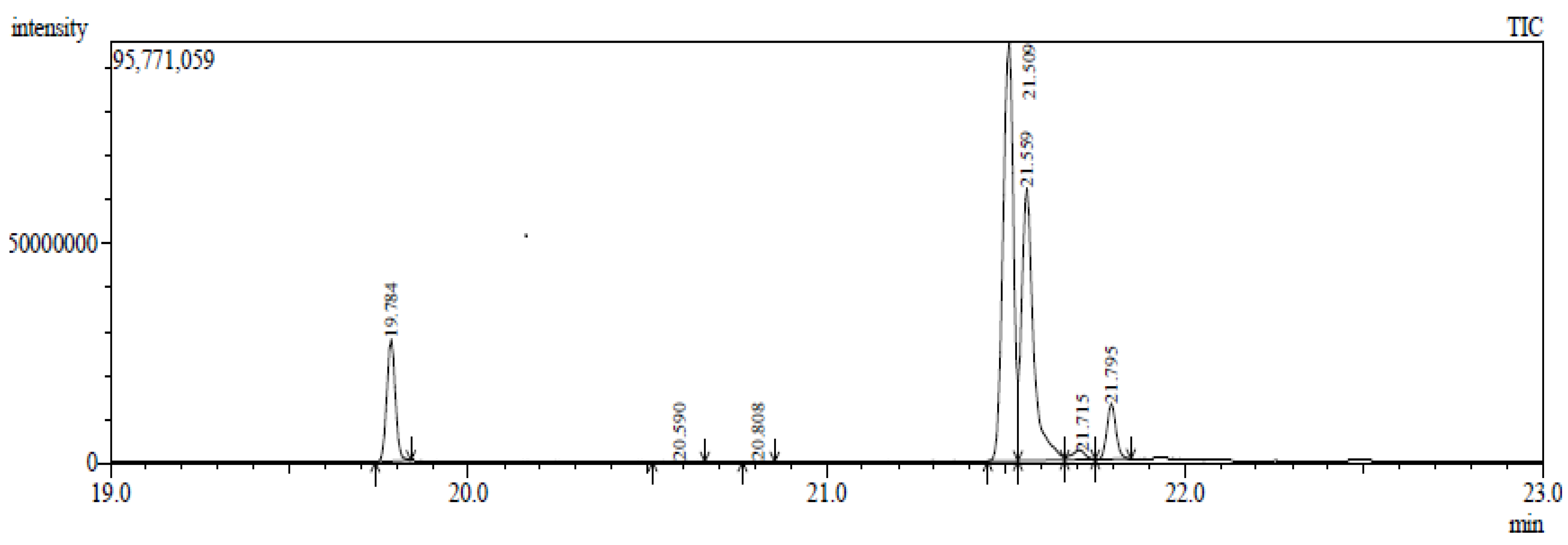

The synthesized soybean−oil biodiesel composition was determined by GC−MS studies and gas chromatography as shown in Figure 8. The soybean−oil biodiesel composition studied using GC−MS with respect to the retention time, is summarized in

Table 1. Chemical composition of soybean biodiesel.

Peak No.	Retention Time (min)	Identified Compounds	Composition (%)	Corresponding Acids
1	19.784	Hexadecanoic acid, methyl ester	11.23	C16:0
2	20.590	11,14−Eicosadienoic acid, methyl ester	0.20	C20:2
3	20.808	Heptadecanoic acid, methyl ester	0.10	C17:0
4	21.509	9,12−Octadecadienoic acid (Z, Z), methyl ester	47.19	C18:2
5	21.599	9−Octadecenoic acid, methyl ester	34.41	C18:1
6	21.715	9,12,15−Octadecatrienoic acid, methyl ester	1.37	C18:3
7	21.795	Methyl stearate	5.51	C18:0

. The major constituents were 9,12−octadecadienoic acid (Z, Z), methyl ester (47.19%), 9−octadecenoic acid, methyl ester (34.41%) and methyl stearate (5.51%).

2.4. Modelling Results and Data Analysis

The significance of the model structure and individual parameters impacting the response was determined by the Fischer test (F-value) in an ANOVA analysis. The relationship between biodiesel yield and independent factors was established using regression analysis and a coded second−order polynomial equation, as shown in Equation (1). The results of the transesterification reactions investigated with soybean oil under a microwave−aided system are presented in

Table 2. Design of experiments for modelling biodiesel yield based on RSM−CCD method.

Std	Run	Time (min) (A)	Temperature (°C) (B)	Catalyst Loading (wt.%) I	MeOH: Oil (Molar Ratio) (D)	Actual Value Yield (%)	Predicted Value Yield (%)
21	1	60	70	2	10	75.83	76.36
18	2	90	70	6	10	86.35	85.55
14	3	75	60	8	12	81.23	81.7
16	4	75	80	8	12	88.67	88.85
17	5	30	70	6	10	75.42	76.3
27	6	60	70	6	10	95.8	96.43
4	7	75	80	4	8	80.16	79.78
29	8	60	70	6	10	96.42	96.43
12	9	75	80	4	12	85.24	85.64
26	10	60	70	6	10	96.63	96.43
19	11	60	50	6	10	87.64	87.49
22	12	60	70	10	10	82.38	81.93
6	13	75	60	8	8	83.66	83.9
15	14	45	80	8	12	76.01	75.7
11	15	45	80	4	12	78.01	77.42
28	16	60	70	6	10	96.51	96.43
10	17	75	60	4	12	79.02	78.68
7	18	45	80	8	8	80.56	80.55
24	19	60	70	6	14	70.6	70.69
13	20	45	60	8	12	74.21	74.24
8	21	75	80	8	8	86.88	87.25
2	22	75	60	4	8	76.03	76.61
20	23	60	90	6	10	91.89	92.12
30	24	60	70	6	10	96.6	96.43
5	25	45	60	8	8	83.01	82.88
3	26	45	80	4	8	78.21	78.01
25	27	60	70	6	10	96.63	96.43
23	28	60	70	6	6	73.47	73.47
1	29	45	60	4	8	81.04	80.51
9	30	45	60	4	12	76.23	76.13

.

The actual biodiesel yields obtained from the experiments conducted in the laboratory ranged from 70.60 to 96.63 wt.%. The model equation relating to the biodiesel yield as the response to the independent variables in term of the coded factors is described as

Biodiesel yield = 98.71 + 2.31 A + 1.16 B+ 1.39 C − 0.6946 D + 1.42 AB + 1.23 AC + 1.61 AD + 0.044 BC + 0.9481 BD − 1.07 CD − 4.44 A₂ − 2.22 B₂ − 4.89 C₂ − 6.66

(3)

where A is the reaction time, B is the reaction temperature, C is the catalyst loading (wt.%) and D is the MTOR (molar ratio).

The experimental results of ANOVA were performed and tabulated in

Table 3. Design matrix, actual and predicted biodiesel yields for the transesterification.

Source	Sum of Squares	df	Mean Square	F-Value	p-Value
Model	1888.16	4	134.87	448.88	<0.0001	significant
A−Time	128.21	1	128.21	426.7	<0.0001
B−Temp	32.22	1	32.22	107.25	<0.0001
C−CL	46.45	1	46.45	154.61	<0.0001
D−MTOR	11.58	1	11.58	38.54	<0.0001
AB	32.23	1	32.23	107.28	<0.0001
AC	24.23	1	24.23	80.65	<0.0001
AD	41.57	1	41.57	138.36	<0.0001
BC	0.0315	1	0.0315	0.1049	0.7505
BD	14.38	1	14.38	47.87	<0.0001
CD	18.17	1	18.17	60.47	<0.0001
A²	412.1	1	412.1	1371.57	<0.0001
B²	75.23	1	75.23	250.39	<0.0001
C²	512.15	1	512.15	1704.58	<0.0001
D²	1016.82	1	1016.82	3384.23	<0.0001
Residual	4.51	15	0.3005
Lack of Fit	3.99	10	0.3995	3.9	0.0731	not significant
Pure Error	0.5123	5	0.1025
Cor Total	1892.67	29

. They comprises tests such as Fischer’s statistical test (F-value); the p-value defines the probability of having an F-value of any size, and the sum of squares determines the relevance of parameters towards the model performance [45]. Any process parameter or model with a higher F-value has greater significance in the process. The F-value for the chosen quadratic model was 448.88, which is large enough to demonstrate the model’s importance. It was also shown that noise had merely a 0.01% chance of causing such a large F-value. As a result, the model could be useful for optimizing biodiesel yield from soybean oil utilizing a CaO−ZrO₂ supported heterogeneous catalyst. A p-value < 0.05 indicates that the model’s relevant term is significant. The linear terms (time, temperature, catalyst loading, and MTOR) are all significant, as shown in Table 3. All interactions and quadratic terms were found to be significant, except for the temperature–catalyst loading interaction. The statistical analysis of the entire process was performed and summarized in

Table 4. Statistical parameters estimated from the ANOVA study for the model.

Std. Dev.	0.5481	R²	0.9976
Mean	83.68	Adjusted R²	0.9954
C.V.%	0.6551	Predicted R²	0.9875
		Adeq Precision	66.4194

. The perfect fit of the experimental data in the chosen model can be explained by the obtained correlation coefficient R² of the model, 0.9976. An adequate precession was determined for the model, 66.42—above 4 is desirable [46]—as it measures the signal−to−noise ratio and this confirms that the model can be used to navigate the design space. The % CV was 0.655 for the model where a value < 10% is desirable, indicating a reasonable correlation between actual and predicted yield values.

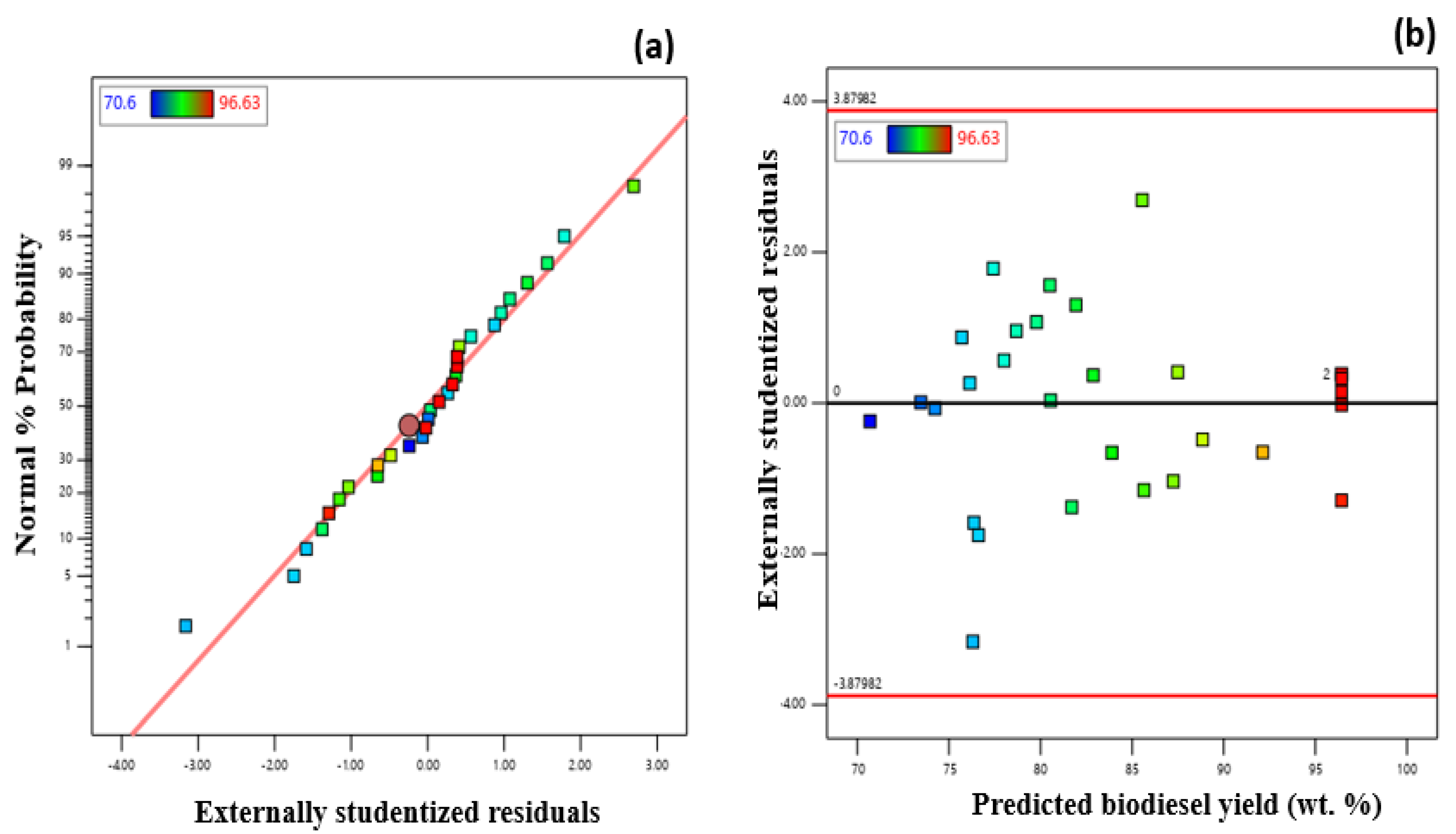

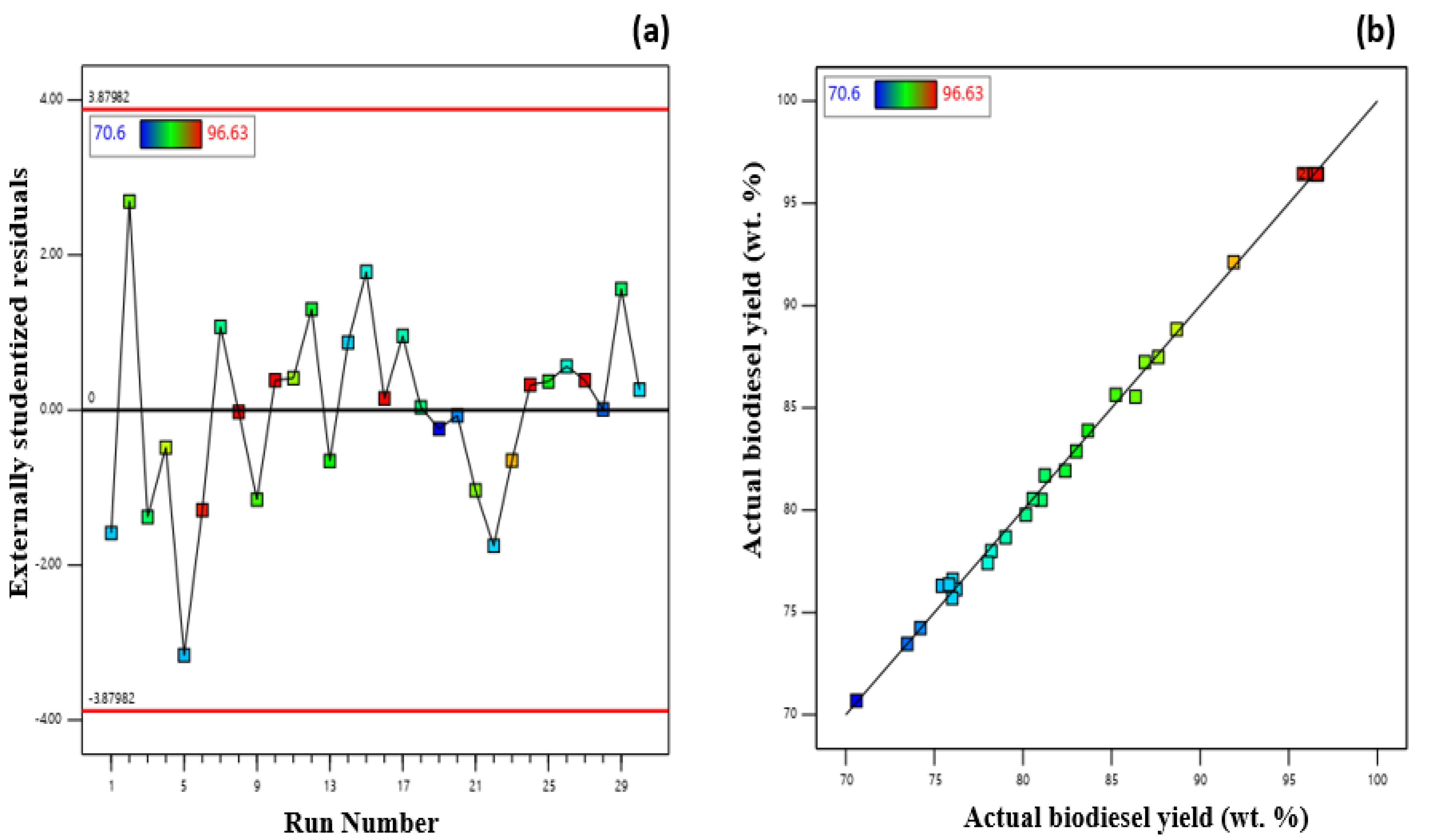

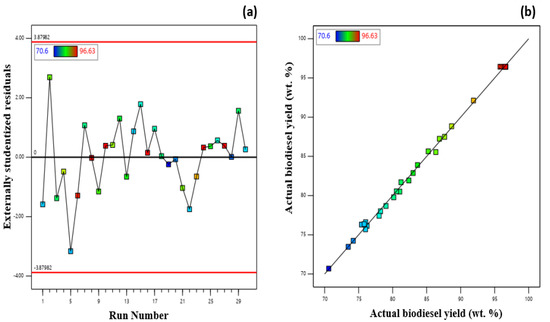

In Figure 9a, the normal distribution probability was plotted against studentized residuals. The data points were distributed in a linear pattern, indicating that the studentized residuals have a normal distribution that supports the regression results, as opposed to an abnormal S−shape curve, which is considered to be faulty for the model and may arise due to confidence−interval and p-value inaccuracy. The studentized residuals were plotted against predicted yield in Figure 9b. The residuals were distributed randomly on the plot within the limit of ± 3, indicating that the model was adequate and implying that the predicted values of the observation were unrelated to the response values [6]. The residual vs. run plot for all experimental runs in the biodiesel production is shown in Figure 10a. From the plot, an experimental run with a large residual can easily be spotted. Independent residuals revealed no patterns or trends. The patterns in the points could imply that residuals close together are connected and thus not independent. On the plot, the residuals should ideally fall randomly around the central line. In Figure 10a, the points were distributed randomly around the line within the limits, indicating the accuracy and correctness of the model without any data error. The actual value and predicted value (in Figure 10b) for all responses were close to each other. Therefore, this observation shows that the model is suitable for the empirical data and could be used in the prediction of maximum biodiesel yield.

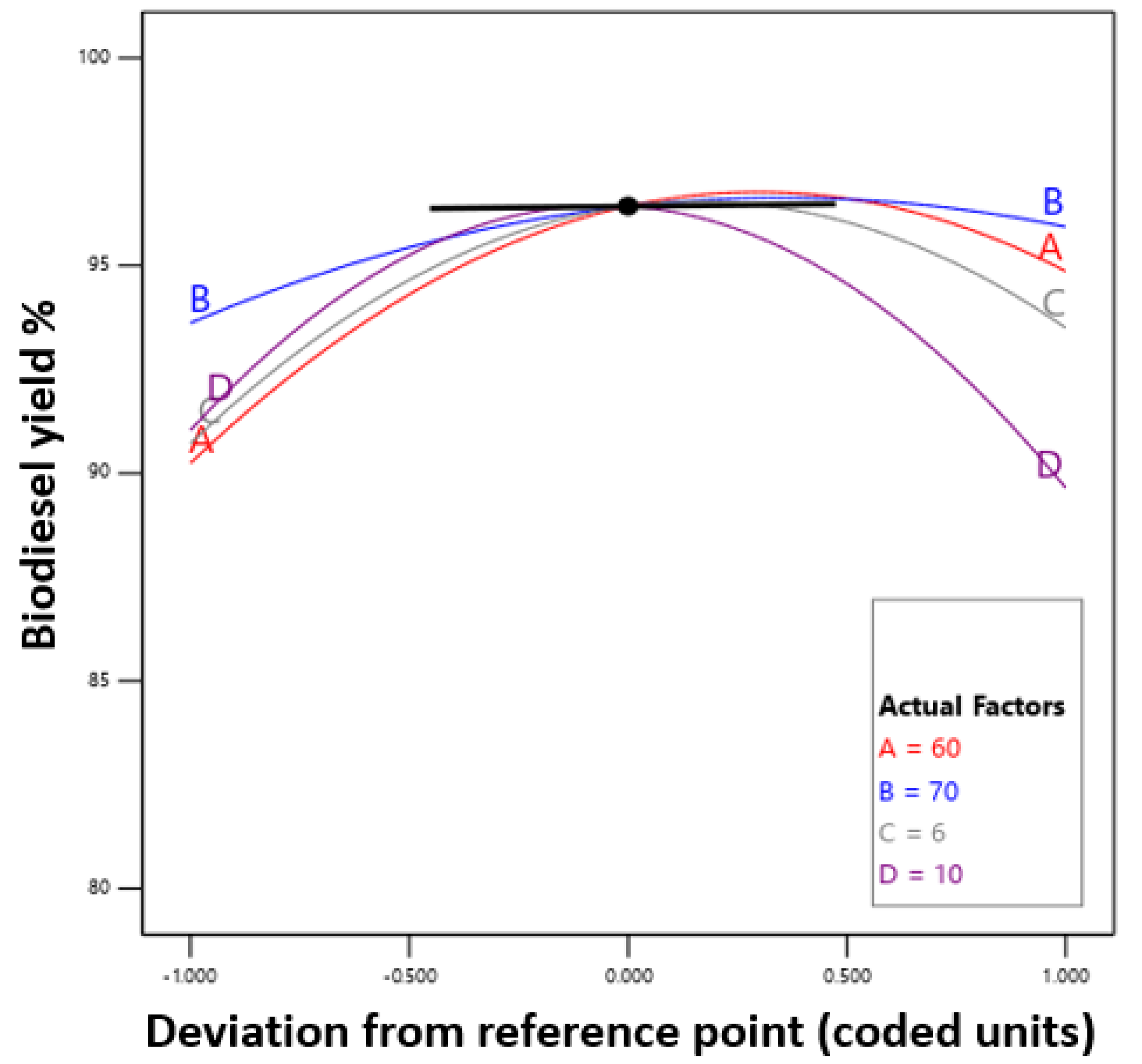

The perturbation plot in Figure 11 describes the most sensitive factor and its effect on biodiesel yield, keeping other factors constant to their centre values. The response was drawn by altering one element at a time over its defined range while retaining the other factors at their middle levels as constant values. The major effect of a variable over the yield is determined by the steepness of its slope. Thus, from the perturbation plot, we can clearly observe that from the lower level (−1) to the middle level (0), the dominant factor is A, as it has the steepest slope, followed by C, D and B, respectively. On the contrary, the process variable D has a dominant effect from the middle level (0) to the higher level (1). That with the increase in time from 45 to 60 min there was significant change in the yield but with further increase in time from 60 to 75 min there was not much noticeable impact of the process variable A but rather on the process variable D, i.e., there was significant impact on the biodiesel yield when the catalyst loading was increased from 6 to 8 wt.%, can be interpreted from Figure 11. Therefore, based on overall steepness in the slope and ANOVA study, A has a dominant effect among all the variables causing a discernible impact on biodiesel yield.

2.4.1. Interaction of Input Variables

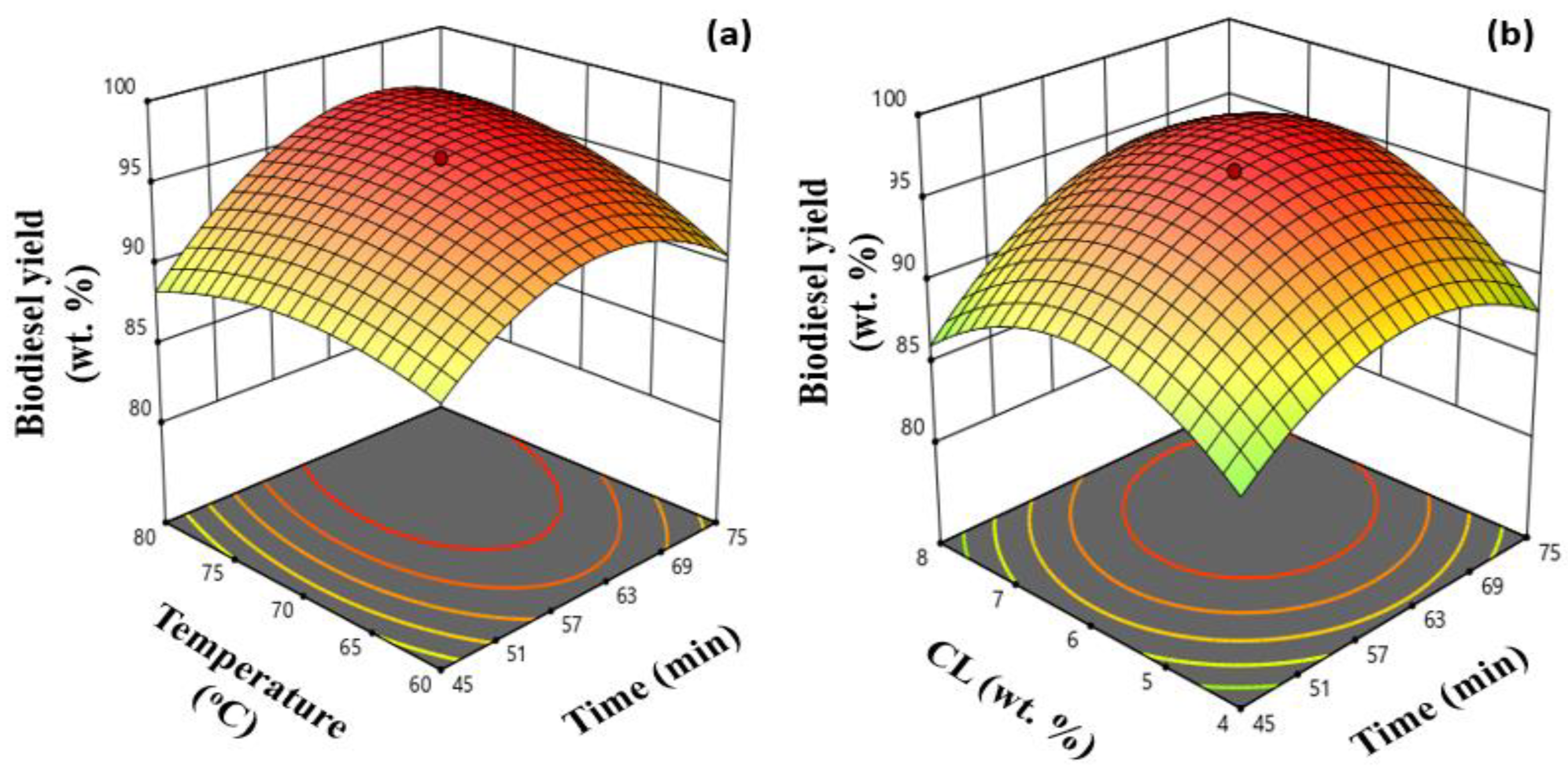

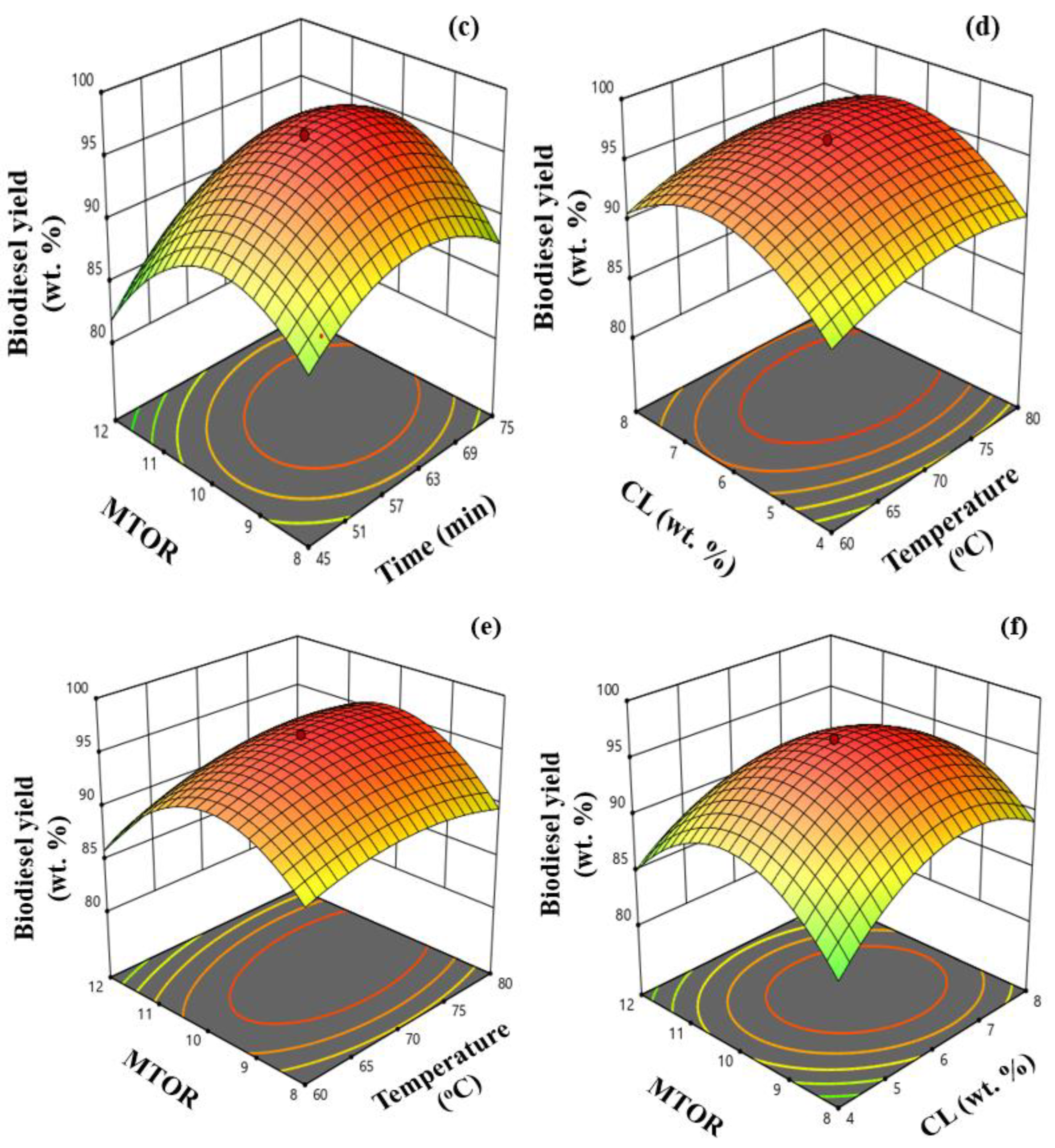

The effect of the four independent variables (time, temperature, catalyst loading (CL) and MTOR) on the biodiesel yield was examined by surface−model plots. Figure 12 shows the effect of time, temperature, catalyst loading, and MTOR on the biodiesel yield. The interaction of two variables in the model graphs can be observed, keeping other parameters constant at their centre values. Time is an important parameter, and it was observed from the surface graphs that as time increased, varying from 45–75 min, the biodiesel yield also increased up to the optimum point of 60 min, beyond which there was decrease in the yield despite the increase in the corresponding parameter values of temperature, catalyst loading and MTOR. The effect of temperature on the yield of biodiesel was investigated by varying temperature over the range 60 °C to 80 °C. The combined effect of temperature in Figure 12a, d showed a linear relationship with time and catalyst loading while in Figure 12e an increase in MTOR and temperature beyond the centre points cause a significant decrease in the yield. This could possibly be anticipated as due to reduction in the frequency of collisions of catalyst active sites and reactants due to increased amount of methanol in the reaction [47]. The combined effect of catalyst loading was observed by varying the catalyst amount from 4–8 wt.%, where the optimum central point giving maximum yield was 6 wt.%. Corresponding parameters with respect to catalyst loading in Figure 12b, d, f displayed an increase in biodiesel yield until the maximum was reached, following a linear relationship with other parameters. The decrease in yield due to the increase in catalyst loading could be due to an increase in the viscosity of the reaction mixture restricting mass transfer [48]. The interactive effect of MTOR with other parameters (Figure 12c,e,f) also displayed a linear correlation and biodiesel yield was observed to decrease after the central points of the maximum (MTOR− 10:1, CL 10 wt.%, time 60 min and temperature 70 °C) were reached.

2.4.2. Optimization of Biodiesel Yield

In this study, numerical optimization approach was followed to find the optimum conditions of the four input variables carrying a desirability function of 1. The goal of the optimization strategy was to optimize biodiesel yield while operating within the lower and upper bounds of the study’s variable ranges. As RSM is a local optimizing method, it finds the optimum condition within the chosen range of variables. The optimal condition provided by the RSM−CCD approach for the transesterification of soybean oil was a reaction time of 66.2 min, a reaction temperature of 73.2 °C, CL of 6.5 wt.% and an MTOR of 9.7 under microwave irradiation, with a biodiesel yield of 99.43 wt.%. This condition was used to conduct laboratory trials in triplicate, with an average biodiesel yield of 97.22 ± 0.4 wt.%, indicating that the regression model generated is effective in explaining the transesterification process.

2.5. Kinetics of Soybean−Oil Transesterification

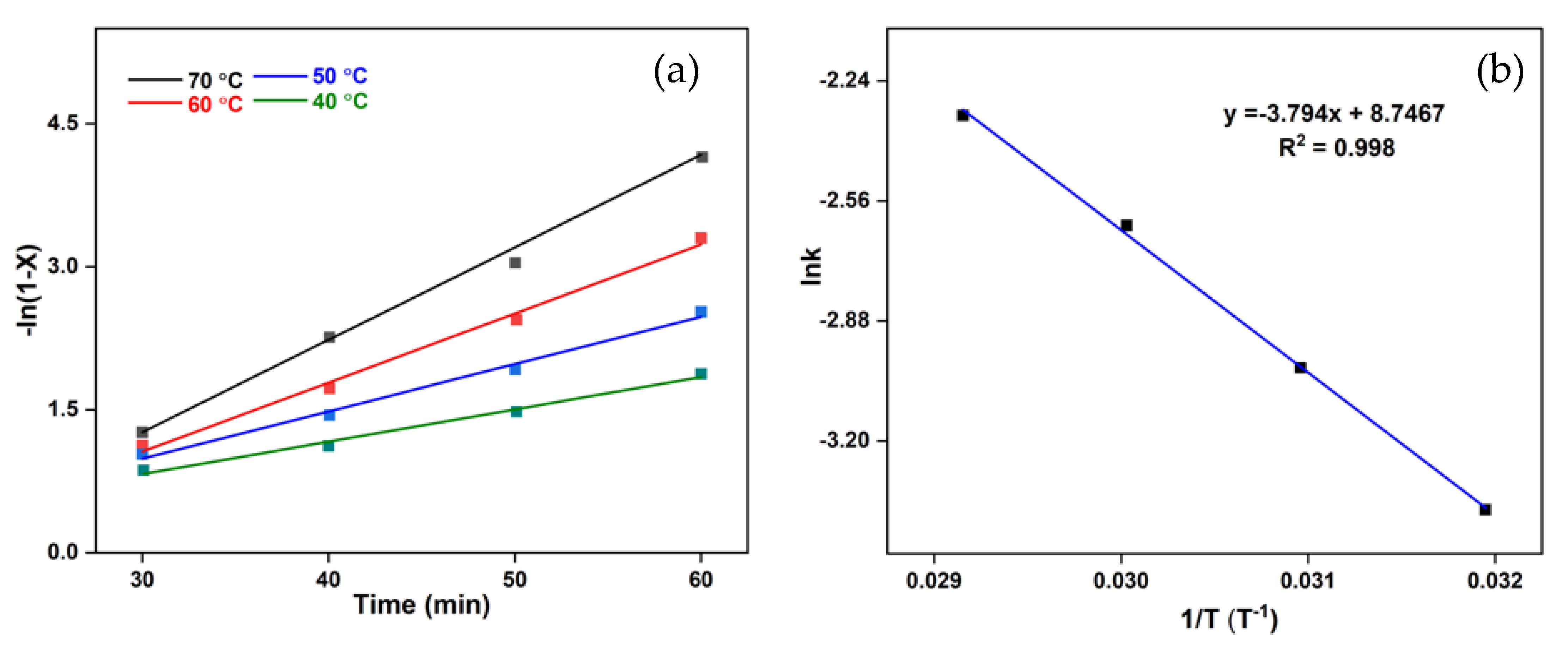

The linear relationships between −ln(1−X) and time for reactions carried out at 60–100 °C are shown in Figure 13a, confirming our prediction that esterification proceeded through pseudo−first−order kinetics [49]. The activation energy (E_a.) of the transesterification reaction was calculated by fitting rate constants to the Arrhenius equation (Equation (6)). The slope (−Ea./R) and intercept of the lnk vs. T⁻¹ plot confirmed pseudo−first−order kinetics and yielded the activation energy Ea. and the pre−exponential factor for the reaction. From Figure 13b, E_a. was 31.54 kJmol⁻¹, and the pre−exponential factor was calculated to be 6.3 × 10³ min⁻¹.

2.6. Comparison of Other Reported Heterogeneous Catalysts with the Present Catalyst

A variety of heterogeneous catalysts have been used to produce biodiesel, according to the literature.

Table 5. Comparison of different heterogeneous catalysts for biodiesel production.

Entry	Catalyst	Feedstock	a Conditions	TOF (mol g−1 h−1)	Biodiesel Yield (%)	Ref.
1.	Peanut shell	Algal oil	20:1, 5, 65, 4	0.005	94.91	[14]
2.	AIL−HPMo−MIL−100(Fe)	Soybean oil	30:1, 9, 120, 8	0.002	92.30	[50]
3.	AIL@NH2−UiO−66	Oleic acid	14:1, 5, 75, 2	0.034	97.52	[54]
4.	MgO@ZnO	Soybean oil	3:1, 1, 210, 2	0.042	73.30	[51]
5.	CaO−MIL–100(Fe)	Palm oil	9:1, 4, 65, 2	0.014	95.09	[39]
6.	KNa/ZIF−8@GO	Soybean oil	18:1, 8, 100, 8	0.002	98.00	[52]
7.	Zn−CaO	Eucalyptus oil	6:1, 5, 65, 2.5	0.048	93.80	[56]
8.	K2O/CaO−ZnO	Soybean oil	15:1, 6, 60, 4	0.004	81.10	[53]
9.	Cu−Ni−ZrO2	Capparis spinosa seed oil	6:1, 2.5, 70, 1.5	−	90.20	[57]
10.	ZrO2/BLA	Soybean oil	15:1, 12, 50, 0.5	0.018	96.90	[58]
11.	CCPA	Hanne seed oil	15:1, 4.5, 65, 1.5	−	98.98	[59]
12.	SO4/Fe−Al−TiO2	WCO	10:1, 3, 90, 2.5	0.013	96.00	[60]
13.	S−ZrO2/SBA−15	WCO	10:1, 2, 140, 0.17	0.287	96.38	[55]
14.	CaO−ZrO2	Soybean oil	9.7:1, 6.5, 73.2, 1.1	0.019	97.22	This work

^a MTOR, Catalyst loading (wt.%), Temperature (^oC), Time (h). AIL− Acidic ionic liquid. BLA− Bamboo leaf ash. CCPA− Cocoa pod husk−plantain peel ash. WCO− waste cooking oil.

summarizes the relevant details (i.e., type of catalyst, feedstock, operating parameters, turnover frequency (TOF), and biodiesel production) for comparison with other catalyst designed here. As compared to the catalyst, several other catalysts mentioned in the literature, such as peanut shell [14], AIL/HPMo/MIL−100(Fe) [50], MgO@ZnO [51], KNa/ZIF−8@GO [52] and K₂O/CaO−ZnO [53], required a longer reaction time and higher temperature to produce biodiesel. The analysis of catalyst activity, TOF (turnover frequency; see SI Equation (S1), for our reported catalyst was 0.019 mol g⁻¹ h⁻¹, which was greater than many of the specified catalysts and probably better than a variety of catalysts provided in Table 5. Despite having a higher TOF than the current catalyst, AIL@NH₂−UiO−66 [54] and S−ZrO₂/SBA−15 [55] produced less biodiesel yield and also required a longer reaction time or higher temperature, respectively.

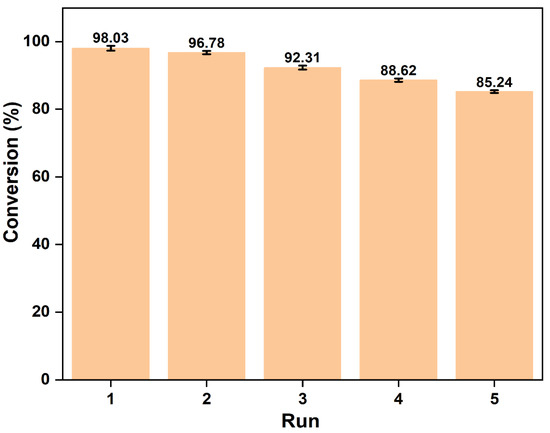

2.7. Catalytic Reusability

Heterogeneous catalysts are reusable in nature, thus lowering the overall cost of the chemical reaction. For investigating the recyclability of CaO−ZrO₂, the catalyst used was isolated and recovered from the reaction mixture after each reaction cycle by filtration followed by washing with hexanol and drying in an oven for 5 h at 80 °C. Further, the catalyst was activated by calcining it at 500 °C. The catalyst was then used for the next four successive catalytic cycles by performing the same chemical reaction under the optimized reaction conditions and with the same recovery method (Figure 14). The SEM−EDS analysis of the reused catalyst (Figure S5) after five transesterification cycles indicated a decrease in the amount of calcium and zirconium ions. The deactivation of the catalyst mainly arises due to active−site blockage during the course of a reusability cycle and the leaching of metal ions. With the present reported catalyst CaO−ZrO₂, the leaching of Ca and Zr was investigated using ICP−AES analysis and found to be 4.7 ppm and <0.01 ppm in the biodiesel, respectively. This lesser amount of leaching of Ca in synthesized biodiesel critically meant that the UiO−66 MOF was used as sacrificial template to form ZrO₂, having carbon support prevented the leaching of CaO to a significant extent.

3. Materials and Methods

3.1. Chemicals Used

Soybean oil was purchased from a local market in Silchar, Assam, India. Waste snail shells (Pila spp.) were procured from Mizoram, India. Zirconium oxychloride octahydrate and terephthalic acid were purchased from Sigma Aldrich, Bengaluru, India. Dimethyl formamide, acetic acid and methanol (analytical grade) were purchased from Merck, Silchar, India. The chemicals were used without further purification.

3.2. Preparation of UiO−66 MOF

The UiO−66 MOF was prepared according to the literature [61]. Zirconium (IV) oxychloride octahydrate (1.61 g, 5.0 mmol) and benzene−1, 4−dicarboxylic acid (1.20 g, 7.25 mmol) were dissolved in N, N−dimethylformamide (30 mL, 99%) and stirred for 30 min. Concentrated hydrochloric acid (1.5 mL, 37%) and glacial acetic acid (2.0 mL) were added with vigorous stirring and the resulting solution was sealed in a 100 mL Pyrex Schott bottle, which was kept in an oven for 2 h at 100  °C. This yielded UiO−66 as a thick white gel. N, N−dimethylformamide (50 mL) was added to the UiO−66 gel and vigorously mixed. The diluted UiO−66 suspension (7 mL per tube) was centrifuged for 10 min at 4000 rpm, and the supernatant was decanted. The gel was washed further with methanol (10 min, 4000 rpm) and dried in a vacuum oven for 6 h at 100 °C to produce UiO−66.

3.3. Preparation of Snail−Shell−Derived CaO

The preparatory method followed was in accordance with our previous paper [13] where the obtained snail shells were cleaned with distilled water multiple times to remove undesirable contaminants and dried in an oven for 12 h at 100 °C. The snail shells were then crushed into a fine powder using a mortar and pestle, sieved (with a mesh size of 125–250 µm), and then calcined for 4 h at 900 °C in a muffle furnace to obtain CaO.

3.4. Preparation of MOF−Based CaO−ZrO₂ Composite Catalyst

The catalyst was synthesized by the wet impregnation method by dispersing 0.5 g of UiO−66 in 30 ml of distilled water and certain amount of snail−shell−derived CaO (30 40, 50, 60, 70 wt.%) was added into the solution and stirred vigorously at 30 °C for 10 h. The resultant mixture was then placed into an air−dry oven at 100 °C for 16 h with catalyst precursor formation. Afterwards, the precursor was put into a tubular furnace in an inert N₂ atmosphere, where it was kept at different temperature ranges of 600 °C, 650 °C, 700 °C and 750 °C to obtain an optimum activation temperature.

3.5. Catalyst Characterization

An XPert Pro diffractometer was employed for X−ray powder diffraction (XRD) using Cu Kα radiation with 2θ = 7–70°. The operating current and voltage were 100 mA and 40 kV, respectively. A QuantaChrome Nova 2200e Surface Area and Pore Size Analyzer was employed to determine surface area and total pore volume using Brunauer–Emmet–Teller (BET) analysis. Metter Toledo TGA / DSC was employed for TGA and performed in the range 20–700 °C with a heating rate of 5 °C min^–1 under a continuous flow of nitrogen. Functional groups were identified in the samples using Fourier transform infrared (FTIR) analysis and IR spectra were recorded in the range 400–4000 cm⁻¹ with a 3000 Hyperion FTIR spectrometer (Bruker, Germany). The morphology of the catalyst was evaluated with scanning electron microscopy (SEM) equipped with energy−dispersive X−ray spectroscopy (EDS) and elemental mapping using an FEI−Quanta FEG 200F microscope operating at 100 mA beam current, 30 kV and 5000× magnification. Transmission electron microscopy (TEM) images were captured on a JEOL JEM−2100 microscope. X−ray photoelectron spectroscopy (XPS) was evaluated using a K−alpha XPS spectrometer (Thermo) with a monochromatic Al Kα X−ray source.

3.6. Biodiesel Production from Transesterification of Soybean Oil

In a 10 mL microwave tube, soybean oil (0.874 g, 1 mmol), methanol (0.32 g, 10 mmol) and catalyst (52.4 mg, 6 wt.% with respect to soybean oil) were added. The reaction mixture was held in a microwave reactor (Discover SP Microwave System, Delhi, India) for 60 min at 70 °C, 100 psi pressure and 50 W power, following which the catalyst was separated by filtration. The product was then concentrated using a rotary evaporator to remove excess methanol.

3.7. Biodiesel Characterization

¹H and ¹³C NMR spectroscopy was used to identify the transesterification product, biodiesel. A Bruker Avance spectrometer (500 MHz) was employed for the analyses. A gas chromatogram (GC) was used to identify types of methyl esters converted from triglyceride. The temperature of the oven was kept in the range 60–280 °C and the injector and detector temperature were maintained at 200 °C and 300 °C, respectively. Fourier transform infrared (FT−IR) was used to identify the characteristic peaks of biodiesel generated from soybean oil.

3.8. Reaction Kinetics

Due to the abundance of methanol, pseudo−first−order kinetics followed the transesterification process, allowing the backward process to be neglected. Thus, the rate of the reaction (−r_OA) could be expressed as:

$$-r_{OA}=-\frac{d\left[OA\right]}{dt}=k\left[SO\right]$$

(4)

The rate constant is k, the concentration of soybean oil is [SO], and the reaction time is t. Monitoring methyl ester (ME) yield and thus the yield of soybean oil at varied time t in (Equation (5)) yielded the first−order rate constant (k). The Arrhenius equation (Equation (6)) along with k at various temperatures (60–100 °C) were applied to calculate activation energy (E_a.).

$$-\ln \left(1-X\right)=kt$$

(5)

$$\ln k=- \frac{E_a}{RT}+\ln A$$

(6)

Here, soybean−oil yield at time t is represented by X, the pre−exponential factor by A, the reaction temperature by T and R is 8.314 × 10^–3 kJK^–1mol^–1.

3.9. Modelling of the Transesterification Process

The effect of process variables such as the methanol−to−oil ratio (MTOR), catalyst loading, temperature and reaction time on the biodiesel yield was investigated using central composite design (CCD). The independent variables selected were MTOR with a range of 8:1–12:1, catalyst loading with a range of 4–8 wt.%, temperature with a range of 60–80 °C and reaction time with a range of 45–75 min, and biodiesel yield was inserted as the response. Factorial design with five levels and four factors was used, providing 30 randomized experimental conditions to reduce variability effect in the observed response. The design includes six centre points to test the repeatability of the method. The distance of the axial point (α) from each design variable was ±0.05. To define the quadratic model of the response, the experimental data were analysed using the multiple regression method. The attributes of the fitted model were evaluated using analysis of variance (ANOVA). Design Expert version 13.0 (Stat−Ease Inc., Minneapolis, MN, USA) software was used for the regression analysis of the model.

4. Fuel Properties of Biodiesel

The fuel properties of biodiesel, such as density, flash point, kinematic viscosity (at 40 °C), calorific value and acid value, were measured as per ASTM−D6751 standards. The measured physicochemical biodiesel properties are given in

Table 6. Comparison of physicochemical properties of produced biodiesel with ASTM D6571 standards.

Properties	ASTM Standards	Biodiesel (This Study)
Density (kg/m3)	860–900	865
Flash point (°C)	>130	161
Kinematic viscosity at 40 °C (mm2/s)	1.9–6	4.08
Calorific value (MJ/kg)	35–45	42.24
Acid value (mg KOH/g)	Max. 0.5	0.42

. All the property values lie within the limits of the ASTM biodiesel standard and thus possess the potential to be used in transport engines as an alternative fuel.

5. Conclusions

In this present work, using MOF and biomass−derived ZrO₂−supported CaO, a heterogeneous nanocatalyst, CaO−ZrO₂, was successfully synthesized for the conversion of soybean oil to biodiesel by transesterification process. The prepared catalyst showed an excellent activity for the transesterification of biodiesel with 98.03 ± 0.7% conversion and a yield of 97.22 ± 0.4% under optimized reaction conditions as predicted by RSM numerical optimization process under microwave irradiation. The high basicity of 3.9 mmol g⁻¹ of the catalyst triggered the transesterification of the soybean oil and resulted in the successful conversion into biodiesel with 9,12−octadecadienoic acid (Z, Z) methyl ester as one of the major constituents. The RSM−CCD−approach−based optimization process was an efficient way to enhance the biodiesel yield and revealed the reaction time and catalyst loading as two major sensitive factors to influence biodiesel yield for this kind of basic catalyst.
