Low-Temperature Oxidation Removal of Formaldehyde Catalyzed by Mn-Containing Mixed-Oxide-Supported Bismuth Oxychloride in Air

by
Xiaoli Wang
1,*,
Gongde Wu
2,* and
Yanwen Ma
3,*
1
School of Environment and Technology, Nanjing Institute of Technology, Nanjing 211167, China
2
Energy Research Institute, Nanjing Institute of Technology, Nanjing 211167, China
3
Key Laboratory for Organic Electronics and Information Displays, Institute of Advanced Materials, Nanjing University of Posts and Telecommunications, Nanjing 210023, China
*
Authors to whom correspondence should be addressed.
Catalysts 2022, 12(3), 262; https://doi.org/10.3390/catal12030262
Submission received: 15 January 2022 / Revised: 21 February 2022 / Accepted: 22 February 2022 / Published: 25 February 2022
(This article belongs to the Special Issue Layered Double Hydroxide-Based Catalytic Materials for Sustainable Processes)
Browse Figures
Versions Notes

Abstract

:
The Mn-containing mixed-oxide-supported bismuth oxychloride (BiOCl) catalysts were prepared by calcining their corresponding parent hydrotalcite supported BiOCl. The crystal structure of BiOCl was found to be intact during calcination, while significant differences appeared in the chemical state of Mn and the redox capacities of the catalysts before and after calcination. Compared to the hydrotalcite-supported catalysts, the mixed-oxide-supported BiOCl showed much higher catalytic performance in the oxidation removal of formaldehyde due to the synergetic catalysis of more surface oxygen vacancies and higher surface basicity. The complete removal of formaldehyde could be achieved at 70 °C, and the removal efficiency was maintained more than 90% for 21 h. A possible reaction mechanism was also proposed.

1. Introduction

Among volatile organic pollutants (VOCs), formaldehyde is one of the most harmful gases with the widest sources. As early as 2004, formaldehyde was listed as the first carcinogen by the international agency for research on cancer (IARC) [1,2,3]. In order to eliminate the harm of formaldehyde to human health, researchers from all over the world have carried out a lot of work, and many formaldehyde removal technologies have been developed, such as adsorption, photocatalysis, low-temperature plasma and catalytic oxidation [4,5,6,7]. Among them, catalytic oxidation can completely decompose formaldehyde into harmless CO2 and H2O without secondary pollution, and thus is considered the most effective method [4,5,6,7]. Especially the effective removal of formaldehyde by catalytic oxidation under the condition of natural air atmosphere and low temperature shows more practical significance and application prospect [8]. Additionally, the key of this technology is to design efficient catalysts and catalytic systems.
When it comes to the reported catalysts for the oxidation removal of formaldehyde, noble metal catalysts were represented by Pt or Au catalysts [9,10,11,12,13,14,15], while transition metal catalysts were mainly Mn or Co catalysts [16,17,18,19]. Owing to the low cost and rich resources, the transition metal catalysts, especially transition metal oxides, had attracted much attention in academia and industry. Among them, manganese oxides usually exhibited excellent catalytic performance in the removal reaction of formaldehyde than the other transition metal oxides, such as CoO, TiO2 and CeO2 [20,21,22,23,24]. This might be because manganese oxides could mobilize electrons and generate the mobile-electron environment, which is exactly needed by oxidation removal reaction of formaldehyde due to the variable oxidation states of Mn from −3 to +7. A series of effective manganese oxides with different valences, structures, morphology and matrixes had been prepared and widely used as catalysts. Rong et al. impregnated PET into ultrathin MnO2 nanosheets, and the obtained MnO2/PET catalyst could remove formaldehyde by oxidation with a removal efficiency of 81% at room temperature. The impregnation of PET was thought to benefit the formaldehyde adsorption and removal [25]. Bai et al. prepared a three-dimensional (3D) ordered mesoporous MnO2 using KIT-6 mesoporous molecular sieves as a hard template. Complete conversion of formaldehyde was achieved at 130 °C, which was attributed to the specific mesoporous structure, high specific surface area and a large number of surface Mn4+ ions [26]. Ag/MnO2 was also further synthesized for catalytic removal of formaldehyde, and complete removal efficiency was achieved at 100 °C due to the synergetic catalysis of Ag nanoparticles and three-dimensional ordered mesoporous MnO2 supports [27]. Clearly, high removal efficiency and low reaction temperature were a research direction of formaldehyde removal reaction. Besides single manganese oxide catalysts, several binary or ternary Mn-containing mixed oxides were found to be more active in the oxidation removal of formaldehyde. Zhu et al. found that MnOxCeO2 composite catalyst with the nominal Ce/Mn ratio of 1:10 exhibited the best activity and achieved complete formaldehyde conversion at 100 °C [28]. Huang et al. discovered that CoxMn3–xO4 nanosheet catalysts showed substantially higher catalytic activity for formaldehyde oxidation, and complete conversion of formaldehyde also appeared at 100 °C [29]. O’Shea reported that PdMnO/Al2O3 could completely catalytically oxidize the mixture of formaldehyde and methanol at 70 °C [30]. It was generally accepted that the introduction of the second or third metal oxides could influence the crystallization process of mixed oxides, which would induce a decrease in the particle sizes and an increase in the surface area. This might afford the enhanced catalytic performance of mixed oxides in the removal reaction of formaldehyde in comparison with the single manganese oxide. The previous studies proved that the Mn-containing mixed oxides were promising catalysts or catalyst supports for the removal of formaldehyde.
On the other hand, BiOX (X = Cl, Br, I) is a kind of layered semiconductor with high anisotropy, and its light absorption capacity can be regulated by changing the type and content of halogen elements. In particular, BiOCl with high thermal stability had been used wildly in photocatalytic degradation of organic pollutants to CO2, H2O and other inorganic small molecules [31,32]. Our consistent interests in the design of heterogeneous catalysts and the removal of organic pollutants pushed us to combine the catalytic characteristics of Mn-containing mixed oxides and BiOCl.
In our previous report, we had found that CuNiAl-HT supported BiOCl exhibited effective catalytic performance in the selective oxidation of glycerol by 3% H2O2 [33]. Inspired by this work, in view of characteristics and catalytic requirements of the formaldehyde removal reaction, we tried to load active BiOCl on the Mn-containing mixed oxides that were usually thought to be active for the complete oxidation reaction. The catalytic performance and stability of the obtained catalysts in the oxidation removal of formaldehyde were investigated, and the structure–activity relationship of catalysts and reaction mechanisms were also discussed.

2. Results

2.1. Characterization of Catalysts

Figure 1 illustrates the powder XRD patterns of samples. The xBiOCl/MnMgAl-HT showed typical hydrotalcite-like reflections of (003), (006) and (110) planes and BiOCl reflections of (101), (110) and (102) planes [31,32,33,34,35] (see Figure 1A). Moreover, with the increase in the loading amount of BiOCl, the intensity of the characteristic reflections assigned to BiOCl strengthened, while no significant change was found in the hydrotalcite-like reflections. As expected, there was no significant difference in the XRD patterns of 0.01BiOCl/MnMgAl-HT and 0.012BiOCl/MnMgAl-HT due to the small difference in BiOCl content. Thus, for the purpose of simplification, 0.012BiOCl/MnMgAl-HT did not appear in the following characterization figures. After calcination, it was found that the characteristic peaks of hydrotalcite-like almost disappeared, while the BiOCl reflections were still present clearly (see Figure 1B), suggesting that the crystal structure of BiOCl was intact during calcination. Simultaneously, two new peaks at about 43° and 63° associated with the MgAl mixed oxides were also detected. This indicated that the layered structure of the hydrotalcite-like matrix was destroyed, and the new phases of mixed oxides appeared during calcination. No significant manganese oxides crystalline phase was present, probably because of their amorphous state. In addition, for 0.015BiOCl/MnMgAlO, some weak reflections of Bi2O3 were also detected, which were absent in the other samples, might originate from the decomposition of excessive BiOCl during calcination.
The N2 adsorption/desorption isotherms of xBiOCl/MnMgAl-HT and xBiOCl/MnMgAlO in Figure 2 all showed type IV isotherms, indicating that mesoporous structure had been formed due to the aggregation of particles. For the three hydrotalcite-supported BiOCl catalysts, compared to pure hydrotalcite, a significant decrease was found in their surface area (see Table 1). Moreover, with the increase in the loading amount of BiOCl, the surface area of supported catalysts decreased continually, probably because of the increased pore lock phenomenon derived from the introduction of BiOCl. A similar trend also appeared in the three mixed-oxide-supported BiOCl catalysts, and the increased loading of BiOCl to Mn-containing mixed oxides also led to a significantly decreased surface area. Noticeably, the lowest surface area of 0.015BiOCl/MnMgAlO was found in comparison with the other two mixed-oxide-supported catalysts. This might be associated with the appearance of Bi2O3 with a larger molecular size than BiOCl, as described in XRD characterization.
TGA curves of 0.01BiMnMgAl-HT were typically illustrated in Figure 3. Three major weight losses appeared at about 55 °C, 90 °C and 290 °C, respectively. The first two peaks might be related to the removal of physically adsorbed and interlayer water, respectively. The last peak could be attributed to the dehydroxylation of layers, which led to the complete collapse of the layered structure. Moreover, no significant weight loss was found after 450 °C, indicating that the mesoporous structure of mixed oxides had been formed by calcining their parent hydrotalcite-like compounds at the present calcination temperature (450 °C). Simultaneously, it was known that BiClO was stable before 600 °C; thus, the above results also further confirmed that the structure of BiClO remained unchanged as described in XRD characterization.
The H2-TPR images of samples are shown in Figure 4. For the uncalcined xBiOCl/MnMgAl-HT, two hydrogen consumption peaks were found at about 300 °C and 450 °C, which could be attributed to the redox process of Mn. The former could be assigned to the hydrogen consumption peak of Mn4+ to Mn3+, while the latter might be due to the hydrogen consumption peak of Mn3+ to Mn2+. With regard to the peak area of the two characteristic peaks, the latter is much larger than the former. This indicated that Mn3+ and Mn4+ exist together in uncalcined xBiOCl/MnMgAl-HT, of which Mn3+ is the dominant state. In contrast, for the calcined xBiOCl/MnMgAlO, only one hydrogen consumption peak appeared at about 410 °C, suggesting the presence of single Mn3+ due to the redox of Mn4+ to Mn3+ during calcination. Moreover, xBiOCl/MnMgAlO showed a lower reduction temperature of Mn3+ than xBiOCl/MnMgAl-HT. It was accepted that the shifts of hydrogen consumption peaks to lower temperatures were ascribed to the formation of more active oxygen species [28,36]. It could be deduced that the relatively large number of surface oxygen species in xBiOCl/MnMgAlO could be produced by their more surface oxygen vacancies, which were generated to maintain the electrostatic balance due to the presence of the more reduced element state of Mn3+. This also suggested that xBiOCl/MnMgAlO would show increased redox capacity in comparison with xBiOCl/MnMgAl-HT.
The O2-TPD profiles of 0.005BiOCl/MnMgAlO, 0.01BiOCl/MnMgAlO and 0.015BiOCl/MnMgAlO are depicted in Figure 5. Generally, three oxygen desorption peaks were detected, including low temperature (378 °C), medium temperature (500~550 °C) and high temperature (>600 °C), which could be ascribed to the surface active oxygen (O2− and O−), the surface lattice oxygen (O2−) and the bulk lattice oxygen, respectively [20,21,29]. Moreover, with the rise in BiOCl loading, the low-temperature desorption peaks in three catalysts enhanced first and then weakened, indicating that the amount of active oxygen species increased first and then decreased. However, no significant shifts were found in the position of their low-temperature desorption peaks, suggesting that the relative number of surface active oxygen species did not change with the increased BiOCl loading. For the medium desorption peaks of the three supported catalysts, no significant differences were detected in the desorption peak intensities of 0.005BiOCl/MnMgAlO and 0.01BiOCl/MnMgAlO, while the peak position shifted to lower temperature with the increasing of BiOCl loading. This indicated that the surface lattice oxygen in the catalyst with high BiOCl loading was more active; however, the increased BiOCl loading did not influence the amount of surface lattice oxygen. With respect to 0.015BiOCl/MnMgAlO, compared to 0.01BiOCl/MnMgAlO, the peak intensities associated with low temperature and medium temperature desorption weakened, revealing that the amount of surface active oxygen and lattice oxygen both decreased, which might be attributed to the excessive loading of BiOCl. Noticeably, the desorption peak related to bulk lattice oxygen appeared in 0.015BiOCl/MnMgAlO, which might be generated to compensate for the decreased surface active oxygen and lattice oxygen originated from the introduction of excessive BiOCl.
The surface basicity of the obtained three mixed-oxide-supported catalysts was further investigated, and their CO2-TPD profiles are shown in Figure 6. Three CO2 desorption peaks were detected, which could be assigned to the weak basic sites (around 100 °C), moderate basic sites (around 235 °C) and strong basic sites (˃390 °C) [37,38]. The weak basic sites could be ascribed to the abundant surface OH− groups, the moderate basic sites might be related to Mg–O and Al–O pairs and the strong basic sites might be associated with coordinatively unsaturated lattice oxygen (O2–) [39,40,41]. Furthermore, Figure 6 also illustrated that the characteristic peaks of weak basic sites and strong basic sites in 0.01BiOCl/MnMgAlO both shifted to high temperatures in comparison with those in 0.005BiOCl/MnMgAlO. A much higher CO2 uptake was also found in 0.01BiOCl/MnMgAlO than in 0.005BiOCl/MnMgAlO (see Table 2). This indicated that the basicity of weak and strong basic sites increased with the rise in BiOCl loading. The increased basicity of weak basic sites could be attributed to the more surface OH− groups in the catalyst with higher BiOCl loading than in the catalyst with lower BiOCl loading. The increased basicity of strong basic sites might be caused by the effect of the increased BiOCl loading on the mixed oxide support. However, with the further increase in the loading of BiOCl, slight shifts in the characteristic peaks ascribed to the weak and strong basic sites to low temperatures were found in the CO2-TPD profiles of 0.015BiOCl/MnMgAlO. Simultaneously, a relatively decreased CO2 uptake was also detected (see Table 2). The presence of a small amount of Bi2O3 in 0.015BiOCl/MnMgAlO, as confirmed by XRD characterization due to the excessive loading, might afford the above-mentioned slight decreased surface basicity.
XPS was performed to investigate the surface chemical state of catalysts. XPS spectra of Bi 4f of pure commercial BiOCl, 0.01BiOCl/MnMgAl-HT and 0.01BiOCl/MnMgAlO were typically illustrated in Figure 7A. It was found that two characteristic peaks at about 164.5 eV and 159.2 eV corresponding to Bi3+ appeared in the XPS spectra of pure BiOCl. In contrast, in the spectra of 0.01BiOCl/MnMgAl-HT and 0.01BiOCl/MnMgAlO, those two peaks showed small shifts to low binding energies, indicating the presence of the +(3 − x) oxidation state of Bi. This could be attributed to the formation of more oxygen vacancies on the surface of BiOCl in the supported catalysts in comparison with those on the surface of commercial BiOCl, which originated from the interaction of BiClO and supports during loading [31,32]. In view of the two supported catalysts, no significant differences were found in their XPS spectra, suggesting the almost identical surface chemical states of Bi in 0.01BiOCl/MnMgAl-HT and 0.01BiOCl/MnMgAlO.
XPS spectra of Mn 2p of 0.01BiOCl/MnMgAl-HT and 0.01BiOCl/MnMgAlO were typically illustrated in Figure 7B. In the XPS spectra of 0.01BiOCl/MnMgAl-HT, two peaks at 641.5 eV and 653.6 eV could be attributed to Mn 2p2/3 and Mn 2p1/2. By the curve fitting analysis of Mn 2p2/3, Mn3+ was found to be the predominant oxidation state in 0.01BiOCl/MnMgAl-HT. When it comes to the XPS spectra of 0.01BiOCl/MnMgAlO, the peak assigned to Mn 2p2/3 shifted to 641.0 eV, indicating the absence of Mn4+ due to the redox of Mn4+ to Mn3+ during calcination. This fit well with the results of H2-TPR and further demonstrated the different chemical states of Mn in the two supported catalysts.
SEM images of 0.01BiOCl/MnMgAl-HT and 0.01BiOCl/MnMgAlO are typically displayed in Figure 8A,B. 0.01BiOCl/MnMgAl-HT showed lamella structure with lateral sizes of platelets about 50~150 nm, indicating that the layered morphology of hydrotalcite-like compounds and BiOCl was not altered during loading. After calcination, two spherical or ellipsoidal particles with an average diameter of 300–400 and 20–100 nm were found in the SEM image of 0.01BiOCl/MnMgAlO, which could be assigned to mixed oxide support and BiOCl, respectively.

2.2. Catalytic Performance and Stability of Catalysts

In the present work, the obtained xBiOCl/MnMgAl-HT and xBiOCl/MnMgAlO catalysts were used in the oxidation removal of formaldehyde (see Table 1). The results revealed that pure BiOCl hardly showed effective formaldehyde removal efficiency (Entry 2). Though BiOCl has widely been accepted as a good photocatalyst for oxidation removal of pollutants, under the current UV-free reaction conditions, BiOCl itself did not seem to be active in the oxidation removal of formaldehyde. Similarly, the catalytic performance of the pure MnMgAl-HT or MnMgAlO was also poor, and the formaldehyde removal efficiency was no more than 10% (Entry 3 and 7). However, with the xBiOCl/MnMgAl-HT or xBiOCl/MnMgAlO used as catalyst, dramatically enhanced formaldehyde removal efficiency was found (Entry 4–6 and 8–10). Such an increased catalytic performance could be related to the generation of more oxygen vacancies on the surface of BiOCl in the supported catalysts than in the pure BiOCl, which caused more surface active oxygen species and thus facilitated the oxidation removal reaction. This also suggested that certain synergetic catalysis was present between BiOCl and the supports of MnMgAl-HT or MnMgAlO.
With regard to the catalytic performance of the supported BiOCl materials before and after calcination, xBiOCl/MnMgAlO showed much higher catalytic performance than xBiOCl/MnMgAl-HT. It was known that the supports of heterogeneous catalysts influenced mainly their catalytic performance by regulating the adsorption capacity to reactants. The dried formaldehyde itself is not ionized and thus is neutral. However, as the oxidation progressed, the metabolite water that appeared in the reaction system induced forming the dimeric of formaldehyde with weak acidity. For the supported catalysts, the surface basicity of mixed-oxide-supported BiOCl compounds was much higher than that of hydrotalcite-supported catalysts because the inherent basic sites of hydrotalcite-like compounds were fully explored during calcination. Therefore, more formaldehyde molecules could be adsorbed on the surface of mixed-oxide-supported catalysts, which had been verified by the following in situ FTIR experiments (see Figure 11). This increased the probability of formaldehyde molecules being further oxidized and could afford the high catalytic performance of xBiOCl/MnMgAlO to a certain degree. At the same time, H2-TPR and XPS spectra of Mn 2p illustrated that the presence of more Mn3+ in xBiOCl/MnMgAlO also induced more oxygen vacancies on their support surface, which led to more surface active oxygen species and higher redox capacity in xBiOCl/MnMgAlO than that in xBiOCl/MnMgAl-HT. This might also contribute to the higher catalytic performance of xBiOCl/MnMgAlO.
Furthermore, the loading of BiOCl was also found to significantly influence the catalytic performance of supported catalysts. The hydrotalcite- and mixed-oxide-supported catalysts both exhibited an enhanced formaldehyde removal efficiency first with the increased loading of BiOCl to 0.01%, which could be attributed to the demand for enough catalytic active sites for the oxidation removal reaction. However, with the further increase in the loading of BiOCl, the formaldehyde removal efficiency then decreased. Such a decreased removal efficiency could be related to the decreased surface area and surface basicity of catalysts. In addition, for 0.015BiOCl/MnMgAlO, the presence of a small minority of Bi2O3 secondary phases with weak acidity could cause a decreased adsorption capacity of catalysts for formaldehyde, which could also afford the decrease in the formaldehyde removal efficiency.
The effect of the reaction time and temperature on the catalytic performance of six supported BiOCl catalysts was also investigated in detail (see Figure 9). Generally speaking, xBiOCl/MnMgAlO displayed significantly high catalytic performance in the formaldehyde removal reaction in comparison with xBiOCl/MnMgAl-HT. Under a sufficient reaction time and temperature, the formaldehyde removal efficiency could reach 100% over xBiOCl/MnMgAlO, while about 70% of formaldehyde removal efficiency was achieved over xBiOCl/MnMgAl-HT. Such a difference could be attributed to the different surface properties and chemical state of Mn in the two supported catalysts, which was discussed above. However, the performance trends of the two catalysts were found to be almost identical with the rise in reaction time and temperature. A sharp increase in the formaldehyde removal efficiency appeared with the increased reaction time and temperature, which might be related to the increased probability of adsorption and surface reactivity of reactant molecules at high temperatures and long times. In the presence of xBiOCl/MnMgAl-HT, the optimal reaction time and temperature were 240 min and 90 °C, respectively. In contrast, with xBiOCl/MnMgAlO as a catalyst, the complete formaldehyde removal efficiency could be achieved when the reaction was performed at 70 °C and 220 min, respectively. Such reaction results were rarely achieved over low-priced metal catalysts at such a low temperature and short time, so the Mn-containing mixed-oxides-supported BiOCl catalyst showed potential application value.
Reaction conditions: Left part, catalyst 100 mg, formaldehyde 100 ppm, air/formaldehyde 100 mL min−1, atmospheric pressure; temperature 60 °C; Right part, catalyst 100 mg, formaldehyde 100 ppm, air/formaldehyde 100 mL min−1, atmospheric pressure, time 3 h.
0.01BiOCl/MnMgAlO, which exhibited the best catalytic performance in the oxidation removal of formaldehyde, was selected as the representative catalyst to carry out the stability test at 70 °C. The results in Figure 10 illustrated that the formaldehyde removal efficiency was maintained at more than 90% for 21 h. The slight decrease in catalytic performance could be attributed to the accumulation of a little carbonates on the surface of catalysts. This indicated that the Mn-containing mixed-oxide-supported BiOCl catalyst was stable in the present oxidation removal conditions.
Reaction conditions: catalyst 100 mg, formaldehyde 100 ppm, air/formaldehyde 100 mL min−1, atmospheric pressure; temperature 70 °C.

2.3. Structure Activity Relationship of Catalysts and Possible Reaction Mechanism

In situ ATR-IR spectra of 0.01BiOCl/MnMgAlO and 0.01BiOCl/MnMgAl-HT are typically illustrated in Figure 11. When the 0.01BiOCl/MnMgAlO sample was exposed to HCHO in air, the characteristic peaks of polyformaldehyde (929 cm−1), dioxymethylene (1091 cm−1), carbonate (1238 and 1280 cm−1), formate (1340 and 1560 cm−1), bicarbonate (1430 and 1603 cm−1), water (1645 cm−1) and CO2 (2341 cm−1) were observed [42,43] (see Figure 11A). Moreover, all the above peaks of intermediate or product species enhanced with the increasing exposure time from 10 to 30 min, indicating that more HCHO molecules were oxidized. However, with the further extension of the reaction time to 40 min, the characteristic peaks corresponding to polyformaldehyde, dioxymethylene, carbonate, formate and bicarbonate species weakened, and simultaneously, the CO2 characteristic peak enhanced significantly. This suggested that more intermediate species were further oxidized into CO2 with the prolonging of the reaction time.
In the case of the 0.01BiOCl/MnMgAl-HT, upon being exposed to HCHO and air, the intensity of the characteristic peaks ascribed to polyformaldehyde (929 cm−1) and dioxymethylene (1091 cm−1) increased continuously when the reaction time increased from 10 to 40 min (see Figure 11B). Moreover, no peaks ascribed to formate species were detected, and the enhancement of the CO2 characteristic peak was not obvious compared to the peak in the spectra of 0.01BiOCl/MnMgAlO. This indicated that the intermediate product of polyformaldehyde and dioxymethylene were not oxidized effectively into formate and CO2 over 0.01BiOCl/MnMgAl-HT, probably because of its relatively few surface oxygen vacancies and basicity. This also suggested that the conversion of polyformaldehyde and dioxymethylene into formate might be the rate-determining step for HCHO oxidation in the present catalytic systems. Furthermore, the following possible reaction mechanism was also proposed (see Scheme 1). According to the Mars-Van-Krevelen oxidation-reduction mechanism, O2 and lattice oxygen O2− can be transformed into each other. Thus, O2 was firstly transformed into O2−. Then, O2− could be oxidized to O2− with a stronger oxidation capacity on the oxygen vacancies of the catalyst. Simultaneously, formaldehyde could be adsorbed by the basic surface -OH groups. The adsorbed formaldehyde molecules in the form of polyformaldehyde were oxidized into dioxymethylene, and then reacted with the active oxygen species O2− to produce formate and carbonate (rate-determining step). Subsequently, the formate and carbonate would further react with active oxygen species to obtain CO2 and H2O.

3. Experimental

3.1. Catalyst Preparation

Typically, 0.04 mol of Mn(NO3)2·6H2O, 0.04 mol of Mg(NO3)2·6H2O and 0.04 mol of Al(NO3)3·9H2O were added concurrently to 120 mL of deionized water under vigorous stirring at room temperature to prepare the aqueous solution A. x mol of BiCl3 (x = 0.005, 0.01, 0.012 and 0.015 mol) was added to 60 mL absolute alcohol under vigorous stirring at room temperature to prepare the alcohol solution B. Then, 0.06 mol Na2CO3 was added to 120 mL of deionized water with stirring to prepare the aqueous solution C. Then, solution A and B were simultaneously added dropwise to solution C with stirring at 80 °C for 1.0~1.5 h. In the process of dropping, the appropriate amount of NaOH was added into the mixture to maintain its pH value at 10.0 ± 0.5. The resulting gel-like slurry was further aged with stirring for 12 h at room temperature, and then was filtered and washed with deionized water until pH = 7. The filtrate was dried in air at 373 K for 12 h, and the obtained solid samples were designated as xBiOCl/MnMgAl-HT.
XBiOCl/MnMgAl-HT was further calcined at 450 °C under N2 for 8 h, and the as-prepared solid samples were designated as xBiOCl/MnMgAlO (x = 0.005, 0.01 and 0.015 mol).

3.2. Characterization

The elemental composition of samples was detected using the inductively coupled plasma-optical (ICP) emission spectroscopy (PerkinElmer ICP OPTIMA–3000). Powder X-ray diffraction (XRD) experiments were run on a Rigaku Miniflex diffractometer with a Ni filter using a Cu target. The X-ray gun operated at 30 mA and 50 kV with a scan speed rate of 0.2°/min. N2 adsorption–desorption isotherms of samples were measured using static adsorption procedures at 77 K on a Micromeritics ASAP-2000 instrument (Norcross, GA), and the surface areas of samples were obtained using the BET method. Thermogravimetric analysis (TGA) was performed on a Setaram TGA-92 thermal analyzer under nitrogen, and the samples were heated from 50 to 700 °C at 10 °C/min. X-ray photoelectron spectra (XPS) of samples were obtained using Perkin-Elmer PHI 5000C, and all binding energies were calibrated according to the reference of contaminant carbon (C1S = 284.6 eV). Scan electron microscope (SEM) experiments were performed on the JEOL JSM-7600F microscope.
The temperature-programmed reduction (H2-TPR) equipment (Finesorb-3010) consisted of a thermal conductivity detector (TCD) connected to a flow-control system and a programmed heating unit. In each test, 0.1 g of the sample (40–60 mesh) was placed in a quartz reactor and reduced in10% H2 in N2 at a flow rate of 60 mL min−1 with a heating rate of 10 °C min−1 from 50 °C to 700 °C.
CO2 temperature-programmed desorption (CO2-TPD) and O2 temperature-programmed desorption (O2-TPD) tests were performed on the same instrument as H2-TPR. Prior to each test, 0.1 g of the sample (40–60 mesh) was pre-treated in a Ar flow (60 mL min−1) at 300 °C for 30 min with a heating rate of 10 °C min−1, followed by cooling down to 50 °C in the same flow in order to yield clean surfaces. Afterward, a flow of CO2 or 21% O2/N2 at a rate of 20 mL min−1 was passed through the sample for 1 h at 50 °C. Additionally, the physically adsorbed CO2 or O2 was purged off for 1 h. Finally, the sample was heated from 50 °C to 700 °C at a rate of 10 °C min−1 for the desorption of the previous adsorbed CO2 or O2 in a flow of Ar (60 mL min−1).
In situ ATR-IR experiments were studied on a Fourier transform infrared spectroscopy (Bruker Tensor-27) from 400 to 4000 cm−1 equipped with an attenuated total reflection (ATR) accessory. Considering the low concentration of formaldehyde in our test, formaldehyde droplets (37 w.%) were dropped to the catalysts powder. The samples were exposed to air and identified at different times (10, 20, 30, 40 min).

3.3. Oxidation Removal Reaction of Formaldehyde

Typically, 100 mg catalyst was loaded in an affixed-bed quartz tube reactor (diameter = 4 mm). Under atmospheric pressure, a gas reactant mixture of 100 ppm formaldehyde and air was passed through the catalyst bed at 100 mL min−1. The gaseous formaldehyde was produced by passing air flow over the formaldehyde solution at 0 °C. Outflow gases were analyzed using an online Agilent 8600 gas chromatograph equipped with an FID detector. The removal efficiency of formaldehyde was evaluated in terms of CO2 concentration according to the carbon balance.

4. Conclusions

xBiOCl/MnMgAlO was a promising catalyst in the low-temperature oxidation removal of formaldehyde in air. The complete removal efficiency of formaldehyde could be achieved at 70 °C when the reaction was performed for 200 min. Such a high catalytic performance could be attributed to the synergetic catalysis of abundant surface oxygen vacancies and high surface basicity. The surface oxygen vacancies derived from the presence of the reduced element state of Bi(3−x)+ on the surface of BiOCl and Mn3+ on the surface of MnMgAlO support, which induced the generation of more active oxygen species and thus benefited the removal reaction of formaldehyde. Simultaneously, xBiOCl/MnMgAlO showed increased surface basicity in comparison with their parent hydrotalcites due to the perfect exposure of base sites during calcination. This favored the adsorption of reactant formaldehyde molecules and further increased the probability of formaldehyde removal by oxidation, which also contributed to their efficient catalytic performance. Furthermore, xBiOCl/MnMgAlO showed excellent stability and potential application prospect.

Author Contributions

X.W., G.W. and Y.M. designed the experiments; X.W. and G.W. performed the experiments; X.W. analyzed the data and wrote the paper. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Key Research and Development Program of Jiangsu Province [grant numbers BE2018718] and the Open Research fund of Key Laboratory for Organic Electronics and Information Displays.

Conflicts of Interest

No conflict of interest was declared here.

References

  1. Salthammer, T.; Mentese, S.; Marutzky, R. Formaldehyde in the indoor environment. Chem. Rev. 2010, 110, 2536–2572. [Google Scholar] [CrossRef]
  2. Hakim, M.; Broza, Y.Y.; Barash, O.; Peled, N.; Phillips, M.; Amann, A.; Haick, H. Volatile organic compounds of lung cancer and possible biochemical pathways. Chem. Rev. 2012, 112, 5949–5966. [Google Scholar] [CrossRef] [PubMed]
  3. Wenger, O.S. Vapochromism in organometallic and coordination complexes: Chemical sensors for volatile organic compounds. Chem. Rev. 2013, 113, 3686–3733. [Google Scholar] [CrossRef]
  4. Bai, B.Y.; Qiao, Q.; Li, J.H.; Hao, J.M. Progress in research on catalysts for catalytic oxidation of formaldehyde. Chin. J. Catal. 2016, 37, 102–122. [Google Scholar] [CrossRef]
  5. Torres, J.Q.; Royer, S.; Bellat, J.P.; Giraudon, J.M.; Lamonier, J.F. Formaldehyde: Catalytic oxidation as a promising soft way of elimination. ChemSusChem 2013, 6, 578–592. [Google Scholar] [CrossRef] [PubMed]
  6. Huang, H.B.; Xu, Y.; Feng, Q.Y.; Leung, D.Y.C. Low temperature catalytic oxidation of volatile organic compounds: A review. Catal. Sci. Technol. 2015, 5, 2649–2669. [Google Scholar] [CrossRef]
  7. Nie, L.H.; Yu, J.G.; Jaroniec, M.; Tao, F.F. Room-temperature catalytic oxidation of formaldehyde on catalysts. Catal. Sci. Technol. 2016, 6, 3649–3669. [Google Scholar] [CrossRef]
  8. Zhang, Y.P.; Mo, J.H.; Li, Y.G.; Sundell, J.; Wargocki, P.; Zhang, J.; Little, J.C.; Corsi, R.; Deng, Q.H.; Leung, M.H.K.; et al. Can commonly-used fan-driven air cleaning technologies improve indoor air quality? A literature review. Atmos. Environ. 2011, 45, 4329–4343. [Google Scholar] [CrossRef]
  9. Chen, M.H.; Qin, Y.P.; Wang, W.Z.; Li, X.Y.; Wang, J.J.; Wen, H.; Yang, Z.Q.; Wang, P. Engineering oxygen vacancies via amorphization in conjunction with W-doping as an approach to boosting catalytic properties of Pt/Fe-W-O for formaldehyde oxidation. J. Hazar. Mater. 2021, 416, 126224. [Google Scholar] [CrossRef]
  10. Yang, T.F.; Huo, Y.; Liu, Y.; Rui, Z.B.; Ji, H.B. Efficient formaldehyde oxidation over nickel hydroxide promoted Pt/γ-Al2O3 with a low Pt content. Appl. Catal. B Environ. 2017, 200, 543–551. [Google Scholar] [CrossRef]
  11. Tan, H.Y.; Wang, J.; Yu, S.Z.; Zhou, K.B. Support morphology-dependent catalytic activity of Pd/CeO2 for formaldehyde oxidation. Environ. Sci. Technol. 2015, 49, 8675–8682. [Google Scholar] [CrossRef] [PubMed]
  12. Ye, J.W.; Cheng, B.; Wageh, S.; Al-Ghamdib, A.A.; Yu, J.G. Flexible Mg–Al layered double hydroxide supported Pt on Al foil for use in room-temperature catalytic decomposition of formaldehyde. RSC Adv. 2016, 6, 34280–34287. [Google Scholar] [CrossRef]
  13. Chen, Y.X.; Huang, Z.W.; Zhou, M.J.; Hu, P.P.; Du, C.T.; Kong, L.D.; Chen, J.M.; Tang, X.F. The active sites of supported silver particle catalysts in formaldehyde oxidation. Chem. Commun. 2016, 52, 9996–9999. [Google Scholar] [CrossRef] [PubMed]
  14. Xu, Z.H.; Yu, J.G.; Jaroniec, M. Efficient catalytic removal of formaldehyde at room temperature using AlOOH nanoflakes with deposited P. Appl. Catal. B Environ. 2015, 163, 306–312. [Google Scholar] [CrossRef]
  15. Li, Y.B.; Wang, C.Y.; Zhang, C.B.; He, H. Formaldehyde oixidation on Pd/TiO2 catalysts at room temperature: The effects of surface oxygen vacancies. Top. Catal. 2020, 63, 810–816. [Google Scholar] [CrossRef]
  16. Lin, M.Y.; Yu, X.L.; Yang, X.Q.; Ma, X.Y.; Ge, M.F. Exploration of the active phase of the hydrotalcite-derived cobalt catalyst for HCHO oxidation. Chin. J. Catal. 2019, 40, 703–712. [Google Scholar] [CrossRef]
  17. Qi, Y.Q.P.; Zhang, W.R.; Zhang, Y.S.; Bai, G.M.; Wang, S.W.; Liang, P. Formaldehyde oxidation at room temperature over layered MnO2. Catal. Commun. 2021, 153, 106293. [Google Scholar] [CrossRef]
  18. Ma, C.; Sun, S.; Lu, H.; Hao, Z.; Yang, C.G.; Wang, B.; Chen, C.; Song, M.Y. Remarkable MnO2 structure-dependent H2O promoting effect in HCHO oxidation at room temperature. J. Hazar. Mater. 2021, 414, 125542. [Google Scholar] [CrossRef]
  19. Tao, Y.; Li, R.; Huang, A.B.; Ma, Y.N.; Ji, S.D.; Jin, P.; Luo, H.J. High catalytic activity for formaldehyde oxidation of an interconnected network structure composed of d-MnO2 nanosheets and c-MnOOH nanowires. Adv. Manuf. 2020, 8, 429–439. [Google Scholar] [CrossRef]
  20. Wang, Z.; Wang, W.Z.; Zhang, L.; Jiang, D. Surface oxygen vacancies on Co3O4 mediated catalytic formaldehyde oxidation at room temperature. Catal. Sci. Technol. 2016, 6, 3845–3853. [Google Scholar] [CrossRef]
  21. Lu, S.H.; Li, K.L.; Huang, F.L.; Chen, C.C.; Sun, B. Efficient MnOx-Co3O4-CeO2 catalysts for formaldehyde elimination. Appl. Surf. Sci. 2017, 400, 277–282. [Google Scholar] [CrossRef]
  22. Bai, L.; Wyrwalski, F.; Safariamin, M.; Bleta, R.; Lamonier, J.F.; Przybylski, C.; Monflier, E.; Ponchel, A. Cyclodextrin-cobalt (II) molecule-ion pairs as precursors to active Co3O4/ZrO2 catalysts for the complete oxidation of formaldehyde: Influence of the cobalt source. J. Catal. 2016, 341, 191–204. [Google Scholar] [CrossRef]
  23. Huang, Y.C.; Fan, W.J.; Long, B.; Li, H.B.; Qiu, W.T.; Zhao, F.Y.; Tong, Y.X.; Ji, H.B. Alkali-modified non-precious metal 3D-NiCo2O4 nanosheets for efficient formaldehyde oxidation at low temperature. J. Mater. Chem. A 2016, 4, 3648–3654. [Google Scholar] [CrossRef]
  24. Dai, Z.J.; Yu, X.W.; Huang, C.; Li, M.; Su, J.F.; Guo, Y.P.; Xu, H.; Ke, Q.F. Nanocrystalline MnO2 on an activated carbon fiber for catalytic formaldehyde removal. RSC Adv. 2016, 6, 97022–97029. [Google Scholar] [CrossRef]
  25. Rong, S.P.; Zhang, P.Y.; Wang, J.L.; Liu, F.; Yang, Y.J.; Yang, G.L.; Liu, S. Ultrathin manganese dioxide nanosheets for formaldehyde removal and regeneration performance. Chem. Eng. J. 2016, 306, 1172–1179. [Google Scholar] [CrossRef]
  26. Bai, B.Y.; Qiao, Q.; Li, J.H.; Ha, J.M. Synthesis of three-dimensional ordered mesoporous MnO2 and its catalytic performance in formaldehyde oxidation. Chin. J. Catal. 2016, 37, 27–31. [Google Scholar] [CrossRef]
  27. Bai, B.Y.; Qiao, Q.; Arandiyan, H.; Li, J.H.; Hao, J.M. Three-dimensional ordered mesoporous MnO2 supported Ag nanoparticles for catalytic removal of formaldehyde. Environ. Sci. Technol. 2016, 50, 2635–2640. [Google Scholar] [CrossRef]
  28. Zhu, L.; Wang, J.L.; Rong, S.P.; Wang, H.Y.; Zhang, P.Y. Cerium modified birnessite-type MnO2 for gaseous formaldehyde oxidation at low temperature. Appl. Catal. B Environ. 2017, 211, 212–221. [Google Scholar] [CrossRef]
  29. Huang, Y.X.; Ye, K.H.; Li, H.B.; Fan, W.J.; Zhang, Y.M.; Ji, H.B. A highly durable catalysts based on CoxMn3-xO4 nanosheets for low-temperature formaldehyde oxidation. Nano Res. 2016, 9, 3881–3892. [Google Scholar] [CrossRef]
  30. Peña O’Shea, V.A.; Álvarez-Galván, M.C.; Fierro, J.L.G.; Arias, P.L. Influence of feed composition on the activity of Mn and PdMn/Al2O3 catalysts for combustion of formaldehyde/methanol. Appl. Catal. B Environ. 2005, 57, 191–199. [Google Scholar] [CrossRef]
  31. Li, H.; Qin, F.; Yang, Z.; Cui, X.; Wang, J.; Zhang, L. New reaction pathway induced by plasmon for selective benzyl alcohol oxidation on BiOCl possessing oxygen vacancies. J. Am. Chem. Soc. 2017, 139, 3513–3521. [Google Scholar] [CrossRef] [PubMed]
  32. Ning, X.; Li, Y.; Yu, H.; Peng, F.; Wang, H.; Yang, Y. Promoting role of bismuth and antimony on Pt catalysts for the selective oxidation of glycerol to dihydroxyacetone. J. Catal. 2016, 335, 95–104. [Google Scholar] [CrossRef]
  33. Wang, X.L.; Wu, G.D.; Zhang, X.L.; Wang, D.F.; Lan, J.Y.; Li, J.Y. Selective oxidation of glycerol to glyceraldehyde with H2O2 catalyzed by CuNiAl hydrotalcites supported BiOCl in Neutral Media. Catal. Lett. 2019, 149, 1046–1056. [Google Scholar] [CrossRef]
  34. Cavani, F.; Trifiro, F.; Vaccari, A. Hydrotalcite-type anionic clays: Preparation, properties and applications. Catal. Today 1991, 11, 173–301. [Google Scholar] [CrossRef]
  35. Labajos, F.M.; Rives, V.; Ulibarri, M.A. Effect of hydrothermal and thermal treatments on the physicochemical properties of Mg-Al hydrotalcite-like materials. J. Mater. Sci. 1992, 27, 1546–1552. [Google Scholar] [CrossRef]
  36. Yan, Z.X.; Xu, Z.H.; Cheng, B.; Jiang, C.J. Co3O4 nanorod-supported Pt with enhanced performance for catalytic HCHO oxidation at room temperature. Appl. Surf. Sci. 2017, 404, 426–434. [Google Scholar] [CrossRef]
  37. Prescott, H.A.; Li, Z.J.; Kemnitz, E.; Trunschke, A.; Deutsch, J.; Lieske, H.; Auroux, A. Application of calcined Mg–Al hydrotalcites for Michael additions: An investigation of catalytic activity and acid–base properties. J. Catal. 2005, 234, 119–130. [Google Scholar] [CrossRef]
  38. Wu, G.D.; Wang, X.L.; Chen, B.; Li, J.P.; Zhao, N.; Wei, W.; Sun, Y.H. Fluorine-modified mesoporous Mg–Al mixed oxides: Mild and stable base catalysts for O-methylation of phenol with dimethyl carbonate. Appl. Catal. A Gen. 2007, 329, 106–111. [Google Scholar] [CrossRef]
  39. Li, H.; Li, J.; Jia, F.L.; Zhang, L.Z. Oxygen vacancy-mediated photocatalysis of BiOCl: Reactivity, selectivity, and perspectives. Angew. Chem. Int. Ed. 2017, 56, 2–19. [Google Scholar] [CrossRef]
  40. Wu, G.D.; Wang, X.L.; Wei, W.; Sun, Y.H. Fluorine-modified mesoporous Mg–Al mixed oxides: A solid base with variable basic sites and tunable basicity. Appl. Catal. A Gen. 2010, 377, 107–113. [Google Scholar] [CrossRef]
  41. Ishikawa, S.; Goto, Y.; Kawahara, Y.; Inukai, S.; Hiyoshi, N.; Dummer, N.F.; Murayama, T.; Yoshida, A.; Sadakane, M.; Ueda, W. Synthesis of crystalline microporous Mo−V−Bi oxide for selective oxidation of light alkanes. Chem. Mater. 2017, 29, 2939–2950. [Google Scholar] [CrossRef] [Green Version]
  42. Xia, Y.T.; Wang, J.L.; Gu, C.Q.; Ling, Y.; Gao, Z.M. MnO2/Al foil decorated air cleaner with self-driven property for the abatement of indoor formaldehyde. Chem. Eng. J. 2020, 382, 122872. [Google Scholar] [CrossRef]
  43. Zou, N.; Nie, Q.; Zhang, X.R.; Zhang, G.K.; Wang, J.L.; Zhang, P.Y. Electrothermal regeneration by Joule heat effect on carbon cloth based MnO2 catalyst for long-term formaldehyde removal. Chem. Eng. J. 2019, 357, 1–10. [Google Scholar] [CrossRef]
Catalysts 12 00262 g001 550

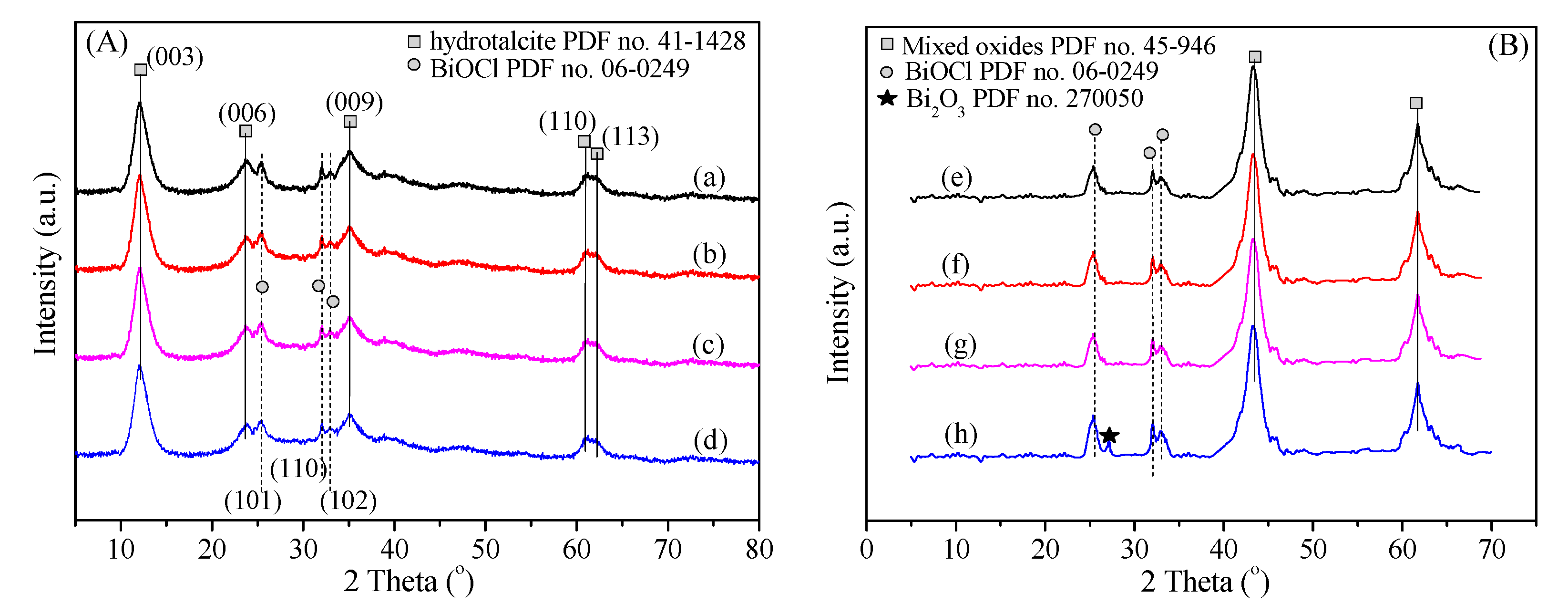

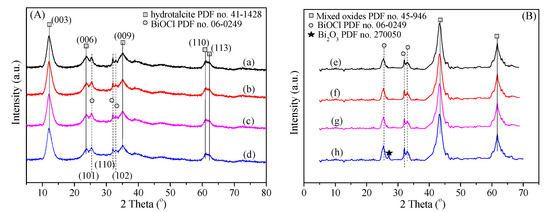

Figure 1. XRD patterns of (A) xBiOCl/MnMgAl-HT and (B) xBiOCl/MnMgAlO (a) 0.005BiOCl/MnMgAl-HT, (b) 0.01BiOCl/MnMgAl-HT, (c) 0.012BiOCl/MnMgAl-HT, (d) 0.015BiOCl/MnMgAl-HT, (e) 0.005BiOCl/MnMgAlO, (f) 0.01BiOCl/MnMgAlO and (g) 0.012BiOCl/MnMgAlO, (h) 0.015BiOCl/MnMgAlO.
Figure 1. XRD patterns of (A) xBiOCl/MnMgAl-HT and (B) xBiOCl/MnMgAlO (a) 0.005BiOCl/MnMgAl-HT, (b) 0.01BiOCl/MnMgAl-HT, (c) 0.012BiOCl/MnMgAl-HT, (d) 0.015BiOCl/MnMgAl-HT, (e) 0.005BiOCl/MnMgAlO, (f) 0.01BiOCl/MnMgAlO and (g) 0.012BiOCl/MnMgAlO, (h) 0.015BiOCl/MnMgAlO.
Catalysts 12 00262 g001
Catalysts 12 00262 g002 550

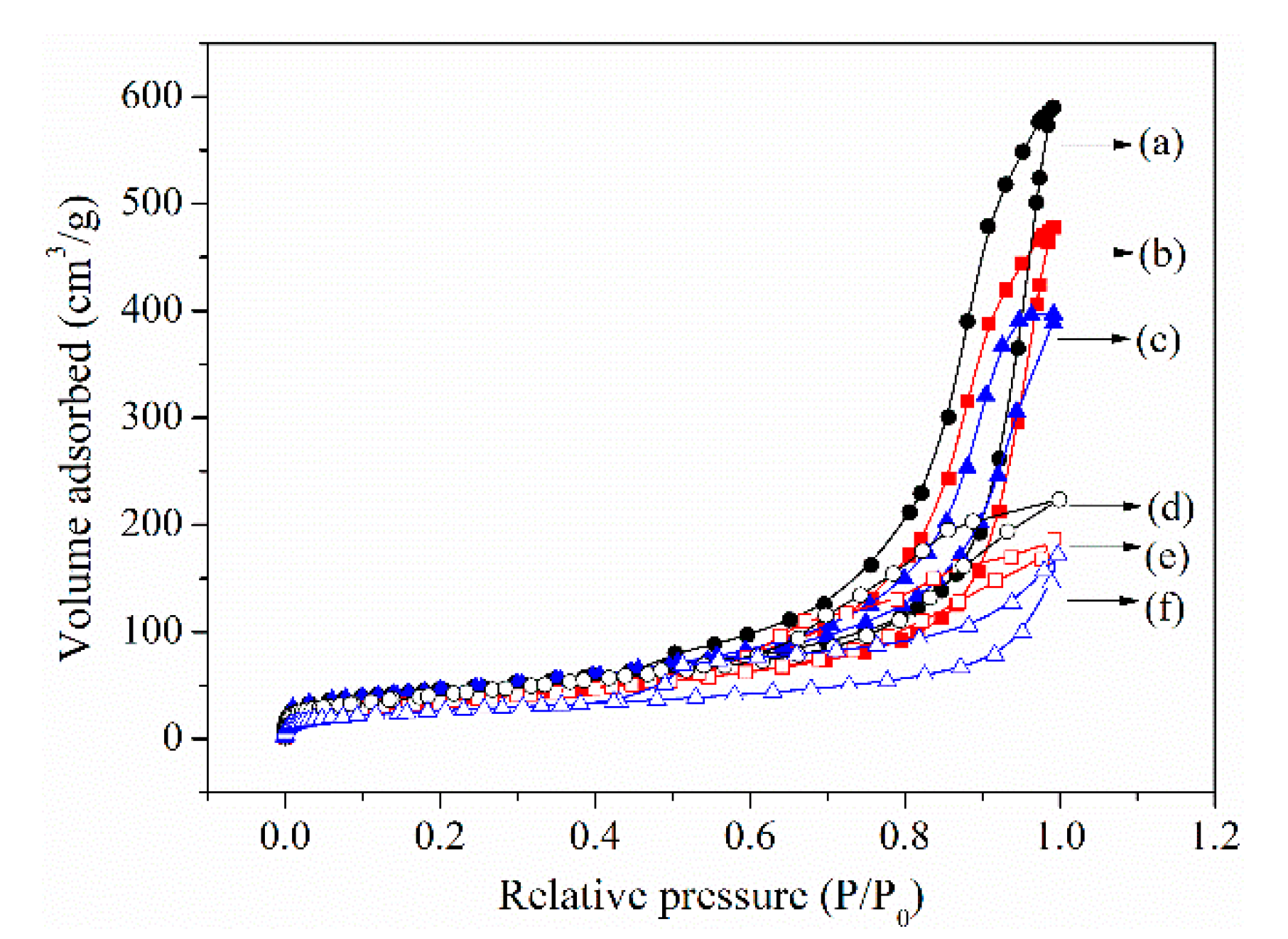

Figure 2. N2 adsorption–desorption isotherms of (a) 0.005BiOCl/MnMgAlO, (b) 0.01BiOCl/MnMgAlO, (c) 0.015BiOCl/MnMgAlO, (d) 0.005BiOCl/MnMgAl-HT, (e) 0.01BiOCl/MnMgAl-HT and (f) 0.015BiOCl/MnMgAl-HT.
Figure 2. N2 adsorption–desorption isotherms of (a) 0.005BiOCl/MnMgAlO, (b) 0.01BiOCl/MnMgAlO, (c) 0.015BiOCl/MnMgAlO, (d) 0.005BiOCl/MnMgAl-HT, (e) 0.01BiOCl/MnMgAl-HT and (f) 0.015BiOCl/MnMgAl-HT.
Catalysts 12 00262 g002
Catalysts 12 00262 g003 550

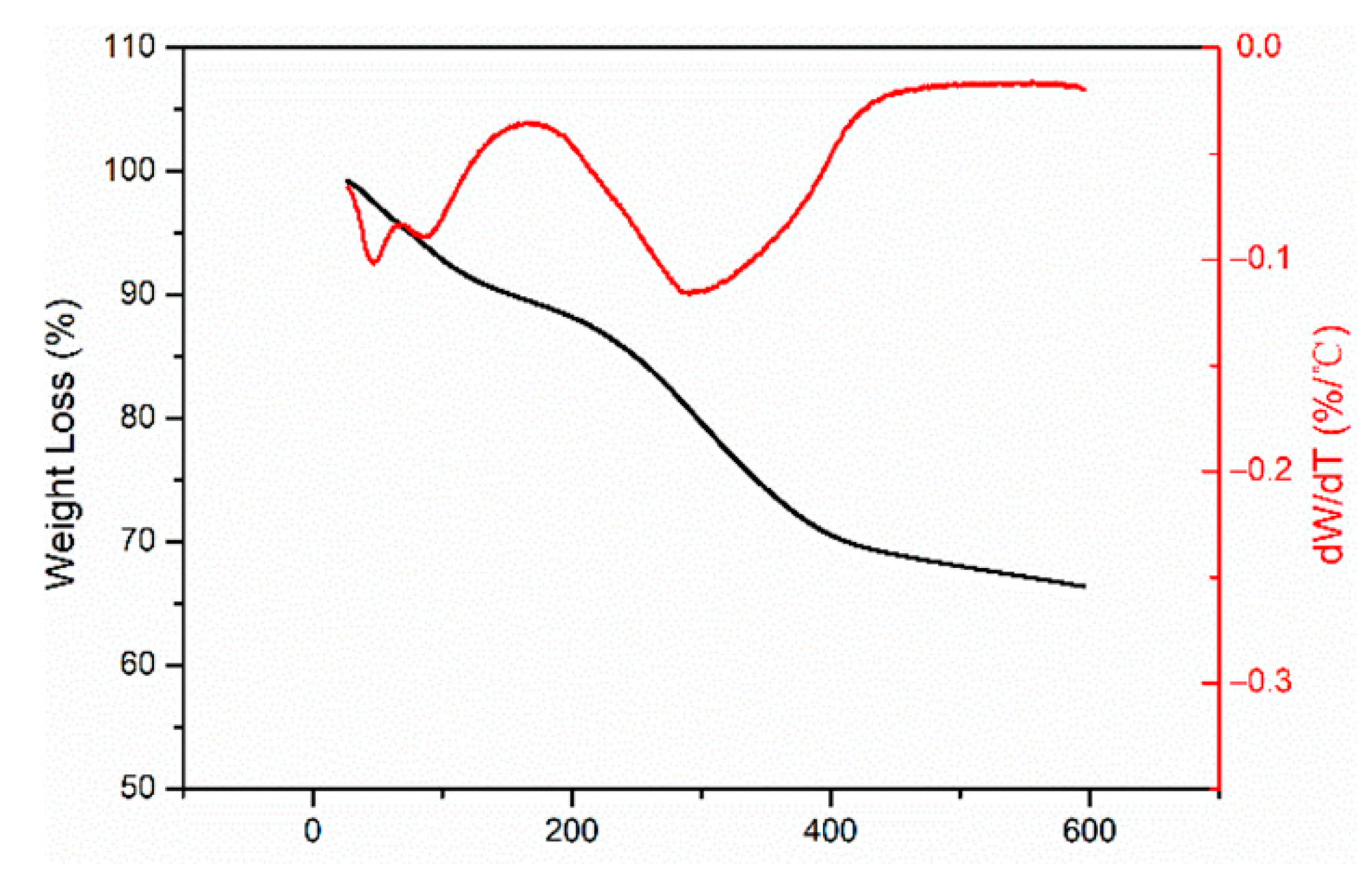

Figure 3. Thermogravimetric weight loss curve and derivative plots of 0.01BiMnMgAl−HT.
Figure 3. Thermogravimetric weight loss curve and derivative plots of 0.01BiMnMgAl−HT.
Catalysts 12 00262 g003
Catalysts 12 00262 g004 550

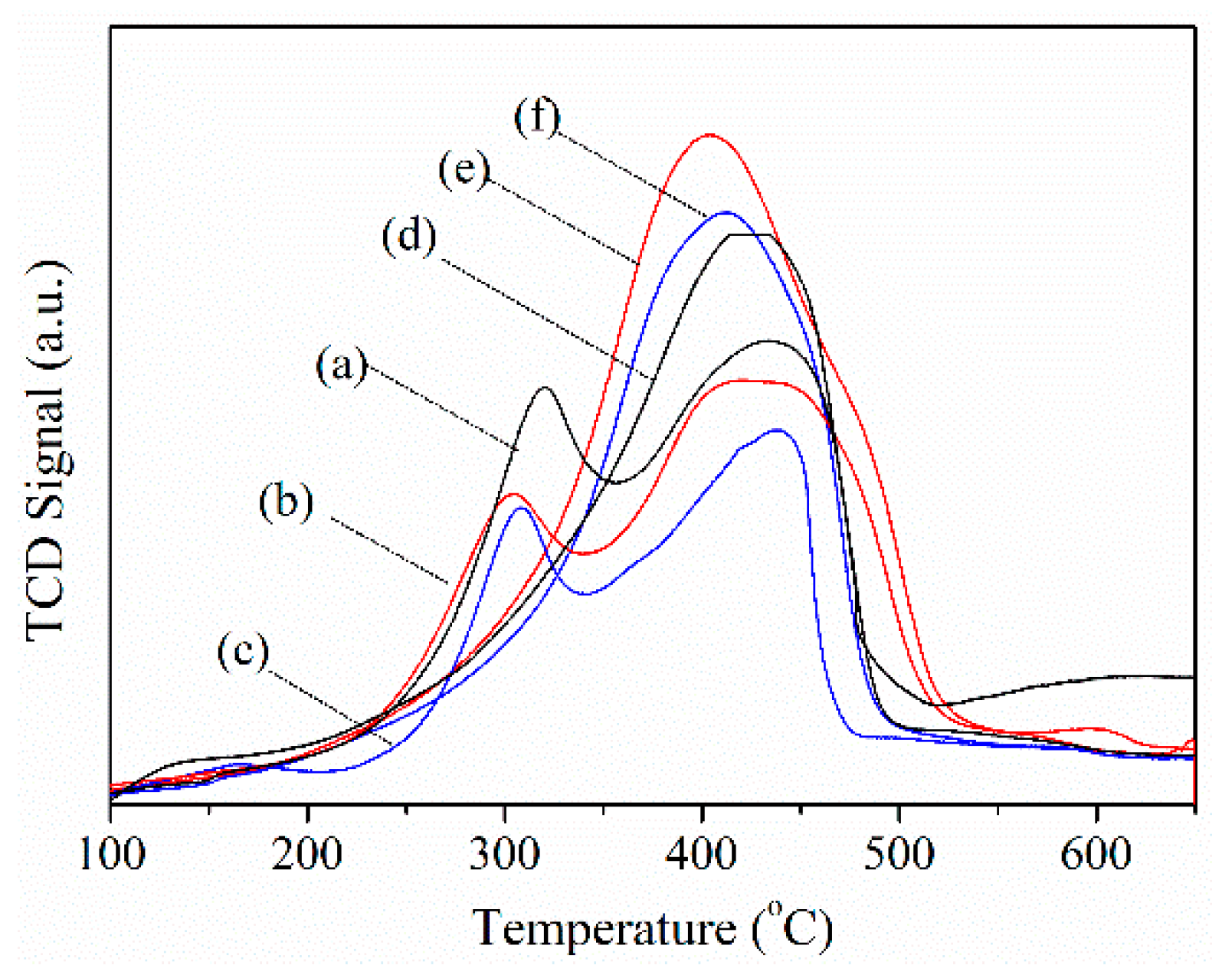

Figure 4. H2-TPR images of (a) 0.005BiOCl/MnMgAlO, (b) 0.01BiOCl/MnMgAlO, (c) 0.015BiOCl/MnMgAlO, (d) 0.005BiOCl/MnMgAl-HT, (e) 0.01BiOCl/MnMgAl-HT and (f) 0.015BiOCl/MnMgAl-HT.
Figure 4. H2-TPR images of (a) 0.005BiOCl/MnMgAlO, (b) 0.01BiOCl/MnMgAlO, (c) 0.015BiOCl/MnMgAlO, (d) 0.005BiOCl/MnMgAl-HT, (e) 0.01BiOCl/MnMgAl-HT and (f) 0.015BiOCl/MnMgAl-HT.
Catalysts 12 00262 g004
Catalysts 12 00262 g005 550

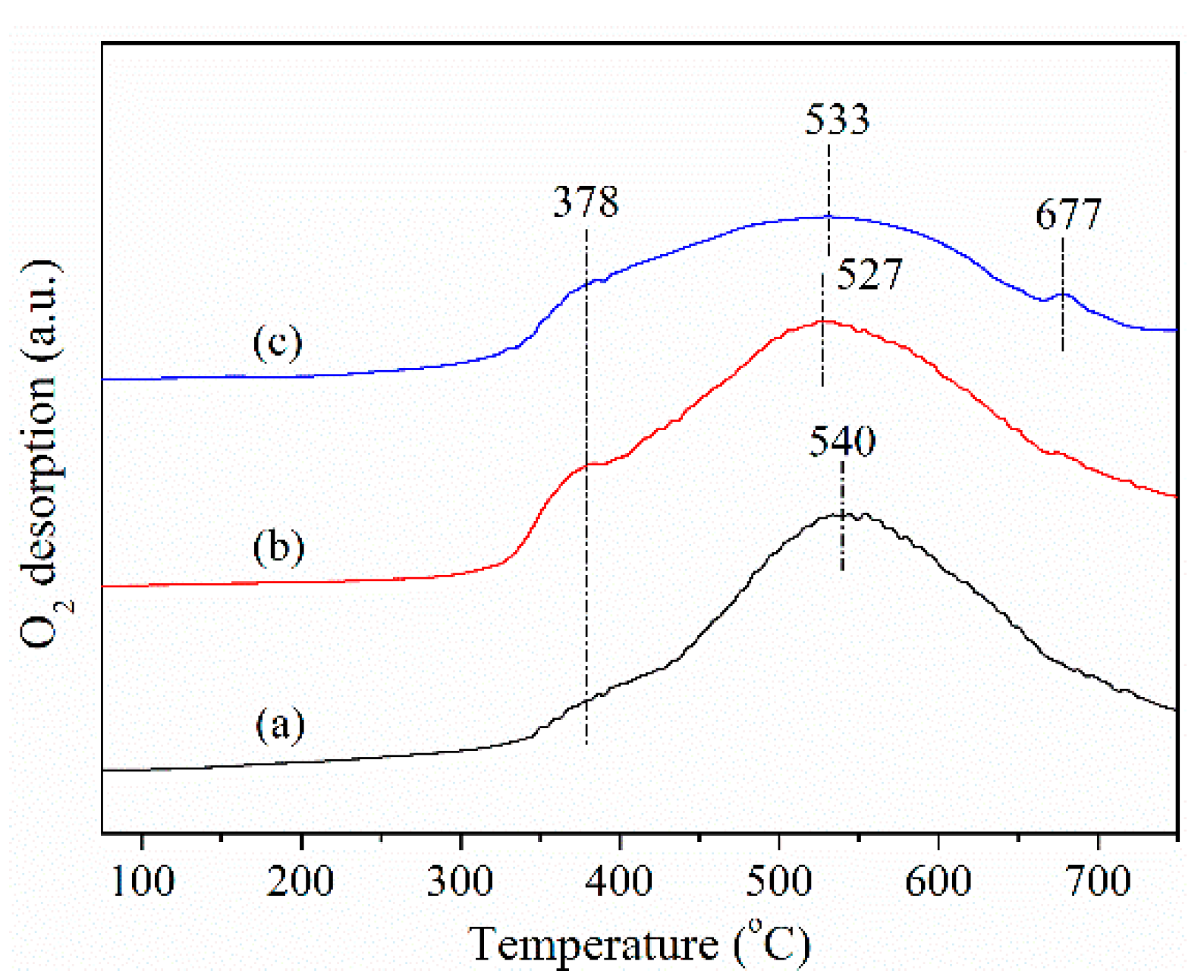

Figure 5. O2-TPD images of (a) 0.005BiOCl/MnMgAlO, (b) 0.01BiOCl/MnMgAlO and (c) 0.015BiOCl/MnMgAlO.
Figure 5. O2-TPD images of (a) 0.005BiOCl/MnMgAlO, (b) 0.01BiOCl/MnMgAlO and (c) 0.015BiOCl/MnMgAlO.
Catalysts 12 00262 g005
Catalysts 12 00262 g006 550

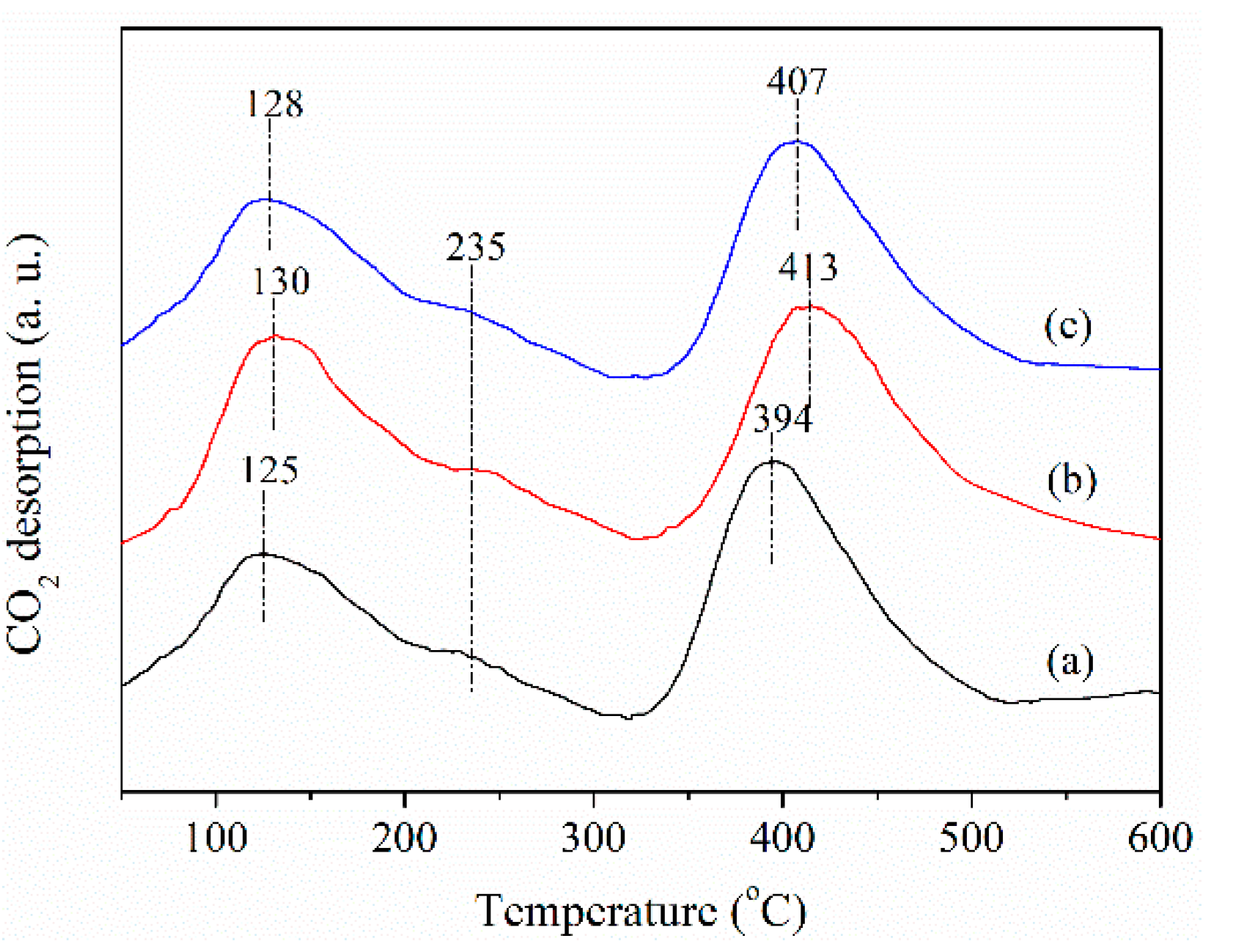

Figure 6. CO2-TPD images of (a) 0.005BiOCl/MnMgAlO, (b) 0.01BiOCl/MnMgAlO and (c) 0.015BiOCl/MnMgAlO.
Figure 6. CO2-TPD images of (a) 0.005BiOCl/MnMgAlO, (b) 0.01BiOCl/MnMgAlO and (c) 0.015BiOCl/MnMgAlO.
Catalysts 12 00262 g006
Catalysts 12 00262 g007 550

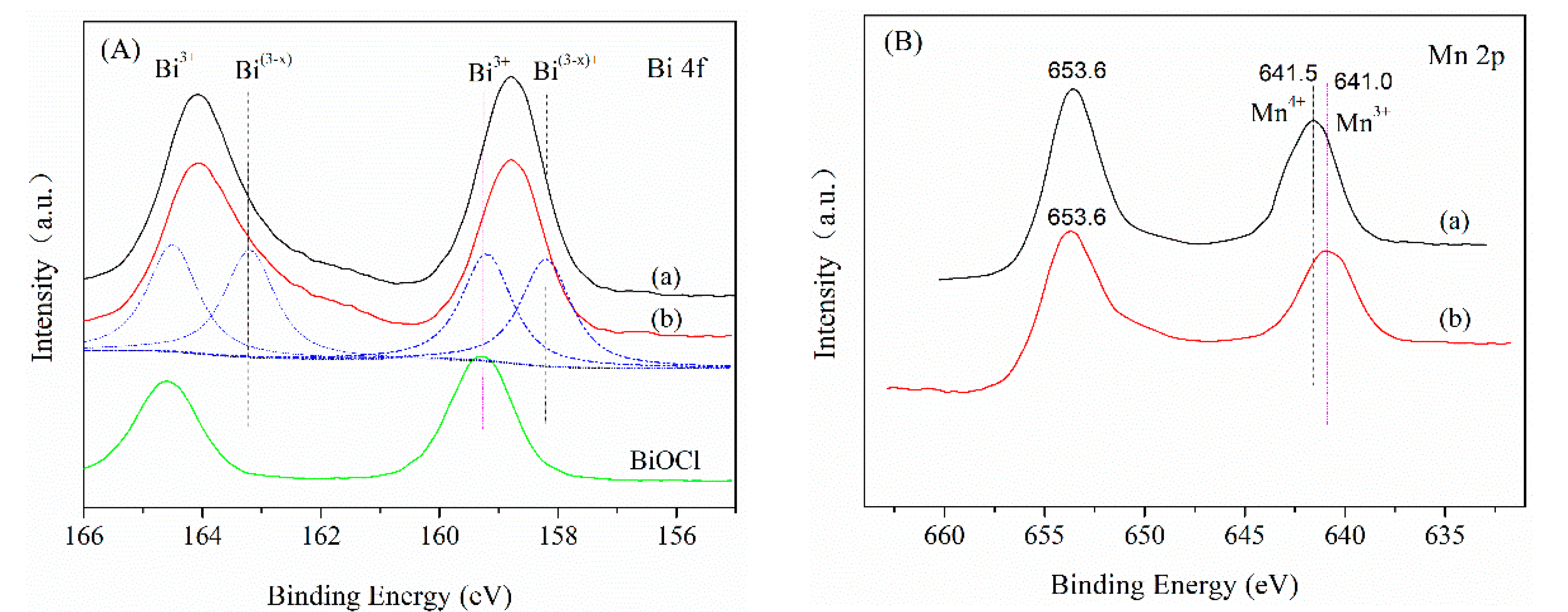

Figure 7. XPS spectra of (A) Bi 4f and (B) Mn 2p, (a) 0.01BiOCl/MnMgAl−HT and (b) 0.01BiOCl/MnMgAlO.
Figure 7. XPS spectra of (A) Bi 4f and (B) Mn 2p, (a) 0.01BiOCl/MnMgAl−HT and (b) 0.01BiOCl/MnMgAlO.
Catalysts 12 00262 g007
Catalysts 12 00262 g008 550

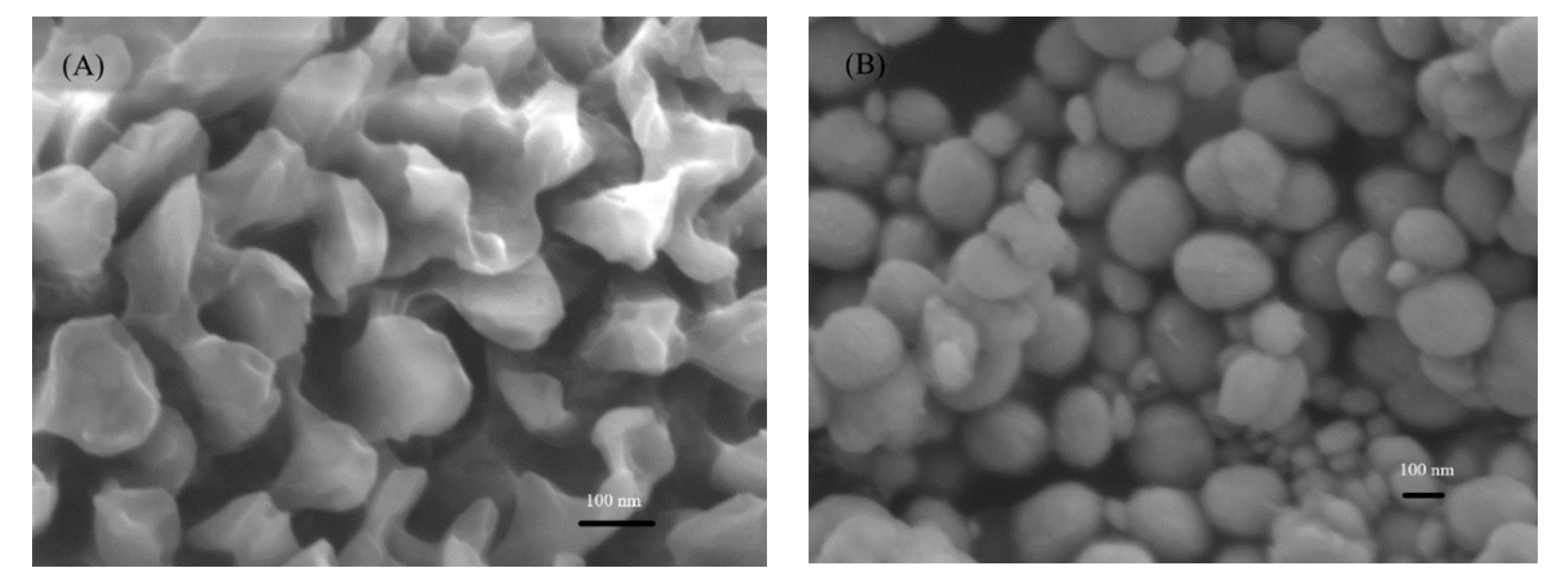

Figure 8. SEM images of (A) 0.01BiOCl/MnMgAl-HT and (B) 0.01BiOCl/MnMgAlO.
Figure 8. SEM images of (A) 0.01BiOCl/MnMgAl-HT and (B) 0.01BiOCl/MnMgAlO.
Catalysts 12 00262 g008
Catalysts 12 00262 g009 550

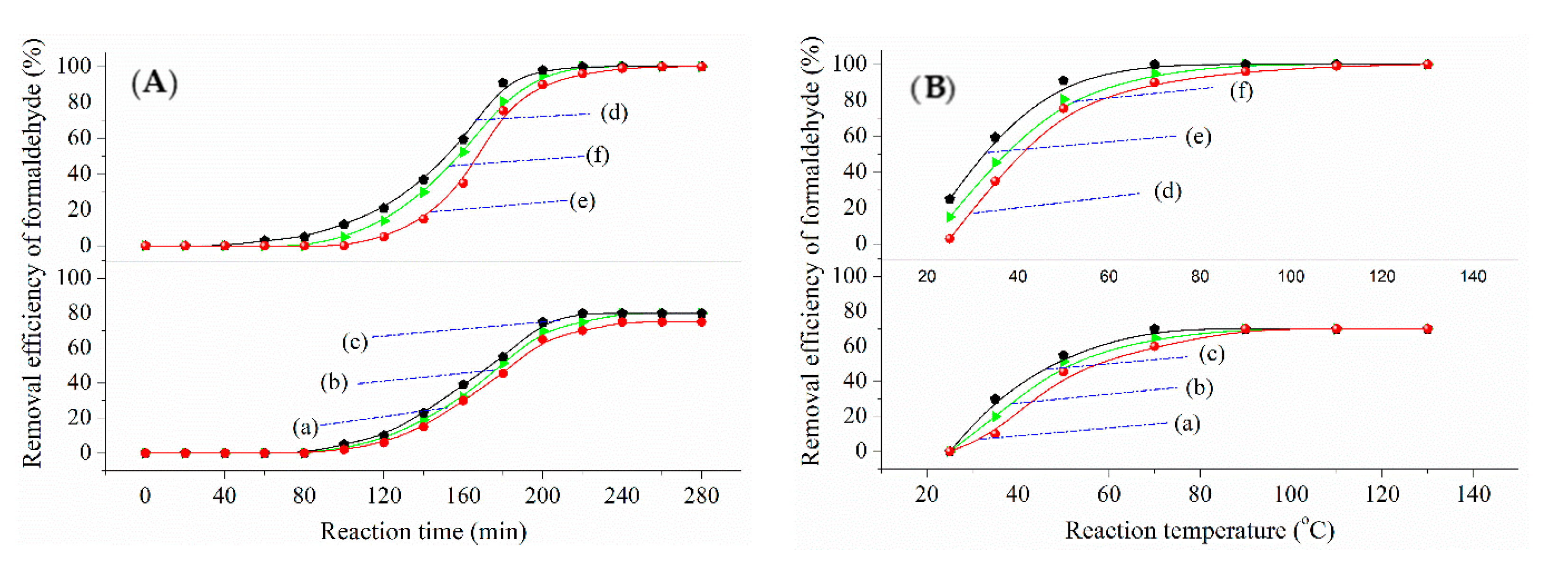

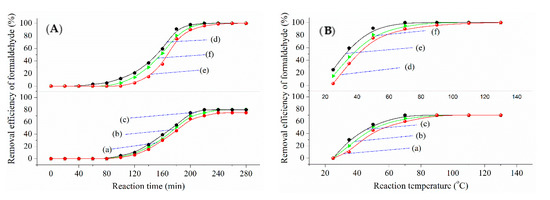

Figure 9. Effect of reaction time (A) and temperature (B) on the catalytic performance of catalysts. (a) 0.005BiOCl/MnMgAl-HT, (b) 0.01BiOCl/MnMgAl-HT, (c) 0.015BiOCl/MnMgAl-HT, (d) 0.005BiOCl/MnMgAlO, (e) 0.01BiOCl/MnMgAlO and (f) 0.015BiOCl/MnMgAlO.
Figure 9. Effect of reaction time (A) and temperature (B) on the catalytic performance of catalysts. (a) 0.005BiOCl/MnMgAl-HT, (b) 0.01BiOCl/MnMgAl-HT, (c) 0.015BiOCl/MnMgAl-HT, (d) 0.005BiOCl/MnMgAlO, (e) 0.01BiOCl/MnMgAlO and (f) 0.015BiOCl/MnMgAlO.
Catalysts 12 00262 g009
Catalysts 12 00262 g010 550

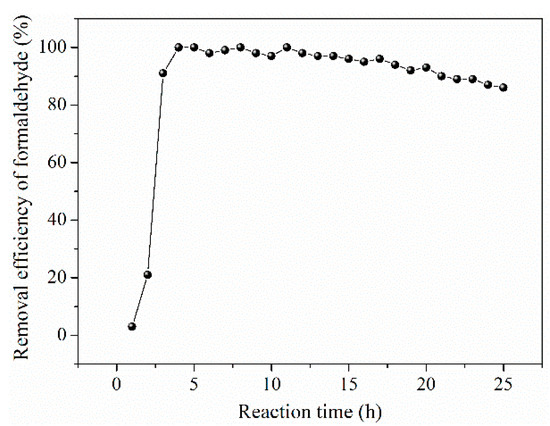

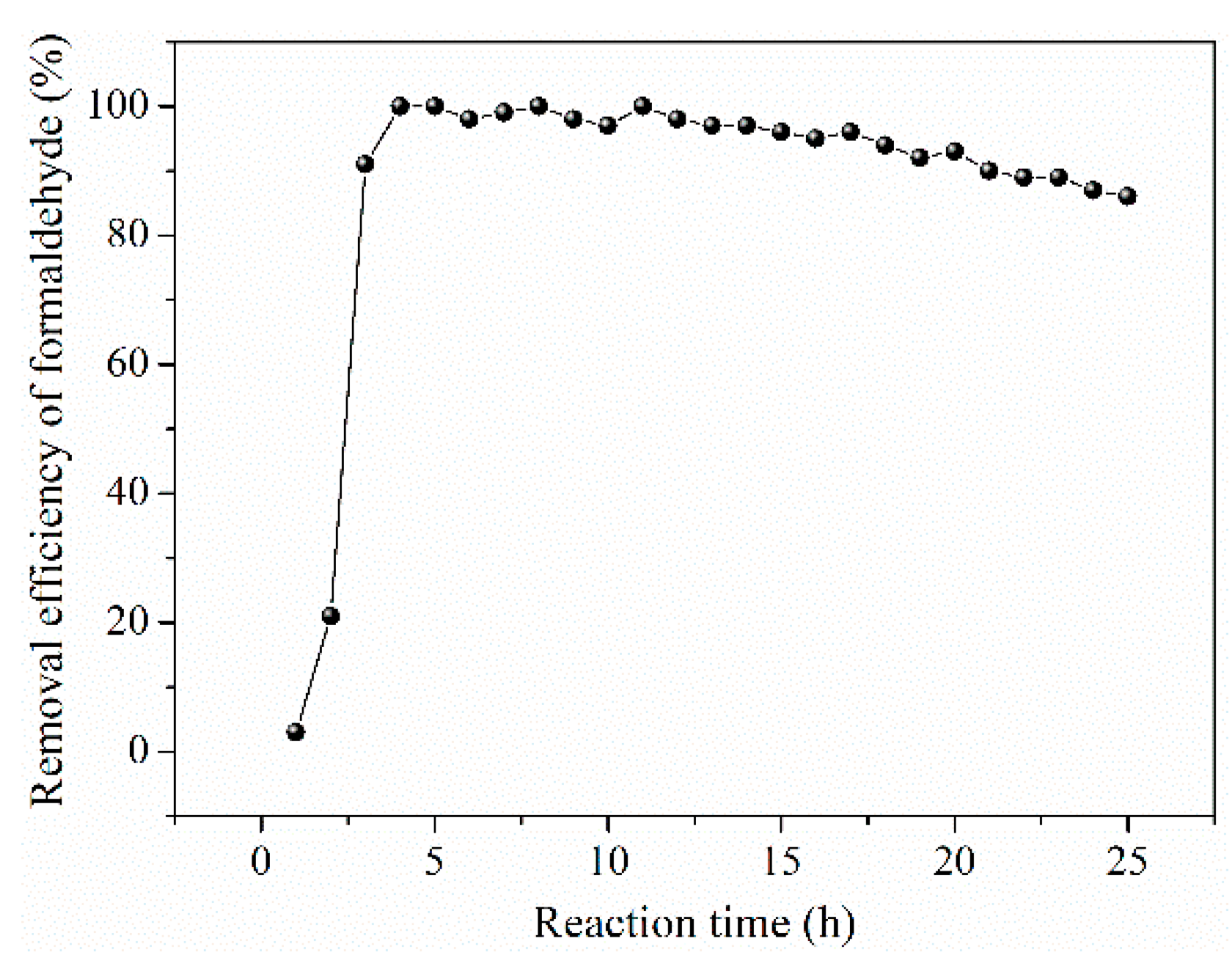

Figure 10. Stability of the representative catalyst 0.01BiOCl/MnMgAlO.
Figure 10. Stability of the representative catalyst 0.01BiOCl/MnMgAlO.
Catalysts 12 00262 g010
Catalysts 12 00262 g011 550

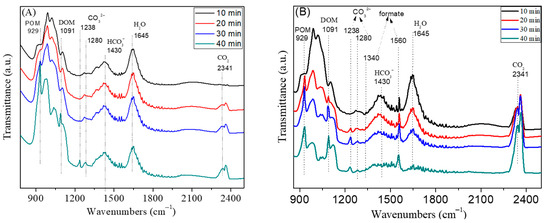

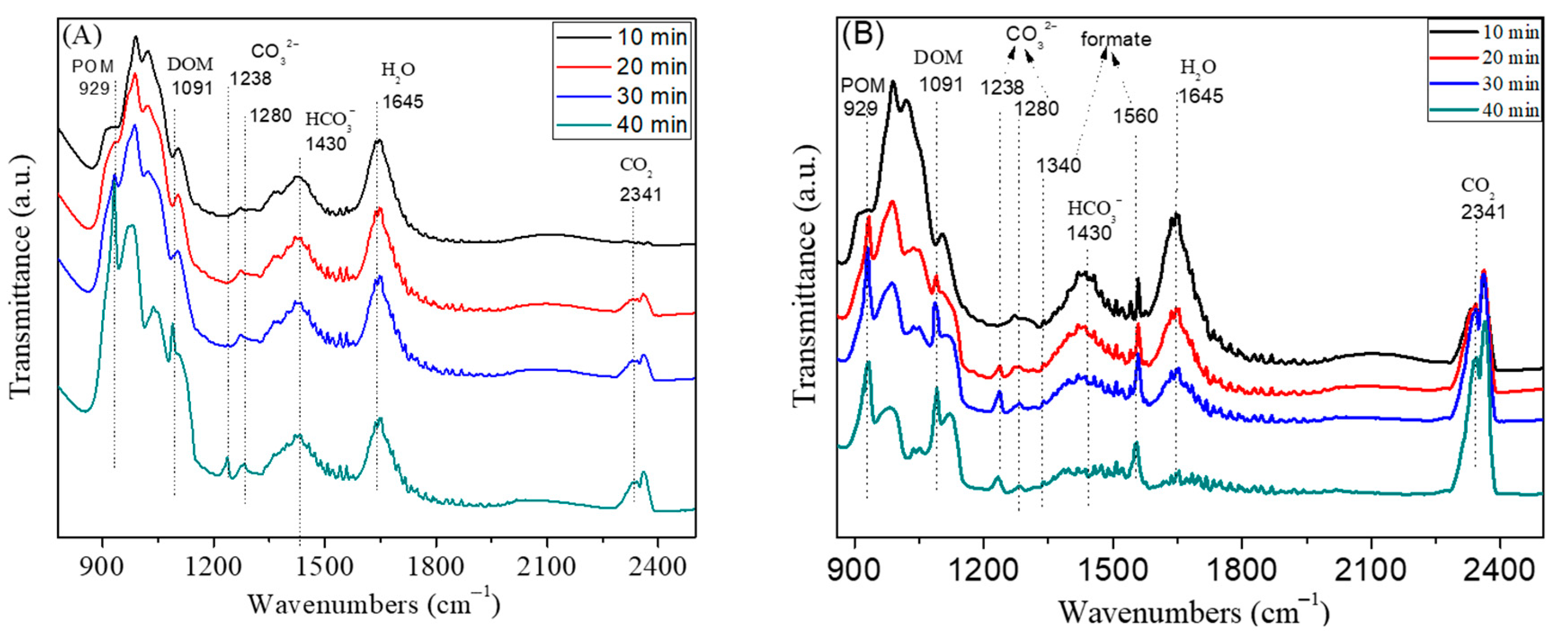

Figure 11. FTIR spectra of (A) 0.01BiOCl/MnMgAl−HT and (B) 0.01BiOCl/MnMgAlO.
Figure 11. FTIR spectra of (A) 0.01BiOCl/MnMgAl−HT and (B) 0.01BiOCl/MnMgAlO.
Catalysts 12 00262 g011
Catalysts 12 00262 sch001 550

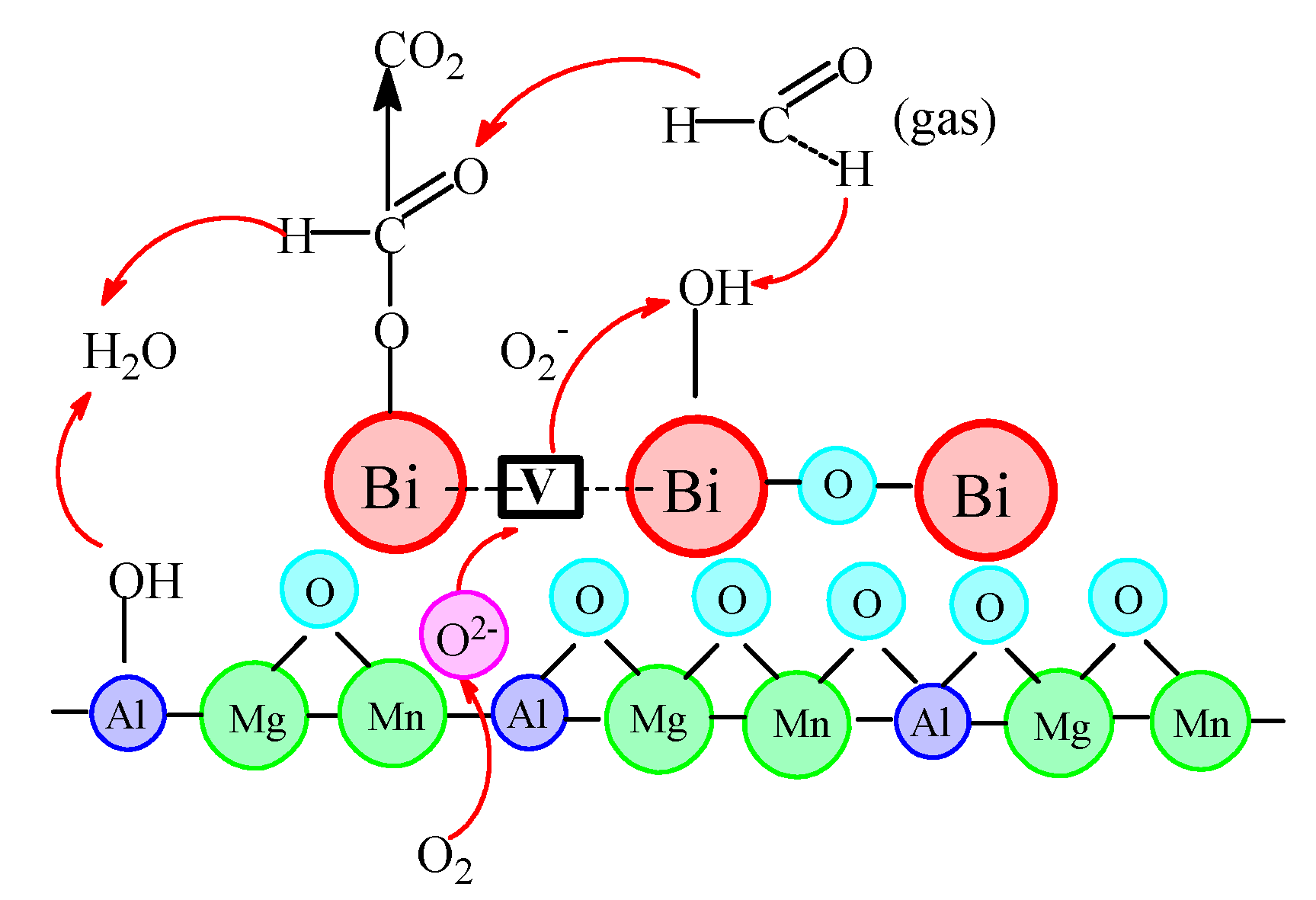

Scheme 1. Possible mechanism of the oxidation removal of formaldehyde over 0.01BiOCl/MnMgAlO.
Scheme 1. Possible mechanism of the oxidation removal of formaldehyde over 0.01BiOCl/MnMgAlO.
Catalysts 12 00262 sch001
Table
Table 1. Catalytic performance of samples in the removal reaction of formaldehyde a.
Table 1. Catalytic performance of samples in the removal reaction of formaldehyde a.
EntryCatalystsMn/Mg/Al Molar RatioSBET
(m2/g)		Removal Efficiency
of Formaldehyde b (%)
1blank--- c---0
2BiOCl---351.5
3MnMgAl-HT1.45/1.46/1857.8
40.015BiOCl/MnMgAl-HT1.46/1.46/17351.4
50.012BiOCl/MnMgAl-HT1.45/1.46/17754.5
60.01BiOCl/MnMgAl-HT1.45/1.47/17854.9
70.005BiOCl/MnMgAl-HT1.47/1.46/18145.5
8MnMgAlO1.45/1.45/12109.5
90.015BiOCl/MnMgAlO1.46/1.47/119780.6
100.012BiOCl/MnMgAlO1.45/1.46/120491.5
110.01BiOCl/MnMgAlO1.45/1.47/120591.0
120.005BiOCl/MnMgAlO1.46/1.45/120775.4
a Reaction conditions: catalyst 100 mg; formaldehyde 100 ppm; air/formaldehyde 100 mL min−1; atmospheric pressure; temperature 60 °C; time 3 h. b Removal efficiency = (the outlet concentration of CO2/the inlet concentration of formaldehyde) × 100. c “---” means no detection.
Table
Table 2. Basicity of different catalysts.
Table 2. Basicity of different catalysts.
SampleCO2 Uptake (µmol/g) a
Weak Basic SitesModerate Basic SitesStrong Basic Sites
0.005BiOCl/MnMgAlO32.56.745.3
0.01BiOCl/MnMgAlO37.89.553.2
0.015BiOCl/MnMgAlO34.68.648.6
a Relative amounts of the basic sites (%) calculated from the peak area.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wang, X.; Wu, G.; Ma, Y. Low-Temperature Oxidation Removal of Formaldehyde Catalyzed by Mn-Containing Mixed-Oxide-Supported Bismuth Oxychloride in Air. Catalysts 2022, 12, 262. https://doi.org/10.3390/catal12030262

AMA Style

Wang X, Wu G, Ma Y. Low-Temperature Oxidation Removal of Formaldehyde Catalyzed by Mn-Containing Mixed-Oxide-Supported Bismuth Oxychloride in Air. Catalysts. 2022; 12(3):262. https://doi.org/10.3390/catal12030262

Chicago/Turabian Style

Wang, Xiaoli, Gongde Wu, and Yanwen Ma. 2022. "Low-Temperature Oxidation Removal of Formaldehyde Catalyzed by Mn-Containing Mixed-Oxide-Supported Bismuth Oxychloride in Air" Catalysts 12, no. 3: 262. https://doi.org/10.3390/catal12030262

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
