Promoting Bifunctional Oxygen Catalyst Activity of Double-Perovskite-Type Cubic Nanocrystallites for Aqueous and Quasi-Solid-State Rechargeable Zinc-Air Batteries

Abstract

Transition metal oxide materials are promising oxygen catalysts that are alternatives to expensive and precious metal-containing catalysts. Integration of transition metal oxides with high activity for oxygen reduction reaction (ORR) and oxygen evolution reaction (OER) is an important pathway for good bifunctionality. In contrast to the conventional physical mixing and hybridization strategies, perovskite-type oxide provides an ideal structure for the integration of the transition metal element atoms on an atomic scale. Herein, B-site ordered double-perovskite-type La_1.6Sr_0.4MnCoO₆ nanocrystallites with ultra-small cubic (20–50 nm) morphology and high specific surface areas (25 m² g⁻¹) were proposed. Rational designs were integrated to promote the ORR-OER catalysis, e.g., introducing oxygen vacancies via A-site cation substitution, further increasing surface oxygen vacancies via integration of a small amount of Pt/C and nanosizing of the material via a facile molten-salt method. The batteries with the La_1.6Sr_0.4MnCoO₆ nanocrystallites and an aqueous alkaline electrolyte demonstrate decent discharge−charge voltage gaps of 0.75 and 1.10 V at 1 and 30 mA cm⁻², respectively, and good cycling stability of 250 h (1500 cycles). A coin-type battery with a gel−polymer electrolyte also presents a good performance.

1. Introduction

Aqueous alkaline rechargeable Zn-air batteries represents a promising technique for large-scale electrochemical energy storage [1,2,3,4]. The sluggish kinetics of oxygen redox result in the high overpotential and relatively low energy efficiency of the Zn-air batteries. Catalysts are needed to facilitate the oxygen redox in alkaline electrolytes, i.e., ORR and OER [5,6]. An ideal catalyst for a Zn-air battery should demonstrate good bifunctional ORR-OER catalysis and should be durable for repeatably charging and discharging. Precious metals (e.g., Pt and Pd) and precious metal oxides (e.g., IrO₂ and RuO₂) have demonstrated very good catalytic activities for ORR and OER, respectively [7]. Good bifunctionality can also be easily achieved by the integration of commercial Pt/C and IrO₂. However, most precious metals present poor cycling stability. The high costs of the precious metals also hinder their practical utility in rechargeable Zn-air batteries, especially for large-scale energy storage systems [8].

Transition metal oxide materials are promising alternatives [9,10]. Some transition metal oxides, e.g., MnO₂, demonstrated promising catalytic activity for ORR, while some others, e.g., Co₃O₄, showed good catalysis for OER [11,12]. Integration of transition metal oxides that takes advantage of their catalysis for either ORR or OER is an important pathway for achieving bifunctional oxygen catalysis. Conventionally, the physical mixing of different oxide materials is the simplest strategy [13]. However, this strategy may result in poor interaction between the components. Hybridization of different oxides via a chemical or electrochemical method is another often-studied pathway [12,14,15]. This strategy, however, usually involves complicated synthesis processes or conditions, which may hinder practical utility.

Different from simple oxides, perovskite oxides are a category of cost-effective complex oxide materials that show promising catalysis in aqueous media [16]. A typical single perovskite oxide has a chemical formula of ABO₃, where A and B are usually rare earth metal cations and transition metal cations, respectively [17]. One of the most significant advantages of perovskite oxide is its flexibility of cation element and composition. Therefore, perovskite-type oxides provide an ideal structure for the integration of the transition metal element atoms on an atomic scale, which is different from the conventional physical mixing or hybridization strategies. In addition, such integration in perovskite oxides can be easily achieved by facile one-step preparation in an ambient atmosphere, which is promising for practical production. In previous research, different single perovskite oxides (e.g., LaNiO₃ [18], La_1−xSr_xCo_1−yMn_yO_3−δ [19,20], LaMn_1−yCo_yO_3−δ [21], Sr_xCo_1−yFe_yO_3−δ [22,23], Sr(Co_0.8Fe_0.2)_0.95P_0.05O_3−δ [24]) and double perovskite oxides (e.g., Sr₂TiMnO₆ [25], Pr_0.5Ba_0.5Mn_1.8−xNb_xCo_0.2O_6−δ [26], (PrBa_0.5Sr_0.5)_0.95Co_1.5Fe_0.5O_5+δ [27,28]) were developed and they showed promising capability for facilitating oxygen redox as catalysts for air cathodes in Zn-air batteries [29,30,31,32,33,34,35,36,37,38].

B-site ordered double perovskite oxide is a sub-catalogue of the perovskite oxide. According to some previous reports, double perovskite demonstrates improved electrochemical stability under catalytic conditions [17,39]. Integrating two different B-site cations (e.g., Mn and Co) into the perovskite structure usually leads to a random and disordered arrangement [21]. Formation of B-site cation ordering may occur when the atomic ratio of the cations is 1:1 [17]. However, achieving the highly ordered cation arrangement is difficult and a slow growth rate is required [40]. At the same time, reducing the particle size of the catalyst can increase the specific area, which is beneficial for improving the activity due to more exposure of active sites. The molten-salt-assisted synthesis method provides an ideal route for achieving the nanosizing of the perovskite material [41,42]. Furthermore, the molten-salt environment may facilitate ionic diffusion during the synthesis process [43], which is expected to shorten the synthesis duration of the B-site ordered double perovskite.

Herein, we proposed a rationally designed B-site ordered double-perovskite-type La_1.6Sr_0.4MnCoO₆ nanocrystallites with an ultra-small cubic morphology and a high specific surface area for Zn-air battery cathodes. Design strategies including nanosizing of the material and introducing oxygen vacancies via A-site cation substitution to effectively improve the oxygen catalysis. A Zn-air battery with the double-perovskite-type La_1.6Sr_0.4MnCoO₆ nanocrystallites demonstrated good discharge−charge voltage gaps and good cycling stability. By increasing surface oxygen vacancies via the integration of a small amount of Pt/C, the bifunctional oxygen catalysis and battery performance were further promoted. This work provides new nanosizing double-perovskite-type nanocrystallites as promising bifunctional oxygen catalysts for Zn-air batteries. The molten-salt-assisted synthesis of the double-perovskite-type La_1.6Sr_0.4MnCoO₆ nanocrystallites will add to the knowledge base of advanced manufacturing techniques for nanosizing oxides and could inspire the development of other functional complex oxide materials.

2. Results and Discussion

2.1. Synthesis and Characterization of the Perovskite-Type Oxide Nanocrystallites

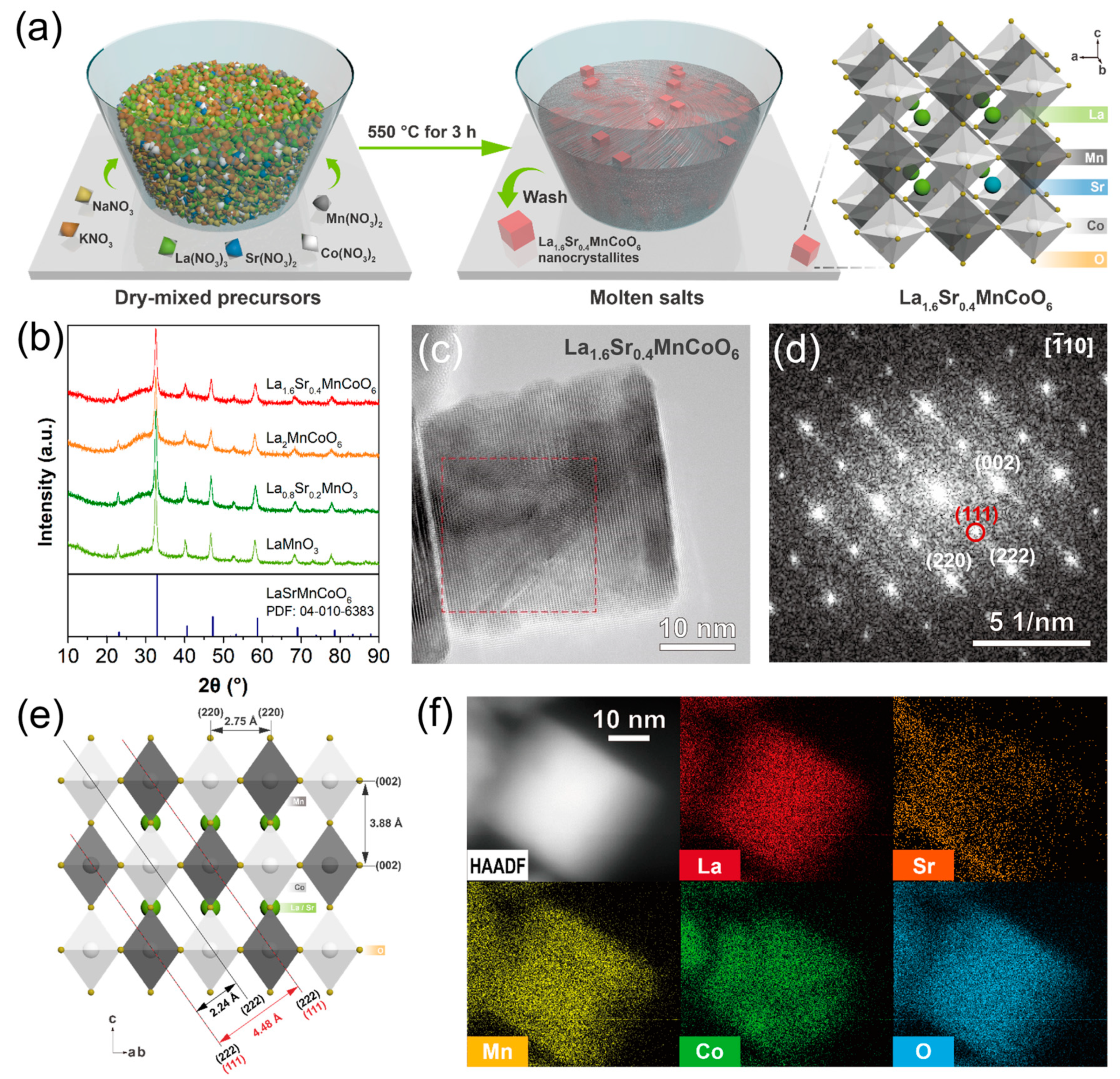

The double-perovskite-type cubic nanocrystallites (La₂MnCoO₆, La_1.6Sr_0.4MnCoO₆) were prepared via a facile molten-salt process (Figure 1a). Taking La_1.6Sr_0.4MnCoO₆ as an example, solid solvent salt powders (Na, K nitrates) and target cation salt powders (i.e., La, Sr, Mn, Co nitrates) were dry mixed and then underwent 3 h heat treatment in an air atmosphere at 550 °C. After washing the residual solvent salts with deionized water, the double-perovskite-type cubic La_1.6Sr_0.4MnCoO₆ nanocrystallites were obtained.

The nanocrystallites show a cubic morphology with a side length of approximately 20 to 50 nm, as presented in the scanning electron microscopy (SEM, Figure S1) and TEM (Figure 1c) images. XRD patterns (Figure 1b) of the La₂MnCoO₆ and La_1.6Sr_0.4MnCoO₆ show that their phases are well aligned with a B-site (Mn and Co) ordered double perovskite with a cubic symmetry of Fm-3m and a unit-cell parameter of a ≈ 7.69 Å, which is double that of a cubic single perovskite (The International Centre for Diffraction Data (ICDD) database Powder Diffraction File (PDF) card No. 04-010-6383 are provided in Figure 2b as a reference) [44]. An illustration of the B-site ordered double perovskite is presented in the inset image in Figure 1a. The TEM image of a cubic La_1.6Sr_0.4MnCoO₆ nanocrystallite (Figure 1c) and its corresponding FFT (Figure 1d) pattern with zone axis of [−1 1 0] shows the (002), (220), and (222) planes with lattice distances of 3.88, 2.75, and 2.24 Å, respectively. The pattern confirms the basic cubic structure of the material. The FFT pattern also presents a spot with weaker intensity at the position of half (222) spot. The super-structure spot represents the (111) plane with a lattice distance of 4.48 Å, which doubles that of the (222) plane. This provides evidence that the perovskite sub-cells are doubled, which suggests the existence of the B-site ordered feature of the La_1.6Sr_0.4MnCoO₆ double perovskite, as illustrated in Figure 1e [44]. The high-angle annular dark-field scanning TEM (HAADF-STEM) and energy-dispersive X-ray spectroscopy (EDS) mapping images of the La_1.6Sr_0.4MnCoO₆ indicate the homogeneous distribution of the compositional elements (Figure 1f). Analysis of the N₂ adsorption−desorption isotherms (Figure S2) indicates that La₂MnCoO₆ and La_1.6Sr_0.4MnCoO₆ share a similar pore structure with specific areas of 22.1 and 25.2 m² g⁻¹ and total pore volumes (micro- and mesopores) of 0.023 and 0.024 cm³ g⁻¹, respectively (Table S1).

2.2. Bifunctional Catalytic Activity for ORR and OER

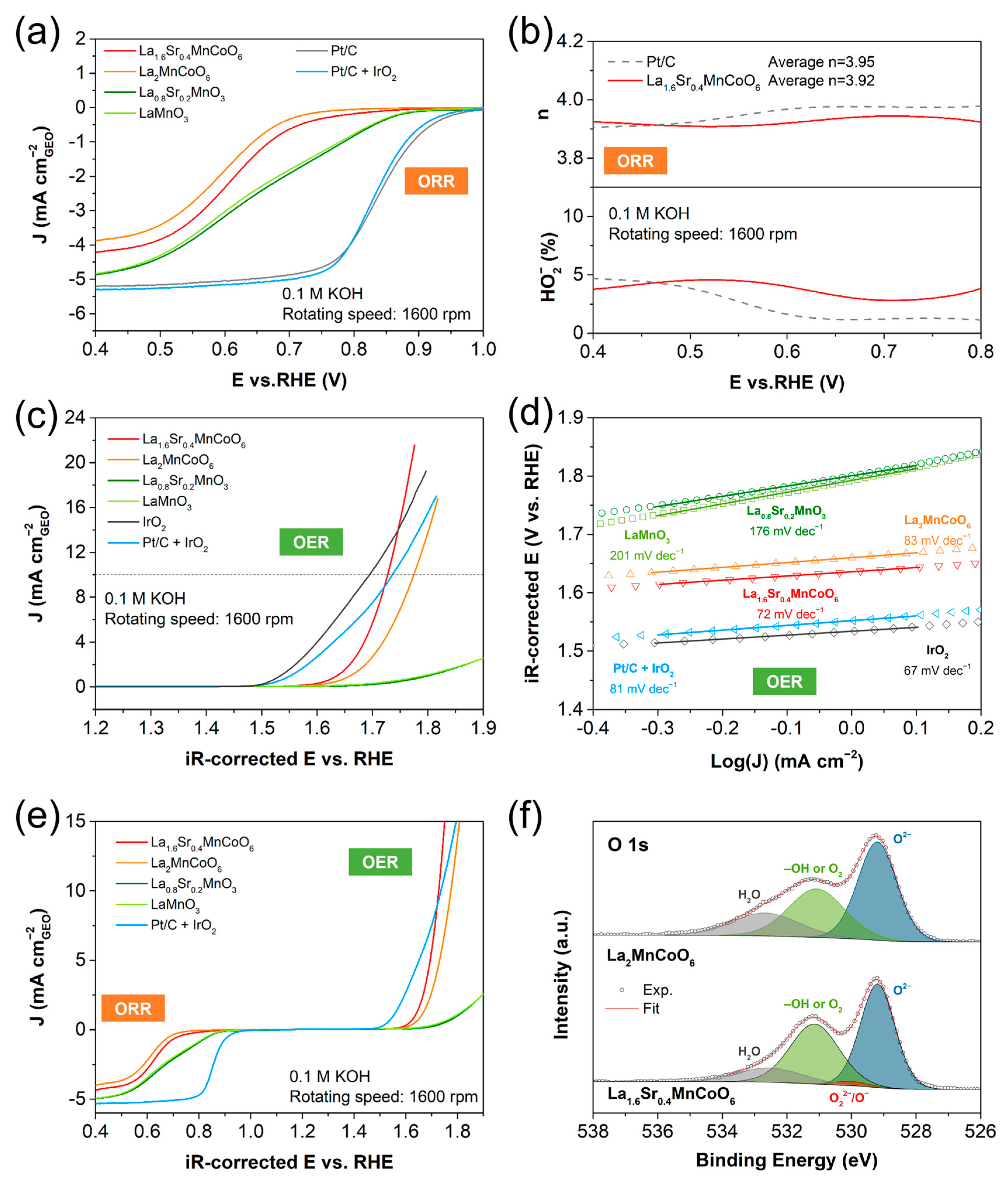

The catalytic activities of ORR and OER were evaluated using a rotating disk electrode (RDE) in a 0.1 M KOH electrolyte. By integrating both Mn and Co cations into the double-perovskite-type structure, both La₂MnCoO₆ and La_1.6Sr_0.4MnCoO₆ demonstrated decent ORR-OER activity (Figure 2a,c). Without the integration of Co cations, LaMnO₃ and La_0.8Sr_0.2MnO₃ presented very poor catalysis for OER, though they demonstrated better catalysis for ORR (Figure 2a). The potential difference (ΔE) of major parameters, i.e., half-wave potential (E_1/2, V vs. reversible hydrogen electrode (RHE)) for ORR and potential at the current density of 10 mA cm⁻² (E_j=10, V vs. iR-corrected RHE) for OER, is an indicator for evaluating the bifunctional catalysis. As compared in Figure 2e, the E_1/2 of La_1.6Sr_0.4MnCoO₆ (0.63 V) was higher than that of La₂MnCoO₆ (0.61 V). At the same time, the E_j=10 of La_1.6Sr_0.4MnCoO₆ (1.73 V) was lower than that of La₂MnCoO₆ (1.78 V). As a result, a decent ΔE of 1.10 V was observed for La_1.6Sr_0.4MnCoO₆. In addition, La_1.6Sr_0.4MnCoO₆ presented good selectivity of OH⁻ production over the unfavorable HO₂⁻, which is indicated by the ~4 electron transfer number (Figure 2b) [45]. La_1.6Sr_0.4MnCoO₆ also demonstrated a Tafel slope of 72 mV dec⁻¹ (Figure 2d), indicating fast OER kinetics, which is comparable to the benchmark commercial IrO₂ (67 mV dec⁻¹).

The improved catalytic activity of La_1.6Sr_0.4MnCoO₆ compared to La₂MnCoO₆ for both ORR and OER could be associated with the appearance of oxygen vacancies in the double-perovskite-type oxide, which could promote catalysis of ORR and OER according to previous reports [46,47]. Usually, oxygen vacancies are unlikely to occur in LaMnO₃ [48]. The oxygen vacancies in La_1.6Sr_0.4MnCoO₆ could be ascribed to the introduction of Co and the partial substitution of La (III) with Sr (II). X-ray photoelectron spectroscopy (XPS) O 1s spectra presented in Figure 2f show three main surface oxygen species: lattice oxygen (O²⁻), hydroxide or adsorbed oxygen (–OH⁻/O₂), and adsorbed water (H₂O) in La₂MnCoO₆ [49,50]. An additional peak centered at ~530.1 eV can be identified for La_1.6Sr_0.4MnCoO₆. The peak could be attributed to highly oxidative oxygen species (O₂²⁻/O⁻), which is related to oxygen vacancies [51,52]. The decent catalysis for ORR and OER could also be attributed to the nanosizing of the La_1.6Sr_0.4MnCoO₆, which results in higher surface exposure for oxygen redox. As presented in Figure S3, the La_1.6Sr_0.4MnCoO₆ nanocrystallites prepared via the molten-salt synthesis method demonstrated better ORR-OER activities than those of a La_1.6Sr_0.4MnCoO₆ sample prepared with a conventional sol−gel method, which usually produces particles with a size of serval micrometers.

Although decent bifunctional catalytic activity, good selectivity of OH⁻ generation, and fast kinetics of OER were achieved for La_1.6Sr_0.4MnCoO₆, its ΔE (1.10 V) was still not comparable to that of Pt/C + IrO₂ (0.89 V) at this stage. Further optimization of the La_1.6Sr_0.4MnCoO₆ to improve its catalytic activity is required and will be demonstrated in the last section of this work.

2.3. Performance of the Zn-Air Batteries

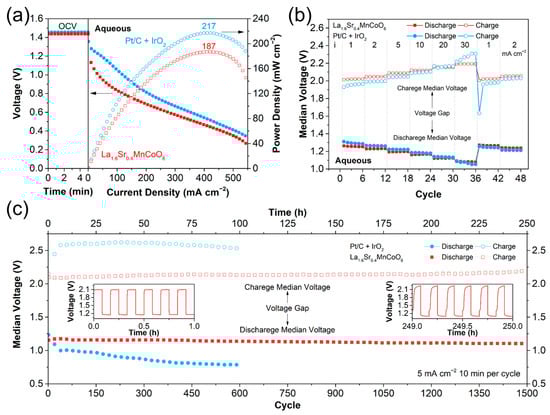

To testify to the validation of the above analysis results, the La_1.6Sr_0.4MnCoO₆ nanocrystallites were applied as a catalyst on air cathodes of aqueous and quasi-solid-state Zn-air batteries. An aqueous Zn-air battery with the catalyst demonstrated a decent open-circuit voltage (OCV) of 1.44 V (Figure 3a), close to that with the Pt/C + IrO₂ catalyst (1.46 V). A PPD (Figure 3a) of 187 mW cm⁻² was achieved at 419 mA cm⁻² for La_1.6Sr_0.4MnCoO₆, which is comparable to that of the Pt/C + IrO₂ (217 mW cm⁻² at 408 mA cm⁻²). The high-rate performance (from 1 to 30 mA cm⁻²) was evaluated by repeating a recharge process of 5 min galvanostatic charging and 5 min galvanostatic discharging. The median voltage points of each charging and discharging profile are presented in Figure 3b [53]. The La_1.6Sr_0.4MnCoO₆ cathode presented charging and discharging voltages of 2.01 and 1.26 V, respectively, indicating a decent charge−discharge voltage gap of 0.75 V, corresponding to a round-trip efficiency (i.e., voltage efficiency) of 63% at 1 mA cm⁻². As the overpotential increased with the rise in current densities, the voltage gaps increased to 0.82, 0.90, 0.96, 1.04, and 1.10 at 2, 5, 10, 20, and 30 mA cm⁻², respectively. As a comparison, although Pt/C + IrO₂ cathode demonstrated better performance at a low current density (e.g., voltage gap of 0.62 V and voltage efficiency of 68% at 1 mA cm⁻²), the cathode experienced a fast deterioration in working voltage, especially at high current densities. The La_1.6Sr_0.4MnCoO₆ cathode also showed good voltage retention when the current density was reduced to 1 and 2 mA cm⁻², with a voltage gap of 0.73 and 0.81 V, respectively (Figure 3b).

The battery performance of La_1.6Sr_0.4MnCoO₆ was also compared to that of La₂MnCoO₆ without Sr substitution. Benefiting from the higher ORR and OER activity, as indicated from the RDE tests presented in Figure 2, the OCV, PPD (Figure S4), and rate performance (Figure S5) of the La_1.6Sr_0.4MnCoO₆ cathode were superior to those of the La₂MnCoO₆ cathode (OCV: 1.40 V, PPD: 167 mW cm⁻²).

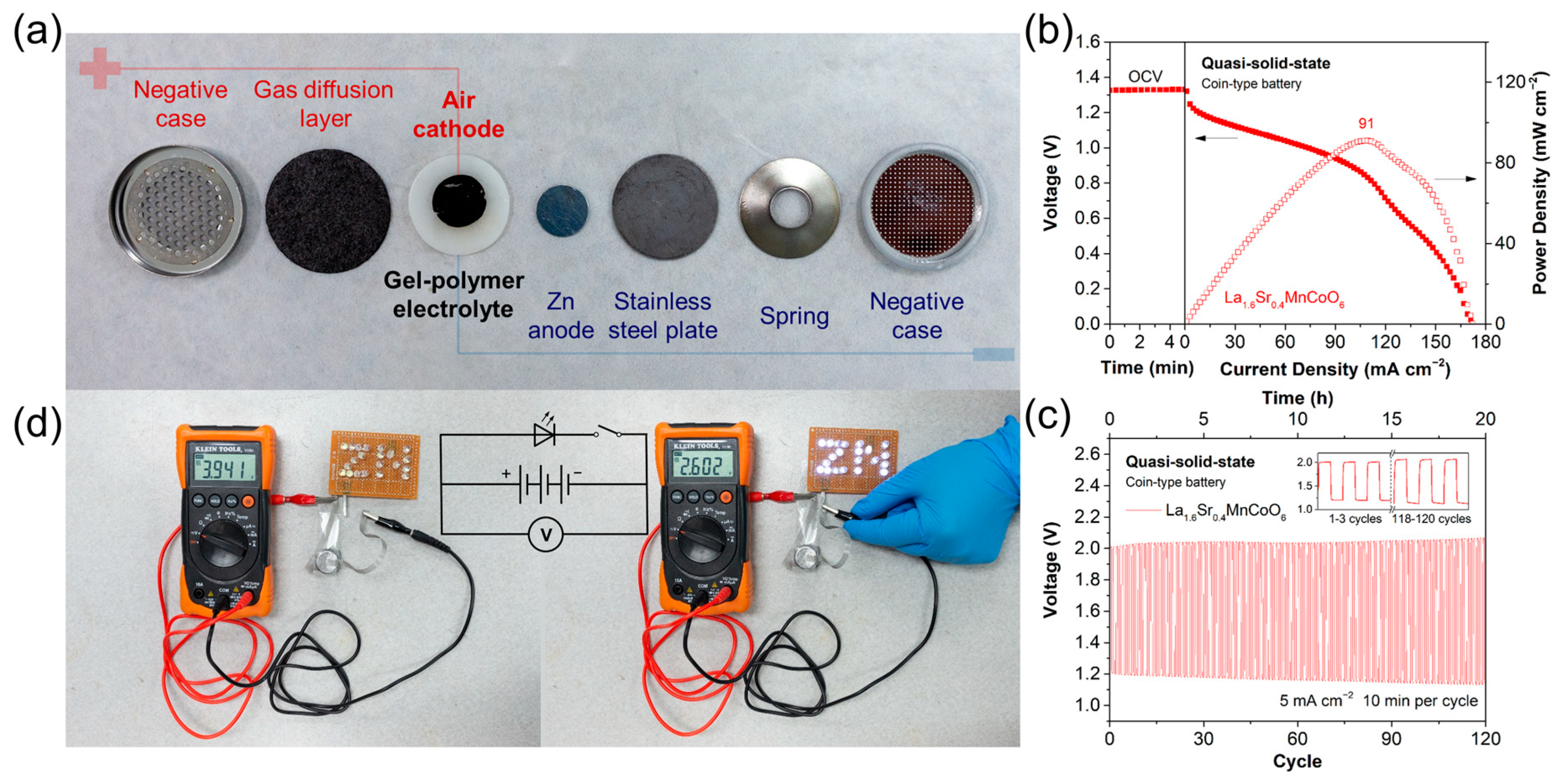

La_1.6Sr_0.4MnCoO₆ was also evaluated with coin-type batteries with a gel−polymer electrolyte (Figure 4a). As presented in Figure 4b, a single coin-type battery presented a decent OCV of 1.33 V and PPD of 91 mW cm⁻². The battery also showed decent cycling stability over 20 h (120 cycles), with a charge−discharge voltage gap of ~0.8 V and a round-trip efficiency of ~55% at 5 mA cm⁻² (Figure 4c). A three-series coin-type battery group was also established to verify the practical utility of powering small electronic devices. The battery group presented an OCV of 3.94 V, which dropped to 2.60 V when 21 light-emitting diode (LED) bulbs were lit (Figure 4d). Once the work loading was removed, the voltage quickly recovered to a level (3.79 V) close to the original OCV within 10 s.

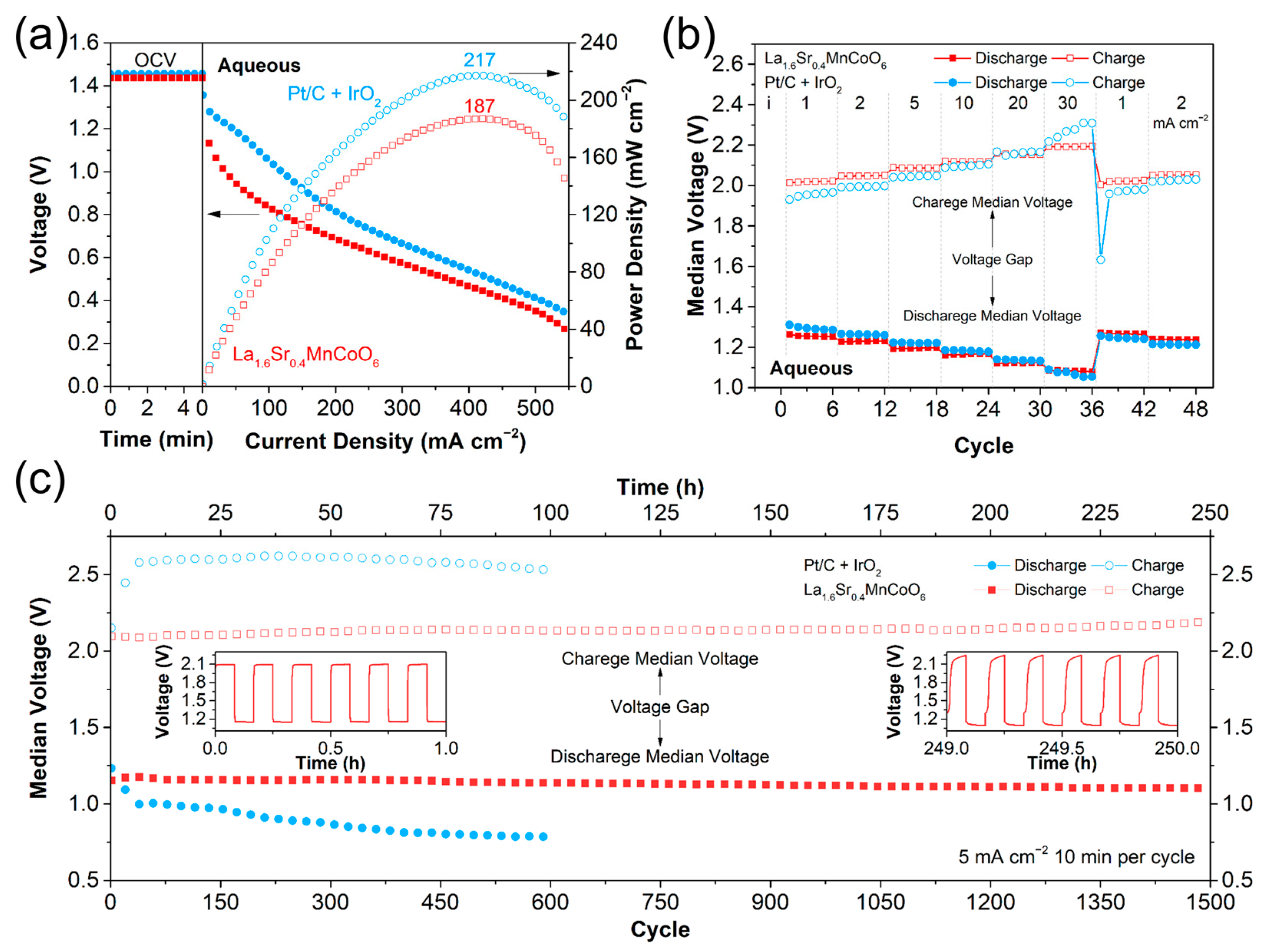

As presented in Figure 3c, the La_1.6Sr_0.4MnCoO₆ cathode also demonstrated superior stability (compared to the commercial Pt/C + IrO₂ catalyst) in 1500 recharging cycles (250 h) at 5 mA cm⁻². During the cycling performance, the La_1.6Sr_0.4MnCoO₆ cathode showed a gradual increase in voltage gap (inset image in Figure 3c) from 0.95 V (1st cycle) to 1.09 V (1500th cycle). The stability was much better than that of the Pt/C + IrO₂ cathode, which presented a significant increase of overpotentials after cycling for only a few hours. Prolonged cycling of the Zn-air battery over 333 h (1000 cycles) was conducted to evaluate the stability of the La_1.6Sr_0.4MnCoO₆ material and identify the potential reason for the degradation of battery performance. As presented in Figure S6a, a significant increase in overpotentials for both charging and discharging was observed. The Zn-air battery after cycling for 333 h was disassembled and the La_1.6Sr_0.4MnCoO₆ cathode was characterized by XRD (Figure S6b), where a cathode before cycling and a cathode after cycling for 50 h were also compared. The characteristic perovskite-type crystal structure remains for the cathode after testing for 50 and 333 h This indicates the good stability of the crystal structure of La_1.6Sr_0.4MnCoO₆, which is beneficial to the stable running of the battery. The fast performance degradation after 250 h could be associated with the precipitation of inert ZnO in the cathode, which could be associated with the over-saturation of zincate ion after prolonged cycling due to the accumulation of product from the irreversible redox of the Zn anode [54,55], which was evidenced by the XRD result presented in Figure S6b. The accumulation of ZnO deposition could result in the deterioration of gas and ionic transfer pathways.

2.4. Integration of a Small Amount of Pt/C for Optimization of Oxygen Catalysis

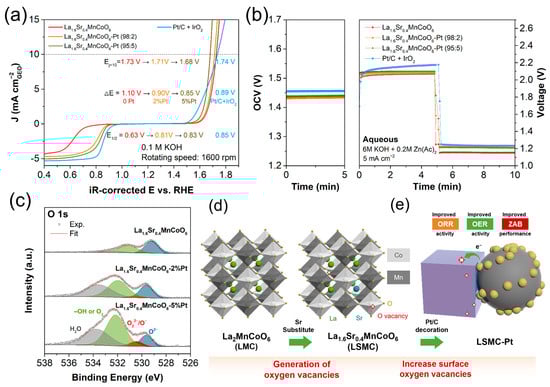

The decent performance and very good stability presented above suggest that the double-perovskite-type La_1.6Sr_0.4MnCoO₆ is a promising bifunctional oxygen catalyst for practical Zn-air batteries. As discussed in the last few sections, the oxygen vacancies introduced by the Sr doping were the origin of the enhanced catalytic activity (Figure 5d). Sr doping is a modification of the entire bulk particles, and the oxygen vacancies may disperse on both the particle bulk and surface. Moreover, the substitution amount of Sr has a limitation which is restricted by the perovskite structure itself. It is worth noting that OER and ORR are usually more likely to happen on the catalyst surface. To further increase surface oxygen vacancies, a facile Pt/C decoration strategy was introduced (Figure S7). Commercial Pt/C was physically mixed with the La_1.6Sr_0.4MnCoO₆ using an ultrasonic bath. Even though the mass ratio of Pt/C to the perovskite was controlled at a very low value (2 to 5 wt% of Pt to La_1.6Sr_0.4MnCoO₆), the ORR and OER activity was significantly boosted. As presented in Figure 5a, the La_1.6Sr_0.4MnCoO₆-Pt mixture with a Pt loading of 2% and 5% demonstrated a ΔE (based on RDE test in 0.1 M KOH) of 0.90 and 0.85 V (vs. iR-corrected RHE), which is highly superior to that without Pt decoration (1.10 V). This improvement in the bifunctional catalysis was also reflected by the galvanostatic charging−discharging performance of the Zn-air battery (with 6 M KOH + 0.2 M Zn(Ac)₂). As compared in Figure 5b, a decrease in voltage gaps (0.95, 0.88, 0.85 V vs. Zn) and an increase in round-trip efficiency (55%, 58%, 59%) were observed for samples with the introduction of 0%, 2%, and 5% Pt. The XPS O 1s spectra (Figure 5c) indicated the increased amount of O₂²⁻/O⁻, which is highly related to surface oxygen vacancy for the samples with Pt decoration (Pt 4f spectra supplemented in Figure S8) [51]. This could be associated with the surface charge transfer from Pt/C to cation elements in the La_1.6Sr_0.4MnCoO₆, which results in the formation of more oxygen vacancies on the perovskite surface as compensation (Figure 5e) [24].

3. Experimental Section

3.1. Synthesis of Perovskite-Type Oxide Nanocrystallites

A fast and low-temperature synthesis of perovskite-type oxide nanocrystallites was achieved using Na-K nitrate molten salts as a highly oxidized medium, which was adjusted based on the method reported by Tian et al. [42] La, Sr, Mn, and Co nitrate salts were utilized as the source of the cations and the amount of each cation was determined according to the stoichiometric number of the target perovskite products. Taking the synthesis of 0.005 mol La_1.6Sr_0.4MnCoO₆ as an example, 3.46 g La(NO₃)₃·6H₂O, 0.42 g Sr(NO₃)₂, 1.26 g Mn(NO₃)₂·4H₂O, and 1.46 g Co(NO₃)₂·6H₂O (weights calculated based on the stoichiometric ratio of cations in La_1.6Sr_0.4MnCoO₆) were manually dry-mixed in a mortar for 5 min. The molar ratio of the above cation elements was La:Sr:Mn:Co = 8:2:5:5, and the total molar amount of the cation was 0.02 mol. After that, pre-mixed salts consisting of 5.67 g NaNO₃ and 3.37 g of KNO₃ (the total molar amount of Na + K was 0.1 mol) were added and further milled for 5 min. The resulting pink-colored powder was then transferred into a crucible and heated at 550 °C for 3 h (heating rate 10 °C min⁻¹). After the crucible was cooled, 80 mL DI water was added into the crucible and put into an ultrasonic bath for 10 min to dissolve the rigid nitrate salts. The resulting dispersion was vacuum filtered, and then repeatedly washed with DI water three additional times. The washed powder was dried at 60 °C.

For comparison, a La_1.6Sr_0.4MnCoO₆ bulk particle sample was prepared via a conventional sol−gel method. As is typical, 3.46 g La(NO₃)₃·6H₂O, 0.42 g Sr(NO₃)₂, 1.26 g Mn(NO₃)₂·4H₂O, and 1.46 g Co(NO₃)₂·6H₂O were dissolved in 100 mL of deionized water. Quantities of 5.84 g of ethylenediaminetetraacetic acid (EDTA), 7.68 g citric acid (CA), and 15.5 mL ammonia solution were added to the solution. The mixture was heated at 180 °C until a transparent gel was formed. Then the gel was heated at 250 °C for 5 h. The obtained precursor was further calcinated at 700 °C for 5 h.

3.2. Material Characterizations

Morphologies of the double-perovskite-type cubic nanocrystallites were observed using microscopic techniques including SEM (Zeiss Neon) and TEM (Titan G2). Crystal structures of the samples were analyzed using XRD (Bruker D8 Advance, Cu Kα radiation) and high-resolution TEM (HR-TEM, Titan G2). Dispersion of the cations was evaluated using the EDS mapping technique via the Titan G2 TEM. The composition ratio of the cations was evaluated by the EDS system (Oxford) equipped with an SEM (Tescan Clara). Porosity information of the materials was analyzed using the 77 K liquid nitrogen adsorption−desorption technique (Micromeritics TriStar). The chemical state of elements on the perovskite surface was analyzed using XPS (Al Kα radiation).

3.3. Evaluation of Oxygen Catalytic Activity

As a common practice for evaluating the catalytic activity of perovskite oxide [16,51], the oxide materials were mixed with conductive carbon (i.e., Super P), which ensures sufficient electrical conductivity on the RDE. A dispersion consisting of 10 mg oxide, 10 mg Super P, 1 mL ethanol, and 100 μL Nafion^®117 solution (5 wt%) was made and 5 μL of the dispersion was drop-cast on the glassy carbon area of a RDE (weight loading of the oxide catalyst: ~0.232 mg cm⁻²). Commercial Pt/C and IrO₂ were also evaluated for comparisons. The same electrode dispersion composition as that containing perovskites was adopted for the IrO₂ sample (10 mg of IrO₂, 10 mg of Super P), while no additional Super P was added for the 20% Pt/C sample (10 mg of 20% Pt/C). For the Pt/C + IrO₂ mixture sample, 5 mg 20% Pt/C, 5 mg IrO₂, and 10 mg Super P were applied.

Electrochemical measurements for evaluating the oxygen catalytic activity were carried out using the RDE in a three-electrode cell with Pt wire as the counter electrode, Ag/AgCl (4 M KCl) as the reference electrode, and 0.1 M KOH aqueous solution as the electrolyte. The electrolyte was purged with O₂ for 30 min before the test and purging continued during the test. The electrochemical evaluation was conducted with a potentiostat (CHI760E). Linear sweep voltammetry (LSV) with a scan rate of 5 mV s⁻¹ was performed at 1600 rpm. The voltages from the RDE curves are presented in RHE, converted with the equation: E(RHE) = E(Ag/AgCl) + 0.199 + 0.0591 × pH. Ohmic voltage drop was considered with a resistance (~45 Ω) of the working electrode.

An RRDE (Pine Instruments AFE7R9GCPT) was utilized to evaluate the electron transfer number (n). The ping potential was settled at 0.5 V (vs. Ag/AgCl). The value of n and percentage of HO₂⁻ in the total reduced product (X) was calculated using the equations below:

$$\mathrm{n}=4\times \frac{{\mathrm{I}}_{\mathrm{d}}}{{\mathrm{I}}_{\mathrm{d}}+{\mathrm{I}}_{\mathrm{r}}/\mathrm{N}}$$

$$\mathrm{X}=200\times \frac{{\mathrm{I}}_{\mathrm{r}}/\mathrm{N}}{{\mathrm{I}}_{\mathrm{d}}+{\mathrm{I}}_{\mathrm{r}}/\mathrm{N}}$$

I_d: disk current, I_r: ring current, N: current efficiency = 37%

For the La_1.6Sr_0.4MnCoO₆ catalyst sample with a small amount (2–5 wt%) of Pt/C, the mass loading of oxide and metallic Pt on the working electrode was the same as that without Pt/C (~0.232 mg cm⁻²), and the ratio of oxide + Pt to carbon was fixed at 1:1. Taking La_1.6Sr_0.4MnCoO₆-Pt (95:5) as an example, the electrode dispersion consists of 9.5 mg oxide, 2.5 mg commercial 20% Pt/C (containing 0.5 mg Pt and 2 mg carbon support), 8 mg Super P, 1 mL ethanol, and 100 μL Nafion solution. To ensure the accuracy of weighing, 10 times the above weighting of the oxide, commercial 20% Pt/C, and Super P were premixed in 10 mL ethanol in an ultrasonic bath and dried at 60 °C. Then, 1/10 of the weighting amount of the mixture (20 mg) was used for preparing the dispersion.

3.4. Evaluation of Aqueous Zn-Air Batteries

Typically, 55 μL of the catalyst dispersion (the same composition as that for the RDE test, which contains 0.5 mg oxide) was drop-cast on 15 × 15 mm hydrophobic carbon paper (AVCarb P75T) within a ϕ8 mm circular coated area (~0.5 cm², oxide loading of 1 mg cm⁻²). After drying at 100 °C to evaporate the ethanol, the air cathode film was placed in the positive side of a homemade Zn-air battery model. A Zn plate was placed in the negative side and 2 mL 6 M KOH + 0.2 M Zn(Ac)₂ electrolyte was injected into the chamber between the positive and negative electrodes. OCV, I-V, and I-P profiles, and PPD of the aqueous Zn-air batteries were evaluated using a potentiostat (Biologic VSP). Galvanostatic cycling was evaluated using a battery tester (LANHE CT2001A).

3.5. Evaluation of Coin-Type Zn-Air Batteries with Gel−Polymer Electrolyte

SiO₂ nanoparticle-modified polyvinyl alcohol (PVA)-based gel−polymer electrolyte was prepared using a cast and freeze method. As is typical, 25 g DI water and 2.5 g PVA were mixed at 100 °C, followed by adding 0.83 g SiO₂ dispersion (containing 0.25 g nano SiO₂) at 100 °C until a high-viscosity mixture with evenly dispersed SiO₂ nanoparticles was formed. The mixture was cast in a coin-type CR2016 positive battery case. A freezing (−20 °C, 24 h) and unfreezing (room temperature, 2 h) process was repeated 2 times until the cast mixture eventually formed a flexible and stretchable gel. The gel film was removed from the CR2016 case and soaked in a 1 M KOH + 0.2 M Zn(Ac)₂ solution for 24 h. As presented in Figure 4d, a coin-type quasi-solid-state Zn-air battery was assembled according to the following order: (1) a meshed CR2032 negative case, (2) a piece of ϕ19 mm hydrophobic carbon paper as a gas diffusion layer, (3) a ϕ8 mm catalyst film (perovskite:CNT:PTFE = 6:2:2 wt:wt:wt), (4) a gel−polymer electrolyte film, (5) a ϕ8 mm Zn plate as an anode, (6) a ϕ 16 mm stainless steel plate, (7) a stainless steel spring, and (8) a CR2032 negative case.

4. Conclusions

In conclusion, rational designs including introducing and increasing oxygen vacancies and nanosizing of the B-site ordered double perovskite were proposed to effectively improve the bifunctional oxygen catalysis. The B-site ordered double-perovskite-type nanocrystallites with ultra-small cubic (20–50 nm length) morphology and high specific surface areas (25 m² g⁻¹) were prepared via a molten-salt method. Due to the introduction of the oxygen vacancies via partial substitution of La with Sr, the La_1.6Sr_0.4MnCoO₆ nanocrystallites demonstrated improved catalytic activity for both ORR and OER. Zn-air batteries with the La_1.6Sr_0.4MnCoO₆ as an oxygen catalyst demonstrated decent discharge−charge voltage gaps of 0.75 and 1.10 V at 1 and 30 mA cm⁻², respectively, and good cycling stability for more than 250 h with a fair voltage gap of ~1V in an alkaline electrolyte. The crystal structure of the La_1.6Sr_0.4MnCoO₆ nanocrystallites remained stable after hundreds of hours of charge−discharge cycling. A coin-type Zn-air battery with the La_1.6Sr_0.4MnCoO₆ and an alkaline gel−polymer electrolyte also presented good performance and decent stability. Further enhancement of the ORR-OER catalysis and performance of the Zn-air battery was achieved by increasing surface oxygen vacancies via integrating a small amount of Pt on the surface of La_1.6Sr_0.4MnCoO₆.
