A Fluidizable Catalyst for N-Butane Oxidative Dehydrogenation under Oxygen-Free Reaction Conditions

Abstract

This study evaluates the effectiveness of fluidizable VO_x/MgO-γAl₂O₃ catalysts for C₄-olefin production via n-butane oxidative dehydrogenation (BODH). Catalysts were prepared via vacuum incipient wetness impregnation and then characterized by employing several techniques such as BET (Brunauer–Emmett–Teller) method, XRD (X-ray diffraction), LRS (laser Raman spectroscopy), XPS (X-ray photoelectron spectroscopy), TPR/TPO (temperature-programmed reduction/temperature-programmed oxidation), NH₃-TPD (temperature-programmed desorption), NH₃ -desorption kinetics and pyridine-FTIR. The BET analysis showed the prepared catalysts’ mesoporous structure and high surface areas. The XRD, LRS and XPS established the desirable presence of amorphous VO_x phases. The TPR/TPO analyses corroborated catalyst stability over repeated reduction and oxidation cycles. The NH₃-TPD and NH₃ desorption kinetics showed that the catalysts had dominant moderate acidities and weak metal-support interactions. In addition, Pyridine-FTIR showed the critical influence of Lewis acidity. The VO_x/MgO-γAl₂O₃ catalysts were evaluated for BODH using a fluidized CREC Riser Simulator, operated under gas-phase oxygen-free conditions, at 5 to 20 s reaction times, and at 450 °C to 600 °C temperatures. The developed VO_x/MgO-γAl₂O₃ catalysts demonstrated performance stability throughout multiple injections of butane feed. Catalyst regeneration was also conducted after six consecutive BODH runs, and the coke formed was measured using TOC (Total Organic Carbon). Regarding the various BODH catalyst prepared, the 5 wt% V-doped MgO-γAl₂O₃ yielded in a fluidized CREC Riser Simulator the highest selectivity for C₄-olefins, ranging from 82% to 86%, alongside a butane conversion rate of 24% to 27%, at 500 °C and at a 10 s reaction time.

1. Introduction

C₄-olefins, such as 1-butene, iso-butene, cis-butene, and 1,3-butadiene, are unsaturated hydrocarbons, and their availability is critical for the petrochemical industry. These hydrocarbons serve as a feedstock for producing various chemicals, including nitrile-butadiene, styrene, and polybutadiene rubbers [1,2]. Daily, the production of items like tires, plastic bags, and adhesives relies significantly on the accessibility of these chemical compounds. The demand for C₄-olefins is expected to grow due to the increasing need for petrochemical products. In addition, today, the petrochemical industry has shifted its focus towards manufacturing higher value-added products that require larger quantities of C₄-olefins [3,4]. Consequently, more efficient and cost-effective C₄-olefins production methods are required to meet this growing need.

C₄-olefins can be produced through catalytic butane oxidative dehydrogenation (BOHD). This is a promising alternative to steam cracking, FCC, and paraffin dehydrogenation. BODH involves lower energy consumption, improved olefin selectivity, and lower operating costs [5,6,7]. BODH also yields high-purity C₄-olefins [8,9]. To implement BODH continuously, two interconnected fluidized bed reactors, including a fluid bed reactor and a fluidized catalyst regenerator unit, are required. Catalyst particles circulate between the two fluid reactors, with the catalyst lattice oxygen driving the BODH reaction [10,11].

Table 1. Performance of BODH catalysts reported in technical literature.

Catalyst	X (%)	T (°C)	Time	S (%)	Y (%)	Reactor System	Reference
VOx/Ce-Al2O3	10.7	450	5 s	62.4	6.7	Fluidized bed	Khan et al. [10]
V2O5/MgO-Al2O3	30.3	600	NA	64.3	19.4	Fixed bed	Xu et al. [11]
VOx/Al2O3	23.0	600	1 h	56.0	12.9	Fixed bed	Maadan et al. [12]
VOx/MCM-41	47.4	550	1 h	57.0	27.0	Fixed bed	Wang et al. [13]
V2O5/MgO-ZrO2	32.9	500	6 h	43.1	13.8	Fixed bed	Lee et al. [14]
VOx/USY	8.2	520	4 min	68.0	5.6	Fixed bed	Garcia et al. [15]
V2O5/MgO	31.8	500	NA	55.8	17.7	Fixed bed	Rubio et al. [16]
MoO3-V2O5/MgO	24.2	550	NA	69.5	17.3	Fixed bed	Corrna et al. [17]
Mo/VMgO	34.5	620	2 min	74.0	25.2	Fixed bed	Liu et al. [18]

Notes: X: N-butane conversion; T: reaction temperature; t: reaction time; S: selectivity of C₄ olefins. Y: yields of olefins. ‘NA’ denotes data not available.

presents a comprehensive analysis of the performance of BODH catalysts published in the literature. It displays various potential catalyst formulations and their corresponding outcomes with respect to butane conversion, butene selectivity, and butene yields. Among the diverse range of catalysts studied, only one of them falls under the fluidizable category [10].

While vanadium oxide-based catalysts are among the most promising catalysts for BODH [19,20,21], studies reported have shown that vanadium oxide-based catalysts can be optimized for BODH by using other chemical species as promoters, and by employing more suitable calcination conditions [22,23]. For instance, calcination higher than 580 °C can improve catalyst stability and reduce coke formation [24,25,26].

To address BODH C₄-olefin selectivity issues [18,19,20], MgO was considered [27,28]. MgO has a high surface area and basicity, enhancing catalytic activity and olefin selectivity. However, MgO does not display good mechanical properties. Thus, as an alternative, MgO doped on a γAl₂O₃ support is considered preferable for fluidized catalysts [4,28] as it yields a highly dispersed vanadium oxide (VO_x) phase [29]. This catalyst can be prepared using low-cost magnesium precursors and relatively simple methods, making its preparation economically viable for large-scale butene production.

In the present research, a newly developed fluidizable VO_x/MgO-γAl₂O₃ (1:1) catalyst was prepared via wet impregnation and evaluated for BODH under gas-phase oxygen-free conditions. Several techniques, such as BET, TPR/TPO, NH₃-TPD, NH₃ desorption XRD, pyridine-FTIR, LRS, and XPS, were used to characterize the prepared catalyst. Catalyst performance evaluation was carried out in a fluidized CREC Riser Simulator (Recat Technologies Inc., London, ON, CA) [30]. The CREC Riser Simulator accurately mimics the operating conditions of two interconnected fluidized bed reactors in terms of temperature, partial pressures, catalyst/butane ratios and reaction times, making this research highly relevant for the implementation of BODH processes at the industrial scale.

2. Results and Discussions

2.1. Specific Surface Area (BET Method)

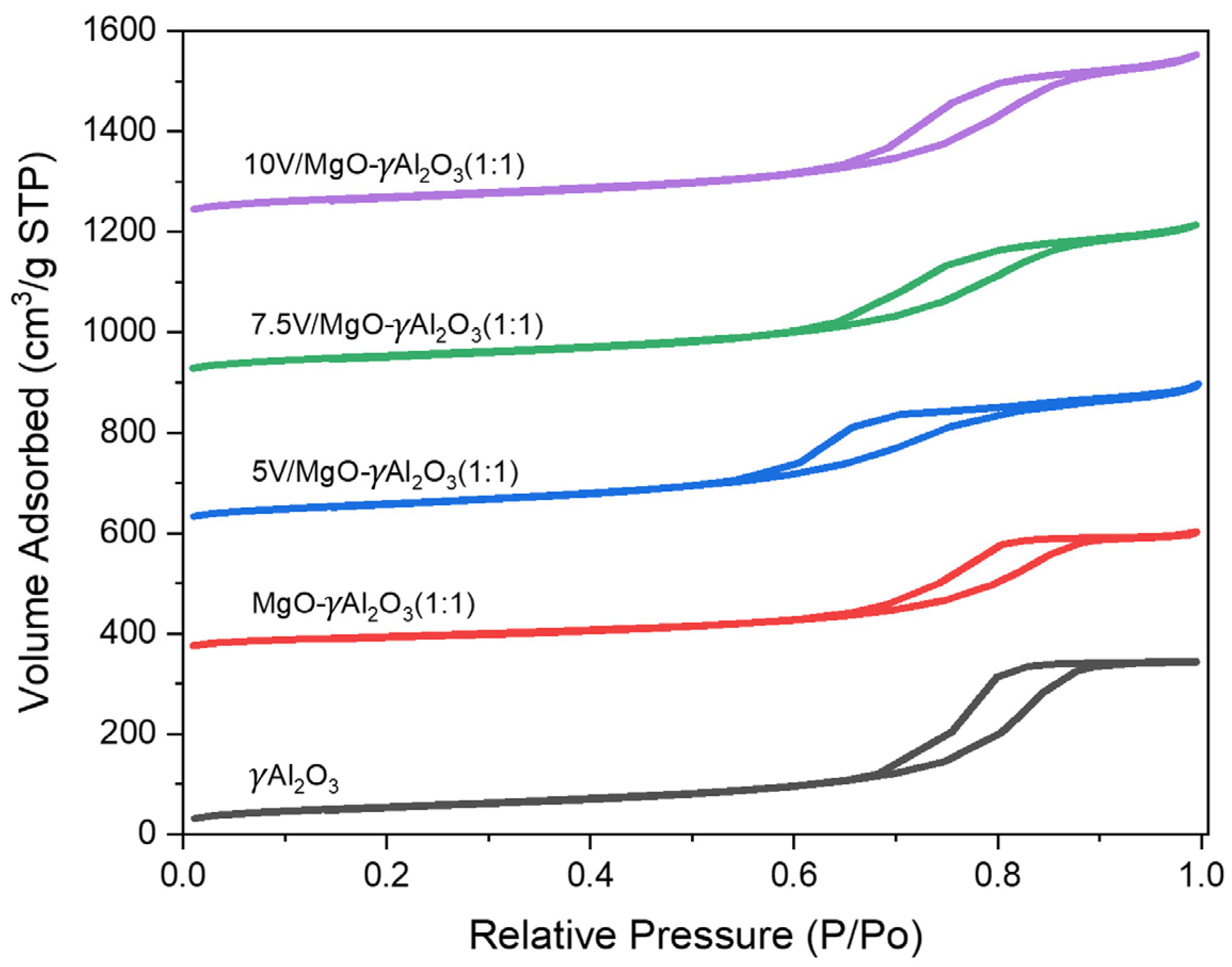

Figure 1 reports N₂ adsorption–desorption isotherms for the bare γAl₂O₃, MgO-γAl₂O₃, and VO_x/MgO-γAl₂O₃. The obtained isotherms exhibit a Type IV behavior, as classified by the IUPACs [14,31,32]. Hysteresis resulting from capillary condensation was observed at relatively high-pressure ratios, showing the presence of mesopores in the γAl₂O₃ support structure.

Table 2. BET specific surface areas, pore volumes, and average pore sizes of various materials studied for BODH.

Catalyst	SBET (m2/g)	Vpore (cm3/g)	Dpore (Å)
γAl2O3	208	0.56	109
MgO-γAl2O3 (1:1)	152	0.38	164
5% V/MgO-γAl2O3 (1:1)	198	0.44	89
7.5% V/MgO-γAl2O3 (1:1)	192	0.47	94
10% V/MgO-γAl2O3 (1:1)	187	0.50	97

Notes: S_BET = average surface area of the catalyst; V_pore = average pore volume; D_pore = average pore diameter.

reports BET method-specific surface areas for the bare γAl₂O₃, MgO-γAl₂O₃, and VO_x/MgO-γAl₂O₃. One can observe that the bare γAl₂O₃ had a 208 m²/g specific surface area, while the MgO on a γAl₂O₃ had a 152 m²/g specific surface area. This surface area reduction following calcination was attributed to MgO clogging some of the support pores. Furthermore, one should mention that adding VO_x to the MgO-γAl₂O₃ catalyst resulted in a larger 187 m²/g specific surface area, suggesting a redispersion of MgO and improving chemical species pore accessibility.

Table 2 also reports the average pore sizes of the various fluidizable materials evaluated in the present study. It can be observed that the bare γAl₂O₃ had a 109 Å average pore diameter. Following impregnation with MgO, the average pore diameter increased to 164 Å, with this pointing to a decrease of γ-alumina support micropores. However, the average pore diameters for the 5% V/MgO-γAl₂O₃, the 7.5% V/MgO-γAl₂O₃, and 10% V/MgO-γAl₂O₃ displayed a modest average pore size reduction, with these average pore sizes being 89 Å, 94 Å, and 97 Å, respectively. The addition of MgO and VO_x dopants can affect the support pore structure of the fluidizable γ-alumina support via pore blockage, and as a result, specific surface area and average pore size reduce. Fortunately, and as was the case for the fluidizable catalyst of the present study, these changes resulting from the MgO and VO_x dopant addition were minor.

2.2. H₂-TPR and Degree of Reduction

The H₂-TPR analysis provides valuable insights into the reduction of both the vanadium and the MgO species. Figure 2 reports the calcined catalysts’ H₂-TPRs (temperature-programmed reductions) for 5 wt%, 7.5 wt%, and 10 wt% vanadium loadings.

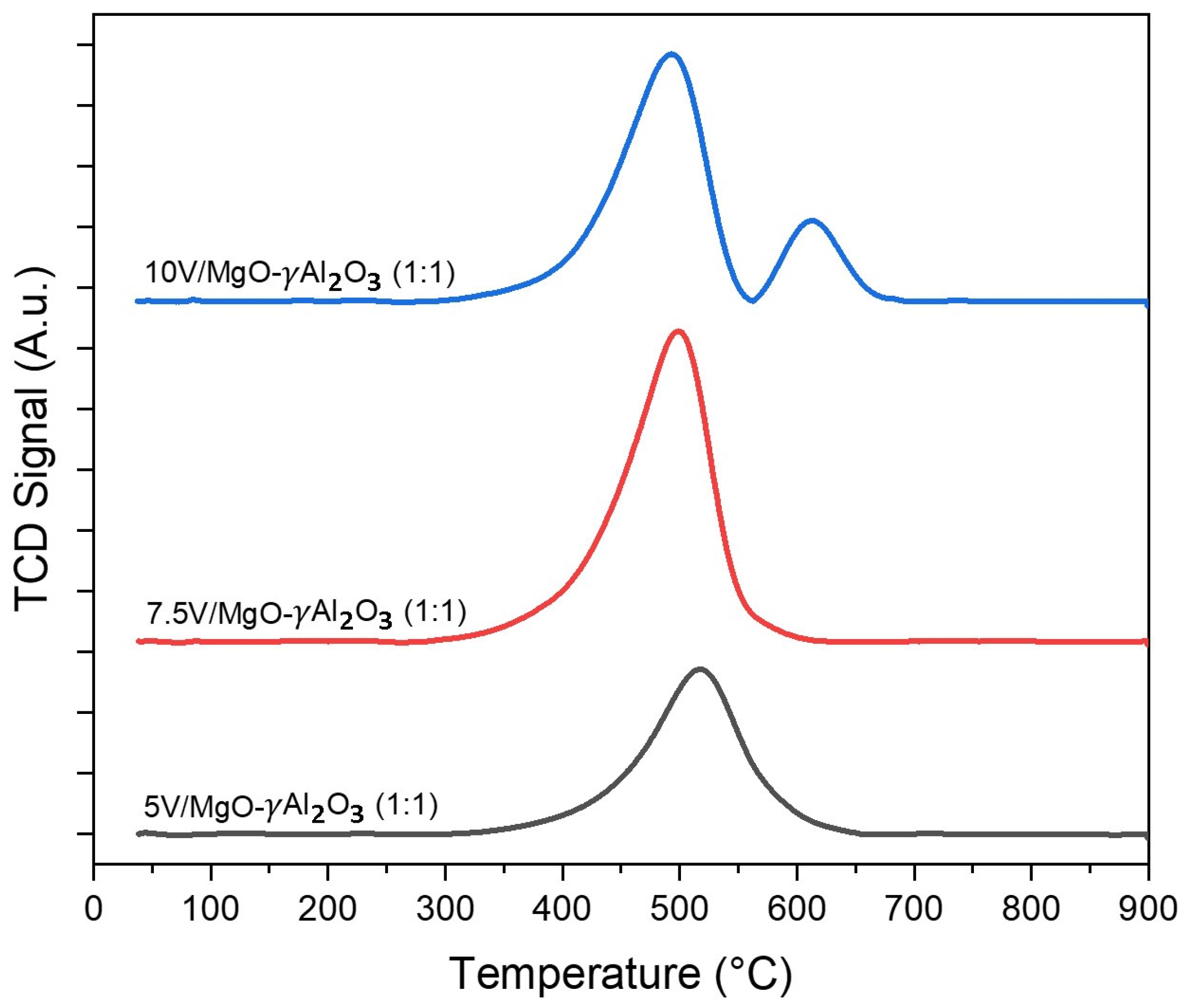

Figure 2 shows that the 5% V/MgO-γAl₂O₃ and 7.5% V/MgO-γAl₂O₃ exhibit a single TPR peak. In contrast, the 10% V/MgO-γAl₂O₃ catalyst displays two TPR peaks, at 500 °C and 637 °C, indicating a two-stage reduction.Previous technical literature studies have suggested that the TPR peaks of vanadium-based catalysts could be attributed to the reduction of both monomeric and polymeric amorphous VO_X species, which display V⁵⁺ and V⁴⁺ oxidation states [33]. Notably, the TPR peaks can also be associated with VO_x and MgO species reduction.

Table 3. H₂ consumption in calcined catalysts with different wt% values of vanadium.

Catalyst	Tmax1, (°C)	Tmax2, (°C)	Total H2 Consumption (cm3/g)	Nominal V (%)	Reducible V (%)
5% V/γAl2O3	480	-	9	5.0	3.02
5% V/MgO-γAl2O3 (1:1)	518	-	12	5.0	3.63
7.5% V/MgO-γAl2O3 (1:1)	501	-	18	7.5	5.44
10% V/MgO-γAl2O3 (1:1)	497	613	21	10.0	7.31

compares the T_max as well as the V nominal and TPR calculated loadings for the 5% V/MgO-γAl₂O₃ (1:1), 7.5% V/MgO-γAl₂O₃ (1:1), and 10%V/MgO-γAl₂O₃ (1:1). Reducible vanadium species for the 5% V/MgO-γAl₂O₃ (1:1) were calculated using the distribution of vanadium species.

Interestingly, the TPR data of Table 3 reveal that there is a reduction in the T_max as the vanadium loading increases. This TPR decrease can be assigned to the increased presence of monomeric surface species. This rise in monomeric species weakens the metal-support interaction, which is a wanted condition to achieve high C₄-olefin selectivity. These findings highlight the importance of optimizing vanadium loadings to obtain a strong metal–support interaction to achieve high C₄-olefin production.

Given the above results, one can conclude that the 5% V/MgO-γAl₂O₃ catalyst shows the best performance for BODH. Building upon these results, further research was developed to assess catalyst stability for this catalyst loading using consecutive TPR–TPO cycles. Figure 3 reports TPR–TPO for four consecutive cycles.

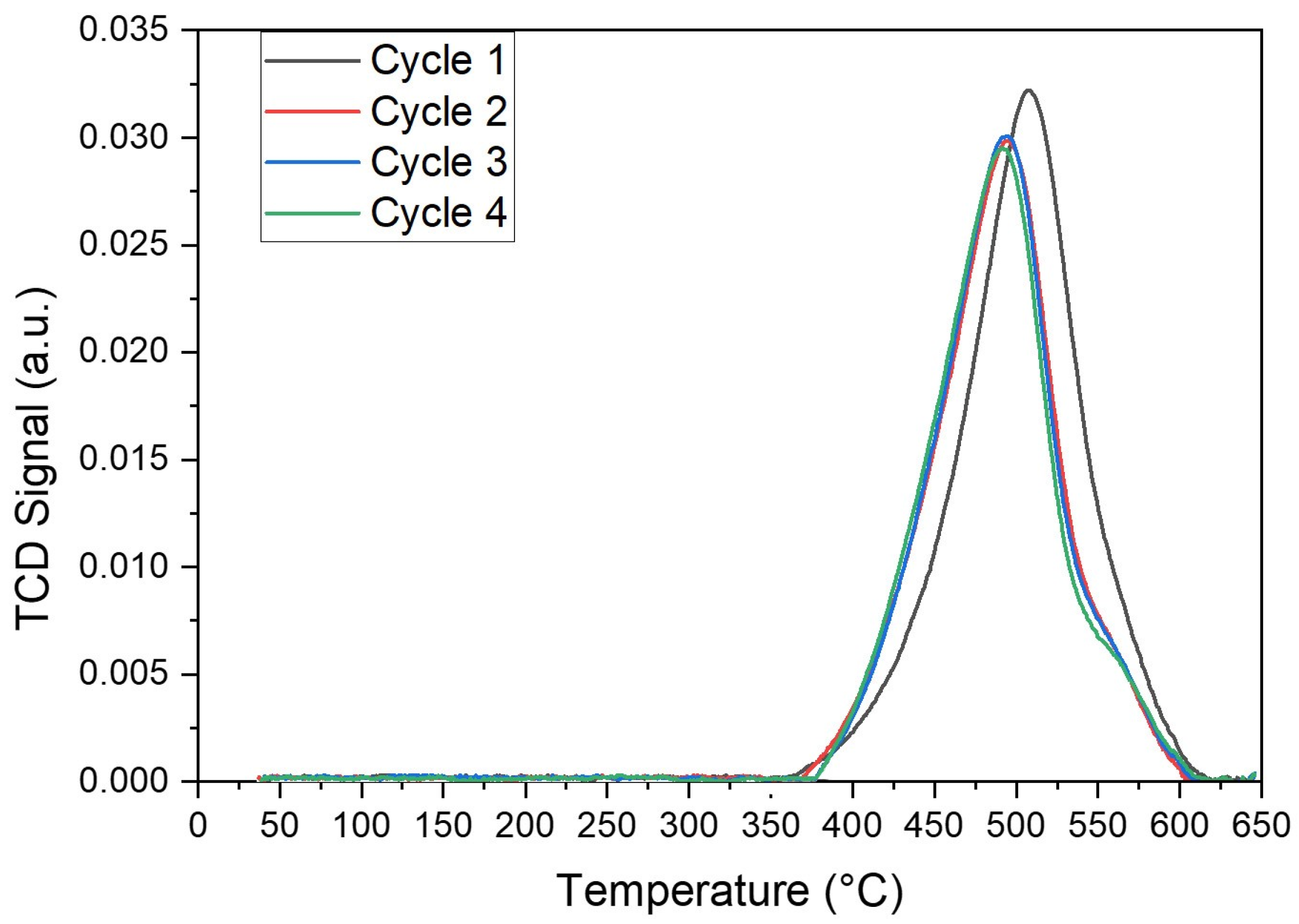

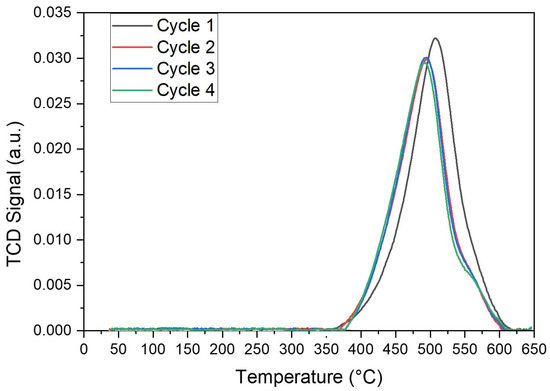

Figure 3 reports nearly identical TPR peaks for the four consecutive TPR cycles. This suggests that the vanadium species in the catalyst exhibits stable TPR hydrogen consumption peaks in the 12.0 ± 2% cm³/g STP range. These data confirm catalyst stability in maintaining its activity over multiple cycles. This is a desirable property for sustained BODH catalytic performance.

2.3. NH₃-TPD Analysis

Maintaining high olefin selectivity in the BODH reaction requires careful control of the catalyst acidity. Excessive surface acidity can promote undesirable effects such as the increased cracking of products and carbon deposition, which eventually result in catalyst deactivation.

An NH₃-TPD (temperature-programmed desorption) analysis was performed to determine the total acidity of the catalysts. This analysis was conducted for the bare γAl₂O₃, as well as for the VO_x/γAl₂O₃ and the VO_x/MgO-γAl₂O₃ catalysts, with varying loadings of vanadium. Figure 4 displays the ammonia TPD curves obtained, using a ramp rate of 15 °C/min up to 650 °C. Before the TPD analysis, NH₃ was pre-adsorbed on the catalysts at 100 °C.

Table 4. Temperature-programmed desorption of NH₃ for γAl₂O₃, VO_x/γAl₂O₃, and VO_x/MgO-γAl₂O₃ catalyst samples.

	Area under the Peak (mmol K/gcat min)
Acidity Type	γAl2O3	5% V/γAl2O3	MgO-γAl2O3	5% V/MgO-γAl2O3	7.5% V/MgO-γAl2O3	10% V/MgO-γAl2O3
Weak	3.45	4.81	4.30	5.25	5.42	5.96
Medium	2.75	2.58	1.73	3.24	3.32	3.16
Strong	1.73	2.17	--	0.97	1.68	0.80
Very Strong	0.73	0.82	--	0.27	0.21	0.31

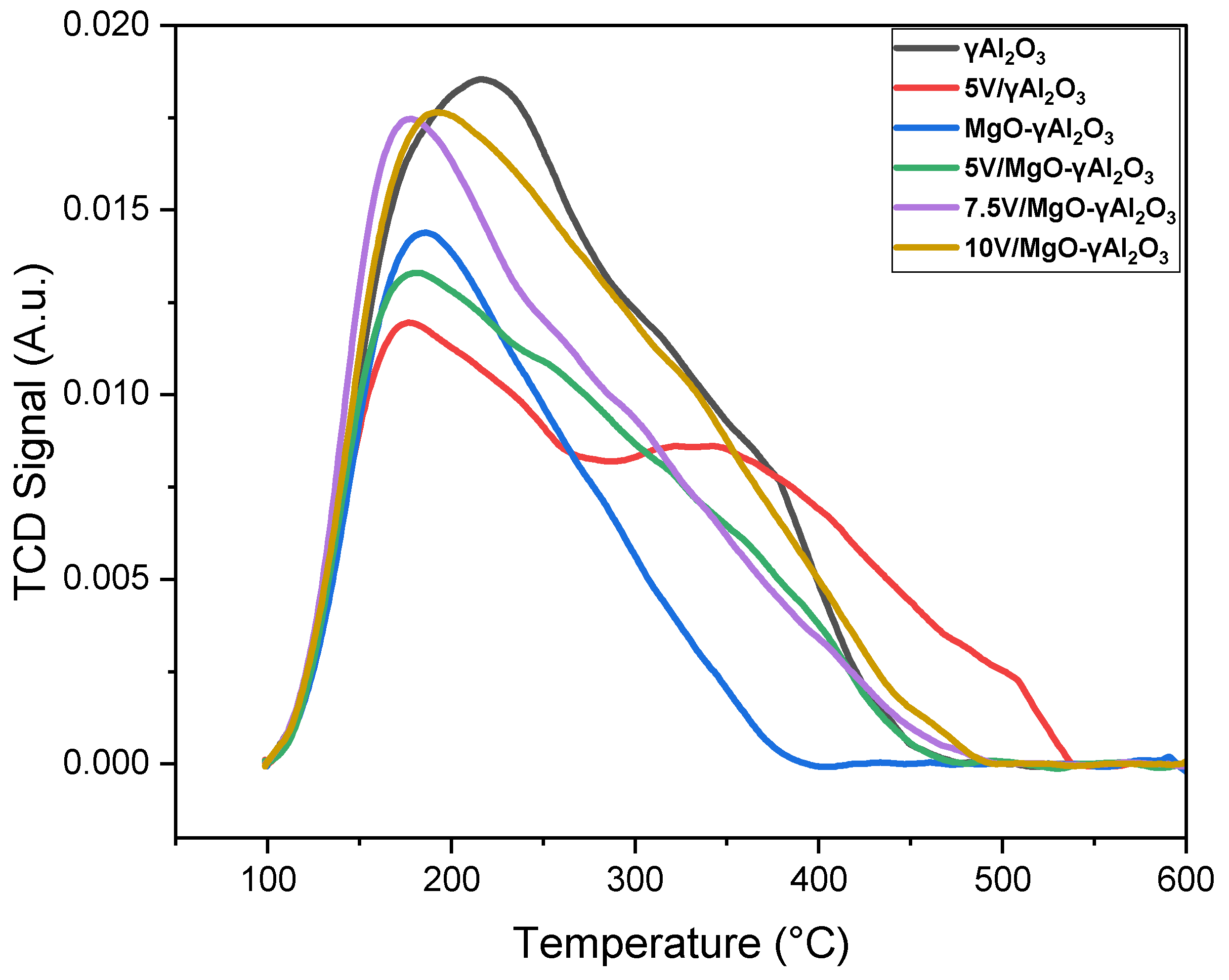

provides valuable information on the ammonia uptake of the various catalyst samples, along with their respective maximum desorption temperatures (T_des).

Furthermore, both Figure 4 and Table 4 provide insightful information regarding the relationship between vanadium loading, catalyst acidity, and the effect of MgO addition in BODH catalysts. Figure 4 reports that adding MgO has a beneficial impact on reducing alumina support acidity and, in particular, on removing strong and very strong acid sites, as shown in Figure 5, Figure 6 and Figure 7. Figure 4 also indicates that vanadium loading leads to higher NH₃ uptake while performing TPD and, as a result, restores some of the catalyst acidity.

As shown in Appendix A, the NH₃-TPD kinetics can be modeled using the following equation:

$$\left(\frac{\mathrm{d}{\mathrm{V}}_{\mathrm{d}\mathrm{e}\mathrm{s}}}{\mathrm{d}\mathrm{T}}\right)=\frac{{\mathrm{k}}_{\mathrm{d}\mathrm{e}\mathrm{s}\mathrm{o}}}{{\mathsf{\beta }}^{\prime }}\left(1-\frac{{\mathrm{V}}_{\mathrm{d}\mathrm{e}\mathrm{s}}}{{\mathrm{V}}_{\mathrm{m}}}\right)\exp \left[\frac{-{\mathrm{E}}_{\mathrm{d}\mathrm{e}\mathrm{s}}}{\mathrm{R}}\left(\frac{1}{\mathrm{T}}-\frac{1}{{\mathrm{T}}_{\mathrm{m}}}\right)\right]$$

(1)

where:

${\mathrm{V}}_{\mathrm{d}\mathrm{e}\mathrm{s}}=$ $\mathrm{t}\mathrm{h}\mathrm{e} \mathrm{v}\mathrm{o}\mathrm{l}\mathrm{u}\mathrm{m}\mathrm{e} \mathrm{o}\mathrm{f} \mathrm{d}\mathrm{e}\mathrm{s}\mathrm{o}\mathrm{r}\mathrm{b}\mathrm{e}\mathrm{d} \mathrm{a}\mathrm{m}\mathrm{m}\mathrm{o}\mathrm{n}\mathrm{i}\mathrm{a}\left(\frac{{\mathrm{c}\mathrm{m}}^3}{{\mathrm{g}}_{\mathrm{c}\mathrm{a}\mathrm{t}}}\right),$

${\mathrm{V}}_{\mathrm{m}}=$ $\mathrm{t}\mathrm{h}\mathrm{e} \mathrm{v}\mathrm{o}\mathrm{l}\mathrm{u}\mathrm{m}\mathrm{e} \mathrm{o}\mathrm{f} \mathrm{a}\mathrm{m}\mathrm{m}\mathrm{o}\mathrm{n}\mathrm{i}\mathrm{a} \mathrm{a}\mathrm{d}\mathrm{s}\mathrm{o}\mathrm{r}\mathrm{b}\mathrm{e}\mathrm{d} \mathrm{a}\mathrm{t} \mathrm{s}\mathrm{a}\mathrm{t}\mathrm{u}\mathrm{r}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n} \mathrm{c}\mathrm{o}\mathrm{n}\mathrm{d}\mathrm{i}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}\mathrm{s}\left(\frac{{\mathrm{c}\mathrm{m}}^3}{{\mathrm{g}}_{\mathrm{c}\mathrm{a}\mathrm{t}}}\right),$

$\mathsf{\beta }=$ $\mathrm{t}\mathrm{h}\mathrm{e} \mathrm{h}\mathrm{e}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{n}\mathrm{g} \mathrm{r}\mathrm{a}\mathrm{t}\mathrm{e} \mathrm{s}\mathrm{e}\mathrm{t} \mathrm{a}\mathrm{t} 15\left(\frac{°\mathrm{C}}{\mathrm{m}\mathrm{i}\mathrm{n}}\right),$

${\mathrm{K}}_{\mathrm{d}\mathrm{e}\mathrm{s}\mathrm{o}}=$ $\mathrm{t}\mathrm{h}\mathrm{e} \mathrm{d}\mathrm{e}\mathrm{s}\mathrm{o}\mathrm{r}\mathrm{p}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n} \mathrm{r}\mathrm{a}\mathrm{t}\mathrm{e} \mathrm{c}\mathrm{o}\mathrm{n}\mathrm{s}\mathrm{t}\mathrm{a}\mathrm{n}\mathrm{t}\left(\frac{{\mathrm{c}\mathrm{m}}^3}{{\mathrm{g}}_{\mathrm{c}\mathrm{a}\mathrm{t}}\times \mathrm{m}\mathrm{i}\mathrm{n}}\right),$

${\mathrm{T}}_{\mathrm{m}}=\mathrm{t}\mathrm{h}\mathrm{e} \mathrm{c}\mathrm{e}\mathrm{n}\mathrm{t}\mathrm{e}\mathrm{r}\mathrm{i}\mathrm{n}\mathrm{g} \mathrm{t}\mathrm{e}\mathrm{m}\mathrm{p}\mathrm{e}\mathrm{r}\mathrm{a}\mathrm{t}\mathrm{u}\mathrm{r}\mathrm{e} \mathrm{t}\mathrm{h}\mathrm{a}\mathrm{t} \mathrm{m}\mathrm{i}\mathrm{n}\mathrm{i}\mathrm{m}\mathrm{i}\mathrm{z}\mathrm{e}\mathrm{s} \mathrm{t}\mathrm{h}\mathrm{e} \mathrm{c}\mathrm{r}\mathrm{o}\mathrm{s}\mathrm{s}-\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{r}\mathrm{e}\mathrm{l}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}$ between parameters (k),

${\mathrm{E}}_{\mathrm{d}\mathrm{e}\mathrm{s}}=$ $\mathrm{t}\mathrm{h}\mathrm{e} \mathrm{a}\mathrm{c}\mathrm{t}\mathrm{i}\mathrm{v}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n} \mathrm{e}\mathrm{n}\mathrm{e}\mathrm{r}\mathrm{g}\mathrm{y} \mathrm{o}\mathrm{f} \mathrm{d}\mathrm{e}\mathrm{s}\mathrm{o}\mathrm{r}\mathrm{p}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}\left(\frac{\mathrm{k}\mathrm{J}}{\mathrm{m}\mathrm{o}\mathrm{l}\mathrm{e}}\right).$

Equation (1) was established using the temperature-centering approximation, with Tm providing parameters with a small cross-correlation [34]. Equation (1) was solved numerically using a fourth order Runge–Kutta least square method and MATLAB with initial conditions set, as described in Appendix A. Equation (1) also contains k_deso and E_des adjustable parameters. These two parameters can be adjusted using the Nonlinear ModelFit built-in function in Wolfram Mathematica.

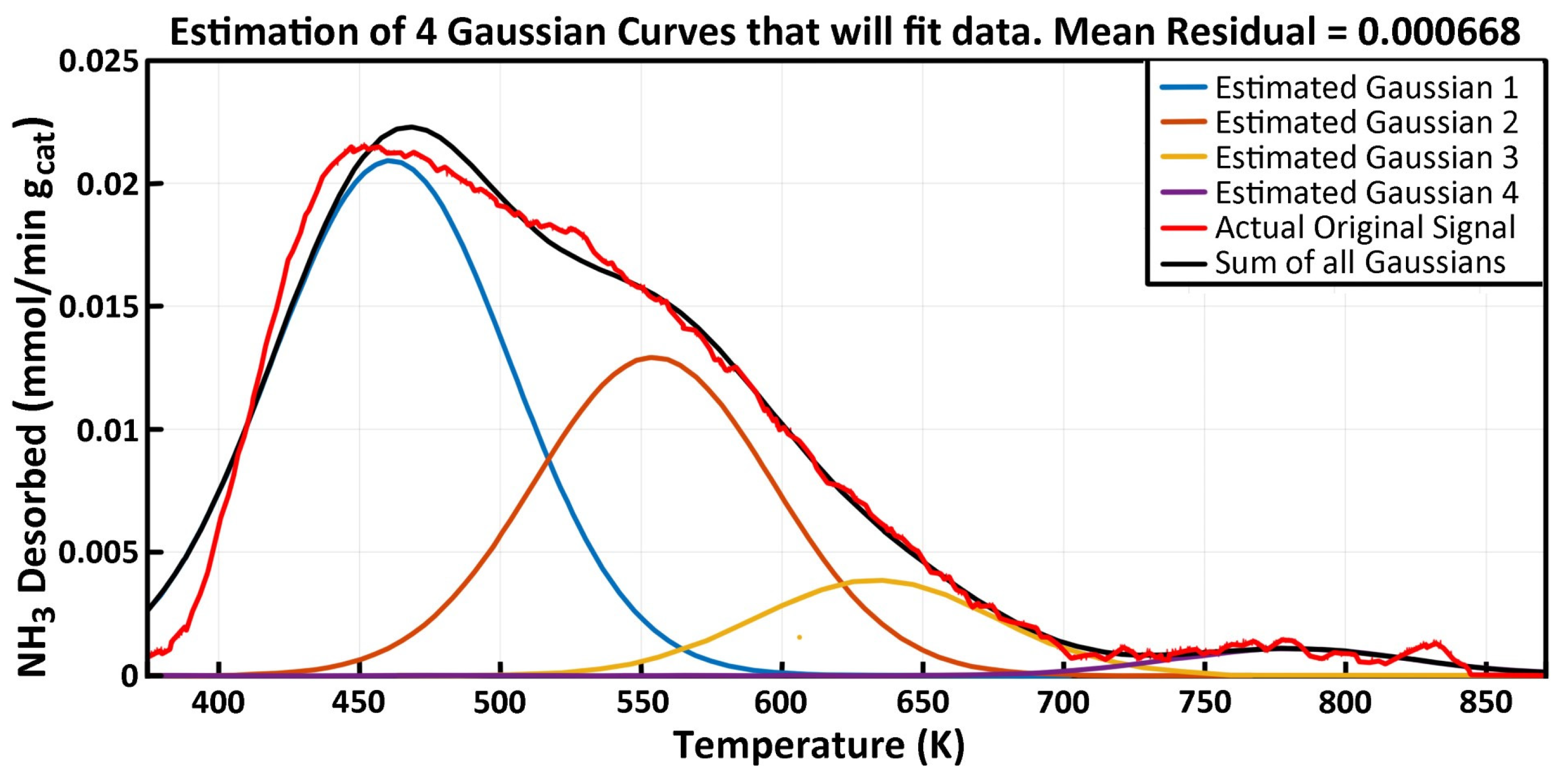

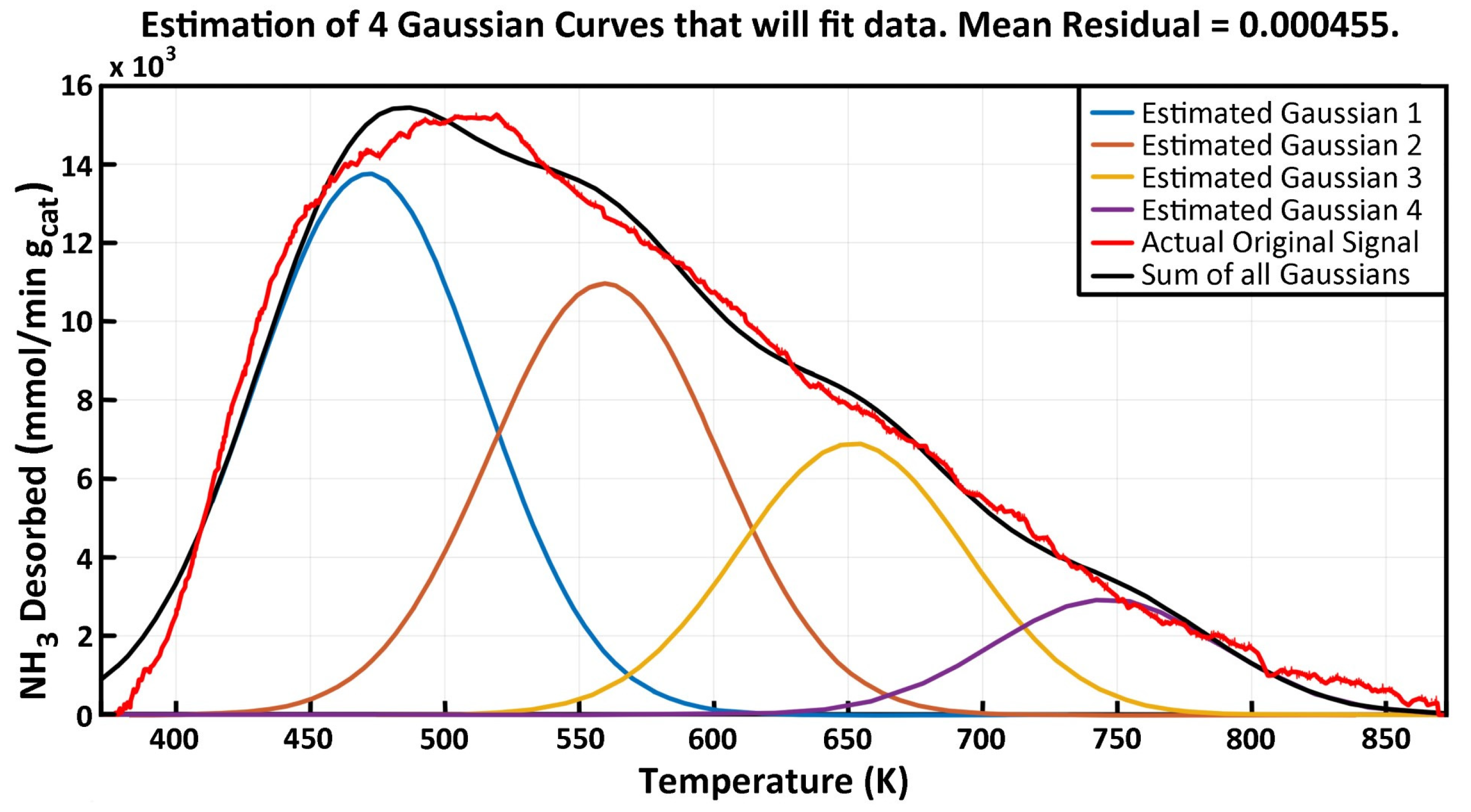

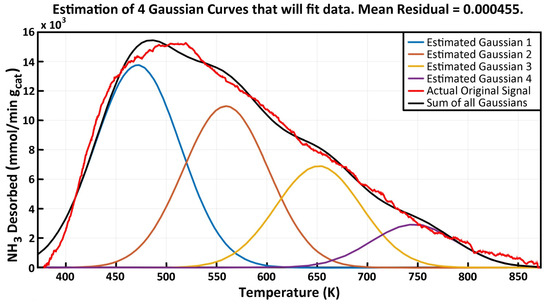

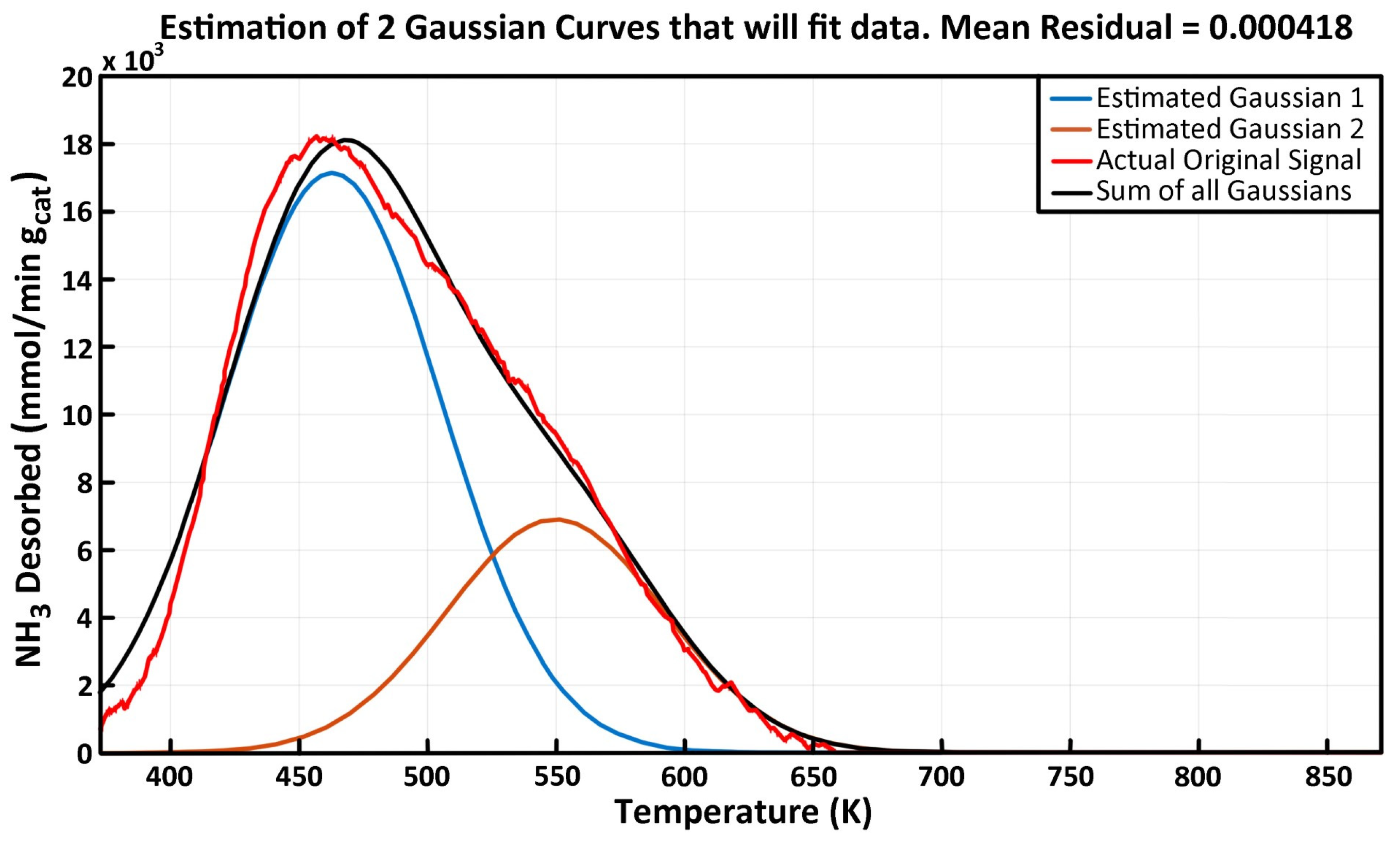

Equation (1) can be used to calculate the desorption kinetics of several sites with different acid strengths. The TPD curve obtained experimentally was fitted to a 4 Gaussian curve representing weak, moderate, strong, and very strong acidities. Figure 5, Figure 6 and Figure 7 show the excellent fit of the ammonia–TPD curves in the proposed ammonia desorption TPD model.

Table 5. Desorption kinetic parameters for NH₃–TPD kinetics. Activation energies and desorption rate constants are reported. Units: T = K; K_deso = (mmol/gcat min); E_des = (kJ/mol).

	Peak #1 (Low Temp)			Peak #2			Peak #3			Peak #4 (High Temp)
Experiment	Tmax	Kdeso	Edes	Tmax	Kdeso	Edes	Tmax	Kdeso	Edes	Tmax	Kdeso	Edes
γAl2O3	471.3	1.90	36.43	559.2	1.41	62.09	651.4	0.84	86.05	745.9	0.32	113.15
5% V-γAl2O3	461.2	2.15	30.04	556.8	1.13	63.47	622.7	1.01	79.29	723.3	0.32	105.00
MgO-γAl2O3	462.9	2.32	35.23	549.7	0.91	61.12	--	--	--	--	--	--
5% V/MgO-γAl2O3	460.9	2.91	34.26	554.2	1.28	59.52	633.1	0.37	80.87	780.6	0.10	133.25
7.5% V/MgO-γAl2O3	466.6	2.48	33.03	554.9	1.41	60.38	624.7	0.74	81.65	743.8	0.06	110.32
10% V/MgO-γAl2O3	460.5	3.18	32.77	561.0	1.29	59.80	649.1	0.32	87.06	789.4	0.12	140.29

reports T_max, E_des, and k_deso parameters with their 95% confidence intervals of ±2.60% and cross-correlation coefficients of 0.50.

Table 5 shows consistent T_max and E_des parameters falling within the same range for various materials. For example, for the medium strength acid site, the T_max values ranged between 549 °C and 561 °C, and the E_deso ranged between 59 kJ/mole and 63.4 kJ/mole. Table 5, and Figure 6 and Figure 7 also show the value of MgO addition, which essentially removed the strong and very strong acid sites on the γAl₂O₃. However, vanadium oxide moderately reintroduced some of the strong and very strong acidity in the MgO-γAl₂O₃.

2.4. X-ray Diffraction (XRD)

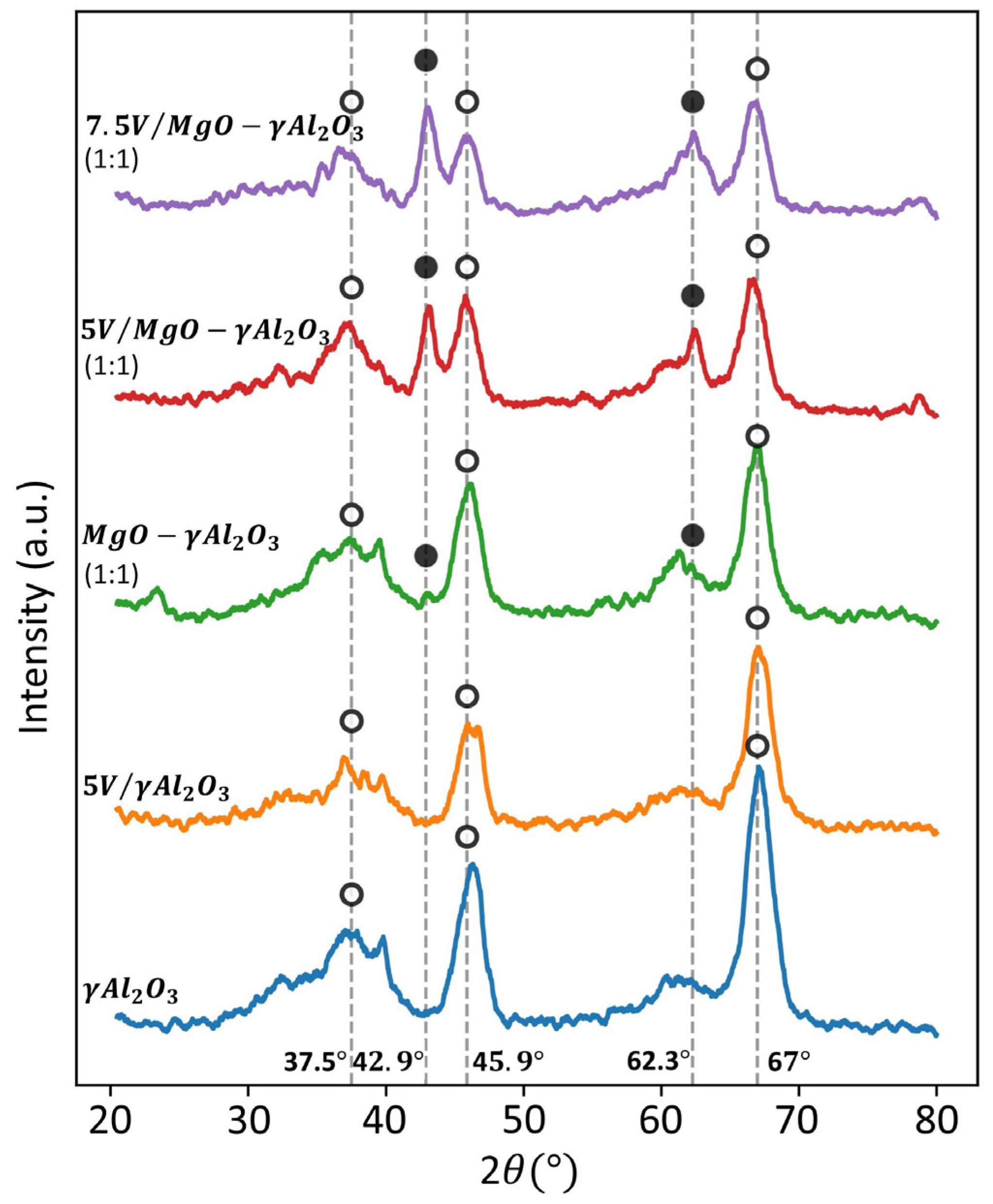

Figure 8 illustrates the X-ray diffraction (XRD) patterns of the γAl₂O₃ support and the prepared catalysts. The XRD peaks of the bare γAl₂O₃ support were observed at 2θ = 37.6°, 46.0°, and 67.5°. This indicated the presence of mesoporous γAl₂O₃. Moreover, when examining the Al₂O₃ support modified with 5 wt% vanadium oxide, no distinct diffraction peaks associated with vanadium oxide species were detected. This suggested that the vanadium oxide species present on the modified γAl₂O₃ support likely existed as a dispersed amorphous phase or as small crystalline nanoparticles with a size smaller than 4 nm, which is the XRD crystallite particles detection limit.

Furthermore, changing the γAl₂O₃ support by incorporating MgO at a 1:1 molar ratio did not significantly alter the intensity or shape of the XRD peaks of the γAl₂O₃. This indicated that the crystalline VO_x particles, if present, were either tiny (with a size of ≤3 nm) or widely dispersed on the support, or were in an amorphous phase, where they were crystalline. Furthermore, the modification of γAl₂O₃ with both magnesium (Mg) and varying percentages of vanadium (V) resulted in noticeable changes in the intensity and shape of the XRD peaks, associated with the γAl₂O₃ support.

Upon examining the XRD patterns, it was observed that for the catalysts containing 5% V/MgO-γAl₂O₃ and 7.5% V/MgO-γAl₂O₃, there were five discernible peaks present at 37.5°, 42.9°, 45.9°, 62.3°, and 67° at the 2θ scale. These peaks corresponded to: (a) γ-alumina at 37.5° (222), 45.9° (400) and 67° (440), and (b) V₂O₅ at 42.9° (200) and 62.3° (202). No characteristic peaks were observed for MgO.

2.5. Pyridine-FTIR

The determination of acid sites in the catalysts was carried out using Fourier Transform Infrared (FTIR) spectroscopy. As a result, adsorbed pyridine molecules were analyzed within the frequency range of 1000–1800 cm⁻¹. This frequency range is commonly used to characterize two acid site types: Bronsted and Lewis acid sites. In Figure 9, the FTIR spectra of various catalysts, namely γAl₂O₃, MgO-γAl₂O₃, 5% V/MgO-γAl₂O₃, and 7.5% V/MgO-γAl₂O₃, are reported. It can be observed in Figure 9, that all catalysts displayed distinct FTIR bands at 1443 and 1592 cm⁻¹.

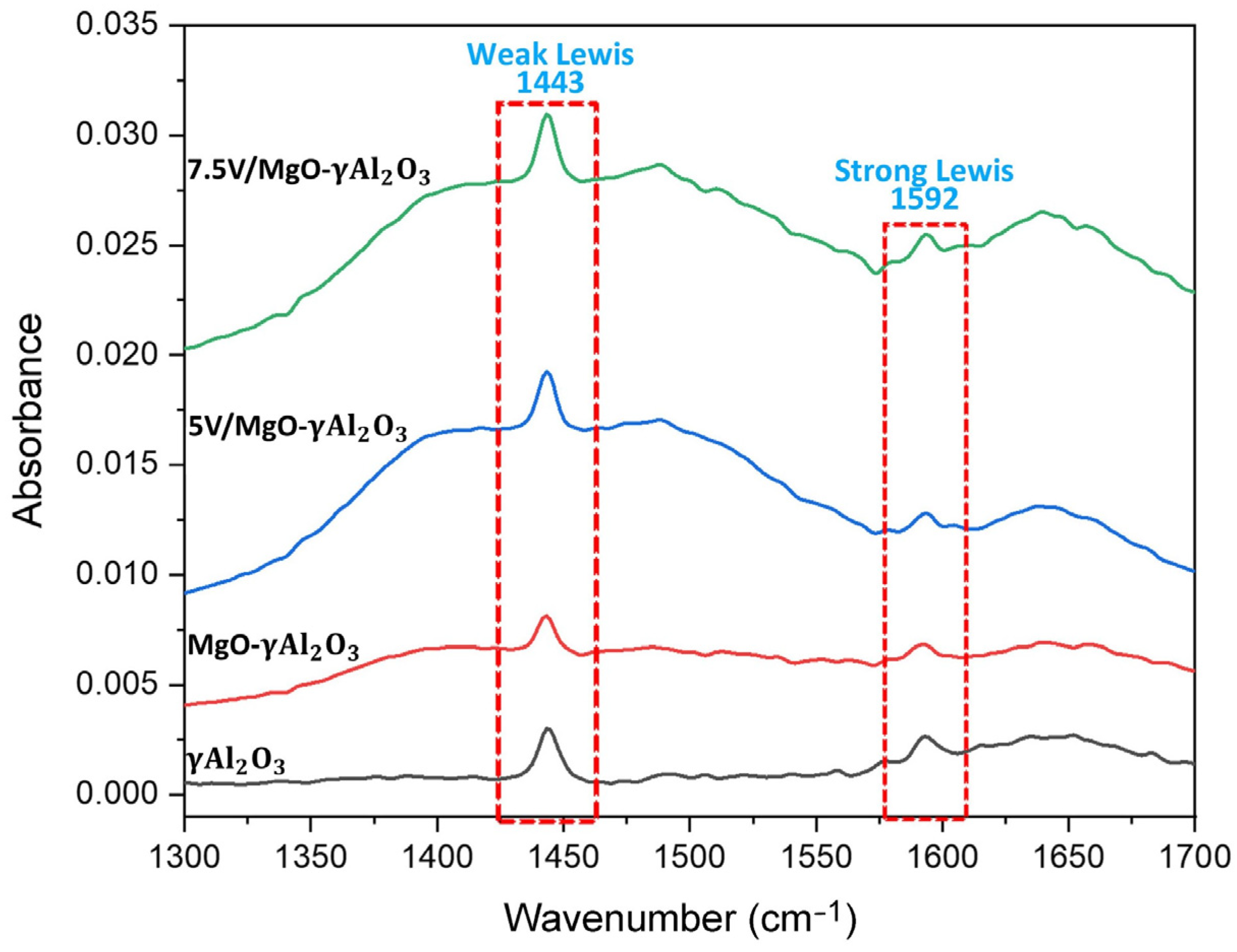

The FTIR band at 1443 cm⁻¹ can be attributed to weak surface Lewis acidity sites. This band shows the presence of such sites on all the catalysts [35,36]. Similarly, the FTIR band at 1592 cm⁻¹ corresponded to strong Lewis acid sites, suggesting the existence of strong Lewis acid sites in all the catalysts as well [37,38]. Interestingly, no bands were observed in the spectral region between 1530 and 1550 cm⁻¹. This range typically corresponds to Bronsted acid sites. However, the results obtained suggest the absence of Bronsted acid sites in the catalysts under investigation. Furthermore, it can be observed that introducing an Mg dopant into the catalysts decreased the number of Lewis acid sites on the γAl₂O₃. In contrast, the addition of vanadium resulted in a slight increase in the Lewis acidity sites.

In the context of BODH, maintaining low acidity is considered beneficial. This condition helps to promote the efficient desorption of C₄-olefins, thereby preventing their further oxidation to CO_x compounds. Based on the pyridine FTIR analysis, the 5% V/MgO-γAl₂O₃ catalyst was considered a highly suitable option for BODH.

The FTIR data indicated that the 5% V/MgO-γAl₂O₃ catalyst possessed favorable characteristics, such as weak surface acid sites and strong Lewis acid sites, while lacking Bronsted acid sites. These features make the catalyst a well-suited option for the desired reaction, given that Lewis acid sites can facilitate the efficient conversion of n-butane to C₄-olefins. Overall, the pyridine FTIR analysis findings strongly suggested that the 5% V/MgO-γAl₂O₃ catalyst exhibited properties highly suitable for BODH, making it a promising choice for this specific catalytic process.

2.6. Laser Raman Spectroscopy (LRS)

Raman spectroscopy is an effective and versatile technique used to characterize vanadium oxide compounds. Figure 10 presents the Raman spectra obtained for four dehydrated γAl₂O₃, MgO-γAl₂O₃, 5% V/MgO-γAl₂O₃ and 10% V/MgO-γAl₂O₃ samples.

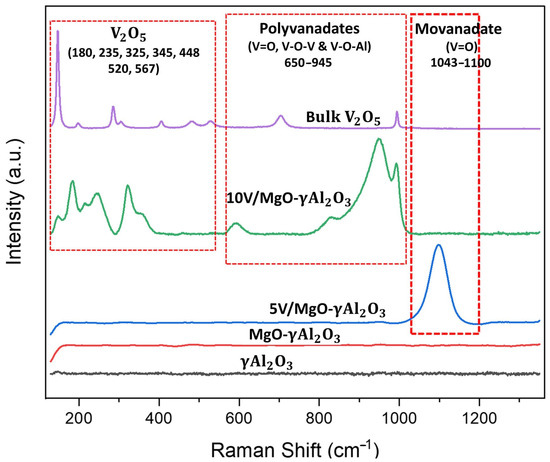

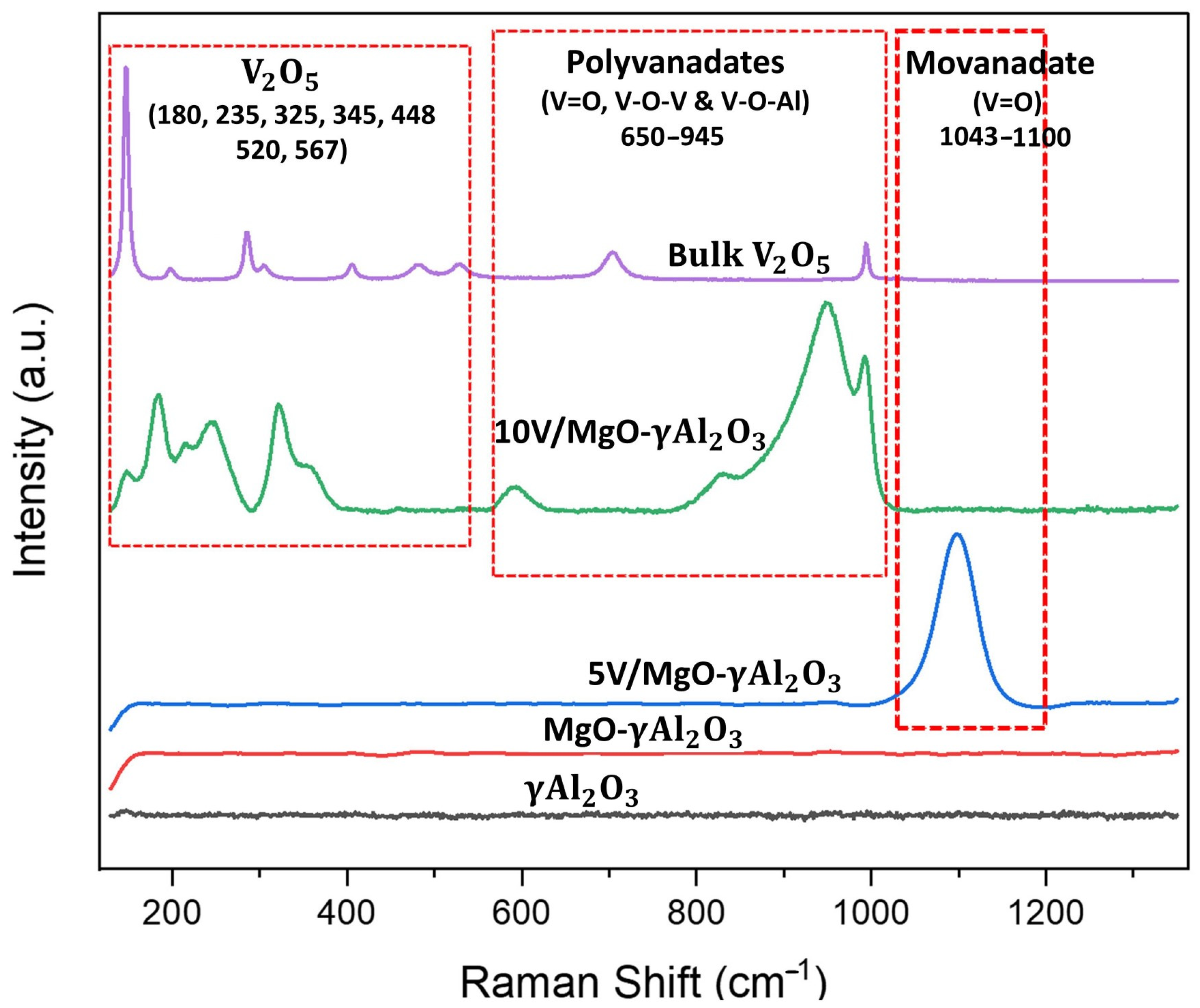

One can notice, in this respect, as reported in Figure 10, that the bare γAl₂O₃ support shows a notable absence of distinct Raman bands within the spectral range of 100–1300 cm⁻¹, as documented in previous studies [39]. This lack of observable bands is primarily attributed to the distinctive ionic character inherent in Al–O bonding within the material’s structure [40]. The absence of discernible bands in this spectral region underscores the nature of the Al–O bonds and their electronic interactions, rendering them essentially ‘silent’ to Raman scattering phenomenon.

Regarding the MgO-γAl₂O₃ catalyst, a significant observation emerges in Figure 10, wherein there are no discernible peaks at the characteristic Raman wavenumbers. This peak absence is an indicator of the integration of magnesium oxide species on the γAl₂O₃ support [11]. This outcome corroborates the precision of the synthesis process, confirming both the presence and dispersion of magnesium oxide on the support matrix.

In the case of the 5% V/MgO-γAl₂O₃ catalyst, narrow peaks were observed at 1080 cm⁻¹ in Figure 10. These peaks corresponded to the stretching mode of the V=O bonds in isolated monovanadate surface species [41,42]. This indicated the possible coexistence of monovanadate and polyvanadate species on the γAl₂O₃ support [43]. The analysis of the 5% V/MgO-γAl₂O₃ catalyst indicated, however, the absence of inactive microcrystalline V₂O₅ phase vibrational bands, typically observed at 993, 703, 527, 483, 476, 405, 305, 285, 198, and 147 cm⁻¹ [44,45]. Thus, this suggested that V₂O₅ and surface vanadium oxide species all contributed to the catalytic activity in BODH when using the 5% V/MgO-γAl₂O₃ catalyst.

2.7. X-ray Photoelectron Spectroscopy (XPS)

X-ray photoelectron spectroscopy (XPS) is a highly surface-sensitive technique that provides valuable insights into the composition and properties of materials. When studying the dispersion of V₂O₅ on different supports, XPS is considered one of the best techniques available. This study aimed to investigate the surface species in a 5% V/MgO-γAl₂O₃ catalyst using XPS. Figure 11 and Figure 12 present the XPS spectra for vanadium 2p in the 5% V/MgO-γAl₂O₃ catalyst, fitted with two different approaches.

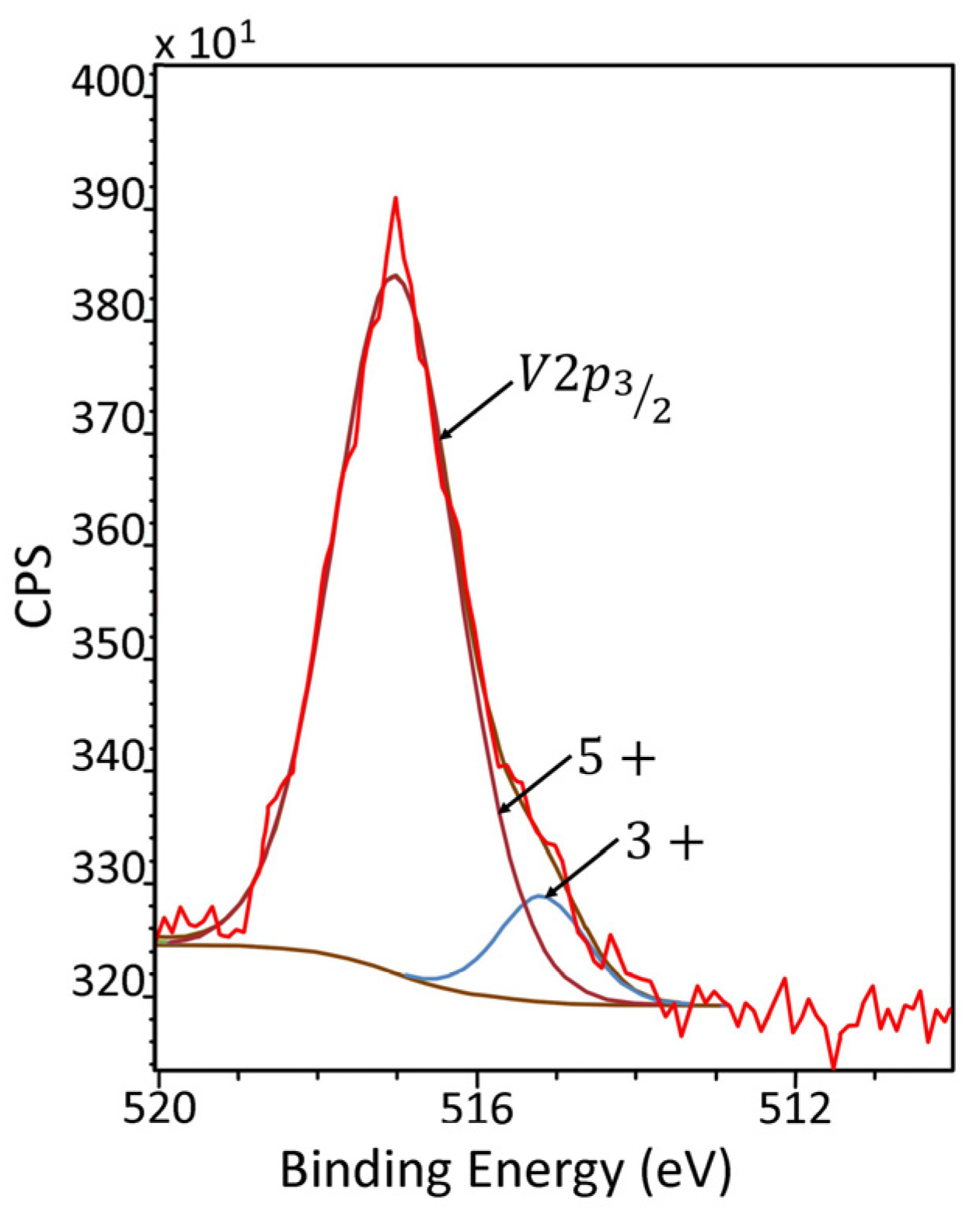

In Figure 11, a more generalized approach was taken, considering the presence of V⁵⁺ and a small amount of V³⁺ species on the catalyst surface. This approach provided a broad understanding of the surface species present.

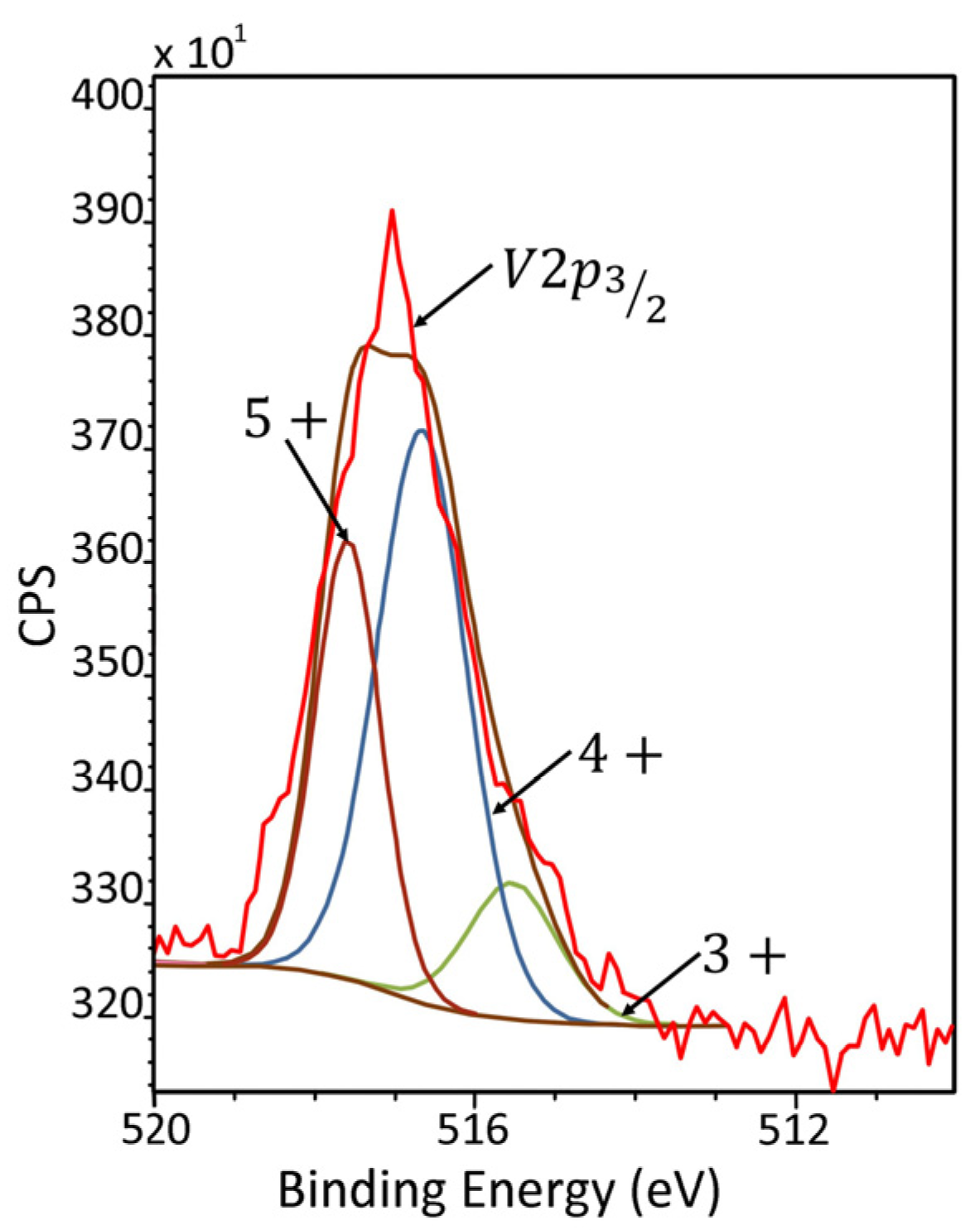

Figure 12, on the other hand, employed fitting parameters designed explicitly for standard vanadium oxide species. This approach allowed for a more detailed analysis of the surface species.

One should notice that in both approaches (Figure 11 and Figure 12), V 2p3/2 photoelectron peaks appeared at 517 and 518 eV. These peaks were assigned to the V 2p3/2 V (IV) and V 2p3/2 V (V) states, respectively. This suggested the presence of V⁴⁺ and V⁵⁺ oxidation states in catalyst samples [46]. These oxidation states indicated that the V₂O₅ species on the MgO-γAl₂O₃ catalyst surface were likely a blend of V⁴⁺ and V⁵⁺ states.

This information provided valuable insights into the surface chemistry and catalytic properties of the 5% V/MgO-γAl₂O₃ catalyst prepared in the present study. Furthermore, calculations using as the basis reducible vanadium species, as reported in Table 3, suggests a more plausible description of oxidized vanadium species.

2.8. BODH in the CREC Riser Simulator

The oxidative dehydrogenation of butane experiments in batch reactor mode in a fluidized bed were conducted using the CREC Riser Simulator Mark II [47]. To ensure the fluidization of the catalyst samples (VO_x/γAl₂O₃ and VO_x/MgO-γAl₂O₃) under study, a high impeller speed of 5000 rpm in the riser basket was employed.

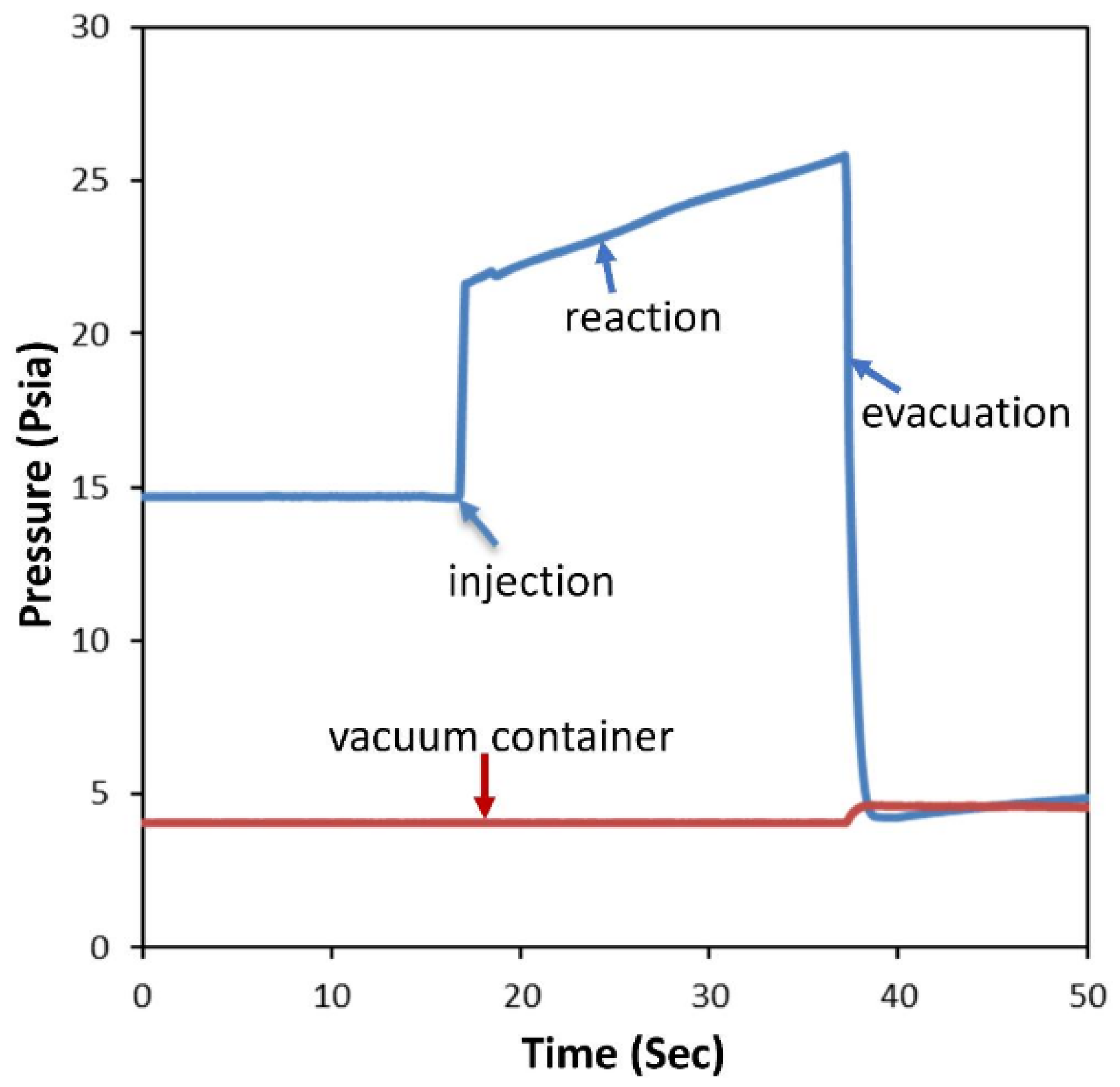

Figure 13 illustrates the pressure profiles observed during the BODH runs. The upper curve represents the total pressure, which increased from the injection (pulse) time to the termination time of the reaction. This increase in pressure was attributed to the reaction between butane and the lattice oxygen, which led to an overall increase in the total number of moles. The lower curve in the figure represents the vacuum box pressure during the reaction period, which remained constant. Upon termination of the reaction, there was a sudden decrease in the reactor pressure, while the vacuum box pressure experienced a slight increase. This phenomenon occurred when transferring gaseous products from the reactor to the vacuum box. At this point, further reactions were effectively halted in preparation for subsequent gas chromatography (GC) analysis.

The present study focuses on conducting butane oxidative dehydrogenation (BODH) runs in an oxygen-free atmosphere, utilizing only the lattice oxygen present in the vanadium oxide of VO_x/γ-Al₂O₃ and VO_x/MgO-γ-Al₂O₃ catalysts. Six multi-injection experiments were performed to alter the catalyst state from fully oxidized to partially reduced. During these experiments, various gaseous, carbon-containing products were identified alongside the C₄-olefins. These gaseous products included CO, CH₄, CO₂, C₂H₄, C₂H₆, C₃H₆, and C₄H₈. The experimental results obtained from both thermal and catalytic BODH runs are reported in the subsequent sections of the present manuscript. Using online gas chromatography (GC) analysis, all potential BODH reactions could be described as follows:

Desired reactions:

$$n-{\mathrm{C}}_4{\mathrm{H}}_{10}\stackrel{{\mathrm{V}\mathrm{O}}_{\mathrm{x}}/\mathrm{M}\mathrm{g}\mathrm{O}-\mathsf{\gamma }{\mathrm{A}\mathrm{l}}_2{\mathrm{O}}_3}{\to }\underset{{\mathrm{C}}_4-\mathrm{O}\mathrm{l}\mathrm{e}\mathrm{f}\mathrm{i}\mathrm{n}\mathrm{s}}{\underbrace{1-{\mathrm{C}}_4{\mathrm{H}}_8+\mathrm{c}\mathrm{i}\mathrm{s}-{\mathrm{C}}_4{\mathrm{H}}_8+\mathrm{i}\mathrm{s}\mathrm{o}-{\mathrm{C}}_4{\mathrm{H}}_8+\mathrm{1,3}-{\mathrm{C}}_4{\mathrm{H}}_6}}+{\mathrm{H}}_2\mathrm{O}$$

(2)

Undesired reactions:

$${\mathrm{C}}_4-\mathrm{o}\mathrm{l}\mathrm{e}\mathrm{f}\mathrm{i}\mathrm{n}\mathrm{s}\stackrel{{\mathrm{V}\mathrm{O}}_{\mathrm{x}}/\mathrm{M}\mathrm{g}\mathrm{O}-\mathsf{\gamma }{\mathrm{A}\mathrm{l}}_2{\mathrm{O}}_3}{\to }{\mathrm{C}\mathrm{O}}_{\mathrm{x}}+{\mathrm{C}\mathrm{H}}_4+{\mathrm{C}}_2{\mathrm{H}}_6+{\mathrm{C}}_3{\mathrm{H}}_6+{\mathrm{H}}_2\mathrm{O}$$

(3)

$$n-{\mathrm{C}}_4{\mathrm{H}}_{10}\stackrel{{\mathrm{V}\mathrm{O}}_{\mathrm{x}}/\mathrm{M}\mathrm{g}\mathrm{O}-\mathsf{\gamma }{\mathrm{A}\mathrm{l}}_2{\mathrm{O}}_3}{\to }{\mathrm{C}\mathrm{O}}_{\mathrm{x}}+\underset{{\mathrm{H}\mathrm{C}}_{<{\mathrm{C}}_4}}{\underbrace{{\mathrm{C}\mathrm{H}}_4+{\mathrm{C}}_2{\mathrm{H}}_6+{\mathrm{C}}_3{\mathrm{H}}_6}}+{\mathrm{H}}_2\mathrm{O}$$

(4)

$${HC}_{<C_4}\stackrel{{\mathrm{V}\mathrm{O}}_{\mathrm{x}}/\mathrm{M}\mathrm{g}\mathrm{O}-\mathsf{\gamma }{\mathrm{A}\mathrm{l}}_2{\mathrm{O}}_3}{\to }{\mathrm{C}\mathrm{O}}_{\mathrm{X}}+{\mathrm{H}}_2\mathrm{O}$$

(5)

With ${ HC}_{<C4}$ representing all hydrocarbons with a carbon number smaller than C₄.

2.9. Thermal Run

Blank runs or thermal runs (without a catalyst) were conducted to assess the impact of homogeneous dehydrogenation reactions. These runs were carried out at four distinct reaction temperatures: 450 °C, 500 °C, 550 °C, and 600 °C, while maintaining a residence time of 10 s, which was the most extended duration utilized throughout the experiments.

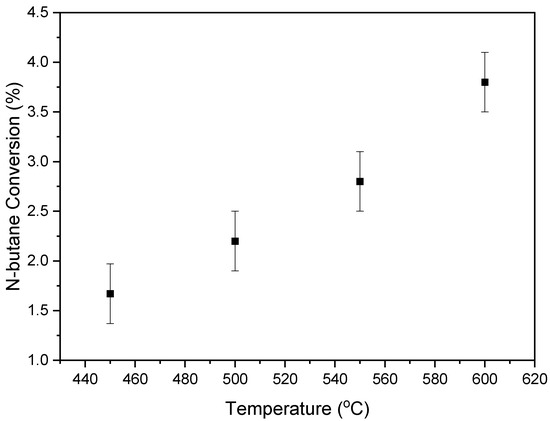

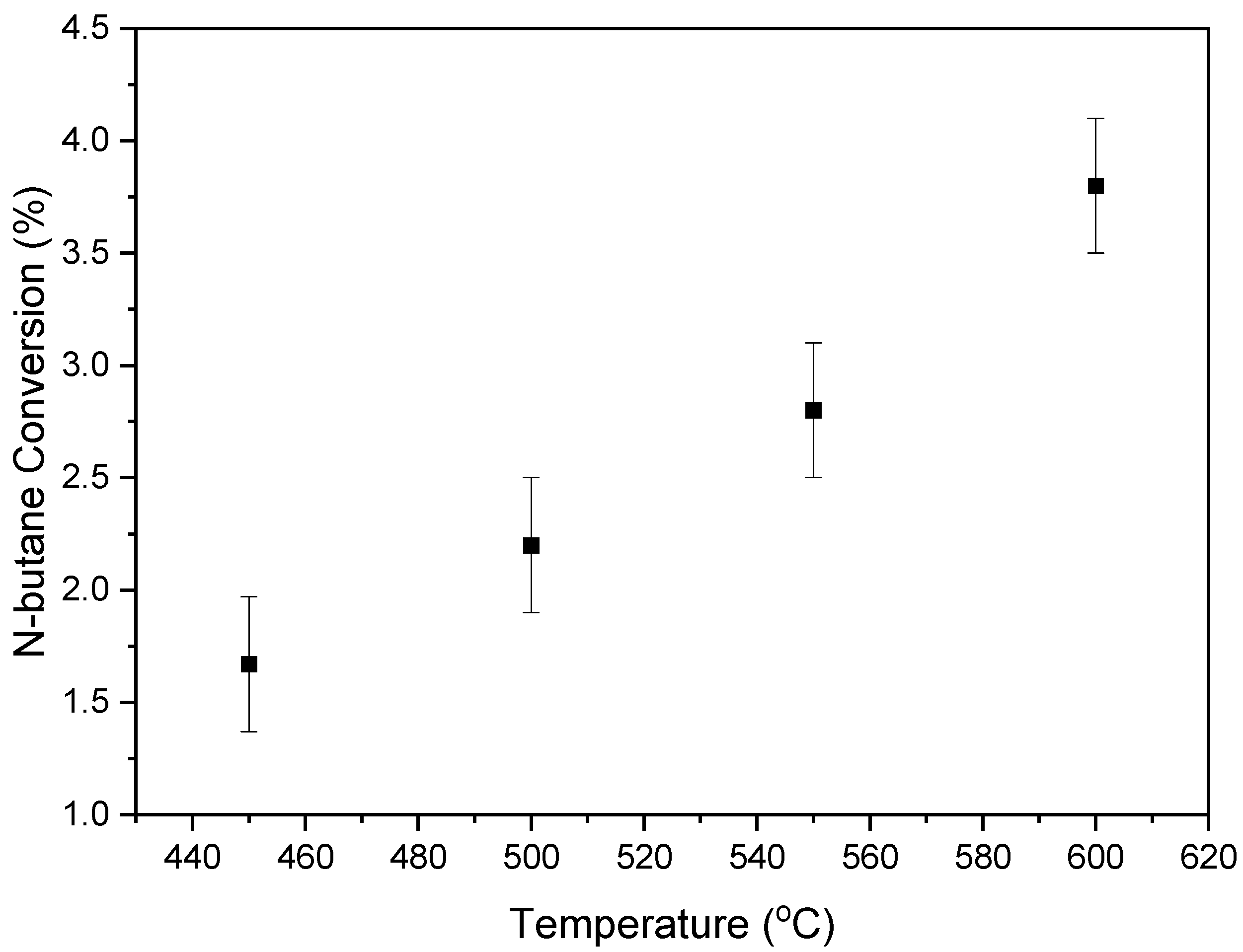

Figure 14 illustrates the findings from these runs, indicating that butane conversion consistently remained at low levels, approximately 4.0%. Based on these results, one could observe that thermal cracking had a minor influence and could be considered negligible in subsequent analyses of the catalytic effects.

2.10. BODH Experiments: Catalyst Evaluation and Product Distribution

For the runs specifically conducted for catalytic oxidative dehydrogenation (BODH) using the VO_x/MgO-γAl₂O₃ catalyst, six consecutive butane injections were made into the CREC Riser Simulator. It should be noted that the catalyst was not regenerated in between these six successive injections. In addition, each experimental run involved contact times ranging from 10 to 20 s and temperatures ranging from 500 °C to 550 °C. To ensure consistency, the catalyst-to-feed weight ratio was maintained at a fixed value throughout all runs, with 0.7 g of catalyst and 3 mL of butane being used. The extent of catalyst reduction was determined by comparing the original oxygen content of the catalyst with the current oxygen content of the catalyst after each injection. Based on the resulting data, primary product instantaneous conversion and selectivity rates were calculated for each injection.

Figure 15 reports the typical product distribution observed during the BODH process, using the 5% V/MgO-γAl₂O₃ catalyst at three distinct temperature conditions: 500 °C, 525 °C, and 550 °C. One could see that at these three temperature levels, the C₄-olefin selectivity ranged between 70 and 86%. The products obtained ranged from CH₄ to C₄H₈ isomers. One could notice that at lower temperatures, the selectivity towards C₄-olefins increased, accompanied by an increase in butane conversion. This indicated that lower temperatures were more favorable for the desired reaction, as demonstrated in Figure 15.

Conversely, at higher temperatures, the catalyst tended to experience a more pronounced loss of lattice oxygen, resulting in higher butane conversion. Moreover, the yield of the desired product significantly decreased. Additionally, the mole fractions of CO_x and degradation products increased at elevated temperatures. These observations suggested that the catalyst favored undesired reactions, such as complete combustion and cracking, as represented by Equations (3)–(5).

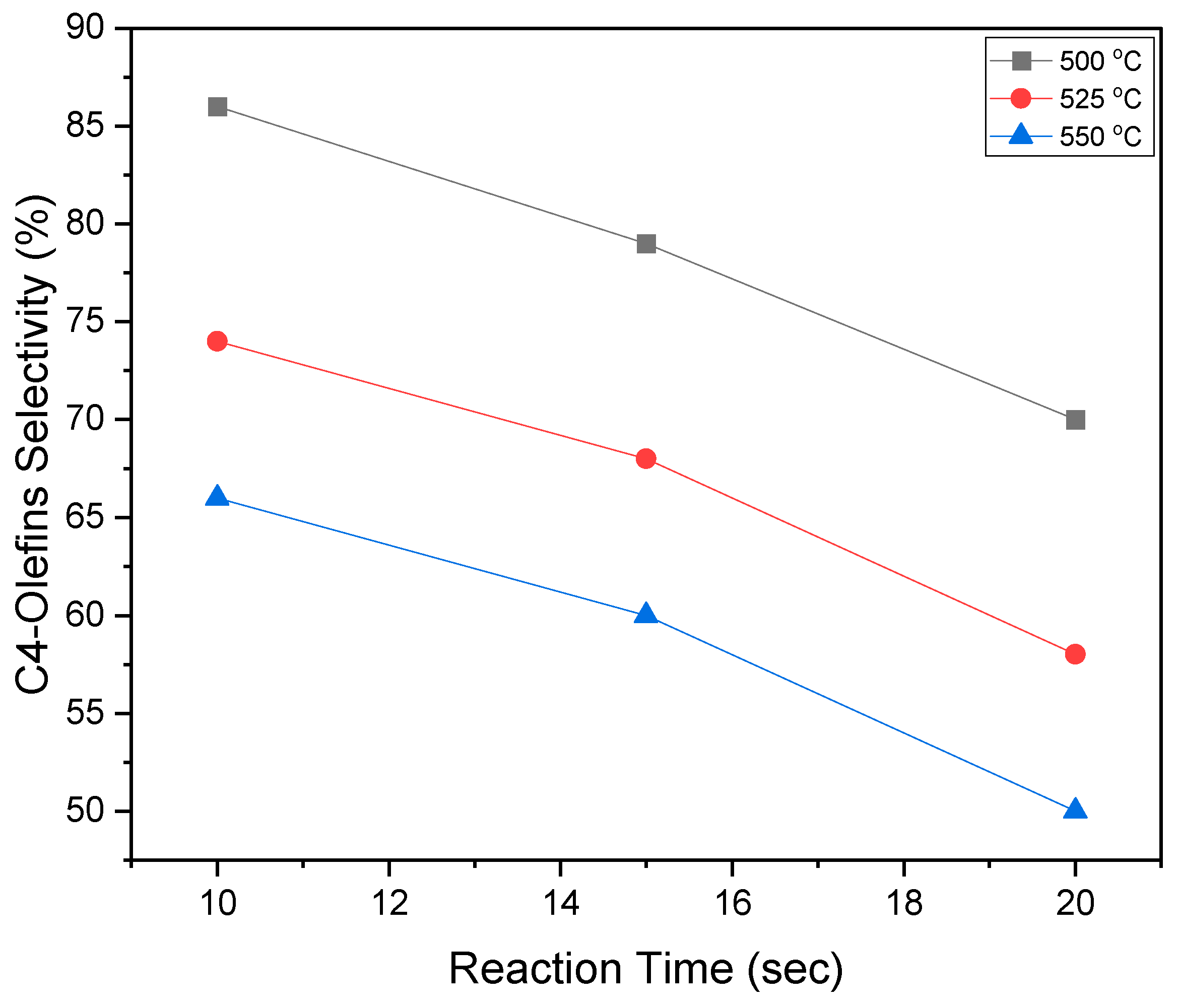

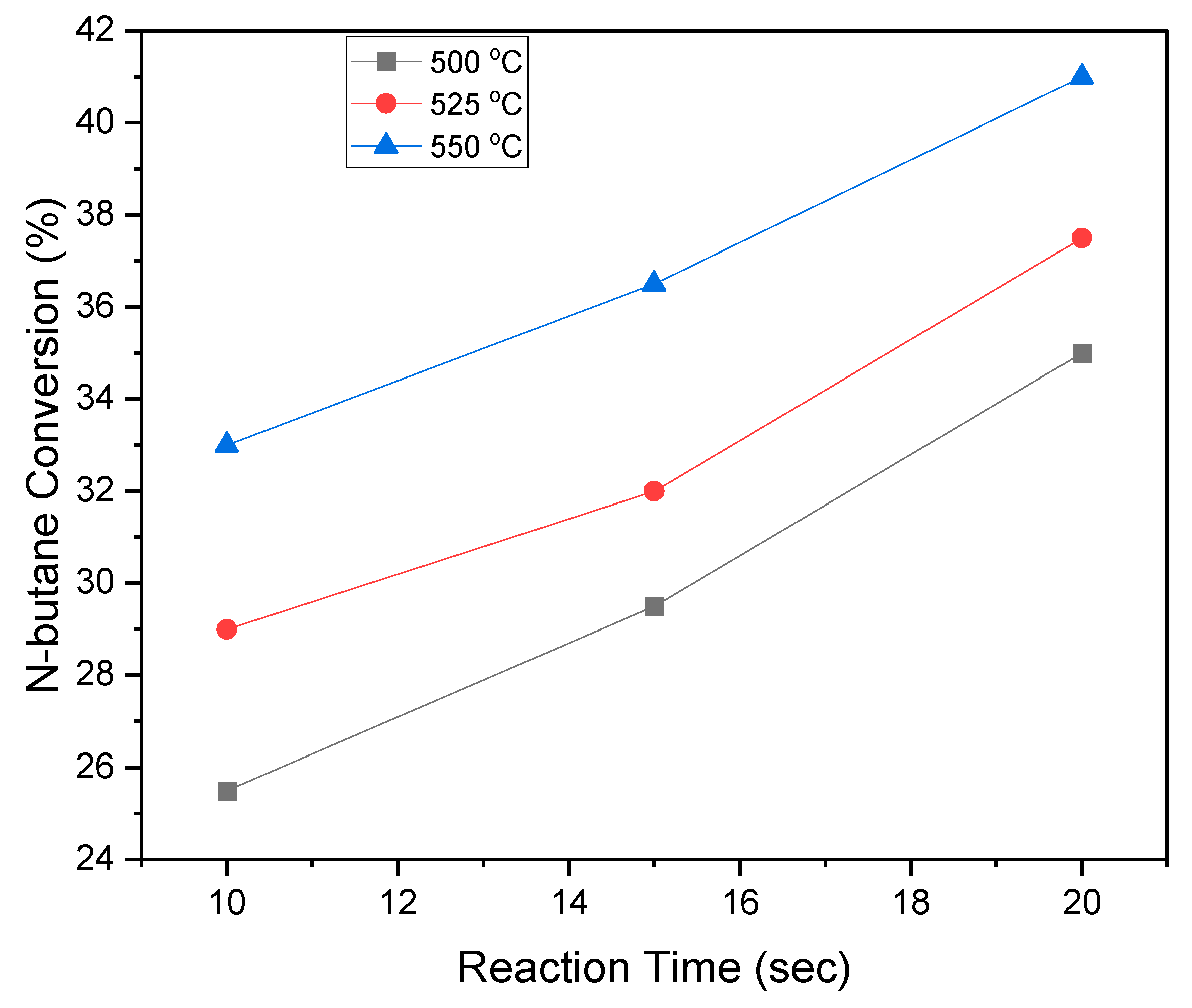

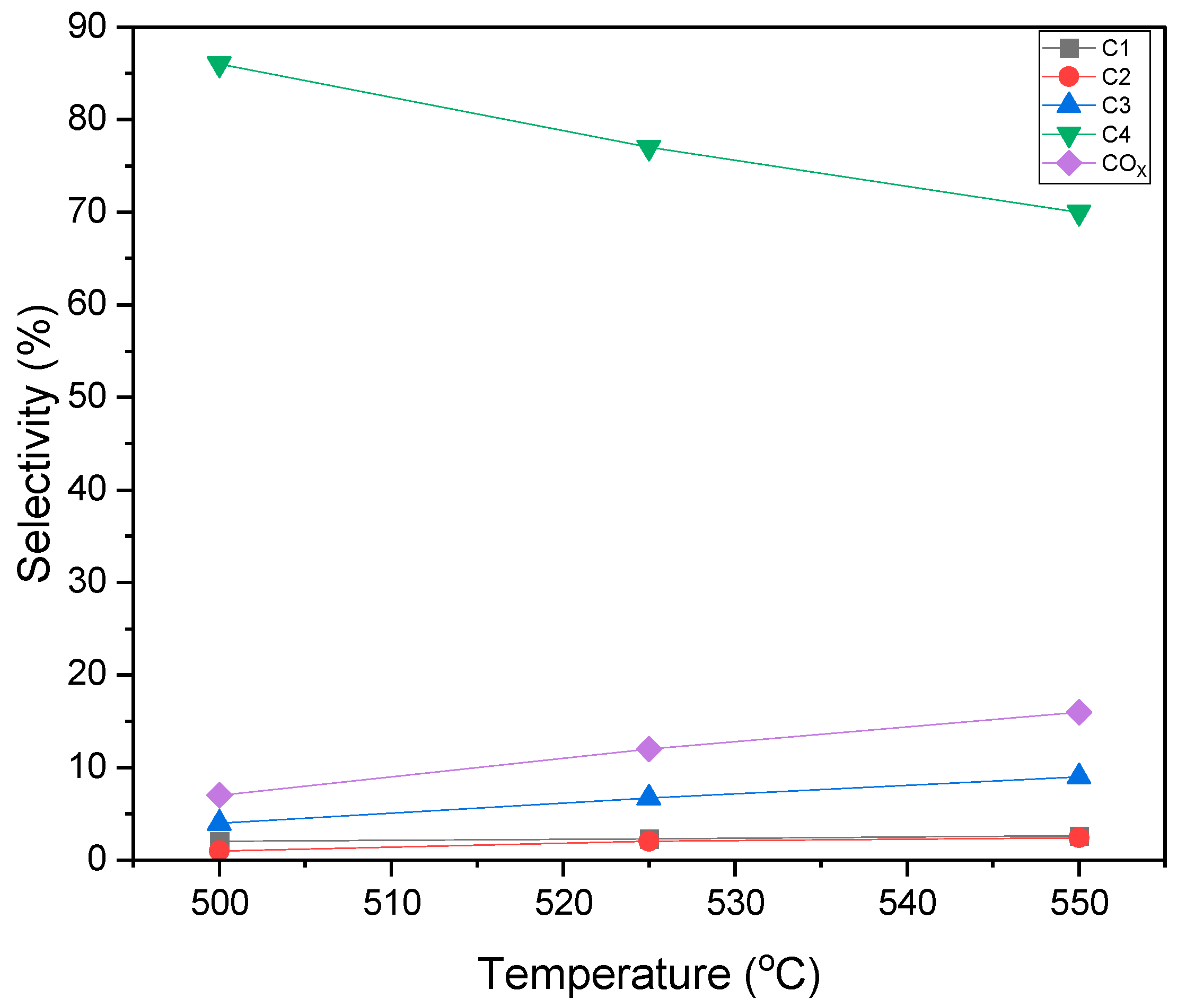

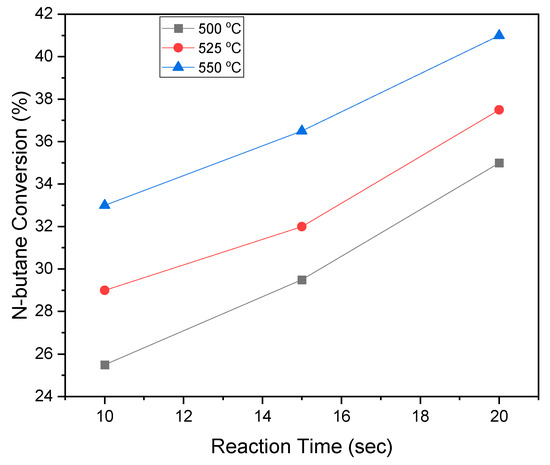

Figure 16 and Figure 17 provide insights into the average conversions of n-butane to C₄-olefins when utilizing the 5% V/MgO-γAl₂O₃ catalyst at different temperatures (500 °C, 525 °C, and 550 °C). As the temperature and reaction time increased, there was a corresponding rise in butane conversion, ranging from 25% to 36%. However, the selectivity towards C₄-olefins decreased from 86% to 70%. These findings indicated that co-oxidation and the formation of CO_x species were favored reactions during butane combustion with BODH catalysts.

Furthermore, adding MgO to the catalyst helped in reducing the acidity of the catalyst support. This, in turn, enhanced the desorption of C₄-olefins, thereby minimizing their subsequent oxidation. Consequently, the selectivity towards C₄-olefins diminished as the temperature increased from 500 °C to 550 °C. It was thus speculated that C₄-olefin selectivity is negatively affected at higher temperatures, which promote higher oxygen mobility, in the VO_x lattice.

Another significant finding from this study, reported in Figure 16, was that lattice oxygen contributed more significantly at longer contact times, such as 20 s. This favored the formation of CO_x species while decreasing the selectivity towards C₄-olefins. Regarding the various carbon-containing products observed during the experimental runs, the identifiable ones included CO, CO₂, CH₄, C₂H₄, C₂H₆, and C₃H₆. However, their yields were below 3%, rendering them insignificant for kinetics analysis. An interesting observation was that the presence of CO_x species indicated that butane combustion was still occurring. Additionally, adding MgO effectively reduced the acidity of the catalyst support, promoting C₄-olefin desorption and minimizing its subsequent further oxidation and coke formation.

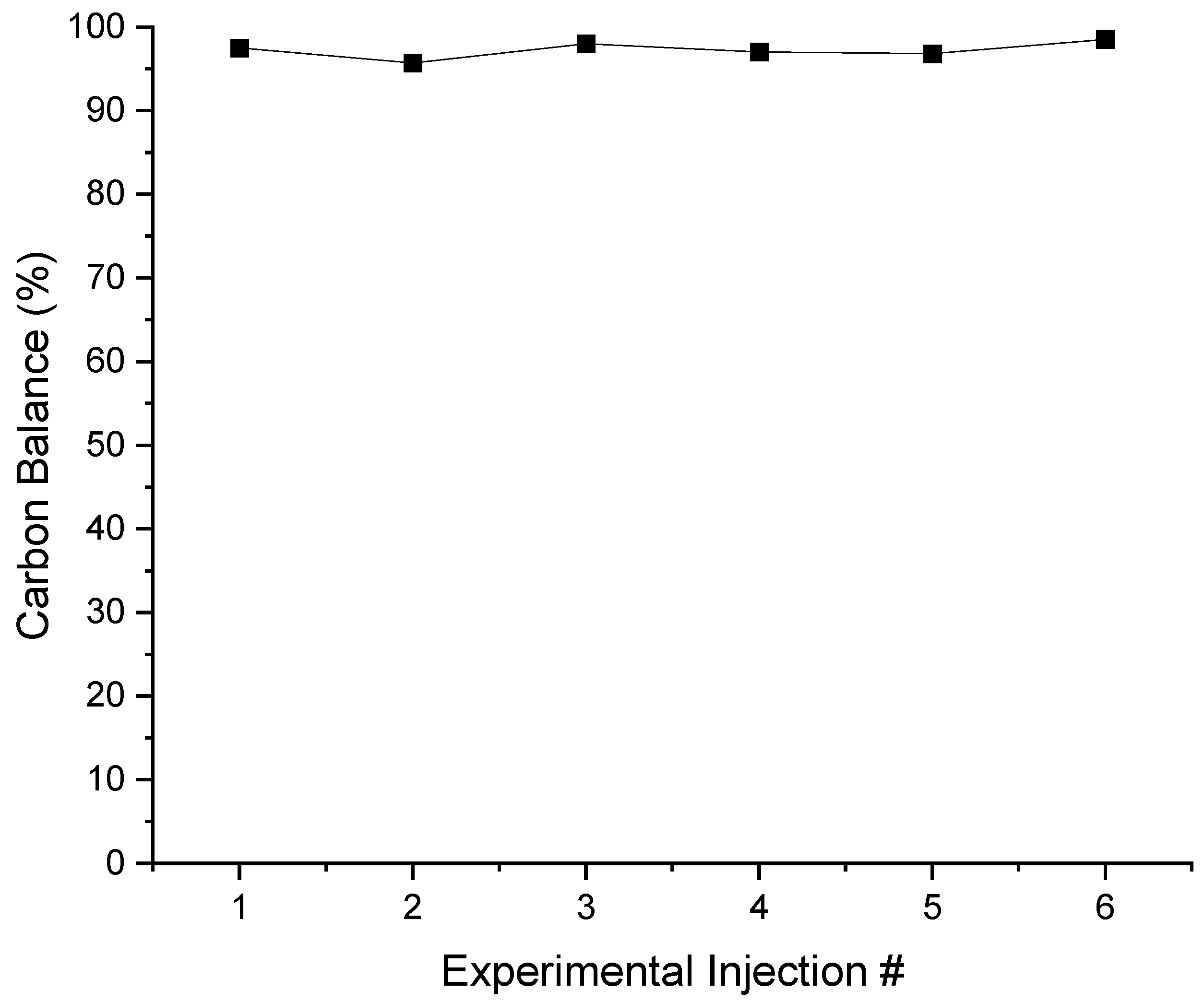

Maintaining an accurate carbon balance is crucial to ensure the precision and completeness of butane’s oxidative dehydrogenation (ODH). Therefore, the carbon balance was assessed after each butane injection, consistently exceeding 96%, as shown in Figure 18. This shows that our BODH process is highly efficient and reliable, making it a credible and trusted method for producing n-butane.

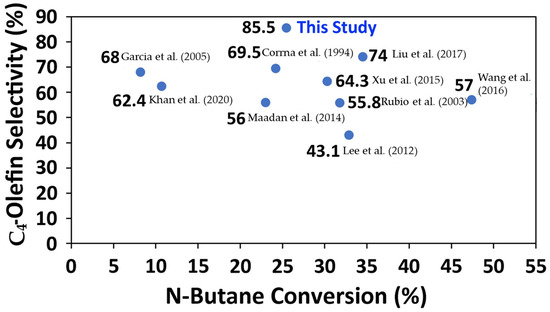

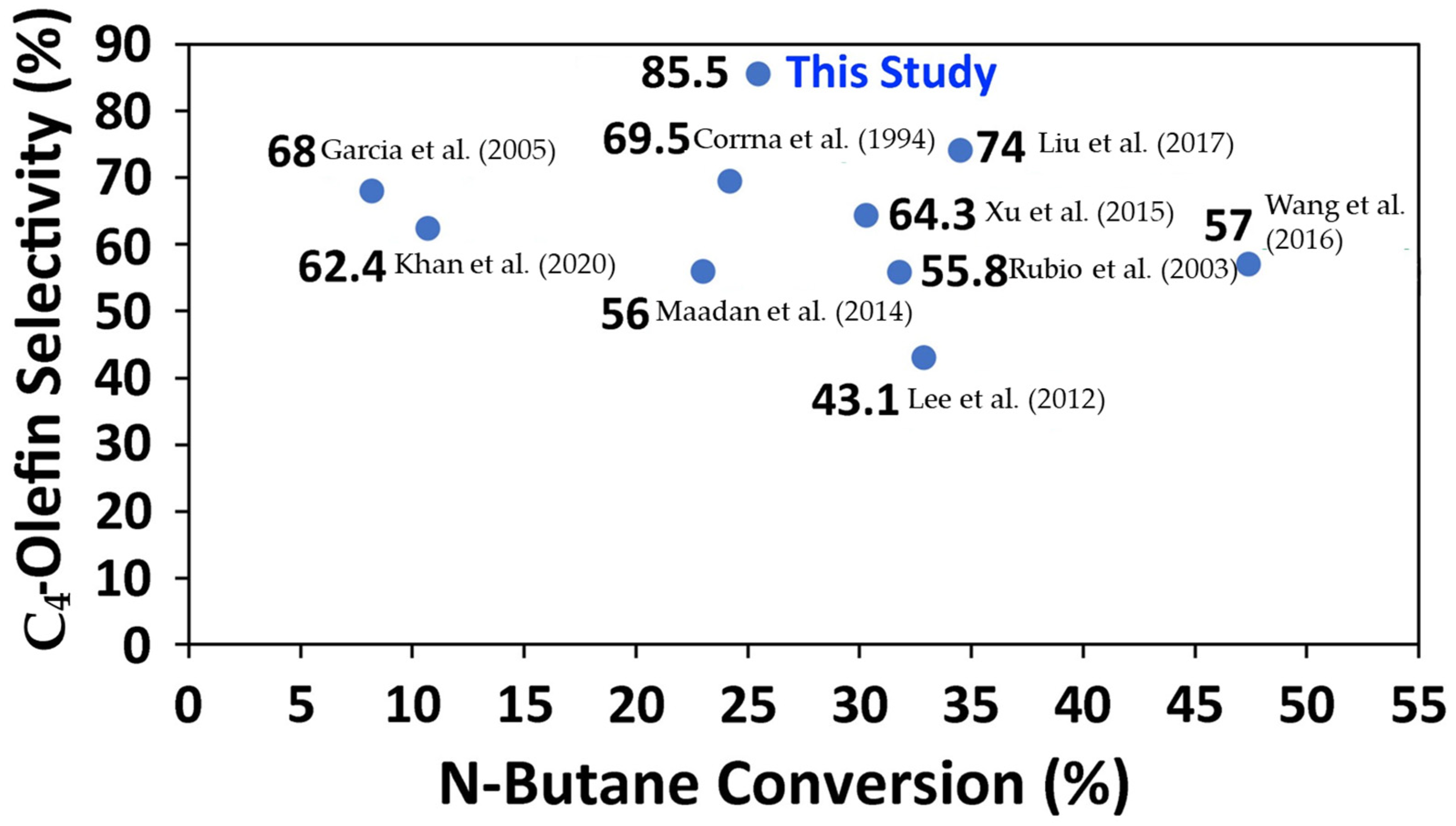

Figure 19 shows how the performance of the BODH catalysts of the present study compares with that documented in the technical literature. Figure 19 accounts for two critical factors: C₄-olefin selectivity and n-butane conversion.

One can observe that the VO_x/MgO-γAl₂O₃ catalyst of this study displayed an excellent performance at 500 °C, reaching a remarkable 85% C₄-olefin selectivity, alongside a 25% n-butane conversion. This was obtained under gas-phase oxygen-free conditions, with minimal coke formation. One should note that from all the references cited [10] also employed in the CREC Riser Simulator to evaluate BODH. This is, in our view, a needed experimental tool to truly assess BODH catalysts under the relevant operating conditions for a large-scale riser or downer reactor units.

Regarding this BODH catalyst of the present study, it demonstrated a commendable stability under repeated n-butane injections. This was attributed to its high catalyst-specific surface area and abundant BODH active sites. The Thermal Programmed Reduction (TPR) analysis validated the catalyst’s high BODH activity at 500 °C. Thus, as a conclusion and on the basis of the experimental data obtained, one can conclude that the BODH catalyst of this study is promising for continuous circulating fluidized operation at 500 °C, minimizing the need for frequent catalyst regeneration between BODH cycles.

2.11. Coke Formed Analysis Using Total Organic Carbon (TOC)

Coke can also be considered a byproduct of oxidative dehydrogenation with a possible overall formation stoichiometry as follows: n-C₄H₁₀ → 4 CH_0.7 + 3.6 H₂.

Thus, after each run of six (6) consecutive injections, the catalyst was removed from the CREC Riser Simulator basket for further analysis. Approximately 50 mg of the spent catalyst was selected for Total Organic Carbon (TOC) analysis. The TOC analysis used a TOC Mandel/Shimadzu VCPH Series unit. It employed a catalytic combustion oxidation method that ensures the complete combustion of coke into CO₂. The catalyst sample was exposed to a stream of pure oxygen gas, leading to coke oxidation. The carbon content in the catalyst sample was calculated stoichiometrically based on the amount of CO₂ formed during oxidation. The resulting CO₂ was then measured using a highly sensitive infrared gas analyzer (NDIR).

To perform the TOC analysis, the analyzed sample was placed in an oven and heated to a temperature of 900 °C. This high temperature facilitated the complete combustion of coke into CO₂, allowing for the accurate determination of the carbon content in the catalyst sample. Overall, TOC analysis served as a reliable method for quantifying the coke content in the catalyst, providing valuable insights into its performance and stability.

Table 6. Average coke-on-catalyst on a per-injection basis at reaction conditions of 500 °C, 10 s, and 0.7 gm catalyst. The standard deviation (SD%) of three repeats is 12.17%.

Catalyst Type	gCoke/gcat./Injection	gCoke/gbutane./Injection
5% V/γAl2O3	0.00038	0.0377
5% V/MgO-γAl2O3	0.00022	0.0219

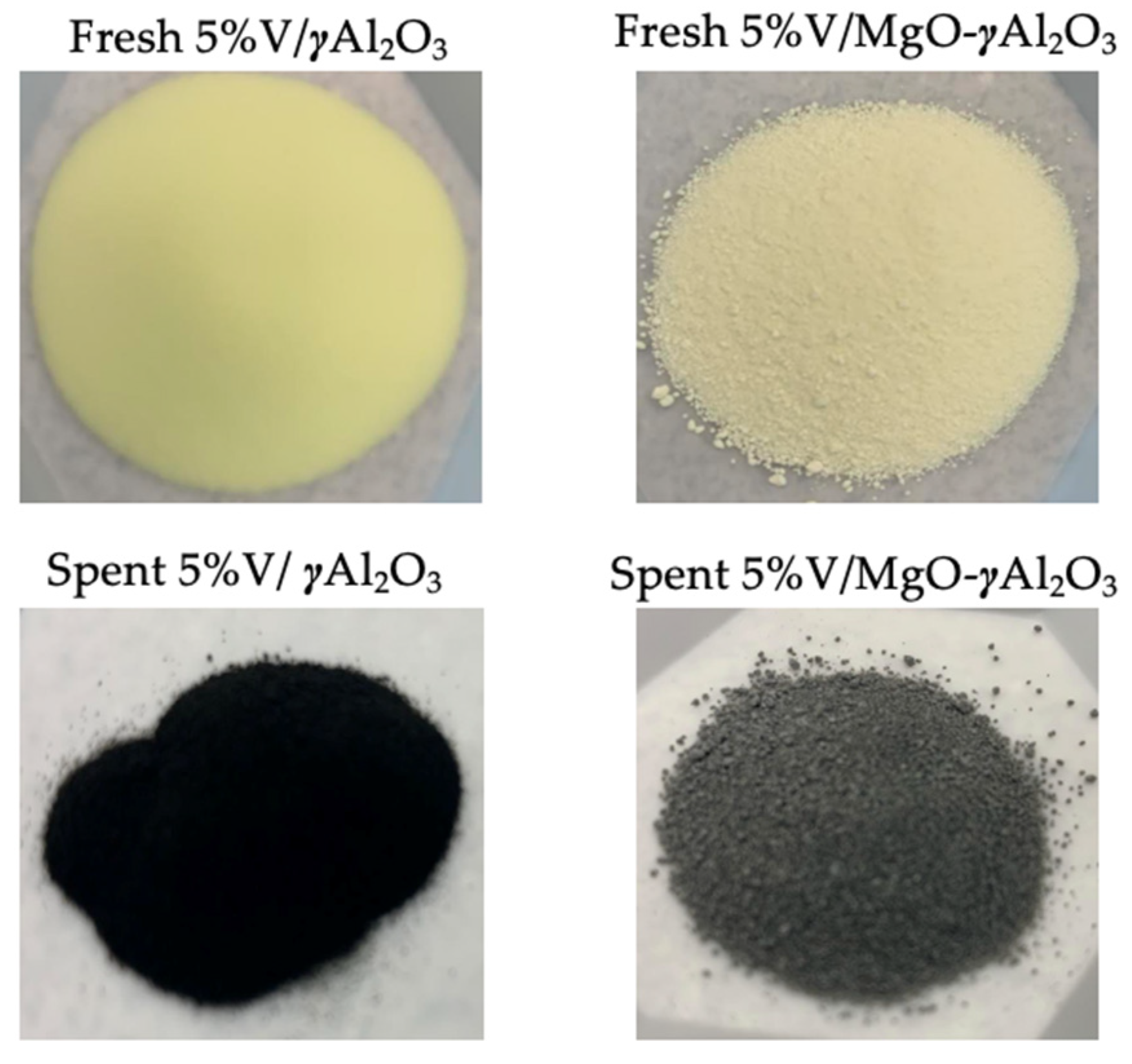

reports the average coke-on-catalyst, on a per-injection basis, for the 5% V/γAl₂O₃ and 5% V/MgO-γAl₂O₃ catalysts. Additionally, photos of the catalyst before and after the reaction are shown in Figure 20.

2.12. Hydrogen (H₂) and C₄-Olefin Ratios and BODH Mechanism Confirmation

The H₂ and C₄-Olefins quantification method used in the BODH process can involve various analytical techniques. One common approach is gas chromatography (GC), which allows the separation and measurement of the individual components in a gas mixture.

To quantify the H₂ gas- and carbon-containing products in BODH, the gas sample obtained from the reaction is typically collected and analyzed using a GC system. In the present research, a GC column was equipped with a stationary phase, which separated the individual components based on their molecular properties, such as size, polarity, and affinity to the stationary phase. The separated H₂ and C₄-olefins components were identified using a thermal conductivity detector (TCD) and flame ionization detector (FID). Thus, the H₂- and carbon-containing products, as quantified via gas chromatography, were reliably and accurately measured, enabling the effective assessment of the BODH catalyst performance.

Table 7. C₄-Olefins/H₂ ratios for BODH after six n-butane consecutive injections, at 500 °C, 10 s, 0.7 g of catalyst, 3 mL of n-butane feed.

Inject.	Selectivity (%)								X.C4H10 (%)	Y.C4H8 (%)	C4-Olefin/H2 (molar ratio)
	CO	CH4	CO2	C2H4	C2H6	C3H6	C3H8	C4H8
1	6.35	0.32	10.62	1.30	0.07	5.31	0.64	75.39	32.96	24.85	3.99
2	2.24	0.41	7.22	1.36	0.07	5.57	0.55	82.58	27.51	22.72	3.09
3	1.56	0.46	6.07	1.69	0.10	6.01	0.38	83.73	26.06	21.82	3.42
4	1.42	0.52	4.62	1.91	0.10	6.06	0.32	85.04	26.10	22.20	3.33
5	1.28	0.51	4.00	1.92	0.10	5.97	0.31	85.91	26.05	22.38	3.38
6	1.15	0.49	3.55	1.90	0.11	5.76	0.29	86.74	25.76	22.34	3.46

summarizes the BODH results obtained after six n-butane consecutive injections, with C₄-Olefins/H₂ ratios reported for 500 °C, 10 s, 0.7 g of catalyst and 3 mL of n-butane feed. Notes: (a) coke is excluded from the calculations, (b) catalyst: 5% V/MgO-γAl₂O₃.

Table 7 allows one to confirm the anticipated value of the catalytic mechanism for BODH. One can notice, in this respect, that the thermal dehydrogenation of BODH leads to a C₄-Olefin/H₂ ratio between 0.5 and 1, as required by the dehydrogenation stoichiometry: nC₄H₁₀ → C₄H₈ + H₂ → C₄H₆ + H₂.

However, in the case of our study, the C₄-Olefin/H₂ ratio significantly surpassed these values, being in the 3.09 to 3.99 range. These ratios are higher, and are consistent with the hypothesized catalytic oxidative dehydrogenation, as described in Equation (2).

Furthermore, one can also see that if the C₄-Olefin/H₂ ratios of Table 7 were further revised, accounting for coke formation (Equations (9)–(11)), with CH_2.5 representing the C₄H₁₀ elemental carbon and hydrogen composition), these molar ratios would become even higher, being in the 5.69–7.34 range as described in Appendix C, with all this further reinforcing the value of the postulated BODH reaction mechanism. Thus, the runs of the present study developed in the CREC Riser Simulator helped to confirm the beneficial catalytic properties of the developed catalysts for BODH, as well as to corroborate the value of the postulated path for the BODH reaction under study.

3. Experimental Section

3.1. Catalyst Synthesis

The V/MgO-γAl₂O₃ catalyst of the present study was prepared using chemicals from Sigma-Aldrich (Louis, MO, United States) and involved vacuum-incipient wet impregnation. To prepare the V/MgO-γAl₂O₃ catalyst, the γAl₂O₃ support was first heated at 120 °C, to remove moisture. Then, a desired amount of Mg(NO₃)_2.6H₂O was dissolved in distilled water and mixed under vacuum with the γAl₂O₃ support, until no supernatant solution was left. The resulting paste was dried for eight hours at 120 °C, before being calcined at 500 °C for eight hours. Following this, various vanadium loadings (5 wt%, 7.5 wt%, 10 wt%) were added to the MgO-γAl₂O₃ support via wet impregnation, using a 1 to 2 ratio of aqueous ammonium metavanadate to oxalic acid. After drying at 120 °C for eight hours, the resulting cake was ground and sieved before calcination under an air stream at 600 °C for eight hours.

The adequacy of the wetness impregnation under vacuum was supported by (a) the quantitative solution transfer into the catalyst support, securing nominal V loadings for all impregnations, as shown in Table 3. (b) SEM-EDX (Hitacho, Tokyo, Japan) analysis confirming that the outer 2–3-micron particle outer shell gave 5% V loadings, 0.09 V/Al, and 0.5 Mg/Al atomic ratios 0.5 (+/−2–3%), which are the expected values for 5% V/MgO-γAl₂O₃.

The various catalysts prepared were designated as 5% V/MgO-γAl₂O₃, 7.5% V/MgO-γAl₂O₃, and 10% V/MgO-γAl₂O₃, to denote the different vanadium loadings on the magnesium doped γAl₂O₃. While some catalyst characterization analyses were considered for all of them, some analyses such as XPS were limited to the 5% V/MgO-γAl₂O₃ best performing. Comparison of performance of the various catalyst is reported in Appendix D.

3.2. Catalyst Characterization

3.2.1. BET Surface Area and Pore Size Distribution

An ASAP 2010 analyzer (Micromeritics, Norcross, GA, USA) was used to determine the prepared catalysts’ surface areas and pore size distributions. The analysis involved loading 120–150 mg of the catalyst sample into a sample tube, and then degassing it at 250 °C for 2 h. Liquid N₂ was used for adsorption and vacuum desorption measurements at 77 K within a 0.04 to 1 relative pressure range. The BET-specific surface area analysis, which determines the total surface area of the catalyst per unit mass, was calculated based on the measured adsorption isotherm data. The Barrett–Joyner–Halenda (BJH) method determined the pore size distribution, while assuming that the pores were cylindrical.

3.2.2. Temperature-programmed Reduction/Oxidation (TPR/TPO)

The characterization of the BODH catalysts included temperature-programmed reduction/oxidation (TPR/TPO) experiments. It was conducted using a Micromeritics Autochem II (2920 Analyzer) (Micromeritics, Norcross, GA, USA). TPR runs were performed under a 10 percent H₂/Ar gas mixture, flowing at a rate of 50 cm³ min⁻¹, with a catalyst quantity of approximately 130 to 150 mg. The catalyst sample was heated using a temperature ramp of 15 °C/min, until 900 °C was reached. A thermal conductivity detector (TCD) (Micromeritics, Norcross, GA, USA) monitored the hydrogen in the exhaust stream with numerical integration of the TPR areas. As a result, the hydrogen consumption by the catalyst sample could be calculated, and lattice oxygen was calculated. After catalyst reduction, a similar approach was used to re-oxidize the catalyst with TPO analysis. Successive TPR injections followed by TPO were affected to demonstrate the stable reduction and reoxidation of the catalysts.

3.2.3. Temperature-Programmed Desorption of Ammonia (NH₃-TPD)

NH₃-TPD was performed using the Autochem II (2920 Analyzer) (Micromeritics, Norcross, GA, USA) to determine the acidity levels of the prepared catalysts. The analysis involved several steps. First, 150 mg of the catalyst was placed into a sample holder. Then, the catalyst sample was pretreated for 1 h at 550 °C with a 50 mL/min helium gas flow going through it. The catalyst was then cooled to 100 °C and saturated with a 50 cm³/min NH₃/He gas flow for one hour. The excess NH₃ was purged from the catalyst sample using pure He gas flow through it for an hour at 50 cm³/min. The NH₃ desorption was then studied via heating the sample at 15 °C/min under a He flow at a rate of 50 cm³/min up to 650 °C. The effluent stream was monitored with a TCD detector to track NH₃ desorption. The total acidity was determined by accounting for the ammonia desorbed from the catalyst sample.

3.2.4. X-ray Diffraction (XRD)

XRD analysis was conducted to characterize the structural properties of the synthesized catalysts. The study used a Rigaku X-ray diffractometer (Rigaku, Tokyo, Japan) with a Cu-Kα radiation source (λ = 1.5418 Å), operated at 40 kV and 40 mA. To obtain XRD patterns, the samples were scanned within a 2θ range of 10–80° at a scan rate of 0.02°/s. The XRD data were analyzed using Ultima 4 software (version 1.0.0.0)

3.2.5. Pyridine-Fourier Transform Infrared Spectroscopy (FTIR)

The identification of acid sites on catalyst surfaces is vital in catalytic research. Using the Fourier Transform Infrared Spectroscopy (FTIR) method, with pyridine as a probe molecule, specific acid sites can be discerned. The catalyst sample is first prepared by drying under a continuous N₂ flow at 550 °C for two hours and then cooling to 100 °C. Once prepared, the catalyst surface is saturated with pyridine from a controlled N₂ stream at a steady temperature of 100 °C for an hour. Following adsorption, any loosely bound pyridine is purged with a pure N₂ stream at the same temperature for 90 min. For in-depth analysis, the sample undergoes FTIR examination using a Bruker Hyperion 2000 microscope (Bruker, Billerica, MA, USA) coupled with a Tensor II main box.

3.2.6. Laser Raman Spectroscopy (LRS)

Laser Raman spectroscopy (LRS) was employed to analyze the state of the vanadium oxide surface species (VO_x), including those of the VO₄ and the V₂O_5, on the γAl₂O₃ and the MgO-γAl₂O₃. The LRS measurements were obtained using a Renishaw InVia Reflex Raman spectrometer (Renishaw, Mississauga, ON, Canada) equipped with a 633 nm laser, and an 1800 I/mm grating. The LRS spectra were collected in the static mode, with the spectra center set at 775 cm⁻¹ (~8 mW at the sample). Spectra were recorded for 10 or 30 s. The collected LRS was analyzed by considering peak positions and intensity ratios.

3.2.7. X-ray Photoelectron Spectroscopy (XPS)

XPS analysis provides valuable information on the oxidation state, the coordination, and the electronic properties of the surface elements of catalysts. This can assist in determining catalytic behavior. XPS (X-ray photoelectron spectroscopy) was used to quantify surface elements of the VO_x/γAl₂O₃ and VO_x/MgO-γAl₂O₃ catalysts. The measurements were carried out with a Kratos Axis Ultra spectrometer (Kratos, Alton Pkwy, Irvine, CA, USA), using an Al K (alpha) source (15 mA, 14 kV). Survey scan analyses were performed using an analysis area of 300 × 700 microns and a pass energy of 160 eV. High-resolution studies were conducted using an analysis area of 300 × 700 microns and a pass energy of 20 eV. The main line of the carbon 1s spectrum (adventitious carbon) was set to 284.8 eV. In addition, the Casa XPS software (version 2.3.23) was used to analyze the XPS spectra.

3.3. Reactor System-the CREC Riser Simulator

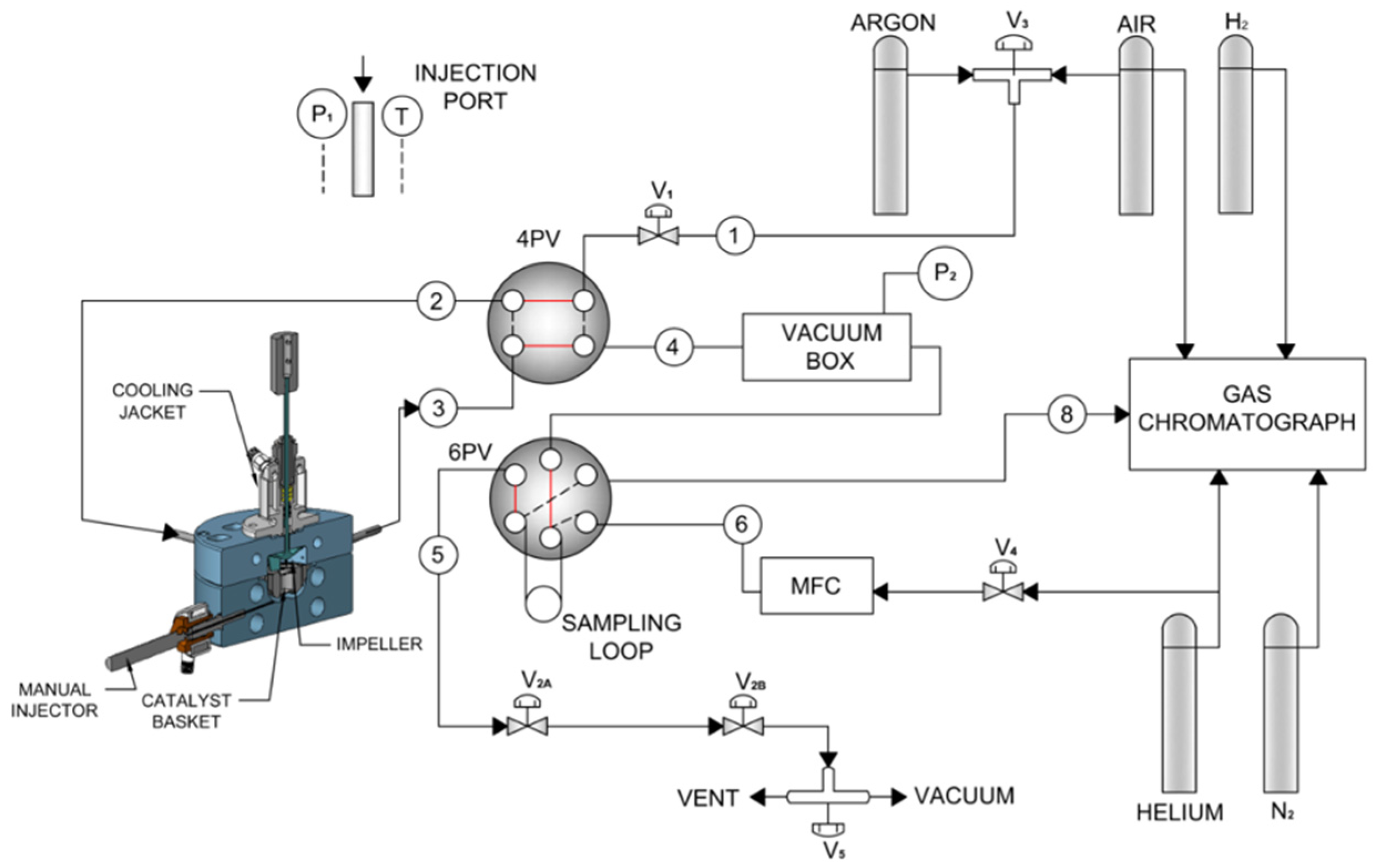

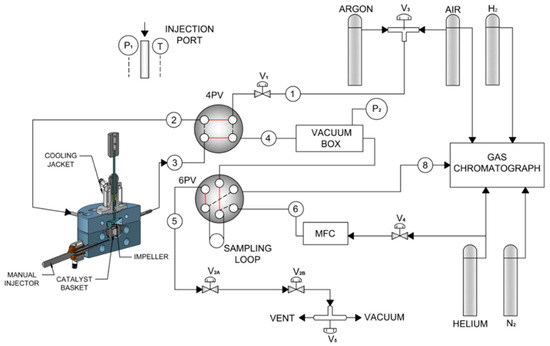

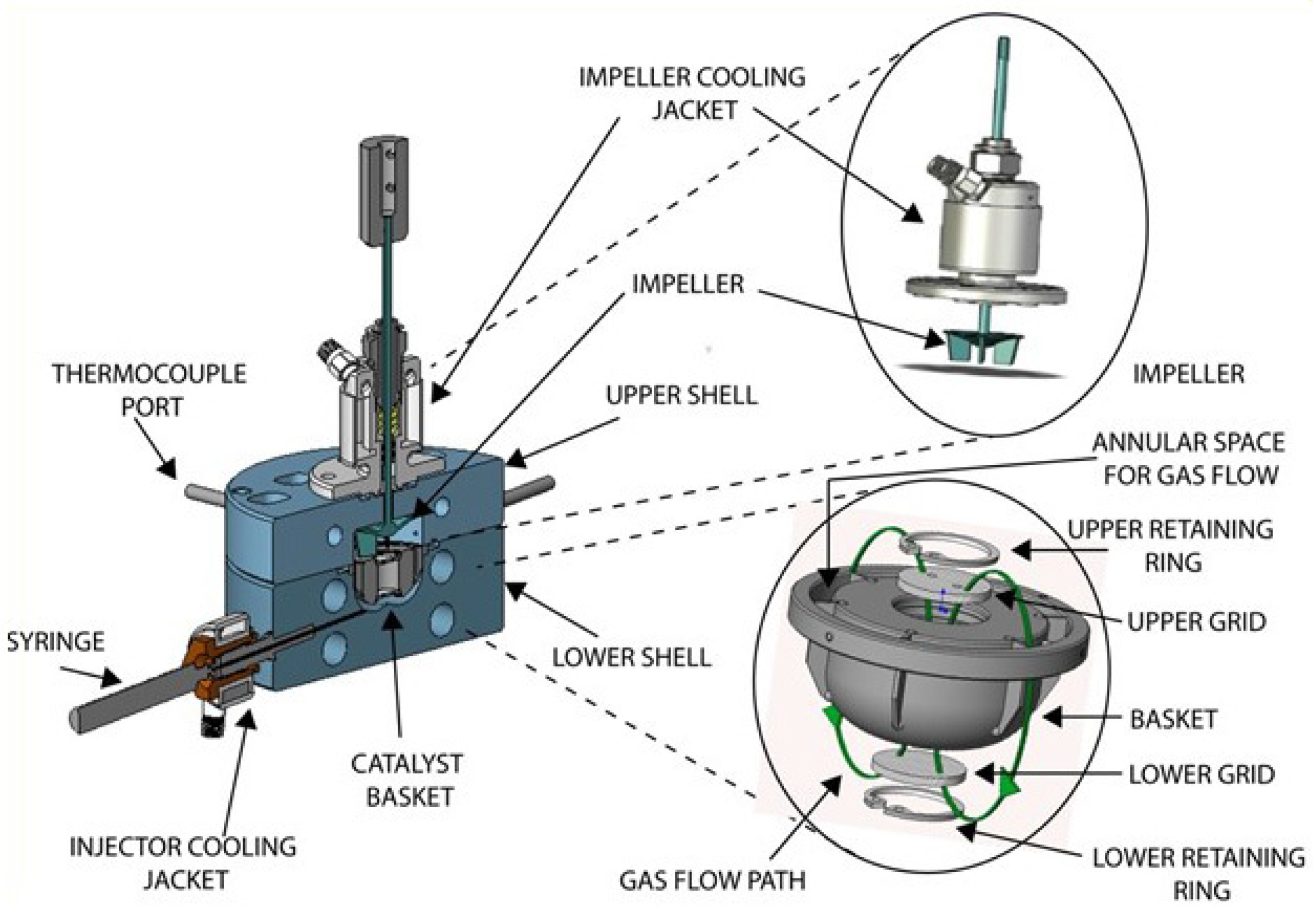

The effect of reaction temperature and time on VO_x/MgO-γAl₂O₃ catalytic performance was studied in a 50 mL mini-fluidized bed reactor, designated as the CREC Riser Simulator-Mark II (Recat Technologies Inc, London, ON, Canada) [47]. This reactor is designed to mimic FCC conditions of riser and downer units, such as temperature, contact time, hydrocarbon partial pressures, and C/O ratios. Therefore, this an ideal tool to evaluate catalyst performance and to develop kinetic models. The CREC Riser Simulator has an impeller in the upper section. This is shown in Figure 21. This impeller rotates to promote particle fluidization and high hydrocarbon recirculation in the catalyst basket. Experimental runs were conducted at various reaction temperatures and reaction times. Product yields and selectivities were monitored. The data obtained from these experiments were then used to determine the optimal reaction temperature and reaction time for the VO_x/MgO-γAl₂O₃ catalyst in BODH.

To perform a run in the CREC Riser Simulator, the reactor was first set to the desired reaction temperature (e.g., 500 °C), and the catalyst was conditioned as required (e.g., regenerated before every set of 6 sequential runs). The experimental procedure involved a manual injection of the n-butane feed. This was followed by the catalytic reaction and the evacuation of the reactor contents to the vacuum box through a four-port valve (4PV) once the reaction time, set with a timer, was reached. This procedure allowed the collection of product samples that were then analyzed using the Mandel/Shimadzu GC-2010 (Guelph, ON, Canada) gas chromatograph to determine the conversion of n-butane and the C4-olefin selectivity. The pressure and temperature inside the reactor were also monitored using pressure transducers and temperature controllers (Omega Engineering Inc., Norwalk, CO, USA), to ensure optimal operating conditions. A schematic diagram of the reactor and its accessories is provided in Figure 22.

Experimental Procedures in the CREC Riser Simulator

The CREC Riser Simulator reactor was first loaded with the required amount of catalyst (0.7 g) and heated to the desired reaction temperature (e.g., 500 °C) using a temperature program. An argon flow of 20 mL/min was maintained during the reactor heating period to ensure an oxygen-free reactor system. Once the reactor reached the desired temperature, the argon flow was stopped. At this time, the reactor pressure was reduced to 3 psi using a vacuum pump.

The feed (n-butane) was injected into the reactor using a preloaded syringe when the impeller was rotating at 5000 rpm. During the reaction period, the reactor pressure profile was monitored with a pressure transducer. After a pre-specified reaction time (e.g., 10 s), the CREC Riser Simulator contents were transferred to a stainless-steel vacuum box. The product species were analyzed using a gas chromatograph, equipped with FID and TCD detectors. The reactor effluents were analyzed online using argon as a carrier gas and a HayeSep D 100/120 mesh-packed column (Mandel, Guelph, ON, Canada). CO and CO₂ product species were converted in a methanizer unit and detected as methane. Data acquisition was conducted using Shimadzu GC Solution software (version 2.5).

After six successive n-butane injections, the catalyst was regenerated in the same CREC Riser Simulator via contacting it with air at 575 °C for 10 min. The performance of the BODH catalysts was evaluated based on performance indicators such as n-butane conversion, C₄-olefins selectivity, and various product yields. The moles of carbon atoms contained in each product species were calculated to determine conversions, selectivities and yields as follows:

$$N-\mathrm{b}\mathrm{u}\mathrm{t}\mathrm{a}\mathrm{n}\mathrm{e} \mathrm{C}\mathrm{o}\mathrm{n}\mathrm{v}\mathrm{e}\mathrm{r}\mathrm{s}\mathrm{i}\mathrm{o}\mathrm{n}={\mathrm{X}}_{n-\mathrm{b}\mathrm{u}\mathrm{t}\mathrm{a}\mathrm{n}\mathrm{e}}=\frac{\mathsf{\Sigma }{\mathrm{N}}_{\mathrm{i}}{\mathsf{\nu }}_{\mathrm{i}}}{4{\mathrm{N}}_{\mathrm{n}-\mathrm{b}\mathrm{u}\mathrm{t}\mathrm{a}\mathrm{n}\mathrm{e}}+\mathsf{\Sigma }{\mathrm{N}}_{\mathrm{i}}{\mathsf{\nu }}_{\mathrm{i}}}$$

(6)

$${\mathrm{C}}_4-\mathrm{O}\mathrm{l}\mathrm{e}\mathrm{f}\mathrm{i}\mathrm{n}\mathrm{s} \mathrm{S}\mathrm{e}\mathrm{l}\mathrm{e}\mathrm{c}\mathrm{t}\mathrm{i}\mathrm{v}\mathrm{i}\mathrm{t}\mathrm{y}={\mathrm{S}}_{{\mathrm{C}}_4-\mathrm{O}\mathrm{l}\mathrm{e}\mathrm{f}\mathrm{i}\mathrm{n}\mathrm{s}}=\frac{{4\mathrm{N}}_{{\mathrm{C}}_4-\mathrm{O}\mathrm{l}\mathrm{e}\mathrm{f}\mathrm{i}\mathrm{n}\mathrm{s}}}{\mathsf{\Sigma }{\mathrm{N}}_{\mathrm{i}}{\mathsf{\nu }}_{\mathrm{i}}}$$

(7)

$${\mathrm{C}}_4-\mathrm{O}\mathrm{l}\mathrm{e}\mathrm{f}\mathrm{i}\mathrm{n}\mathrm{s} \mathrm{Y}\mathrm{i}\mathrm{e}\mathrm{l}\mathrm{d}={\mathrm{Y}}_{{\mathrm{C}}_4-\mathrm{O}\mathrm{l}\mathrm{e}\mathrm{f}\mathrm{i}\mathrm{n}\mathrm{s}}=\frac{4{\mathrm{N}}_{{\mathrm{C}}_4-\mathrm{O}\mathrm{l}\mathrm{e}\mathrm{f}\mathrm{i}\mathrm{n}\mathrm{s}}}{4{\mathrm{N}}_{n-\mathrm{b}\mathrm{u}\mathrm{t}\mathrm{a}\mathrm{n}\mathrm{e}}+\mathsf{\Sigma }{\mathrm{N}}_{\mathrm{i}}{\mathsf{\nu }}_{\mathrm{i}}}$$

(8)

Given the fact that coke content was established with a separate TOC analysis at the end of a run, while the various molar fraction of various gaseous species was determined with combined TCD-FID for each n-butane injection, the following Equations (9)–(11) were used for calculations accounting for coke.

$$N-\mathrm{b}\mathrm{u}\mathrm{t}\mathrm{a}\mathrm{n}\mathrm{e} \mathrm{C}\mathrm{o}\mathrm{n}\mathrm{v}\mathrm{e}\mathrm{r}\mathrm{s}\mathrm{i}\mathrm{o}\mathrm{n}={\mathrm{X}}_{\mathrm{n}-\mathrm{b}\mathrm{u}\mathrm{t}\mathrm{a}\mathrm{n}\mathrm{e}}=\frac{\mathsf{\Sigma }{\mathrm{N}}_{\mathrm{i}}{\mathsf{\nu }}_{\mathrm{i}}+{\mathrm{N}}_{\mathrm{c}\mathrm{o}\mathrm{k}\mathrm{e}}}{4{\mathrm{N}}_{n-\mathrm{b}\mathrm{u}\mathrm{t}\mathrm{a}\mathrm{n}\mathrm{e}}+\mathsf{\Sigma }{\mathrm{N}}_{\mathrm{i}}{\mathsf{\nu }}_{\mathrm{i}}+{\mathrm{N}}_{\mathrm{c}\mathrm{o}\mathrm{k}\mathrm{e}}}$$

(9)

$${\mathrm{C}}_4-\mathrm{O}\mathrm{l}\mathrm{e}\mathrm{f}\mathrm{i}\mathrm{n}\mathrm{s} \mathrm{S}\mathrm{e}\mathrm{l}\mathrm{e}\mathrm{c}\mathrm{t}\mathrm{i}\mathrm{v}\mathrm{i}\mathrm{t}\mathrm{y}={\mathrm{S}}_{{\mathrm{C}}_4-\mathrm{O}\mathrm{l}\mathrm{e}\mathrm{f}\mathrm{i}\mathrm{n}\mathrm{s}}=\frac{{4\mathrm{N}}_{{\mathrm{C}}_4-\mathrm{O}\mathrm{l}\mathrm{e}\mathrm{f}\mathrm{i}\mathrm{n}\mathrm{s}}}{\mathsf{\Sigma }{\mathrm{N}}_{\mathrm{i}}{\mathsf{\nu }}_{\mathrm{i}}+{\mathrm{N}}_{\mathrm{c}\mathrm{o}\mathrm{k}\mathrm{e}}}$$

(10)

$${\mathrm{C}}_4-\mathrm{O}\mathrm{l}\mathrm{e}\mathrm{f}\mathrm{i}\mathrm{n}\mathrm{s} \mathrm{Y}\mathrm{i}\mathrm{e}\mathrm{l}\mathrm{d}={\mathrm{Y}}_{{\mathrm{C}}_4-\mathrm{O}\mathrm{l}\mathrm{e}\mathrm{f}\mathrm{i}\mathrm{n}\mathrm{s}}=\frac{4{\mathrm{N}}_{{\mathrm{C}}_4-\mathrm{O}\mathrm{l}\mathrm{e}\mathrm{f}\mathrm{i}\mathrm{n}\mathrm{s}}}{4{\mathrm{N}}_{n-\mathrm{b}\mathrm{u}\mathrm{t}\mathrm{a}\mathrm{n}\mathrm{e}}+\mathsf{\Sigma }{\mathrm{N}}_{\mathrm{i}}{\mathsf{\nu }}_{\mathrm{i}}+{\mathrm{N}}_{\mathrm{c}\mathrm{o}\mathrm{k}\mathrm{e}}}$$

(11)

with N_i representing the moles of the various “i” product species detected, ν_i standing for the number of carbon atoms in the “i” species, and N_n-butane and N_C4-Olefins being the number of moles of n-butane and C₄-Olefins, respectively.

4. Conclusions

• A VO_x/MgO-γAl₂O₃ fluidizable catalyst for n-butane oxidative dehydrogenation (BODH) was prepared and characterized successfully using BET, XRD LRS, XPS, TPR/TPO, NH₃-TPD, and pyridine-FTIR.
• The various surface science techniques used confirmed the catalyst mesoporous structure, its high surface area, its amorphous VO_x phase, its dominant Lewis moderate acidity, and its weak metal–support interactions.
• The effectiveness of the VO_x/MgO-γAl₂O₃ catalyst for C₄-olefin production was demonstrated in a fluidized CREC Riser Simulator, operated under gas-phase oxygen-free conditions at 5 to 20 s reaction times and within a 450 °C to 600 °C temperature range.
• In particular, the 5 wt% VO_x-doped MgO-γAl₂O₃ catalyst yielded promising selectivities for C₄-olefin production, ranging from 82% to 86%, alongside a butane conversion rate of 24% to 27% at 500 °C and at 10 s reaction time.
• The developed VO_x/MgO-γAl₂O₃ catalysts were shown to be stable over multiple injections of butane feed, with catalyst regeneration being performed after each six consecutive BODH runs and the coke formed being very low (0.022%/injection).
