Surface Modification of Fe-ZSM-5 Using Mg for a Reduced Catalytic Pyrolysis Temperature of Low-Density Polyethylene to Produce Light Olefin

by
Yincui Li
,
Ting Liu
,
Shengnan Deng
,
Xiao Liu
,
Qian Meng
,
Mengxue Tang
,
Xueying Wu
and
Huawei Zhang
*
School of Environmental and Municipal Engineering, Qingdao University of Technology, Qingdao 266033, China
*
Author to whom correspondence should be addressed.
Catalysts 2024, 14(1), 78; https://doi.org/10.3390/catal14010078
Submission received: 9 December 2023 / Revised: 29 December 2023 / Accepted: 12 January 2024 / Published: 18 January 2024
(This article belongs to the Topic Valorizing Waste through Thermal and Biological Processes for Sustainable Energy Production)
Browse Figures
Versions Notes

Abstract

:

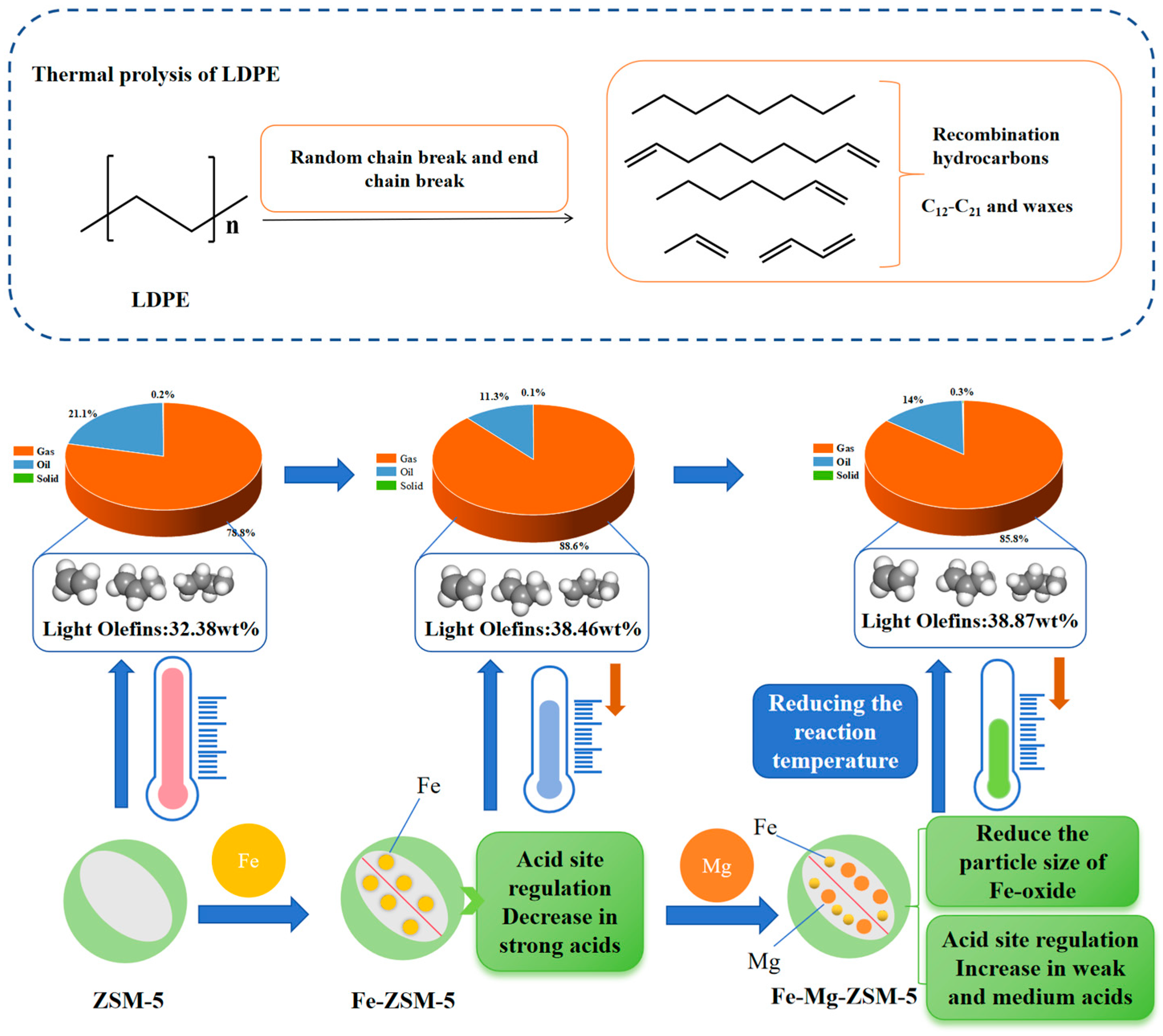

Although the catalytic pyrolysis of low-density polyethylene (LDPE) to produce light olefin has shown potential industrial application advantages, it has generally suffered when using higher pyrolysis temperatures. In this work, Mg-modified Fe-ZSM-5 was used for catalytic conversion of LDPE to obtain light olefin in a fixed bed reactor. The effects of catalyst types, pyrolysis temperatures, and Mg loading on the yield of light olefin were investigated. The 1 wt% Mg loading slightly improved the yield of light olefin to 38.87 wt% at 395 °C, lowering the temperature of the pyrolysis reaction. We considered that the higher light olefin yield of Fe-Mg-ZSM-5 was attributed to the introduction of Mg, where Mg regulated the surface acidity of the catalyst, inhibited the secondary cracking reaction, and reduced coking during the pyrolysis process. Furthermore, the addition of Mg also dramatically reduced the average particle size of Fe oxides from 40 nm to 10 nm, which is conducive to a lower catalytic reaction temperature. Finally, the spent catalyst could be easily regenerated at the conditions of 600 °C in airflow with a heating rate of 10 °C/min for 1 h, and the light olefin yield remained higher than 36.71 wt% after five cycles, indicating its excellent regeneration performance.

Graphical Abstract

1. Introduction

Nowadays, waste plastics are being generated at an increasing rate, which has caused serious problems for both the environment and human health [1,2]. Notably, waste plastics have an EHI value of up to 2 [3] and can be applied as a source of high-quality fuel during the pyrolysis process. Low-density polyethylene (LDPE) is one of the most extensively used plastics [3], accounting for 38% of the total plastic produced [4]. It has a high degree of short- and long-chain branching [5] and a very high carbon and hydrogen content due to the polymer’s structure [6], making it an excellent raw resource. Therefore, the conversion of LDPE into high-value-added products is an essential challenge from both an environmental and an industrial point of view [7].
Pyrolysis is an effective process for the resource utilization of LDPE [8]. Traditional pyrolysis products are composed of three phases including gas, liquid, and solid, in which the gas product is mainly hydrocarbon species, the solid product is coke, and the liquid product is a mixture of wax and oil [9]. In the pyrolysis process, LDPE mainly follows the linear random chain breaking mechanism and chain end breaking mechanism [10], forming different lengths of primary free radical fragments, and a small number of primary free radical fragments are further formed as olefins through β breaking [11]. Light olefin (consisting of ethylene, propylene, and butylene) is an essential component of petrochemical industries, which can be used in the production of polyethylene, butadiene, and other chemical feedstocks [12]. The demand for light olefin has increased in recent decades [13]. Therefore, using LDPE as a feedstock provides a unique approach to producing light olefin, which is necessary to expand the market and meet the demand for light olefin [12].
However, the pyrolysis of LDPE generally suffers from high reaction temperatures and unregulated pyrolysis products [5,14]. In order to obtain a high yield of chemical raw materials, the pyrolysis temperature will sometimes be as high as 700–900 °C [15,16]. Hasret Akgün et al. [6] conducted pyrolysis experiments on LDPE at different temperatures; the results showed that LDPE had the highest liquid-phase yield (85.87%) at 800 °C with a heating rate of 5 °C/min, and the liquid-phase product was heavy wax. Maite Artetxe et al. [17] found that continuously feeding plastic into a conical spray bed reactor (CSBR) operating at 500 °C produced 93% wax (C21+) and C12–C21 hydrocarbons. It has been reported that the presence of catalysts not only greatly enhances the quality and quantity of the desired products by improving the conversion efficiency, but also dramatically decreases pyrolysis temperatures [18]. The catalytic pyrolysis of LDPE mainly follows the carbocation reaction mechanism [10]. A variety of catalysts such as ZSM-5, zeolite, Y-zeolite, FCC, and MCM-41 have been widely used in the catalytic pyrolysis process of LDPE [19,20].
ZSM-5 zeolite is a popular material for light olefin production due to its three-dimensional regular pore structure, good hydrothermal stability, and selective shape catalysis [21]. It is often modified by transition metals such as Fe, Ga, Ni, and La to regulate acid strength, which is beneficial for the enhancement of light olefin selectivity [22]. Li et al. [23] tested the catalytic cracking of bio-oil model compounds on La2O3-modified ZSM-5 zeolites to generate light olefin; the obtained light olefin consisted of C3H6 (13.6–17.1%), C2H4 (10.7–15.4%), and C4H8 (5.3–6.3%). Lima et al. [24] evaluated the catalytic performance of glycerol pyrolysis to produce light olefin on Fe-, Mo-, and Nb-loaded HZSM-5; they found that Fe-ZSM-5 has a maximum selectivity of propylene at lower temperatures because of its strong acidity. Wang et al. [22] reported that an Fe@NS catalyst achieved 41.8 wt% yields of light olefin at a pyrolysis temperature of 550 °C and a weight hourly space velocity of 8.64 h−1. Xia et al. [25] found that the highest light olefin yield of 44.8 wt% was obtained from an Al-Fe-SPZ catalyst for cracking n-heptane when the Si/(Al + Fe) molar ratio was 100 and the Al/Fe ratio was 84/16. Zhang et al. [12] studied the conversion of biomass into light olefin over Fe-loaded ZSM-5 catalysts; they revealed that 6.98% of light olefin was achieved on 3 wt% Fe-ZSM-5 at a temperature of 600 °C. Shao et al. [26] investigated the rapid pyrolysis of cellulose catalyzed by Fe-, La-, Cu-, Mg-, Al-, and Ce-modified ZSM-5 zeolite to obtain light olefin, and the results suggested that Cu-ZSM-5 had the maximum yield of light olefin. Although a considerable number of catalysts have been studied, the catalytic pyrolysis of LDPE still has the challenges of high reaction temperatures and a low yield of light olefin. Therefore, it is necessary to develop more efficient and renewable catalysts.
In this study, we prepared an Fe-Mg-ZSM-5 catalyst and performed catalytic pyrolysis of LDPE in a fixed-bed reactor for the selective generation of light olefin. Our main aim is to identify the increasing yield of light olefin as well as the decreasing reaction temperature. Combining contrasted design experiments as well as BET, NH3-TPD, XRD, SEM, TEM/EDS, and DTG/TGA characterization, the role of Mg loading was explored, which offered a sufficient and thorough explanation of the transformation of light olefin. In addition, the regeneration performance of deactivated catalysts was also investigated for recyclable, sustainable, and economic utilization.

2. Results and Discussion

2.1. Catalyst Characterization

2.1.1. BET Results

The structural properties of the various catalysts are shown in Table S1. It can be seen that the BET surface areas of ZSM-5 were 329 m2·g−1, which decreased to 293 m2·g−1 with the presentation of 1 wt% Fe oxides, and then slightly increased to 308 m2·g−1 with the doping of 1 wt% Mg oxides. The decrease in both the surface area and volume of the micropores of ZSM-5 indicated that parts of the Fe and Mg oxides diffused into the pores and or covered the pore channels of ZSM-5, which resulted in the blocking of micropores [27]. At the same time, it was found the average pore size of ZSM-5 increased from 2.89 nm to 3.37 nm and 3.22 nm after the loading of Fe and Fe-Mg oxides, indicating that the metal ions are dispersed throughout the ZSM-5 surface [28,29].

2.1.2. NH3-TPD Results

The NH3-TPD fitting results of the different catalysts are depicted in Figure 1. The spectra of catalysts can be fitted by three peaks centered at 140 °C, 210 °C, and 430 °C, which are attributed to the weak, medium, and strong acidity of the samples, respectively [12,24]. Weak acidity is attributed to the weak Brønsted acid and Lewis acid on the surface of ZSM-5, which has been verified to show little catalytic activity for LDPE pyrolysis [27]. Medium acidity corresponds to strong Brønsted acidic sites [30], which have a remarkable effect on the yield of light olefin [27]. Strong acidity is related to strong Lewis acidic sites [28], which is considered the key contributor to the coking of the catalyst during the pyrolysis process [30].
The fitting results of the acid distribution on the different catalysts are presented in Table 1. The total acid content of the catalyst reduced from 1320 μmol·g−1 to 1089 μmol·g−1 and 1094 μmol·g−1 after Fe and Mg were loaded onto ZSM-5. It can be observed that the introduction of Fe oxides boosted the strong acidity of the ZSM-5 catalyst, which increased from 470.71 μmol·g−1 to 473.72 μmol·g−1, respectively. Meanwhile, the loading of Fe oxides also reduced the weak and medium acidity of ZSM-5, which decreased from 206.71 μmol·g−1 and 642.58 μmol·g−1 to 182.52 μmol·g−1 and 432.77 μmol·g−1, respectively. When the Mg oxides were further loaded onto Fe-ZSM-5, it was evident that the strong acidity decreased to 394.93 μmol·g−1, while the weak and medium acidity increased slightly to 214.75 μmol·g−1 and 484.31 μmol·g−1, respectively. This is mainly due to the modification of Mg as an alkali metal covering the strong acid sites on the surface of ZSM-5, causing a significant decline in the number of strong acidities [31].

2.1.3. SEM and TEM Results

The SEM and TEM images of ZSM-5, Fe-ZSM-5, and Fe-Mg-ZSM-5 are displayed in Figure 2. It can be seen from the SEM images of the samples in Figure 2a–c that the crystal structure of ZSM-5 zeolite is very regular with a particle size ranging from 250 to 450 nm (Figure 2a), which is composed of clear quadrangular prismatic crystallites [32,33,34]. After the loading of Fe and Mg oxides, the morphology of the catalyst remained unchanged (Figure 2b,c), illustrating that the modification process did not destroy the crystal structure of ZSM-5. The HRTEM images of the ZSM-5, Fe-ZSM-5, and Fe-Mg-ZSM-5 catalysts in Figure 2d–f prove the successful loading of Fe and Mg oxides onto ZSM-5. As seen in Figure 2e, the Fe oxide particles agglomerated on the surface of ZSM-5, and the particle size ranged from 20 nm to 80 nm with an average particle size of 40 nm. It can be observed in Figure 2f that the Mg loading significantly decreased the particle size of the Fe oxides, which ranged from 5 nm to 25 nm with an average particle size of 10 nm. The Fe and Mg oxides were highly and uniformly dispersed on the ZSM-5 surface without a clustering phenomenon. The high dispersion as well as small particles caused by the Mg loading are conducive to the catalytic activity in the LDPE pyrolysis reaction. Figure 2g shows the corresponding STEM-XEDS element diagram, indicating that the Fe and Mg elements are evenly distributed in the samples.

2.1.4. XRD Analysis

The obtained XRD patterns of the ZSM-5, Fe-ZSM-5, and Fe-Mg-ZSM-5 samples are presented in Figure 3. It is clear that the characteristic diffraction peaks at 7.9, 8.8, 9.0, 13.8, 14.7, 15.4, 15.8, 23.0, 23.2, 23.6, 23.9, 24.3, and 29.9° can be observed in three samples [27,35,36]. There is no significant diffraction peak of Fe and Mg oxides in the spectra of the Fe-ZSM-5 and Fe-Mg-ZSM-5 samples, implying the nanoparticles of the Fe and Mg oxides are highly dispersed on the surface of ZSM-5, or the loaded content of metal oxides is too low to be detected with XRD [27,30,37]. The crystallinity of the different catalysts is shown in the Supplementary Materials (Table S2).

2.1.5. XPS Analysis

The XPS spectra of ZSM-5, Fe-ZSM-5, and Fe-Mg-ZSM-5 are exhibited in Figure 4. The full spectra of the three samples in Figure 4a show the peaks of Fe2p and Mg1s that appeared after the modification process, indicating the successful loading of Fe and Mg oxides. As shown in Figure 4b, the Fe2p narrow spectrum of Fe-Mg-ZSM-5 can be fitted with eight peaks: the two peaks at 724.4 eV and 726.1 eV corresponded to the characteristic peaks of Fe2p3/2, and the peaks at 710.8 eV and 712.6 eV correspond to the characteristic peak of Fe at 2p1/2, respectively [38,39]. The four peaks centered at 710.8 eV, 724.4 eV, and 712.6 eV, 726.1 eV were assigned to the satellite peaks of Fe2+ and Fe3+, indicating the coexistence of FeO and Fe2O3 nanoparticles [40]. The Mg1s spectrum in Figure 4c showed a peak at 1304.7 eV, which proved the presence of MgO [41].

2.2. The Catalytic Pyrolysis of LDPE on Different Catalysts

2.2.1. Catalysis Performance Comparison of Different Catalysts

In this paper, we explored the effect of the pyrolysis of ZSM-5, Fe-ZSM-5, and Fe-Mg-ZSM-5 with LDPE on light olefin yield. The temperatures at the optimal light olefin yield conditions for different catalysts are shown in Figure 5. According to the results, ZSM-5 reached the highest light olefin yield (32.38 wt%) at 500 °C. It can be seen that the loading of Fe increased the yield of light olefin by 6.08 wt%. At the same time, it reduced the pyrolysis reaction temperature by 75 °C, which was attributed to the uniform distribution and excellent dispersion of Fe oxides on ZSM-5, while the presence of Fe modified the catalyst and improved its activity [42].
When the Mg addition was further added to Fe-ZSM-5, the results revealed that while the enhancement in the yield of light olefins was only 0.41 wt%, the temperature was reduced from 425 °C to 395 °C. According to the TEM results (Figure 2), it was found that the introduction of Mg significantly reduced the average particle size of Fe oxides on the catalyst from 40 nm to 10 nm, which was beneficial to improving the catalytic activity and thus decreased the pyrolysis reaction temperature. In addition, the introduction of Mg facilitates the dispersion of Fe oxides [43,44], as well as improves the stability and activity of the Fe-Mg-ZSM-5 catalyst for the catalytic reaction [45].
In addition, Figure 6 further summarizes and compares different conditions for the preparation of light olefins with PE [46,47,48]. The results showed that although the Fe-Mg-ZSM-5 catalyst did not improve the yield of light olefins significantly, it reduced the pyrolysis temperature and realized the preparation of light olefins at a relatively mild temperature, which saved the energy consumption to a certain extent. The catalytic performance of the three catalysts is described in detail in Section 2.2.2 through Section 2.2.4.

2.2.2. Catalytic Performance of ZSM-5

The results of the LDPE catalytic pyrolysis on ZSM-5 are shown in Figure 7. It can be seen in Figure 7a that the gas yield increased from 74.21% to 85.08% as the temperature increased from 450 °C to 600 °C, while the liquid yield decreased dramatically from 25.17% to 13.32%. This was due to the further cracking of oligomers caused by the further increased temperatures, forming smaller hydrocarbons in the presence of gaseous compounds and reducing the liquid yield [49]. Figure 7b shows that the gas products of LDPE catalytic pyrolysis primarily consisted of H2, CH4, C2–C4 olefins, and C2–C5 alkanes, and light olefins accounted for 35.24% of total gas product at 600 °C. As exhibited in Figure 7c, the production of light olefin increased from 29.94 wt% to 32.38 wt% when the temperature increased from 450 °C to 500 °C and then decreased to 30.02 wt% when the temperature further rose to 600 °C, implying the desired reaction temperature for the target product is 500 °C. Figure 7d shows that the component of light olefin was also extremely influenced by the pyrolysis temperature. With an increase in temperature, the selectivity of C3H6 increased obviously from 48.26% to 61.51%, while the selectivity of C4H8 decreased significantly from 48.57% to 35.24%, respectively. The pyrolysis had a negligible effect on the selectivity of C2H4, which remained stable at about 3.25% from 450 °C to 600 °C. In addition, the selectivity of C3H6 and C4H8 was much higher than that of C2H4; this might be attributed to the acid inhibition of the olefin hydrogen transfer reaction of ZSM-5, which improves the selectivity of propylene and butene in LDPE cleavage products [22].

2.2.3. Catalytic Performance of Fe-ZSM-5

Figure 8 illustrates the influence of Fe loading on the pyrolysis of LDPE on ZSM-5. As seen in Figure 8a, the gas product yield of LDPE catalytic pyrolysis on Fe-ZSM-5 is as high as 88.63 wt% at 425 °C, and the pyrolysis temperature is much lower than that on ZSM-5. The gaseous compounds in Figure 8b are chiefly H2, CH4, C2–C4 olefins, and C2–C5 alkanes, and the light olefins account for 43.39% of total gas product at 425 °C, which is 8.15% higher than that on ZSM-5. Figure 8c shows that the quantity of light olefin increased gradually with the rise in temperatures, where the highest yield of 38.46% was achieved at 425 °C. It is evident that the Fe loading not only reduced the optimal pyrolysis temperature from 500 °C to 425 °C but also improved the yield of light olefin by 6.08%. The NH3-TPD results illustrated that Fe-ZSM-5 has more strong acid sites than ZSM-5, the enhancement of strong acid sites is beneficial to the thermal cracking of LDPE, and the reduction in total acid sites helps to restrain the hydride transfer reactions of olefin, thus improving the yield of light olefin [22,25,50,51]. For olefin selectivity, it can be seen in Figure 8d that the content of C2H4 is lower than 1.70%, and the dominant gas components are C3H6 and C4H8.

2.2.4. Catalytic Performance of Fe-Mg-ZSM-5

Figure 9 shows the effects of Mg doping on the catalytic performance of Fe-ZSM-5. (Here, 1 wt% Mg is the optimal loading, and experimental data for different loadings of Mg is provided in the Supplementary Materials Figure S1.) It can be seen in Figure 9a that the gas yield on Fe-Mg-ZSM-5 at 395 °C reached 85.78 wt%, which is 7.36% higher than that of Fe-ZSM-5, and then increased slightly to 88.07% when the pyrolysis temperature further rose to 425 °C. The gas composition of LDPE catalytic pyrolysis on Fe-Mg-ZSM-5 (Figure 9b) is similar to that of the Fe-ZSM-5 and ZSM-5 catalysts, and the content of light olefin accounts for 45.31% of the total gas product at 395 °C. As displayed in Figure 9c, the highest light olefin yield of 38.87 wt% was obtained at 395 °C. It is evident that the Mg loading not only reduced the optimal pyrolysis temperature from 425 °C to 395 °C but also improved the yield of light olefin by 0.41 wt%. The NH3-TPD results showed that the Mg loading decreased the strong acidity of Fe-ZSM-5, which can effectively improve the coking resistance and service life of the catalyst [43]. Fe-Mg-ZSM-5 also had a slight increase in medium acid sites compared with Fe-ZSM-5, which promotes the dehydrogenation cracking reaction and improves the selectivity of light olefins [52,53]. More importantly, it was found that the introduction of Mg significantly reduced the average particle size of Fe oxides on the catalyst from 40 nm to 10 nm, which is beneficial to improving the catalytic activity and thus decreasing the pyrolysis reaction temperature. Figure 9d shows that the major compounds in the gas product of LDPE catalytic pyrolysis on Fe-Mg-ZSM-5 are C3H6 and C4H8, which account for 53.93% and 44.43% at 395 °C, respectively.

2.3. Analysis of Catalytic Performance

Based on the characterization results and catalytic pyrolysis performance of different catalysts, the probable catalytic performance is exhibited in Figure 10. It is believed that the degradation of LDPE takes place through a random chain cleavage mechanism of random chain break and end chain break [51,54], which mainly generates waxes and a wide range of hydrocarbons from C12–C21. Catalytic pyrolysis of LDPE on zeolites is guided by the carbonium ion theory [5,10,55], and the acidic sites play a key role in the catalytic cracking of LDPE [10,20].
The NH3-TPD results showed that the loading of Fe oxides increased the strong acidity of ZSM-5. It is considered that the promotion of strong acidity is beneficial for the catalytic cracking of LDPE and leads to a decrease in the pyrolysis temperature. The loading of Mg on Fe-ZSM resulted in a decrease in strong as well as an increase in medium and weak acidity. Although the decrease in strong acidity has a negative effect on the catalytic pyrolysis of LDPE, it can inhibit the secondary crack and coking reactions of light olefin, which helps to prolong catalyst life. The increase in medium acidity promoted the transfer of hydrogen to short-chain alkanes and olefins [56]; subsequently, short-chain alkanes and olefins diffused into the pores of the zeolite and proceeded to the aromatization dehydrocyclization reaction. In addition, it can be seen from the SEM results that the average particle size of Fe oxides on Fe-Mg-ZSM-5 is much smaller than that of Fe-ZSM-5, which can effectively improve the catalytic activity of the sample and thus further reduce the pyrolysis reaction temperature.

2.4. Regeneration of Spent Catalysts

After the primary catalytic pyrolysis experiment, the spent catalyst was recovered and directly reused for the subsequent pyrolysis run. The obtained gas–liquid–solid three-phase yields are exhibited in Figure 11. These results show that the gas yield decreased significantly from 85.78% to 14.31% when Fe-Mg-ZSM-5 was reused for three cycles, indicating the catalyst is easily deactivated during the catalytic pyrolysis of LDPE. This is mainly associated with the formed coke deposited on the surface of the catalyst, resulting in the clogging of zeolite pores as well as the covering of acid sites [57].
In order to investigate the regeneration parameters of spent Fe-Mg-ZSM-5, a thermogravimetric analysis was performed in an air atmosphere with a heating rate of 10 °C·min−1. As illustrated in the TGA and DTG curves in Figure 12a, there are two major thermal degradation stages ranging from 30 °C to 200 °C and 200 °C to 600 °C. The weight loss in the first stage is 4.02%, and an obvious endothermic peak centered at 186 °C appears in the DTG curve, which is caused by the desorption of tar attached to the surface of the spent catalyst. The weight loss in the second stage is as high as 14.82%. The DTG curve shows that evident thermal degradation occurs in the temperature range of 400 °C to 550 °C, with a maximum mass loss rate of about 425 °C; then, the weight remains unchanged when the temperature is higher than 550 °C, indicating the complete burning of the deposition coke on the spent catalyst. Therefore, we determined the regeneration parameters of the deactivated catalysts as follows: the spent catalysts were calcined at 600 °C in airflow for 1 h with a heating rate of 10 °C·min−1.
The regenerated catalysts were further reused for the catalytic pyrolysis of LDPE. It can be seen in Figure 12b that the regenerated Fe-Mg-ZSM-5 showed a similar catalytic performance as the fresh Fe-Mg-ZSM-5, indicating the prepared catalyst has an excellent regeneration property. After the first cycle, the light olefin yield decreased slightly from 38.87 wt% to 38.30 wt% and then remained stable even after five cycles. Furthermore, the yields of ethene, propene, and butene on the regenerated catalysts were almost as same as those on the fresh catalyst. The XRD diffraction of the deactivated and regenerated Fe-Mg-ZSM-5 samples is presented in Figure 13a. It can be seen that the regeneration process has a negligible influence on the XRD spectrum of the spent Fe-Mg-ZSM-5 catalyst, suggesting the crystal structure of the Fe and Mg oxides remain unchanged during the high-temperature regeneration process.

3. Materials and Methods

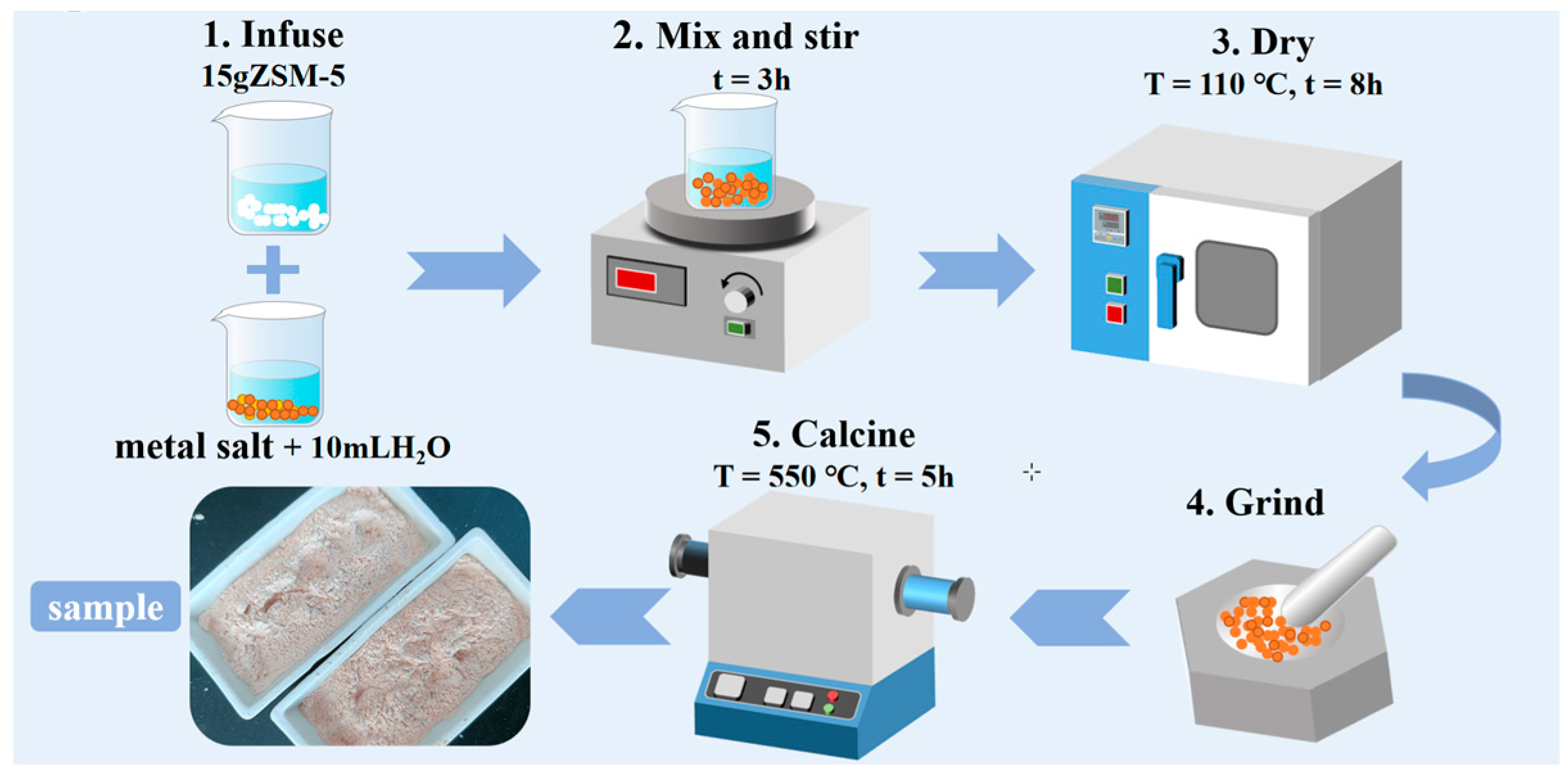

3.1. Sample Preparation

Powdered LDPE (100 mesh, Zhongyanshan Petrochemical Co., Ltd., Beijing, China) has been commercialized. The ZSM-5 zeolite used in this study was purchased from XFNANO company (Nanjing, China) with a ratio of SiO2-to-Al2O3 38 and a particle size of 530–580 µm. The Fe-ZSM-5 and Fe-Mg-ZSM-5 catalysts were prepared in the laboratory with incipient impregnation of ZSM-5 zeolite into aqueous solutions containing a metallic precursor of Fe2(NO3)3.9H2O and Mg (CH3COO)2.4H2O with different concentrations. In a typical operation, 15.0 g of ZSM-5 zeolites was impregnated in 10 mL of 0.26 mol/L Fe2(NO3)3.9H2O solution at room temperature, stirred for 2 h, and then dried at 110 °C for 3 h. The obtained sample was calcined at 550 °C in an air atmosphere for 5 h with a heating rate of 10 °C/min, and the Fe-ZSM-5 catalyst with a 1 wt% Fe content was prepared. The synthesis method for the Fe-Mg-ZSM-5 catalysts with different Mg doping ratios was similar to that of the Fe-ZSM-5 catalyst except for the addition of different amounts of Mg (CH3COO)2.4H2O into the Fe2(NO3)3.9H2O solutions. The sample preparation flow chart is shown in Figure 14.

3.2. Experimental Setup

All the pyrolysis experiments were performed in a N2 atmosphere using a lab-scale fixed bed reactor, as shown in Figure S2. The device consisted of an electric heating tube furnace, a temperature-controlled system, a quartz reactor (ID = 50 mm, L = 440 mm), and a cooling system. In a typical run, 3 g of catalyst was mixed uniformly with 9 g of LDPE sample (the mass proportion of the catalyst to LDPE was constant in all the experiments) and filled into the reactor. The tube furnace was firstly purged with 100 mL/min of N2 for about 30 min and then was heated to the desired temperatures at a heating rate of 10 °C/min and held for 60 min.
The liquid products were gathered in glass bottles and cooled with an ice–water mixture, and then the gas phase products were collected in a bag. The weights of the liquid and solid products were determined directly using an analytical balance, and the qualities of the gas products were measured using the mass subtraction method, which was published by Carlson et al. [58]. The yield of gas, liquid, and solid products can be calculated with Formula (1), the yield of light olefin can be obtained with Formula (2), and light olefin selectivity can be measured with Formula (3).
Y i e l d   o f   p r o d u c t s w t % = m a s s   o f   s o l i d , l i q u i d , o r   g a s   p r o d u c t s m a s s     o f   f e e d × 100 %
Y i e l d   o f   l i g h t   o l e f i n   w t % = m a s s   o f   C 2   t o   C 4   o l e f i n s   m a s s     o f   f e e d × 100 %
L i g h t   o l e f i n   s e l e c t i v i t y   % = m a s s   o f   a n   o l e f i n   p r o d u c t m a s s   o f   a l l   o l e f i n s × 100
In addition, all experiments were replicated 3 times to confirm the average errors of the results were less than 5%.

3.3. Characterization of the Samples

The physicochemical properties of the fresh, spent, and regenerated catalysts were characterized using X-ray diffraction (XRD), scanning electron microscopy (SEM), N2 adsorption–desorption isotherms, programmed ramp-up desorption of ammonia (NH3-TPD), X-ray diffraction photoelectron spectroscopy (XPS), high-resolution transmission electron microscopy (HRTEM), and thermogravimetric analysis (TGA). The details of the sample characterization method are given in the Supplementary Materials.

3.4. Product Analysis

The gas product collected in the gas bag was measured with GC-TCD (SP-6801AT). The main gas components detected with gas chromatography included H2, CH4, light olefins (C2H4, C3H6, and C4H8), C2H6, C3H8, and C5H12. The area normalization method was used to calculate gas composition and content. Detailed calculation methods can be found in the Supplementary Materials. Each gas sample was measured 3 times to obtain an average value.

4. Conclusions

Mg-modified Fe-ZSM-5 was used to catalyze the conversion of LDPE into light olefin for a lower pyrolysis temperature. The findings indicated that the types of catalysts, catalytic temperature, and Mg loading have an obvious influence on the generation of light olefin. The addition of Mg decreased the average particle size of Fe oxides, which could effectively reduce the pyrolysis temperatures. Meanwhile, the introduction of Mg into Fe-ZSM-5 inhibited the secondary reactions, thus improving the yields of light olefin. When the pyrolysis temperature was 395 °C and the Mg loading was 1 wt%, the highest yield of light olefin occurred at 38.87 wt%. The deactivation of catalysts can be easily regenerated with combustion in an air atmosphere. The yield of light olefin on the regenerated catalyst remained above 36.71 wt% after five cycles. In addition, a reasonable catalytic reaction path was proposed. This paper contributes to an in-depth understanding of thecatalytic pyrolysis of LDPE to produce light olefin.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/catal14010078/s1, Figure S1: Influence of Fe-ZSM-5 with various Mg contents on the yields of light olefin: (a) mass percentages of solids, gases, and liquids; (b) mass percentages of H2, CH4, light olefin, and C2–C5 alkanes; (c) weight yields of light olefin; and (d) olefin selectivity of C2H4, C3H6, and C4H8; Figure S2: The pyrolysis experimental setup; Table S1: The physical properties of the catalysts; Table S2: The crystallinity of different samples.

Author Contributions

Conceptualization, Y.L.; methodology, Y.L.; validation, Y.L. and S.D.; investigation, X.L. and Q.M.; writing—original draft preparation, Y.L.; writing—review and editing, Y.L. and T.L.; supervision, X.W. and M.T.; project administration, H.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (22078168, NO. 52272086), the Taishan Scholar Project of Shandong Province (NO. tsqn202211178), and the Qingchuang Science and Technology Program of Shandong Province University (NO. 2019KJD004). Huawei Zhang, School of Environmental and Municipal Engineering, Qingdao University of Technology, Qingdao 266033, China.

Data Availability Statement

The data presented in this study are available in this article and the Supplementary Materials.

Acknowledgments

The authors are thankful to the anonymous reviewers for their useful suggestions.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Lee, K.; Jing, Y.; Wang, Y.; Yan, N. A unified view on catalytic conversion of biomass and waste plastics. Nat. Rev. Chem. 2022, 6, 635–652. [Google Scholar] [CrossRef]
  2. Ellis, L.D.; Rorrer, N.A.; Sullivan, K.P.; Otto, M.; McGeehan, J.E.; Román-Leshkov, Y.; Wierckx, N.; Beckham, G.T. Chemical and biological catalysis for plastics recycling and upcycling. Nat. Catal. 2021, 4, 539–556. [Google Scholar] [CrossRef]
  3. Tao, L.; Ma, X.; Ye, L.; Jia, J.; Wang, L.; Ma, P.; Liu, J. Interactions of lignin and LDPE during catalytic co-pyrolysis: Thermal behavior and kinetics study by TG-FTIR. J. Anal. Appl. Pyrolysis 2021, 158, 105267. [Google Scholar] [CrossRef]
  4. Danso, D.; Chow, J.; Streit, W.R. Plastics: Environmental and Biotechnological Perspectives on Microbial Degradation. Appl. Environ. Microbiol. 2019, 85, e01095-19. [Google Scholar] [CrossRef]
  5. Peng, Y.; Wang, Y.; Ke, L.; Dai, L.; Wu, Q.; Cobb, K.; Zeng, Y.; Zou, R.; Liu, Y.; Ruan, R. A review on catalytic pyrolysis of plastic wastes to high-value products. Energy Convers. Manag. 2022, 254, 115243. [Google Scholar] [CrossRef]
  6. Akgun, H.; Yapici, E.; Gunkaya, Z.; Ozkan, A.; Banar, M. Utilization of liquid product through pyrolysis of LDPE and C/LDPE as commercial wax. Environ. Sci. Pollut. Res. Int. 2021, 28, 45971–45984. [Google Scholar] [CrossRef] [PubMed]
  7. Mohadjer Beromi, M.; Kennedy, C.R.; Younker, J.M.; Carpenter, A.E.; Mattler, S.J.; Throckmorton, J.A.; Chirik, P.J. Iron-catalysed synthesis and chemical recycling of telechelic 1,3-enchained oligocyclobutanes. Nat. Chem. 2021, 13, 156–162. [Google Scholar] [CrossRef] [PubMed]
  8. Aboul-Enein, A.A.; Awadallah, A.E. Production of nanostructured carbon materials using Fe–Mo/MgO catalysts via mild catalytic pyrolysis of polyethylene waste. Chem. Eng. J. 2018, 354, 802–816. [Google Scholar] [CrossRef]
  9. Ding, K.; Liu, S.; Huang, Y.; Liu, S.; Zhou, N.; Peng, P.; Wang, Y.; Chen, P.; Ruan, R. Catalytic microwave-assisted pyrolysis of plastic waste over NiO and HY for gasoline-range hydrocarbons production. Energy Convers. Manag. 2019, 196, 1316–1325. [Google Scholar] [CrossRef]
  10. Song, J.; Sima, J.; Pan, Y.; Lou, F.; Du, X.; Zhu, C.; Huang, Q. Dielectric Barrier Discharge Plasma Synergistic Catalytic Pyrolysis of Waste Polyethylene into Aromatics-Enriched Oil. ACS Sustain. Chem. Eng. 2021, 9, 11448–11457. [Google Scholar] [CrossRef]
  11. Kumar, S.; Panda, A.K.; Singh, R.K. A review on tertiary recycling of high-density polyethylene to fuel. Resour. Conserv. Recycl. 2011, 55, 893–910. [Google Scholar] [CrossRef]
  12. Zhang, S.; Yang, M.; Shao, J.; Yang, H.; Zeng, K.; Chen, Y.; Luo, J.; Agblevor, F.A.; Chen, H. The conversion of biomass to light olefins on Fe-modified ZSM-5 catalyst: Effect of pyrolysis parameters. Sci. Total Environ. 2018, 628–629, 350–357. [Google Scholar] [CrossRef] [PubMed]
  13. Nawaz, Z. Light alkane dehydrogenation to light olefin technologies: A comprehensive review. Rev. Chem. Eng. 2015, 31, 413–436. [Google Scholar] [CrossRef]
  14. Panda, A.K. Thermo-catalytic degradation of different plastics to drop in liquid fuel using calcium bentonite catalyst. Int. J. Ind. Chem. 2018, 9, 167–176. [Google Scholar] [CrossRef]
  15. Anuar Sharuddin, S.D.; Abnisa, F.; Wan Daud WM, A.; Aroua, M.K. A review on pyrolysis of plastic wastes. Energy Convers. Manag. 2016, 115, 308–326. [Google Scholar] [CrossRef]
  16. Yu, D.; Hui, H.; Li, S. Two-step catalytic co-pyrolysis of walnut shell and LDPE for aromatic-rich oil. Energy Convers. Manag. 2019, 198, 111816. [Google Scholar] [CrossRef]
  17. Artetxe, M.; Lopez, G.; Elordi, G.; Amutio, M.; Bilbao, J.; Olazar, M. Production of Light Olefins from Polyethylene in a Two-Step Process: Pyrolysis in a Conical Spouted Bed and Downstream High-Temperature Thermal Cracking. Ind. Eng. Chem. Res. 2012, 51, 13915–13923. [Google Scholar] [CrossRef]
  18. Nishu; Li, Y.; Liu, R. Catalytic pyrolysis of lignin over ZSM-5, alkali, and metal modified ZSM-5 at different temperatures to produce hydrocarbons. J. Energy Inst. 2022, 101, 111–121. [Google Scholar] [CrossRef]
  19. Miandad, R.; Rehan, M.; Barakat, M.A.; Aburiazaiza, A.S.; Khan, H.; Ismail IM, I.; Dhavamani, J.; Gardy, J.; Hassanpour, A.; Nizami, A.-S. Catalytic Pyrolysis of Plastic Waste: Moving Toward Pyrolysis Based Biorefineries. Front. Energy Res. 2019, 7, 27. [Google Scholar] [CrossRef]
  20. Liu, T.; Li, Y.; Zhou, Y.; Deng, S.; Zhang, H. Efficient Pyrolysis of Low-Density Polyethylene for Regulatable Oil and Gas Products by ZSM-5, HY and MCM-41 Catalysts. Catalysts 2023, 13, 382. [Google Scholar] [CrossRef]
  21. Li, Z.; Li, F.; Zhao, T.; Yu, H.; Ding, S.; He, W.; Song, C.; Zhang, Y.; Lin, H. The effect of steam on maximizing light olefin production by cracking of ethanol and oleic acid over mesoporous ZSM-5 catalysts. Catal. Sci. Technol. 2020, 10, 6618–6627. [Google Scholar] [CrossRef]
  22. Wang, J.; Shan, J.; Tian, Y.; Zhu, T.; Duan, H.; He, X.; Qiao, C.; Liu, G. Catalytic cracking of n-heptane over Fe modified HZSM-5 nanosheet to produce light olefins. Fuel 2021, 306, 121725. [Google Scholar] [CrossRef]
  23. Li, F.; Ding, S.; Wang, Z.; Li, Z.; Li, L.; Gao, C.; Zhong, Z.; Lin, H.; Chen, C. Production of Light Olefins from Catalytic Cracking Bio-oil Model Compounds over La2O3-Modified ZSM-5 Zeolite. Energy Fuels 2018, 32, 5910–5922. [Google Scholar] [CrossRef]
  24. Lima, D.S.; Perez-Lopez, O.W. Catalytic conversion of glycerol to olefins over Fe, Mo, and Nb catalysts supported on zeolite ZSM-5. Renew. Energy 2019, 136, 828–836. [Google Scholar] [CrossRef]
  25. Xia, S.; Zhu, Y.; Tian, Y.; He, X.; Guo, L.; Qiao, C.; Liu, G. Fe–Al isomorphous and self-pillared ZSM-5 nanosheet catalyst for cracking of n-heptane with enhanced selectivity of light olefins. J. Energy Inst. 2022, 102, 196–205. [Google Scholar] [CrossRef]
  26. Shao, J.A.; Jiang, H.; Yang, M.; Xiao, J.; Yang, H.; Chen, Y.; Zhang, S.; Chen, H. Catalytic fast pyrolysis of cellulose over different metal-modified ZSM-5 zeolites for light olefins. J. Anal. Appl. Pyrolysis 2022, 166, 105628. [Google Scholar] [CrossRef]
  27. Yang, M.; Shao, J.; Yang, Z.; Yang, H.; Wang, X.; Wu, Z.; Chen, H. Conversion of lignin into light olefins and aromatics over Fe/ZSM-5 catalytic fast pyrolysis: Significance of Fe contents and temperature. J. Anal. Appl. Pyrolysis 2019, 137, 259–265. [Google Scholar] [CrossRef]
  28. Zheng, Y.; Wang, F.; Yang, X.; Huang, Y.; Liu, C.; Zheng, Z.; Gu, J. Study on aromatics production via the catalytic pyrolysis vapor upgrading of biomass using metal-loaded modified H-ZSM-5. J. Anal. Appl. Pyrolysis 2017, 126, 169–179. [Google Scholar] [CrossRef]
  29. Schultz, E.L.; Mullen, C.A.; Boateng, A.A. Aromatic Hydrocarbon Production fromEucalyptus urophyllaPyrolysis over Several Metal-Modified ZSM-5 Catalysts. Energy Technol. 2017, 5, 196–204. [Google Scholar] [CrossRef]
  30. Kostyniuk, A.; Key, D.; Mdleleni, M. Effect of Fe-Mo promoters on HZSM-5 zeolite catalyst for 1-hexene aromatization. J. Saudi Chem. Soc. 2019, 23, 612–626. [Google Scholar] [CrossRef]
  31. Zhao, Y.; Liu, Q.; Cui, M.; Qiao, X.; Fei, Z. Mg/Ca modified hierarchical porous ZSM-5 zeolite for light-olefins production from chloromethane. J. Porous Mater. 2022, 30, 521–529. [Google Scholar] [CrossRef]
  32. Abdalla, A.; Arudra, P.; Al-Khattaf, S.S. Catalytic cracking of 1-butene to propylene using modified H-ZSM-5 catalyst: A comparative study of surface modification and core-shell synthesis. Appl. Catal. A Gen. 2017, 533, 109–120. [Google Scholar] [CrossRef]
  33. Gurdeep Singh, H.K.; Yusup, S.; Quitain, A.T.; Abdullah, B.; Ameen, M.; Sasaki, M.; Kida, T.; Cheah, K.W. Biogasoline production from linoleic acid via catalytic cracking over nickel and copper-doped ZSM-5 catalysts. Environ. Res. 2020, 186, 109616. [Google Scholar] [CrossRef] [PubMed]
  34. Grandprix, T.M.; Kadja, T.R.S.; Ilmi, M.M.; Khalil, M.; Mukti, R.R. Subagjo Sequential mechanochemical and recrystallization methods for synthesizing hierarchically porous ZSM-5 zeolites. Microporous Mesoporous Mater. 2020, 308, 110550. [Google Scholar] [CrossRef]
  35. Rahimi, S.; Rostamizadeh, M. Novel Fe/B-ZSM-5 nanocatalyst development for catalytic cracking of plastic to valuable products. J. Taiwan Inst. Chem. Eng. 2021, 118, 131–139. [Google Scholar] [CrossRef]
  36. Chai, M.; Liu, R.; He, Y. Effects of SiO2/Al2O3 ratio and Fe loading rate of Fe-modified ZSM-5 on selection of aromatics and kinetics of corn stalk catalytic pyrolysis. Fuel Process. Technol. 2020, 206, 106458. [Google Scholar] [CrossRef]
  37. Kostyniuk, A.; Key, D.; Mdleleni, M. 1-hexene isomerization over bimetallic M-Mo-ZSM-5 (M: Fe, Co, Ni) zeolite catalysts: Effects of transition metals addition on the catalytic performance. J. Energy Inst. 2020, 93, 552–564. [Google Scholar] [CrossRef]
  38. Yamashita, T.; Hayes, P. Analysis of XPS spectra of Fe2+ and Fe3+ ions in oxide materials. Appl. Surf. Sci. 2008, 254, 2441–2449. [Google Scholar] [CrossRef]
  39. Li, M.; Liu, C.; Zhang, Z.; Cao, S.; Liu, H.; Shen, S.; Wang, W. Ultrathin Cu-Fe oxide nanosheets boosting persulfate activation to remove organic pollutants with coupling and transformation between radical and nonradical mechanism. Sep. Purif. Technol. 2022, 281, 119978. [Google Scholar] [CrossRef]
  40. Ma, Y.; Zhang, D.; Sun, H.; Wu, J.; Liang, P.; Zhang, H. Fe–Ce Mixed Oxides Supported on Carbon Nanotubes for Simultaneous Removal of NO and Hg0 in Flue Gas. Ind. Eng. Chem. Res. 2018, 57, 3187–3194. [Google Scholar] [CrossRef]
  41. Aksoy, S.; Caglar, Y.; Ilican, S.; Caglar, M. Sol–gel derived Li–Mg co-doped ZnO films: Preparation and characterization via XRD, XPS, FESEM. J. Alloys Compd. 2012, 512, 171–178. [Google Scholar] [CrossRef]
  42. Lu, J.; Zhao, Z.; Xu, C.; Zhang, P.; Duan, A. FeHZSM-5 molecular sieves—Highly active catalysts for catalytic crackig of isobutane to produce ethylene and propylene. Catal. Commun. 2006, 7, 199–203. [Google Scholar] [CrossRef]
  43. Ji, X.; Liu, B.; Ma, W.; Chen, G.; Yan, B.; Cheng, Z. Effect of MgO promoter on Ni-Mg/ZSM-5 catalysts for catalytic pyrolysis of lipid-extracted residue of Tribonema minus. J. Anal. Appl. Pyrolysis 2017, 123, 278–283. [Google Scholar] [CrossRef]
  44. Wang, S.; Cao, B.; Liu, X.; Xu, L.; Hu, Y.; Afonaa-Mensah, S.; Abomohra, A.E.F.; He, Z.; Wang, Q.; Xu, S. A comparative study on the quality of bio-oil derived from green macroalga Enteromorpha clathrata over metal modified ZSM-5 catalysts. Bioresour. Technol. 2018, 256, 446–455. [Google Scholar] [CrossRef]
  45. Ryu, H.W.; Lim, Y.H.; Jung, W.; Nam, K.; Hwang, Y.; Roh, J.E.; Kim, D.H. Enhanced stability of CO2-assisted shale gas aromatization through the introduction of Mg promoter on Mo_ZSM-5. Chem. Eng. J. 2023, 467, 143404. [Google Scholar] [CrossRef]
  46. Elordi, G.; Olazar, M.; Lopez, G.; Amutio, M.; Artetxe, M.; Aguado, R.; Bilbao, J. Catalytic pyrolysis of HDPE in continuous mode over zeolite catalysts in a conical spouted bed reactor. J. Anal. Appl. Pyrolysis 2009, 85, 345–351. [Google Scholar] [CrossRef]
  47. Elordi, G.; Olazar, M.; Aguado, R.; Lopez, G.; Arabiourrutia, M.; Bilbao, J. Catalytic pyrolysis of high density polyethylene in a conical spouted bed reactor. J. Anal. Appl. Pyrolysis 2007, 79, 450–455. [Google Scholar] [CrossRef]
  48. Aguado, J.; Serrano, D.P.; San Miguel, G.; Castro, M.C.; Madrid, S. Feedstock recycling of polyethylene in a two-step thermo-catalytic reaction system. J. Anal. Appl. Pyrolysis 2007, 79, 415–423. [Google Scholar] [CrossRef]
  49. Wong, S.L.; Ngadi, N.; Abdullah TA, T.; Inuwa, I.M. Conversion of low density polyethylene (LDPE) over ZSM-5 zeolite to liquid fuel. Fuel 2017, 192, 71–82. [Google Scholar] [CrossRef]
  50. Ji, Y.; Shi, B.; Yang, H.; Yan, W. Synthesis of isomorphous MFI nanosheet zeolites for supercritical catalytic cracking of n-dodecane. Appl. Catal. A Gen. 2017, 533, 90–98. [Google Scholar] [CrossRef]
  51. Zhang, J.; Ma, M.; Chen, Z.; Zhang, X.; Yang, H.; Wang, X.; Feng, H.; Yu, J.; Gao, S. Production of monocyclic aromatics and light olefins through ex-situ catalytic pyrolysis of low-density polyethylene over Ga/P/ZSM-5 catalyst. J. Energy Inst. 2023, 108, 101235. [Google Scholar] [CrossRef]
  52. Bai, Y.; Zhang, G.; Liu, D.; Zhang, Y.; Zhao, L.; Gao, J.; Xu, C.; Meng, Q.; Gao, X. The advance in catalytic pyrolysis of naphtha technology using ZSM-5 as catalyst. Appl. Catal. A Gen. 2021, 628, 118399. [Google Scholar] [CrossRef]
  53. Ji, Y.; Yang, H.; Yan, W. Effect of alkali metal cations modification on the acid/basic properties and catalytic activity of ZSM-5 in cracking of supercritical n-dodecane. Fuel 2019, 243, 155–161. [Google Scholar] [CrossRef]
  54. Inayat, A.; Inayat, A.; Schwieger, W.; Sokolova, B.; Lestinsky, P. Enhancing aromatics and olefins yields in thermo-catalytic pyrolysis of LDPE over zeolites: Role of staged catalysis and acid site density of HZSM-5. Fuel 2022, 314, 123071. [Google Scholar] [CrossRef]
  55. Miandad, R.; Barakat, M.A.; Aburiazaiza, A.S.; Rehan, M.; Nizami, A.S. Catalytic pyrolysis of plastic waste: A review. Process Saf. Environ. Prot. 2016, 102, 822–838. [Google Scholar] [CrossRef]
  56. Bi, C.; Zhang, Z.; Han, D.; Wang, C.; Zhang, J.; Sun, M.; Hao, Q.; Chen, H.; Ma, X. Effective regulation of Ga active species in mesoporous ZSM-5 for catalytic upgrading of coal pyrolysis volatiles. Fuel 2022, 321, 124105. [Google Scholar] [CrossRef]
  57. Lopez, A.; de Marco, I.; Caballero, B.M.; Adrados, A.; Laresgoiti, M.F. Deactivation and regeneration of ZSM-5 zeolite in catalytic pyrolysis of plastic wastes. Waste Manag. 2011, 31, 1852–1858. [Google Scholar] [CrossRef]
  58. Carlson, T.R.; Cheng, Y.-T.; Jae, J.; Huber, G.W. Production of green aromatics and olefins by catalytic fast pyrolysis of wood sawdust. Energy Environ. Sci. 2011, 4, 145–161. [Google Scholar] [CrossRef]
Catalysts 14 00078 g001

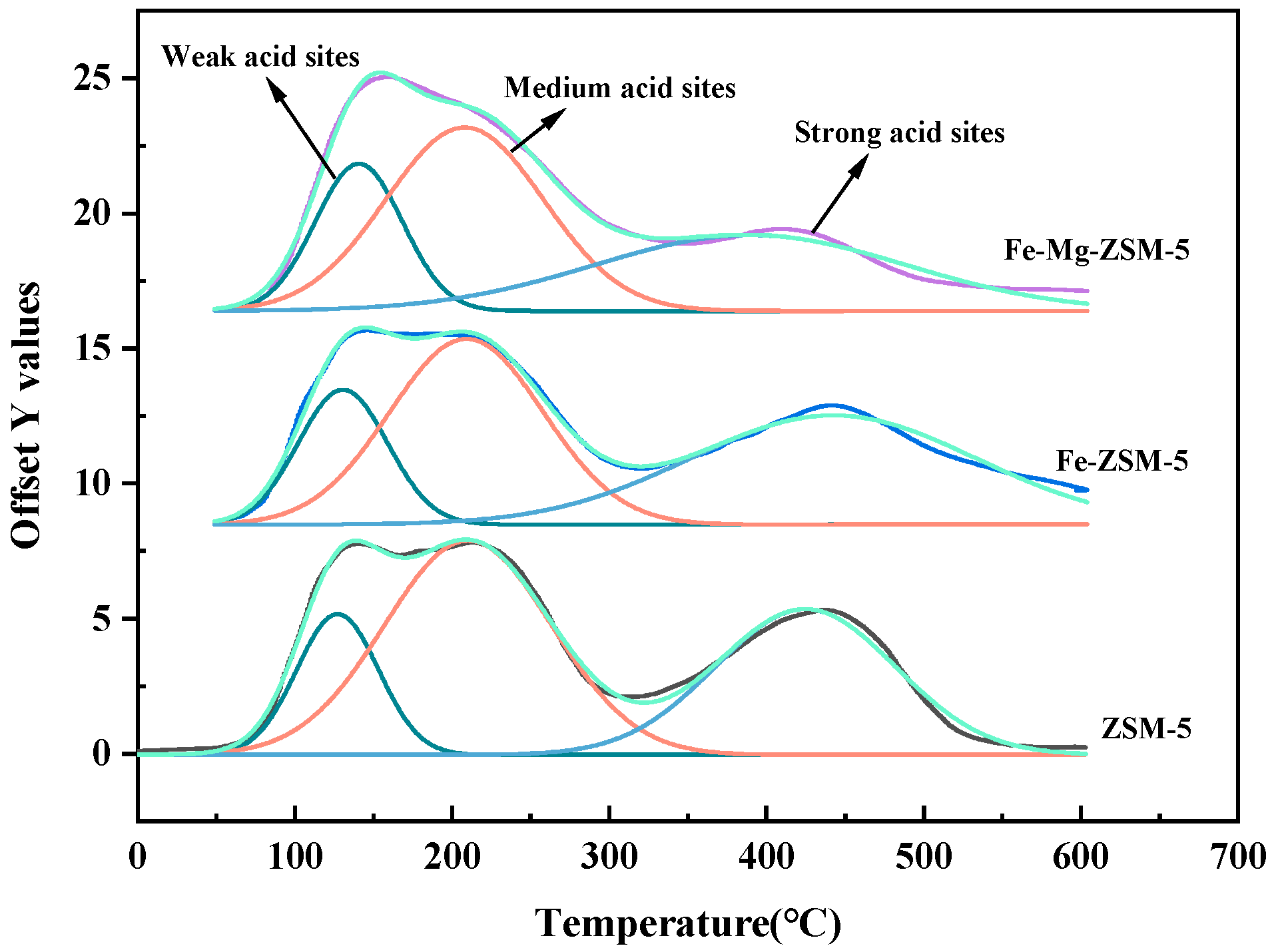

Figure 1. NH3-TPD curve of the different catalysts.
Figure 1. NH3-TPD curve of the different catalysts.
Catalysts 14 00078 g001
Catalysts 14 00078 g002

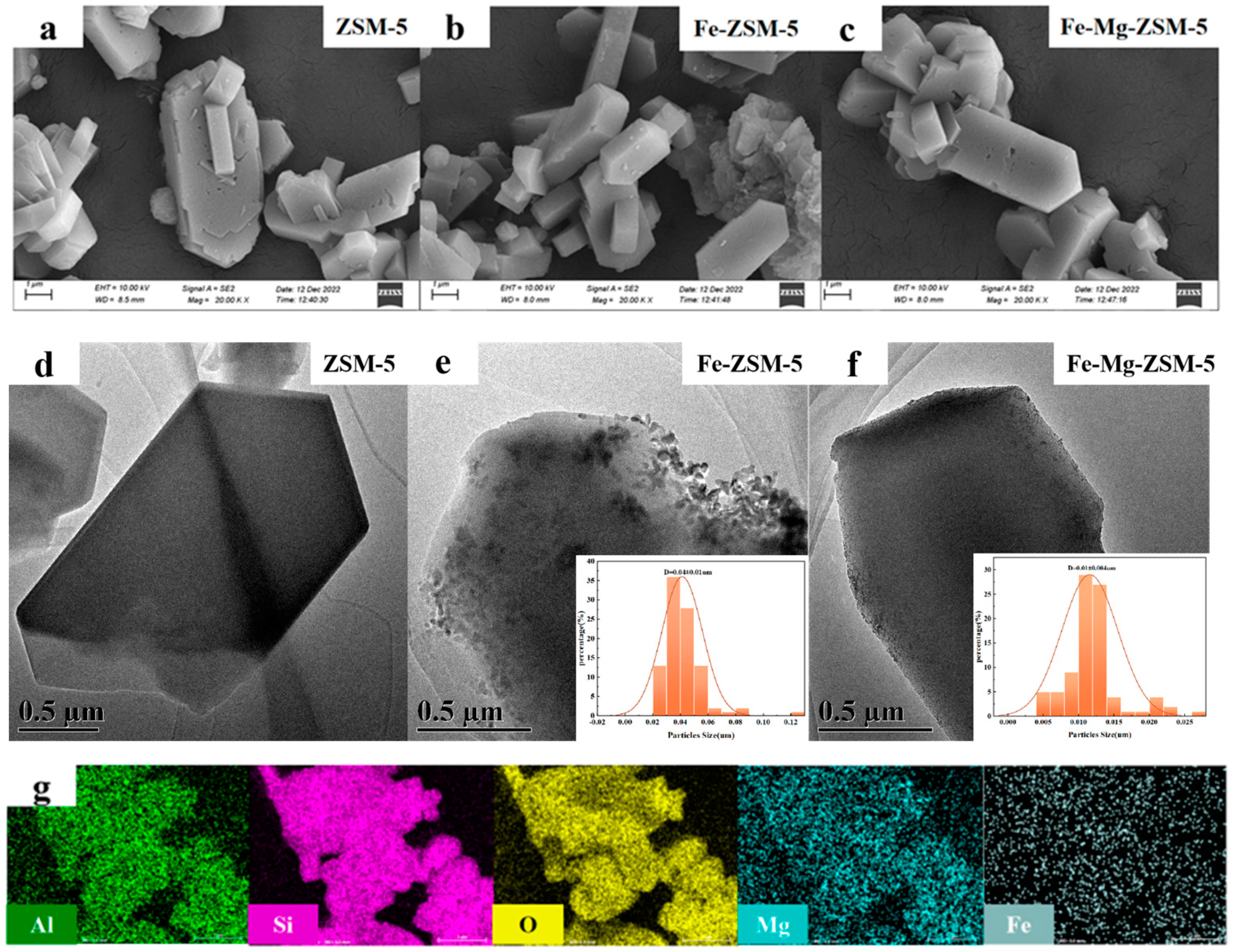

Figure 2. SEM and TEM images of different catalysts. ((a–c) SEM; (d–f) TEM; (g) compositional mapping of Fe-Mg-ZSM-5).
Figure 2. SEM and TEM images of different catalysts. ((a–c) SEM; (d–f) TEM; (g) compositional mapping of Fe-Mg-ZSM-5).
Catalysts 14 00078 g002
Catalysts 14 00078 g003

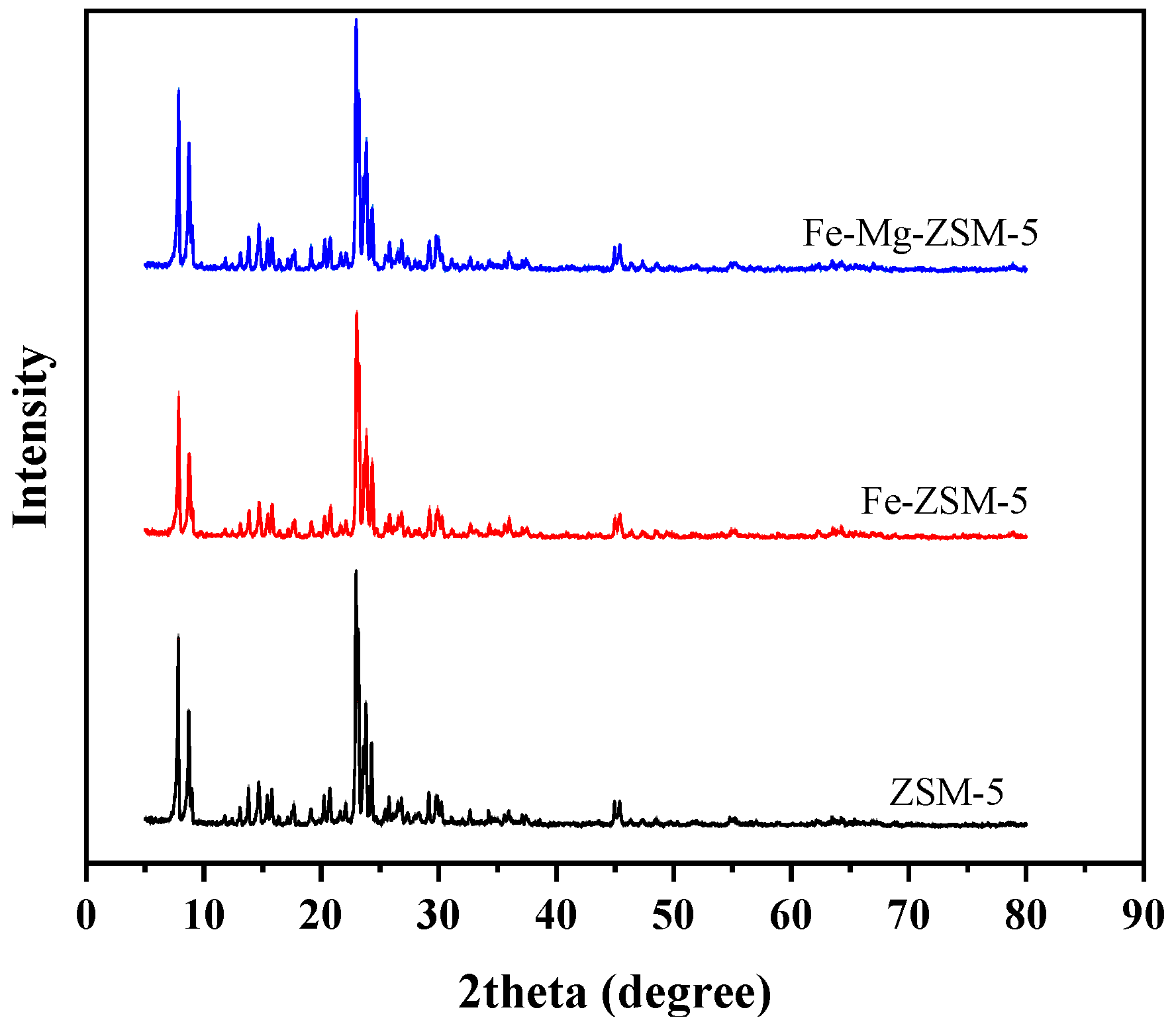

Figure 3. XRD pattern of the catalysts.
Figure 3. XRD pattern of the catalysts.
Catalysts 14 00078 g003
Catalysts 14 00078 g004

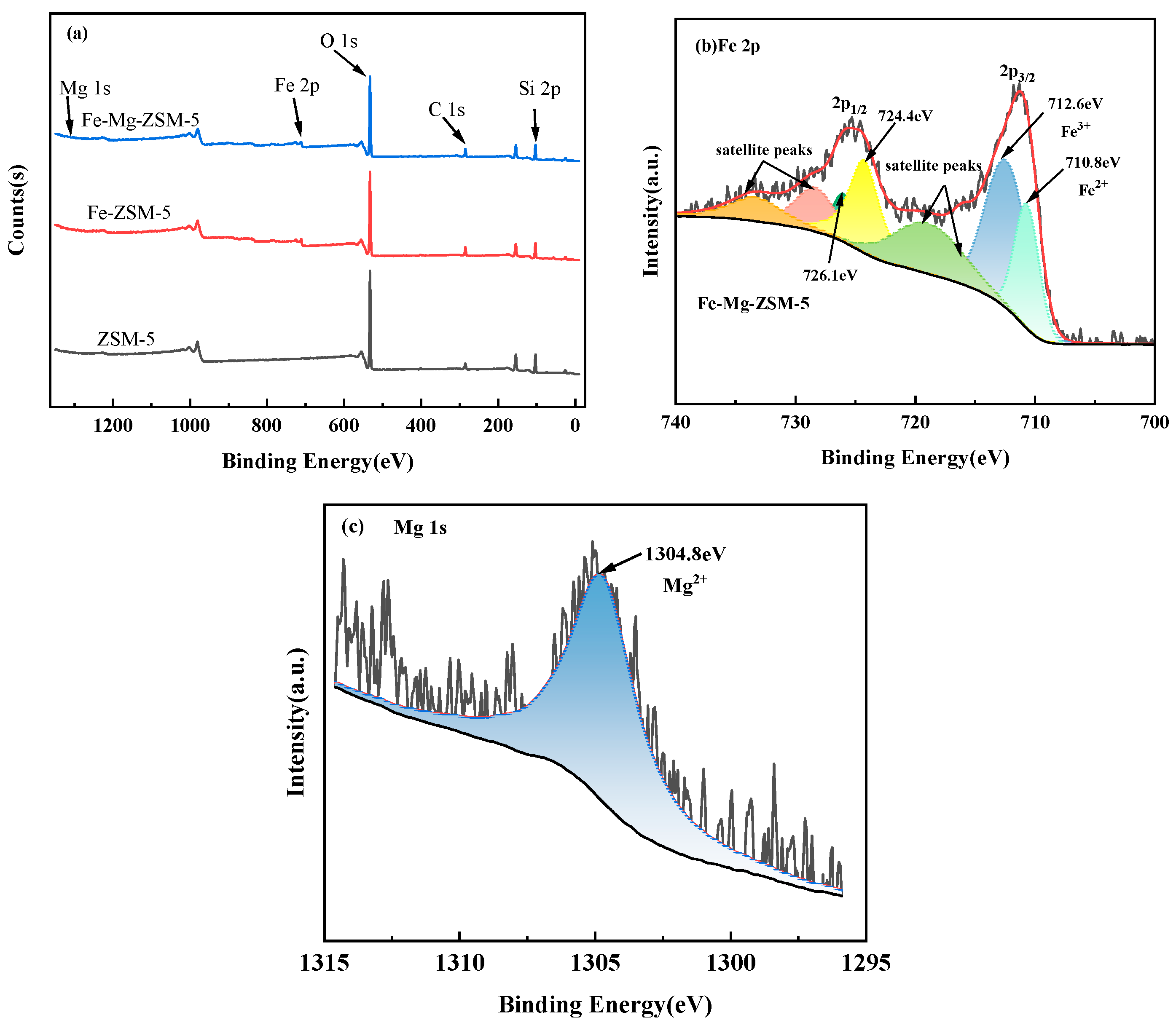

Figure 4. (a) XPS survey scan spectrum of different catalysts: (b) Fe 2p of Fe-Mg-ZSM-5 and (c) Mg 1s of Fe-Mg-ZSM-5.
Figure 4. (a) XPS survey scan spectrum of different catalysts: (b) Fe 2p of Fe-Mg-ZSM-5 and (c) Mg 1s of Fe-Mg-ZSM-5.
Catalysts 14 00078 g004
Catalysts 14 00078 g005

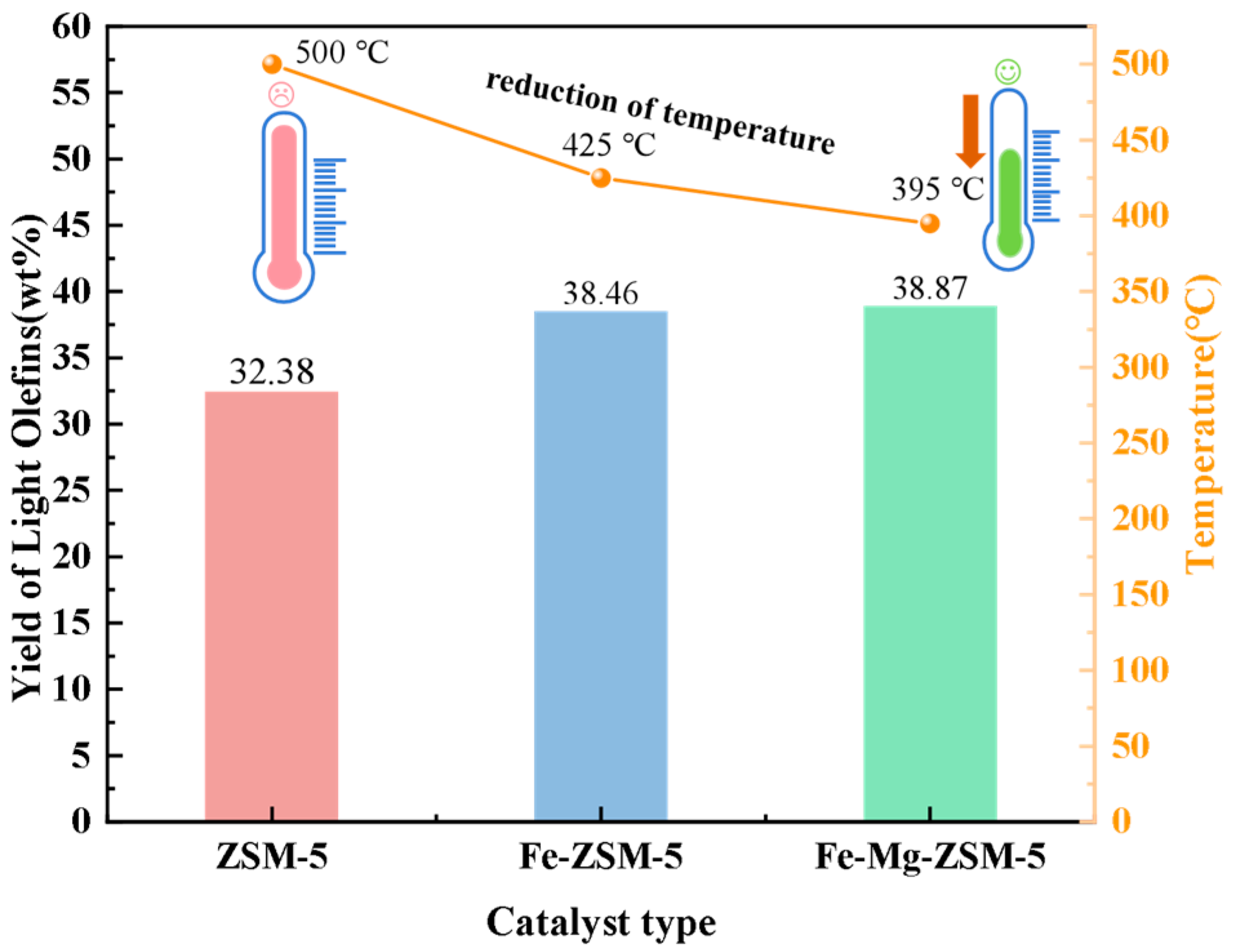

Figure 5. Comparison of optimal light olefin yields with different catalysts.
Figure 5. Comparison of optimal light olefin yields with different catalysts.
Catalysts 14 00078 g005
Catalysts 14 00078 g006

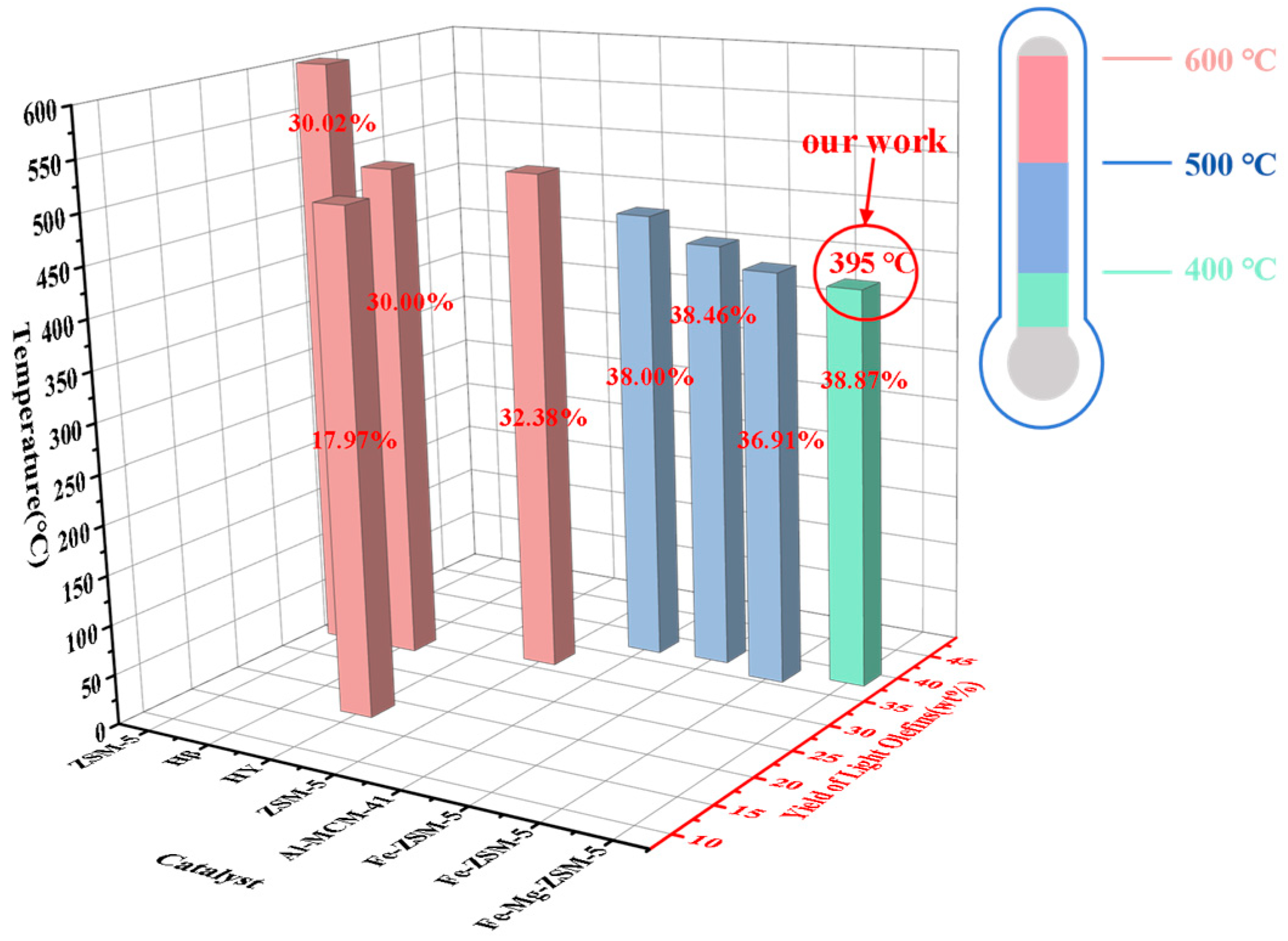

Figure 6. Summary and comparison of light olefin yields under different conditions.
Figure 6. Summary and comparison of light olefin yields under different conditions.
Catalysts 14 00078 g006
Catalysts 14 00078 g007

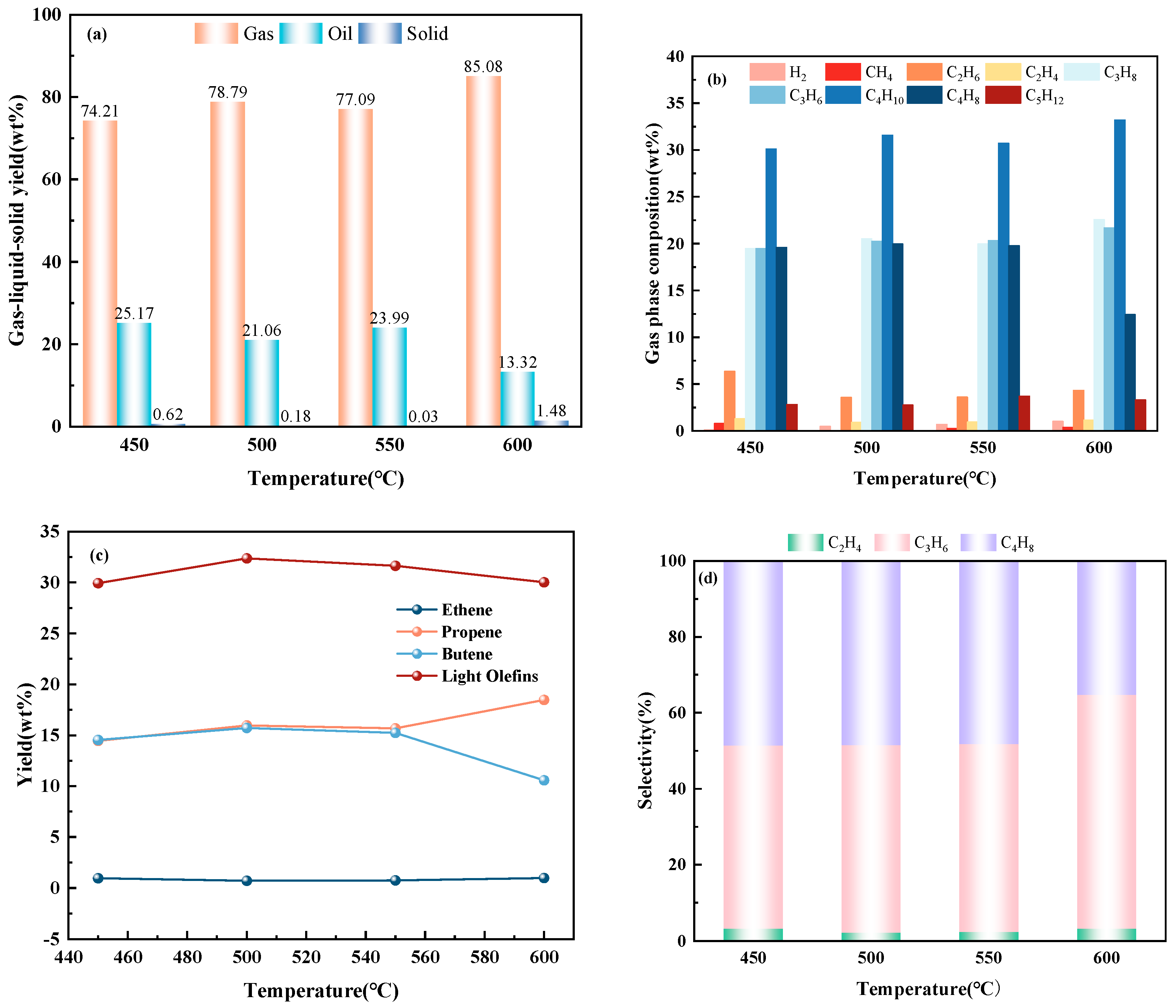

Figure 7. Influence of ZSM-5 on the creation of light olefin: (a) mass percentages of solids, gases, and liquids; (b) percentage by mass of H2, CH4, light olefin, and C2–C5 alkanes; (c) weight yields of light olefin; and (d) olefin selectivity of C2H4, C3H6, and C4H8.
Figure 7. Influence of ZSM-5 on the creation of light olefin: (a) mass percentages of solids, gases, and liquids; (b) percentage by mass of H2, CH4, light olefin, and C2–C5 alkanes; (c) weight yields of light olefin; and (d) olefin selectivity of C2H4, C3H6, and C4H8.
Catalysts 14 00078 g007
Catalysts 14 00078 g008

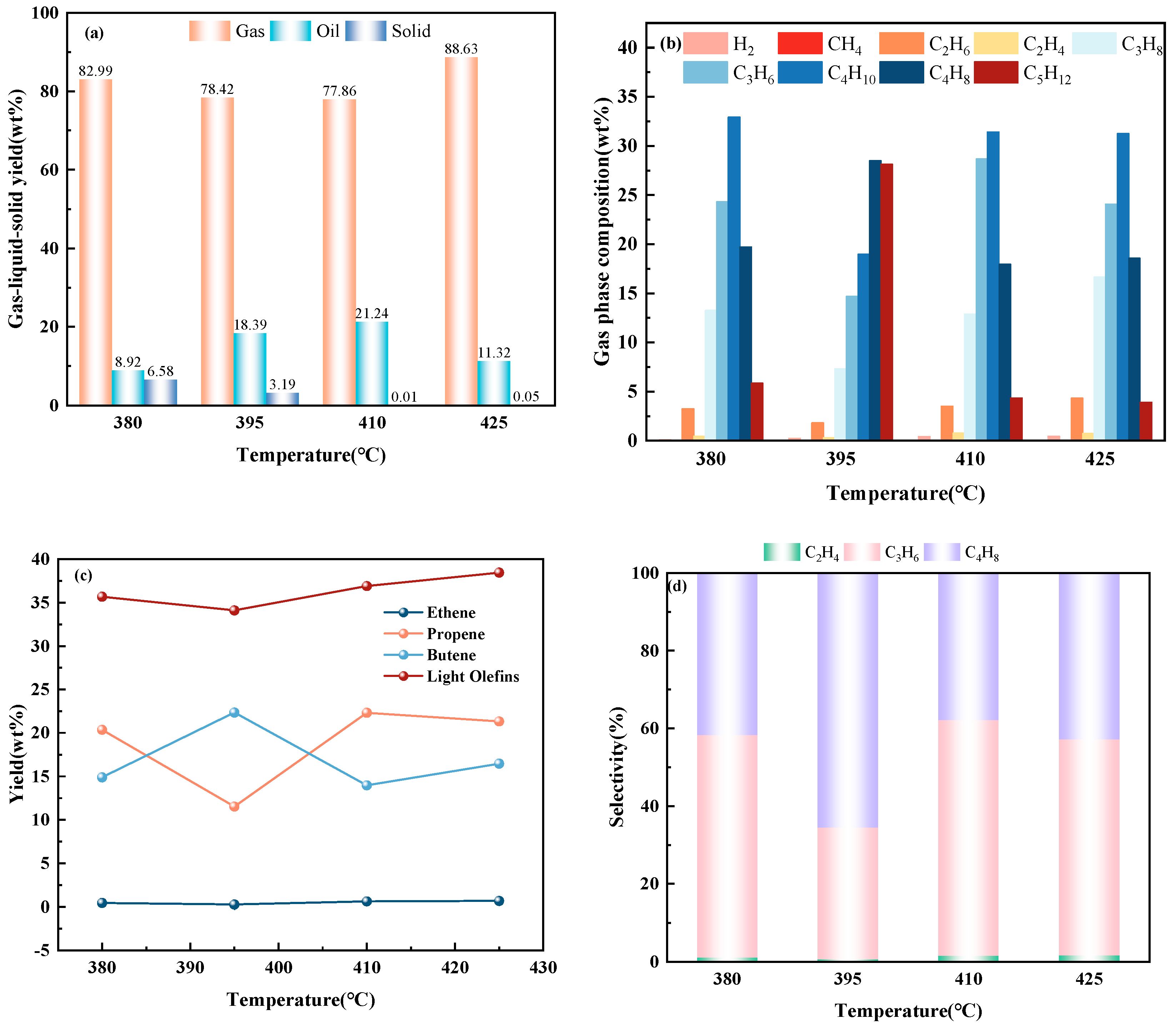

Figure 8. Influence of Fe-ZSM-5 on the creation of light olefin: (a) mass percentages of solids, gases, and liquids; (b) percentage by mass of H2, CH4, light olefin, and C2–C5 alkanes; (c) weight yields of light olefin; and (d) olefin selectivity of C2H4, C3H6, and C4H8.
Figure 8. Influence of Fe-ZSM-5 on the creation of light olefin: (a) mass percentages of solids, gases, and liquids; (b) percentage by mass of H2, CH4, light olefin, and C2–C5 alkanes; (c) weight yields of light olefin; and (d) olefin selectivity of C2H4, C3H6, and C4H8.
Catalysts 14 00078 g008
Catalysts 14 00078 g009

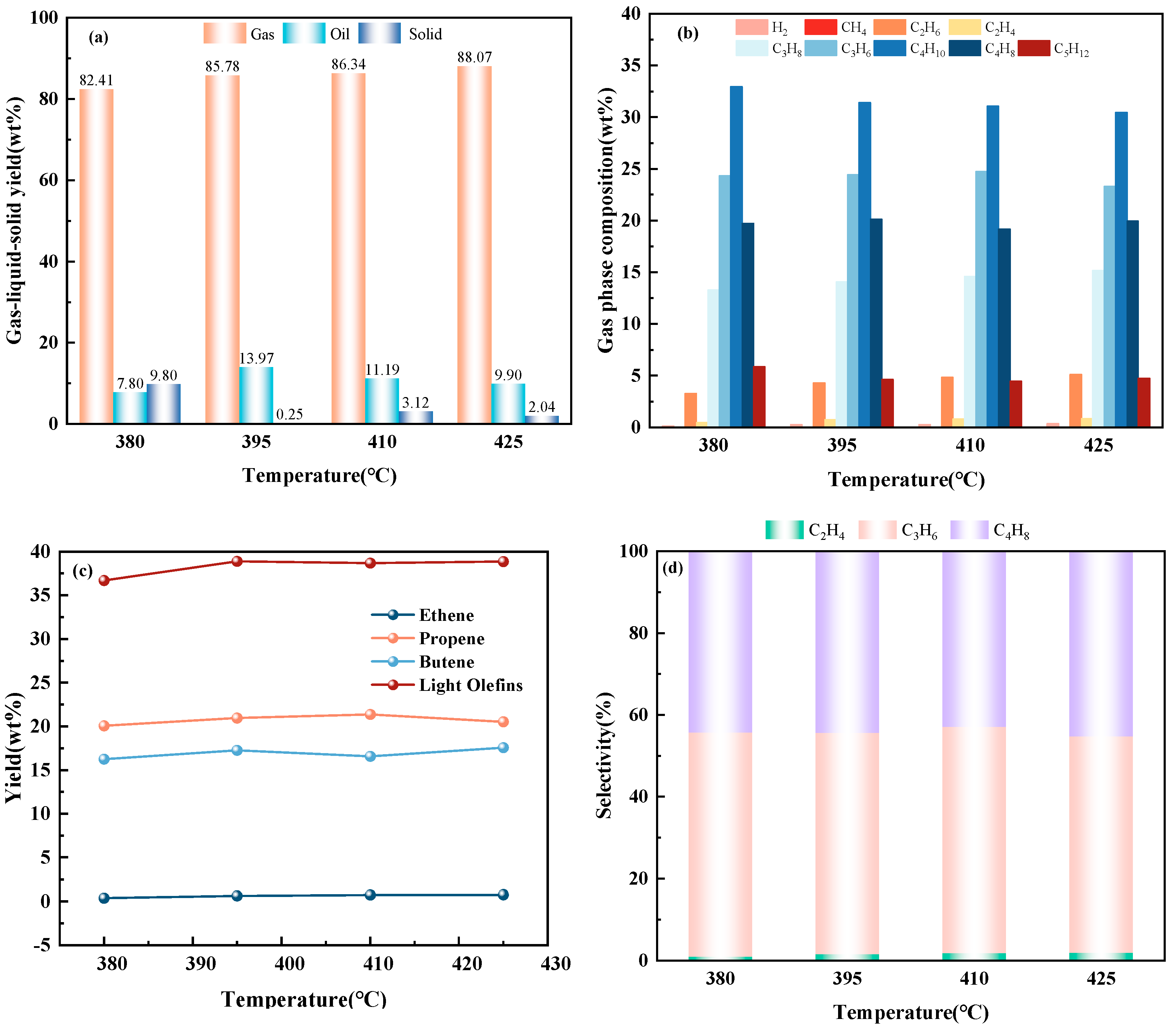

Figure 9. Influence of Mg loadings in Fe-ZSM-5 on the yields of light olefin: (a) mass percentages of solids, gases, and liquids; (b) percentage by mass of H2, CH4, light olefin, and C2–C5 alkanes; (c) weight yields of light olefin; and (d) olefin selectivity of C2H4, C3H6, and C4H8.
Figure 9. Influence of Mg loadings in Fe-ZSM-5 on the yields of light olefin: (a) mass percentages of solids, gases, and liquids; (b) percentage by mass of H2, CH4, light olefin, and C2–C5 alkanes; (c) weight yields of light olefin; and (d) olefin selectivity of C2H4, C3H6, and C4H8.
Catalysts 14 00078 g009
Catalysts 14 00078 g010
Figure 10. Catalytic pyrolysis performance of LDPE with different catalysts.
Figure 10. Catalytic pyrolysis performance of LDPE with different catalysts.
Catalysts 14 00078 g010
Catalysts 14 00078 g011

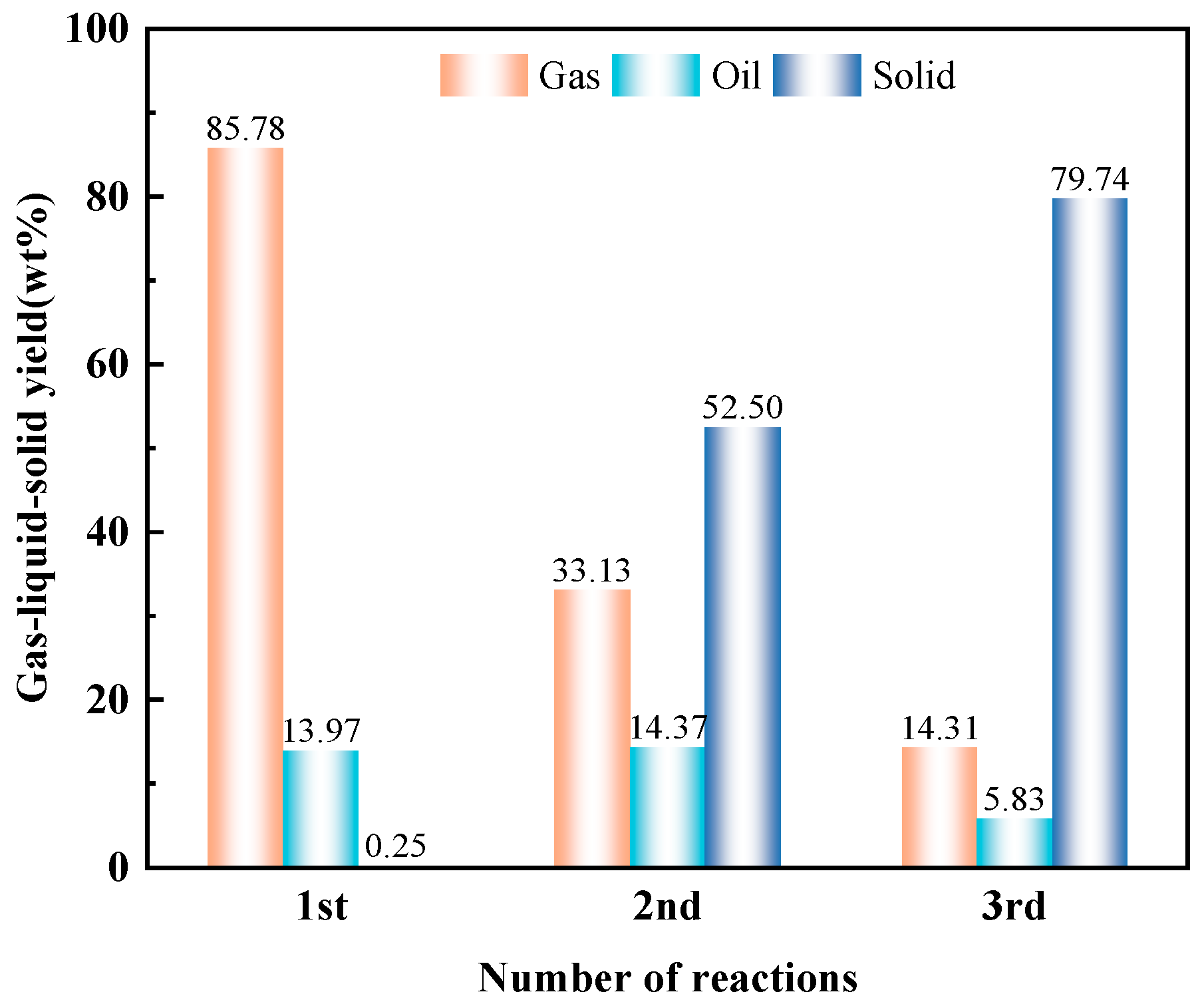

Figure 11. The catalytic performance of the spent Fe-Mg-ZSM-5 after being reused for three cycles.
Figure 11. The catalytic performance of the spent Fe-Mg-ZSM-5 after being reused for three cycles.
Catalysts 14 00078 g011
Catalysts 14 00078 g012

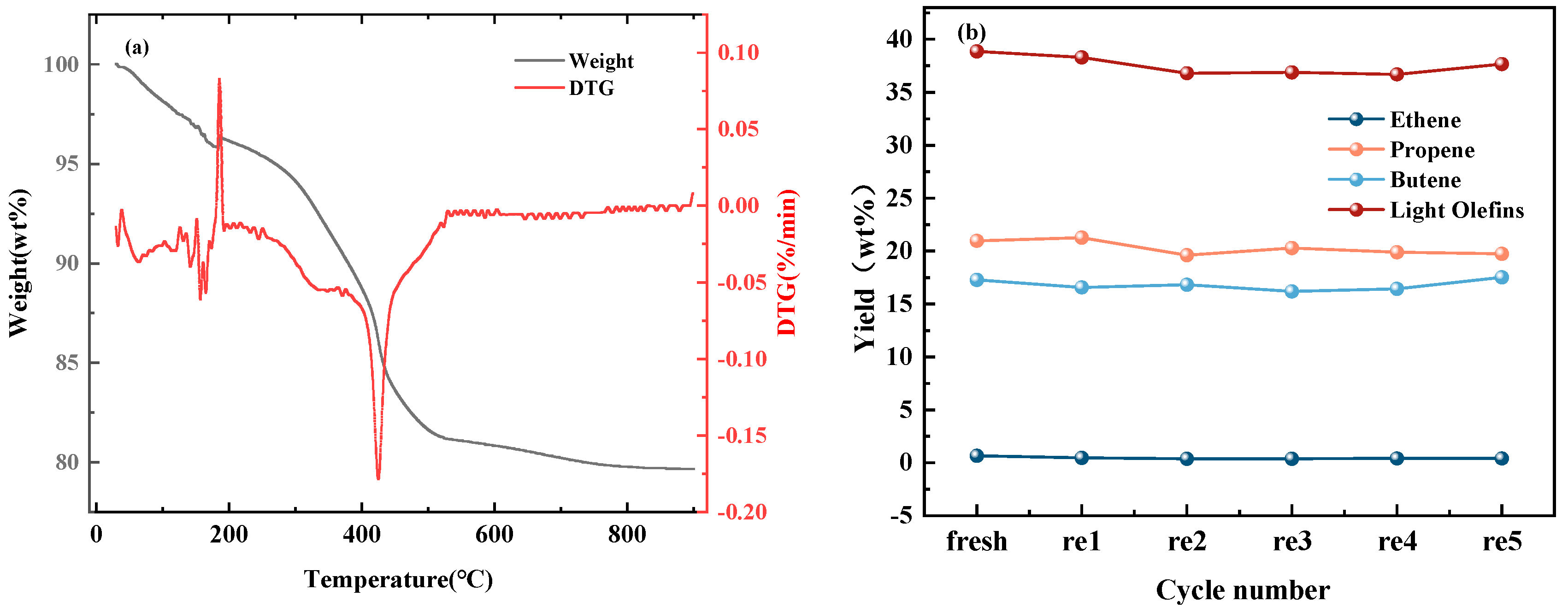

Figure 12. (a) TG and DTG curves of the spent Fe-Mg-ZSM-5. (b) The catalytic performance of the regenerated Fe-Mg-ZSM-5.
Figure 12. (a) TG and DTG curves of the spent Fe-Mg-ZSM-5. (b) The catalytic performance of the regenerated Fe-Mg-ZSM-5.
Catalysts 14 00078 g012
Catalysts 14 00078 g013

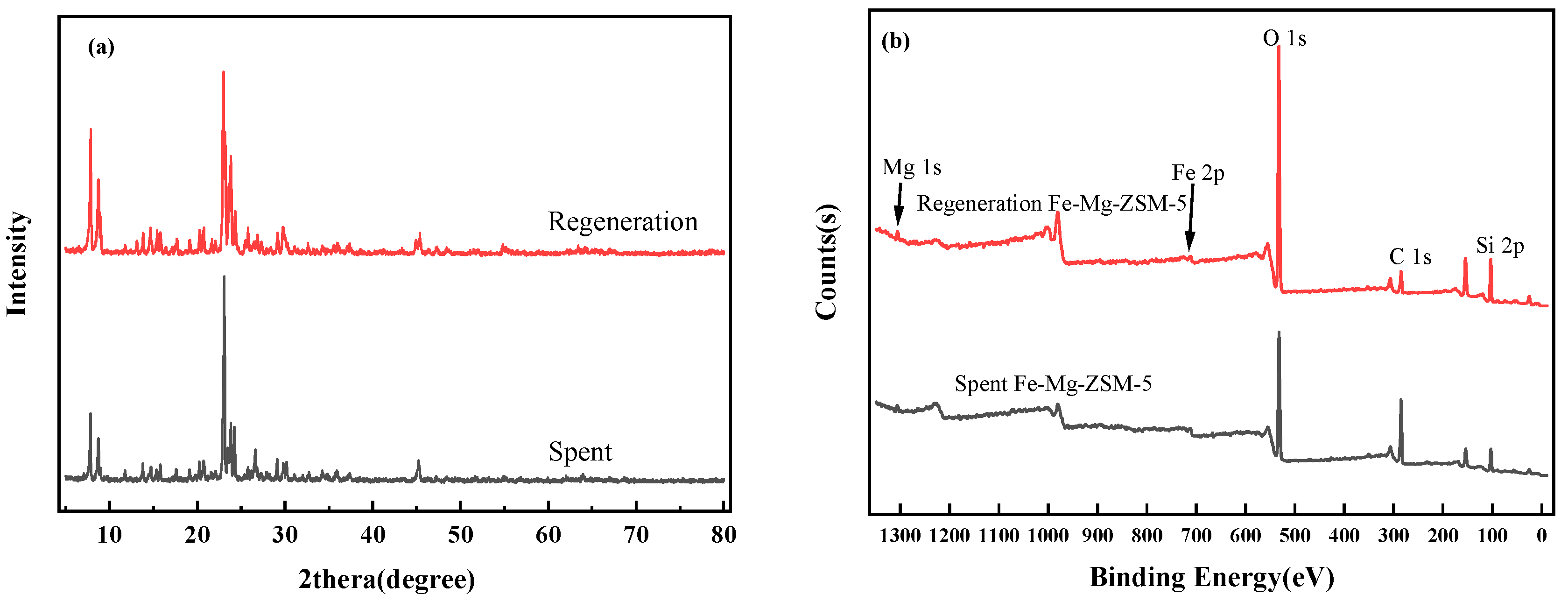

Figure 13. Characterization of the inactivated Fe-Mg-ZSM-5 and the regenerated Fe-Mg-ZSM-5: (a) XRD pattern and (b) XPS survey scan spectrum.
Figure 13. Characterization of the inactivated Fe-Mg-ZSM-5 and the regenerated Fe-Mg-ZSM-5: (a) XRD pattern and (b) XPS survey scan spectrum.
Catalysts 14 00078 g013
Catalysts 14 00078 g014
Figure 14. Preparation flow chart of the Fe-ZSM-5 and Fe-Mg-ZSM-5 samples.
Figure 14. Preparation flow chart of the Fe-ZSM-5 and Fe-Mg-ZSM-5 samples.
Catalysts 14 00078 g014
Table 1. Acidity distribution of the catalysts.
Table 1. Acidity distribution of the catalysts.
CatalystsAcid Content (μmol/g)
Weak AcidityMedium AcidityStrong AcidityTotal Acidity
ZSM-5206.71642.58470.711320
Fe-ZSM-5182.52432.77473.721089
Fe-Mg-ZSM-5214.75484.31394.931094
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Li, Y.; Liu, T.; Deng, S.; Liu, X.; Meng, Q.; Tang, M.; Wu, X.; Zhang, H. Surface Modification of Fe-ZSM-5 Using Mg for a Reduced Catalytic Pyrolysis Temperature of Low-Density Polyethylene to Produce Light Olefin. Catalysts 2024, 14, 78. https://doi.org/10.3390/catal14010078

AMA Style

Li Y, Liu T, Deng S, Liu X, Meng Q, Tang M, Wu X, Zhang H. Surface Modification of Fe-ZSM-5 Using Mg for a Reduced Catalytic Pyrolysis Temperature of Low-Density Polyethylene to Produce Light Olefin. Catalysts. 2024; 14(1):78. https://doi.org/10.3390/catal14010078

Chicago/Turabian Style

Li, Yincui, Ting Liu, Shengnan Deng, Xiao Liu, Qian Meng, Mengxue Tang, Xueying Wu, and Huawei Zhang. 2024. "Surface Modification of Fe-ZSM-5 Using Mg for a Reduced Catalytic Pyrolysis Temperature of Low-Density Polyethylene to Produce Light Olefin" Catalysts 14, no. 1: 78. https://doi.org/10.3390/catal14010078

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
