Review

Solid-Liquid Phase C-Alkylation of Active Methylene Containing Compounds under Microwave Conditions

by
Alajos Grün
1,*,
Erika Bálint
2 and
György Keglevich
1,*
1
Department of Organic Chemistry and Technology, Budapest University of Technology and Economics, 1521 Budapest, Hungary
2
MTA-BME Research Group for Organic Chemical Technology, 1521 Budapest, Hungary
*
Authors to whom correspondence should be addressed.
Catalysts 2015, 5(2), 634-652; https://doi.org/10.3390/catal5020634
Submission received: 4 February 2015 / Revised: 31 March 2015 / Accepted: 7 April 2015 / Published: 21 April 2015
(This article belongs to the Special Issue Phase-Transfer Catalysts)
Browse Figures
Versions Notes

Abstract

:
The solid–liquid phase C-alkylation of active methylene containing compounds with C=O or P=O functions under phase transfer catalysis or microwave conditions has been summarized in this minireview. The mono- and dialkylation of the methylene containing derivatives was investigated under microwave (MW) conditions. It was found that in many cases, there was no need to use phase transfer catalyst under MW conditions. Moreover, most of the reactions were carried out without any solvent. These results mean a serious green chemical advantage.

Graphical Abstract

1. Introduction

Today, the use of the microwave (MW) technique is becoming more widespread in the implementation of the various reactions [1,2,3]. The MW irradiation is considered a kind of molecular heater, where the MWs are taken up directly by the reagents, and the beneficial effect is that reluctant reactions may take place faster. The MW irradiation causes statistically occurring local overheating in the mixture, and as a consequence of this, the activation barrier may be overcome easier, and the reaction rate increases, and the efficiency is improved [4,5]. There are already MW-assisted processes in the R + D segment of the pharmaceutical industry, but the real challenge is the scale-up [6,7].
Phase transfer catalysis (PTC) is also an environmentally friendly tool. The typical phase transfer catalysts are quaternary ammonium or phosphonium salts, as well as crown ethers, which are used in heterogeneous reaction mixtures to facilitate the transfer of a reactant from one phase to another. There are liquid–liquid (L–L) and solid–liquid (S–L) two-phase systems. As typical cases, substitutions, alkylations, acylations, additions, eliminations, oxidations and reductions may be implemented under PTC conditions. The reactions take place usually under mild conditions, and involve easy work-up procedures. A number of phase transfer catalytic processes have spread in the industry, especially in the pharmaceutical and plastics industries [8,9,10,11]. In these cases, the catalysts are usually bound to solid supports.
The combination of PTC and MW techniques offers further advantages, such as additional increase in the reaction rate and selectivity [2].

2. Alkylation of Active Methylene Containing Substrates under MW Conditions

Alkylation of the title compounds is a well-known and well-studied reaction. However, the use of the MW technique is relatively new in this area. Only a few publications deal with the alkylation of active methylene containing substrates, such as diethyl malonate, ethyl acetoacetate, ethyl phenylsulfonylacetate, and ethyl phenylmercaptoacetate under MW conditions [12,13,14,15].
The solvent-free solid–liquid phase alkylation of diethyl malonate (1) was carried out in a domestic MW oven by Wang et al. (Scheme 1) [10]. The alkylating agents were different alkyl halides, such as normal and substituted benzyl chloride, allyl bromide and butyl bromide. K2CO3 (4 equiv.) was applied as the base, and 10% of tetrabutylammonium bromide (TBAB) was used as the phase transfer catalyst. Mono- and dialkylated malonic esters (2 and 3) were formed in the reaction.
Catalysts 05 00634 g001 1024

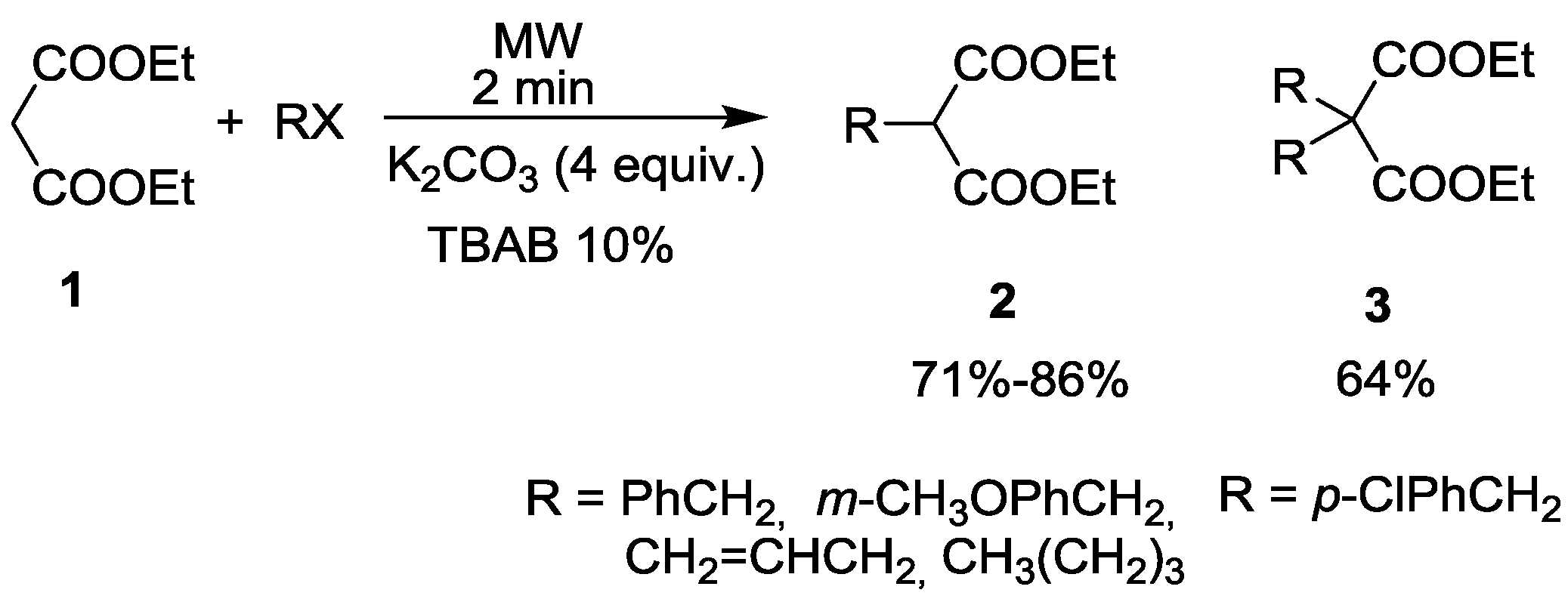

Scheme 1. Alkylation of diethyl malonate (1) under microwave (MW) conditions.
Scheme 1. Alkylation of diethyl malonate (1) under microwave (MW) conditions.
Catalysts 05 00634 g001
Deng and his research group have studied the solid–liquid phase alkylation of ethyl acetoacetate (4) under MW conditions using a catalyst (Scheme 2) [13]. Their experiments were carried out in a domestic MW oven. The 1:4 mixture of KOH and K2CO3 was used as in an excess, and the catalyst was triethylbenzylammonium chloride (TEBAC) in a quantity of 10%. The alkylations were performed with benzyl- and p-chlorobenzyl bromide, m-methoxybenzyl chloride, allyl bromide and butyl bromide at 60–80 °C for 3–4.5 min. The C-alkylated derivatives of acetoacetic ester (5) were obtained in a 59%–82% yield.
Catalysts 05 00634 g002 1024

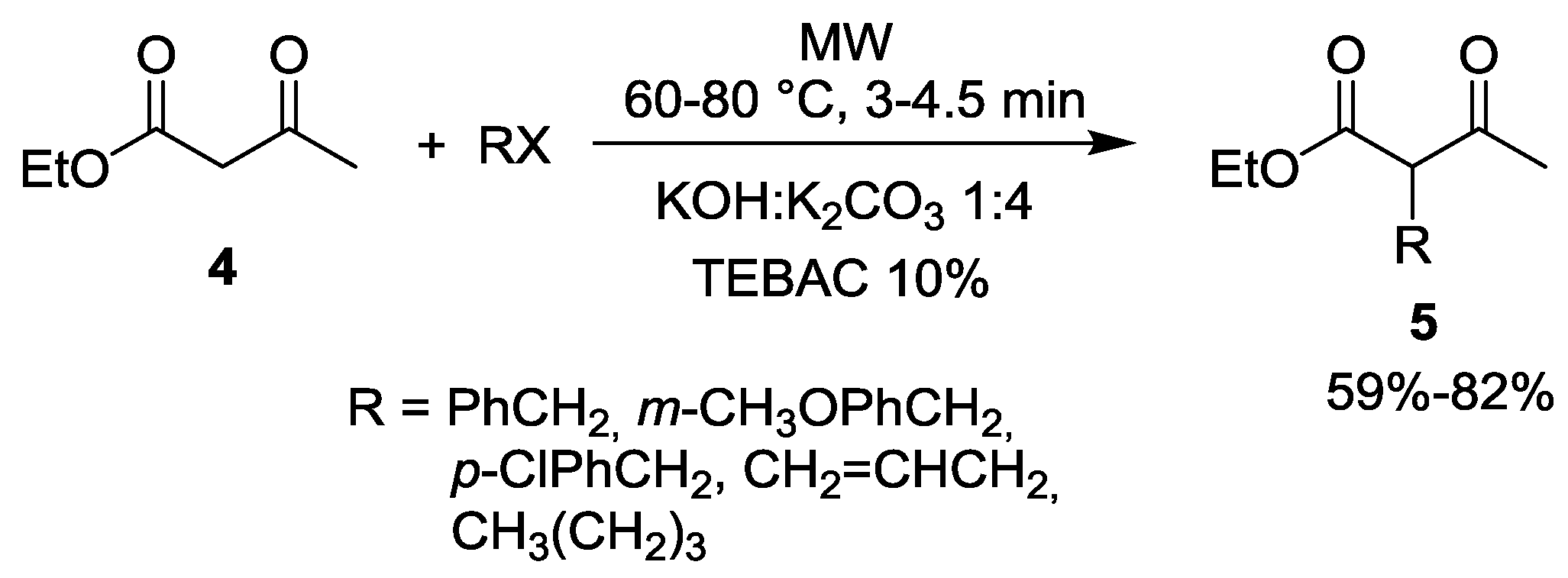

Scheme 2. Alkylation of ethyl acetoacetate (4) under MW conditions.
Scheme 2. Alkylation of ethyl acetoacetate (4) under MW conditions.
Catalysts 05 00634 g002
The alkylation of ethyl phenylsulfonylacetate (6) was investigated by Wang et al. with a series of alkyl halides in a domestic MW oven, and the mono-alkylated products (7) were isolated in yields of 76%–86% (Scheme 3) [14].
Catalysts 05 00634 g003 1024

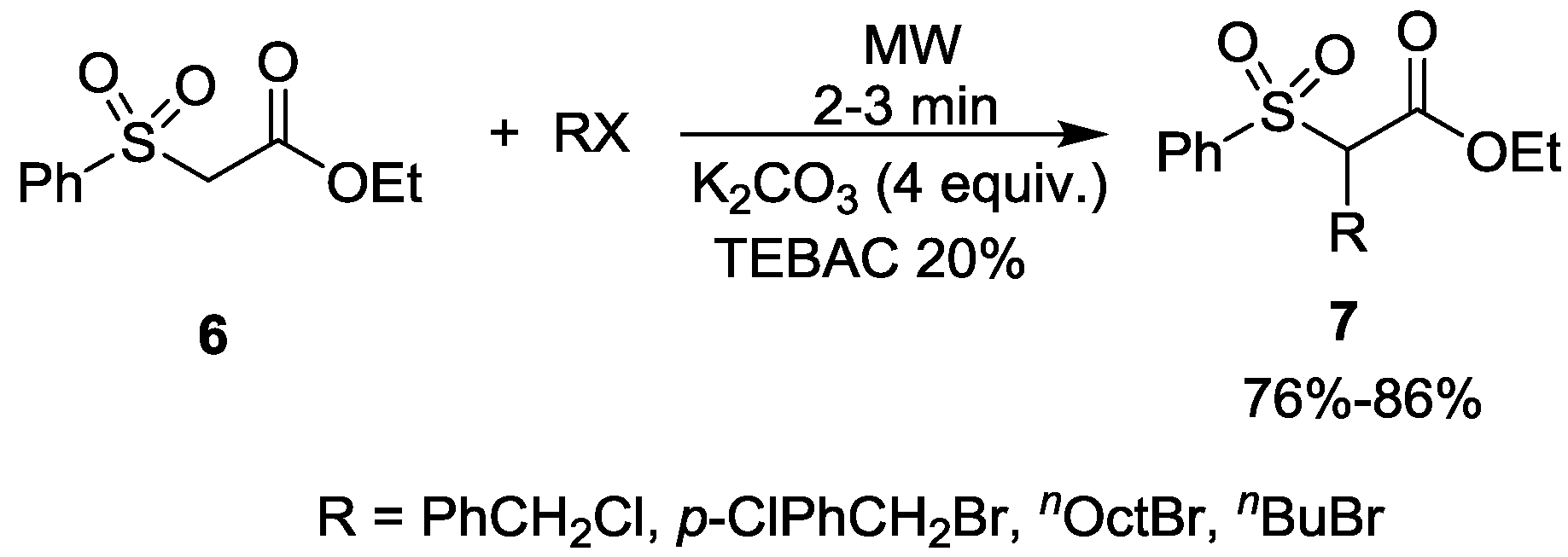

Scheme 3. Alkylation of ethyl phenylsulfonylacetate (6) under MW conditions.
Scheme 3. Alkylation of ethyl phenylsulfonylacetate (6) under MW conditions.
Catalysts 05 00634 g003
Chinese researchers carried out the reaction of ethyl phenylmercaptoacetate (8) with different alkyl halides, such as benzyl- and m-methoxybenzyl chloride, as well as allyl-, butyl- and p-chlorobenzyl bromide in a domestic MW oven in the presence of 2.6 equivalents of KOH–K2CO3 and 10% of tetrabutylammonium chloride (TBAC). The yields of the alkylated products fell in the range of 58%–83% (Scheme 4) [15].
Catalysts 05 00634 g004 1024

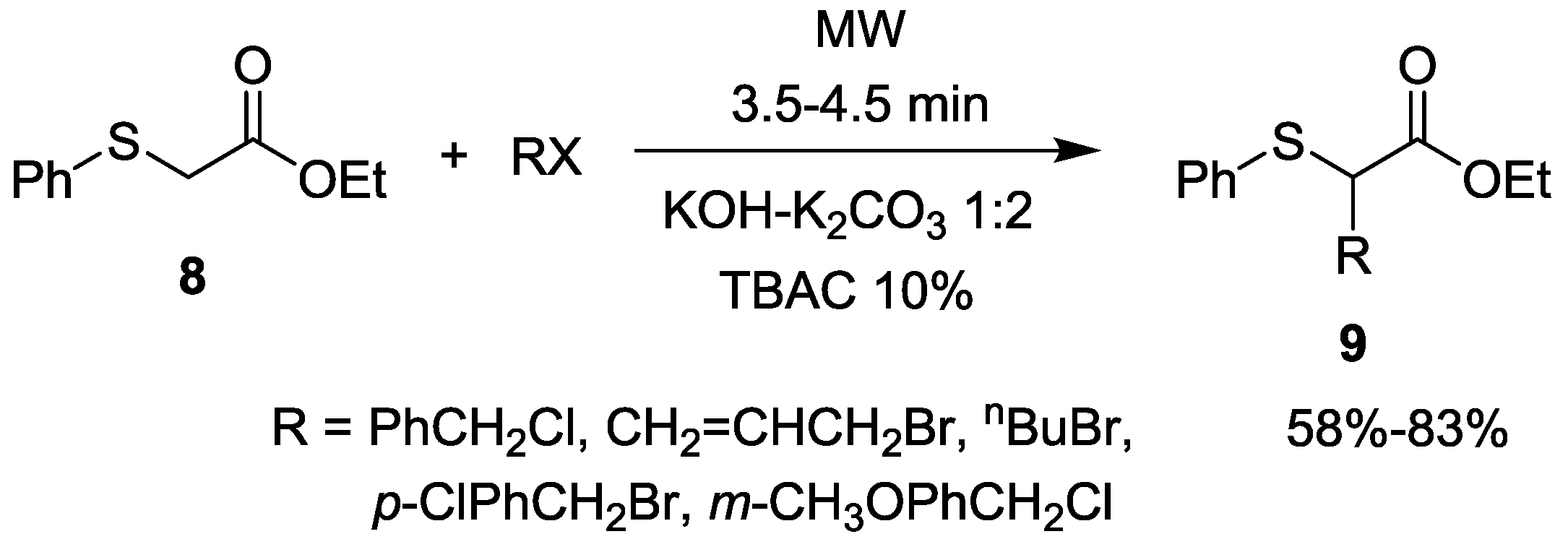

Scheme 4. Alkylation ethyl phenylmercaptoacetate (8) under MW conditions.
Scheme 4. Alkylation ethyl phenylmercaptoacetate (8) under MW conditions.
Catalysts 05 00634 g004
Indian scientists synthesized disubstituted cyclopropane derivatives (10) from active methylene containing compounds and 1,2-dibromoethane by a MW-assisted and phase transfer catalyzed solvent-free approach (Scheme 5) [16].
Catalysts 05 00634 g005 1024

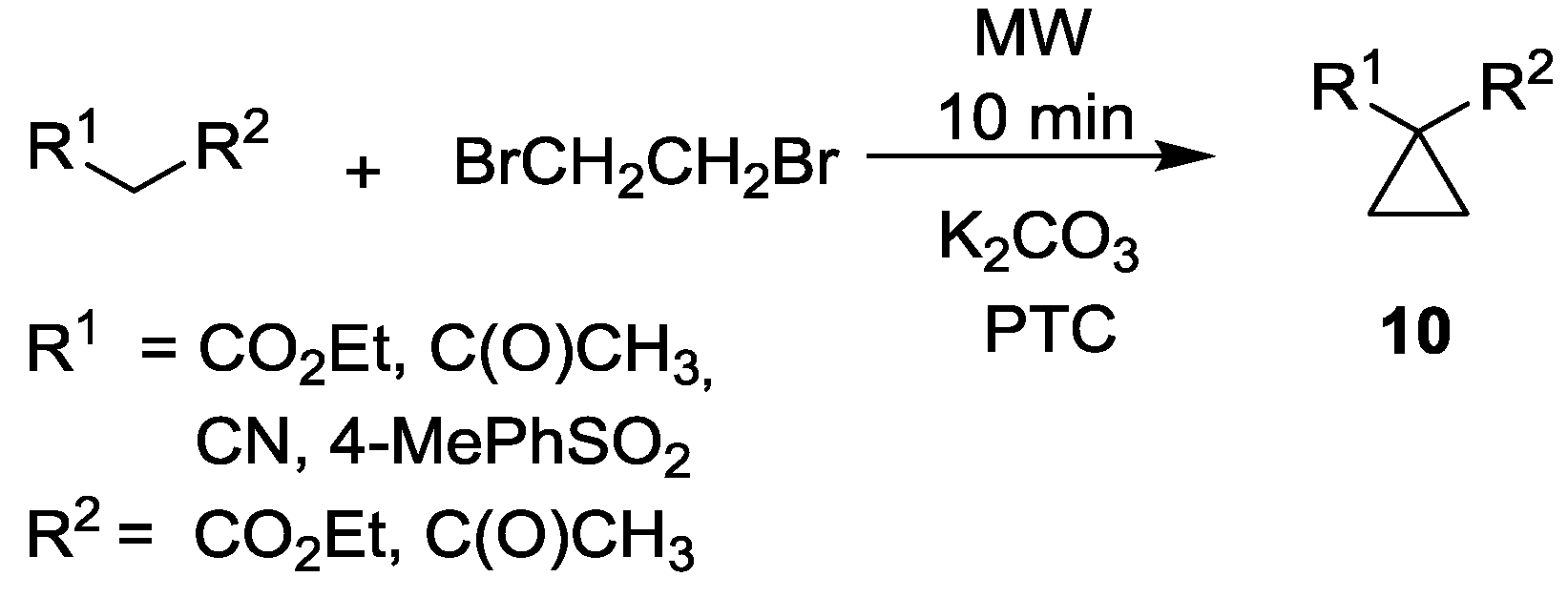

Scheme 5. MW-assisted solvent-free synthesis of cyclopropane derivatives (10).
Scheme 5. MW-assisted solvent-free synthesis of cyclopropane derivatives (10).
Catalysts 05 00634 g005
The alkylation of simple compounds with active methylene group was also studied by Keglevich et al. under MW heating [17,18,19]. A MW-promoted, solvent-free method was developed for the solid–liquid phase alkylation of diethyl malonate (1), ethyl acetoacetate (4) and ethyl cyanoacetate (14) using different alkyl halides in the presence of K2CO3 or Cs2CO3. There was no need to apply a phase transfer catalyst (Scheme 6, Table 1).
Catalysts 05 00634 g006 1024

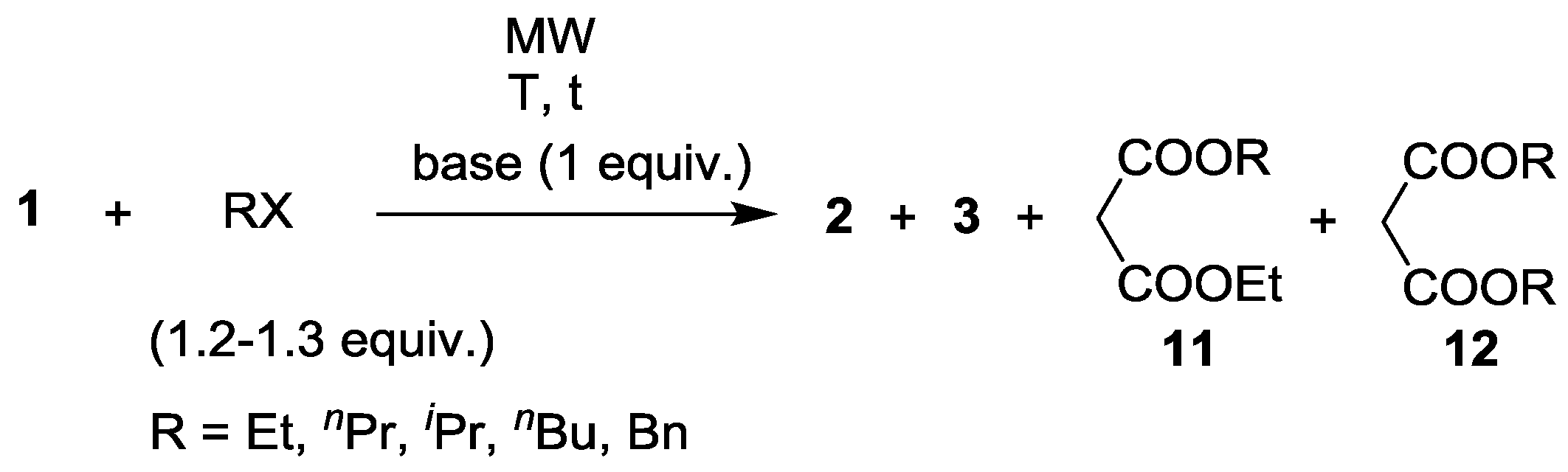

Scheme 6. Alkylation of diethyl malonate (1) with MW promoted methods.
Scheme 6. Alkylation of diethyl malonate (1) with MW promoted methods.
Catalysts 05 00634 g006
Table
Table 1. Alkylation of diethyl malonate (1) under microwave (MW) and solvent-free conditions.
Table 1. Alkylation of diethyl malonate (1) under microwave (MW) and solvent-free conditions.
EntryRXBaseT (°C)t (min)Yield of 2 (%)By-productsRef.
1EtIK2CO316045933% 3 (R = Et)18
2EtICs2CO314090973% 3 (R = Et)19
3nPrBrK2CO318545972% 3 (R = nPr)18
4nPrBrCs2CO31202405733% 11 (R = nPr)
10% 12 (R = nPr)		19
5iPrBrK2CO31856092-18
6nBuBrK2CO318545885% 3 (R = nBu)18
7BnBrK2CO318045681% 3 (R = Bn)18
The alkylation of diethyl malonate (1) was examined in detail. The reaction with ethyl iodide at 160 °C for 45 min in the presence of K2CO3 led to 93% yield of the monoalkylated product (2, R = Et) (Table 1, entry 1). When Cs2CO3 was used at a lower temperature and for a longer reaction time, the result was similar (Table 1, entry 2). In both cases, a few percent of the diethylated derivative (3, R = Et) was also detected.
Using propyl bromide or butyl bromide in the presence of K2CO3 without phase transfer catalyst, a higher temperature (185 °C) was necessary to obtain higher conversions (Table 1, entries 3 and 6). When Cs2CO3 was applied as the base at 120 °C for 4 h, beside the propylated product (2, R = nPr) other transesterified derivatives were also formed (33% of 11, R = nPr and 10% of 12, R = nPr) (Table 1, entry 4). For the alkylation with isopropyl bromide, a longer reaction time was required due to the steric hindrance (Table 1, entry 5).
The benzylation of diethyl malonate (1) with the more reactive benzyl bromide resulted in a yield of 68% after a 45 min irradiation at 180 °C (Table 1, entry 6). The use of a phase transfer catalyst led to the formation of by-products. The two by-products, BnCH2CO2Et and (Bn)2CHCO2Et may have been formed by the de-ethoxycarbonylation of diethyl benzylmalonate and diethyl dibenzylmalonate, respectively.
Ethyl acetoacetate (4) was more reactive in the alkylations (Scheme 7, Table 2) [18].
Catalysts 05 00634 g007 1024

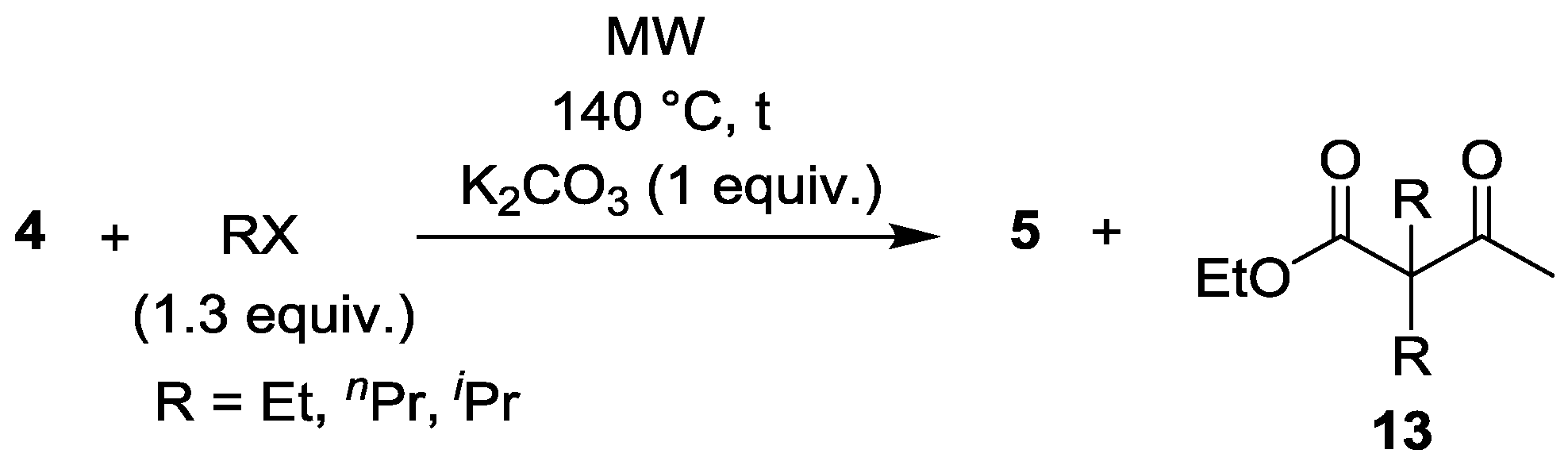

Scheme 7. Alkylation of ethyl acetoacetate (4) under MW conditions.
Scheme 7. Alkylation of ethyl acetoacetate (4) under MW conditions.
Catalysts 05 00634 g007
Table
Table 2. Alkylation of ethyl acetoacetate (4) under MW and solvent-free conditions.
Table 2. Alkylation of ethyl acetoacetate (4) under MW and solvent-free conditions.
EntryRXt (min)Yield of 5 (%)By-products
1EtI30855% 13 (R = Et)
2nPrBr30872% 13 (R = nPr)
3iPrBr4583-
In the alkylation with ethyl iodide and propyl bromide at 140 °C for 30 min, the mono-alkylated products (5, R = Et, nPr) were obtained in good yields, and only a few percent of the dialkylated by-products (13, R = Et, nPr) was formed (Table 2, entries 1 and 2). In the case of isopropyl bromide, a longer reaction time was required to achieve an acceptable yield (Table 2, entry 3).
In the series of model compounds studied by a part of the authors of this article, ethyl cyanoacetate (14) was the most reactive methylene containing substrate (Scheme 8, Table 3) [18].
Catalysts 05 00634 g008 1024

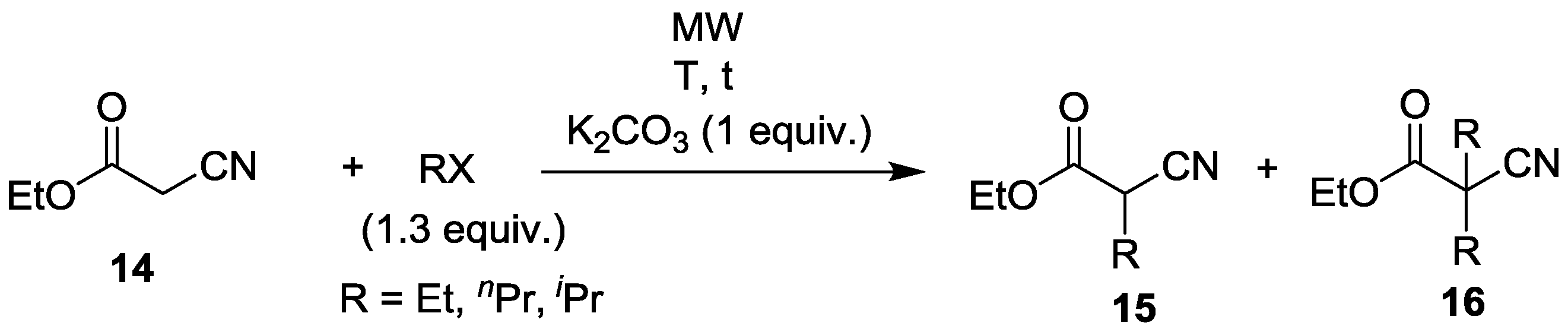

Scheme 8. Alkylation of ethyl cyanoacetate (14) under MW conditions.
Scheme 8. Alkylation of ethyl cyanoacetate (14) under MW conditions.
Catalysts 05 00634 g008
Table
Table 3. Alkylation of ethyl cyanoacetate (14) under MW and solvent-free conditions.
Table 3. Alkylation of ethyl cyanoacetate (14) under MW and solvent-free conditions.
EntryRXT (°C)t (min)Yield of 15 (%)By-products
1EtI100607812% 16 (R = Et)
2EtI120457623% 16 (R = Et)
3nPrBr120458210% 16 (R = nPr) 5% NCCHnPrCO2nPr
4iPrBr1404586<1% 16 (R = iPr) 13% NCCHiPrCO2iPr 1% NCC(iPr)2CO2iPr
Applying ethyl iodide as the alkylating agent, the reaction was carried out in the presence of K2CO3 at 100 °C for 60 min, to afford 78% of the mono-alkylated product (15, R = Et) and 12% of dialkylated species (16, R = Et). Unreacted 14 (10%) was also present in the reaction mixture (Table 3, entry 1). At a higher temperature (120 °C), the alkylation was almost complete, however, the proportion of the dialkylated by-product (16, R = Et) was doubled (Table 3, entry 2). In the alkylation with n-propyl-bromide, 82% of the mono-alkylated product (15, R = nPr) was obtained, and a new propylester by-product appeared beside the dialkylated derivative (16, R = nPr) (Table 3, entry 3). When i-propyl-bromide was the alkyl halide, it was necessary to apply a higher temperature (140 °C). In this case, two derivatives formed by transesterification (13% of NCCHiPrCO2iPr and 1% of NCC(iPr)2CO2iPr) appeared beside the main product (15, R = iPr). Despite the steric hindrance, <1% of dialkylated derivative (16, R = iPr) was formed due to the higher temperature (Table 3, entry 4). The results showed that, in these reactions, the phase transfer catalyst can be omitted from the reaction mixture, and it is enough to use the cheaper base (K2CO3).

3. Alkylation of Active Methylene Containing Compounds with P=O Function under MW Conditions

The alkylation of the title compounds is much less studied according to literature data, and there are only a few references on the MW-assisted reactions.

3.1. Alkylation of Diethyl Ethoxycarbonylmethylphosphonate under MW and Solvent-Free Conditions

There are a few examples in the literature on the alkylation of diethyl ethoxycarbonylmethylphosphonate by conventional methods. However, the alkylation under discussion was not studied under MW conditions.
The alkylation of diethyl ethoxycarbonylmethylphosphonate (17) was described using sodium hydride in the glyme [20,21,22,23,24], DMF [25,26,27], diethyl ether [28], DMSO [29] or THF [30]. Others used potassium tert-butylate [31,32,33,34,35] or potassium tert-butylate/sodium iodide [36] in DMSO. The use of potassium carbonate/sodium iodide was also described [37]. Sodium in ethanol [38] or potassium in xylene [39] were also applied in a part of the alkylations (Scheme 9). Most of the papers mentioned only briefly about the alkylation as the products were only intermediates.
Catalysts 05 00634 g009 1024

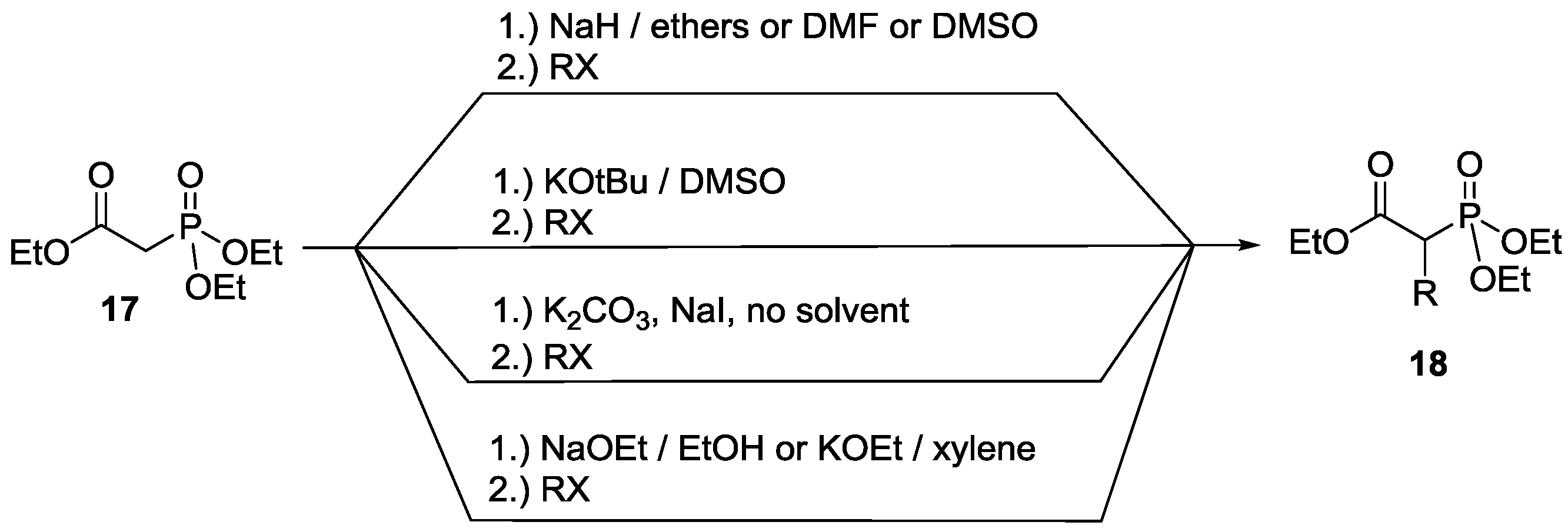

Scheme 9. The alkylation of diethyl ethoxycarbonylmethylphosphonate (17) in the literature.
Scheme 9. The alkylation of diethyl ethoxycarbonylmethylphosphonate (17) in the literature.
Catalysts 05 00634 g009
The MW-assisted variation of the alkylation under discussion was studied in detail by Keglevich and Grün (Scheme 10, Table 4) [40].
Catalysts 05 00634 g010 1024

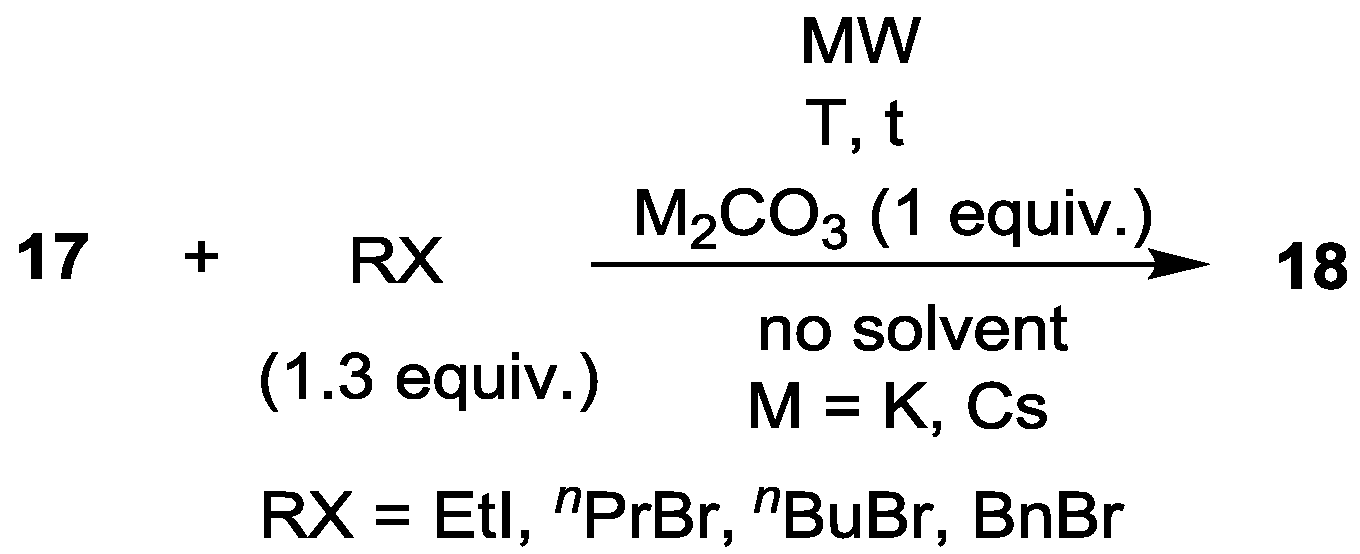

Scheme 10. Alkylation of diethyl ethoxycarbonylmethylphosphonate (17) under MW conditions.
Scheme 10. Alkylation of diethyl ethoxycarbonylmethylphosphonate (17) under MW conditions.
Catalysts 05 00634 g010
Table
Table 4. Alkylation of diethyl ethoxycarbonylmethylphosphonate (17) under MW conditions.
Table 4. Alkylation of diethyl ethoxycarbonylmethylphosphonate (17) under MW conditions.
EntryRXM2CO3T (°C)t (h)Composition (%)
1718Other
1EtIK2CO312021382 (R = Et)5
2EtICs2CO31202586 (R = Et)9
3nPrBrK2CO313022857 (R = nPr)15
4nPrBrCs2CO312021079 (R = nPr)11
5nBuBrCs2CO31202783 (R = nBu)10
6BnBrK2CO312021863 (R = Bn)19 a
7BnBrK2CO313031663 (R = Bn)21 b
8BnBrCs2CO312032759 (R = Bn)14 c
a Including 8% of the dibenzylated product; b Including 6% of the dibenzylated product; c Including 11% of the dibenzylated product.
Using ethyl iodide and K2CO3 at 120 °C under MW and solvent-free conditions, the proportion of the ethyl-substituted product (18, R = Et) was 82% after 2 h irradiation (Table 4, entry 1). The yield remained unchanged by increasing both the temperature and reaction time. The use of Cs2CO3 instead of K2CO3 as the base led to similar results (Table 4, entry 2).
Applying propyl bromide, the use of Cs2CO3 was better than that of K2CO3 (Table 4, entries 3 and 4).
In the alkylation with n-butyl bromide using Cs2CO3 at 120 °C, the yield of the product (18, R = nBu) was 83% (Table 4, entry 5).
The benzylation was also investigated in detail. The optimum conditions comprised 120 °C and 2 h using K2CO3 (Table 4, entry 6). An increase of the temperature and reaction time did not improve the yield (Table 4, entry 7). The conversion (73% vs. 82%) and the proportion of the by-product (14% vs. 19%) were lower (Table 4, entry 6 vs. Table 4, entry 8) applying Cs2CO3 instead of K2CO3.
These reactions generated the mono-alkylated product in good yields without PTC under MW conditions. In the presence of phase transfer catalyst, the conversion was decreased, and the rate of the by-products was dramatically increased. The main by-products of the propylation reactions were the propylated ethoxycarbonylmethylphosphonate with ethyl-n-propyl (19) and di-n-propyl ester (20) functions. The main by-product of the benzylation was the dibenzylated diethyl ethoxycarbonylmethylphosphonate (21) (Scheme 11).
Catalysts 05 00634 g011 1024

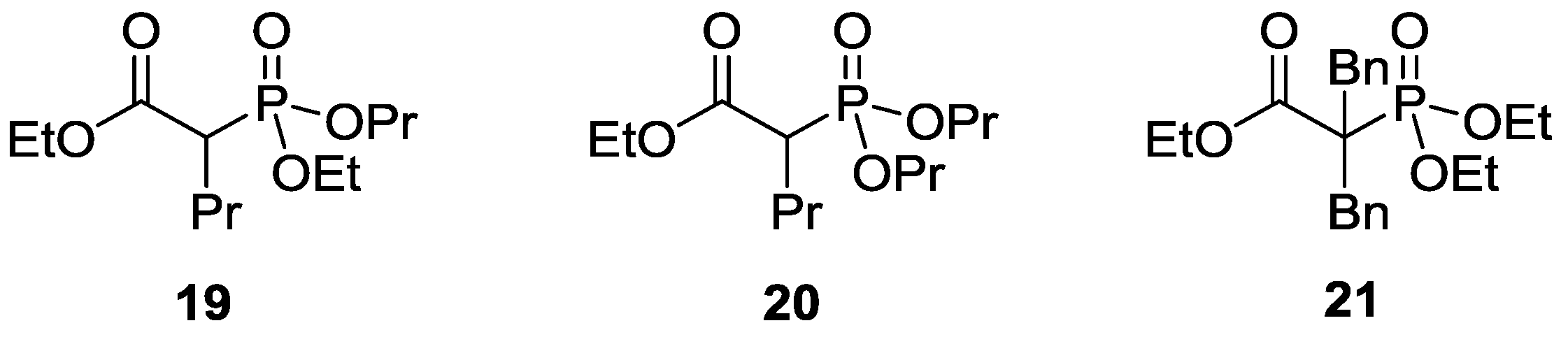

Scheme 11. By-products of the alkylation of ethoxycarbonylmethylphosphonate (17).
Scheme 11. By-products of the alkylation of ethoxycarbonylmethylphosphonate (17).
Catalysts 05 00634 g011
Comparative thermal experiments were also carried out in boiling acetonitrile for 24 h (Scheme 12, Table 5).
Catalysts 05 00634 g012 1024

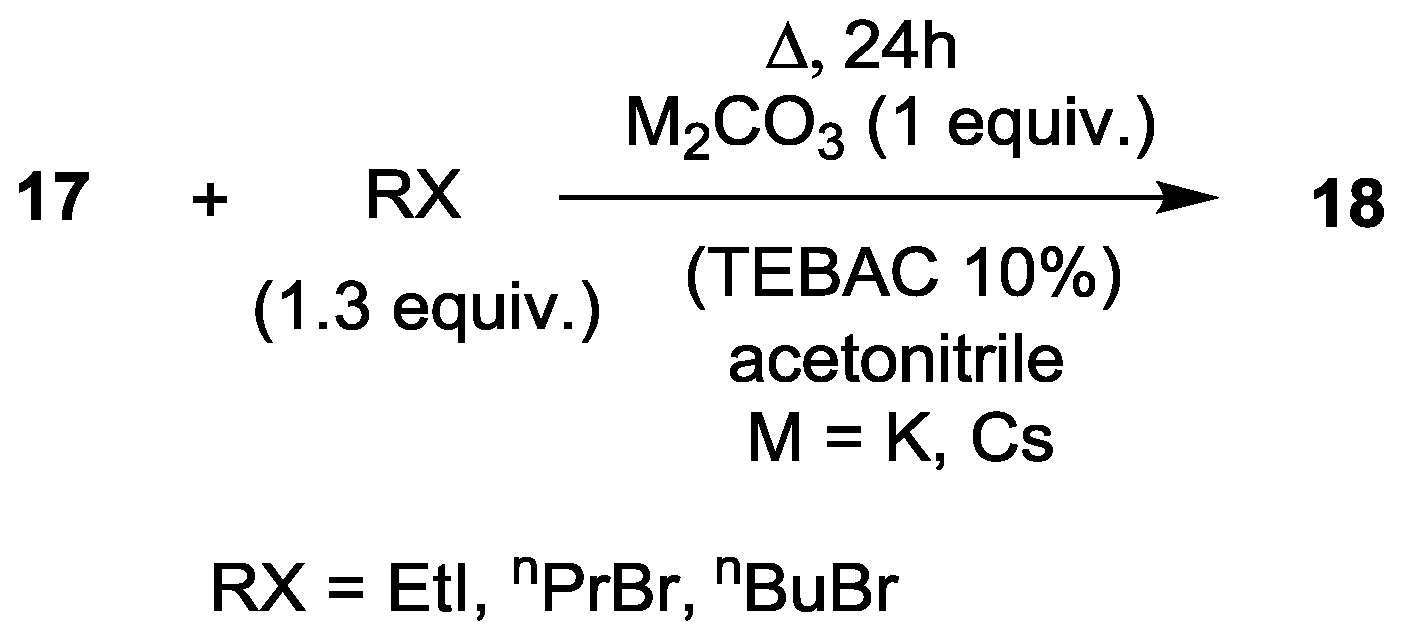

Scheme 12. Alkylation of diethyl ethoxycarbonylmethylphosphonate (17).
Scheme 12. Alkylation of diethyl ethoxycarbonylmethylphosphonate (17).
Catalysts 05 00634 g012
Table
Table 5. Alkylation of diethyl ethoxycarbonylmethylphosphonate (17) under conventional heating in boiling acetonitrile for 24 h.
Table 5. Alkylation of diethyl ethoxycarbonylmethylphosphonate (17) under conventional heating in boiling acetonitrile for 24 h.
EntryRXM2CO3TEBAC (10%)Composition (%)
1718Other
1EtIK2CO3+7911 (R = Et)10
2nPrBrK2CO3+8014 (R = nPr)6
3nBuBrK2CO3+7228 (R = nBu)-
4EtICs2CO3−2474 (R = Et)2 a
5nPrBrCs2CO3−5545 (R = nPr)- b
6nBuBrCs2CO3−3169 (R = nBu)- c
a–c No change on prolonged heating.
The comparative experiments were carried out using K2CO3 in the presence of a catalyst and with Cs2CO3 in the absence of a catalyst. When K2CO3 was used with TEBAC, the conversions remained low with all three alkylating agents after a reflux of 24 h (Table 5, entries 1–3). The use of Cs2CO3 without catalyst resulted in higher conversions (Table 5, entries 4–6).
The alkylations took place in a shorter reaction time and with better conversions under MW conditions in the absence of a catalyst. The catalyst- and solvent-free MW-assisted method is much more efficient than the conventional phase transfer catalyzed accomplishment (Table 5, entries 1–3).

3.2. Alkylation of Diethyl Cyanomethylphosphonate under MW and Solvent-Free Conditions

The alkylation methods for diethyl cyanomethylphosphonate (22) are similar to those described for diethyl ethoxycarbonylmethylphosphonate in the previous chapter.
In most cases, NaH was used as the base in the glyme [41,42] or DMF [43,44]. Potassium was also applied as the base in the alkylation of (22) using 1,4-dioxane and diethyl ether [45].
The liquid–liquid phase transfer catalytic methylation of model compound (22) was carried out using aqueous NaOH and DCM in the presence of TBAB catalyst (Scheme 13) [46].
Catalysts 05 00634 g013 1024

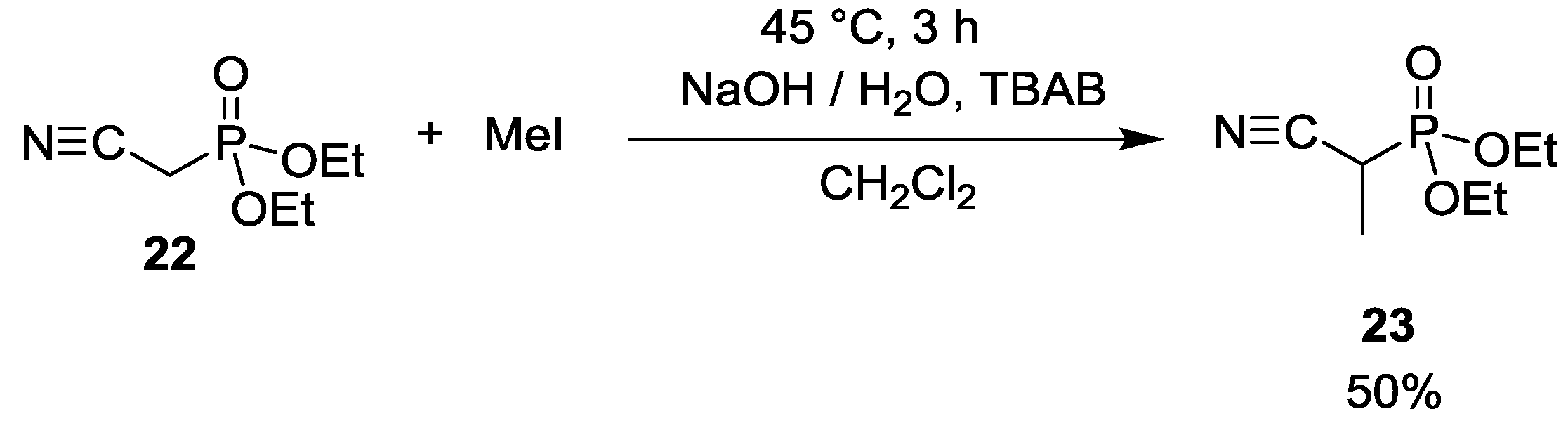

Scheme 13. Alkylation of diethyl cyanomethylphosphonate (22) using aqueous NaOH solution.
Scheme 13. Alkylation of diethyl cyanomethylphosphonate (22) using aqueous NaOH solution.
Catalysts 05 00634 g013
These reactions were also studied by Keglevich and co-workers under MW conditions (Scheme 14, Table 6) [47]. The traditionally heated alkylations were performed in boiling acetonitrile for 24 h. The MW-assisted reactions were complete after 1–2 h at 100–120 °C in the absence of any solvent.
Catalysts 05 00634 g014 1024

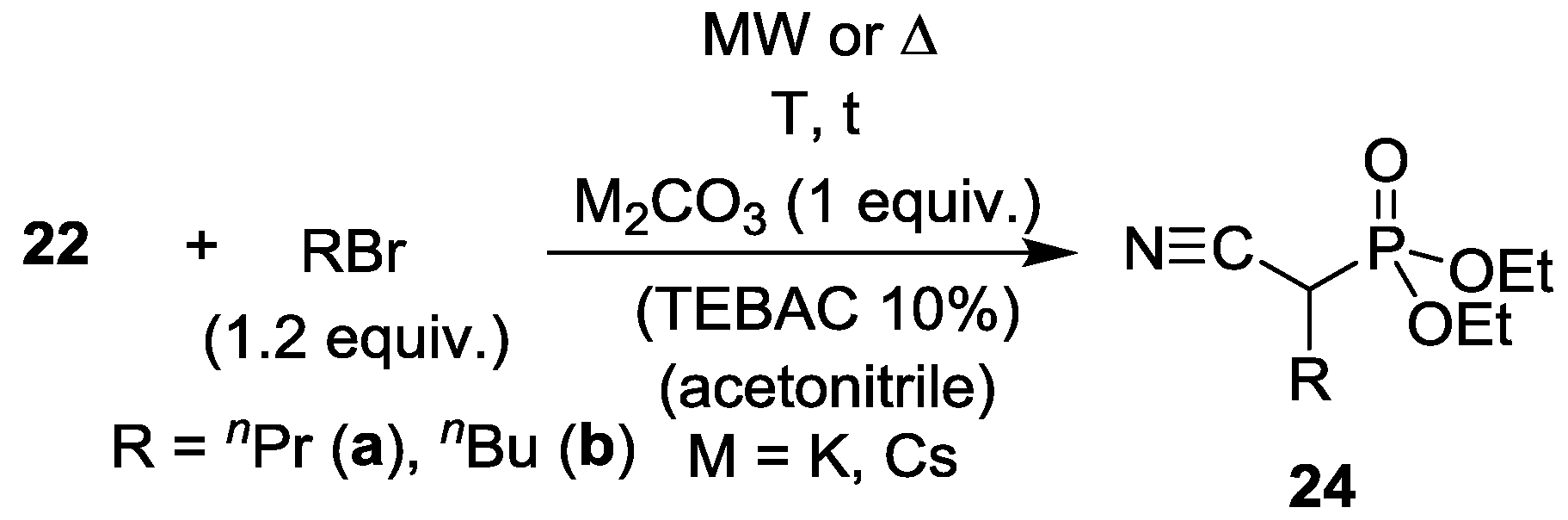

Scheme 14. The alkylation of diethyl cyanomethylphosphonate (22) under thermal and MW conditions.
Scheme 14. The alkylation of diethyl cyanomethylphosphonate (22) under thermal and MW conditions.
Catalysts 05 00634 g014
Table
Table 6. The alkylation of diethyl cyanomethylphosphonate (22) under thermal and MW conditions.
Table 6. The alkylation of diethyl cyanomethylphosphonate (22) under thermal and MW conditions.
EntryRXMMode of heatingT (°C)t (h)SolventTEBAC (10%)Composition (%)
2224Other
1nPrBrKΔ8224MeCN−5345 (R = nPr)2
2nPrBrKΔ8224MeCN+2637 (R = nPr)37
3nPrBrCsΔ8224MeCN−784 (R = nPr)9
4nPrBrCsΔ8224MeCN+267 (R = nPr)31
5nPrBrKMW1002-−1370 (R = nPr)17
6nPrBrKMW1201-−2058 (R = nPr)22
7nPrBrCsMW1201-−433 (R = nPr)63
8nBuBrCsΔ8224MeCN−390 (R = nBu)7
9nBuBrKMW1202-−2065 (R = nBu)15
In the alkylation with propyl bromide under conventional heating, the use of Cs2CO3 was more efficient than that of K2CO3 in the absence of phase transfer catalyst in acetonitrile (the proportion of product 24a was 84% vs. 45%, respectively) (Table 6, entries 1 and 3). In the presence of TEBAC, the amount of the expected product (24a) was decreased, while the relative proportion of the by-products was increased (Table 6, entries 2 and 4). A rather good result was achieved under MW conditions using K2CO3 at 100 °C for 2 h (70% of 24a was obtained) (Table 6, entry 5). Applying K2CO3 at 120 °C, the conversion was 80% after 1 h (Table 6, entry 6). Replacing K2CO3 with Cs2CO3, the proportion of the by-products was rather high (63%) (Table 6, entry 7). The best results are marked by entries 3 and 5 covering a thermal and MW experiments, respectively.
The alkylation of diethyl cyanomethylphosphonate (22) with butyl bromide led to similar results. An almost complete conversion was achieved in boiling acetonitrile in the presence of Cs2CO3, without TEBAC (Table 6, entry 8). Under MW conditions using K2CO3 at 120 °C for 2 h, the yield of the compound (24b) was 65% (Table 6, entry 9).
Increasing the amount of the catalyst and the excess of butyl bromide, the conversion was complete, but the proportion of by-products (25) and (26) was increased (Scheme 15, Table 7).
Catalysts 05 00634 g015 1024

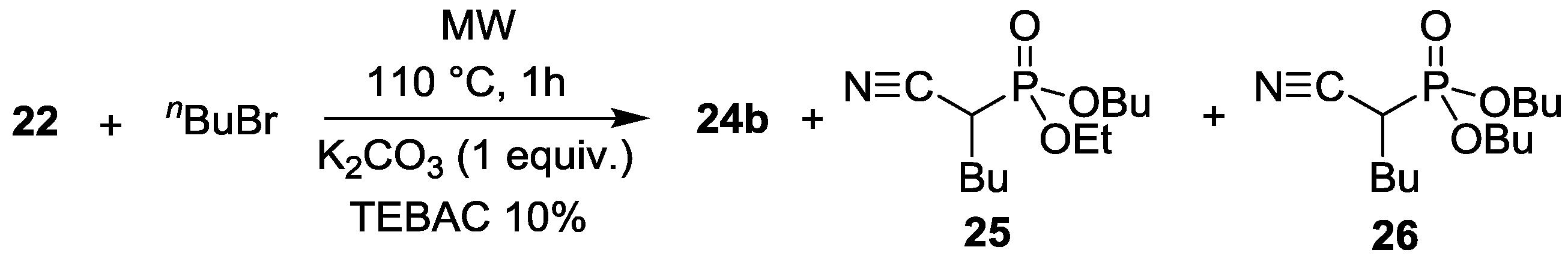

Scheme 15. The alkylation of diethyl cyanomethylphosphonate (22) with butyl bromide in the presence of triethylbenzylammonium chloride (TEBAC).
Scheme 15. The alkylation of diethyl cyanomethylphosphonate (22) with butyl bromide in the presence of triethylbenzylammonium chloride (TEBAC).
Catalysts 05 00634 g015
Table
Table 7. The alkylation of diethyl cyanomethylphosphonate (22) with butyl bromide under solventless MW conditions in the presence of triethylbenzylammonium chloride (TEBAC).
Table 7. The alkylation of diethyl cyanomethylphosphonate (22) with butyl bromide under solventless MW conditions in the presence of triethylbenzylammonium chloride (TEBAC).
EntrynBuBr (equiv.)TEBAC (%)Composition (%)
2224b2526Other
12.420020382121
23.630014372524

3.3. Alkylation of Tetraethyl Methylenebisphosphonate and Bis(diphenylphosphinoyl)methane under MW Conditions

A widely used method for the alkylation of tetraethyl methylenebisphosphonate (27) applies NaH as the base in toluene [48,49,50]. In other methods, sodium in ether [51] or potassium in xylene [52] were used. A liquid–liquid phase transfer catalytic ethylation was also described using aqueous KOH and DCM [53].
Keglevich and co-workers studied the model reaction under discussion under MW conditions [19].
Performing the alkylation of tetraethyl methylenebisphosphonate (27) with ethyl iodide at 140 °C in the presence of 1 equiv. of Cs2CO3, the conversion was complete and the main product was the C-ethyl methylenebisphosphonate (28) (97%); the dialkylated by-product (29) was formed only in 3% proportion (Scheme 16).
Catalysts 05 00634 g016 1024

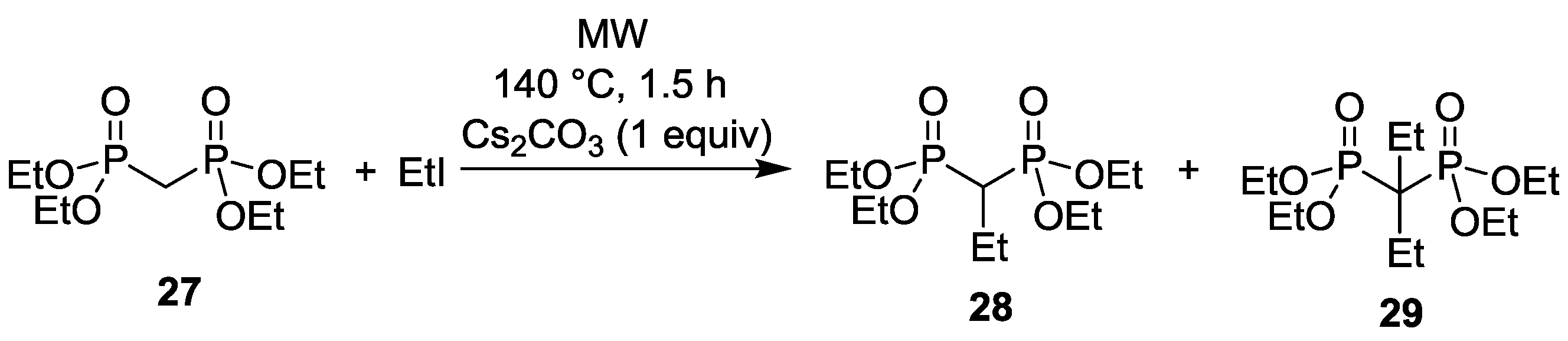

Scheme 16. Alkylation of tetraethyl methylenebisphosphonate (27) with EtI.
Scheme 16. Alkylation of tetraethyl methylenebisphosphonate (27) with EtI.
Catalysts 05 00634 g016
In reaction with propyl-bromide using 1 equiv. of Cs2CO3 at 120 °C for 4 h, a mixture of products 30, 31 and 32 was formed. The proportion of the propylated product (30) was 57%, while the products formed by transesterification (31 and 32) were present in 33% and 10% (Scheme 17).
Catalysts 05 00634 g017 1024

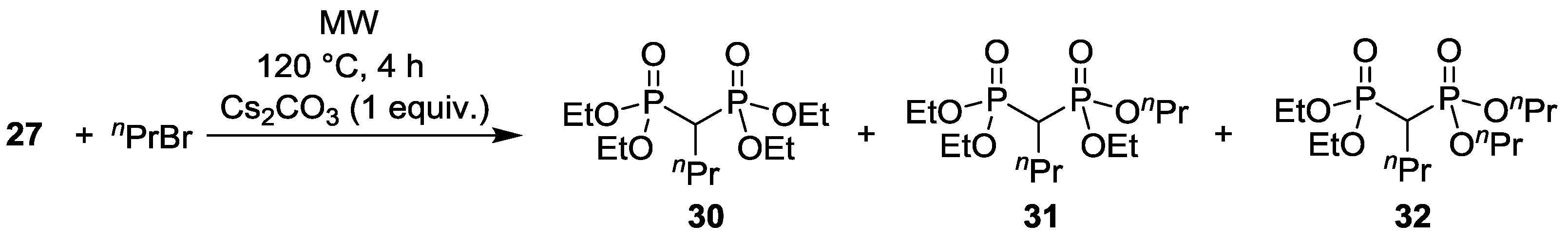

Scheme 17. Alkylation of tetraethyl methylenebisphosphonate (27) with PrBr.
Scheme 17. Alkylation of tetraethyl methylenebisphosphonate (27) with PrBr.
Catalysts 05 00634 g017
When tetraethyl methylenebisphosphonate (27) was reacted with benzyl bromide under conventional heating (82 °C/40 h) in the presence of 1 equiv of K2CO3 and 25% of TEBAC, the isolated yield of compound (33) was 83% and no by-product was formed. Under MW conditions at 120 °C for 1.5 h, the derivative formed by transesterification (34), 35% was the main product, and only 5% of the expected component (33) was obtained (Scheme 18).
Catalysts 05 00634 g018 1024

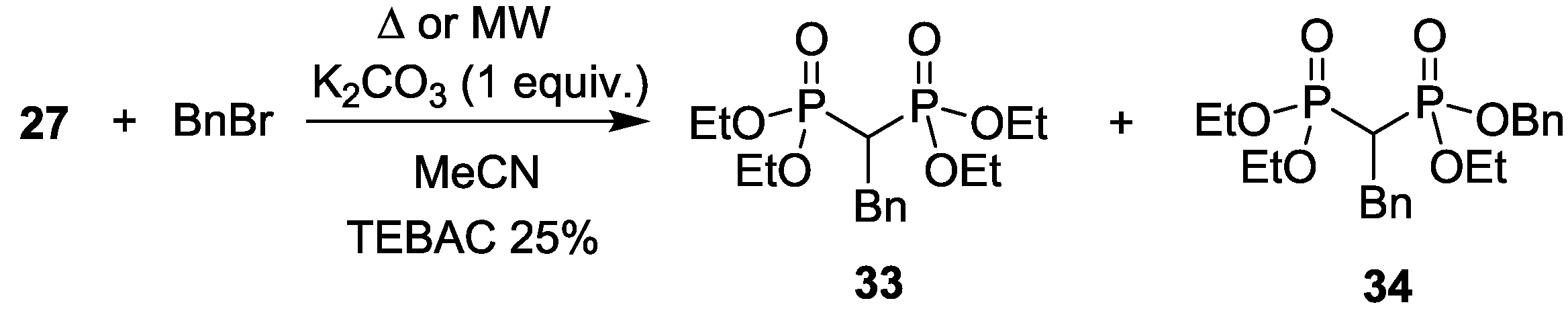

Scheme 18. Alkylation of tetraethyl methylenebisphosphonate (27) with BnBr.
Scheme 18. Alkylation of tetraethyl methylenebisphosphonate (27) with BnBr.
Catalysts 05 00634 g018
It can be concluded that the MW technique offers advantage in the alkylation of methylenebisphosphonates only when the alkyl groups of the two reactants are identical. Other advantages are that there is no need for any phase transfer catalyst, and the reaction time is much shorter.
The alkylation of bis(diphenylphosphinoyl)methane (35) was also investigated (Scheme 19) [47]. The benzylation of 35 was investigated under thermal and MW conditions. In all cases, acetonitrile was used as the solvent and 1 equiv. of Cs2CO3 as the base. Under conventional heating in the presence of 10% of TEBAC, the conversion was 60% after 1 day (Table 8, entry 1). Under MW irradiation in the absence of a phase transfer catalyst at 120 °C, after 1.5 h, the conversion was only 21% (Table 8, entry 2), while using TEBAC, after a reaction time of 3 h, the conversion was 57% (Table 8, entry 3).
Catalysts 05 00634 g019 1024

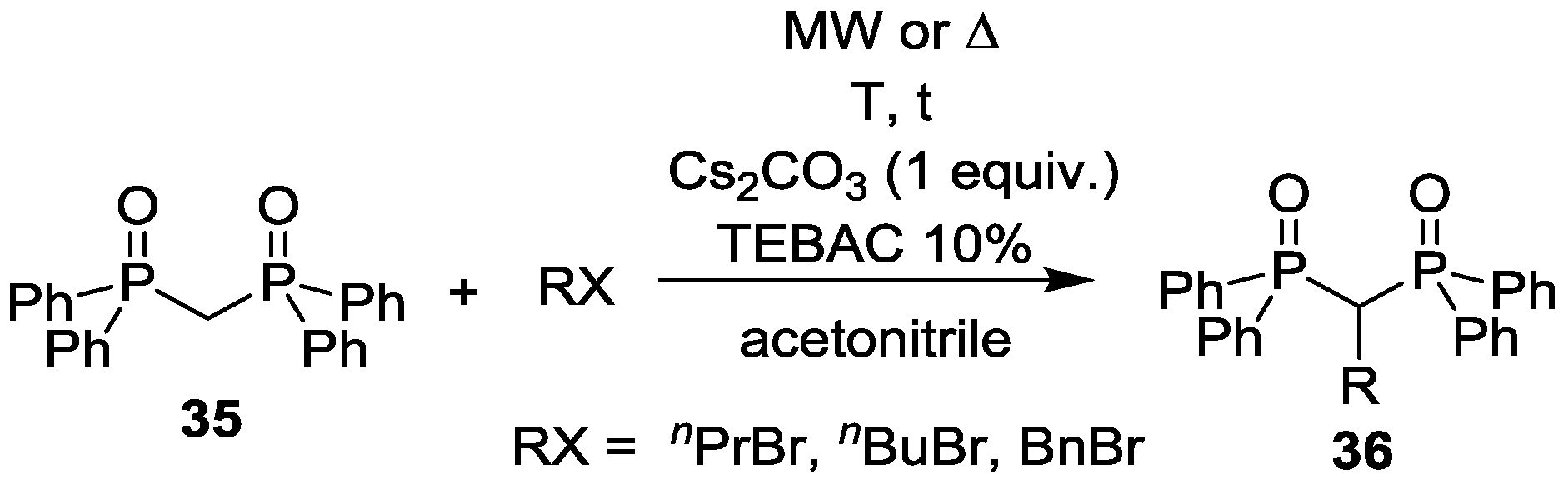

Scheme 19. Alkylation of bis(diphenylphosphinoyl)methane (35).
Scheme 19. Alkylation of bis(diphenylphosphinoyl)methane (35).
Catalysts 05 00634 g019
Table
Table 8. Benzylation of bis(diphenylphosphinoyl)methane (35) in the presence of Cs2CO3 and TEBAC in acetonitrile.
Table 8. Benzylation of bis(diphenylphosphinoyl)methane (35) in the presence of Cs2CO3 and TEBAC in acetonitrile.
EntryMode of heatingT (°C)t (h)TEBAC (10%)Conversion (%)Yield of 36 R =Bn (%)
1Δ8224+6044
2MW1201.5−21-
3MW1203+5745
The propylation and butylation were investigated under MW irradiation in acetonitrile using Cs2CO3 and TEBAC. At 180 °C after a reaction time of 4 h, the conversion was 64% (Table 9, entry 1). The conversion of the butylation under similar conditions was 73% (Table 9, entry 2).
In the MW-assisted alkylation reactions of bis(diphenylphosphinoyl)methane (35), contrary to the relations of the previously studied active methylene containing compounds with P=O function (17, 22, 27), it was necessary to apply both a solvent and a catalyst.
Table
Table 9. Propylation and butylation of bis(diphenylphosphinoyl)methane (35) in the presence Cs2CO3 and TEBAC in acetonitrile under MW conditions.
Table 9. Propylation and butylation of bis(diphenylphosphinoyl)methane (35) in the presence Cs2CO3 and TEBAC in acetonitrile under MW conditions.
EntryRXMode of heatingT (°C)t (h)TEBAC (10%)Composition (%)
3536Other
1nPrBrMW1804+3647 (R = nPr)17
2nBuBrMW1804+2652 (R = nBu)22

3.4. Dialkylation of Active Methylene Containing Compounds with P=O-function

The classical method for the dialkylation of simple active methylene containing compounds is well-known [54,55]. This procedure applies sodium ethylate in ethanol to generate an anion which then reacts with an alkyl halide, and this protocol is then repeated with the same or another alkyl halide.
In the case of the phase transfer catalyzed liquid–liquid two-phase alkylations, aqueous sodium hydroxide was employed as the base and dichloromethane [56] or chloroform [57] as the solvent. In the solid–liquid two-phase alkylations, K2CO3 was used in toluene [58], acetonitrile [59] or dimethylformamide [60].
The dialkylation of the title compounds have been studied less thoroughly. The ethoxycarbonylmethylphosphonate (17) was reacted in two steps, applying potassium in xylene [39] or in benzene [61]. Using different alkyl halides, the yields were in the range of 54%–75%. Another method applied sodium hydride in tetrahydrofuran [30,62] or in 1,2-dimethoxyethane [63]. In most cases, mixtures of the mono- and dialkylated products were formed. In the literature, there is only one example for phase transfer catalyzed dialkylation. In the reaction of ethyl cyanomethylphosphonate (22) with methyl- ethyl- allyl- and benzyl halides in the presence of aqueous NaOH and TEBAC, the dialkylphosphonate derivatives were obtained in yields of 46%–88% [64].
A multi-step method was developed for the dialkylation of diethyl ethoxycarbonylmethylphosphonate (17) by Keglevich, Grün and, co-workers [65] (Scheme 20, Table 10). The diethylated, dipropylated, and dibutylated compounds (37) (Table 10, entries 1, 2, and 3, respectively) were obtained in good yields by the four-step solvent-free protocol under MW conditions. After each step, the crude reaction mixture was taken up in ethylacetate, the mixture was filtered, the filtrate evaporated (and analyzed) and reacted further.
Comparative thermal experiments using propyl iodide resulted in the formation of the dialkylated compound (37, R = nPr) in only 11%.
Catalysts 05 00634 g020 1024

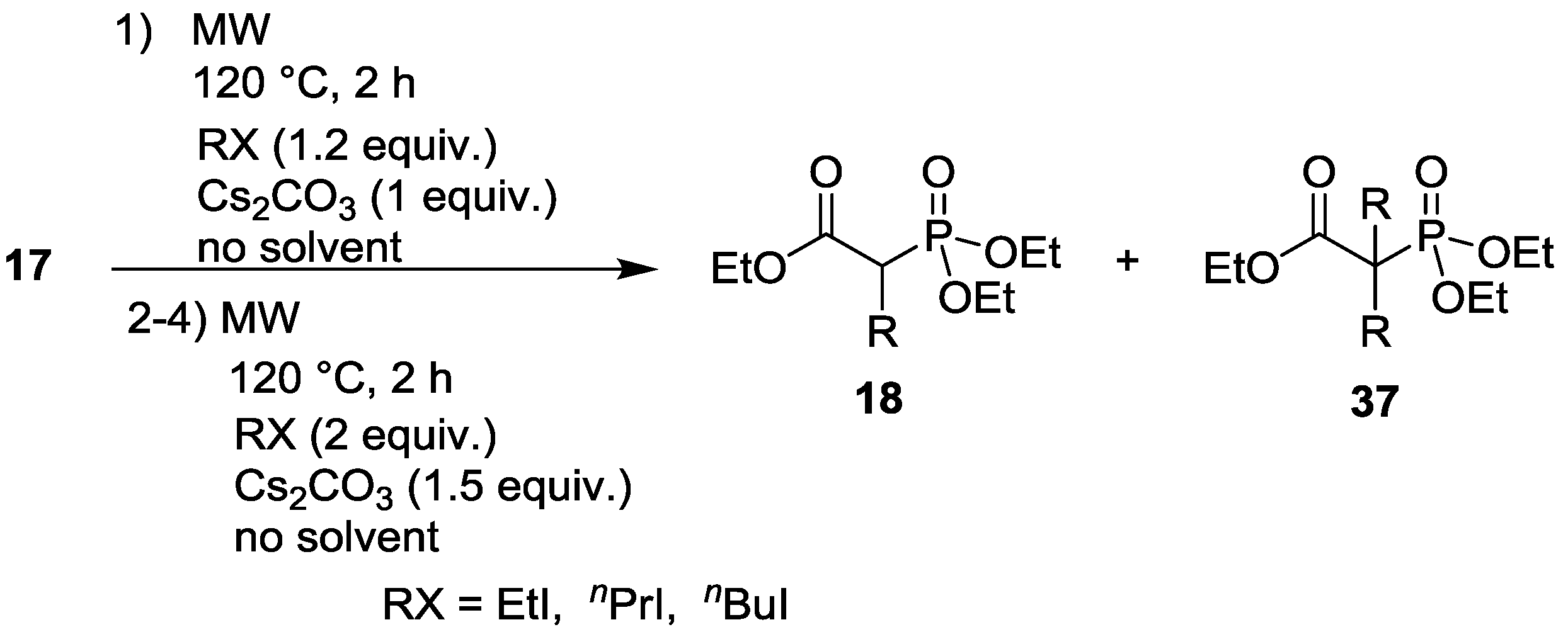

Scheme 20. Dialkylation of ethoxycarbonylmethylphosphonate (17).
Scheme 20. Dialkylation of ethoxycarbonylmethylphosphonate (17).
Catalysts 05 00634 g020
Table
Table 10. MW-assisted dialkylation of ethoxycarbonylmethylphosphonate (17) by a four-step alkylating protocol.
Table 10. MW-assisted dialkylation of ethoxycarbonylmethylphosphonate (17) by a four-step alkylating protocol.
EntryStepRXComposition (%)
171837Other
11.EtI1183 (R = Et)6 (R = Et)-
2.EtI-41 (R = Et)59 (R = Et)-
3.EtI-9 (R = Et)91 (R = Et)-
4.EtI-2 (R = Et)98 (R = Et)-
21.nPrI1277 (R = nPr)3 (R = nPr)8
4.nPrI-16 (R = nPr)70 (R = nPr)14
31.nBuI1477 (R = nBu)5 (R = nBu)4
4.nBuI-13 (R = nBu)76 (R = nBu)11
The role of the phase transfer catalyst was also investigated in this method. In the ethylation of the substrate (17) applying K2CO3 or Cs2CO3 as the base, TEBAC or tetrabutylammonium bromide (TBAB) were used as phase transfer catalysts (Scheme 21, Table 11). Using Cs2CO3 and 10% of TEBAC, the proportion of the dialkylated product was much less after the second step than without phase transfer catalyst (Table 11, entry 1 vs. Table 10, entry 1). When TBAB was the catalyst, the proportion was again lower, but there was no by-product (Table 11, entry 2 vs. Table 10, entry 1). The formation of the by-products suggested that TEBAC also took part in the reaction as an alkylating agent.
Catalysts 05 00634 g021 1024

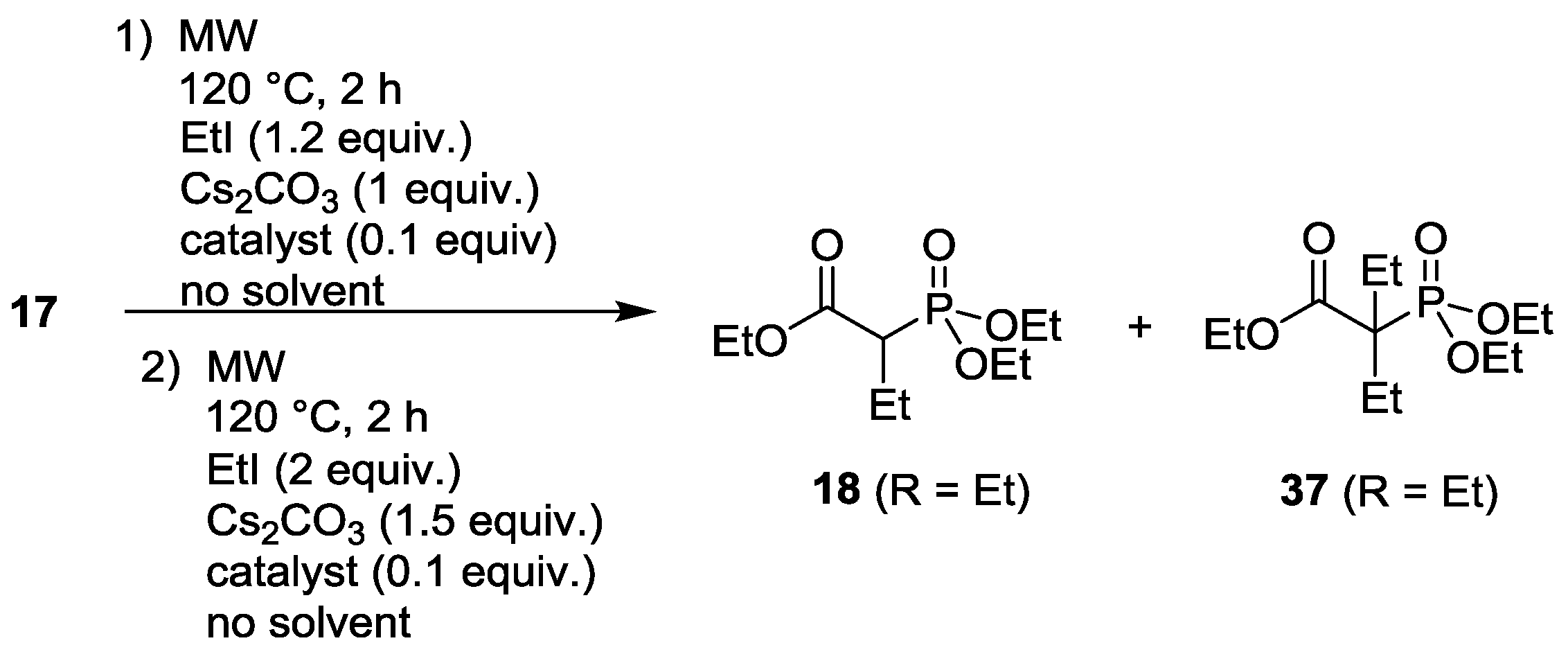

Scheme 21. Two-step ethylation of ethoxycarbonylmethylphosphonate (17) in the presence of a phase transfer catalyst.
Scheme 21. Two-step ethylation of ethoxycarbonylmethylphosphonate (17) in the presence of a phase transfer catalyst.
Catalysts 05 00634 g021
Table
Table 11. Two-step ethylation of ethoxycarbonylmethylphosphonate (17) with ethyl iodide under MW conditions in the presence of a TEBAC or tetrabutylammonium bromide (TBAB).
Table 11. Two-step ethylation of ethoxycarbonylmethylphosphonate (17) with ethyl iodide under MW conditions in the presence of a TEBAC or tetrabutylammonium bromide (TBAB).
EntryStepPhase transfer catalystM2CO3Composition (%)
1718 (R = Et)37 (R = Et)By-products
11.TEBACCs2CO3875710
2.TEBACCs2CO3-622117
21.TBABCs2CO3-7525-
2.TBABCs2CO3-5743-
The synthesis of disubstituted compounds with two different alkyl groups was also investigated (Scheme 22, Table 12). The first step was the monoalkylation of the starting material with propyl iodide, butyl bromide or benzyl bromide (Table 12, entries 1, 2 and 3, respectively) in the presence of Cs2CO3 under solvent-free MW conditions. This was then followed by ethylation with EtI in two or three steps, also in the presence of Cs2CO3. The proportion of the by-products was significantly higher, as compared to the cases when identical alkyl groups were introduced. (Table 10).
Catalysts 05 00634 g022 1024

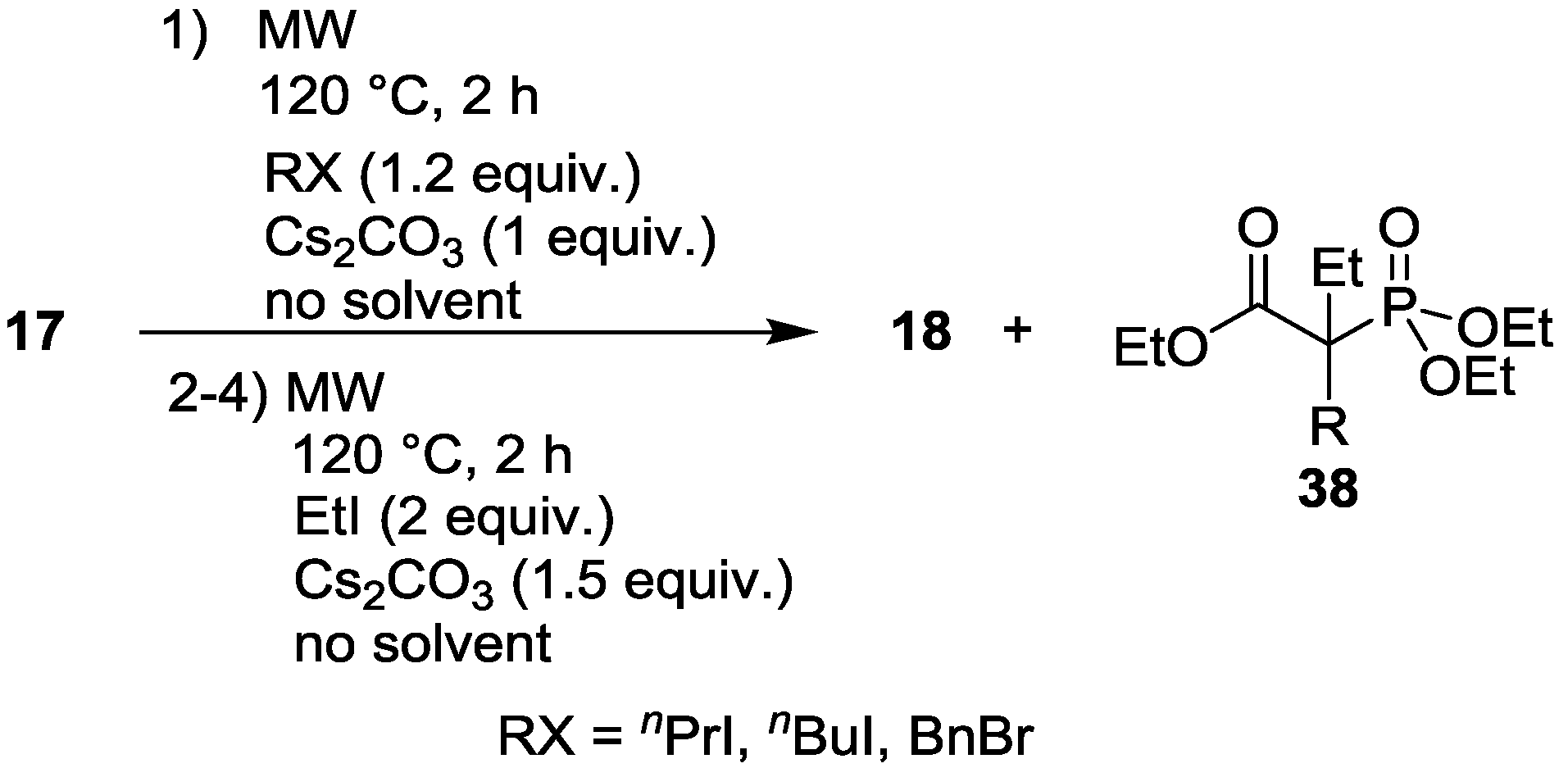

Scheme 22. Synthesis of ethoxycarbonylmethylphosphonates containing different alkyl groups on the carbon atom (38).
Scheme 22. Synthesis of ethoxycarbonylmethylphosphonates containing different alkyl groups on the carbon atom (38).
Catalysts 05 00634 g022
Table
Table 12. MW-assisted synthesis of ethoxycarbonylmethylphosphonates with different alkyl groups (37).
Table 12. MW-assisted synthesis of ethoxycarbonylmethylphosphonates with different alkyl groups (37).
EntryStepRXComposition (%)
171838Other
11.PrI1277 (R = nPr)-11
2.EtI-37 (R = nPr)43 (R = nPr)20
3.EtI-16 (R = nPr)59 (R = nPr)25
4.EtI-1 (R = nPr)74 (R = nPr)25
21.BuBr1479 (R = nBu)-7
2.EtI-51 (R = nBu)26 (R = nBu)23
3.EtI-25 (R = nBu)50 (R = nBu)25
4.EtI-6 (R = nBu)71 (R = nBu)23
31.BnBr-75 (R = Bn)-25
2.EtI-21 (R = Bn)53 (R = Bn)26
3.EtI--74 (R = Bn)26
In summary, a multi-step MW-assisted catalyst- and solvent-free method was shown to be suitable for the synthesis of dialkyl ethoxycarbonylmethylphosphonates.

4. Summary

In this overview, the phase transfer catalyzed methods for the mono-alkylation and dialkylation of typical active methylene containing substrates including P=O-functionalized derivatives were summarized beyond the classical methods. In a more environmentally-friendly approach, the phase transfer catalyst may be substituted by MW irradiation. In such MW-assisted solid-liquid phase C-alkylations, there was no need to use any catalyst. Moreover, in these cases, the use of an onium salt led to side reactions. Repetition of the MW-promoted alkylations by newer portions of the reagents resulted in dialkylation.

Acknowledgments

Support from the Hungarian Scientific Research Fund (OTKA K 83118) is gratefully acknowledged.

Author Contributions

Alajos Grün and Erika Bálint wrote the first draft of the manuscript that was then refined by supervisor György Keglevich.

Conflicts of Interest

The authors declare no conflict of interest.

References and Notes

  1. Loupy, A. Microwaves in Organic Synthesis; Wiley-VCH: Weinheim, Germany, 2002. [Google Scholar]
  2. Deshayes, S.; Liagre, M.; Loupy, A.; Luche, J.L.; Petit, A. Microwave activation in phase transfer catalysis. Tetrahedron 1999, 55, 10851–10870. [Google Scholar]
  3. Kappe, C.O. Controlled microwave heating in modern organic synthesis. Angew. Chem. Int. Ed. 2004, 43, 6250–6284. [Google Scholar]
  4. Keglevich, G.; Kiss, N.Z.; Mucsi, Z.; Körtvélyesi, T. Insights into a surprising reaction: The microwave-assisted direct esterification of phosphinic acids. Org. Biomol. Chem. 2012, 10, 2011–2018. [Google Scholar]
  5. Mucsi, Z.; Kiss, N.Z.; Keglevich, G. A quantum chemical study on the mechanism and energetics of the direct esterification, thioesterification and amidation of 1-hydroxy-3-methyl-3-phospholene 1-oxide. RSC Advances 2014, 4, 11948–11954. [Google Scholar]
  6. Glasnov, T.N.; Kappe, C.O. Microwave-assisted synthesis under continuous flow conditions. Macromol. Rapid Commun. 2007, 28, 395–410. [Google Scholar]
  7. Strauss, C.R. On scale up of organic reactions in closed vessel microwave systems. Org. Process Res. Dev. 2009, 13, 915–923. [Google Scholar]
  8. Cocagne, P.; Elguero, J.; Gallo, R. The present use and the possibilities of phase-transfer catalysis in drug synthesis. Heterocycles 1983, 20, 1379–1406. [Google Scholar]
  9. Starks, C.M.; Liotta, C.L.; Halpern, M. Phase Transfer Catalysis—Fundamentals, Applications and Industrial Perspectives; Chapman & Hall: New York, NY, USA; London, UK, 1994. [Google Scholar]
  10. Makosza, M. Phase-transfer catalysis. A general green methodology in organic synthesis. Pure Appl. Chem. 2000, 27, 1399–1403. [Google Scholar]
  11. Fedorynski, M.; Jezierska-Zieba, M.; Kakol, B. Phase transfer catalysis in pharmaceutical industry—where are we? Acta Pol. Pharm. 2008, 65, 647–654. [Google Scholar]
  12. Wang, Y.; Deng, R.; Mi, A.; Jiang, Y. Solid–liquid phase transfer catalytic synthesis. XII. Microwave irradiated alkylation of diethyl malonate. Synth. Commun. 1995, 25, 1761–1764. [Google Scholar]
  13. Deng, R.; Wang, Y.; Jiang, Y. Solid–liquid phase transfer catalytic synthesis. X. The rapid alkylation of ethyl acetoacetate under microwave irradiation. Synth. Commun. 1994, 24, 111–115. [Google Scholar]
  14. Wang, Y.; Jiang, Y. Solid–liquid phase transfer catalytic synthesis. VIII. The rapid alkylation of ethyl phenylsulfonylacetate under microwave irradiation. Synth. Commun. 1992, 22, 2287–2291. [Google Scholar]
  15. Deng, R.; Wang, Y.; Jiang, Y. Solid–liquid phase transfer catalytic synthesis. XI. The convenient and efficient alkylation of ethyl phenylmercapto-acetate in the presence of quaternary ammonium salts under microwave irradiation. Synth. Commun. 1994, 24, 1917–1921. [Google Scholar]
  16. Gumaste, V.K.; Khan, A.J.; Bhawal, B.M.; Deshmukh, A.R.A.S. Microwave assisted phase transfer catalysis: An efficient solvent free method for the synthesis of cyclopropane derivatives. Indian J. Chem. 2004, 43B, 420–423. [Google Scholar]
  17. Keglevich, G.; Novák, T.; Vida, L.; Greiner, I. Microwave irradiation as an alternative to phase transfer catalysis in the liquid–solid phase, solvent-free C-alkylation of active methylene containing substrates. Green Chem. 2006, 8, 1073–1075. [Google Scholar]
  18. Keglevich, G.; Majrik, K.; Vida, L.; Greiner, I. Microwave irradiation as a green alternative to phase transfer catalysis: solid–liquid phase alkylation of active methylene containing substrates under solvent-free conditions. Lett. Org. Chem. 2008, 5, 224–228. [Google Scholar]
  19. Greiner, I.; Grün, A.; Ludányi, K.; Keglevich, G. Solid–liquid two-phase alkylation of tetraethyl methylenebisphosphonate under microwave irradiation. Heteroatom Chem. 2011, 22, 11–14. [Google Scholar]
  20. Nakazato, A.; Kumagai, T.; Ohta, K.; Chaki, S.; Okuyama, S.; Tomisawa, K. Synthesis and SAR of 1-alkyl-2-phenylethylamine derivatives designed from N,N-dipropyl-4-methoxy-3-(2-phenylethoxy)phenylethylamine to discover σ1 ligands. J. Med. Chem. 1999, 42, 3965–3970. [Google Scholar]
  21. Kuroda, C.; Kimura, Y.; Nogami, H. Intramolecular cyclization of 2-(alkoxycarbonyl)allylsilanes with ynones. Nucleophilic and electrophilic aspects of the 2-(alkoxycarbonyl)allylsilane moiety. J. Chem. Res. (S) 1998, 174–175. [Google Scholar]
  22. Kuroda, C.; Tang, C.Y.; Tanabe, M.; Funakoshi, M. Proto- and iodo-lactonization reaction of substituted α,β:γ,δ-unsaturated carboxylic acid. Bull. Chem. Soc. Jap. 1999, 72, 1583–1587. [Google Scholar]
  23. Kuroda, C.; Koshio, H.; Koito, A.; Sumiya, H.; Murase, A.; Hirono, Y. Nazarov cyclization of 4-cycloalkylidene-5-(trimethylsilyl)pent-1-en-3-one derivatives. Synthesis of spiro[4.5]decane, spiro[4.4]nonane, and their derivatives. Tetrahedron 2000, 56, 6441–6455. [Google Scholar]
  24. Kuroda, C.; Honda, S.; Nogara, Y.; Koshio, H.; Shibue, T.; Takeshita, T. Synthesis of spiro[4.5]decane and bicyclo[4.3.0]nonane ring systems by self-cyclization of (Z)- and (E)-2-(trimethylsilylmethyl)pentadienal derivative. Tetrahedron 2004, 60, 319–331. [Google Scholar]
  25. Nakano, M.; Atsuumi, S.; Koike, Y.; Tanaka, S.; Funabashi, H.; Hashimoto, J.; Ohkubo, M.; Morishima, H. Synthesis of a homostatine-containing renin inhibitor which incorporates a sulfonemethylene isostere at its N-terminus. Bull. Chem. Soc. Jap. 1990, 63, 2224–2232. [Google Scholar]
  26. Gomez-Monterrey, I.; Turcaud, S.; Lucas, E.; Bruetschy, L.; Roques, B.P.; Fournib–Zaluski, M.-C. Exploration of neutral endopeptidase active site by a series of new thiol-containing inhibitors. J. Med. Chem. 1993, 36, 87–94. [Google Scholar]
  27. Chen, H.; Noble, F.; Mothe, A.; Meudal, H.; Coric, P.; Danascimento, S.; Roques, B. P.; George, P.; Fournib–Zaluski, M.-C. Phosphinic derivatives as new dual enkephalin-degrading enzyme inhibitors: Synthesis, biological properties, and antinociceptive activities. J. Med. Chem. 2000, 43, 1398–1408. [Google Scholar]
  28. Dhokte, U.P.; Rao, A.S. Synthesis of the pheromones, (E)-3,7-dimethyl-2,7-octadienyl propionate, (E)-3,7-dimethyl-2-octene-1,8-diol and frontalin from a common intermediate. Synth. Commun. 1988, 18, 811–822. [Google Scholar]
  29. Zhang, J.; Loh, T.-P. Ruthenium- and rhodium-catalyzed cross-coupling reaction of acrylamides with alkenes: efficient access to (Z,E)-dienamides. Chem. Commun. 2012, 48, 11232–11234. [Google Scholar]
  30. Doran, R.; Duggan, L.; Singh, S.; Duffy, C.D.; Guiry, P.J. Asymmetric synthesis of (+)-tanikolide and the β-methyl-substituted analogues of (+)-tanikolide and (–)-malyngolide. Eur. J. Org. Chem. 2011, 35, 7097–7106. [Google Scholar]
  31. Stritzke, K.; Schulz, S.; Nishida, R. Absolute configuration and synthesis of β- and δ-lactones present in the pheromone system of the giant white butterfly Idea leuconoe. Eur. J. Org. Chem. 2002, 22, 3884–3892. [Google Scholar]
  32. Senter, T.J.; Fadeyi, O.O.; Lindsley, C.W. Enantioselective total synthesis of (+)-amabiline. Org. Lett. 2012, 14, 1869–1871. [Google Scholar]
  33. Ferguson, A.C.; Adlington, R.M.; Martyres, D.H.; Rutledge, P.J.; Cowley, A.; Baldwin, J.E. Total synthesis of a novel 2-thiabicyclo[3.2.0]heptan-6-one analogue of penicillin N. Tetrahedron 2003, 59, 8233–8243. [Google Scholar]
  34. Wuts, P.G.M.; Putt, S.R.; Ritter, A.R. Synthesis of the dipeptide hyroxyethylene isostere of Leu-Val, a transition state mimic for the control of enzyme function. J. Org. Chem. 1988, 53, 4503–4508. [Google Scholar]
  35. Liao, C.-C.; Zhu, J.-L. Investigation on Lewis acid mediated Diels-Alder reactions of 2-phosphono-2-alkenoates. Application to total synthesis of (+/−)-α-Alasken-8-one via reductive alkylation of resulting adduct. J. Org. Chem. 2009, 74, 7873–7884. [Google Scholar]
  36. Pelotier, B.; Holmes, T.; Piva, O. Synthesis of anti-Alzheimer (R)-arundic acid. Tetrahedron Asymmetry 2005, 16, 1513–1520. [Google Scholar]
  37. Kirschleger, B.; Queignec, R. Heterogeneous mediated alkylation of ethyl diethylphosphonoacetate. A “one pot” access to α-alkylated acrylic esters. Synthesis 1986, 926–928. [Google Scholar]
  38. Nieminen, S.; Payne, T.G.; Senn, P.; Tamm, C. Biosynthesis of the rubratoxins. Helv. Chim. Acta 1981, 64, 2162–2174. [Google Scholar]
  39. Kosolapoff, G.M.; Powell, J.S. Alkylation of triethyl phosphonoacetate and related esters. J. Am. Chem. Soc. 1950, 72, 4198–4200. [Google Scholar]
  40. Grün, A.; Blastik, Z.; Drahos, L.; Keglevich, G. Microwave-assisted alkylation of diethyl ethoxycarbonylmethylphosphonate under solventless conditions. Heteroatom Chem. 2012, 23, 241–246. [Google Scholar]
  41. Simon, J.R.; Neidlein, R. Syntheses and chemical reactions of 1-cyano-1-isocyanoalkylphosphonic acid esters. Synthesis 2000, 1101–1108. [Google Scholar]
  42. Compagnone, R.S.; Suarez, A.I.; Zambrano, J.L.; Pina, I.C.; Dominguez, J.N. A short and versatile synthesis of 3-substituted 2-aminoquinolines. Synth. Commun. 1997, 27, 1631–1641. [Google Scholar]
  43. Bailey, P.D.; Morgan, K.M. A total asymmetric synthesis of (–)-suaveoline. Chem. Commun. 1996, 1479–1480. [Google Scholar]
  44. Bailey, P.D.; Morgan, K.M. The total synthesis of (−)-suaveoline. J. Chem. Soc. Perkin Trans. 1 2000, 3578–3583. [Google Scholar]
  45. Pudovik, A.N.; Lebedeva, N.M. Synthesis of esters of phosphonic and thiophosphonic acids. XXIV. Addition of phosphonoacetonitrile and its homologs to esters and nitriles of unsaturated carboxylic acids. Zh. Obshch Khim. 1955, 25, 2235–2240. [Google Scholar]
  46. Defacqz, N.; Touillaux, R.; Marchand-Brynaert, J. [4+2] Cycloaddition of N-buta-1,3-dienylsuccinimide to gem-substituted vinyl phosphonates. J. Chem. Res. (S) 1998, 512–513. [Google Scholar]
  47. Keglevich, G.; Grün, A.; Blastik, Z.; Greiner, I. Solid–liquid phase alkylation of P=O-functionalized CH acidic compounds utilizing phase transfer catalysis and microwave irradiation. Heteroatom Chem. 2011, 22, 174–179. [Google Scholar]
  48. Hays, H.R.; Logan, T.J. gem-Diphosphinoalkanes. Preparation and characterization. J. Org. Chem. 1966, 31, 3391–3394. [Google Scholar]
  49. Nguyen, L.M.; Niesor, E.; Bentzen, C.L. gem-Diphosphonate and gem-phosphonate-phosphate compounds with specific high density lipoprotein inducing activity. J. Med. Chem. 1987, 80, 1426–1433. [Google Scholar]
  50. Roth, A.G.; Drescher, D.; Reamer, S.; Arenz, C.; Yang, Y.; Uhlig, S. Potent and selective inhibition of acid sphingomyelinase by bisphosphonates. Angewandte Chem. Int. Ed. 2009, 48, 7560–7563. [Google Scholar]
  51. Kosolopoff, G.M. The chemistry of aliphatic phosphonic acids. I. Alkylation of methanediphosphonic acid. J. Am. Chem. Soc. 1953, 75, 1500–1501. [Google Scholar]
  52. Goebel, R.; Richte, F.; Weichmann, H. Synthesis and reactivity of methylene bridged diphosphoryl compounds. Phosphorous, Sulfur 1992, 73, 67–80. [Google Scholar]
  53. Cotton, F.A.; Schunn, R.A. Metal salts and complexes of dialkoxyphosphonylacetylmethanide ions. J. Am. Chem. Soc. 1963, 85, 2394–2402. [Google Scholar]
  54. Henecka, H. Methoden Der Organischen Chemie (Houben–Weyl); Müller, E., Ed.; Thieme Verlag: Stuttgart, Germany, 1976; Part II; pp. 1435–1447. [Google Scholar]
  55. Sustmann, R.; Korth, H.-G. Methoden Der Organischen Chemie (Houben-Weyl); Müller, E., Ed.; Thieme Verlag: Stuttgart, Germany, 1985; Part E5, Ch. 3.2.1.1.1.1.3; pp. 370–373. [Google Scholar]
  56. Davis, B.R.; Hinds, M.G. Synthetic, Structural and vibrational spectroscopic studies in bismuth(III) halide/N,N′-aromatic bidentate base systems. IV. Bismuth(III) halide/N,N′-bidentate ligand (1:1) systems. Aust. J. Chem. 1997, 50, 309–320. [Google Scholar]
  57. English, A.R.; Girard, D.; Jasys, V.J.; Martingano, R.J.; Kellogg, M.S. Orally effective acid prodrugs of the β-lactamase inhibitor sulbactam. J. Med. Chem. 1990, 33, 344–347. [Google Scholar]
  58. Baumstark, A.L.; Choudhary, A.; Vasquez, P.C.; Dotrong, M. Synthesis of 4,4-dimethyl-3,4-dihydro-3,3,5-trisubstituted-2H-pyrazoles and N-benzoyl derivatives: Method for “Hydrolysis” of unreactive amides and carbamates. J. Heterocycl. Chem. 1990, 27, 291–294. [Google Scholar]
  59. Quici, S.; Manfredi, A.; Raimondi, L.; Sironi, A. Synthesis and properties of new lipophilic macrotricyclic cylindrical cryptands. J. Org. Chem. 1995, 60, 6379–6388. [Google Scholar]
  60. Viera, I.; Manta, E.; Gonzalez, L.; Mahler, G. Synthesis of enantiomerically enriched α,α-disubstituted β,γ-epoxy esters using hydrolytic kinetic resolution catalyzed by salenCo(III). Tetrahedron:Asymmetry 2010, 21, 631–635. [Google Scholar]
  61. Bodnarchuk, N.D.; Malovik, V.V.; Derkach, G.I. Phosphono carboxylic acid derivatives. Zh. Obshch. Khim. 1970, 40, 1210–1217. [Google Scholar]
  62. Khachik, F.; Beecher, G.R.; Li, B.W.; Englert, G.J. Synthesis of 13C-labelled (all-E,3R,3′R)-β,β-carotene-3,3′-diol (zeaxanthin) at C(12), C(13), C(12′), and C(13′) via all-E-2,7-dimethylocta-2,4,6-triene-1,8-dial-13C4. Labelled Compd. Radiopharm. 1995, 36, 1157–1172. [Google Scholar]
  63. Noguchi, H.; Aoyama, T.; Shioiri, T. Total synthesis of analogs of topostin B, A DNA topoisomerase I inhibitor. Part 1. Synthesis of fragments of topostin B-1 analogs. Tetrahedron 1995, 51, 10531–10544. [Google Scholar]
  64. Singh, R.J. Alkylation Studies; Part II: Bis-alkylation of diethyl cyanomethanephosphonate. Synthesis 1986, 762–763. [Google Scholar]
  65. Grün, A.; Blastik, Z.; Drahos, L.; Keglevich, G. Dialkylation of diethyl ethoxycarbonylmethylphosphonate under microwave and solventless conditions. Heteroatom Chem. 2014, 25, 107–113. [Google Scholar]

Share and Cite

MDPI and ACS Style

Grün, A.; Bálint, E.; Keglevich, G. Solid-Liquid Phase C-Alkylation of Active Methylene Containing Compounds under Microwave Conditions. Catalysts 2015, 5, 634-652. https://doi.org/10.3390/catal5020634

AMA Style

Grün A, Bálint E, Keglevich G. Solid-Liquid Phase C-Alkylation of Active Methylene Containing Compounds under Microwave Conditions. Catalysts. 2015; 5(2):634-652. https://doi.org/10.3390/catal5020634

Chicago/Turabian Style

Grün, Alajos, Erika Bálint, and György Keglevich. 2015. "Solid-Liquid Phase C-Alkylation of Active Methylene Containing Compounds under Microwave Conditions" Catalysts 5, no. 2: 634-652. https://doi.org/10.3390/catal5020634

APA Style

Grün, A., Bálint, E., & Keglevich, G. (2015). Solid-Liquid Phase C-Alkylation of Active Methylene Containing Compounds under Microwave Conditions. Catalysts, 5(2), 634-652. https://doi.org/10.3390/catal5020634

Article Metrics

Back to TopTop
