Communication

In-Situ Self-Assembly of Zinc/Adenine Hybrid Nanomaterials for Enzyme Immobilization

by
Hao Liang
†,
Shanshan Sun
†,
Yan Zhou
and
Yanhui Liu
*
State Key laboratory of Chemical Resource Engineering, Beijing University of Chemical Technology, 15 Beisanhuan East Road, Chaoyang District, Beijing 100029, China
*
Author to whom correspondence should be addressed.
†
These two authors contributed equally to this work.
Catalysts 2017, 7(11), 327; https://doi.org/10.3390/catal7110327
Submission received: 16 October 2017 / Revised: 27 October 2017 / Accepted: 27 October 2017 / Published: 3 November 2017
(This article belongs to the Special Issue Immobilized Biocatalysts)
Browse Figures
Versions Notes

Abstract

:
In this study, a one-step and facile immobilization of enzymes by self-assembly of zinc ions and adenine in aqueous solution with mild conditions was reported. Enzymes, such as glucose oxidase (GOx) and horseradish peroxidase (HRP), could be efficiently encapsulated in Zn/adenine coordination polymers (CPs) with high loading capacity over 90%. When the enzyme was immobilized by CPs, it displayed high catalytic efficiency, high selectivity and enhanced stability due to the protecting effect of the rigid framework. As a result, the relative activity of Zn/adenine nano-CP-immobilized GOx increased by 1.5-fold at pH 3 and 4-fold at 70 to 90 °C, compared to free GOx. The immobilized GOx had excellent reusability (more than 90% relative activity after being reused eight times). Furthermore, the use of this system as a glucose biosensor was also demonstrated by co-immobilization of two enzymes, detecting glucose down to 1.84 µM with excellent selectivity. The above work indicated that in-situ self-assembly of Zn/adenine CPs could be a simple and efficient method for biocatalyst immobilization.

Graphical Abstract

1. Introduction

Enzymes are a typical class of biocatalysts, having been used in a variety of scientific and technical areas. For instance, they have wide applications in the fields of fine and bulk chemicals, foods, pharmaceutical science, cosmetics, textiles and paper industries, due to their high catalytic activity, high selectivity, low toxicity and water solubility [1,2,3,4,5,6]. However, the disadvantages of free enzymes, including high cost, poor operational stability and challenges in recovery and reuse, have limited industrial applications of enzymes [7]. To solve these issues, immobilization techniques are considered, because binding of free enzymes to supports limits their mobility [8]. What is more, some immobilized enzymes could show more robust activity than free enzymes [9,10,11,12].
Conventional immobilization methods are generally divided into four main categories; adsorption, covalent binding, entrapment and cross-linking [13,14,15,16,17,18,19,20,21,22]. However, there are several disadvantages in the conventional immobilization methods, such as the lack of effective reusability, difficulties in immobilization, a severe loss of enzymatic activity due to the blocking of the active site of the enzyme, restricted flexibility and mass-transfer limitations between the enzyme and substrate [13]. Therefore, some new methods and materials to immobilize enzymes have been developed.
Coordination polymers (CPs), formed by metal ions and bridging organic ligands, have recently received considerable attention and are considered as new functional composite materials [23,24,25,26,27]. Because of their mild polymerization conditions, porosity and high guest-entrapment efficiency [11], CPs could play important roles in many fields, including catalysis [12], biological detection [28], imaging [29,30], gas storage [31] and drug delivery [32].
In nature, biomolecules normally have excellent metal-coordination properties [33]. Up to now, various types of biomolecules, such as nucleotides [34], proteins [35], peptides [36], amino acids [37] and nucleobases [38] have been used as the ligands to construct CPs. It also has been demonstrated that some CPs are capable of adsorbing and entrapping a broad range of molecules, due to their good biocompatibility and porosity [34,39]. Adenine, as an important naturally occurring nitrogen heterocycle present in nucleic acids [40], has multiple possible metal-binding modes [41,42,43]. It has been reported that adenine could coordinate with Zn [44], Au [45], Ag [46], Co [47] or Cu [48] to form CPs with diversified morphology and structure. However, most of the researchers just studied the structure of these materials, and very few have studied the encapsulating adaptability of CPs and the activity of guests after they were entrapped. What is more, those CPs that have been reported were formed by harsh reaction conditions, complicated syntheses and with high cost [44,45,46,47,48].
In this work, we reported a convenient, efficient and high-capacity immobilization method for enzymes by the entrapment of glucose oxidase (GOx) and horseradish peroxidase (HRP) within Zn/adenine CPs. We used adenine and zinc in aqueous solution without adding other linkers to form CPs by in-situ self-assembly. Fourier transform infrared spectroscopy (FTIR), X-ray diffraction (XRD), scanning electron microscopy (SEM) and transmission electron microscopy (TEM) were performed to characterize the CPs. After the CPs was confirmed with promising encapsulating capacity, we use them to immobilize enzymes. The enzyme activity, pH and thermostability of immobilized enzymes were also investigated. The results revealed that the immobilized enzymes showed high catalytic efficiency, enhanced stability and recyclable usability. Besides, a highly sensitive and selective biosensor for glucose was prepared using the CPs to co-immobilize glucose oxidase and horseradish peroxidase for an enzyme cascade system. The Zn/adenine CPs were promising for enzyme immobilization.

2. Results and Discussion

2.1. Preparation and Characterization of Zn/Adenine Complexes

We first tested the in-situ self-assembly of zinc ions and adenine. The synthesis of the Zn/adenine composite was performed by mixing zinc chloride solution, adenine and 4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid (HEPES) buffer at room temperature. Then, a white solid precipitate quickly appeared. To understand the formation of the coordination complexes, the coordination of Zn2+ and adenine was studied in different concentrations of HEPES (Figure S1a). The amounts of Zn/adenine composite increased with increasing HEPES concentration (Figure S1b). High HEPES concentration was beneficial to the formation of complexes. The coordination of Zn2+ and adenine was also studied in different pH and ionic strength. As shown in Figure S1c, the yield of Zn/adenine composites reached the maximum at pH 7.8. Low pH leads to the protonation of adenine [40], which would inhibit the coordination of Zn2+ ions. Then, the self-assembly reaction was performed at different ionic strengths. It could be found that the amounts of Zn/adenine composite increased with increasing NaCl concentration (Figure S1d). The solubility of adenine in aqueous solution was weakened in high ionic-strength solutions, and it would intensify the reaction of Zn2+ ions and adenine [34].
To gain a further understanding of the Zn/adenine composite, we characterized CPs by FTIR, XRD, SEM and TEM. As shown in Figure 1a, the shift of the IR band may suggest coordination interactions between Zn2+ and N9 (from 1418.4 cm−1 in adenine to 1401.2 cm−1 in the coordination polymer) [45]. The 1671.8 cm−1 band of adenine was considered to arise from the NH2 scissoring vibrational mode [45]. The corresponding NH2 IR band of the coordination polymer was observed at 1643.0 cm−1. The shift of the NH2 IR band could be attributed to the C6–NH2 coordination with Zn2+. The assignments of FTIR spectra of adenine and Zn/adenine complexes were listed (Table S1). According to the results of XRD (Figure 1b), no sharp diffraction peaks were observed in Zn/adenine complexes, indicating the amorphous nature of Zn/adenine complexes. This may be caused by the asymmetric chemical structure of nucleobases and high coordination flexibility of zinc ions [40]. The SEM photo (Figure 1c) and TEM photo (Figure 1d) revealed that the microstructure of CPs resembles a stack of nanoparticles. From the images, we also can re-confirm the amorphous nature of the nano CPs. Zn2+ ions and adenine may firstly form nanoparticles, and then these nanoparticles assemble together (Figure S2). Finally, the stoichiometry of Zn/adenine CPs determined by the titration experiment was adenine:Zn2+ = 1:2 (Figure S3). We considered that adenine bridges four Zn2+ ions through the N3, N7, N9 and NH2 sites, forming a framework structure (Figure 2). This coordination mode is very similar to the one observed by Hui Wei et al. [45].

2.2. Encapsulation Property of Zn/Adenine Complexes

After confirming the self-assembled properties of Zn2+ ions and adenine, we next tested the in-situ entrapping ability of the composites using three kinds of guests (water-soluble small dyes, proteins and nanoparticles). The encapsulation ratios of guests in nano CPs were calculated by measuring the absorption intensity in the supernatant. All of the guests were encapsulated at a high efficiency (Figure 3a). For water-soluble small dyes, both of the Orange G and Amido black 10B could be encapsulated by the CPs, but the degree was different (Figure 3a). In Amido black 10B, the absorption peak almost completely disappeared in the supernatant, while in Orange G the absorption peak was left at ~30% in the supernatant (Figure S4). To study the binding capacity of Zn2+/adenine to proteins, fluorescein-labeled bovine serum albumin (BSA, pI = 4.7) was next used. As shown in Figure 3a, more than 79% of BSA was efficiently entrapped. After encapsulating, the fluorescence was almost fully attenuated due to the nano-CP entrapping (Figure S4). This suggested that Zn/adenine complexes could be able to efficiently encapsulate protein molecules.
The above successes in trapping water-soluble small dyes and proteins prompted us to further investigate nanoparticles as guests. Citrate-capped 13 nm Au nanoparticles (NPs) were mixed with adenine and ZnCl2. After adding adenine, bluish–violet precipitation formed. The encapsulation ratio of Au NPs in CPs was calculated by measuring the absorption intensity in the supernatant (Figure S4). There was almost no absorption in the supernatant of Au–Zn/adenine complexes, suggesting successful encapsulation. As shown in Figure 3b, the entrapped Au NPs could also be observed by transmission electron microscopy (TEM). The round and dark nanoparticles were the Au NPs, which were entrapped by the Zn/adenine complexes. According to the above results, a diverse range of guest molecules including water-soluble small dyes, proteins and gold NPs could be encapsulated in Zn/adenine nano CPs with high loading capacity.

2.3. Immobilization of Single Enzyme

Next, we employed glucose oxidase (GOx) and horseradish peroxidase (HRP) as guest molecules to test the enzyme immobilization property of the Zn/adenine complexes. The loading efficiency of GOx and HRP was 93% and 92%, respectively (Figure 4a). In our system, the immobilized enzymes showed about 20% increase in catalytic activity compared to free enzymes in solution (Figure 4a). High enzyme stability is important in applications [49,50,51]. High temperature and extreme pH are the major reasons for enzyme deactivation. The stability of the GOx–Zn/adenine complexes was examined at different pH values (from 3 to 10, Figure 4b) and temperatures (from 30 to 90 °C, Figure 4c) and compared with that of the free GOx in solution. The activity of the GOx–Zn/adenine complexes was more stable compared to that of the free enzymes with respect to pH. Especially at pH 3, the immobilized GOx showed a 1.5-fold increase in relative activity compared to free GOx. When the temperature was higher, the immobilized enzyme exhibited higher activity compared with the free enzyme. As a result, the relative activity of Zn/adenine nano CP-immobilized GOx increased by 4-fold at 70 to 90 °C, compared to free GOx. The confinement of the proteins within the rigid structure of the CPs prevented protein denaturation caused by thermal fluctuations of proteins in solution [52]. Thus, the Zn/adenine complexes could protect enzymes from deactivation under heat and acid conditions. We considered that the rigid structure of the nano CPs would increase the structural stability of the embedded enzymes, thus improving the enzymes’ stabilities. We also tested the recycling of the GOx–Zn/adenine complexes. The immobilized enzyme can be easily collected by centrifugation after the reaction, and can be redispersed well by vortex mixing. Results indicated that the GOx–Zn/adenine complexes could reach a relative activity of more than 90% after being reused eight times (Figure 4d).

2.4. Co-Immobilization of GOx and HRP

After establishing the feasibility of using the Zn/adenine complexes for single-enzyme immobilization, co-immobilization of multiple enzymes was further performed. Co-immobilization of multiple enzymes could enhance the overall reaction efficiency and specificity, and omit the isolation of reaction intermediates [10]. GOx specifically converts glucose to gluconic acid and produces H2O2 as a byproduct, which is a co-substrate for HRP to oxidize 2,2′-azinobis(3-ethylbenzothiazoline-6-sulfonic acid) diammonium salt (ABTS) [52]. Therefore, based on the above studies, GOx and HRP were chosen for a cascade reaction. The total immobilization ratio was over 90%, measured by the Bradford assay. The catalytic activities of the co-localized GOx and HRP in the Zn/adenine complexes were evaluated by reacting with glucose using ABTS as a chromogenic substrate, and they were compared with the same concentration of free GOx and HRP. However, the relative activity of single enzymes on their own was just half of the activity of the co-immobilized enzymes. The selectivity for glucose was confirmed by monitoring the absorbance at 414 nm in the presence of various competing compounds (Figure 5a). Different concentrations of glucose were used to measure the sensitivity of the sensor. Figure 5b illustrates a good linearity between the absorbance and the concentration of glucose in the range of 0–100 µM (R2 = 0.995). The concentration of limit of detection CLOD can be expressed as a function of S (slope of the curve) and SB (a standard deviation): CLOD = 3SB/S [35]. In the experiment, SB was determined to be calculated by three sets of blank signals, and S was 0.0049. Calculated according to the formula, the limit of detection (LOD) was determined to be 1.84 μM, which is lower than some of the previously reported colorimetric glucose sensors [35,53].

3. Materials and Methods

3.1. Materials

Adenine, zinc chloride, sodium chloride, 2,2′-azinobis(3-ethylbenzothiazoline-6-sulfonic acid) diammonium salt (ABTS), Fe3O4 NPs, 4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid (HEPES), Orange G, Amido black 10B, fluorescein isothiocyanate (FITC), horseradish peroxidase (HRP) and bovine serum albumin (BSA) were purchased from Aladdin Industrial Corporation. HAuCl4·4H2O was supplied by Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). Glucose, fructose, mannose, xylose, sucrose, sodium hydroxide, hydrochloric acid and hydrogen peroxide were purchased from Beijing Chemical Works. Glucose oxidase (GOx) was purchased from Amresco (Scottsdale, AZ, USA). Milli-Q water was used to prepare all the buffers and solutions.

3.2. Preparation of Zn and Adenine Coordinated Complexes

In a typical experiment, the Zn/adenine complexes were prepared by mixing 100 µL ZnCl2 (45 mM), 100 µL adenine (15 mM) and 500 µL HEPES buffer (100 mM, pH 7.4). The volume of the system was 1 mL, and water was added to make up. After 2 h at room temperature, the samples were centrifuged at 10,000 rpm for 5 min and washed with Milli-Q water to remove remaining chemicals.

3.3. Study of the Zn/Adenine Complexes at Different Concentrations and pH of Buffer, as Well as Different Ionic Strengths

Different concentrations of HEPES buffer (pH 7.4, 0.1 M) and different pH of HEPES buffer were prepared. The Zn/adenine complexes were prepared by 500 μL buffer mixed with 100 μL adenine solution (15 mM) and 100 µL ZnCl2 (45 mM). To quantify the weight of precipitations, all the samples were centrifuged, dried under 60 °C and weighed. The content of adenine remained in the supernatant was measured using UV-vis spectroscopy at 260 nm by the standard curve (Figure S5). The influence of ionic strength was also studied. Appropriate NaCl solution (2 mM) was added into the reaction system to enhance ionic strength. The weight of precipitation and residue ratio of adenine were measured by the aforementioned method. In the experiments, the concentration of HEPES was 10, 20, 30, 40 or 50 mM. The different pH values were 6.8, 7.2, 7.4, 7.8 or 8.2. The concentration of NaCl was 100, 200, 300, 400 or 500 mM.

3.4. Stoichiometry and Structural Characterization of Zn/Adenine Complexes

The reaction ratio of adenine obtained by mixing aqueous ZnCl2 (5 mL in water) and aqueous adenine (5 mL in 0.1 M HEPES buffer at pH 7.4) was plotted as a function of mixed ratio. Conditions (in reaction mixtures): [adenine] = 1.5 mM, [ZnCl2] = 0, 0.75, 1.5, 2.25, 3.0, 4.5, 6.0, 7.5 and 9.0 mM. It was mixed for about two hours, and centrifuged to separate the supernatant and precipitate. The amount of adenine remained in the supernatant was measured using UV-vis spectroscopy at 260 nm.
Fourier transform infrared spectroscopy (FTIR) spectra of adenine and Zn/adenine complexes were obtained on a FTIR spectrometer (8700/Continuum XL Imaging Microscope, Nicolet, Waltham, MA, USA) with measuring wavelength ranging from 4000 to 550 cm−1.
Powder X-ray diffraction (XRD) patterns of adenine and Zn/adenine complexes were determined by powder X-ray diffraction (D8 Advance X-ray diffractometer, Bruker, Karlsruhe, Germany) with a Cu Kα anode (λ = 0.15406 nm) at 40 kV and 40 mA.
Scanning electron microscopy (SEM) images of samples were taken on a S-4700 scanning electron microscope (Hitachi, Tokyo, Japan) at an accelerating voltage of 10.0 kV. Samples for SEM measurements were prepared by pipetting a drop of the solution of the coordination complexes onto a cover glass and drying on a filter paper.
Transmission electron microscopy (TEM) was performed on a Hitachi H-800 transmission electron microscope (Hitachi, Tokyo, Japan). The sample was prepared by pipetting a drop of the solution of the Zn/adenine complexes onto a 230 mesh carbon copper grid and drying on a filter paper. The Au–Zn/adenine complexes were prepared by the same method.

3.5. Encapsulation Experiment

Adenine (15 mM, 100 µL) and dye (5 mM, 10 µL), or fluorescein-labeled bovine serum albumin (FITC–BSA) (5 mg/mL, 10 µL), or Au NPs (13 nm, 10 nM, 100 μL), or Fe3O4 NPs (5 mg/mL, 100 μL) were mixed with HEPES buffer (0.1 M, pH 7.4, 500 µL). Then, 100 µL ZnCl2 (45 mM) was added. The products were collected by centrifugation at 10,000 rpm/min for 5 min. The dyes and Au NPs in the supernatant were quantified using UV-vis spectrometry (UV-2450, Shimadzu). The FITC–BSA in the supernatant was measured by the fluorescence intensity (485/535 nm) by a microplate reader (Infinite F200 Pro, TECAN, Männedorf, Switzerland).

3.6. Immobilization of Single Enzymes

The aqueous solution of GOx (1 mg/mL) and the aqueous solution of HRP (1 mg/mL) was prepared and stored at 4 °C. Immobilization of the enzymes within the Zn/adenine complexes was performed by firstly mixing 100 μL of 15 mM adenine aqueous solution, 500 μL of HEPES buffer (0.1 M, pH 7.4), and 100 μL of enzymes. Then, 100 μL of ZnCl2 (45 mM) in water was quickly added and mixed. After 2 h, the immobilized enzymes were collected by centrifugation at 10,000 rpm for 5 min. The amounts of protein incorporated into the Zn/adenine complexes were measured by the Coomassie brilliant blue method.
For the GOx activity assay, 200 μL of glucose (20 mM) solution and 200 μL of ABTS (0.5 mM) were mixed with 20 μL of free GOx (100 μg/mL) or 22 μL of the suspension of the immobilized GOx (containing the same amount of protein compared with free GOx). Then, 40 μL of HRP (100 μg/mL) were added. The mixed samples were incubated at room temperature for 5 min. The reaction was monitored with a UV/vis spectrometer at 414 nm. For the HRP activity assay, 200 μL ABTS (0.5 mM) and 200 μL H2O2 (0.9 mM) were added into 0.5 μg free enzyme and equivalent immobilized enzyme, respectively. The mixed samples were incubated at room temperature for 5 min. The absorbance was recorded at 414 nm.

3.7. Enzyme Stability Test

For stability test at different pH values, the free GOx and the suspension of GOx–Zn/adenine complexes were added into 1 mL of various pH solutions for 4 h. Then, the enzymatic activity was measured by recording the absorbance at 414 nm. To test stability at different temperatures, free and immobilized enzymes were incubated at 30–90 °C for 30 min. To test the recycling of the GOx–Zn/adenine complexes, the reaction was performed for 5 min, and the immobilized enzyme was separated by centrifugation. The supernatant was measured by recording the absorbance at 414 nm. Then, new substrate and other solution were added to start the new cycle of the reaction for 5 min. The above steps were repeated several times to observe the change of the activity. In all the experiments, the error bars were calculated based on the standard deviation from three independent measurements.

3.8. Co-Immobilization of GOx and HRP

Co-immobilization of enzymes within the Zn/adenine complexes was performed by mixing 100 μL 15 mM adenine aqueous solution with 500 μL HEPES (100 mM, pH 7.4). Then, 50 μL GOx and HRP (1 mg/mL each) were added by vortex mixing. Finally, 100 μL ZnCl2 (45 mM) was quickly added and mixed. After 2 h, the immobilized enzymes were collected by centrifugation at 10,000 rpm for 5 min. In co-immobilization, the total immobilized protein ratio (i.e., percentage of immobilized protein) was measured by the Coomassie brilliant blue method.

3.9. Glucose Detection with GOx–HRP–Zn/Adenine Complexes

Different concentrations of glucose (750 μL) and 1 mM ABTS (750 μL) were added into 500 μL of the suspension of GOx–HRP–Zn/adenine complexes. The samples were then incubated at room temperature for 10 min. The reaction solution was centrifuged at 10,000 rpm for 3 min, and the absorbance of the supernatants at 414 nm was measured by using a UV-1100 spectrophotometer. The selectivity was determined by the absorbance of the supernatants using 100 µM glucose as the substrate, compared with 100 µM xylose, fructose, mannose, or galactose, or 1 mg/mL BSA.

4. Conclusions

In summary, we presented a one-step, facile and general method for immobilization of enzymes by a typical metal–organic nano coordination polymer. The zinc/adenine hybrid nanomaterials were formed by self-assembly of zinc ions and adenine in aqueous solution with mild conditions. The Zn/adenine CPs showed a good adaptive encapsulating ability. A diverse range of guests, including water-soluble small dyes, proteins and nanoparticles, could be encapsulated in the nano CPs. All these guests were loaded at a high capacity. Indeed, the loading efficiency of enzymes was over 90%. The GOx–Zn/adenine complexes displayed high catalytic efficiency, high selectivity and enhanced stability due to the protecting effect of the rigid framework. As a result, the relative activity of Zn/adenine nano-CP-immobilized GOx increased by 1.5-fold at pH 3 and 4-fold at 70 to 90 °C, compared to free GOx. Moreover, the immobilized GOx could reach a relative activity of more than 90% after being reused eight times. The use of this system as a glucose biosensor was also demonstrated by co-immobilization of two enzymes, detecting glucose down to 1.84 µM with excellent selectivity. The high sensitivity, stability and recyclable usability of the immobilized enzymes against free enzymes make this method promising for biocatalyst immobilization.

Supplementary Materials

The following are available online at www.mdpi.com/2073-4344/7/11/327/s1, Figure S1: (a) a photograph of Zn2+ reacting with adenine in different concentrations of pH 7.4 HEPES buffer. The CP precipitant weight and the adenine percentage remained in the supernatant after Zn2+ reacted with adenine and centrifugation of the samples in different concentrations of pH 7.4 HEPES buffer (b), in different HEPES pH (c) and in different ionic strengths (d); Figure S2: (a) SEM image of Zn/adenine complexes (magnification = 12,000), (b) TEM image of Zn/adenine complexes; Figure S3: The obtained titration curve of the stoichiometry of experiment. Conditions (in reaction mixtures): [adenine] = 1.5 mM, [ZnCl2] = 0, 0.75, 1.5, 2.25, 3.0, 4.5, 6.0, 7.5, and 9.0 mM; Figure S4: UV-vis spectra of Amido black 10B (a) and Orange G (b), and the supernatant after Zn/adenine-complex encapsulation; (c) Photographs of the samples of fluorescein-labeled bovine serum albumin (FITC–BSA) encapsulated in Zn/adenine complexes and the control; (d) UV-vis spectra of the supernatant of Au NPs in HEPES buffer, Au NPs with Zn, with adenine and after Zn/adenine complexes encapsulated (inset: photographs of the samples); Figure S5: The standard curve of adenine with good linearity; Table S1: Assignments of FTIR spectra of adenine and Zn/adenine complexes.

Acknowledgments

This work was supported by the Beijing Natural Science Foundation (2162030), the Beijing Natural Science Foundation-Beijing Municipal Education Commission Joint Funding project (KZ201710020014), the fund of the Beijing Laboratory for Food Quality and Safety (Beijing Technology and Business University), the National Natural Science Foundation of China (21606014), the Double First-rate Program (ylkxj03) and the 111 Project (B13005).

Author Contributions

Hao Liang, Shanshan Sun, Yan Zhou and Yanhui Liu conceived and designed experiments, analyzed the data, and wrote the manuscript.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Bornscheuer, U.T.; Huisman, G.W.; Kazlauskas, R.J.; Lutz, S.; Moore, J.C.; Robins, K. Engineering the third wave of biocatalysis. Nature 2012, 485, 185–194. [Google Scholar] [CrossRef] [PubMed]
  2. Choi, J.M.; Han, S.S.; Kim, H.S. Industrial applications of enzyme biocatalysis: Current status and future aspects. Biotechnol. Adv. 2015, 33, 1443–1454. [Google Scholar] [CrossRef] [PubMed]
  3. Kirk, O.; Borchert, T.V.; Fuglsang, C.C. Industrial enzyme applications [review]. Curr. Opin. Biotechnol. 2002, 13, 345–351. [Google Scholar] [CrossRef]
  4. Mateo, C.; Palomo, J.M.; Fernandez-Lorente, G.; Guisan, J.M.; Fernandez-Lafuente, R. Improvement of enzyme activity, stability and selectivity via immobilization techniques. Enzyme Microb. Technol. 2007, 40, 1451–1463. [Google Scholar] [CrossRef]
  5. Tran, D.N.; Balkus, K.J.B., Jr. Perspective of recent progress in immobilization of enzymes. ACS Catal. 2011, 1, 956–968. [Google Scholar] [CrossRef]
  6. Wu, X.; Hou, M.; Ge, J. Metal-organic frameworks and inorganic nanoflowers: A type of emerging inorganic crystal nanocarrier for enzyme immobilization. Catal. Sci. Technol. 2015, 5, 5077–5085. [Google Scholar] [CrossRef]
  7. Cao, S.; Xu, P.; Ma, Y.; Yao, X.; Yao, Y.; Zong, M.; Li, X.; Lou, W. Recent advances in immobilized enzymes on nanocarriers. Chin. J. Catal. 2016, 37, 1814–1823. [Google Scholar] [CrossRef]
  8. Altinkaynak, C.; Tavlasoglu, S.; Ÿzdemir, N.; Ocsoy, I. A new generation approach in enzyme immobilization: Organic-inorganic hybrid nanoflowers with enhanced catalytic activity and stability. Enzyme Microb. Technol. 2016, 93–94, 105–112. [Google Scholar] [CrossRef] [PubMed]
  9. Li, C.; Jiang, S.; Zhao, X.; Liang, H. Co-immobilization of enzymes and magnetic nanoparticles by metal-nucleotide hydrogelnanofibers for improving stability and recycling. Molecules 2017, 22, 179. [Google Scholar] [CrossRef] [PubMed]
  10. Liang, H.; Jiang, S.; Yuan, Q.; Li, G.; Wang, F.; Zhang, Z.; Liu, J. Co-immobilization of multiple enzymes by metal coordinated nucleotide hydrogel nanofibers: Improved stability and an enzyme cascade for glucose detection. Nanoscale 2016, 8, 6071–6078. [Google Scholar] [CrossRef] [PubMed]
  11. Liang, H.; Liu, B.; Yuan, Q.; Liu, J. Magnetic iron oxide nanoparticle seeded growth of nucleotide coordinated polymers. ACS Appl. Mater. Interfaces 2016, 8, 15615–15622. [Google Scholar] [CrossRef] [PubMed]
  12. Lyu, F.; Zhang, Y.; Zare, R.N.; Ge, J.; Liu, Z. One-pot synthesis of protein-embedded metal-organic frameworks with enhanced biological activities. Nano Lett. 2014, 14, 5761–5765. [Google Scholar] [CrossRef] [PubMed]
  13. Brady, D.; Jordaan, J. Advances in enzyme immobilisation. Biotechnol. Lett. 2009, 31, 1639. [Google Scholar] [CrossRef] [PubMed]
  14. Govardhan, C.P. Crosslinking of enzymes for improved stability and performance. Curr. Opin. Biotechnol. 1999, 10, 331–335. [Google Scholar] [CrossRef]
  15. Kim, J.; Grate, J.W.; Wang, P. Nanostructures for enzyme stabilization. Chem. Eng. Sci. 2006, 61, 1017–1026. [Google Scholar] [CrossRef]
  16. Lei, C.; Shin, Y.; Magnuson, J.K.; Fryxell, G.; Lasure, L.L.; Elliott, D.C.; Liu, J.; Ackerman, E.J. Characterization of functionalized nanoporous supports for protein confinement. Nanotechnology 2006, 17, 5531–5538. [Google Scholar] [CrossRef] [PubMed]
  17. Nadar, S.S.; Rathod, V.K. Magnetic macromolecular cross linked enzyme aggregates (cleas) of glucoamylase. Enzyme Microb. Technol. 2016, 83, 78–87. [Google Scholar] [CrossRef] [PubMed]
  18. Schoevaart, R.; Wolbers, M.W.; Golubovic, M.; Ottens, M.; Kieboom, A.P.; Van, R.F.; La, V.D.W.; Sheldon, R.A. Preparation, optimization, and structures of cross-linked enzyme aggregates (cleas). Biotechnol. Bioeng. 2004, 87, 754–762. [Google Scholar] [CrossRef] [PubMed]
  19. Shah, S.; Sharma, A.; Gupta, M.N. Preparation of cross-linked enzyme aggregates by using bovine serum albumin as a proteic feeder. Anal. Biochem. 2006, 351, 207–213. [Google Scholar] [CrossRef] [PubMed]
  20. Sheldon, R.A. Cross-linked enzyme aggregates (cleas): Stable and recyclable biocatalysts. Biochem. Soc. Trans. 2007, 35, 1583–1587. [Google Scholar] [CrossRef] [PubMed]
  21. Sheldon, R.A.; Van, P.S. Enzyme immobilisation in biocatalysis: Why, what and how. Chem. Soc. Rev. 2013, 42, 6223–6235. [Google Scholar] [CrossRef] [PubMed]
  22. Wang, M.; Bao, W.J.; Wang, J.; Wang, K.; Xu, J.J.; Chen, H.Y.; Xia, X.H. A green approach to the synthesis of novel “desert rose stone”-like nanobiocatalytic system with excellent enzyme activity and stability. Sci. Rep. 2014, 4, 6606. [Google Scholar] [CrossRef] [PubMed]
  23. Cook, T.R.; Zheng, Y.R.; Stang, P.J. Metal-organic frameworks and self-assembled supramolecular coordination complexes: Comparing and contrasting the design, synthesis and functionality of metal-organic materials. Chem. Rev. 2013, 113, 734–777. [Google Scholar] [CrossRef] [PubMed]
  24. Wang, J.; Cohen Stuart, M.A.; Marcelis, A.T.M.; Colomb-Delsuc, M.; Otto, S.; van der Gucht, J. Stable polymer micelles formed by metal coordination. Macromolecules 2012, 45, 7179–7185. [Google Scholar] [CrossRef]
  25. Wang, X.; McHale, R. Metal-containing polymers: Building blocks for functional (nano)materials. Macromol. Rapid Commun. 2010, 31, 331–350. [Google Scholar] [CrossRef] [PubMed]
  26. Whittell, G.R.; Hager, M.D.; Schubert, U.S.; Manners, I. Functional soft materials from metallopolymers and metallosupramolecular polymers. Nat. Mater. 2011, 10, 176–188. [Google Scholar] [CrossRef] [PubMed]
  27. Zhang, W.-X.; Liao, P.-Q.; Lin, R.-B.; Wei, Y.-S.; Zeng, M.-H.; Chen, X.-M. Metal cluster-based functional porous coordination polymers. Coord. Chem. Rev. 2015, 293–294, 263–278. [Google Scholar] [CrossRef]
  28. Tan, H.; Zhang, L.; Ma, C.; Song, Y.; Xu, F.; Chen, S.; Wang, L. Terbium-based coordination polymer nanoparticles for detection of ciprofloxacin in tablets and biological fluids. ACS Appl. Mater. Interfaces 2013, 5, 11791–11796. [Google Scholar] [CrossRef] [PubMed]
  29. Taylor, K.M.; Jin, A.; Lin, W. Surfactant-assisted synthesis of nanoscale gadolinium metal–organic frameworks for potential multimodal imaging. Angew. Chem. Int. Ed. 2008, 47, 7722–7725. [Google Scholar] [CrossRef] [PubMed]
  30. Liu, D.; Huxford, R.C.; Lin, W. Phosphorescent nanoscale coordination polymers as contrast agents for optical imaging. Angew. Chem. Int. Ed. 2011, 50, 3696–3700. [Google Scholar] [CrossRef] [PubMed]
  31. Tran, L.D.; Feldblyum, J.I.; Wong-Foy, A.G.; Matzger, A.J. Filling pore space in a microporous coordination polymer to improve methane storage performance. Langmuir 2015, 31, 2211–2217. [Google Scholar] [CrossRef] [PubMed]
  32. Gao, P.F.; Zheng, L.L.; Liang, L.J.; Yang, X.X.; Li, Y.F.; Huang, C.Z. A new type of ph-responsive coordination polymer sphere as a vehicle for targeted anticancer drug delivery and sustained release. J. Mater. Chem. B 2013, 1, 3202–3208. [Google Scholar] [CrossRef]
  33. Liu, Y.; Tang, Z. Nanoscale biocoordination polymers: Novel materials from an old topic. Chemistry 2012, 18, 1030–1037. [Google Scholar] [CrossRef] [PubMed]
  34. Liang, H.; Zhang, Z.; Yuan, Q.; Liu, J. Self-healing metal-coordinated hydrogels using nucleotide ligands. Chem. Commun. 2015, 51, 15196–15199. [Google Scholar] [CrossRef] [PubMed]
  35. Sun, J.; Ge, J.; Liu, W.; Lan, M.; Zhang, H.; Wang, P.; Wang, Y.; Niu, Z. Multi-enzyme co-embedded organic-inorganic hybrid nanoflowers: Synthesis and application as a colorimetric sensor. Nanoscale 2014, 6, 255–262. [Google Scholar] [CrossRef] [PubMed]
  36. Mantion, A.; Massüger, L.; Rabu, P.; Palivan, C.; McCusker, L.B.; Taubert, A. Metal-peptide frameworks (mpfs):  “Bioinspired” metal organic frameworks. J. Am. Chem. Soc. 2008, 130, 2517–2526. [Google Scholar] [CrossRef] [PubMed]
  37. Imaz, I.; Rubio-Martínez, M.; Saletra, W.J.; Amabilino, D.B.; Maspoch, D. Amino acid based metal-organic nanofibers. J. Am. Chem. Soc. 2009, 131, 18222–18223. [Google Scholar] [CrossRef] [PubMed]
  38. Moussatova, A.; Vázquez, M.-V.; Martínez, A.; Dolgounitcheva, O.; Zakrzewski, V.G.; Ortiz, J.V.; Pedersen, D.B.; Simard, B. Theoretical study of the structure and bonding of a metal—DNA Base complex:  Al-guanine. J. Phys. Chem. A 2003, 107, 9415–9421. [Google Scholar] [CrossRef]
  39. Wang, F.; Liu, B.; Huang, P.-J.J.; Liu, J. Rationally designed nucleobase and nucleotide coordinated nanoparticles for selective DNA adsorption and detection. Anal. Chem. 2013, 85, 12144–12151. [Google Scholar] [CrossRef] [PubMed]
  40. Verma, S.; Mishra, A.K.; Kumar, J. The many facets of adenine: Coordination, crystal patterns, and catalysis. Acc. Chem. Res. 2010, 43, 79–91. [Google Scholar] [CrossRef] [PubMed]
  41. Bakkali, H.E.; Castiñeiras, A.; Garcíasantos, I.; Gonzálezpérez, J.M.; Niclósgutiérrez, J. Metallo-supramolecular structures by self-assembly through weak interactions in mixed ligand metal complexes of adenine and malonate. Cryst. Growth Des. 2015, 14, 249–260. [Google Scholar] [CrossRef]
  42. Navarro, J.A.R.; Lippert, B. Molecular architecture with metal ions, nucleobases and other heterocycles. Coord. Chem. Rev. 1999, 185, 653–667. [Google Scholar] [CrossRef]
  43. Singh, P. The family of n 9 -adenine: New entry for adenine-benzamide conjugates linked via versatile spacers. J. Chem. Sci. 2014, 126, 159–167. [Google Scholar] [CrossRef]
  44. An, J.; Geib, S.J.; Rosi, N.L. Cation-triggered drug release from a porous zinc-adeninate metal-organic framework. J. Am. Chem. Soc. 2009, 131, 8376–8377. [Google Scholar] [CrossRef] [PubMed]
  45. Wei, H.; Li, B.; Du, Y.; Shaojun Dong, A.; Wang, E. Nucleobase-metal hybrid materials: Preparation of submicrometer-scale, spherical colloidal particles of adenine-gold(iii) via a supramolecular hierarchical self-assembly approach. Chem. Mater. 2007, 21, 2987–2993. [Google Scholar] [CrossRef]
  46. And, C.S.P.; Verma, S. A luminescent silver-adenine metallamacrocyclic quartet. J. Am. Chem. Soc. 2006, 128, 400–401. [Google Scholar]
  47. Burneo, I.; Stylianou, K.C.; Rodríguez-Hermida, S.; Juanhuix, J.; Fontrodona, X.; Imaz, I.; Maspoch, D. Two new adenine-based co(II) coordination polymers: Synthesis, crystal structure, coordination modes, and reversible hydrochromic behavior. Cryst. Growth Des. 2015, 15, 3182–3189. [Google Scholar] [CrossRef]
  48. Garcíaterán, J.P.; Castillo, O.; Luque, A.; Garcíacouceiro, U.; Pascual Román, A.; Lezama, L. An unusual 3d coordination polymer based on bridging interactions of the nucleobase adenine. Inorg. Chem. 2004, 43, 4549–4551. [Google Scholar] [CrossRef] [PubMed]
  49. Ge, J. Protein-inorganic hybrid nanoflowers. Nat. Nanotechnol. 2012, 7, 428–432. [Google Scholar] [CrossRef] [PubMed]
  50. Ge, J.; Lu, D.; Liu, Z.; Liu, Z. Recent advances in nanostructured biocatalysts. Biochem. Eng. J. 2009, 44, 53–59. [Google Scholar] [CrossRef]
  51. Kim, J.; Grate, J.W.; Wang, P. Nanobiocatalysis and its potential applications. Top. Catal. 2012, 108, 639–646. [Google Scholar] [CrossRef]
  52. Wu, X.; Ge, J.; Yang, C.; Hou, M.; Liu, Z. Facile synthesis of multiple enzyme-containing metal-organic frameworks in a biomolecule-friendly environment. Chem. Commun. 2015, 51, 13408–13411. [Google Scholar] [CrossRef] [PubMed]
  53. Mu, J.; Wang, Y.; Zhao, M.; Zhang, L. Intrinsic peroxidase-like activity and catalase-like activity of CO3O4 nanoparticles. Chem. Commun. 2012, 48, 2540–2542. [Google Scholar] [CrossRef] [PubMed]
Catalysts 07 00327 g001 550

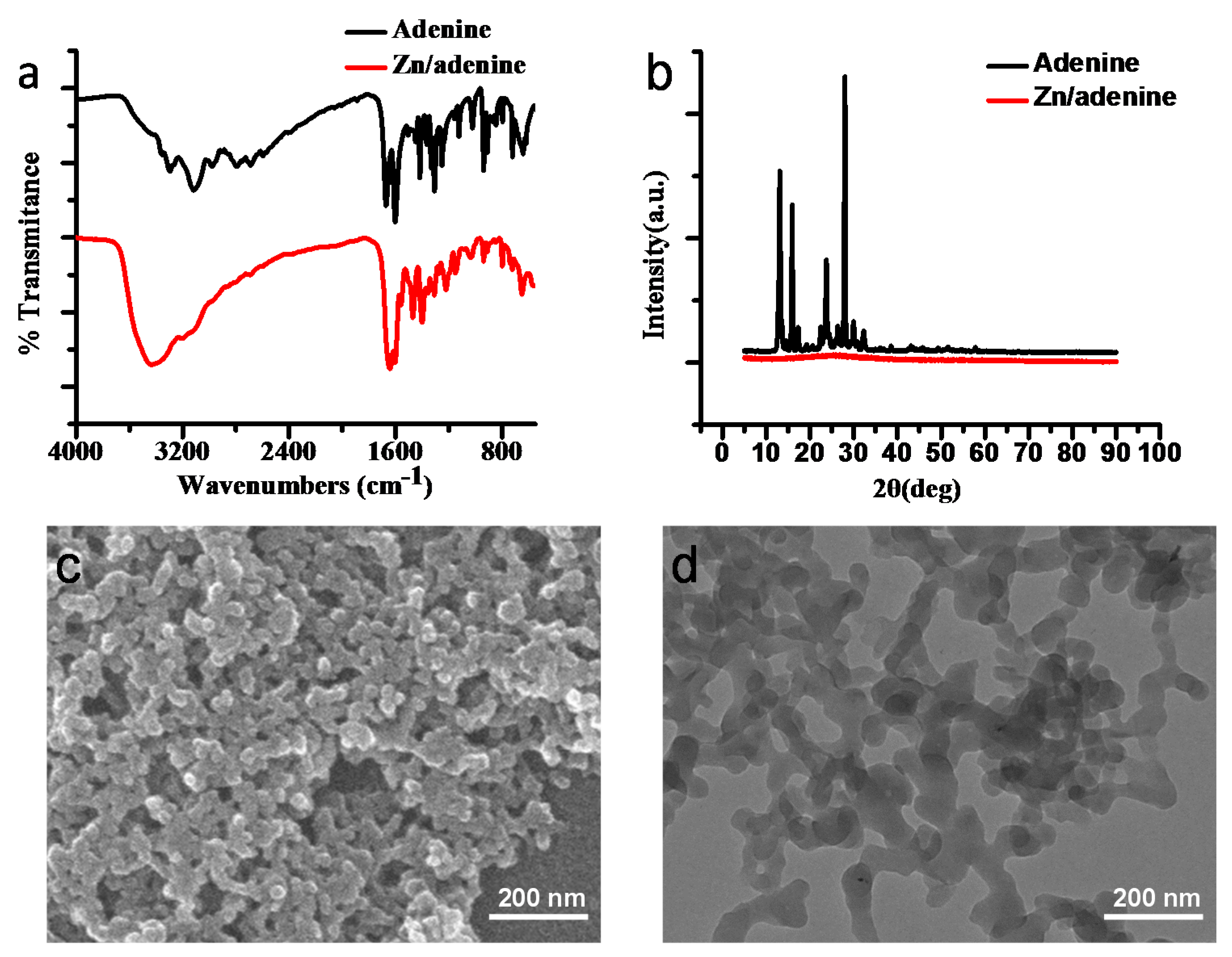

Figure 1. (a) The fourier transform infrared spectroscopy (FTIR) spectra of adenine and Zn/adenine complexes; (b) X-ray diffraction (XRD) patterns of powdery adenine and Zn/adenine complexes; (c) Scanning electron microscopy (SEM) image of Zn/adenine complexes (magnification = 30,000); (d) Transmission electron microscopy (TEM) image of Zn/adenine complexes.
Figure 1. (a) The fourier transform infrared spectroscopy (FTIR) spectra of adenine and Zn/adenine complexes; (b) X-ray diffraction (XRD) patterns of powdery adenine and Zn/adenine complexes; (c) Scanning electron microscopy (SEM) image of Zn/adenine complexes (magnification = 30,000); (d) Transmission electron microscopy (TEM) image of Zn/adenine complexes.
Catalysts 07 00327 g001
Catalysts 07 00327 g002 550

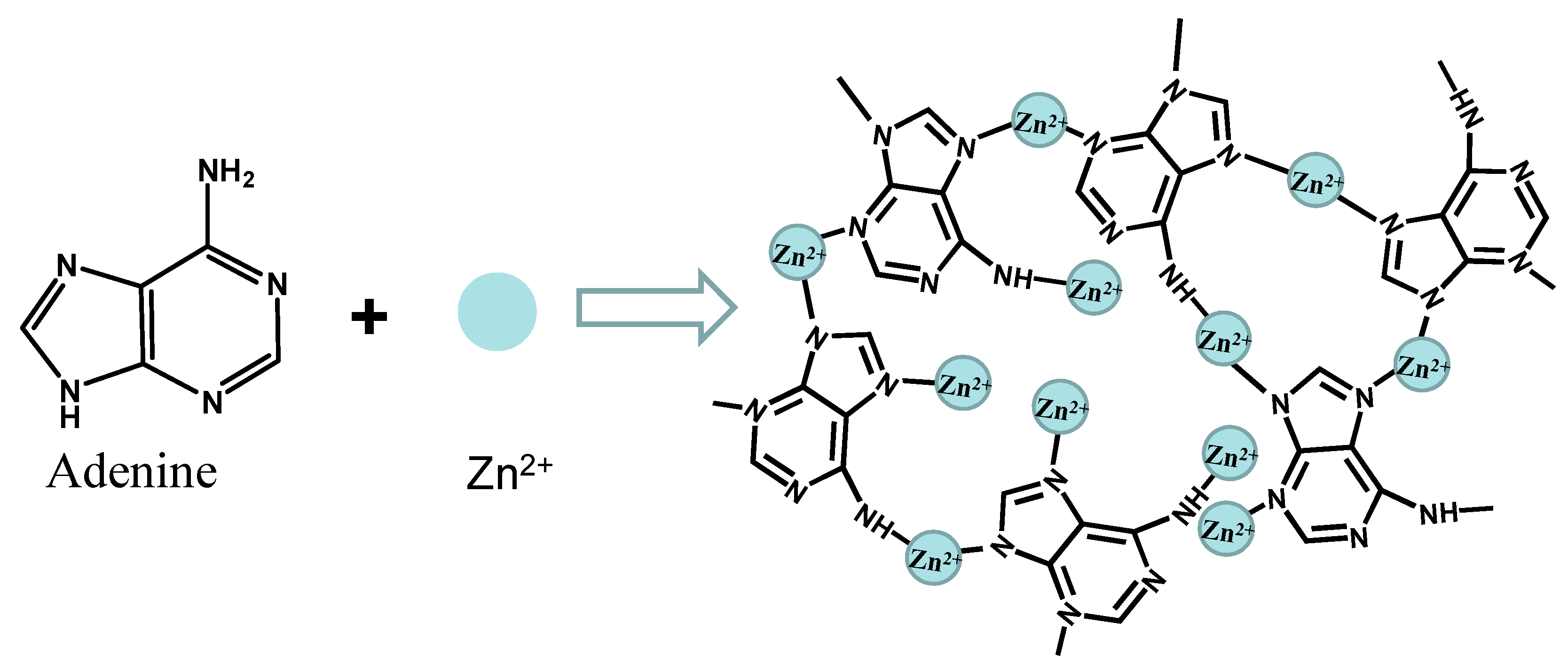

Figure 2. A scheme of Zn2+ reacting with adenine, forming CPs.
Figure 2. A scheme of Zn2+ reacting with adenine, forming CPs.
Catalysts 07 00327 g002
Catalysts 07 00327 g003 550

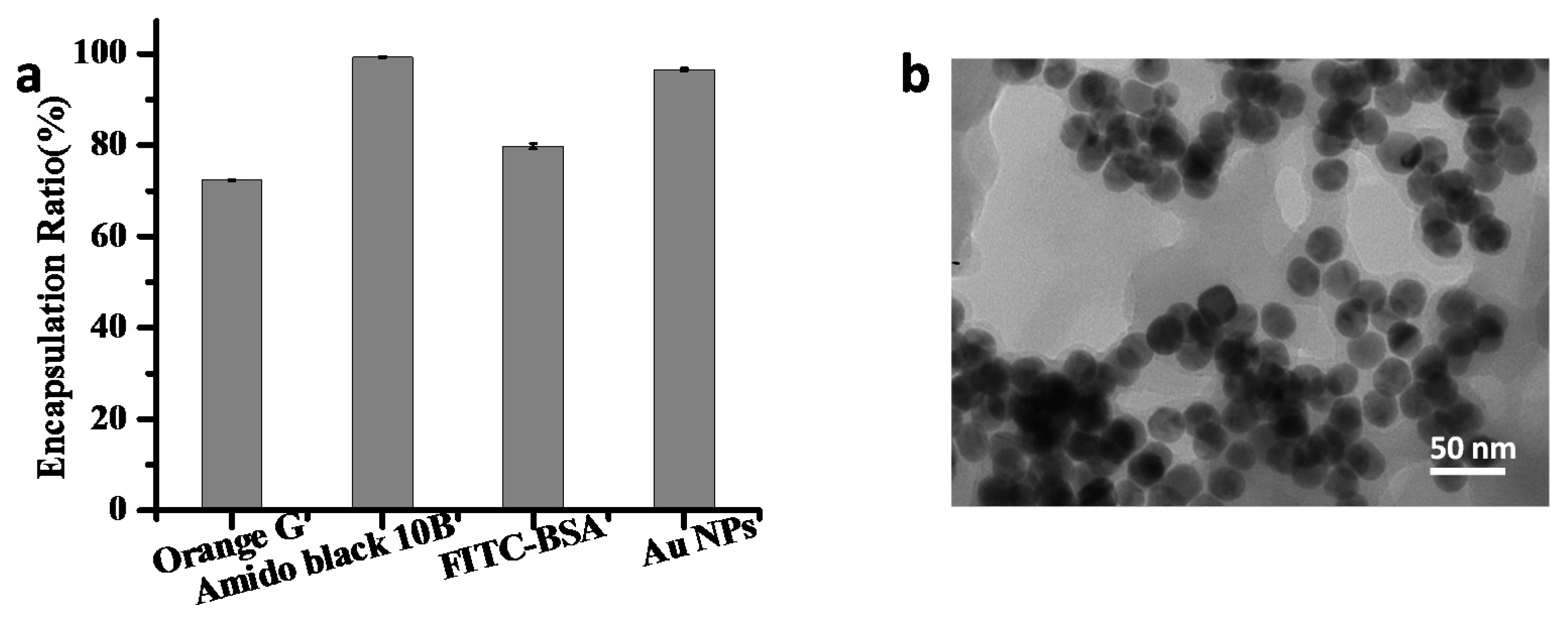

Figure 3. (a) The encapsulation ratios of different guests in the nano CPs; (b) the TEM image of the Au nanoparticles entrapped by Zn/adenine complexes.
Figure 3. (a) The encapsulation ratios of different guests in the nano CPs; (b) the TEM image of the Au nanoparticles entrapped by Zn/adenine complexes.
Catalysts 07 00327 g003
Catalysts 07 00327 g004 550

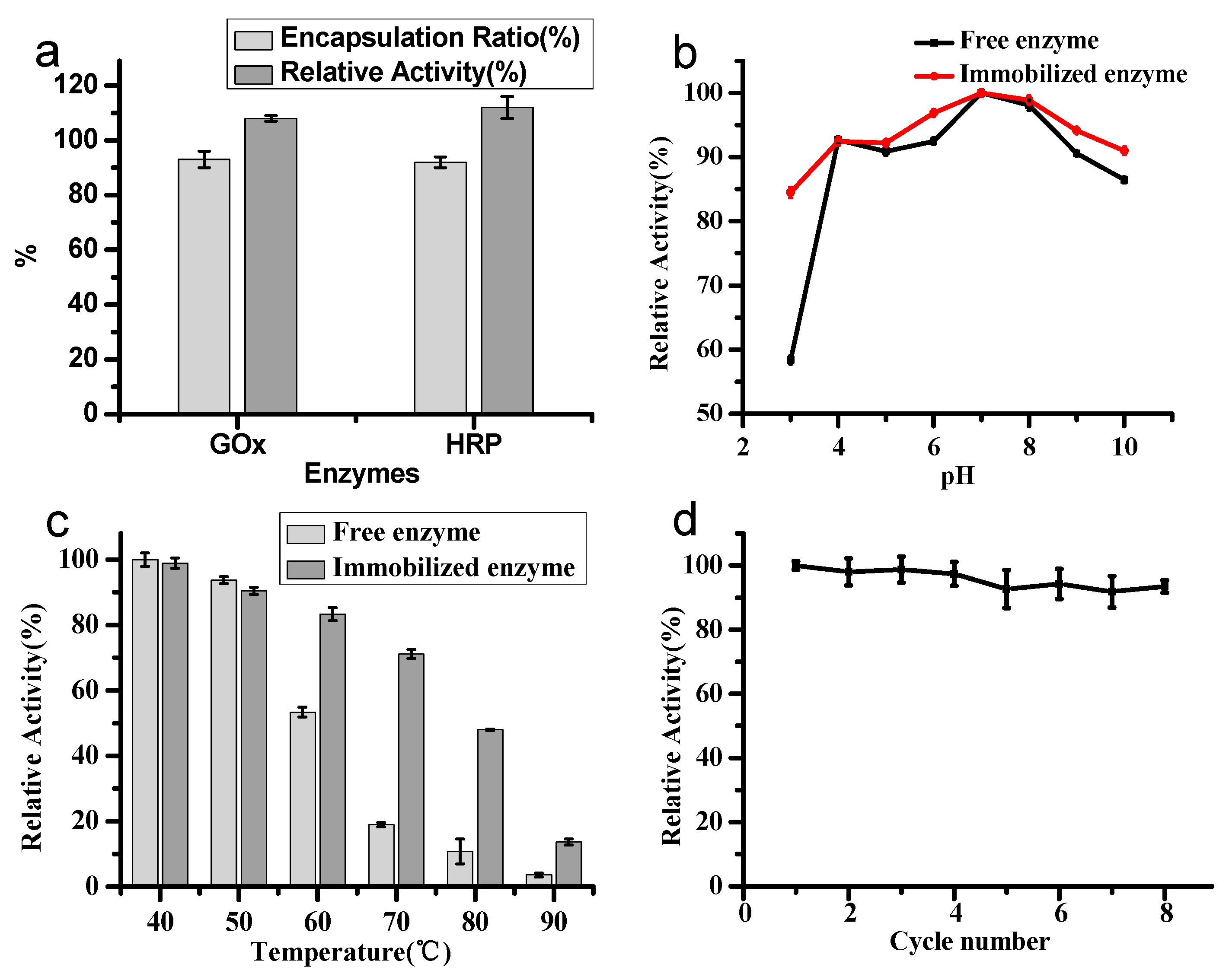

Figure 4. (a) Ratio of encapsulated glucose oxidase (GOx) and horseradish peroxidase (HRP) by the Zn/adenine complexes, and the relative activity of the two immobilized enzymes compared to the free enzymes; stability of the GOx–Zn/adenine complexes compared with the equivalent free enzymes (b) at different pH values at 25 °C; (c) at different temperatures; (d) relative activity of GOx–Zn/adenine complexes after reusing for 8 cycles.
Figure 4. (a) Ratio of encapsulated glucose oxidase (GOx) and horseradish peroxidase (HRP) by the Zn/adenine complexes, and the relative activity of the two immobilized enzymes compared to the free enzymes; stability of the GOx–Zn/adenine complexes compared with the equivalent free enzymes (b) at different pH values at 25 °C; (c) at different temperatures; (d) relative activity of GOx–Zn/adenine complexes after reusing for 8 cycles.
Catalysts 07 00327 g004
Catalysts 07 00327 g005 550
Figure 5. (a) The selectivity of the GOx–HRP–Zn/adenine complexes for 100 μM glucose in comparison to 100 μM fructose, mannose, xylose, maltose and 1 mg/mL bovine serum albumin (BSA) (inset: photographs of the samples.); (b) detection of glucose in solutions with glucose concentrations of 0–100 μM (absorbance at 414 nm was measured after incubation in solution for 10 min at room temperature) (inset: photographs of the samples).
Figure 5. (a) The selectivity of the GOx–HRP–Zn/adenine complexes for 100 μM glucose in comparison to 100 μM fructose, mannose, xylose, maltose and 1 mg/mL bovine serum albumin (BSA) (inset: photographs of the samples.); (b) detection of glucose in solutions with glucose concentrations of 0–100 μM (absorbance at 414 nm was measured after incubation in solution for 10 min at room temperature) (inset: photographs of the samples).
Catalysts 07 00327 g005
