Sulfonato Complex Formation Rather than Sulfonate Binding in the Extraction of Base Metals with 2,2′-Biimidazole: Extraction and Complexation Studies

Abstract

The application of a bidentate aromatic N,N’-donor ligand, 2,2′-biimidazole (BIIMH₂), as an extractant in the form of 1-octyl-2,2′-biimidazole (OBIIMH) and related derivatives in the solvent extraction of base metal ions (Mg²⁺, Mn²⁺, Fe³⁺, Fe²⁺, Co²⁺, Ni²⁺, Cu²⁺ and Zn²⁺) from an acidic sulfonate medium using dinonylnaphthalene disulfonic acid (DNNDSA) as a synergist was investigated. OBIIMH with DNNDSA as a co-extractant showed a lack of selectivity for base metals ions (Mg²⁺, Mn²⁺, Fe³⁺, Fe²⁺, Co²⁺, Ni²⁺, Cu²⁺ and Zn²⁺) despite its similarity with a related bidentate aromatic ligand, 2,2′-pyridylimidazole, which showed preference for Ni(II) ions. The nickel(II) specificity, through stereochemical “tailor-making”, was not achieved as expected and the extracted species were isolated to study the underlying chemistry. The homemade metal sulfonate salts, M(RSO₃)₂·6H₂O (R = Toluene and M²⁺ = Co²⁺, Ni²⁺, Cu²⁺ and Zn²⁺), were used as precursors of the metal complexes of BIIMH₂ using toluene-4-sulfonic acid as the representative sulfonate. Spectroscopic analysis and single-crystal X-ray analysis supported the formation of similar neutral distorted octahedral sulfonato complexes through the bis coordination of BIIMH₂ and two sulfonate ions rather than the formation of cationic complex species with anion coordination of sulfonates. We attributed the observation of similar complex species and the similar stability constants of the bis-complexes in solution as the cause for the lack of pH-metric separation of the later 3d metal ions.

1. Introduction

The application of amine extractants in the neutral form has not been extensively explored as separating agents for base metal ions from a basic bonding viewpoint [1]. Strong ligands with an O-donor-only character show a lack of relative preference for the base metal ions while nitrogenous ligands show promise. Aromatic nitrogenous ligands have a relative preference for metal ions which could relate to the possibility of σ and π bonding [2]. Imidazole ligands/extractants show high-formation constants with later 3d-transition metals [1,3], resulting in high extraction efficiencies and interactions with these metals in slightly strongly to weakly acidic media since their protonation constants are not too high or too low. However, large counterions such as organic sulfonates which act as synergists in the extraction of cationic complexes are frequently employed for a solvent extraction system to facilitate the transfer of the complexes efficiently to the organic phase [4].

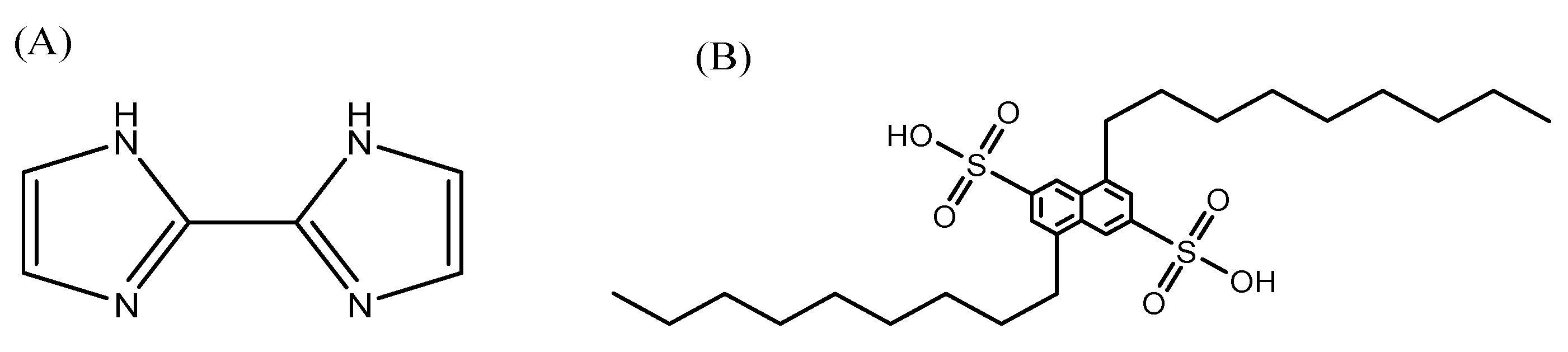

A bidentate ligand, 2,2′-biimidazole (Figure 1A), has been used for the extraction of base metals in this study. The high complex formation offered by the bidentate ligand and the low protonation constant of the imidazole group compared with aliphatic amines allows for the formation of the inner sphere complexes in a highly acidic medium. These characteristics were to be exploited in this study in an analogous matter to the use of 2,2′-pyridylimidazole that we have studied previously [3]. It is anticipated that specificity for base metal ions could be achieved through stereochemical “tailor-making”, i.e., through the formation of complexes of different but preferred geometries. The outcome of this particular study is rather surprising, and we attempt to explain it from a basic chemistry point of view. Sulfonates are typically used as synergistic counterions to extract cationic complexes in solvent-extraction systems. However, this account presents their non-innocent nature towards inner sphere rather than outer sphere coordination in the complex formation of extracted species in a solvent-extraction system.

The alkylated derivatives of the bidentate N,N-donor 2,2′-biimidazole ligand were investigated for their selectivity for nickel(II) from other base metals along with dinonylnaphthalene disulfonic acid (DNNDSA) as a synergist (Figure 1B) in a solvent-extraction system. The conditions for the extraction studies were designed using the OBIIMH (octyl derivative) as an extractant and DNNDSA as a synergist; both were dissolved in 80% 2-octanol and 20% Shellsol 2325 as diluent and modifier, respectively. The underlying coordination chemistry was investigated through stability constants studies and molecular structures of model-extracted species via spectroscopic techniques and single crystal X-ray crystallography. Herein, we concluded on the non-innocent nature of the sulfonates as synergistic counterions by showing evidence of inner sphere coordination.

2. Materials and Methods

2.1. Reagents and Materials

The reagents and materials used in this study, including ammonium acetate (99%), 1-Bromodecane (99%), 1-Bromoheptane (99%), 1-Bromooctane (99%), CaSO₄∙H₂O (98.5%), Co(ClO₄)₂.6H₂O (98%), CoSO₄∙7H₂O (97.5%), CdSO₄∙H₂O (98%), Cu(ClO₄)₂.6H₂O (98%), CuSO₄ (anhydrous) (99%), DNNDSA (55 wt % in Iso-butanol), Fe₂(SO₄)₃∙xH₂O (70%), Fe(SO₄)∙7H₂O (98%), Glyoxal (40 wt % in water), MgSO₄∙7H₂O (99.7%), MnSO₄∙7H₂O (99.2%), Ni(ClO₄)₂.6H₂O (98%), NiSO₄∙6H₂O (98%), Shellsol 232), Toluene-4-sulfonic acid (98%), Zn(ClO₄)₂.6H₂O (98%), ZnSO₄∙7H₂O (99.5%), Acetone (98%), Diethylether (99%), Ethanol (99%), Ethyl acetate (98.8%), H₂SO₄ (98%), Methanol (99.9%) and 2-Octanol (98%), were purchased from Sigma-Aldrich, South Africa. All solvents were purchased from Merch and used as received. Standard solutions of the metal ions of AAS calibration were prepared from 1000 ppm stock solutions in 0.5 M nitric acid supplied by EC lab services from South Africa.

2.2. Instrumentation

The purity and identity of the extractants were determined by using ¹H NMR spectroscopy on a Bruker AMX 400 NMR MHz spectrometer and reported relative to tetramethylsilane (δ 0.00). The metal complexes were characterized using infrared spectroscopy on both Perkin Elmer 400 FTIR and 100 FTIR-ATR spectrometers. The metal complexes were characterized using infrared spectroscopy and recorded on either a Perkin Elmer 400FTIR spectrometer in the mid-IR range (400–4000 cm⁻¹) as KBr pellets or as neat compounds with a Perkin Elmer 100 FTIR-ATR (650–4000 cm⁻¹) spectrometer. The solid reflectance spectra of ligands and complexes were recorded on a Shimadzu UV-VIS-NIR Spectrophotometer UV-3100 with an MPCF-3100 sample compartment with samples mounted between two quartz discs that fit into a sample holder coated with barium sulfate. The spectra were recorded over the wavelength range of 250–1400 nm, and the scans were conducted at a medium speed using a 20 nm slit width.

Elemental analysis was carried out with a Vario Elementary ELIII Microcube CHNS elemental analyser. A Perkin-Elmer 603 atomic absorption spectrophotometer, with a burner control attachment and an air-acetylene flame, was used for the determination of metal ions’ concentrations after extraction. The AAS metal standards, dissolved in 0.5 N nitric acid, were used to prepare standard solutions for the construction of calibration curves using 0.002 M ethylenediaminetetraacetic acid (EDTA) solution for the dilutions. The EDTA was also used to dilute the samples to prevent formation of refractory NiSO₄. The elements were analysed at the following specified wavelengths (nm) for minimal interferences: 232.0 (Ni²⁺), 240.7 (Co²⁺), 324.7 (Cu²⁺), 213.9 (Zn²⁺), 248.3 (Fe²⁺, Fe³⁺), 413.70 (Cd²⁺), 422.7 (Ca²⁺), 2279.5 (Mn²⁺) and 285.2 (Mg²⁺).

X-ray diffraction studies were performed at 200 K using a Bruker Kappa Apex II diffractometer with monochromated Mo Kα radiation (λ = 0.71073 Å). The crystal structures were solved by direct methods using SHELXTL [5] and refined with SHELXL [6]. Carbon-bound hydrogen atoms were placed in calculated positions and refined riding. The water hydrogen atoms were located on the difference map and refined riding with the bond angles and lengths restrained. The nitrogen-bound hydrogens were located on the difference map and allowed to refine freely. All non-hydrogen atoms were refined anisotropically. Diagrams and publication material were generated using PLATON [7], and ORTEP-3 [8]. The protonation and formation constants were determined by potentiometric acid-base titrations in 10% ethanol in water using the Metrohm 794 Titrino equipped with a Metrohm LL Ecotrode. This method has been presented by us previously [9], but the only difference is the use of 0.10 M sodium perchlorate as the ionic medium. The concentration stability constants (β_pqr) were calculated using the computer program HYPERQUAD [10]. The pH measurements for extraction studies were performed on a Metrohm 827 pH meter using a combination electrode with 3 M KCl as an electrolyte. The Labcon microprocessor-controlled orbital platform shaker model SPO-MP 15 was used for contacting the two phases of extraction. The melting points of the solid complexes were determined with the electrothermal IA 9000 digital measuring point apparatus.

2.3. Experimental Section

2.3.1. Preparation of 2,2′-Biimidazole

The ligand 2,2′-biimidazole (BIIMH₂) was prepared according to a method reported in the literature [11]. Yield = 17%. M.p. = 348–350 °C. Anal. Calcd for C₈H₆N₃ (%): C, 53.72; H, 4.51; N, 41.77. Found: C, 53.67; H, 4.70; N, 41.32. ¹H NMR (CDCl₃) δ (ppm): 7.13 (4H, s, CH). IR (νmax/cm⁻¹): 1693, ν(C=Nim); 3327, ν(N-H).

2.3.2. Preparation of 2,2′-Alkylbiimidazoles

The alkylated derivatives of BIIMH₂ (extractants) were also prepared according to a method found in the literature [12].

• 1-Heptyl-2,2′-Biimidazole (HBIIMH)

 Yield = 51%. Anal. Calcd for C₈H₆N₃ (%): C, 67.21; H, 8.68; N, 24.12. Found: C, 67.33; H, 8.58; N, 23.84. ¹H NMR (400 MHz, CDCl₃) δ (ppm): δ 7.30 (2H, s, CH), 7.01 (2H, s, CH), 4.39 (2H, m, CH₂), 1.69 (2H, m, CH₂), 1.16 (6H, m, CH₂), 0.81 (3H, t, CH₃). IR (ν_max/cm⁻¹): 1691, ν(C=N_im); 3227, ν(N-H).

• 1-Octyl-2,2′-Biimidazole (OBIIMH)

 Yield = 49%. Anal. Calcd for C₈H₆N₃ (%): C, 68.26; H, 9.00; N, 22.74. Found: C, 68.30; H, 8.89; N, 21.99. ¹H NMR (400 MHz, CDCl₃) δ (ppm): δ 7.24 (2H, s, CH), 6.99 (2H, s, CH), 4.39 (2H, m, CH₂), 1.59 (2H, m, CH₂), 1.14 (6H, m, CH₂), 0.80 (3H, t, CH₃). IR (ν_max/cm⁻¹): 1695, ν(C=N_im); 3235, ν(N-H).

• 1-Decyl-2,2′-Biimidazole (DBIIMH)

 Yield = 45%. Anal. Calcd for C₈H₆N₃ (%): C, 70.03; H, 9.55; N, 20.42. Found: C, 70.08; H, 9.35; N, 19.95. ¹H NMR (400 MHz, CDCl₃) δ (ppm): δ 7.59 (2H, s, CH), 7.00 (2H, s, CH), 4.39 (2H, m, CH₂), 1.58 (2H, m, CH₂), 1.20 (6H, m, CH₂), 0.82 (3H, t, CH₃). IR (ν_max/cm⁻¹): 1699, ν(C=N_im); 3233, ν(N-H).

• 1,1′-Bis-heptyl-2,2′-biimidazole (H₂BIIM)

 Yield = 50%. Anal. Calcd for C₈H₆N₃ (%): C, 72.68; H, 10.37; N, 16.95. Found: C, 73.89; H, 10.84; N, 16.54. ¹H NMR (400 MHz, CDCl₃) δ (ppm): δ 7.29 (2H, s, CH), 7.01 (2H, s, CH), 4.39 (2H, m, CH₂), 1.59 (2H, m, CH₂), 1.15 (6H, m, CH₂), 0.79 (3H, t, CH₃). IR (ν_max/cm⁻¹): 1684, ν(C=N_im); 3327, ν(N-H).

• 1,1′-Bis-octyl-2,2′-biimidazole (O₂BIIM)

 Yield = 47%. Anal. Calcd for C₈H₆N₃ (%): C, 73.69; H, 10.68; N, 15.63. Found: C, 73.98; H, 10.89; N, 15.05. ¹H NMR (400 MHz, CDCl₃) δ (ppm): δ 7.29 (2H, s, CH), 7.00 (2H, s, CH), 4.38 (2H, m, CH₂), 1.57 (2H, m, CH₂), 1.15 (6H, m, CH₂), 0.82 (3H, t, CH₃). IR (ν_max/cm⁻¹): 1689, ν(C=N_im); 3335, ν(N-H).

• 1,1′-Bis-decyl- 2,2′-biimidazole (D₂BIIM)

 Yield = 48%. Anal. Calcd for C₈H₆N₃ (%): C, 75.31; H, 11.18; N, 13.51. Found: C, 76.00; H, 11.65; N, 13.24. ¹H NMR (400 MHz, CDCl₃) δ (ppm): δ 7.30 (2H, s, CH), 7.01 (2H, s, CH), 4.41 (2H, m, CH₂), 1.76 (2H, m, CH₂), 1.24 (6H, m, CH₂), 0.84 (3H, t, CH₃). IR (ν_max/cm⁻¹): 1699, ν(C=N_im); 3333, ν(N-H).

2.3.3. Extraction Method

All the solvent-extraction experiments were carried out in a temperature-controlled laboratory at 25 (±1) °C. Equal volumes (5 mL) of 0.001 M metal ion solution (aqueous layer) and organic layer (contains the extractant, 2-octanol, shellsol 2325 and DNNDSA) were pipetted into 50 mL conical separating funnels. They were shaken with an automated orbital platform shaker for 30 min at an optimized speed of 200 rpm. A minimum period of 24 h was observed before harvesting the raffinates. The raffinates were filtered through a 33 mm millex-HV Millipore of 0.45 µm and diluted appropriately for analysis by AAS. The percentage extractions (%E) of the metal ions were calculated from the concentrations of the metal ions in the aqueous phase using the equation below:

$$\%\mathrm{E}=\left(\frac{\mathrm{C}\mathrm{i}-\mathrm{C}\mathrm{s}}{\mathrm{C}\mathrm{i}}\right)\times 100$$

(1)

where Ci is the initial solution concentration (mg/L) and Cs is the solution concentration after extraction. The extraction efficiencies were investigated as a function of pH, and all the extraction curves were plotted with the SigmaPlot 11.0 program.

2.3.4. Syntheses of Metal Complexes

Sulfonate Salts

The metal sulfonate salts were prepared by mixing 1:1 equimolar solution of toluene-4-sulfonic acid (RSO₃H) with potassium hydroxide in absolute ethanol to produce the potassium toluene-4-sulfonate salt. The potassium toluene-4-sulfonate salt was added to M(ClO₄)₂∙6H₂O (M = Ni²⁺, Co²⁺, Cu²⁺ and Zn²⁺) in absolute ethanol. The potassium perchlorate salt was removed by centrifugation and filtered. The solution was concentrated and allowed to stand at room temperature to obtain the metal sulfonate salts.

Ni(RSO₃)₂·6H₂O: Color: light green. Yield = 77%. M.p. = 244–246 °C. Anal. Calcd for C₁₄H₂₆CoO₁₂S₂ (%): C, 33.02; H, 5.15; S, 12.59. Found: C, 32.99; H, 5.01; S, 12.49. IR (cm⁻¹): 1000–1250, ν₃(SO₃).

Co(RSO₃)₂·6H₂O: Color: pale mauve. Yield = 76%. M.p. = 243–245 °C. Anal. Calcd for C₁₄H₂₆CoO₁₂S₂ (%): C, 33.01; H, 5.14; S, 12.59. Found: C, 32.94; H, 5.10; S, 12.53. IR (cm⁻¹): 1000–1250, ν₃(SO₃).

Cu(RSO₃)₂·6H₂O: Color: light blue. Yield = 78%. M.p. = 242–246 °C. Anal. Calcd C₁₄H₂₆CoO₁₂S₂ (%): C, 32.71; H, 5.10; S, 12.48. Found: C, 32.66; H, 5.06; S, 12.41. IR (cm⁻¹): 1000–1250, ν₃(SO₃).

Zn(RSO₃)₂·6H₂O: Color: white. Yield = 76%. M.p = 244–246 °C. Anal. Calcd C₁₄H₂₆CoO₁₂S₂ (%): C, 32.60; H, 5.08; S, 12.43. Found (%): C, 32.55; H, 5.03; S, 12.39. IR (cm⁻¹): 1000–1250, ν₃(SO₃).

Preparation of Sulfonate Complexes

The preparation of coordination complexes, [M(BIIM)₂(RSO₃)₂], was conducted in absolute ethanol under inert conditions. Hot ethanol solution (5 mL at 60 °C) containing 5 mmol of the ligand was added dropwise to 5 mL of the metal ion solution (1 mmol) of each metal ion. Toluene sulfonic acid (RSO₃H) (4 mmol) was added to dissolve the ligand. The mixture was heated at reflux overnight and precipitates were obtained, and these were filtered and washed with cold ethanol. A single crystal in the complex [Cu(BIIM)₂(RSO₃)₂] was obtained by slow diffusion of diethyl ether into the mother liquor in a desiccator at room temperature for about one month.

[Ni(BIIMH₂)₂(RSO₃)₂]: Color: green. Yield = 58%. M.p. = 243–246 °C. IR (cm⁻¹): 3311 ν(N-H), 1427 ν(C=N), 1332 ν(SO₃).

[Co(BIIMH₂)₂(RSO₃)₂]: Color: pink. Yield = 75%. M.p. = 241–244 °C. IR (cm⁻¹): 3333, ν(N-H); 1448, ν(C=N); 1321, ν(SO₃).

[Cu(BIIMH₂)₂(RSO₃)₂]: Color: green. Yield = 79%. M.p. = 245–247 °C. IR (cm⁻¹): 3323, ν(N-H); 1437, ν(C=N); 1322, ν(SO₃).

[Zn(BIIMH₂)₂](RSO₃)₂: Color: white. Yield = 65%. M.p. = 246–248 °C. IR (cm⁻¹): 1438, ν(C=N); 1343, ν(SO₃).

3. Results and Discussion

3.1. Synthesis and Characterization of 2,2′-Biimidazole and Extractants

The synthesis of 2,2′-biimidazole involves cyclization via a condensation reaction, and the alkylation of the ligand was achieved by a nucleophilic attack of alkylbromide by anionic imidazole to obtain the extractant. The purity of the products was investigated by microanalysis and confirmed by ¹H NMR.

The ¹H NMR spectrum of BIIMH₂ showed a peak at 7.13 ppm which was due to the four imidazole protons. The protons are chemically equivalent due to the C₂ symmetry of this compound. All ¹H NMR spectra of the ligand and extractants are provided in the Supplementary Materials (Figures S1–S6). The mono- and bis-alkylated biimidazole were successfully synthesized, and the appearance of the protons of the alkylated biimidazole at 7.01 and 7.30 ppm are in agreement with values found in the literature [11]. The appearance of peaks in the region of 0.070 to 4.5 ppm shows evidence of the connection of the alkyl chain to the imidazole nitrogen(s).

3.2. Solvent Extraction Studies

The extraction studies were carried out in a sulfate medium to define the optimal conditions for nickel(II) specificity. The conditions for the extraction of nickel(II) ions were optimized by investigating the essential concentration of the extractant, the concentration of the synergist (DNNDSA), the necessary alkyl chain substituent on imidazole and the effect of pH. Extractions required excess DNNDSA relative to quantities of dinonylnaphthalene sulfonic acid (DNNSA) used previously [3].

Figure S7 shows the effect of various mole ratios of Ni:OBIMH (1:25 to 1:40) on nickel(II) extraction. From these curves and the consequent data in Table S1, the ratio 1:30 showed a better extraction in terms of the steepness of the curve, i.e., a left-shifted curve and a slightly higher percentage extraction. For this reason, this metal to extractant molar ratio was chosen for the subsequent studies.

The involvement of DNNDSA as a synergist has been proven to be essential to this extraction method since there was a lack of extraction in its absence (Figure S8). This could be rationalized on the basis that the sulfate ions do not readily phase-transfer the cationic complexes formed in the extraction system from the aqueous to the organic layer. This is due to the high hydration energies offered by the sulfate ions [13]. Therefore, the application of DNNDSA, which is a bulky organic acid with very low pK_a values, eliminates the drawback posed by the sulfate ions. The role of the synergist (DNNDSA) is known to be that of an ion-pairing agent for the cationic metal ion complexes; therefore, the concentration of DNNDSA was investigated. Table S2 shows the extraction percentage as a function of pH. Initially low concentrations of DNNDSA were employed but this yielded low extraction efficiencies (Figure S9). The high concentrations resulted in significant extraction to the effect that 0.5 M was taken as optimal not because there was no further increase in %E with an increase in DNNDSA concentration but because the concentration used was already very high in comparison to the DNNSA used previously [3]. The use of such a high concentration could be expected to have negative effects on the selective extraction of Ni²⁺ ions.

DNNDSA can be expected to behave similarly to DNNSA in terms of its extraction behavior. In view of this, it is not expected to show any selectivity between metal ions, as was shown for DNNSA [3]. The DNNSA-only extractions do not show a separation of the extraction curves of the base metals’ ions as a function of pH (Table S3). This necessitates the use of a ligand that has been carefully designed to cause separation between the metal ions by exploiting the bonding preferences concerning coordination numbers, stereochemistry and type of bonding involved. Du Preez has coined the term stereochemical “tailor-making” to describe this effect [1]. This effect has been demonstrated in the separation of nickel and cobalt despite their similar coordination chemistry [14].

The optimized conditions for the concentration of the extractant (L) and co-extractant were a 1:30 Ni:L ratio for a 0.001 M nickel solution and 0.5 M for DNNDSA. The effect of the alkyl substituent on the extraction efficiencies is presented in Figure S10. It seems, from this investigation, that the octyl group gives the best extraction, as evidenced by higher percentage extraction (Table S4) and steepness of the curve. An investigation was also carried out to understand the effect of monoalkylated or bisalkylation on imidazole, and the monoalkylated OBIIMH showed better extraction compared with the bis-alkylated O₂BIIM (Figure S11, Table S5). The better performance (steeper curve) of OBIIMH was probably due to its less bulky nature, thus causing less entanglement of the alkyl chains with the neighboring imidazole.

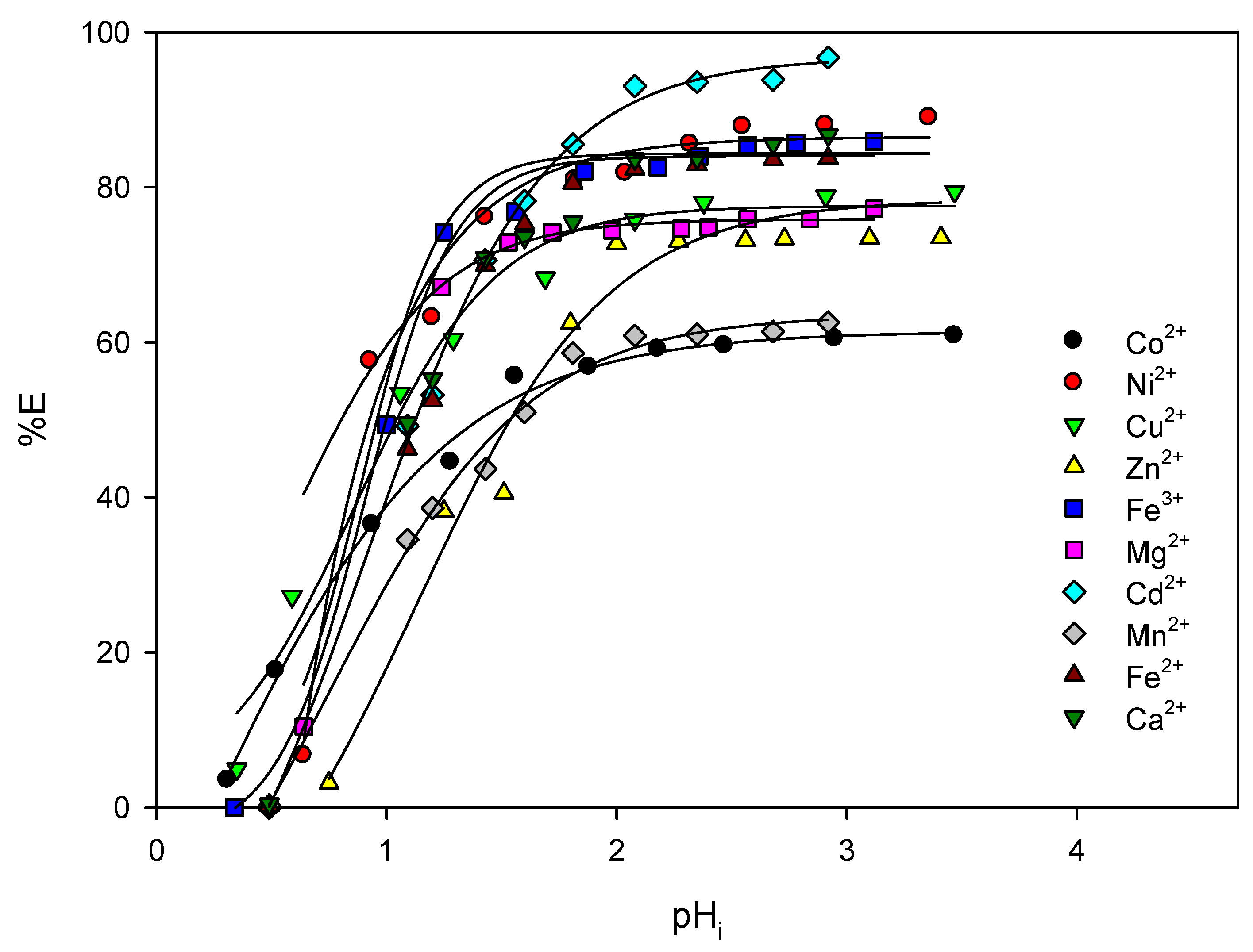

The extraction patterns of the other metal ions typically present in a leach concentrate, including Cu²⁺, Fe²⁺, Zn²⁺, Fe³⁺, Mn²⁺, Mg²⁺, Cd²⁺ and Ca²⁺, were investigated under the conditions that were optimized for the extraction of nickel(II) ion (Figure 2, Table S6). There was no rejection of the hard ions (Fe³⁺, Mn²⁺ and Ca²⁺) in the pH range under investigation, which does not coincide with the suggestion on the bonding nature of the aromatic nitrogenous ligands. The position of the copper extraction curve is rather surprising owing to the relatively higher acidic character of this metal ion, which should make it more reactive at the lower pH region. It is clear from the extraction pattern in Figure 2 that there is a lack of pH-metric separation of the metal ions, and the differences in %E may be influenced by the solubility of chelates formed which affect the distribution between the two phases.

In this solvent-extraction system, the protonation, complexation and phase distribution equilibria can be used to describe the system quantitatively with respect to the distribution ratio of a metal ion (Mⁿ⁺), and provide information on the coordination numbers involved in the extraction reaction [15]. The chelating agent (L) must distribute between the organic and aqueous phases to result in complexation in the aqueous phase, and that distribution coefficient is represented by K_D(L):

$$\left(\mathrm{L}\right){\mathrm{a}}_{ }\rightleftharpoons (\mathrm{L}{)}_{\mathrm{o}} \mathrm{and} K_{\mathrm{D}}(\mathrm{L})=\frac{\left[\mathrm{L}\right]\mathrm{o}}{\left[\mathrm{L}\right]\mathrm{a}}$$

(2)

However, in the aqueous phase, the following two protonation equilibria may exist depending on the pH:

$${{\mathrm{LH}}_2}^{2+}\rightleftharpoons {\mathrm{H}}^{+}+{\mathrm{LH}}^{+}, {K_a}_1=\frac{{\left[{\mathrm{H}}^{+}\right]}_{\mathrm{a}}{\left[{\mathrm{L}\mathrm{H}}^{+}\right]}_{\mathrm{a}}}{{\left[{{\mathrm{L}\mathrm{H}}_2}^{2+}\right]}_{\mathrm{a}}}$$

(3)

$${\mathrm{LH}}^{+}\rightleftharpoons {\mathrm{H}}^{+}+\mathrm{L}, \mathrm{and} {K_a}_2=\frac{{\left[{\mathrm{H}}^{+}\right]}_{\mathrm{a}}{\left[\mathrm{L}\right]}_{\mathrm{a}}}{{\left[{\mathrm{L}\mathrm{H}}^{+}\right]}_{\mathrm{a}}}$$

(4)

The metal ion chelates react with the neutral form of the ligand to form a cationic complex:

$${\mathrm{M}}^{\mathrm{n}+}+{\mathrm{mL}}^{ }\rightleftharpoons {{\mathrm{M}\mathrm{L}}_{\mathrm{m}}}^{\mathrm{n}+} \mathrm{and} K_f=\frac{{\left[{{\mathrm{M}\mathrm{L}}_{\mathrm{m}}}^{\mathrm{n}+}\right]}_{\mathrm{a}}}{{\left[{\mathrm{M}}^{\mathrm{n}+}\right]}_{\mathrm{a}}{\left[\mathrm{L}\right]}_{\mathrm{a}}^{\mathrm{m}}}$$

(5)

The chelate which is ion-paired by an anion (in this case sulfonate anions represented by Xⁿ⁻) to form an extractible species, [ML_m]X, distributes itself between the organic and aqueous phases:

$$({{\mathrm{M}\mathrm{L}}_{\mathrm{m}}}^{\mathrm{n}+}{)}_{\mathrm{a}}+{\left({{\mathrm{X}}^{\mathrm{n}}}^{-}\right)}_{\mathrm{o}/\mathrm{a}} \rightleftharpoons ({\mathrm{ML}}_{\mathrm{m}}\mathrm{X}{)}_{\mathrm{o}}, \mathrm{and} K_{\mathrm{D}}({{\mathrm{M}\mathrm{L}}_{\mathrm{m}}}^{\mathrm{n}+})=\frac{\left[{\mathrm{M}\mathrm{L}}_{\mathrm{m}}\mathrm{X}\right]\mathrm{o}}{\left[{{\mathrm{M}\mathrm{L}}_{\mathrm{m}}}^{\mathrm{n}+}\right]\mathrm{a}}$$

(6)

The distribution ratio (D), defined as the ratio of the concentration of the total metal species in the organic phase to that in the aqueous (regardless of its mode), is given by Equation (7), on the assumption that the metal chelate distributes largely in the organic phase and that the metal ion does not hydrolyse in the aqueous phase.

$$\mathrm{D} \approx \frac{[{{\mathrm{M}\mathrm{L}}_{\mathrm{m}}\mathrm{X}]}_{\mathrm{o}}}{[{{\mathrm{M}}^{\mathrm{n}+}]}_{\mathrm{a}}}$$

(7)

Substituting Equations (5) and (6), respectively, into Equation (7) yields Equation (8), depicting the formation constant and the concentration of the ligand in the aqueous phase as important parameters as well as the distribution coefficient of the chelate:

$$\mathrm{D}=K_{\mathrm{D}}({{\mathrm{M}\mathrm{L}}_{\mathrm{m}}}^{\mathrm{n}+}) K_f {\left[\mathrm{L}\right]}_{\mathrm{a}}^{\mathrm{m}}$$

(8)

Equation (8) can be transformed to Equation (9) if Equation (2) is substituted, indicating that the concentration of L in the aqueous phase is dependent on its concentration in the organic phase and that its distribution between the two phases affects the distribution ratio of the complex formed:

$$\mathrm{D}=\frac{K_{\mathrm{D}}\left({{\mathrm{M}\mathrm{L}}_{\mathrm{m}}}^{\mathrm{n}+}\right) K_{\mathrm{f}} }{{K_{\mathrm{D}}\left(\mathrm{L}\right)}^{\mathrm{m}}}{\left[\mathrm{L}\right]}_{\mathrm{o}}^{\mathrm{m}}$$

(9)

However, since the extractions are carried out at a low pH, it is necessary to consider the two protonation equilibria, respectively, because these species occur over a wide pH range, and competition of metal ions with protons for the ligand occurs early with pH due to the higher formation constants and the relatively low protonation constants (Section 3.3). Now, substituting Equations (3) and (4), respectively, into Equation (9) yields the following respective Equations (10) and (11):

$$\mathrm{D}=K_{\mathrm{D}}({{\mathrm{M}\mathrm{L}}_{\mathrm{m}}}^{\mathrm{n}+}) K_f {K_{\mathrm{a}2}}^{\mathrm{m}} \frac{{\left[{\mathrm{L}\mathrm{H}}^{+}\right]}_{\mathrm{a}}^{\mathrm{m}}}{{\left[{\mathrm{H}}^{+}\right]}_{\mathrm{a}}^{\mathrm{m}}}$$

(10)

$$\mathrm{and} \mathrm{D}=K_{\mathrm{D}}({{\mathrm{M}\mathrm{L}}_{\mathrm{m}}}^{\mathrm{n}+}) K_f {K_{\mathrm{a}2}}^{\mathrm{m}} {K_{a1}}^{\mathrm{m}} \frac{{\left[{\mathrm{L}{\mathrm{H}}_2}^{2+}\right]}_{\mathrm{a}}^{\mathrm{m}}}{{\left[{\mathrm{H}}^{+}\right]}_{\mathrm{a}}^{2\mathrm{m}}}$$

(11)

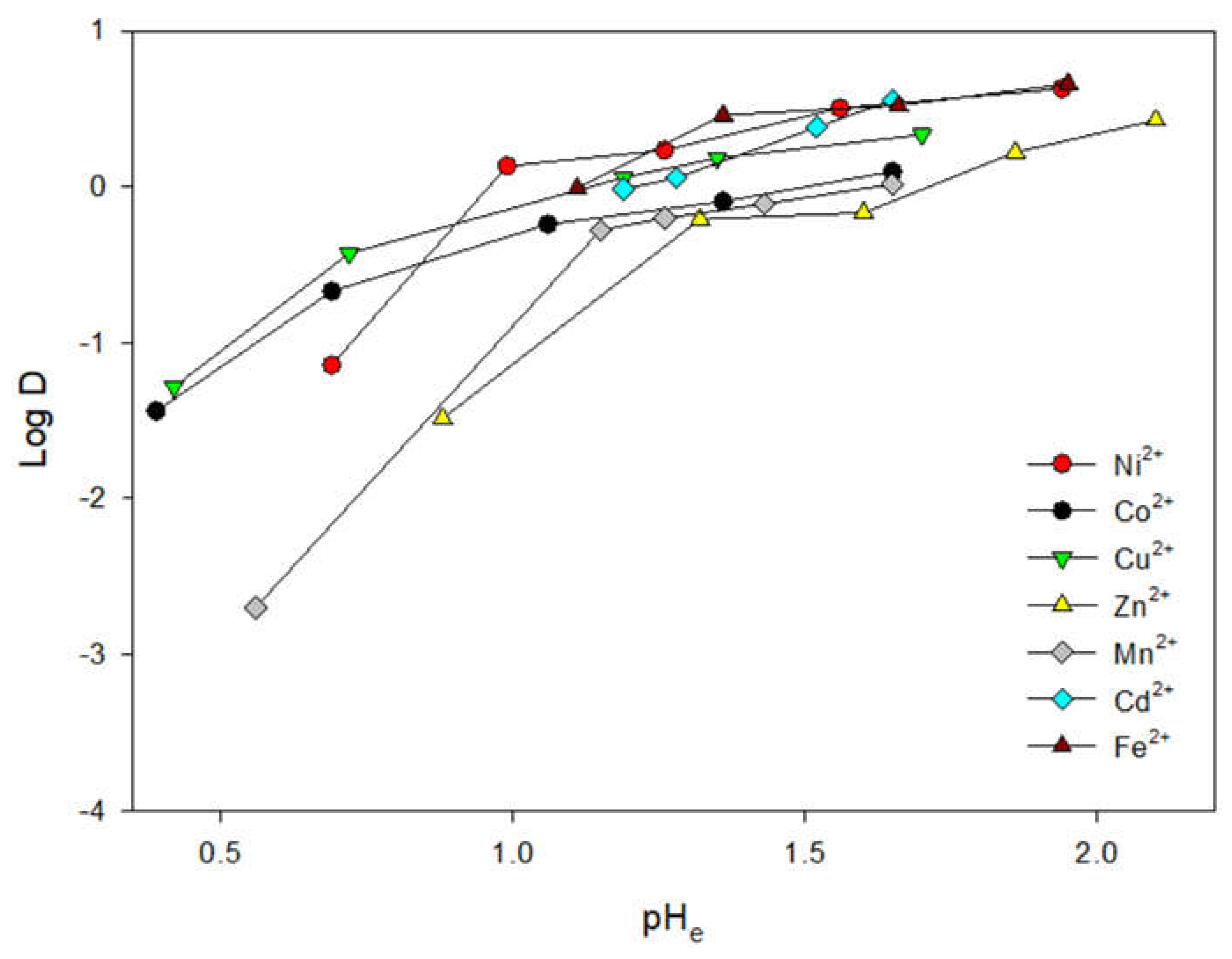

Therefore, in the pH range where the monoprotonated species and a free ligand (Equation (4)) are involved, then a plot of log D vs. pH (from taking the logarithms of both sides in Equation (10)) should yield a straight line with slope m (number of ligands bonded to the metal ion Mⁿ⁺). But in the highly acidic region where the second proton equilibrium (Equation (3)) is also active, then a plot of log D vs. pH (from Equation (11)) should yield a straight line with slope 2 m. It is therefore not surprising that the slope of the plots is steeper in the lower pH range and flattens to about 2 as the pH increases (Figure 3). This accounts for the two-stage protonation, as a higher proportion of the ligand will be monoprotonated with an increase in pH. Therefore, bis coordination (m ≈ 2) of 2,2′-biimidazole is supported by the extraction data.

3.3. Solution Complexation Studies

The ligand exhibits a two-stage protonation/deprotonation process and the highest log K_a1 = 5.96 (at 25 °C) and the lowest value correspond to the protonation/deprotonation of the second imidazole group (log K_a2 = 3.25 at 25 °C). Therefore, the loss of the first proton of the diprotonated species happens with ease and at a relatively low pH. The bidentate character in coordination was evidenced by the high formation constants that were calculated for the formation of the metal ion complexes with BIIMH₂ (

Table 1. Protonation and stability constants (logβ) for the interaction of BIIMH₂ with base metal ions as determined in 10% ethanol in water at I = 0.10 M NaClO₄ and 25 (±0.1) °C.

Constant	Reaction	p q r	BIIMH2	Ni2+	Co2+	Cu2+	Zn2+
logβ1	LH+ = H+ + L	0 1 1	5.96(5)
logβ2	LH22+ = 2H+ + L	0 1 2	9.21(5)
logβ110	M2+ + L = [ML]2+	1 1 0		5.6(2)	5.3(2)	#	5.2(1)
logβ120	M2+ + 2L = [ML2]2+	1 2 0		10.7(1)	10.3(3)	10.9(2)	10.6(1)

p, q and r refer to the coefficients of the species in the order of metal, ligand and proton. # = constant could not be calculated from current potentiometric data.

). The overall second stability constants are of the order Cu²⁺ (10.9) > Ni²⁺ (10.7) > Zn²⁺ (10.6) > Co²⁺ (10.3). This is not strictly the same order that was observed in the extraction curves at least for Ni²⁺ and Cu²⁺ (Figure 4), but these measure values are within the range of experimental error from one another. Nonetheless, this result shows that there is no relative stability preference between BIIMH₂ and the base metal ions. Therefore, this extraction system is possibly governed by similar thermodynamics of complexation and results in a lack of pH-metric separation of the metal ions.

3.4. Synthesis and Characterization of Metal Complexes

A solution of toluene-4-sulfonic acid (RSO₃H) (10 mmol) was mixed with an equimolar amount of potassium hydroxide (10 mmol) in absolute ethanol to produce toluene-4-sulfonate salt, which was filtered and left to dry at room temperature.

$${\mathrm{RSO}}_3\mathrm{H}+\mathrm{KOH} \rightleftharpoons {\mathrm{K}}^{+} {{\mathrm{RSO}}_3}^{-}+{\mathrm{H}}_2\mathrm{O} \left(\mathrm{R}=\mathrm{toluene}\right)$$

(12)

$$2{\mathrm{K}}^{+} {{\mathrm{RSO}}_3}^{-}+\mathrm{M}({\mathrm{ClO}}_4{)}_2 \rightleftharpoons \mathrm{M}({\mathrm{RSO}}_3{)}_2 +2{\mathrm{KClO}}_4\left(\mathrm{s}\right)$$

(13)

The metal sulfonates were formed from metal perchlorates, and the resulting potassium perchlorate was filtered out of solution before concentrating the metal sulfonates. Microanalaysis data supported the formation of the hexahydrate compounds M(RSO₃)₂·6H₂O. The sulfonate salts were then used to synthesize the 2,2′-biimidazole complexes, and these were chareacterized by melting point, FTIR, electronic spectroscopy and single crystal X-ray crystallography. The melting points for both the metal sulfonate salts and complexes are surprisingly similar (243–248 °C).

3.4.1. Spectroscopic Characterization

The characteristic υ(N-H) frequencies as well as the υ(C=N) were found in the ranges 3311–3343 cm⁻¹ and 1427–1448 cm⁻¹, respectively, signifying the presence of coordinated imidazole in the complexes [16]. The presence of the sulfonate group is indicated by the ν(SO₃) in the range 1321–1343 cm⁻¹.

The electronic spectrum of the nickel(II) complex showed three d-d transitions at 350–400 nm, 510–650 nm and 820–1180 nm, respectively (Figure S12). These were assigned to the ³T_1g(P) ← ³A_2g(F), ³T_1g(F) ← ³A_2g(F) and ³T_2g(F) ← ³A_2g(F) transitions, which are typical of an octahedral nickel(II) complex [17]. For the Co(II) complex, bands were observed at 350–385 nm, 420–580 nm and 1000–1400 nm, which may be ascribed to ⁴T_1g(P) ← ⁴T_1g(F), ⁴A_2g(F) ← ⁴T_1g(F) and ⁴T_2g(F) ← ⁴T_1g(F), respectively, for octahedral symmetry [18]. The electronic spectrum of the Cu(II) complex showed two bands at 360–560 nm and 590–1000 nm. In the D_4h symmetry, the ²T_2g level in octahedral geometry splits into ²E_g + ²B_2g, while the higher ²E_g level is unaffected. The transitions are expected to correspond to ²B_2g ← ²E_g and ²E_g ← ²E_g levels, respectively, for a distorted octahedral Cu(II) complex [19].

3.4.2. X-ray Crystallography

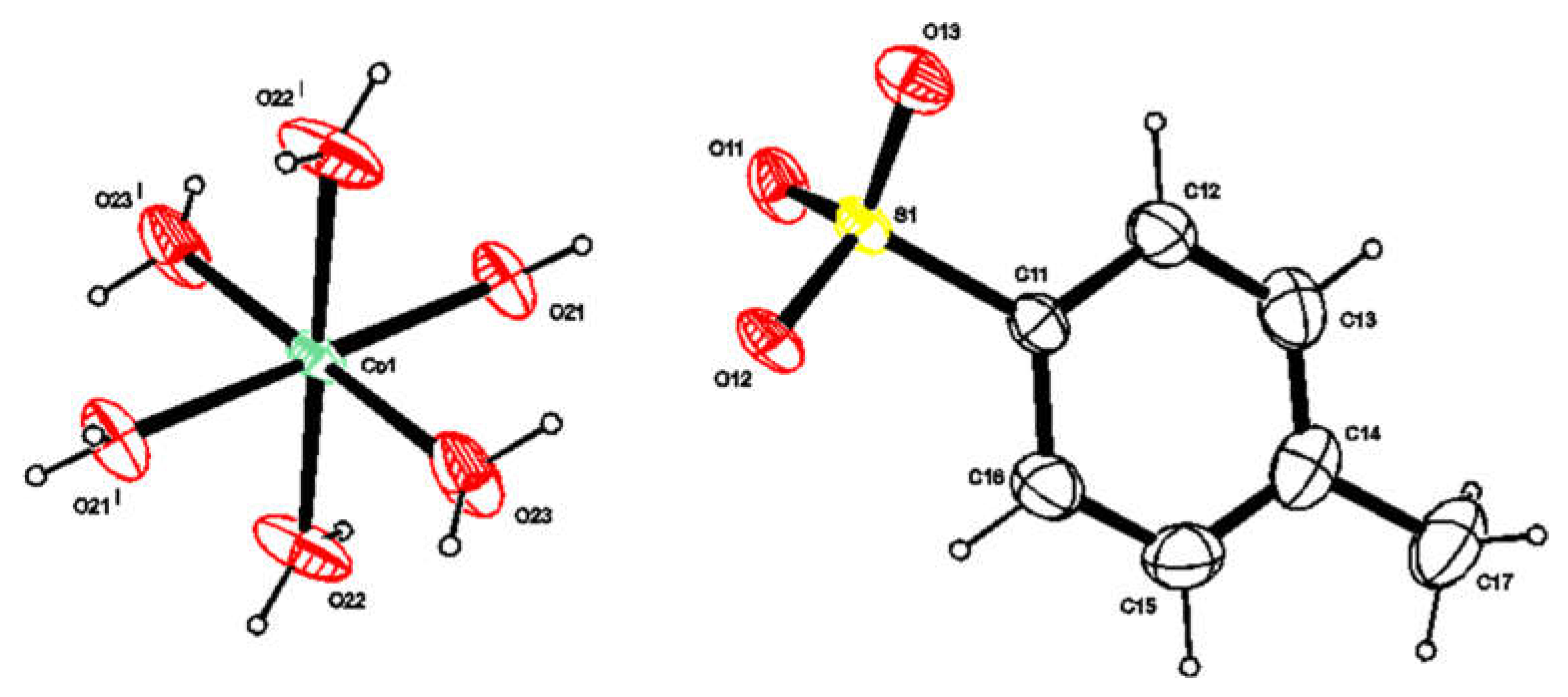

The ORTEP diagrams of Co(RSO₃)₂·6H₂O and [Cu(BIIMH₂)₂(RSO₃)₂] are illustrated in Figure 4, Figure 5 and Figure 6, respectively. Selected crystallographic data are presented in

Table 2. Selected crystallographic data for Co(RSO₃)₂·6H₂O and [Cu(BIIM)₂(RSO₃)₂.

Compound	Co(RSO3)2·6H2O	[Cu(BIIM)2(RSO3)2]
Chemical formula	C14H26CoO12S2	C26H26CuN8O6S2
Formula weight	509.40	674.24
Crystal color	pink	green
Crystal system	monoclinic	monoclinic
Space group	P21/n(14)	P21/c
Temperature (K)	200	200
Crystal size (mm−3)	0.06 × 0.21 × 0.37	0.06 × 0.21 × 0.37
ɑ (Å)	6.9503(5)	12.3968(4)
b (Å)	6.2936(5)	11.7452(3)
c (Å)	25.030(2)	9.7878(3)
ɑ (°)	90	90
β (°)	90.944(3)	91.721(2)
ɣ (°)	90	90
V (Å)	1094.72(15)	1424.49(7)
Z	2	2
Dcalc (g cm3)	1.545	1.572
μ/mm−1	1.031	0.970
F (000)	530	694
Theta min–max (°)	3.0, 28.4	2.4, 28.3
S	1.35	1.06
Tot., Uniq. data, R(int)	27465, 2747, 0.023	34565, 3551, 0.019
Observed data [I > 2.0σ(I)]	2638	3149
R	0.0653	0.0256
Rw	0.1486	0.0756

, and selected bond lengths and angles are in

Table 3. Selected bond lengths (Å) and angles (°) for Co(RSO₃)₂·6H₂O and [Cu(BIIMH₂)₂(RSO₃)₂].

Bond Lengths
Co(RSO3)2·6H2O		[Cu(BIIMH2)2(RSO3)2]
Co1-O21	2.046(3)	Cu1-O21	2.4302(11)
Co1-O22	2.077(4)	Cu1-N13	2.0216(12)
Co1-O23	2.076(4)	Cu1-N11′	2.0202(12)
S1-O11	1.455(4)	Cu1-N11	2.0202(12)
S1-O12	1.452(3)	Cu1-O21′	2.4302(11)
S1-O13	1.452(4)	Cu1-N13′	2.0216(12)
Bond angles
Co(RSO3)2·6H2O		[Cu(BIIMH2)2(RSO3)2]
O21-Co1-O23	90.81(14)	O21-Cu1-N11	91.34(4)
O21-Co1-O23_a	89.19(14)	O21-Cu1-O21′	180.00
O21-Co1-O21_a	180.00	O21-Cu1-N13′	91.39(4)
O21-Co1-O22_a	88.90(14)	O21′-Cu1-N11	88.66(4)
O21_a-Co1-O22	88.90(14)	N11-Cu1-N13′	97.92(5)
O22-Co1-O22_a	180.00	N11′-Cu1-N13	97.92(5)
O22-Co1-O23	92.59(16)	O21′-Cu1-N11′	91.34(4)
O22-Co1-O23_a	87.41(16)	N11′-Cu1-N13′	82.08(5)
O21_a-Co1-O23	89.19((14)	O21-Cu1-N11′	88.66(4)
O22_a-Co1-O23	87.41(16)	N11-Cu1-N13	82.08(5)
O23-Co1-O23_a	180	N11-Cu1-N11′	180.00
O21_a-Co1-O22_a	91.11(14)	O21′ -Cu1-N13	91.39(4)
O21_a-Co1-O23_a	90.81(14)	N13-Cu1-N13′	180.00
O22_a-Co1-O23_a	92.59(16)	O21′-Cu1-N13′	88.61(4)

. It appeared that there were traces of twinning in Co(RSO₃)₂·6H₂O (<2%) but attempts to take the twinning into account were unsuccessful. The CCDC deposition numbers are CCDC 2210845 and 2210846, respectively. The hexa-aqua Co(II) complex in the Co(RSO₃)₂·6H₂O structure is centrosymmetric, with extensive hydrogen interactions between the coordinated water molecules and the sulfonate groups (Figure 4). These interactions link adjacent complexes in a 2D network parallel to the ab (0 0 1) plane (Figure S13) and are presented in

Table 4. Hydrogen interactions for Co(RSO₃)₂·6H₂O.

D―H…A	D―H (Å)	H…A (Å)	D…A (Å)	D―H…A (°)	Symmetry
O21―H21A…O11	0.81	1.92	2.731(5)	173
O21―H21B…O13	0.77	1.98	2.752(5)	173	1 + x, y, z
O22―H22A…O13	0.78	1.99	2.766(5)	175	1 + x, −1 + y, z
O22―H22B…O12	0.90	1.93	2.803(5)	165	1 + x, y, z
O23―H23A…O11	0.75	2.01	2.762(5)	175	x, −1 + y, z
O23―H23B…O12	0.85	1.95	2.790(5)	170

. The ring interactions are also presented in

Table 5. Short ring interactions for Co(RSO₃)₂·6H₂O. Cg1 is the centroid of C11–C16.

	Cg…Cg (Å)	Dihedral Angle (°)	Symmetry
Cg1…Cg1	4.924(3)	37.5(3)	−1/2−X, −1/2 + Y, 1/2−Z
Cg1…Cg1	4.988(3)	37.5(3)	1/2−X, 1/2 + Y, 1/2−Z

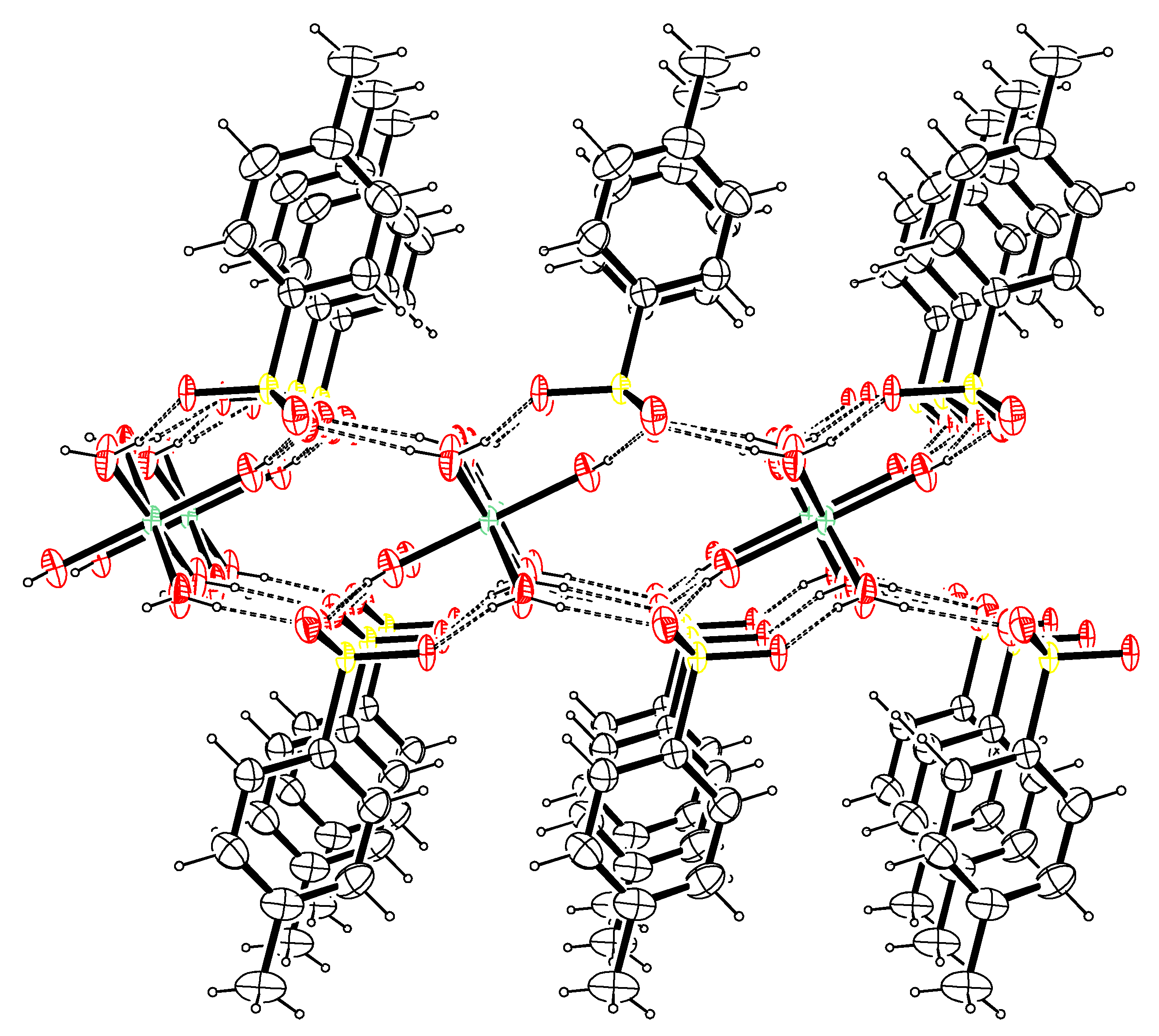

and exhibit infinite stacked interactions parallel to the a axis. There is a slight shortening of the bonds of the axial ligands (Co-O21 = 2.046(4)) Å in the hexa-aqua complex, while the equatorial bonds have lengths of 2.075(4) Å (Figure 5), and this is perhaps due to strong supramolecular interactions that are experienced in tosylate complexes [20,21,22].

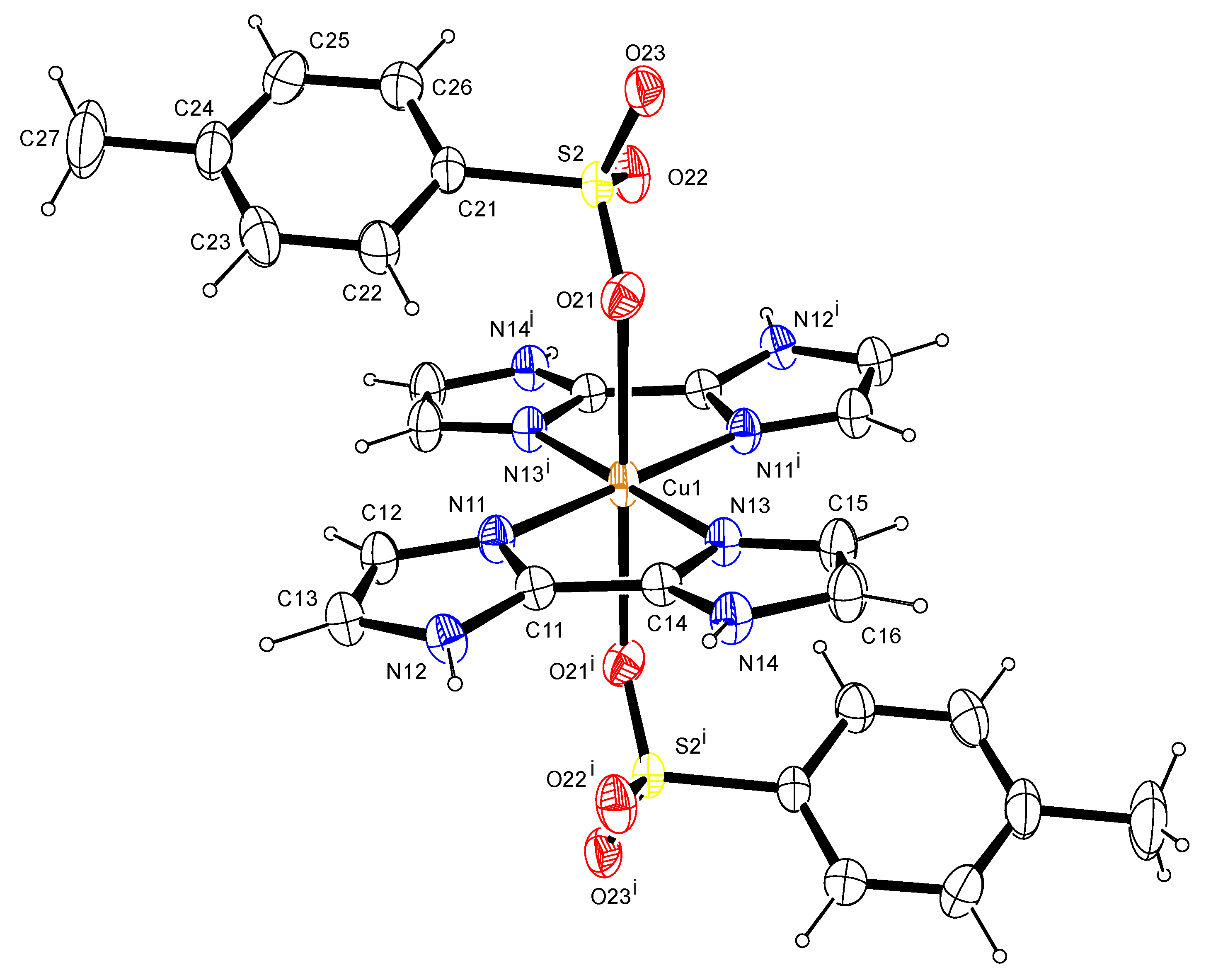

[Cu(BIIMH₂)₂(RSO₃)₂] is centrosymmetric, with the central copper(II) atom surrounded by two BIIMH₂ ligands and two oxygen atoms of the sulfonate anions (Figure 6). The geometry of the complex is distorted octahedral, with the equatorial plane formed by the four imidazole nitrogen atoms, while oxygen atoms of the sulfonate anions occupy the apical positions. The equatorial distances for the copper complex are Cu1-N11 and Cu-N11′ = 2.020(1) Å and Cu1-N13 and Cu1-N13′ = 2.0202(1) Å, while the axial Cu1-O21 and Cu1-O21′ distance is 2.430(1) Å. This is typical of a Jahn–Teller distorted copper(II) complex [15]. The majority of Cu(II) complexes are tetragonally distorted. The Cu-N and Cu-O bond lengths fall in the range normally observed for distorted octahedral copper(II) compounds [15,16,23]. The solid-state structure is in support of the observation of bis coordination observed in the extraction and in solution studies, as has been noticed previously [24], but this phenomenon is not always correlated due to differences in energetics of the solution vs. solid-state structures [25]. The solution/extraction studies and the electronic spectroscopic study, which suggested distorted octahedral complexes form with base metals, allowed us to conclude that the complexes are probably isostructural.

The two uncoordinated pyrrole-type nitrogens of the BIIMH₂ ligands both have hydrogen interactions (

Table 6. Hydrogen interactions for [Cu(BIIMH₂)₂(RSO₃)₂].

D―H…A	D―H (Å)	H…A (Å)	D…A (Å)	D―H…A (°)	Symmetry
N12―H12…O23	0.90(2)	1.91(2)	2.8092(17)	177.3(19)	1−x, 1/2 + y, 1/2−z
N14―H14…O22	0.884(19)	1.866(19)	2.7332(16)	166.7(17)	1−x, 1/2 + y, 1/2−z
C13―H13…O21	0.95	2.51	3.1983(18)	130	x, 3/2−y, 1/2 + z

) with a neighboring sulfonate ligand linking adjacent complexes in an infinite 2D network parallel to the bc (1 0 0) plane (Figure S14). This structure also exhibits extensive ring interactions with the shortest centroid-to-centroid distance of 3.8561(9) Å (

Table 7. Short ring interactions for [Cu(BIIMH₂)₂(RSO₃)₂]. Cg1 is the centroid of N13, C14, N14, C16 and C15; Cg2 is the centroid of N11, C11, N12, C13 and C12; Cg3 is the centroid of C21–C26.

	Cg…Cg (Å)	Dihedral Angle (°)	Symmetry
Cg1…Cg2	3.8561(9)	16.87(9)	X, 3/2−Y, −1/2 + Z
Cg1…Cg3	4.5989(9)	35.97(8)	1−X, 1−Y, 1−Z

) between BIIMH₂ ligands forming an infinite 2D network parallel to the bc (1 0 0) plane.

4. Conclusions

A bidentate N,N’-donor imidazole-based ligand, 2,2′-biimidazole (BIIMH₂), was applied as an extractant for extraction of base metal ions in an acidic sulfate medium. 1-Octyl-2-(2′-biimidazole) (OBIIMH), as a representative extractant, was applied in a solvent system, with dinonylnaphthalene disulfonic acid (DNNDSA) as a synergist. This study has established empirical evidence for the lack of separation of base metals in this system. Authors investigated the underlying chemistry and the findings from this study supported the lack of stereochemical “tailor-making” as a reason for the lack of pH-metric separation of base metals. It appears that the base metal complexes formed are isostructural with bis coordination of the bidentate ligand and inner sphere coordination of the sulfonate ions, and the complex formation constants are also similar, suggesting similar energetics of complexation. Of particular note is the non-innocent nature of bonding of the sulfonate ion instead of ion-pairing to form outer-sphere complexes.
