Structures and Energetic Properties of Two New Salts Comprising the 5,5'-Azotetrazolate Dianion

by
Raik Deblitz
,
Cristian G. Hrib
and
Frank T. Edelmann
*
Chemisches Institut der Otto-von-Guericke-Universität Magdeburg, Magdeburg 39106, Germany
*
Author to whom correspondence should be addressed.
Crystals 2015, 5(3), 405-417; https://doi.org/10.3390/cryst5030405
Submission received: 31 July 2015 / Revised: 27 August 2015 / Accepted: 8 September 2015 / Published: 18 September 2015
(This article belongs to the Special Issue Energetic Materials)
Browse Figures
Versions Notes

Abstract

:
Two new potentially energetic salts comprising the 5,5'-azotetrazolate dianion have been prepared and structurally characterized. The new azotetrazolates are tetraphenylphosphonium-5,5'-azotetrazolate (1) and 1H-1,2,4-triazole-1-carboxamidine-5,5'-azotetrazolate (2). The crystal structures of both compounds have been determined by single-crystal X-ray diffraction and their energetic properties have been tested. Due to its high nitrogen-content of 73.14%, compound 2 was found to be significantly impact-sensitive.

1. Introduction

Nitrogen-rich energetic salts form an important class of explosive compounds. Several significant advantages such as high heats of combustion, high propulsive power, high specific impulse, as well as smokeless combustion make them highly useful as propellants, explosives, and pyrotechnics [1,2,3,4,5,6]. Among the most widely used nitrogen-rich anions is the 5,5'-azotetrazolate dianion, C2N102–, which was first reported by Thiele as early as 1898 [7]. The structural chemistry of 5,5'-azotetrazolate with various metals [8,9,10,11,12,13,14,15,16,17,18] as well as nitrogen- or phosphorus-containing cations [19,20,21,22,23,24,25,26,27,28,29,30,31,32,33] has been thoroughly investigated. We report here the synthesis and structural characterization of two new azotetrazolate salts, tetraphenylphosphonium-5,5'-azotetrazolate (1) and 1H-1,2,4-triazole-1-carboxamidine-5,5'-azotetrazolate (2).

2. Results and Discussion

2.1. Synthesis and Characterization of Tetraphenylphosphonium-5,5'-azotetrazolate (1)

The starting material, hydrated disodium-5,5'-azotetrazolate, Na2C2N10·5H2O, was prepared according to the original protocol described by Thiele by oxidation of 1-aminotetrazole with KMnO4 in boiling sodium hydroxide solution [7]. A salt metathesis reaction of Na2C2N10·5H2O with 2 equiv. of tetraphenylphosphonium chloride in water according to Scheme 1 afforded tetraphenylphosphonium-5,5'-azotetrazolate, [PPh4]2[C2N10]·4H2O (1), in 78% isolated yield. The reaction initially produced an amorphous yellow precipitate, which was isolated by filtration and dried in air. Recrystallization from a minimum amount of reagent grade acetone afforded yellow, prism-shaped single-crystals which were found to be suitable for X-ray diffraction (Figure 1).
Crystals 05 00405 g012 1024

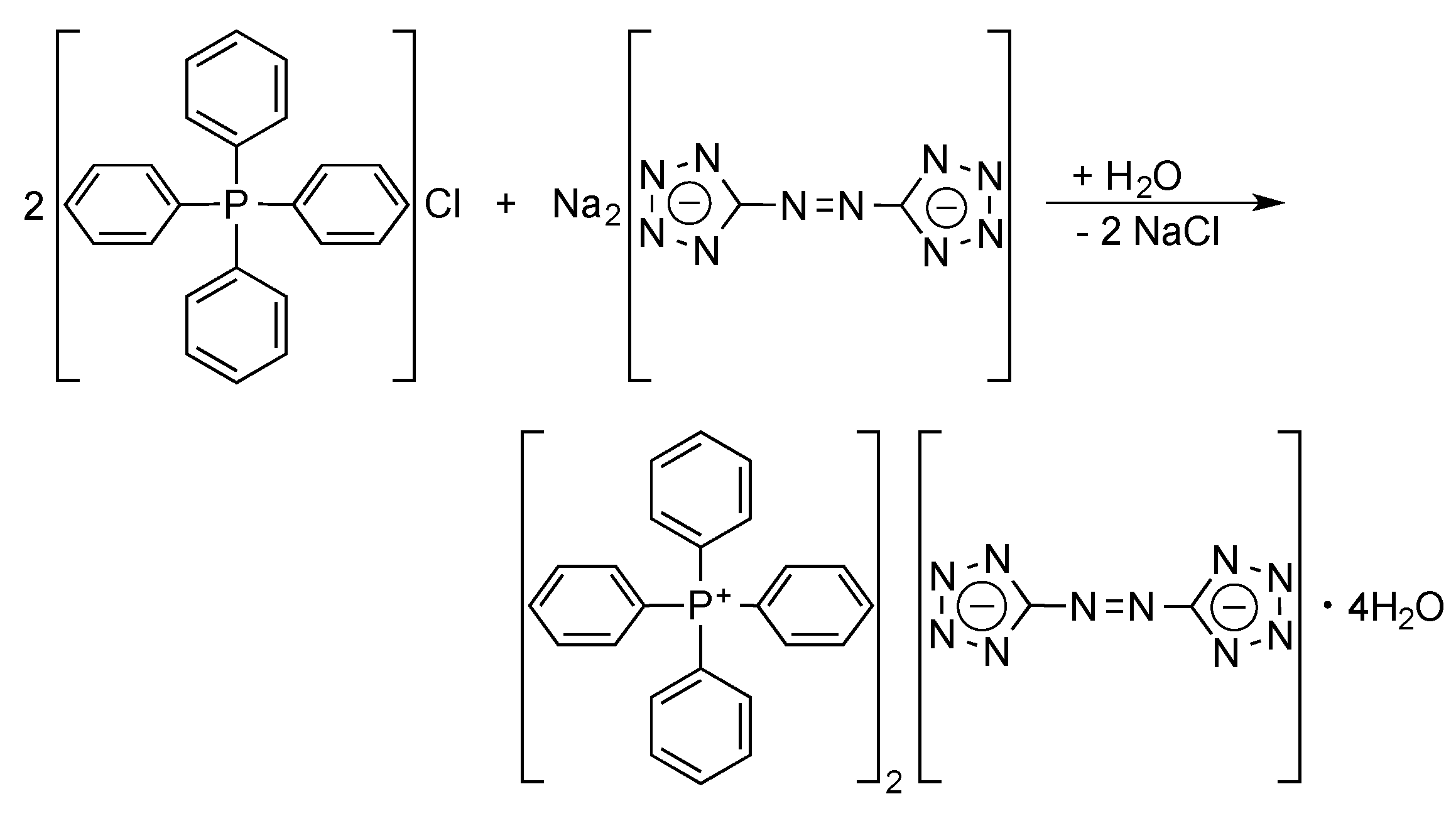

Scheme 1. Preparation of tetraphenylphosphonium-5,5'-azotetrazolate (1).
Scheme 1. Preparation of tetraphenylphosphonium-5,5'-azotetrazolate (1).
Crystals 05 00405 g012
Crystals 05 00405 g001 1024

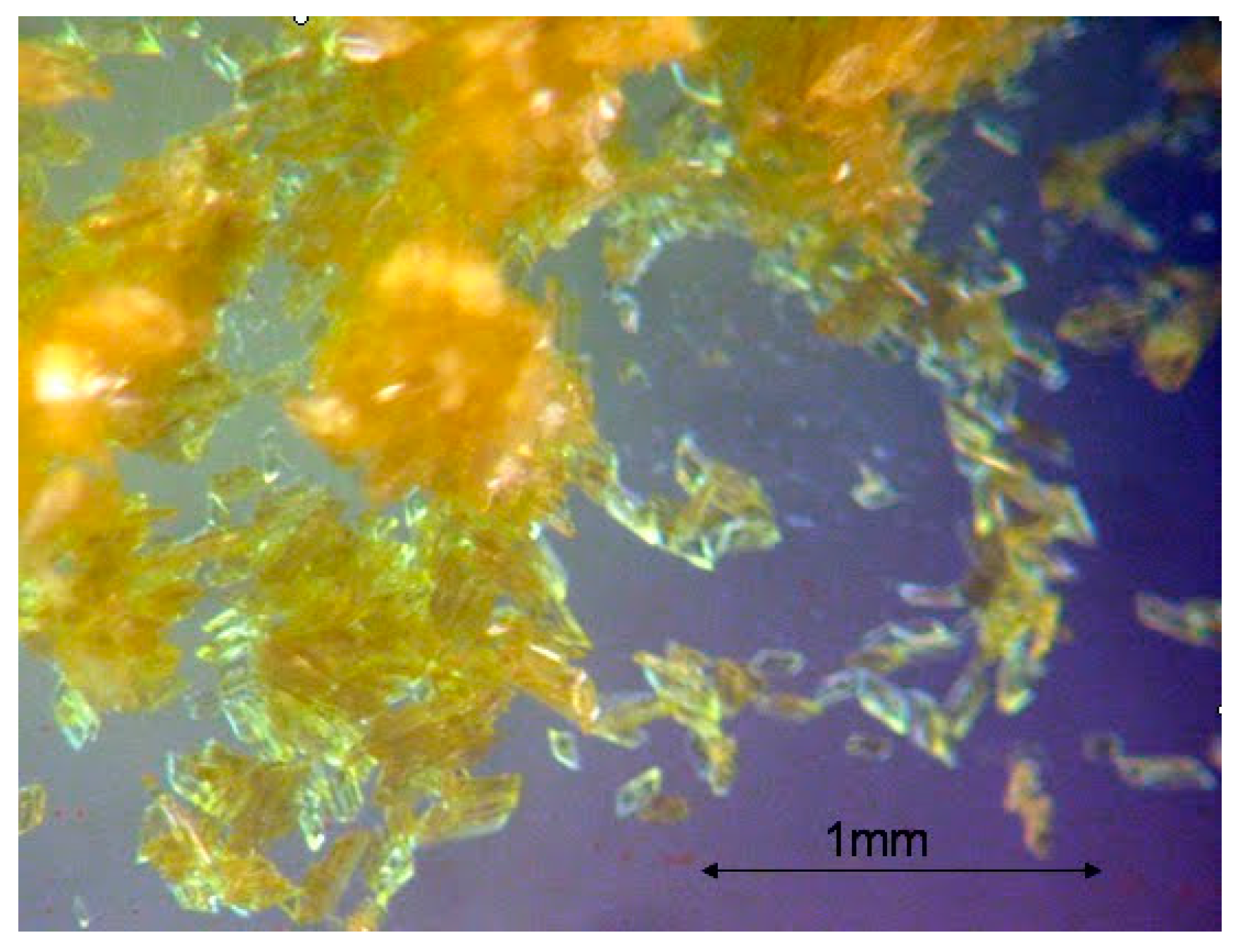

Figure 1. Crystals of tetraphenylphosphonium-5,5'-azotetrazolate (1).
Figure 1. Crystals of tetraphenylphosphonium-5,5'-azotetrazolate (1).
Crystals 05 00405 g001
Tetraphenylphosphonium-5,5'-azotetrazolate (1) was fully characterized through IR and NMR (1H, 13C, 31P) spectroscopy as well as single-crystal X-ray diffraction. Both the 1H and 13C NMR spectra were in good agreement with the expected structure. For example, the 1H NMR spectrum showed a multiplet at δ 7.95 ppm for the phenyl hydrogens in para-position and a broad multiplet at δ 7.83–7.67 ppm attibutable to the ortho- and meta-phenyl protons. The 31P NMR spectrum showed a single resonance at δ 23 ppm. In the IR spectrum, a strong band at 1374 cm−1 can be assigned to the asymmetric N–C=N stretching vibration of the tetrazole ring, while a strong band at 724 cm−1 is characteristic for the asymmetric C–N=N stretching vibration of the azotetrazolate dianion [19,20,21,22,23,24,25,26,27,28,29,30,31,32,33].
A single-crystal X-ray diffraction study of 1 revealed that the compound crystallizes as the tetrahydrate [PPh4]2[C2N10]·4H2O in the triclinic space group Pī. Figure 2 shows the molecular structure of 1 along with selected bond lengths and angles. Table 1 lists the crystallographic data and structure refinement details for the title compounds.
Crystals 05 00405 g002 1024

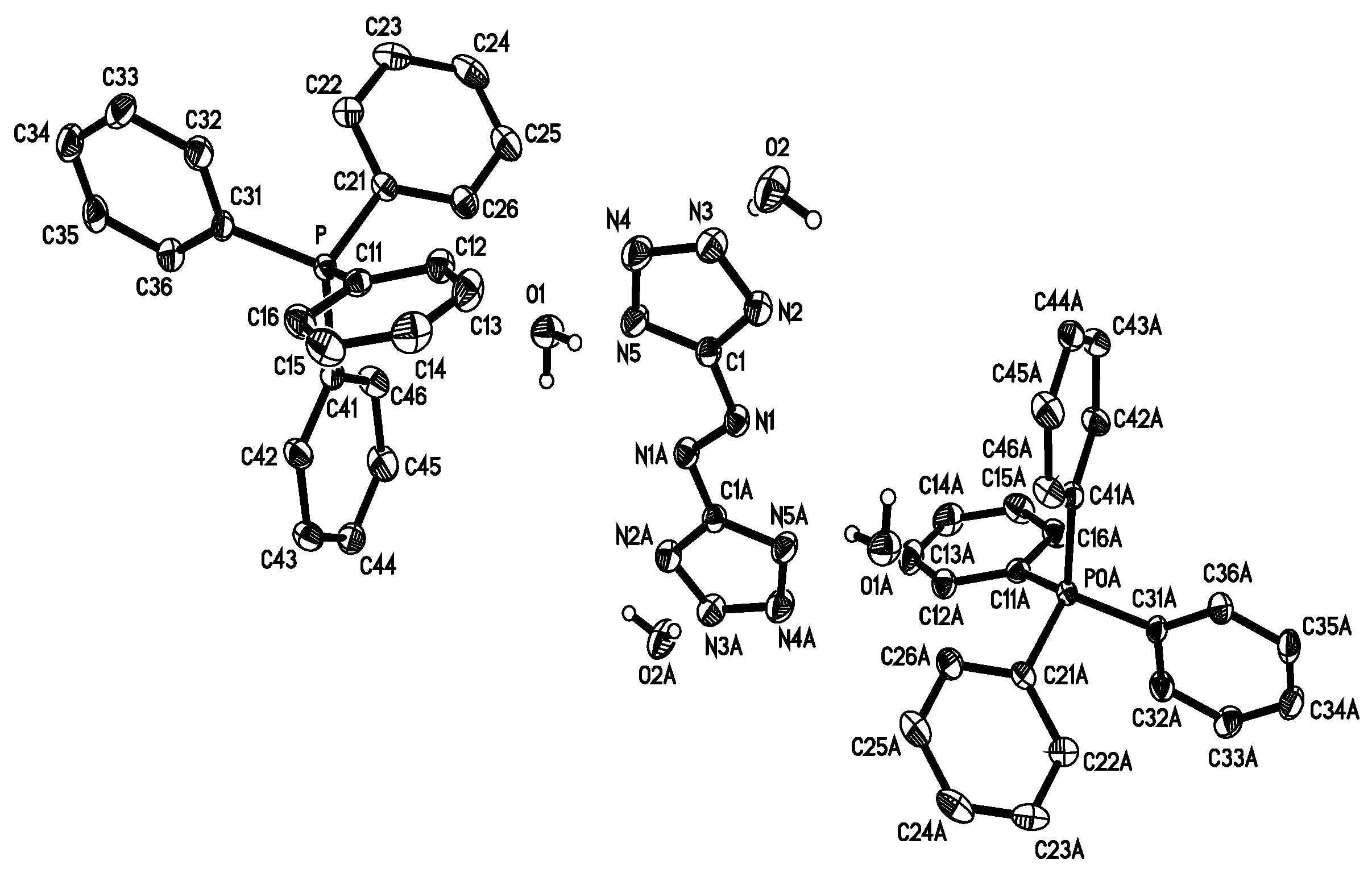

Figure 2. Molecular structure of 1 in the crystal, showing the atom-labeling scheme. Displacement ellipsoids are drawn at the 50% probability level. Selected bond lengths (Å) and angles (°): N(1)–N(1A) 1.256(4), N(2)–N(3) 1.338(3), N(3)–N(4) 1.326(3), N(4)–N(5) 1.347(3), C(1)–N(1) 1.404(3), C(1)–N(2) 1.335(3), C(1)–N(5) 1.332(3); C(11)–P–C(4) 108.14(11), C(21)–P–C(41) 109.13(12), C(31)–P–C(21) 108.10(12), C(31)–P–C(11) 107.82(11), C(21)–P–C(11) 112.47(11), C(31)–P–C(41) 111.20(11) (#1 –x + 1, –y, –z).
Figure 2. Molecular structure of 1 in the crystal, showing the atom-labeling scheme. Displacement ellipsoids are drawn at the 50% probability level. Selected bond lengths (Å) and angles (°): N(1)–N(1A) 1.256(4), N(2)–N(3) 1.338(3), N(3)–N(4) 1.326(3), N(4)–N(5) 1.347(3), C(1)–N(1) 1.404(3), C(1)–N(2) 1.335(3), C(1)–N(5) 1.332(3); C(11)–P–C(4) 108.14(11), C(21)–P–C(41) 109.13(12), C(31)–P–C(21) 108.10(12), C(31)–P–C(11) 107.82(11), C(21)–P–C(11) 112.47(11), C(31)–P–C(41) 111.20(11) (#1 –x + 1, –y, –z).
Crystals 05 00405 g002
Table
Table 1. Crystallographic data and structure refinement details for compounds 1 and 2.
Table 1. Crystallographic data and structure refinement details for compounds 1 and 2.
Compound12
CCDC No.14047401404741
Empirical formulaC25H24N5O2PC8H12N20
a (Å)10.159(2)11.6127(2)
b (Å)10.632(2)9.95120(10)
c (Å)11.632(2)6.81850(10)
α (°)80.34(3)90
β (°)80.22(3)103.383(2)
γ (°)72.85(3)90
V (Å3)1173.9(4)766.551(19)
Z22
Formula weight457.46388.38
Space groupPīP21/c
T (°C)–140–173
λ (Å)0.710730.71073
Crystal size (mm3)0.29 × 0.18 × 0.150.35 × 0.27 × 0.25
Crystal colour/shapeyellow/prismyellow/prism
Reflections collected1449232565
Independent reflections62891889
R (int)0.07360.0329
Dcalcd (g·cm−3)1.2941.683
μ (mm−1)0.1490.128
F(000)480400
data/restraints/parameters6289/0/3141889/0/151
goodness-of-fit on F21.1261.086
Final R1 indice [I > 2sigma(I)]0.07350.0326
Final R2 indice [I > 2sigma(I)]0.11600.0772
R1 indice (all data)0.11460.0376
R2 indice (all data)0.12670.0796
Largest diff. peak/hole (e. Å–3)0.447/–0.3060.274/–0.268
All structural parameters in the cations and anions in 1 are unexceptional and in close agreement with those of previously reported azotetrazolates. The central N=N distance in the azotetrazolate dianion is 1.256(4) Å, while the N–N bond lengths in the tetrazole rings fall in the narrow range of 1.326(3)–1.347 Å. The tetraphenylphosphonium cations in 1 show only minor deviations from the ideal tetrahedral geometry. C–P–C angles are all in the range of 107.82(11)–112.47(11)°, while the aromatic C–C bond lengths are between 1.378 und 1.402 Å. A comparable range of the C–P–C angles (107.9–110.4°) has been reported for the recently described bis(tetramethylphosphonium)-5,5'-azotetrazolate, [PMe4]2[C2N10] [33]. Like virtually all previously reported azotetrazolate salts [19,20,21,22,23,24,25,26,27,28,29,30,31,32,33], the crystal structure of 1 is characterized by an array of hydrogen bonds. Figure 3 shows the unit cell of compound 1.
Crystals 05 00405 g003 1024

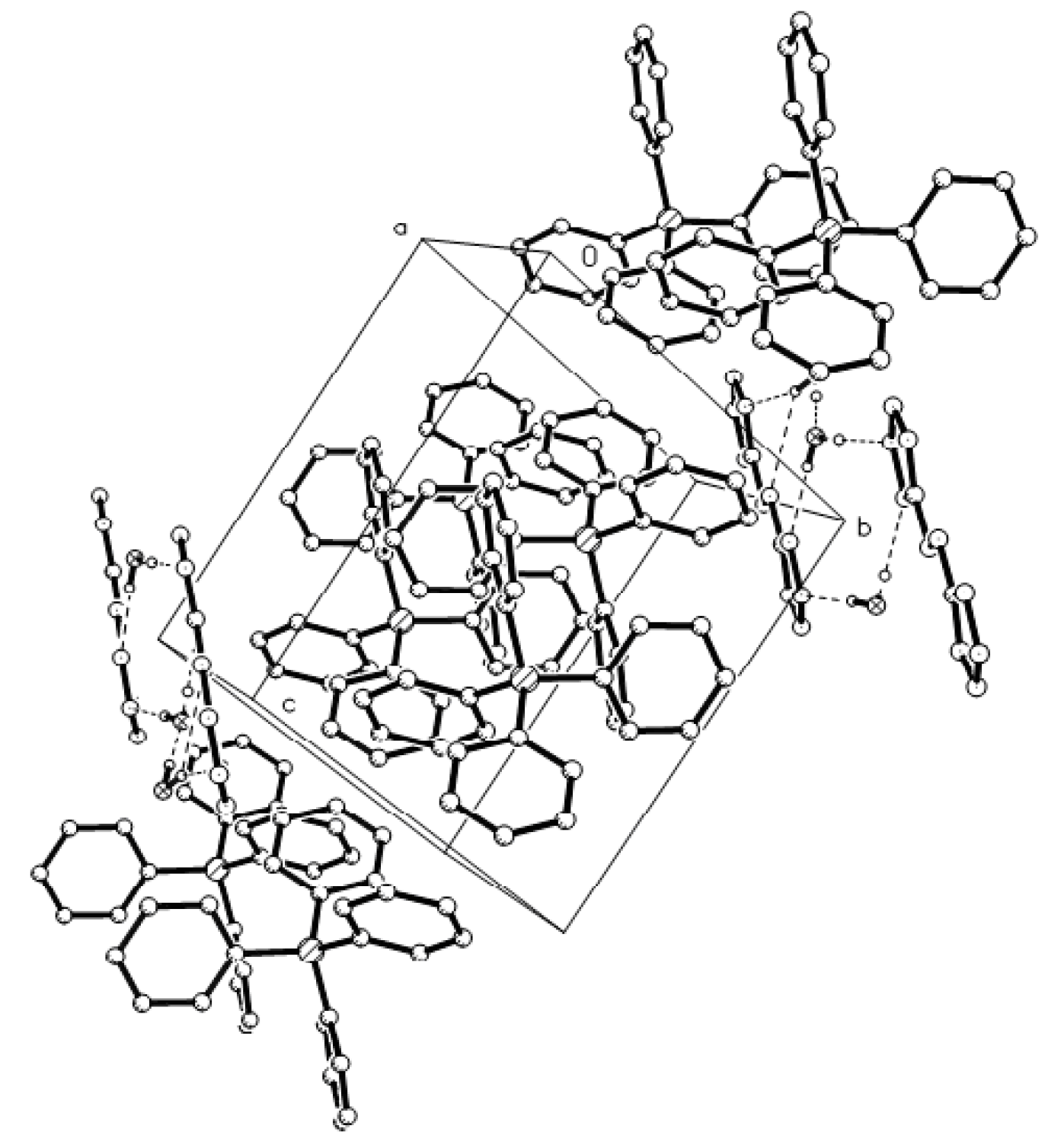

Figure 3. Packing diagram of tetraphenylphosphonium-5,5'-azotetrazolate (1). Dashed lines represent hydrogen bonds.
Figure 3. Packing diagram of tetraphenylphosphonium-5,5'-azotetrazolate (1). Dashed lines represent hydrogen bonds.
Crystals 05 00405 g003
The packing diagram of 1 (Figure 3) shows that hydrogen bonding is an important factor in stabilizing the solid-state structure. However, in contrast to the [PMe4]+ cations in the recently reported crystal structure of bis(tetramethylphosphonium)-5,5'-azotetrazolate [33], the phenyl rings of the [PPh4]+ cations in 1 do not participate in the hydrogen bonding. The reason for this structural difference can be seen in the fact that 1 crystallizes as the tetrahydrate [PPh4]2[C2N10]·4H2O, whereas [PMe4]2[C2N10] was isolated as an anhydrous material [33]. As can be seen in Figure 4, the 5,5'-azotetrazolate dianions are interconnected through hydrogen bonds with the four molecules water of crystallization to give a ladder-like ribbon motif.
Crystals 05 00405 g004 1024

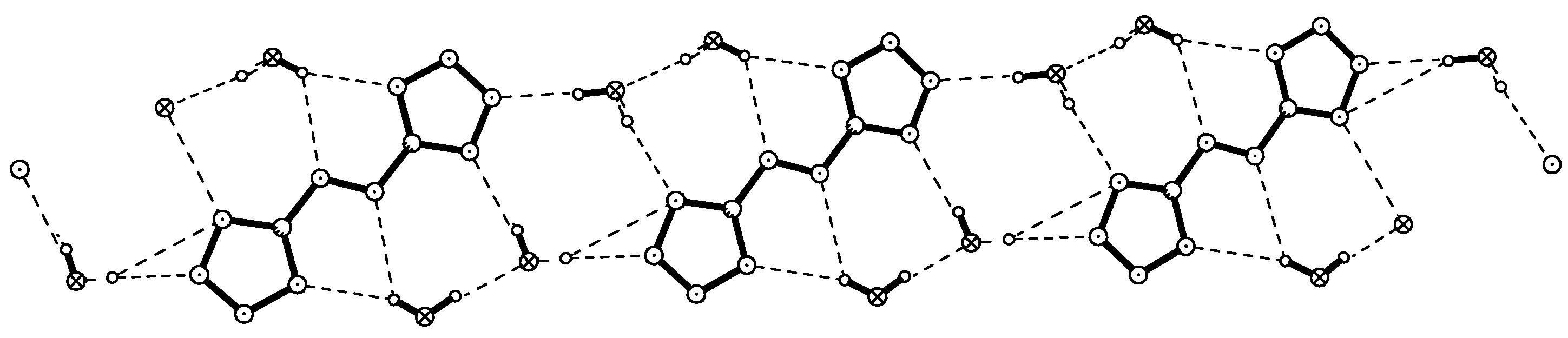

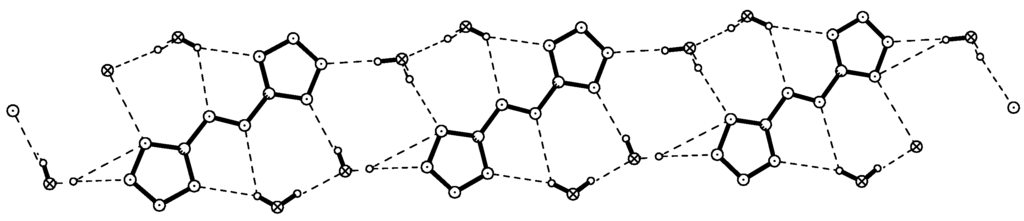

Figure 4. Ribbon motif formed through hydrogen bonding between the 5,5'-azotetrazolate dianions and the water of crystallization in the crystal structure of 1.
Figure 4. Ribbon motif formed through hydrogen bonding between the 5,5'-azotetrazolate dianions and the water of crystallization in the crystal structure of 1.
Crystals 05 00405 g004
Figure 5 illustrates in more detail how three tetrazole ring nitrogen atoms as well as the N atoms of central azo group are engaged in the O–H…N hydrogen bonds to the four water molecules. O–H…O hydrogen bonds between two water molecules are also present on both sides of the ribbon. Details of the hydrogen bonding in the solid-state structure of 1 are summarized in Table 2.
Crystals 05 00405 g005 1024

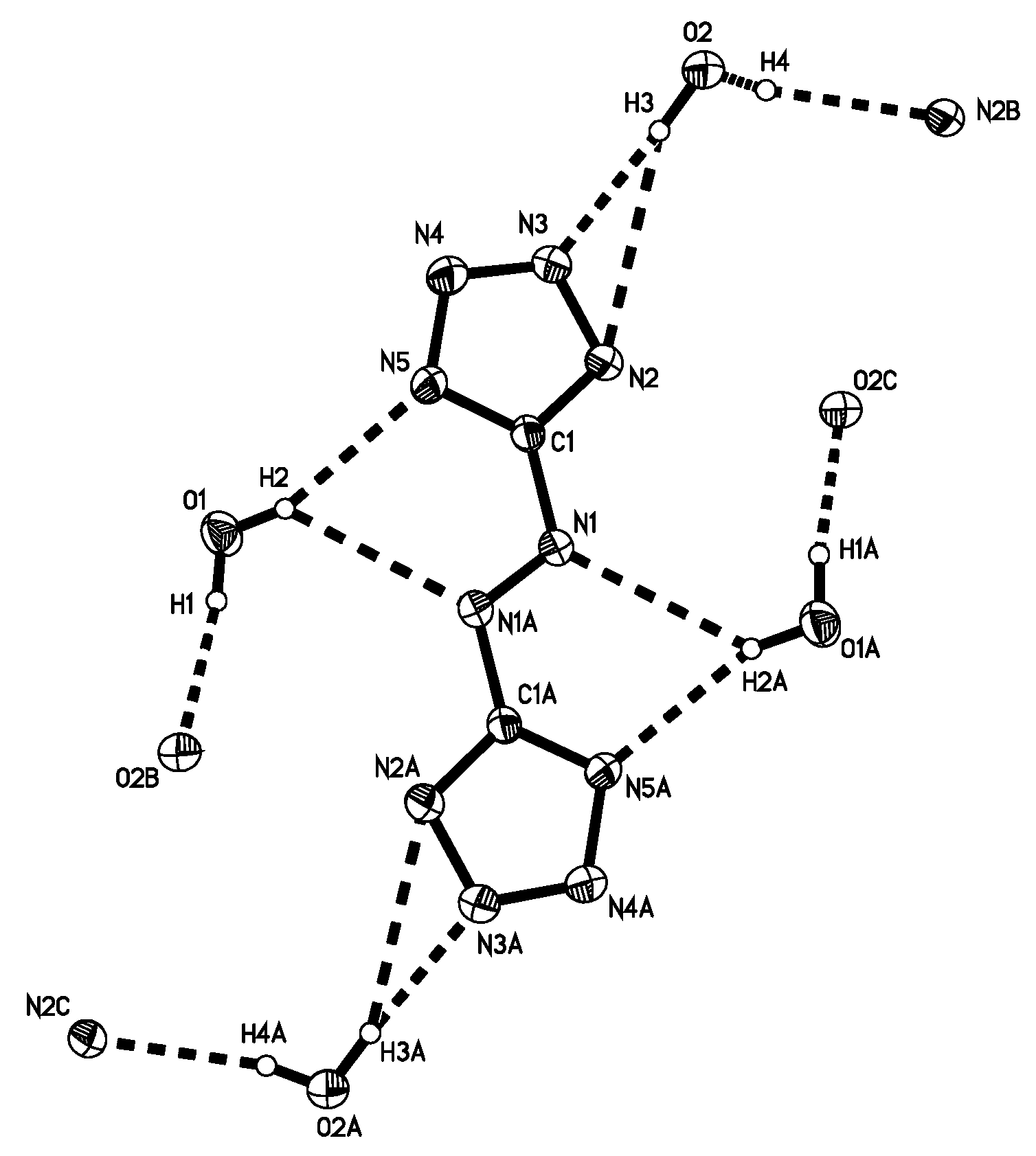

Figure 5. Hydrogen bonding between the 5,5'-azotetrazolate dianions and the water of crystallization in the crystal struture of 1.
Figure 5. Hydrogen bonding between the 5,5'-azotetrazolate dianions and the water of crystallization in the crystal struture of 1.
Crystals 05 00405 g005
Table
Table 2. Hydrogen bond lengths [Å] in 1.
Table 2. Hydrogen bond lengths [Å] in 1.
D–H…Ad(D–H)d(H…A)d(D…A)
O(1)–H(1)…O(2)#20.87 (4)1.95 (4)2.811 (3)
O(1)–H(2)…N(5)0.87 (4)2.28 (4)3.115 (3)
O(1)–H(2)…N(1)#10.87 (4)2.62 (4)3.274 (3)
O(2)–H(3)…N(3)0.88 (4)2.05 (4)2.925 (3)
O(2)–H(4)…N(2)#30.79 (4)2.14 (4)2.913 (3)
#1 –x + 1, –y, –z; #2 x + 1, y, z; #3 –x, –y, –z.

2.2. Synthesis and Characterization of 1H-1,2,4-triazole-1-carboxamidine-5,5'-azotetrazolate (2)

A second potentially energetic azotetrazolate salt prepared and characterized in the course of this work is the hitherto unknown 1H-1,2,4-triazole-1-carboxamidine-5,5'-azotetrazolate (2) which was made according to Scheme 2 by treatment of Na2C2N10·5H2O with 2 equiv. of 1H-1,2,4-triazole-1-carboxamidine-hydrochloride. After short reaction times, bright yellow crystals of 2 (Figure 6) formed in 86% isolated yield.
Crystals 05 00405 g013 1024

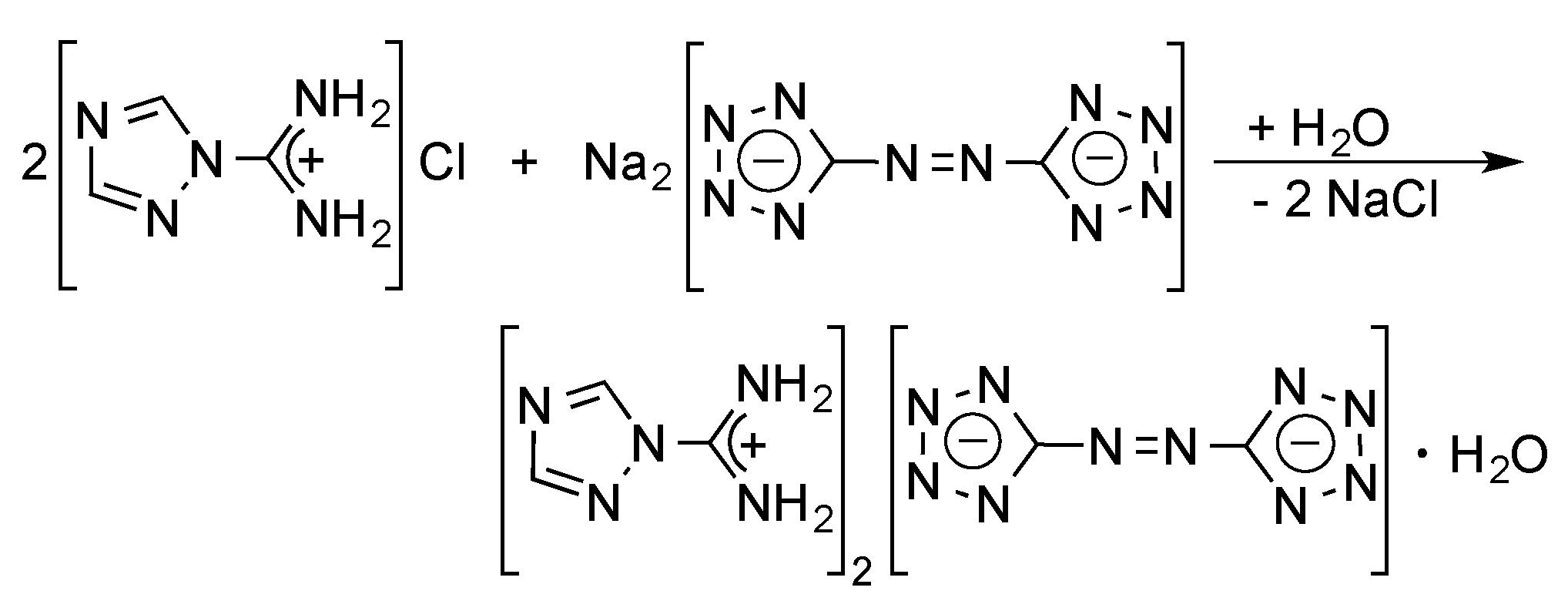

Scheme 2. Preparation of 1H-1,2,4-triazole-1-carboxamidine-5,5'-azotetrazolate (2).
Scheme 2. Preparation of 1H-1,2,4-triazole-1-carboxamidine-5,5'-azotetrazolate (2).
Crystals 05 00405 g013
Crystals 05 00405 g006 1024

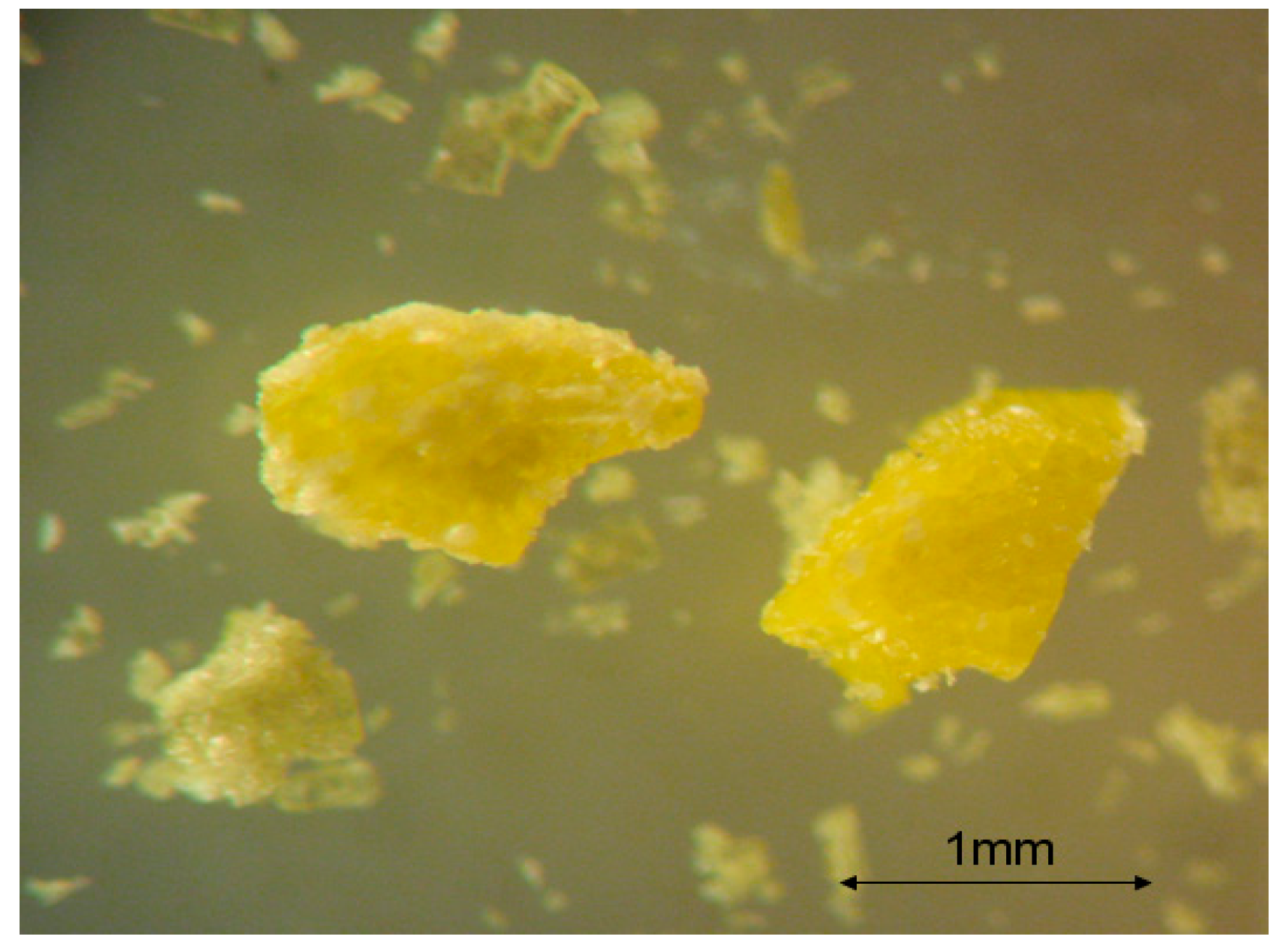

Figure 6. Crystals of 1H-1,2,4-triazole-1-carboxamidine-5,5'-azotetrazolate (2).
Figure 6. Crystals of 1H-1,2,4-triazole-1-carboxamidine-5,5'-azotetrazolate (2).
Crystals 05 00405 g006
Both the ease of formation and the high isolated yield of 2 indicated that the 1H-1,2,4-triazole-1-carboxamidine cation is a valuable tool for isolating energetic anion species. The 1H NMR spectrum of 2 displayed only two singlets at 2.49 and 8.29 ppm, which could be assigned to the amidinium C(NH2)2 protons and the triazole ring NH protons, respectively. In good agreement with the expected formation of 2, the 13C{1H} NMR spectrum showed only three resonances at δ 153.2 (CN4 of azotetrazolate), 149.8 (C=N of triazole ring), and 144.5 (C(NH2)2) ppm. In the IR spectrum, a strong band at 1393 cm−1 was assigned to the asymmetric N–C=N stretching vibration of the tetrazole ring, whereas a strong band at 723 cm−1 was due to the asymmetric C–N=N stretching vibration of the azotetrazolate dianion [19,20,21,22,23,24,25,26,27,28,29,30,31,32,33]. Bands in the range of 3127 cm−1 to 2329 cm−1 are typical for the NH bonds in the 1H-1,2,4-triazole-1-carboxamidine cation.
Single-crystals of 2 suitable for X-ray diffraction were obtained directly from the original reaction mixture without the need of recrystallization. An X-ray diffraction study of 2 revealed that the compound crystallizes in the monoclinic space group P21/c with no water of crystallization. Figure 7 shows the molecular structure of 2 along with selected bond lengths and angles. Crystallographic data and structure refinement details are found in Table 1.
Crystals 05 00405 g007 1024

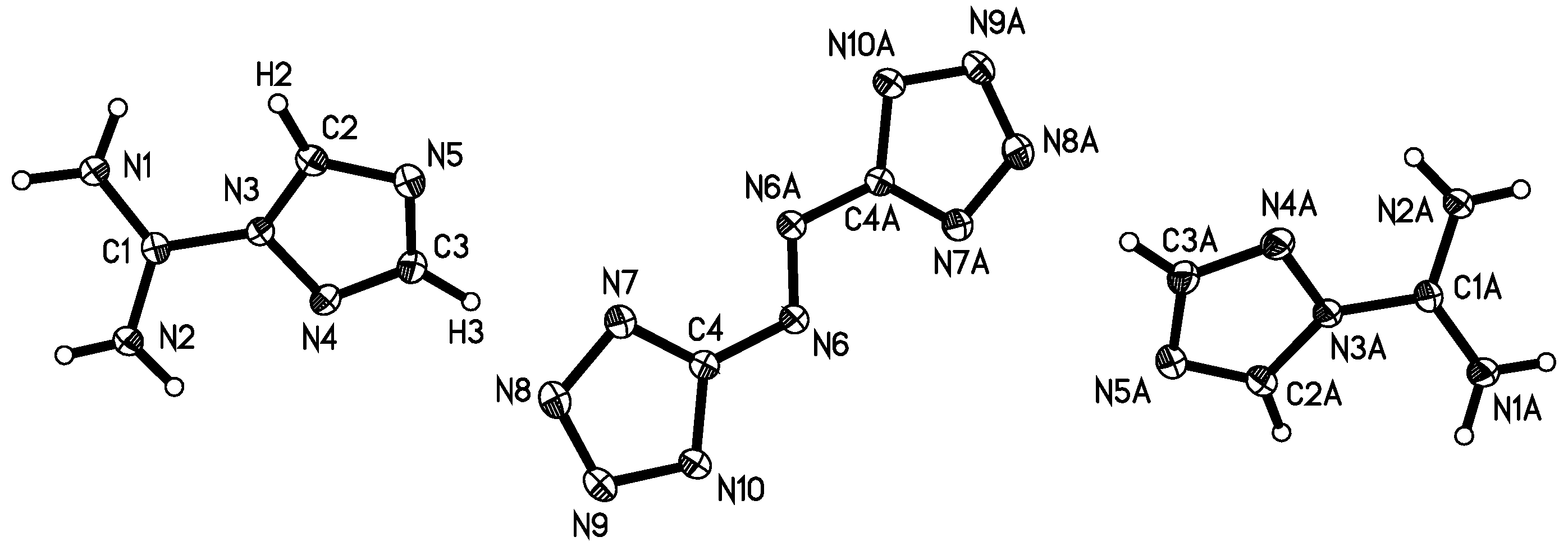

Figure 7. Molecular structure of 2 in the crystal, showing the atom-labeling scheme. Displacement ellipsoids are drawn at the 50% probability level. Selected bond lengths (Å) and angles (°): C(4)–N(6) 1.4042(18), C(4)–N(7) 1.3334(19), C(1)–N(10) 1.3344(18), N(1)–C(1)–N(2) 125.73(9), N(1)–C(1)–N(3) 118.75(9), N(2)–C(1)–N(3) 116.02(9), N(3)–C(2)–N(5) 109.42(9), N(5)–C(2)–H(2) 128.20(8), N(3)–C(2)–H(2) 122.40(8), N(4)–C(3)–N(5) 115.05(9), N(4)–C(3)–H(3) 119.90(8), N(5)–C(3)–H(3) 125.10(8) (#1 –x + 3, –y, –z + 1).
Figure 7. Molecular structure of 2 in the crystal, showing the atom-labeling scheme. Displacement ellipsoids are drawn at the 50% probability level. Selected bond lengths (Å) and angles (°): C(4)–N(6) 1.4042(18), C(4)–N(7) 1.3334(19), C(1)–N(10) 1.3344(18), N(1)–C(1)–N(2) 125.73(9), N(1)–C(1)–N(3) 118.75(9), N(2)–C(1)–N(3) 116.02(9), N(3)–C(2)–N(5) 109.42(9), N(5)–C(2)–H(2) 128.20(8), N(3)–C(2)–H(2) 122.40(8), N(4)–C(3)–N(5) 115.05(9), N(4)–C(3)–H(3) 119.90(8), N(5)–C(3)–H(3) 125.10(8) (#1 –x + 3, –y, –z + 1).
Crystals 05 00405 g007
Once again, the structural parameters in the cations and anion in 2 were found to be unexceptional and in close agreement with those of previously reported azotetrazolates. The central N=N distance in the azotetrazolate dianion is 1.2601(18) Å. Like many previously reported azolium azotetrazolate salts [23,24,25,26,27,28,29,30,31,32], the crystal structure of 2 is characterized by layers interconnected through an array of hydrogen bonds. Figure 8 shows a packing diagram of compound 2.
Crystals 05 00405 g008 1024

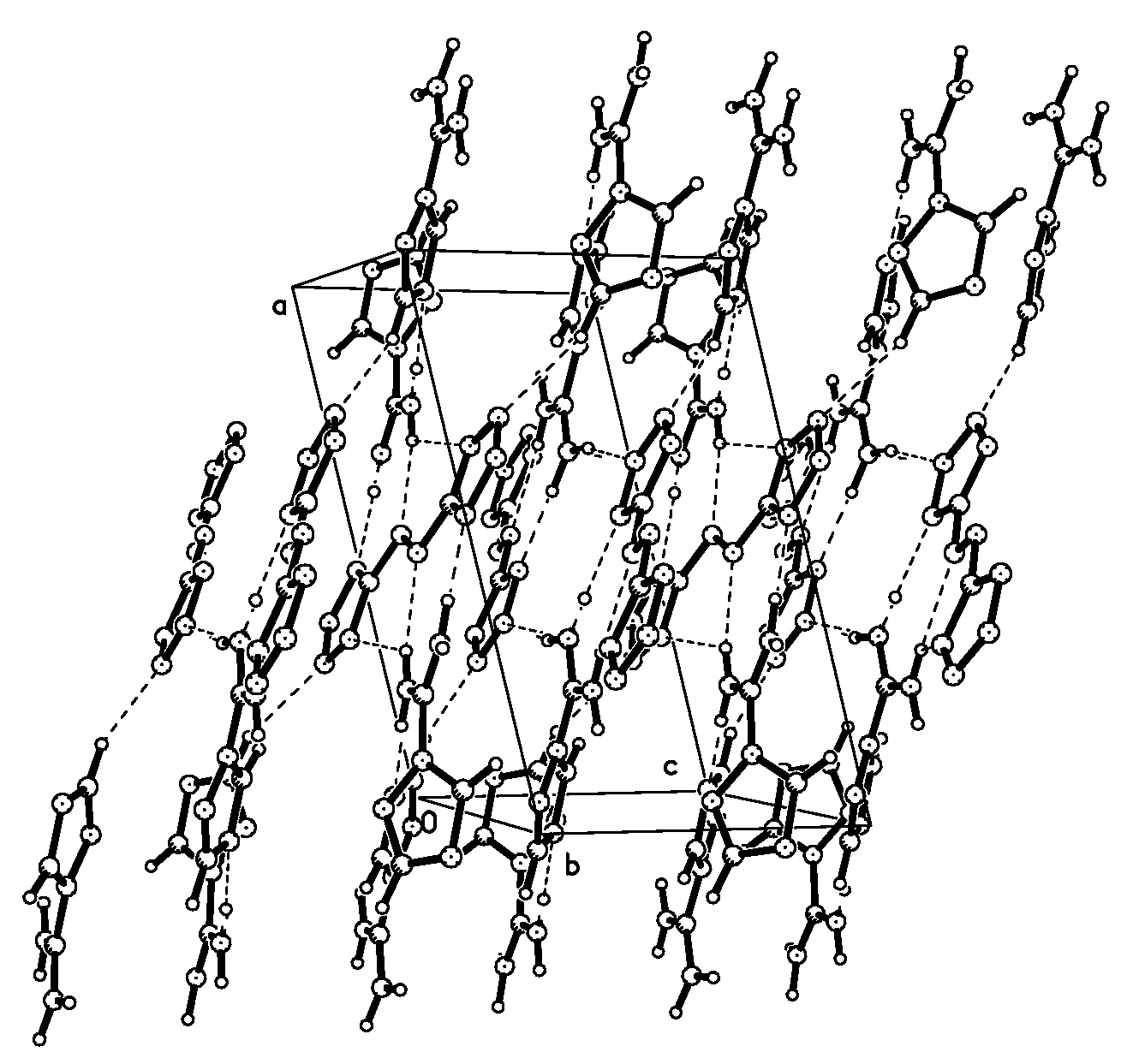

Figure 8. Packing diagram of 1H-1,2,4-triazole-1-carboxamidine-5,5'-azotetrazolate (2). Dashed lines represent hydrogen bonds.
Figure 8. Packing diagram of 1H-1,2,4-triazole-1-carboxamidine-5,5'-azotetrazolate (2). Dashed lines represent hydrogen bonds.
Crystals 05 00405 g008
Unlike compound 1, the crystal structure of 2 contains no water of crystallization despite the fact that the bulk material was isolated from aqueous solution. Figure 9 illustrates in more detail how the layers are formed through different N–H…N hydrogen bonds not only between cations and anions but also between adjacent cations. Two tetrazole ring nitrogen atoms as well as the N atoms of the central azo group in the 5,5'-azotetrazolate dianion are engaged in the N–H…N hydrogen bonds to the C(NH2)2 amidinium hydrogens of the cations. Interestingly, one amidinium hydrogen of the cationic C(NH2)2 moiety also forms a N–H…N hydrogen bond to a triazole ring-N atom of a neighbouring 1H-1,2,4-triazole-1-carboxamidine cation. Details of the hydrogen bonding in the solid-state structure of 2 are summarized in Table 3.
Crystals 05 00405 g009 1024

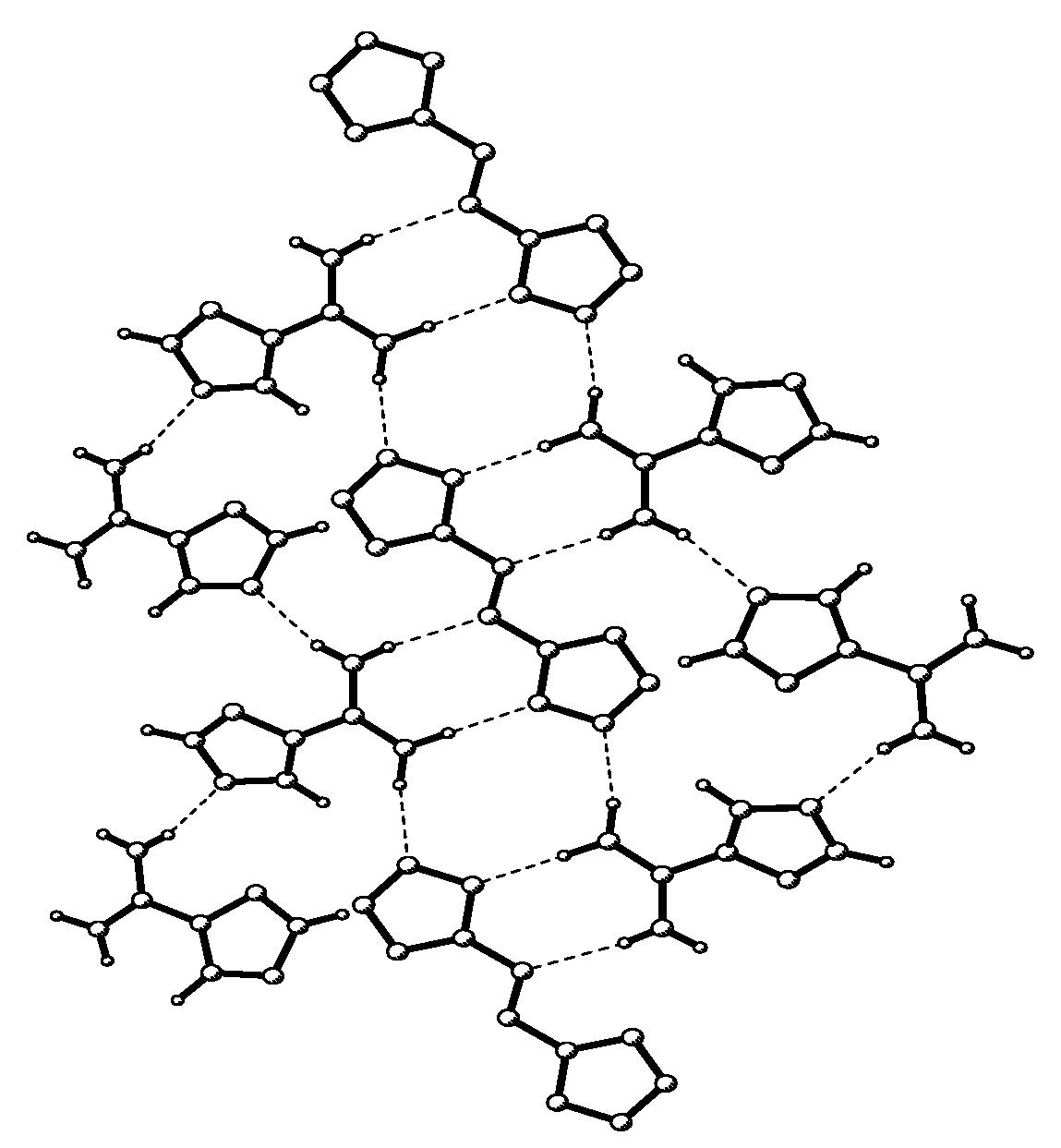

Figure 9. N–H…N hydrogen bonding in the crystal structure of 1H-1,2,4-triazole-1-carboxamidine-5,5'-azotetrazolate (2).
Figure 9. N–H…N hydrogen bonding in the crystal structure of 1H-1,2,4-triazole-1-carboxamidine-5,5'-azotetrazolate (2).
Crystals 05 00405 g009
Table
Table 3. Hydrogen bond lenghts [Å] in 2.
Table 3. Hydrogen bond lenghts [Å] in 2.
D–H…Ad(D–H)d(H…A)d(D…A)<(DHA)
N(2)–H(2NA)…N(5)#20.870(15)2.139(15)2.9883(13)165.0(13)
N(1)–H(1NA)…N(10)#30.944(16)1.936(16)2.8802(15)178.3(14)
N(2)–H(2NB)…N(6)#30.865(17)2.179(17)3.0336(15)169.4(14)
N(2)–H(2NB)…N(7)#20.865(17)2.574(16)3.0965(13)119.8(12)
N(1)–H(1NB)…N(9)#40.904(15)1.986(16)2.8752(14)167.5(14)
#1 –x + 1, –y + 1, –z; #2 –x + 2, y + 1/2, –z + 1/2; #3 x + 1, –y + 3/2, z + 1/2; #4 –x + 2, y – 1/2, –z + 1/2.

2.3. Sensitivity Tests

The methods for testing primary explosives have recently been summarized in a very informative short review article by Mehta et al. [34]. Primary explosives are compounds which are very sensitive to small stimuli such as impact, friction, electrostatic discharge, and heat, so that very little energy is needed to initiate such materials. Materials that are more sensitive than PETN (pentaerythritol tetranitrate) are generally considered primary explosives [3]. Primary explosives are usually employed in milligram quantities to initiate large amounts of less sensitive materials such as secondary explosives (TNT (2,4,6-trinitrotoluene), RDX (1,3,5-trinitrohexahydro-s-triazine), HMX (octahydro-1,3,5,7-tetranitro-1,3,5,7-tetrazocine) etc.) or propellants [34]. Typical primary explosives are e.g., lead(II) azide, Pb(N3)2 [35] and several forms of lead(II) styphnate (lead(II) trinitroresorcinate) [3].
For initial safety testing, the impact and friction sensitivities of the new azotetrazolates were tested according to established BAM methods [3] using a BAM drophammer and BAM friction tester. Figure 10 and Figure 11 show the devices used in this study. In addition, a simple combustion test was carried out. The results are summarized in Table 4. The tetraphenylphosphonium salt 1 was found to be insensitive towards impact (i > 40 J) and friction (f > 360 N) and showed no deflagration upon combustion. 1H-1,2,4-triazole-1-carboxamidine-5,5'-azotetrazolate (2) was also found to be insensitive to friction (> 360 N) but with a value of i = 10 J it was found to be significantly impact-sensitive. It also showed deflagration in the combustion test. In order to assess the energetic properties of the materials described in this study, it is useful to compare the found sensitivity data with those reported for a common secondary explosive such as TNT (trinitrotoluene). With a value of i = 10 J, the 1H-1,2,4-triazole-1-carboxamidine salt 2 is more impact-sensitive than TNT (i = 15 J) and relatively insensitive to friction (TNT: f = 355 N) [3,36]. On the other hand, compound 2 is slighty less sensitive to impact than typical primary explosives such as than lead(II) styphnate (i = 2.5–5.0 J) or lead(II) azide (i = 3.0–6.5 J) [3,36]. The reason for the differences in the energetic properties between 1 and 2 can be seen in the fact that 2 is a nitrogen-rich azotetrazolate salt (N-content 73.14%), while compound 1 is not (N-content 16.62%). This can also be described as a “dilution” of the nitrogen-rich azotetrazolate dianions by the bulky tetraphenylphosphonium cations in the crystalline state of 1. In both cases, long-term stability tests over a period of 30 days showed no changes in these sensitivity data.
Table
Table 4. Energetic properties of 1 and 2.
Table 4. Energetic properties of 1 and 2.
Compound12
M (g/mol)914.93406.33
ρ g/cm31.2941.657
Impact sensitivity i (J)> 4010
Friction Sensitivity f (N)> 360> 360
Combustion Testcombustiondeflagration
N-content (%)16.6273.14
Oxygen balance Ω (%)–242.9–90.64
Crystals 05 00405 g010 1024

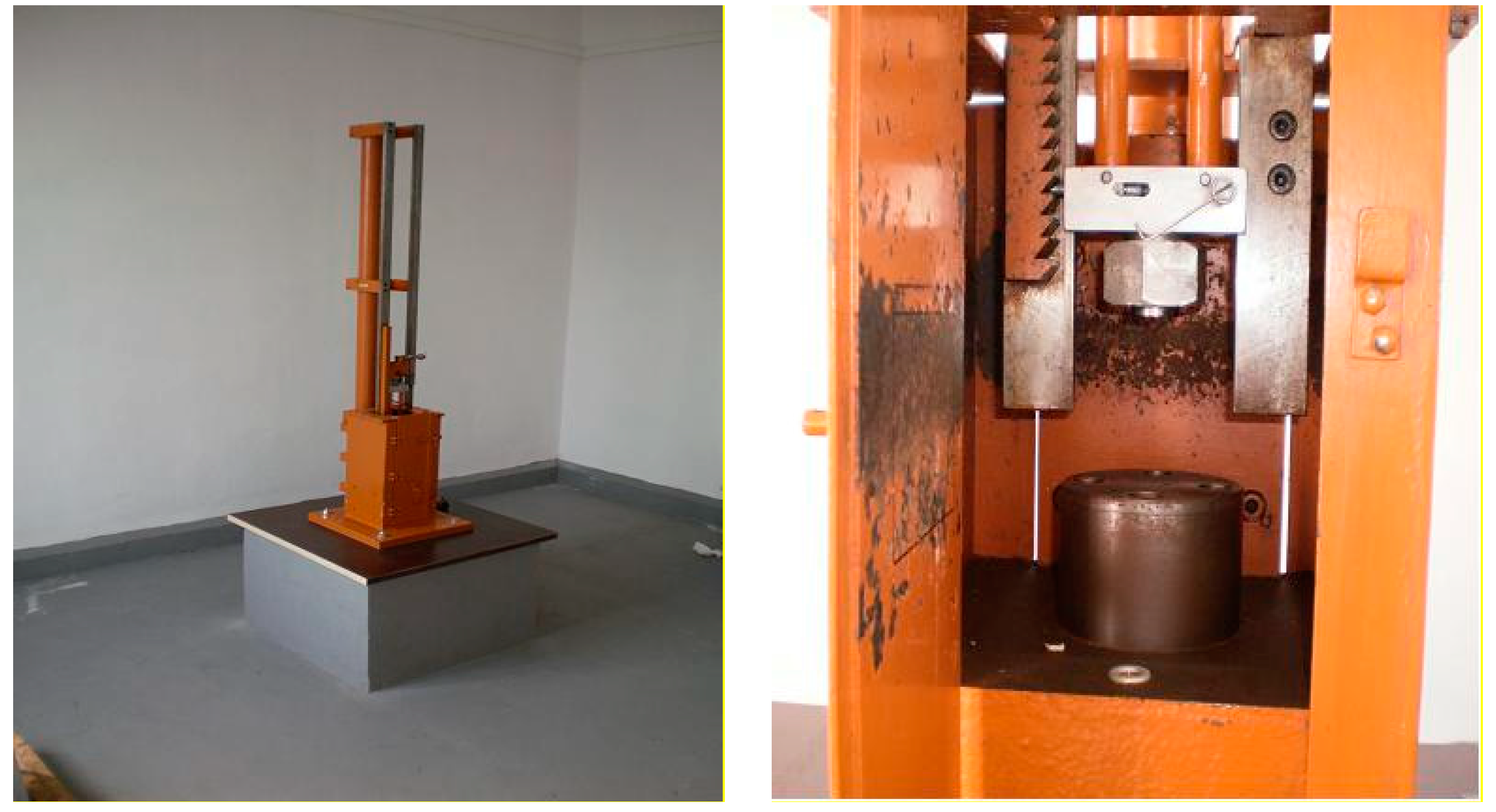

Figure 10. BAM drophammer setup used in this study.
Figure 10. BAM drophammer setup used in this study.
Crystals 05 00405 g010
Crystals 05 00405 g011 1024

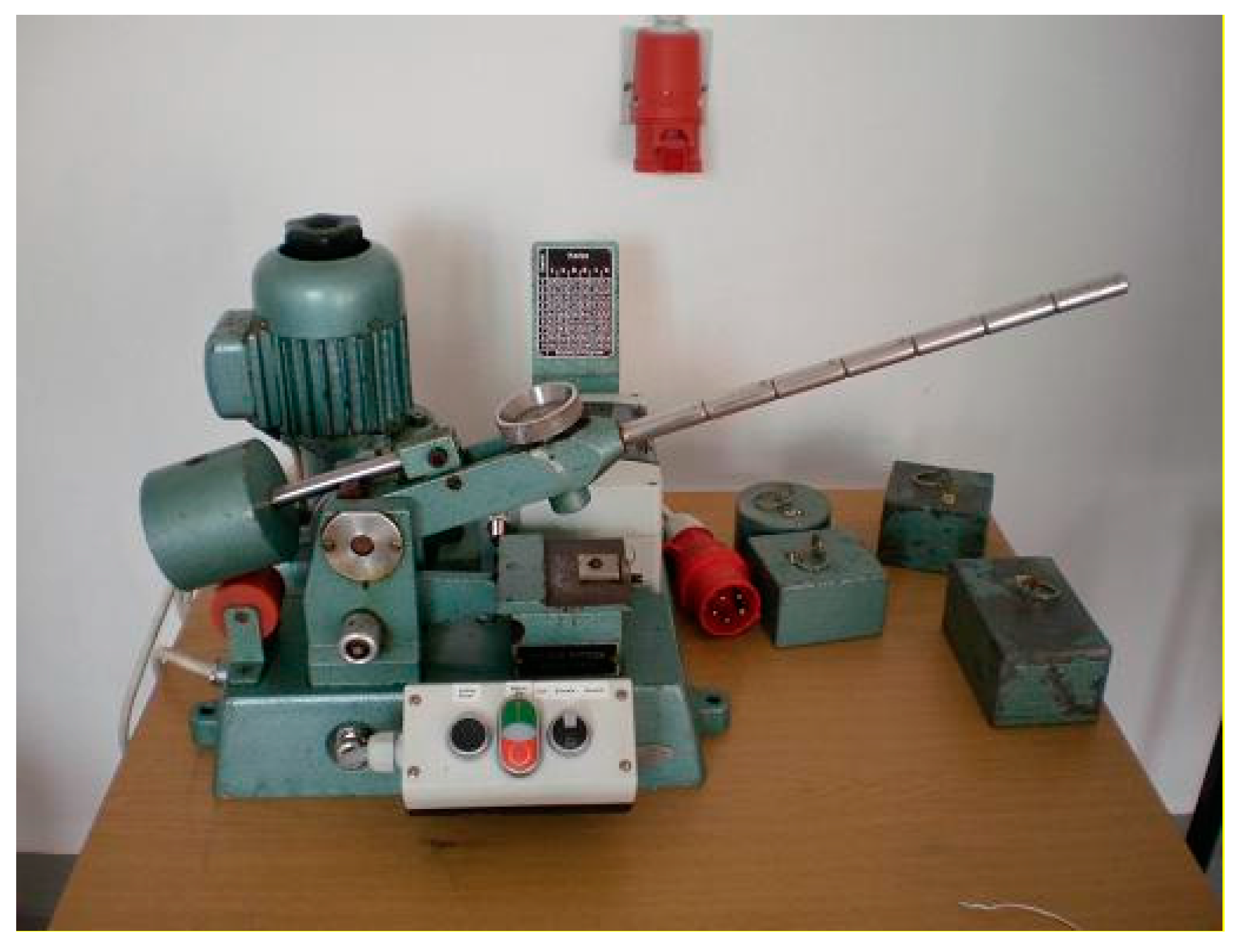

Figure 11. BAM friction test setup used in this study.
Figure 11. BAM friction test setup used in this study.
Crystals 05 00405 g011

3. Experimental Section

The starting material Na2C2N10·5H2O was prepared according to the original protocol described by Thiele [7]. Commercially available [PPh4]Cl (Aldrich) was used as received. 1H-1,2,4-triazole-1-carboxamidine-hydrochloride (or 1-amidino-1,2,4-triazole-hydrochloride, CAS-No. 19503-26-5) was a gift from DEGUSSA GmbH (Degussa AG, Trostberg, Germany). The X-ray diffraction data for compounds 1 and 2 were measured at –173 °C on a STOE IPDS diffractometer (STOE & Cie GmbH, Darmstadt, Germany). Structure solution and refinement were carried out using the programs SHELXS-97 [37] and SHELXL-97 [38].

3.1. Preparation of Tetraphenylphosphonium-5,5'-azotetrazolate (1)

To a saturated solution of 0.30 g (1.0 mmol) Na2C2N10·5H2O in warm (40 °C) water was added a concentrated aqueous solution of tetraphenylphosphonium chloride (0.75 g, 2.0 mmol). Within a few minutes, compound 1 precipitated as a crystalline, bright yellow solid. Yellow single-crystal suitable for X-ray diffraction were obtained by recrystallization from a minimum amount of hot reagent grade acetone. Yield: 0.71 g (78%), m.p. 254 °C. Anal. calcd. for C50H40N10P2·4H2O (914.93 g/mol): C 65.64, H 5.29, N 15.31%; found: C 64.69, H 4.95, N 15.16%. 1H NMR (DMSO-d6, 400 MHz): δ 7.95 (8 H, m, p-H), 7.83–7.67 (32 H, m, o-H, +m-H). 13C{1H} NMR (DMSO-d6, 100 MHz): δ 173.1 ([N4C–N=N–CN4]2−), 135.2 (p-C), 134.1 (o-C), 128.5 (m-C), 118.1 (ipso-C). 31P-NMR (DMSO-d6, 162 MHz, 35% H3PO4): δ 23.0. IR (KBr, cm−1): vmax 3730 (m), 3055(m), 2141 (w), 2005 (w), 1829 (w), 1627 (w), 1584 (m), 1481 (m), 1436 (m), 1374 (s), 1315 (m), 1184 (m), 1172 (m), 1145 (m), 1107 (s), 1024 (m), 997 (m), 857 (w), 763 (m), 753 (m), 724 (s), 692 (m), 554 (w), 528 (s), 464 (m).

3.2. Preparation of 1H-1,2,4-triazole-1-carboxamidine-5,5'-azotetrazolate (1)

To a saturated solution of 1.00 g (3.3 mmol) Na2C2N10·5H2O in warm (40 °C) water (10 mL) was added a concentrated aqueous solution (10 mL) of 1H-1,2,4-triazole-1-carboxamidine hydrochloride (0.48 g, 3.3 mmol). After short standing at r.t., a copious amount of bright yellow crystals of compound 2 formed. Selected crystals obtained in this way were directly suitable for X-ray diffraction. Yield: 1.15 g (86%), m.p. 154.2 °C. Anal. calcd. for C8H14N20O (406.33 g/mol): C 23.65, H 3.47, N 68.95%; found: C: 23.74, H 3.01, N: 70.14%. 1H NMR (DMSO-d6, 400 MHz): δ 8.29 (s, 2 H, N–H), 2.49 (s, 4 H, C(NH2)2). 13C{1H} NMR (20°C; DMSO-d6, 100 MHz): δ 153.2 ([N4C–N=N–CN4]2−), 149.8 (C=N), 144.5 (C(NH2)2). IR (KBr, cm−1): vmax 3851 (w), 3747 (w), 3127 (vs), 3109 (vs), 3007 (vs), 2329 (m), 2216 (m), 2072 (m), 2051 (m), 1875 (m), 1724 (vs), 1651 (m), 1529 (vs), 1517 (vs), 1455 (m), 1393 (vs), 1345 (m), 1293 (m), 1227 (m), 1194 (vs), 1162 (m), 1134 (m), 1112 (m), 1103 (m), 1073 (m), 1046 (m), 1030 (m), 980 (vs), 960 (m), 941 (m), 870 (m), 837 (m), 786 (m), 763 (m), 739 (s), 710 (s), 692 (s), 667 (m), 623 (m), 570 (m), 528 (m), 464 (m), 455 (m).

4. Conclusions

In summarizing the results reported here, two new azotetrazolate salts, namely tetraphenylphosphonium-5,5'-azotetrazolate (1) and 1H-1,2,4-triazole-1-carboxamidine-5,5'-azotetrazolate (2), have been prepared and structurally authenticated through single-crystal X-ray diffraction. Both are characterized by hydrogen bond networks in the solid state. Particularly, the 1H-1,2,4-triazole-1-carboxamidine derivative 2 is easily crystallized and isolated in high yield (86%). Due to its high nitrogen-content of 73.14%, compound 2 is significantly impact-sensitive.

Acknowledgements

This work was supported by the Otto-von-Guericke-Universität Magdeburg.

Author Contributions

R.D. carried out the experiments; C.G.H. carried out the crystal structure determinations; F.T.E. conceived and supervised the experiments and wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Singh, R.P.; Verma, R.D.; Meshri, D.T.; Shreeve, J.M. Energetic nitrogen-rich salts and ionic liquids. Angew. Chem. Int. Ed. 2006, 45, 3584–3601. [Google Scholar] [CrossRef] [PubMed]
  2. Steinhauser, G.; Klapötke, T.M. “Green” pyrotechnics: A chemists’ challenge. Angew. Chem. Int. Ed. 2008, 47, 3330–3347. [Google Scholar] [CrossRef] [PubMed]
  3. Klapötke, T.M. Chemistry of High-Energy Materials, 2nd ed.; Walter de Gruyter GmbH & Co. KG: Berlin, Germany, 2011. [Google Scholar]
  4. Nair, U.R.; Asthana, S.N.; Rao, A.S.; Gandhe, B.R. Advances in high energy materials. Def. Sci. J. 2010, 60, 137–151. [Google Scholar] [CrossRef]
  5. Badgujar, D.M.; Talawar, M.B.; Asthana, S.N.; Mahulikar, P.P. Advances in science and technology of modern energetic materials: An overview. J. Hazard. Mater. 2008, 151, 289–305. [Google Scholar] [CrossRef] [PubMed]
  6. Rice, B.M.; Byrd, E.F.C.; Mattson, W.D. Computational Aspects of Nitrogen-Rich HEDMs. In High Energy Density Materials; Springer: Berlin, Germany, 2007. [Google Scholar]
  7. Thiele, J. Ueber azo- und hydrazoverbindungen des tetrazols. Liebigs Ann. Chem. 1898, 303, 57–75. (In German) [Google Scholar] [CrossRef]
  8. Pierce-Butler, M.A. Structure of bis[hydroxolead(II)] 5,5'-azotetrazolediide. Acta Crystallogr. Sect. B Struct. Crystallogr. Cryst. Chem. 1982, 38, 2681–2683. [Google Scholar] [CrossRef]
  9. Bhandari, S.; Mahon, M.F.; Molloy, K.C.; Palmer, J.S.; Sayers, S.F. Thallium(I)- and organothallium(III)-substituted mono-, bis- and tris-tetrazoles: Synthesis and supramolecular structures. J. Chem. Soc. Dalton Trans. 2000, 1053–1060. [Google Scholar] [CrossRef]
  10. Deblitz, R.; Hrib, C.G.; Plenikowski, G.; Edelmann, F.T. Synthesis and supramolecular structure of [Me3Sn(µ-C2N10)SnMe3(H2O)]n, the first metal-organic azotetrazolate. Inorg. Chem. Commun. 2012, 18, 57–60. [Google Scholar] [CrossRef]
  11. Jiao, B.; Chen, S.; Zhao, F.; Hu, R.; Gao, S. A new high-nitrogen compound [Mn(ATZ)(H2O)4]·2H2O: Synthesis and characterization. J. Hazard. Mater. 2007, 142, 550–554. [Google Scholar] [CrossRef] [PubMed]
  12. Steinhauser, G.; Giester, G.; Leopold, N.; Wagner, C.; Villa, M. Nitrogen-rich compounds of the
lanthanoids: The 5,5'-azobis[1H-tetrazol-1-ides] of the light rare earths (Ce, Pr, Nd, Sm, Eu, Gd). Helv. Chim. Acta 2009, 92, 2038–2051. [Google Scholar] [CrossRef]
  13. Steinhauser, G.; Giester, G.; Wagner, C.; Leopold, N.; Sterba, J.H.; Lendl, B.; Bichler, M. Nitrogen-rich compounds of the lanthanoids: The 5,5'-azobis[1H-tetrazol-1-ides] of some yttric earths (Tb, Dy, Ho, Er, Tm, Yb, and Lu). Helv. Chim. Acta 2009, 92, 1371–1384. [Google Scholar] [CrossRef]
  14. Tao, G.-H.; Twamley, B.; Shreeve, J.M. Energetic nitrogen-rich Cu(II) and Cd(II) 5,5'-azobis(tetrazolate) complexes. Inorg. Chem. 2009, 48, 9918–9923. [Google Scholar] [CrossRef] [PubMed]
  15. Steinhauser, G.; Giester, G.; Leopold, N.; Wagner, C.; Villa, M.; Musilek, A. Nitrogen-rich compounds of the lanthanoids: Highlights and summary. Helv. Chim. Acta 2010, 93, 183–202. [Google Scholar] [CrossRef]
  16. Jiao, B.; Yan, Z.; Fan, G.; Chen, S.; Gao, S. catena-Poly[[[tetraaquairon(II)]-μ-5,5'-diazenediylditetrazolido] dihydrate]. Acta Crystallogr. Sect. E Struct. Rep. Online 2010, 66. [Google Scholar] [CrossRef] [PubMed]
  17. Meng, Y. Poly[l-(5,5'-diazenediylditetrazolido)dicaesium]. Acta Crystallogr. Sect. E Struct. Rep. Online 2011, 67. [Google Scholar] [CrossRef] [PubMed]
  18. Deblitz, R.; Hrib, C.G.; Blaurock, S.; Jones, P.G.; Plenikowski, G.; Edelmann, F.T. Explosive Werner-type cobalt(III) complexes. Inorg. Chem. Front. 2014, 1, 621–640. [Google Scholar] [CrossRef]
  19. Hammerl, A.; Holl, G.; Kaiser, M.; Klapötke, T.M.; Mayer, P.; Piotrowski, H.; Vogt, M. Methylated ammonium and hydrazinium salts of 5,5'-azotetrazolate. Z. Naturforsch. B 2001, 56, 847–856. [Google Scholar] [CrossRef]
  20. Hammerl, A.; Holl, G.; Kaiser, M.; Klapötke, T.M.; Mayer, P.; Nöth, H.; Piotrowski, H.; Suter, M. New hydrazinium salts of 5,5'-azotetrazolate. Z. Naturforsch. B 2001, 56, 857–870. [Google Scholar] [CrossRef]
  21. Hammerl, A.; Klapötke, T.M.; Nöth, H.; Warchhold, M.; Holl, G.; Kaiser, M.; Ticmanis, U. [N2H5]2+[N4C–N=N–CN4]2−: A new high-nitrogen high-energetic material. Inorg. Chem. 2001, 40, 3570–3575. [Google Scholar] [CrossRef] [PubMed]
  22. Hammerl, A.; Holl, G.; Klapötke, T.M.; Mayer, P.; Nöth, H.; Piotrowski, H.; Warchhold, M. Salts of 5,5'-azotetrazolate. Eur. J. Inorg. Chem. 2002, 2002, 834–845. [Google Scholar] [CrossRef]
  23. Xue, H.; Arritt, S.W.; Twamley, B.; Shreeve, J.M. Energetic salts from N-aminoazoles. Inorg. Chem. 2004, 43, 7972–7977. [Google Scholar] [CrossRef] [PubMed]
  24. Hammerl, A.; Hiskey, M.A.; Holl, G.; Klapötke, T.M.; Polborn, K.; Stierstorfer, J.; Weigand, J.J. Azidoformamidinium and guanidinium 5,5'-azotetrazolate salts. Chem. Mater. 2005, 17, 3784–3793. [Google Scholar] [CrossRef]
  25. Xue, H.; Shreeve, J.M. Energetic ionic liquids from azido derivatives of 1,2,4-triazole. Adv. Mater. 2005, 17, 2142–2146. [Google Scholar] [CrossRef]
  26. Ye, C.; Xiao, J.-C.; Twamley, B.; Shreeve, J.M. Energetic salts of azotetrazolate, iminobis (5-tetrazolate) and 5,5'-bis(tetrazolate). Chem. Commun. 2005, 2750–2752. [Google Scholar] [CrossRef] [PubMed]
  27. Pan, W.-L.; Chena, X.-Y.; Hu, C.-W. Bis(amantadinium) 5,5'-diazenediylditetrazolate dihydrate. Acta Crystallogr. Sect. E Struct. Rep. Online 2007, 63, o1606–o1608. [Google Scholar] [CrossRef]
  28. Darwich, C.; Klapötke, T.M.; Sabaté, C.M. 1,2,4-triazolium-cation-based energetic salts. Chem. Eur. J. 2008, 14, 5756–5771. [Google Scholar] [CrossRef] [PubMed]
  29. Klapötke, T.M.; Sabaté, C.M. Bistetrazoles: Nitrogen-rich, high-performing, insensitive energetic compounds. Chem. Mater. 2008, 20, 3629–3637. [Google Scholar] [CrossRef]
  30. Klapötke, T.M.; Sabaté, C.M. New energetic compounds based on the nitrogen-rich 5,5'-azotetrazolate anion ([C2N10]2−). New J. Chem. 2009, 33, 1605–1617. [Google Scholar] [CrossRef]
  31. Klapötke, T.M.; Sabaté, C.M. Nitrogen-rich tetrazolium azotetrazolate salts: A new family of insensitive energetic materials. Chem. Mater. 2008, 20, 1750–1763. [Google Scholar] [CrossRef]
  32. Gao, H.; Shreeve, J.M. Azole-based energetic salts. Chem. Rev. 2011, 111, 7377–7436. [Google Scholar] [CrossRef] [PubMed]
  33. Laus, G.; Kahlenberg, V.; Wurst, K.; Schottenberger, H.; Fischer, N.; Stiersdorfer, J.; Klapötke, T.M. Synthesis and crystal structures of new 5,5'-azotetrazolates. Crystals 2012, 2, 127–136. [Google Scholar] [CrossRef]
  34. Mehta, N.; Oyler, K.; Cheng, G.; Shah, A.; Marin, J.; Yee, K. Primary explosives. Z. Anorg. Allg. Chem. 2014, 640, 1309–1313. [Google Scholar] [CrossRef]
  35. Costain, T.; Wells, F.B. Energetic Materials; Fair, H.D., Walker, R.F., Eds.; Plenum Press: New York, NY, USA, 1977. [Google Scholar]
  36. Köhler, J.; Mayer, R. Explosivstoffe; Wiley: Weinheim, Germany, 1998. [Google Scholar]
  37. SHELXL-97; program for crystal structure refinement; Universität of Göttingen: Göttingen, Germany, 1997.
  38. SHELXS-97; program for crystal structure solution; Universität of Göttingen: Göttingen, Germany, 1997.
