Synthesis, Crystal Structure, and Nonlinear Optical Properties of a New Alkali and Alkaline Earth Metal Carbonate RbNa₅Ca₅(CO₃)₈

Abstract

A new nonlinear optical (NLO) material, RbNa₅Ca₅(CO₃)₈, has been synthesized by the hydrothermal method. The crystal structure is established by single-crystal X-ray diffraction. RbNa₅Ca₅(CO₃)₈ crystallizes in the hexagonal crystal system with space group P6₃mc (No. 186). The structure of RbNa₅Ca₅(CO₃)₈ can be described as the adjacent infinite [CaCO₃]_∞ layers lying in the a-b plane bridged through standing-on-edge [CO₃] groups by sharing O atoms (two-fold coordinated) to build a framework with four types of tunnels running through the b-axis. The Rb, Na, and [Na_0.67Ca_0.33] atoms reside in these tunnels, respectively. The measurement of second harmonic generation (SHG) indicated that RbNa₅Ca₅(CO₃)₈ is a phase-matchable material, which had SHG responses of approximately 1×KH₂PO₄ (KDP). Meanwhile, the results from the UV-VIS diffuse reflectance spectroscopy study of the powder samples indicated that the UV cut-off edges of RbNa₅Ca₅(CO₃)₈ is about 203 nm.

1. Introduction

UV nonlinear optical (NLO) crystals [1,2,3,4,5,6,7,8] have attracted widespread attention owing to their significant roles in laser science and related technology. Although several crystals with excellent nonlinear optical properties are well known, such as β-BaB₂O₄ [9], LiB₃O₅ [10] and CsB₃O₅ [11], and part of which have been commercially manufactured and used worldwide, the design and synthesis of new NLO materials with large macroscopic nonlinearities and wide transparency ranges are still a particularly difficult challenge.

According to the anionic group theory [12,13,14], the NLO coefficient of crystals mainly originate from a geometrical addition of the microscopic second-order susceptibility tensors of the anionic groups. The [BO₃]^3- triangular groups with π-orbitals have been proven as favorite building units for designing NLO materials due to their abilities to produce a large microscopic second-order susceptibility and moderate birefringence. Numerous borates with the [BO₃]^3- structural unit have been investigated [15,16,17,18]. Similarly, the same planar triangular [CO₃]^2- groups are considered to be excellent NLO-active anionic groups as well. Recently, many excellent UV and deep-UV carbonate NLO crystals have been synthesized, such as ABCO₃F (A = K, Rb, Cs; B = Ca, Sr, Ba) [19], APbCO₃F(A = Rb, Cs) [20,21], K_2.70Pb_5.15(CO₃)₅F₃ [22], Na₈Lu₂(CO₃)₆F₂ [23], Na₃Lu(CO₃)₂F₂ [23], Na₄La₂(CO₃)₅ [24], CsNa₅Ca₅(CO₃)₈ [24], and Na₃Re(CO₃)₃(Re=Y, Gd) [25]. Lately Lin’s group confirmed that [CO₃]^2- groups have a distinct advantage in birefringence and SHG effects in NLO crystals by theory calculation in comparison with [BO₃]^3- group [26]. Thus, the [CO₃]^2- ion was selected as a basic structural unit to explore UV NLO materials. Additionally, it is well-known that the alkali metal and alkaline earth metal are ideal compositions in UV NLO materials because there are no electron transitions in the alkali metal-oxygen bond or alkaline earth metal-oxygen bond in the UV region [27,28]. Therefore, we expect that combining the [CO₃]^2- groups with the alkali metal and alkaline earth metal will construct new kinds of UV NLO materials.

In the present work, the Na₂CO₃–RbCl–CaCl₂ systems were studied, attempting to synthesize new non-centrosymmetric alkali and alkaline earth metal carbonate crystals. As a result, we have successfully obtained a new acentric carbonate, RbNa₅Ca₅(CO₃)₈. It crystallizes in the hexagonal crystal system, space group P6₃mc (No. 186), with a = b = 10.075(3) Å, c = 12.639(5) Å, Z = 2, V = 1111.2(7) ų. Herein its synthesis, crystal structure and some optical properties will be reported.

2. Results and Discussion

2.1. Crystal Structure Description

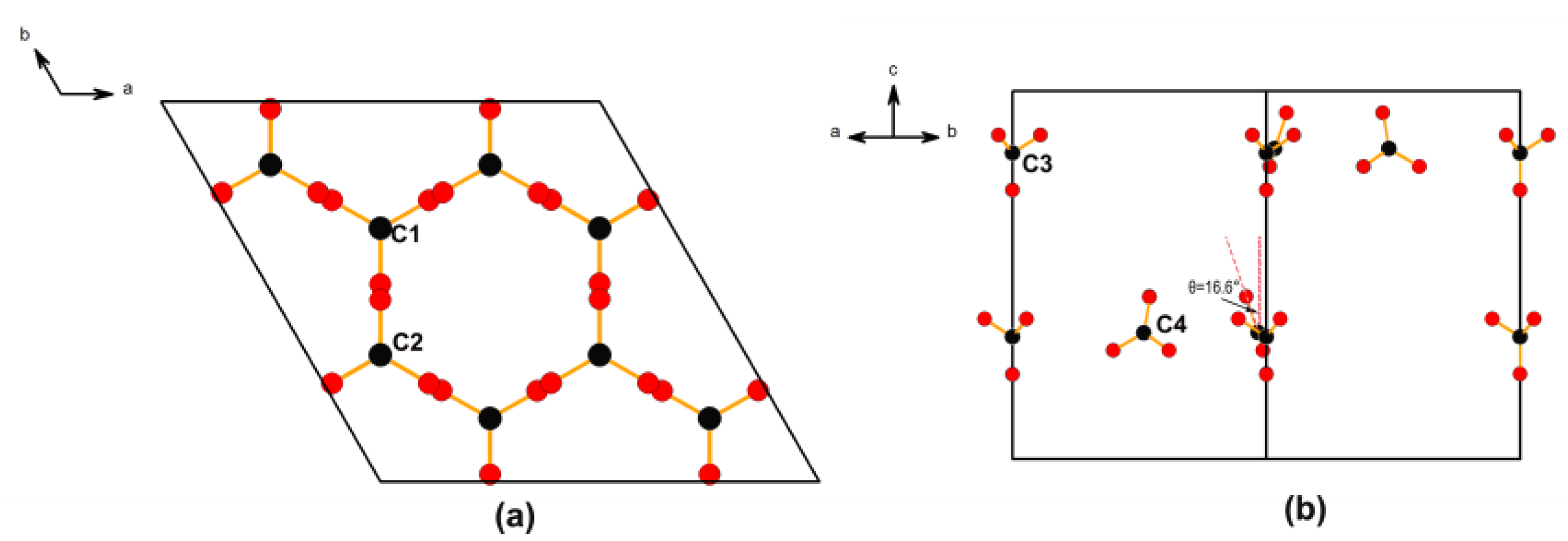

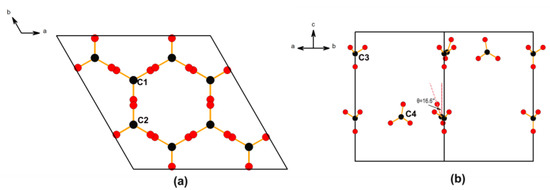

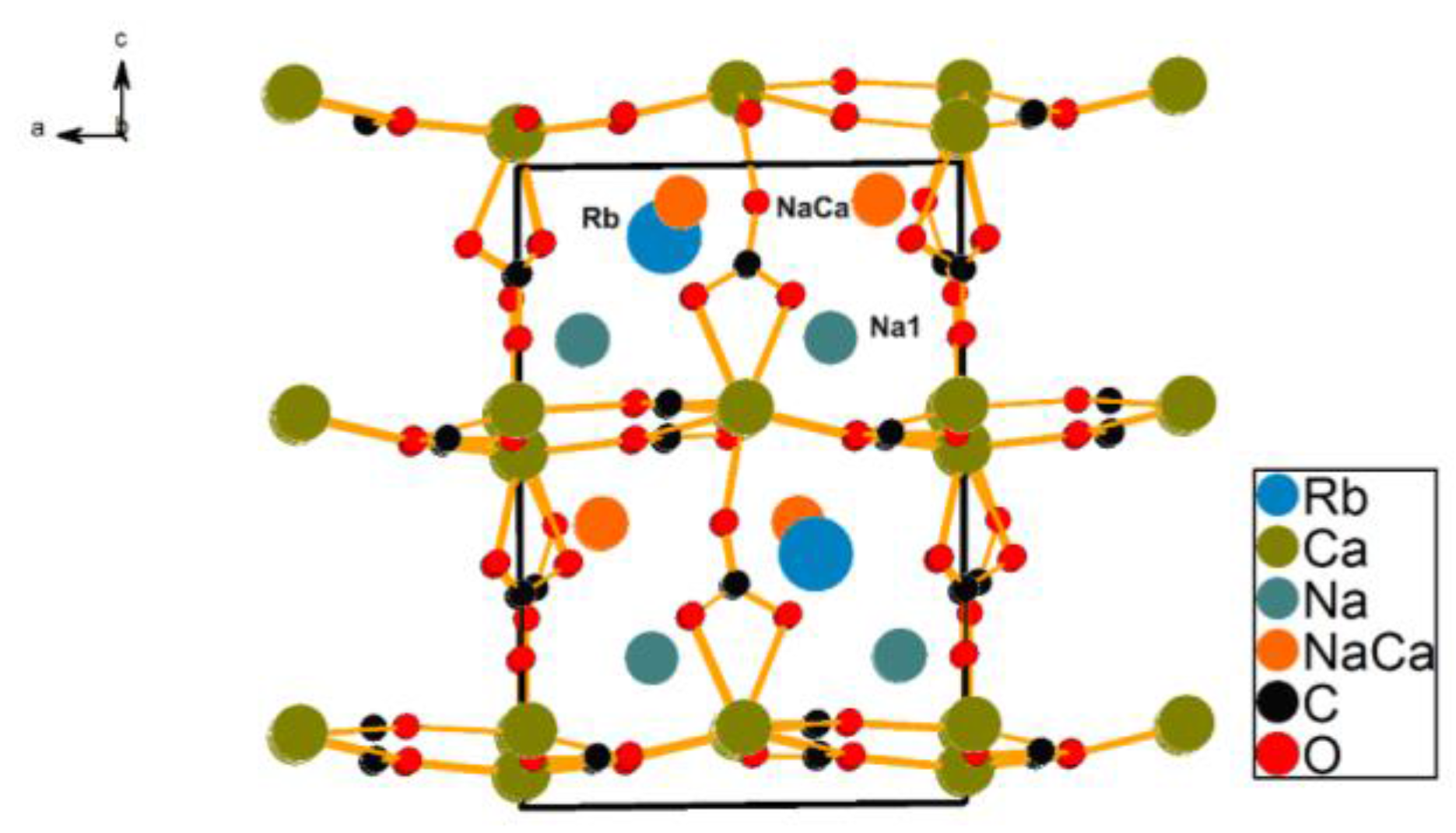

RbNa₅Ca₅(CO₃)₈ is isostructural to CsNa₅Ca₅(CO₃)₈ and crystallize into a hexagonal crystal system with a noncentrosymmetric space group of P6₃mc. The structure along the b-axis is shown in Figure 1. The structure can be described as the adjacent infinite [CaCO₃]_∞ layers lying in the a-b plane bridged through the standing [CO₃] groups by sharing O atoms (two-fold coordinated) to build a framework with four types of tunnels running through the b-axis. The Na, Rb, and [Na_0.67Ca_0.33] atoms reside in these tunnels, respectively, where Na atoms are located in a seven-coordination environment with Na–O bond lengths ranging from 2.369(6) to 2.546(3) Å, Rb atoms are located in an eight-coordination environment with Rb-O bond lengths ranging from 2.900(6) to 3.439(5) Å and [Na_0.67Ca_0.33] atoms are coordinated to nine O atoms with Na_0.67Ca_0.33–O bond lengths ranging from 2.432(2) to 2.960(5) Å. The C1, C2, and C4 atoms are coordinated to three O atoms to form planar [CO₃] triangles with C–O bond lengths ranging from 1.232(4) to 1.295(1) Å and O−C−O bond angles ranging from 114.6(1)° to 122.7(7)°. However, C3 are surrounded by three O7 and one O6 to form a propeller-shape along c axis, which are caused by the split of O7. It is noteworthy that the [CO₃] groups in two successive [CaCO₃]_∞ layers present an opposite orientation (Figure 2a). According to anionic group theory, this arrangement of [CO₃] groups makes almost no contribution to NLO susceptibilities. The macroscopic SHG effects, however, originated from the standing [CO₃] group along c axis. It is regrettable that the standing-on-edge [C3O₃] and [C4O₃] groups are almost arranged oppositely to the c direction (see Figure 2b), which cancels the d₃₃ contribution from [C4O₃] group.

2.2. TG Analysis

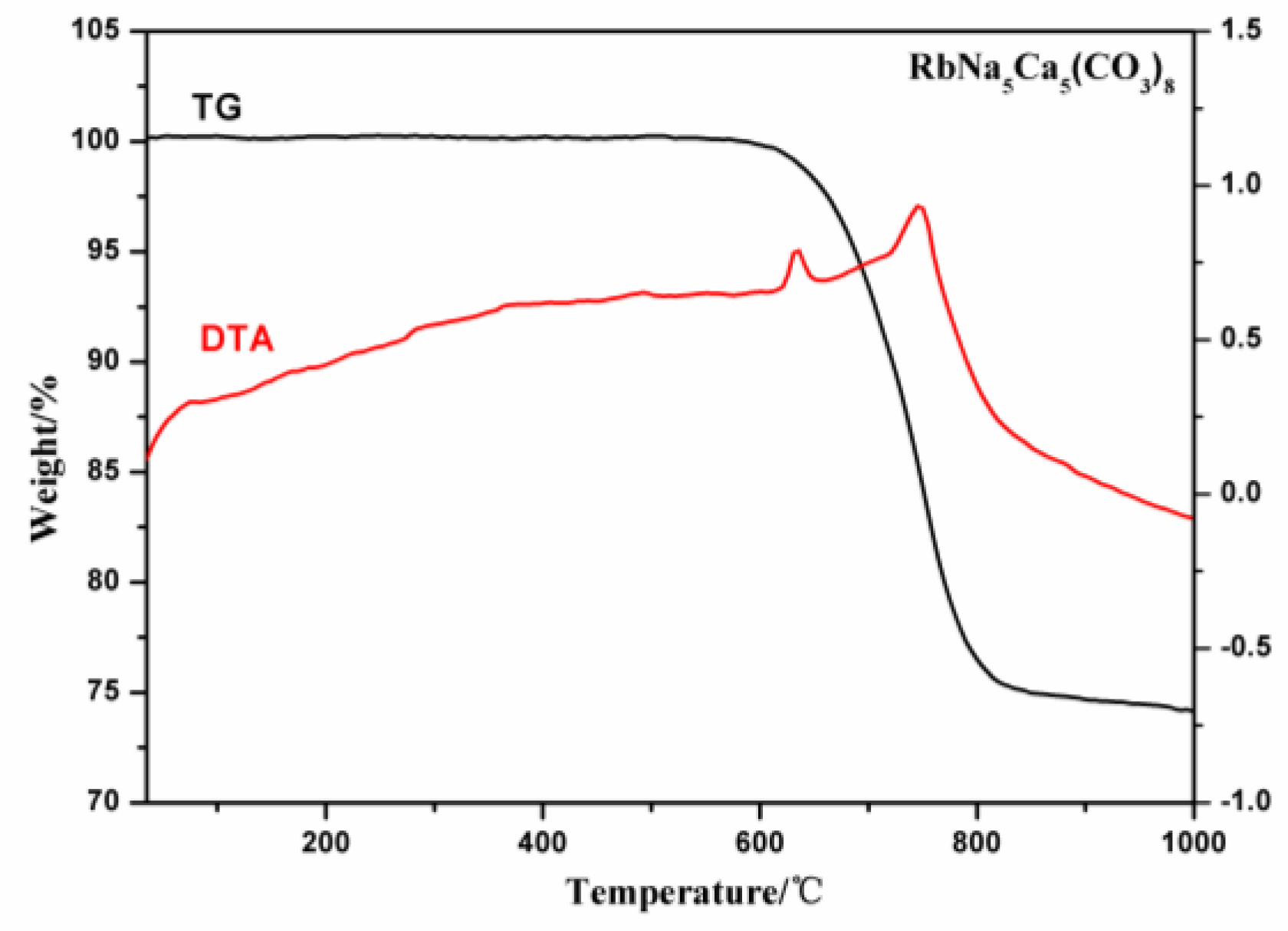

The thermal behavior of RbNa₅Ca₅(CO₃)₈ is shown in Figure 3. As shown in Figure 3, RbNa₅Ca₅(CO₃)₈ is thermally stable up to about 600 °C. RbNa₅Ca₅(CO₃)₈ undergoes the weight loss between 600 °C and 850 °C due to the release of five moles of CO₂ (exp./th. = 25.03/24.97). The decomposition reaction is:

RbNa₅Ca₅(CO₃)₈→2.5Na₂CO₃ + 0.5Rb₂CO₃ + 5CaO + 5CO_2(g)

The reaction mechanism is confirmed by the residue PXRD. (See Figure S1 in the Supporting Information).

2.3. Diffuse-Reflectance Spectroscopy

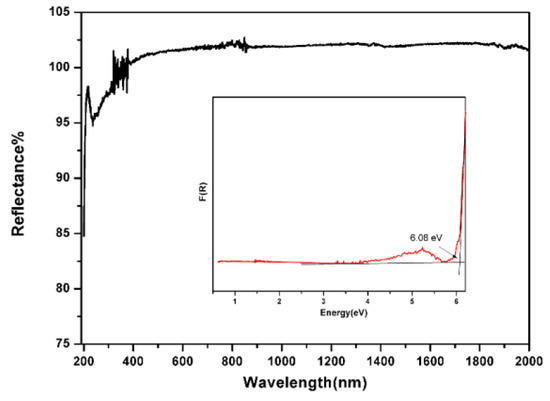

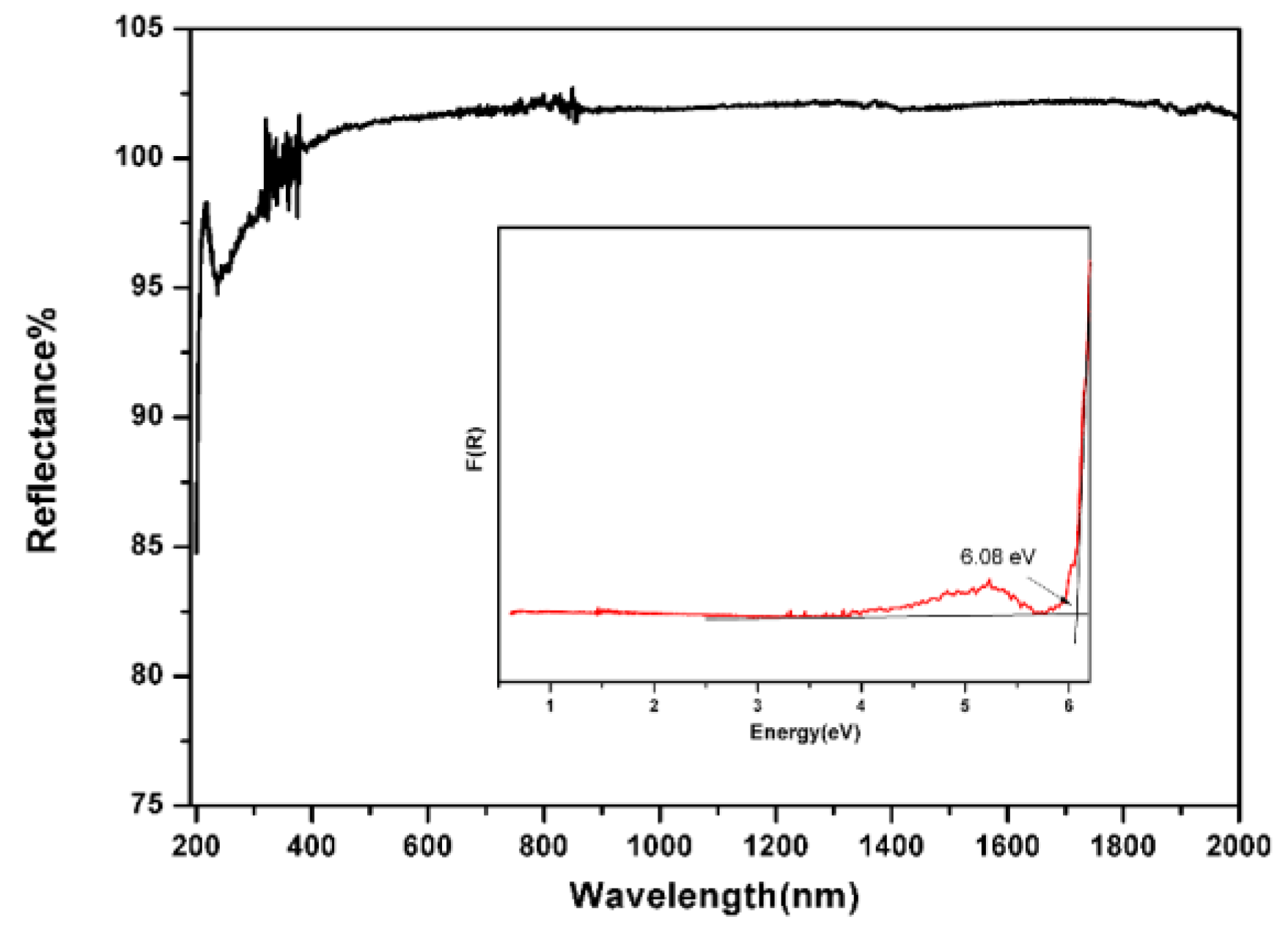

As shown in Figure 4, UV-VIS diffuse reflectance spectra were collected for RbNa₅Ca₅(CO₃)₈ in the region of 200–2000 nm. Absorption (K/S) data were calculated from the following Kubelka-Munk function: F(R) = (1-R)²/2R = K/S, where R is the reflectance, K is the absorption, and S is the scattering. In the (K/S)-versus-E plots, extrapolating the linear part of the rising curve to zero provided the onset of absorption. Optical diffuse reflectance spectrum studies indicated that the optical band gaps for RbNa₅Ca₅(CO₃)₈ was approximately 6.08 eV with UV cut-off edges of 203 nm.

2.4. NLO Properties

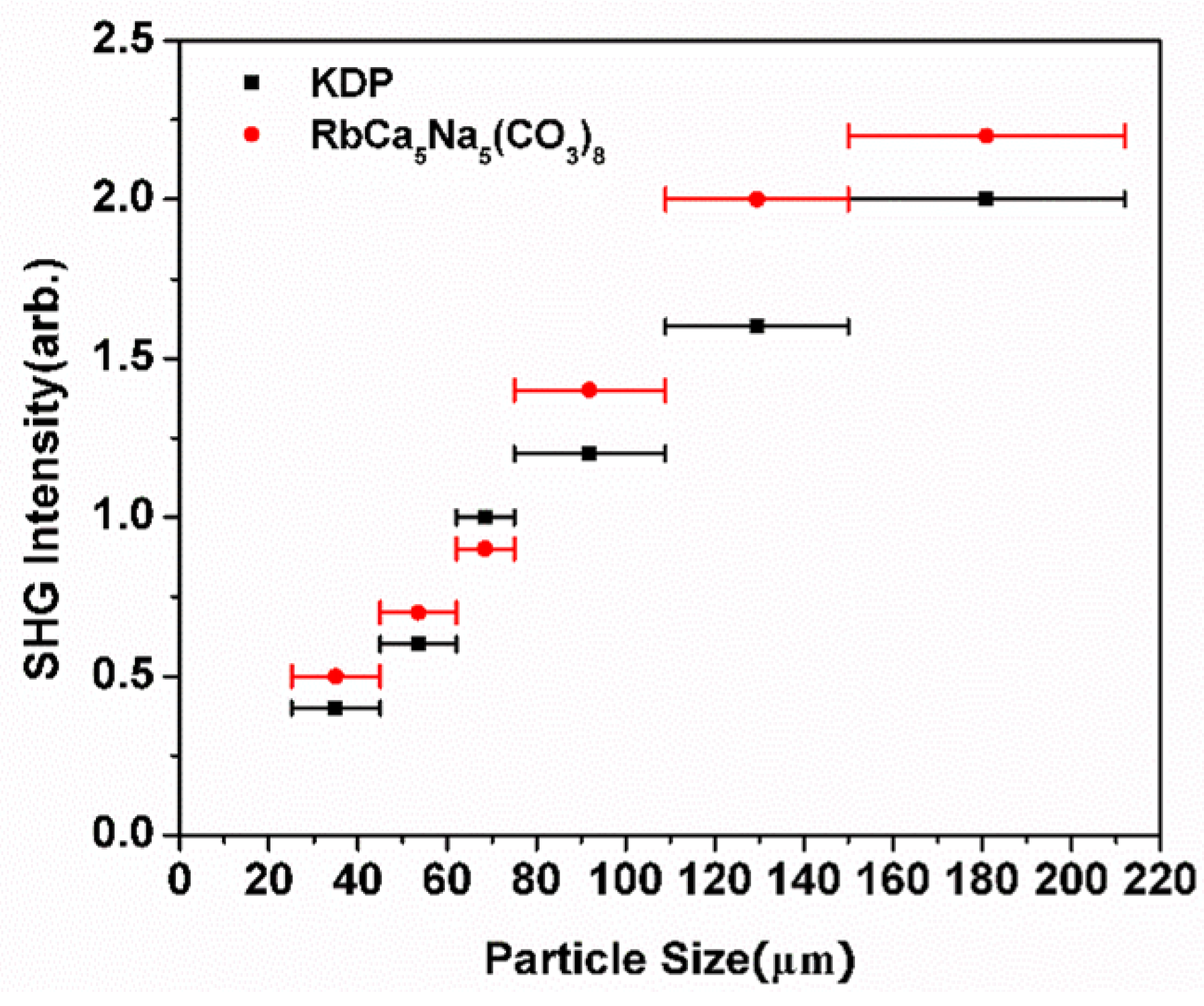

The curves of the SHG signal as a function of particle size from the measurements made on ground crystals of RbNa₅Ca₅(CO₃)₈ is shown in Figure 5. Based on the rule proposed by Kurtz and Perry, we can clearly see that the titled compound is phase-matching in the visible region. The KDP sample is used as a reference. The measurement of second-harmonic signal for RbNa₅Ca₅(CO₃)₈ is found to be about 1 × KDP.

2.5. Relationship between Structure and NLO Properties

According to the anionic group theory, the dipole transition from the cations to the anionic group ([CO₃] in this case) is the off-site transition. Its value is about one order smaller than the dipole transition of the intra-atomic transitions within anionic groups. Thus, the main SHG coefficients have largely depended on the [CO₃] anionic group. Therefore, based on the anionic group theory, the macroscopic second-order susceptibility χ ⁽²⁾ may be expressed by Equation (1):

$$x_{ijk}^{(2)}=\frac{F}{V}{\displaystyle \sum _{\mathrm{p}}{\displaystyle \sum _{\mathrm{i}\prime \mathrm{j}\prime \mathrm{k}\prime }{\alpha }_{\mathrm{ii}\prime }{\alpha }_{\mathrm{jj}\prime }{\alpha }_{\mathrm{kk}\prime }}}{\beta }_{\mathrm{i}\prime \mathrm{j}\prime \mathrm{k}\prime }^{(2)}(\mathrm{P}),\mathrm{P}=[{\mathrm{CO}}_3]$$

(1)

where F is the correction factor of the localized field, V is the volume of the unit cell,α_ii’, α_jj’ , and α_kk’ are the direction cosines between the macroscopic coordinates axes of the crystal and the microscopic coordinates axes of [CO₃] groups, and β_i’j’k’ is the microscopic second-order susceptibility tensors of an individual group. The [CO₃] is a planar group in point group D_3h. Under the Kleinman approximation, there are only two non-vanishing second-order susceptibilities ${\beta }_{111}^{(2)}=-{\beta }_{122}^{(2)}$. The geometrical factor, g, can be derived from Equations (1) and (2) may be simplified according to the deduction process shown in ref [29]:

$$x_{\mathrm{ijk}}^{\left(2\right)}=\frac{F}{V}\cdot {\mathrm{g}}_{\mathrm{ijk}}\cdot {\beta }_{111}^{(2)}([C{O}_3])$$

(2)

In case of nonspontaneous polarization, the structural criterion C is defined as:

$$C=\frac{g}{n}$$

(3)

where n is the number of anionic groups in a unit cell.

Since the localized field (F) is dependent on the refractive index of crystal, for the convenience of discussion, we assume that the carbonates in our discussion have similar refractive index. Hence, from the Equations (2) and (3) we can see that the NLO coefficient $x_{ijk}^{(2)}$ is proportional to the density of the [CO₃] group (n/V) and the structural criterion (C). According to the notation of Grice et al. [30], the [CO₃] groups in RbNa₅Ca₅(CO₃)₈ had two arrangements, flat-lying and standing-on-edge. The flat-lying [CO₃] groups in two successive [CaCO₃]_∞ layers present an opposite orientation, which give almost no contribution to the C factor. The major contribution to the C factor is dependent on the standing-on-edge [CO₃] groups along the c axis. It is worth noting that the standing-on-edge [CO₃] groups exist as two sets of arrangements in the structure, among which two [CO₃] groups are perfectly aligned along the c direction and the other six [CO₃] groups skew towards the c axis by about 16.6°. However, it is regrettable that two sets of the arrangement present the opposite direction, which have negative contributions to the C factor. The accurately-calculated C factor for RbNa₅Ca₅(CO₃)₈ is 0.197. Although the density of the [CO₃] group in title compound is moderate, the small C factor eventually results in the small macroscopic SHG effect.

In order to further illustrate how the macroscopic SHG responses affected by the arrangement of the NLO-active groups and the density of NLO-active groups, we compared RbNa₅Ca₅(CO₃)₈ with KSrCO₃F. In the KSrCO₃F, the [CO₃] triangles are all exactly parallel to each other, giving a 100% optimum. Although the density of [CO₃] groups in the RbNa₅Ca₅(CO₃)₈ (0.0144) is larger than that of KSrCO₃F (0.0089), the C value of RbNa₅Ca₅(CO₃)₈ is only 0.197, which results in the calculated value of (n/V) × C (Å^-3) of RbNa₅Ca₅(CO₃)₈ (0.0028) is smaller than that of KSrCO₃F (0.0089). Therefore, the SHG value of RbNa₅Ca₅(CO₃)₈ is calculated to be 31.5% relative to KSrCO₃F. This result is approximately in accordance with the experimental value, which is 1/3, relative to KSrCO₃F for RbNa₅Ca₅(CO₃)₈. The calculation results were shown in

Table 1. NLO Effects of KSrCO₃F and RbNa₅Ca₅(CO₃)₈.

Crystals	SHG coefficient (×KDP)a	Structural criterion C	densities of the [CO3] (n/V) (Å-3)	(n/V) × C(Å−3)
KSrCO3F RbNa5Ca5(CO3)8	3.33 1	1 0.197	0.0089 0.0144	0.0089 0.0028

and the calculation results are in good agreement with the SHG measurements.

3. Materials and Methods

3.1. Reagents

Na₂CO₃ (99.8%), CaCl₂ (99.8%), RbCl (99.8%) were purchased from Titan (Titan, Shanghai, China).

3.2. Synthesis and Crystal Growth

A mixture of Na₂CO₃ (2.12 g，0.02 mol), CaCl₂ (0.444 g，0.004 mol), RbCl (2.42 g, 0.02 mmol) and H₂O (10.0 mL) was sealed in an autoclave equipped with a Teflon liner (23 mL) and heated at 220 °C for five days, followed by slow cooling to room temperature at a rate of 3 °C/h. The reaction product was washed with deionized water and ethanol, and then dried in air. Colorless hexagonal prism-shaped RbNa₅Ca₅(CO₃)₈ crystals were obtained as a single phase in a yield of about 80% based on Ca.

3.3. Single-Crystal X-Ray Diffraction

Single-crystal X-ray diffraction data were collected at room temperature on a Rigaku Mercury CCD diffractometer (Rigaku, Tokyo, Japan) with graphite-monochromatic Mo Kα radiation (λ = 0.71073Å). A transparent block of crystal was mounted on a glass fiber with epoxy for structure determination. A hemisphere of data was collected using a narrow-frame method with ω-scan mode. The data were integrated using the CrystalClear program, and the intensities were corrected for Lorentz polarization, air absorption, and absorption attributable to the variation in the path length through the detector faceplate. Absorption corrections based on the multiscan technique were also applied. The structure of RbNa₅Ca₅(CO₃)₈ was solved by the direct methods using SHELXS-97 [31]. During the refinement for RbNa₅Ca₅(CO₃)₈, Na2 and Ca2 atoms were set to share the same sites, due to the large U(eq) and R values when these sites were assigned as Ca atoms. To retain charge balance, the occupancy ratios of Na/Ca were refined to be 0.67/0.33. Meanwhile, at this stage of refinement, the U(eq) of O(7) atom appeared to be very high. Consequently, the oxygen atom O(7) was split with a scale factor of 0.67. All thermal parameters were satisfying. Additionally, all non-hydrogen atoms were refined with anisotropic thermal parameters. The structure was verified using the ADDSYM algorithm from the program PLATON [32], and no higher symmetries were found. Relevant crystallographic data and details of the experimental conditions for RbNa₅Ca₅(CO₃)₈ are summarized in

Table 2. Crystal data and structure refinement for RbNa₅Ca₅(CO₃)₈.

Formula	RbNa5Ca5(CO3)8
Formula Mass(amu)	880.90
Crystal System	Hexagonal
Space Group	P63mc
a (Å)	10.075(3)
c (Å)	12.639(5)
Α (°)	90
γ (°)	120
V (Å3)	1111.2(7)
Z	2
ρ(calcd) (g/cm3)	2.633
Temperature (K)	293(2)
Λ (Å)	0.71073
F(000)	864
Μ (mm−1)	3.600
θ (deg)	2.33–27.50
Rint	0.0442
R/wR (I > 2σ (I))	0.0409/0.1015
R/wR (all data)	0.0413/0.1018
GOF on F2	1.117
Absolute Structure Parameter	0.00
Largest Diff. Peak and Hole (e/Å-3)	1.069 and –0.835

R(F) = Σ||F_o| – |F_c||/Σ|F_o|. wR(F_o²) = [Σw(F_o² – F_c²)²/Σw(F_o²)²]^1/2.

. (Database: CCDC 1510695, These data can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; Fax: +44 1223 336033; E-mail: [email protected])) Atomic coordinates and isotropic displacement coefficients are listed in Table S1 and bond lengths in Table S2 in the Supporting Information.

3.4. Powder X-Ray Diffraction

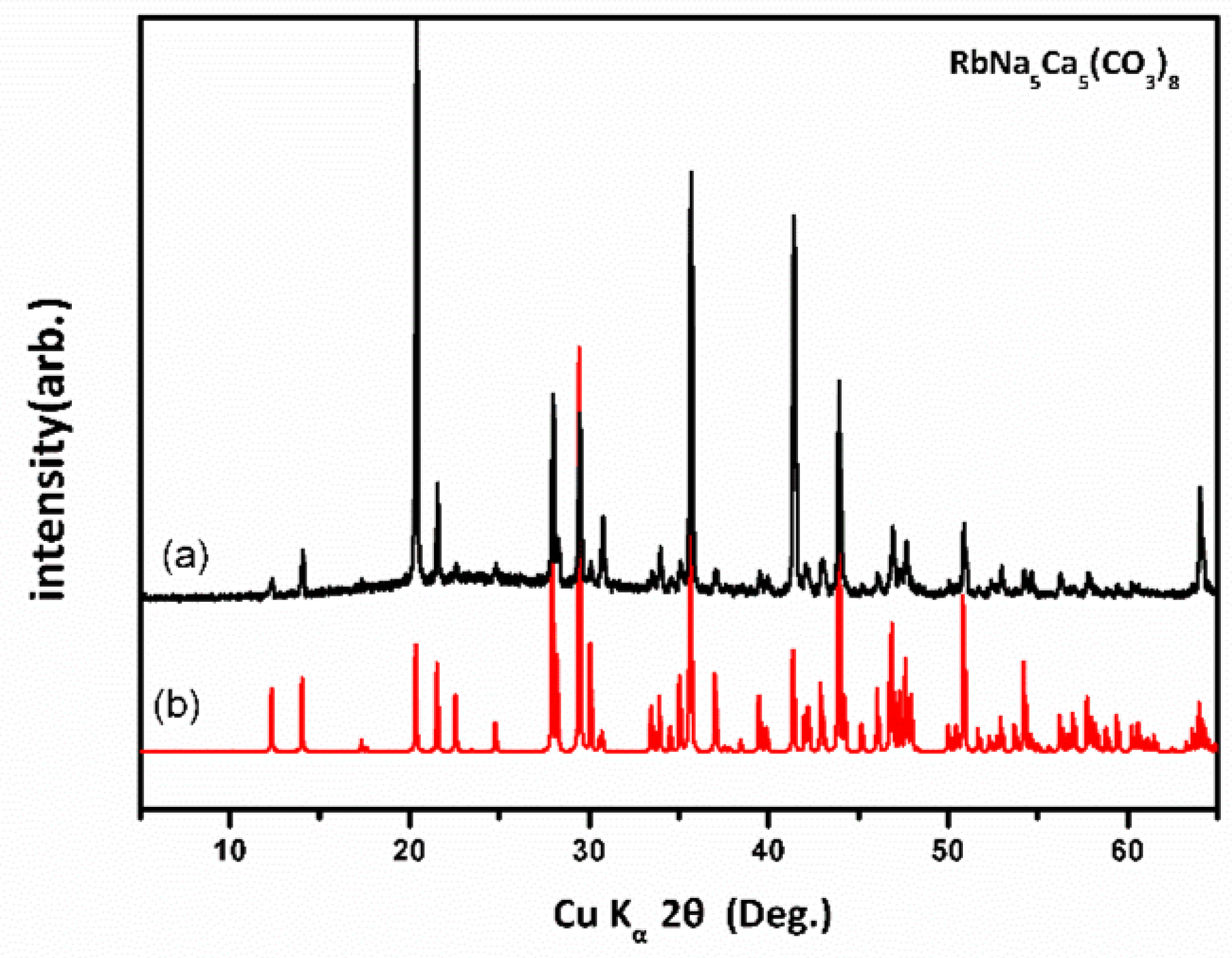

X-ray diffraction patterns of polycrystalline materials were obtained on a Rigaku Dmax2500 powder X-ray diffractometer (Rigaku, Tokyo, Japan) by using Cu Kα radiation (λ = 1.540598 Å) at room temperature in the angular range of 2θ = 5-65° with a scan step width of 0.05° and a fixed time of 0.2 s. The powder XRD pattern for the pure powder sample of RbNa₅Ca₅(CO₃)₈ shows a good agreement with the XRD pattern calculated from the single-crystal model (see Figure 6).

3.5. Thermal Analysis

The TG/DTA scans were measured on a NETZSCH STA 449C (NETZSCH, Bavaria, Germany). Reference (Al₂O₃) and crystal samples (5–10 mg) were enclosed in Al₂O₃ crucibles and heated from room temperature to 1000 °C at a rate of 10 °C/min under a constant flow of nitrogen gas.

3.6. UV-VIS Diffuse Reflectance Spectroscopy

UV-VIS diffuse reflectance spectroscopy data were recorded at room temperature using a powder sample with BaSO₄ as a standard (100% reflectance) on a PerkinElmer Lamda-950 UV/VIS/NIR spectrophotometer and scanned at 200–2000 nm. Reflectance spectra were converted to absorbance using the Kubelka-Munk function [33,34].

3.7. Second-Harmonic Generation

Polycrystalline second-harmonic generation (SHG) signals were measured using the method adapted from Kurtz and Perry. Since SHG efficiencies are known to depend strongly on particle size, polycrystalline samples were ground and sieved into the following particle size ranges: 25–45, 45–62, 62–75, 75–109, 109–150, and 150–212 μm. The samples were pressed between glass microscope cover slides and secured with tape in 1-mm thick aluminum holders containing an 8-mm diameter hole. To make relevant comparisons with known SHG materials, crystalline KDP were also ground and sieved into the same particle size ranges. The samples were then placed in a light-tight box and irradiated with a pulsed laser. The measurements were performed with a Q-switched Nd:YAG laser at 1064 nm. A cutoff filter was used to limit background flash-lamp light on the sample, and an interference filter (530 ± 10nm) was used to select the second harmonic for detection with a photomultiplier tube attached to a RIGOL DS1052E 50-MHz oscilloscope. This procedure was then repeated using the standard nonlinear optical materials KDP, and the ratio of the second-harmonic intensity outputs were calculated. No index-matching fluid was used in any of the experiment.

3.8. Scanning Electron Microscope (SEM)/Energy-Dispersive Analysis by X-Ray (EDX)

SEM/EDX analyses have been performed using a Hitachi S-3400N/Horiba Energy EX-250 instrument (Hitachi, Tokyo, Japan). EDX result reveals that the titled compound contain Rb, Na, and Ca with the ratio of 0.9:4.8:5.2.

4. Conclusions

In summary, RbNa₅Ca₅(CO₃)₈ with non-centrosymmetric structure, has been prepared under a subcritical hydrothermal condition. The results from the UV-VIS diffuse reflectance spectroscopy study of the powder sample indicated that the short-wavelength absorption edges of RbNa₅Ca₅(CO₃)₈ is about 203 nm. The SHG test shows that the compound exhibit SHG responses about one times KH₂PO₄ (KDP). Our future efforts will be devoted to growing large crystals of RbNa₅Ca₅(CO₃)₈ to further study their optical properties, such as refractive indices, the Sellmeier equations, second-order NLO coefficients, and laser damage threshold.
