Two Supramolecular Cobalt(II) Complexes: Syntheses, Crystal Structures, Spectroscopic Behaviors, and Counter Anion Effects

by
Hao-Ran Jia
,
Jing Li
,
Yin-Xia Sun
*,
Jian-Qiang Guo
,
Bin Yu
,
Na Wen
and
Li Xu
School of Chemical and Biological Engineering, Lanzhou Jiaotong University, Lanzhou 730070, China
*
Author to whom correspondence should be addressed.
Crystals 2017, 7(8), 247; https://doi.org/10.3390/cryst7080247
Submission received: 5 July 2017 / Revised: 26 July 2017 / Accepted: 30 July 2017 / Published: 9 August 2017
(This article belongs to the Section Crystalline Materials)
Browse Figures
Versions Notes

Abstract

:
Two new Co(II) complexes, [{Co(L)}2{Co(Pic)2(CH3OH)2}] (1) and [{CoL(μ-OAc)}2Co] (2), where H2L = 2,2′-[Ethylenedioxybis(nitrilomethylidyne)]dinaphthol, were designed, synthesized and characterized by elemental analysis, FT-IR spectra, UV-Vis spectra, and X-ray crystallography. Complex 1 consists of two [CoL] and one [Co(Pic)2(CH3OH)2] (Pic = picrate) units and in the [CoL] unit, the Co(II) atom is tetra-coordinated with a slightly distorted square-planar geometry. In the [Co(Pic)2(CH3OH)2] unit, the Co(II) atom is hexa-coordinated with a slightly distorted octahedral geometry. Meanwhile in complex 2, two acetate ions coordinate to three Co(II) atoms through Co-O-C-O-Co bridges and four μ-naphthoxo oxygen atoms from two [CoL] units also coordinated to the central Co(II) atom. Thus, complex 2 has two distorted square pyramidal coordination geometries around the terminal Co(II) atom and an octahedral geometry around the central Co(II) atom. The supramolecular structures of complex 1 is a 3D-network supramolecular structure linked by C-H···O hydrogen bonds and π···π stacking interaction, but complex 2 possesses a self-assembled 2D-layer supramolecular structure linked by C-H···π and π···π stacking interactions. The structure determinations show that the coordination anions are important factors influencing the crystalline array.

1. Introduction

Salen-type compounds or their derivatives have received much attention not only because of their versatile architectures and topologies tuned by metal ions and organic ligands [1,2,3,4,5], but also due to their properties for potential applications in various areas, such as catalysis [6], bioscience [7,8,9,10], host-guest chemistry [11,12,13,14], electrochemistry [15,16], magnetism [17,18,19,20,21], optical properties [22,23,24,25,26,27,28], and molecular recognition [22,23,29,30]. More and more research programs have focused on the syntheses of Salamo-type complexes by the structural motifs of substituent groups in recent years [31,32,33], because the Salamo compounds are more stable than the Salen compounds [34]. The Salamo-type N2O2 ligands can easily coordinate with several different types of transition metal ions in a tetradentate fashion to obtain stable mononuclear, multinuclear and hetero-polynuclear complexes which have novel structures and excellent capabilities [35,36,37], such as, recognition of metal cations, used as stereochemical catalysts, and to serve as optoelectronic materials.
There are many important factors, such as the metal ions, ligands, counter anions or coordination anions, temperatures, pH values, and solvents [38,39,40,41,42,43,44,45], which always have a major influence on the construction of the coordination compounds. Among the groups that can be coordinated with metal ions, apart from ligands, the coordination anion is one of the direct and obvious factors. In order to further study the influencing factors on complex structures in the process of constructing metal complexes with the Salamo ligands, we designed and synthesized a Salamo ligands H2L (Scheme 1) and its two novel Co(II) complexes. The structures and spectral properties were studied. The results presented herein indicate that the coordination anions have a significant influence on the structures of the resulting complexes.

2. Experimental

2.1. Reagents and Physical Measurements

Commercially available 2-hydroxynaphthaldehyde was purchased from Aladdin Chemistry (Aladdin, Shanghai, China), and other solvents from Tianjin Chemical Reagent Factory (Tianjin, China) were analytical grade, which were used without further purification. C, H, and N analyses were performed with a GmbH VariuoEL V3.00 automatic elemental analyzer. 1H NMR spectra were measured at room temperature in CDCl3 solution on a Bruker 400 instrument recording at 400 MHz frequency. FT-IR spectra were recorded on a VERTEX70 FT-IR spectrophotometer, with samples prepared as KBr (400–4000 cm−1) and CsI (100–500 cm−1) pellets. UV-Vis absorption spectra were determined on a Shimadzu UV-2550 spectrometer (Shimadzu, Tokyo, Japan). X-ray single crystal structures were obtained on a Rapid Auto Version 3.0 Rigaku RAXIS-RAPID detector. The melting points were determined by a micromelting point apparatus produced by BEIJING TAIKE INSTRUMENT CO., LTD. (Beijing, China).

2.2. Synthesis of H2L

The compound 1,2-bis(aminooxy)ethane was synthesized by a similar method to that reported previously [46,47] and 2,2’-[ethylenedioxybis(nitrilo-methylidyne)]dinaphthol (H2L) was synthesized according to an analogous method reported previously in the literature [48,49]. A methanolic solution (20 mL) of 1,2-bis(aminooxy)ethane (92.1 mg, 1.0 mmol) was added to a solution of 2-hydroxynaphthaldehyde (349.5 mg, 2.02 mmol) in ethanol (20 mL) and the mixture was stirred at 55 °C for 4 h. Then the solvent was removed under reduced pressure and the residue was recrystallized from ethanol to give the ligand H2L (897.5 mg, 56.5%). M.p. 157–158 °C. Anal. Calcd for C24H20N2O4 (%): C, 71.99; H, 5.03; N, 7.00. Found: C, 71.81; H, 5.02; N, 6.85. 1H NMR (400 MHz, CDCl3, ppm) δ = 4.59 (s, 4H, CH2-O, CH2-O), 7.19 (d, J = 8.8 Hz, 2H, Ar-H), 7.25 (s, 2H, Ar-H), 7.35 (t, J = 3.6 Hz, 2H, Ar-H), 7.50 (t, J = 4.2 Hz, 2H, Ar-H), 7.78 (d, J = 8.8 Hz, 2H, Ar-H), 7.94 (d, J = 8.4 Hz 2H, Ar-H), 9.22 (s, 2H, N=CH), 10.93 (s, 2H, ArO-H).

2.3. Synthesis of Complex 1

A pale-pink methanol solution (2 mL) of cobalt(II) picrate hexahydrate (6.14 mg, 0.01 mmol) was added dropwise to a colorless methanol solution (2 mL) of H2L (4.00 mg, 0.010 mmol ) at room temperature. The mixing solution turned yellow immediately and the filtrate was allowed to stand at room temperature for about three weeks. Brown prismatic single crystals suitable for X-ray structural determination were obtained by slow evaporation from ethanol solution. (Yield: 39% based on Co(Pic)2·6H2O). Anal. calcd. for C62H48Co3N10O24 (%): C, 49.85; H, 3.24; N, 9.38. Found: C, 49.97; H, 3.52; N, 9.21.

2.4. Synthesis of Complex 2

Complex 2 was prepared by a similar procedure as complex 1 except for replacing cobalt(II) picrate hexahydrate with cobalt(II) acetate tetrahydrate. (Yield: 32% based on Co(OAc)2·4H2O). Anal. calcd. for C52H42Co3N4O12 (%): C, 57.21; H, 3.88; N, 5.13. Found: C, 57.34; H, 3.93; N, 5.17.

2.5. Crystal Structure Determinations of Complexes 1 and 2

The single crystals of complexes 1 and 2 with dimensions of 0.27 × 0.25 × 0.22 mm and 0.17 × 0.09 × 0.07 mm were placed on a Bruker Smart 1000 diffractometer equipped with an Apex CCD area detector. The diffraction data were collected using a graphite monochromatic Cu Kα radiation (λ = 1.54178 Å) and Mo Kα radiation (λ = 0.71073 Å), respectively. Empirical absorption correction was applied to the data using the SADABS program. The structure was solved by direct methods and refined by the full-matrix least squares method on F2 using the SHELXL program. All non-hydrogen atoms were refined anisotropically. All the hydrogen atoms were generated geometrically and refined isotropically using the riding model. Details of the crystal parameters, data collection and refinements for complexes 1 and 2 are summarized in Table 1. The complete crystallographic data was deposited as a CIF file in the Cambridge Structural Database (CCDC Nos. 1522381 and 1522382 for complexes 1 and 2) and are available freely upon request citing the deposition number from the web site: www.ccdc.cam.ac.uk/data_request/cif.

3. Results and Discussion

The complexes 1 and 2 were prepared by reaction of ligand H2L with cobalt(II) picrate hexahydrate and cobalt(II) acetate tetrahydrate in ethanol, respectively. All compounds are stable in air. They are soluble in polar aprotic solvents such as DMF, DMSO, and MeCN, slightly soluble in water, ethanol, ethylacetate, and chloroform, and insoluble in Et2O and petroleum ether. The elemental analyses show their different compositions.

3.1. IR Spectra

The IR spectra of H2L and its corresponding complexes 1 and 2 exhibit various bands in the 400–4000 cm−1 region (Figure 1). The most important IR bands are listed in Table 2. In general, the O-H stretching frequency of most compounds is usually expected in the 3300–3800 cm−1 region, but this frequency of the free ligand H2L is displaced to 3437 cm−1 because of the intramolecular hydrogen bond O-H···N=C interaction. The free ligand exhibits characteristic C=N stretching bands at 1631 cm−1, while those of complexes 1 and 2 were observed at 1603 and 1611 cm−1, respectively. The C=N stretching frequencies are all shifted to lower frequencies by 28 cm−1 and 20 cm−1 upon complexation, indicating a decrease in the C=N bond order due to the coordinated bond of the Co(II) atom with the imino nitrogen lone pair [50]. The Ar–O stretching frequency appears as a strong band at 1284 cm−1 for H2L and at 1234 cm−1 for complex 2. Meanwhile, a bending vibration of phenolic alcohol in H2L at 1182 cm−1, which disappears in the complexes, indicated the phenol hydroxy groups of H2L were protonated and the oxygen atom coordinated to the Co(II) ions [13,15]. The Ar-O stretching frequency was shifted to a lower frequency, indicating that a Co-O bond had been formed between the Co(II) ion and phenolic oxygen atom of the ligand.
The far-infrared spectra of complexes 1 and 2 were also obtained in the region 500–100 cm−1 in order to identify frequencies due to the Co–O and Co–N bonds. The FT-IR spectra of the complexes 1 and 2 showed ν(Co–N) and ν(Co–O) vibration absorption frequencies possibly at 452, 446 cm−1 and 431, 422 cm−1, respectively. But as pointed out by Percy and Thornton [51], the metal–oxygen and metal–nitrogen frequency assignments are at times very difficult.

3.2. UV-Vis Spectra

The UV-Vis absorption spectra of H2L and its corresponding complexes 1 and 2 in 5.0 × 10−5 mol·L−1 DMF solution are shown in Figure 2. The electronic absorption spectrum of the free ligand H2L consists of two relatively intense bands at 230 nm, 316 nm and one weak band at 357 nm, the first absorptions observed at 230 nm and 316 nm can be signed to the π-π* transition of the benzene rings, while the absorption peak at 357 nm was attributed to the intra-ligand π-π* transition of the oxime group [52]. The complexes 1 and 2 show almost identical UV–Vis absorption spectra. The absorption bands around 313 nm are only marginally red-shifted (4–6 nm) in the spectra of the complexes. Upon coordination of the ligands, the absorption bands at about 357 nm disappeared and the new bands at 256 nm appeared in the UV-Vis spectra of the complexes 1 and 2, which indicates that the oxime nitrogen atoms are involved in coordination to Co(II) atoms [53]. In addition, the other new absorption peak is observed at ca. 391 nm in Co(II) complexes, which is attributed to the M→L charge-transfer transition. This is characteristic of the transition metal complexes with Salen-type ligands [54,55].

3.3. Crystal Structure of Complexes 1 and 2

The crystal structures of complexes 1 and 2 with an atom numbering scheme is exhibited in Figure 3 and Figure 4. The selected bond lengths and angles of complexes 1 and 2 are in Table 3. The complex 1 crystallizes in the monoclinic system and P2(1)/n space group and Z = 1. The complex 1 consist of two [CoL] and one [Co(Pic)2(CH3OH)2] molecules, and in [CoL] molecule, the Co1 atom is tetra-coordinated by two phenoxy O and two oxime N atoms from one ligand anion L2−. The O1, O2, N1, N2 atoms from the same ligand anion consist of the square plane with the dihedral angle of N1-N2-O1and O1-O2-N1 of 2.30°, and the Co(II) atom deviates from the plane 0.069 Å. The Co–O/N bond distances in the square plane are in the range of 1.917(2) to 2.013(2) Å. Therefore, the local coordination geometry around the Co1 center can be described as a distorted square-planar as shown in Figure 3b.
The [Co(Pic)2(CH3OH)2] molecule is rigorously centrosymmetric, and contains one Co(II) center, two Pic− and two coordinated methanol molecules. The Co(II) atom is hexa-coordinated by two phenoxy O and two nitro O atoms from two Pic−, and the other two O atoms from two coordinated methanol molecules to form an octahedral geometry as shown in Figure 3b. The O6, O11, O6i, and O11i atoms constitute the equatorial plane with the dihedral angle of O6-O6i-O11 and O11-O11i-O6 of 0.00°, and the Co(II) atom strays from the plane 0.00 Å. The Co-O/N bond distances in the equatorial plane are in the range of 1.904(2) to 2.335(2) Å. The axial positions are occupied by O12 and O12i from methanol molecules with bond lengths of 1.993 Å. The trans-coordination angles of O12-Co2-O12i, O6i-Co2-O6, O11i-Co2-O11 are all 180.0°, whereas the cis-coordination angles of O12-Co2-O6, O11-Co2-O6, O12-Co2-O11 are 82.92(6)°, 81.33(7)°, 89.82(7)°, respectively. Therefore, the local coordination geometry around the Co2 center can be described as a slightly distorted octahedron.
According to the above, this complex is very interesting from the structural point of view. First, complex 1 with the picrate anion contains in the crystal structurethe tetracoordinate molecule [Co(L)] with a distorted square planar coordination geometry. This geometry is rather rare for the Co(II) complexes, especially when the abundance of this topology is compared with the tetrahedral and distorted tetrahedral geometries. Second, in the CSD only five other examples of Co(II) complexes with coordinated picrate anions can be found. Two of them, the nitro oxygen atoms of the picrate anion were not involved in coordination with Co(II) ions and in the other three Co(II) complexes [56,57,58], the coordination mode of picric anions is consistent with the coordination pattern reported in this paper. The Co-O(NO2) bond lengths in complex 1 is 2.335 Ǻ, which is within the range of previously published Co(II) complexes involving coordinated picrate anion with that of 2.459 Å, 2.190 Å, 2.110 Å, and 2.149 Å [57,58,59], respectively.
The complex 2 crystallizes in the triclinic system and P-1 space group, Z = 2. The symmetric [{CoL(μ-OAc)}2Co] unit consists of three Co(II) atoms, two ligand anion L2− units, and two coordinated acetate ions. The terminal Co(II) atom (Co1 and Co1i) is penta-coordinated by two nitrogen atoms (N1 and N2), two oxygen atoms (O1 and O4) in the N2O2 moiety of the L2− unit, and one oxygen atom (O5) from the bridging acetate anion. Crystallographic data τ = 0.13 suggests a slightly distorted tetragonal pyramid coordination arrangement for the complex 2 [59]. However, the coordination geometry of the hexa-coordinated central Co2 atom deviates slightly from an ideal octahedron. The Co2 atom has an O2O2 donor set from four μ-phenoxo oxygen atoms (O1, O4, O1i, O4i) from two [CoL] chelates. Meanwhile, each of the two acetate anions bridges the terminal Co1 and central Co2 atoms in a syn-syn fashion. Hence the central Co2 atom finally has an O2O2O2 donor set, in which the coordination sphere is completed by μ-phenoxo oxygen atoms (O1, O4, O1i, O4i) from two [CoL] chelates, and both of oxygen atoms O6 and O6i from the ligating acetate ions which adopt a familiar μ-O-C-O fashion, and constitute a slightly distorted octahedral geometry. The Co2-O bond distances are in the range of 2.037(2) to 2.170(2) Å, the coordinated angles of O1-Co2-O1i, O4-Co2-O4i, and O6-Co2-O6i are all 180°. Therefore, the local coordination geometry around the central Co2 atom can be described as deviating slightly from the ideal octahedron as shown in Figure 4b. The trinuclear structure is stabilized by the two μ-acetato ligands bridging Co2-Co1 and Co2-Co1i with shorter separations of Co···Co (3.065 Å), which neutralize the whole charge of complex 2.

3.4. Supramolecular Interaction of Complexes 1 and 2

It should be noted that important intermolecular hydrogen bonding interactions exist between the molecules in complex 1 as listed in Table 4. Firstly, intermolecular hydrogen bonds between the coordinated methanol molecules of [Co(Pic)2(CH3OH)2] unit and oxygen atoms of the μ-naphthoxo group in the ligand anion L2− of [CoL] unit, O12-H12C···O1, are formed between the [CoL] and [Co(Pic)2(CH3OH)2] units which link the neighboring one [Co(Pic)2(CH3OH)2] unit and two [CoL] units into a tri-polymer as shown in Figure 5. In addition, every tri-polymer further links eight other adjacent tri-polymer units into an infinite 3D–network supramolecular structure by four pairs of intermolecular C11-H11···O7 and C21-H21···O10 hydrogen bonds (Figure 6) between the two -CH groups of the ligand anion L2− in [CoL] units and the oxygen atoms of the picric acid anion Pic− in [Co(Pic)2(CH3OH)2] units, respectively. Furthermore, this linkage is further stabilized by the π···π stacking between the benzene ring (Table 5 and Figure 7) of the adjacent [CoL] and [Co(Pic)2(CH3OH)2] units. Consequently, with the help of O-H···O and C-H···O hydrogen bonds, π···π stacking interactions, the crystal structure of 1 shows an assembly 3D supramolecular network structure (Figure 8) introduced by a coordinated picrate.
In the crystal structure of 2, a pair of intramolecular C13-H13A···O5 hydrogen bonds are formed between the oxygen (O5) atom of the coordinated acetate anion and the –C13H13A group of the O-alkyl chain of L2− unit as shown in Figure 9. The hydrogen bond data are given in Table 6. Complex 2 is stabilized by intermolecular C6-H6···πcentroid(C19-C24) interactions between the -CH group of the benzene ring and the aromatic rings of L2− unit linking the neighboring molecules into a 1D infinite chain parallel to the c axis (Figure 10). Synchronously, this linkage is further stabilized by a pair of intermolecular πcentroid(C15-C19,C24)-πcentroid(C19-C24) stacking interactions between the aromatic rings to form the other 1D infinite chain along b axis (Figure 11 and Table 7). Then these two 1D chains interlink with each other resulting in the crystal packing of 2 showing a 2D-layer supramolecular structure parallel to the bc-planes (Figure 12).

3.5. Anion Effects

Obviously, coordination anions play an important part in the formation of the above different structures of Co(II) complexes. From the structure description, the free ligand H2L presents very different coordination modes when different anions are involved in the coordination with Co(II) atoms. Complexes 1 and 2 were prepared in exactly the same way from a mixture of ligand H2L with Co(Pic)2·6H2O and Co(OAc)2·4H2O in methanol solution, respectively, but the big structural differences in 1 and 2 suggest that the coordination anions indeed affect the ultimate structures of the assemblies: when the Pic− is involved in the coordination with Co(II) atoms, the mononuclear [CoL] unit, and the [Co(Pic)2(CH3OH)2] unit in the Co(II) complex 1 with distorted square-planar and slightly distorted octahedron coordination polyhedron formed, respectively. Meanwhile, the OAc− involved in the coordination with Co(II) atoms resulted in a trinuclear structure with the acetate ions coordinated to three Co(II) atoms through Co-O-C-O-Co bridges, possessing two distorted square pyramidal and an octahedral geometry around the central Co(II) atom. As a unique structure of the tetradentate coordination environment of N2O2, Salamo-type ligands have very good coordination ability. However, for some of the transition metals, the coordination still has some limitations, thus counter anions can easily coordinate with metal ions. In this article, the Pic− in complex 1 has a larger volume which has a hard coordination with metal ions. While, the OAc− in 2 has less steric hindrance than 1, it can easily coordinate to metal ions acting as a second ligand.

4. Conclusions

In summary, we successfully assembled and well characterized two novel Co(II) complexes of Salamo-type ligands. The results presented herein indicate that the coordination anions have a remarkable influence on the structures, coordination geometries, and supramolecular structures of the resulting complexes: when the Pic− is involved in the coordination with Co(II) atoms, a stable Co(II) complex contains the mononuclear [CoL] unit and the [Co(Pic)2(CH3OH)2] unit with a 3D supramolecular network structure linked by C-H···O hydrogen bonds and π···π stacking interaction. Meanwhile OAc− involved in the Co(II) complex resulted in a trinuclear structure with a 2D-layer supramolecular structure linked by C-H···π and π···π stacking interactions. These results may provide us with an interesting insight into how the assembly of Co(II) coordination compounds is affected by the coordination anions.

Acknowledgments

This work was supported by the National Natural Science Foundation of China (21361015) and the Outstanding Research Platform (Team) of Lanzhou Jiaotong University, which is gratefully acknowledged.

Author Contributions

All authors contributed to the writing and production of this manuscript.

Conflicts of Interest

The authors declare no competing financial interests.

References

  1. Akine, S.; Taniguchi, T.; Nabeshima, T. Cooperative formation of trinuclear zinc(II) complexes via complexation of a tetradentate oxime chelate ligand, salamo, and zinc(II) acetate. Inorg. Chem. 2004, 43, 6142–6144. [Google Scholar] [CrossRef] [PubMed]
  2. Dong, W.K.; Zheng, S.S.; Zhang, J.T.; Zhang, Y.; Sun, Y.X. Luminescent properties of heterotrinuclear 3d–4f complexes constructed from a naphthalenediol-based acyclic bis(salamo)-type ligand. Spectrochim. Acta Part A 2017, 184, 141–150. [Google Scholar] [CrossRef] [PubMed]
  3. Tao, C.H.; Ma, J.C.; Zhu, L.C.; Zhang, Y.; Dong, W.K. Heterobimetallic 3d–4f Zn(II)–Ln(III) (Ln = Sm, Eu, Tb and Dy) complexes with a N2O4 bisoxime chelate ligand and a simple auxiliary ligand Py: Syntheses, structures and luminescence properties. Polyhedron 2017, 128, 38–45. [Google Scholar] [CrossRef]
  4. Wang, L.; Ma, J.C.; Dong, W.K.; Zhu, L.C.; Zhang, Y. A novel self–assembled nickel(II)-cerium(III) heterotetranuclear dimer constructed from N2O2-type bisoxime and terephthalic acid: Synthesis, structure and photophysical properties. Z. Anorg. Allg. Chem. 2016, 642, 834–839. [Google Scholar] [CrossRef]
  5. Dong, Y.J.; Dong, X.Y.; Dong, W.K.; Zhang, Y.; Zhang, L.S. Three asymmetric salamo-type copper(II) and cobalt(II) complexes: Syntheses, structures, fluorescent properties. Polyhedron 2017, 123, 305–315. [Google Scholar] [CrossRef]
  6. Li, L.H.; Dong, W.K.; Zhang, Y.; Akogun, S.F.; Xu, L. Syntheses, structures and catecholase activities of homo-and hetero-trinuclear cobalt(II) complexes constructed from an acyclic naphthalenediol-based bis(salamo)-type ligand. Appl. Organomet. Chem. 2017. [Google Scholar] [CrossRef]
  7. Wu, H.L.; Pan, G.L.; Wang, H.; Wang, X.L.; Bai, Y.C.; Zhang, Y.H. Study on synthesis, crystal structure, antioxidant and DNA-binding of mono-, di- and poly-nuclear lanthanides complexes with bis(N-salicylidene)-3-oxapentane-1,5-diamine. J. Photochem. Photobiol. B 2014, 135, 33–43. [Google Scholar] [CrossRef] [PubMed]
  8. Wu, H.L.; Bai, Y.C.; Zhang, Y.H.; Li, Z.; Wu, M.C.; Chen, C.Y.; Zhang, J.W. Synthesis, crystal structure, antioxidation and DNA-binding properties of a dinuclear copper(II) complex with bis(N-salicylidene)-3-oxapentane-1,5-diamine. J. Coord. Chem. 2014, 67, 3054–3066. [Google Scholar] [CrossRef]
  9. Wu, H.L.; Pan, G.L.; Bai, Y.C.; Wang, H.; Kong, J. Synthesis, structure, antioxidation, and DNA-bindingstudies of a binuclear ytterbium(III) complex with bis(N-salicylidene)-3-oxapentane-1,5-diamine. Res. Chem. Intermed. 2015, 41, 3375–3388. [Google Scholar] [CrossRef]
  10. Chen, C.Y.; Zhang, J.W.; Zhang, Y.H.; Yang, Z.H.; Wu, H.L.; Pana, G.L.; Bai, Y.C. Gadolinium(III) and dysprosium(III) complexes with a schiff base bis(N-salicylidene)-3-oxapentane-1,5-diamine: Synthesis, characterization, antioxidation, and DNA-binding studies. J. Coord. Chem. 2015, 68, 1054–1071. [Google Scholar] [CrossRef]
  11. Song, X.Q.; Cheng, G.Q.; Liu, Y.A. Enhanced Tb(III) luminescence by d10 transition metal coordination. Inorg. Chim. Acta 2016, 450, 386–394. [Google Scholar] [CrossRef]
  12. Zhao, L.; Wang, L.; Sun, Y.X.; Dong, W.K.; Tang, X.L.; Gao, X.H. A supramolecular copper(II) complex bearing salen-type bisoxime ligand: Synthesis, structural characterization, and thermal property. Synth. React. Inorg. Metal-Org. Nano-Met. Chem. 2012, 42, 1303–1308. [Google Scholar] [CrossRef]
  13. Zhao, L.; Dong, X.T.; Chen, Q.; Zhao, J.X.; Wang, L. Synthesis, crystal structure and spectral properties of a 2D supramolecular copper(II) complex with 1-(4-{[(E)-3-ethoxyl-2-hydroxybenzylidene] amino} phenyl) ethanone oxime. Synth. React. Inorg. Metal-Org. Nano-Met. Chem. 2013, 43, 1241–1246. [Google Scholar] [CrossRef]
  14. Wang, P.; Zhao, L. Synthesis, structure and spectroscopic properties of the trinuclear cobalt(II) and nickel(II) complexes based on 2-hydroxynaphthaldehyde and bis(aminooxy) alkane. Spectrochim. Acta Part A 2015, 135, 342–350. [Google Scholar] [CrossRef] [PubMed]
  15. Dong, W.K.; Lan, P.F.; Zhou, W.M.; Zhang, Y. Salamo-type trinuclear and tetranuclear cobalt(II) complexes based on a new asymmetry salamo-type ligand: Syntheses, crystal structures, and fluorescence properties. J. Coord. Chem. 2016, 69, 1272–1283. [Google Scholar] [CrossRef]
  16. Dong, W.K.; Ma, J.C.; Zhu, L.C.; Zhang, Y.; Li, X.L. Four new nickel(II) complexes based on an asymmetric salamo-type ligand: Synthesis, structure, solvent effect and electrochemical property. Inorg. Chim. Acta 2016, 445, 140–148. [Google Scholar] [CrossRef]
  17. Song, X.Q.; Liu, P.P.; Liu, Y.A.; Zhou, J.J.; Wang, X.L. Two dodecanuclear heterometallic [Zn6Ln6] clusters constructed by a multidentate salicylamide salen-like ligand: Synthesis, structure, luminescence and magnetic properties. Dalton. Trans. 2016, 45, 8154–8163. [Google Scholar] [CrossRef] [PubMed]
  18. Dong, W.K.; Ma, J.C.; Zhu, L.C.; Sun, Y.X.; Zhang, Y. A series of heteromultinuclear zinc(II)-lanthanide(III) complexes based on 3-MeOsalamo: Syntheses, structural characterizations, and luminescent properties. Cryst. Growth Design 2016, 16, 6903–6915. [Google Scholar] [CrossRef]
  19. Dong, W.K.; Ma, J.C.; Zhu, L.C.; Zhang, Y. Nine self-assembled nickel(II)-lanthanide(III) heterometallic complexes constructed from a salamo-type bisoxime and bearing a N- or O-donor auxiliary ligand: Syntheses, structures and magnetic properties. New J. Chem. 2016, 40, 6998–7010. [Google Scholar] [CrossRef]
  20. Liu, P.P.; Wang, C.Y.; Zhang, M.; Song, X.Q. Pentanuclear sandwich-type ZnII-LnIII clusters based on a new salen-like salicylamide ligand: Structure, near-infrared emission and magnetic properties. Polyhedron 2017, 129, 133–140. [Google Scholar] [CrossRef]
  21. Liu, Y.A.; Wang, C.Y.; Zhang, M.; Song, X.Q. Structures and magnetic properties of cyclic heterometallic tetranuclear clusters. Polyhedron 2017, 127, 278–286. [Google Scholar] [CrossRef]
  22. Dong, W.K.; Akogun, S.F.; Zhang, Y.; Sun, Y.X.; Dong, X.Y. A reversible “turn-on” fluorescent sensor for selective detection of Zn2+. Sens. Actuators B 2017, 238, 723–734. [Google Scholar] [CrossRef]
  23. Dong, W.K.; Li, X.L.; Wang, L.; Zhang, Y.; Ding, Y.J. A new application of Salamo-type bisoximes: As a relay–sensor for Zn2+/Cu2+ and its novel complexes for successive sensing of H+/OH−. Sens. Actuators B 2016, 229, 370–378. [Google Scholar] [CrossRef]
  24. Song, X.Q.; Liu, P.P.; Xiao, Z.R.; Li, X.; Liu, Y.A. Four polynuclear complexes based on a versatile salicylamide salen-like ligand: Synthesis, structural variations and magnetic properties. Inorg. Chim. Acta 2015, 438, 232–244. [Google Scholar] [CrossRef]
  25. Liu, P.P.; Sheng, L.; Song, X.Q.; Xu, W.Y.; Liu, Y.A. Synthesis, structure and magnetic properties of a new one dimensional manganese coordination polymer constructed by a new asymmetrical ligand. Inorg. Chim. Acta 2015, 434, 252–257. [Google Scholar] [CrossRef]
  26. Yu, T.Z.; Zhang, K.; Zhao, Y.L.; Yang, C.H.; Zhang, H.; Qian, L.; Fan, D.W.; Dong, W.K.; Chen, L.L.; Qiu, Y.Q. Synthesis, crystal structure and photoluminescent properties of an aromatic bridged schiff base ligand and its zinc complex. Inorg. Chim. Acta 2008, 361, 233–240. [Google Scholar] [CrossRef]
  27. Dong, X.Y.; Akogun, S.F.; Zhou, W.M.; Dong, W.K. Tetranuclear Zn(II) complex based on an asymmetrical salamo-type chelating ligand: Synthesis, structural characterization, and fluorescence property. J. Chin. Chem. Soc. 2017, 64, 412–419. [Google Scholar] [CrossRef]
  28. Ma, J.C.; Dong, X.Y.; Dong, W.K.; Zhang, Y.; Zhu, L.C.; Zhang, J.T. An unexpected dinuclear Cu(II) complex with a bis(salamo) chelating ligand: Synthesis, crystal structure, and photophysical properties. J. Coord. Chem. 2016, 69, 149–159. [Google Scholar] [CrossRef]
  29. Wang, B.J.; Dong, W.K.; Zhang, Y.; Akogun, S.F. A novel relay-sensor for highly sensitive and selective detection of Zn2+/Pic− and fluorescence on/off switch response of H+/OH−. Sens. Actuators B 2017, 247, 254–264. [Google Scholar] [CrossRef]
  30. Dong, Y.J.; Li, X.L.; Zhang, Y.; Dong, W.K. A highly selective visual and fluorescent sensor for Pb2+ and Zn2+ and crystal structure of Cu2+ complex based-on a novel single-armed salamo-type bisoxime. Supramol. Chem. 2017, 29, 518–527. [Google Scholar] [CrossRef]
  31. Dong, W.K.; Zhang, J.; Zhang, Y.; Li, N. Novel multinuclear transition metal(II) complexes based on an asymmetric salamo-type ligand: Syntheses, structure characterizations and fluorescent properties. Inorg. Chim. Acta 2016, 444, 95–102. [Google Scholar] [CrossRef]
  32. Dong, W.K.; Zhang, J.T.; Dong, Y.J.; Zhang, Y.; Wang, Z.K. Construction of mononuclear copper(II) and trinuclear cobalt(II) complexes based on asymmetric Salamo-type ligands. Z. Anorg. Allg. Chem. 2016, 642, 189–196. [Google Scholar] [CrossRef]
  33. Dong, W.K.; Zhang, L.S.; Sun, Y.X.; Zhao, M.M.; Li, G.; Dong, X.Y. Synthesis, crystal structure and spectroscopic properties of a supramolecular zinc(II) complex with N2O2 coordination sphere. Spectrochim. Acta Part A 2014, 121, 324–329. [Google Scholar] [CrossRef] [PubMed]
  34. Akine, S.; Taniguchi, T.; Nabeshima, T. Synthesis and characterizationof novel ligands 1,2-bis(salicylideneaminooxy) ethanes. Chem. Lett. 2001, 30, 682–683. [Google Scholar] [CrossRef]
  35. Dong, W.K.; Li, G.; Wang, Z.K.; Yong, D.X. A novel trinuclear cobalt(II) complex derived from an asymmetric salamo-type N2O3 bisoxime chelate ligand: Synthesis, structure and optical properties. Spectrochim. Acta Part A 2014, 133, 340–347. [Google Scholar] [CrossRef] [PubMed]
  36. Dong, Y.J.; Ma, J.C.; Zhu, L.C.; Dong, W.K.; Zhang, Y. Four 3d-4f heteromultinuclear zinc(II)-lanthanide(III) complexes constructed from a distinct hexadentate N2O2-type ligand: syntheses, structures and photophysical properties. J. Coord. Chem. 2017, 70, 103–115. [Google Scholar] [CrossRef]
  37. Dong, W.K.; Zhang, F.; Li, N.; Xu, L.; Zhang, Y.; Zhang, J.; Zhu, L.C. Trinuclear cobalt(II) and zinc(II) salamo-type complexes: Syntheses, crystal structures, and fluorescent properties. Z. Anorg. Allg. Chem. 2016, 642, 532–538. [Google Scholar] [CrossRef]
  38. Dong, W.K.; Chen, X.; Sun, Y.X.; Yang, Y.H.; Zhao, L.; Xu, L.; Yu, T.Z. Synthesis, structure and spectroscopic properties of two new trinuclear nickel(II) clusters possessing solvent effect. Spectrochim. Acta. Part A 2009, 74, 719–725. [Google Scholar] [CrossRef] [PubMed]
  39. Dong, W.K.; He, X.N.; Yan, H.B.; Lv, Z.W.; Chen, X.; Zhao, C.Y.; Tang, X.L. Synthesis, structural characterization and solvent effect of copper(II) complexes with a variational multidentate Salen-type ligand with bisoxime groups. Polyhedron 2009, 28, 1419–1428. [Google Scholar] [CrossRef]
  40. Dong, W.K.; Sun, Y.X.; Liu, G.H.; Li, L.; Dong, X.Y.; Gao, X.H. Two supramolecular nickel(II) complexes: Syntheses, crystal structures and solvent effects. Z. Anorg. Allg. Chem. 2012, 638, 1370–1377. [Google Scholar] [CrossRef]
  41. Dong, W.K.; Tong, J.F.; Sun, Y.X.; Wu, J.C.; Yao, J.; Gong, S.S. Studies on mono- and dinuclear bisoxime copper complexes with different coordination geometries. Transit. Met. Chem. 2010, 35, 419–426. [Google Scholar] [CrossRef]
  42. Dong, W.K.; Wang, G.; Gong, S.S.; Tong, J.F.; Sun, Y.X.; Gao, X.H. Synthesis, structural characterization and substituent effects of two copper(II) complexes with benzaldehyde ortho-oxime ligands. Transit. Met. Chem. 2012, 37, 271–277. [Google Scholar] [CrossRef]
  43. Dong, W.K.; Zhu, L.C.; Dong, Y.J.; Ma, J.C.; Zhang, Y. Mono, di and heptanuclear metal(II) complexes based on symmetric and asymmetric tetradentate Salamo-type ligands: Syntheses, structures and spectroscopic properties. Polyhedron 2016, 117, 148–154. [Google Scholar] [CrossRef]
  44. Dong, W.K.; Zhu, L.C.; Ma, J.C.; Sun, Y.X.; Zhang, Y. Two novel mono-and heptanuclear Ni(II) complexes constructed from new unsymmetric and symmetric salamo-type bisoximes-synthetic, structural and spectral studies. Inorg. Chim. Acta 2016, 453, 402–408. [Google Scholar] [CrossRef]
  45. Sun, Y.X.; Li, C.Y.; Yang, C.J.; Zhao, Y.Y.; Guo, J.Q.; Yu, B. Two Cu(II) complexes with Schiff base ligands: Synthesis, crystal structure, spectroscopic properties, and substituent effect. Chin. J. Inorg. Chem. 2016, 32, 327–335. [Google Scholar]
  46. Dong, W.K.; Duan, J.G.; Chai, L.Q.; Liu, G.L.; Wu, H.L. Synthesis and structural characterization of new trinuclear cobalt(II) and nickel(II) complexes possessing five- and six-coordinated geometry. J. Coord. Chem. 2008, 61, 1306–1315. [Google Scholar] [CrossRef]
  47. Sun, Y.X.; Wang, L.; Dong, X.Y.; Ren, Z.L.; Meng, W.S. Synthesis, characterization, and crystal structure of a supramolecular CoII complex containing Salen-type bisoxime. Synth. React. Inorg. Metal-Org. Nano-Metal Chem. 2013, 43, 599–603. [Google Scholar] [CrossRef]
  48. Dong, W.K.; Ma, J.C.; Dong, Y.J.; Zhu, L.C.; Zhang, Y. Di-and tetranuclear heterometallic 3d–4f cobalt(II)-lanthanide(III) complexes derived from a hexadentate bisoxime: Syntheses, structures and magnetic properties. Polyhedron 2016, 115, 228–235. [Google Scholar] [CrossRef]
  49. Sun, Y.X.; Zhang, S.T.; Ren, Z.L.; Dong, X.Y.; Wang, L. Synthesis, characterization, and crystal structure of a new supramolecular CdII complex with halogen-substituted Salen-type bisoxime. Synth. React. Inorg. Metal-Org. Nano-Metal Chem. 2013, 43, 995–1000. [Google Scholar] [CrossRef]
  50. Dong, W.K.; Duan, J.G.; Guan, Y.H.; Shi, J.Y.; Zhao, C.Y. Synthesis, crystal structure and spectroscopic behaviors of Co(II) and Cu(II) complexes with Salen-type bisoxime ligands. Inorg. Chim. Acta 2009, 362, 1129–1134. [Google Scholar] [CrossRef]
  51. Percy, G.C.; Thornton, J. Infrared spectra of N-aryl salicylaldimine complexes substituted in both aryl rings. J. Inorg. Nucl. Chem. 1973, 35, 2319–2327. [Google Scholar] [CrossRef]
  52. Wu, H.L.; Wang, C.P.; Wang, F.; Peng, H.P.; Zhang, H.; Bai, Y.C. A new manganese(III) complex from bis(5-methylsalicylaldehyde)-3-oxapentane-1,5-diamine: Synthesis, characterization, antioxidant activity and luminescence. J. Chin. Chem. Soc. 2015, 62, 1028–1034. [Google Scholar] [CrossRef]
  53. Wu, H.L.; Zhang, J.W.; Zhang, Y.H.; Chen, C.Y.; Li, Z.; Wu, M.C.; Yang, Z.H. Syntheses, crystal structures, electrochemical studies, and antioxidant activities of zinc(II) and copper(II) complexes with bis(2-benzimidazolyl) aniline derivatives. J. Coord. Chem. 2015, 68, 835–847. [Google Scholar] [CrossRef]
  54. Chai, L.Q.; Huang, J.J.; Zhang, H.S.; Zhang, Y.L.; Zhang, J.Y.; Li, Y.X. An unexpected cobalt(III) complex containing a Schiff base ligand: Synthesis, crystal structure, spectroscopic behavior, electrochemical property and SOD-like activity. Spectrochim. Acta A 2014, 131, 526–533. [Google Scholar] [CrossRef] [PubMed]
  55. Xu, L.; Zhu, L.C.; Ma, J.C.; Zhang, Y.; Zhang, J.; Dong, W.K. Syntheses, structures and spectral properties of mononuclear CuII and dimeric ZnII complexes based on an asymmetric Salamo-type N2O2 ligand. Z. Anorg. Allg. Chem. 2015, 641, 2520–2524. [Google Scholar] [CrossRef]
  56. Liang, Y.H.; Zhang, J.G.; Cui, Y.; Zhang, T.L.; Zhou, Z.N.; Yang, L. Two novel nitrogen-rich energetic coordination compounds M2(DAT)5(H2O)3(TNR)2 (M = Zn and Co): Synthesis, characterization, thermal properties and sensitivity. Chin. J. Struct. Chem. 2012, 31, 327–338. [Google Scholar]
  57. Wu, B.D.; Zhang, T.L.; Yang, L.; Zhang, J.G.; Zhou, Z.N. Preparation, Crystal Structure, and Thermal Decomposition of the Energetic Compound [Co(IMI)4(PA)](PA) (IMI = Imidazole and PA = Picrate). Z. Anorg. Allg. Chem. 2013, 639, 163–168. [Google Scholar] [CrossRef]
  58. Wu, H.L.; Liu, B.; Kou, F.; Jia, F.; Yuan, J.K.; Bai, Y. Cobalt(II) Complex with a Tridentate N Donor Ligand: Synthesis, Crystal Structure, Antioxidation, and DNA Binding Studies. Z. Anorg. Allg. Chem. 2012, 638, 122–128. [Google Scholar] [CrossRef]
  59. Wu, H.L.; Shi, F.R.; Wang, X.L.; Zhang, Y.H.; Bai, Y.C.; Kong, J.; Wang, C.P. Synthesis, crystal structures, antioxidant activities and DNA-binding studies of two manganese(II) complexes with 1,3-bis(1-ethylbenzimidazol-2-yl)-2-oxopropane ligands. Transit. Met. Chem. 2014, 39, 261–270. [Google Scholar] [CrossRef]
Crystals 07 00247 sch001 550

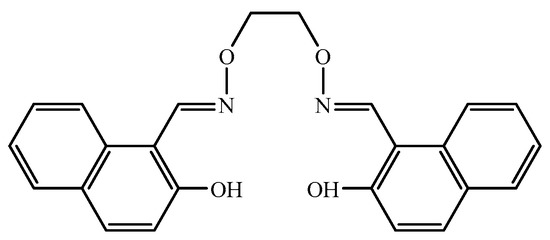

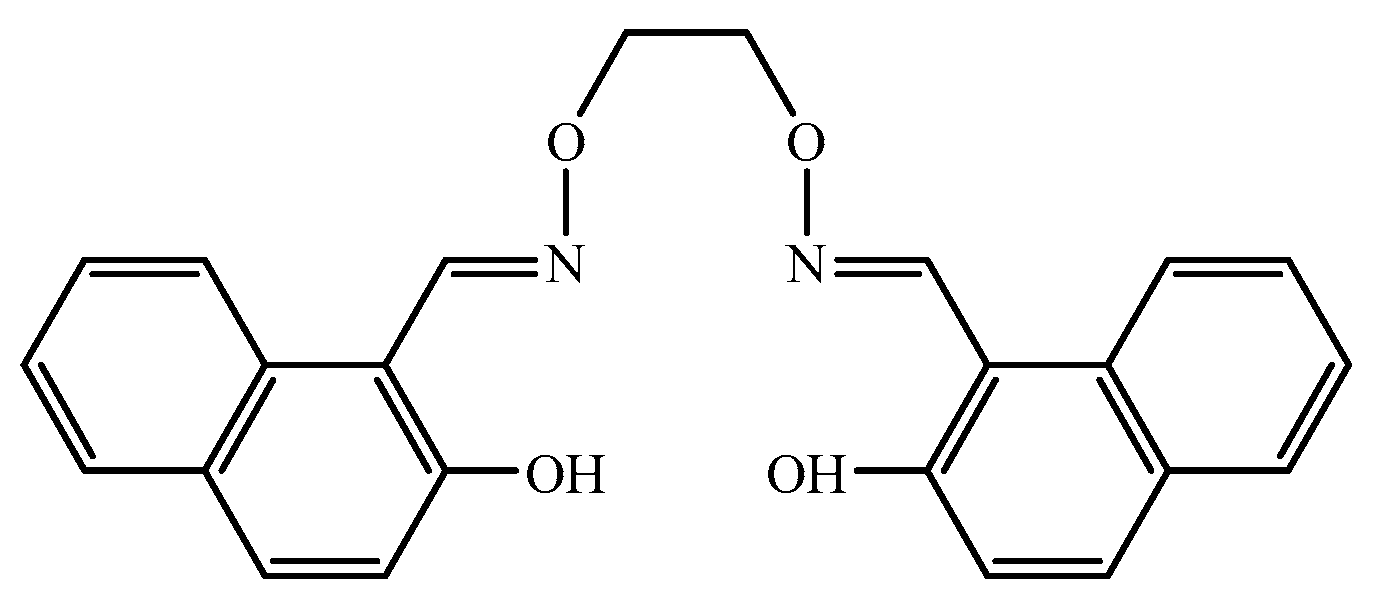

Scheme 1. Chemical structure of the ligand H2L.
Scheme 1. Chemical structure of the ligand H2L.
Crystals 07 00247 sch001
Crystals 07 00247 g001 550

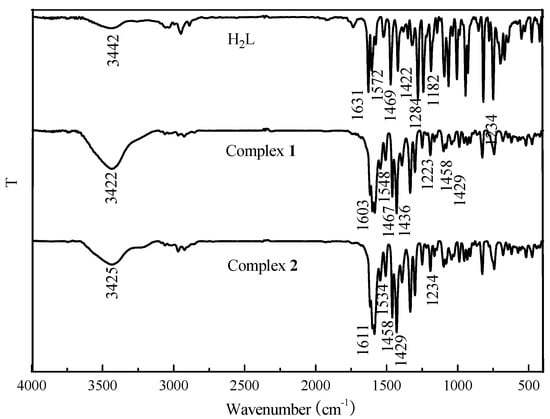

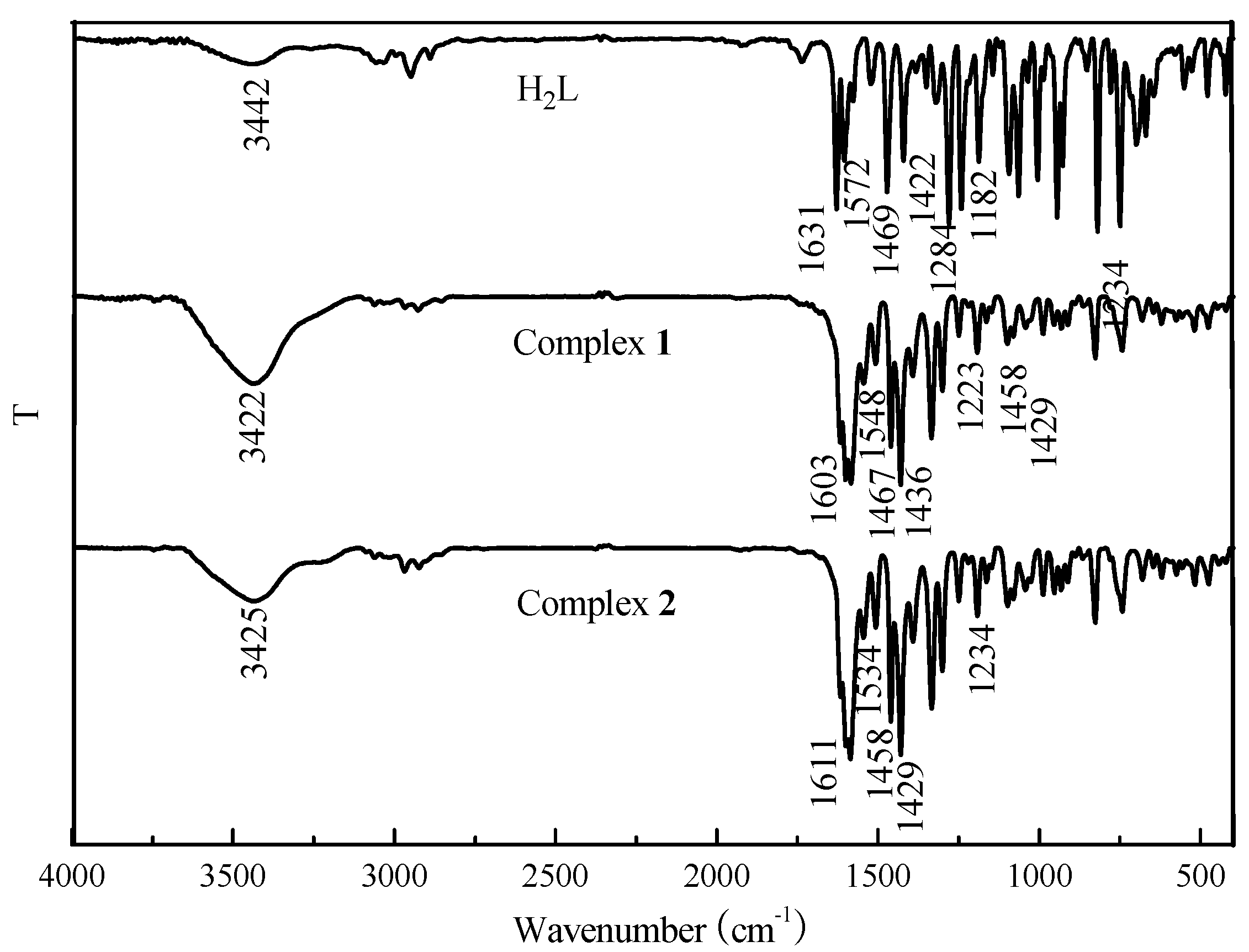

Figure 1. IR spectra of H2L and the Co(II) complexes 1 and 2.
Figure 1. IR spectra of H2L and the Co(II) complexes 1 and 2.
Crystals 07 00247 g001
Crystals 07 00247 g002 550

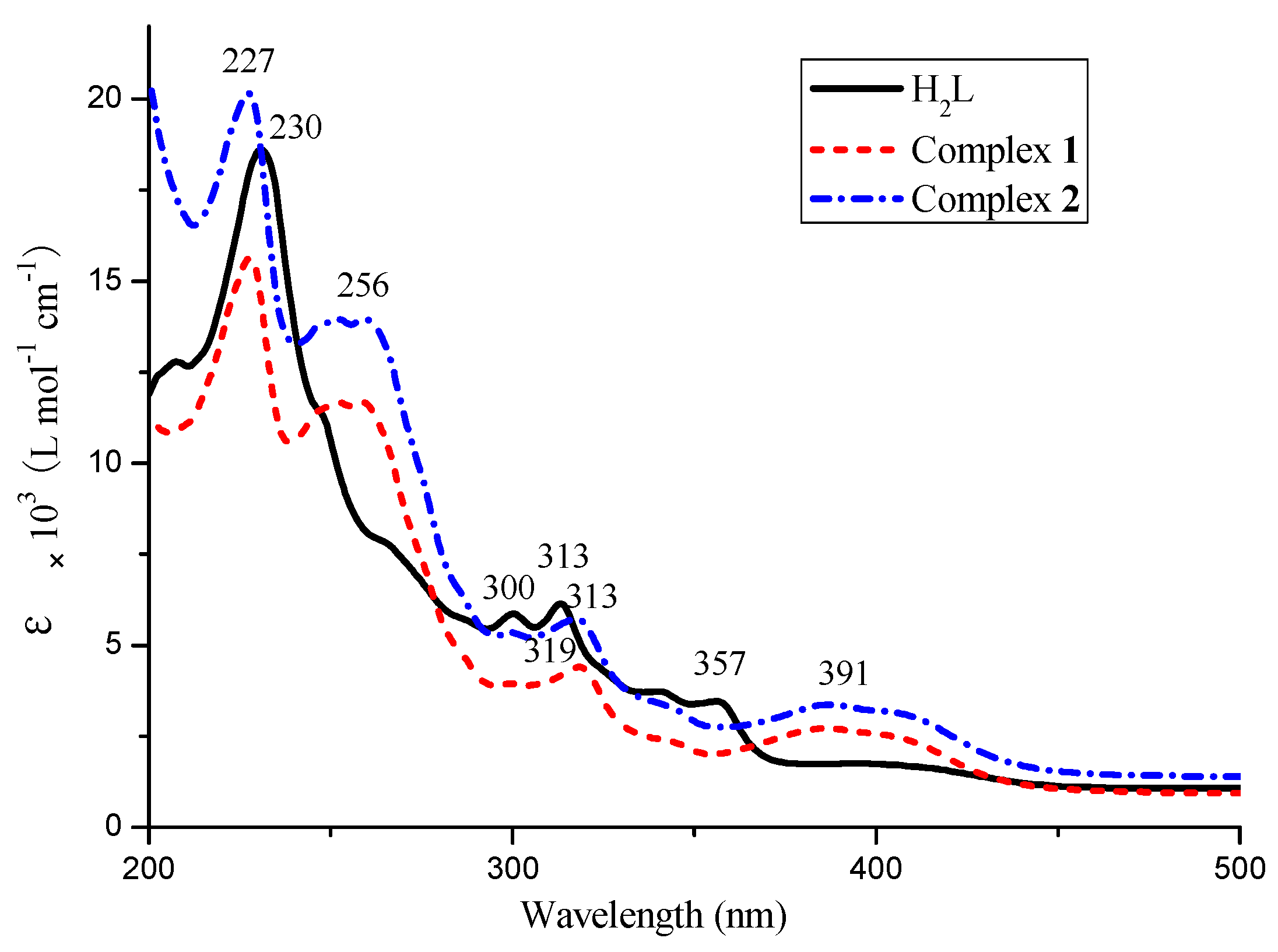

Figure 2. UV-Vis absorption spectra of H2L and the Co(II) complexes 1 and 2 in dilute DMF solution at room temperature (c = 5 × 10−5 mol/L).
Figure 2. UV-Vis absorption spectra of H2L and the Co(II) complexes 1 and 2 in dilute DMF solution at room temperature (c = 5 × 10−5 mol/L).
Crystals 07 00247 g002
Crystals 07 00247 g003 550

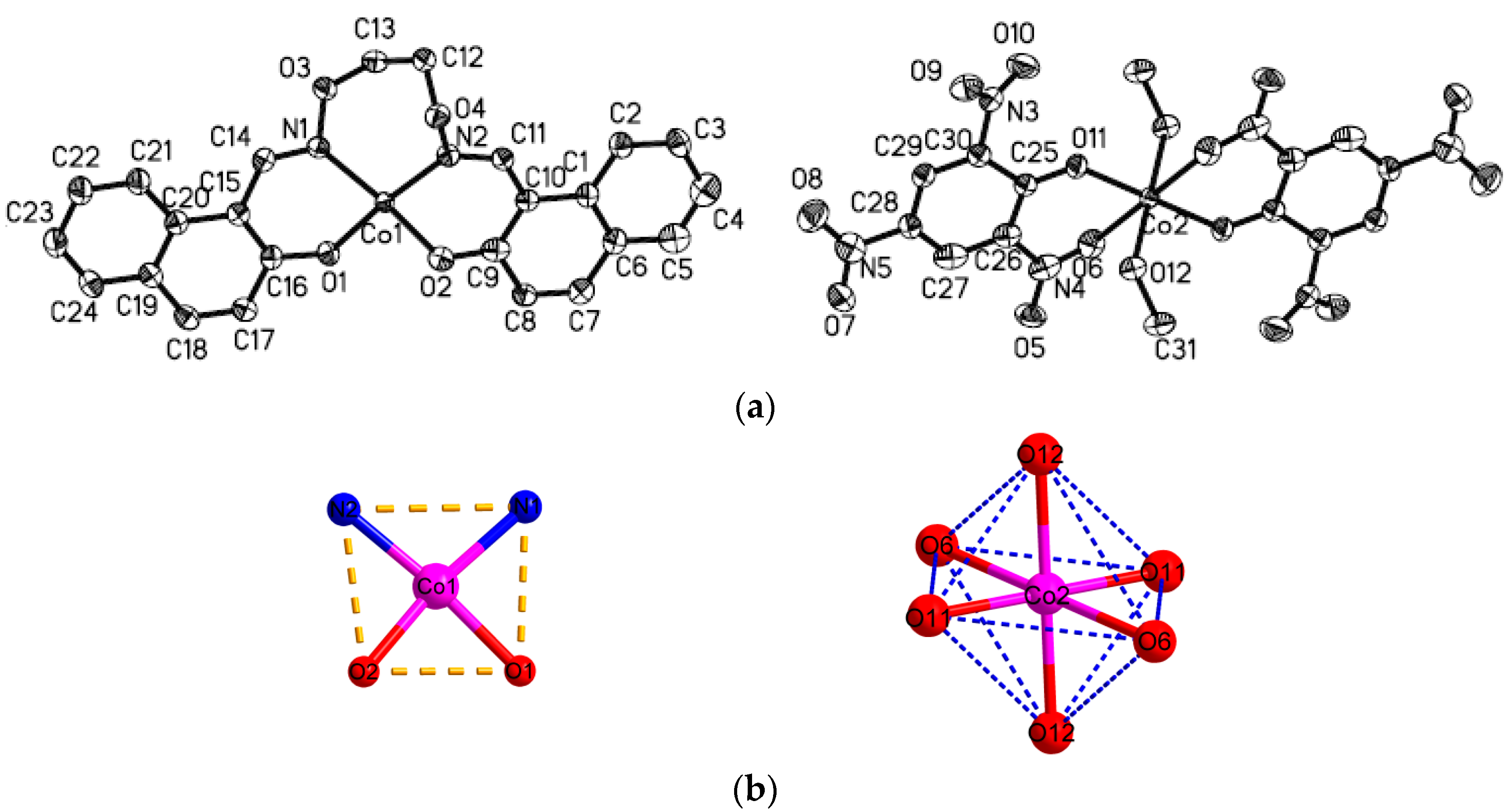

Figure 3. (a) View of the coordination environment of Co(II) center with thermal ellipsoids at 30% probability in 1 with a labelling scheme (all H atoms have been omitted for clarity); (b) The coordination polyhedron of Co(II) in 1.
Figure 3. (a) View of the coordination environment of Co(II) center with thermal ellipsoids at 30% probability in 1 with a labelling scheme (all H atoms have been omitted for clarity); (b) The coordination polyhedron of Co(II) in 1.
Crystals 07 00247 g003
Crystals 07 00247 g004 550

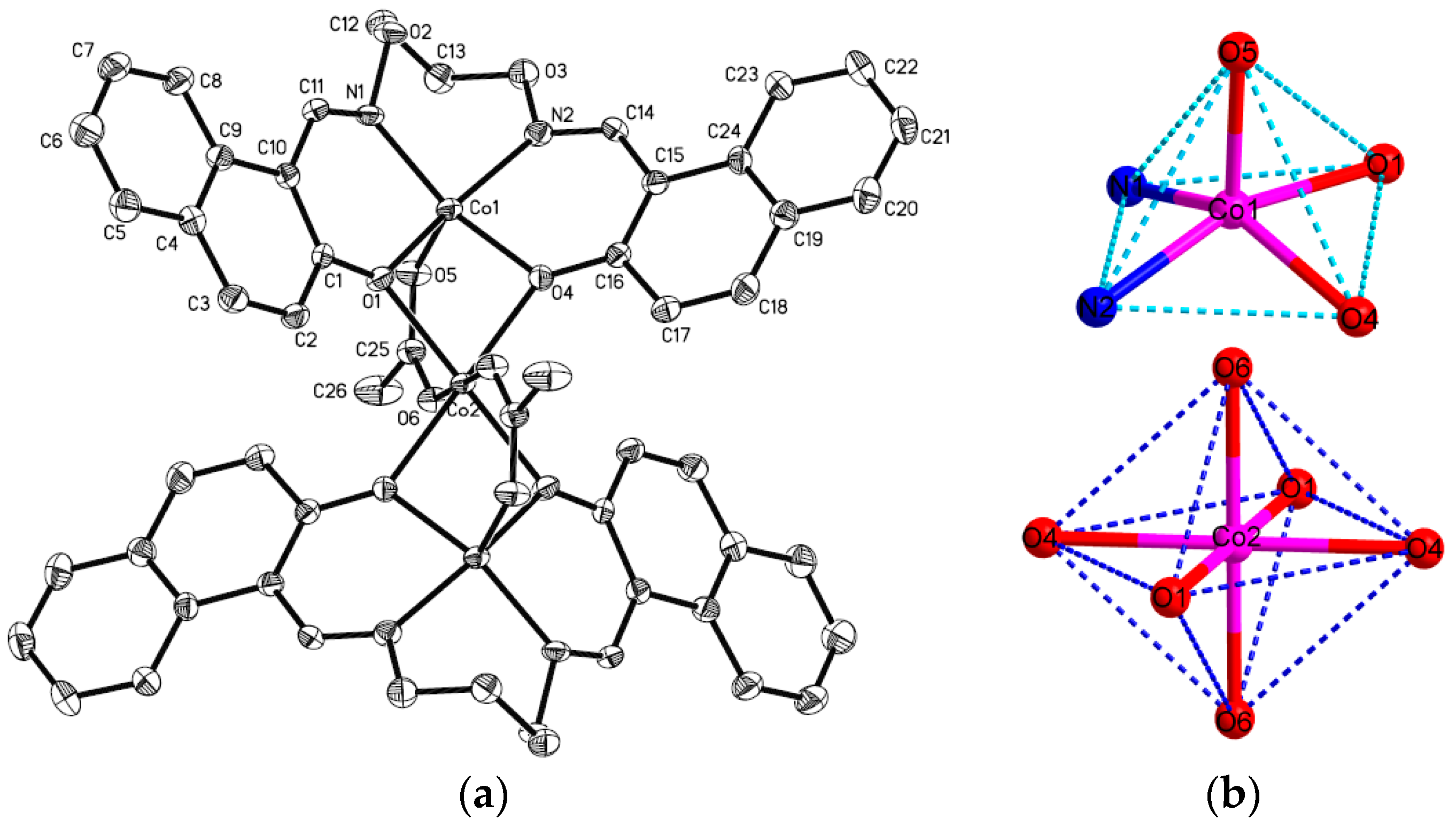

Figure 4. (a) View of the coordination environment of Co(II) center with thermal ellipsoids at 30% probability in 2 with a labelling scheme (all H atoms have been omitted for clarity); (b) The coordination polyhedron of Co(II) in 2.
Figure 4. (a) View of the coordination environment of Co(II) center with thermal ellipsoids at 30% probability in 2 with a labelling scheme (all H atoms have been omitted for clarity); (b) The coordination polyhedron of Co(II) in 2.
Crystals 07 00247 g004
Crystals 07 00247 g005 550

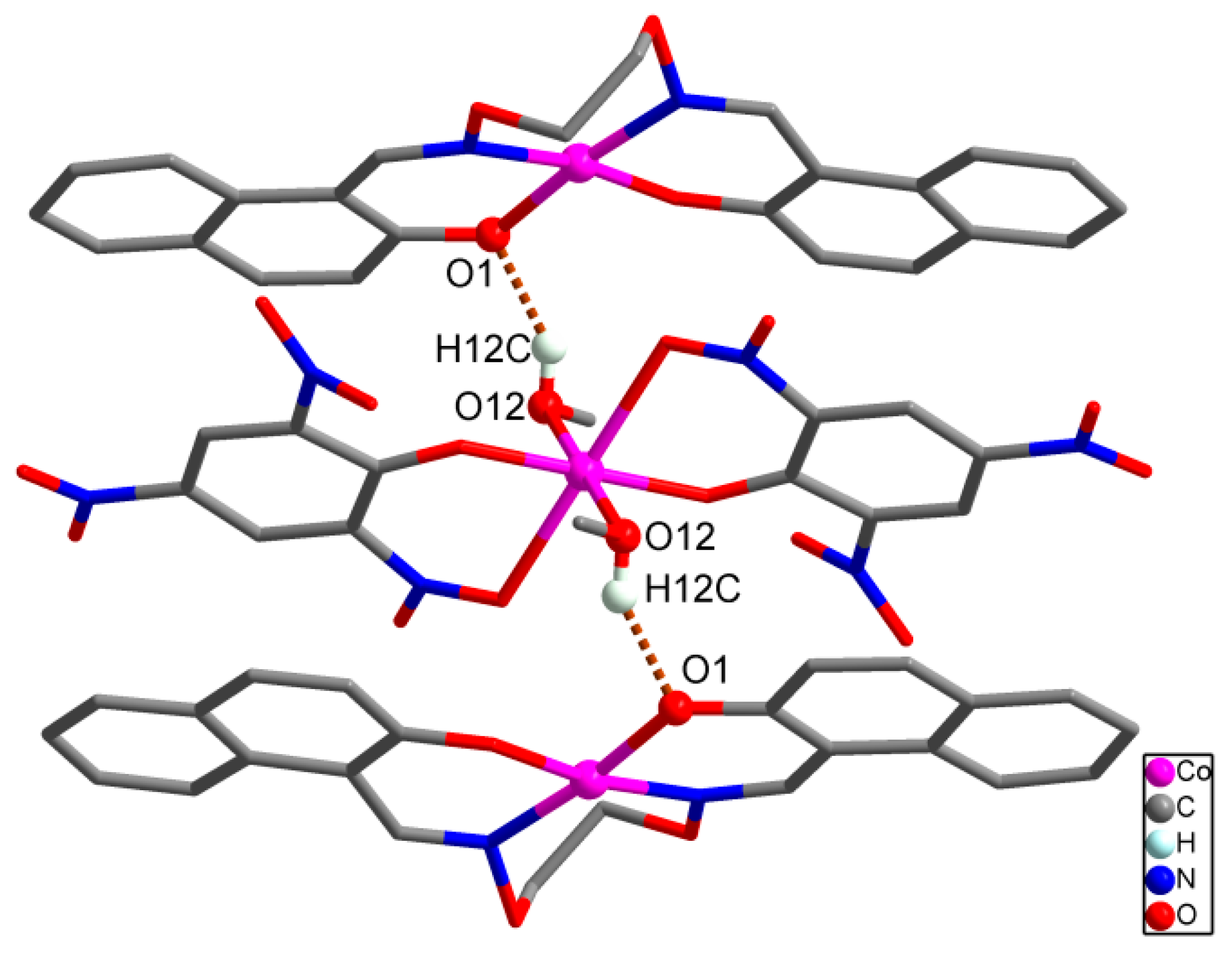

Figure 5. The tri-polymer constructed by intermolecular O-H···O hydrogen bonds in 1.
Figure 5. The tri-polymer constructed by intermolecular O-H···O hydrogen bonds in 1.
Crystals 07 00247 g005
Crystals 07 00247 g006 550

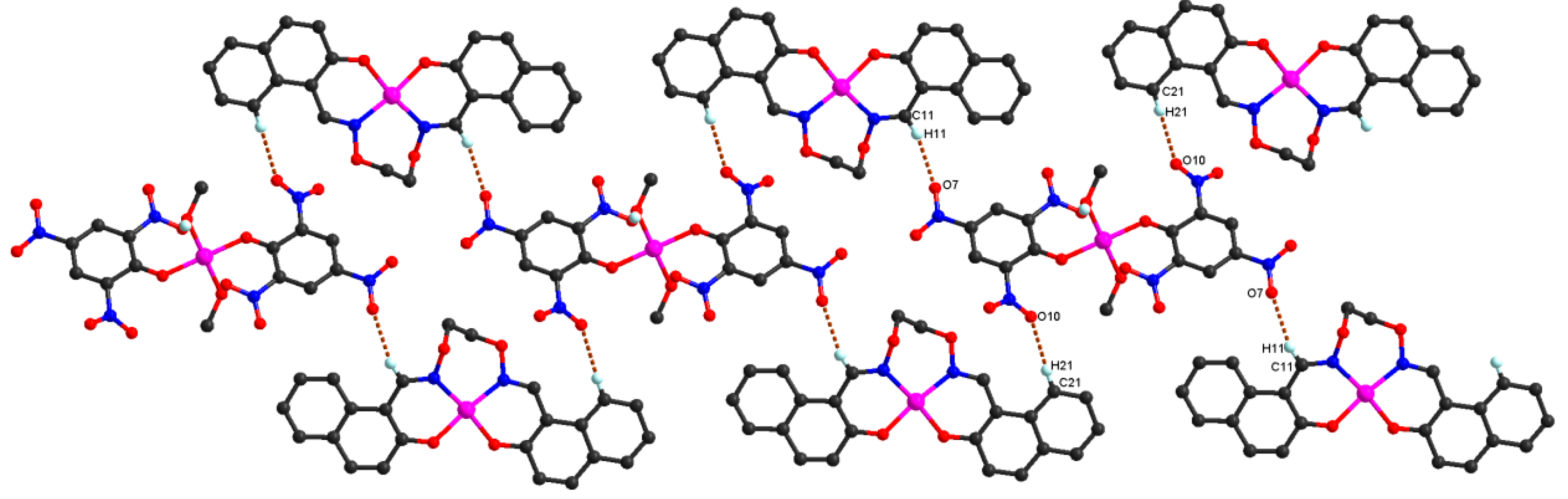

Figure 6. Part of intermolecular C-H···O hydrogen-bonding interactions in 1.
Figure 6. Part of intermolecular C-H···O hydrogen-bonding interactions in 1.
Crystals 07 00247 g006
Crystals 07 00247 g007 550

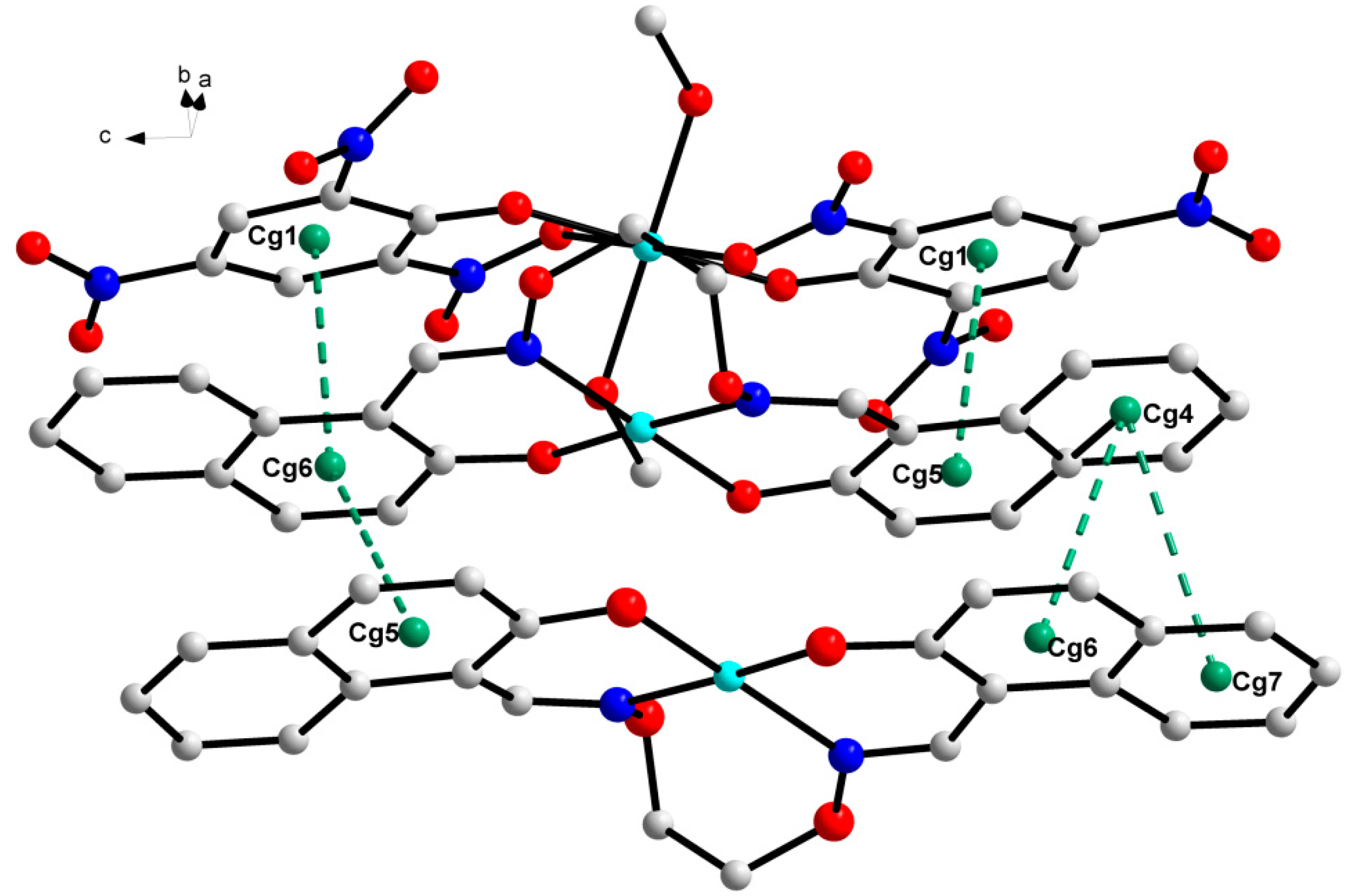

Figure 7. View of supramolecular structure of complex 1 showing the formation five π···π stacking interaction.
Figure 7. View of supramolecular structure of complex 1 showing the formation five π···π stacking interaction.
Crystals 07 00247 g007
Crystals 07 00247 g008 550

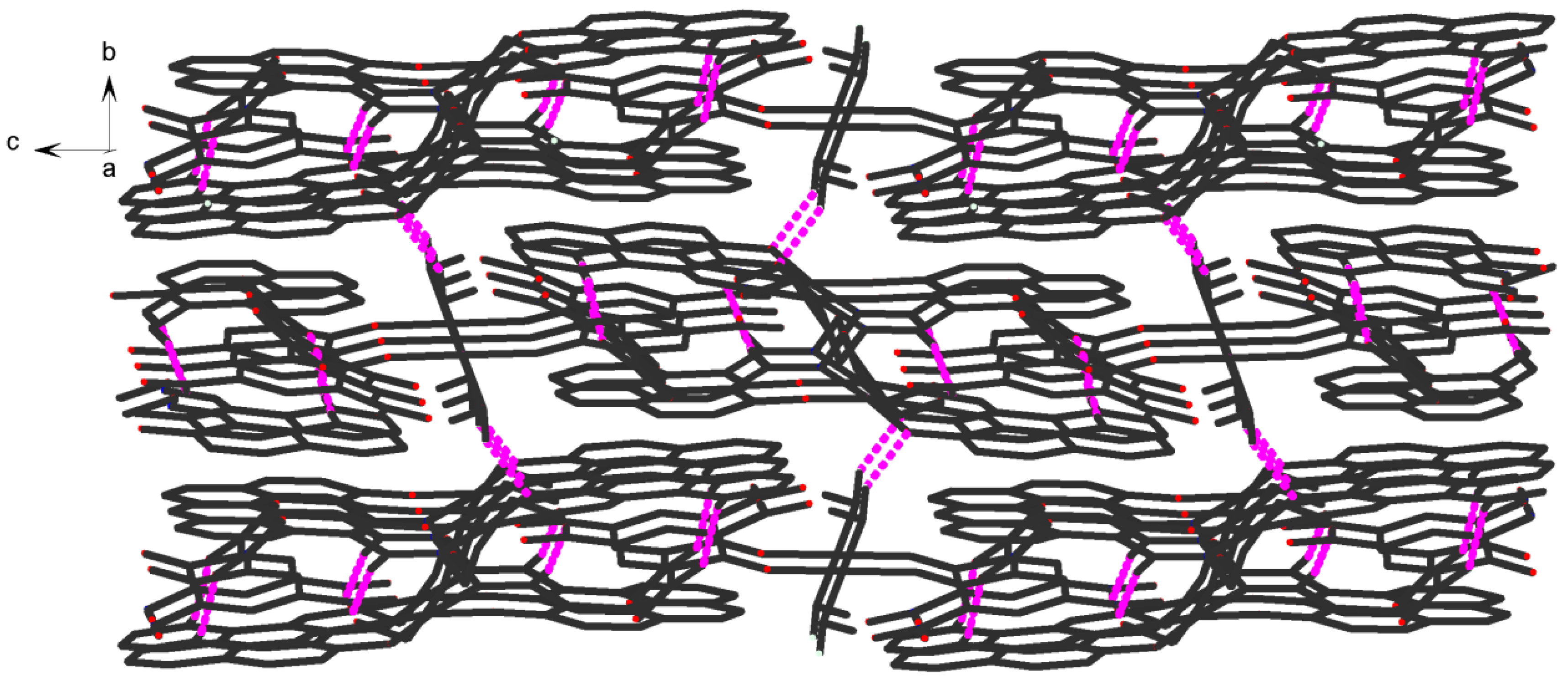

Figure 8. Part of 3D supramolecular network structure in 1.
Figure 8. Part of 3D supramolecular network structure in 1.
Crystals 07 00247 g008
Crystals 07 00247 g009 550

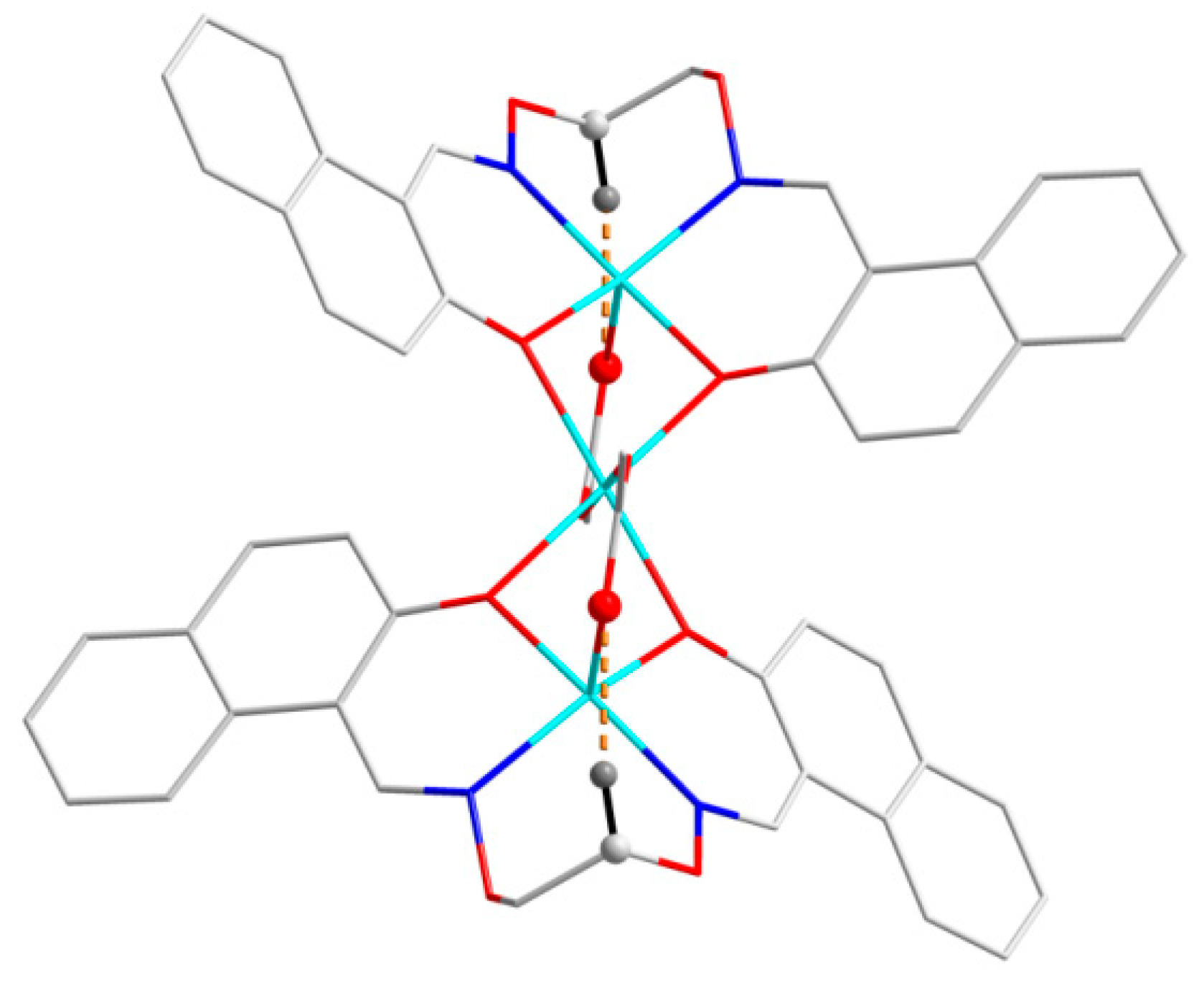

Figure 9. Intramolecular hydrogen bonds in complex 2 (hydrogen atoms, except those forming hydrogen bonds, are omitted for clarity).
Figure 9. Intramolecular hydrogen bonds in complex 2 (hydrogen atoms, except those forming hydrogen bonds, are omitted for clarity).
Crystals 07 00247 g009
Crystals 07 00247 g010 550

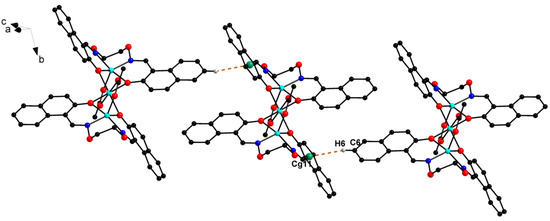

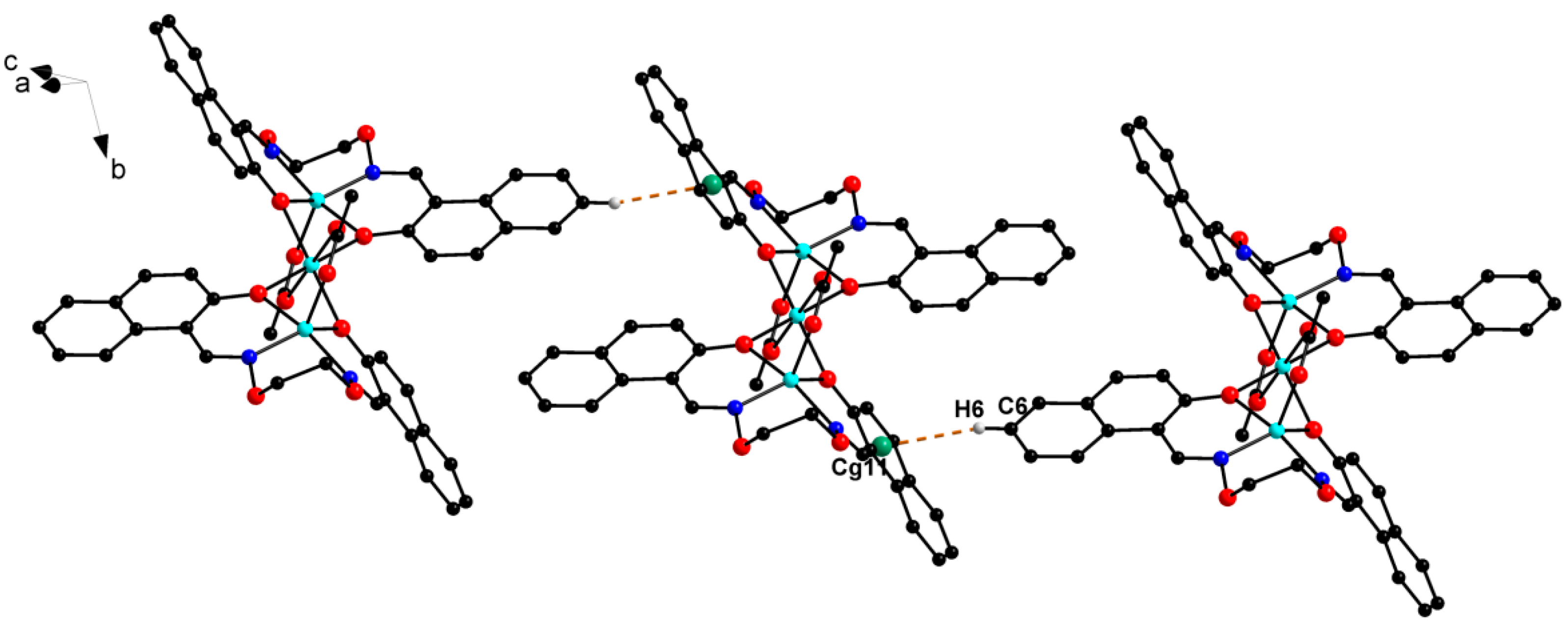

Figure 10. View of 1D supramolecular structure of the complex 2 showing the formation C-H···π stacking interaction.
Figure 10. View of 1D supramolecular structure of the complex 2 showing the formation C-H···π stacking interaction.
Crystals 07 00247 g010
Crystals 07 00247 g011 550

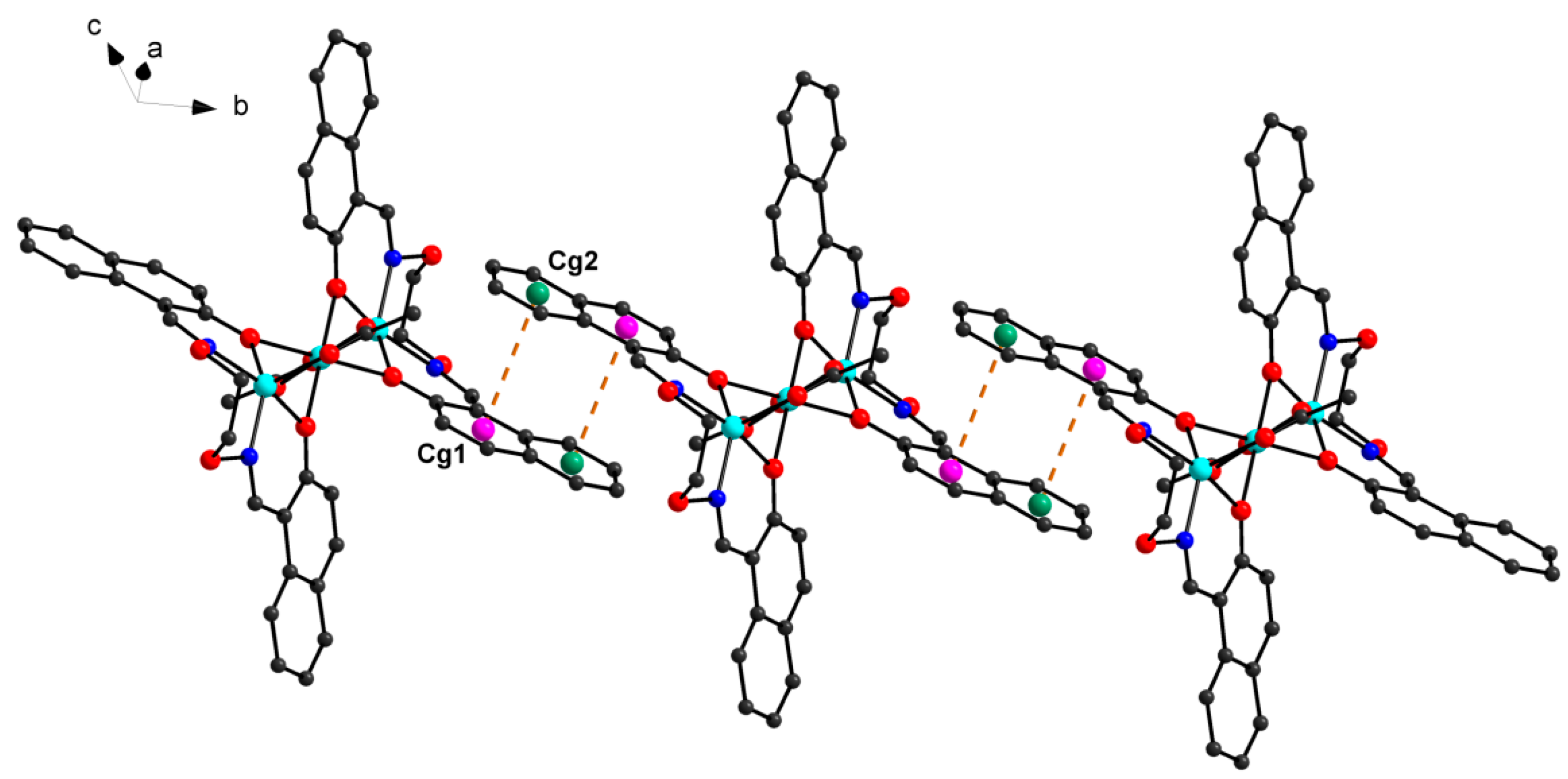

Figure 11. View of 1D supramolecular structure of the complex 2 showing the formation π···π stacking interaction.
Figure 11. View of 1D supramolecular structure of the complex 2 showing the formation π···π stacking interaction.
Crystals 07 00247 g011
Crystals 07 00247 g012 550

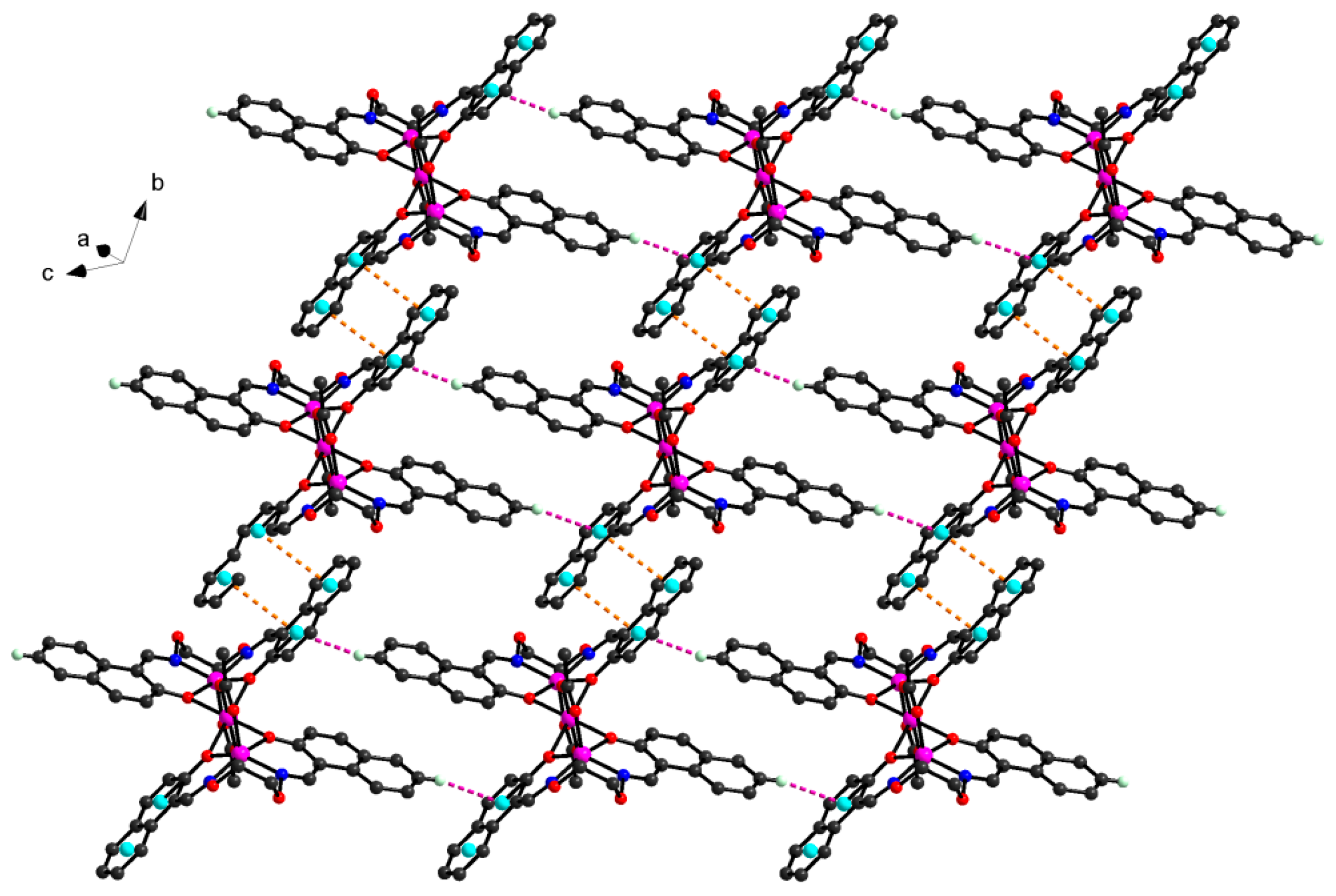

Figure 12. View of the 2D layered motif within 2 (hydrogen atoms, except those forming hydrogen bonds, are omitted for clarity).
Figure 12. View of the 2D layered motif within 2 (hydrogen atoms, except those forming hydrogen bonds, are omitted for clarity).
Crystals 07 00247 g012
Table
Table 1. Crystal data and structure refinement for complexes 1 and 2.
Table 1. Crystal data and structure refinement for complexes 1 and 2.
Complex12
CCDC15223811522382
Molecular formulaC62H48Co3N10O24C52H42Co3N4O12
Molecular weight1493.891091.69
T/K296(2)293(2)
Wavelength (Å)1.541780.71073
Crystal systemMonoclinicTriclinic
Space groupP2(1)/nP-1
a/Å15.0756(5)8.9123(7)
b/Å10.7672(3)11.9798(9)
c/Å18.6410(7)12.2170(7)
α/(◦)90111.581(6)
β/(◦)96.886(2)97.655(6)
γ/(◦)9092.885(6)
V/Å33004.02(17)1195.13(14)
Z21
Dc/(gcm−3)1.6521.517
μ/(mm−1)7.2461.098
F (000)1526559
Crystal size (mm)0.27 × 0.25 × 0.220.17 × 0.09 × 0.07
θ range for data collection (°)3.57 to 64.963.6740 to 28.4740
h/k/l (max, min)−17, 17/−11, 12/−21, 21−11, 11/−16, 13/−14, 15
Reflections collected181079426
Independent reflections5095/0.05694687/0.0305
Completeness to θ (%)99.799.7
Data/restraints/parameters5095/0/3894687/0/323
GOF on F21.0320.908
Final R1, wR2 [I > 2σ(I)]R1 = 0.0593, wR2 = 0.1043R1 = 0.0446, wR2 = 0.1326
R1, wR2 indices (all data)R1 = 0.0904, wR2 = 0.1331R1 = 0.0579, wR2 = 0.1435
Largest differences peak and hole/eÅ−3−0.793, 0.740−0.334 and 0.410
Table
Table 2. The most important IR bands of the ligand H2L and complexes 1 and 2 (cm−1).
Table 2. The most important IR bands of the ligand H2L and complexes 1 and 2 (cm−1).
Compoundν(O-H)ν(C=N)ν(Ar-O)ν(Co-N)ν(Co-O)ν(C=C) Benzene Ring Skeleton
H2L344216311284——157214721422
Complex 1342216031223452431154814671436
Complex 2342516111234446422153414581429
Table
Table 3. Selected bond distances (Å) and angles (°) for complexes 1 and 2.
Table 3. Selected bond distances (Å) and angles (°) for complexes 1 and 2.
1
Co1-O11.917(2)Co1-O21.936(2)Co1-N12.013(2)
Co1-N21.933(2)Co2-O111.904(2)Co2-O121.993(2)
Co2-O62.335(2)Co2-O11i1.904(2)Co2-O12i1.993(2)
Co2-O6i2.335(2)
O1-Co1-N2172.74(7)O1-Co1-O285.48(7)N2-Co1-O287.76(7)
O1-Co1-N186.78(7)N2-Co1-N199.72(8)O2-Co1-N1170.84(8)
O11i-Co2-O11180.0O11i-Co2-O12i89.82(7)O11-Co2-O12i90.18(7)
O11i-Co2-O1290.18(7)O11-Co2-O1289.82(7)O12i-Co2-O12180.0
O11i-Co2-O6i81.33(7)O11-Co2-O6i98.67(7)O12i-Co2-O6i82.92(6)
O12-Co2-O6i97.08(6)O11i-Co2-O698.67(7)O11-Co2-O681.33(7)
O12i-Co2-O697.08(6)O12-Co2-O682.92(6)O6i-Co2-O6180.0
2
Co2-O62.037(2)Co2-O42.170(2)Co2-O12.143(2)
Co2-O6i2.037(2)Co2-O4i2.170(2)Co2-O1i2.143(2)
Co1-O41.977(2)Co1-O51.980(2)Co1-O12.060(2)
Co1-N12.020(3)Co1-N22.045(3)
O4-Co1-O5103.11(1)O4-Co1-O182.05(8)O4-Co1-N1144.54(1)
O4-Co1-N287.49(9)O5-Co1-O194.72(10)O5-Co1-N1111.18(1)
O5-Co1-N2101.21(1)N1-Co1-O186.34(9)N1-Co1-N294.33(1)
N2-Co1-O1162.59(1)O6-Co2-O490.42(9)O6-Co2-O189.82(9)
O6-Co2-O6i180.0O6-Co2-O4i89.58(9)O6-Co2-O1i90.18(9)
O6i-Co2-O190.18(9)O6i-Co2-O489.58(9)O6i-Co2-O4i90.42(9)
O6i-Co2-O1i89.82(9)O4i-Co2-O4180.0O1-Co2-O4i104.19(8)
O1i-Co2-O4i75.81(8)O1-Co2-O475.82(8)O1i-Co2-O4104.19(8)
O1-Co2-O1i180.0
Symmetry code: i 1 − x, 1 − y, −z.
Table
Table 4. The main hydrogen bonds [Å,°] for complex 1.
Table 4. The main hydrogen bonds [Å,°] for complex 1.
D-H···Ad(D-H)d(H···A)d(D···A)∠D-H···ASymmetry Code
O12-H12C···O10.851.782.554(2)150x, y, −1 + z
C11-H11···O70.932.483.383(4)1651/2 + x, 1/2 − y, 1/2 + z
C21-H21···O100.932.573.463(2)1613/2 − x, −1/2 + y, 3/2 − z
Table
Table 5. Putative π-π stacking interactions [Å] for complex 1.
Table 5. Putative π-π stacking interactions [Å] for complex 1.
Ring (I)Ring (J)d(Cg-Cg)d(Cg(I)-perp)d(Cg(J)-perp)Slippage
Cg5Cg13.6242(13)3.4264(9)3.5081(9)0.910
Cg1Cg63.6684(13)−3.5593(9)3.6439(9)0.4232
Cg6Cg43.6866(14)−3.3947(9)3.5010(11)1.155
Cg4Cg73.7938(16)−3.4919(11)−3.6100(12)1.167
Cg5Cg63.6941(13)−3.2919(9)−3.3612(9)1.533
Cg1, Cg4, Cg5, Cg6, and Cg7 are the centroids of benzene ring C25-C30, C1-C6, C1-C6-C10, C15-C20, and C19-C24 of complex 1, respectively.
Table
Table 6. The main hydrogen bonds [Å,°] for complex 2.
Table 6. The main hydrogen bonds [Å,°] for complex 2.
D-H···Ad(D-H)d(H···A)d(D···A)∠D-H···ASymmetry Operation
C13-H13A···O50.972.313.233(4)160x, y, z
C6-H6···Cg23.7533.1192.93(2)1671 + x, y, 1 + z
Cg2 is the centroid of benzene ring C19-C24 of complex 2.
Table
Table 7. Putative π-π stacking interactions [Å] for complex 2.
Table 7. Putative π-π stacking interactions [Å] for complex 2.
Ring (I)Ring (J)Cg-CgCg(I)-perpCg(J)-perpSlippage
Cg1Cg23.703(2)3.4883(14)3.5153(16)1.163
Cg1 and Cg2 are the centroids of benzene ring C15-C19, C24, and C19-C24 of complex 2, respectively.

Share and Cite

MDPI and ACS Style

Jia, H.-R.; Li, J.; Sun, Y.-X.; Guo, J.-Q.; Yu, B.; Wen, N.; Xu, L. Two Supramolecular Cobalt(II) Complexes: Syntheses, Crystal Structures, Spectroscopic Behaviors, and Counter Anion Effects. Crystals 2017, 7, 247. https://doi.org/10.3390/cryst7080247

AMA Style

Jia H-R, Li J, Sun Y-X, Guo J-Q, Yu B, Wen N, Xu L. Two Supramolecular Cobalt(II) Complexes: Syntheses, Crystal Structures, Spectroscopic Behaviors, and Counter Anion Effects. Crystals. 2017; 7(8):247. https://doi.org/10.3390/cryst7080247

Chicago/Turabian Style

Jia, Hao-Ran, Jing Li, Yin-Xia Sun, Jian-Qiang Guo, Bin Yu, Na Wen, and Li Xu. 2017. "Two Supramolecular Cobalt(II) Complexes: Syntheses, Crystal Structures, Spectroscopic Behaviors, and Counter Anion Effects" Crystals 7, no. 8: 247. https://doi.org/10.3390/cryst7080247

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
