Recent Insights into Protein Crystal Nucleation

Abstract

Homogeneous nucleation of protein crystals in solution is tackled from both thermodynamic and energetic perspectives. The entropic contribution to the destructive action of water molecules which tend to tear up the crystals and to their bond energy is considered. It is argued that, in contrast to the crystals’ bond energy, the magnitude of destructive energy depends on the imposed supersaturation. The rationale behind the consideration presented is that the critical nucleus size is determined by the balance between destructive and bond energies. By summing up all intra-crystal bonds, the breaking of which is needed to disintegrate a crystal into its constituting molecules, and using a crystallographic computer program, the bond energy of the closest-packed crystals is calculated (hexagonal closest-packed crystals are given as an example). This approach is compared to the classical mean work of separation (MWS) method of Stranski and Kaischew. While the latter is applied merely for the so-called Kossel-crystal and vapor grown crystals, the approach presented can be used to establish the supersaturation dependence of the protein crystal nucleus size of arbitrary lattice structures.

1. Introduction

Crystallization is the most efficient and economical way of obtaining chemically pure compounds. That is why it is widely used in the pharmaceutical, fertilizer and sugar industries. Single crystal X-ray diffraction, being the most universal, powerful and accurate tool for biological macromolecule structure analysis and protein–substrate interactions, requires relatively large and well-diffracting crystals. However, the major stumbling stone in X-ray diffraction analysis of protein crystals is the lack of a recipe (or definite indications) for growing crystals of newly expressed proteins. The issue is finding conditions that make the homogeneously scattered protein molecules in a solution form stable crystal nuclei; once nucleated, the crystals continue growing spontaneously. Evidently, nucleation is the crucial step that determines the difference between success and failure in protein crystallization trials. Regardless of the numerous auxiliary crystallization tools employed, such as automation and miniaturization of crystallization trials by means of robots, Dynamic Light Scattering, crystallization screening kits, etc., it is researchers’ creativeness and acumen that remain indispensable. Even with state-of-the-art tools, it is exceptionally challenging to probe the nucleation processes in real time. Only most recently, this problem has been addressed successfully by Van Driessche et al. [1]. Nevertheless, some of the most intimate moments of molecule-by-molecule assembly to form crystal nuclei are still elusive and require further elucidation.

Following the fundamental notion of a kink position (Halbkristalllage in German) introduced by Kossel [2] and Stranski [3], the Bulgarian scientists Stranski and Kaischew [4,5,6] were the first to apply a molecular kinetic (and energetic) approach to crystal nucleation. They proposed the so-called mean work of separation (MWS) method. To calculate the MWS value, all of the different kinds of bonds (between the first, second and third neighboring crystal-building blocks) are counted separately, and each number is multiplied by the corresponding bonding energy. Then, the products are summed up, and the result is divided by the total number of blocks in the corresponding crystal element (crystal face, cluster edge). It has been argued that for vapor phase crystallization MWS value is equal to the chemical potential, taken with a negative sign, plus a substance and temperature dependent constant [7]. To calculate the work required (energy barrier) for nucleus formation, crystal bond energies are used as well. They are calculated by summing up the number of all intra-crystal bonds, the breaking of which is needed to totally disintegrate a crystal into all its constituting molecules. The same approach is used in the present study. Applying the MWS method to the so-called Kossel-crystal (a crystal build by small cubes held together by equal forces in a cubic primitive crystal lattice) allows the equilibrium crystal shapes to be determined.

A big advantage of the MWS method is its simplicity. It uses the relative bond energies between separate crystal building units instead of the absolute bond energy values, which frequently are unknown. However, the MWS method has two major drawbacks: it is applicable only to the Kossel-crystal model (existing extremely rarely in nature) and considers solely enthalpic effects. Perhaps it is for these very reasons that the MWS method is used rarely nowadays, even though it enables semi-quantitative studies of crystal nucleation and growth.

To find the critical nucleus size, Garcia-Ruiz established the balance between the cohesive energy (ΔG_v), which maintains the integrity of a crystalline cluster, and the sum of destructive energies (ΔG_s), which tend to tear up the crystal, i.e., −ΔG_v + ΔG_s = 0 [8]. Using a cubic primitive crystal lattice formed by spheres, the author equilibrated the number of bonds shared by the crystal building units with the number of dangling bonds at the crystal surface, pointing toward the solution. This corresponds to the classical nucleation theory where ΔG_v is proportional to the crystal volume while ΔG_s is proportional to its surface, and the critical nucleus size is determined from the compensation of the large surface energy, which is inherent for the undercritical molecule clusters, by the faster volume energy increase resulting from the rising crystal size. Garcia-Ruiz’s intuitive approach accounts for the water molecules acting on the apexes and edges that exist on the polyhedral crystal nuclei but are absent on the droplets. His model shows that at the crystal vertices, water molecules pull protein molecules towards the solution from three (perpendicular) directions, at the crystal edges from two directions, and at the crystal face from one direction only.

Recently, Garcia-Ruiz’s brilliant idea was been further elaborated [9]. When the system is undersaturated, i.e., crystallization is impossible, the protein ‘affinity’ to water molecules prevails over the crystallization propensity. Therefore, to evoke crystallization, it is necessary to impose supersaturation and the higher the latter, the more thermodynamically stable the crystal is, with respect to the solution. Thus, it is feasible to assume that the imposed supersaturation decreases the protein-to-water affinity, i.e., supersaturation diminishes the destructive energy (ψ_d) per bond. This means that the tendency to tear up the crystal depends on the degree of supersaturation in contrast to the cohesive energy per bond in the crystal lattice (ψ_b) which is supersaturation independent. This means that any supersaturation increase will lead to an increase in ψ_b/ψ_d ratio. On this basis, the critical nucleus size dependence on supersaturation has been determined (from the balance between the sum of all intra-crystal bonds and the sum of surface destructive energies) for the Kossel-crystal model [9].

The objective of the present work is to shed additional light on the thermodynamic and molecular aspects of the homogeneous nucleation of non-Kossel crystals, such as nucleation of protein crystals in solution. To determine the supersaturation dependent critical nucleus size, the crystal bond energy and the sum of supersaturation dependent surface destructive energies are equilibrated (referred to as EBDE) and compared to the MWS method. In view of the nature of lattice binding forces among huge biomolecules, only the first nearest neighbor interactions are considered. For simplicity purposes, equal bond energy interactions throughout the whole crystal are assumed. The consequences of the highly anisotropic and multivalent interactions of proteins during crystal nucleation were considered elsewhere [10]. However, specifics of protein and small molecule crystal nucleation are kept in mind [11].

2. Equilibration of Crystal Bond Energy with Surface Destructive Energies (EBDE)

2.1. Thermodynamic Basis of EBDE and Definition of Protein-to-Water Affinity

In [9], ψ_d was loosely defined as accounting for entropy, including the sum of all nucleation disfavoring entropic contributions. All entropy increasing components (favoring crystal nucleation) were included in ψ_b. A more rigorous definition of protein-to-water ‘affinity’ which uses both nucleation process enthalpy and entropy is provided below.

Thermodynamics stipulates that enthalpy and entropy govern phase transition. In contrast to crystal nucleation from vapors, protein crystal nucleation evokes a simultaneous entropy change in both solutions and crystals [12]. Rearrangement and/or release of some associated water or trapping of even more water molecules occurs when protein molecules get together to form a new solid phase. Therefore, entropy accounts for the change in the number of molecules in both protein crystals and solutes. Many water molecules are released in the solution for each protein molecule bound into the crystal lattice. In the disordered bulk solvent, these water molecules have six degrees of freedom and increase the entropy of the whole crystallizing system, thus leading to a decrease in the Gibbs free energy of phase transition. Sometimes, the entropy gain resulting from the said water transfer is the main component in the driving energy for protein crystal nucleation. However, it is not only the release of water molecules from the contacting patches (during crystalline bonds formation) that affects crystallization thermodynamics. Being immobilized in the crystal lattice, protein molecules lose entropy due to the highly constrained translational and rotational degrees of freedom. In turn, protein molecule ordering (crystal nuclei formation) is stimulated by an entropy gain due to the newly acquired vibrational degrees of freedom that arise upon molecule attachment to the crystal. Together with the high crystallization enthalpy, entropy changes ensure the negative values of Gibbs free energy required for spontaneous crystallization are attained (for more details see [12,13]). The conformational entropy of residues involved in crystal contact has been recently reconsidered [14]. Simultaneously, study of hydrogen bonds, van der Waals contacts and electrostatic interactions has shown that hydrogen-mediated van der Waals interactions are the dominant force that maintains protein crystal lattice integrity. Unfortunately, however, non-Kossel crystal lattice analysis remains a theoretical challenge [13].

The relation between ψ_d and supersaturation (Δμ) is derived via the protein-to-water ‘affinity’ (α) noting that the lesser the value of α, the lesser the crystal solubility (c_e). As a first approximation, proportionality with a constant κ is assumed:

α = κc_e.

(1)

Also noted is the equal probability of crystal nuclei formation and dissolution. This means that the nucleation process can be regarded as a reversible chemical reaction characterized by the equilibrium constant for crystallization (K_eq). Combining the standard Gibbs free energy (ΔG^o) for crystals,

ΔG^o = ΔH^o − TΔS^o,

(2)

where ΔH^o is the standard enthalpy change, and ΔS^o is the change in entropy of the nucleation process. T is the absolute temperature. The Gibbs free energy isotherm equation is

ΔG^o = −RTlnK_eq,

and by denoting the universal gas constant as R, the following is obtained:

lnK_eq = −(ΔH^o/RT) + (ΔS^o/R).

(3)

Considering the approximation suggested by Sleutel et al. [15] and assuming an ideal solution (i.e., the activity coefficient is a unit), the crystallization equilibrium constant (K_eq) can be represented as K_eq ≈ (c_e/c^o)⁻¹, which gives

ln(c_e/c^o) = (ΔH^o/RT) − (ΔS^o/R).

(4)

where c^o = 1 mol L⁻¹ is the solution’s concentration in the standard state. Thus, solubility, c_e, is expressed in terms of the change in the entropy and enthalpy of the nucleation process:

c_e = c^oexp[(ΔH^o/RT) − (ΔS^o/R)], and

(5)

α = κc^oexp[(ΔH^o/RT) − (ΔS^o/R)].

(6)

The protein crystal solubility, c_e (and hence, protein-to-water affinity, α), depends on the solution’s composition, mainly the precipitant type and concentration, pH, and temperature. (Isothermal protein crystal nucleation is considered here.) The lesser the solubility (affinity), the larger the supersaturation at the same solution concentration, c:

Δμ = k_BTln(c/c_e) = k_BTln{c exp[(ΔS^o/R) − (ΔH^o/RT)]/c^o)} = k_BTln(κc/α),

(7)

where k_B is the Boltzmann constant.

It has been known for a long time that the disordered solvent phase fills the void between molecules in the protein crystal lattice [16]. The role of water included in protein crystals acting like an ‘additional glue’ to hold protein molecules together has been considered elsewhere [17] and is not within the scope of this paper.

2.2. Energetics of Protein Crystal Nucleation

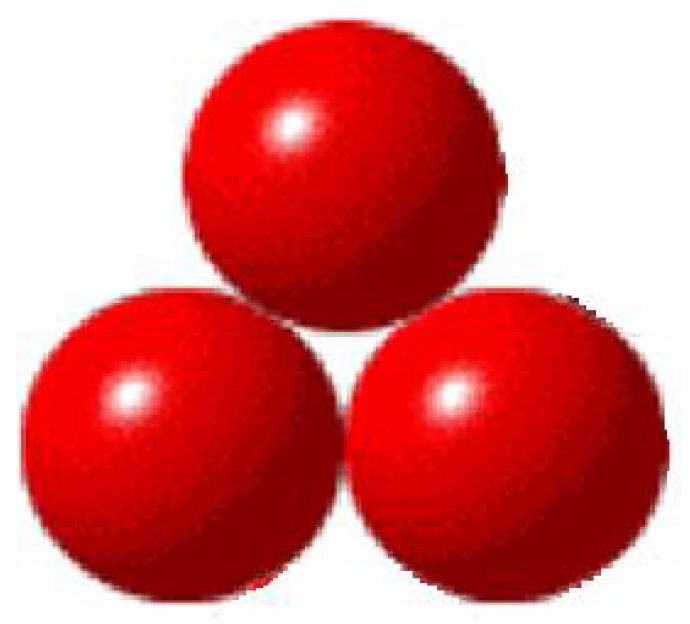

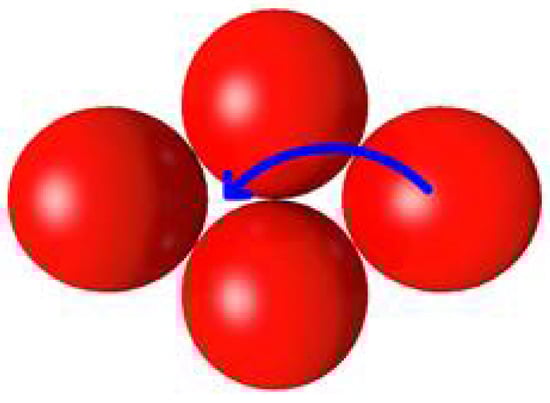

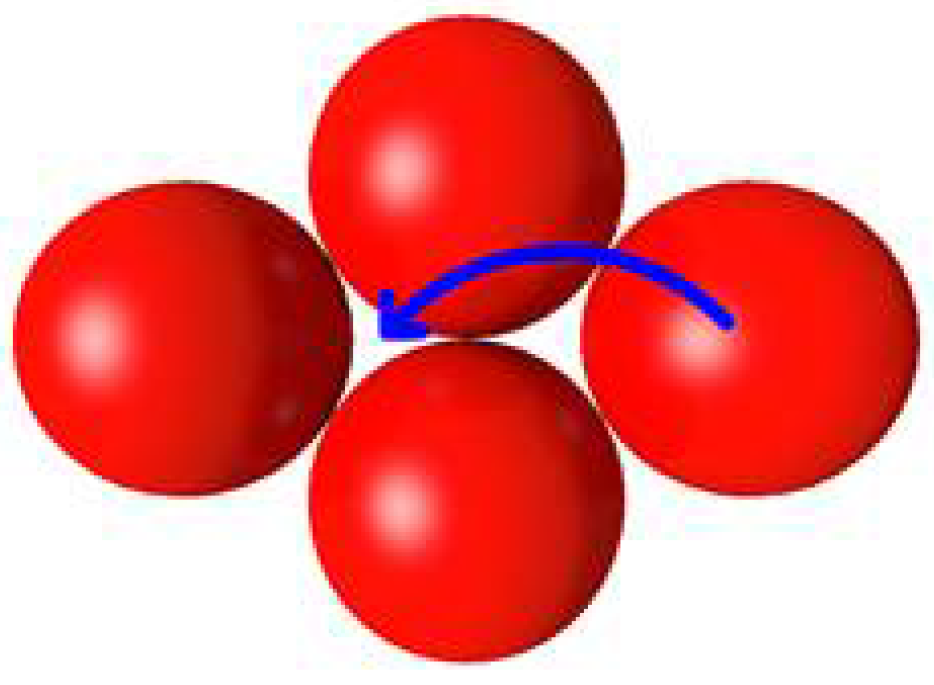

From energetic point of view, it is evident why 3D nuclei are preferred over 2D nuclei built by the same number of molecules. A (forth) molecule arriving from solution bulk prefers to start forming a second layer (B) rather than attaching itself to the periphery of an already existing layer (A) (Figure 1). The reason is that by sitting in the hole between the three molecules of layer A, this molecule bonds to the others using energy 3ψ_b. If it is to remain in layer A, it will acquire two bonds only, so it jumps and forms layer B (Figure 2). For the same reason, it is highly probable that a fifth molecule will attach itself to the opposite side of the molecule triplet (Figure 1). That is how the cluster of bond energy 9ψ_b, arises, instead of the planar configuration of energy 7ψ_b.

Typical 3D protein crystals are polyhedral, which is why crystal nuclei are assumed to have polyhedral shapes. The thermodynamic definition of protein-to-water affinity presented above assumes that crystals are stable entities, even though molecules at crystal vertexes and edges are connected more loosely than those at the crystal face. In view of the rather high supersaturations needed for protein crystal nucleation, this assumption is quite reasonable (and can be regarded as a justification for EBDE application).

Keeping in mind Garcia-Ruiz’s postulate about water molecules pulling protein molecules at crystal vertexes towards the solution more strongly (from three different directions) than those at crystal faces, we notice that small molecule clusters, comprised of up to six molecules, have all of their molecules sitting at crystal vertexes. From the EBDE perspective, such small molecule clusters can be critical nuclei only provided supersaturation is very high.

Table 1. The ψ_b/ψ_d ratio for the number (n) of molecules in a cluster.

n	2	3	4(in 3D)	5(HCP)	6(FCC)
ψb/ψd	6	3	2	≈1.7	≈1.6

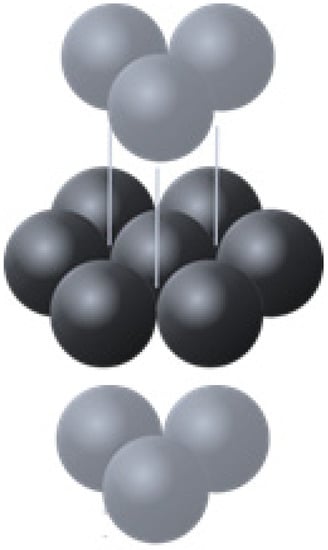

shows the ψ_b/ψ_d ratio for the number (n) of molecules in a cluster; note that the supersaturation is decreasing from left to right. A 3D cluster formed by four molecules does not predetermine the lattice type—hexagonal closest packed (HCP) or face centered cubic (FCC)—of the growing crystal, while a 3D cluster, comprised of five molecules (three in layer A and one on each side, i.e., in two layers B), results in an HCP crystal lattice. A FCC structure requires larger clusters of at least six molecules. However, it is not only the energetic aspect that determines the crystal lattice type. Wukovitz and Yeates [18] have pointed out that an appropriate symmetry is mandatory for the crystallization of biological macromolecules.

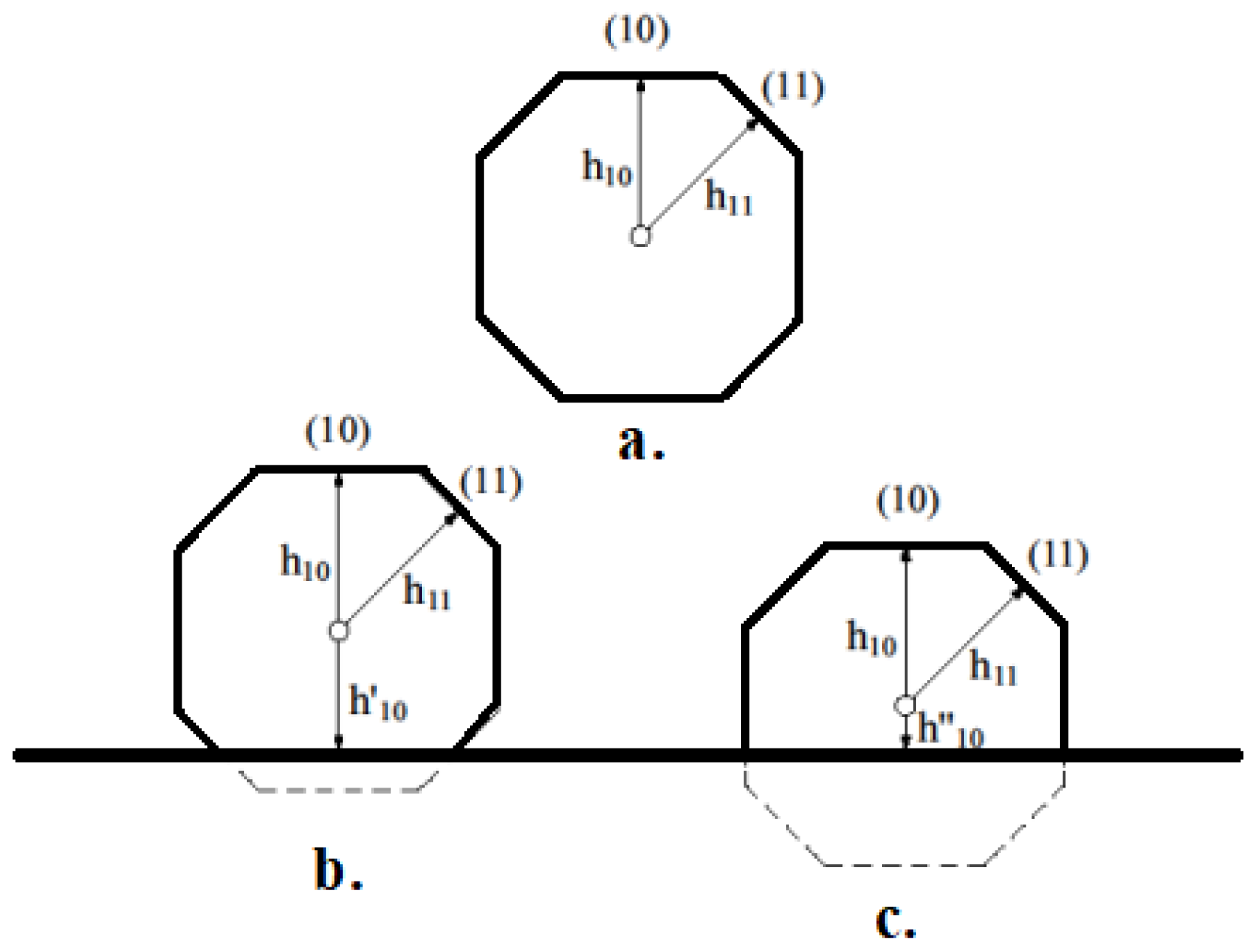

Using the MWS method, Kaischew [19] showed that homogeneously formed crystal nuclei are larger than heterogeneous nuclei. The reason for this is that the volume of a heterogeneous nucleus decreases to a degree that depends on the substrate’s nucleation activity (see Figure 3). Energetically preferred 3D HCP (Figure 4) and 3D FCC crystals arise by adding three molecules in the (corresponding) holes at the top, and another three molecules at the bottom of an initial layer A of spheres arranged in the shape of a hexagon; all of the tetrahedral holes are covered in the HCP structure, and all of the octahedral holes are covered in the FCC crystals. The result is a three-fold rise in bond energy, up to 36ψ_b, compared with 12ψ_b in the planar configuration, and the ψ_b/ψ_d ratio is calculated by EBDE (see

Table 2. The ψ_b/ψ_d ratio for the number (L) of molecules in the crystal edge.

L	2	3	4	5	6	7	8	9	10
ψb/ψd	1	0.43	0.25	0.17	0.13	0.10	0.087	0.07	0.06

, in which the supersaturation is decreasing from left to right).

The EBDE method benefits from crystallographic computer programs rendering the sums of bond energies (ΔG_v³) of arbitrary sized 3D crystals and the number (N_s) of surface atoms exposed to water destructive action. The advantage of crystallographic computer programs is that they are applicable to diverse crystal structures. Given as an example here are HCP crystals with <0100> edge lengths determined by the numbers (L) of the molecules in them. The ATOMS (Version 5.0.4, 1999) computer program is used to calculate ΔG_v³ and N_s for the crystals of a truncated bipyramidal shape. These crystals are geometrical homologues to the crystal (shown in Figure 5), with L = 3 (the three blue balls), in which the number of molecules (N_t) in the topmost and correspondingly, in the bottommost, {0001} faces depend on L (so that for the differently sized crystals, N_t = 3 for L = 2 (Figure 4); N_t = 7 for L = 3 (Figure 5); N_t = 12 for L = 4; N_t = 19 for L = 5; N_t = 27 for L = 6, etc.).

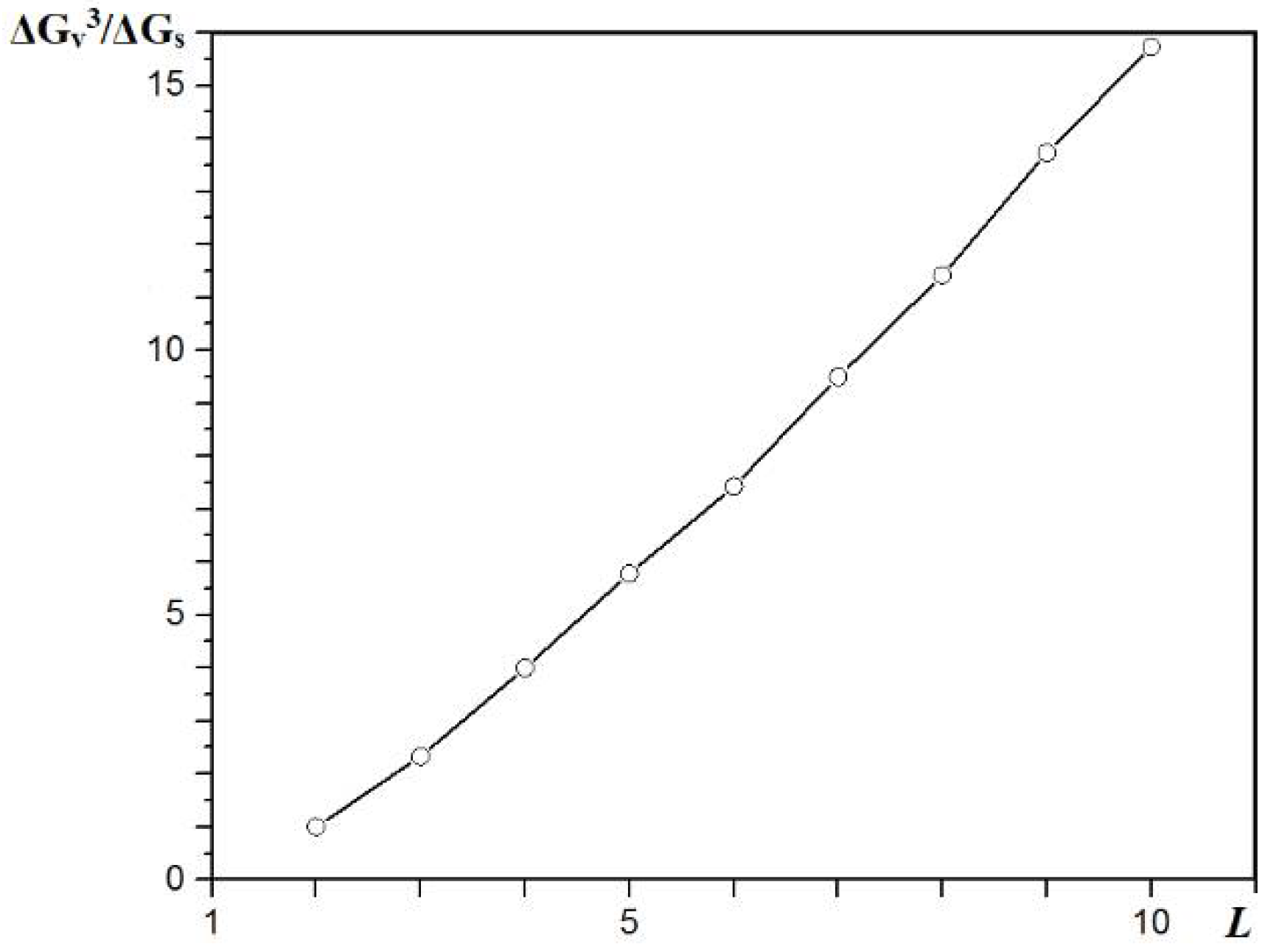

The plot of ΔG_v³/ΔG_s vs. L is shown in Figure 6. The reason for this plotting is that the energy balance (−ΔG_v + ΔG_s = 0) means ΔG_v/ΔG_s = 1, so the reciprocal of the ordinate value in Figure 6 (giving the corresponding ψ_b/ψ_d values) shows the decrease in supersaturation with an increase in L (Table 2). Here Garcia-Ruiz’s postulate (that the molecules at the crystal vertexes are pulled towards the solution from three different directions, the molecules in the crystal edges are pulled from two directions, and the molecules in the crystal faces are pulled from one direction only) is also taken into account since it should apply to any crystal structure—water molecules are ‘negligent’ of the crystal lattice type. It is worth noting that the larger nucleus stands in equilibrium under the actual supersaturation until the larger ψ_b/ψ_d value in Table 2 (corresponding to higher supersaturation needed for formation the smaller crystal nucleus) is reached.

However, only crystals of modest size are of interest because though feasible from an energetic point of view, larger crystal nuclei are less likely to appear. There are kinetic reasons for this—bringing together a vast number of molecules via molecule-by-molecule assembly into a crystal nucleus involves very large fluctuations which in turn requires very long waiting times. For the same reason, the simplest crystal shapes are considered—any additional nuclei faces require a substantial increase in crystal size.

The discrete character of cluster-size alteration has been considered by Stoyanov, Milchev and Kaischew [20,21,22,23]. They established a step-wise, instead of a continuous, relationship between nucleus size and supersaturation, and a supersaturation interval instead of a fixed level of supersaturation corresponding to each critical nucleus.

3. MWS Method Application to Closest-Packed 3D Crystals; Comparison of EBDE and MWS

Crystallographic computer programs provide crystal lattice images and numerical data, in contrast to the classical MWS method which uses analytical expressions. Simple models of modestly sized 3D crystals with complete shapes were used to calculate the MWSs of faces forming the habitus of non-Kossel crystal nuclei, the reason being that incomplete crystalline clusters would have sites for subsequent attachment and formation of minimum surface free energy clusters. Considered herein are the closest-packed (HCP and FCC) crystals. To prepare such models, closest-packed monomolecular layers were stacked consecutively onto both sides of a basic A-layer. Three-layered (Figure 7), five-layered (Figure 5), etc. homologous HCP crystal nuclei with L = 3, 4, etc. were created. (It is worth noting that heaping 7 and more close-packed layers need larger foundations, i.e. larger L values. As already mentioned however, a nucleus size limit is inevitable.) In contrast, to calculate the MWS of a {0001} crystal face, a whole upper mono-layer was stripped-off from the rest of the crystal. Then the layer disintegrated completely into its constituent molecules. The results made it obvious that MWS value calculations introduced uncertainty, caused by the alternatively stacked hexagonal and ditrigonal layers in the HCP crystals. This is why two different MWS values (but not one like by the Kossel-crystal) were calculated for the closest-packed surface layers. Oddly enough, depending on the type of surface layer to be disintegrated, the crystal stood in equilibrium with two different supersaturations.

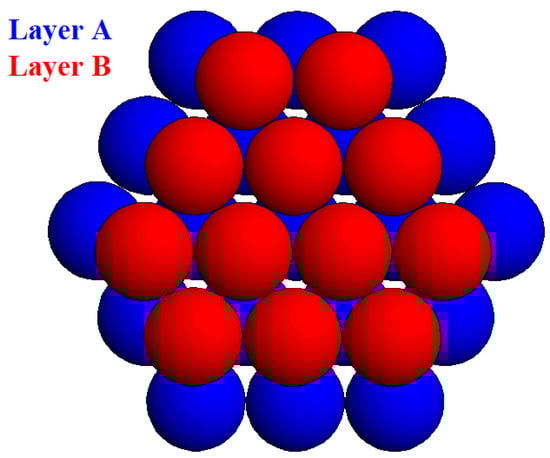

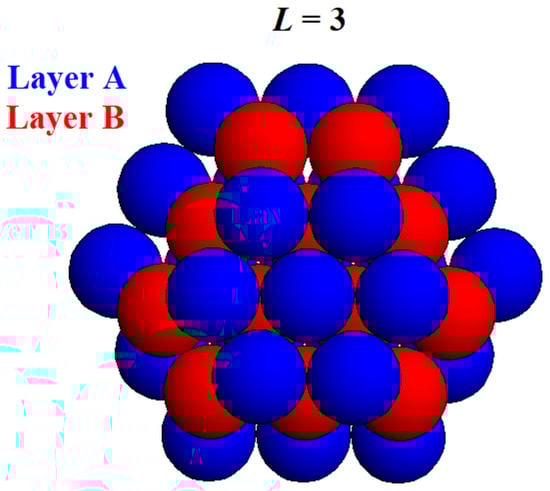

Well-known crystallography equations were applied for the MWS value calculations. Since each molecule in the closest-packed surface layer (regardless whether hexagonal or ditrigonal) is related to three molecules beneath it, the work (energy) needed for striping-off one such layer is always three times the number (z) of molecules in the layer. By denoting the number of molecules in the edge of a hexagonal layer by λ, we obtain

z = 3λ(λ − 1) + 1,

(8)

which gives z = 7, 19, 37, 61, 91, 127 ... for λ = 2, 3, 4, 5, 6, 7 ... respectively.

In addition, for the number (Z′) of molecules in the ditrigonal layer, which is situated onto a hexagonal layer:

Z′ = 3(λ − 1)²,

(9)

which gives Z′ = 3, 12, 27, 48, … for λ = 2, 3, 4, 5 ... respectively.

A complete disintegration of the hexagonal and ditrigonal layers into their constituent molecules requires different amounts of work (ΔG_v²) which, in turn, implies two different MWS values. Though disintegration can be done in various ways, the result must be one and the same. Here, the crystallographic formula concerning the number of bonds in the hexagonal crystal layer is used:

ΔG_v² = (3λ − 3)(3λ − 2).

(10)

Thus, the MWS value (W) for HCP crystals with hexagonal {0001} surface layers is

W = 3ψ_b + (3λ − 3)(3λ − 2)ψ_b/[3λ(λ − 1) + 1] = 3ψ_b + [9λ² − 15λ + 6]ψ_b/[3λ² − 3λ + 1].

(11)

Neglecting (for L→∞) all numbers smaller than the quadratic terms in Equation (11) gives W→6ψ_b, i.e., the bonding energy of the molecule in a kink position.

The formula for ΔG_v² of ditrigonal layers is

ΔG_v² = (3λ − 5)(3λ − 3),

(12)

and the MWS value (W) for HCP crystals with ditrigonal {0001} surface lattice planes is

W = 3ψ_b + (3λ − 5)(3λ − 3)ψ_b/3(λ − 1)² = 3ψ_b + [9λ² − 24λ + 15]ψ_b/[3λ² − 6λ − 3].

(13)

Here, again, all numbers smaller than the quadratic terms in Equation (13) can be neglected for L→∞, and again, W→6ψ_b.

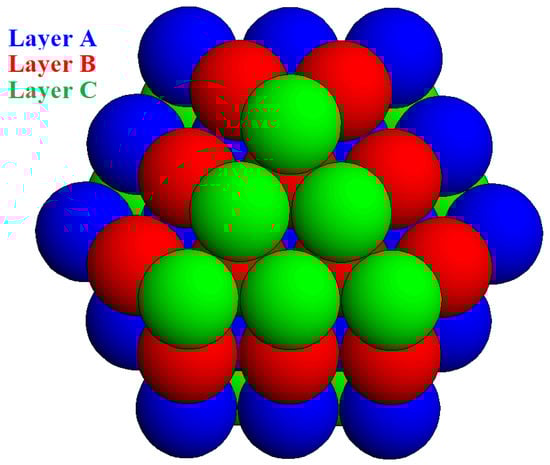

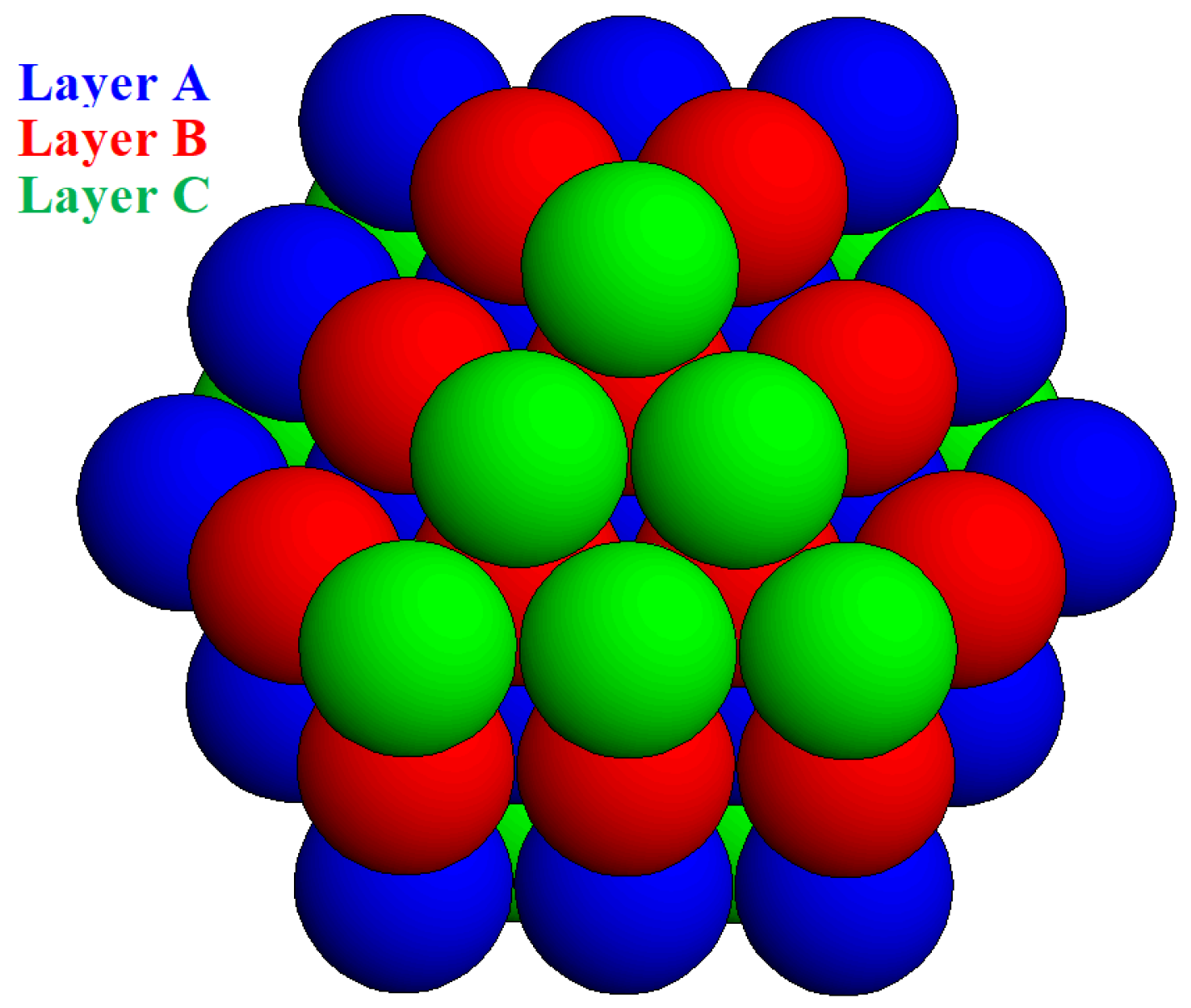

Relevant to the application of the MWS method to FCC crystals is the cubo-octahedron crystal shown in Figure 8 (which is composed by five layers, BCABC, and has eight equal octahedral faces of triangular shape, all of them containing six molecules). The EBDE method shows that this crystal can be a critical nucleus under supersaturation, which is determined from the ratio ψ_b/ψ_d ≈ 0.42. It is almost equal to the ψ_b/ψ_d ratio for the HCP crystal shown in Figure 5 (ψ_b/ψ_d ≈ 0.43, see Table 2). Note that the FCC crystal is comprised of 55 molecules, while the HCP crystal has two additional molecules.

By applying the MWS method, we see that the stripping-off of the whole upper triangular layer {111} (containing green balls, Figure 8) requires work (energy) amounting to 18ψ_b, while each layer here has a bond energy of 9ψ_b. This gives a MWS value of 4.5ψ_b. The cubic faces {100} are built from nine molecules of bond energy 12ψ_b, and the bond energy of the front cubic face in Figure 8 to the layer beneath it is 32ψ_b. This gives a MSW value ≈ 4.9ψ_b. The different MWSs of the {111} and {100} faces indicate that, according to the MSW method, this crystal does not have an equilibrium shape.

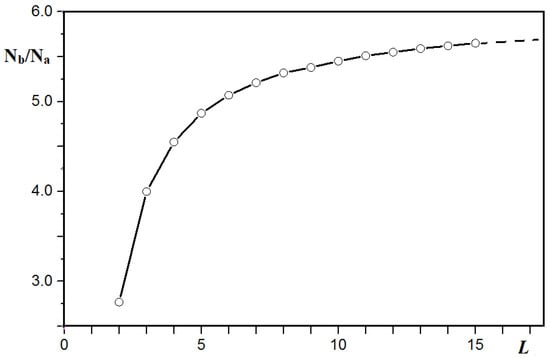

The difficulties encountered with the highly symmetrical HPC and FCC crystals indicate that the MWS method has low applicability to less-symmetrical crystals. This notwithstanding, historically, the classical MWS method has played an important role in the crystal growth theory, regardless of being demonstrated merely on the Kossel-crystal model [24]. Markedly, present-day computer programs are capable of elucidating at least one of the basic notions used in the classical MWS method, namely the meaning of an ‘infinitely’ large crystal. The latter is used as a benchmark in Stranski-Kaischew’s molecular kinetic theory. Figure 9 shows how the ‘infinitely’ large crystal size is approached asymptotically. Here, the N_b/N_a ratio (where N_b is the total number of bonds in the crystal and N_a is the number of molecules in the truncated HCP bipyramid) is plotted versus the crystal edge length, L. It is well-known that the N_b/N_a for a 12-coordinated molecule is six, and the bond energy of a molecule in the kink position is 6ψ_b.

4. Difference between Equilibrium and Growth Crystal Shapes

The nucleation stage predetermines the polymorphic crystal form (i.e., crystal lattice type) but not the habitus of a growing crystal (i.e., the type of faces on it). Crystal habitus depends on the growth rates of faces in normal directions. Historically, Stranski and Kaischew [25] were the first to recognize that the adsorption energy of a molecule at the middle of a crystal face can be used to characterize its growth rate. Later, Hartman and Bennema [26] proved that although dependent on the growth mechanism (via two-dimensional nucleation or spiral growth) and system conditions, face growth rate always increases with the increase in attachment energy per molecule on this crystal face. For instance, {110} faces grow faster than {100} and {111} faces because the steady-state growth shapes are determined by the number of their dangling bonds. The latter are five for {110} faces, four for {100} faces and three for {111} faces. In fact, ferritin crystals with the largest {111} faces have been observed most frequently—an indication that this is the slowest growing type of face in the normal direction and hence, the most morphologically important crystal face [27]. Using Atomic Force Microscopy, Yau and Vekilov [28] observed that near-critical-size apoferritin crystallites grow by attachment of molecules to the side {110} faces, thus forming a large {111} face. Growth of an apoferritin microcrystal consisting of three {111} layers of about 60 molecules in each was also detected. These nearly-critical crystallites were of quasi-planar (raft-like) shapes which is rather unusual for the FCC crystals.

5. Conclusions

An advantage of the EBDE method is that coupled with adequate computer programs, it can predict the nucleation of crystals of diverse lattice structures. As exemplified here with HCP crystals, modern computer programs (such as ATOMS) enable calculations considered unimaginable at the time of Stranski and Kaischew, over 80 years ago. Just as an example, the ordinate for L = 10 in Figure 9 is calculated for a HPC bipyramid crystal having N_a = 2859 atoms and N_b = 15588 bonds.
