Deep Etched Gallium Nitride Waveguide for Raman Spectroscopic Applications

1
Department of Electronics Engineering, Chang Gung University, Guishan, Taoyuan 333, Taiwan
2
Department of Electrical and Electronic Engineering, Chung Cheng Institute of Technology, National Defense University, Daxi, Taoyuan 335, Taiwan
3
Green Technology Research Center, Chang Gung University, Guishan, Taoyuan 333, Taiwan
4
Department of Materials Engineering, Ming Chi University of Technology, Taishan, New Taipei City 243, Taiwan
5
Department of Otolaryngology-Head and Neck Surgery, Chang Gung Memorial Hospital, Linkou, Taoyuan 333, Taiwan
6
Department of Physics and NanoScience Technology Center, University of Central Florida, Orlando, FL 32816, USA
7
Department of Physics, University of Central Florida, Orlando, FL 32816, USA
8
Department of Physics and College of Optics and Photonics, University of Central Florida, Orlando, FL 32816, USA
*
Authors to whom correspondence should be addressed.
Crystals 2019, 9(3), 176; https://doi.org/10.3390/cryst9030176
Submission received: 29 January 2019 / Revised: 22 March 2019 / Accepted: 23 March 2019 / Published: 26 March 2019
(This article belongs to the Special Issue GaN-Based Optoelectronic Materials and Light Emitting Devices)

Abstract

:
Gallium nitride (GaN) materials with a high chemical stability and biocompatibility are well suited for bio-sensing applications and evanescent wave spectroscopy. However, GaN poses challenges for processing, especially for deep etching using conventional etching techniques. Here, we present a dry-etching technique using tetraethyl orthosilicate (TEOS) oxide as an etching barrier. We demonstrate that a sharp, vertically-etched waveguide pattern can be obtained with low surface roughness. The fabricated GaN waveguide structure is further characterized using field-emission scanning electron microscopy, Raman spectroscopy, and a stylus profilometer.

1. Introduction

Gallium Nitride (GaN) is a III-V group compound semiconductor. It can exist in either wurtzite form or zinc-blende form. The wurtzite modification of GaN is slightly more common and has a wide direct band gap of 3.4 eV at room temperature [1]. The direct band gap enables the use of GaN for highly efficient light emitting diodes (LEDs) [2], laser diodes (LDs), and UV detectors. In the last fifteen years, the efficiency of GaN-based LEDs has improved greatly, making solid state lighting available [3]. GaN offers several other attractive properties, including a high breakdown field, EB = 4.0 MV/cm, a high electron mobility, μ = 1300 cm 2 V · s , and a large dielectric constant of ε = 9.0. These parameters combined with the large band gap make GaN an excellent candidate for high power RF devices [4,5]. Gallium Nitride (GaN) is also well suited for bio-sensor applications due to its chemical stability, wide spectral transmission window, and biocompatibility [6]. Although dry etching using inductively coupled plasma (ICP) has been employed in the past [7], deep etching of up to 5 μm of thick GaN films is rare. More recently GaN has attracted increased interest for integrated photonic applications [8,9].
For waveguide application employing evanescent excitation, a low surface roughness of the waveguide and a sharp etching profile are essential. For optical coupling from the end-face of the GaN waveguide, the cross-section of the waveguide needs to be in the range of microns. Therefore, deep etching a thick GaN film to create a waveguide structure is of significant interest.
Using a conventional photoresist as an etching barrier does not provide enough depth for a GaN waveguide. If the photoresist is not sufficiently thick in spin coating, it will not effectively block the ion bombardment during the inductively coupled plasma (ICP) etching. This causes over-etching of the waveguide, reducing not only the height of the waveguide, but also creating a rough surface as a result of ion bombardment. On the other hand, if an excessively thick coating of photoresist is formed, the exposure and development process will be non-uniform, leading to the poor development of the photoresist and preventing the fabrication of the waveguide. A denser and more uniform material is required as an etch barrier to improve the etching process. Tetraethyl Orthosilicate (TEOS), due to its excellent step coverage, is the reactive gas widely used in chemical vapor deposition to deposit a dense and uniform silicon oxide film. TEOS has a favorable surface mobility and gap-filling ability [10,11,12]. Therefore, TEOS deposited oxide is used and studied as the etching barrier for deep etching in the present work. Various widths of GaN waveguides were experimentally fabricated.

2. Experimental Section

Initially, a 2-inch mask was constructed with waveguide patterns at various widths, as shown in Figure 1a. After that, commercial 2-inch sapphire substrates with a 5 μm GaN thin film epitaxially grown by MOCVD were cleaned with a standard RCA procedure in an ultrasonic bath with acetone, isopropanol and de-ionized water for 3 minutes each sequentially. Subsequently, 2 μm of Tetraethyl Orthosilicate (TEOS) oxide was deposited to form the SiO2 layer on top of the wafers as the first etching barrier by plasma enhanced chemical vapor deposition (PECVD). Next, a PR-5214 photoresist with a thickness of 1.5 μm was spin-coated on the substrate wafers. An exposure system was used to develop the desired waveguide patterns (2, 4 and 8 μm, respectively), as shown in Figure 1b.
After the deposition of the etching barriers, wafers were etched using an inductively coupled plasma reactive ion etching system. This created a deep-etched GaN waveguide structure. All of the etching parameters of the system such as the ICP source power, RF bias power, chamber pressure and gas flows were optimized in the experiment. The fabricated GaN waveguide structure was characterized by a stylus profilometer (Alpha-Stepper; Surfcorder ET3000, Kosaka Laboratory Ltd., Tokyo, Japan), a field emission scanning electron microscope (SEM; SU8220, Hitachi High-Technologies, Tokyo, Japan and JSM-7500F, JEOL, Tokyo, Japan), an energy dispersive X-ray spectrometer (EDS; INCA X-ACT, OXFORD, High Wycombe, UK), and an atomic force microscope (AFM; NT-MDT Solver P47, NT-MDT Spectrum Instruments, Moscow, Russia).

3. Results and Discussion

Inductively coupled plasma reactive ion etching (ICP-RIE etching) to create an anisotropic GaN etching depth up to 5 μm is not well understood [13,14]. The choices of the etching-resistant material, etching gas, and etching time are crucial to ensure the success of the etching process. If the etching time is too long, then the waveguide will be partially etched. This results in an uneven waveguide surface and scattering of the laser signal due to surface roughness in the waveguide. If the etching time is too short, the isolated waveguide cannot form, which will cause some loss of signal [15].
The top of the sapphire substrate was covered with a 5 μm thick GaN epilayer. Initially, only one single photoresist (PR) layer was used as an etching barrier. To shape the perfect waveguide with etching to the sapphire substrate, a long etching time (1500 s) was used. However, after the etching process, the etching resistance of the PR mask was neither as expected nor sufficient to provide a deep etch of 5 μm in the GaN. The resulting waveguide displayed a damaged surface and damaged side walls, as shown in Figure 2. This is clearly unacceptable for use as a waveguide. In addition, the waveguides were characterized with a profilometer. The surface profiles are shown in Figure 3. The height of the waveguide is not uniform, and the non-uniform exposure has almost destroyed the 2 μm wide waveguide.
In order to improve the etching process, an extra oxide layer of TEOS, which acted as a precursor for the deposition of SiO2, was deposited on top of the GaN layer by PECVD before the photoresist coating. After the development of the photoresist coating, Ar and CF4 gases were used as etchants to remove the photoresist barrier layer while the SiO2 layer acted as an etch barrier to protect the GaN. Since the SiO2 layer is relatively stable in the etching process, it blocks etching gases such as Cl2 and BCl3. Figure 4 shows the etching process. To improve the deep etching and to reduce the complexity of the process, the relevant parameters were optimized. In the initial stage of the experiment, a selectivity ratio of 1:1 of the photoresist to GaN was chosen. However, a spin-coating photoresist with a thickness of 5 μm is difficult to form in the lithography process. SiO2 was added to the photoresist layer in the manufacturing process. SiO2, deposited by PECVD as an ICP etching barrier, is commonly used in semiconductor processing and exhibits an excellent deposition uniformity at high selectivity ratios. Therefore, Ar and CF4 gases were first used to etch out the layer pattern of the SiO2 barrier. Subsequently, Cl2 and BCl3 gases were used to etch the GaN layer with the etching parameters listed in Table 1.
Figure 5 displays a FESEM image and elemental atomic percentage of a GaN waveguide coated with an SiO2 layer as an etching barrier. The etching time was 1500 seconds. A comparison of Figure 2 and Figure 5 demonstrates that an extra oxide layer, SiO2, greatly reduced the roughness of the GaN waveguide surface (for a fixed etching time of 1500 s), and enabled a 5 μm-deep GaN etching of the sapphire substrate. Etching parameter combinations should be analyzed in the future to optimize results. The scanning electron microscopy (SEM; JSM-7500F, JEOL, Tokyo, Japan) image and elemental composition (energy dispersive spectroscopy, EDS; INCA X-ACT, OXFORD, High Wycombe, UK) in Figure 5 indicate the success of the above process with proper etch selectivity ratios to produce the desired GaN waveguide. Figure 6 displays the results of a 5 μm-deep etching. Through this process, a useful GaN waveguide was fabricated.
Both the steepness and the surface roughness of the waveguides are characterized. Figure 7a,b shows the 3D images of the fabricated waveguide without the SiO2 layer in the etching process and with it, respectively. All 3D waveguide images were obtained with an atomic force microscope (AFM; NT-MDT Solver P47, NT-MDT Spectrum Instruments, Moscow, Russia) system in the Taiwan Semiconductor Research Institute (TSRI). A similar surface roughness and sidewall properties were observed in the GaN waveguide with the SiO2 layer during etching. This also indicates that the SiO2 layer, when used as an etching barrier, is an effective method for fabricating GaN waveguides.
We emphasize that the focus of the current report is the fabrication of the waveguide device. However, to illustrate future applications, we show in a schematic diagram (Figure 8a), how this device can be used for evanescently excited Raman spectroscopy from extremely thin bio-samples. The excitation source is coupled into the waveguide through the end-face. In Figure 8b, a cross-sectional view of the waveguide is depicted. The guided wave of the excitation source can propagate through the thin sample along the direction of the waveguide, evanescently exciting the thin bio-layer on top of the waveguide. The Raman scattered light is collected in a 90° geometry from the top of the waveguide.
Figure 9 displays a Raman spectrum of a GaN waveguide structure using a micro-Raman setup. The excitation wavelength was 632 nm. We observe vibrational bands at 567 cm−1 and 735 cm−1 that are assigned to the E2(high) and E1(LO) modes, respectively [16]. The shoulder at 560 cm−1 is attributed to the E1(TO) mode. These vibrational modes are characteristic of the GaN wurtzite structure.
Due to the high refractive index of GaN, coupling into the waveguide using prisms poses difficulties. Therefore, the beam from a Helium-Neon laser was injected into the waveguide by end-face coupling via a 20x microscope objective. However, achieving a high-efficiency coupling was not easy, as suitable angles of incidence and a small laser spot were required. The waveguide thickness was only about one percent of the substrate. Figure 10 shows a well coupled beam in comparison to the uncoupled case. The propagation of the coupled beam is clearly seen in the right panel of Figure 10. In particular, the cross section of the exiting beam is visible at the end-face. This indicates that the etching has resulted in a high quality GaN waveguide that can be further used for spectroscopy with evanescent excitation. Further studies to quantify the propagation and coupling losses are in progress.

4. Conclusions

By using optimized combinations of Ar, CF4, Cl2, and BCl3 gases in etching, low surface roughness morphologies were obtained. The application of a photoresist with an additional SiO2 layer as the barrier wall enables etching out of GaN material to a depth of up to 5 μm, while maintaining good surface roughness and steep side walls. The resulting waveguide has the low optical losses that are needed for a guided mode propagation.

Author Contributions

Conceptualization, L.-B.C., L.C., A.S., S.-F.H., M.-J.J. and C.-J.Y.; Data curation, W.-S.C. and S.B.J.; Funding acquisition, L.-B.C.; Investigation, Y.-L.H., W.-S.C., L.-B.C., L.C., A.S. and S.B.J.; Methodology, L.C., A.S. and S.B.J.; Project administration, L.-B.C., S.-F.H., M.-J.J. and C.-J.Y.; Resources, L.-B.C., S.-F.H. and M.-J.J.; Supervision, L.-B.C.; Writing—original draft, Y.-L.H., W.-S.C., L.-B.C. and M.-J.J.; Writing—review & editing, Y.-L.H., L.C., A.S. and M.-J.J.

Funding

This research was funded by Department of Otolaryngology-Head and Neck Surgery, Chang Gung Memorial Hospital (CMRPD2F0262, CMRPD2G0292) and Ministry of Science and Technology, Republic of China (MOST107-2221-E-182-045).

Acknowledgments

The authors would like to thank Chang Gung University and Chang Gung Memorial Hospital for financially supporting of this research.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Strite, S.; Lin, M.E.; Morkoc, H. Progress and Prospects for GaN and the III-V nitride Semiconductors. Thin Solid Films 1993, 231, 197–210. [Google Scholar] [CrossRef]
  2. Nakamura, S.; Mukai, T.; Senoh, M. High-power GaN p-n junction blue-light-emitting diodes. Jpn. J. Appl. Phys. 1991, 30, 12A. [Google Scholar] [CrossRef]
  3. Kong, H.S.; Ibbetson, J.; Edmond, J. Status of GaN/SiC-based LEDs and their application in solid state lighting. Phys. Status Solidi C 2014, 11, 621–623. [Google Scholar] [CrossRef]
  4. Pearton, S.J.; Ren, F.; Zhang, A.P.; Lee, K.P. Fabrication and Performance of GaN Electronic Devices. Mater. Sci. Eng. 2000, 30, 55–212. [Google Scholar] [CrossRef]
  5. Mishra, U.K.; Shen, L.; Kazior, T.E.; Wu, Y.F. GaN-based RF Power Devices and Amplifiers. Proc. IEEE 2008, 96, 287–305. [Google Scholar] [CrossRef]
  6. Schulte, A.; Borges, S.; Chow, L.; Chen, W.S.; Huang, S.F.; Jeng, M.J.; Chang, L.B. Evanescent Raman Spectroscopy of Bio-assemblies with GaN waveguide Structures. In Proceedings of the 62nd Annual Meeting of the Biophysical Society, San Francisco, CA, USA, 17–21 February 2018. [Google Scholar]
  7. Shul, R.J.; McClellan, G.B.; Casalnuovo, S.A.; Rieger, D.J.; Pearton, S.J.; Constantine, C.; Barratt, C.; Karlicek, R.F.; Tran, C.; Schurman, M. Inductively coupled plasma etching of GaN. Appl. Phys. Lett. 1996, 69, 1119. [Google Scholar] [CrossRef]
  8. Awan, K.M.; Muhammad, M.M.; Sivan, M.; Bonca, S.; Roqan, I.S.; Dolgaleva, K. Fabrication and optical characterization of GaN waveguides on (−201)-oriented β-Ga2O3. Opt. Mater. Expressss 2018, 8, 88–96. [Google Scholar] [CrossRef]
  9. Chen, H.; Fu, H.; Huang, X.; Zhang, X.; Yang, T.H.; Montes, J.A.; Baranowski, I.; Zhao, Y. Low loss GaN waveguides at the visible spectral wavelengths for integrated photonics applications. Opt. Soc. 2017, 25, 31758–31773. [Google Scholar] [CrossRef] [PubMed]
  10. Chang, C.; Abe, T.; Esashi, M. Trench filling characteristics of low stress TEOS/ozone oxide deposited by PECVD and SACVD. Microsyst. Technol. 2004, 10, 97–102. [Google Scholar] [CrossRef]
  11. Fujino, K.; Nishimoto, Y.; Tokumasu, N.; Maeda, K. Silicon Dioxide Deposition by Atmospheric Pressure and Low-Temperature CVD Using TEOS and Ozone. J. Electrochem. Soc. 1990, 137, 2883–2887. [Google Scholar] [CrossRef]
  12. Matsuura, M.; Hayashide, Y.; Kotani, H.; Abe, H. Film Characteristics of APCVD Oxide Using Organic Silicon and Ozone. Jpn. J. Appl. Phys. 1991, 30, 1530–1538. [Google Scholar] [CrossRef]
  13. Shul, R.J.; McClellan, G.B.; Pearton, S.J.; Abernathy, C.R.; Constantine, C.; Barratt, C. Comparison of dry etch techniques for GaN. Optoelectron. Lett. 1996, 32, 1408–1409. [Google Scholar] [CrossRef]
  14. Pearton, S.J.; Shul, R.J.; Ren, F. A Review of Dry Etching of GaN and Related Materials. MRS Internet J. Nitride Semicond. Res. 2000, 5, e11. [Google Scholar] [CrossRef]
  15. Tahhan, M.; Nedy, J.; Chan, S.H.; Lund, C.; Li, H.; Gupta, G.; Keller, S.; Mishra, U. Optimization of a chlorine-based deep vertical etch of GaN demonstrating low damage and low roughness. J. Vac. Sci. Technol. A 2016, 34, 031303. [Google Scholar] [CrossRef]
  16. Bergman, L.; Dutta, M.; Nemanich, R.J. Raman Scattering in Materials Science; Weber, W.H., Merlin, R., Eds.; Springer: Berlin, Germany, 2000. [Google Scholar]

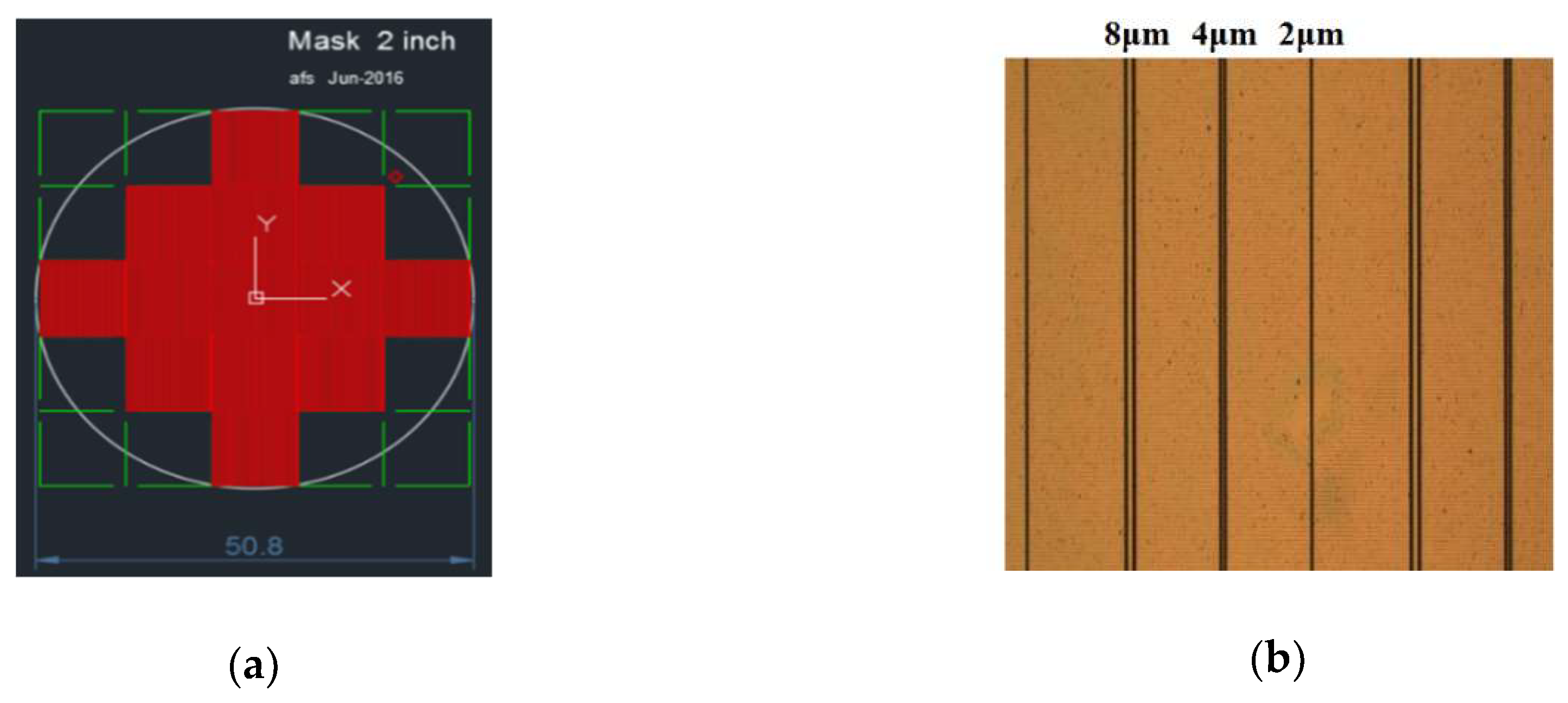

Figure 1. (a) Waveguide patterns on a 2-inch mask; and (b) Waveguide pattern images of 2, 4 and 8 μm after exposure developed.
Figure 1. (a) Waveguide patterns on a 2-inch mask; and (b) Waveguide pattern images of 2, 4 and 8 μm after exposure developed.
Crystals 09 00176 g001

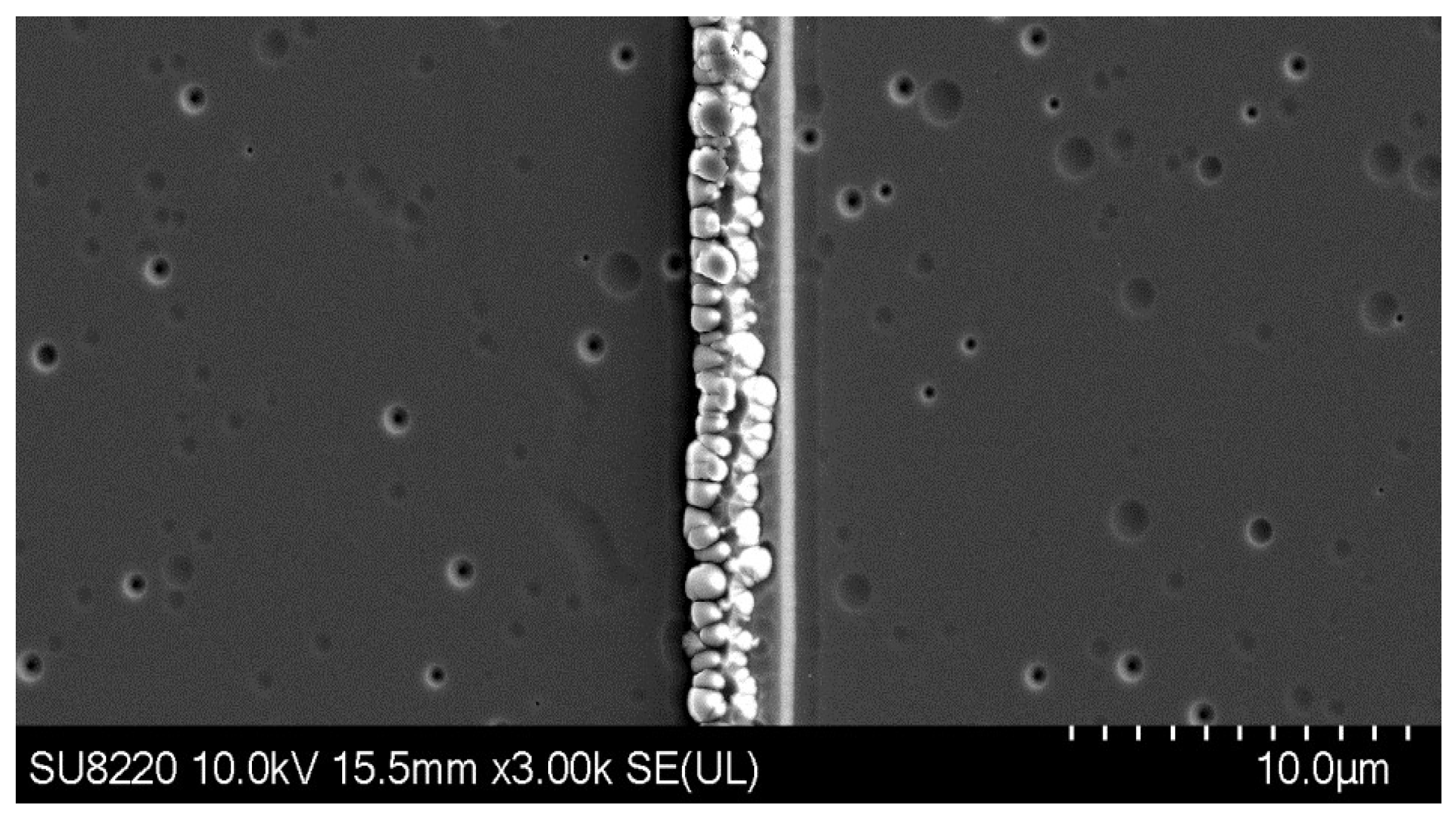

Figure 2. SEM images of a GaN waveguide with a damaged surface and side walls.
Figure 2. SEM images of a GaN waveguide with a damaged surface and side walls.
Crystals 09 00176 g002

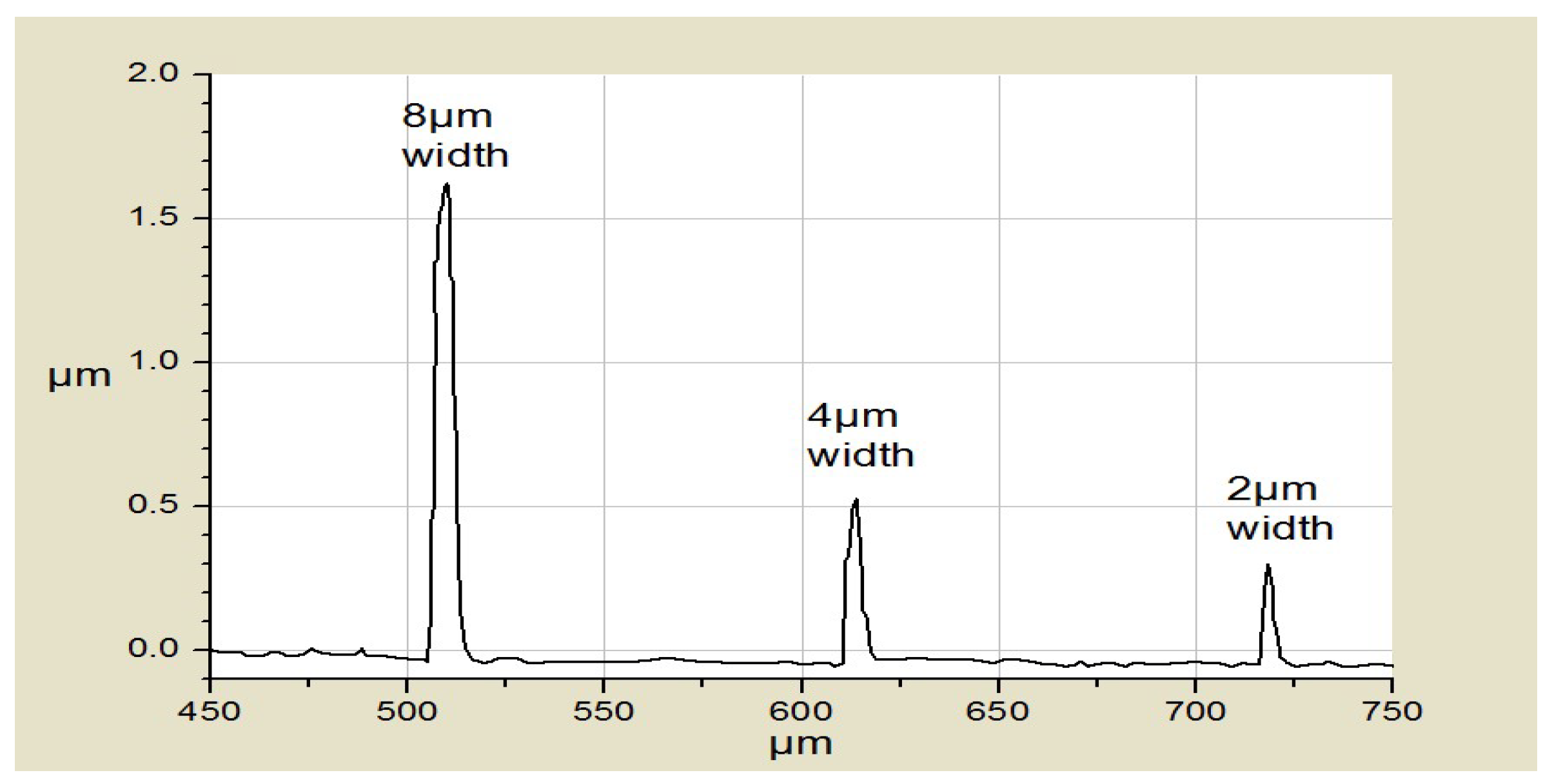

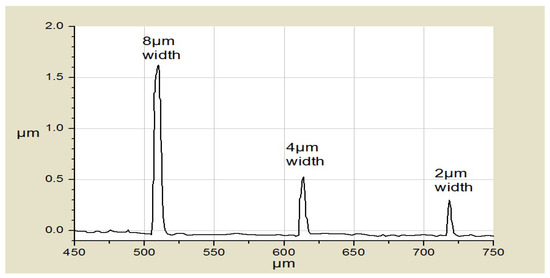

Figure 3. Surface profile of the GaN waveguide fabricated with one single photoresist (PR) layer as an etching barrier.
Figure 3. Surface profile of the GaN waveguide fabricated with one single photoresist (PR) layer as an etching barrier.
Crystals 09 00176 g003

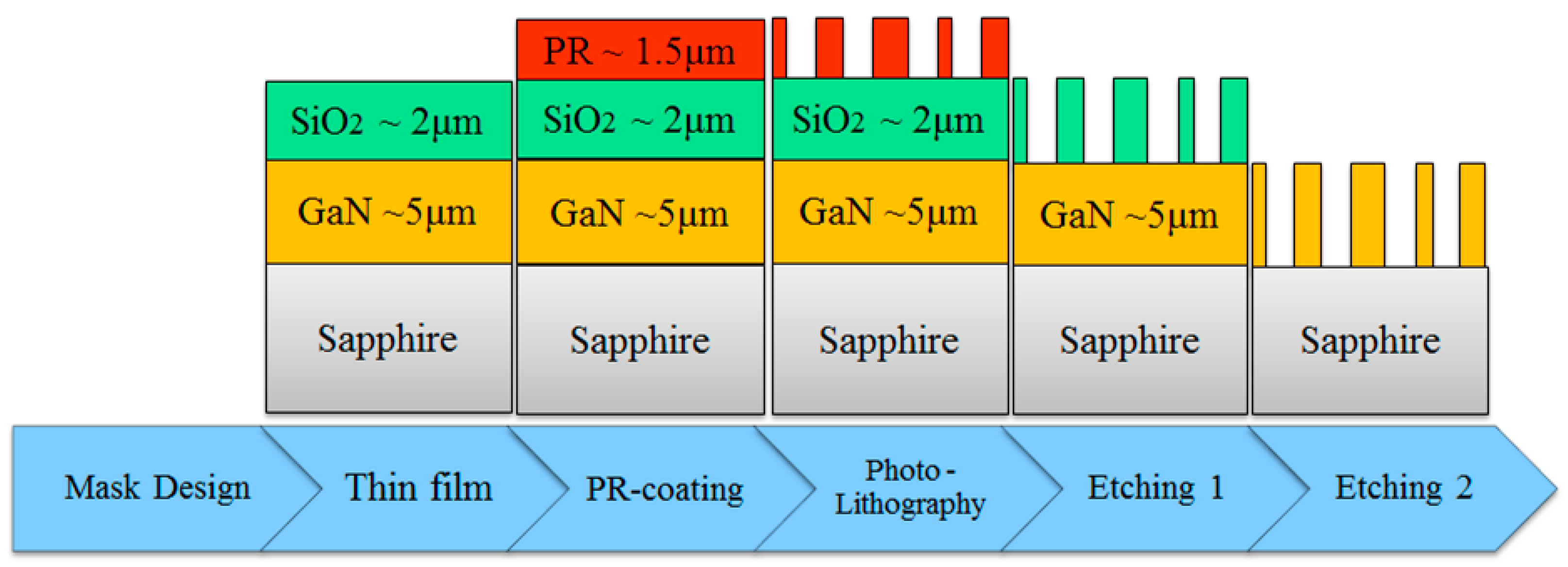

Figure 4. Process for the fabrication of a deep etched GaN waveguide.
Figure 4. Process for the fabrication of a deep etched GaN waveguide.
Crystals 09 00176 g004

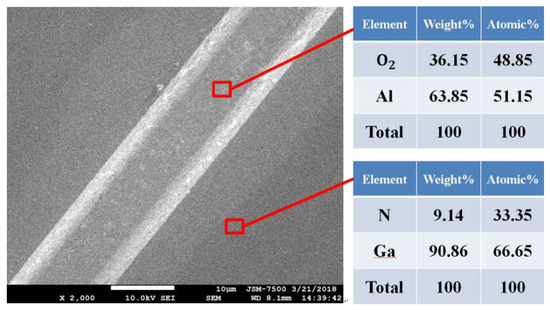

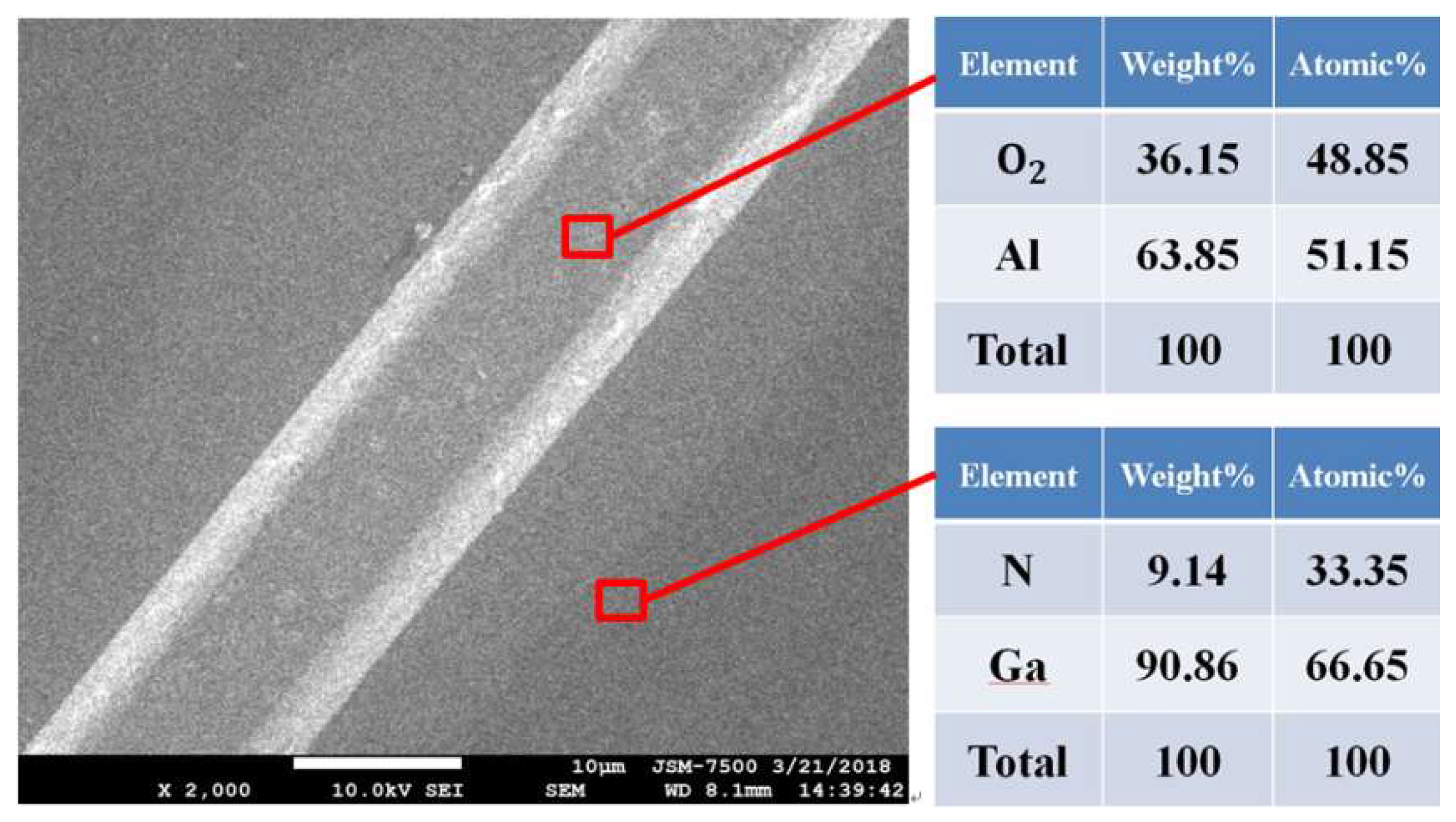

Figure 5. The FESEM image and elemental atomic percentage (EDS) of the fabricated GaN waveguide with a SiO2 layer as an etching barrier (with an etching time of 1500 seconds).
Figure 5. The FESEM image and elemental atomic percentage (EDS) of the fabricated GaN waveguide with a SiO2 layer as an etching barrier (with an etching time of 1500 seconds).
Crystals 09 00176 g005

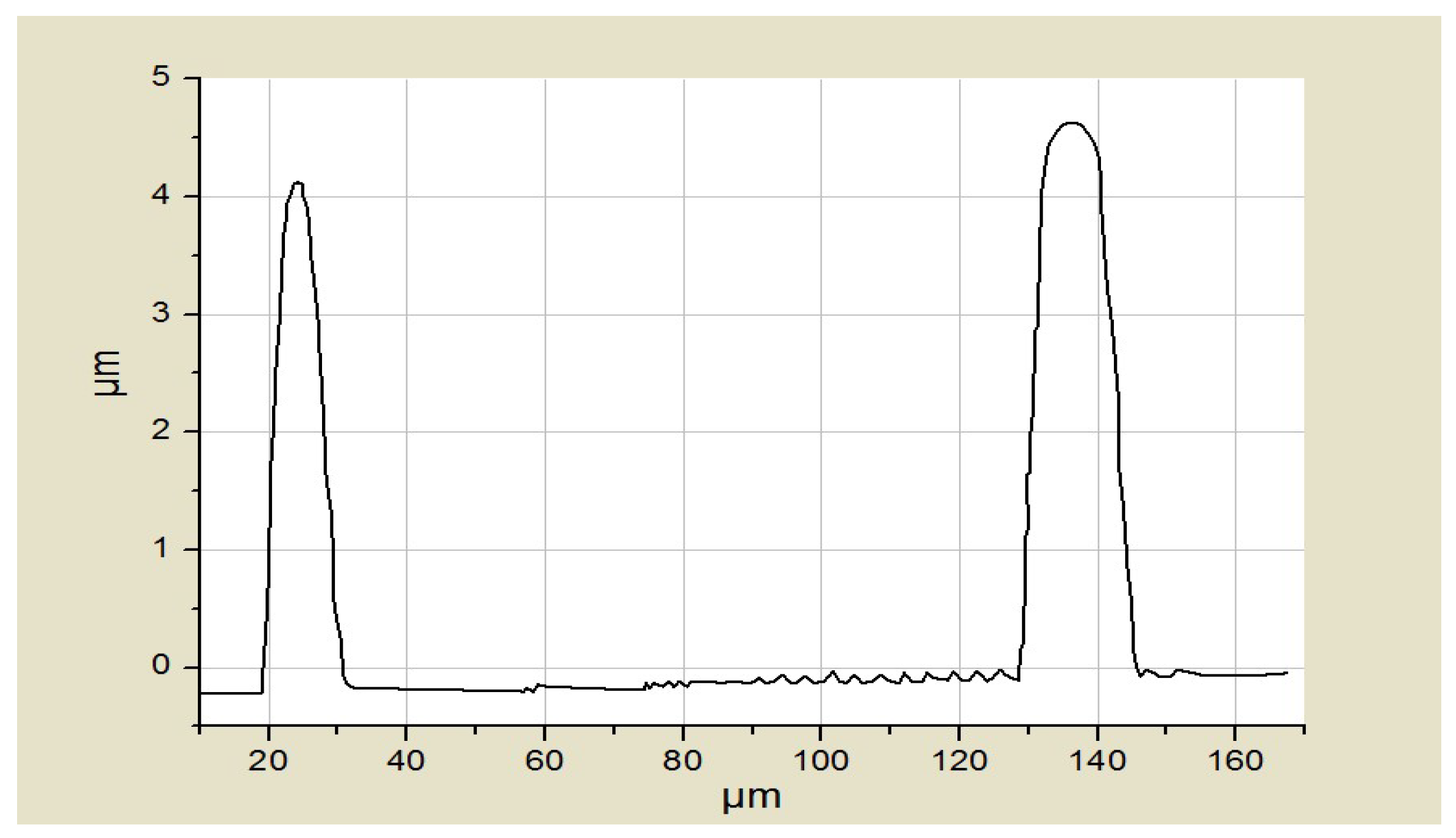

Figure 6. Surface profile of the fabricated GaN waveguide with a SiO2 layer as an etching barrier.
Figure 6. Surface profile of the fabricated GaN waveguide with a SiO2 layer as an etching barrier.
Crystals 09 00176 g006

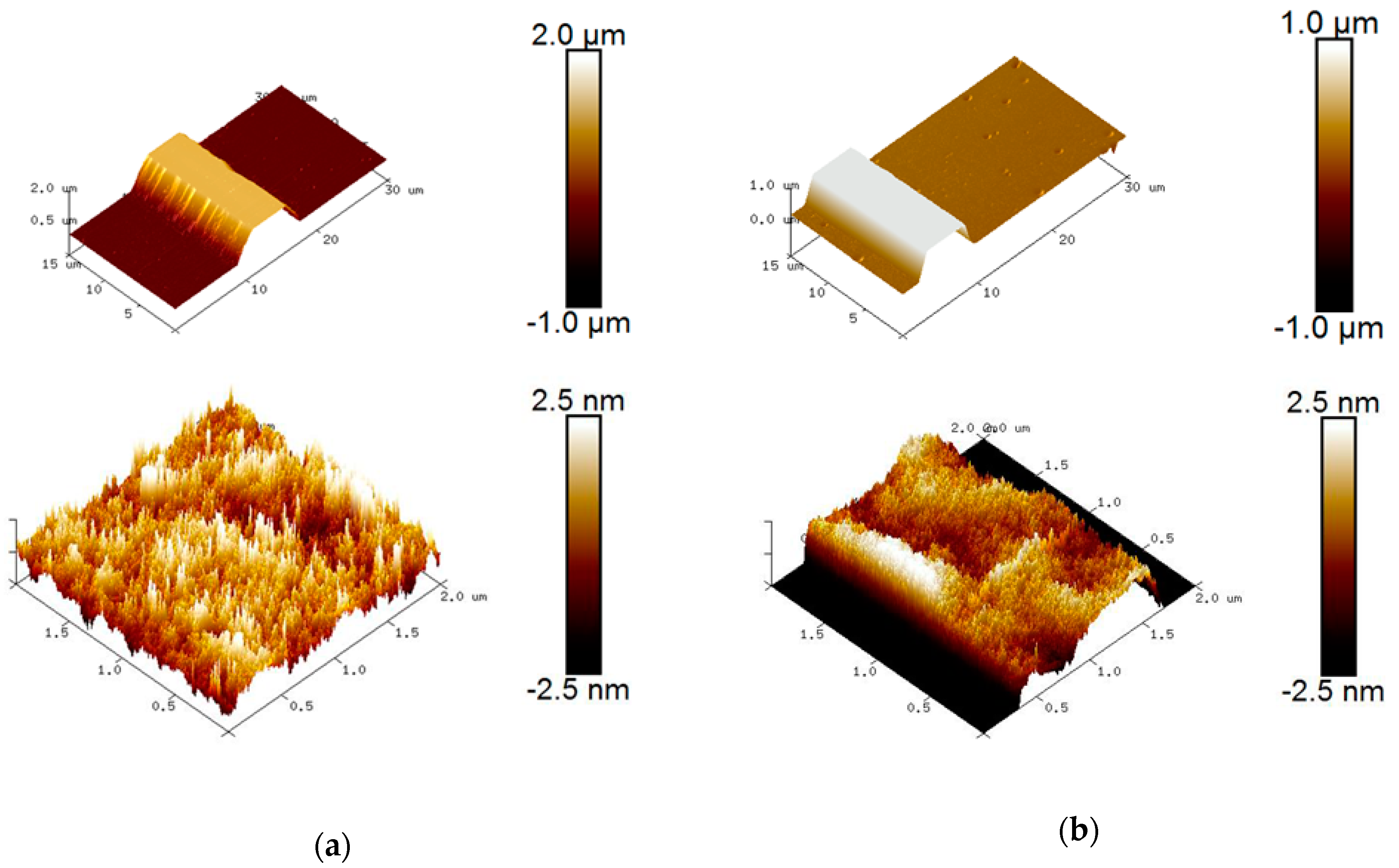

Figure 7. 3D AFM images of an 8 μm wide GaN waveguide etched (a) without and (b) with a SiO2 layer.
Figure 7. 3D AFM images of an 8 μm wide GaN waveguide etched (a) without and (b) with a SiO2 layer.
Crystals 09 00176 g007

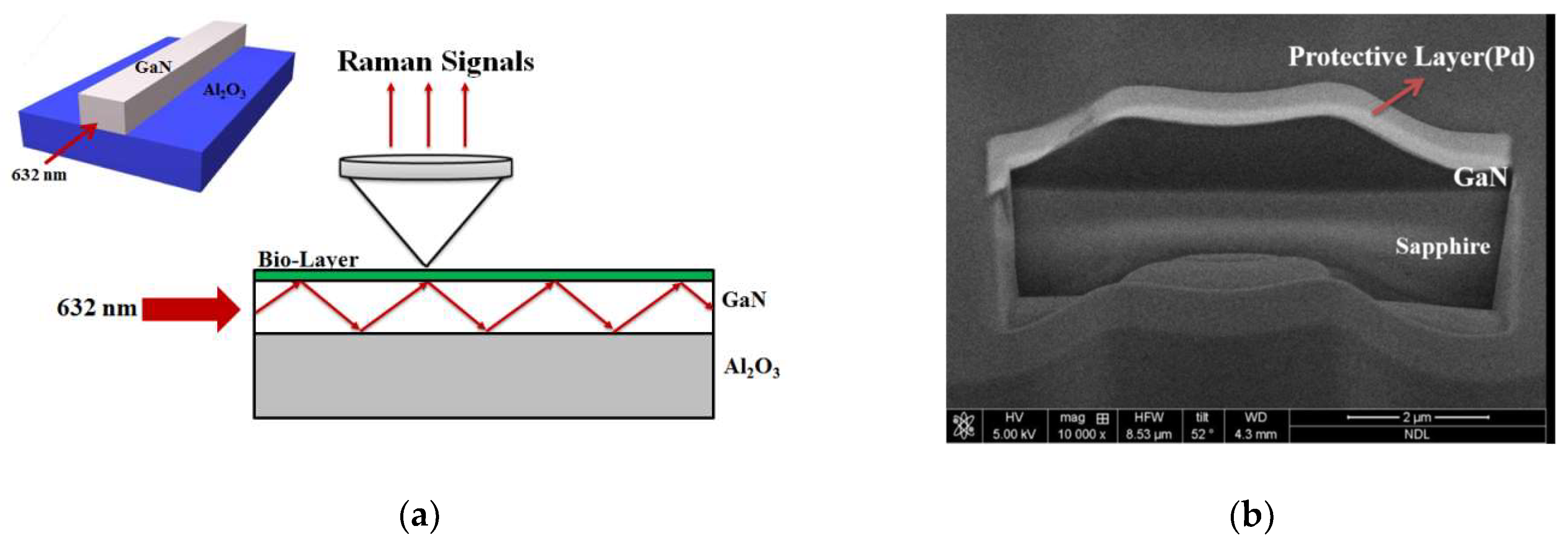

Figure 8. (a) Schematics diagram of the coupling into the waveguide and the evanescent excitation of a thin bio-layer on top; (b) Cross-sectional view of the waveguide.
Figure 8. (a) Schematics diagram of the coupling into the waveguide and the evanescent excitation of a thin bio-layer on top; (b) Cross-sectional view of the waveguide.
Crystals 09 00176 g008

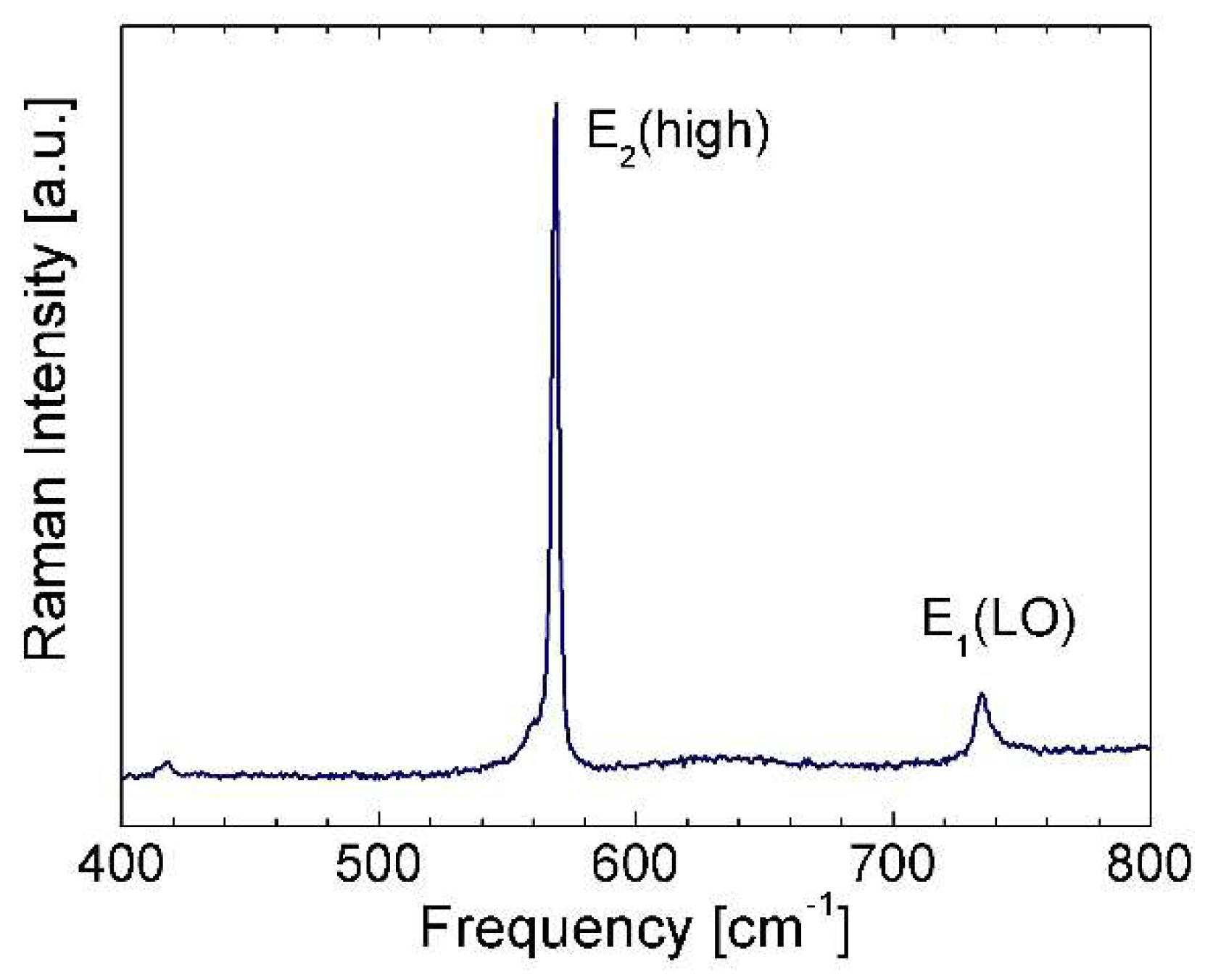

Figure 9. Micro-Raman spectrum of an 8 μm wide GaN waveguide structure.
Figure 9. Micro-Raman spectrum of an 8 μm wide GaN waveguide structure.
Crystals 09 00176 g009

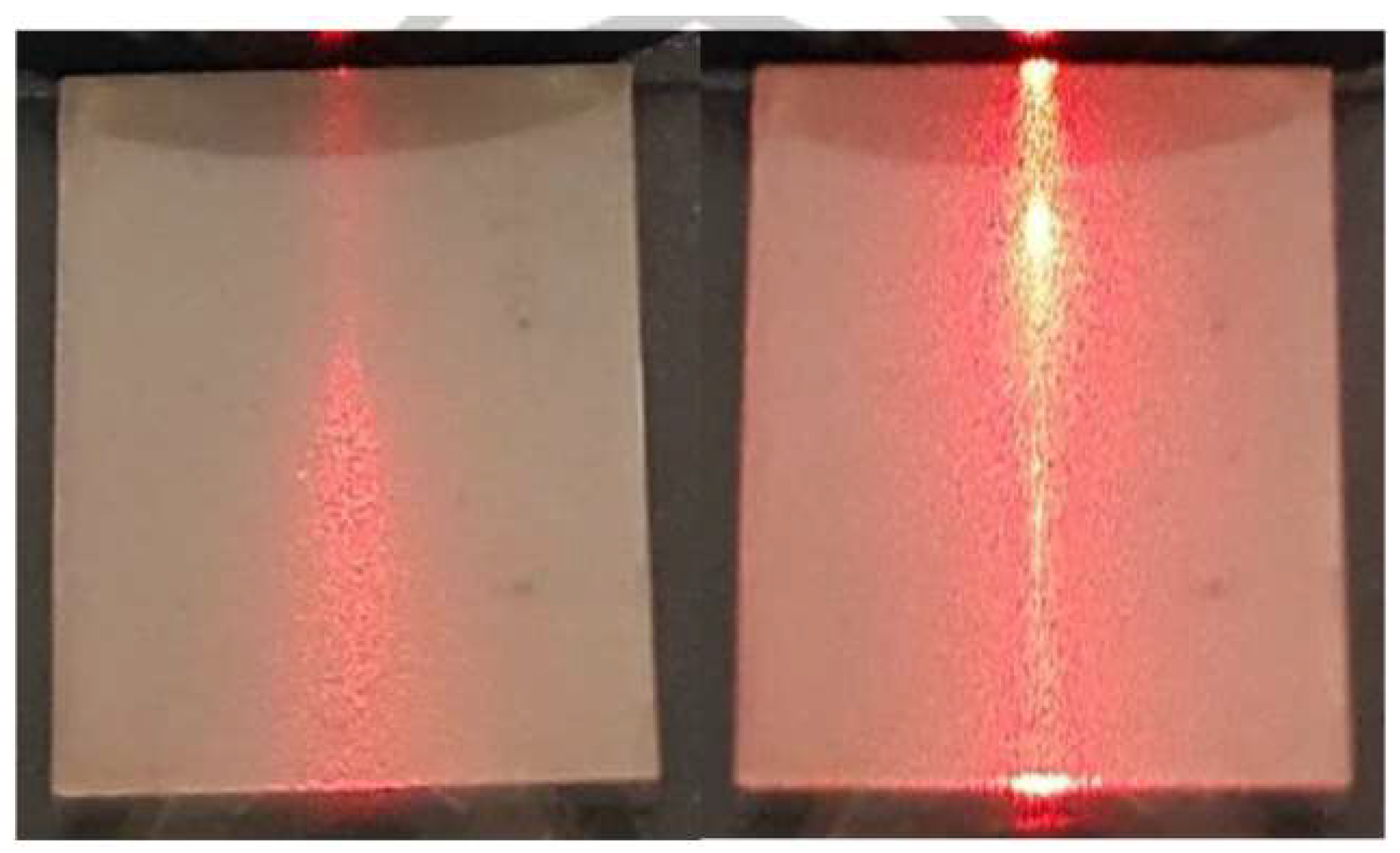

Figure 10. Guided mode propagation test with an 8 μm wide waveguide. An uncoupled beam is shown (left). A well coupled propagating beam is shown on the right.
Figure 10. Guided mode propagation test with an 8 μm wide waveguide. An uncoupled beam is shown (left). A well coupled propagating beam is shown on the right.
Crystals 09 00176 g010
Table 1. The ICP etching parameters.
Table 1. The ICP etching parameters.
Etching
Step
Target
Material
Source PowerBias PowerPressureUsing
Gas 1
Using
Gas 2
1SiO21000 W200 W1 PaAr 40 sccm 70 sccm
2GaN500 W300 W1 PaCl2 60 sccmBCl3 60 sccm
