Article

Iron(II) Spin Crossover Complex with the 1,2,3-Triazole-Containing Linear Pentadentate Schiff-Base Ligand and the MeCN Monodentate Ligand

by
Tomoe Matsuyama
1,
Keishi Nakata
2,
Hiroaki Hagiwara
1,* and
Taro Udagawa
3
1
Department of Chemistry, Faculty of Education, Gifu University, Yanagido 1-1, Gifu 501-1193, Japan
2
Graduate School of Education, Gifu University, Yanagido 1-1, Gifu 501-1193, Japan
3
Department of Chemistry and Biomolecular Science, Faculty of Engineering, Gifu University, Yanagido 1-1, Gifu 501-1193, Japan
*
Author to whom correspondence should be addressed.
Crystals 2019, 9(6), 276; https://doi.org/10.3390/cryst9060276
Submission received: 16 May 2019 / Revised: 24 May 2019 / Accepted: 25 May 2019 / Published: 28 May 2019
(This article belongs to the Special Issue Synthesis and Applications of New Spin Crossover Compounds)
Browse Figures
Versions Notes

Abstract

:
A mononuclear iron(II) complex bearing the linear pentadentate N5 Schiff-base ligand containing two 1,2,3-triazole moieties and the MeCN monodentate ligand, [FeIIMeCN(L3-Me-3Ph)](BPh4)2·MeCN·H2O (1), have been prepared (L3-Me-3Ph = bis(N,N′-1-Phenyl-1H-1,2,3-triazol-4-yl-methylideneaminopropyl)methylamine). Variable-temperature magnetic susceptibility measurements revealed an incomplete one-step spin crossover (SCO) from the room-temperature low-spin (LS, S = 0) state to a mixture of the LS and high-spin (HS, S = 2) species at the higher temperature of around 400 K upon first heating, which is irreversible on the consecutive cooling mode. The magnetic modulation at around 400 K was induced by the crystal-to-amorphous transformation accompanied by the loss of lattice MeCN solvent, which was evident from powder X-ray diffraction (PXRD) studies and themogravimetry. The single-crystal X-ray diffraction studies showed that the complex is in the LS state (S = 0) between 296 and 387 K. In the crystal lattice, the complex-cations and B(1)Ph4− ions are alternately connected by intermolecular CH···π interactions between the methyl group of the MeCN ligand and phenyl groups of B(1)Ph4− ions, forming a 1D chain structure. The 1D chains are further connected by P4AE (parallel fourfold aryl embrace) interactions between two neighboring complex-cations, constructing a 2D extended structure. B(2)Ph4− ions and MeCN lattice solvents exist in the spaces of the 2D layer. DFT calculations verified that the 1,2,3-triazole-containing ligand L3-Me-3Ph gives a stronger ligand field around the octahedral coordination environment of the iron(II) ion than the analogous imidazole-containing ligand H2L2Me (= bis(N,N′-2-methylimidazol-4-yl-methylideneaminopropyl)methylamine) of the known compound [FeIIMeCN(H2L2Me)](BPh4)1.5·Cl0.5·0.5MeCN (2) reported by Matsumoto et al. (Nishi, K.; Fujinami, T.; Kitabayashi, A.; Matsumoto, N. Tetrameric spin crossover iron(II) complex constructed by imidazole⋯chloride hydrogen bonds. Inorg. Chem. Commun. 2011, 14, 1073–1076), resulting in the much higher spin transition temperature of 1 than that of 2.

Graphical Abstract

1. Introduction

Spin crossover (SCO) materials exhibiting spin state-interconversion between the high-spin (HS) and the low-spin (LS) states have attracted much attention since they have a great potential for applications in data storage, display, switching device, sensors for temperature, pressure, gas, and solvent, and also multi-modal sensing technology [1,2,3,4,5]. For the real-world applications, SCO compounds must fulfill demands such as a proper room temperature (RT) response, abrupt spin transition, wide thermal hysteresis, and high durability at least [6,7]. Multistep [8,9,10,11] and high-temperature (HT) [12,13,14,15,16,17,18] SCO complexes also provide demands for the development of multinary memories and for the investigation of the thermal stability of spin transition under extreme conditions, respectively. These properties are complicatedly affected by the ligand field strength of each SCO molecule and cooperativity between SCO metal sites. Generally, the important factors are the ligand backbone, molecular structure of each SCO molecule, accompanying components (counter ions and lattice solvents), crystal packing, and cooperative interactions through intermolecular interactions [19,20] and/or bridging ligands [21]. The most essential need, namely RT operation, is achievable by controlling the spin transition temperature (T1/2). Thus, the various molecular design and modifications have been reported for the precise tuning of T1/2 [22,23,24,25,26,27,28,29].
Octahedral metal complexes with pentadentate ligand are of interest since their ligand field strength can be systematically controlled by modifying the additional monodentate ligand in line with the spectrochemical series [30,31,32], and such a characteristic is useful not only for exhibiting SCO but also for the possible tuning of T1/2. These complexes are also beneficial for the construction of polynuclear materials such as di [33,34,35,36,37,38,39,40,41,42], tri [43], tetra [44], penta [45], hepta [46,47,48], nona [48] and dodecanuclear [49] complexes by using bridging ligands instead of monodentate ligands for exhibiting multi-step spin transition. In the pentadentate ligand system, although iron(III) SCO compounds are well known [50,51,52,53,54,55,56,57], iron(II) spin transition systems are quite rare [58,59]. One of the reasons for this is the difficulty of the crystallization of iron(II) complexes with pentadentate ligand, as pointed out by Matsumoto et al. [60]. To the best of our knowledge, only one SCO iron(II) complex with linear pentadentate ligand, which shows the gradual and partial SCO below RT, has been reported so far [59]. So, our ongoing interest for exploring RT and HT SCO systems by using 1,2,3-triazole-containing multidentate Schiff-base ligands spontaneously extends to the next project for the synthesis of a SCO iron(II) complex bearing linear pentadentate ligand, which is missing in our tridentate to hexadentate ligand family [15,18,26,61,62,63].
In this study, we have synthesized an iron(II) complex with N6 donor atoms from the 1,2,3-triazole-containing pentadentate ligand L3-Me-3Ph and the monodentate neutral ligand MeCN, [FeIIMeCN(L3-Me-3Ph)](BPh4)2·MeCN·H2O (1) (L3-Me-3Ph = bis(N,N′-1-Phenyl-1H-1,2,3-triazol-4-yl-methylideneaminopropyl)methylamine, Scheme 1) inspired by the above-mentioned SCO iron(II) complex having imidazole-containing linear pentadentate ligand, [FeIIMeCN(H2L2Me)](BPh4)1.5·Cl0.5·0.5MeCN (2) (H2L2Me = bis(N,N′-2-methylimidazol-4-yl-methylideneaminopropyl)methylamine) [59]. We report here the synthesis, crystal structures, and thermal and magnetic properties of 1 with the first theoretical comparison of the 1,2,3-triazole- and imidazole-containing multidentate ligand system.

2. Materials and Methods

2.1. Synthesis of FeII Complex

2.1.1. General

All reagents and solvents were purchased from commercial sources and used for the syntheses without further purification. The 1-phenyl-1H-1,2,3-triazole-4-carbaldehyde was synthesized according to the reported procedures [62,64,65,66]. Complexation and crystallization of 1 were performed under nitrogen atmosphere using standard Schlenk techniques. Other synthetic procedures were carried out in air.

2.1.2. Synthesis of the Linear Pentadentate N5 Ligand L3-Me-3Ph = bis(N,N′-1-Phenyl-1H-1,2,3-triazol-4-yl-methylideneaminopropyl)methylamine

The ligand L3-Me-3Ph was prepared by mixing 3,3′-diamino-N-methyldipropylamine and 1-phenyl-1H-1,2,3-triazole-4-carbaldehyde with a 1:2 molar ratio in MeCN. The ligand solution thus prepared was used for the synthesis of FeII complex without further purification and isolation.

2.1.3. Preparation of [FeIIMeCN(L3-Me-3Ph)](BPh4)2·MeCN·H2O (1)

3,3′-diamino-N-methyldipropylamine (0.109 g, 0.75 mmol) in MeCN (3 mL) was added to a solution of 1-phenyl-1H-1,2,3-triazole-4-carbaldehyde (0.260 g, 1.5 mmol) in MeCN (7.5 mL). The resulting pale-yellow solution was stirred at RT for 1 h. A solution of NaBPh4 (0.513 g, 1.5 mmol) in MeOH (4 mL) was added to a solution of FeIICl2∙4H2O (0.149 g, 0.75 mmol) in MeOH (4 mL), and the resulting pale-yellow solution was stirred at RT for 5 min. Both reaction mixtures were filtered, and they were mixed under nitrogen atmosphere. The resulting mixture was allowed to stand for a week in a fridge, during which time the precipitated dark red-brown prismatic crystals were collected by suction filtration. Yield: 0.203 g (21%). Anal. Calcd for [FeIIMeCN(L3-Me-3Ph)](BPh4)2·MeCN·H2O (1) = C77H77B2FeN11O: C, 73.99; H, 6.21; N, 12.33. Found: C, 73.78; H, 6.03; N, 12.03%. IR (KBr): νC≡N 2271, 2251, νC=N 1616, 1593, νBPh4 734, 704 cm−1. A weight loss of 3.4% corresponding to the MeCN (3.3%) and a subsequent 1.2% loss of water (1.4%) were observed at 408 and 444 K, respectively, by TG measurement (Figure 1).

2.2. Physical Measurements

Elemental C, H, and N analyses were performed on a J-Science Lab (Kyoto, Japan) MICRO CORDER JM-10. Infrared (IR) spectra were recorded at RT using a JASCO (Tokyo, Japan) FT/IR 460Plus spectrophotometer with the samples prepared as KBr disks. Thermogravimetric (TG) data was collected on a Rigaku (Tokyo, Japan) Thermo plus EVO2 TG-DTA8122 instrument in the temperature range of 19–359 °C (292–632 K) at a sweep rate of 10 K min−1 under a nitrogen atmosphere (200 mL min−1). Real-time sample images during TG analysis were recorded under an optional direct monitoring system of the TG-DTA instrument. Magnetic susceptibilities were measured in the temperature range of 5–400 K at a sweep rate of 2 K min−1 under an applied magnetic field of 1 T using a Quantum Design (San Diego, CA, USA) MPMS-XL7 SQUID magnetometer. The sample was wrapped in an aluminum foil and was then inserted into a quartz glass tube with a small amount of glass wool filler. Corrections for diamagnetism of the sample were made using Pascal’s constants [67,68]. A background correction for the sample holder was also applied. Powder X-ray diffraction (PXRD) patterns were recorded at RT on a portion of polycrystalline powders placed on a non-reflecting silicon plate, using a Rigaku MiniFlex600 diffractometer with Cu Kα radiation (λ = 1.5418 Å) operated at 0.4 kW power (40 kV, 10 mA).

2.3. Crystallographic Data Collection and Structure Analyses

X-ray diffraction data were collected by a Rigaku (Tokyo, Japan) AFC7R Mercury CCD diffractometer using graphite monochromated Mo Kα radiation (λ = 0.71075 Å) operated at 5 kW power (50 kV, 100 mA). A single crystal was mounted on a glass fiber and the diffraction data were collected at 296 K. Following the measurement at 296 K, the crystal was warmed and the subsequent measurements were performed at 350, 375, 387, and 400 K. The temperature of the crystal was maintained at the selected value by means of a Rigaku cooling device with nitrogen flow to within an accuracy of ± 2 K. Data reductions and empirical absorption correction using spherical harmonics, implemented in a SCALE3 ABSPACK scaling algorithm (multi-scan method) [69] were performed using the CrysAlisPro software package (version 1.171.39.46) [70]. The structures were solved by the direct method using SHELXT [71] and refined on F2 data using the full-matrix least-squares algorithm using SHELXL [72], both of which were implemented in the program OLEX2 (version 1.2.10) [73] with anisotropic displacement parameters for all non-hydrogen atoms. Hydrogen atoms were placed in calculated positions with idealized geometries and refined by using a riding model and isotropic displacement parameters. The continuous shape measures (CShMs) of the FeII centers relative to the ideal octahedron, S(Oh) was calculated by the program SHAPE 2.1 [74]. The octahedral volumes of the FeII centers were calculated using OLEX2 [73]. CCDC 1911292–1911295 contains the supplementary crystallographic data for this paper. These data can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html or from the CCDC (12 Union Road, Cambridge CB2 1EZ, UK; Fax: +44 1223 336033; E-mail: [email protected]).

2.4. Computational Details

In the present study, electronic energy was evaluated by (U)M06L [75] DFT method with a combination of 6-311G(d) electronic basis set (for all atoms except for Fe) and LANL2DZ pseudo potential (for Fe) in gas phase. The M06-L functional is a local functional (i.e., 0% Hartree-Fock exchange) and is known as one of the good exchange-correlation density functionals for transition metal chemistry. The single crystal X-ray crystallography structures were used as the initial geometries for DFT geometry optimization. We confirmed that all DFT optimized structures have no imaginary frequencies. All calculations were performed with the aid of the GAUSSIAN09 program package [76].

3. Results and Discussion

3.1. Synthesis and Characterization

The linear pentadentate N5 ligand L3-Me-3Ph was prepared by the condensation reaction of 1-phenyl-1H-1,2,3-triazole-4-carbaldehyde and 3,3′-diamino-N-methyldipropylamine with a 2:1 molar ratio in MeCN. The iron(II) complex 1 was prepared by mixing the ligand solution in MeCN, methanolic solutions of FeCl2∙4H2O, and NaBPh4 with a 1:1:2 molar ratio under an inert nitrogen atmosphere at ambient temperature. Dark red-brown prismatic crystals were precipitated in a week in a fridge, which are stable in the air with no efflorescence. The chemical formula of [FeIIMeCN(L3-Me-3Ph)](BPh4)2·MeCN·H2O was confirmed by the elemental analysis and thermogravimetry (TG; Figure 1). As shown in Figure 1, when the powdery sample was heated from 19 °C (292 K) at a sweep rate of 10 °C min−1 under a nitrogen atmosphere (200 mL min−1), the sample weight decreased gradually and a 3.4% weight loss was observed at 135 °C (408 K), which corresponds to the calculated weight percentage of one MeCN molecule per [FeIIMeCN(L3-Me-3Ph)](BPh4)2·MeCN·H2O (3.3%). Above this temperature, an additional gradual weight loss of 1.2%, corresponding to one H2O molecule (1.4%) was detected at 171 °C (444 K). Finally, above 171 °C (444 K), the weight loss became more and more abrupt. During the TG measurement, the real-time sample images were also recorded (Figure 1). Initial orange-brown color of the grinding samples at 20 °C (293 K) was retained until ca. 124 °C (397 K) upon heating, and then slightly darkened around 125 °C (398 K). Upon further increasing the temperature, the samples were gradually shrinking from ca. 127 °C (400 K) with darkening, and were then melting from ca. 137 °C (410 K), and finally melted over ca. 147 °C (420 K). These changes agree with two broad endothermic peaks detected in the DTA curve. These observations and corresponding TG/DTA profiles indicated that the compound 1 showed some sort of structural modification at around 127 °C (400 K) associated with the loss of the MeCN lattice solvent, and further heating above this temperature caused melting. Thus, the magnetic susceptibilities described later were measured below 400 K. The PXRD pattern at RT showed no apparent extra reflections compared to the simulated pattern from the structure of single-crystal X-ray diffraction analysis at 296 K, ensuring the phase purity of 1 (Figure S1). The IR spectrum of 1 showed characteristic bands at ca. 1616 and 1593 cm−1, corresponding to the C=N stretching vibration of the coordinated Schiff-base ligand, ca. 734 and 704 cm−1, corresponding to the BPh4− ion, and ca. 2271 and 2251 cm−1, corresponding to the C≡N stretching vibration of the MeCN molecules (Figure S2) [53,77].

3.2. Magnetic Properties

The magnetic susceptibilities of 1 were measured between 5 to 400 K at a sweep rate of 2 K min−1 under an applied magnetic field of 1 T using a MPMS-XL7 SQUID magnetometer (Quantum Design, San Diego, CA, USA). The χMT vs. T plots are shown in Figure 2, where χM is the molar magnetic susceptibility and T is the absolute temperature. On first cooling, the χMT value of 1 is 0.2 cm3 K mol−1 at 300 K and decreases moderately to reach 0.0 cm3 K mol−1 at 5 K, indicating that 1 is a LS FeII (S = 0) complex. On subsequent heating, the χMT value increases slightly from 0.0 cm3 K mol−1 at 5 K to ca. 0.5 cm3 K mol−1 at 389 K, and then increases abruptly to reach ca. 2.2 cm3 K mol−1 at 400 K. When the temperature is held at 400 K for 30 min, the χMT value further increases to reach 2.7 cm3 K mol−1 as a saturated value, indicating that ca. 90% of LS species show spin transition to the HS state. On further cooling, the χMT value decreases gradually from 2.7 cm3 K mol−1 at 400 K to 2.4 cm3 K mol−1 at 374 K, then decreases more smoothly to 1.6 cm3 K mol−1 at 20 K, and finally decreases abruptly to ca. 1.1 cm3 K mol−1 at 5 K, revealing the coexistence of HS and LS species in the whole temperature region after the first heating. The decreasing of the χMT value below 20 K is due to the zero-field splitting of the HS FeII complex.
To prove the structural modulation before and after the initial spin transition upon first heating, we took PXRD data for 1 after SQUID measurements (Figure S1). As clearly apparent from Figure S1, the crystalline phase of 1 was converted to an amorphous form after SQUID measurements. The IR spectrum for this amorphous sample was also measured (Figure S2), and the spectrum showed the additional characteristic band at ca. 1637 cm−1, corresponding to the C=N stretching vibration of the coordinated Schiff-base ligand of the HS complex [26,62]. This result indicated the existence of both HS (albeit being not fully characterized) and LS species in the amorphous phase at RT, and was consistent with the magnetic data in the second cycle. On the other hand, the characteristic bands of the C≡N stretching vibration of MeCN (2271 and 2251 cm−1) were weakened (but not perfectly disappeared) due mainly to the loss of the lattice MeCN solvent molecule. To sum it all up, these results demonstrate that the irreversible spin conversion at around 400 K in the first heating process is related to the crystal-to-amorphous transformation associated with the loss of lattice MeCN solvent. Desolvation effects are reported in a variety of SCO systems in both positive (occurrence of abrupt and/or hysteretic spin transition) and negative (disappearance of SCO) ways [78,79,80,81,82,83,84] but a concomitant crystal-to-amorphous transformation is rarely observed [85].

3.3. Crystal Structures

Single-crystal X-ray diffraction analyses were performed for 1 at 296, 350, 375, and 387 K. Structure determination at higher temperature, i.e., 400 K was unsuccessful since the single crystal became amorphous during the measurement. Table 1 summarizes the crystallographic data and Table 2 lists the relevant coordination bond lengths, angles, and additional structural parameters, such as Σ [86], Θ [87], S(Oh) [74], and octahedral volume. Since the crystal structures at the four temperatures are quite similar except for the subtle expansion of the cell volume and the FeN6 coordination sphere from 296 to 387 K, we discuss below the structure at 296 K as a representative. The crystallographic unique unit consists of one complex-cation [FeIIMeCN(L3-Me-3Ph)]2+, two BPh4− ions, and one MeCN molecule as the lattice solvent, which is disordered at two positions. The one H2O molecule in each [FeIIMeCN(L3-Me-3Ph)](BPh4)2 unit characterized by elemental analysis and TG measurement could not be found, while the Platon analysis [88] indicates that there are some voids which can involve water molecules.
Figure 3 shows the molecular structure of the complex-cation [FeIIMeCN(L3-Me-3Ph)]2+ at 296 K, in which the FeII ion is coordinated by the N5 donor atoms of the linear pentadentate Schiff-base ligand L3-Me-3Ph and the nitrogen atom of the MeCN monodentate ligand to give an octahedral coordination environment. Two terminal triazole moieties take cis-positions, and one of two triazole moieties and the MeCN ligand at the sixth coordination position coordinate to the central FeII ion from opposite directions. This coordination mode is same as that of the related imidazole-containing complex [59]. The bent angle of Fe–N10–C26 at Fe–NCMe is 172.2(1)°. The Fe–N lengths are in the range of 1.9580(13)–2.0901(13) Å, and the average Fe–N distance is 1.988 Å, typical for a LS FeII complex with N6 donors. It is noteworthy that the coordination bond length of Fe–N(amine) is longer than those of other Fe–N distances. In addition to the average Fe–N distance, the degree of both angular and trigonal distortion, i.e., Σ and Θ, and S(Oh) (Table 2) are lower than those of related imidazole-containing complex 2 (Average Fe–N distance, Σ, Θ, and S(Oh) at 296 K are = 2.085 Å, 79.7, 121.0, 1.004 for Fe1 site, and 2.155 Å, 89.1, 168.2, 1.541 for Fe2 site, respectively) [59]. These are consistent since the both the Fe1 and the Fe2 site of 2 at 296 K are mixtures of HS and LS species.
Figure 4 shows the selected intermolecular interactions of 1 at 296 K. Firstly, the MeCN ligand of the complex-cation is surrounded by four nearest phenyl rings of two B(1)Ph4− ions via CH···π interactions between the methyl group of the MeCN ligand and phenyl groups of B(1)Ph4− ions with the C27 (Me) to centroid (Ph) distances being in the range of 3.567–3.788 Å. Since the three hydrogen atoms of the methyl group of the MeCN can form only three CH···π interactions, the four CH···π interactions of each MeCN indicated in Figure 4 are averaged as one. Secondly, two neighboring complex-cations are connected by a P4AE (parallel fourfold aryl embrace) interaction [28,89], forming a dimeric structure with the C23 (Ph) to centroid (triazole) distance of CH···π and centroid (Ph) to centroid (Ph) distance of π–π interactions are 3.690 and 3.663 Å, respectively. As a result, a 1D chain structure is constructed by alternately interacted complex-cations and B(1)Ph4− ions via CH···π interactions (longitudinal direction in Figure 5), and further connections of the 1D chains through P4AE interactions (transverse direction in Figure 5) form a 2D extended layer structure. The remaining B(2)Ph4− ions and MeCN lattice solvents exist in the spaces of the 2D layer with the intermolecular CH···N interaction (C61···N11 = 3.486 Å). Finally, there are additional CH···π interactions between the layers, resulting in the construction of a 3D supramolecular network in the whole crystal lattice. This molecular assembly is quite different from the tetrameric assembly through four intermolecular NH···Cl interactions of 2 [59]. Therefore, this difference of molecular assembly is presumably responsible for the emergence of different SCO profiles between 1 and 2.

3.4. DFT Calculations

To explore the origin of the higher spin transition temperature of the 1,2,3-triazole-containing complex 1 than the imidazole-containing complex 2, we performed DFT calculations. It should be noted here that only the experimental crystal structure data are available for LS 1 (vide supra) and for 2 corresponding to the mixture of HS and LS species at 296 K [59].
First, we performed DFT calculations to estimate HS–LS energy differences (ΔE) at the experimental geometry (Table S1). Reflecting the spin state of the experimental crystal structures, large positive ΔE value (168.3 kJ mol−1) and small ΔE values (45.5 kJ mol−1 and −13.3 kJ mol−1) were observed for 1 and 2, respectively.
Next, we performed DFT geometry optimizations for both complexes in gas-phase. For the LS state of 1, the structural parameters of DFT optimized structure indicated reasonable agreement with the crystal structure data of LS phase at 296 K (See, Table 2 and Table S2). Although the structural features (average Fe–N length, Σ, Θ, S(Oh), and octahedral volume) of the DFT optimized LS 1 and 2 are similar to each other, the Fe–N(triazole) distances in 1 are shorter than the Fe–N(imidazole) distances in 2 by 0.05–0.07 Å. It should be mentioned here that the same tendency was observed in the comparison of the experimental crystal structures of the LS complex with the 1,2,3-triazole-containing linear hexadentate ligand and that of the imidazole-containing one [18]. Therefore, it can be speculated that 1,2,3-triazole-containing ligands form a stronger ligand field compared to imidazole-containing ones. For the HS state, the DFT optimized geometries of 1 and 2 are very similar to each other (Table S2). In addition, the structural parameters (average Fe–N distance, Σ, Θ, S(Oh), and octahedral volume) of the DFT optimized HS 1 and 2 are also similar to those in the experimental geometry of HS phase of similar imidazole-containing FeII complexes [60], while the monodentate ligand of them are different from 1 and 2 (average Fe–N distance, Σ, Θ, S(Oh), and octahedral volume at 296 K are = 2.194 Å, 98.8, 187.1, 1.983, and 13.405 for NCS complex, and 2.198 Å, 99.3, 185.9, 1.986, and 13.474 for NCSe complex, respectively).
We also calculated ΔE values at the DFT optimized geometries to compare the strength of the ligand field of 1 and 2. As shown in Table S3, the large positive ΔE values are found in LS geometry of both 1 and 2. The ΔE value of 1 is 28.5 kJ mol−1 larger than 2, which implies that the strength of the ligand field is stronger in 1 rather than in 2, as expected from the aforementioned structural features.
We also performed DFT geometry optimizations for model complexes 1′ and 2′, in which two Ph groups in 1 and two Me groups in 2 were replaced by hydrogen atom to estimate the strength of the ligand field, excluding π effects of the Ph ring and the steric effect of Me groups. The structural parameters of the DFT optimized structure are listed in Table S4. The structural parameters in 1′ were hardly affected by excluding Ph groups in 1, which implies that the π effects of the Ph ring are negligibly small, while the structural parameters in 2′ were slightly affected by excluding Me groups in 2. It is worth mentioning that Fe–N(triazole) distances in 1′ are still shorter than the Fe–N(imidazole) ones in 2′ by 0.03 Å. Table S3 shows that the replacement of Ph groups in 1 also hardly affected the calculated ΔE value, and the ΔE value of 1′ (149.3 kJ mol−1) is also still larger than 2′ (131.9 kJ mol−1). These results demonstrated that the ligand field is stronger in the triazole-containing complex rather than in the imidazole-containing one, even if the π effects of Ph rings and steric effect of Me groups were excluded.
From the above results, our DFT calculations elucidated that 1,2,3-triazole-containing ligands form the stronger ligand field compared to imidazole-containing ligands even for linear pentadentate ligand system, inducing the shift of the spin transition temperature from the lower temperature region in the imidazole-based complex to the higher region in the 1,2,3-triazole-based complex.

4. Conclusions

In conclusion, here we have expanded our 1,2,3-triazole-containing polydentate ligand iron(II) SCO family into a linear pentadentate ligand system. The newly synthesized complex 1 shows an abrupt and incomplete HT SCO at around 400 K while the spin transition is irreversible due to the crystal-to-amorphous transformation associated with the loss of the lattice MeCN solvent. Although the cooperativity through the molecular assembly for SCO profile of 1 was not directly compared to that of the imidazole-containing analogue 2, the spin transition of 1 occurred more abruptly in the higher temperature region above RT than that of 2. The 2D supramolecular structure based on the multiple CH···π interactions between MeCN ligand and two B(1)Ph4− ions, and P4AE interactions between two neighboring complex-cations of 1 may have an important role for the emergence of cooperativity in the crystal lattice. DFT optimized HS and LS structures in the gas-phase of 1,2,3-triazole-containing system were compared to those of related imidazole-containing systems for the first time based on the experimental crystal structures of 1 (LS state) and 2 (mixture of LS and HS states), demonstrating that the 1,2,3-triazole-containing ligand L3-Me-3Ph generates a stronger ligand field around the N6 octahedral iron(II) core than its imidazole analogue ligand H2L2Me. Syntheses of analogues of 1 with different axial ligands are currently underway for the construction of the spectrochemical series and for fine tuning of T1/2 of the present 1,2,3-triazole-based pentadentate ligand system.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4352/9/6/276/s1, Figure S1: PXRD patterns of 1 at RT in different states: simulated from the single crystal X-ray data at 296 K; as-synthesized; after SQUID measurements, Figure S2: IR spectra (KBr) for 1 at RT in different states: as-synthesized; after SQUID measurements, Table S1: HS–LS energy differences of 1 and 2 for Experimental geometry, Table S2: Relevant coordination bond lengths (Å) and structural parameters in DFT optimized structures for 1 and 2, Table S3: HS–LS energy differences of 1, 2, 1′, and 2′ for DFT optimized geometry (LS), Table S4: Relevant coordination bond lengths (Å) and structural parameters in DFT optimized structures for model complexes 1′ and 2′, Table S5: Cartesian coordinates (Å) of DFT optimized geometry of 1 (LS, in gas-phase), Table S6: Cartesian coordinates (Å) of DFT optimized geometry of 1 (HS, in gas-phase), Table S7: Cartesian coordinates (Å) of DFT optimized geometry of 2 (LS, in gas-phase), Table S8: Cartesian coordinates (Å) of DFT optimized geometry of 2 (HS, in gas-phase), Figure S3: DFT optimized structures of LS 1 (a), HS 1 (b), LS 2 (c), and HS 2 (d) in gas-phase.

Author Contributions

Conceptualization, H.H.; Methodology, H.H. and T.U.; validation, T.M., H.H., and T.U.; formal analysis, H.H. and T.U.; investigation, T.M., K.N., and H.H.; resources, H.H. and T.U.; data curation, H.H. and T.U.; writing—original draft preparation, H.H. and T.U.; writing—review and editing, H.H. and T.U.; visualization, H.H.; supervision, H.H.; project administration, H.H.

Funding

This work was supported in part by JSPS KAKENHI Grant numbers JP18K14240 (to H.H.) and JP18K05028 (to T.U.).

Acknowledgments

A part of this work was conducted in Institute for Molecular Science, supported by Nanotechnology Platform Program (Molecule and Material Synthesis) of the Ministry of Education, Culture, Sports, Science and Technology (MEXT), Japan.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gütlich, P.; Goodwin, H.A. (Eds.) Spin Crossover in Transition Metal Compounds I-III; Topics in Current Chemistry; Springer: Berlin, Germany, 2004; Volumes 233–235. [Google Scholar]
  2. Halcrow, M.A. (Ed.) Spin-Crossover Materials–Properties and Applications; John Wiley & Sons: Chichester, UK, 2013. [Google Scholar]
  3. Gütlich, P.; Gaspar, A.B.; Garcia, Y. Spin state switching in iron coordination compounds. Beilstein J. Org. Chem. 2013, 9, 342–391. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Linares, J.; Codjovi, E.; Garcia, Y. Pressure and Temperature Spin Crossover Sensors with Optical Detection. Sensors 2012, 12, 4479–4492. [Google Scholar] [CrossRef] [PubMed]
  5. Gentili, D.; Demitri, N.; Schäfer, B.; Liscio, F.; Bergenti, I.; Ruani, G.; Ruben, M.; Cavallini, M. Multi-modal sensing in spin crossover compounds. J. Mater. Chem. C 2015, 3, 7836–7844. [Google Scholar] [CrossRef] [Green Version]
  6. Halcrow, M.A. Spin-crossover Compounds with Wide Thermal Hysteresis. Chem. Lett. 2014, 43, 1178–1188. [Google Scholar] [CrossRef]
  7. Brooker, S. Spin crossover with thermal hysteresis: Practicalities and lessons learnt. Chem. Soc. Rev. 2015, 44, 2880–2892. [Google Scholar] [CrossRef] [PubMed]
  8. Matsumoto, T.; Newton, G.N.; Shiga, T.; Hayami, S.; Matsui, Y.; Okamoto, H.; Kumai, R.; Murakami, Y.; Oshio, H. Programmable spin-state switching in a mixed-valence spin-crossover iron grid. Nat. Commun. 2014, 5, 1–8. [Google Scholar] [CrossRef] [PubMed]
  9. Li, Z.-Y.; Ohtsu, H.; Kojima, T.; Dai, J.-W.; Yoshida, T.; Breedlove, B.K.; Zhang, W.-X.; Iguchi, H.; Sato, O.; Kawano, M.; et al. Direct Observation of Ordered High-Spin-Low-Spin Intermediate States of an Iron(III) Three-Step Spin-Crossover Complex. Angew. Chem. Int. Ed. 2016, 55, 5184–5189. [Google Scholar] [CrossRef]
  10. Murphy, M.J.; Zenere, K.A.; Ragon, F.; Southon, P.D.; Kepert, C.J.; Neville, S.M. Guest programmable multlstep spin crossover in a porous 2-D Hofmann-type material. J. Am. Chem. Soc. 2017, 139, 1330–1335. [Google Scholar] [CrossRef]
  11. Zhang, D.; Trzop, E.; Valverde-Muñoz, F.J.; Piñeiro-López, L.; Muñoz, M.C.; Collet, E.; Real, J.A. Competing Phases Involving Spin-State and Ligand Structural Orderings in a Multistable Two-Dimensional Spin Crossover Coordination Polymer. Cryst. Growth Des. 2017, 17, 2736–2745. [Google Scholar] [CrossRef] [Green Version]
  12. Bao, X.; Guo, P.-H.; Liu, W.; Tucek, J.; Zhang, W.-X.; Leng, J.-D.; Chen, X.-M.; Gural’skiy, I.; Salmon, L.; Bousseksou, A.; et al. Remarkably high-temperature spin transition exhibited by new 2D metal–organic frameworks. Chem. Sci. 2012, 3, 1629. [Google Scholar] [CrossRef]
  13. Liu, W.; Bao, X.; Li, J.-Y.; Qin, Y.-L.; Chen, Y.-C.; Ni, Z.-P.; Tong, M.-L. High-Temperature Spin Crossover in Two Solvent-Free Coordination Polymers with Unusual High Thermal Stability. Inorg. Chem. 2015, 54, 3006–3011. [Google Scholar] [CrossRef]
  14. Zheng, S.; Reintjens, N.R.M.; Siegler, M.A.; Roubeau, O.; Bouwman, E.; Rudavskyi, A.; Havenith, R.W.A.; Bonnet, S. Stabilization of the Low-Spin State in a Mononuclear Iron(II) Complex and High-Temperature Cooperative Spin Crossover Mediated by Hydrogen Bonding. Chem. A Eur. J. 2016, 22, 331–339. [Google Scholar] [CrossRef]
  15. Hora, S.; Hagiwara, H. High-Temperature Wide Thermal Hysteresis of an Iron(II) Dinuclear Double Helicate. Inorganics 2017, 5, 49. [Google Scholar] [CrossRef]
  16. Craze, A.R.; Howard-Smith, K.J.; Bhadbhade, M.M.; Mustonen, O.; Kepert, C.J.; Marjo, C.E.; Li, F. Investigation of the High-Temperature Spin-Transition of a Mononuclear Iron(II) Complex Using X-ray Photoelectron Spectroscopy. Inorg. Chem. 2018, 57, 6503–6510. [Google Scholar] [CrossRef] [PubMed]
  17. Takahashi, K.; Yamamoto, K.; Yamamoto, T.; Einaga, Y.; Shiota, Y.; Yoshizawa, K.; Mori, H. High-Temperature Cooperative Spin Crossover Transitions and Single-Crystal Reflection Spectra of [FeIII(qsal)2](CH3OSO3) and Related Compounds. Crystals 2019, 9, 81. [Google Scholar] [CrossRef]
  18. Hagiwara, H. High-temperature Spin Crossover of a Solvent-Free Iron(II) Complex with the Linear Hexadentate Ligand [Fe(L2-3-2Ph)](AsF6)2 (L2-3-2Ph = bis[N-(1-Phenyl-1H-1,2,3-triazol-4-yl)methylidene-2-aminoethyl]-1,3- propanediamine). Magnetochemistry 2019, 5, 10. [Google Scholar] [CrossRef]
  19. Weber, B.; Bauer, W.; Obel, J. An iron(II) spin-crossover complex with a 70 K wide thermal hysteresis loop. Angew. Chem. Int. Ed. 2008, 47, 10098–10101. [Google Scholar] [CrossRef]
  20. Hayami, S.; Gu, Z.Z.; Yoshiki, H.; Fujishima, A.; Sato, O. Iron(III) spin-crossover compounds with a wide apparent thermal hysteresis around room temperature. J. Am. Chem. Soc. 2001, 123, 11644–11650. [Google Scholar] [CrossRef] [PubMed]
  21. Kahn, O.; Martinez, C.J. Spin-transition polymers: From molecular materials toward memory devices. Science 1998, 279, 44–48. [Google Scholar] [CrossRef]
  22. Southon, P.D.; Liu, L.; Fellows, E.A.; Price, D.J.; Halder, G.J.; Chapman, K.W.; Moubaraki, B.; Murray, K.S.; Létard, J.F.; Kepert, C.J. Dynamic interplay between spin-crossover and host-guest function in a nanoporous metal-organic framework material. J. Am. Chem. Soc. 2009, 131, 10998–11009. [Google Scholar] [CrossRef]
  23. Arcis-Castíllo, Z.; Zheng, S.; Siegler, M.A.; Roubeau, O.; Bedoui, S.; Bonnet, S. Tuning the transition temperature and cooperativity of bapbpy-based mononuclear spin-crossover compounds: Interplay between molecular and crystal engineering. Chem. A Eur. J. 2011, 17, 14826–14836. [Google Scholar] [CrossRef] [PubMed]
  24. Zhao, X.-H.; Zhang, S.-L.; Shao, D.; Wang, X.-Y. Spin Crossover in [Fe(2-Picolylamine)3]2+ Adjusted by Organosulfonate Anions. Inorg. Chem. 2015, 54, 7857–7867. [Google Scholar] [CrossRef] [PubMed]
  25. Kershaw Cook, L.J.; Kulmaczewski, R.; Mohammed, R.; Dudley, S.; Barrett, S.A.; Little, M.A.; Deeth, R.J.; Halcrow, M.A. A Unified Treatment of the Relationship between Ligand Substituents and Spin State in a Family of Iron(II) Complexes. Angew. Chem. Int. Ed. 2016, 55, 4327–4331. [Google Scholar] [CrossRef]
  26. Hagiwara, H.; Masuda, T.; Ohno, T.; Suzuki, M.; Udagawa, T.; Murai, K.I. Neutral Molecular Iron(II) Complexes Showing Tunable Bistability at Above, Below, and Just Room Temperature by a Crystal Engineering Approach: Ligand Mobility into a Three-Dimensional Flexible Supramolecular Network. Cryst. Growth Des. 2017, 17, 6006–6019. [Google Scholar] [CrossRef]
  27. Nakanishi, T.; Okazawa, A.; Sato, O. Halogen Substituent Effect on the Spin-Transition Temperature in Spin-Crossover Fe(III) Compounds Bearing Salicylaldehyde 2-Pyridyl Hydrazone-Type Ligands and Dicarboxylic Acids. Inorganics 2017, 5, 53. [Google Scholar] [CrossRef]
  28. Phonsri, W.; Macedo, D.S.; Vignesh, K.R.; Rajaraman, G.; Davies, C.G.; Jameson, G.N.L.; Moubaraki, B.; Ward, J.S.; Kruger, P.E.; Chastanet, G.; et al. Halogen Substitution Effects on N2O Schiff Base Ligands in Unprecedented Abrupt FeII Spin Crossover Complexes. Chem. A Eur. J. 2017, 23, 7052–7065. [Google Scholar] [CrossRef] [PubMed]
  29. Kimura, A.; Ishida, T. Spin-Crossover Temperature Predictable from DFT Calculation for Iron(II) Complexes with 4-Substituted Pybox and Related Heteroaromatic Ligands. ACS Omega 2018, 3, 6737–6747. [Google Scholar] [CrossRef]
  30. Nemec, I.; Herchel, R.; Boča, R.; Trávníček, Z.; Svoboda, I.; Fuess, H.; Linert, W. Tuning of spin crossover behaviour in iron(III) complexes involving pentadentate Schiff bases and pseudohalides. Dalton Trans. 2011, 40, 10090–10099. [Google Scholar] [CrossRef]
  31. Tsuchida, R. Absorption Spectra of Co-ordination Compounds. Bull. Chem. Soc. Jpn. 1938, 13, 388–400. [Google Scholar] [CrossRef]
  32. Shimura, Y. A Quantitative Scale of the Spectrochemical Series for the Mixed Ligand Complexes of d6 Metals. Bull. Chem. Soc. Jpn. 1988, 61, 693–698. [Google Scholar] [CrossRef]
  33. Ohta, S.; Yoshimura, C.; Matsumoto, N.; Okawa, H.; Ohyoshi, A. The Synthesis, Magnetic, and Spectroscopic Properties of Binuclear Iron(III) Complexes Bridged by Pyrazine, 1,1′-Tetramethylenebis(imidazol), or Bis(pyridine) Compounds Exhibiting a Spin-Equilibrium Behavior. Bull. Chem. Soc. Jpn. 1986, 59, 155–159. [Google Scholar] [CrossRef]
  34. Hayami, S.; Inoue, K.; Osaki, S.; Maeda, Y. Synthesis and Magnetic Properties of Binuclear Iron(III) Complexes Containing Photoisomerization Ligand. Chem. Lett. 1998, 27, 987–988. [Google Scholar] [CrossRef]
  35. Spiccia, L.; Fallon, G.D.; Grannas, M.J.; Nichols, P.J.; Tiekink, E.R.T. Synthesis and characterisation of mononuclear and binuclear iron(II) complexes of pentadentate and bis(pentadentate) ligands derived from 1,4,7-triazacyclononane. Inorg. Chim. Acta 1998, 279, 192–199. [Google Scholar] [CrossRef]
  36. Boča, R.; Fukuda, Y.; Gembický, M.; Herchel, R.; Jaroščiak, R.; Linert, W.; Renz, F.; Yuzurihara, J. Spin crossover in mononuclear and binuclear iron(III) complexes with pentadentate Schiff-base ligands. Chem. Phys. Lett. 2000, 325, 411–419. [Google Scholar] [CrossRef]
  37. Hayami, S.; Hosokoshi, Y.; Inoue, K.; Einaga, Y.; Sato, O.; Maeda, Y. Pressure-Stabilized Low-Spin State for Binuclear Iron(III) Spin-Crossover Compounds. Bull. Chem. Soc. Jpn. 2001, 74, 2361–2368. [Google Scholar] [CrossRef]
  38. Kitashima, R.; Imatomi, S.; Yamada, M.; Matsumoto, N.; Maeda, Y. Gradual Two-step Spin Crossover Behavior of Binuclear Iron(III) Complex Bridged by trans -1,2-Bis(4-pyridyl)ethylene. Chem. Lett. 2005, 34, 1388–1389. [Google Scholar] [CrossRef]
  39. Šalitroš, I.; Boča, R.; Dlháň, L.; Gembický, M.; Kožíšek, J.; Linares, J.; Moncol, J.; Nemec, I.; Perašínová, L.; Renz, F.; et al. Unconventional spin crossover in dinuclear and trinuclear iron(III) complexes with cyanido and metallacyanido bridges. Eur. J. Inorg. Chem. 2009, 3141–3154. [Google Scholar] [CrossRef]
  40. Nemec, I.; Boča, R.; Herchel, R.; Trávníček, Z.; Gembický, M.; Linert, W. Dinuclear Fe(III) complexes with spin crossover. Monatsh. Chem. 2009, 140, 815–828. [Google Scholar] [CrossRef]
  41. Djukic, B.; Poddutoori, P.K.; Dube, P.A.; Seda, T.; Jenkins, H.A.; Lemaire, M.T. Bimetallic Iron(3+) Spin-Crossover Complexes Containing a 2,2′-Bithienyl Bridging bis-QsalH Ligand. Inorg. Chem. 2009, 48, 6109–6116. [Google Scholar] [CrossRef]
  42. Fujinami, T.; Nishi, K.; Kitashima, R.; Murakami, K.; Matsumoto, N.; Iijima, S.; Toriumi, K. One-step and two-step spin crossover binuclear iron(III) complexes bridged by 4,4′-bipyridine. Inorg. Chim. Acta 2011, 376, 136–143. [Google Scholar] [CrossRef]
  43. Boča, R.; Nemec, I.; Šalitroš, I.; Pavlik, J.; Herchel, R.; Renz, F. Interplay between spin crossover and exchange interaction in iron(III) complexes. Pure Appl. Chem. 2009, 81, 1357–1383. [Google Scholar] [CrossRef]
  44. Herchel, R.; Boča, R.; Gembický, M.; Kožíšek, J.; Renz, F. Spin Crossover in a Tetranuclear Cr(III)−Fe(III)3 Complex. Inorg. Chem. 2004, 43, 4103–4105. [Google Scholar] [CrossRef] [PubMed]
  45. Renz, F.; Jung, S.; Klein, M.; Menzel, M.; Thünemann, A.F. Molecular switching complexes with iron and tin as central atom. Polyhedron 2009, 28, 1818–1821. [Google Scholar] [CrossRef]
  46. Gembický, M.; Boča, R.; Renz, F. A heptanuclear Fe(II)–Fe(III)6 system with twelve unpaired electrons. Inorg. Chem. Commun. 2000, 3, 662–665. [Google Scholar] [CrossRef]
  47. Boča, R.; Šalitroš, I.; Kožíšek, J.; Linares, J.; Moncoľ, J.; Renz, F. Spin crossover in a heptanuclear mixed-valence iron complex. Dalton Trans. 2010, 39, 2198–2200. [Google Scholar] [CrossRef]
  48. Renz, F.; Kerep, P. Unprecedented multiple electronic spin transition in hepta- and nonanuclear complex compounds observed by Mössbauer spectroscopy. Polyhedron 2005, 24, 2849–2851. [Google Scholar] [CrossRef]
  49. Renz, F.; Hill, D.; Klein, M.; Hefner, J. Unprecedented multistability in dodecanuclear complex compound observed by Mössbauer spectroscopy. Polyhedron 2007, 26, 2325–2329. [Google Scholar] [CrossRef]
  50. Ohyoshi, A.; Honbo, J.; Matsumoto, N.; Ohta, S.; Sakamoto, S. Spin-Equilibrium Behavior in Solution of an Iron(III) Complex [Bis[3-(3-methoxysalicylideneamine)propyl]amino-O,N,N′,N″,O′](pyridine)iron(III) Tetraphenylborate. Bull. Chem. Soc. Jpn. 1986, 59, 1611–1613. [Google Scholar] [CrossRef]
  51. Maeda, Y.; Noda, Y.; Oshio, H.; Takashima, Y. 57Fe Mössbauer Spectra, Crystal Structure, and Spin-Crossover Behavior of [Fe(mbpN)(lut)]BPh4. Bull. Chem. Soc. Jpn. 1992, 65, 1825–1831. [Google Scholar] [CrossRef]
  52. Hirose, S.; Hayami, S.; Maeda, Y. Magnetic Properties of Iron(III) Complexes with Photoisomerizable Ligands. Bull. Chem. Soc. Jpn. 2000, 73, 2059–2066. [Google Scholar] [CrossRef]
  53. Tanimura, K.; Kitashima, R.; Bréfuel, N.; Nakamura, M.; Matsumoto, N.; Shova, S.; Tuchagues, J.P. Infinite chain structure and steep spin crossover of a FeIII complex with a N3O2 pentadentate schiff-base ligand and 4-aminopyridine. Bull. Chem. Soc. Jpn. 2005, 78, 1279–1282. [Google Scholar] [CrossRef]
  54. Bannwarth, A.; Schmidt, S.O.; Peters, G.; Sönnichsen, F.D.; Thimm, W.; Herges, R.; Tuczek, F. FeIII spin-crossover complexes with photoisomerizable ligands: Experimental and theoretical studies on the ligand-driven light-induced spin change effect. Eur. J. Inorg. Chem. 2012, 2776–2783. [Google Scholar] [CrossRef]
  55. Herchel, R.; Trávníček, Z. 5-Aminotetrazole induces spin crossover in iron(III) pentadentate Schiff base complexes: Experimental and theoretical investigations. Dalton Trans. 2013, 42, 16279–16288. [Google Scholar] [CrossRef] [PubMed]
  56. Krüger, C.; Augustín, P.; Nemec, I.; Trávníček, Z.; Oshio, H.; Boča, R.; Renz, F. Spin crossover in iron(III) complexes with pentadentate schiff base ligands and pseudohalido coligands. Eur. J. Inorg. Chem. 2013, 902–915. [Google Scholar] [CrossRef]
  57. Krüger, C.; Augustín, P.; Dlháň, L.; Pavlik, J.; Moncol’, J.; Nemec, I.; Boča, R.; Renz, F. Iron(III) complexes with pentadentate Schiff-base ligands: Influence of crystal packing change and pseudohalido coligand variations on spin crossover. Polyhedron 2015, 87, 194–201. [Google Scholar] [CrossRef]
  58. Halcrow, M.A. The spin-states and spin-transitions of mononuclear iron(II) complexes of nitrogen-donor ligands. Polyhedron 2007, 26, 3523–3576. [Google Scholar] [CrossRef]
  59. Nishi, K.; Fujinami, T.; Kitabayashi, A.; Matsumoto, N. Tetrameric spin crossover iron(II) complex constructed by imidazole⋯chloride hydrogen bonds. Inorg. Chem. Commun. 2011, 14, 1073–1076. [Google Scholar] [CrossRef]
  60. Murakami, K.; Kitabayashi, A.; Yamauchi, S.; Nishi, K.; Fujinami, T.; Matsumoto, N.; Iijima, S.; Kojima, M. Iron(II) complexes with a linear pentadentate ligand H2L1 = bis(N,N′-2-methylimidazol-4-yl-methylideneaminopropyl) methylamine and a monodentate ligand X (X = N3−, NCS−, NCSe−). Inorg. Chim. Acta 2013, 400, 244–249. [Google Scholar] [CrossRef]
  61. Hagiwara, H.; Tanaka, T.; Hora, S. Synthesis, structure, and spin crossover above room temperature of a mononuclear and related dinuclear double helicate iron(II) complexes. Dalton Trans. 2016, 45, 17132–17140. [Google Scholar] [CrossRef]
  62. Hagiwara, H.; Okada, S. A polymorphism-dependent T1/2 shift of 100 K in a hysteretic spin-crossover complex related to differences in intermolecular weak CH⋯X hydrogen bonds (X = S vs. S and N). Chem. Commun. 2016, 52, 815–818. [Google Scholar] [CrossRef]
  63. Hagiwara, H.; Minoura, R.; Okada, S.; Sunatsuki, Y. Synthesis, Structure, and Magnetic Property of a New Mononuclear Iron(II) Spin Crossover Complex with a Tripodal Ligand Containing Three 1,2,3-Triazole Groups. Chem. Lett. 2014, 43, 950–952. [Google Scholar] [CrossRef]
  64. Siddiki, A.A.; Takale, B.S.; Telvekar, V.N. One pot synthesis of aromatic azide using sodium nitrite and hydrazine hydrate. Tetrahedron Lett. 2013, 54, 1294–1297. [Google Scholar] [CrossRef]
  65. Pathigoolla, A.; Pola, R.P.; Sureshan, K.M. A versatile solvent-free azide-alkyne click reaction catalyzed by in situ generated copper nanoparticles. Appl. Catal. A Gen. 2013, 453, 151–158. [Google Scholar] [CrossRef]
  66. L’abbé, G.; Bruynseels, M.; Delbeke, P.; Toppet, S. Molecular rearrangements of 4-iminomethyl-1,2,3-triazoles. Replacement of 1-aryl substituents in 1 H -1,2,3-triazole-4-carbaldehydes. J. Heterocycl. Chem. 1990, 27, 2021–2027. [Google Scholar] [CrossRef]
  67. Kahn, O. Molecular Magnetism; VCH: Weinheim, Germany, 1993. [Google Scholar]
  68. Bain, G.A.; Berry, J.F. Diamagnetic Corrections and Pascal’s Constants. J. Chem. Educ. 2008, 85, 532. [Google Scholar] [CrossRef]
  69. SCALE3 ABSPACK, version 1.0.4; gui: 1.03; An oxford diffraction program; Oxford Diffraction Ltd.: Abingdon, UK, 2005.
  70. Rigaku Oxford Diffraction, CrysAlisPro Software system, version 1.171.39.46; Rigaku Corporation: Oxford, UK, 2018.
  71. Sheldrick, G.M. SHELXT—Integrated space-group and crystal-structure determination. Acta Crystallogr. Sect. A Found. Adv. 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  72. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C Struct. Chem. 2015, 71, 3–8. [Google Scholar] [CrossRef]
  73. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  74. Llunell, M.; Casanova, D.; Cirera, J.; Alemany, P.; Alvarez, S. SHAPE2.1. Program for Calculating Continuous Shape Measures of Polyhedral Structures; Universitat de Barcelona: Barcelona, Spain, 2013. [Google Scholar]
  75. Zhao, Y.; Truhlar, D.G. The M06 suite of density functionals for main group thermochemistry, thermochemical kinetics, noncovalent interactions, excited states, and transition elements: Two new functionals and systematic testing of four M06-class functionals and 12 other functionals. Theor. Chem. Acc. 2008, 120, 215–241. [Google Scholar] [CrossRef]
  76. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Revision B.01, Gaussian, Inc.: Wallingford, CT, USA, 2010.
  77. Nakamoto, K. Infrared and Raman Spectra of Inorganic and Coordination Compounds, 6th ed.; John Wiley & Sons: Hoboken, NJ, USA, 2009. [Google Scholar]
  78. Boča, R.; Baran, P.; Boča, M.; Dlháň, L.; Fuess, H.; Haase, W.; Linert, W.; Papánková, B.; Werner, R. Spin crossover in bis(2,6-bis(benzimidazol-2-yl)pyridine) iron(II) tetraphenylborate. Inorg. Chim. Acta 1998, 278, 190–196. [Google Scholar] [CrossRef]
  79. Hagiwara, H.; Hashimoto, S.; Matsumoto, N.; Iijima, S. Two-Dimensional Iron(II) Spin Crossover Complex Constructed of Bifurcated NH···O− Hydrogen Bonds and π−π Interactions: [FeII(HLH,Me)2](ClO4)2·1.5MeCN (HLH,Me = Imidazol-4-yl-methylidene-8-amino-2-methylquinoline). Inorg. Chem. 2007, 46, 3136–3143. [Google Scholar] [CrossRef] [PubMed]
  80. Costa, J.S.; Rodríguez-Jiménez, S.; Craig, G.A.; Barth, B.; Beavers, C.M.; Teat, S.J.; Aromí, G. Three-way crystal-to-crystal reversible transformation and controlled spin switching by a nonporous molecular material. J. Am. Chem. Soc. 2014, 136, 3869–3874. [Google Scholar] [CrossRef] [PubMed]
  81. Yang, F.-L.; Chen, X.; Wu, W.-H.; Zhang, J.-H.; Zhao, X.-M.; Shi, Y.-H.; Shen, F. Spin switching in tris(8-aminoquinoline)iron(II)(BPh4)2: Quantitative guest-losing dependent spin crossover properties and single-crystal-to-single-crystal transformation. Dalton Trans. 2018. [Google Scholar] [CrossRef] [PubMed]
  82. Bushuev, M.B.; Vinogradova, K.A.; Gatilov, Y.V.; Korolkov, I.V.; Nikolaenkova, E.B.; Krivopalov, V.P. Spin crossover in iron(II) hexafluorophosphate complexes with 2-(pyridin-2-yl)-4-(3,5-di-R-1H-pyrazol-1-yl)-6-methylpyrimidines. Inorg. Chim. Acta 2017, 467, 238–243. [Google Scholar] [CrossRef]
  83. Craze, A.R.; Bhadbhade, M.M.; Kepert, C.J.; Lindoy, L.F.; Marjo, C.E.; Li, F. Solvent Effects on the Spin-Transition in a Series of Fe(II) Dinuclear Triple Helicate Compounds. Crystals 2018, 8, 376. [Google Scholar] [CrossRef]
  84. Sertphon, D.; Harding, P.; Murray, K.S.; Moubaraki, B.; Neville, S.M.; Liu, L.; Telfer, S.G.; Harding, D.J. Solvent Effects on the Spin Crossover Properties of Iron(II) Imidazolylimine Complexes. Crystals 2019, 9, 116. [Google Scholar] [CrossRef]
  85. Jornet-Mollá, V.; Giménez-Saiz, C.; Romero, F.M. Synthesis, Structure, and Photomagnetic Properties of a Hydrogen-Bonded Lattice of [Fe(bpp)2]2+ Spin-Crossover Complexes and Nicotinate Anions. Crystals 2018, 8, 439. [Google Scholar] [CrossRef]
  86. Guionneau, P.; Marchivie, M.; Bravic, G.; Létard, J.-F.; Chasseau, D. Structural aspects of spin crossover. Examples of the [FeIILn(NCS)2] complexes. Top. Curr. Chem. 2004, 234, 97–128. [Google Scholar]
  87. Marchivie, M.; Guionneau, P.; Létard, J.-F.; Chasseau, D. Photo-induced spin-transition: The role of the iron(II) environment distortion. Acta Crystallogr. Sect. B 2005, 61, 25–28. [Google Scholar] [CrossRef]
  88. Spek, A.L. Structure validation in chemical crystallography. Acta Crystallogr. Sect. D Biol. Crystallogr. 2009, 65, 148–155. [Google Scholar] [CrossRef]
  89. Russell, V.; Scudder, M.; Dance, I. The crystal supramolecularity of metal phenanthroline complexes. J. Chem. Soc. Dalton Trans. 2001, 0, 789–799. [Google Scholar] [CrossRef]
Crystals 09 00276 sch001 550

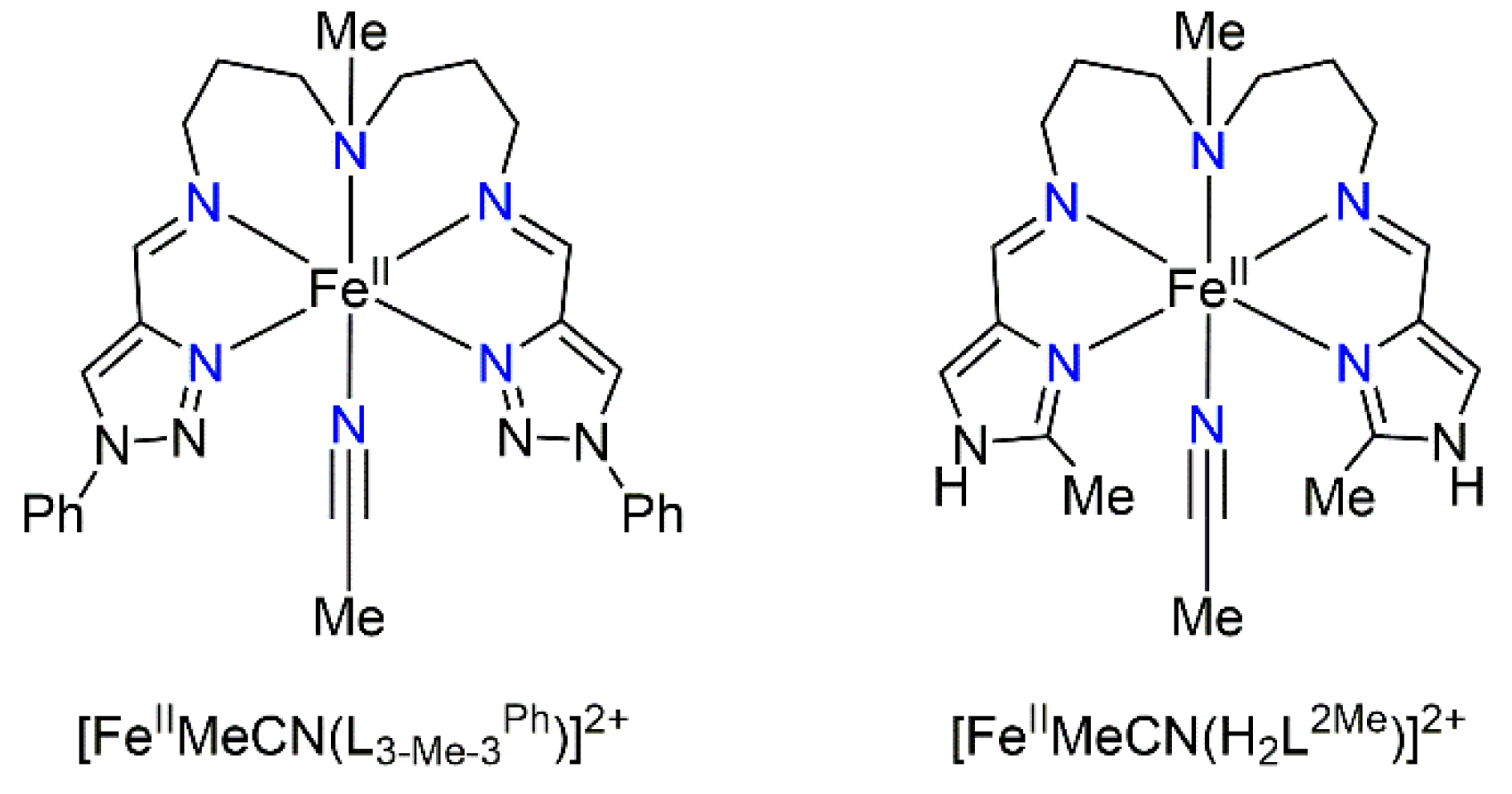

Scheme 1. Schematic structures of [FeIIMeCN(L3-Me-3Ph)]2+ and [FeIIMeCN(H2L2Me)]2+.
Scheme 1. Schematic structures of [FeIIMeCN(L3-Me-3Ph)]2+ and [FeIIMeCN(H2L2Me)]2+.
Crystals 09 00276 sch001
Crystals 09 00276 g001 550

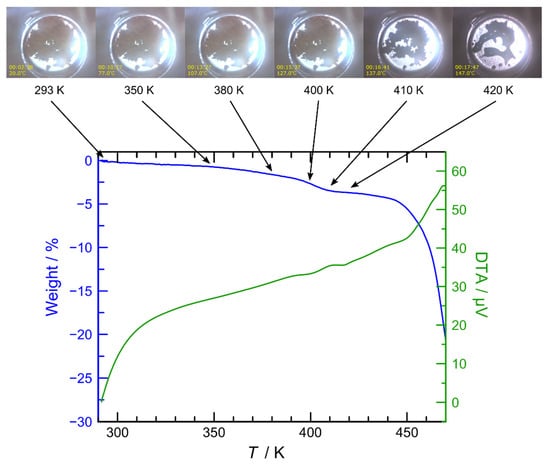

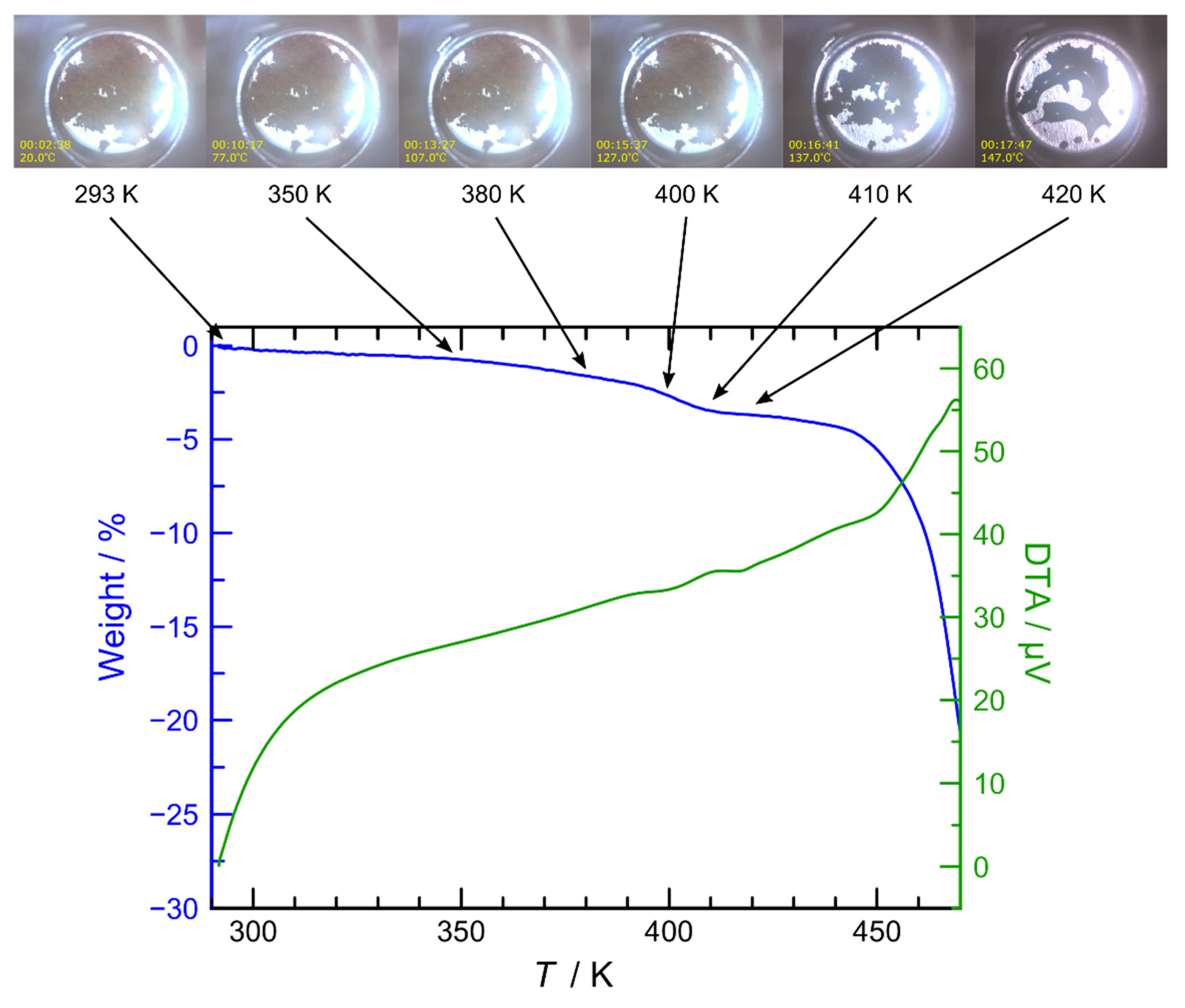

Figure 1. TG/DTA curve of 1 with the selected real-time sample images (from 293 to 420 K) during the TG measurement.
Figure 1. TG/DTA curve of 1 with the selected real-time sample images (from 293 to 420 K) during the TG measurement.
Crystals 09 00276 g001
Crystals 09 00276 g002 550

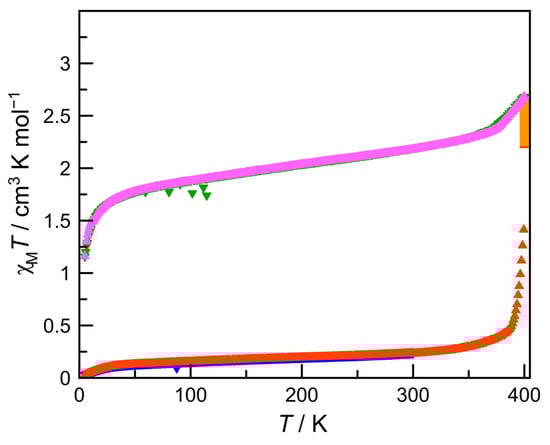

Figure 2. Temperature dependence of the χMT product for 1 at a sweep rate of 2 K min−1. The sample was cooled from 300 to 5 K (blue inverted triangles) and then warmed from 5 to 400 K (red triangles) in the first cycle, and the temperature was held at 400 K for 30 min (orange triangles), and then the sample was cooled from 400 to 5 K (green inverted triangles) and then warmed from 5 to 400 K (magenta triangles) in the second cycle.
Figure 2. Temperature dependence of the χMT product for 1 at a sweep rate of 2 K min−1. The sample was cooled from 300 to 5 K (blue inverted triangles) and then warmed from 5 to 400 K (red triangles) in the first cycle, and the temperature was held at 400 K for 30 min (orange triangles), and then the sample was cooled from 400 to 5 K (green inverted triangles) and then warmed from 5 to 400 K (magenta triangles) in the second cycle.
Crystals 09 00276 g002
Crystals 09 00276 g003 550

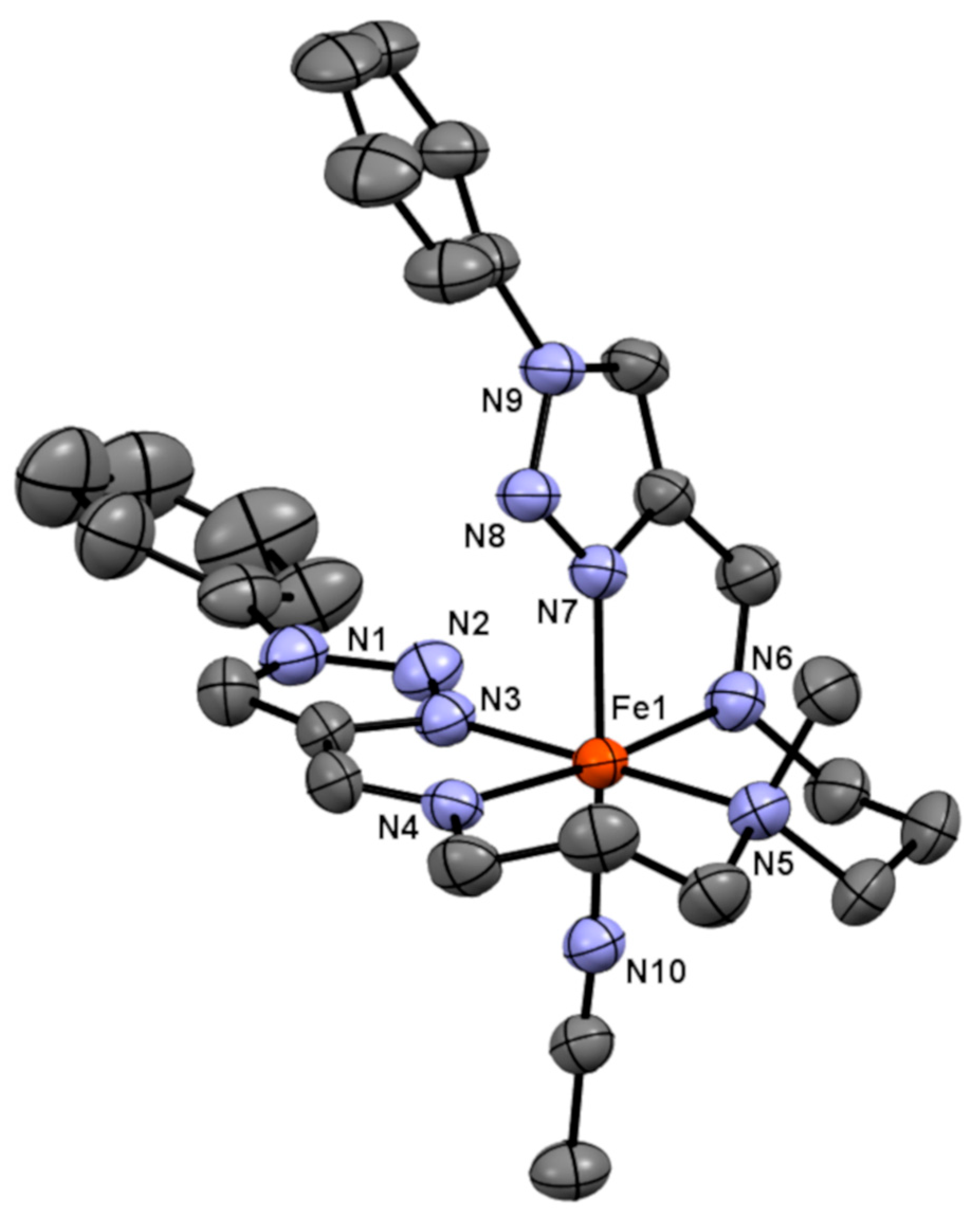

Figure 3. ORTEP drawing of the complex-cation [FeIIMeCN(L3-Me-3Ph)]2+ of 1 at 296 K with the atom numbering scheme except for carbon and hydrogen atoms. The thermal ellipsoids are drawn with a 50% probability level. Hydrogen atoms have been omitted for clarity.
Figure 3. ORTEP drawing of the complex-cation [FeIIMeCN(L3-Me-3Ph)]2+ of 1 at 296 K with the atom numbering scheme except for carbon and hydrogen atoms. The thermal ellipsoids are drawn with a 50% probability level. Hydrogen atoms have been omitted for clarity.
Crystals 09 00276 g003
Crystals 09 00276 g004 550

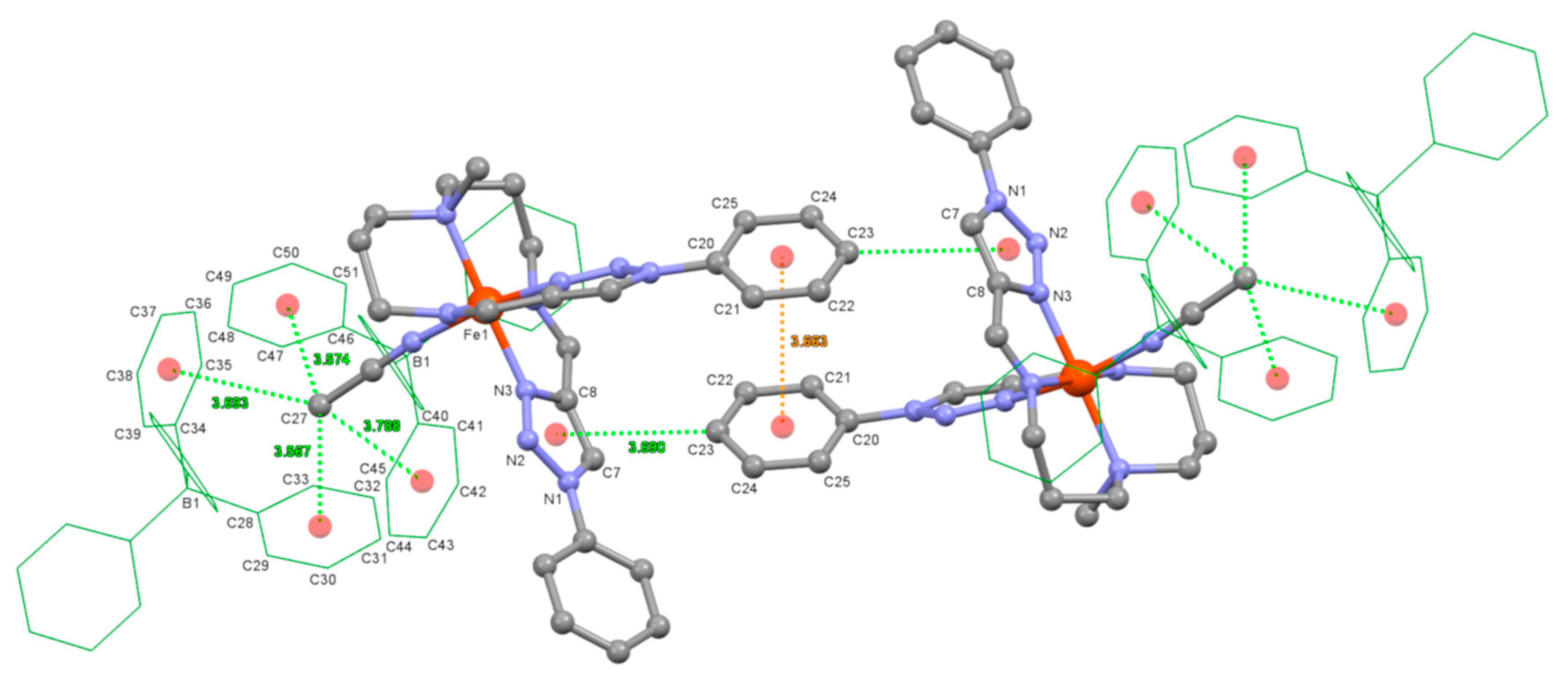

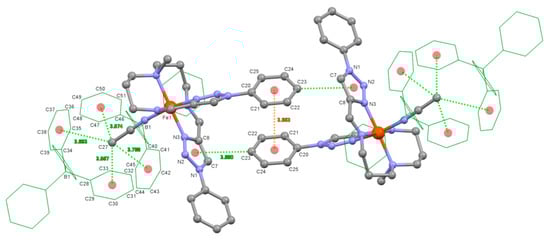

Figure 4. Representative intermolecular interactions of 1 at 296 K. Complex-cations are shown as a ball and stick model. B(1)Ph4− ions are indicated as green wireframe. Centroids of aromatic rings are described as transparent-red balls. π–π (orange) and CH···π (light green) interactions are indicated as dotted lines. The MeCN ligand is surrounded by four nearest phenyl rings of two B(1)Ph4− ions via CH···π interactions. Two neighboring complex-cations are connected by a P4AE interaction, forming a dimeric structure. Hydrogen atoms have been omitted for clarity.
Figure 4. Representative intermolecular interactions of 1 at 296 K. Complex-cations are shown as a ball and stick model. B(1)Ph4− ions are indicated as green wireframe. Centroids of aromatic rings are described as transparent-red balls. π–π (orange) and CH···π (light green) interactions are indicated as dotted lines. The MeCN ligand is surrounded by four nearest phenyl rings of two B(1)Ph4− ions via CH···π interactions. Two neighboring complex-cations are connected by a P4AE interaction, forming a dimeric structure. Hydrogen atoms have been omitted for clarity.
Crystals 09 00276 g004
Crystals 09 00276 g005 550

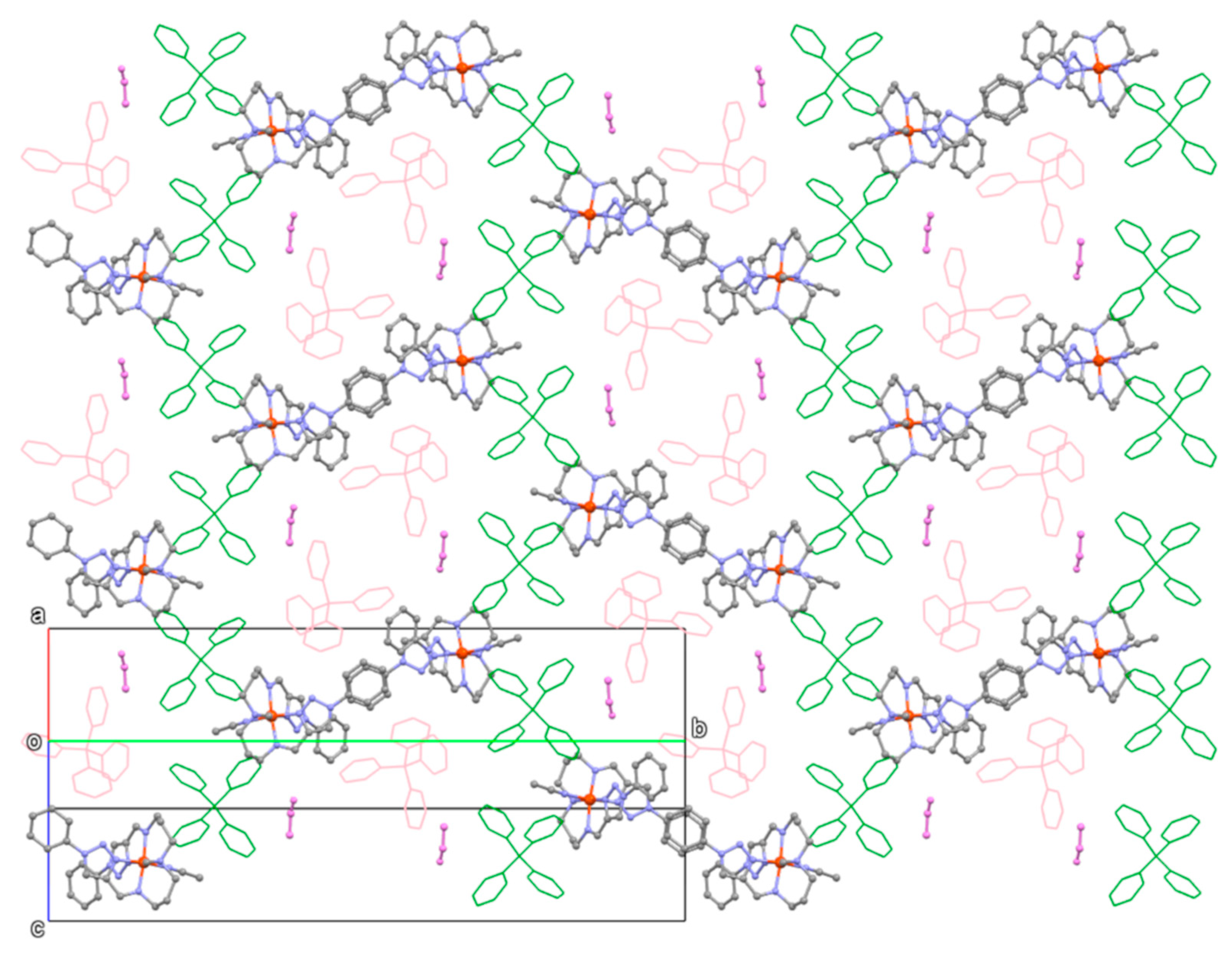

Figure 5. 2D layered structure of 1 at 296 K. Complex-cations and MeCN lattice solvents (violet) are shown as a ball and stick model. B(1)Ph4− (green) and B(2)Ph4− (pink) ions are indicated as wireframe. CH···π interactions connect complex-cations and B(1)Ph4− ions alternately into a 1D chain (longitudinal direction). The 1D chains are further connected by P4AE interactions between two neighboring complex-cations (transverse direction), forming 2D extended structure. B(2)Ph4− ions and MeCN lattice solvents exist in the spaces of the 2D layer. Hydrogen atoms have been omitted for clarity.
Figure 5. 2D layered structure of 1 at 296 K. Complex-cations and MeCN lattice solvents (violet) are shown as a ball and stick model. B(1)Ph4− (green) and B(2)Ph4− (pink) ions are indicated as wireframe. CH···π interactions connect complex-cations and B(1)Ph4− ions alternately into a 1D chain (longitudinal direction). The 1D chains are further connected by P4AE interactions between two neighboring complex-cations (transverse direction), forming 2D extended structure. B(2)Ph4− ions and MeCN lattice solvents exist in the spaces of the 2D layer. Hydrogen atoms have been omitted for clarity.
Crystals 09 00276 g005
Table
Table 1. X-ray crystallographic data for 1.
Table 1. X-ray crystallographic data for 1.
Temperature/K296350375387
FormulaC77H75B2FeN11
Formula weight1231.95
Crystal systemmonoclinic
Space groupP21/n (No.14)
a/Å11.3072(2)11.3443(2)11.3962(3)11.4005(2)
b/Å41.0958(8)41.2866(9)41.3406(12)41.3938(10)
c/Å14.4788(4)14.4825(4)14.4308(5)14.4297(4)
β/deg92.977(2)92.796(2)92.513(3)92.473(2)
V/Å36718.9(3)6775.1(3)6792.2(4)6803.2(3)
Z4444
dcalcd./g cm−31.2181.2081.2051.203
μ (Mo Kα)/mm−10.2770.2750.2740.273
R1a (I>2sigma(I))0.04580.05000.07790.0601
wR2b (I>2sigma(I))0.10620.11760.19440.1511
R1a (all data)0.06780.08260.12200.1030
wR2b (all data)0.11610.13280.21770.1738
S1.0291.0221.0651.022
CCDC number1911292191129319112941911295
aR1 = Σ||Fo| − |Fc||/Σ|Fo|. b wR2 = [Σw(|Fo|2 − |Fc|2)2/Σw|Fo2|2]1/2.
Table
Table 2. Relevant coordination bond lengths (Å), angles (°) and structural parameters for 1. Σ [86] and Θ [87] are angular indices characteristic for the spin state of the complex. S(Oh) is the continuous shape measures (CShMs) of the FeII centers relative to the ideal octahedron [74].
Table 2. Relevant coordination bond lengths (Å), angles (°) and structural parameters for 1. Σ [86] and Θ [87] are angular indices characteristic for the spin state of the complex. S(Oh) is the continuous shape measures (CShMs) of the FeII centers relative to the ideal octahedron [74].
Temperature/K296350375387
Fe1–N31.9770(13)1.9788(15)1.989(3)1.986(2)
Fe1–N41.9955(11)1.9976(13)2.004(2)1.9985(18)
Fe1–N52.0901(13)2.0918(15)2.088(3)2.093(2)
Fe1–N61.9477(12)1.9494(14)1.947(2)1.9533(19)
Fe1–N71.9577(12)1.9619(14)1.966(2)1.9683(17)
Fe1–N101.9580(13)1.9599(15)1.961(3)1.967(2)
Average Fe–N1.9881.9901.9931.994
N3–Fe1–N480.25(5)80.04(6)79.94(10)79.85(8)
N3–Fe1–N5177.92(5)177.74(6)177.53(10)177.45(8)
N3–Fe1–N695.80(5)95.89(6)96.07(11)96.13(8)
N3–Fe1–N783.58(5)83.46(6)83.33(10)83.42(7)
N3–Fe1–N1088.57(5)88.49(6)88.51(10)88.08(8)
N4–Fe1–N597.68(5)97.70(6)97.59(11)97.61(8)
N4–Fe1–N6173.48(5)173.33(6)173.26(10)173.32(8)
N4–Fe1–N794.11(5)94.16(5)94.04(9)94.05(7)
N4–Fe1–N1090.57(5)90.45(6)90.48(10)90.40(7)
N5–Fe1–N686.23(5)86.34(6)86.38(11)86.39(8)
N5–Fe1–N796.37(5)96.56(6)96.82(10)96.67(8)
N5–Fe1–N1091.69(5)91.72(6)91.60(10)92.09(8)
N6–Fe1–N780.23(5)80.06(6)80.04(10)80.13(8)
N6–Fe1–N1094.53(5)94.74(6)94.87(10)94.82(8)
N7–Fe1–N10170.05(5)169.89(6)169.83(11)169.56(8)
Σ61.8962.8363.2763.90
Θ93.4795.2196.7795.69
S(Oh)0.7210.7420.7470.753
Octahedral volume (Å3)10.29110.32010.35810.389

Share and Cite

MDPI and ACS Style

Matsuyama, T.; Nakata, K.; Hagiwara, H.; Udagawa, T. Iron(II) Spin Crossover Complex with the 1,2,3-Triazole-Containing Linear Pentadentate Schiff-Base Ligand and the MeCN Monodentate Ligand. Crystals 2019, 9, 276. https://doi.org/10.3390/cryst9060276

AMA Style

Matsuyama T, Nakata K, Hagiwara H, Udagawa T. Iron(II) Spin Crossover Complex with the 1,2,3-Triazole-Containing Linear Pentadentate Schiff-Base Ligand and the MeCN Monodentate Ligand. Crystals. 2019; 9(6):276. https://doi.org/10.3390/cryst9060276

Chicago/Turabian Style

Matsuyama, Tomoe, Keishi Nakata, Hiroaki Hagiwara, and Taro Udagawa. 2019. "Iron(II) Spin Crossover Complex with the 1,2,3-Triazole-Containing Linear Pentadentate Schiff-Base Ligand and the MeCN Monodentate Ligand" Crystals 9, no. 6: 276. https://doi.org/10.3390/cryst9060276

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
