Surface Functionalization of Black Phosphorus via Amine Compounds and Its Impacts on the Flame Retardancy and Thermal Decomposition Behaviors of Epoxy Resin

by
Shaoling Lin
1,2,
Boqing Tao
2,
Xiaomin Zhao
2,*,
Guohua Chen
2 and
De-Yi Wang
3,4,*
1
College of Chemical Engineering, Huaqiao University, Xiamen 361021, China
2
College of Materials Science and Engineering, Huaqiao University, Xiamen 361021, China
3
IMDEA Materials Institute, C/Eric Kandel, 2, 28906 Getafe, Spain
4
Escuela Politécnica Superior, Universidad Francisco de Vitoria, Ctra. Pozuelo-Majadahonda Km 1,800, 28223 Pozuelo de Alarcón, Spain
*
Authors to whom correspondence should be addressed.
Polymers 2021, 13(21), 3635; https://doi.org/10.3390/polym13213635
Submission received: 15 September 2021 / Revised: 29 September 2021 / Accepted: 15 October 2021 / Published: 21 October 2021
(This article belongs to the Special Issue Fire-Safe Polymer Composites: Structure and Application)
Browse Figures
Review Reports Versions Notes

Abstract

:
Recently, lots of effort has been placed into stabilizing black phosphorus (BP) in the air to improve its compatibility with polymers. Herein, BP was chemically functionalized by aliphatic amine (DETA), aromatic amine (PPDA) and cyclamine (Pid) via a nucleophilic substitution reaction, aiming to develop an intensively reactive BP flame retardant for epoxy resin (EP). The -NH2 group on BP-DETA, BP-PPDA and BP-Pid reacted with the epoxide group at different temperatures. The lowest temperature was about 150 °C for BP-DETA. The impacts of three BP-NH2 were compared on the flame retardancy and thermal decomposition of EP. At 5 wt% loading, EP/BP-NH2 all passed UL 94 V 0 rating. The limiting oxygen index (LOI) of EP/BP-PPDA was as high as 32.3%. The heat release rate (HRR) of EP/BP-DETA greatly decreased by 46% and char residue increased by 73.8%, whereas HRR of EP/BP-Pid decreased by 11.5% and char residue increased by 50.8%, compared with EP. Average effective heat of combustion (av-EHC) of EP/BP-Pid was lower than that of EP/BP-DETA and EP/BP-PPDA. In view of the flame-retardant mechanism, BP nanosheets functionalized with aliphatic amine and aromatic amine played a dominant role in the condensed phase, while BP functionalized with cyclamine was more effective in the gas phase.

1. Introduction

Epoxy resin (EP), an important thermosetting polymeric material, is widely used in many fields, such as in coating, construction, transportation, electronic and electrical industries (EE) due to its excellent electrical insulation performance, high mechanical strength and good chemical resistance [1,2,3,4,5]. In general, EE products require a flame-retardancy grade to guarantee its safety of use in heated environment. With a limiting oxygen index (LOI) of only 20%, flammability is an obvious drawback for common EP, e.g., bisphenol A-EP, which is widely used at present. Therefore, flame-retardant modification for EP is significant for human life and property. Phosphorus-containing flame retardants are becoming one of the most important research branches in the field of flame retardants, owing to its advantages of a high efficiency, halogen-free and eco-friendly [6,7,8,9].
As a two-dimensional (2D) nanomaterial, black phosphorus (BP) has found many potential applications in the fields of electronic, photonic, medical and energy storage devices, owing to its distinct physical and chemical properties [10]. BP, the most thermodynamically stable allotrope of phosphorous, has an orthogonal puckered layer [11], which is formed of P atoms covalently bonded to another three P atoms. Meanwhile, BP has a large specific surface area, a peelable layered structure, and is composed of a flame retardant element P, making it gradually developed in the field of halogen-free flame retardancy [12,13,14,15,16,17,18]. Although BP is excellent in many ways, chemical degradation of phosphorous into phosphorus oxides in the presence of ambient oxygen and water results in the rapid loss of properties, due to the high reactivity of the lone pair of electrons in BP [19,20,21,22,23,24,25,26,27,28,29]. Moreover, BP has poor compatibility with the polymer material. The method of direct addition of BP into resins would cause serious agglomeration, which greatly reduces the flame retardant efficiency of BP.
To improve the environmental stability of BP, a number of essential strategies, including protective layer coating [30,31,32,33,34,35,36,37,38,39] and chemical modification [40,41,42,43,44,45,46,47], have been employed to suppress the chemical degradation of exfoliated BP. For example, Al2O3 protection can preserve the properties of BP over 7 days of ambient exposure; however, long-term stability is still challenging [33,37]. Chemical functionalization utilizes the lone pair of electrons present in the phosphorous atom to form direct chemical bonds and can thus protect BP from oxygen, to achieve long-term stability for BP at ambient conditions [22]. The covalent functionalization methods, involving radical addition, nitrene addition, nucleophilic substitution and metal coordination, have been demonstrated to be the most effective. On the one hand, the environmental stability of BP is improved by this method. On the other hand, if the amino reactive groups are grafted, the dispersion of BP in epoxy resin can be improved, so as to solve the aggregation problem of BP. Numerous researchers have done many studies on the surface of amino functional modification of BP and have made some progress [17,44]. However, little attention has been paid to the reactivity of surface amino groups in the existing literature, which is a crucial prerequisite to realize the above two modification purposes.
In this work, three typical amine-contain compounds (aliphatic amine, aromatic amine and cyclamine) were chosen to functionalize BP via the nucleophilic substitution reaction (Figure 1). The reactivity of amino groups of BP-NH2 and epoxy groups of epoxy resin were studied respectively. The influence of the modified structure on the thermal stability of BP was also studied. The relationship between the amino structures and the flame retardancy efficiency of condensed-gas phases of BP in the EP matrix was compared. The results showed that, compared with aromatic amine and cyclamine, the amino group of BP modified by aliphatic amine had the highest reactivity with the epoxy group and the reaction temperature was about 150 °C. From the results of the combustion tests, EP/BP-NH2 nanocomposites could pass the UL 94 V 0 rating with the same amount of 5 wt% flame retardant. The limiting oxygen index (LOI) value of EP/BP-PPDA (5 wt%) was as high as 32.3%, the residual char rate increased by 70.6%. Moreover, the heat release rate (HRR) and the total heat release (THR) decreased by 39.8% and 51.7%, which was assigned to the restriction of heat transfer and inhibition of flammable gas by the dense char residues. Among the EP/BP-NH2 (5 wt%) nanocomposites, the EP/BP-Pid (5 wt%) had the lowest average effective heat of combustion (av-EHC) and the highest total smoke production (TSP), indicating that the addition of BP-Pid could improve the fire-inhibition activity in the gaseous phase. The above data revealed that the descending order of condensed phase flame retardancy efficiency was EP/BP-PPDA~EP/BP-DETA > EP/BP-Pid. Hence, the condensed-phase flame retardancy of aliphatic amine and aromatic amine modified BP in the epoxy matrix was dominant, while the cyclcamine modified BP mainly played the role of gas-phase flame retardancy.

2. Experimental Section

2.1. Materials

Red phosphorus (99.999%), diethylenetriamine (DETA), p-Phenylenediamine (PPDA), 4-amino-2,2,6,6-tetramethylpiperidine (Pid), thionyl chloride (SOCl2) and 4,4′-diaminodiphenyl sulfone (DDS) was purchased from Aladdin reagent corporation (Shanghai, China). Dimethyl formamide (DMF, 99.8%, extra dry, with molecular sieves) was purchased from Energy Chemical (Shanghai, China). Epoxy resin (EP, E-44) was supplied by Shandong Lutai Deyuan Epoxy Technology Co., Ltd. (Feicheng City, China).

2.2. Preparation of BP

In this work, the method of preparing BP by high-energy ball milling was referred to in the literature [48]. Red phosphorus (2 g) was sealed in a stainless vessel (100 mL) and ball-milled under Ar atmosphere for 12 h on a high energy mechanical milling (HEMM) machine. The inside pressure was kept at 1.6~1.8 MPa and the rotating frequency was set as 40 Hz. To avoid chemical degradation, the as-prepared BP was taken out and sealed in sample bottles directly in a vacuum glove box filled with Ar.

2.3. Preparation of NH2-Funtionalized of BP (BP-NH2)

Initially, BP was oxidized for a certain time and then uniformly dispersed in DMF (0.5 mg/mL, 50 mL) by ultrasonication. Secondly, 2.0 mL SOCl2 and 5.0 mL DETA were added into the BP suspension and the mixture was stirred at 80 °C for 12 h. After cooling, the suspension was centrifuged at 10,000 rpm for 30 min to obtain the residue. Then the residue was washed by DMF three times to remove the raw material and was dried in a vacuum oven at 50 °C for 48 h. The dried sample was sealed in a clean glass sample bottle before tests, named BP-DETA. All of the above reaction processes had been carried out in an inert atmosphere. BP-PPDA and BP-Pid were prepared with a similar process.

2.4. Preparation of EP/BP-NH2 Nanocomposites

Preparation process of EP nanocomposites with the addition of 1 wt% BP-NH2: 0.4 g of BP-NH2 was dispersed in 20 mL of acetone with the assistance of ultrasonication for 30 min. Following this, 31.2 g of EP was added into the above mixture with mechanical stirring at the corresponding temperature (e.g., TDETA ≈ 150 °C) for 1 h. Subsequently, the whole system was placed in a vacuum to remove the acetone with the temperature of 60 °C for 2 h. After that, 8.4 g of DDS was melted and poured into above blends by a rapid stirring for 5 min. Finally, the resin sample was cured at 160 °C/1 h, 180 °C/2 h and 200 °C/1 h, respectively. After the curing process had finished, the EP/BP-NH2 (1 wt%) sample was permitted to cool to room temperature. A similar procedure was also used for pure EP, EP/BP-NH2 (3 wt%) and EP/BP-NH2 (5 wt%).

2.5. Characterizations

Laser Raman was performed by Super LabRam II system, Dilor, 532 nm He-Ne laser beams. The powder X-ray diffraction (XRD, D8-Advance instrument, Bruker AXS Co., Berlin, Gremany) was operated with Cu Kα radiation at a scan rate (20) of 5 °min−1 with an accelerating voltage of 40 kV. Fourier transform infrared (FTIR) spectra were performed by using a Nicolet IS50 spectrometer (Nicolet Instrument Co., USA). The samples were mixed with KBr powder and pressed into tablets before characterization. Thermo Gravimetric Analysis (TGA) was carried on DTG-60H (Shimadzu, Japan) from room temperature to 800 °C in N2/air at a heating rate of 10 °C·min−1. Scanning electron microscope (SEM) images were taken out on JSM-6700F field emission scanning electron microscope under the acceleration voltage of 3 kV. Transmission electron microscopy (TEM, Talos F200X) was performed to study the morphology of BP and BP-NH2. The chemical composition of materials was investigated by X-ray photoelectron spectroscopy (XPS) using an ESCALab250 electron spectrometer (Thermo Scientific Corporation) with monochromatic 150 W Al Kα radiation. Differential scanning calorimetry (DSC, Netzsch 200 F3) was used to test the exothermic peak with a heating rate of 5 °C min−1 under the protection of argon. Dynamic mechanical analysis (DMA) was employed to test the dynamic mechanical properties of EP/BP-NH2, all the samples were heated from room temperature to 250 °C with a linear heating rate of 5 °C min−1, and the frequency was 1 Hz for the tensile configuration. A cone calorimeter test (Fire Testing Technology Ltd., East Grinstead, UK) was performed to study the fire performance of EP composites according to the standard of ASTM E1354/ISO 5660 under the external heat flux of 50 kW/m2 [49]. The specimen dimensions were 100 × 100 × 3.2 mm3. The vertical burning test (UL-94) of the EP composites were performed by Horizontal and vertical burning instrument (CZF-4, Nanjing Shangyuan Analysis Instrument Co. Ltd., Nanjing, China) according to ASTM D3801 with the specimen dimensions of 125 × 12.5 × 3.2 mm3 [50]. In this test, the burning grade of a material was classified as V 0, V 1, V 2 or no rating (NR), depending on its behavior (dripping and burning time). The LOI tests were carried out in accordance with ASTM D2863 by oxygen index instrument (HC-2C, Nanjing Shangyuan Analysis Instrument Co. Ltd., Nanjing, China) [50]. The specimen dimensions were 125 × 6.5 × 3.2 mm3.

3. Results and Discussion

3.1. Characterizations of BP-NH2 Structure and Morphology

To unveil the structure of BP-NH2 compared to the BP nanosheets, a series of characterizations were performed. The FTIR was a common measurement to characterize the molecular structure due to the infrared vibrations of functional groups. Figure 2a showed the FTIR spectra of BP, BP-DETA, BP-PPDA and BP-Pid. Compared with the several characteristic peaks of BP nanosheets, two apparent peaks at 977 cm−1 and 905 cm−1 of BP-NH2 nanosheets were associated with the P–N–C and P–N characteristic absorption, respectively [51,52,53]. The bending vibration peaks of the –CH2-group were 1457 cm−1 and 720 cm−1, while the peak at 1381 cm−1 was ascribed to the –CH3 group. The peaks at 1255 cm−1 and 1184 cm−1 correspond to the stretching vibration of C–N of aromatic amine and aliphatic amine, respectively. The above IR peaks indicated that DETA, PPDA and Pid were chemically grafted to BP nanosheets via a P-N bond.
The structural integrity of the BP and BP-NH2 was further confirmed by XRD and Raman spectra, as shown in Figure 2b,c. The crystal structure of BP was an orthogonal crystal system, its XRD several representative diffraction peaks were 16.7°, 26.3°, 34.9°, 52.5° and 56.8° corresponding to the (020), (021), (111), (112) and (151) crystal planes, respectively, which were typical layered planes of BP. After surface amination, these peaks appear on the XRD of BP-DETA and BP-PPDA and were weaker and wider than that of BP, while the XRD peaks of BP-Pid (26.3°) existed in a left shift. Although the allotrope of P had the same valence state, the physical arrangement order of P element was different. In the Raman characteristic peak region of the P-P bond between 300 and 500 cm−1, it exhibited three representative vibrational modes of BP nanosheets, which were assigned to the peaks of Ag1 at 357.2 cm−1, B2g at 431.2 cm−1 and Ag2 at 458.3 cm−1. During the process of surface amination, the vibration modes of BP did not change. Raman peaks of Ag1, B2g and Ag2 were shown in Figure 2c. It was obvious that three peaks of the BP-NH2 nanosheets had a slightly blue shift (about 5–8 cm−1) compared to those of BP, due to the decreased thickness of the BP nanosheets [29]. XPS was evaluated to further probe the chemical valence bond and the extent of surface amination of BP. Figure 2d showed the survey spectra of BP and BP-NH2. Compared to the spectrum of BP, the elements content of N in the spectra of BP-NH2 increased. The N contents of BP-DETA, BP-PPDA and BP-Pid were 14.8%, 6.1% and 8.2% (Table S1), respectively. Figure 2e presented the high-resolution P 2p XPS spectrum of BP nanosheets, which was deconvoluted into two peaks at 129.7 and 130.6 eV corresponding to P 2p3/2 and P 2p1/2 of P-P bonds, respectively. Figure 2f–h presented the high-resolution P 2p XPS spectra of BP–NH2. The two distinct peaks centered at 133.0 and 134.0 eV were consistent with P–N and P–O bonds, respectively [44,54,55], revealing the BP was inevitably oxidized during the experiment process and can be functionalized by amino compounds. The thermal stability of BP and BP-NH2 were studied under nitrogen by TGA. As shown in Figure 2i, BP-NH2 went through one-step decomposition, similar to BP. The onset thermal decomposition temperature and the temperature of maximum decomposition rate, were close to each other for BP and BP-NH2, as well. The surface amination of BP did not change the thermal stability of BP apparently. However, the residue amounts of BP-NH2 were much higher, at 700 °C. Especially, BP-DETA had 8% residue.
The microstructure of BP and BP-NH2 were characterized by TEM and SEM. As shown in the TEM image (Figure 3a), the exfoliated BP had a thinner lamellar structure with a size of several micrometers. Figure 3b showed the selected area electron diffraction (SAED) pattern image of the same exfoliated BP. The SAED pattern recorded on this sample depicted the good crystalline of the BP, and the high-resolution TEM images of BP (Figure S1, Supplementary Materials) certified its layered or 2D structure. The lattice fringes of 0.33 nm corresponded to the (021) crystal plane of BP, which was in accordance with the results in the XRD analysis [56]. The SEM image of BP-DETA (Figure 3c) showed that the BP still well-maintained layered structure after the modification of amination. The energy dispersive spectrometer (EDS) was employed to characterize the element distribution in the BP-NH2 nanosheets. Figure 3d–f showed the BP-DETA nanosheets elemental mapping images, and it could be seen that C and N elements were uniformly distributed on the BP surface. The BP-PPDA and BP-Pid nanosheets elemental mapping images were shown in Figure S2. The successful formation of BP-NH2 nanosheets were further verified by elemental mapping images of phosphorus (P), nitrogen (N), and carbon (C).

3.2. The Amino Reactivity of BP-NH2 with Epoxide Group and the Dispersibility in EP

There was no doubt that the dispersion of nanofillers in polymer resins has a crucial influence on the mechanical properties and flame retardancy of polymer nanocomposites [57,58]. As a typical 2D inorganic nanofiller, the direct incorporation of BP into polymer will lead to agglomeration, which seriously restricts its application. Therefore, it is necessary to improve the dispersibility of BP in polymer resins. The NH2 group on BP-NH2 was designed to react with the epoxide group of epoxy resin, aiming to form chemical bond between BP and epoxy resin. DSC was used to study the reaction process of three amino groups of BP-NH2 and epoxy groups of EP. As shown in Figure 4a, the temperatures of exothermic peaks of BP-NH2/E44 were 150 °C, 180 °C and 220 °C, respectively, suggesting that the order of the activity of amino groups was: aliphatic amine > aromatic amine > cyclamine. During the curing process, the chemical bonding restricted the agglomerating behavior of BP, resulting in good dispersion of BP in EP. This could be analyzed by the fracture surface morphology. The SEM images of freeze-fractured surface for pure EP, EP/BP (5 wt%), and EP/BP-NH2 (5 wt%) nanocomposites were shown in Figure 4b–f. As shown in Figure 4b, the fractured surface of pure EP was extremely smooth and had a no-crinkled morphology. However, for the EP/BP (5 wt%) and EP/BP-NH2 (5 wt%) nanocomposites (Figure 4c–f), it could be seen that the fracture surfaces were rough and had small curling layers, which was caused by the ductile fracture of the EP caused by the addition of BP nanosheets. Obviously, BP without modification re-aggregated severely in EP resins with a poor dispersion, while BP-NH2 had a better dispersion in the EP nanocomposites. This result was also confirmed by the distribution of the P element EDS in the insert of Figure 4c–f.

3.3. Thermal Stability and Thermal Dynamic Mechanical Properties of EP Composites

The thermal and thermo-oxidative stability of pure EP and EP/BP-NH2 were studied by TGA under N2 and air respectively. The detailed data are shown in Table 1. In Figure 5a, EP/BP-NH2 nanocomposites had similar thermal degradation behavior to pure EP, which was a one-step weight loss process. Compared to pure EP, the onset degradation temperature (T5%) of the EP/BP-NH2 nanocomposites decreased. This was mainly due to the phosphoric acid compounds produced by BP-NH2, which reduced the activation energy of the EP matrix pyrolysis reaction. This promoted the dehydration, as well as the carbonization, of the matrix. Tmax of EP/BP-NH2 shifted to around 370 °C. However, their char residues increased significantly at 800 °C, which was higher than that of pure EP. The residue amount of EP/BP-PPDA (5 wt%) were 25.2%, close to EP/BP-DETA (5 wt%), and slightly higher than that of EP/Pid (5 wt%). As can be seen from the dotted line area in Figure 5a, the carbonization of EP/BP-NH2 had a different stability at around 400 °C. That of EP/BP-PPDA was most stable; next was that of EP/BP-DETA. In Figure 5b, thermal-oxidative behavior of pure EP showed a two-stage curve under air. T5% of pure EP was at 387 °C. Tmax1 and Tmax2 of pure EP were at 414 and 589 °C, respectively. There were almost no residues remaining at 800 °C. EP/BP-NH2 showed similar two-stage curves. Due to the catalyzing effect, Td5% and Tmax1 of EP/BP-NH2 were lower than that of pure EP as well. With regard to the second DTG curves, Tmax2 of EP/BP-NH2 was higher than that of pure EP. In the thermal weightlessness stage of 400~800 °C, it showed that the residues of pure EP were not as stable as those of EP/BP-NH2 which were formed. At 800 °C, the residual weight of EP/BP-NH2 was higher than that of pure EP. That of EP/BP-PPDA was up to 6%. The results showed that the surface amination treatment of BP enhanced the charring ability of the EP matrix.
To study the influence of BP-NH2 on the thermomechanical properties of EP nanocomposites, the DMA was employed to test the storage modulus and tan δ of pure EP, EP/BP-NH2 composites [59]. The storage modulus and tan δ of pure EP and EP/BP-NH2 nanocomposites as a function of temperature were shown in Figure 5c,d. The storage modulus of pure EP at room temperature was 2912 MPa. The storage modulus of EP/BP-NH2 nanocomposite were slightly increased, mainly due to the enhancing effect of BP nanosheets. Compared with BP-DETA, BP-PPDA and BP-Pid were equipped with a ring structure and had a strong stiffness, which meant that EP had a higher storage modulus. The peak value of tan δ could be ascribed to glass transition temperature (Tg) of the EP/BP-NH2 nanocomposites (Figure 5d). Along with the addition of BP-NH2 into an EP matrix, all the tan δ peaks were slightly moved to a lower temperature. The decrease in Tg was understood by the fact that the BP nanosheet increased the distance of polymer chains and decreased the crosslinking density of the matrix, leading to an increasing in the free volume.

3.4. Flame Retardancy of EP Composites

LOI was employed to evaluate the least oxygen concentration required for the combustion of the polymer, which could be used to quantitatively evaluate the fire performance, whereas the UL-94 test could more intuitively reflect the true combustion process of the material [60,61]. The corresponding results were listed in Table 2. The LOI value of pure EP was only 19.8% and its UL 94 test exhibited NR. The LOI values for EP/BP-NH2 were all notably enhanced with the incorporation of BP-NH2 content from 1 to 5 wt%. Compared with EP/BP-DETA and EP/BP-Pid, the augment of the LOI value of EP/BP-PPDA was more notably the same amount. The LOI value of EP/BP-PPDA (1 wt%) reached 27.9%, while those of BP-DETA (1 wt%) and EP/BP-Pid (1 wt%) were 26.1% and 26.2%, respectively. At 5 wt% loading, the LOI of the three EP/BP-NH2 were above 30%, and as high as 32.3%. Pure EP burnt out and was ranked as NR in the UL 94 test. When the addition of BP-NH2 in the EP matrix reached 5 wt%, the EP/BP-NH2 nanocomposite could successfully pass the UL 94 V 0 rating. Notably, EP/BP-Pid was no rating at 3 wt% loading, whereas the other two systems passed the V 1 rating. Figure 6 showed the digital photos of EP/BP-NH2 at different times during the UL 94 combustion test and no melt-drips were generated during the test. After leaving the 2nd ignition, EP/BP-NH2 (5 wt%) nanocomposite self-extinguished at 3.6 s, 1.8 s and 4.8 s, respectively. The impact of BP-Pid on self-extinguishment was not as good as those of BP-DETA and BP-PPDA.
Cone calorimeter tests, in accordance with the standard method ISO 5660, were adopted to further evaluate the burning behavior of EP in a realistic fire environment. The curves of the HRR, the THR, the TSP and weight of the EPs were shown in Figure 7. Table 3 lists the correlation characteristic parameters, such as the time to ignition (TTI), the time to the PHRR (tPHRR), the peak heat release rate (PHRR), the fire growth rate (FIGRA) and av-EHC. Pure EP was ignited at 40 s and burnt dramatically with high PHRR values of 1120 kW/m2. After incorporating BP-NH2 into EP, PHRR of EP/BP-NH2 nanocomposites decreased significantly. The PHRR of EP/BP-DETA was 605 kW/m2, decreasing by 46%. EP/BP/PPDA showed a reduction of 40%. EP/BP-Pid got a higher PHRR of 991 kW/m2. The difference was related to the catalytic effect of BP-NH2 on charring ability. Similar to the PHRR, THR had a similar trend. Pure EP was as high as 97.3 MJ/m2. By adding BP-NH2 at a content of 5 wt%, the THR of EP/BP-DETA (5 wt%), EP/BP-PPDA (5 wt%) and EP/BP-Pid (5 wt%) decreased directly to 51.6 MJ/m2, 47.0 MJ/m2 and 56.0 MJ/m2, respectively. Especially for EP/BP-PPDA (5 wt%), its THR was reduced by 51.70%. The above data revealed that the descending order of condensed-phase flame retardancy efficiency was EP/BP-PPDA > EP/BP-DETA > EP/BP-Pid.
The FIGRA was also employed to evaluate the fire hazard of the nanocomposites. The calculation of FIGRA was expressed as follows:
FIGRA = P H R R t P H R R
Based on Table 3 and Equation (1), the FIGRA of pure EP was 13.3 kW m−2 s−1, whereas the FIGRA of EP/BP-DETA (5 wt%), EP/BP-PPDA (5 wt%) and EP/BP-Pid (5 wt%) nanocomposites were 5.2 kW m−2 s−1, 5.9 kW m−2 s−1, and 8.9 kW m−2 s−1, respectively. Particularly, the FIGRA of EP/BP-DETA (5 wt%) nanocomposites decreased by 60.9% in contrast to that of pure EP, which manifested that the fire growth rate was more effectively reduced by the addition of BP-DETA in the EP polymer. EHC was the heat of combustion, which would be expected in a fire where incomplete combustion takes place [52]. As presented in Table 3, it was found that the av-EHC values of EP/BP-NH2 nanocomposites decreased partly, as compared to that of pure EP. EP/BP-Pid (5 wt%) had the lowest av-EHC value of 12.4 kJ/kg. Generally, a low EHC value indicates noncomplete combustion, caused by the flame inhibition effect in the gas phase. The addition of the three BP-NH2 introduced a flame inhibition effect in the gas phase and they followed an effective order of BP-Pid > BP-PPDA ≈ BP-DETA.
The smoke release is one key factor in the cause of human death in a fire [62]. The addition of BP-NH2 reduced the smoke release of the EP matrix as well. EP/BP-PPDA had the lowest TSP of 20.2 m2/m2. The TSP values of EP/BP-DETA and EP/BP-Pid were 23 and 24.2 m2/m2, respectively. Compared with EP, the addition of BP-NH2 reduced the smoke release by around 48%, mainly benefiting the formation of char residue during the combustion. Three char residues, obtained from the combustion process, could provide an important perspective to investigate a reasonable flame-retardant mechanism. Figure 8 showed the digital photos of the external residues (a–d) from the top view and side view for EP and EP/BP-NH2 nanocomposites, as well as corresponding SEM images (e–h). Pure EP had a low charring ability, with a 9.2% char residue, which was loose and cracked (Figure 8a). Compared to pure EP, the carbon residue amount and quality of the EP/BP-NH2 nanocomposite were significantly increased. In Table 3, the char residue of EP/BP-DETA and EP/BP-PPDA were more than 30% residues. EP/BP-Pid had an 18.7% char residue. The good dispersion of BP nanosheets in EP was much conductive to the enhancement of the charring reaction. For BP-Pid, the tetramentylniperidine is one hindered amine, which might suppress the charring reaction of the radicals; hence, BP-Pid showed less char residues compared with BP-PPDA and BP-DETA. The char residues of EP/BP-NH2 were all intumescent shapes as shown in Figure 8b–d. The heights for EP/BP-Pid was 7.0 cm, slightly higher than that in other systems. The SEM images of the interior char layer showed that the interior char layer of EP containing BP-DETA and BP-PPDA nanocomposites were compact with few pores, whereas that of EP/BP-Pid was porous in Figure 8f–h. The graphitization degree of the char residue was studied by a Raman spectrum. A higher carbonization degree was more favorable to form an effective barrier to protect the internal materials from decomposing. Figure 9a–d showed the Raman spectra of EP and EP/BP-NH2 nanocomposites. It could be observed that two representative peaks of carbon materials were at 1370 cm−1and 1587 cm−1, defined as D peak and G peak, respectively. In prior studies, the ratio for D peak to G peak (ID/IG) was employed to assess the graphitization degree. A smaller ID/IG represented a higher graphitization degree. The ID/IG for pure EP was 3.49 (Figure 9a). The incorporation of BP-NH2 catalyzed the charring process to produce char residues with a high graphitization degree. In this respect, the EP/BP-Pid presented an ID/IG of 2.91 (Figure 9d), whereas the EP/ BP-DETA and EP/BP-PPDA exhibited a lower ID/IG (2.33 and 2.20) in Figure 9b,c. The above morphology and structure analysis indicated that the quality of the char residue for EP/BP-Pid was not as good as those of the other two systems. The consequences of this were consistent with the results of PHRR.
Moreover, XPS analysis was employed to study the element composition and chemical bonds of the char residues. Figure 10a exhibited the XPS spectra of pure EP, EP/BP-DETA, EP/BP-PPDA and EP/BP-Pid; the elements of C, N and O existed on the surface of all the samples. During the combustion of EP/BP-NH2, P elements were partly solidified to form phosphorus hybridizing char residues, which were confirmed by the peaks above 200 eV in Figure 10a. To show the bonding form, the high-resolution P 2p XPS spectrum for EP/BP-NH2 nanocomposites were collected in Figure 10b–d. The P 2p peaks for EP/BP-NH2 could be separated into three peaks at 133.3 eV, 134.3 eV and 135.4 eV, which were assigned to P-N, P-O and P2O5 bonds, respectively, indicating the formation of PxOy and P-N bonds in the char residues. For EP/BP-DETA, the peak intensity of P2O5 was close to those of P-O and P-N bonds. It followed that the structures of the surface amination of BP impacted on the charring process of the EP matrix. On the whole, BP-DETA accumulated an EP matrix to form more char residues with a dense structure, a high graphitization and an intumescent shape, next to BP-PPDA, resulting in the best insulation effects on heat and gaseous compounds. Therefore, PHRR and av-EHC trends were intelligible for the three systems.

3.5. Flame Retardant Mechanism

Based on the above results and analysis for combustion behavior in EP/BP-NH2 nanocomposites, a flame retardation mechanism was described in Figure 11. The same as other phosphorus-containing flame retardant, three kinds of BP-NH2 affected the combustion behavior of EP both in gas and condensed phases. During the decomposition of BP-NH2, free radicals such as PO· released into the gas phase, scavenging H· and OH· radicals and showing a flame inhibition effect. On the other hand, phosphoric acid derivatives formed by PxOy and water from the dehydration of polymer chains promoted the carbonization process (Figure 8), acting as an isolator of gaseous compounds and heat exchange (the PHRR and THR were decreased as shown in Figure 7a,b. In the meantime, combustible gases were reduced owing to the formation of more char residue in the gas phase. The difference for the three kinds of BP-NH2 was in the efficiency in the two phases. BP-DETA and BP-PPDA promoted the charring quality and quantity of EP matrix, while BP-Pid showed an enhanced flame inhibition effect. The results indicated that the modification structure can influence the BP flame behavior in the polymer matrix.

4. Conclusions

In this work, three amine-containing compounds (aliphatic amine, aromatic amine and cyclamine) were chosen to functionalize BP via the nucleophilic substitution reaction, and its structure and composition was confirmed by FT-IR, XRD, Raman, XPS, and TEM. The reactivity of amino groups of BP-NH2 and epoxy groups were different. The results showed that the amino group of BP was modified by aliphatic amine and had the highest reactivity with the epoxy group, and the descending order of reactivity between amino and epoxy groups was EP-BP-DETA > EP-BP-PPDA > EP-BP-Pid. The surface amino functionalization method was dramatically solved by the aggregation phenomenon and enhanced the dispersibility of the BP in EP matrix, thereby improving the flame retardancy efficiency. The HRR, THR and TSP values of EP/BP-NH2 nanocomposites are significantly decreased and its LOI value was dramatically improved. The V 0 rating was achieved at 5wt% loading of BP-NH2 in EP. The relationship between the amino structures and the flame retardancy efficiency of condensed-gas phases of BP in the EP matrix were compared. Among the above three typical amino-contain compounds, the condensed-phase flame retardancy of aliphatic amine and aromatic amine modified BP in the epoxy matrix was dominant, while the cyclcamine modified BP mainly played the role of gas-phase flame retardancy.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/polym13213635/s1, Table S1: Elemental distribution of BP and BP-NH2 nanosheets detected by XPS analysis, Figure S1: The high-resolution TEM images of BP, Figure S2: (a) SEM image of BP-PPDA nanosheets and the corresponding elemental mapping images of (b) carbon (C), (c) nitrogen (N), (d) phosphorus (P); (e) SEM image of BP-Pid nanosheets and the corresponding elemental mapping images of (f) carbon (C), (g) nitrogen (N), (h) phosphorus (P).

Author Contributions

Conceptualization, X.Z. and D.-Y.W. Date Curation, S.L. writing—original draft preparation, S.L. writing—review and editing, S.L., B.T. and G.C.; visualization, B.T.; funding acquisition, G.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Science and Technology Projects in Fujian province (2017H2001 and 2018H6012); Special Project of Strategic Emerging Industries of Fujian Province; Subsidized Project for Postgraduates’ Innovative Fund in Scientific Research of Huaqiao University (No. 18014087011); and the Graphene Powder and Composite Research Center, Development and Reform Commission of Fujian Province. This research received no external funding.

Institutional Review Board Statement

The study did not involve humans or animals.

Informed Consent Statement

The study did not involve humans.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors are grateful for the financial support by the Science and Technology Projects in Fujian province and Special Project of Strategic Emerging Industries of Fujian Province.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Jiang, S.; Tang, G.; Chen, J.; Huang, Z.; Hu, Y. Biobased Polyelectrolyte Multilayer-Coated Hollow Mesoporous Silica as a Green Flame Retardant for Epoxy Resin. J. Hazard. Mater. 2017, 342, 689–697. [Google Scholar] [CrossRef]
  2. Ai, Y.; Xia, L.; Pang, F.; Xu, Y.; Zhao, H.; Jian, R. Mechanically Strong and Flame-Retardant Epoxy Resins with Anti-Corrosion Performance. Compos. Part B Eng. 2020, 193, 108019. [Google Scholar] [CrossRef]
  3. Ma, C.; Qiu, S.; Yu, B.; Wang, J.; Wang, C.; Zeng, W.; Hu, Y. Economical and Environment-Friendly Synthesis of a Novel Hyperbranched Poly(Aminomethylphosphine Oxide-Amine) as Co-Curing Agent for Simultaneous Improvement of Fire Safety, Glass Transition Temperature and Toughness of Epoxy Resins. Chem. Eng. J. 2017, 322, 618–631. [Google Scholar] [CrossRef]
  4. Täuber, K.; Marsico, F.; Wurm, F.; Schartel, B. Hyperbranched Poly(Phosphoester)s as Flame Retardants for Technical and High Performance Polymers. Polym. Chem. 2014, 5, 7042–7053. [Google Scholar] [CrossRef]
  5. Song, K.; Wang, Y.; Ruan, F.; Yang, W.; Fang, Z.; Zheng, D.; Li, X.; Li, N.; Qiao, M.; Liu, J. Synthesis of a Reactive Template-Induced Core-Shell PZS@ZIF-67 Composite Microspheres and Its Application in Epoxy Composites. Polymers 2021, 13, 2646. [Google Scholar] [CrossRef] [PubMed]
  6. Kim, J.; You, N.; Ku, B. Highly Efficient Halogen-Free Flame Retardants of Thermally-Oxidized Polyacrylonitrile Copolymers Containing Bio-Derived Caffeic Acid Derivatives. Polym. Chem. 2020, 11, 6658–6669. [Google Scholar] [CrossRef]
  7. Liu, C.; Qiao, H.; Xu, G.; Liang, Y.; Yang, J.; Hu, J. Phosphorous-Nitrogen Modification of Epoxy Grafted Poly-Acrylic Resin: Synergistic Flame Retardment Effect. Polymers 2021, 13, 2826. [Google Scholar] [CrossRef] [PubMed]
  8. Shiu, B.; Wu, K.; Lou, C.; Lin, Q.; Lin, J. Synthesis of a Compound Phosphorus-Nitrogen Intumescent Flame Retardant for Applications to Raw Lacquer. Polymers 2021, 13, 2858. [Google Scholar] [CrossRef]
  9. Wang, L.; Wei, Y.; Deng, H.; Lyu, R.; Zhu, J.; Yang, Y. Synergistic Flame Retardant Effect of Barium Phytate and Intumescent Flame Retardant for Epoxy Resin. Polymers 2021, 13, 2900. [Google Scholar] [CrossRef]
  10. Bridgman, P. Two New Modifications of Phosphorus. J. Am. Chem. Soc. 1914, 36, 1344–1363. [Google Scholar] [CrossRef] [Green Version]
  11. Keyes, R.W. The Electrical Properties of Black Phosphorus. Phys. Rev. 1953, 92, 580–584. [Google Scholar] [CrossRef]
  12. Du, Y.; Ouyang, C.; Shi, S.; Lei, M. Ab Initio Studies on Atomic and Electronic Structures of Black Phosphorus. Solid. State. Sci. 2010, 107, 2465–2469. [Google Scholar] [CrossRef]
  13. Chen, Y.; Ren, R.; Pu, H.; Chang, J.; Chen, J. Field-Effect Transistor Biosensors with Two-Dimensional Black Phosphorus Nanosheets. Biosens. Bioelectron. 2017, 89, 505–510. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Castellanos-Gomez, A.; Vicarelli, L.; Prada, E.; Island, J.; Narasimha-Acharya, K.; Blanter, S.; Groenendijk, D.; Buscema, M.; Steele, G.; Alvarez, J. Isolation and Characterization of Few-Layer Black Phosphorus. 2D Mater. 2014, 1, 025001. [Google Scholar] [CrossRef]
  15. Late, D. Liquid Exfoliation of Black Phosphorus Nanosheets and Its Application as Humidity Sensor. Microporous Mesoporous Mater. 2016, 225, 494–503. [Google Scholar] [CrossRef]
  16. Li, L.; Yu, Y.; Ye, G.; Ge, Q.; Ou, X.; Wu, H.; Feng, D.; Chen, X.; Zhang, Y. Black Phosphorus Field-Effect Transistors. Nat. Nanotechnol. 2014, 9, 372–377. [Google Scholar] [CrossRef] [Green Version]
  17. Qiu, S.; Zou, B.; Zhang, T.; Ren, X.; Yu, B.; Zhou, Y.; Kan, Y.; Hu, Y. Integrated Effect of NH2-Functionalized/Triazine Based Covalent Organic Framework Black Phosphorus on Reducing Fire Hazards of Epoxy Nanocomposites. Chem. Eng. J. 2020, 401, 126058. [Google Scholar] [CrossRef]
  18. Qu, Z.; Wu, K.; Meng, W.; Nan, B.; Hu, Z.; Xu, C.; Tan, Z.; Zhang, Q.; Meng, H.; Shi, J. Surface Coordination of Black Phosphorene for Excellent Stability, Flame Retardancy and Thermal Conductivity in Epoxy Resin. Chem. Eng. J. 2020, 397, 125416. [Google Scholar] [CrossRef]
  19. Walia, S.; Balendhran, S.; Ahmed, T.; Singh, M.; El-Badawi, C.; Brennan, M.; Weerathunge, P.; Karim, M.; Rahman, F.; Rassell, A.; et al. Ambient Protection of Few-Layer Black Phosphorus via Sequestration of Reactive Oxygen Species. Adv. Mater. 2017, 29, 1700152. [Google Scholar] [CrossRef]
  20. Lei, W.; Liu, G.; Zhang, J.; Liu, M. Black Phosphorus Nanostructures: Recent Advances in Hybridization, Doping and Functionalization. Chem. Soc. Rev. 2017, 46, 3492–3509. [Google Scholar] [CrossRef]
  21. Wu, S.; He, F.; Xie, G.; Bian, Z.; Luo, J.; Wen, S. Black Phosphorus: Degradation Favors Lubrication. Nano Lett. 2018, 18, 5618–5627. [Google Scholar] [CrossRef]
  22. Zhang, T.; Wan, Y.; Xie, H.; Mu, Y.; Du, P.; Wang, D.; Wu, X.; Ji, H.; Wan, L. Degradation Chemistry and Stabilization of Exfoliated Few-Layer Black Phosphorus in Water. J. Am. Chem. Soc. 2018, 140, 7561–7567. [Google Scholar] [CrossRef] [PubMed]
  23. Wang, G.; Slough, W.; Pandey, R.; Karna, S. Degradation of Phosphorene in Air: Understanding at Atomic Level. 2D Mater. 2015, 3, 025011. [Google Scholar] [CrossRef] [Green Version]
  24. Van Druenen, M.; Davitt, F.; Collins, T.; Glynn, C.; O’Dwyer, C.; Holmes, J.; Collins, G. Evaluating the Surface Chemistry of Black Phosphorus during Ambient Degradation. Langmuir 2019, 35, 2172–2178. [Google Scholar] [CrossRef]
  25. Abellán, G.; Wild, S.; Lloret, V.; Scheuschner, N.; Gillen, R.; Mundloch, U.; Maultzsch, J.; Varela, M.; Hauke, F.; Hirsch, A. Fundamental Insights into the Degradation and Stabilization of Thin Layer Black Phosphorus. J. Am. Chem. Soc. 2017, 139, 10432. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Huang, Y.; Qiao, J.; He, K.; Bliznakov, S.; Sutter, E.; Chen, X.; Luo, D.; Meng, F.; Dong, S.; Decker, J. Interaction of Black Phosphorus with Oxygen and Water. Chem. Mater. 2016, 28, 8330–8339. [Google Scholar] [CrossRef] [Green Version]
  27. Plutnar, J.; Sofer, Z.; Pumera, M. Products of Degradation of Black Phosphorus in Protic Solvents. ACS Nano 2018, 12, 8390–8396. [Google Scholar] [CrossRef] [PubMed]
  28. Abate, Y.; Akinwande, D.; Gamage, S.; Wang, H.; Snure, M.; Poudel, N.; Cronin, S. Recent Progress on Stability and Passivation of Black Phosphorus. Adv. Mater. 2018, 30, 1704749. [Google Scholar] [CrossRef]
  29. Favron, A.; Gaufres, E.; Fossard, F.; Phaneuf-L’Heureux, A.; Tang, N.; Levesque, P.; Loiseau, A.; Leonelli, R.; Francoeur, S.; Martel, R. Photooxidation and Quantum Confinement Effects in Exfoliated Black Phosphorus. Nat. Mater. 2015, 14, 826–832. [Google Scholar] [CrossRef]
  30. Zhu, H.; McDonnell, S.; Qin, X.; Azcatl, A.; Cheng, L.; Addou, R.; Kim, J.; Ye, P.; Wallace, R.M. Al2O3 on Black Phosphorus by Atomic Layer Deposition: An In Situ Interface Study. ACS Appl. Mater. Inter. 2015, 7, 13038–13043. [Google Scholar] [CrossRef] [PubMed]
  31. Wood, J.; Wells, S.; Jariwala, D.; Chen, K.; Cho, E.; Sangwan, V.; Liu, X.; Lauhon, L.; Marks, T.; Hersam, M. Effective Passivation of Exfoliated Black Phosphorus Transistors against Ambient Degradation. Nano Lett. 2014, 14, 6964–6970. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Birowska, M.; Urban, J.; Baranowski, M.; Maude, D.; Plochocka, P.; Szwacki, N. The Impact of Hexagonal Boron Nitride Encapsulation on the Structural and Vibrational Properties of Few Layer Black Phosphorus. Nanotechnology 2019, 30, 120165. [Google Scholar] [CrossRef] [Green Version]
  33. Illarionov, Y.; Waltl, M.; Rzepa, G.; Kim, J.; Kim, S.; Dodabalapur, A.; Akinwande, D.; Grasser, T. Long-Term Stability and Reliability of Black Phosphorus Field-Effect Transistors. ACS Nano 2016, 10, 9543–9549. [Google Scholar] [CrossRef] [PubMed]
  34. Constantinescu, G.; Hine, N. Multipurpose Black-Phosphorus/hBN Heterostructures. Nano Lett. 2016, 16, 2586–2594. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Gamage, S.; Li, Z.; Yakovlev, V.; Lewis, C.; Wang, H.; Cronin, S.; Abate, Y. Nanoscopy of Black Phosphorus Degradation. Adv. Mater. Interfaces 2016, 3, 1600121. [Google Scholar] [CrossRef]
  36. Pei, J.; Gai, X.; Yang, J.; Wang, X.; Yu, Z.; Choi, D.; Luther-Davies, B.; Lu, Y. Producing Air-Stable Monolayers of Phosphorene and Their Defect Engineering. Nat. Commun. 2016, 7, 10450. [Google Scholar] [CrossRef] [Green Version]
  37. Gamage, S.; Fali, A.; Aghamiri, N.; Yang, L.; Ye, P.; Abate, Y. Reliable Passivation of Black Phosphorus by Thin Hybrid Coating. Nanotechnology 2017, 28, 113949. [Google Scholar] [CrossRef]
  38. Clark, N.; Nguyen, L.; Hamer, M.; Schedin, F.; Lewis, E.; Prestat, E.; Garner, A.; Cao, Y.; Zhu, M.; Kashtiban, R.; et al. Scalable Patterning of Encapsulated Black Phosphorus. Nano Lett. 2018, 18, 5373–5381. [Google Scholar] [CrossRef] [Green Version]
  39. Li, P.; Zhang, D.; Liu, J.; Chang, H.; Sun, Y.; Yin, N. Air-Stable Black Phosphorus Devices for Ion Sensing. ACS Appl. Mater. Inter. 2015, 7, 24396–24402. [Google Scholar] [CrossRef]
  40. Liu, Y.; Gao, P.; Zhang, T.; Zhu, X.J.; Zhang, M.; Chen, M.; Du, P.; Wang, G.; Ji, H.; Yang, J.; et al. Azide Passivation of Black Phosphorus Nanosheets: Covalent Functionalization Affords Ambient Stability Enhancement. Angew. Chem. 2019, 58, 1479–1483. [Google Scholar] [CrossRef]
  41. Ryder, C.; Wood, J.; Wells, S.; Yang, Y.; Jariwala, D.; Marks, T.; Schatz, G.; Hersam, M. Covalent Functionalization and Passivation of Exfoliated Black Phosphorus via Aryl Diazonium Chemistry. Nat. Chem. 2016, 8, 597–602. [Google Scholar] [CrossRef]
  42. Cao, Y.; Tian, X.; Gu, J.; Liu, B.; Zhang, B.; Song, S.; Fan, F.; Chen, Y. Covalent Functionalization of Black Phosphorus with Conjugated Polymer for Information Storage. Angew. Chem. 2018, 57, 4543–4548. [Google Scholar] [CrossRef]
  43. Van Druenen, M.; Davitt, F.; Collins, T.; Glynn, C.; O’Dwyer, C.; Holmes, J.; Collins, G. Covalent Functionalization of Few-Layer Black Phosphorus Using lodonium Salts and Comparison to Diazonium Modified Black Phosphorus. Chem. Mater. 2018, 30, 4667–4674. [Google Scholar] [CrossRef]
  44. Shao, L.; Sun, H.; Miao, L.; Chen, X.; Han, M.; Sun, J.; Liu, S.; Li, L.; Cheng, F.; Chen, J. Facile Preparation of NH2-Functionalized Black Phosphorene for the Electrocatalytic Hydrogen Evolution Reaction. J. Mater. Chem. A 2018, 6, 2494–2499. [Google Scholar] [CrossRef]
  45. Zhu, X.; Zhang, T.; Jiang, D.; Duan, H.; Sun, Z.; Zhang, M.; Jin, H.; Guan, R.; Liu, Y.; Chen, M.; et al. Stabilizing Black Phosphorus Nanosheets via Edge-Selective Bonding of Sacrificial C-60 Molecules. Nat. Commun. 2018, 9, 4177–4185. [Google Scholar] [CrossRef] [Green Version]
  46. Zhao, Y.; Tong, L.; Li, Z.; Yang, N.; Fu, H.; Wu, L.; Cui, H.; Zhou, W.; Wang, J.; Wang, H.; et al. Stable and Multifunctional Dye-Modified Black Phosphorus Nanosheets for Near-Infrared Imaging-Guided Photothermal Therapy. Chem. Mater. 2017, 29, 7131–7139. [Google Scholar] [CrossRef]
  47. Hu, H.; Gao, H.; Gao, L.; Li, F.; Xu, N.; Long, X.; Hu, Y.; Jin, J.; Ma, J. Covalent Functionalization of Black Phosphorus Nanoflakes by Carbon Free Radicals for Durable Air and Water Stability. Nanoscale 2018, 10, 5834–5839. [Google Scholar] [CrossRef]
  48. Sun, J.; Zheng, G.; Lee, H.; Liu, N.; Wang, H.; Yao, H.; Yang, W.; Cui, Y. Formation of Stable Phosphorus-Carbon Bond for Enhanced Performance in Black Phosphorus Nanoparticle-Graphite Composite Battery Anodes. Nano. Lett. 2014, 14, 4573–4580. [Google Scholar] [CrossRef]
  49. Qiu, S.; Zhou, Y.; Zhou, X.; Zhang, T.; Wang, C.; Yuen, R.; Hu, W.; Hu, Y. Air-Stable Polyphosphazene-Functionalized Few-Layer Black Phosphorene for Flame Retardancy of Epoxy Resins. Small 2019, 15, e1805175. [Google Scholar] [CrossRef]
  50. Zhao, X.; Babu, H.V.; Llorca, J.; Wang, D.-Y. Impact of Halogen-Free Flame Retardant with Varied Phosphorus Chemical Surrounding on the Properties of Diglycidyl Ether of Bisphenol-A Type Epoxy Resin: Synthesis, Fire Behaviour, Flame-Retardant Mechanism and Mechanical Properties. RSC Adv. 2016, 6, 59226–59236. [Google Scholar] [CrossRef] [Green Version]
  51. Qiu, S.; Wang, X.; Yu, B.; Feng, X.; Mu, X.; Yuen, R.; Hu, Y. Flame-Retardant-Wrappedpolyphosphazene Nanotubes: A Novel Strategy for Enhancing the Flame Retardancy and Smoke Toxicity Suppression of Epoxy Resins. J. Hazard. Mater. 2017, 325, 327–339. [Google Scholar] [CrossRef]
  52. Zhao, X.; Xiao, D.; Alonso, J.; Wang, D.-Y. Inclusion Complex between Beta-Cyclodextrin and Phenylphosphonicdiamide as Novel Bio-Based Flame Retardant to Epoxy: Inclusion Behavior, Characterization and Flammability. Mater. Design. 2017, 114, 623–632. [Google Scholar] [CrossRef] [Green Version]
  53. Wang, X.; Xing, W.; Feng, X.; Yu, B.; Song, L.; Hu, Y. Functionalization of Graphene with Grafted Polyphosphamide for Flame Retardant Epoxy Composites: Synthesis, Flammability and Mechanism. Polym. Chem. 2014, 5, 1145–1154. [Google Scholar] [CrossRef]
  54. Zhu, X.; Zhang, T.; Sun, Z.J.; Chen, H.L.; Guan, J.; Chen, X.; Ji, H.X.; Du, P.; Yang, S. Black Phosphorus Revisited: A Missing Metal-Free Elemental Photocatalyst for Visible Light Hydrogen Evolution. Adv. Mater. 2017, 29, 1605776. [Google Scholar] [CrossRef]
  55. Zhang, H.; Mao, J.; Li, M.; Cai, Q.; Li, W.; Huang, C.; Yuan, C.; Xu, Y.; Zeng, B.; Dai, L. Design of h-BN@boronate Polymer core-Shell Nanoplates to Simultaneously Enhance the Flame Retardancy and Mechanical Properties of Epoxy Resin through the Interficial Regulation. Compos. Part A Appl. Sci. Manuf. 2020, 130, 105751. [Google Scholar] [CrossRef]
  56. Xu, Z.; Lin, S.; Onofrio, N.; Zhou, L.; Shi, F.; Lu, W.; Kang, K.; Zhang, Q.; Lau, S. Exceptional Catalytic Effects of Black Phosphorus Quantum Dots in Shuttling-Free Lithium Sulfur Batteries. Nat. Commun. 2018, 9, 4164–4174. [Google Scholar] [CrossRef]
  57. Wang, X.; Xing, W.; Feng, X.; Song, L.; Hu, Y. MoS2/Polymer Nanocomposites: Preparation, Properties, and Applications. Polym. Rev. 2017, 57, 440–466. [Google Scholar] [CrossRef]
  58. Tan, Y.; Shao, Z.; Yu, L.; Long, J.; Qi, M.; Chen, L.; Wang, Y. Piperazine-Modified Ammonium Polyphosphate as Monocomponent Flame-Retardant Hardener for Epoxy Resin: Flame Retardance, Curing Behavior and Mechanical Property. Polym. Chem. 2016, 7, 3003–3012. [Google Scholar] [CrossRef]
  59. Qu, Z.; Wu, K.; Jiao, E.; Chen, W.; Hu, Z.; Xu, C.; Shi, J.; Wang, S.; Tan, Z. Surface Functionalization of Few-Layer Black Phosphorene and Its Flame Retardancy in Epoxy Resin. Chem. Eng. J. 2019, 382, 122991. [Google Scholar] [CrossRef]
  60. Zhao, X.; De Juan, S.; Guerrero, F.; Li, Z.; Llorca, J.; Wang, D.-Y. Effect of N,N′-Diallyl-Phenylphosphoricdiamide on Ease of Ignition, Thermal Decomposition Behavior and Mechanical Properties of Poly(Lactic Acid). Polym. Degrad. Stabil. 2016, 127, 2–10. [Google Scholar] [CrossRef] [Green Version]
  61. Xiao, D.; Li, Z.; Gohs, U.; Wagenknecht, U.; Voit, B.; Wang, D.-Y. Functionalized Allylamine Polyphosphate as a Novel Multifunctional Highly Efficient Fire Retardant for Polypropylene. Polym. Chem. 2017, 8, 6309–6318. [Google Scholar] [CrossRef]
  62. Hong, J.; Wu, T.; Wu, H.; Zeng, B.; Zeng, S.; Chen, T.; Wang, X.; Lu, Z.; Yuan, C.; Balaji, K.; et al. Nanohybrid Silver Nanoparticles@halloysite Nanotubes Coated with Polyphosphazene for Effectively Enhancing the Fire Safety of Epoxy Resin. Chem. Eng. J. 2021, 407, 127087. [Google Scholar] [CrossRef]
Polymers 13 03635 g001 550

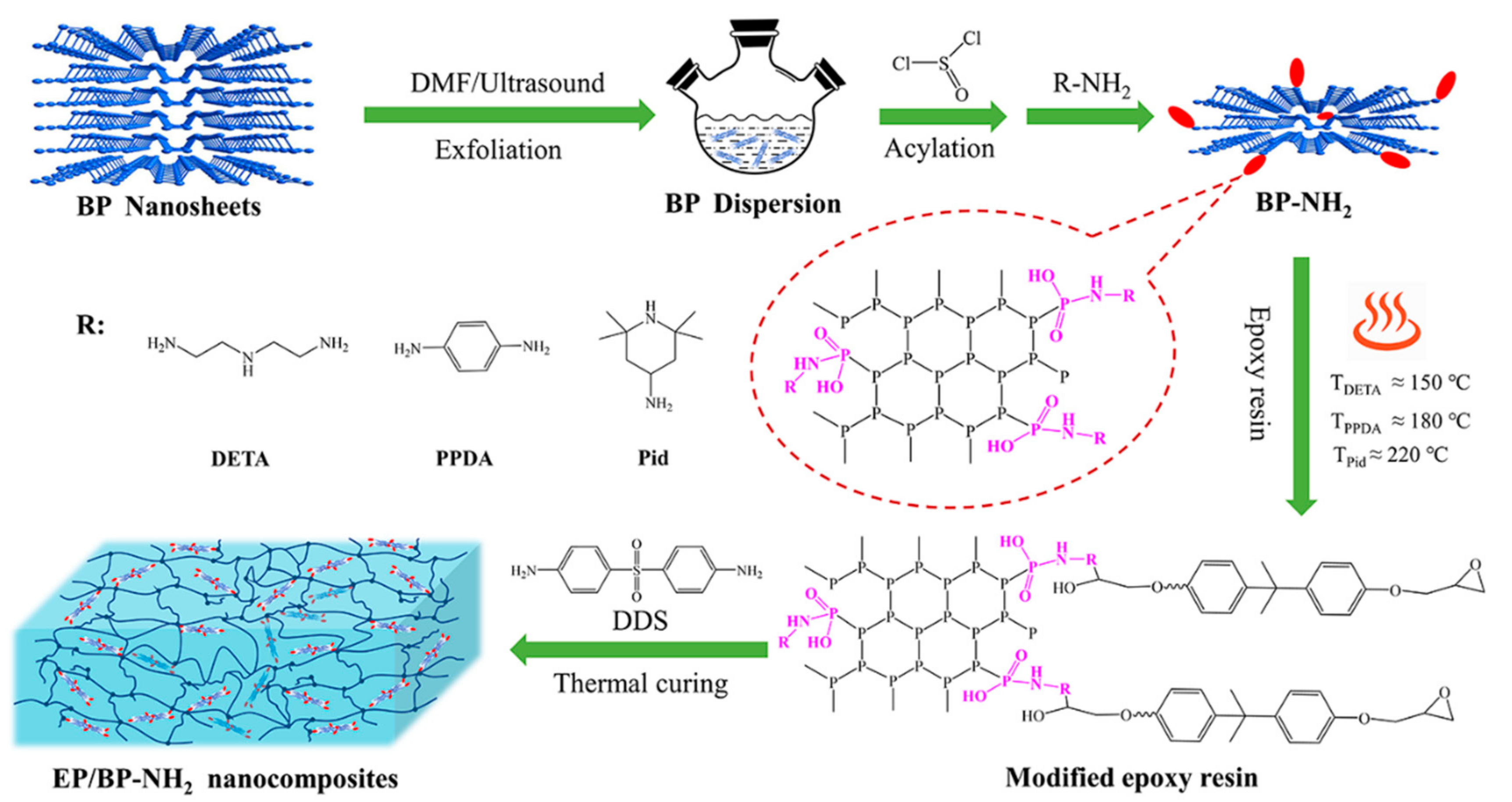

Figure 1. The preparation process of BP-NH2 nanofiller and EP/BP-NH2 nanocomposites.
Figure 1. The preparation process of BP-NH2 nanofiller and EP/BP-NH2 nanocomposites.
Polymers 13 03635 g001
Polymers 13 03635 g002 550

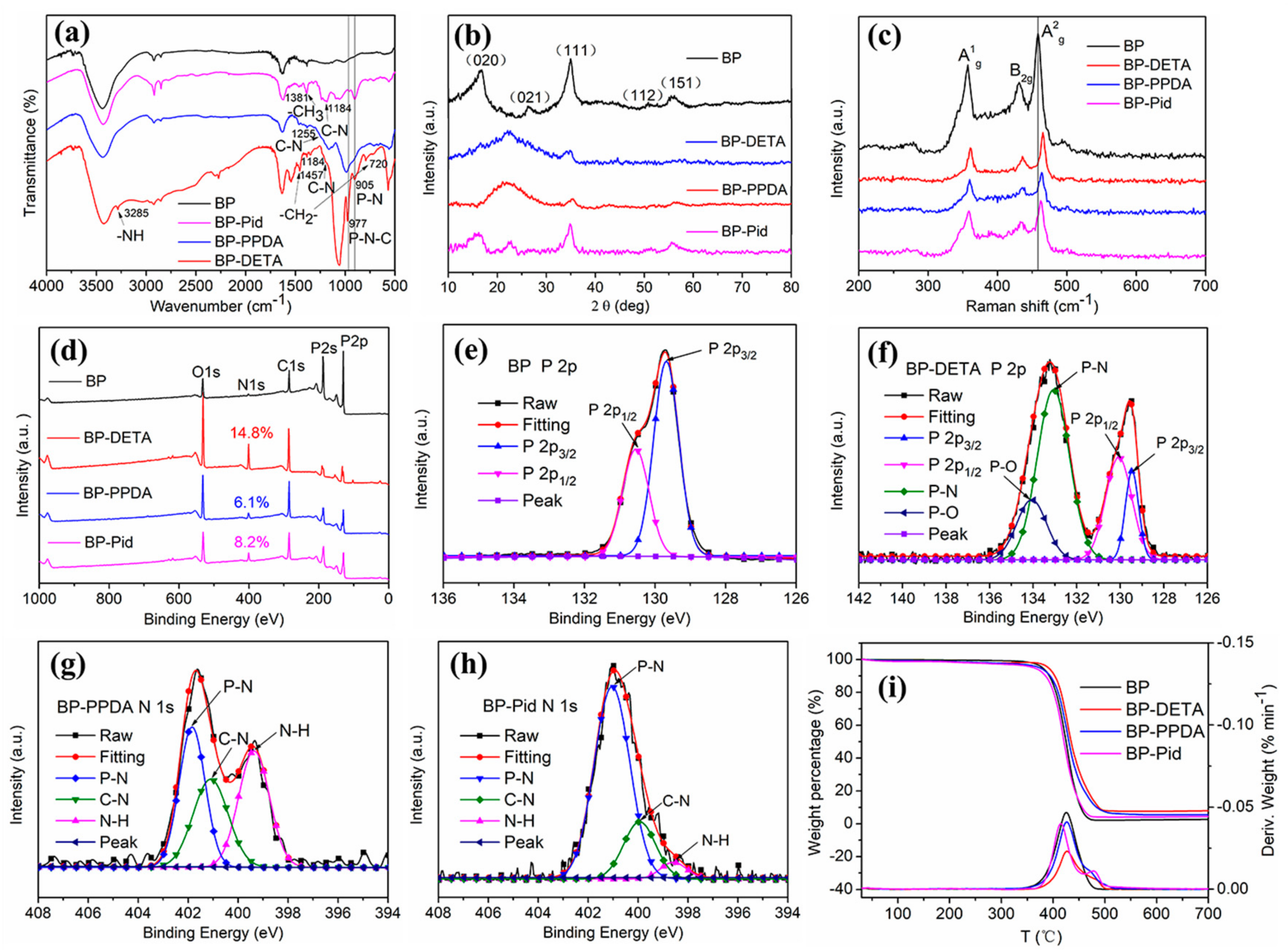

Figure 2. Characterization of BP and BP-NH2: (a) FT-IR spectra; (b) XRD patterns; (c) Raman spectra; (d) XPS survey spectra and high-resolution P 2p XPS spectra of (e) BP nanosheets, (f) BP-DETA, (g) BP-PPDA, and (h) BP-Pid; (i) TGA and DTG curves.
Figure 2. Characterization of BP and BP-NH2: (a) FT-IR spectra; (b) XRD patterns; (c) Raman spectra; (d) XPS survey spectra and high-resolution P 2p XPS spectra of (e) BP nanosheets, (f) BP-DETA, (g) BP-PPDA, and (h) BP-Pid; (i) TGA and DTG curves.
Polymers 13 03635 g002
Polymers 13 03635 g003 550
Figure 3. (a) TEM image and (b) SAED pattern of the BP nanosheets; (c) SEM image of BP-DETA nanosheets and the corresponding elemental mapping images of (d) carbon (C), (e) nitrogen (N), (f) phosphorus (P).
Figure 3. (a) TEM image and (b) SAED pattern of the BP nanosheets; (c) SEM image of BP-DETA nanosheets and the corresponding elemental mapping images of (d) carbon (C), (e) nitrogen (N), (f) phosphorus (P).
Polymers 13 03635 g003
Polymers 13 03635 g004 550

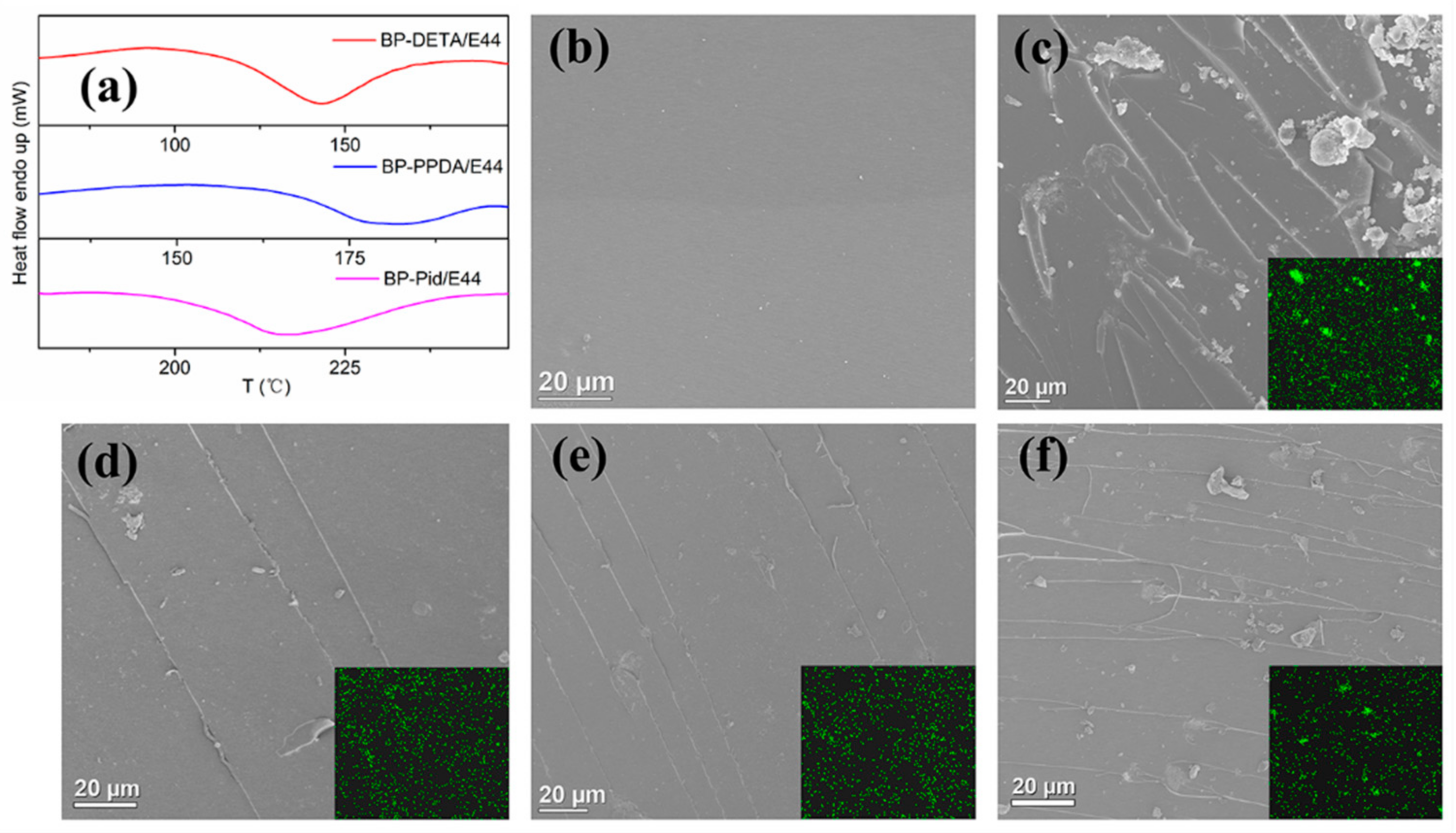

Figure 4. (a) DSC thermograms of BP-NH2/E44; SEM images of freeze-fractured surface for (b) pure EP, (c) EP/BP (5 wt%), (d) EP/BP-DETA (5 wt%), (e) EP/BP-PPDA (5 wt%), (f) EP/BP-Pid (5 wt%) nanocomposites and the corresponding P element distribution diagram.
Figure 4. (a) DSC thermograms of BP-NH2/E44; SEM images of freeze-fractured surface for (b) pure EP, (c) EP/BP (5 wt%), (d) EP/BP-DETA (5 wt%), (e) EP/BP-PPDA (5 wt%), (f) EP/BP-Pid (5 wt%) nanocomposites and the corresponding P element distribution diagram.
Polymers 13 03635 g004
Polymers 13 03635 g005 550

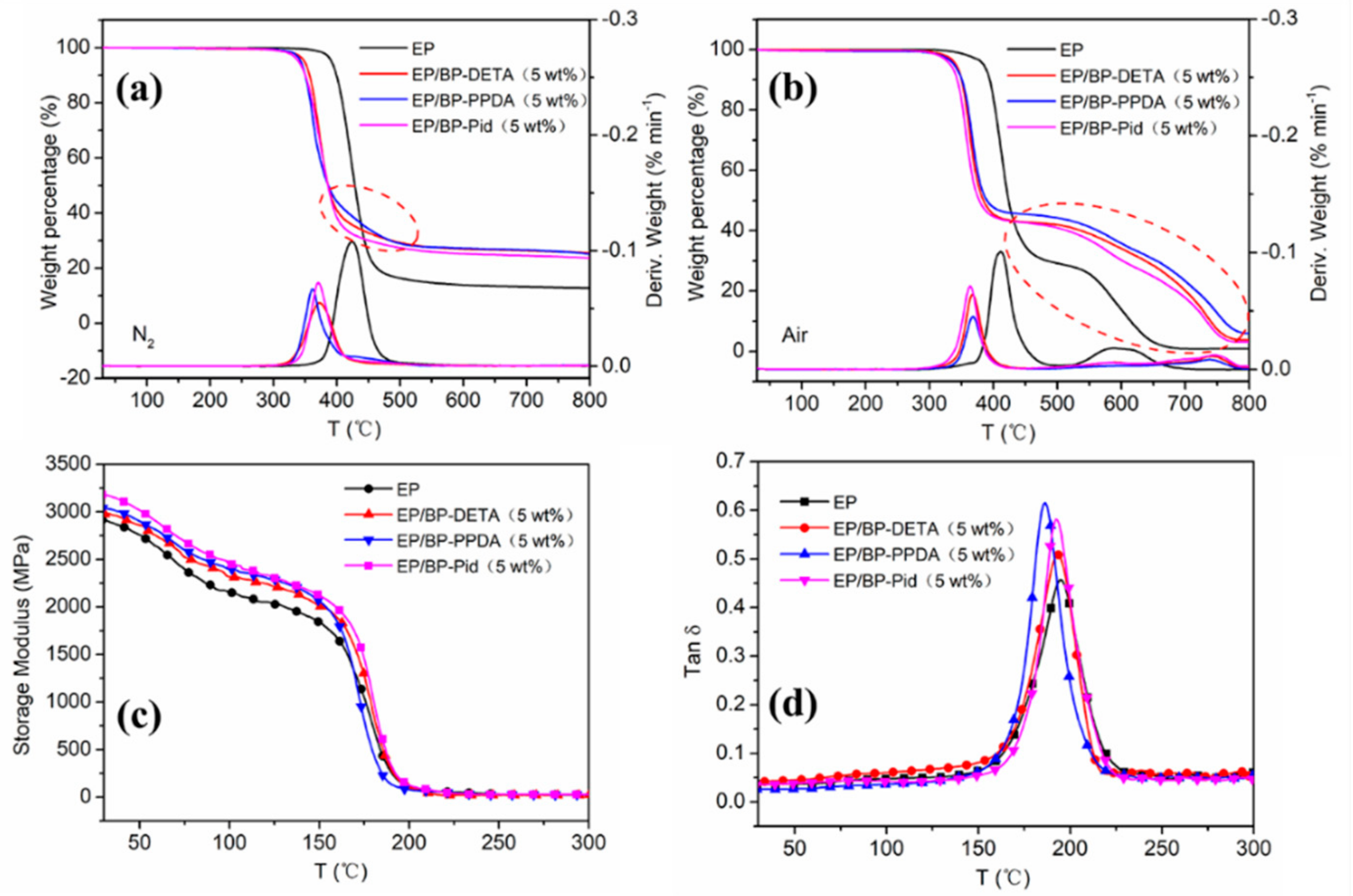

Figure 5. TGA and DTG curves of the pure EP and EP/BP-NH2 nanocomposites under N2 (a) and under air (b); DMA results of the pure EP and EP/BP-NH2 nanocomposites: storage modulus E’ (c,d) tan δ curves.
Figure 5. TGA and DTG curves of the pure EP and EP/BP-NH2 nanocomposites under N2 (a) and under air (b); DMA results of the pure EP and EP/BP-NH2 nanocomposites: storage modulus E’ (c,d) tan δ curves.
Polymers 13 03635 g005
Polymers 13 03635 g006 550
Figure 6. The digital photos of EP/BP-NH2 at different times during the UL 94 combustion test.
Figure 6. The digital photos of EP/BP-NH2 at different times during the UL 94 combustion test.
Polymers 13 03635 g006
Polymers 13 03635 g007 550

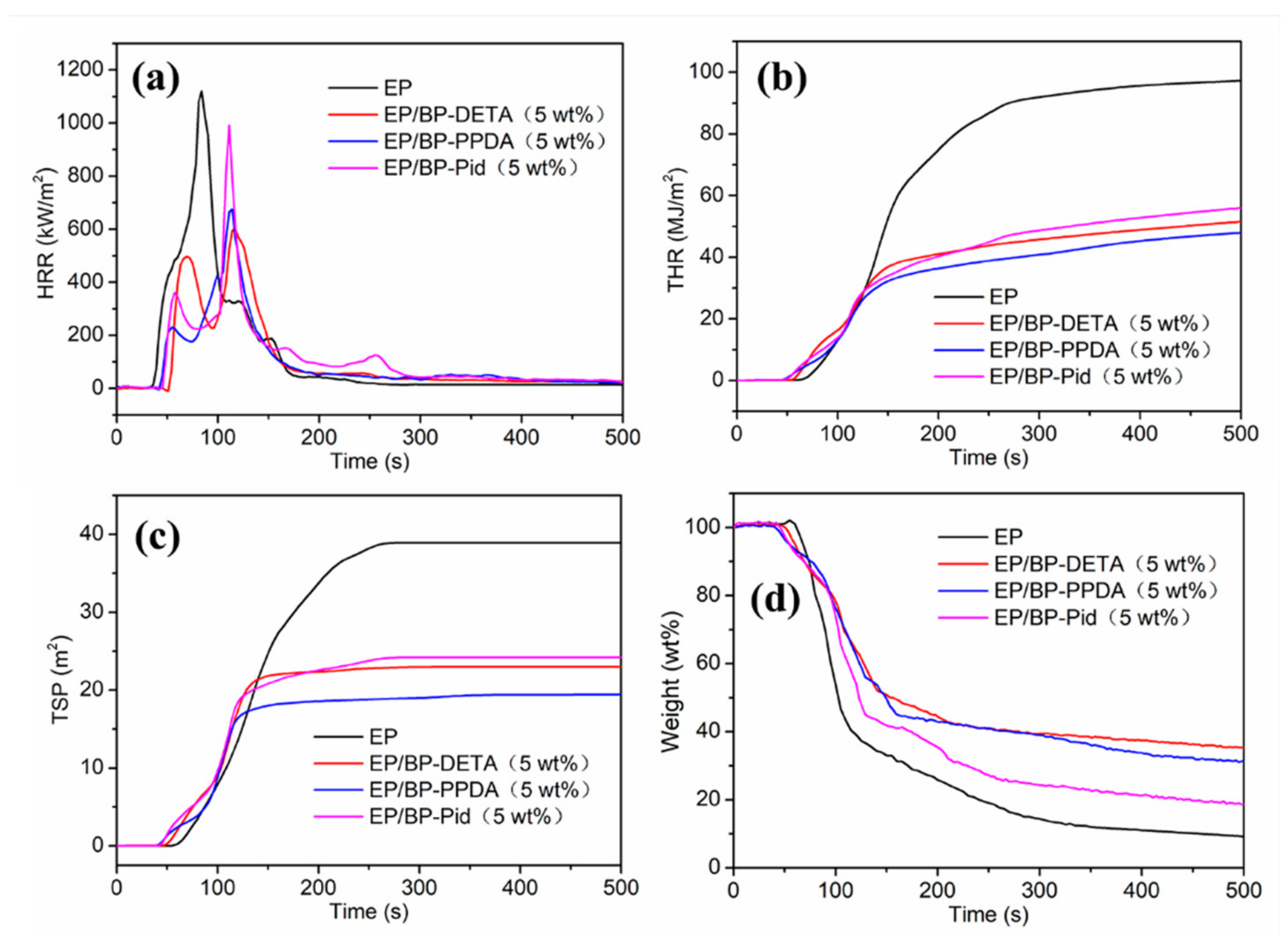

Figure 7. (a) HRR, (b) THR, (c) TSP and (d) Weight versus time curves of the pure EP and EP/BP-NH2 nanocomposites from cone calorimeter tests.
Figure 7. (a) HRR, (b) THR, (c) TSP and (d) Weight versus time curves of the pure EP and EP/BP-NH2 nanocomposites from cone calorimeter tests.
Polymers 13 03635 g007
Polymers 13 03635 g008 550

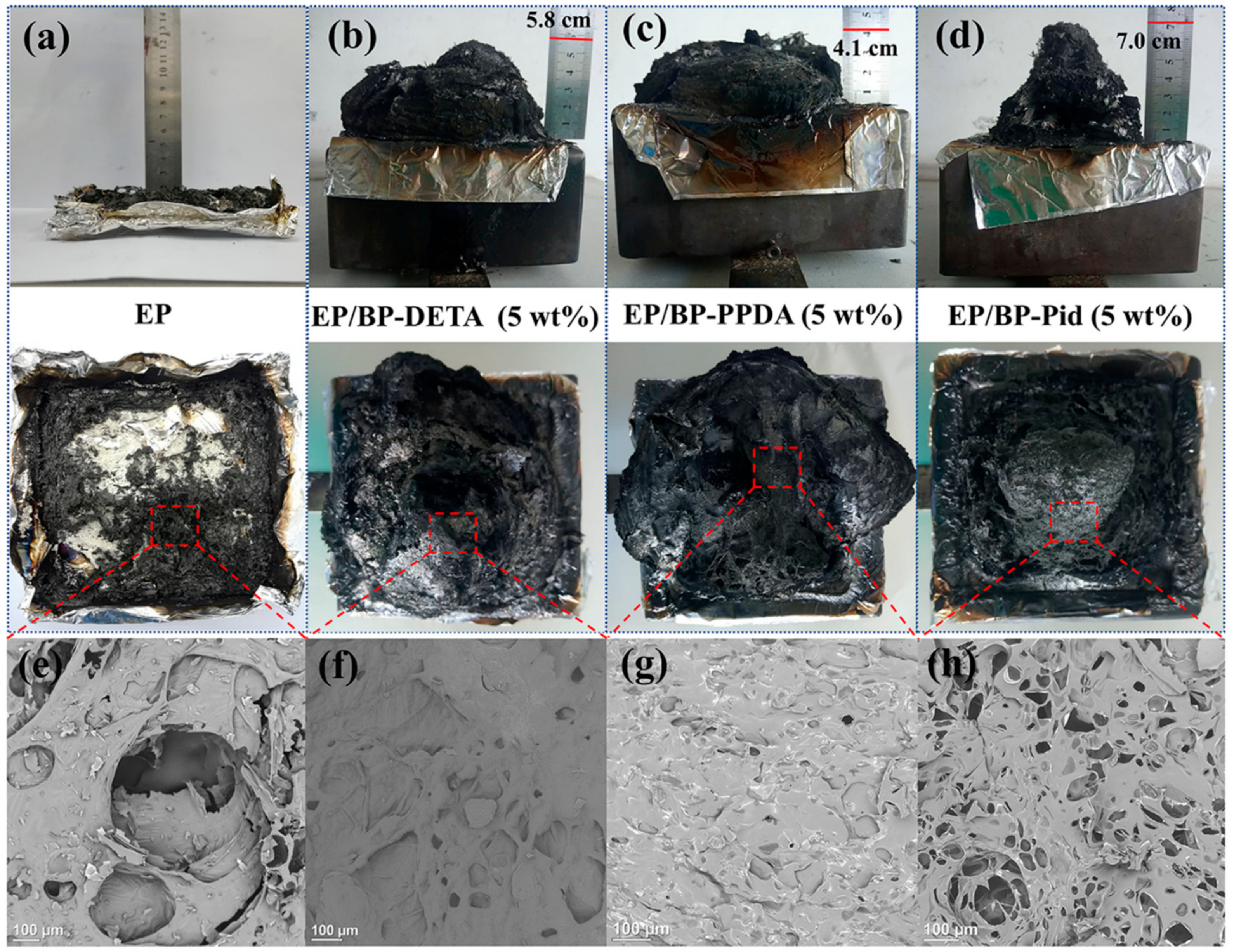

Figure 8. Digital photos of the external residues (a–d) from a top view and a side view for pure EP and EP/BP-NH2 nanocomposites; SEM images of interior (e–h) char residues for pure EP and EP/BP-NH2 nanocomposites.
Figure 8. Digital photos of the external residues (a–d) from a top view and a side view for pure EP and EP/BP-NH2 nanocomposites; SEM images of interior (e–h) char residues for pure EP and EP/BP-NH2 nanocomposites.
Polymers 13 03635 g008
Polymers 13 03635 g009 550

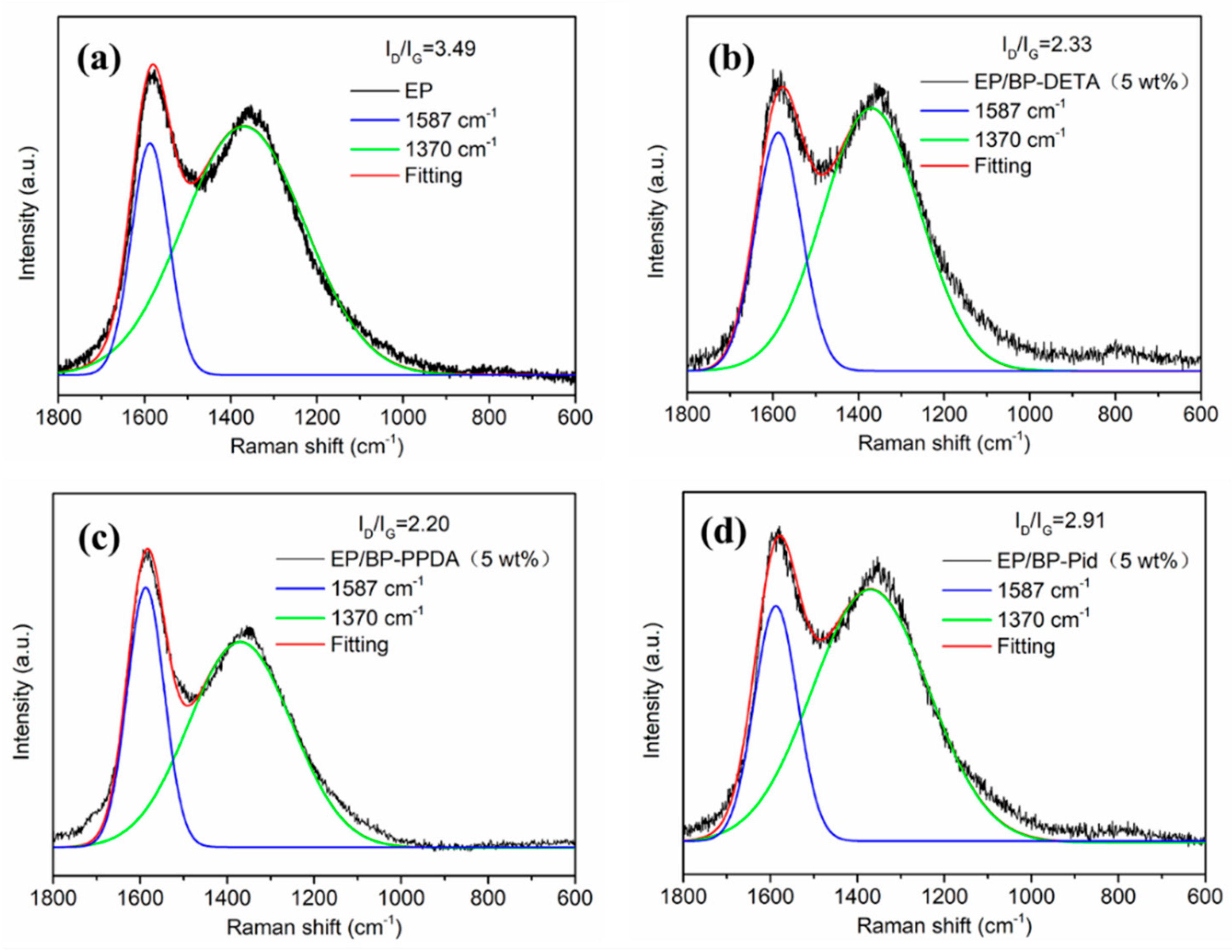

Figure 9. Raman spectra of the char residues of (a) pure EP, (b) EP/BP-DETA (5 wt%), (c) EP/BP-PPDA (5 wt%) and (d) EP/BP-Pid (5 wt%).
Figure 9. Raman spectra of the char residues of (a) pure EP, (b) EP/BP-DETA (5 wt%), (c) EP/BP-PPDA (5 wt%) and (d) EP/BP-Pid (5 wt%).
Polymers 13 03635 g009
Polymers 13 03635 g010 550

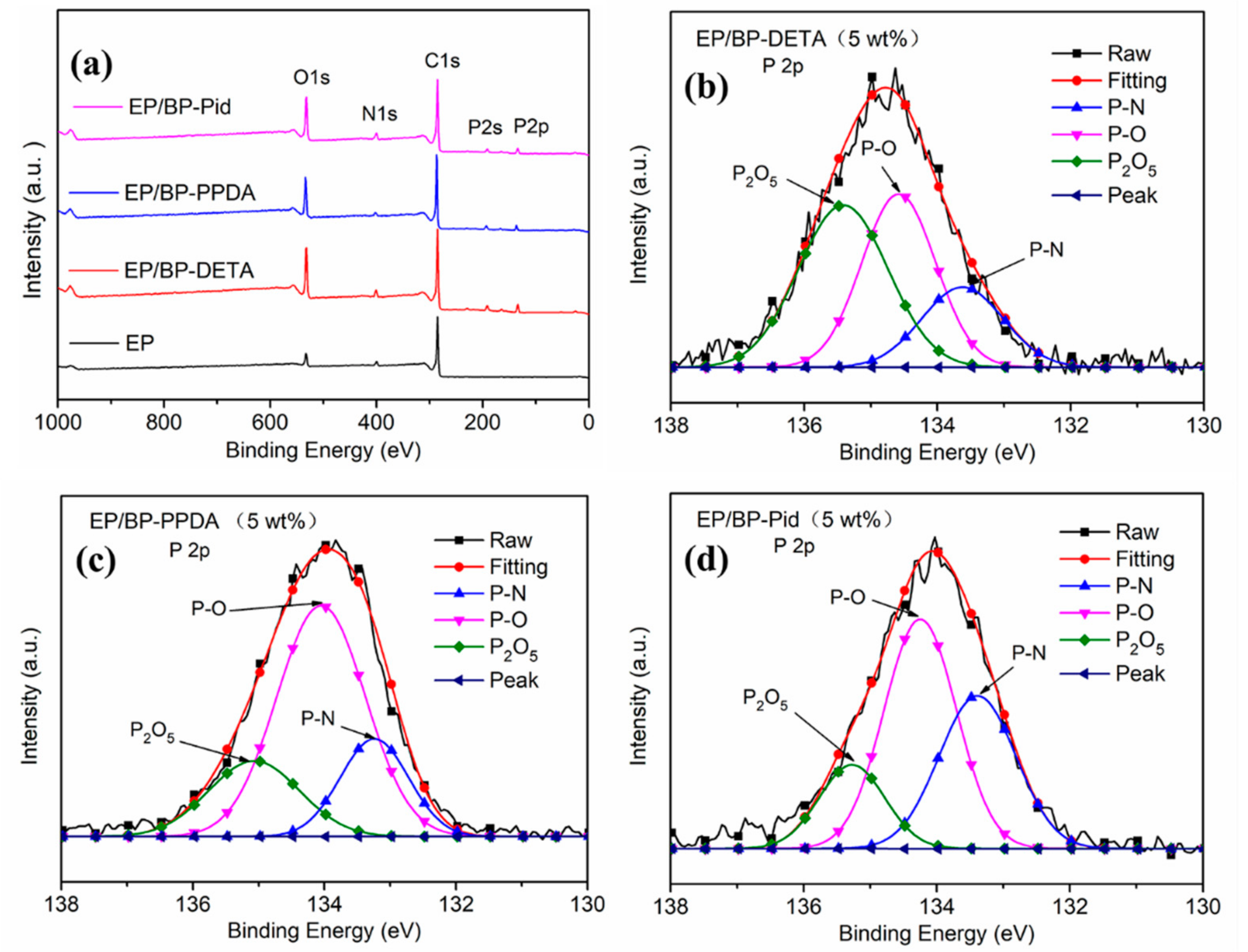

Figure 10. (a) XPS survey spectra of the residual char for pure EP and EP/BP-NH2 nanocomposites after cone tests; high-resolution P2p XPS spectra of (b) EP/BP-DETA (5 wt%), (c) EP/BP-PPDA (5 wt%), and (d) EP/BP-Pid (5 wt%).
Figure 10. (a) XPS survey spectra of the residual char for pure EP and EP/BP-NH2 nanocomposites after cone tests; high-resolution P2p XPS spectra of (b) EP/BP-DETA (5 wt%), (c) EP/BP-PPDA (5 wt%), and (d) EP/BP-Pid (5 wt%).
Polymers 13 03635 g010
Polymers 13 03635 g011 550

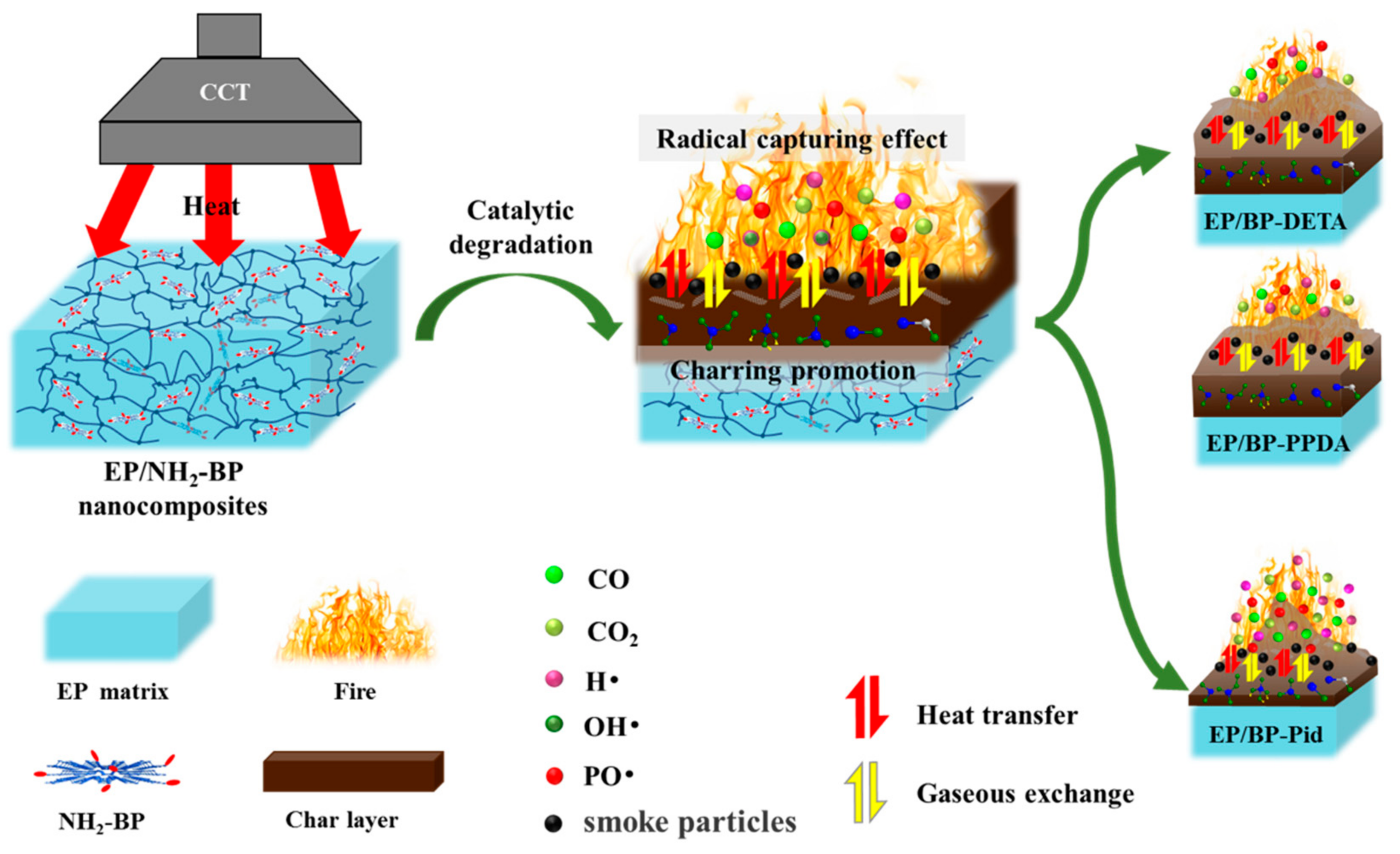

Figure 11. Flame-retardant mechanism of BP-NH2 in EP.
Figure 11. Flame-retardant mechanism of BP-NH2 in EP.
Polymers 13 03635 g011
Table
Table 1. TGA data of pure EP, EP/BP-NH2 under N2 and air.
Table 1. TGA data of pure EP, EP/BP-NH2 under N2 and air.
SampleT5% a
(°C)		Tmax1 b
(°C)		Tmax2 c
(°C)		Residue
(800 °C, %)
N2AirN2AirAirN2Air
39138542541158812.80.9
34934237436573925.53.8
34333936336673925.26.0
33933337136374723.73.1
Note: The 5% in the sample names meant the weight percentage. a T5% meant the temperature when the weight loss was 5%. b Tmax1 meant the first peak T at maximum decomposition rate. c Tmax2 meant the second peak T at the maximum decomposition rate.
Table
Table 2. LOI and UL-94 vertical burning test data of pure EP and its nanocomposites.
Table 2. LOI and UL-94 vertical burning test data of pure EP and its nanocomposites.
SampleLOI (%)UL 94
t 1 ¯ t 2 ¯   ( s ) Rating
EP19.8>30>60NR
EP/BP-DETA (1 wt%)26.1>30>60NR
EP/BP-DETA (3 wt%)28.27.311.8V 1
EP/BP-DETA (5 wt%)30.11.83.6V 0
EP/BP-PPDA (1 wt%)27.9>30>60NR
EP/BP-PPDA (3 wt%)30.12.010.6V 1
EP/BP-PPDA (5 wt%)32.31.61.8V 0
EP/BP-Pid (1 wt%)26.2>30>60NR
EP/BP-Pid (3 wt%)27.815.042.3NR
EP/BP-Pid (5 wt%)31.93.04.8V 0
t 1 ¯ and t 2 ¯ were the remaining flame times after the first and second ignition respectively, and the ignition time was 10 s each time.
Table
Table 3. The data from the cone calorimeter test of pure EP and EP/BP-NH2 nanocomposites at a heat flux of 50 kW/m2.
Table 3. The data from the cone calorimeter test of pure EP and EP/BP-NH2 nanocomposites at a heat flux of 50 kW/m2.
SampleTTI a
(s)		TPHRR b
(s)		PHRR c
(kW/m2)		FIGRA
(kW/m2/s)		THR d
(MJ/m2)		av-EHC e
(kJ/kg)		TSP f
(m2)		Residue
(wt %)
EP4084112013.397.315.238.99.2
EP/BP-DETA (5 wt%)401176055.251.613.523.035.1 (↑73.8%)
EP/BP-PPDA (5 wt%)371146745.947.013.220.231.3 (↑70.6%)
EP/BP-Pid (5 wt%)381119918.956.012.424.218.7 (↑50.8%)
a TTI was time to ignition. b TPHRR time to the PHRR. c PHRR was peak of heat release rate. d THR was total heat release. e av-EHC meant average effective heat of combustion (between 40 and 300 s). f TSP meant the total smoke production.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lin, S.; Tao, B.; Zhao, X.; Chen, G.; Wang, D.-Y. Surface Functionalization of Black Phosphorus via Amine Compounds and Its Impacts on the Flame Retardancy and Thermal Decomposition Behaviors of Epoxy Resin. Polymers 2021, 13, 3635. https://doi.org/10.3390/polym13213635

AMA Style

Lin S, Tao B, Zhao X, Chen G, Wang D-Y. Surface Functionalization of Black Phosphorus via Amine Compounds and Its Impacts on the Flame Retardancy and Thermal Decomposition Behaviors of Epoxy Resin. Polymers. 2021; 13(21):3635. https://doi.org/10.3390/polym13213635

Chicago/Turabian Style

Lin, Shaoling, Boqing Tao, Xiaomin Zhao, Guohua Chen, and De-Yi Wang. 2021. "Surface Functionalization of Black Phosphorus via Amine Compounds and Its Impacts on the Flame Retardancy and Thermal Decomposition Behaviors of Epoxy Resin" Polymers 13, no. 21: 3635. https://doi.org/10.3390/polym13213635

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
