Article

NH2-MIL-125-Derived N-Doped TiO2@C Visible Light Catalyst for Wastewater Treatment

by
Wenbin Wang
1,2,†,
Wei Qiang
1,†,
Chuntao Chen
1 and
Dongping Sun
1,*
1
Institute of Chemicobiology and Functional Materials, School of Chemistry and Chemical Engineering, Nanjing University of Science and Technology, Nanjing 210094, China
2
Guizhou Panjiang Civil Explosion Co., Ltd., Guiyang 551404, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Polymers 2024, 16(2), 186; https://doi.org/10.3390/polym16020186
Submission received: 3 December 2023 / Revised: 5 January 2024 / Accepted: 5 January 2024 / Published: 8 January 2024
(This article belongs to the Special Issue Advanced Polymers for Wastewater Treatment and Toxicant Removal)
Browse Figures
Versions Notes

Abstract

:
The utilization of titanium dioxide (TiO2) as a photocatalyst for the treatment of wastewater has attracted significant attention in the environmental field. Herein, we prepared an NH2-MIL-125-derived N-doped TiO2@C Visible Light Catalyst through an in situ calcination method. The nitrogen element in the organic connector was released through calcination, simultaneously doping into the sample, thereby enhancing its spectral response to cover the visible region. The as-prepared N-doped TiO2@C catalyst exhibited a preserved cage structure even after calcination, thereby alleviating the optical shielding effect and further augmenting its photocatalytic performance by increasing the reaction sites between the catalyst and pollutants. The calcination time of the N-doped TiO2@C-450 °C catalyst was optimized to achieve a balance between the TiO2 content and nitrogen doping level, ensuring efficient degradation rates for basic fuchsin (99.7%), Rhodamine B (89.9%) and tetracycline hydrochloride (93%) within 90 min. Thus, this study presents a feasible strategy for the efficient degradation of pollutants under visible light.

1. Introduction

The 21st century is all about global economic development, but there are some problems that we cannot ignore. One of the common concerns is how to maintain or even improve the quality of water. According to the reports of the United Nations Educational, Scientific and Cultural Organization in the World 2021 Water Resources Development Report, as our society continues to grow, we use more and more fresh water in industry, agriculture and urban life. Since 1980, its usage has been increasing by approximately 1% every year, which exacerbates the issue of water pollution [1]. Around 80% of wastewater is being discharged into the environment without any treatment. This leads to water pollution that causes approximately 2 million deaths worldwide annually and leaves many others suffering from chronic diseases [2]. Therefore, we must consider how we can upgrade our existing methods of treating water to meet the growing demand for wastewater disposal.
The composition of wastewater usually includes organic dye pollution and antibiotic pollution, which are typical troublemakers [3]. Organic dye pollution is mainly caused by industries such as textiles, cosmetics, food and paper. It has a strong color, high toxicity to living things, exhibits excellent resistance to oxidation and is tough to break down naturally. All these factors make it a big threat to our ecosystem [4,5]. Basic fuchsin and Rhodamine B are representative organic dyes. The molecular formula of basic fuchsin is C20H20ClN3. Long-term exposure to basic fuchsin can cause skin cells to become cancerous because its carcinogenic triphenylmethane structure makes it a cationic dye, which is more toxic than anionic dyes. Rhodamine B, with a molecular formula of C28H31ClN2O3, is an alkaline industrial dye that poses direct harm to human health. It belongs to the third class of carcinogens in the list published by the International Agency for Research on Cancer of the World Health Organization (WHO). Antibiotic contamination usually originates from livestock and pharmaceutical industries [6]. It is difficult for animals and humans to fully absorb or transform tetracycline hydrochloride, resulting in over 50% of it being excreted through feces and urine into the environment. As a result, tetracycline hydrochloride can be detected in surface water, groundwater, sediment, soil and even drinking water. This is the main reason for the increase in bacterial resistance among humans. Growing drug resistance leads to higher healthcare costs and makes diseases more challenging to treat. Therefore, the degradation of basic fuchsin, Rhodamine B and tetracycline hydrochloride was studied in this paper’s experiments.
Currently, various technologies are being widely studied to address the challenge of water pollution, including biological methods, adsorption methods, membrane separation and photocatalysis. The biological method decomposes pollutants through the adsorption capacity and metabolic processes of bacteria, fungi, yeast, actinomycetes, algae and other microorganisms. This degradation process is simple and stable but requires strict environmental conditions. If researchers operate improperly or without cautionary measures in place, it can easily lead to secondary pollution; therefore, implementing this method on a large scale is not practical [7]. The adsorption method involves the use of physicochemical interactions between the adsorbent material and the pollutant, resulting in the adsorption of pollutants onto the material. Hani et al. reported the processing of MOFs via the three-dimensional (3D) printing of cellulose MOFs as adsorbents and catalysts for water treatment, and the materials offered the complete (>99%) removal of organic dyes within 10 min toward anionic dyes, e.g., methyl blue (MeB). The reaction conditions are mild and fast, and the adsorbent materials can be reused. However, changes in reaction conditions make it easier for them to be released again [8]. Membrane separation is a novel technology that utilizes selective permeation of membranes to separate pollutants from wastewater, including reverse osmosis, microfiltration, ultrafiltration, nanofiltration and other specific methods. It offers simple and pollution-free operation. However, when the membrane becomes blocked by pollutants, restoring it to its original state using existing cleaning technologies can be challenging. As a result, the treatment efficiency of the membrane continuously decreases, and reusing it becomes difficult. In practical applications, membrane separation is often combined with other techniques to enhance utilization [9]. Therefore, photocatalysis, which uses solar excitation to produce strong oxidizing substances, is an effective and promising means for purifying phenolic water. The photocatalytic performance of TiO2 is affected by the large band gap (3.2 eV of anatase), which can only absorb ultraviolet light, accounting for about 5% of the solar spectrum [10,11,12]. In addition, the rapid recombination of photogenerated electron–hole pairs in the catalytic process also reduces the photoutilization rate of TiO2, resulting in a decrease in the degradation efficiency of organic pollutants [7].
Anatase TiO2 belongs to the tetragonal system. The octahedral unit TiO62− has four edges. The band gap of anatase TiO2 is 3.2 eV, which is higher than that of rutile TiO2 (3.0 eV). Although this means that anatase TiO2 has a narrower range of light absorption, the difference in the conduction band and valence band positions gives the electron–hole pair of anatase TiO2 a greater positive or negative potential, thus possessing a stronger oxidation capacity. After performing theoretical calculations, Georg et al. [13] demonstrated that the surface of anatase TiO2 demonstrates a high adsorption capacity for H2O, O2 and OH−, leading to the increased production of active free radicals during catalytic reactions and enhanced photocatalytic activity. During the crystallization process, anatase TiO2 tends to form small-sized particles with a large specific surface area [14], which is also beneficial for the photocatalytic reaction [15].
Metal–organic frameworks (MOFs) are materials that consist of a self-assembled metal–organic skeleton formed by clusters of metal ions and organic ligands [16]. NH2-MIL-125 is a type of MOF that has a large specific surface area and pore volume, and it can facilitate transmission and diffusion and expose as many active sites as possible [17]. The porous structure of NH2-MIL-125 allows for a shorter distance for charge carrier transfer, effectively separating photogenerated electron pairs [18]. Furthermore, the large, interconnected 3D open cavities in NH2-MIL-125 facilitate easy penetration of light, effectively reducing light shielding [19]. The catalyst prepared using NH2-MIL-125 as the template combines TiO2 with a carbon matrix, which not only maintains the morphological advantage of the MOF but also limits the aggregation of TiO2 nanocrystals and improves the electrical conductivity of the TiO2@C composite [20,21,22,23,24].
In this work, NH2-MIL-125 was used as a template to synthesize N-doped TiO2@C composite catalyst with high photocatalytic efficiency via calcination. TiO2 grew in situ with titanium elements in NH2-MIL-125 as the core, and the carbon skeleton of NH2-MIL-125 as a template still existed after calcination. The structure of N/TiO2@C catalytic materials was characterized using XRD, SEM, TEM, XPS and other testing methods. The natural and photocatalytic properties of N-doped TiO2@C composites were evaluated.

2. Materials and Methods

2.1. Materials

2-amino-terephthalic acid (99%) was bought from Beijing Bailingwei Technology Co., Ltd., Beijing, China. Dimethylformamide (99.9%) was bought from Aladdin Chemical Co., Ltd., Shanghai, China. Methanol (99.9%) was bought from Jinan Century Tongda Co., Ltd., Jinan, Chian. Isopropyl titanate (95%) was obtained from Syntechem Co., Ltd., Guangzhou, China.

2.2. Preparation of NH2-MIL-125

NH2-MIL-125 was prepared through a hydrothermal reaction. An amount of 1 g of 2-amino-terephthalic acid was added to a mixture of 18 mL of dimethylformamide and 2 mL of methanol. The mixture was stirred and subjected to ultrasonication for 5 min, followed by the addition of 1.2 mL of isopropyl titanate. After stirring and ultrasonication for 5 min, it was transferred to a Teflon autoclave with a volume capacity of 50 mL for heat treatment at 150 °C for 15 h. The resulting yellow powder was collected, centrifuged, washed three times each with dimethylformamide/ethanol and subsequently dried under vacuum conditions at 50 °C for 20 h.

2.3. Preparation of N-Doped TiO2@C Nanomaterials

N-doped TiO2@C was prepared via the one-step pyrolysis method. A porcelain boat containing 500 mg of NH2-MIL-125 powder was positioned at the center of a high-temperature tubular furnace for air-based heat treatment. The tubular furnace operated with a heating rate set to 2 °C·min−1 within a target temperature range spanning from 200 °C to 550 °C while maintaining the desired temperature for two hours. Following the completion of the reaction, we retrieved the resulting powder.

2.4. Characterization

Chemical groups within samples were investigated using a Nicolet IS 20 FTIR spectrometer (Thermo Fisher, Waltham, MA, USA) in the range of 4000–500 cm−1. The X-ray diffraction (XRD) of samples was conducted with an X-ray diffractometer (D8 Advance Bruker, Berlin, Germany). The morphological structure of the cryogels was observed with a JSM-IT500HR scanning electron microscope (SEM) and a transmission electron microscope (TEM) (JEM-2100, JEOL, Kyoto, Japan). The Brunauer–Emmett–Teller (BET) surface area and pore size were tested via nitrogen adsorption and desorption at 77 K with an ASAP automated micromeritics system. The elemental composition of samples was measured via X-ray photoelectron spectroscopy (PHI QUANTERA II, Ulvac-Phi, Kanagawa, Japan). Thermogravimetric analysis (TGA, METTLER TOLEDO TGA/SDTA851) was carried out at a constant heating rate of 10 °C min−1 from 50 °C to 700 °C under a nitrogen atmosphere. The optical performance of the samples was conducted on a UV-3600 spectrophotometer (Shimadzu, Kyoto, Japan). The electrochemical tests, including the electrochemical impedance (EIS), transient photocurrent and Mott–Schottky (M–S), were pictured with an electrochemical workstation (RST5200F, Restile, Gujarat, India). The response of hydroxyl radicals was tested with an electron paramagnetic resonance (EPR) spectrometer (EMXPLUS, Bruker). The contents of C, N and H in the resultant cellulose samples were determined with a Eurovector EA 3000 elemental analyzer in CHN mode.

2.5. Photocatalytic Performance Measurements

Visible light irradiation (more than 400 nm) degraded the basic fuchsin, Rhodamine B and tetracycline hydrochloride, and the photocatalytic properties of various catalysts were studied. All photocatalytic experiments were repeated three times. A 300 W xenon lamp with a filter was used to simulate AM 1.5 G lighting (100 mW/cm2) as a light source. The circulating water flow in the reactor ensures that the photocatalytic reaction takes place at room temperature. During the degradation process, 20 mg of each photocatalyst was separately dispersed into 30 mL of basic fuchsin, Rhodamine B and tetracycline hydrochloride at a concentration of 15 mg/L. The mixture was subsequently stirred in darkness for 60 min to achieve adsorption–desorption equilibrium. During irradiation, the samples were regularly extracted and filtered using a 0.45 μm PTFE needle filter. The resulting solution was measured for absorbance at wavelengths of 546 nm, 554 nm and 370 nm utilizing an ultraviolet–visible spectrophotometer. After degradation, the catalyst underwent recovery through filtration before being washed with deionized water and ethanol. Subsequently, it was dried under vacuum conditions at a temperature of 60 °C for twenty hours. Finally, the treated catalyst could undergo multiple tests to evaluate its stability.

3. Results

3.1. Synthesis and Characterization of N-Doped TiO2@C

The overall fabrication of the N-doped TiO2@C composite is schematically illustrated in Figure 1a. In order to explore the crystal structure of the sample prepared in the experiment, X-ray diffraction (XRD) tests were first conducted. NH2-MIL-125 samples show typical diffraction peaks at 6.67°, 9.62°, 11.48°, 14.90°, 16.50°, 17.89° and 19.42°. The outcomes indicated that the synthesis of NH2-MIL-125 was successful and that the produced MOF exhibited acceptable crystallinity. N-doped TiO2@C-450 °C was obtained via the calcination of NH2-MIL-125, and the characteristic peak of NH2-MIL-125 totally vanished during the process. The XRD pattern of N-doped TiO2@C-450 °C was compared with the standard diffraction card of acanite TiO2 (JCPDSNo.21−1272). It was found that peaks of 25.06°, 38.10°, 47.89°, 53.70° and 61.46° corresponded to the (101), (004), (200), (105) and (204) planes of anatase, respectively. The results show that the pyrolysis of NH2-MIL-125 to produce anatase TiO2 was successful. In addition, the XRD characterization of N-doped TiO2@C was significantly different from different calcination temperatures (Figure 1b,c). The calcination temperature of N-doped TiO2@C-250 °C was too low, which caused insufficient pyrolysis. The characteristic peaks of NH2-MIL-125 can still be seen at 6.63°, 9.65° and 11.64°, but the peak intensity was reduced significantly. This may have been due to the partial disintegration and recombination of the NH2-MIL-125 structure. When the temperature of the calcination reached 350 °C, only a carbon sheath peaked at 13.19°, and no TiO2-related peak pattern was visible, indicating that the NH2-MIL-125 structure was totally broken down. TiO2 had not yet formed crystals, and the carbon element that was liberated during the calcination was doped into the compound. The distinctive peak of anatase TiO2 was clearly seen when the temperature hit 450 °C. Following that, the intensity of the anatase TiO2 characteristic peak no longer varied considerably with the rise in calcination temperature, but the crystallinity of TiO2 was more excellent.
From the SEM images, the prepared NH2-MIL-125 showed a circular flake shape with an average diameter of about 422 nm (Figure 1d). In N-doped TiO2@C-450 °C, the thickness of TiO2-like circular tablets was about 50 nm, and the diameter was about 140 nm. The sample had a thickness of around 60 nm and a diameter of about 370 nm for N-doped TiO2@C-350 °C. And for the N-doped TiO2@C-250 °C sample, its thickness was around 70 nm, and its diameter was about 450 nm. It is evident that, as the calcination temperature rose, the average particle size of the sample particles shrank to some extent while maintaining its round pill shape. This might have been because, as the calcination temperature rose, the network structure of NH2-MIL-125 gradually lost its capacity to crystallize, and the organic molecules in the skeleton broke down.
The shape and crystal structure of N-doped TiO2@C-450 °C composites were obtained via TEM. The observation of amorphous carbon shows that a large amount of TiO2 was distributed in the carbon matrix and finally formed the TiO2@C composite. The sample obtained after calcination still maintained a porous structure, as seen by the presence of TiO2 nanoparticles and pores (Figure 1e,f). This porous construction can increase photocatalytic efficiency by exposing as many active sites as feasible while also facilitating the transmission and diffusion of electrons during catalysis. In the adsorption experiment, more investigation into the porous structure was conducted on N/TiO2@C-450 °C, on which a lattice spacing of 0.351 nm was found, compatible with the lattice spacing of the crystal planes of anatase TiO2 (101) (Figure 1g). From TEM observations, the diameter of the N-doped TiO2@C-450 °C was approximately 289 nm (Figure 1g). On N-doped TiO2@C-450 °C, a lattice spacing of 0.351 nm was found, which was compatible with the lattice spacing of the crystal planes of anatase TiO2 (101) (Figure 1h). Titanium, oxygen, carbon and nitrogen were all further confirmed by the element mapping (Figure 1i,j). It is evident that, on N-doped TiO2@C-450 °C, the distribution of titanium, oxygen, carbon and nitrogen was quite uniform. It can be argued that, during calcination, the nitrogen element contained in the organic ligand 2-amino-terephtharic acid was released and then doped into the sample. The titanium element in NH2-MIL-125 was grown in situ to form TiO2, which was uniformly dispersed in the porous carbon skeleton, and ultimately, the nitrogen-doped TiO2@C was successfully formed.
The elemental composition and valence information of N-doped TiO2@C were subsequently examined using X-ray photoelectron spectroscopy (XPS), which was utilized to test the material composition (Figure 2a,b). When the temperature was too high, all nitrogen was released and was no longer doped into the TiO2@C composite, and the peak value of carbon and nitrogen decreased with the increase in calcination temperature. When the temperature reached 550 °C, the peak of nitrogen was close to zero. However, the proper calcination temperature was crucial, as the XRD pattern analysis showed that anatase TiO2 was difficult to produce or had poor crystallinity at too low temperatures. A calcination temperature of 450 °C could be used as the equilibrium temperature between nitrogen doping and TiO2 crystallinity. Three peaks at 532.0 eV, 530.9 eV and 528.9 eV, which are associated with the C-O bond, C=O bond and Ti-O bond, respectively, can be seen in the XPS spectra of O 1s (Figure 2c). The surface hydroxyl oxygen, which is essential for the photodegradation of contaminants, was responsible for the development of the C-O bond. To fight contaminants, the hydroxyl radical OH• could be created when it interacted with photogenic holes. N 1s (Figure 2d) displayed a broad peak between 398.4 and 399.4 eV. It is consistent with other results and typical Ti-N structures in nitrogen-doped TiO2 [25]. The C=C peaks (Figure 2e) at 288.2 eV, 286.4 eV, 285.6 eV and 284.2 eV correspond to C=O, C-O, C-N and C=C, respectively. For pure anatase TiO2, Ti-O peaks were located at 458.5 eV and 464.5 eV. The Ti 2p peaks for N-doped TiO2@C-450 °C were 457.5 eV and 463.5 eV, which is a 6.0 eV energy split. The peaks of Ti 2p shown in Figure 2f centered at about 463.2 eV and 457.5 eV belonged to Ti 2p3/2 and Ti 2p1/2, respectively, which confirm the Ti4+ species in the form of TiO2 nanoparticles. The Ti 2p peak for N-doped TiO2@C-450 °C was slightly shifted toward a lower binding energy when compared to pure anatase TiO2, which was brought on by nitrogen doping altering the local chemical environment of titanium ions. The successful doping of nitrogen into TiO2@C, as shown by the test findings from XPS, has positive implications for reducing the band gap width of TiO2 and increasing its visible light activity. We also tested the relative amount of C and N in the sample with an elemental analyzer. The content of nitrogen decreased with the increase in heat treatment temperature. A ratio as high as 0.12% N/C was obtained for the heat treatment of 450 °C.
The nitrogen adsorption–desorption isotherm samples for N-doped TiO2@C-450 °C (Figure 2g) exhibited the conventional type IV isotherm and type H3 hysteresis loop. The pore size distribution was calculated using the nonlocal density function model (NLDFT) based on data from N2 adsorption (Figure 2h). N-doped TiO2@C-450 °C has a specific surface area of 63 m2/g, which is significantly less than that of NH2-MIL-125 but still significantly larger than that of other TiO2 catalysts. Therefore, basic fuchsin, rhodamine B and tetracycline hydrochloride can be degraded at more active sites thanks to the large specific surface area of N-doped TiO2@C-450 °C.
BET data need to be interpreted in combination with thermogravimetric curves (Figure 2g,h, Table 1). The specific surface area of the samples decreased, and the average pore size increased with increasing roasting temperatures, but for different reasons. The sample changed at about 200 °C as a result of the elimination of any remaining solvent. When the temperature reached 350 °C, the porous structure collapsed, and the crystal skeleton began to disintegrate, greatly reducing the specific surface area. The decomposition of the crystal skeleton and the collapse of the porous structure made the specific surface area decrease sharply. When the calcination temperature was further increased to 450 °C, the BET data changed due to the recrystallization of TiO2 and the formation of pyrolytic carbon substrates. However, the skeleton shrank significantly once more at 550 °C, and the specific surface area dropped to 13 m2/g, making it difficult for contaminants and the catalyst to make contact. Therefore, by adjusting the calcination temperature, the N-doped TiO2@C catalyst with the best photocatalytic effect was created at 450 °C.

3.2. Photocatalytic Degradation of N-Doped TiO2@C

The light absorption capacity of N-doped TiO2@C composites was investigated via a UV–Vis absorption test (Figure 3a). NH2-MIL-125 was yellow, as already described. The sample’s color continued to deepen as the calcination temperature rose due to the breakdown of the crystal skeleton and the collapse of the porous structure. The sample’s hue changed to brown at 350 °C, when it exhibited the best ability to absorb visible light. As the calcination temperature increased after 350 °C, TiO2 crystals started to form, and the sample’s color lightened. The sample was nearly white at 550 °C, and visible light could no longer be absorbed. We know that P25, the white commercial-grade TiO2, has poor absorption capabilities for visible light. The optimal catalyst for the best visible light absorption performance at 400–800 nm should be N-doped TiO2@C-350 °C. However, the photocatalytic activity of N-doped TiO2@C-350 °C was subpar due to the absence of TiO2 crystals. The most acceptable visible light catalyst, according to a thorough comparison between the sample’s photoabsorption capacity and TiO2 content, was N-doped TiO2@C-450 °C.
Compared with P25, the as-prepared N-doped TiO2@C-450 °C sample had a wider absorption range, which was because nitrogen in the organic connector was released and doped into the sample during calcination, which reduced the wide band gap of TiO2 and caused the light absorption range to shift to the visible region. The prohibited band spectra (Figure 3b) and valence band spectra (Figure 3c) of N-doped TiO2@C-450 °C can be used to compute the energies of the valence band, conduction band and band gap, which were −0.95 eV, 1.75 eV and 2.7 eV, respectively. The N-doped TiO2@C0-450 °C band gap created in this work was narrower than that of anatase TiO2, which had a band gap energy of 3.22 eV, making it more suitable for light absorption and photocatalytic processes.
Under xenon lamp illumination, the photocatalytic activity of N-doped TiO2@C composites was assessed using dealkalized fuchsin, Rhodamine B and tetracycline hydrochloride. These three contaminants all degraded in a very similar way. Only NH2-MIL-125 was capable of decomposing basic fuchsin (Figure 3d), lowering the pollutant concentration to 65%. This was because NH2-MIL-125 can carry out a certain amount of physical adsorption due to its large specific surface area and micropore structure. The capability for deterioration varied significantly among N-doped TiO2@C samples. At 350 °C, N-doped TiO2@C exhibited the lowest degradation ability compared to other catalysts. N-doped TiO2@C-350 °C showed the worst degradation ability, and 70% of basic fuchsin remained in the solution after degradation, even less than that of NH2-MIL-125’s adsorption effect. This was mainly due to two reasons. First, TiO2 does not form at this temperature and prevents photocatalytic reactions; second, at 350 °C, NH2-MIL-125 undergoes significant pyrolysis that rapidly changes its skeletal structure and reduces specific surface area sharply. Moreover, there was an overall increase in pore size, resulting in mesoporous pores and causing a decline in its adsorption effectiveness. Degradation of 99.7% of basic fuchsin with N-doped TiO2@C-450 °C was the highest among all samples within 90 min. However, anatase TiO2 obtained via the high-temperature heat treatment at 550 °C had the highest content and the best crystal form. However, the above characterization results indicate that the high-temperature heat treatment was not conducive to nitrogen doping and reduced the utilization efficiency of visible light. Consequently, the degradation efficiency of basic fuchsin was not as good as that achieved with N-doped TiO2@C-450 °C.
The degradation of Rhodamine B and tetracycline hydrochloride exhibited similar trends in the above samples (Figure 3e,f). NH2-MIL-125 achieved a 73% reduction in the content of Rhodamine B through physical adsorption. Among the tested catalysts, N-doped TiO2@C-350 °C demonstrated the lowest degradation efficiency with only 23% of pollutants being degraded, whereas N-doped TiO2@C-450 °C exhibited the highest degradation effect by degrading 89.9% of Rhodamine B within 90 min. Physical adsorption by NH2-MIL-125 resulted in a decrease in the content of tetracycline hydrochloride to 68%. Similarly, N-doped TiO2@C-350 °C showed inferior performance with only a 26% degradation rate for pollutants, whereas N-doped TiO2@C-450 °C displayed superior degradation capability by achieving a remarkable removal rate of 93% for tetracycline hydrochloride within the same time frame (Figure 3g). In Table 2, we summarize the recent works on the degradation performance of TiO2 composites against tetracycline. In comparison, our materials show outstanding catalytic properties [26].
Under xenon lamp irradiation, we used a photocurrent test to investigate the phenomenon of photogenerated carrier transport in samples. The photocurrent intensity of all N-doped TiO2@C samples was relatively high, indicating a slow photogenerated carrier recombination rate (Figure 3h). This was mainly because TiO2 was combined with the carbon matrix, and the porous structure of the carbon skeleton shortened the carrier transfer distance so that the photogenerated electron pairs could be effectively separated. In addition, the large specific surface area of the carbon skeleton exposed more active sites, making carrier transmission and diffusion more convenient. In short, the combination of carbon skeletons and TiO2 enhanced the photocurrent intensity of the composite compared with commercial-grade TiO2 P25. It is well known that the higher the photocurrent density, the better the ability to separate photogenerated electrons and holes. Therefore, compared with P25, N-doped TiO2@C improves carrier separation efficiency and inhibits photogenerated carrier recombination. To confirm this, we further studied the resistance of interfacial charge conversion via electrochemical impedance spectroscopy. As shown in Figure 3i, the radii of all N-doped TiO2@C composites were small, indicating that the N-doped TiO2@C catalyst had higher interfacial charge separation efficiency and better electrical conductivity, which is similar to the trend in the photocurrent response test results. The charge transfer resistance (Rct) of N-doped TiO2@C in an equivalent circuit was smaller than that of pure TiO2 [36], which further confirms the favored interfacial charge transfer.
In summary, the optimal balance between anatase TiO2 formation and nitrogen doping was achieved when the calcination temperature reached 450 °C, and N-doped TiO2@C-450 °C exhibited the highest photocatalytic capacity.
Tetracycline hydrochloride was used as an example to investigate the stability and reusability of the N-doped TiO2@C-450 °C catalyst. The same sample was employed for five consecutive degradation cycles under identical conditions (Figure 4a). No significant changes were observed after five cycles, although the degradation capacity decreased from 93% to 81%. This decrease in degradation capacity was primarily attributed to the blockage of mesoporous channels in N-doped TiO2@C-450 °C by pollutants over prolonged reaction times, making it challenging to effectively clean and negatively impacting the recyclability of the catalyst. Additionally, the inevitable loss of the photocatalyst during repeated use also resulted in a decrease in degradation efficiency. Moreover, a comparison of SEM images, XRD spectra and XPS spectra (Figure 4b–d) before and after the reaction revealed that there was no significant change in the structure, morphology characteristics and chemical composition of N-doped TiO2@C-450 °C before and after testing. N-doped TiO2@C-450 °C exhibited excellent photocatalytic ability, stability and reusability; it has great potential as a visible photocatalyst for various types of pollutants.

3.3. Photocatalytic Mechanism

The photocatalytic mechanism of N-doped TiO2@C-450 °C nanomaterials during visible light degradation was investigated by conducting multiple trapping experiments using tetracycline hydrochloride as an example. Three additional trapping reagents were added to the reaction solution, among which ammonium oxalate (AO) was used to trap e−, benzoquinone (BQ) was used to trap O2•− and isopropyl alcohol (IPA) was used to trap OH• (Figure 5a). The addition of each trapping agent affected the degradation rate of tetracycline hydrochloride, among which isopropyl alcohol had the most prominent inhibitory effect among all trapping agents. The degradation efficiency of N-doped TiO2@C-450 °C was reduced significantly to 71% after the addition of isopropyl alcohol, indicating that OH• plays a leading role in the degradation reaction of tetracycline hydrochloride under visible light irradiation. In addition, the addition of ammonium oxalate and benzoquinone (BQ) also had a certain effect on the degradation rate, suggesting that e− and O2•− were also involved in the process but did not play a major role. In conclusion, OH• was produced by the N-doped TiO2@C-450 °C catalyst during the photocatalysis process, which enhanced the oxidation capacity of the active substance and improved its ability to degrade tetracycline hydrochloride greatly.
A DMPO trapping agent was added to the photocatalytic reaction system to detect active free radicals via EPR. Therefore, electron paramagnetic resonance spectroscopy was used to detect the signals of OH• radicals generated by N-doped TiO2@C-350 °C, N-doped TiO2@C-450 °C and N-doped TiO2@C-550 °C under visible light irradiation (Figure 5b). Obviously, regardless of dark or light conditions, N-doped TiO2@C-350 °C OH showed almost no occurrence of free radicals, and this was because the TiO2 of N-doped TiO2@C-350 °C had not formed. For N-doped TiO2@C-450 °C and N-doped TiO2@C-550 °C, almost no OH• free radicals increased. This indicates that the photogenerated electrons on anatase TiO2 were transferred rapidly through the carbon skeleton, resulting in the production of a large number of OH• free radicals. N-doped TiO2@C-450 °C exhibited the highest number of OH• free radicals due to nitrogen doping, which enhanced the sample’s utilization rate of visible light. This phenomenon further confirms the excellent photocatalytic effect of nitrogen-doped TiO2 supported by a carbon skeleton, which can serve as photosensitizer to absorb visible light and help to promote charge carriers’ separation through cooperation with bulk/surface defects of TiO2 [37,38].
Based on the test results and analysis mentioned above, a possible photocatalytic reaction mechanism of N-doped TiO2@C-450 °C can be proposed (Figure 5c). Under visible light irradiation, nitrogen-doped TiO2 nanoparticles can efficiently produce charge carriers. At this stage, the unique porous structure of N-doped TiO2@C-450 °C provides additional pathways for the movement of charge carriers, facilitating the easy transfer of electrons to the carbon framework and effectively separating photogenerated electrons and holes. During the degradation process, O2•− free radicals are generated through reactions between electrons enriched on the carbon framework with H2O and O2. It can be found that the REDOX potential of N-doped TiO2@C CB positions is more negative than that of O2/•O2−, and the REDOX potential of VB positions is more positive than that of OH−/•OH, thus contributing to the generation of reactive oxygen species under photoexcitation [39,40].

4. Conclusions

In summary, we successfully synthesized a N-doped TiO2@C composite material through NH2-MIL-125 template-assisted calcination. Supported by the NH2-MIL-125 carbon framework, the catalyst exhibited a significantly enhanced specific surface area of 63 m2/g, thereby facilitating an increased number of active sites for both the catalyst and reactant. The mesoporous structure (3.5 nm) of NH2-MIL-125 facilitated enhanced light penetration, thereby reducing the occurrence of light shielding. Element mapping confirmed the presence of nitrogen, indicating that nitrogen was released from the organic ligand 2-amino-terephthalic acid and doped into the sample during calcination. Nitrogen doping in anatase shortened its wide band gap of 3.22 eV to 2.7 eV, resulting in a shift in the optical absorption range toward the visible region. As a result, the N-doped TiO2@C catalyst exhibited extended optical absorption capabilities beyond just ultraviolet wavelengths. By carefully controlling the calcination temperature, we successfully synthesized various N-doped TiO2@C composites. When calcined at 450 °C, the N-doped TiO2@C catalyst achieved a balance between anatase content and nitrogen doping. The resulting N-doped TiO2@C-450 °C composite exhibited outstanding performance in photocatalytic degradation. Under visible light for 90 min, basic fuchsin, Rhodamine B and tetracycline hydrochloride were degraded by 99.7%, 89.9% and 93% respectively. Moreover, the N-doped TiO2@C-450 °C composite demonstrated excellent stability, as evidenced by negligible changes in SEM, XRD and XPS characteristics after five cycles of use; only a slight decrease in tetracycline hydrochloride degradation efficiency from 93% to 81% was observed. Last, we proposed the mechanism of photocatalytic degradation. This study presents a viable strategy for efficient pollution degradation under visible light.

Author Contributions

Conceptualization, C.C.; Methodology, W.W. and W.Q.; Validation, W.W. and W.Q.; Formal analysis, W.Q.; Investigation, W.W.; Resources, W.Q.; Data curation, W.W.; Writing—original draft preparation, W.W.; Writing—review and editing, C.C. and D.S.; Supervision, C.C. and D.S.; Funding acquisition, D.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China, grant numbers 51803092 and 51873087).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

Author Wenbin Wang was employed by Guizhou Panjiang Civil Explosion Co., Ltd. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as potential conflicts of interest.

References

  1. Hannah, D.M.; Abbott, B.W.; Khamis, K.; Kelleher, C.; Lynch, I.; Krause, S.; Ward, A.S. Illuminating the ‘invisible water crisis’ to address global water pollution challenges. Hydrol. Process. 2022, 36, e14525. [Google Scholar] [CrossRef]
  2. Sehar, S.; Rasool, T.; Syed, H.M.; Mir, M.A.; Naz, I.; Rehman, A.; Shah, M.S.; Akhter, M.S.; Mahmood, Q.; Younis, A. Recent advances in biodecolorization and biodegradation of environmental threatening textile finishing dyes. 3 Biotech 2022, 12, 186. [Google Scholar] [CrossRef] [PubMed]
  3. Park, J.; Lee, T.H.; Kim, C.; Lee, S.A.; Choi, M.J.; Kim, H.; Yang, J.W.; Lim, J.; Jang, H.W. Hydrothermally obtained type-II heterojunction nanostructures of In2S3/TiO2 for remarkably enhanced photoelectrochemical water splitting. Appl. Catal. B Environ. 2021, 295, 120276. [Google Scholar] [CrossRef]
  4. Lu, Y.; Zang, Y.; Zhang, H.; Zhang, Y.; Wang, G.; Zhao, H. Meaningful comparison of photocatalytic properties of {001} and {101} faceted anatase TiO2 nanocrystals. Sci. Bull. 2016, 61, 1003–1012. [Google Scholar] [CrossRef]
  5. Tian, J.; Zhao, Z.; Kumar, A.; Boughton, R.I.; Liu, H. Recent progress in design, synthesis, and applications of one-dimensional TiO2 nanostructured surface heterostructures: A review. Chem. Soc. Rev. 2014, 43, 6920–6937. [Google Scholar] [CrossRef]
  6. Wang, J.; Wang, G.; Wang, X.; Wu, Y.; Su, Y.; Tang, H. 3D/2D direct Z-scheme heterojunctions of hierarchical TiO2 microflowers/g-C3N4 nanosheets with enhanced charge carrier separation for photocatalytic H2 evolution. Carbon 2019, 149, 618–626. [Google Scholar] [CrossRef]
  7. Lin, L.; Yang, H.; Xu, X. Effects of water pollution on human health and disease heterogeneity: A review. Surf. Interfaces 2022, 10, 1088. [Google Scholar] [CrossRef]
  8. Abdelhamid, H.N.; Sultan, S.; Mathew, A.P. Binder-free Three-dimensional (3D) printing of Cellulose-ZIF8 (CelloZIF-8) for water treatment and carbon dioxide (CO2) adsorption. Chem. Eng. J. 2023, 468, 143567. [Google Scholar] [CrossRef]
  9. Wang, Z.; Li, Y.; Cheng, Q.; Wang, X.; Wang, J.; Zhang, G. Sb-based photocatalysts for degradation of organic pollutants: A review. J. Clean. Prod. 2022, 367, 133060. [Google Scholar] [CrossRef]
  10. Tobaldi, D.M.; Lajaunie, L.; Rozman, N.; Caetano, A.P.F.; Seabra, M.P.; Škapin, A.S.; Arenal, R.; Labrincha, J.A. Impact of the absolute rutile fraction on TiO2 visible-light absorption and visible-light-promoted photocatalytic activity. J. Photochem. Photobiol. A Chem. 2019, 382, 111940. [Google Scholar] [CrossRef]
  11. Sun, H.; Lu, W.; Zhao, J. Structure and reactivity of aanatase TiO2(001)-(1 × 4) surface. J. Phys. Chem. C 2018, 122, 14528–14536. [Google Scholar] [CrossRef]
  12. Wei, C.; Lin, W.Y.; Zainal, Z.; Williams, N.E.; Zhu, K.; Kruzic, A.P.; Smith, R.L.; Rajeshwar, K. Bactericidal Activity of TiO2 Photocatalyst in Aqueous Media: Toward a Solar-Assisted Water Disinfection System. Environ. Sci. Technol. 1994, 28, 934–938. [Google Scholar] [CrossRef] [PubMed]
  13. Playford, H.Y. Variations in the local structure of nano-sized anatase TiO2. J. Solid State Chem. 2020, 288, 121414. [Google Scholar] [CrossRef]
  14. Kong, X.; Li, J.; Yang, C.; Tang, Q.; Wang, D. Fabrication of Fe2O3/g-C3N4@N-TiO2 photocatalyst nanotube arrays that promote bisphenol A photodegradation under simulated sunlight irradiation. Sep. Purif. Technol. 2020, 248, 116924. [Google Scholar] [CrossRef]
  15. Chen, L.; Zhou, X.; Jin, B.; Luo, J.; Xu, X.; Zhang, L.; Hong, Y. Heterojunctions in g-C3N4/B-TiO2 nanosheets with exposed {001} plane and enhanced visible-light photocatalytic activities. Int. J. Hydrogen Energy 2016, 41, 7292–7300. [Google Scholar] [CrossRef]
  16. Akbari, M.; Ghasemzadeh, M.A.; Fadaeian, M. Synthesis and application of ZIF-8 MOF incorporated in a TiO2@Chitosan nanocomposite as a strong nanocarrier for the drug delivery of acyclovir. ChemistrySelect 2020, 5, 14564–14571. [Google Scholar] [CrossRef]
  17. Yang, X.; Wang, Y.; Hu, Y.; Zhao, H.; Sun, Y.; Hua, K.; Chen, G. Interior supported hierarchical TiO2@Co3O4 derived from MOF-on-MOF architecture with enhanced electrochemical properties for lithium storage. ChemElectroChem 2019, 6, 3657–3666. [Google Scholar] [CrossRef]
  18. Chen, K.; Guo, H.-N.; Li, W.-Q.; Wang, Y.J. MOF-derived core-shell CoP@NC@TiO2 composite as a high-performance anode material for Li-ion batteries. Chem. Asian J. 2021, 16, 322–328. [Google Scholar] [CrossRef]
  19. Wang, Y.; Yu, W.; Geng, F.; Zhao, L.; Wang, Y. TiO2@MOF photocatalyst for the synergetic oxidation of microcystin-LR and reduction of Cr(VI) in a media. Catalysts 2021, 11, 1186. [Google Scholar] [CrossRef]
  20. He, X.; Fang, H.; Gosztola, D.J.; Jiang, Z.; Jena, P.; Wang, W.N. Mechanistic insight into photocatalytic pathways of MIL-100(Fe)/TiO2 composites. ACS Appl. Mater. Interfaces 2019, 11, 12516–12524. [Google Scholar] [CrossRef]
  21. Lee, D.T.; Zhao, J.; Oldham, C.J.; Peterson, G.W.; Parsons, G.N. UiO-66-NH2 Metal–Organic Framework (MOF) nucleation on TiO2, ZnO, and Al2O3 atomic layer deposition-treated polymer fibers: Role of metal oxide on MOF growth and catalytic hydrolysis of chemical warfare agent simulants. ACS Appl. Mater. Interfaces 2017, 9, 44847–44855. [Google Scholar] [CrossRef] [PubMed]
  22. He, K.; Wen, Q.; Wang, C.; Wang, B.; Yu, S.; Hao, C.; Chen, K. Porous TiO2 nanoparticles derived from titanium Metal– Organic Framework and its improved electrorheological performance. Ind. Eng. Chem. Res. 2018, 57, 6888–6896. [Google Scholar] [CrossRef]
  23. Sheng, H.; Chen, D.; Li, N.; Xu, Q.; Li, H.; He, J.; Lu, J. Urchin-inspired TiO2@MIL-101 double-shell hollow particles: Adsorption and highly efficient photocatalytic degradation of hydrogen sulfide. Chem. Mater. 2017, 29, 5612–5616. [Google Scholar] [CrossRef]
  24. Zhou, S.; Guo, J.; Dai, Z.; Liu, C.; Zhao, J.; Gao, Z.; Song, Y.-Y. Engineering homochiral MOFs in TiO2 nanotubes as enantioselective photoelectrochemical electrode for chiral recognition. Anal. Chem. 2021, 93, 12067–12074. [Google Scholar] [CrossRef] [PubMed]
  25. Fu, N.; Ren, X.-C. Synthesis of double-shell hollow TiO2@ZIF-8 nanoparticles with enhanced photocatalytic activities. Front. Chem. 2020, 8, 578847. [Google Scholar] [CrossRef] [PubMed]
  26. Zhao, J.; Wang, B.; Zhao, Y.; Hou, M.; Xin, C.; Li, Q.; Yu, X. High-performance visible-light photocatalysis induced by dye-sensitized Ti3+-TiO2 microspheres. J. Phys. Chem. Solids 2023, 179, 111374. [Google Scholar] [CrossRef]
  27. Bi, R.; Liu, J.; Zhou, C.; Shen, Y.; Liu, Z.; Wang, Z. In situ synthesis of g-C3N4/TiO2 heterojunction by a concentrated absorption process for efficient photocatalytic degradation of tetracycline hydrochloride. Environ. Sci. Pollut. Res. 2023, 30, 55044–55056. [Google Scholar] [CrossRef] [PubMed]
  28. Feizpoor, S.; Habibi-Yangjeh, A.; Luque, R. Preparation of TiO2/Fe-MOF n–n heterojunction photocatalysts for visible-light degradation of tetracycline hydrochloride. Chemosphere 2023, 336, 139101. [Google Scholar] [CrossRef]
  29. Li, Y.; Liu, H.; Hou, C.; Xie, Y.; Wang, L.; Zhang, M. Transformation of titanium-based photocatalyst and its degradation of tetracycline hydrochloride. J. Alloys Compd. 2024, 970, 172644. [Google Scholar] [CrossRef]
  30. Wang, Y.; Fan, H.; Wong, P.K.; Wu, Y.; Rittmann, B. Biodegradation of tetracycline using hybrid material (UCPs-TiO2) coupled with biofilms under visible light. Bioresour. Technol. 2021, 323, 124638. [Google Scholar] [CrossRef]
  31. Wu, S.; Li, X.; Tian, Y.; Lin, Y.; Hu, Y.H. Excellent photocatalytic degradation of tetracycline over black anatase-TiO2 under visible light. Chem. Eng. J. 2021, 406, 126747. [Google Scholar] [CrossRef]
  32. Shi, Y.; Yan, Z.; Xu, Y.; Tian, T.; Zhang, J.; Pang, J.; Peng, X.; Zhang, Q.; Shao, M.; Tan, W.; et al. Visible-light-driven AgBreTiO2-Palygorskite photocatalyst with excellent photocatalytic activity for tetracycline hydrochloride. J. Clean. Prod. 2020, 277, 124021. [Google Scholar] [CrossRef]
  33. Ning, P.; Chen, H.; Pan, J.; Liang, J.; Qin, L.; Chen, D.; Huang, Y. Surface defect-rich g-C3N4/TiO2 Z-scheme heterojunction for efficient photocatalytic antibiotic removal: Rational regulation of free radicals and photocatalytic mechanism. Catal. Sci. Technol. 2020, 10, 8295–8304. [Google Scholar] [CrossRef]
  34. Wang, Y.; Lei, R.B.; Pw, A.; Zs, A.; Lz, A. Photocatalytic activity of N-TiO2/O-doped N vacancy g-C3N4 and the intermediates toxicity evaluation under tetracycline hydrochloride and Cr(VI) coexistence environment. Appl. Catal. B Environ. 2020, 262, 118308. [Google Scholar] [CrossRef]
  35. Zhou, S.; Jiang, L.; Wang, H.; Yang, J.; Yuan, X.; Wang, H.; Liang, J.; Li, X.; Li, H.; Bu, Y. Oxygen Vacancies Modified TiO2/O-Terminated Ti3C2 Composites: Unravelling the Dual Effects between Oxygen Vacancy and High-Work-Function Titanium Carbide. Adv. Funct. Mater. 2023, 33, 2307702. [Google Scholar] [CrossRef]
  36. Biswal, L.; Mishra, B.P.; Das, S.; Acharya, L.; Nayak, S.; Parida, K. Nanoarchitecture of a Ti3C2@TiO2 Hybrid for Photocatalytic Antibiotic Degradation and Hydrogen Evolution: Stability, Kinetics, and Mechanistic Insights. Inorg. Chem. 2023, 62, 7584–7597. [Google Scholar] [CrossRef] [PubMed]
  37. Qu, X.; Lin, J.; Qiang, W.; Chen, C.; Sun, D. Self-doped defect-mediated TiO2 with disordered surface for high-efficiency photodegradation of various pollutants. Chemosphere 2022, 308, 136239. [Google Scholar] [CrossRef] [PubMed]
  38. Liu, J.; Han, L.; An, N.; Xing, L.; Ma, H.; Cheng, L.; Yang, J.; Zhang, Q. Enhanced visible-light photocatalytic activity of carbonate-doped anatase TiO2 based on the electron-withdrawing bidentate carboxylate linkage. Appl. Catal. B Environ. 2017, 202, 642–652. [Google Scholar] [CrossRef]
  39. Imparato, C.; Iervolino, G.; Fantauzzi, M.; Koral, C.; Macyk, W.; Kobielusz, M.; D’Errico, G.; Rea, I.; Di Girolamo, R.; De Stefano, L.; et al. Photocatalytic hydrogen evolution by co-catalyst-free TiO2/C bulk heterostructures synthesized under mild conditions. RSC Adv. 2020, 10, 12519–12534. [Google Scholar] [CrossRef]
  40. Pukdeejorhor, L.; Wannapaiboon, S.; Berger, J.; Rodewald, K.; Thongratkaew, S.; Impeng, S.; Warnan, J.; Bureekaew, S.; Fischer, R.A. Defect engineering in MIL-125-(Ti)-NH2 for enhanced photocatalytic H2 generation. J. Mater. Chem. A 2023, 11, 9143–9151. [Google Scholar] [CrossRef]
Polymers 16 00186 g001
Figure 1. Schematic diagram and characterization of N-doped TiO2@C composite. (a) Fabrication of N-doped TiO2@C composite. (b,c) NH2-MIL-125 and N-doped TiO2@C composites with calcination temperatures of 250 °C, 350 °C, 450 °C and 550 °C. (d) SEM images of NH2-MIL-125 and N-doped TiO2@C composites with calcination temperatures of 250 °C, 350 °C, 450 °C and 550 °C. (e–g) TEM images of N-doped TiO2@C-450 °C. (h) Electron diffraction image of N-doped TiO2@C-450 °C. (i,j) Element mapping of N-doped TiO2@C-450 °C.
Figure 1. Schematic diagram and characterization of N-doped TiO2@C composite. (a) Fabrication of N-doped TiO2@C composite. (b,c) NH2-MIL-125 and N-doped TiO2@C composites with calcination temperatures of 250 °C, 350 °C, 450 °C and 550 °C. (d) SEM images of NH2-MIL-125 and N-doped TiO2@C composites with calcination temperatures of 250 °C, 350 °C, 450 °C and 550 °C. (e–g) TEM images of N-doped TiO2@C-450 °C. (h) Electron diffraction image of N-doped TiO2@C-450 °C. (i,j) Element mapping of N-doped TiO2@C-450 °C.
Polymers 16 00186 g001
Polymers 16 00186 g002

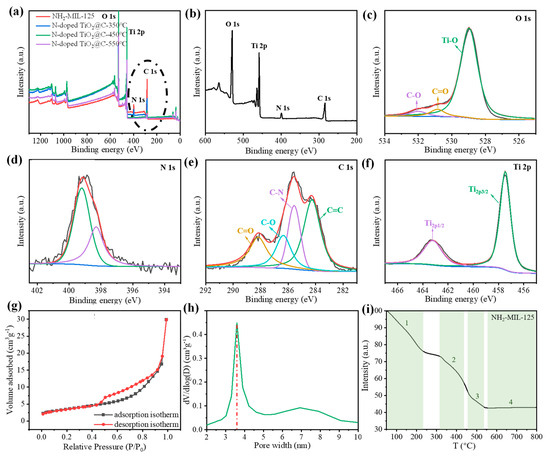

Figure 2. Chemical characterization of the N-doped TiO2@C composites. (a,b) Survey XPS spectra of NH2-MIL-125, N-doped TiO2@C-250 °C, N-doped TiO2@C-350 °C, N-doped TiO2@C-450 °C and N-doped TiO2@C-550 °C. High-resolution XPS spectra of (c) O 1s, (d) N 1s, (e) C 1s and (f) Ti 2p of N-doped TiO2@C-450 °C. (g) N2 adsorption–desorption isotherms of N-doped TiO2@C-450 °C. (h) Pore size distributions of N-doped TiO2@C-450 °C. (i) Thermogravimetric curve of NH2-MIL-125.
Figure 2. Chemical characterization of the N-doped TiO2@C composites. (a,b) Survey XPS spectra of NH2-MIL-125, N-doped TiO2@C-250 °C, N-doped TiO2@C-350 °C, N-doped TiO2@C-450 °C and N-doped TiO2@C-550 °C. High-resolution XPS spectra of (c) O 1s, (d) N 1s, (e) C 1s and (f) Ti 2p of N-doped TiO2@C-450 °C. (g) N2 adsorption–desorption isotherms of N-doped TiO2@C-450 °C. (h) Pore size distributions of N-doped TiO2@C-450 °C. (i) Thermogravimetric curve of NH2-MIL-125.
Polymers 16 00186 g002
Polymers 16 00186 g003

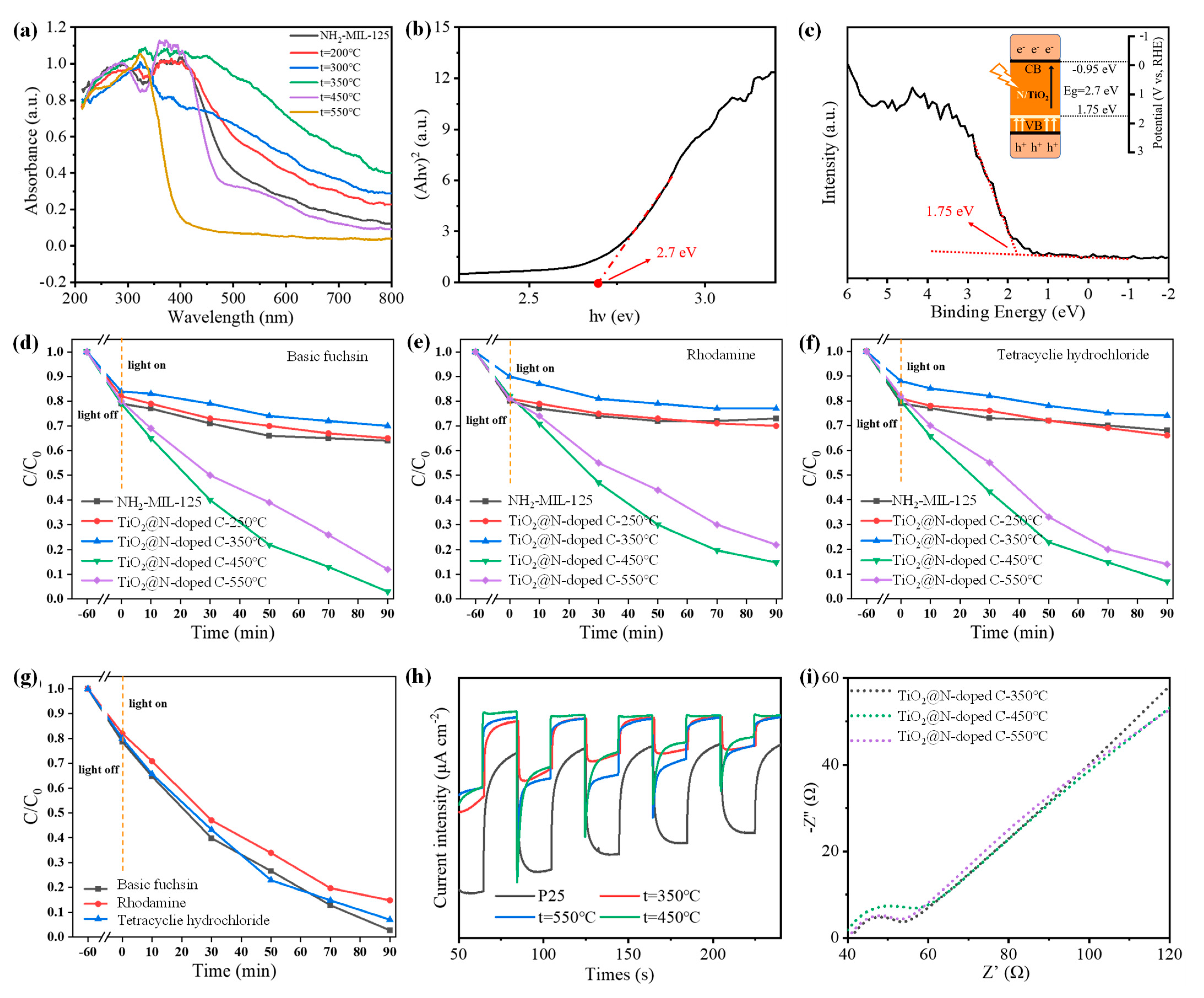

Figure 3. (a) DRS spectra for N-doped TiO2@C with calcination temperatures of 200 °C, 300 °C, 350 °C, 450 °C and 550 °C and for NH2-MIL-125. (b) Band gap and (c) valence band spectra of N-doped TiO2@C-450 °C (with an energy level diagram of N-doped TiO2@C-450 °C). Photocatalytic degradation efficiencies of (d) basic fuchsins, (e) Rhodamine B and (f) tetracycline hydrochloride over NH2-MIL-125, N-doped TiO2@C-200 °C, N-doped TiO2@C-350 °C, N-doped TiO2@C-450 °C and N-doped TiO2@C-550 °C under xenon lamp irradiation. (g) Degradation plots of N-doped TiO2@C-450 °C. (h) Transient photocurrent responses for N-doped TiO2@C with calcination temperatures of 350 °C, 450 °C and 550 °C and for NH2-MIL-125. (i) EIS Nyquist plots of N-doped TiO2@C with calcination temperatures of 350 °C, 450 °C and 550 °C.
Figure 3. (a) DRS spectra for N-doped TiO2@C with calcination temperatures of 200 °C, 300 °C, 350 °C, 450 °C and 550 °C and for NH2-MIL-125. (b) Band gap and (c) valence band spectra of N-doped TiO2@C-450 °C (with an energy level diagram of N-doped TiO2@C-450 °C). Photocatalytic degradation efficiencies of (d) basic fuchsins, (e) Rhodamine B and (f) tetracycline hydrochloride over NH2-MIL-125, N-doped TiO2@C-200 °C, N-doped TiO2@C-350 °C, N-doped TiO2@C-450 °C and N-doped TiO2@C-550 °C under xenon lamp irradiation. (g) Degradation plots of N-doped TiO2@C-450 °C. (h) Transient photocurrent responses for N-doped TiO2@C with calcination temperatures of 350 °C, 450 °C and 550 °C and for NH2-MIL-125. (i) EIS Nyquist plots of N-doped TiO2@C with calcination temperatures of 350 °C, 450 °C and 550 °C.
Polymers 16 00186 g003
Polymers 16 00186 g004

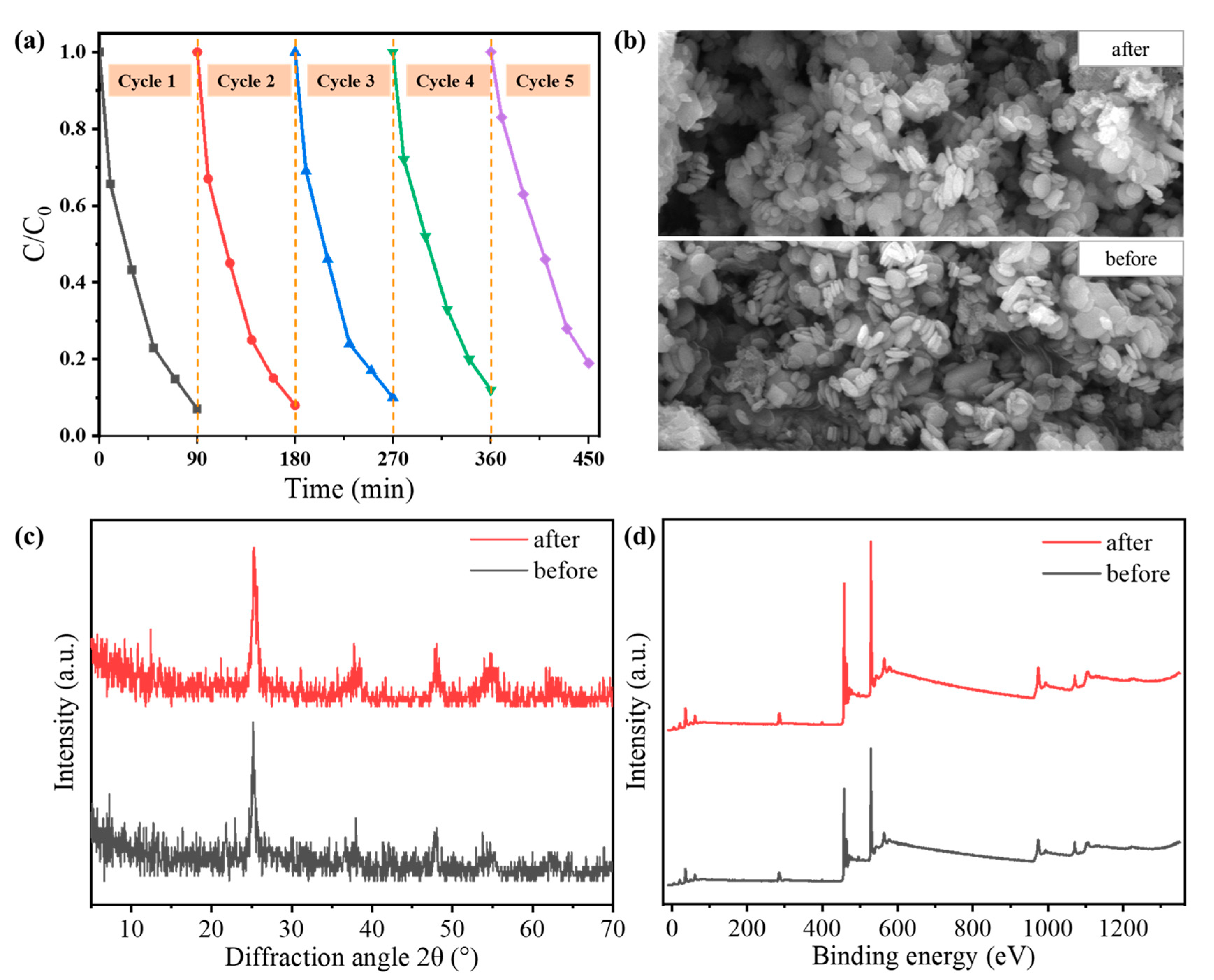

Figure 4. (a) Repeated experiments of tetracycline photodegradation over N-doped TiO2@C-450 °C. (b) SEM images, (c) XRD patterns and (d) XPS spectra of N-doped TiO2@C-450 °C before and after the photocatalytic reaction.
Figure 4. (a) Repeated experiments of tetracycline photodegradation over N-doped TiO2@C-450 °C. (b) SEM images, (c) XRD patterns and (d) XPS spectra of N-doped TiO2@C-450 °C before and after the photocatalytic reaction.
Polymers 16 00186 g004
Polymers 16 00186 g005

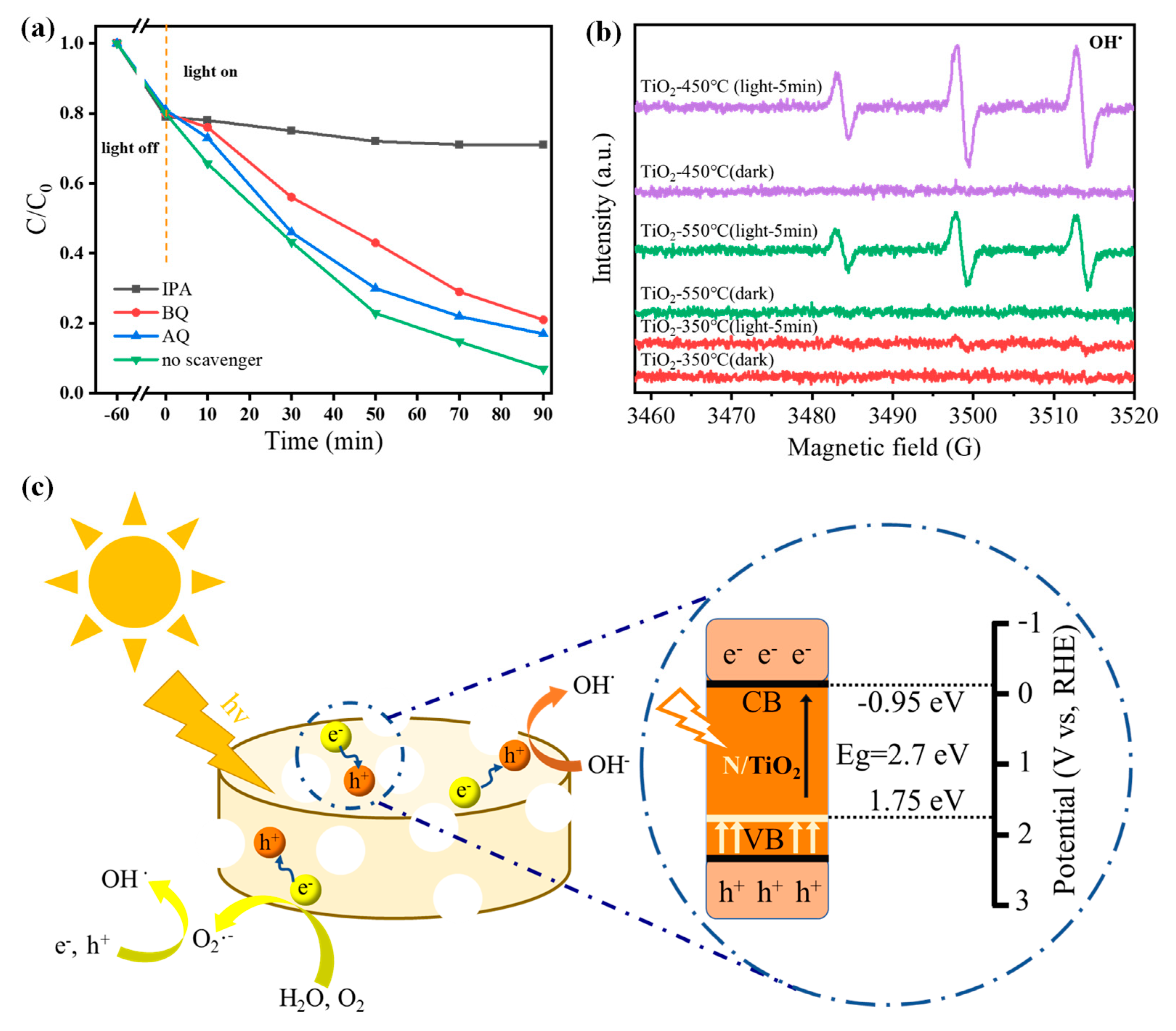

Figure 5. (a) Photocatalytic ability of N-doped TiO2@C-450 °C for the degradation of tetracycline with or without adding IPA, BQ and AO under visible light. (b) EPR spectra of OH• on N-doped TiO2@C-350 °C, N-doped TiO2@C-450 °C and N-doped TiO2@C-550 °C catalysts. (c) Probable photocatalytic mechanism of tetracycline degradation by N-doped TiO2@C-450 °C under visible light irradiation.
