Electrosynthesis of Aromatic Poly(amide-amine) Films from Triphenylamine-Based Electroactive Compounds for Electrochromic Applications

by
Sheng-Huei Hsiao
* and
Hsing-Yi Lu
Department of Chemical Engineering and Biotechnology, National Taipei University of Technology, No. 1, Sec. 3, Chunghsiao East Rd., Taipei 10608, Taiwan
*
Author to whom correspondence should be addressed.
Polymers 2017, 9(12), 708; https://doi.org/10.3390/polym9120708
Submission received: 10 November 2017 / Revised: 8 December 2017 / Accepted: 11 December 2017 / Published: 13 December 2017
(This article belongs to the Special Issue Polymeric Materials for Optical Applications)
Browse Figures
Versions Notes

Abstract

:
Two electropolymerizable monomers with a methoxytriphenylamine core linked via amide groups to two triphenylamine (TPA) or N-phenylcarbazole (NPC) terminal groups, namely 4,4′-bis(4-diphenylaminobenzamido)-4′′-methoxytriphenylamine (MeOTPA-(TPA)2) and 4,4′-bis(4-(carbazol-9-yl)benzamido)-4′′-methoxytriphenylamine (MeOTPA-(NPC)2), were synthesized and characterized by FTIR and 1H NMR spectroscopy, mass spectrometry, and cyclic voltammetry. The electrochemical polymerization reactions of these MeOTPA-cored monomers over indium tin oxide (ITO) electrode allow the generation of electroactive poly(amide-amine) films. The electro-generated polymer films exhibited reversible redox processes and multi-colored electrochromic behaviors upon electro-oxidation, together with moderate coloration efficiency and cycling stability. The optical density changes (ΔOD) were observed in the range of 0.18–0.68 at specific absorption maxima, with the calculated coloration efficiencies of 42–123 cm2/C. Single-layer electrochromic devices using the electrodeposited polymer films as active layers were fabricated for the preliminary investigation of their electrochromic applications.

Graphical Abstract

1. Introduction

Electrochromism refers to the alternation of optical absorption or color of an electroactive species by electrochemically induced redox reactions [1]. Materials capable of such color switching have found use in many applications such as electronic papers [2,3], automatic-dimming mirrors, smart windows [4], adaptive camouflage [5,6], eyewear [7,8], and energy storage devices [9,10]. A number of organic and inorganic materials have been used to construct electrochromic devices, such as transition metal oxides, inorganic coordination complexes, organic dyes and polymers, and organic-metallic hybrid polymers [11,12,13,14,15]. Among the different types of electrochromic materials, organic polymers attract much interest because of several advantages such as mechanical flexibility, enhanced processability, easy color tuning, rapid switching and high coloration efficiency [16,17,18,19,20].
Triphenylamine (TPA) is a promising core unit for opto- and electro-active materials because of the facile formation of radical cation and its charge transport ability. Many triphenylamine and triarylamine starbursts, dendrimers, and polymers have been used as electron-blocking and hole-transporting layers in organic electronic devices such as organic light-emitting diodes (OLEDs), organic field-effect transistors (OFETs), and dye-sensitized solar cells [21,22,23,24,25]. Since 2005, Liou’s and our groups have extensively studied non-conjugated triarylamine-based polymers for electrochromic applications [26,27,28,29,30,31,32,33,34]. We prepared and characterized various structurally different polyimides and polyamides with triarylamine units and aromatic or non-aromatic spacers in the polymer backbone. The obtained polymers are generally soluble in most of the polar aprotic solvents allowing preparing amorphous thin films via solution casting. In general, these films show strong coloration change upon oxidation and exhibit high optical contrast and cycling stability. The introduction of electron-donating substituents such as methoxy groups into the electrochromic unit in the reactive sites could decrease the oxidation potential and allow the formation of more stable triarylamine radical cations [35]. Thus, a further improvement on the electrochromic performance of the polymers could be obtained using 4,4′-diamino-4′′-methoxytriphenylamine (MeOTPA-(NH2)2) as a functional diamine monomer [35].
Unsubstituted TPA can be readily electrochemically oxidized to a TPA radical cation. The formed radical cation dimerizes and upon abstraction of two protons yields tetraphenylbenzidine (TPB) [36,37]. The electrochemical coupling reaction of TPA has been used as a convenient and effective method to prepare electroactive polymers for optoelectronic applications [38,39,40,41,42,43]. Systematic studies on the electrochemical oxidative coupling of carbazole have been reported by Ambrose and Nelson [44,45]. By applying oxidative potential, carbazole radical cations are generated that undergo coupling to 3,3′-biscarbazole. Many redox-active and electrochromic polymers have been synthesized via the cabazole-based oxidative coupling polymerization [46,47,48,49,50,51,52]. Additionally, several functional, microporous thin films with high surface areas have been produced by this approach [53]. Electrochemical polymerization allows for simultaneous polymer synthesis and film deposition in short times and under mild and metal- or catalyst-free conditions. In this work, two novel electropolymerizable monomers MeOTPA-(TPA)2 and MeOTPA-(NPC)2 were synthesized from the condensation reactions of 4,4′-diamino-4′′-methoxytriphenylamine (MeOTPA-(NH2)2) with 4-carboxytriphenylamine (TPA-COOH) and N-(4-carboxyphenyl)carbazole (NPC-COOH), respectively. Electroactive and electrochromic poly(amide-amine) films could be easily built-up on the electrode surface via TPA- or carbazole-based electrochemical oxidative coupling. In comparison with other monomers without redox-active centers [54], the present MeOTPA-centered monomers would result in poly(amide-amine)s with an additional, low-oxidation-potential MeOTPA redox center. Thus, the prepared electroactive polymer films are expected to exhibit lowered onset operating voltages when they are used as active layers in electrochromic devices. Better coloration efficiency and multiple electrochromic switching are also anticipated.

2. Results and Discussion

2.1. Monomer Synthesis

The MeOTPA-cored diamide monomers MeOTPA-(TPA)2 and MeOTPA-(NPC)2 and model compound MeOTPA-(Ph)2 were prepared by condensation of MeOTPA-(NH2)2 with 4-carboxytriphenylamine, N-(4-carboxyphenyl)carbazole, and benzoic acid, respectively, using triphenyl phosphite (TPP) and pyridine as condensing agents. Synthetic details and characterization data are included in the Supplementary Materials. The synthetic route is shown in Scheme 1, and all the target compounds were characterized by FTIR and 1H NMR spectroscopy. Figure S1 (Supplementary Materials) illustrates FT-IR spectra of all the synthesized compounds. The nitro groups of MeOTPA-(NO2)2 show the characteristic absorptions at 1575 and 1318 cm−1 (–NO2 asymmetric and symmetric stretching). After reduction, the characteristic absorptions of nitro group disappear and MeOTPA-(NH2)2 shows the typical –NH2 stretching absorption pair at 3334 and 3216 cm−1. All of the synthesized compounds MeOTPA-(Ph)2, MeOTPA-(TPA)2 and MeOTPA-(NPC)2 show the characteristic amide absorption bands at around 3267–3279 cm−1 (N–H stretching) and 1635–1650 cm−1 (amide C=O stretching). The 1H and H–H correlation spectroscopy (COSY) NMR spectra of MeOTPA-(TPA)2, MeOTPA-(NPC)2 and MeOTPA-(Ph)2 illustrated in Figure 1, Figure 2 and Figure S2 (Supplementary Materials) agree well with the proposed molecular structures. In addition, mass spectroscopy results of monomers MeOTPA-(TPA)2 and MeOTPA-(NPC)2 are consistent with their calculated values (Figure S3, Supplementary Materials).

2.2. Electrochemical and Spectroelectrochemical Properties of Model Compound

The electrochemical behavior of a solution 2 × 10−4 M model compound (MeO)2TPPA-(Ph)2 in 0.1 M Bu4NClO4/CH2Cl2 electrolyte was examined by cyclic voltammetry (CV) at 50 mV·s−1 scan rate. As shown in Figure 3, MeOTPA-(Ph)2 showed one pair of reversible redox waves with an oxidation peak at around 0.75 V (E1/2 = 0.71 V) in the first CV scan. The reversible wave can be attributed to the oxidation process occurring in the MeOTPA core. This model compound showed very stable electrochemical oxidation processes in the first 50 repetitive CV scans between 0 and 0.9 V. Figure 4 shows the optical absorption and color changes of MeOTPA-(Ph)2 on a Pt grid in an OTTLE cell. In the neutral form, the compound exhibited a strong absorption at λmax = 336 nm. When the applied potential was gradually raised from 0 to 1.0 V, the absorbance at 336 nm slightly decreased and new bands appeared at 390, 656 and 789 nm. Meanwhile, the color changed to turquoise. The spectral and color changes are apparently attributed to the formation of cationic radical species of this compound caused by oxidation of the MeOTPA core.

2.3. Electrochemical Polymerization of Monomers

Figure 5a presents cyclic voltammetry (CV) scans of 2 × 10−4 M MeOTPA-(TPA)2 in 0.1 M Bu4NClO4/CH2Cl2 at a scan rate of 50 mV·s−1 between 0 and 1.2 V. After a ten cycles scan, no new peaks were detected. When the voltage was scanned between 0 and 1.4 V, two oxidation peaks at 0.71 and 1.26 V were observed in the first scan. New oxidation peaks appeared at about 0.95 and 1.08 V in the subsequent scan, indicating the occurrence of the coupling reactions between terminal TPA cationic radicals forming the tetraphenylbenzidine (TPB) segments. Upon successive scanning, the redox wave current intensities gradually increased, which indicates the formation of the electrochemically active polymeric film (coded as P1, Scheme 2) on the electrode surface (Figure 5b). Similarly, the NPC-based monomer MeOTPA-(NPC)2 did not undergo electropolymerization when the potential was scanned between 0 and 1.2 V (Figure 6a). As the potential was scanned between 0 and 1.4 V, the carbazole groups started to oxidize and coupling reactions occurred forming the biscarbazole units. As the CV scanning continued, the redox currents intensified (Figure 6b) and a polymer film (coded as P2) gradually deposited on the electrode surface.
As a typical example, the IR spectra of MeOTPA-(TPA)2 and its electro-generated P1 film are shown in Figure 7. The P1 film shows the characteristic amide absorption bands at around 3285 cm−1 (N–H stretching) and 1654 cm−1 (amide C=O stretching). As compared to that of monomers, the P1 film shows very similar IR absorptions in the range of 1200–1700 cm−1 being associated with amide C=O, aromatic ring and C−N stretch. The change in the low frequency region 500–1000 cm−1, peculiar to benzene ring C–H out-of-plane bending, can be attributed to the TPA coupling reaction.

2.4. Optical and Electrochemical Properties of Polymers

The UV-vis absorption spectra of monomers MeOTPA-(TPA)2 and MeOTPA-(NPC)2 in CH2Cl2 and their derived polymer films of P1 and P2 on an ITO-glass substrate are shown in Figure S4 (Supplementary Materials). The spectra of the monomers show absorption bands with maximum peaks at 350 and 336 nm and absorption onsets at 408 and 426 nm, respectively. The polymer films of P1 and P2 show absorption maxima at 361 and 338 nm and absorption onsets at 454 and 449 nm, respectively. The red-shift of absorption maximum and onset of the polymer films compared to the monomers implies an extended π-conjugation length.
The electrochemical behavior of the electro-synthesized polymer films on the ITO-glass substrate were investigated by cyclic voltammetry in a 0.1 M Bu4NClO4/CH2Cl2 solution without the monomer. The optical and electrochemical properties of the polymers are summarized in Table 1. As illustrated in Figure 8, the polymer films exhibited three reversible redox couples, at the half-wave potentials (E1/2) of 0.61, 0.93 and 1.04 V for P1 from MeOTPA-(TPA)2, and 0.62, 0.80 and 1.07 V for P2 from MeOTPA-(NPC)2. The oxidation onset potential (Eonset) of P1 and P2 were recorded at 0.47 and 0.49 V (vs. Ag/AgCl), respectively. Redox waves at lower potentials of these two polymers are apparently attributable to reversible electrochemical oxidation processes of the MeOTPA center. The energy levels of the highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO) of the corresponding polymers estimated from the Eonset values and UV-vis absorption edge are also included in Table 1.

2.5. Spectroelectrochemical Properties of Polymers

Spectroelectrochemical behaviors of the polymeric films on ITO glass were investigated. Figure 9 illustrates the changes in the electronic absorption spectrum of the P1 film upon changing the applied potentials. The electronic absorption profile of neutral form of the film exhibits absorption maximum at around 362 nm, which is due to π−π* transitions for P1. When the applied potential was gradually raised to 0.8 V, the absorption intensity at 362 nm slightly dropped and new band appeared at 775 nm, and the color changed to pale green (L*: 77; a*: −9; b*: 13), which could be attributed to the formation of MeOTPA radical cation. Upon further oxidation at applied potential to 1.1 V, a new absorption peak at 502 nm was observed and the film changed into an orange color (L*: 50; a*: 17; b*: 15). The spectral change should be originated from the tetraphenylbenzidine radical cation (TPB+•) moieties. When the applied potential was adjusted to 1.3 V, the absorption peak at 502 nm decreased, with a formation of new absorption band at around 716 nm and a color change to blue (L*: 21; a*: 6; b*: −26). This result indicated the formation of TPB dicationic species.
A similar spectral change was observed for the P2 film at the early stage of the oxidation (Figure 10). Upon oxidation at 0.8 V, an absorption band at 341 nm started to decrease and a new band at 779 nm gradually increased in intensity, and the film changed into a pale green color (L*: 65; a*: −8; b*: 7). When the applied voltage was increased to 1.3 V, absorption band at 779 nm decreased in intensity and new absorption bands intensified at 550 nm (L*: 39; a*: 22; b*: −4).

2.6. Electrochromic Switching

Double potential step chronoamperometry was carried out to estimate the response time and cycling stability of the electro-generated films. The potential was stepped between neutral and oxidized states of the polymer film with a suitable residence time. During the potential switching, the transmittance percentage (% T) at the wavelength of maximum contrast was measured using a UV-vis spectrophotometer. The measurements were conducted using a single wavelength with obvious absorption intensity change. As shown in Figure 11a, for P1 optical contrast (Δ% T) and switching time (green coloring, at 90% full-transmittance change) were measured as 30% and 6 s for 775 nm by stepping the potential between 0 and 0.87 V with a residence time of 14 s. As the applied voltage was stepped from 0 to 1.12 V, the film exhibited Δ% T of 41% at 509 nm for the oxidized orange state which required 10.7 s for the coloring step and 4.9 s for the bleaching step as shown in Figure 11b. When the applied voltage was switched between 0 and 1.65 V, the film required 11.9 s for the coloring step and 9.5 s for the bleaching step, and Δ% T was 77% at 716 nm for the blue coloring (Figure 11c). Coloration efficiency (CE) is another important parameter for the electrochromic applications. On the basis of the equation CE = ΔOD/Qd, where ΔOD is the optical absorbance change, and Qd (mC/cm2) is the inject/ejected charge during a redox step (Supplementary Materials Figures S5 to S9). The CE values of P1 were estimated to be 73 cm2/C at 775 nm, 57 cm2/C at 509 nm and 65 cm2/C at 716 nm (Table 2).
The switching stability of P2 is illustrated in Figure 12 at 779 and 550 nm with a pulse time of 13 and 16 s, respectively, for 20 cycles. The P2 film exhibited 6 s switching time at 779 nm between its neutral and the first oxidized state. The CE value for the green coloring was estimated as 123 cm2/C at 779 nm. The switching time and Δ% T values for the P2 film were measured as 7.1 s and 33%, respectively, while stepping the potential between 0 and 1.39 V at 550 nm. The high electrochromic switching stability of these two polymers at the first oxidation state could be attributed to their high electrochemical stability of the MeOTPA core.

2.7. Electrochromic Devices

Based on the above-mentioned results, it can be concluded that the electro-generated polymers may find use in the construction of electrochromic devices (ECD) and optical display. Therefore, we fabricated single layer electrochromic cells as preliminary investigations. The schematic illustration of the structure of the ECD is shown in Figure 13a. The ECD using P1 as active layer was fabricated (Figure 13b). The ECD is colorless in its neutral state, and it slowly switched to pale green, maroon, and blue color at an increasing oxidation voltage of 1.8, 2.1, and 2.5 V, respectively.

3. Conclusions

Two triphenylamine-based compounds MeOTPA-(TPA)2 and MeOTPA-(NPC)2 composed of a central MeOTPA core connected through amide linkers to terminal triphenylamine or N-phenylcarbazole units were developed as electroactive monomers to prepare electrochromic poly(amide-amine) films on the ITO electrode surface through electropolymerization. The electro-generated polymer films exhibited reversible redox processes and multi-colored electrochromic behaviors upon electro-oxidation. In general, the electrochromic films possessed moderate coloration efficiency and good cycling stability. The electrochemically synthesized polymers might be promising candidates for electrochromic materials.

Supplementary Materials

Synthetic details and characterization data of the synthesized compounds are available online at www.mdpi.com/2073-4360/9/12/708/s1.

Acknowledgments

This work was financially supported by the Ministry of Science and Technology, Taiwan (Grant MOST 105-2221-E-027-131-MY3).

Author Contributions

Sheng-Huei Hsiao planned this project. Hsing-Yi Lu performed the experiments. Hsing-Yi Lu and Sheng-Huei Hsiao analyzed the data and co-wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Monk, P.M.S.; Mortimer, R.J.; Rosseinsky, D.R. Electrochromism and Electrochromic Devices; Cambridge University Press: Cambridge, UK, 2007. [Google Scholar]
  2. Kobayashi, N.; Miura, S.; Nishimura, M.; Urano, H. Organic electrochromism for a new color electronic paper. Sol. Energy Mater. Sol. Cells 2008, 92, 136–139. [Google Scholar] [CrossRef]
  3. Tehrani, P.; Hennerdal, L.-O.; Dyer, A.L.; Reynolds, J.R.; Berrgren, M. Improving the contrast of all-printed electrochromic polymer on paper displays. J. Mater. Chem. 2009, 19, 1799–1802. [Google Scholar] [CrossRef]
  4. Baetens, R.; Jelle, B.P.; Gustavsen, A. Properties, requirements and possibilities of smart windows for dynamic daylight and solar energy control in build ings: A state-of-the-art review. Sol. Energy Mater. Sol. Cells 2010, 94, 87–105. [Google Scholar] [CrossRef]
  5. Beaupre, S.; Breton, A.-C.; Dumas, J.; Leclerc, M. Multicolored electrochromic cells base on poly(2,7-carbazole) derivatives for adaptive camouflage. Chem. Mater. 2009, 21, 1504–1513. [Google Scholar] [CrossRef]
  6. Yu, H.; Shao, S.; Yan, L.; Meng, H.; He, Y.; Yao, C.; Xu, P.; Zhang, X.; Hu, W.; Huang, W. Side-chain engineering of green color electrochromic polymer materials: Toward adaptive camouflage application. J. Mater. Chem. C 2016, 4, 2269–2273. [Google Scholar] [CrossRef]
  7. Ma, C.; Taya, M.; Xu, C. Smart sunglasses based on electrochromic polymers. Polym. Eng. Sci. 2008, 48, 2224–2228. [Google Scholar] [CrossRef]
  8. Österholm, A.M.; Shen, D.E.; Kerszulis, J.A.; Bulloch, R.H.; Kuepfert, M.; Dyer, A.L.; Reynolds, J.R. Four shades of brown: Tuning of electrochromic polymer blends toward high-contrast eyewear. ACS Appl. Mater. Interfaces 2015, 7, 1413–1421. [Google Scholar] [CrossRef] [PubMed]
  9. Yang, P.; Sun, P.; Mai, W. Electrochromic energy storage devices. Mater. Today 2016, 19, 394–402. [Google Scholar] [CrossRef]
  10. Tong, Z.; Tian, Y.; Zhang, H.; Li, X.; Ji, J.; Qu, H.; Li, N.; Zhao, J.; Li, Y. Recent advances in multifunctional electrochromic energy storage devices and photoelectrochromic devices. Sci. China Chem. 2017, 60, 13–37. [Google Scholar] [CrossRef]
  11. Rosseinsky, D.R.; Mortimer, R.J. Electrochromic systems and the prospects for devices. Adv. Mater. 2001, 13, 783–793. [Google Scholar] [CrossRef]
  12. Mortimer, R.J.; Dyer, A.L.; Reynolds, J.R. Electrochromic organic and polymeric materials for display applications. Displays 2006, 27, 2–18. [Google Scholar] [CrossRef]
  13. Higuchi, M. Electrochromic organic-metallic hybrid polymers: Fundamentals and device applications. Polym. J. 2009, 41, 511–520. [Google Scholar] [CrossRef]
  14. Gillapie, D.T.; Tenent, R.C.; Dillon, A.C. Metal-oxide films for electrochromic applications: Present technology and future directions. J. Mater. Chem. 2010, 20, 9585–9592. [Google Scholar] [CrossRef]
  15. Mortimer, R.J. Electrochromic materials. Annu. Rev. Mater. Res. 2011, 41, 241–268. [Google Scholar] [CrossRef]
  16. Beaujuge, P.M.; Reynolds, J.R. Color control in π-conjugated organic polymers for use in electrochromic devices. Chem. Rev. 2010, 110, 268–320. [Google Scholar] [CrossRef] [PubMed]
  17. Gunbas, G.; Toppare, L. Electrochromic conjugated polyheterocycles and derivatives—Highlights from the last decade towards realization of long lived aspirations. Chem. Commun. 2012, 48, 1083–1101. [Google Scholar] [CrossRef] [PubMed]
  18. Beverina, L.; Pagani, G.A.; Sassi, M. Multichromophoric electrochromic polymers: Color tuning of conjugated polymers through the side chain functionalization approach. Chem. Commun. 2014, 50, 5413–5430. [Google Scholar] [CrossRef] [PubMed]
  19. Jensen, J.; Hӧsel, M.; Dyer, A.L.; Krebs, F.C. Development and manufacture of polymer-based electrochromic devices. Adv. Funct. Mater. 2015, 25, 2073–2090. [Google Scholar] [CrossRef]
  20. Neo, W.T.; Ye, Q.; Chua, S.-J.; Xu, J. Conjugated polymer-based electrochromics: Materials, device fabrication and application prospects. J. Mater. Chem. C 2016, 4, 7364–7376. [Google Scholar] [CrossRef]
  21. Thelakkat, M. Star-shaped, dendrimeric and polymeric triarylamines as photoconductors and hole transport materials for electro-optical applications. Macromol. Mater. Eng. 2002, 287, 442–461. [Google Scholar] [CrossRef]
  22. Shirota, Y.; Kageyama, H. Charge carrier transporting molecular materials and their applications in devices. Chem. Rev. 2007, 107, 953–1010. [Google Scholar] [CrossRef] [PubMed]
  23. Ning, Z.; Tian, H. Triarylamine: A promising core unit for efficient photovoltaic materials. Chem. Commun. 2009, 5483–5495. [Google Scholar] [CrossRef] [PubMed]
  24. Iwan, A.; Sek, D. Polymers with triphenylamine units: Photonic and electroactive materials. Prog. Polym. Sci. 2011, 36, 1277–1325. [Google Scholar] [CrossRef]
  25. Liang, M.; Chen, J. Arylamine organic dyes for dye-sensitized solar cells. Chem. Soc. Rev. 2013, 42, 3453–3488. [Google Scholar] [CrossRef] [PubMed]
  26. Cheng, S.-H.; Hsiao, S.-H.; Su, T.-H.; Liou, G.-S. Novel aromatic poly(amine-imide)s bearing a pendent triphenylamine group: Synthesis, thermal, photophysical, electrochemical, and electrochromic characteristics. Macromolecules 2005, 38, 307–316. [Google Scholar] [CrossRef]
  27. Hsiao, S.-H.; Liou, G.-S.; Kung, Y.-C.; Yen, H.-J. High contrast ratio and rapid switching electrochromic polymeric films based on 4-(dimethylamino)triphenylamine-functionalized aromatic polyamides. Macromolecules 2008, 41, 2800–2808. [Google Scholar] [CrossRef]
  28. Kung, Y.-C.; Hsiao, S.-H. Fluorescent and electrochromic polyamides with pyrenylamine chromophore. J. Mater. Chem. 2010, 20, 5481–5492. [Google Scholar] [CrossRef]
  29. Kung, Y.-C.; Hsiao, S.-H. Solution-processable, high-Tg, ambipolar polyimide electrochromics bearing pyrenylamine units. J. Mater. Chem. 2011, 21, 1746–1754. [Google Scholar] [CrossRef]
  30. Yen, H.-J.; Liou, G.-S. Solution-processable triarylamine-based electroactive high performance polymers for anodically electrochromic applications. Polym. Chem. 2012, 3, 255–264. [Google Scholar] [CrossRef]
  31. Wang, H.-M.; Hsiao, S.-H. Ambipolar, multi-electrochromic polypyromellitimides and polynaphthalimides containing di(tert-butyl)-substituted bis(triarylamine) units. J. Mater. Chem. C 2014, 2, 1553–1564. [Google Scholar] [CrossRef]
  32. Hsiao, S.-H.; Cheng, S. New electroactive and electrochromic aromatic polyamides with ether-linked bis(triphenylamine) units. J. Polym. Sci. A 2015, 53, 496–510. [Google Scholar] [CrossRef]
  33. Hsiao, S.-H.; Hsiao, Y.-H.; Kung, Y.-R.; Leu, C.-M.; Lee, T.-M. Triphenylamine-based redox-active aramids with 1-piperidinyl substituent as an auxiliary donor: Enhanced electrochemical stability and electrochromic performance. React. Funct. Polym. 2016, 108, 54–62. [Google Scholar] [CrossRef]
  34. Hsiao, S.-H.; Han, J.-S. Solution-processable transmissive-to-green switching electrochromic polyamides bearing 2,7-bis(diphenylamino)naphthalene units. J. Polym. Sci. A 2017, 55, 1409–1421. [Google Scholar] [CrossRef]
  35. Chang, C.-W.; Liou, G.-S.; Hsiao, S.-H. Highly stable anodic green electrochromic aromatic polyamides: Synthesis and electrochromic properties. J. Mater. Chem. 2007, 17, 1007–1015. [Google Scholar] [CrossRef]
  36. Seo, E.T.; Nelson, R.F.; Fritsch, J.M.; Marcoux, L.S.; Leedy, D.W.; Adams, R.N. Anodic oxidation pathways of aromatic amines. Electrochemical and electron paramagnetic resonance studies. J. Am. Chem. Soc. 1966, 88, 3498–3503. [Google Scholar] [CrossRef]
  37. Nelson, R.F.; Adams, R.N. Anodic oxidation pathways of substituted triphenylamines. II. Quantitative studies of benzidine formation. J. Am. Chem. Soc. 1968, 90, 3925–3930. [Google Scholar] [CrossRef]
  38. Leung, M.-K.; Chou, M.-Y.; Su, Y.-O.; Chiang, C.-L.; Chen, H.-L.; Yang, C.-F.; Yang, C.-C.; Lin, C.-C.; Chen, H.-T. Diphenylamino group as an effective handle to conjugated donor-acceptor polymers through electropolymerization. Org. Lett. 2003, 5, 839–842. [Google Scholar] [CrossRef] [PubMed]
  39. Natera, J.; Otero, L.; Sereno, L.; Fungo, F.; Wang, N.S.; Tsai, Y.-M.; Hwu, T.-Y.; Wong, K.-T. A novel electrochromic polymer synthesized through electropolymerization of a new donor-acceptor bipolar system. Macromolecules 2007, 40, 4456–4463. [Google Scholar] [CrossRef]
  40. Chiang, C.-C.; Chen, H.-C.; Lee, C.-S.; Leung, M.-K.; Lin, K.-R.; Hsieh, K.-H. Electrochemical deposition of bis(N,N′-diphenylaminoaryl) substituted ferrocenes, and their application as a hole-injection layer on polymeric light-emitting diodes. Chem. Mater. 2008, 20, 540–552. [Google Scholar] [CrossRef]
  41. Natera, J.; Otero, L.; D’Eramo, F.; Sereno, L.; Fungo, F.; Wang, N.-S.; Tsai, Y.-M.; Wong, K.-T. Synthesis and properties of a novel cross-linked electroactive polymer formed from a bipolar starburst monomer. Macromolecules 2009, 42, 626–635. [Google Scholar] [CrossRef]
  42. Mangione, M.I.; Spanevello, R.A.; Rumbero, A.; Heredia, D.; Marzari, G.; Fernandez, L.; Otero, L.; Fungo, F. Electrogenerated conductive polymers from triphenylamine end-capped dendrimers. Macromolecules 2013, 46, 4754–4763. [Google Scholar] [CrossRef]
  43. Ma, H.; Li, F.; Li, P.; Wang, H.; Zhang, M.; Zhang, G.; Baumgarten, M.; Mullen, K. A dendrimer-based electropolymerized microporus film: Multifunctional, reversible, and highly sensitive fluorescent probe. Adv. Funct. Mater. 2016, 26, 2025–2031. [Google Scholar] [CrossRef]
  44. Ambrose, J.F.; Nelson, R.F. Anodic oxidation pathways of carbazoles I. Carbazole and N-substituted derivatives. J. Electrochem. Soc. 1968, 115, 1159–1164. [Google Scholar] [CrossRef]
  45. Ambrose, J.F.; Carpenter, L.L.; Nelson, R.F. Electrochemical and spectroscopic properties of cation radicals III. Reaction pathways of carbazolium radical ions. J. Electrochem. Soc. 1975, 122, 876–894. [Google Scholar] [CrossRef]
  46. Morin, J.F.; Leclerc, M.; Ades, D.; Siove, A. Polycarbazoles: 25 years of progress. Macromol. Rapid Commun. 2005, 26, 761–778. [Google Scholar] [CrossRef]
  47. Koyuncu, S.; Gultekin, B.; Zafer, C.; Bilgili, H.; Can, M.; Demic, S.; Kaya, I.; Icli, S. Electrochemical and optical properties of biphenyl bridged-dicarbazole oligomer films: Electropolymerization and electrochromism. Electrochim. Acta 2009, 54, 5694–5702. [Google Scholar] [CrossRef]
  48. Usluer, O.; Koyuncu, S.; Demic, S.; Janssen, R.A. A novel high-contrast ration electrochromic material from spiro (cyclododecane-1,9′-fluorene) bicarbazole. J. Polym. Sci. B 2011, 49, 333–341. [Google Scholar] [CrossRef]
  49. Hsiao, S.-H.; Hsueh, J.-C. Electrochemical synthesis and electrochromic properties of new conjugated polycarbazoles from di(carbazol-9-yl)-substituted triphenylamine and N-phenylcarbazole derivatives. J. Electroana. Chem. 2015, 758, 100–110. [Google Scholar] [CrossRef]
  50. Hsiao, S.-H.; Lin, S. The electrochemical fabrication of electroactive polymer films from diamide- or diimide-cored N-phenylcarbazole dendrons for electrochromic applications. J. Mater. Chem. C 2016, 4, 1271–1280. [Google Scholar] [CrossRef]
  51. Hsiao, S.-H.; Wu, L.-C. Fluorescent and electrochromic polymers from 2,8-di(carbazol-9-yl)dibenzothiophene and its S,S-dioxide derivative. Dyes Pigments 2016, 134, 51–63. [Google Scholar] [CrossRef]
  52. Hsiao, S.-H.; Liao, Y.-C. Facile synthesis of electroactive and electrochromic triptycene poly(ether-imide)s containing triarylamine units via oxidative electro-coupling. Polymers 2017, 9, 497. [Google Scholar] [CrossRef]
  53. Palma-Cando, A.; Scherf, U. Electrochemically generated thin films of microporous polymer networks: Synthesis, properties, and applications. Macromol. Chem. Phys. 2016, 217, 827–841. [Google Scholar] [CrossRef]
  54. Hsiao, S.-H.; Chiu, Y.-T. Electrosynthesis and electrochromic properties of poly(amide-triarylamine)s containing triptycene units. RSC Adv. 2015, 5, 90941–90951. [Google Scholar] [CrossRef]
Polymers 09 00708 g001 550

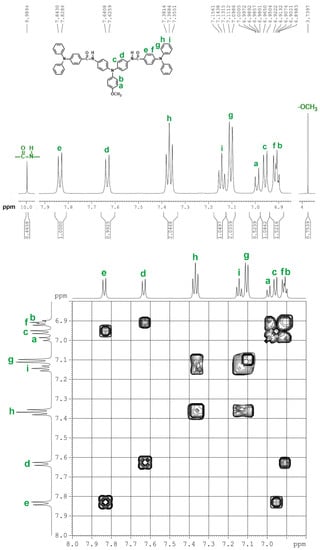

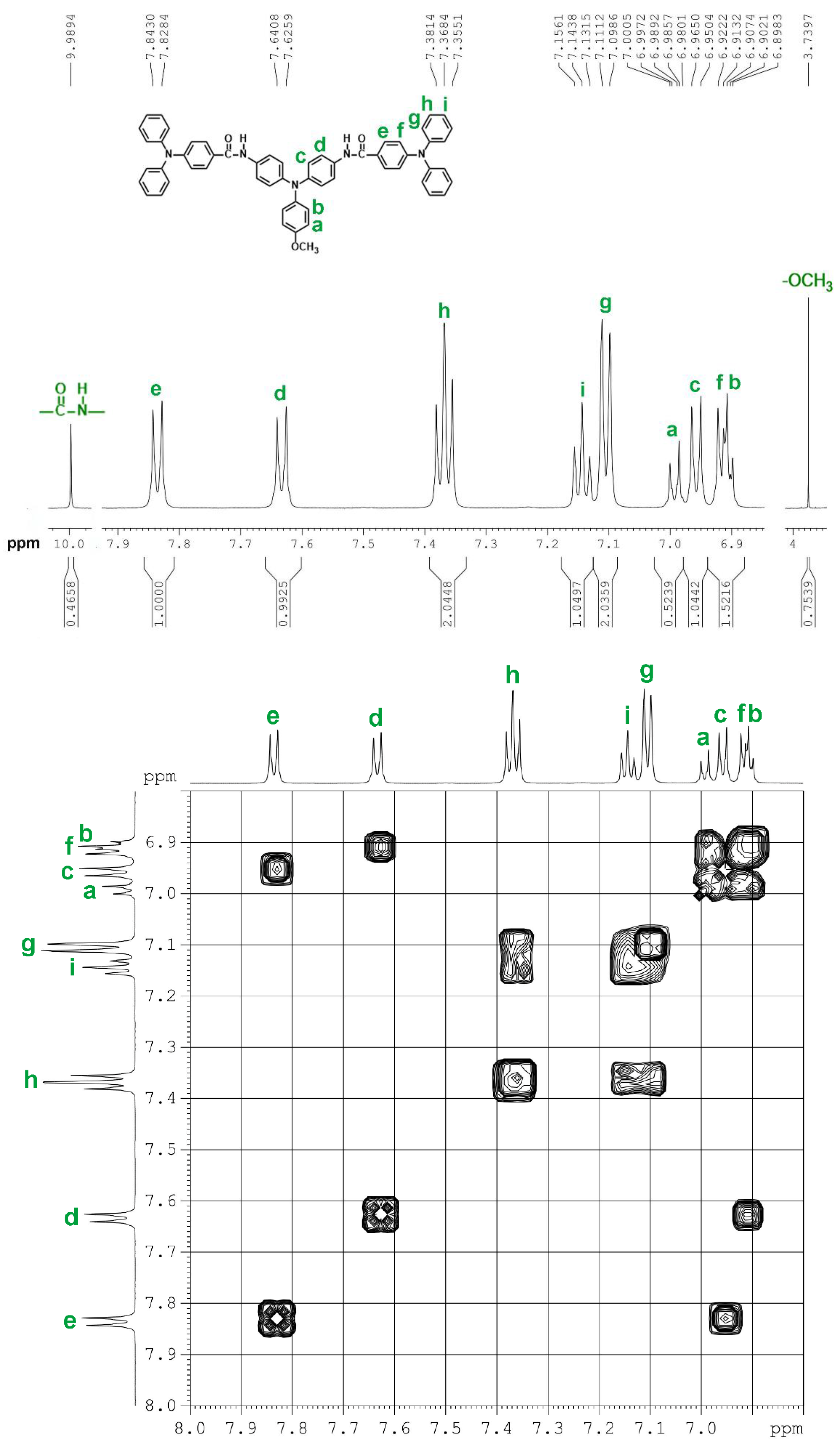

Figure 1. 1H NMR and H–H correlation spectroscopy (COSY) spectra of MeOTPA-(TPA)2 in dimethyl sulfoxide (DMSO)-d6.
Figure 1. 1H NMR and H–H correlation spectroscopy (COSY) spectra of MeOTPA-(TPA)2 in dimethyl sulfoxide (DMSO)-d6.
Polymers 09 00708 g001
Polymers 09 00708 g002 550

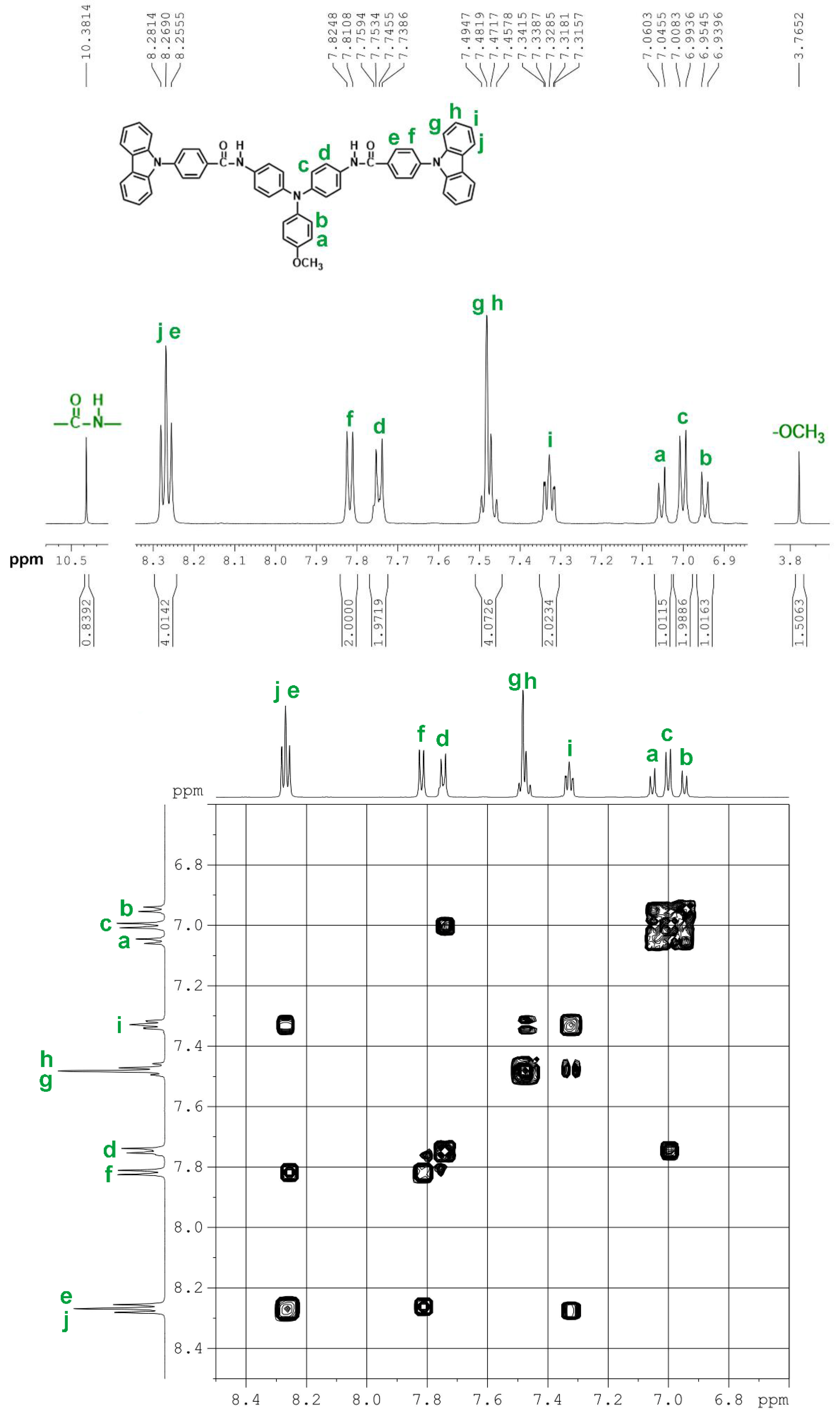

Figure 2. 1H NMR and H–H COSY spectra of MeOTPA-(NPC)2 in DMSO-d6.
Figure 2. 1H NMR and H–H COSY spectra of MeOTPA-(NPC)2 in DMSO-d6.
Polymers 09 00708 g002
Polymers 09 00708 sch001 550

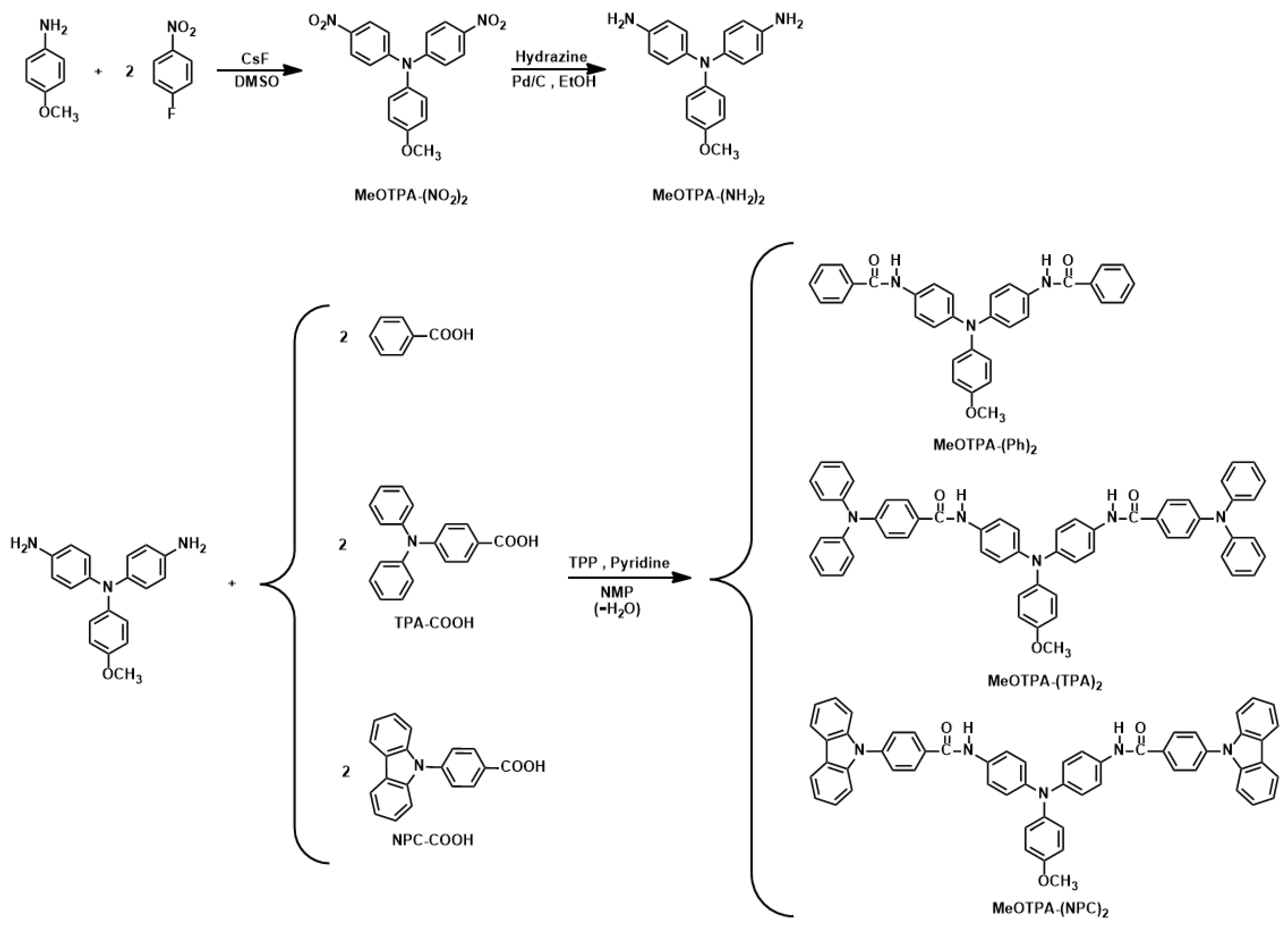

Scheme 1. Synthetic route of methoxytriphenylamine (MeOTPA)-cored model compound and monomers.
Scheme 1. Synthetic route of methoxytriphenylamine (MeOTPA)-cored model compound and monomers.
Polymers 09 00708 sch001
Polymers 09 00708 g003 550

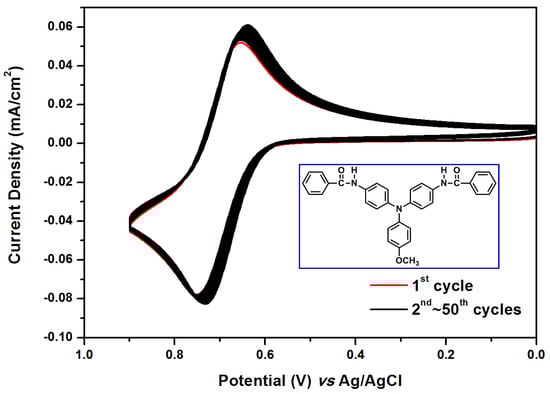

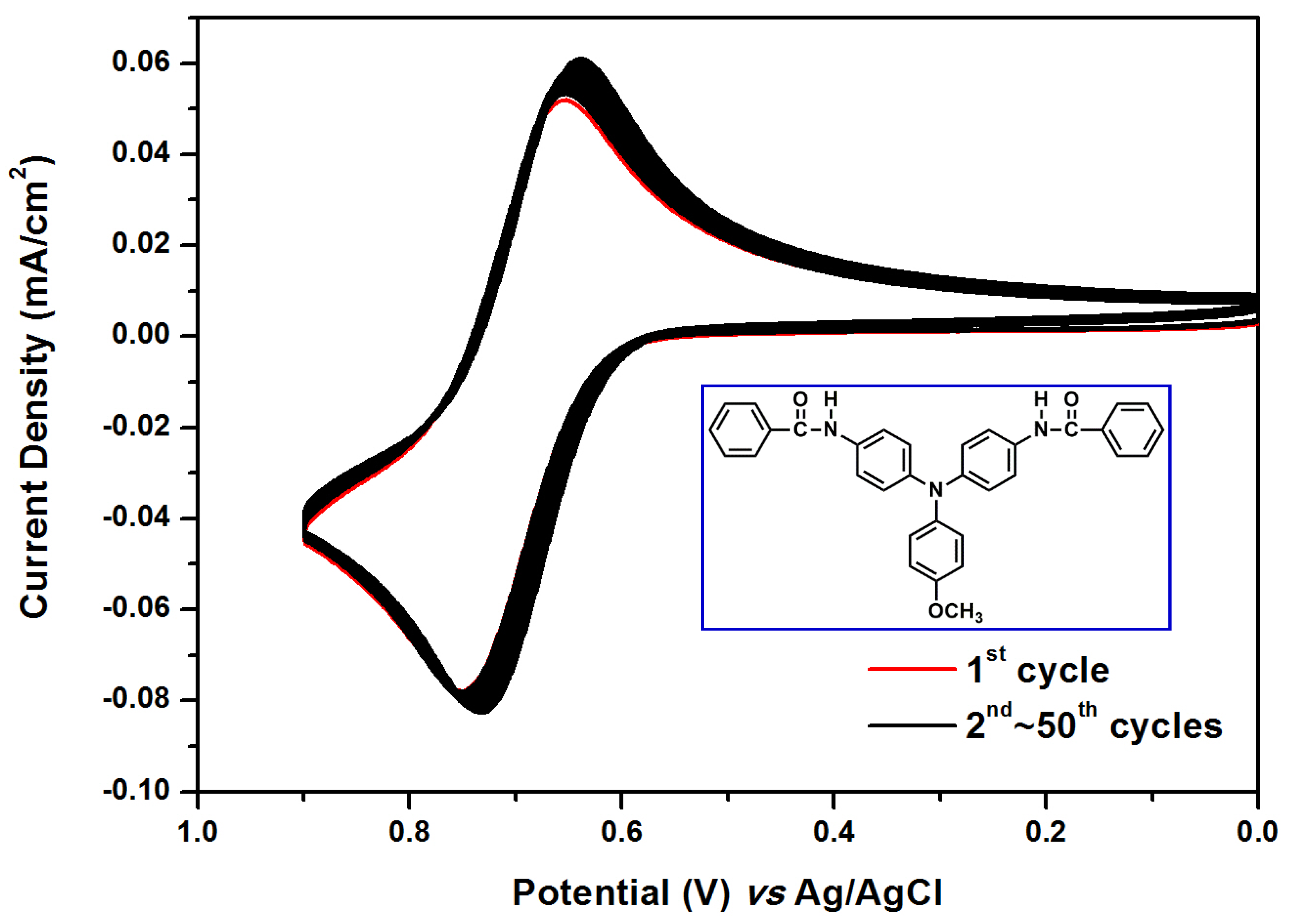

Figure 3. Repetitive cyclic voltammograms (50 cycles) of 2 × 10−4 M model compound MeOTPA-(Ph)2 in 0.1 M Bu4NClO4/CH2Cl2 solution at a scan rate of 50 mV·s−1.
Figure 3. Repetitive cyclic voltammograms (50 cycles) of 2 × 10−4 M model compound MeOTPA-(Ph)2 in 0.1 M Bu4NClO4/CH2Cl2 solution at a scan rate of 50 mV·s−1.
Polymers 09 00708 g003
Polymers 09 00708 g004 550

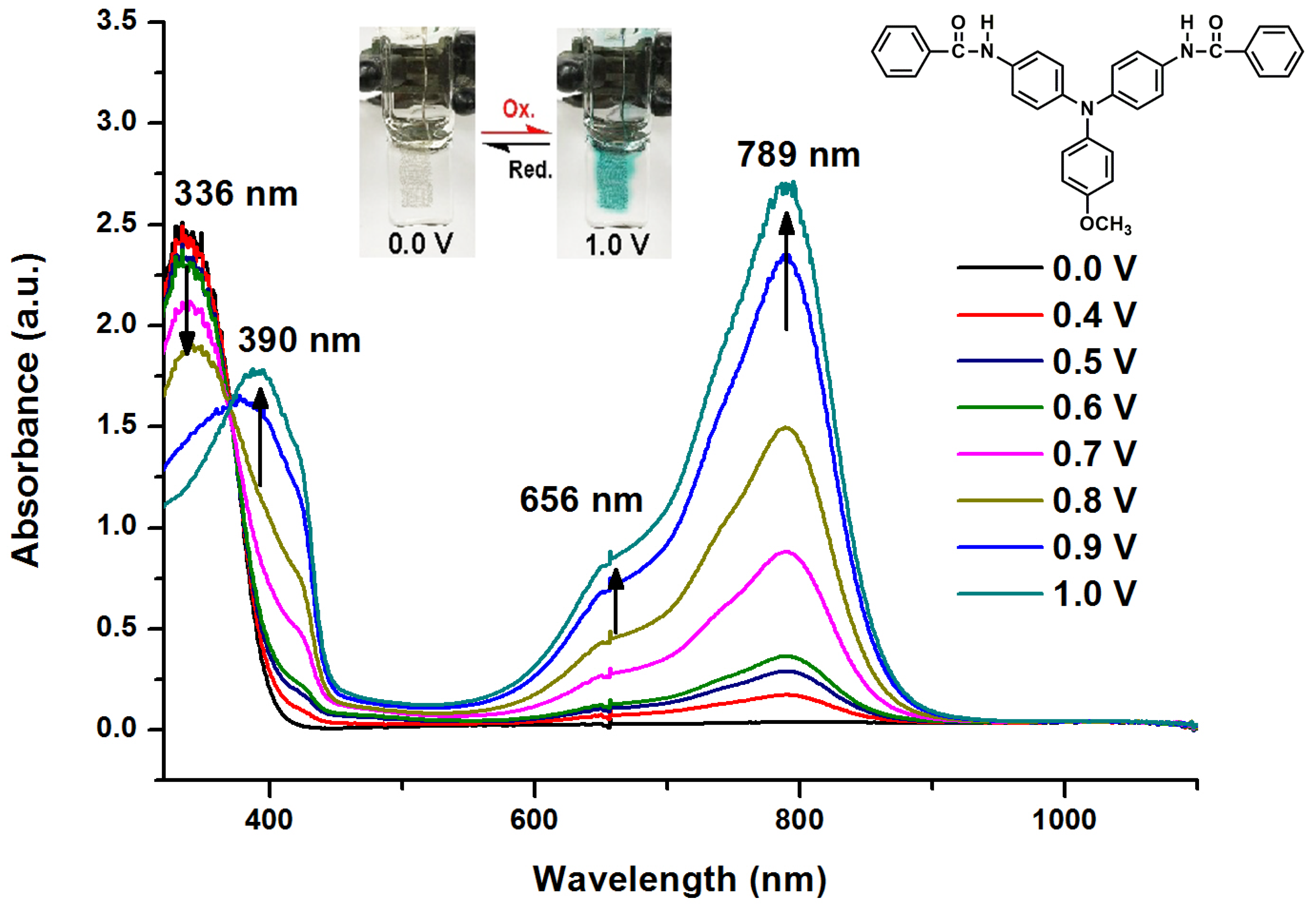

Figure 4. Spectroelectrochemistry of 1 × 10−3 M model compound MeOTPA-(Ph)2 in 0.1 M Bu4NClO4/CH2Cl2.
Figure 4. Spectroelectrochemistry of 1 × 10−3 M model compound MeOTPA-(Ph)2 in 0.1 M Bu4NClO4/CH2Cl2.
Polymers 09 00708 g004
Polymers 09 00708 g005 550

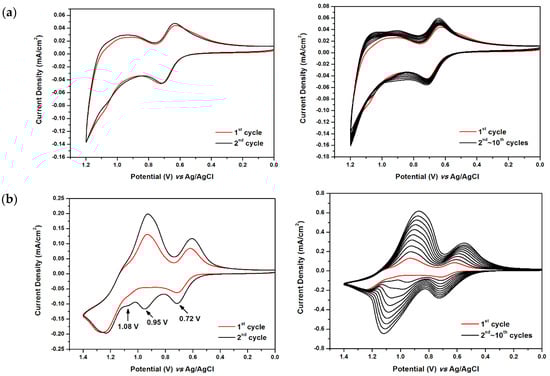

Figure 5. Repetitive cyclic voltammograms of 2 × 10−4 M MeOTPA-(TPA)2 in 0.1 M Bu4NClO4/CH2Cl2 solution in the potential range of (a) 0–1.2 V and (b) 0–1.4 V at a scan rate of 50 mV·s−1.
Figure 5. Repetitive cyclic voltammograms of 2 × 10−4 M MeOTPA-(TPA)2 in 0.1 M Bu4NClO4/CH2Cl2 solution in the potential range of (a) 0–1.2 V and (b) 0–1.4 V at a scan rate of 50 mV·s−1.
Polymers 09 00708 g005
Polymers 09 00708 g006 550

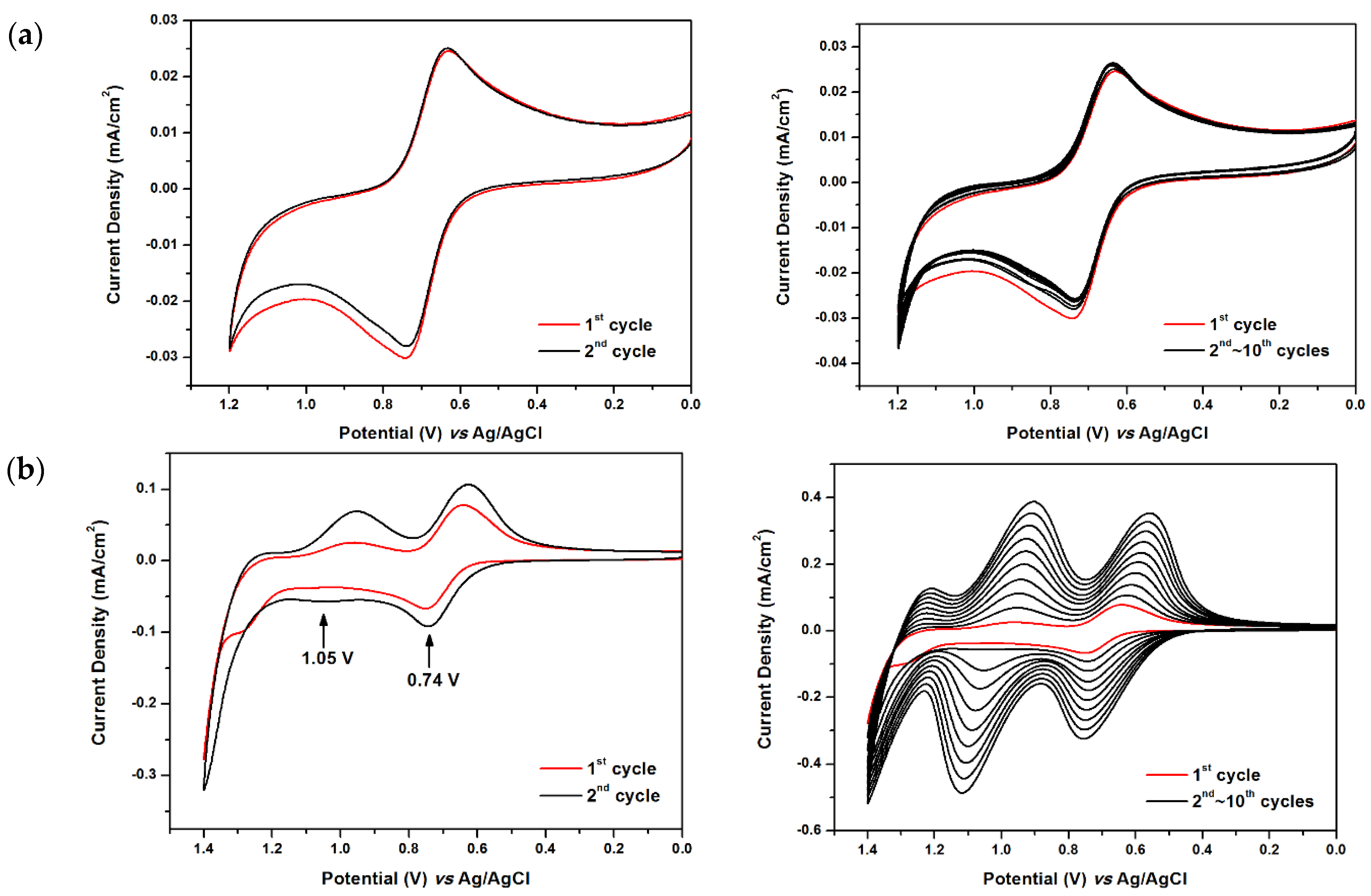

Figure 6. Repetitive cyclic voltammograms of 2 × 10−4 M MeOTPA-(NPC)2 in 0.1 M Bu4NClO4/CH2Cl2 solution in the potential range of (a) 0–1.2 V and (b) 0–1.4 V at a scan rate of 50 mV·s−1.
Figure 6. Repetitive cyclic voltammograms of 2 × 10−4 M MeOTPA-(NPC)2 in 0.1 M Bu4NClO4/CH2Cl2 solution in the potential range of (a) 0–1.2 V and (b) 0–1.4 V at a scan rate of 50 mV·s−1.
Polymers 09 00708 g006
Polymers 09 00708 g007 550

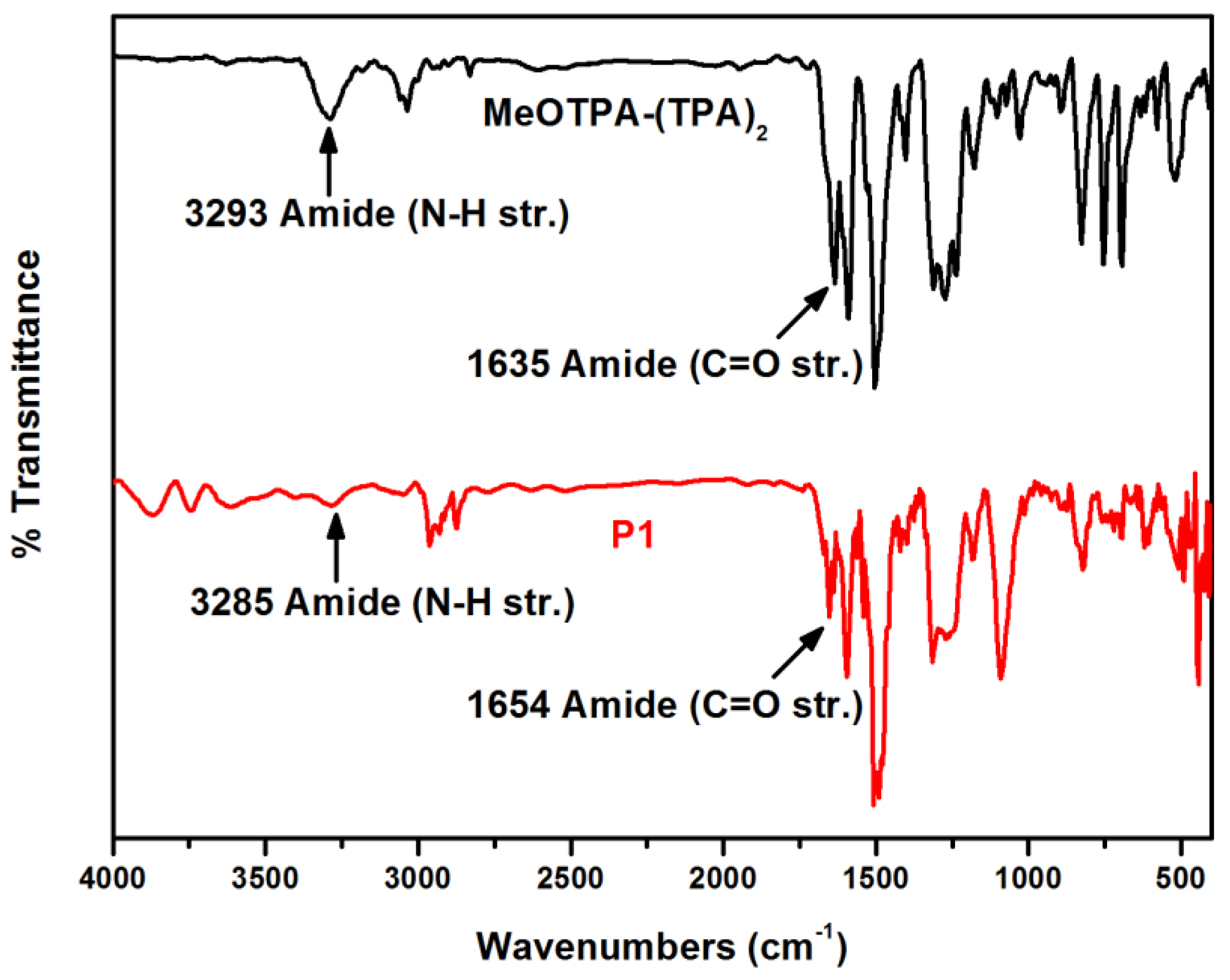

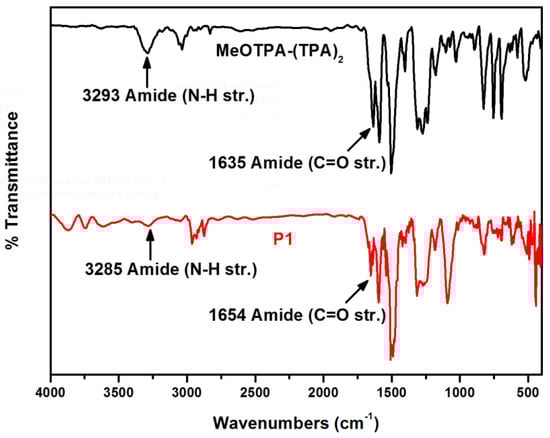

Figure 7. IR spectra of MeOTPA-(TPA)2 and P1 film.
Figure 7. IR spectra of MeOTPA-(TPA)2 and P1 film.
Polymers 09 00708 g007
Polymers 09 00708 sch002 550

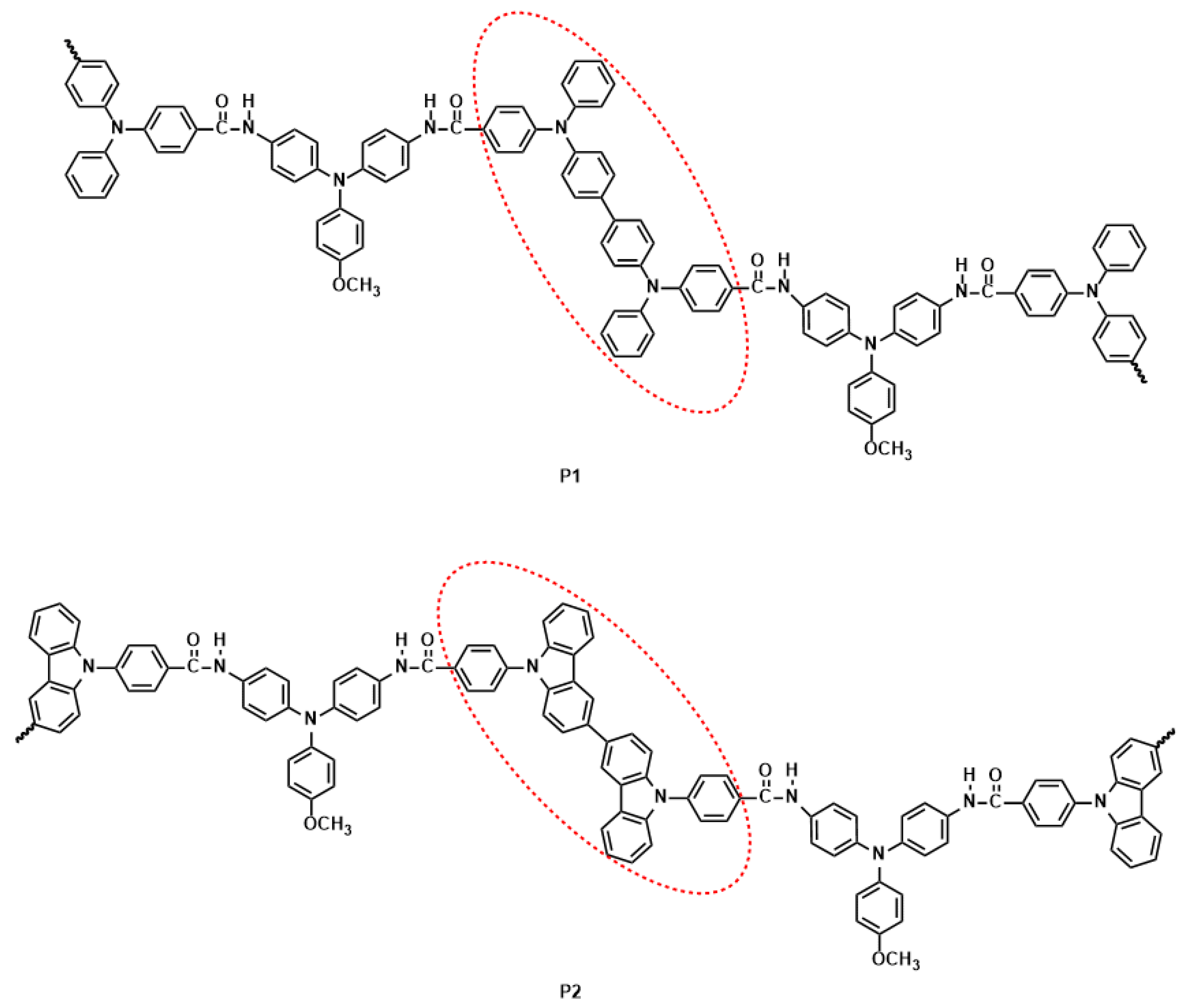

Scheme 2. Proposed structures of electro-generated polymers P1 and P2.
Scheme 2. Proposed structures of electro-generated polymers P1 and P2.
Polymers 09 00708 sch002
Polymers 09 00708 g008 550

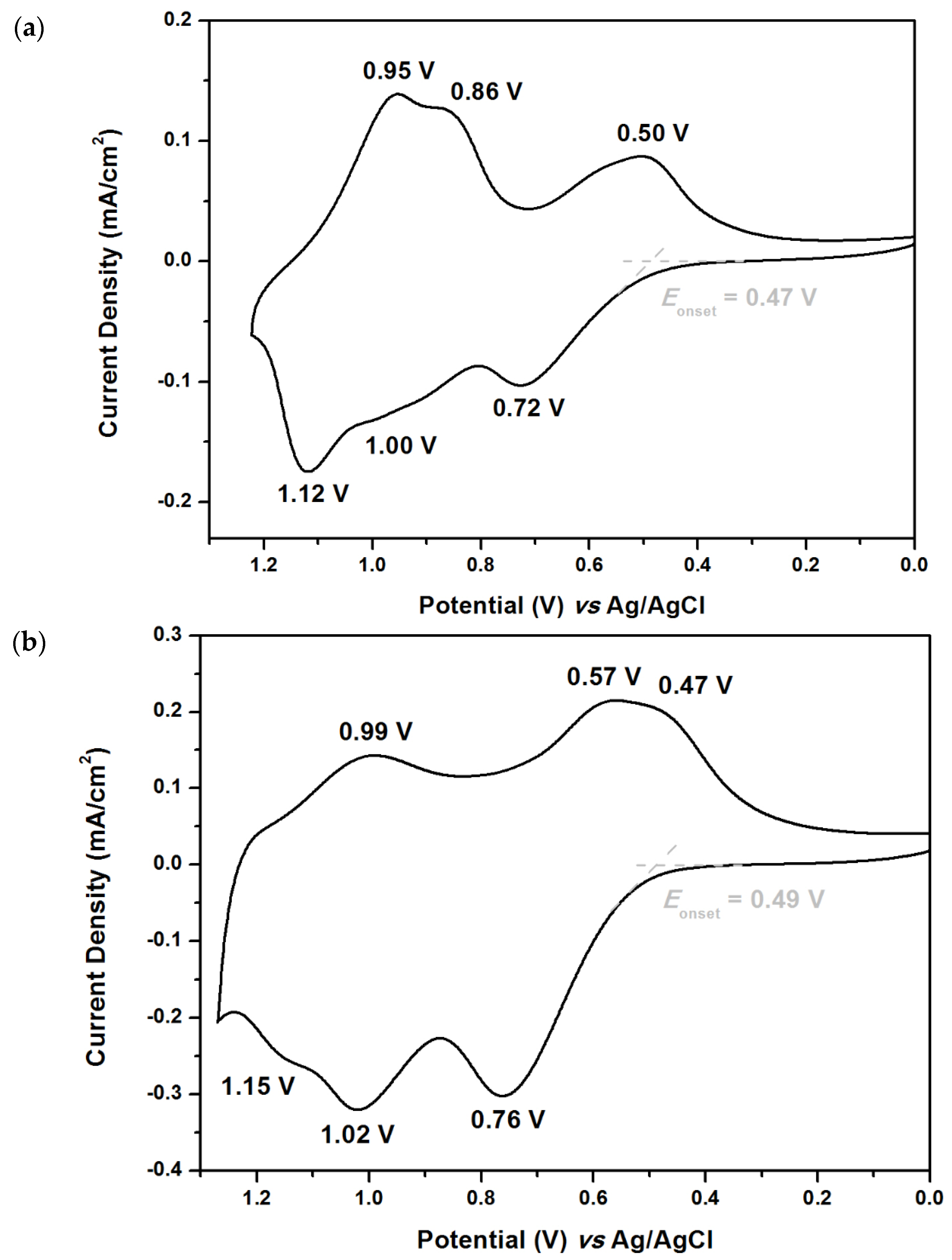

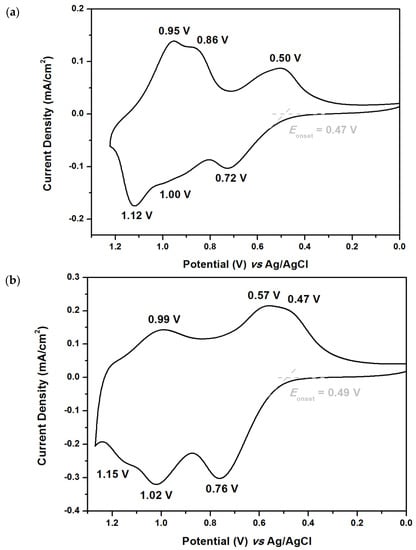

Figure 8. Cyclic voltammograms and differential pulse voltammograms of polymer films (a) P1 and (b) P2 on the ITO-coated glass slide in 0.1 M Bu4NClO4/CH2Cl2 at a scan rate of 50 mV·s−1.
Figure 8. Cyclic voltammograms and differential pulse voltammograms of polymer films (a) P1 and (b) P2 on the ITO-coated glass slide in 0.1 M Bu4NClO4/CH2Cl2 at a scan rate of 50 mV·s−1.
Polymers 09 00708 g008
Polymers 09 00708 g009 550

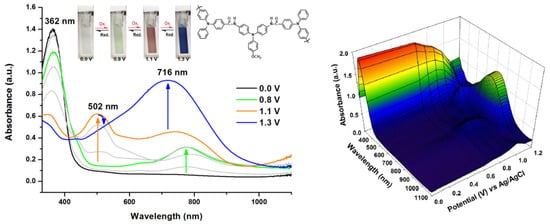

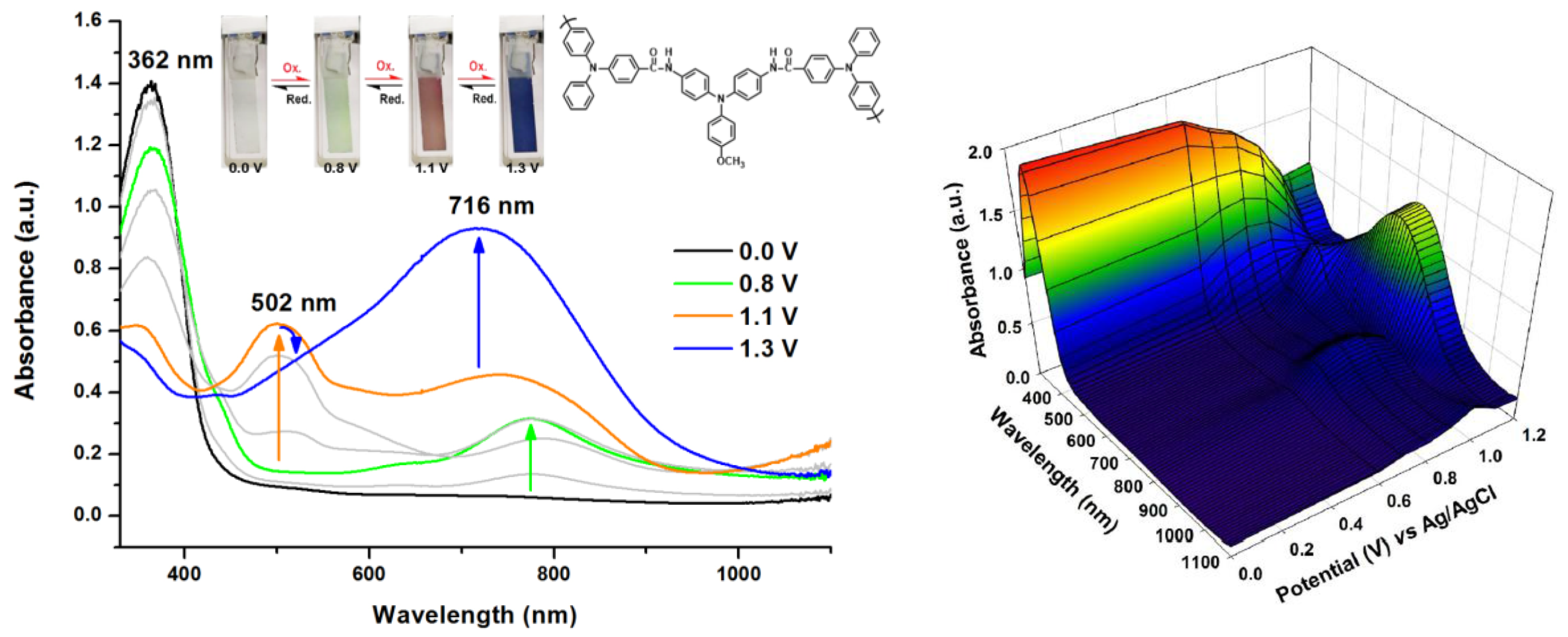

Figure 9. Spectroelectrochemistry of the electro-generated films of P1 (thickness: 250 ± 100 nm) on the ITO-coated glass substrate in 0.1 M Bu4NClO4/CH2Cl2 at various applied potentials.
Figure 9. Spectroelectrochemistry of the electro-generated films of P1 (thickness: 250 ± 100 nm) on the ITO-coated glass substrate in 0.1 M Bu4NClO4/CH2Cl2 at various applied potentials.
Polymers 09 00708 g009
Polymers 09 00708 g010 550

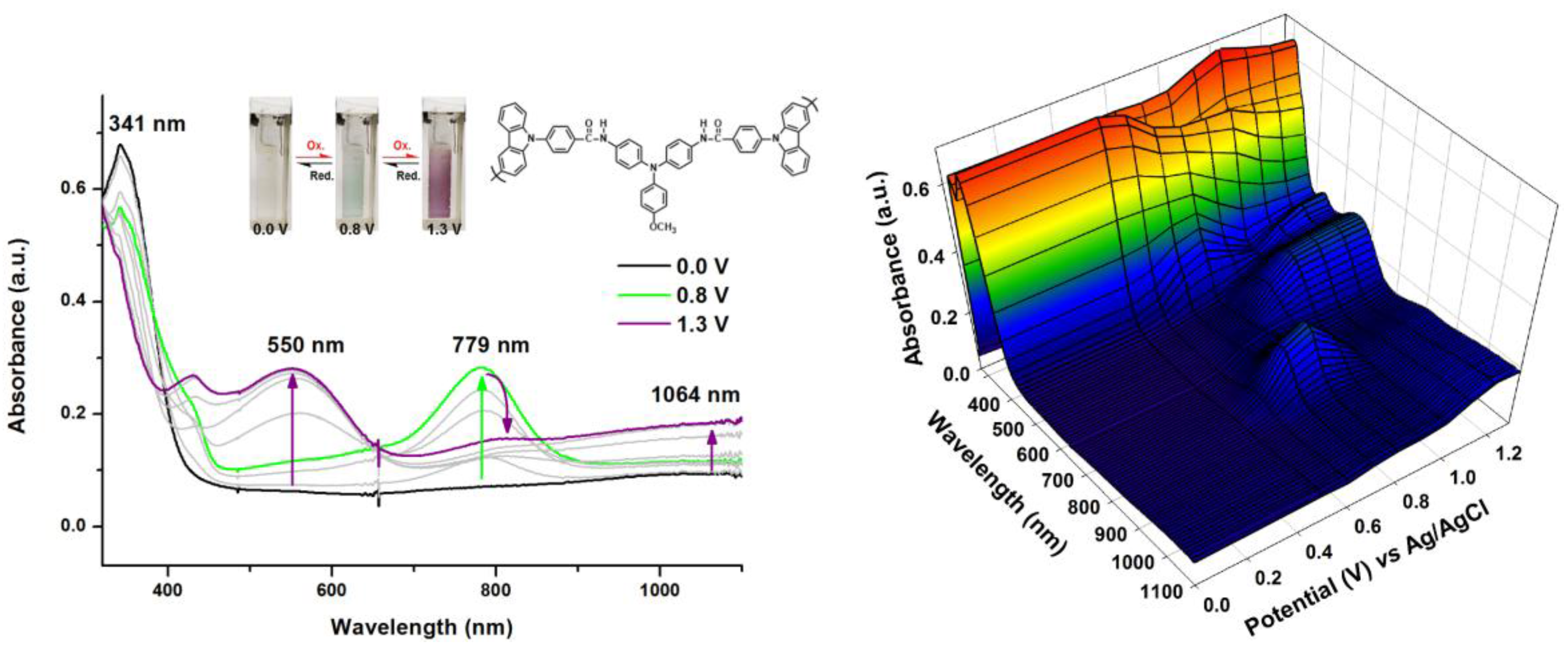

Figure 10. Spectroelectrochemistry of the electro-generated films of P2 (thickness: 170 ± 100 nm) on the ITO-coated glass substrate in 0.1 M Bu4NClO4/CH2Cl2 at various applied potentials.
Figure 10. Spectroelectrochemistry of the electro-generated films of P2 (thickness: 170 ± 100 nm) on the ITO-coated glass substrate in 0.1 M Bu4NClO4/CH2Cl2 at various applied potentials.
Polymers 09 00708 g010
Polymers 09 00708 g011a 550Polymers 09 00708 g011b 550

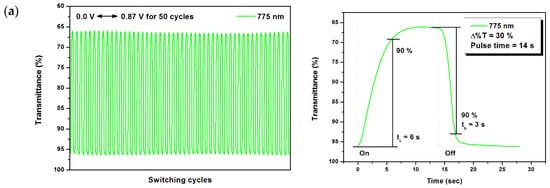

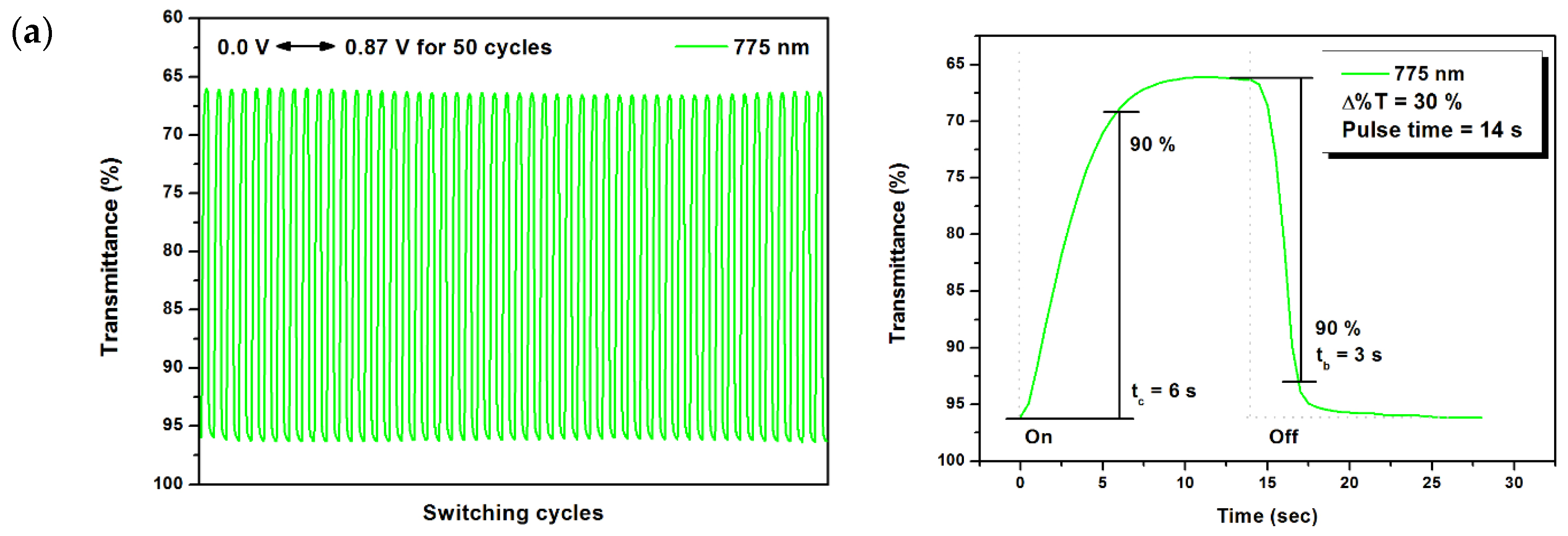

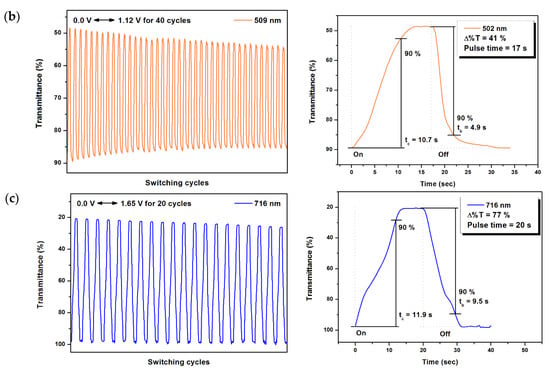

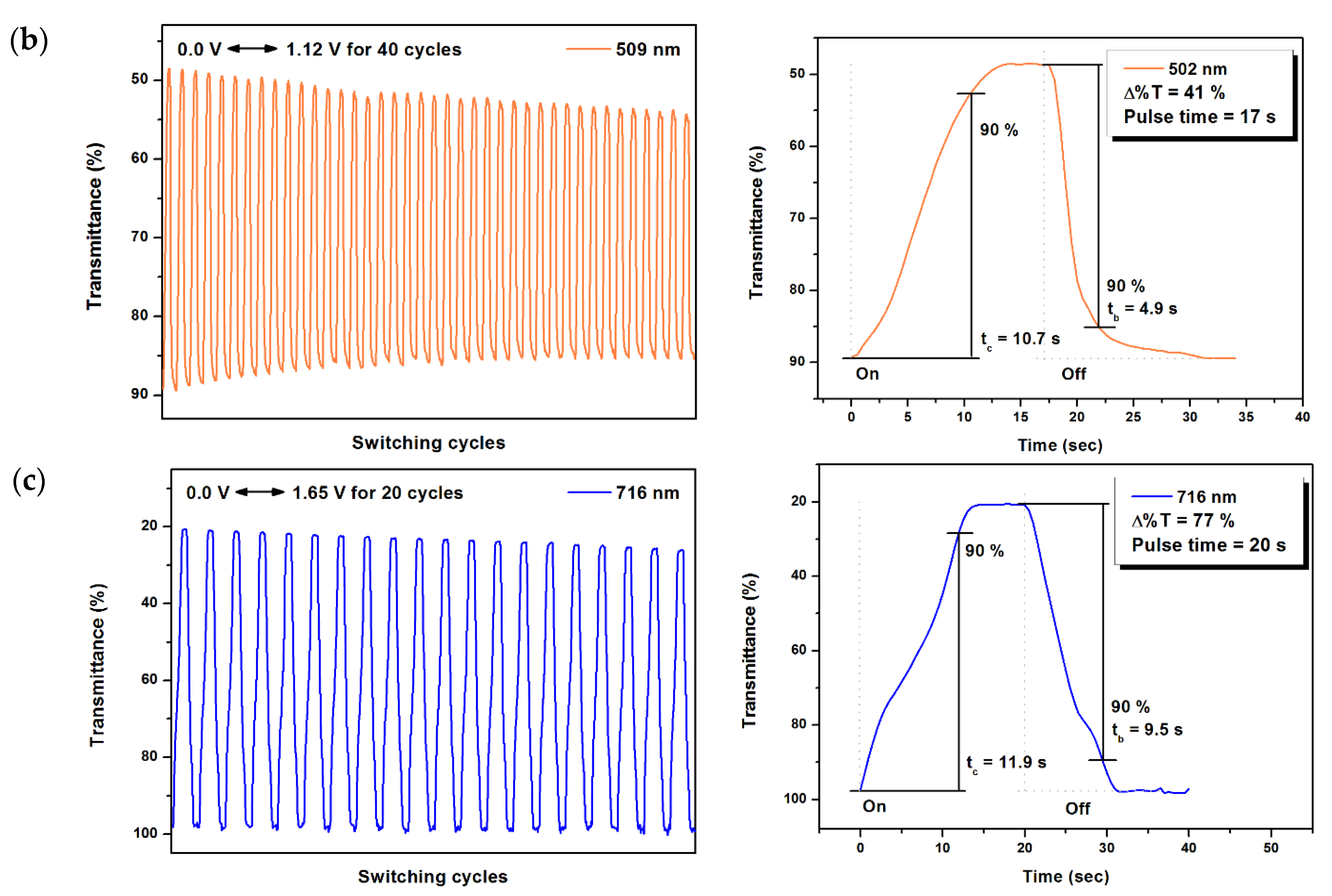

Figure 11. Percentage transmittance changes of the cast film of P1 on the ITO-glass slide (coated area ~1 cm2) (in CH2Cl2 with 0.1 M Bu4NClO4 as the supporting electrolyte) by applying a potential at (a) 0.0 ↹ 0.87 V for 50 cycles, (b) 0.0 ↹ 1.12 V for 40 cycles, and (c) 0.0 ↹ 1.65 V for 20 cycles.
Figure 11. Percentage transmittance changes of the cast film of P1 on the ITO-glass slide (coated area ~1 cm2) (in CH2Cl2 with 0.1 M Bu4NClO4 as the supporting electrolyte) by applying a potential at (a) 0.0 ↹ 0.87 V for 50 cycles, (b) 0.0 ↹ 1.12 V for 40 cycles, and (c) 0.0 ↹ 1.65 V for 20 cycles.
Polymers 09 00708 g011aPolymers 09 00708 g011b
Polymers 09 00708 g012 550

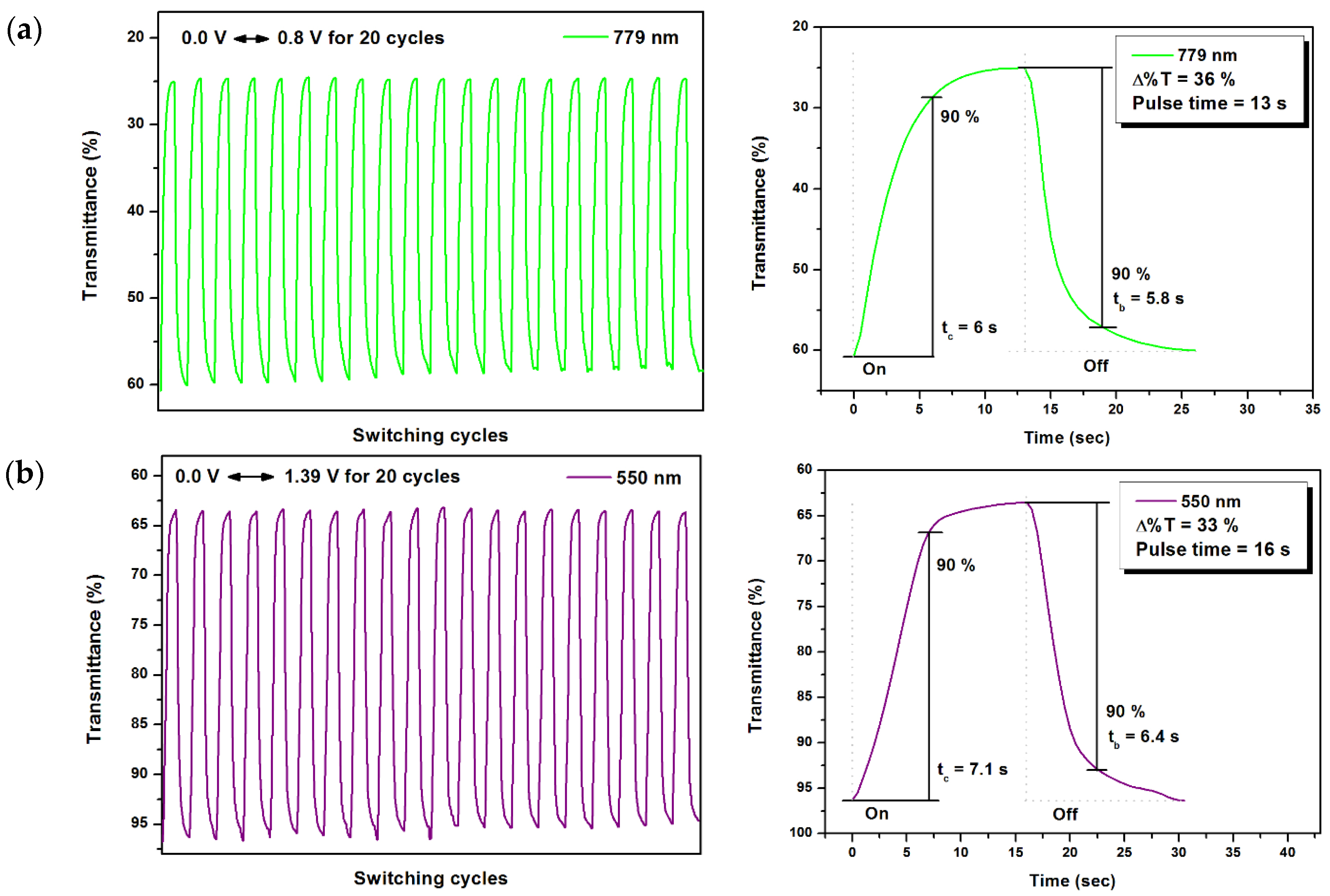

Figure 12. Percentage transmittance changes of the cast films of P2 on the ITO-glass slide (coated area ~1 cm2) (in CH2Cl2 with 0.1 M Bu4NClO4 as the supporting electrolyte) by applying a potential at (a) 0.0 ↹ 0.8 V and (b) 0.0 ↹ 1.39 V for 20 cycles.
Figure 12. Percentage transmittance changes of the cast films of P2 on the ITO-glass slide (coated area ~1 cm2) (in CH2Cl2 with 0.1 M Bu4NClO4 as the supporting electrolyte) by applying a potential at (a) 0.0 ↹ 0.8 V and (b) 0.0 ↹ 1.39 V for 20 cycles.
Polymers 09 00708 g012
Polymers 09 00708 g013 550

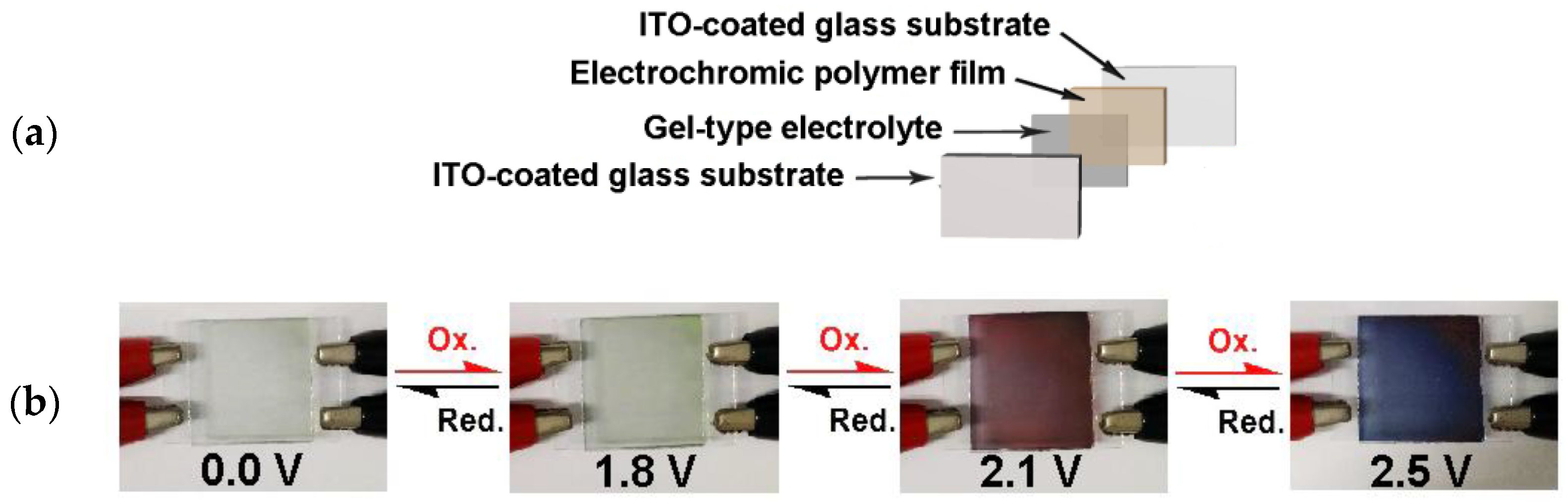

Figure 13. (a) Schematic illustration of the structure of the electrochromic devices. (b) Photos of the sandwich-type ITO-coated glass electrochromic device using P1 film as active layer at indicated applied voltages.
Figure 13. (a) Schematic illustration of the structure of the electrochromic devices. (b) Photos of the sandwich-type ITO-coated glass electrochromic device using P1 film as active layer at indicated applied voltages.
Polymers 09 00708 g013
Table
Table 1. Optical and electrochemical properties of the electrochemically synthesized polymers.
Table 1. Optical and electrochemical properties of the electrochemically synthesized polymers.
PolymersUV-Vis Absorption (nm) aOxidation Potential (V) bEg (eV) cHOMO (eV) dLUMO (eV) d
λmaxλonsetEonsetE1/2Ox1E1/2Ox2E1/2Ox3
P13614540.470.610.931.042.734.832.10
P23384490.490.620.801.072.764.852.09
a UV-vis absorption maximum and onset wavelengths for the polymer films. b Calculated from first cyclic voltammetry (CV) scans, versus Ag/AgCl in CH2Cl2 at a scan rate of 50 mV·s–1. c Optical bandgap calculated from absorption edge of the polymer film: Eg = 1240/λonset. d The highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO) energy levels were calculated from Eonset values of CV diagrams and were referenced to ferrocene (4.8 eV relative to vacuum energy level; Eonset = 0.44 V; E1/2 = 0.52 V in CH2Cl2). EHOMO = Eonset + 4.8 − 0.44 (eV); ELUMO = EHOMO − Eg.
Table
Table 2. Electrochromic properties of the polymer films.
Table 2. Electrochromic properties of the polymer films.
Polymersλmax a (nm)Δ% TResponse Time bΔOD cQd d (mC/cm2)CE e (cm2/C)
tc (s)tb (s)
P1775306.03.00.162.2173
5024110.74.90.264.5657
7167711.99.50.6810.3965
P2779366.05.80.383.09123
550337.16.40.184.2542
a Wavelength of absorption maximum. b Time for 90% of the full-transmittance change. c Optical density change (ΔOD) = log (Tbleached/Tcolored), where Tcolored and Tbleached are the maximum transmittance in the oxidized and neutral states, respectively. d Qd is ejected charge, determined from the in situ experiments. e Coloration efficiency (CE) = ΔOD/Qd.

Share and Cite

MDPI and ACS Style

Hsiao, S.-H.; Lu, H.-Y. Electrosynthesis of Aromatic Poly(amide-amine) Films from Triphenylamine-Based Electroactive Compounds for Electrochromic Applications. Polymers 2017, 9, 708. https://doi.org/10.3390/polym9120708

AMA Style

Hsiao S-H, Lu H-Y. Electrosynthesis of Aromatic Poly(amide-amine) Films from Triphenylamine-Based Electroactive Compounds for Electrochromic Applications. Polymers. 2017; 9(12):708. https://doi.org/10.3390/polym9120708

Chicago/Turabian Style

Hsiao, Sheng-Huei, and Hsing-Yi Lu. 2017. "Electrosynthesis of Aromatic Poly(amide-amine) Films from Triphenylamine-Based Electroactive Compounds for Electrochromic Applications" Polymers 9, no. 12: 708. https://doi.org/10.3390/polym9120708

APA Style

Hsiao, S. -H., & Lu, H. -Y. (2017). Electrosynthesis of Aromatic Poly(amide-amine) Films from Triphenylamine-Based Electroactive Compounds for Electrochromic Applications. Polymers, 9(12), 708. https://doi.org/10.3390/polym9120708

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
