Lysimeter-Based Water Use and Crop Coefficient of Drip-Irrigated Potato in an Arid Environment

Abstract

The determination of the water requirements and crop coefficient (K_c) of agricultural crops helps to create an appropriate irrigation schedule, and with the effective management of irrigation water. The aim of this research was to estimate the water requirement, K_c, and water-use efficiency (WUE) of potato using non-weighing-type lysimeters in four regions of the Kingdom of Saudi Arabia (Qassiem, Riyadh, Al-Jouf, and Eastern). Our results clearly show that the accumulated values of the measured crop evapotranspiration of potato derived from the lysimeters were 573, 554, 592, and 570 mm, while the accumulated values of the predicted crop evapotranspiration from Penman-Monteith equation based on FAO (Food and Agriculture Organization) were 651, 632, 672, and 647 mm for the Qassiem, Riyadh, Al-Jouf, and Eastern regions, respectively. The K_c values of potato obtained from the lysimeters were K_c initial (0.58, 0.54, 0.50, and 0.52), K_c middle (1.02, 1.05, 1.13, and 1.10), and K_c end (0.73, 0.74, 0.74, and 0.75) for the Qassiem, Riyadh, Al-Jouf, and Eastern regions, respectively. Based on the amount of water used and the yield achieved, the highest WUE (3.6 kg m⁻³) was observed in the Riyadh region, while the lowest WUE (1.5 kg m⁻³) was observed in the Al-Jouf region.

1. Introduction

In agriculture, a precise estimate of both the crop evapotranspiration (ET) and reference evapotranspiration (ET_o) is indispensable for determining crop water requirements, irrigation scheduling, irrigation system designs, and hydrological studies [1]. ET is defined as the sum of evaporation from soil and transpiration from plants [2].

Micrometeorological approaches, like the Eddy covariance and Bowen ratio techniques, have been widely used in recent times for indirectly measuring ET [3,4,5,6,7]. On the other hand, lysimeters are still the standard method for directly measuring ET [8].

Based on the available resources and necessity, lysimeters in different sizes and types are designed to study the water and solute transport [9], as well as ET rates [10,11,12,13]. The shapes of lysimeters are varied, including a rectangular shape [14,15,16,17,18], circular shape [19,20,21], and square shape [22,23]. Furthermore, researchers use another type of lysimeter with a small area of 0.006 m², usually known as a microlysimeter, in order to measure the evaporation of soil water [24].

Another classification of lysimeters is dependent on how the soil is collected inside the lysimeters. In other words, lysimeters can be repacked, monolithic, or a combination of repacked and monolithic [25]. In repacked lysimeters, the soil within the lysimeter is disturbed soil that is repacked to imitate the features of the intact soil [19,21]. In monolithic lysimeters, the soil inside the lysimeter is intact soil [15,20,22,26].

Lysimeters can be weighing and non-weighing. Weighing lysimeters measure the crop ET directly by estimating the change in mass of an isolated soil volume [25]. The non-weighing lysimeters, on the other hand, measure the crop ET by estimating the soil water balance components, including water inputs (irrigation), water outputs (drainage), and changes in soil water storage [27].

Potato production (Solanum tuberosum L.) takes an imperative place in the world’s agriculture, with a global production of about 327 million t harvested, and an area of 18.6 million ha [28]. Potatoes are highly sensitive to moisture stress, as 85% of their root system is settled in the upper 0.30 m of the soil layer [29]. For potato irrigation, drip irrigation is one of the best methods for row crop production, because of its effect on minimizing the evaporation from soil water, reducing the leaching of fertilizers, and improving the yield [29,30].

Potatoes of 120 to 150 days consume 500 to 700 mm of irrigation water, depending on the climate [1]. For example, Kashyap and Panda [31] found that the average value of ET for potato was 509 mm in a sub-humid area of India under furrow irrigation conditions. On the other hand, under hot dry conditions and sprinkler irrigation system in northeastern Portugal, the water requirement for potato reached 569 mm [32]. Another example of dry areas, such as Wadi Sirhan, Al-Jouf (Saudi Arabia), Al-Rumkhani and Din [33] found that the water requirement for potato was 652 mm.

The crop coefficient, K_c, is the ratio of ET to ET_o [1]. K_c represents the integration of the impacts of three basic characteristics that recognize the crop from the reference ET_o. These characteristics are as follows: crop–soil surface resistance, crop height, and albedo of the crop–soil surface [1]. Several researchers have assigned different values of K_c for potato [34]. For example, Ferreira and Carr [32] showed that the seasonal K_c values of potato ranged from 0.50 to 0.85. The K_c values of potatoes based on the FAO (Food and Agriculture Organization) results during the initial stage, mid stage, and end stage are 0.50, 1.15, and 0.75, respectively [1].

Water-use efficiency (WUE) is another essential factor in irrigation systems and water management [35]. In most agricultural studies, the WUE is determined as the total production of the aboveground biomass per amount of water used [36]. An example of the importance of WUE in water management is what Pereira et al. [37] reported, where they developed a deficit irrigation strategy based on the economic indicators for WUE and productivity, which takes into account the full awareness of the crop water requirements. The goal of this work was, over a three-season period, (1) to estimate the irrigation requirements, K_c, and WUE of potato crop in four regions of the Kingdom of Saudi Arabia, and (2) to assess the potential economic returns of potato production.

2. Materials and Methods

2.1. Descriptions of the Study Sites

The field experiments were carried out at (Qassiem University, Qassiem, Saudi Arabia), (Ministry of Agriculture, Riyadh, Saudi Arabia), (Alwatania Agricultural Company, Al-Jouf, Saudi Arabia), and (King Faisal University, Eastern, Saudi Arabia) regions. The geographical coordinates and locations of the four regions of the Kingdom of Saudi Arabia (KSA) are presented in

Table 1. The geographical coordinates of the experimental locations at the four regions of the Kingdom of Saudi Arabia (KSA).

Location	Longitude	Latitude	Altitude (m)	Region
QU	43°46′ E	26°21′ N	648	Qassiem
MOA	46°43′ E	24°43′ N	600	Riyadh
AAC	39°29′ E	29°29′ N	724	Al-Jouf
KFU	49°33′ E	25°21′ N	179	Eastern

QU—Qassiem University; MOA—Ministry of Agriculture; AAC—Alwatania Agricultural Company; KFU—King Faisal University.

. The average values of the annual rainfall in the KSA ranges between 80 and 140 mm, except for in the southwestern mountains [38]. The average values for the temperatures in the Qassiem, Riyadh, Al-Jouf, and Eastern regions were 35, 36, 33, and 37 °C, respectively. The relative humidity was low, and the average values for the relative humidity were 12%, 13%, 17%, and 24% in the Qassiem, Riyadh, Al-Jouf, and Eastern regions, respectively. Other meteorological data for each area of the four regions are illustrated in Figure 1.

2.2. Lysimeters

Two non-weighing lysimeters were designed to grow alfalfa (Mcdicago sativa) and potatoes (Solanum tuberosum L.) in four regions of KSA (Qassiem, Riyadh, Al-Jouf, and Eastern; Figure 2). The lysimeters were used to obtain the measured crop evapotranspiration (MET_c), measured reference evapotranspiration (MET_r), and crop coefficient of potatoes. Lysimeters were filled with repacked soil, which imitates the features of the native soil. A 15-cm-thick layer of graded gravel was placed at the bottom of the lysimeters plots so as to facilitate the drainage process. An underground passageway was constructed to easily collect the drained water. The alfalfa and potato crops in both lysimeters were irrigated by sprinkler and drip irrigation systems, respectively, as were the crops in the surrounding areas, so as to avoid any potential discrepancies in the estimation process.

2.3. Prediction of the Reference Evapotranspiration

The lysimeters grown with alfalfa at the four regions were irrigated daily, with various amounts of water according to the reference evapotranspiration (ET_o) acquired from a nearby weather station (Equation (1)). Similarly, the lysimeters cultivated with potatoes at the four regions were irrigated on a daily basis, according to the ET_o values and FAO (Food and Agriculture Organization) crop coefficients [1]. The amounts of irrigation and drainage water were measured after each irrigation event, where the lysimeters were fitted with suitable inlets for irrigation and outlets for drained water.

$${\mathrm{ET}}_{\mathrm{o}}=\frac{0.408\Delta \left({\mathrm{R}}_{\mathrm{n}}-\mathrm{G}\right)+\mathsf{\gamma }\left[\frac{\left({900\mathrm{U}}_2\right)}{\mathrm{T}+237}\right]\left({\mathrm{e}}_{\mathrm{s}}{-\mathrm{e}}_{\mathrm{a}}\right)}{\Delta +\mathsf{\gamma }\left(1+0.34{\mathrm{U}}_2\right)}$$

(1)

where ET_o is the daily reference crop evapotranspiration rate (mm/day), R_n is the net radiation at the canopy surface (MJ/m²/d), G is the soil heat flux at the soil surface (MJ/m²/d), T is the mean daily air temperature (°C), γ is the psychometric constant (kPa/°C), U₂ is the mean daily wind speed at a height of 2.0 m (m/s), e_s is the mean saturation vapor pressure (kPa), e_a is the mean actual vapor pressure (kPa), (e_s − e_a) is the saturated vapor pressure deficit (kPa), and Δ is the slope of the saturated vapor pressure temperature curve (kPa/°C).

2.4. Crop Data

Alfalfa (Mcdicago sativa) and potato (Solanum tuberosum L.) were cultivated in the plots of the first and second lysimeters, respectively, at the four regions of KSA over a three-season period (2012 to 2015). The conditions surrounding the alfalfa plots were similar to the standard conditions (height of 0.12 m, surface resistance of 70 s m⁻¹, and an albedo of 0.23) of the Penman-Monteith equation. Nutrients N, P, and K were delivered to potatoes at rates of 200, 200, and 150 kg/ha, respectively, in accordance with the recommendations set out by the Ministry of Agriculture. Pesticides were used whenever needed so as to control insects and pathogens. The fungicide Penncozeb 75 DG and Imidor 200SL (Astra Agricultural Co. Ltd., Riyadh, Saudi Arabia) were applied at a rate of 2.5 g/L and 0.5 mL/L, respectively, for all of the treatments at the four regions. The potatoes were planted on 15 March in the four regions, while 28 July was the date of harvesting in the four regions. The average yields of the potatoes for the Qassiem, Riyadh, Al-Jouf, and Eastern regions were 24.40 t ha⁻¹, 26.97 t ha⁻¹, 17.69 t ha⁻¹, and 18.25 t ha⁻¹, respectively.

2.5. Crop Coefficient

K_c is the ratio of the well-watered crop evapotranspiration and reference evapotranspiration (i.e., MET_c/MET_r) [1]. The K_c values reflect the relative water consumption capacity of a specific crop during the different growing stages. The K_c curve is divided into four stages—the initial, development, mid-season, and late season periods. Three values are required to generate the K_c curve, namely the K_c during the initial period (K_{c ini}), the Kc during the mid-season (K_{c mid}), and the K_c at the late season (K_{c end}).

2.6. Water-Use Efficiency

WUE is defined as the total production of the biomass aboveground per amount of water used [39], as follows:

$$\mathrm{WUE}={\displaystyle \sum }_{\mathrm{i}=1}^{\mathrm{n}}\left[\left(\mathrm{y}\right)/\left(\mathrm{wa}\right)\right]$$

(2)

where WUE is the water-use efficiency (kg/m³), n is the number of plots with each irrigation strategy, y is the total yield (kg), and wa is the amount of seasonally applied water (m³).

2.7. Economic Analysis

The economic potential of the production of irrigated potatoes was investigated through the following two perspectives:

• The estimated net return;
• The return from water use.

The economic analysis included the water requirements (m³ ha⁻¹), area productivities (t ha⁻¹), water costs (US $ m⁻³), variable costs (US $ ha⁻¹), market prices (US $ t⁻¹), net return (US $ ha⁻¹), economic return (US $ ha⁻¹), and water return (US $ m⁻³).

3. Results and Discussion

3.1. The Reference Evapotranspiration

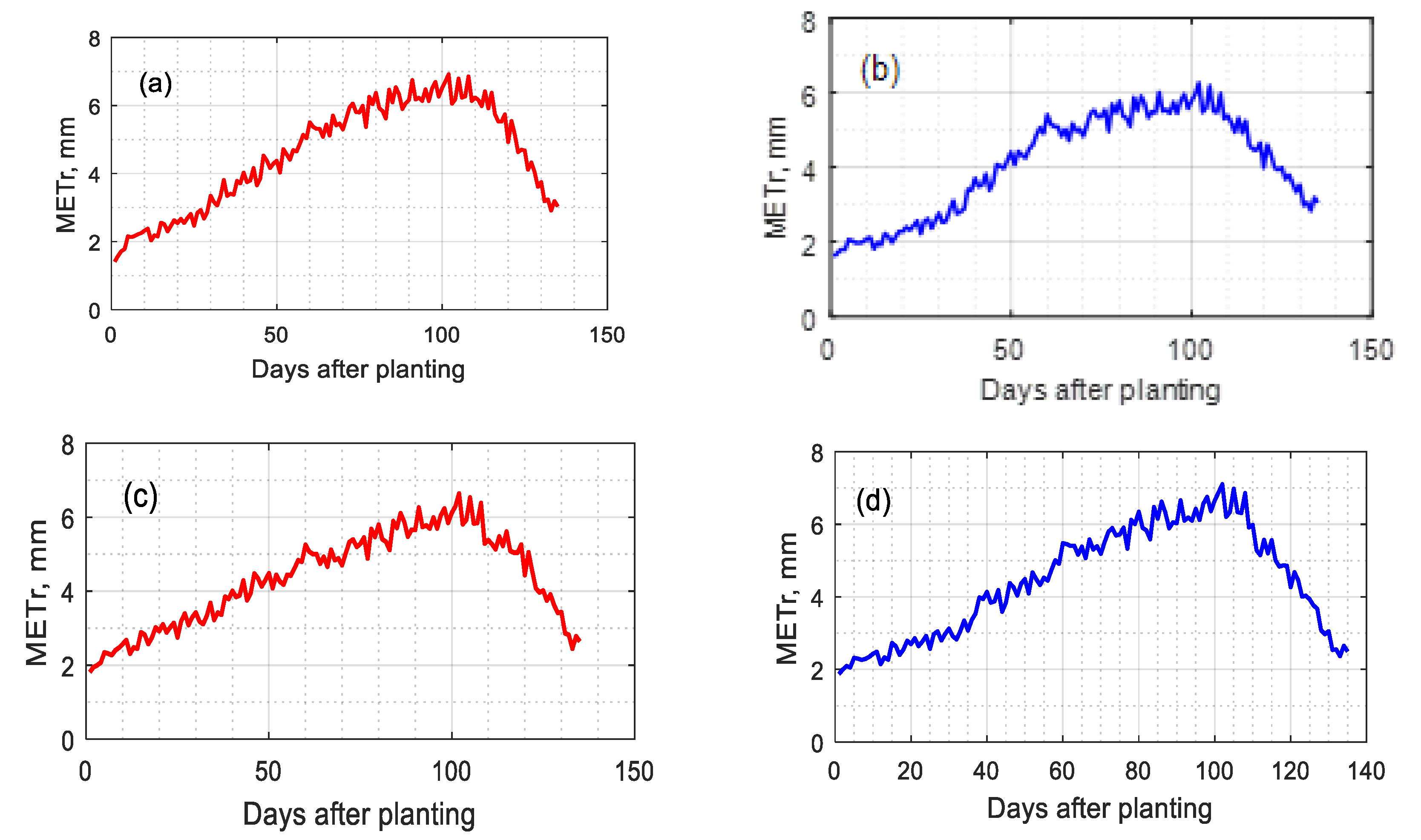

Figure 3 shows the measured evapotranspiration of the alfalfa (MET_r) acquired from the lysimeters for the studied locations (Qassiem, Riyadh, Al-Jouf, and Eastern) of KSA. As can be seen from Figure 3, the values of MET_r were relatively low during the growth stage, then it increased gradually and peaked over the flowering stage. For example, the average values of MET_r, which were derived from the lysimeters, were 2.16, 2.10, 2.64, and 2.4 mm/day in the initial stage; 5.46, 5.10, 5.11, and 5.22 mm/day in the mid-season stage, and 5.28, 4.98, 4.87, and 4.85 mm/day in the late stage for the Qassiem, Riyadh, Al-Jouf, and Eastern regions, respectively.

3.2. The Crop Evapotranspiration

Figure 4 illustrates the measured crop evapotranspiration (MET_c) gained from the lysimeters on the one hand, and the predicted crop evapotranspiration (PET_c) acquired from a nearby weather station for potato crop, on the other hand, in the four regions of KSA. The values of MET_c and PET_c varied from a low of 1.92 and 1.95 mm/day in the Riyadh, respectively, during the germination stage, to a high of 12.1 and 15.2 mm/day in Al-Jouf region over the flowering stage. The average values of the MET_c for the Qassiem, Riyadh, Al-Jouf, and Eastern regions were 1.26, 1.14, 1.32, and 1.26 mm/day; 5.58, 5.40, 5.76, and 5.74 mm/day; and 3.90, 3.72, 3.60, and 3.66 mm/day in the initial stage, the mid-season stage, and the late season periods, respectively. Similarly, the values of PET_c were 1.38, 1.26, 1.50, and 1.38 mm/day in the initial stage; 8.46, 8.40, 9, and 8.82 mm/day in the mid-season stage; and 4.56, 4.38, 4.20, and 4.26 mm/day in the late season stage for the Qassiem, Riyadh, Al-Jouf, and Eastern regions, respectively. Overall, the measured values, MET_c, were somewhat close to the predicted values, PET_c. However, the values of PET_c were slightly higher than the values of MET_c. These results are in agreement with the literature [40,41].

3.3. Crop Coefficient of Potato

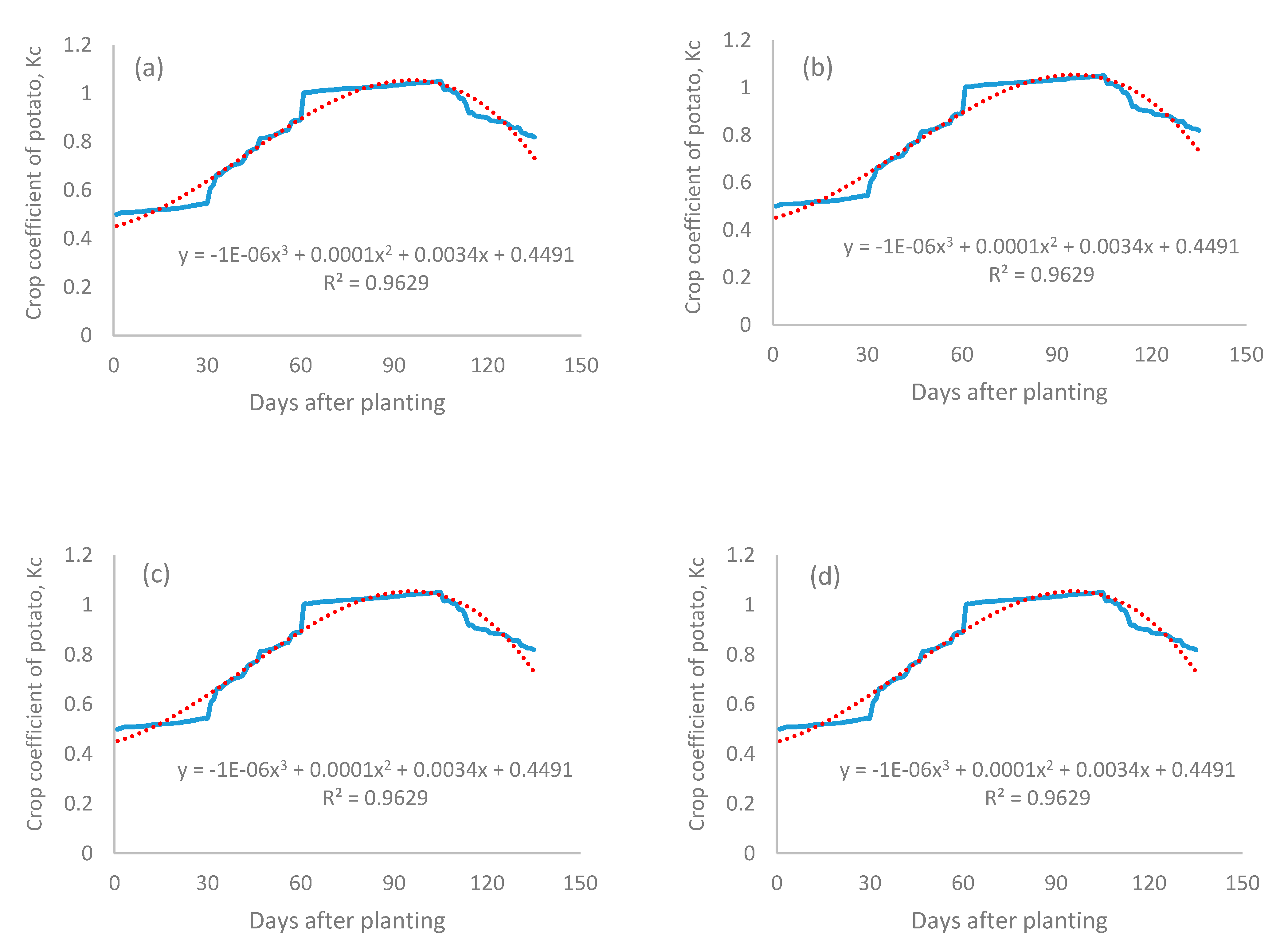

Figure 5 shows the K_c values of the potato crop obtained from lysimeters (i.e., MET_c and MET_r) at the four regions of KSA. The values measured from the lysimeters were K_{c ini} 0.58, 0.54, 0.50, and 0.52; K_{c mid} 1.02, 1.05, 1.13, and 1.10; and K_{c end}: 0.73, 0.74, 0.74, and 0.75 for the Qassiem, Riyadh, Al-Jouf, and Eastern regions, respectively. It can be noted that the K_c values were relatively low at the initial stage, mainly because the evapotranspiration at this stage depended on the evaporation from the soil, as the crop had no ground cover. On the other hand, the highest values of K_c were found within the mid-season stage, as the evapotranspiration was significantly high. At the late stage period, the K_c values decreased steadily because of the maturity and senescence of the leaves. Compared to the FAO (Food and Agriculture Organization) results, the obtained K_c values were similar to what the FAO recommends [1].

3.4. Water-Use Efficiency (WUE)

Figure 6 shows the WUE, which represents the relationship between the crop yield and quantity of water used at the four regions of KSA. The spatial patterns of the WUE were generally consistent with those of the yield and evapotranspiration (i.e., a high-yield was accompanied by a high WUE, and vice versa). For example, the drip-irrigated treatments in the Riyadh and Qassiem regions produced a higher WUE in comparison with those treatments irrigated in the Eastern and Al-Jouf regions. In other words, the highest WUE (3.6 kg m⁻³) was observed in the Riyadh region, while the lowest WUE (1.5 kg m⁻³) was observed in the Al-Jouf region. This was mainly because of the climatic conditions and different soil characteristics in each region.

3.5. Economic Analysis

The economic analysis for the irrigated potatoes in the Qassiem, Riyadh, Al-Jouf, and Eastern regions are given in

Table 2. Economic potential of irrigated potato production at four regions of KSA.

Parameter	Region
	Qassiem	Riyadh	Al-Jouf	Eastern
Average production (t ha−1)	24.40	26.97	17.69	18.25
Average water cost ($ m−3)	0.06	0.06	0.07	0.06
Average market price ($ t−1)	466.7	409.3	186.7	266.7
Water requirement (m3 ha−1)	11843	6712	8564	7130
Average variable cost ($ ha−1)	1089.6	5387.5	2831.3	3852.3
Average return ($ ha−1)	8516.8	9989.1	5033.8	4717.6
Average net return ($ ha−1)	7426.9	4601.3	2202.7	865.3
Average water return ($ m−3)	0.72	1.49	0.59	0.67

. As is clear from Table 2, the economic potential of the irrigated potato production is greatest in the Riyadh region, followed, in descending order, by the Qassiem, Eastern, and Al-Jouf regions. Also, the maximum value of the average water return was observed in the Riyadh region, while the minimum average value was noted in the Al-Jouf region. Furthermore, the average net return values for the irrigated potatoes were estimated as 7426.90 US $ ha⁻¹, 4601.30 US $ ha⁻¹, 2202.70 US $ ha⁻¹, and 865.30 US $ ha⁻¹ for the Qassiem, Riyadh, Al-Jouf, and Eastern regions, respectively. This could be attributed to the changes in both the market prices and average variable costs at the study regions.

4. Conclusions

Two non-weighing lysimeters were designed to grow alfalfa (Mcdicago sativa) and potatoes (Solanum tuberosum L.) in four regions of the Kingdom of Saudi Arabia (Qassiem, Riyadh, Al-Jouf, and Eastern). The experiments were aimed at determining the irrigation requirements, K_c, and the economic returns of the potato crop. The results show that the accumulated values of the measured crop evapotranspiration obtained from the potato lysimeters were 573, 554, 592, and 570 mm for the Qassiem, Riyadh, Al-Jouf, and Eastern regions, respectively. The K_c values were K_{c ini} 0.58, 0.54, 0.50, and 0.52; K_{c mid} 1.02, 1.05, 1.13, and 1.10; and K_{c end} 0.73, 0.74, 0.74, and 0.75 for the Qassiem, Riyadh, Al-Jouf, and Eastern regions, respectively. The average values of the water return for the irrigated potatoes at the Qassiem, Riyadh, Al-Jouf, and Eastern regions were estimated to be approximately 0.72 $ m⁻³, 1.49 $ m⁻³, 0.59 $ m⁻³, and 0.67 $ m⁻³, respectively.
