Comprehensive Analysis of NAC Genes Reveals Differential Expression Patterns in Response to Pst DC3000 and Their Overlapping Expression Pattern during PTI and ETI in Tomato

by
Songzhi Xu
1,†,
Zhiyao Zhang
1,†,
Jiajing Zhou
2,
Xiao Han
1,
Kun Song
2,
Haiying Gu
2,
Suqin Zhu
1,* and
Lijun Sun
1,3,*
1
School of Life Sciences, Nantong University, Nantong 226019, China
2
School of Public Health, Institute of Analytical Chemistry for Life Science, Nantong University, Nantong 226019, China
3
Key Lab of Landscape Plant Genetics and Breeding, Nantong 226019, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Genes 2022, 13(11), 2015; https://doi.org/10.3390/genes13112015
Submission received: 30 August 2022 / Revised: 22 October 2022 / Accepted: 26 October 2022 / Published: 2 November 2022
(This article belongs to the Special Issue Genetic Regulation of Biotic Stress Responses)
Browse Figures
Review Reports Versions Notes

Abstract

:
NAC (NAM/ATAF/CUC) transcription factors belong to a unique gene family in plants, which play vital roles in regulating diverse biological processes, including growth, development, senescence, and in response to biotic and abiotic stresses. Tomato (Solanum lycopersicum), as the most highly valued vegetable and fruit crop worldwide, is constantly attacked by Pseudomonas syringae pv. tomato DC3000 (Pst DC3000), causing huge losses in production. Thus, it is essential to conduct a comprehensive identification of the SlNAC genes involved in response to Pst DC3000 in tomato. In this study, a complete overview of this gene family in tomato is presented, including genome localization, protein domain architectures, physical and chemical features, and nuclear location score. Phylogenetic analysis identified 20 SlNAC genes as putative stress-responsive genes, named SSlNAC 1–20. Expression profiles analysis revealed that 18 of these 20 SSlNAC genes were significantly induced in defense response to Pst DC3000 stress. Furthermore, the RNA-seq data were mined and analyzed, and the results revealed the expression pattern of the 20 SSlNAC genes in response to Pst DC3000 during the PTI and ETI. Among them, SSlNAC3, SSlNAC4, SSlNAC7, SSlNAC8, SSlNAC12, SSlNAC17, and SSlNAC19 were up-regulated against Pst DC3000 during PTI and ETI, which suggested that these genes may participate in both the PTI and ETI pathway during the interaction between tomato and Pst DC3000. In addition, SSlNAC genes induced by exogenous hormones, including indole-3-acetic acid (IAA), abscisic acid (ABA), salicylic acid (SA), and methyl jasmonic acid (MeJA), were also recovered. These results implied that SSlNAC genes may participate in the Pst DC3000 stress response by multiple regulatory pathways of the phytohormones. In all, this study provides important clues for further functional analysis and of the regulatory mechanism of SSlNAC genes under Pst DC3000 stress.

1. Introduction

In nature, plants are often attacked by pathogens in the process of growth and development [1]. Usually, phytopathogens may reduce the biomass, or even kill the plant, which will ultimately affect plant growth and crop yield [1,2]. Over the long term, plants evolved a series of defense mechanisms to adapt and resist various pathogens attack, including physical barriers, antimicrobial compounds [3], and the plant immune system, including pattern-triggered immunity (PTI), as the first tier of the plant immune system, and effector-triggered immunity (ETI). Previous studies demonstrated that reactive oxygen species (ROS) signaling, phytohormone signaling, changes in redox status, inorganic ion fluxes, and transcriptional reprogramming, etc., were triggered during PTI and ETI [4,5]. Among these complex molecular regulatory networks, transcription factors act important roles by binding to promoters of resistance genes and regulating multiple specific stress responsive genes.
NAC (NAM, ATAF, and CUC) transcription factors (TFs), as one of the largest family of transcription factors in plants, comprise a complex plant-specific superfamily and presents in a wide range of species [4,6]. NAC TFs were found to function in various growth and development processes, including leaf or flower senescence [7,8,9], formation of cell wall [10,11], fruit ripening [12,13,14], root growth [15], etc. Besides, a large number of studies demonstrated that NAC TFs played important roles in abiotic and biotic stress responses, especially in crops. For instance, in rice, transcriptional profiling analysis revealed that a total of 63 ONAC genes exhibited overlapping expression patterns under various abiotic and biotic stresses [16]. Over-expression of stress-responsive OsNAC2 can enhance drought or salinity tolerance [17], while knockout of OsNAC006 resulted in drought and heat sensitivity [18]. Over-expression of OsNAC58 [19] and OsNAC60 [20] increased resistance to pathogen attack. In wheat, the most TF members, 559, have been reported [21]. TaNAC1 [22], TaNAC2 [23], TaNAC6s [24], TaNAC30 [25], and TaNACL-D1 [26] were identified as negative or positive regulators in resisting biotic stress by over-expression or knockdown approaches, while over-expression of TaNAC48 and TaNAC29 significantly enhanced drought and salt tolerance, respectively [27,28]. Besides, Xia et al. (2010) proved that TaNAC8 can be significantly induced by biotic stress, abiotic stresses, MeJA (methyl jasmonic acid), and ET (ethylene) [29]. In soybean (Glycine max), over-expression of GmNAC019 and GmNAC06 significantly improved drought and salt tolerance, respectively [30,31], while GmNAC42-1 [32] and GmDRR1 [33] were reported to be involved in plant disease resistance by over-expression or the CRISPR-Cas9 system.
On the other hand, expression of NAC genes can also be induced by phytohormones, and some studies have demonstrated that NAC TFs may influence different developmental programs and respond to abiotic and biotic stresses through influencing synthesis and metabolism of phytohormones. For instance, Liu et al. (2018) reported three ABA (abscisic acid)-responsive elements, two SA (salicylic acid)-responsive elements, and two MeJA-responsive elements in the prompter sequence of ONAC066 [34]. Huang et al. (2017) detected many cis-elements involved in hormones response, including the SA response element, auxin-responsive element, and ABA-responsive element [35]. Mao et al. (2020) indicated that OsNAC2 plays an important role in root development as an upstream integrator of auxin and cytokinin signals [36]. Liu et al. (2018) revealed that ONAC066 positively regulates disease resistance by modulating the ABA signal pathway in rice [34]. Du et al. (2014) demonstrated that JA2L, one of the NAC TFs, is more susceptible to Pseudomonas syringae pv. tomato DC3000 (Pst DC3000) by promoting the metabolic genes of SA, SAMT1, and SAMT2, which suppressed accumulation of SA and led to reopening of stomata [37]. Zhu et al. (2019) demonstrated that DRL1, encoding a NAC transcriptional factor, acts as a negative regulator of leaf senescence by regulating ABA synthesis [38]. All in all, identifying NAC genes induced by phytohormones is helpful for illustrating the mechanisms of NAC-mediated stress resistance and interactions between NAC TFs and phytohormones under stress.
Tomato (Solanum lycopersicum), as one of the most consumed and economically important vegetable and fruit crop worldwide, has made a huge contribution to the human diet [4,39,40]. Meanwhile, tomato is constantly challenged by varieties of biotic and abiotic stress. To date, several NAC TFs, including SlNAC1 [41], SlNAC3 [42], SlNAC4 [43], SlNAM1 [44,45], SlSRN1 [46], and JUB1 [47,48], were identified as regulators in response to drought, salinity, chilling, or heat stress. Except for abiotic stress, tomato is extremely vulnerable to fungi, viruses, and bacteria. Pst DC3000, as a destructive disease pathogen, could cause bacterial leaf spot, resulting in yield loss and reduced quality of tomato fruit [49], but effective control measures are still lacking [50]. To clarify the resistance mechanism in response to Pst DC3000 in tomato could provide a new strategy in defending bacterial leaf spot.
Although several SlNAC genes, such as SlSRN1, SlNAC1, and JA2L, have been characterized in response to Pst DC3000 [37,46,51], the expression patterns, functional surveys, and regulatory mechanisms of most SlNAC genes under Pst DC3000 stress remain largely unclear. Collectively, the aims of this study are to (1) identify the stress-responsive SlNAC (SSlNAC) genes by phylogenetic analysis; (2) obtain the expression levels of these SSlNAC genes under Pst DC3000 inoculation; (3) understand the expression patterns of these SSlNAC genes under Pst DC3000 inoculation during PTI and ETI; and (4) illustrate the expression levels of these SSlNAC genes under exogenous hormones treatment, including IAA (indole-3-acetic acid), ABA, SA, and MeJA). The results of this study will provide clues for further functional analysis and of the regulatory mechanisms of the SlNAC genes under Pst DC3000 stress, which are essential in developing transgenic tomato with enhanced tolerance to Pst DC3000 stress.

2. Materials and Methods

2.1. Sequence Retrieval and Sequence Analysis of Tomato NAC Transcription Factors

To obtain members of the tomato NAC transcription factor gene family, multiple database searches were performed. The Database of Sol Genomics Network (https://solgenomics.net/, accessed on 1 March 2021) and National Centre for Biotechnology Information (NCBI; http://www.ncbi.nlm.nih.gov/, accessed on 1 March 2021) were used to search for members of the NAC gene family. In addition, the chromosome, sites, location, and protein length of the tomato NAC genes were obtained. Protein domain architectures of the NAC transcription factors were analyzed in the SMART database (http://smart.embl-heidelberg.de/, accessed on 1 April 2021). The physical and chemical features of the NAC protein, including the molecular weight and isoelectric point, instability index, aliphatic index, and grand average hydropathicity, were obtained from protParam (http://web.expasy.org/protparam/, accessed on 1 April 2021). The subcellular localization was predicted by Protcomp 9.0 (http://linux1.softberry.com/berry.phtml?, accessed on 7 May 2021).

2.2. Phylogenetic Analysis, Gene Structure, and Conserved Motif Prection of SlNAC Genes

Multiple sequence alignment of full-length protein sequences of tomato NAC transcription factors was performed using the Clustal W2 program with the default parameters. A phylogenetic tree was plotted using MEGA software version 5.05 (Auckland, New Zealand) by the neighbor-joining method with 1000 bootstrap replicates. The exon/intron structures of the SlNAC genes were visualized using TBtools software version 1.098769 (Guangzhou, China). To analyze the functional regions of the SlNAC proteins, conserved motifs in full length tomato NAC proteins were identified using the Multiple Expectation Maximization for Motif Elicitation (MEME) program version 4.6.1 (http://meme.nbcr.net/meme/, accessed on 5 June 2021) with the default parameters.

2.3. Chromosomal Location and Collinearity Analysis

To identify the chromosomal positions of 101 tomato NAC genes, TBtools software version 1.098769 (Guangzhou, China) was used to locate and visually map the SlNAC genes on 13 chromosomes in tomato based on the General Feature Format (GFF) information. To further explore the gene duplication events of 101 SlNAC genes, collinearity analysis was performed using MCscanX and the gene duplication events were visualized using Advanced Circos in TBtools software version 1.098769 (Guangzhou, China).

2.4. Mining and Analysis of RNA-Seq Data-Based Expression Profiling Data

To understand the performance of SSlNAC genes resisting against Pst DC3000 during PTI and ETI, RNA-seq data available on the Tomato Functional Genomics Database (http://ted.bti.cornell.edu/cgi-bin/TFGD, accessed on 1 July 2021) was mined and analyzed in this study. Data from accessions D007 (Transcriptome sequencing of tomato leaves treated with different bacteria and PAMPs) [52], D010 (Transcriptome sequencing of leaves of resistant (RG-PtoR) and susceptible (RG-prf3 and RG-prf19) tomato plants treated with Pst DC3000) [53], D011 (Transcriptome sequencing of tomato leaves treated with different Pst DC3000 mutant strains) [53], and D013 (Domain-wise effect of AvrPto on the tomato transcriptome 6 h post inoculation) [54] was downloaded. Then, data related to Pst DC3000 treatments were selected and analyzed for the expression patterns of SlNAC genes during PTI and ETI by heat maps.

2.5. Plant Growth and Treatments

According to previous studies [46,55,56], the tomato cultivar Suhong 2003 was used in this study. Tomato plants were grown in a growth chamber (24 °C 14 h light/20 °C 10 h dark). For analysis of gene expression in response to Pst DC3000, four-week-old tomato seedlings were infiltrated with Pst DC3000 suspensions according to a previously reported procedure [46,55,56]. Specifically, Pst DC3000 was cultured on King’s B (KB) medium containing 50 mg/L rifampicin overnight until the OD600 nm was 0.6 to 0.8 (OD 0.1 = 108 cfu mL−1). Then, Pst DC3000 was diluted with 10 mM Mgcl2 to concentrations of 107 cfu mL−1. Before infiltration, Pst DC3000 was re-suspended in 10 mM Mgcl2 to OD600 nm = 0.0002. For analysis of gene expression in response to biotic stress, four-week-old tomato seedlings were infiltrated under vacuum with Pst DC3000 suspensions. Plants infiltrated with a 10 mM Mgcl2 buffer solution were used as mock-inoculated controls. Then, the inoculated and control seedlings were kept in a growth chamber at high humidity. The samples were harvested at 24 °C for 6, 12, and 24 h, respectively. For analysis of gene expression in response to defense signaling hormones, 4-week-old tomato plants were treated by foliar spraying with 1.5 mM SA (Sigma-Aldrich, St. Louis, MO, USA), 0.1 mM MeJA (Sigma-Aldrich, St. Louis, MO, USA), 0.1 mM ABA (Sigma-Aldrich, St. Louis, MO, USA), and 0.1 mM IAA (Sigma-Aldrich, St. Louis, MO, USA) at 24 °C for 3, 6, and 12 h. Four-week-old tomato plants were treated by foliar spraying with water as control. The samples were harvested separately and stored at −80 °C until use.

2.6. RT-qPCR Analysis

For quantitative real-time PCR analysis, total RNA was extracted from the frozen tomato leaf samples with RNAiso Plus (Takara, Dalian, China), according to the manufacturer’s instructions. The resulting RNA samples were treated with RNase-free DNase (TaKaRa, Dalian, China) and first-strand cDNAs were synthesized using AMV reverse transcriptase (TaKaRa, Dalian, China), following the manufacturer’s instructions. RT-qPCR reactions were performed as previously described [57]. The β actin gene and 20 primers synthesized for the 20 SSlNAC genes are listed in Table S1. Expression data for each SSlNAC gene under different treatments were normalized using the expression data of the actin gene as an internal reference. The relative expression level was calculated by the comparative ΔΔCt method. The ΔCt and ΔΔCt were calculated by the formulas ΔCt (target gene) = Ct (target gene) − Ct (actin) and ΔΔCt = ΔCt (treated sample) − ΔCt (untreated sample). Expression folds for each SSlNAC gene under a given stress were calculated by the formulas of fold = 2−ΔΔCt. Standard errors of the means from three independent biological replicates were calculated.

2.7. Statistical Analysis

The mean value represents the relative expression folds between the treatment and control. The error line represents the standard deviation. Student’s t-test was carried out to ascertain any significant difference between the different treatments and control (n = 3; * p < 0.05 and ** p < 0.05) using SPSS software version 19.0 (New York, NY, USA).

3. Results

3.1. Characterization of the Physical and Chemical Properties of SlNAC Transcription Factors

Jin et al. (2014) updated the plant Transcription Factor database PlantTFDB to version 3.0 (http://planttfdb.cbi.pku.edu.cn, accessed on 1 March 2021) [58]. By searching the Plant Transcription Factor Database (http://planttfdb.cbi.pku.edu.cn/index.php, accessed on 1 March 2021) and SOL Database (http://solgenomics.net/, accessed on 1 March 2021), a total of 101 NAC TFs were obtained by analyzing the structure of the NAC conservative domain. Information on the sequence of amino acids, the length of the amino acid, length of the cDNA, molecular weight, isoelectric point, instability index, aliphatic index, grand average hydropathicity, and nuclear location score are shown in Table S2. For further convenience, these SlNAC1–101 genes were named according to the previously proposed nomenclature system (Table S2, Gene name I).

3.2. The Phylogenetic Tree of the NAC Genes and Conserved Protein Motifs of SlNACs

To predict the function of the NAC proteins of tomato, a phylogenetic tree was constructed using SlNAC genes from tomato and identified NAC genes in rice and Arabidopsis. Results showed that the tomato SlNAC genes were divided into 13 subtribes (renamed group 1–group 13), as shown in Figure 1. A total of 20 SlNAC genes, from group 3, group 6, and group 9, are in the same branch with stress responsive genes in rice and Arabidopsis, such as SNAC1, SNAC2/OsNAC6, OsNAC5, ANAC019, ANAC055, ONAC131, ONAC122/OsNAC10, NTL9, etc., [16,57,59,60,61,62,63], which indicates these 20 SlNAC genes may be related to stress response (named SSlNAC1–SSlNAC20). Besides, previous studies have proved that CUC1, CUC2, and CUC3 are mainly related to the formation of the leaf primordium and flower organ in Arabidopsis thaliana, while the NAC transcription factors, such as NST1, NST2, NST3, VND6, and VND7, are related to secondary wall thickening [64,65]. Therefore, the 23 SlNAC genes were in the same clades (group 12 and group 13) as the VND, NST, and CUC genes, which indicated that these genes may play important roles in the growth and development of tomato. In the present study, 20 SSlNAC genes from group 3, group 6, and group 9 were selected for the next analysis. These SlNAC1–101 genes were also named according to the phylogenetic tree (see Table S2, Gene name II).

3.3. Gene Structures and Conserved Protein Motifs of the SlNACs

The 101 SlNAC proteins were clustered into 13 clades, which are consistent with the phylogenetic relationships between tomato, rice, and Arabidopsis (Figure 1 and Figure 2a). Then, to investigate the functional diversity of the SlNAC proteins, a total of 12 conserved motifs were predicted and named as motifs 1–12 (Figure 2b). The results showed that almost all of NAC proteins have motif 2, motif 5, and motif 6. In addition, the NAC proteins in the same group usually had similar motif compositions. For instance, most SlNACs in subgroup 3, subgroup 12, and subgroup 13 consisted of motif 1–6, except for SlNAC45 and SlNAC63, which only have motif 2 and motif 5. A unique motif (motif 7) was only identified in five SlNAC proteins from subgroup 11. Furthermore, the untranslated regions (UTR), CDs, and introns were identified to explore the diversity of the gene structure (Figure 2c). The results showed that the number of exons in the 101 SlNAC genes ranged from 1 to 17. SlNAC19 contained the largest number of exons. Some SlNAC genes contained CDs without UTR and introns, and these genes mainly clustered in the same group, which indicated that the SlNAC genes in the same clade shared a similar gene structure.

3.4. Chromosomal Distribution and Collinearity Analysis of the SlNAC Genes

The location information of the SlNAC genes was obtained based on the genome annotation file from the NCBI database. The results showed that 101 SlNAC genes were unevenly distributed on 13 chromosomes and were named SlNAC1–SlNAC101 (Table S2, Figure 3). Chr02 contained the largest number of SlNAC genes (17 SlNACs), followed by Chr06 (14 SlNACs), while chr0 only contained SlNAC1. Furthermore, a positive correlation between the number of SlNAC genes and the length of chromosome were not detected. To explore the expansion patterns of NAC genes in tomato, intragenomic collinearity analysis was carried out. The results indicated that 17 gene pairs were identified. Chr06 contained the largest number of duplicated gene pairs (6 pairs), while Chr00, Chr01, and Chr09 had no duplicated gene pair.

3.5. Expression Patterns of 20 SSlNAC Genes under Pst DC3000 Inoculation

To confirm the expression levels of the 20 SSlNAC genes under Pst DC3000 stress, RT-qPCR was carried out after inoculation with Pst DC3000. Compared with the control, 18 SSlNAC genes (except for SSlNAC7 and SSlNAC19) have an obvious response to Pst DC3000 in different time points after inoculation (Figure 4). For instance, SSlNAC6 could be very significantly induced at 6, 12, and 24 h post inoculation (hpi) (** p < 0.01). The expression levels of SSlNAC5 increased significantly at 6 and 12 hpi, while expression levels of SSlNAC9 and SSlNAC11 increased most significantly at 12 and 24 hpi. SSlNAC1, SSlNAC8, and SSlNAC20 could be significantly induced or suppressed at a different stage after Pst DC3000 treatment, which indicated that these genes play different roles during the early and late response stage. Expression of SSlNAC2 and SSlNAC3 were significantly suppressed at 6 and 24 hpi, respectively, indicating that these genes may act as negative regulators in response to Pst DC3000.

3.6. Expression Patterns of SSlNAC Genes under Different Pst DC3000-Related Treatments during PTI and ETI

The interactions between pathogens and plants are complex, including PTI and ETI. Furthermore, to understand the expression patterns of 20 putative stresses-related SlNAC genes during PTI and ETI, four RNA-seq datasets were mined and analyzed, as shown in Figure 5. Figure 5a is based on the domain-wise effect of AvrPto on the tomato transcriptome 6 h post inoculation. AvrPto, as a kind of effector, can interfere with PTI and then activate the ETI of plants. AvrPto has two domains (CD loop and carboxyl-terminal domain, CTD). Once these domains were mutated, AvrPto cannot activate ETI. Figure 5a consists of two types of treatments: D29E (pCPP45::avrPto I96A), representing Pst DC3000, whose CD circle was mutated and D29E (pCPP45::avrPto 2xA), representing Pst DC3000, whose CTD was mutated. Figure 5a shows that the expression levels of SSlNAC1, SSlNAC3, SSlNAC4, SSlNAC6, SSlNAC7, SSlNAC8, SSlNAC10, SSlNAC12, SSlNAC17, and SSlNAC19 were higher in mutated AvrPto, which means that these genes were up-regulated during PTI. Figure 5b was based on transcriptome sequencing of tomato leaves treated with different Pst DC3000 mutant strains. It can be seen that the expression levels of SSlNAC1, SSlNAC6, SSlNAC8, and SSlNAC10 were significantly higher in DC3000ΔhopQ1-1ΔavrPtoΔavrPtoB than in DC3000ΔhopQ1-1ΔavrPtoΔavrPtoBΔfliC, which means that these genes were up-regulated during PTI. Figure 5c is based on transcriptome sequencing of leaves of resistant (RG-PtoR) and susceptible (RG-prf3 and RG-prf19) tomato plants treated with Pst DC3000, and leaf samples were collected at 4 and 6 h after inoculation. PtoR represents tomatoes with the normal Pto/Prf signaling pathway, and once these tomatoes were infected by pathogens, then ETI could be induced. Prf3 and Prf19 represent tomatoes whose Prf was mutated, and ETI could not be induced after being infected by pathogens. Figure 5c illustrates that the expression levels of SSlNAC3, SSlNAC4, SSlNAC7, SSlNAC8, SSlNAC11, SSlNAC12, SSlNAC14, SSlNAC17, SSlNAC19, and SSlNAC20 were obviously increased in PtoR compared to Prf3 or Prf19, which means that these genes were up-regulated during ETI. The expression levels of SSlNAC1, SSlNAC6, and SSlNAC10 were decreased in PtoR compared with Prf3 or Prf19, which means that these genes were down-regulated during ETI. Figure 5d is based on the transcriptome sequencing of tomato leaves treated with flgII-28 and DC3000ΔavrPtoΔavrPtoB. FlgII-28 was encoded by flic and can be recognized by receptor FLS2, which could induce PTI. However, PTI could be overcome by the T3SS (type III secretion system) of pathogens, including AvrPto and AvrPtoB. Therefore, if AvrPto and AvrPtoB mutated, ETI could not be induced. Figure 5d shows that the expression levels of SSlNAC1, SlNAC3, SlNAC4, SSlNAC6, SSlNAC8, SSlNAC10, SSlNAC17, and SSlNAC19 were obviously increased under FlgII-28 treatment and DC3000ΔavrPtoΔavrPtoB treatment, which means these SSlNAC genes are up-regulated during PTI. All the information about the RNA-seq data used in this study is summarized in Table S3, including the treatments, plant genotypes, and times post-treatment, etc.
To conclude, it can be seen that SSlNAC3, SSlNAC4, SSlNAC7, SSlNAC8, SSlNAC12, SSlNAC17, and SSlNAC19 were up-regulated during both PTI and ETI under Pst DC3000 treatment, while SSlNAC1, SSlNAC6, and SSlNAC10 were up-regulated only during PTI and SSlNAC11, SSlNAC14, and SSlNAC20 were only up-regulated during ETI. In addition, SSlNAC1, SSlNAC6, and SSlNAC10 were down-regulated during ETI (Table S3, Figure 5 and Figure 6).

3.7. Expression Patterns of 20 SSlNAC Genes under Phytohormones Treatment

To explore the expression patterns of the 20 SSlNAC genes under phytohormone treatment, 4-week-old tomatoes were sprayed with IAA, ABA, SA, and MeJA. Then, RT-qPCR was carried out to detect the expression profiles of the 20 SSlNAC genes. Results showed that the expression levels of 19 SSlNAC genes (except for SSlNAC19) were significantly responsive to IAA treatment. SSlNAC1 and SSlNAC7 could be significantly induced at 3, 6, and 12 h under IAA treatment. The expression level of SSlNAC10 was down-regulated at 6 h (Figure 7a). After treatment with ABA, SSlNAC6 was induced at 3 h and 12 h, while it was suppressed at 6 h, thus indicating that it may play different roles in different stages of stress response. Expression levels of SSlNAC10, SSlNAC11, and SSlNAC14 showed no significant difference compared with the control. The expression levels SSlNAC8 and SSlNAC19 were down-regulated (Figure 7b). It was further showed that the expression levels of 17 SSlNAC genes (except for SSlNAC10, SSlNAC18, and SSlNAC19) were significantly induced at different stages after treatment with MeJA, while 16 of them were up-regulated at 3 h, indicating that most of the SSlNAC genes were relatively early responsive genes (Figure 7c). Figure 7d shows that 18 SSlNAC genes (except for SSlNAC5 and SSlNAC19) were remarkably induced after treatment with SA, while the expression levels of SSlNAC10 and SSlNAC13 were down-regulated. Among the 16 up-regulated SSlNAC genes, only SSlNAC12 and SSlNAC15 had the highest expression levels at 12 h after spraying SA, indicating these two genes were relatively late responsive genes.

4. Discussion

In recent years, the vegetable industry has been flourishing, with acreages of vegetables having markedly increased. Tomato, as one of the most consumed and economically important vegetables worldwide [35], is susceptible to various pathogens, especially to Pst DC3000. Once a tomato is infected by this biotrophic bacterial pathogen, tomato leaf spot disease could manifest, which finally will result in yield loss and reduced quality [49]. NAC TFs, as one of the largest TF families in plants, can be induced under biotic and abiotic stress, as well as phytohormones to regulate downstream defense genes. However, functional surveys of the NAC genes of tomato remain largely unstudied [66]. In this study, a comprehensive analysis of 101 SlNAC genes was carried out. Twenty SlNAC genes were identified as stress-related genes according to the result of the phylogenetic tree of the NAC genes. Furthermore, 18 of 20 SSlNAC genes were significantly induced in response to Pst DC3000 based on RT-qPCR analysis. In previous studies, three NAC genes, including SlSRN1 (Solyc12g056790) [46], SlNAC1 (Solyc04g009440) [51], and JA2L (Solyc07g063410) [37], were demonstrated to respond to Pst DC3000. SlNAC1 and JA2L were also identified as stress-related genes in this study, namely, SSlNAC4 and SSlNAC12. Besides, expression of most SSlNAC genes were induced by Pst DC3000 in 6–12 hpi (Figure 1), which indicates that these genes may be early pathogen-responsive genes, which is similar to the expression patterns of SlSRN1 and SlNAC1.
A previous study proposed that many proteins changed during PTI or ETI, and some responses were triggered by both PTI and ETI [67]. Furthermore, expression patterns of the 20 SSlNAC genes during PTI or ETI were demonstrated. The results showed that 7 SSlNAC genes (SSlNAC3, SSlNAC4, SSlNAC7, SSlNAC8, SSlNAC12, SSlNAC17, and SSlNAC19) were significantly induced under Pst DC3000 treatment during both PTI and ETI, which is consistent with a previous report in which the expression of the majority of genes was induced during both PTI and ETI of the defense response [68] and a substantial overlap between the genes induced by flg22 (PTI) and those induced by effector recognition (ETI) was observed [69]. Three SSlNAC genes (SSlNAC1, SSlNAC6, and SSlNAC10) were only involved in defense response against Pst DC3000 during PTI, and these three genes were also showed to be down-regulated during ETI, which may indicate that these genes play different roles during the different phases of immunity when the plants were under Pst DC3000 stress.
Many of NAC transcription factors have been validated to be induced by exogenous phytohormones [37,46]. In this study, the expression profiles of 20 SSlNAC genes were obtained after spraying IAA, ABA, SA, and MeJA, which are well-known as defense-signaling hormones. The results showed that the expression levels of most of these SSlNAC genes were obviously increased. For instance, 17 SSlNAC genes (except for SSlNAC10, SSlNAC11, and SSlNAC14) were significantly induced after spraying ABA, while 10 of them were also induced under Pst DC3000 inoculation, including SSlNAC1, SSlNAC4, SSlNAC6, SSlNAC9, SSlNAC12, SSlNAC13, SSlNAC16, SSlNAC17, SSlNAC18, and SSlNAC20. Since ABA can regulate disease resistance via the ABA signaling pathway [34], we think the aforementioned 10 SSlNAC genes may regulate the interaction between tomato and Pst DC3000 through an ABA-dependent signaling network, although this speculation needs to be verified. For example, SSlNAC4, SSlNAC12, and SSlNAC17 were significantly induced after ABA treatment, while they were also proven to be up-regulated during PTI and ETI, which indicated that they may positively regulate defense against Pst DC3000 through the ABA signaling pathway in both PTI and ETI. SSlNAC20 was significantly induced at 3 and 12 h after ABA treatment, while it was up-regulated during only ETI, which indicate that SSlNAC20 may positively regulate defense against Pst DC3000 through the ABA signaling pathway in only ETI. In addition, expression of most genes of the 20 SSlNAC genes were induced by IAA, SA, and MeJA, a result consistent with previous studies, and could be explained in that hormone-responsive elements exist in the promoters of NAC genes. These findings implied that SSlNAC genes participated in the Pst DC3000 stress response by multiple regulatory mechanisms.

5. Conclusions

To conclude, NAC transcription factors play important roles in stress responses and have been paid much attention recently, although the expression levels, function surveys, and regulatory mechanisms of most SlNAC genes resisting Pst DC3000 in tomato are still largely unstudied. In this study, a complete overview of the NAC gene family in tomato is presented. Among the 101 members of the SlNAC gene family, 20 SSlNAC genes were identified. Expression profile analysis revealed that 18 SSlNAC genes were significantly induced in defense response to Pst DC3000. In addition, the RNA-seq data analysis showed that 13 SSlNAC genes responded to Pst DC3000 during the PTI or ETI. Among them, SSlNAC3, SSlNAC4, SSlNAC7, SSlNAC8, SSlNAC12, SSlNAC17, and SSlNAC19 were up-regulated in response to Pst DC3000 during both PTI and ETI, which suggests that these genes are involved in both the PTI and ETI pathways during the interaction between tomato and Pst DC3000. Furthermore, most of the SSlNAC genes can be induced under IAA, SA, MeJA, and ABA treatment, which indicate that tomato NAC TFs may resist Pst DC3000 through complex phytohormone signaling pathways. Taken together, this study revealed the differential expression patterns of 20 SSlNACs under Pst DC3000 stress and selected candidate genes for further functional analysis. Furthermore, this study provides a basis for analysis of the regulatory mechanism under biotic stress.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/genes13112015/s1, Table S1: RT-qPCR primers of 20 SSlNAC genes used in this study; Table S2: Information of NAC genes in tomato; Table S3: Information about RNA-seq data used in this study (* p < 0.05, ** p < 0.01, NS represents not significant or not available).

Author Contributions

Conceptualization, L.S. and S.X.; investigation, Z.Z. and J.Z.; resources, Z.Z. and X.H.; data curation, K.S. and S.X.; writing—original draft preparation, S.X., Z.Z. and S.Z.; writing—review and editing, L.S. and H.G.; visualization, Z.Z.; funding acquisition, L.S. and S.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Natural Science Foundation of China (31770399), Natural Science Foundation of Jiangsu Province (BK20130389), and Project of Nantong Natural Science Foundation (JC2020159).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bigeard, J.; Colcombet, J.; Hirt, H. Signaling mechanisms in pattern-triggered immunity (PTI). Mol. Plant 2015, 8, 521–539. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Lobell, D.B.; Schlenker, W.; Costa-Roberts, J. Climate trends and global crop production since 1980. Science 2011, 333, 616–620. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Grennan, A.K. Plant response to bacterial pathogens. overlap between innate and gene-for-gene defense response. Plant Physiol. 2006, 142, 809–811. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Bian, Z.; Gao, H.; Wang, C. NAC transcription factors as positive or negative regulators during ongoing battle between pathogens and our food crops. Int. J. Mol. Sci. 2020, 22, 81. [Google Scholar] [CrossRef] [PubMed]
  5. Tsuda, K.; Katagiri, F. Comparing signaling mechanisms engaged in pattern-triggered and effector-triggered immunity. Curr. Opin. Plant Biol. 2010, 13, 459–465. [Google Scholar] [CrossRef]
  6. Olsen, A.N.; Ernst, H.A.; Leggio, L.L.; Skriver, K. NAC transcription factors: Structurally distinct, functionally diverse. Trends Plant Sci. 2005, 10, 79–87. [Google Scholar] [CrossRef]
  7. Luo, J.; Li, R.; Xu, X.; Niu, H.; Zhang, Y.; Wang, C. SMRT and illumina RNA sequencing and characterization of a key NAC gene LoNAC29 during the flower senescence in Lilium oriental ‘Siberia’. Genes 2021, 12, 869. [Google Scholar] [CrossRef]
  8. Sakuraba, Y.; Kim, D.; Han, S.H.; Kim, S.H.; Piao, W.L.; Yanagisawa, S.; An, G.; Paek, N. Multilayered regulation of membrane bound ONAC054 is essential for abscisic acid-induced leaf senescence in rice. Plant Cell 2020, 32, 630–649. [Google Scholar] [CrossRef]
  9. Cao, S.X.; Zhang, Z.B.; Wang, C.H.; Li, X.X.; Guo, C.; Yang, L.Y.; Guo, Y.F. Identification of a novel melon transcription factor CmNAC60 as a potential regulator of leaf senescence. Genes 2019, 10, 584. [Google Scholar] [CrossRef] [Green Version]
  10. Matias Hurtado, F.M.; Pinto, M.d.S.; Oliveira, P.N.d.; Riaño-Pachón, D.M.; Inocente, L.B.; Carrer, H. Analysis of NAC domain transcription factor genes of Tectona grandis L.f. involved in secondary cell wall deposition. Genes 2020, 11, 20. [Google Scholar] [CrossRef]
  11. Ye, Y.F.; Wu, K.; Chen, J.F.; Liu, Q.; Wu, Y.J.; Liu, B.M.; Fu, X.D. OsSND2, a NAC family transcription factor, is involved in secondary cell wall biosynthesis through regulating MYBs expression in rice. Rice 2018, 11, 36. [Google Scholar] [CrossRef] [Green Version]
  12. Li, B.; Fan, R.; Yang, Q.; Hu, C.; Sheng, O.; Deng, G.; Dong, T.; Li, C.; Peng, X.; Bi, F.; et al. Genome-wide identification and characterization of the NAC transcription factor family in Musa acuminata and expression analysis during fruit ripening. Int. J. Mol. Sci. 2020, 21, 634. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Li, X.; Cai, K.; Pei, X.; Li, Y.; Hu, Y.; Meng, F.; Song, X.; Tigabu, M.; Ding, C.; Zhao, X. Genome-wide identification of NAC transcription factor family in Juglans mandshurica and their expression analysis during the fruit development and ripening. Int. J. Mol. Sci. 2021, 22, 12414. [Google Scholar] [CrossRef] [PubMed]
  14. Yang, S.; Zhou, J.Q.; Watkins, C.B.; Wu, C.E.; Feng, Y.C.; Zhao, X.Y.; Xue, Z.H.; Kou, X.H. NAC transcription factors SNAC4 and SNAC9 synergistically regulate tomato fruit ripening by affecting expression of genes involved in ethylene and abscisic acid metabolism and signal transduction. Postharvest Biol. Tec. 2021, 178, 111555. [Google Scholar] [CrossRef]
  15. Shalby, N.; Mohamed, I.A.A.; Xiong, J.; Hu, K.N.; Yang, Y.B.T.; Nishawy, E.; Yi, B.; Wen, J.; Ma, C.Z.; Shen, J.X.; et al. Overdominance at the gene expression level plays a critical role in the hybrid root growth of Brassica napus. Int. J. Mol. Sci. 2021, 22, 9246. [Google Scholar] [CrossRef] [PubMed]
  16. Sun, L.J.; Huang, L.; Hong, Y.B.; Zhang, H.J.; Song, F.M.; Li, D.Y. Comprehensive analysis suggests overlapping expression of rice ONAC transcription factors in abiotic and biotic stress responses. Int. J. Mol. Sci. 2015, 16, 4306–4326. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Jiang, D.; Zhou, L.; Chen, W.; Ye, N.; Xia, J.; Zhuang, C. Overexpression of a microRNA-targeted NAC transcription factor improves drought and salt tolerance in Rice via ABA-mediated pathways. Rice 2019, 12, 76. [Google Scholar] [CrossRef]
  18. Wang, B.; Zhong, Z.; Wang, X.; Han, X.; Yu, D.; Wang, C.; Song, W.; Zheng, X.; Chen, C.; Zhang, Y. Knockout of the OsNAC006 transcription factor causes drought and heat sensitivity in rice. Int. J. Mol. Sci. 2020, 21, 2288. [Google Scholar] [CrossRef] [Green Version]
  19. Sang, R.P.; Kim, H.S.; Lee, K.S.; Hwang, D.J.; Sun, T.K. Overexpression of rice NAC transcription factor OsNAC58 on increased resistance to bacterial leaf blight. J. Plant Biotechnol. 2017, 44, 149–155. [Google Scholar]
  20. Wang, Z.; Xia, Y.; Lin, S.; Wang, Y.; Guo, B.; Song, X.; Ding, S.; Zheng, L.; Feng, R.; Chen, S.; et al. Osa-miR164a targets OsNAC60 and negatively regulates rice immunity against the blast fungus Magnaporthe oryzae. Plant J. 2018, 95, 584–597. [Google Scholar] [CrossRef] [Green Version]
  21. Lv, S.; Guo, H.; Zhang, M.; Wang, Q.; Zhang, H.; Ji, W. Large-scale cloning and comparative analysis of TaNAC genes in response to stripe rust and powdery mildew in Wheat (Triticum aestivum L.). Genes 2020, 11, 1073. [Google Scholar] [CrossRef] [PubMed]
  22. Wang, F.T.; Lin, R.M.; Feng, J.; Chen, W.Q.; Qiu, D.W.; Xu, S.C. TaNAC1 acts as a negative regulator of stripe rust resistance in wheat, enhances susceptibility to Pseudomonas syringae, and promotes lateral root development in transgenic Arabidopsis thaliana. Front. Plant Sci. 2015, 6, 108. [Google Scholar] [CrossRef] [PubMed]
  23. Zhang, X.M.; Zhang, Q.; Pei, C.L.; Li, X.; Huang, X.L.; Chang, C.Y.; Wang, X.J.; Huang, L.L.; Kang, Z.S. TaNAC2 is a negative regulator in the wheat-stripe rust fungus interaction at the early stage. Physiol. Mol. Plant Pathol. 2018, 102, 144–153. [Google Scholar] [CrossRef]
  24. Zhou, W.H.; Qian, C.; Li, R.C.; Zhou, S.; Zhang, R.Q.; Xiao, J.; Wang, X.E.; Zhang, S.Z.; Xing, L.P.; Cao, A.Z. TaNAC6s are involved in the basal and broad-spectrum resistance to powdery mildew in wheat. Plant Sci. 2018, 277, 218–228. [Google Scholar] [CrossRef]
  25. Wang, B.; Wei, J.; Song, N.; Wang, N.; Zhao, J.; Kang, Z. A novel wheat NAC transcription factor, TaNAC30, negatively regulates resistance of wheat to stripe rust. J. Integr. Plant Biol. 2018, 60, 432–443. [Google Scholar] [CrossRef] [PubMed]
  26. Perochon, A.; Kahla, A.; Vranić, M.; Jia, J.G.; Malla, K.B.; Craze, M.; Wallington, E.; Doohan, F.M. A wheat NAC interacts with an orphan protein and enhances resistance to Fusarium head blight disease. Plant Biotechnol. J. 2019, 17, 1892–1904. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Chen, J.; Gong, Y.; Gao, Y.; Zhou, Y.B.; Chen, M.; Xu, Z.S.; Guo, C.H.; Ma, Y.Z. TaNAC48 positively regulates drought tolerance and ABA responses in wheat (Triticum aestivum L.). Crop J. 2021, 9, 785–793. [Google Scholar] [CrossRef]
  28. Xu, Z.Y.; Gongbuzhaxi; Wang, C.Y.; Xue, F.; Zhang, H.; Ji, W.Q. Wheat NAC transcription factor TaNAC29 is involved in response to salt stress. Plant Physiol. Biochem. 2015, 96, 356–363. [Google Scholar] [CrossRef]
  29. Xia, N.; Zhang, G.; Sun, Y.F.; Zhu, L.; Xu, L.S.; Chen, X.M.; Liu, B.; Yu, Y.T.; Wang, X.J.; Huang, L.L.; et al. TaNAC8, a novel NAC transcription factor gene in wheat, responds to stripe rust pathogen infection and abiotic stresses. Physiol. Mol. Plant Pathol. 2010, 74, 394–402. [Google Scholar] [CrossRef]
  30. Hoang, X.L.T.; Nguyen, N.C.; Nguyen, Y.N.H.; Watanabe, Y.; Tran, L.S.P.; Thao, N.P. The soybean GmNAC019 transcription factor mediates drought tolerance in Arabidopsis in an abscisic acid-dependent manner. Int. J. Mol. Sci. 2019, 21, 286. [Google Scholar] [CrossRef] [Green Version]
  31. Li, M.; Chen, R.; Jiang, Q.; Sun, X.; Zhang, H.; Hu, Z. GmNAC06, a NAC domain transcription factor enhances salt stress tolerance in soybean. Plant Mol. Biol. 2021, 105, 333–345. [Google Scholar] [CrossRef] [PubMed]
  32. Jahan, M.A.; Harris, B.; Lowery, M.; Coburn, K.; Infante, A.M.; Percifield, R.J.; Ammer, A.G.; Kovinich, N. The NAC family transcription factor GmNAC42–1 regulates biosynthesis of the anticancer and neuroprotective glyceollins in soybean. BMC Genom. 2019, 20, 149. [Google Scholar] [CrossRef]
  33. Yu, G.L.; Zou, J.N.; Wang, J.H.; Zhu, R.S.; Qi, Z.M.; Jiang, H.W.; Hu, Z.B.; Yang, M.L.; Zhao, Y.; Wu, X.X.; et al. A soybean NAC homolog contributes to resistance to Phytophthora sojae mediated by dirigent proteins. Crop J. 2022, 10, 332–341. [Google Scholar] [CrossRef]
  34. Liu, Q.; Yan, S.J.; Huang, W.J.; Yang, J.Y.; Dong, J.F.; Zhang, S.H.; Zhao, J.L.; Yang, T.F.; Mao, X.X.; Zhu, X.Y.; et al. NAC transcription factor ONAC066 positively regulates disease resistance by suppressing the ABA signaling pathway in rice. Plant Mol. Biol. 2018, 98, 289–302. [Google Scholar] [CrossRef]
  35. Huang, Y.; Li, T.; Xu, Z.S.; Wang, F.; Xiong, A.S. Six NAC transcription factors involved in response to TYLCV infection in resistant and susceptible tomato cultivars. Plant Physiol. Biochem. 2017, 120, 61–74. [Google Scholar] [CrossRef] [PubMed]
  36. Mao, C.J.; He, J.M.; Liu, L.N.; Deng, Q.M.; Yao, X.F.; Liu, C.M.; Qiao, Y.L.; Li, P.; Ming, F. OsNAC2 integrates auxin and cytokinin pathways to modulate rice root development. Plant Biotechnol. J. 2020, 18, 429–442. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Du, M.M.; Zhai, Q.Z.; Deng, L.; Li, S.Y.; Li, H.S.; Yan, L.H.; Huang, Z.; Wang, B.; Jiang, H.L.; Huang, T.T.; et al. Closely related NAC transcription factors of tomato differentially regulate stomatal closure and reopening during pathogen attack. Plant Cell 2014, 26, 3167–3184. [Google Scholar] [CrossRef] [Green Version]
  38. Zhu, Z.; Li, G.; Yan, C.; Liu, L.; Li, B. DRL1, encoding a NAC transcription factor, is involved in leaf senescence in grapevine. Int. J. Mol. Sci. 2019, 20, 2678. [Google Scholar] [CrossRef] [Green Version]
  39. Zhu, G.T.; Wang, S.C.; Huang, Z.J.; Zhang, S.B.; Liao, Q.G.; Zhang, C.Z.; Lin, T.; Qin, M.; Peng, M.; Yang, C.K.; et al. Rewiring of the fruit metabolome in tomato breeding. Cell 2018, 172, 249–261. [Google Scholar] [CrossRef] [Green Version]
  40. Zsogon, A.; Cermak, T.; Naves, E.R.; Notini, M.M.; Edel, K.H.; Weinl, S.; Freschi, L.; Voytas, D.F.; Kudla, J.; Peres, L.E.P. De novo domestication of wild tomato using genome editing. Nat. Biotechnol. 2018, 36, 1211–1216. [Google Scholar] [CrossRef] [Green Version]
  41. Liang, X.Q.; Ma, N.N.; Wang, G.D.; Meng, X.; Ai, X.Z.; Meng, Q.W. Suppression of SlNAC1 reduces heat resistance in tomato plants. Biol. Plant. 2015, 59, 92–98. [Google Scholar] [CrossRef]
  42. Al-Abdallat, A.M.; Ali-Sheikh-Omar, M.A.; Alnemer, L.M. Overexpression of two ATNAC3-related genes improves drought and salt tolerance in tomato (Solanum lycopersicum L.). Plant Cell Tiss. Org. 2015, 120, 989–1001. [Google Scholar] [CrossRef]
  43. Zhu, M.K.; Chen, G.P.; Zhang, J.L.; Zhang, Y.L.; Xie, Q.L. The abiotic stress-responsive NAC-type transcription factor SlNAC4 regulates salt and drought tolerance and stress-related genes in tomato (Solanum lycopersicum). Plant Cell Rep. 2014, 33, 1851–1863. [Google Scholar] [CrossRef] [PubMed]
  44. Li, X.D.; Zhuang, K.Y.; Liu, Z.M.; Yang, D.Y.; Ma, N.N.; Meng, Q.W. Overexpression of a novel NAC-type tomato transcription factor, SlNAM1, enhances the chilling stress tolerance of transgenic tobacco. J. Plant Physiol. 2016, 204, 54–65. [Google Scholar] [CrossRef] [PubMed]
  45. Yang, R.C.; Deng, C.T.; Ouyang, B.; Ye, Z.B. Molecular analysis of two salt-responsive NAC-family genes and their expression analysis in tomato. Mol. Biol. Rep. 2011, 38, 857–863. [Google Scholar] [CrossRef] [PubMed]
  46. Liu, B.; Ouyang, Z.G.; Zhang, Y.F.; Li, X.H.; Hong, Y.B.; Huang, L.; Liu, S.X.; Zhang, H.J.; Li, D.Y.; Song, F.M. Tomato NAC transcription factor SlSRN1 positively regulates defense response against biotic stress but negatively regulates abiotic stress response. PLoS ONE 2014, 9, e102067. [Google Scholar] [CrossRef] [PubMed]
  47. Alshareef, N.O.; Wang, J.Y.; Ali, S.; Al-Babili, S.; Tester, M.; Schmöckel, S.M. Overexpression of the NAC transcription factor JUNGBRUNNEN1 (JUB1) increases salinity tolerance in tomato. Plant Physiol. Biochem. 2019, 140, 113–121. [Google Scholar] [CrossRef]
  48. Thirumalaikumar, V.P.; Devkar, V.; Mehterov, N.; Ali, S.; Ozgur, R.; Turkan, I.; Mueller-Roeber, B.; Balazadeh, S. NAC transcription factor JUNGBRUNNEN1 enhances drought tolerance in tomato. Plant Biotechnol. J. 2018, 16, 354–366. [Google Scholar] [CrossRef] [Green Version]
  49. Şahin, F. Severe outbreak of bacterial speck, caused by Pseudomonas syringae pv. tomato, on field-grown tomatoes in the eastern Anatolia region of Turkey. Plant Pathol. 2001, 50, 799. [Google Scholar] [CrossRef]
  50. Sundin, G.W.; Castiblanco, L.F.; Yuan, X.; Zeng, Q.; Yang, C.H. Bacterial disease management: Challenges, experience, innovation and future prospects: Challenges in bacterial molecular plant pathology. Mol. Plant Pathol. 2016, 17, 1506–1518. [Google Scholar] [CrossRef]
  51. Huang, W.T.; Miao, M.; Kud, J.; Niu, X.L.; Ouyang, B.; Zhang, J.H.; Ye, Z.B.; Kuhl, J.C.; Liu, Y.S.; Xiao, F.M. SlNAC1, a stress-related transcription factor, is fine-tuned on both the transcriptional and the post-translational level. New Phytol. 2013, 197, 1214–1224. [Google Scholar] [CrossRef] [PubMed]
  52. Rosli, H.G.; Yi, Z.; Pombo, M.A.; Zhong, S.; Martin, G.B. Transcriptomics-based screen for genes induced by flagellin and repressed by pathogen effectors identifies a cell wall-associated kinase involved in plant immunity. Genome Biol. 2013, 14, R139. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Pombo, M.A.; Zheng, Y.; Fernandez-Pozo, N.; Dunham, D.M.; Fei, Z.; Martin, G.B. Transcriptomic analysis reveals tomato genes whose expression is induced specifically during effector-triggered immunity and identifies the epk1 protein kinase which is required for the host response to three bacterial effector proteins. Genome Biol. 2014, 15, 492. [Google Scholar] [CrossRef]
  54. Worley, J.N.; Pombo, M.A.; Zheng, Y.; Dunham, D.M.; Myers, C.R.; Fei, Z.J.; Martin, G.B. A novel method of transcriptome interpretation reveals a quantitative suppressive effect on tomato immune signaling by two domains in a single pathogen effector protein. BMC Genom. 2016, 17, 229. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Li, X.; Huang, L.; Hong, Y.; Zhang, Y.; Liu, S.; Li, D.; Zhang, H.; Song, F. Co-silencing of tomato S-adenosylhomocysteine hydrolase genes confers increased immunity against Pseudomonas syringae pv. tomato DC3000 and enhanced tolerance to drought stress. Front. Plant Sci. 2015, 6, 717. [Google Scholar] [PubMed] [Green Version]
  56. Li, X.; Huang, L.; Zhang, Y.; Ouyang, Z.; Hong, Y.; Zhang, H.; Li, D.; Song, F. Tomato SR/CAMTA transcription factors SlSR1 and SlSR3L negatively regulate disease resistance response and SlSR1L positively modulates drought stress tolerance. BMC Plant Biol. 2014, 14, 286. [Google Scholar] [CrossRef] [PubMed]
  57. Sun, L.J.; Zhang, H.J.; Li, D.Y.; Huang, L.; Hong, Y.B.; Ding, X.S.; Nelson, R.S.; Zhou, X.P.; Song, F.M. Functions of rice NAC transcriptional factors, ONAC122 and ONAC131, in defense responses against Magnaporthe grisea. Plant Mol. Biol. 2013, 81, 41–56. [Google Scholar] [CrossRef] [PubMed]
  58. Jin, J.P.; Zhang, H.; Kong, L.; Gao, G.; Luo, J.C. Planttfdb 3.0: A portal for the functional and evolutionary study of plant transcription factors. Nucleic Acids Res. 2014, 42, D1182–D1187. [Google Scholar] [CrossRef] [Green Version]
  59. Hu, H.H.; Dai, M.Q.; Yao, J.L.; Xiao, B.Z.; Li, X.H.; Zhang, Q.F.; Xiong, L.Z. Overexpressing a NAM, ATAF, and CUC (NAC) transcription factor enhances drought resistance and salt tolerance in rice. Proc. Natl. Acad. Sci. USA 2006, 103, 12987–12992. [Google Scholar] [CrossRef] [Green Version]
  60. Nakashima, K.; Tran, L.S.; Nguyen, D.V.; Fujita, M.; Maruyama, K.; Todaka, D.; Ito, Y.; Hayashi, N.; Shinozaki, K.; Yamaguchi-Shinozaki, K. Functional analysis of a NAC-type transcription factor OsNAC6 involved in abiotic and biotic stress-responsive gene expression in rice. Plant J. 2007, 51, 617–630. [Google Scholar] [CrossRef]
  61. Bu, Q.Y.; Jiang, H.L.; Li, C.B.; Zhai, Q.Z.; Jie, Z.; Wu, X.Y.; Sun, J.Q.; Qi, X.; Li, C.Y. Role of the Arabidopsis thaliana NAC transcription factors ANAC019 and ANAC055 in regulating jasmonic acid-signaled defense responses. Cell Res. 2009, 18, 756–767. [Google Scholar] [CrossRef] [PubMed]
  62. Takasaki, H.; Maruyama, K.; Kidokoro, S.; Ito, Y.; Fujita, Y.; Shinozaki, K.; Yamaguchi-Shinozaki, K.; Nakashima, K. The abiotic stress-responsive NAC-type transcription factor OsNAC5 regulates stress-inducible genes and stress tolerance in rice. Mol. Genet. Genom. 2010, 284, 173–183. [Google Scholar] [CrossRef] [PubMed]
  63. Yoon, H.K.; Kim, S.G.; Kim, S.Y.; Park, C.M. Regulation of leaf senescence by NTL9-mediated osmotic stress signaling in Arabidopsis. Mol. Cells 2008, 25, 438–445. [Google Scholar] [PubMed]
  64. Mitsuda, N.; Iwase, A.; Yamamoto, H.; Yoshida, M.; Seki, M.; Shinozaki, K.; Ohme-Takagi, M. NAC transcription factors, NST1 and NST3, are key regulators of the formation of secondary walls in woody tissues of Arabidopsis. Plant Cell 2007, 19, 270–280. [Google Scholar] [CrossRef] [Green Version]
  65. Yamaguchi, M.; Ohtani, M.; Mitsuda, N.; Kubo, M.; Ohme-Takagi, M.; Demura, F.T. VND-INTERACTING2, a NAC domain transcription factor, negatively regulates xylem vessel formation in Arabidopsis. Plant Cell 2010, 22, 1249–1263. [Google Scholar] [CrossRef] [Green Version]
  66. Jin, J.F.; Wang, Z.Q.; He, Q.Y.; Wang, J.Y.; Li, P.F.; Xu, J.M.; Zheng, S.J.; Fan, W.; Yang, J.L. Genome-wide identification and expression analysis of the NAC transcription factor family in tomato (Solanum lycopersicum) during aluminum stress. BMC Genom. 2020, 21, 288. [Google Scholar] [CrossRef] [Green Version]
  67. Yu, J.J.; Gonzalez, J.M.; Dong, Z.P.; Shan, Q.R.; Tan, B.; Koh, J.; Zhang, T.; Zhu, N.; Dufresne, C.; Martin, G.B.; et al. Integrative proteomic and phosphoproteomic analyses of pattern- and effector-triggered immunity in tomato. Front. Plant Sci. 2021, 12, 768693. [Google Scholar] [CrossRef]
  68. Tsuda, K.; Sato, M.; Glazebrook, J.; Cohen, J.D.; Katagiri, F. Interplay between MAMP-triggered and SA-mediated defense responses. Plant J. 2008, 53, 763–775. [Google Scholar] [CrossRef]
  69. Navarro, L.; Zipfel, C.; Rowland, O.; Keller, I.; Robatzek, S.; Jones, B. The transcriptional innate immune response to flg22. interplay and overlap with avr gene-dependent defense responses and bacterial pathogenesis. Plant Physiol. 2004, 135, 1113–1128. [Google Scholar] [CrossRef]
Genes 13 02015 g001 550

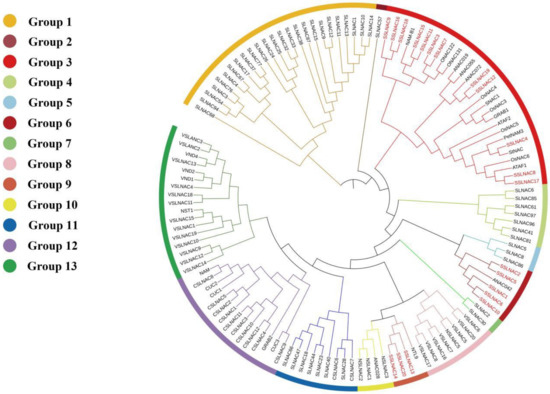

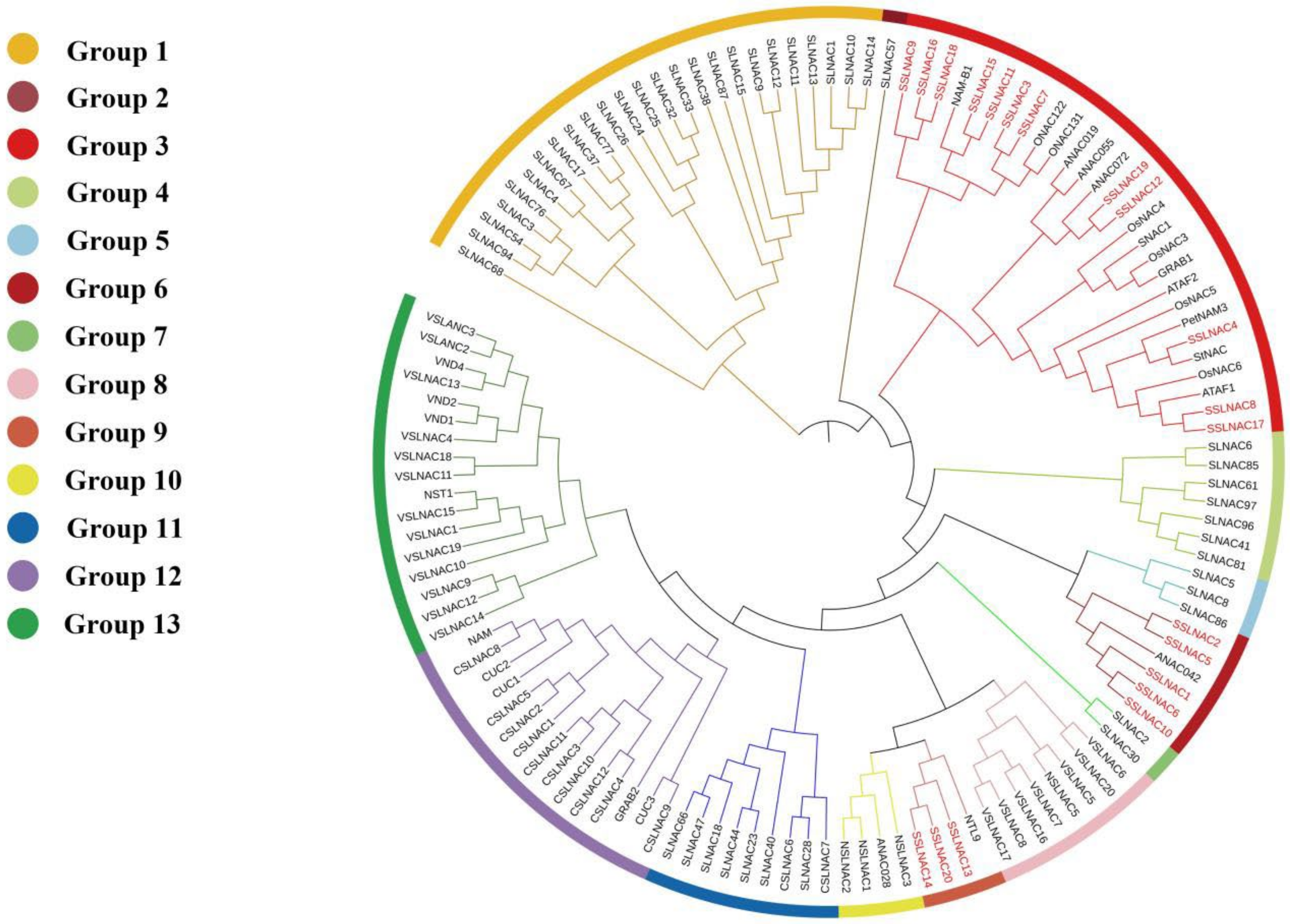

Figure 1. The phylogenetic tree of the 101 NAC genes in tomato and the NAC genes related to biotic/abiotic stresses in rice and Arabidopsis. The neighbor-joining (NJ) phylogenetic tree was constructed using MEGA software version 5.05 with 1000 bootstrap replicates. They are divided into 13 groups, labeled with different colors, and the 20 putative stress SlNAC genes (SSlNAC1–20) are indicated in red font.
Figure 1. The phylogenetic tree of the 101 NAC genes in tomato and the NAC genes related to biotic/abiotic stresses in rice and Arabidopsis. The neighbor-joining (NJ) phylogenetic tree was constructed using MEGA software version 5.05 with 1000 bootstrap replicates. They are divided into 13 groups, labeled with different colors, and the 20 putative stress SlNAC genes (SSlNAC1–20) are indicated in red font.
Genes 13 02015 g001
Genes 13 02015 g002 550

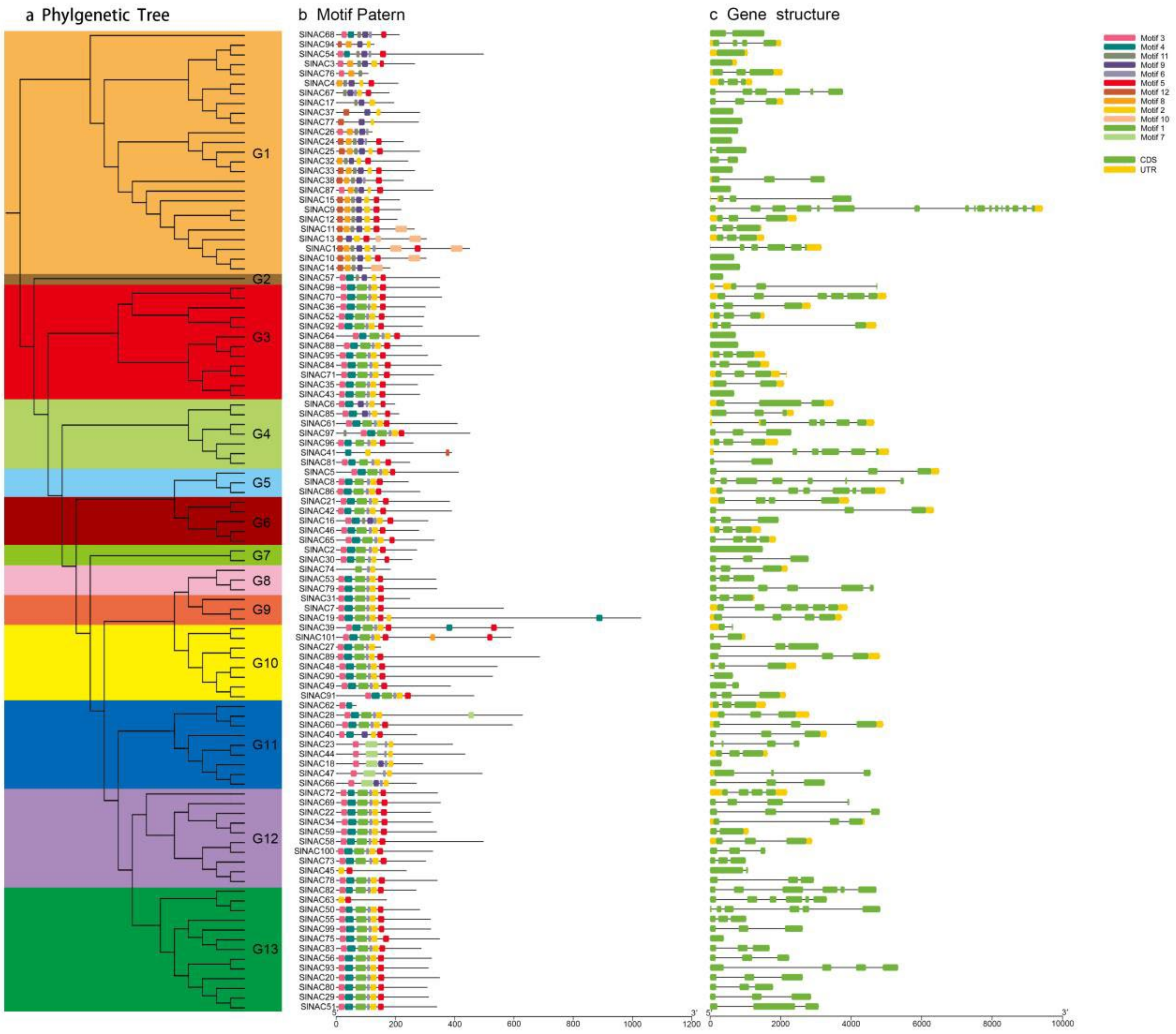

Figure 2. Phylogenetic tree, conserved motifs, and gene structures of the SlNAC genes. (a) Phylogenetic tree constructed using MEGA software version 5.05 with 1000 bootstrap replicates based on 101 SlNAC protein full-length sequences (G1–G13 indicate 13 clades). (b) The motif compositions of the SlNACs were identified using the Multiple Expectation Maximization for Motif Elicitation (MEME) program. A total of 12 motifs were predicted and the different motifs are indicated in different colors. (c) The gene structures of the SlNACs were visualized using TBtools software version 1.098769. The green boxes represent CDs, the yellow boxes represent UTR, and the black lines represent introns.
Figure 2. Phylogenetic tree, conserved motifs, and gene structures of the SlNAC genes. (a) Phylogenetic tree constructed using MEGA software version 5.05 with 1000 bootstrap replicates based on 101 SlNAC protein full-length sequences (G1–G13 indicate 13 clades). (b) The motif compositions of the SlNACs were identified using the Multiple Expectation Maximization for Motif Elicitation (MEME) program. A total of 12 motifs were predicted and the different motifs are indicated in different colors. (c) The gene structures of the SlNACs were visualized using TBtools software version 1.098769. The green boxes represent CDs, the yellow boxes represent UTR, and the black lines represent introns.
Genes 13 02015 g002
Genes 13 02015 g003 550

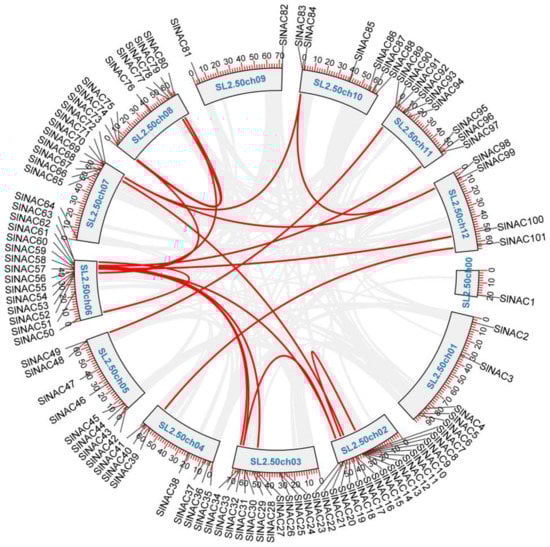

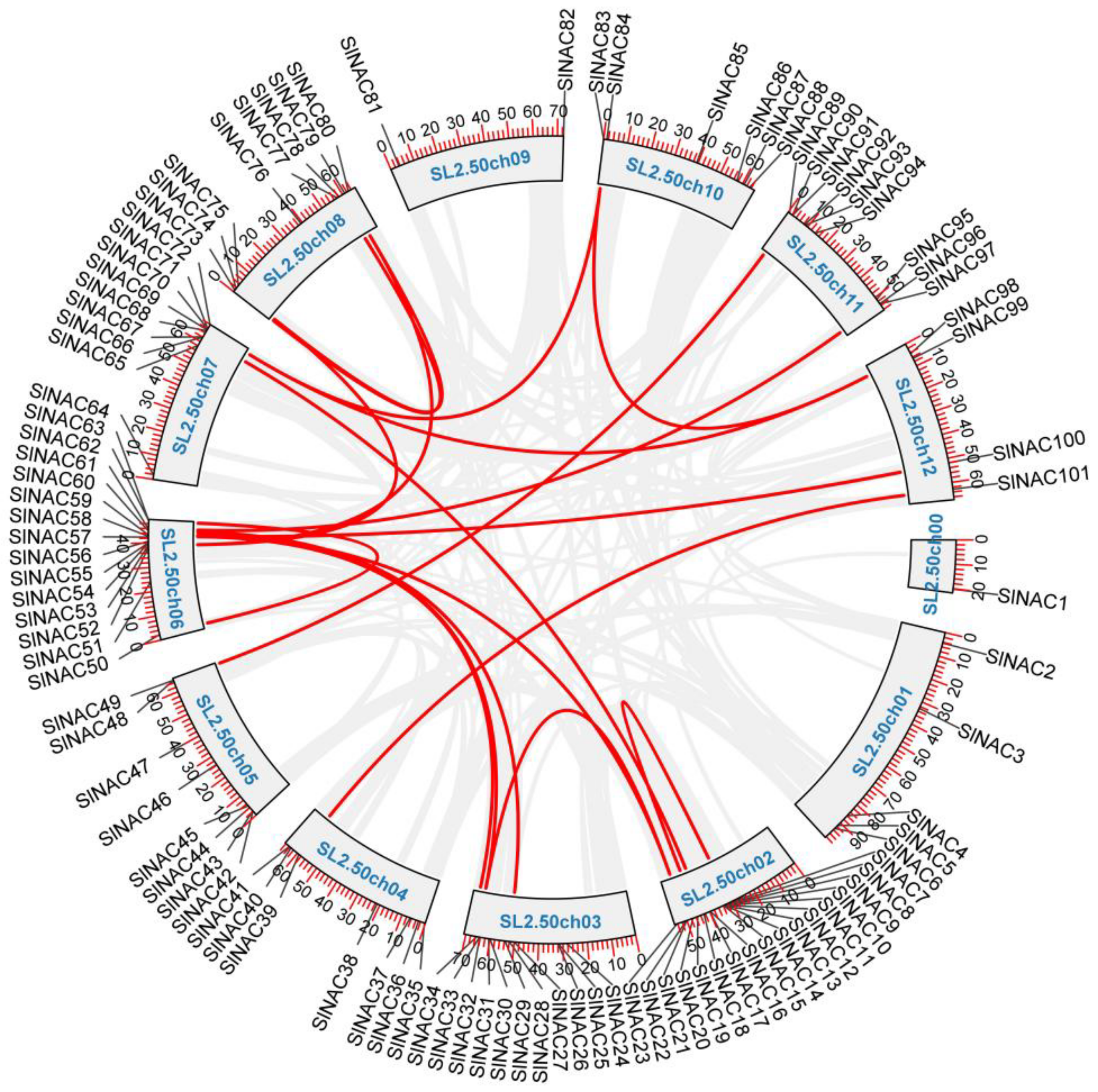

Figure 3. Chromosomal distribution and collinear relationships of the SlNAC genes. The duplicated gene pairs are joined by red lines.
Figure 3. Chromosomal distribution and collinear relationships of the SlNAC genes. The duplicated gene pairs are joined by red lines.
Genes 13 02015 g003
Genes 13 02015 g004 550

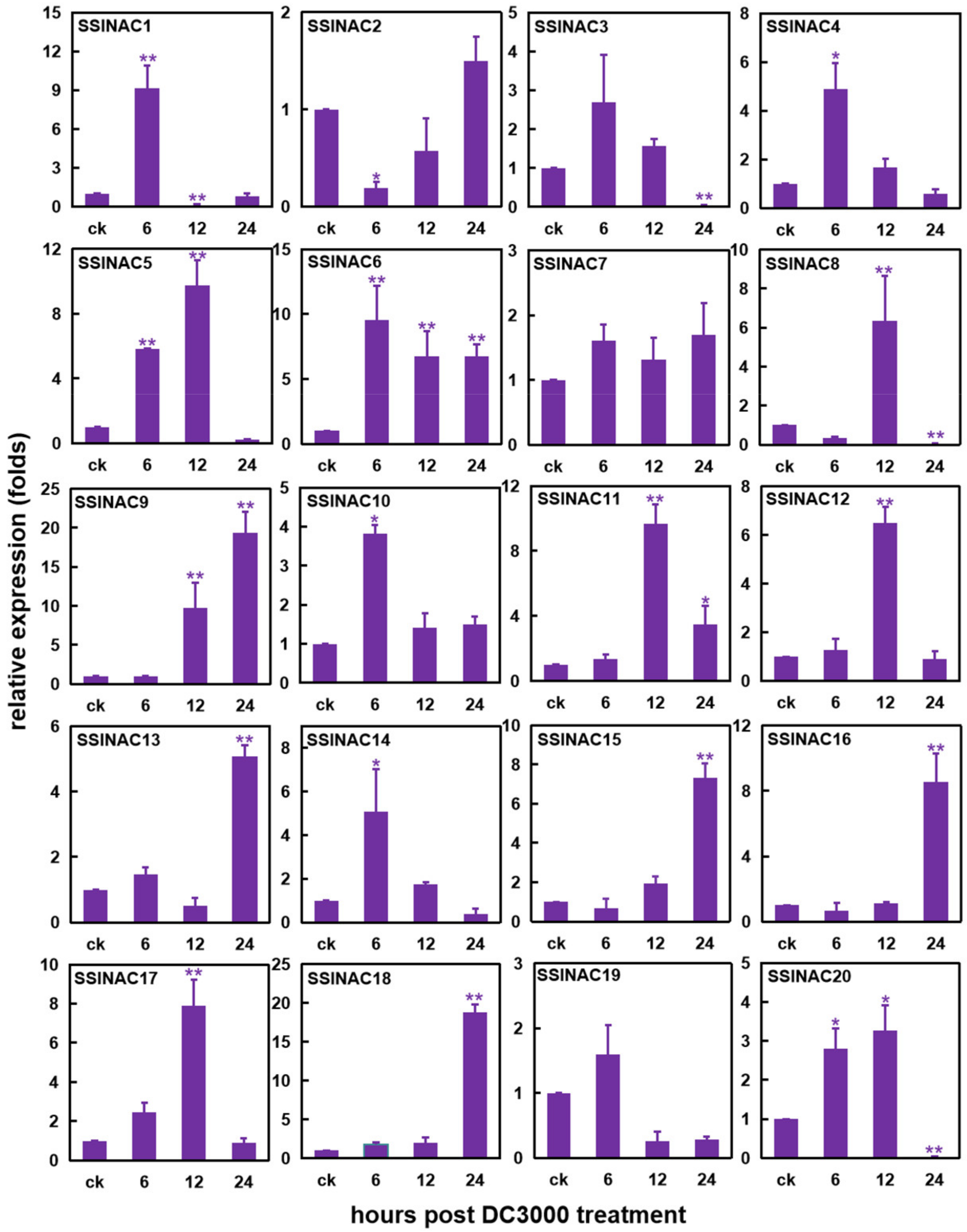

Figure 4. Expression levels of SSlNAC1–20 at 6, 12, and 24 h post Pseudomonas syringae pv. tomato DC3000 (Pst DC3000) inoculation. The 2−ΔΔCt method was used to calculate the expression fold for each SSlNAC gene. Data are the mean ± standard errors (SD) from three independent biological replicates. Error bars indicate standard error. An asterisk (*) represents a significant difference (* p < 0.05, ** p < 0.01).
Figure 4. Expression levels of SSlNAC1–20 at 6, 12, and 24 h post Pseudomonas syringae pv. tomato DC3000 (Pst DC3000) inoculation. The 2−ΔΔCt method was used to calculate the expression fold for each SSlNAC gene. Data are the mean ± standard errors (SD) from three independent biological replicates. Error bars indicate standard error. An asterisk (*) represents a significant difference (* p < 0.05, ** p < 0.01).
Genes 13 02015 g004
Genes 13 02015 g005 550

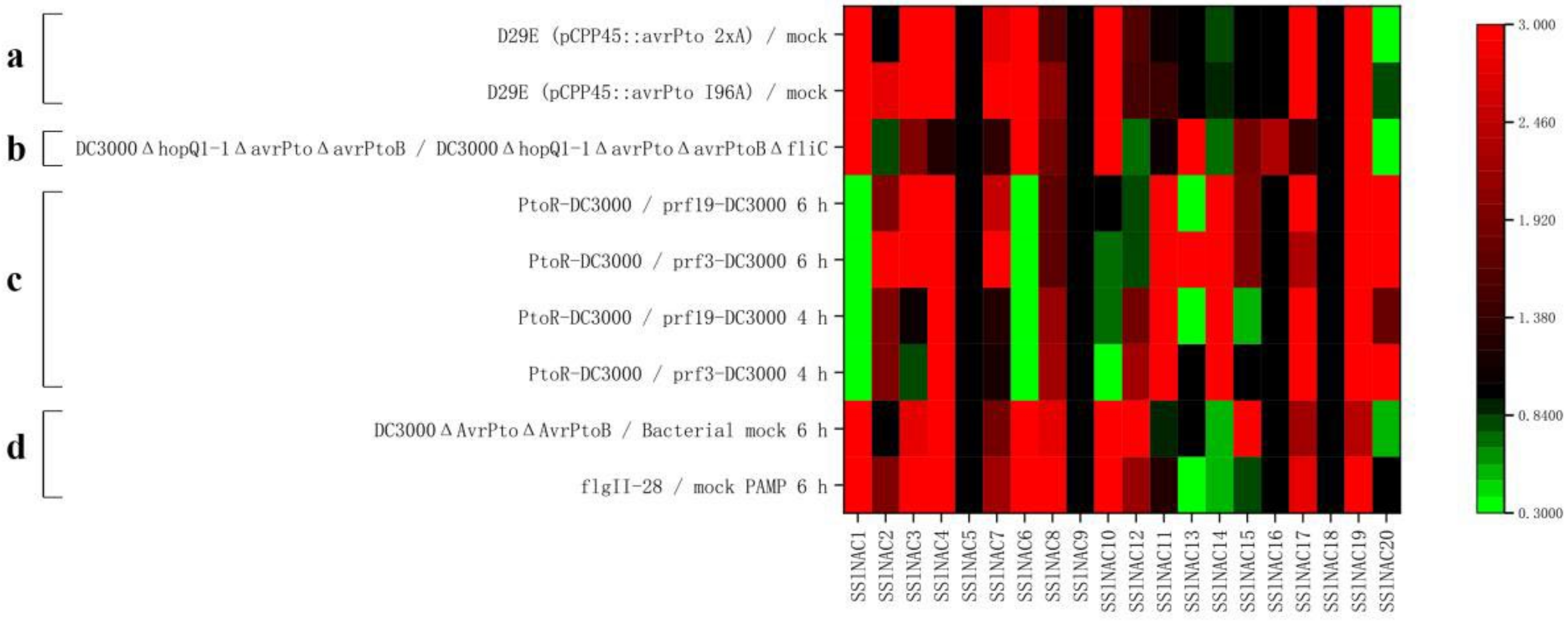

Figure 5. The heat map represents the expression of 20 SSlNAC genes in response to Pst DC3000 with different treatments. (a,c,d) Expression profiles of 20 SSlNAC genes under Pst DC3000 mutant strains. (b) Expression profiles of 20 SSlNAC genes in resistant and susceptible tomato under Pst DC3000 treatment.
Figure 5. The heat map represents the expression of 20 SSlNAC genes in response to Pst DC3000 with different treatments. (a,c,d) Expression profiles of 20 SSlNAC genes under Pst DC3000 mutant strains. (b) Expression profiles of 20 SSlNAC genes in resistant and susceptible tomato under Pst DC3000 treatment.
Genes 13 02015 g005
Genes 13 02015 g006 550

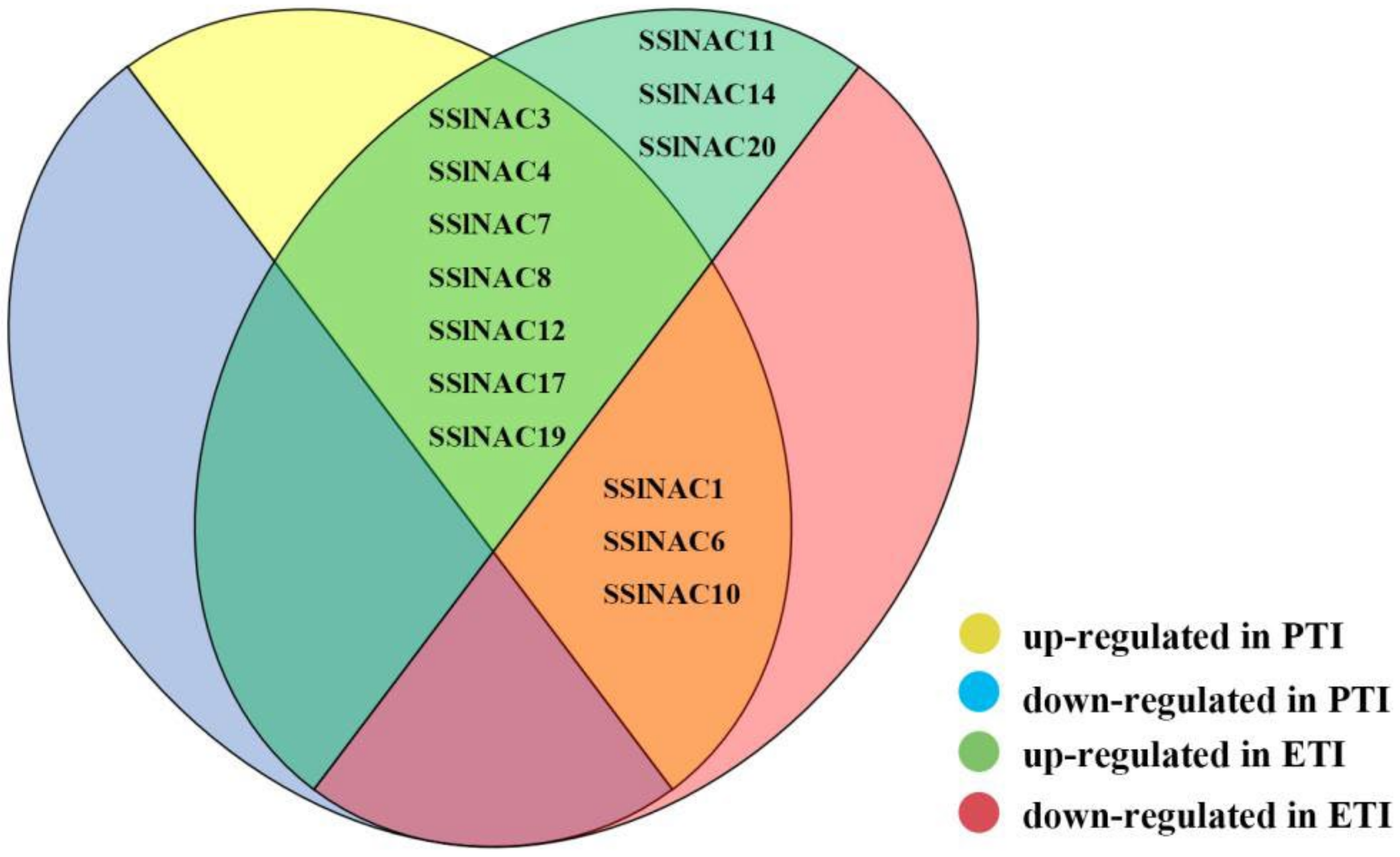

Figure 6. Venn diagram showing the expression patterns of the 20 SSlNAC genes during PTI and ETI under Pst DC3000 stress.
Figure 6. Venn diagram showing the expression patterns of the 20 SSlNAC genes during PTI and ETI under Pst DC3000 stress.
Genes 13 02015 g006
Genes 13 02015 g007 550

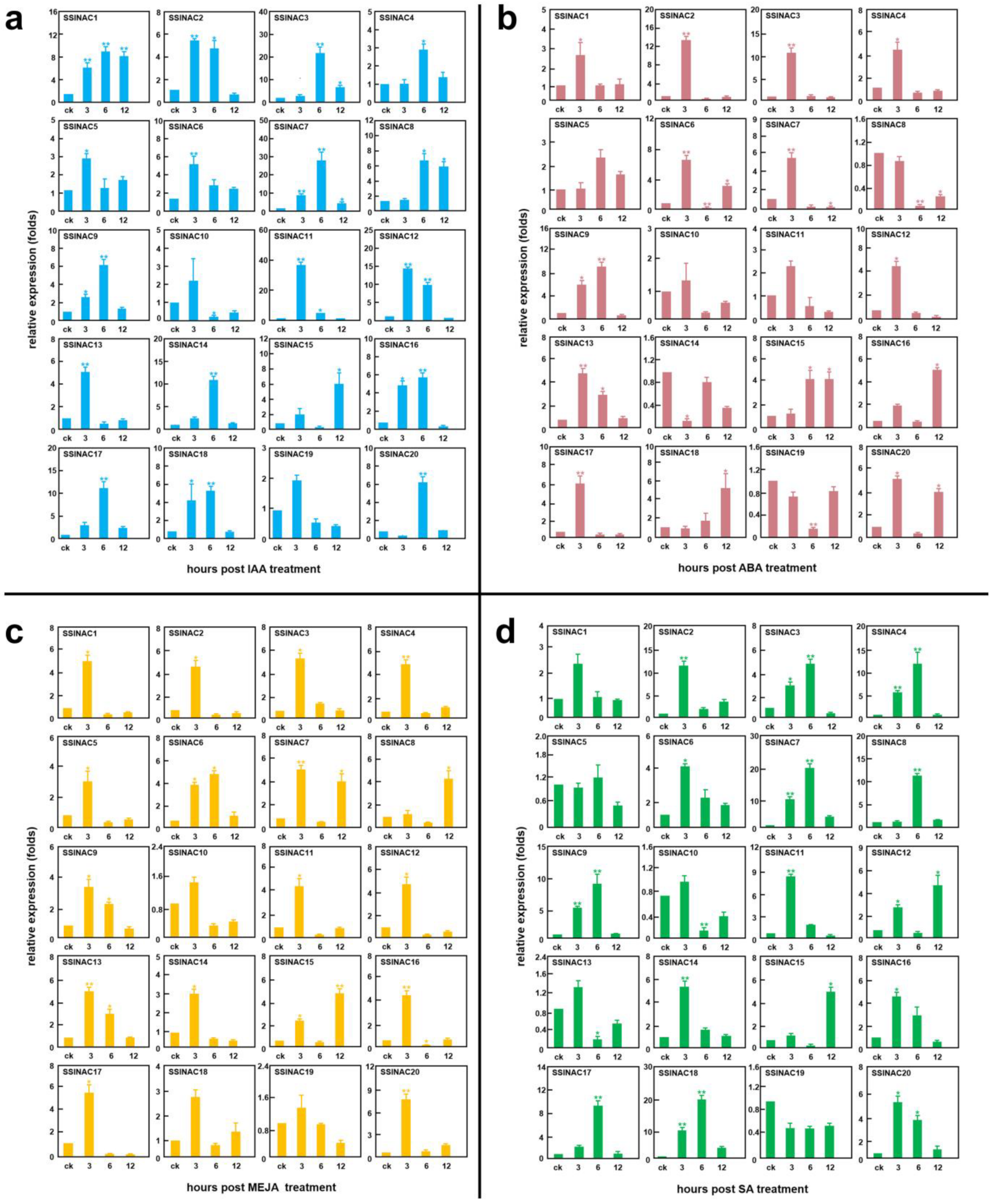

Figure 7. Expression levels of SSlNAC1–20 under different phytohormone treatments at different times (3, 6, and 12 h): (a) IAA (indole-3-acetic acid) treatment; (b) ABA (abscisic acid) treatment; (c) MEJA (methyl jasmonic acid) treatment; (d) SA (salicylic acid) treatment. The 2−ΔΔCt method was used to calculate the expression fold for each SSlNAC gene. Data are the mean ± standard errors (SD) from three independent biological replicates. Error bars indicate the standard error. An asterisk (*) represents a significant difference (* p < 0.05, ** p < 0.01).
Figure 7. Expression levels of SSlNAC1–20 under different phytohormone treatments at different times (3, 6, and 12 h): (a) IAA (indole-3-acetic acid) treatment; (b) ABA (abscisic acid) treatment; (c) MEJA (methyl jasmonic acid) treatment; (d) SA (salicylic acid) treatment. The 2−ΔΔCt method was used to calculate the expression fold for each SSlNAC gene. Data are the mean ± standard errors (SD) from three independent biological replicates. Error bars indicate the standard error. An asterisk (*) represents a significant difference (* p < 0.05, ** p < 0.01).
Genes 13 02015 g007
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Xu, S.; Zhang, Z.; Zhou, J.; Han, X.; Song, K.; Gu, H.; Zhu, S.; Sun, L. Comprehensive Analysis of NAC Genes Reveals Differential Expression Patterns in Response to Pst DC3000 and Their Overlapping Expression Pattern during PTI and ETI in Tomato. Genes 2022, 13, 2015. https://doi.org/10.3390/genes13112015

AMA Style

Xu S, Zhang Z, Zhou J, Han X, Song K, Gu H, Zhu S, Sun L. Comprehensive Analysis of NAC Genes Reveals Differential Expression Patterns in Response to Pst DC3000 and Their Overlapping Expression Pattern during PTI and ETI in Tomato. Genes. 2022; 13(11):2015. https://doi.org/10.3390/genes13112015

Chicago/Turabian Style

Xu, Songzhi, Zhiyao Zhang, Jiajing Zhou, Xiao Han, Kun Song, Haiying Gu, Suqin Zhu, and Lijun Sun. 2022. "Comprehensive Analysis of NAC Genes Reveals Differential Expression Patterns in Response to Pst DC3000 and Their Overlapping Expression Pattern during PTI and ETI in Tomato" Genes 13, no. 11: 2015. https://doi.org/10.3390/genes13112015

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
