Citizen Science for Marine Litter Detection and Classification on Unmanned Aerial Vehicle Images

by
Silvia Merlino
1,*,
Marco Paterni
2,
Marina Locritani
3,
Umberto Andriolo
4,
Gil Gonçalves
4,5 and
Luciano Massetti
6
1
Istituto di Scienze Marine del Consiglio Nazionale delle Ricerche (ISMAR-CNR), 19032 Lerici, Italy
2
Istituto di Fisiologia Clinica del Consiglio Nazionale delle Ricerche (IFC-CNR), 56124 Pisa, Italy
3
Istituto Nazionale di Geofisica e Vulcanologia, 00143 Rome, Italy
4
INESC Coimbra, Department of Electrical and Computer Engineering, Polo 2, 3030-290 Coimbra, Portugal
5
Department of Mathematics, University of Coimbra, Polo 1, Apartado 3008, 3001-501 Coimbra, Portugal
6
Istituto per la BioEconomia del Consiglio Nazionale delle Ricerche (IBE-CNR), 50019 Sesto Fiorentino, Italy
*
Author to whom correspondence should be addressed.
Water 2021, 13(23), 3349; https://doi.org/10.3390/w13233349
Submission received: 19 October 2021 / Revised: 22 November 2021 / Accepted: 23 November 2021 / Published: 25 November 2021
(This article belongs to the Special Issue Pattern Analysis, Recognition and Classification of Marine Data)
Browse Figures
Review Reports Versions Notes

Abstract

:
Unmanned aerial vehicles (UAV, aka drones) are being used for mapping macro-litter in the environment. As drone images require a manual processing task for detecting marine litter, it is of interest to evaluate the accuracy of non-expert citizen science operators (CSO) in performing this task. Students from Italian secondary schools (in this work, the CSO) were invited to identify, mark, and classify stranded litter items on a UAV orthophoto collected on an Italian beach. A specific training program and working tools were developed for the aim. The comparison with the standard in situ visual census survey returned a general underestimation (50%) of items. However, marine litter bulk categorisation was fairly in agreement with the in situ survey, especially for sources classification. The concordance level among CSO ranged between 60% and 91%, depending on the item properties considered (type, material, and colour). As the assessment accuracy was in line with previous works developed by experts, remote detection of marine litter on UAV images can be improved through citizen science programs, upon an appropriate training plan and provision of specific tools.

Graphical Abstract

1. Introduction

Unmanned aerial vehicles (UAV, aka drones) are being used for monitoring macro marine litter (>2.5 mm, [1]) (hereafter, ML) in various marine environments such as beaches [2,3,4,5,6,7,8], coastal dunes [9,10], lakeshores [11], remote islands [12], sea surface [13,14,15], and river waters [16].
On coasts, compared to traditional and standardized manual census surveys (e.g., [1,17]), the use of UAVs requires much less human effort in the field and thus can potentially increase the survey frequency. Moreover, UAV-based surveys are not intrusive and reduce the anthropogenic impact on the coast, an important aspect especially for sensitive areas such as dunes [9,10] and marine-protected areas [8]. Finally, as UAV images allow the geo-localisation of ML, it is possible to identify recurrent hotspots to improve knowledge of ML accumulation processes on coasts [5,8,9]. These assessments can serve, for instance, to optimize ML dynamic models (e.g., [18,19,20]) and stranded debris management [21,22].
The limitations of UAV-based surveys, when compared to the traditional census, reside in the less-detailed identification of ML. The survey can be based on the manual [4,8,10] or automated [2,23,24,25,26,27,28,29,30,31,32,33] image processing of UAV acquisitions. Manual image screening (hereafter, MS) consists in visually analysing UAV images (or orthophoto) and marking ML, generally in a GIS environment. Automatic ML detection would be preferable to the manual procedure, as it is less tedious and demands less human effort; however, current proposed automated methodologies still lack the ability to categorising ML items in a detailed manner [27]. On the other hand, MS is highly subjective; thus, the quality of the assessment may depend on several factors such as operator experience and expertise, among others.
The consistency of MS was previously investigated by Andriolo et al. [34], who evaluated the different assessment by a group of expert operators. Results pointed out that the number of items marked on images depended more on the knowledge of common items found on the site, and thus on the territoriality, than on the expertise of the operators. This suggests that the UAV-based litter abundance map could be produced by briefly trained personnel, such as operators recruited from emerging citizen science projects.
The use of citizen science can be a potential and valid help in the UAV-based litter survey and MS performance. In recent years, researchers have been supported by volunteers and students in collecting data on beached marine litter [35,36,37,38,39,40,41,42]; therefore, the implementation of citizen science projects in schools could take advantage of synergies between educational and research goals. Training workshops are used to facilitate citizen science in classrooms and improve scientific literacy for participants [43]. Moreover, the use of advanced software tools and data (e.g., GIS) can provide new skills to participants, useful for their future career and social innovation [44].
The present work presents a citizen science program targeting secondary school students (between the age of 16 and 18) for performing the MS on aerial photos taken by a drone. The program was designed for an online working context (imposed during the COVID-19 pandemic). A training course was held for briefing the students, who were also provided with information material and a personalised QGIS application (Development Team, 2020 QGIS Geographic Information System. Open Source Geospatial Foundation Project. http://qgis.osgeo.org, accessed on 16 June 2021) for the marking and classification of ML items.
The work aimed at (i) assessing the inherent variability of MS when performed by different operators, (ii) evaluating the quality of the MS output from citizen science program, and (iii) suggesting future operational improvements for the MS optimisations.

2. Materials and Methods

2.1. Study Site and Image Dataset

The study area (Figure 1) was a sandy beach located downdrift from the Arno river estuary, within the marine protected area (MPA) of Migliarino, Massacciuccoli, and San Rossore park (SRPRK). The whole beach extends for about 11 km along shore, with an N–S orientation, limited southwards by a 150 m long semi-submerged groin and backward by a dune system reaching a maximum height of about 7 m [45]. The tidal regime is micro-tidal, the wave climate is characterised by a dominant southwesterly wave direction, with wave heights of usually about 1 m [46].
This coastal stretch, located between the two rivers Arno (N 4340′47.408″, E 1016′40.466″) and Serchio (N 4347′1.704″, E 1016′0.016″), is affected by a long-shore current that goes from the mouth of Arno northward, with a considerable transport of fluvial material. The Arno River is an important Italian watercourse that crosses the Tuscany region, running through large cities such as Florence and Pisa and industrial and production centers such as the province of Prato and Pontedera. The coast is also subjected to important coastal erosion phenomena [47,48], which influence the dynamics of the accumulation of sediments and materials transported by the river [47].
The selected study area, called Test Area (Figure 1), was a 900 m2 portion of San Rossore beach, situated between the swash zone and the upper beach dune toe. Access to the study area is forbidden for recreational purposes and only allowed for research activities upon permission.
A multirotor DJI Phantom 4 Pro v2 quadcopter, with the camera (1 inch, 20 megapixel CMOS sensor, 24 mm full-frame equivalent) gimbal set to 90 degrees looking at the nadir (perpendicular to flight direction), acquired high-resolution images flying at 15 m height. Images were recorded with 80% front and 80% side overlaps.
The UAV operated automatically using the Drone Harmony (DH) ground station software. Following previous similar studies [8,34], we chose a flight height of 15 m as the right compromise between ground sampling distance (GSD) and area coverage. This setting allowed us to fly over the Test Area in 10 min.
From the image dataset, the digital surface model (DSM) and the orthophoto beach map were produced, applying a Structure from Motion-MultiView Stereo (SfM-MVS) photogrammetric processing on Agisoft Metashape [49,50,51,52]. The final orthophoto GSD resolution was 0.41cm/pixel (Figure 1).

2.2. Manual Image Screening and Training Framework

For performing the manual image screening (MS) and marking ML on drone images, similarly to Merlino et al. [8], the image was tiled with a 3 × 3 m square grid to make the MS regular and organised. An ad hoc user-friendly QGIS application interface, based on a drop-down list of tasks, was developed to guide the operator. After the recognition of an ML item on image, the operator was asked to digitise the item contour using the graphical existing tool available in QGIS. The software automatically retrieved the geometric properties of the object (area, length, and GPS coordinates of the centroid), discarding objects smaller than 5 cm. In the second step, the operator needed to label the item characteristics through a combo box-based interface composed of a hierarchical series (category, type, and material) of interdependent choices. For the aim, we slightly modified the ML shortlist proposed by the previous inter-operator reliability study [34]. The simplified list (Figure 2) included three main ML characteristics, namely type (characterised by their main potential source), material, and colour. Litter type also included the labels i) Fragments, pieces of an object with undefined shape and anthropogenic origin that could not be associated with any ML types present in the list, and ii) Undefined Items, objects that had a distinct shape but could not be associated with any type of ML present in the list, for being not visible and/or not recognisable enough due to operator inexperience and/or low image resolution. The Undefined option was also included in the material and colour lists, in case these characteristics could not be precisely defined by the operator. The tool also automatically retrieved marked item geometric properties (length, area, and coordinates). The colour property was an independent field instead.
Within the broader citizen science project “Adotta una spiaggia/Adopt a beach” (https://sites.google.com/view/seacleaner/educazione/adotta-una-spiaggia, accessed on 10 May 2021), 34 students from three different secondary school classrooms in Tuscany (Italy) were invited to perform the MS. Since all students had no previous experience in ML mapping and QGIS application, an online training course (four hours) was held to introduce the issue of ML in the coastal environment and the use of QGIS for performing the MS. Students also received supporting material comprising (i) a catalogue of ML images extracted from orthophotos of the study site, (ii) a quick guide and a video-recorded lesson about the use of QGIS for ML marking on orthophoto, and (iii) a recorded video lesson showing the UAV operation in the field and the photogrammetry framework. The material is available on the project website (see also Data Availability).
A dedicated GIS package was also provided to the students, hereafter citizen science operators (CSO). The package included the QGIS project (qgz format) with the user-friendly interface, the database (gpkg format), and the map of the Test Area (GEO-TIFF format). The hierarchical series of interdependent combo boxes made the selection of litter properties easier. In order to have information on the source of different kinds of objects, it was specified that recognisable material must be marked considering its original definition, avoiding, for example, selecting Fragments for broken drinking bottles.
After the training phase, each CSO autonomously marked and classified ML items using the ad hoc QGIS interface (Figure 3). CSO returned the single geopackage (gpkg file) containing the ML map and the corresponding attribute table. Therefore, the final dataset was composed by the layer on the QGIS project with i) the geometric properties of ML and ii) the characteristics (type, material, colour, and size) of each item.
After the drone flight, the standard in situ visual census (hereinafter, VC) was performed by some of the authors of this paper, following the OSPAR protocol [17]. Items were categorised using the same criteria used for the MS (Figure 2), classifying items by dimensional class, type, colour, and material. The smallest size of items to be considered was set to 5 cm (instead of 2.5 cm) to have a better comparison between MS and VC. In fact, a previous study observed that the highest discrepancy between items collected in the field and identified on UAV images was in the range 2.5–5 cm [8]. To assess the reliability of CSO contributions in the marking phase, we compared the CSO output with the VC.

2.3. Data Quality Assessment and Interoperator Concordance Test

A preliminary screening test was drawn to discard possible unreliable data. We considered a sub-sample of 42 objects particularly visible and of undoubted interpretation on the orthophoto (Figure 4). Firstly, we matched the correct objects marked by each CSO with the truth layer, checking the classification (for each attribute of the object) with the classification in the truth layer. Second, we calculated the overall percentage of correct classifications made by each CSO against the total number of objects, setting a minimum acceptable threshold to 50%. Finally, we evaluated the degree of reliability of CSO in recognising, marking, and classifying the objects in the test area, discarding any CSO that did not meet the defined criteria.
We also adopted the Kendall’s coefficient of concordance (W) [53] to measure the level of agreement among the working groups in MS assessments. The test evaluated the level of concordance in detecting the number of ML items on the UAV image and in labelling the ML characteristics (type, material, colour, and dimension of items). Kendall’s coefficient of concordance ranges from 0 (no agreement) to 1 (complete agreement).

2.4. Evaluation of Citizen Science Operators Assessments

Besides the comparison with the VC, a sub-sample of 100 items was randomly selected by an expert operator from among the ML bulk collected in the field. The CSO classification of the sub-sample was evaluated through three indicators, namely true positive rate (TPR), false positive rate (FPR), and positive predicted value (PPV) [54].
The true positive rate (TPR), also called sensitivity, measured the capacity of the operator in classifying item properties. It was computed as:
T P R = T P P × 100
where TP was the number of correctly classified items considering one single property (e.g., items classified as plastic also found as plastic in the field), and P was the total number of real items within the same property (e.g., total number of plastic items in the Test Area from the field survey).
The false positive rate (FPR), also called the false alarm ratio, measured the probability of assigning a wrong property to an item.
F P R = F P N × 100
where FP is the number of incorrectly classified items within one property (e.g., number of items classified as plastic that from field survey were another material), and N was the total number of real items that were not within one property (e.g., total number of items that were not plastic in the field).
PPV is the combination of the previous two and indicates the probability that an item has been classified correctly:
P P V = T P R ( T P R + F P R )
All three indicators varied between 0 and 100. Better assessment is indicated by a higher value of TPR and PPV and lower values of FPR.

3. Results

3.1. In Situ Visual Census and Manual Image Screening by Citizen Science Operator

Among the 34 citizen science operators (CSO) that completed the manual image screening (MS) task, just 30 works were considered for the evaluation. In fact, after the preliminary screening test, the data returned by two CSO were a copy of other colleagues.
The in situ visual census (VC) collected 332 ML items (Figure 5). Most of the ML bulk was composed of fragments (46%) and containers (30%). Fishing-related and other items were found in similar percentage (7%). Plastic composed about 56%, polystyrene 22%, while white was the most abundant colour (46%) (Figure 6).

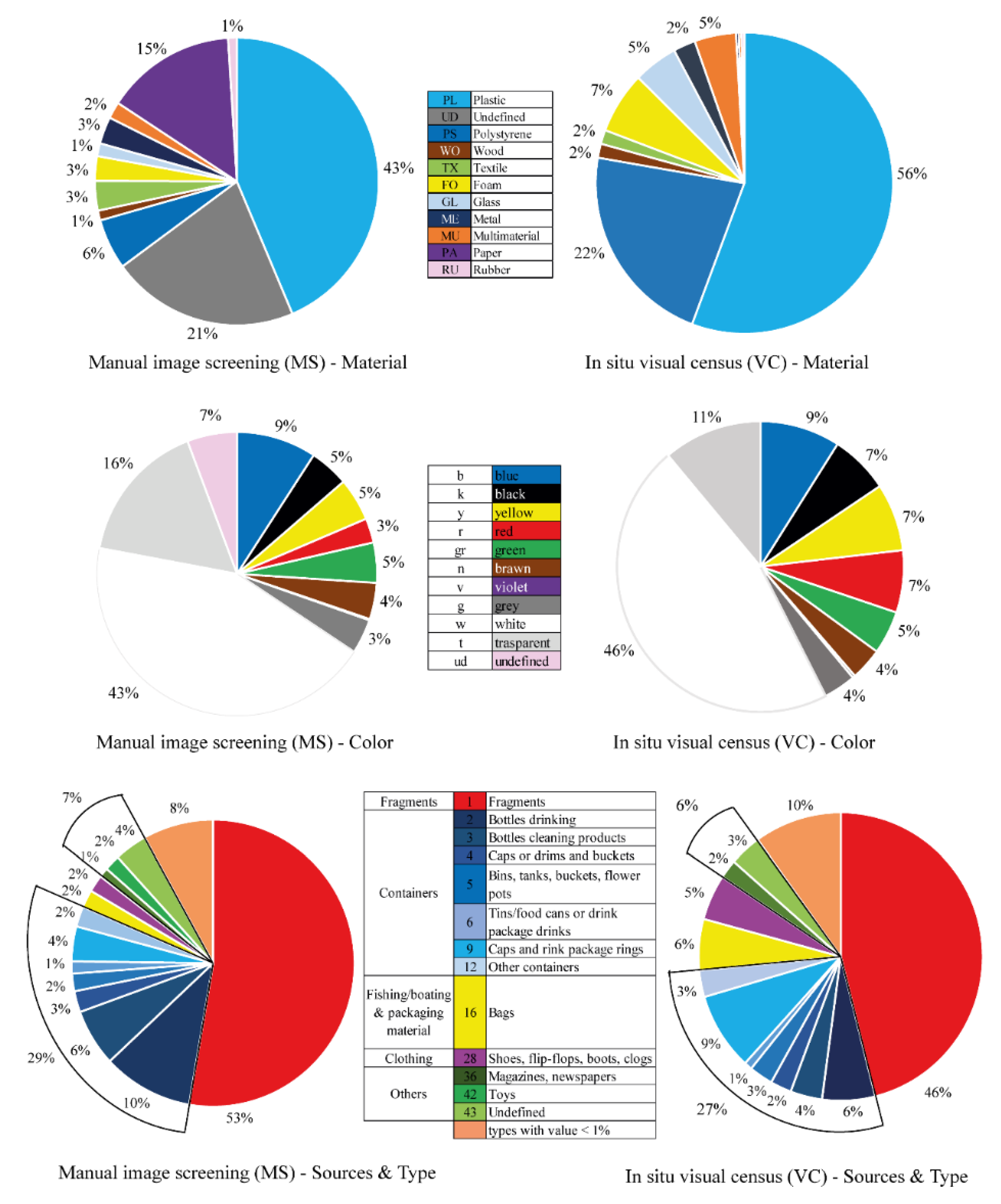

On average, CSO marked about 49% of ML collected by in situ VC (Figure 5 and Figure 6). Nevertheless, percentages of sources were fairly in agreement with the VC. Fragments were overestimated (53%), whereas fishing-related items (4%) and clothing (2.4%) were slightly underestimated. Overall, materials were not properly classified due to the fact that CSO were not able to identify about 22% of items. However, plastic and polystyrene composed more than the 50% of ML bulk from MS. This confirmed that the composition of ML items is a difficult property to identify from UAV images, especially by non-expert operators. As previously observed, white colour may mislead in the material classification.
Most of items collected in situ were small (86%). From MS, small items only composed 62%, whereas medium items 37% (Table 1).

3.2. Citizen Science Operators Detection Performance

The Kendall W concordance value (Table 2) was lowest for the identification of the type (0.6) and highest for the size (W = 0.91). The results showed an inverse relationship between the number of options the operator has to choose and the concordance level. Nevertheless, achievements were similar to the agreement among experts of a previous study [34], indicating that the skills of the CSO are low, dependent on their background and age. The agreement was comparable for all ML characteristics, namely type (0.60 vs. 0.58), material (0.75 vs. 0.76), and colour (0.69 vs. 0.65), suggesting that the interpretation of UAV images for an ML survey by CSO can also be robust, if they are properly trained.
The ability of the CSO group to correctly recognise ML objects, evaluated on a sample of 100 objects randomly selected by experts, returned satisfactory results (Figure 7). On average, CSO presented high scores in the classification of the type, colour, and size (PPV = 94%), whereas achievements were slightly worse for material (PPV = 76%) categorisation. CSO obtained high scores in the classification of the type, colour, and size (PPV = 94%), whereas achievements were slightly worse for material (PPV = 76%).
Most of the CSO identified more than 50% of the ML, obtaining the highest score for toys (TPR = 73%) and more than 60% for containers. On the other hand, CSO had difficulties in the identification of cardboard and cotton buds (TPR<10%). Fragments were shown to be the most difficult to classify (FPR = 40% and PPV = 58%). Nevertheless, PPV were highly variable for those items mostly found as fragments (buckets, containers, tires, and toys), whereas final PPV was most homogeneous for common items such as bottles, cans, and shoes (Figure 7).

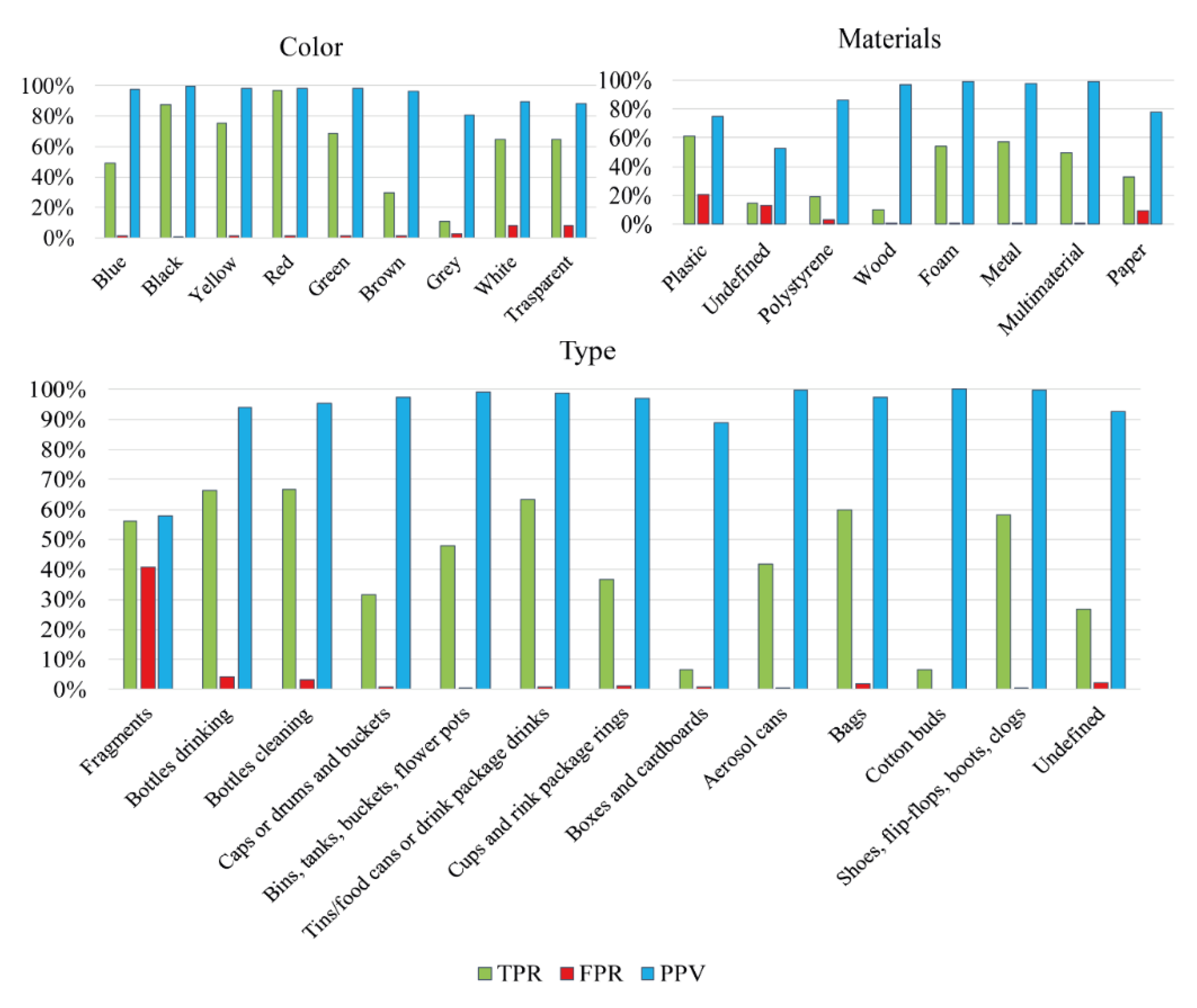

Regarding the ML materials (Figure 7), the highest TPR was scored for plastic (60%), and the lowest was for wood (10%). Due to the high values of FPR, the final PPV was low for undefined material (53%), plastic (75%), and paper (78%), whereas all other materials were properly identified by CSO (96%, on average). The low results in classifying plastics and papers may be because 60% of white plastic items were erroneously classified as paper items; thus, the white colour misled the CSO.
Regarding ML colour classification (Figure 7), TPR was highest for primary colours (e.g., Red TPR = 97%), while it was lowest for those chroma that had less contrast with the beach background and pieces of natural wood, such as grey (11%) and brown (29%), respectively. Although grey had the highest PPV (82%), most grey items (53%) were wrongly labelled as white. Similarly, 30% of brown items were labelled as yellow. These inaccuracies may be due to the high subjectivity in choosing between colours that look similar in the UAV aerial images.
Since the provided user-friendly application helped CSO in digitising the items’ contour, the size classification returned a high TPR for both medium and large items (93%). The lowest TPR and highest FPR were instead returned for small items, for a final PPV of 87%. On average, most of the CSO (90%) classified ML size with a PPV higher than 80%.

4. Discussion

This study evaluated the reliability of non-expert citizen scientist operators (CSO) (students of secondary schools) in marking and classifying marine litter (ML) items from aerial photos taken by an unmanned aerial vehicle (UAV, aka drone). Overall, results confirmed that citizen science projects can support UAV-based ML survey upon a proper training program and the provision of a user-friendly guided software. In fact, it was fundamental to introduce CSO to ML issues and provide i) video tutorials, ii) visual manual instructions regarding manual image screening (MS) for item detection on UAV images, and iii) a QGIS application built for guiding the operator during MS.
Comparing CSO assessments with those of a previous UAV-based survey performed by experts [8] in the same geographical area, we found that the percentage of material correctly classified was slightly better for plastic (38% vs 20%) and worse for metal (59% vs 66%) and glass (19% vs 66%). Yet, the classification for dimensional class (size) was more satisfactory for smaller items (35% against 20%). Instead, CSO overestimated the number of medium (36%) and large items (56%), while experts correctly marked 90% and 70% of these size categories [8].
The operational training sessions to identify a limited and predefined set of items present in the study area, followed by the analysis of the errors made by CSO in marking and classifying specific litter items, might be a way to improve a priori knowledge of the CSO. A priori CSO knowledge of some variables might be wrong, and therefore bias could be introduced. For instance, CSO overcounted paper items from images, underestimating instead polystyrene white pieces (probably misleading white items according to their prior knowledge about the state of “tourist” beaches), whereas experts were aware that paper is not present at the study site; the area is not accessible to tourists, away from sources of anthropogenic material, and previous surveys did not encounter this material [8,40,41]. This information was deliberately not given to CSO to avoid influencing their choice during the MS. A white object with irregular edges can easily be mistaken for a piece of paper if one does not have prior knowledge that such a specific object is practically absent in certain conditions. The a priori knowledge gap of non-experts can be therefore partly corrected by specific training sessions.
On the other hand, the ability of CSO to correctly assign the source of identified ML, and to recognise, for many of them, the type, was confirmed. The most significant discrepancies between the two surveys are both the higher percentage of ‘Undefined’ items marked by MS compared to VC and the lower number of localised objects in the ortho-photos, particularly small ones.
Regarding the Data Availability on the classification of 100 items, positive predictive value (PPV) ranged between 76% and 94% in the classification of type and material from UAV images, a good quality assessment considering that this was the first experience in ML study, UAV image processing, and QGIS operation and that the CSO involved had no experience of either marine litter or mapping with QGIS.
The Kendall (W) level of agreement among CSO both in the identification and classification of ML on drone images was similar to the agreement among experts [34], indicating that the skills of the CSO are low dependent on their background and age. The agreement was comparable for all ML characteristics, therefore the interpretation of UAV images for ML survey can also be robust by CSO, if properly trained.
Results obtained from the present study, carried out on the test area, confirm that the citizen science program greatly increases the possibility of obtaining reliable data over large areas and long periods and can be used for the spatial and temporal ML distribution through UAV orthophoto.
We underline that a preliminary screening of data assessments to discard low-quality MS and/or uncompleted works was necessary. The attention and effort given during the MS by each operator is a difficult factor to weigh, as already pointed out by Andriolo et al. [34] for experts. We reiterate this concept, specifying that the user-friendly application helped and facilitated CSO during the alienating and tedious MS task, limiting the time spent in marking and decreasing fatigue. This fact was found in the particular case of two students, who used the work done by others, thus not producing their own personal results. In cases such as this, extra care must be taken when selecting data, compared to the case of non-expert citizens who volunteered for this type of activity. Being a CSO group composed of students, some lack of willingness to participate was expected; however, most of them returned good quality data.
Besides the MS task, future citizen science programs may also propose the involvement of citizens in the aerial image acquisition [55]. The actual diffusion of low-cost drones may advance the collection of stranded litter images, helping in improving the spatial and temporal coverage of coastal pollution.

5. Conclusions

This study presented a citizen science program that involved students in detecting and mapping marine litter (ML) on unmanned aerial vehicle (UAV) images. A specific framework was built for training the students, named citizen science operators (CSO) here. A CSO training framework included an introduction to the ML issue and a practical session on the use of QGIS application. The framework was shown to be efficient and may be useful to implement citizen science projects.
The comparison with the results of the in situ visual census (VC) showed an underestimation of the items number, with only 49% marked on the image. In particular, a large fraction of small size items were not recognised on UAV images. Nevertheless, the sources of the ML were properly identified, and, overall, the ML bulk was properly described in terms of percentage. The difficulty in correctly defining ML materials from UAV images was confirmed in this work. Additionally, it was observed that knowledge of the most common items in the area is critical. For this reason, the training phase should include a session dedicated to the characterisation of ML previously found in the area.
As the assessment accuracy was in line with previous works developed by experts, remote detection of marine litter on UAV images can be improved through citizen science programs, upon an appropriate training plan and provision of specific tools.

Author Contributions

Conceptualisation, S.M. and L.M.; methodology, S.M., M.P., L.M., U.A. and G.G; software, M.P. and L.M.; validation, S.M., M.L., M.P., L.M., U.A. and G.G.; formal analysis, L.M.; investigation, S.M., M.L., M.P. and L.M.; resources, S.M., M.L., M.P. and L.M; data curation, S.M., M.P. and L.M.; writing—original draft preparation, S.M. and L.M.; writing—review and editing, S.M., M.L., M.P., L.M., U.A. and G.G.; visualisation, M.L., M.P. and L.M.; supervision, S.M.; project administration, S.M.; funding acquisition, S.M. and M.P. All authors have read and agreed to the published version of the manuscript.

Funding

This paper is part of NAUTILOS project that has received funding from the European Union’s Horizon 2020 research and innovation programme under grant agreement No. 101000825. This work was supported by the Portuguese Foundation for Science and Technology (FCT) and by the European Regional Development Fund (FEDER) through COMPETE 2020, Operational Program for Competitiveness and Internationalization (POCI) in the framework of UIDB/ 00308/2020 and the research project UAS4Litter (PTDC/EAM-REM/30324/2017).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Datasets generated during this study, and material supporting the training phase of CSO can be found in https://sites.google.com/view/seacleaner/educazione/adotta-una-spiaggia, accessed on 4 August 2021.

Acknowledgments

We would like to thank the Park of Migliarino, Massacciuccoli, and San Rossore for the permission to access the protected area and perform the field experience. Thanks to all the co-authors for the commitment to participating in this work and for providing the high-quality data necessary to perform the inter-operator concordance test. A special thanks goes to the involved scholastic institutes, to the students that participated in this citizen science and educational experience during the hard days of COVID emergencies, and to their teachers that supported them and helped us in collecting data: for IIS Meucci of Massa (MS), Fabio Pieraccioni; for IIS Zaccagna-Galilei of Carrara (MS), Chiara Collotti and M. Cristina Matelli; for IIS Agnoletti of Sesto Fiorentino (FI), Laura Dei; for ISI Garfagnana of Castelnuovo (LU), Andrea Malagoli; for LS Marconi San Miniato (PI), Laura Doria.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. GESAMP. Guidelines for the Monitoring and Assessment of Plastic Litter in the Ocean by Joint Group of Experts on the Scientific Aspects of Marine Environmental Protection. 2019. Available online: http://www.gesamp.org/publications/guidelines-for-the-monitoring-and-assessment-of-plastic-litter-in-the-ocean (accessed on 2 April 2021).
  2. Taddia, Y.; Corbau, C.; Buoninsegni, J.; Simeoni, U.; Pellegrinelli, A. UAV Approach for Detecting Plastic Marine Debris on the Beach: A Case Study in the Po River Delta (Italy). Drones 2021, 5, 140. [Google Scholar]
  3. Deidun, A.; Gauci, A.; Lagorio, S.; Galgani, F. Optimising beached litter monitoring protocols through aerial imagery. Mar. Pollut. Bull. 2018, 131, 212–217. [Google Scholar] [CrossRef] [PubMed]
  4. Gonçalves, G.; Andriolo, U.; Pinto, L.; Bessa, F. Mapping marine litter using UAS on a beach-dune system: A multidisciplinary approach. Sci. Total Environ. 2020, 706, 135742. [Google Scholar] [CrossRef] [PubMed]
  5. Andriolo, U.; Gonçalves, G.; Sobral, P.; Fontán-Bouzas, Á.; Bessa, F. Beach-dune morphodynamics and marine macro-litter abundance: An integrated approach with Unmanned Aerial System. Sci. Total Environ. 2020, 749, 141474. [Google Scholar] [CrossRef] [PubMed]
  6. Escobar-Sánchez, G.; Haseler, M.; Oppelt, N.; Schernewski, G. Efficiency of Aerial Drones for Macrolitter Monitoring on Baltic Sea Beaches. Front. Environ. Sci. 2021, 8, 283. [Google Scholar] [CrossRef]
  7. Martin, C.; Zhang, Q.; Zhai, D.; Zhang, X.; Duarte, C.M. Enabling a Large-Scale Assessment of Litter along Saudi Arabian Red Sea Shores by Combining Drones and Machine Learning. Environ. Pollut. 2021, 277, 116730. [Google Scholar] [CrossRef] [PubMed]
  8. Merlino, S.; Paterni, M.; Berton, A.; Massetti, L. Unmanned Aerial Vehicles for Debris Survey in Coastal Areas: Long-Term Monitoring Programme to Study Spatial and Temporal Accumulation of the Dynamics of Beached Marine Litter. Remote Sens. 2020, 12, 1260. [Google Scholar] [CrossRef] [Green Version]
  9. Andriolo, U.; Gonçalves, G.; Sobral, P.; Bessa, F. Spatial and size distribution of macro-litter on coastal dunes from drone images: A case study on the Atlantic coast. Mar. Pollut. Bull. 2021, 169, 112490. [Google Scholar] [CrossRef]
  10. Andriolo, U.; Gonçalves, G.; Bessa, F.; Sobral, P. Mapping marine litter on coastal dunes with unmanned aerial systems: A showcase on the Atlantic Coast. Sci. Total Environ. 2020, 736, 139632. [Google Scholar] [CrossRef]
  11. Hengstmann, E.; Fischer, E.K. Anthropogenic litter in freshwater environments–Study on lake beaches evaluating marine guidelines and aerial imaging. Environ. Res. 2020, 189, 109945. [Google Scholar] [CrossRef]
  12. Fallati, L.; Polidori, A.; Salvatore, C.; Saponari, L.; Savini, A.; Galli, P. Anthropogenic Marine Debris assessment with Unmanned Aerial Vehicle imagery and deep learning: A case study along the beaches of the Republic of Maldives. Sci. Total Environ. 2019, 693, 133581. [Google Scholar] [CrossRef]
  13. Garcia-Garin, O.; Borrell, A.; Aguilar, A.; Cardona, L.; Vighi, M. Floating marine macro-litter in the North Western Mediterranean Sea: Results from a combined monitoring approach. Mar. Pollut. Bull. 2020, 159, 111467. [Google Scholar] [CrossRef]
  14. Garcia-Garin, O.; Monleón-Getino, T.; López-Brosa, P.; Borrell, A.; Aguilar, A.; Borja-Robalino, R.; Cardona, L.; Vighi, M. Automatic detection and quantification of floating marine macro-litter in aerial images: Introducing a novel deep learning approach connected to a web application in R. Environ. Pollut. 2021, 273, 116490. [Google Scholar] [CrossRef] [PubMed]
  15. Topouzelis, K.; Papakonstantinou, A.; Garaba, S.P. Detection of floating plastics from satellite and unmanned aerial systems (Plastic Litter Project 2018). Int. J. Appl. Earth Obs. Geoinf. 2019, 79, 175–183. [Google Scholar] [CrossRef]
  16. Geraeds, M.; van Emmerik, T.; de Vries, R.; bin Ab Razak, M.S. Riverine plastic litter monitoring using Unmanned Aerial Vehicles (UAVs). Remote Sens. 2019, 11, 2045. [Google Scholar] [CrossRef] [Green Version]
  17. OSPAR Commission. Guideline for Monitoring Marine Litter on the Beachs in the OSPAR Maritime Area; OSPAR Commission: London, UK, 2010. [Google Scholar]
  18. Kako, S.; Isobe, A.; Kataoka, T.; Yufu, K.; Sugizono, S.; Plybon, C.; Murphy, T.A. Sequential webcam monitoring and modeling of marine debris abundance. Mar. Pollut. Bull. 2018, 132, 33–43. [Google Scholar] [CrossRef] [PubMed]
  19. Cordeiro, T.C.; Barrella, W.; Butturi-Gomes, D.; Petrere Júnior, M. A modeling approach for reposition dynamics of litter composition in coastal areas of the city of Santos, Sao Paulo, Brazil. Mar. Pollut. Bull. 2018, 128, 333–339. [Google Scholar] [CrossRef]
  20. Yoon, J.H.; Kawano, S.; Igawa, S. Modeling of marine litter drift and beaching in the Japan Sea. Mar. Pollut. Bull. 2010, 60, 448–463. [Google Scholar] [CrossRef]
  21. Rangel-Buitrago, N.; Williams, A.; Costa, M.F.; de Jonge, V. Curbing the inexorable rising in marine litter: An overview. Ocean Coast. Manag. 2020, 188, 105133. [Google Scholar] [CrossRef]
  22. Williams, A.T.; Rangel-Buitrago, N. Marine litter: Solutions for a major environmental problem. J. Coast. Res. 2019, 35, 648–663. [Google Scholar] [CrossRef] [Green Version]
  23. Bak, S.H.; Hwang, D.H.; Kim, H.M.; Yoon, H.J. Detection and monitoring of beach litter using uav image and deep neural network. Int. Arch. Photogramm. Remote. Sens. Spat. Inf. Sci.-ISPRS Arch. 2019, 42, 55–58. [Google Scholar] [CrossRef] [Green Version]
  24. Bao, Z.; Sha, J.; Li, X.; Hanchiso, T.; Shifaw, E. Monitoring of beach litter by automatic interpretation of unmanned aerial vehicle images using the segmentation threshold method. Mar. Pollut. Bull. 2018, 137, 388–398. [Google Scholar] [CrossRef] [PubMed]
  25. Jakovljevic, G.; Govedarica, M.; Alvarez-Taboada, F. A deep learning model for automatic plastic mapping using unmanned aerial vehicle (UAV) data. Remote Sens. 2020, 12, 1515. [Google Scholar] [CrossRef]
  26. Duarte, D.; Andriolo, U.; Gonçalves, G. Addressing the Class Imbalance Problem in the Automatic Image Classification of Coastal Litter From Orthophotos Derived From Uas Imagery. ISPRS Ann. Photogramm. Remote. Sens. Spat. Inf. Sci. 2020, V-3–2020, 439–445. [Google Scholar] [CrossRef]
  27. Pinto, L.; Andriolo, U.; Gonçalves, G. Detecting stranded macro-litter categories on drone orthophoto by a multi-class Neural Network. Mar. Pollut. Bull. 2021, 169, 112594. [Google Scholar] [CrossRef] [PubMed]
  28. Gonçalves, G.; Andriolo, U.; Gonçalves, L.; Sobral, P.; Bessa, F. Quantifying Marine Macro Litter Abundance on a Sandy Beach Using Unmanned Aerial Systems and Object-Oriented Machine Learning Methods. Remote Sens. 2020, 12, 2599. [Google Scholar] [CrossRef]
  29. Gonçalves, G.; Andriolo, U.; Pinto, L.; Duarte, D. Mapping marine litter with Unmanned Aerial Systems: A showcase comparison among manual image screening and machine learning techniques. Mar. Pollut. Bull. 2020, 155, 111158. [Google Scholar] [CrossRef]
  30. Kataoka, T.; Hinata, H.; Kako, S. A new technique for detecting colored macro plastic debris on beaches using webcam images and CIELUV. Mar. Pollut. Bull. 2012, 64, 1829–1836. [Google Scholar] [CrossRef]
  31. Kataoka, T.; Murray, C.C.; Isobe, A. Quantification of marine macro-debris abundance around Vancouver Island, Canada, based on archived aerial photographs processed by projective transformation. Mar. Pollut. Bull. 2018, 132, 44–51. [Google Scholar] [CrossRef]
  32. Kylili, K.; Kyriakides, I.; Artusi, A.; Hadjistassou, C. Identifying floating plastic marine debris using a deep learning approach. Environ. Sci. Pollut. Res. 2019, 26, 17091–17099. [Google Scholar] [CrossRef]
  33. Wolf, M.; van den Berg, K.; Garaba, S.P.; Gnann, N.; Sattler, K.; Stahl, F.T.; Zielinski, O. Machine learning for aquatic plastic litter detection, classification and quantification (APLASTIC–Q). Environ. Res. Lett. 2020, 15, 114042. [Google Scholar] [CrossRef]
  34. Andriolo, U.; Gonçalves, G.; Rangel-Buitrago, N.; Paterni, M.; Bessa, F.; Gonçalves, L.M.S.; Sobral, P.; Bini, M.; Duarte, D.; Fontán-Bouzas, Á.; et al. Drones for litter mapping: An inter-operator concordance test in marking beached items on aerial images. Mar. Pollut. Bull. 2021, 169, 112542. [Google Scholar] [CrossRef] [PubMed]
  35. Hidalgo-Ruz, V.; Thiel, M. Distribution and abundance of small plastic debris on beaches in the SE Pacific (Chile): A study supported by a citizen science project. Mar. Environ. Res. 2013, 87, 12–18. [Google Scholar] [CrossRef] [PubMed]
  36. Kordella, S.; Geraga, M.; Papatheodorou, G.; Fakiris, E.; Mitropoulou, I.M. Litter composition and source contribution for 80 beaches in Greece, Eastern Mediterranean: A nationwide voluntary clean-up campaign. Aquat. Ecosyst. Health Manag. 2013, 16, 111–118. [Google Scholar] [CrossRef]
  37. Thiel, M.; Penna-Díaz, M.A.; Luna-Jorquera, G.; Salas, S.; Sellanes, J.; Stotz, W. Citizen scientists and marine research: Volunteer participants, their contributions, and projection for the future. In Oceanography and Marine Biology: An Annual Review; CRC Press: Boca Raton, FL, USA, 2014; ISBN 9781482220667. [Google Scholar] [CrossRef]
  38. Merlino, S.; Locritani, M.; Stroobant, M.; Mioni, E.; Tosi, D. SeaCleaner: Focusing citizen science and environment education on unraveling the marine litter problem. Mar. Technol. Soc. J. 2015, 49, 99–118. [Google Scholar] [CrossRef]
  39. Merlino, S.; Locritani, M.; Bernardi, G.; Como, C.; Legnaioli, S.; Palleschi, V.; Abbate, M. Spatial and temporal distribution of chemically characterized microplastics within the protected area of pelagos sanctuary (Nw mediterranean sea): Focus on natural and urban beaches. Water 2020, 12, 3389. [Google Scholar] [CrossRef]
  40. Merlino, S.; Abbate, M.; Pietrelli, L.; Canepa, P.; Varella, P. Marine litter detection and correlation with the seabird nest content. Rend. Lincei 2018, 29, 867–875. [Google Scholar] [CrossRef]
  41. Giovacchini, A.; Merlino, S.; Locritani, M.; Stroobant, M. Spatial distribution of marine litter along italian coastal areas in the Pelagos sanctuary (Ligurian Sea-NW Mediterranean Sea): A focus on natural and urban beaches. Mar. Pollut. Bull. 2018, 130, 140–152. [Google Scholar] [CrossRef] [PubMed]
  42. Vlachogianni, T.; Fortibuoni, T.; Ronchi, F.; Zeri, C.; Mazziotti, C.; Tutman, P.; Varezić, D.B.; Palatinus, A.; Trdan, Š.; Peterlin, M.; et al. Marine litter on the beaches of the Adriatic and Ionian Seas: An assessment of their abundance, composition and sources. Mar. Pollut. Bull. 2018, 131, 745–756. [Google Scholar] [CrossRef]
  43. Roche, J.; Bell, L.; Galvão, C.; Golumbic, Y.N.; Kloetzer, L.; Knoben, N.; Laakso, M.; Lorke, J.; Mannion, G.; Massetti, L.; et al. Citizen Science, Education, and Learning: Challenges and Opportunities. Front. Sociol. 2020, 5, 110. [Google Scholar] [CrossRef]
  44. Butkevičienė, E.; Skarlatidou, A.; Balázs, B.; Duží, B.; Massetti, L.; Tsampoulatidis, I.; Tauginienė, L. Citizen Science Case Studies and Their Impacts on Social Innovation. In The Science of Citizen Science; Springer: Cham, Switzerland, 2021; pp. 309–329. [Google Scholar] [CrossRef]
  45. Bertacchi, A. Dune habitats of the Migliarino–San Rossore–Massaciuccoli Regional Park (Tuscany–Italy). J. Maps 2017, 13, 322–331. [Google Scholar] [CrossRef]
  46. Bertoni, D.; Giacomelli, S.; Ciulli, L.; Sarti, G. Litho-sedimentological and morphodynamic characterization of the Pisa Province coastal area (northern Tuscany, Italy). J. Maps 2020, 16, 108–116. [Google Scholar] [CrossRef] [Green Version]
  47. Bini, M.; Casarosa, N.; Luppichini, M. Exploring the relationship between river discharge and coastal erosion: An integrated approach applied to the pisa coastal plain (italy). Remote Sens. 2021, 13, 226. [Google Scholar] [CrossRef]
  48. Luppichini, M.; Bini, M.; Paterni, M.; Berton, A.; Merlino, S. A new beach topography-based method for shoreline identification. Water 2020, 12, 3110. [Google Scholar] [CrossRef]
  49. Gómez-Gutiérrez, Á.; Gonçalves, G.R. Surveying coastal cliffs using two UAV platforms (multirotor and fixed-wing) and three different approaches for the estimation of volumetric changes. Int. J. Remote Sens. 2020, 41, 8143–8175. [Google Scholar] [CrossRef]
  50. Gonçalves, G.; Gonçalves, D.; Gómez-gutiérrez, Á.; Andriolo, U.; Pérez-alvárez, J.A. 3D reconstruction of coastal cliffs from fixed-wing and multi-rotor uas: Impact of sfm-mvs processing parameters, image redundancy and acquisition geometry. Remote Sens. 2021, 13, 1222. [Google Scholar] [CrossRef]
  51. Rangel, J.M.G.; Gonçalves, G.R.; Pérez, J.A. The impact of number and spatial distribution of GCPs on the positional accuracy of geospatial products derived from low-cost UASs. Int. J. Remote Sens. 2018, 39, 7154–7171. [Google Scholar] [CrossRef]
  52. Gonçalves, G.R.; Pérez, J.A.; Duarte, J. Accuracy and effectiveness of low cost UASs and open source photogrammetric software for foredunes mapping. Int. J. Remote Sens. 2018, 39, 5059–5077. [Google Scholar] [CrossRef]
  53. Kendall, M.G. Rank Correlation Methods (4th edn.) Charles Griffin; Oxford University Press: New York, NY, USA, 1975; ISBN 0195208374. [Google Scholar]
  54. Di Gennaro, S.F.; Toscano, P.; Cinat, P.; Berton, A.; Matese, A. A low-cost and unsupervised image recognition methodology for yield estimation in a vineyard. Front. Plant Sci. 2019, 10, 559. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Papakonstantinou, A.; Batsaris, M.; Spondylidis, S.; Topouzelis, K. A Citizen Science Unmanned Aerial System Data Acquisition Protocol and Deep Learning Techniques for the Automatic Detection and Mapping of Marine Litter Concentrations in the Coastal Zone. Drones 2021, 5, 6. [Google Scholar] [CrossRef]
Water 13 03349 g001 550

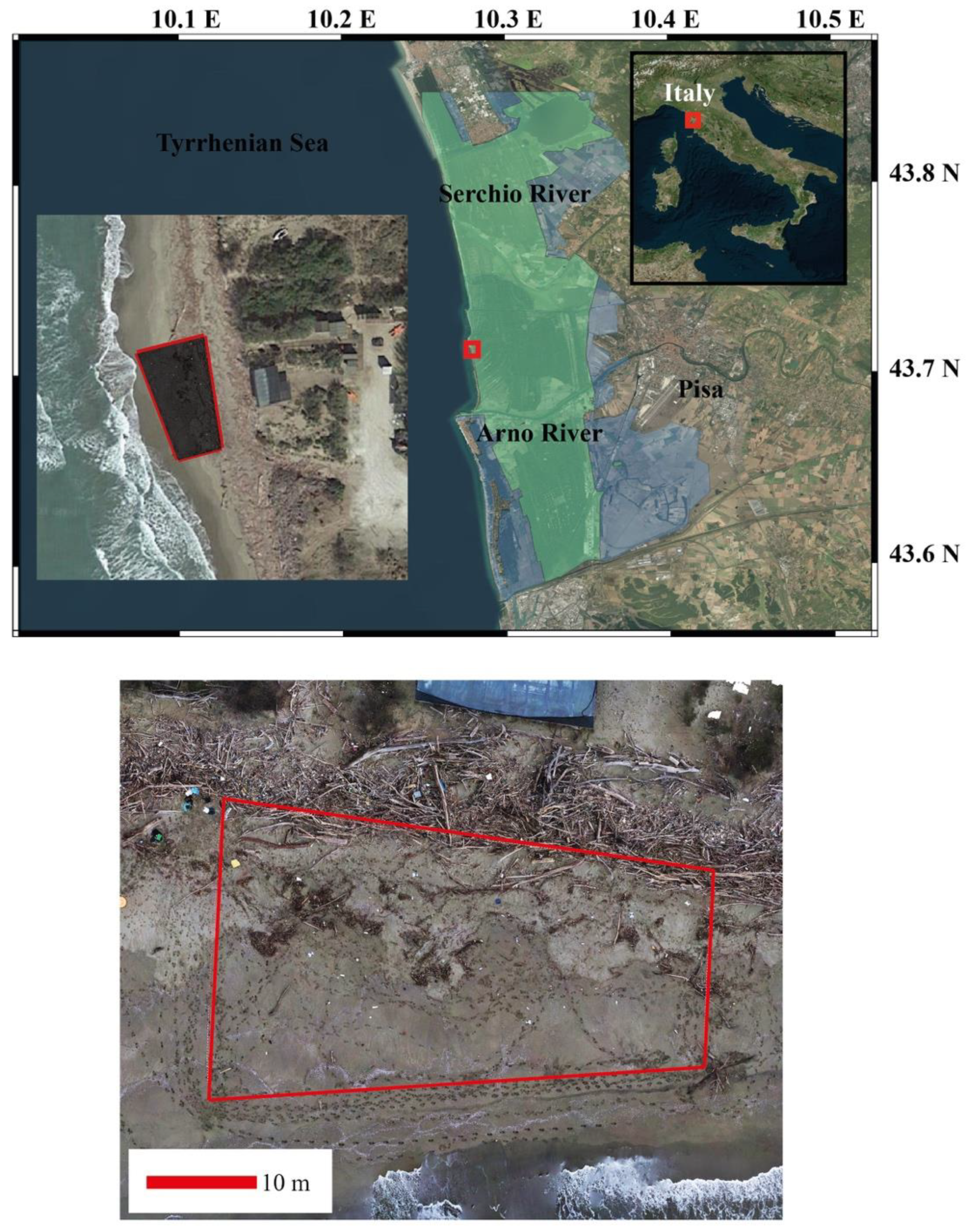

Figure 1. Study area location. Map of Migliarino, Massacciuccoli, and San Rossore park (upper green area) on the Tuscanian coast and satellite image of the study site (inset). Below, aerial image acquired by drone (flight height 15 m) of the target area (red trapezoidal area).
Figure 1. Study area location. Map of Migliarino, Massacciuccoli, and San Rossore park (upper green area) on the Tuscanian coast and satellite image of the study site (inset). Below, aerial image acquired by drone (flight height 15 m) of the target area (red trapezoidal area).
Water 13 03349 g001
Water 13 03349 g002 550

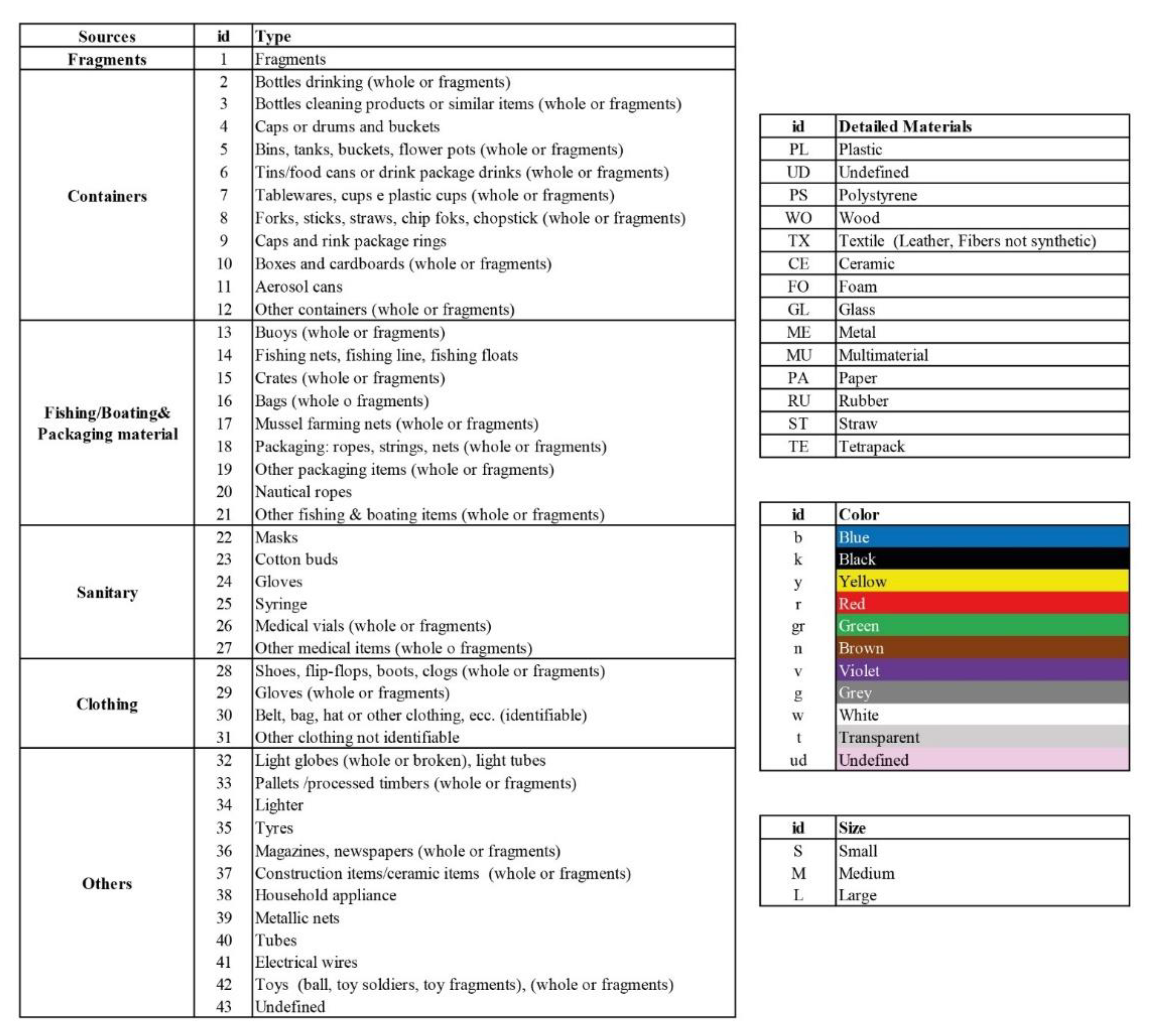

Figure 2. Classification of marine litter on UAV images. Left: macro-categories (source) and specific typology (Type) with the specific identity number (id). Types of litter are grouped into macro-categories to facilitate the choice during the marking process; right: materials of litter and their related id (upper), colour list, and related id (middle) and size of litter and specific id (lower). Item size: small between 5 and 15 cm; medium between 15 and 50 cm; large if bigger than 50 cm.
Figure 2. Classification of marine litter on UAV images. Left: macro-categories (source) and specific typology (Type) with the specific identity number (id). Types of litter are grouped into macro-categories to facilitate the choice during the marking process; right: materials of litter and their related id (upper), colour list, and related id (middle) and size of litter and specific id (lower). Item size: small between 5 and 15 cm; medium between 15 and 50 cm; large if bigger than 50 cm.
Water 13 03349 g002
Water 13 03349 g003 550

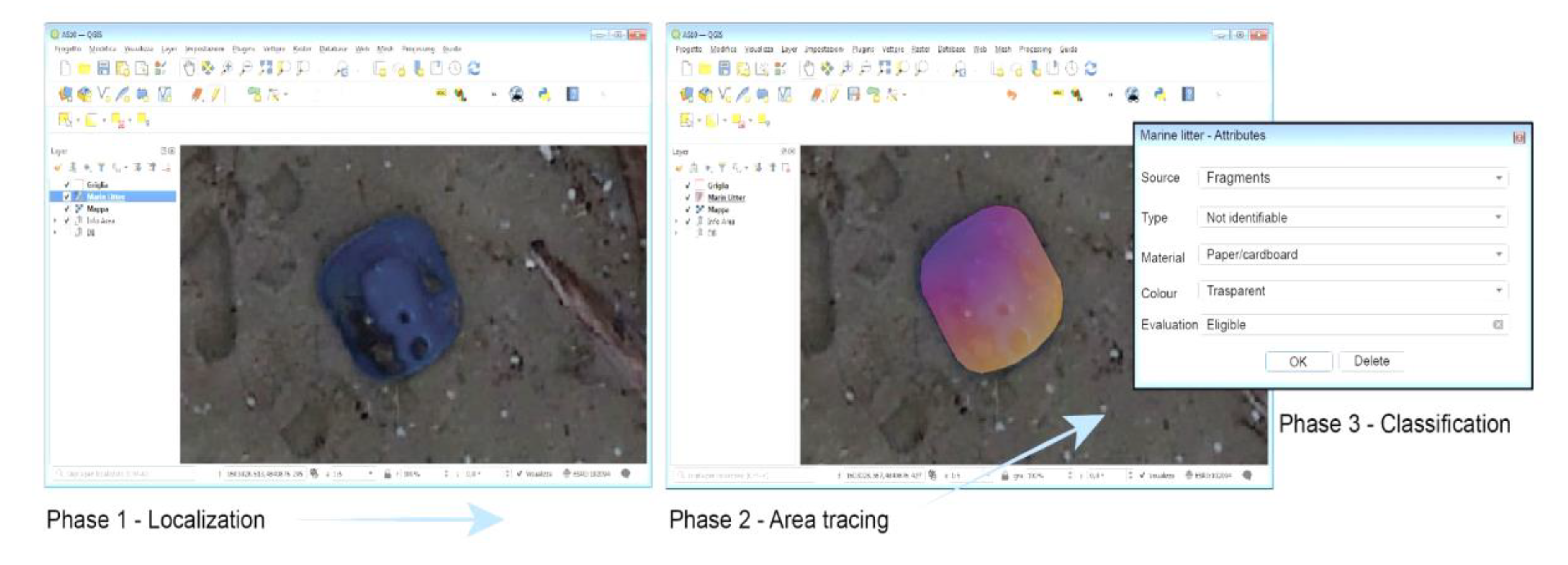

Figure 3. Screenshots of the developed software application for marine litter identification and classification with combo boxes.
Figure 3. Screenshots of the developed software application for marine litter identification and classification with combo boxes.
Water 13 03349 g003
Water 13 03349 g004 550

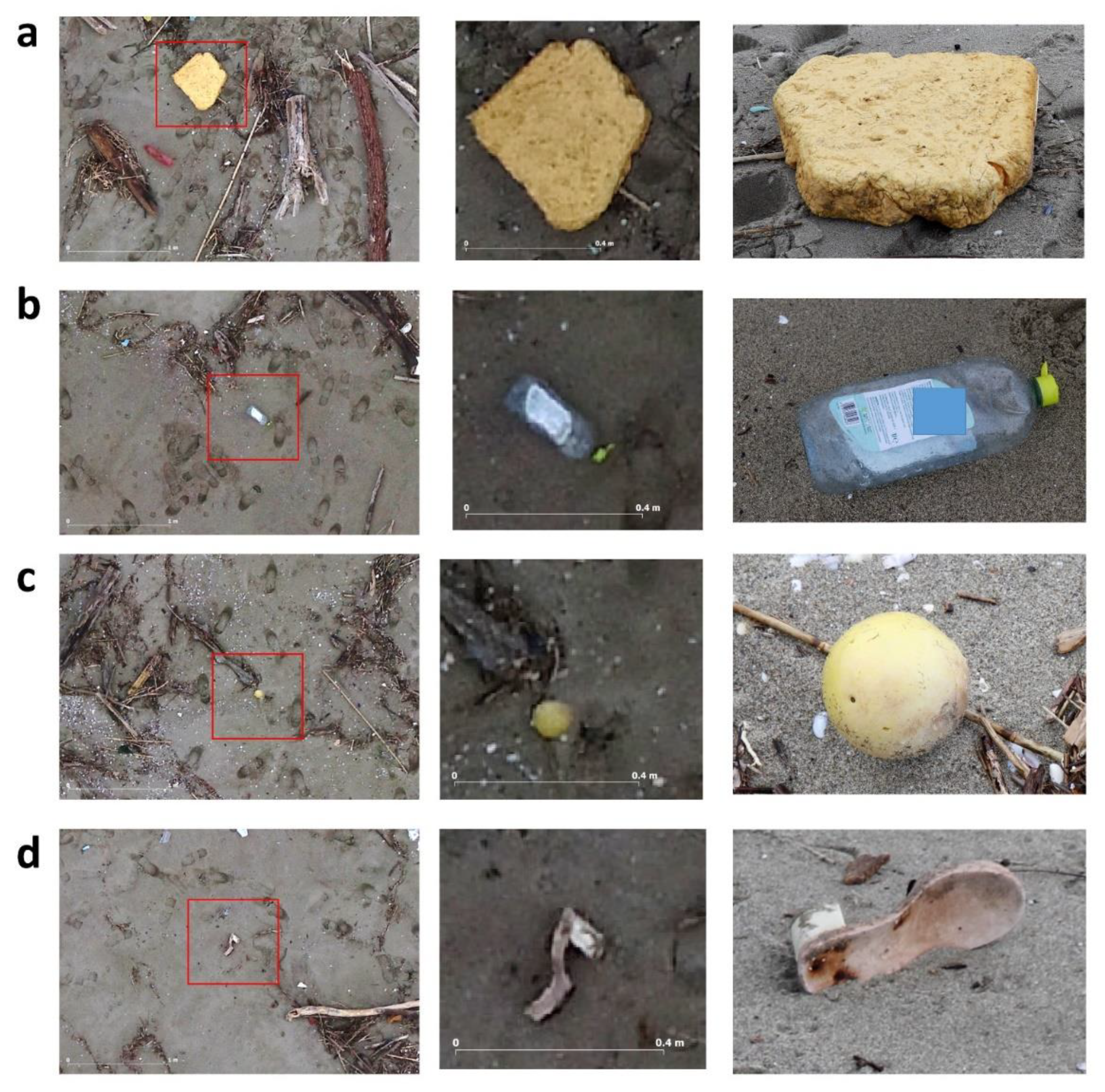

Figure 4. Examples of specific known items found on San Rossore beach. (a) Yellow foam fragment; (b) transparent plastic container; (c) yellow ball; (d) brown shoe. The left column shows the items (red square) on the orthophoto, the central column the items visible at 1:4 zoom factor on the orthophoto, and the right column the item picture taken in situ.
Figure 4. Examples of specific known items found on San Rossore beach. (a) Yellow foam fragment; (b) transparent plastic container; (c) yellow ball; (d) brown shoe. The left column shows the items (red square) on the orthophoto, the central column the items visible at 1:4 zoom factor on the orthophoto, and the right column the item picture taken in situ.
Water 13 03349 g004
Water 13 03349 g005 550

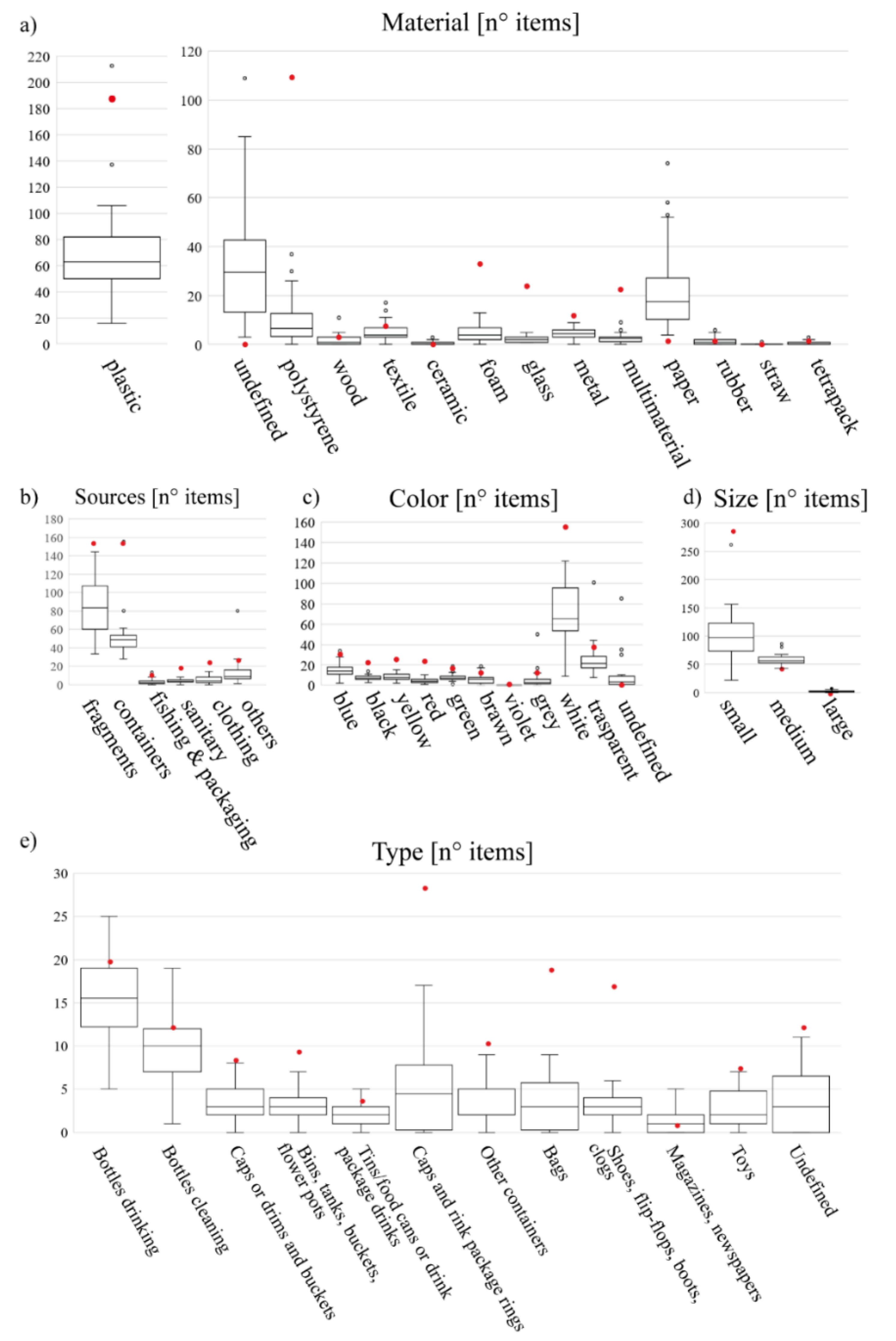

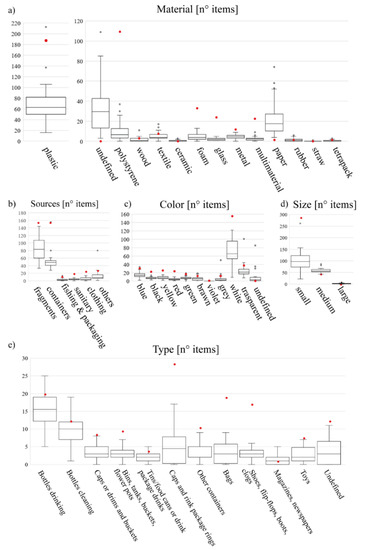

Figure 5. Boxplots of number of items marked by manual image screening (MS) and found by in situ visual census (VC, red dots), for material (a), source (b), colour (c), size (d), and type (e) categories. White dots show outliers. Item size: small between 5 and 15 cm; medium between 15 cm and 50 cm; large bigger than 50 cm.
Figure 5. Boxplots of number of items marked by manual image screening (MS) and found by in situ visual census (VC, red dots), for material (a), source (b), colour (c), size (d), and type (e) categories. White dots show outliers. Item size: small between 5 and 15 cm; medium between 15 cm and 50 cm; large bigger than 50 cm.
Water 13 03349 g005
Water 13 03349 g006 550
Figure 6. Percentages of items marked by manual image screening (MS) and collected during the in situ visual census (VC). Types not reaching 1% of the total were not individually graphed.
Figure 6. Percentages of items marked by manual image screening (MS) and collected during the in situ visual census (VC). Types not reaching 1% of the total were not individually graphed.
Water 13 03349 g006
Water 13 03349 g007 550
Figure 7. Citizen science operators (CSO) classification for the subsample of 100 items. Average TPR (green bars), FPR (red), and PPV (blue) for colour (upper left), material (upper right), and type (lower).
Figure 7. Citizen science operators (CSO) classification for the subsample of 100 items. Average TPR (green bars), FPR (red), and PPV (blue) for colour (upper left), material (upper right), and type (lower).
Water 13 03349 g007
Table
Table 1. Items classification based on size, collected in situ visual census (VC) and marked during the manual image screening (MS) by a citizen science operator (CSO).
Table 1. Items classification based on size, collected in situ visual census (VC) and marked during the manual image screening (MS) by a citizen science operator (CSO).
SizeVC
(Number)		VC
(%)		MS
(Average Number)		MS
(Average %)
Small (>5 cm)28585.810062.2
Medium (15–50 cm)4312.95936.5
Large (>50 cm)41.321.3
Table
Table 2. Kendall W Concordance test (W) among citizen science operators (CSO) for category, type, material, colour, and class size calculated based on the number of items.
Table 2. Kendall W Concordance test (W) among citizen science operators (CSO) for category, type, material, colour, and class size calculated based on the number of items.
AttributeNumber of CategoriesW
Type430.60
Material 140.71
Colour110.69
Size30.91
Source60.86
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Merlino, S.; Paterni, M.; Locritani, M.; Andriolo, U.; Gonçalves, G.; Massetti, L. Citizen Science for Marine Litter Detection and Classification on Unmanned Aerial Vehicle Images. Water 2021, 13, 3349. https://doi.org/10.3390/w13233349

AMA Style

Merlino S, Paterni M, Locritani M, Andriolo U, Gonçalves G, Massetti L. Citizen Science for Marine Litter Detection and Classification on Unmanned Aerial Vehicle Images. Water. 2021; 13(23):3349. https://doi.org/10.3390/w13233349

Chicago/Turabian Style

Merlino, Silvia, Marco Paterni, Marina Locritani, Umberto Andriolo, Gil Gonçalves, and Luciano Massetti. 2021. "Citizen Science for Marine Litter Detection and Classification on Unmanned Aerial Vehicle Images" Water 13, no. 23: 3349. https://doi.org/10.3390/w13233349

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
