Oxidation State of the Lithospheric Mantle Beneath Komsomolskaya–Magnitnaya Kimberlite Pipe, Upper Muna Field, Siberian Craton

Abstract

The oxidation state of the mantle plays an important role in many chemical and physical processes, including magma genesis, the speciation of volatiles, metasomatism and the evolution of the Earth’s atmosphere. We report the first data on the redox state of the subcontinental lithospheric mantle (SCLM) beneath the Komsomolskaya–Magnitnaya kimberlite pipe (KM), Upper Muna field, central Siberian craton. The oxygen fugacity of the KM peridotites ranges from −2.6 to 0.3 logarithmic units relative to the fayalite–magnetite–quartz buffer (∆logfO₂ (FMQ)) at depths of 120–220 km. The enriched KM peridotites are more oxidized (−1.0–0.3 ∆logfO₂ (FMQ)) than the depleted ones (from −1.4 to −2.6 ∆logfO₂ (FMQ)). The oxygen fugacity of some enriched samples may reflect equilibrium with carbonate or carbonate-bearing melts at depths >170 km. A comparison of well-studied coeval Udachnaya and KM peridotites revealed similar redox conditions in the SCLM of the Siberian craton beneath these pipes. Nevertheless, Udachnaya peridotites show wider variations in oxygen fugacity (−4.95–0.23 ∆logfO₂ (FMQ)). This indicates the presence of more reduced mantle domains in the Udachnaya SCLM. In turn, the established difference in the redox conditions is a good explanation for the lower amounts of resorbed diamonds in the Udachnaya pipe (12%) in comparison with the KM kimberlites (33%). The obtained results advocate a lateral heterogeneity in the oxidation state of the Siberian SCLM.

1. Introduction

The redox state of the mantle is essential for understanding processes occurring in the Earth’s interior. The fugacity of oxygen (fO₂) is a thermodynamic variable that indicates chemical potential of the oxygen in reactions where both reagents and products contain the same element (s), but with different valence states. In the lithospheric mantle, the oxygen fugacity affects not only the relative abundances of Fe³⁺ and Fe³⁺ in minerals, but also the stability of carbon which can exist in reduced (CH₄–H₂O fluid, diamond and graphite) or oxidized (CO₂–H₂O fluid, carbonate melt and carbonates) forms [1,2,3,4,5,6]. The composition of C–O–H-bearing fluids coexisting with mantle rocks affects their solidus temperature and, hence, the depth of mantle magma generation [4,7,8]. The fugacity of oxygen is a measure of the amount of oxygen available to react with multiple valence elements (e.g., Fe, Cr, V, Ti, Ce, Eu and C) that can be components of mantle minerals of fluids/melts [1,2,3,4,5,6,7,8,9]. Among these elements, iron is the most abundant in the upper mantle of the Earth and the Fe³⁺/ΣFe_(tot) ratio in minerals can be used as an indicator of the redox conditions. In mantle peridotites, garnet may contain significant amounts of Fe³⁺ and, therefore, Fe-rich end-members—skiagite (Fe²⁺₃Fe³⁺₂(SiO₄)₃) and andradite (Ca₃Fe³⁺₂(SiO₄)₃)—act as redox sensors in the oxybarometric reactions [10,11,12].

To date, comprehensive studies of the redox state of the lithospheric mantle underlying the ancient Archean cratons have been carried out on the Kaapvaal (South Africa) and Slave (Canada) cratons [13,14,15,16,17]. These studies have shown that the subcontinental lithospheric mantle (SCLM) is laterally and vertically heterogeneous in terms of its oxidation state (logarithmic units relative to the fayalite–magnetite–quartz buffer; ∆logfO₂ (FMQ)). The main processes, governing the observed fO₂ variations in the SCLM are melt extraction from the mantle during SCLM formation and subsequent reactions with mantle fluids or melts (i.e., due to mantle metasomatism) [5,15,18].

Redox conditions for the Siberian cratonic mantle have been constrained based on peridotite xenoliths from the Udachnaya kimberlite pipe only [19,20,21]. In this paper, we report the first data on the oxygen fugacity (fO₂) of peridotite xenoliths from the diamondiferous Komsomolskaya–Magnitnaya (KM) kimberlite pipe (Upper Muna field). According to Rosen et al. [22], the Udachnaya and KM pipes are coeval, although they are located 150 km apart on different tectonic terrains of the Siberian craton (Figure 1 based on Figure 1 from [23]).Thus, our study provides the first insight into the spatial variations in redox conditions in the SCLM of the Siberian craton in the Upper Devonian–Lower Carboniferous time. We also discuss the fO₂ in the context of different abundances of rounded (i.e., resorbed) diamonds in the KM and Udachnaya pipes.

2. Materials and Methods

2.1. Geological Setting

The Siberian craton is a collage of Archean granulite–gneiss and granite–greenstone blocks and Proterozoic orogenic belts consolidated into a single stable unit at 2.1–1.8 Ga [24,25,26]. Different terrains of the Siberian craton are grouped into larger units—tectonic provinces: Tungus, Anabar, Olenek, Aldan and Stanovoy (Figure 1). The Anabar province is composed of the three terranes: Daldyn (granulite–gneiss), Markha (granite–greenstone) and Magan (granulite–gneiss) (Figure 1). The faults separating the terranes indicate tectonic compression and are recognized as zones of collision (sutures) [27]). Another key piece of evidence of the collisional boundaries between the terranes is the synchronism of local metamorphism and granitization. U–Pb and Hf-isotope studies of zircons from crustal xenoliths of the Anabar province (Upper Muna, Daldyn, Alakit and Nakyn kimberlite fields) revealed the Archean age (from 3.65 to 3.11 Ga) of the basement rocks. This Paleoarchean crust was significantly reworked during several tectonothermal events, including a Neoarchean stage (2.9–2.5 Ga) and multiple Paleoproterozoic metamorphisms (1.98, 1.9 and 1.8 Ga) [28,29,30].

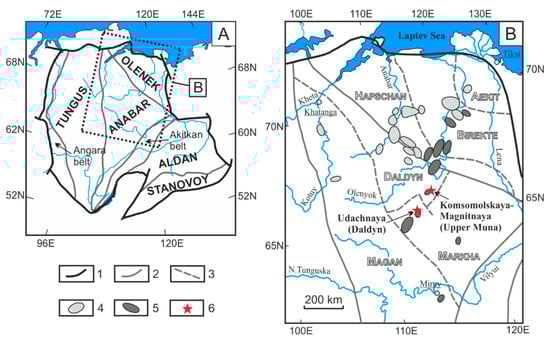

A Yakutian kimberlite province occupies the northeastern part of the Siberian craton and includes five diamondiferous fields: Mirny, Nakyn, Daldyn, Alakit and Upper Muna (Figure 1). Kimberlite magmatism within the Siberian craton is related to four distinct episodes: Silurian–Early Devonian (420–400 Ma), Late Devonian–Early Carboniferous (350–380 Ma), Triassic (215–235 Ma) and Early Cretaceous–Jurassic (140–170 Ma) [31,32,33,34,35]. Diamond-rich kimberlites are overwhelmingly Late Devonian–Early Carboniferous in age. The KM diamondiferous kimberlite is one of the 19 kimberlite bodies in the Upper Muna field. The KM pipe was discovered in the middle of the last century, but mining operations only started in 2019. The pipe consists of two ore bodies (south and west) comprising three types of kimberlite rocks: kimberlite breccia, monticellite-bearing porphyritic kimberlite and monticellite-free porphyritic kimberlite. According to the terminology proposed in [36], kimberlite breccia is defined as kimberlite rocks containing >10 vol% of country rocks, whereas porphyritic kimberlite hosts <10% of country rocks. The KM pipe contains mantle xenoliths, but eclogites are rare [37].

U–Pb macrocrystic zircon or perovskite age data for the KM pipe is not available yet. Recently obtained U–Pb perovskite and macrocrystic zircon ages for six kimberlite pipes from the Upper Muna field showed a narrow range from 367 to 345 Ma [34,38,39,40,41,42], corresponding to the Upper Devonian–Lower Carboniferous time. The emplacement age of the KM pipe is roughly estimated as 334–382 Ma based on the bulk groundmass K–Ar data of kimberlite breccia [43,44]. The Rb–Sr ages of phlogopite megacrysts from the pipe yielded 400–402 Ma [45].

2.2. Samples

The samples were collected in 2012 (TKM ones) and 2018 (AKM ones) from the kimberlites in the small quarries that remained after the bulk sampling of the pipe. Nine xenoliths investigated in this study are within 5–10 cm in the longest dimension and four samples are represented by small (less than 3 cm in diameter) fragments of larger xenoliths. The samples were selected in order to demonstrate a range of metasomatic re-enrichment from dunites and harzburgites to lherzolites.

2.3. Analytical Methods

The major and minor element compositions of the minerals were determined by using a JEOL JXA-8100 microprobe at the Analytical Center for Multi-Elemental and Isotope Research of Siberian Branch of the Russian Academy of Sciences (SB RAS), V.S. Sobolev Institute of Geology and Mineralogy, Novosibirsk, Russia. The analytical conditions were a 20-kV voltage and 100-nA beam current. The counting times were 10 s at the peak and 5 s in the background on each side of the peak for the main elements (Mg, Ti, Ca, Si, Fe, Mn, Ni) and 20 s at the peak and 10 s in the background on each side of the peak for minor elements (Na, Cr, K, Al). Elemental calibration was performed on a range of well-characterized natural and synthetic in-house standards. The detection limits (3σ) did not exceed (in wt%) 0.01 for CaO and K₂O, 0.02 for Al₂O₃, Cr₂O₃, FeO, MnO, NiO and Na₂O, 0.03 for TiO₂, 0.04 for SiO₂ and 0.14 for MgO.

Trace elements in garnets were measured with an ELEMENT XR (Thermo Fisher Scientific) ICP-SF-MS coupled with a 193-nm (ArF) resonetics RESOlution M-50 laser ablation system in the State Key Laboratory of Isotope Geochemistry, Guangzhou Institute of Geochemistry, Chinese Academy of Sciences. The laser conditions were set as follows: repetition rate—6 Hz; energy density—~4 J·cm⁻²; spot size 60 µm in diameter. A smoothing device (The Squid, Laurin Technic) was used to smooth the sample signal. Each spot analysis consisted of a 20-s gas blank collection with the laser off and a 30-s sample signal detection with the laser on. The calibration line for each element was constructed by analyzing the three USGS reference glasses, BCR-2G, BHVO-2G and GSD-1G. The detailed experimental procedure and data reduction strategy are described in Zhang et al. [46]. A USGS reference glass, TB-1G, was measured as an unknown sample. Thirty analyses of TB-1G indicate that most of the elements are within 8% of the reference values, and the analytical precision (2RSD) was better than 10% for most elements.

The valence state of the iron and the Fe³⁺/∑Fe ratio in garnets were determined using an SM-1201 Mössbauer spectrometer at the Institute of Precambrian Geology and Geochronology, Saint-Petersburg, Russia. Measurements were made at room temperature in a constant acceleration mode with a nominal 50 mCi⁵⁷Co source in a Cr matrix. Analyses were applied to the 40–80 mg samples of clean, inclusion- and alteration-free garnet fragments, which were separated from crushed portions of the xenoliths put in ethanol for better observation by hand-picking under a binocular microscope. The spectra were collected with a multichannel analyzer over a velocity range of ±7 mm/s. The velocity was calibrated relative to the metal iron. The spectra were approximated by the sum of Lorentzian form lines using the MOSSFIT^© (Mössbauer group, Chemical department of the SPbU) software. The relative amounts of Fe²⁺ and Fe³⁺ were determined using the integral intensities of corresponding doublets attributed to ferrous and ferric iron. The probabilities of the Mössbauer effect were assumed to be equal for Fe²⁺ and Fe³⁺ and at different sites. The ratio of Fe³⁺/∑Fe in the minerals was estimated with an error of ±0.005–0.01.

3. Results

3.1. Petrography

The IUGS systematics of igneous rocks [47] are commonly used by researchers for the classification of ultramafic mantle samples. However, these rock types often show substantial alterations in their olivine and pyroxene phases. Although peridotite with a ≤5% clinopyroxene content is classified sensu stricto as harzburgite [47], it is often the convention in mantle petrology to refer to rocks with any clinopyroxene as lherzolites and to rocks without evident clinopyroxene as harzburgite. The second described approach is accepted in the present study, in order to be consistent with other works on mantle peridotites. We classified the KM samples according to the nomenclature proposed by Pearson and Brooks [48], i.e., clinopyroxene-free peridotite was defined as harzburgite or dunite (

Table 1. Data derived from the studied peridotites.

Sample No.	AKM 5c	AKM 14	AKM 29l	AKM 36	AKM 45°	AKM 52	AKM 54p	AKM 56	AKM 58	TKM 10/11	TKM 13/11	TKM 26/11	TKM 16/11
Rock type	L	H	H	H	L	D	L	L	H	L	H	H	L
Texture	C	C	C	C	C	C	P	P	C	C	C	C	C
Ol	91	92	90	94	89	97	84	80	93	89	92	92	81
Grt	2	6	4	4	4	3	5	10	3	6	3	3	7
Opx	5	2	6	2	6	–	<1	6	4	1	5	5	2
Cpx	<1	–	–	–	1	–	10	4	–	4	–	–	10
Sp/Phl	–/–	–/–	–/<1	1/<1	–/–	–/–	–/–	–/–	–/–	–/–	–/–	–/–	–/–
Garnet class	G9	G10	G10	G10	G9	G10	G9	G9	G9	G9	G10	G10	G9
REEN pattern	SIN	HUM	HUM	SIN	NOR	SIN	SIN	NOR	NOR	HUM	SIN	SIN	NOR
Fe3+/ΣFe	0.070	0.104	0.104	0.024	0.104	0.050	0.124	0.140	0.112	0.095	0.055	0.037	0.120
TOW79 (°C) P fix	982	974	1010	823	1208	1062	1249	1475	1185	1142	949	979	1158
TNG10/T98 (°C)	944	878	958	853	1174	1127	1312	1394	1277	1052	979	989	1118
PNG85 (GPa)	4.4	4.3	5.4	3.8	6.0	5.8	6.9	6.7	6.2	5.0	4.5	4.6	5.7
logfO2 (∆FMQ)M16	−1.05	0.26	−1.03	−1.53	−1.98	−2.34	−2.64	−1.95	−1.93	−1.37	−1.40	−2.00	−1.47
logfO2 (∆FMQ)S13	−1.87	−0.91	−1.77	−2.65	−2.44	−2.72	−2.82	−2.22	−2.27	−1.99	−2.17	−2.90	−1.98
TOW79 (°C)	995	1146	1037	810	1215	1065	1214	1499	1149	1160	941	975	1216
PNG85 (GPa)	4.3	5.1	5.7	3.3	6.5	4.1	5.7	7.8	5.2	5.4	3.7	4.0	6.1
logfO2 (∆FMQ)M16	−1.44	−1.31	−1.48	−1.16	−2.14	−1.85	−2.37	−1.78	−1.39	−2.00	−1.13	−1.91	−1.88
Mg# Grt	82.3	84.5	84.2	84.52	84.4	86.8	82.4	83.6	82.2	85.0	83.7	84.4	83.2
Mg# Ol	92.1	92.4	92.4	93.1	92.6	93.5	91.4	90.6	91.5	91.8	92.7	92.5	92.1

Note: lherzolite (L), harzburgite (H), dunite (d), sinusoidal (SIN), humped (HUM), normal (NOR). Abbreviations for the thermometers and barometers are given in Section 3.4. T_OW79—the olivine–garnet thermometer (the estimated error is 60 °C at T < 1300 °C) [49], T_NG10—the orthopyroxene–garnet thermometer (the estimated error is 36 °C at T = 900–1200 °C and 25 °C at T > 1200 °C) [50], T_T98—the clinopyroxene–orthopyroxene thermometer (the estimated error is 35 °C at T = 900–1200 °C and 25 °C at T > 1200 °C) [51], P_NG85—the orthopyroxene–garnet barometer (the estimated error is ±0.3 GPa) [52]. Oxygen fugacity was additionally estimated using the oxybarometers of Miller et al. [12] and Stagno et al. [11], M16 and S13, respectively. olivine (Ol), garnet (Grt), orthopyroxene (Opx), clinopyroxene (Cpx), spinel (Spl) and phlogopite (Phl)—modal abundances in (vol%).

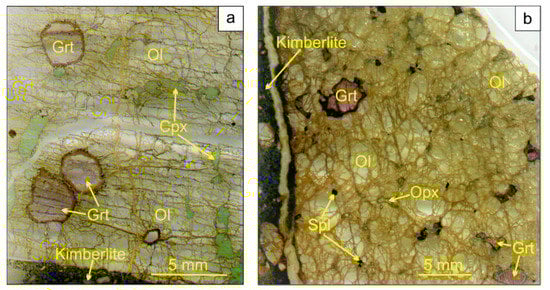

). Six samples in our collection were classified as harzburgites, six as lherzolites and one as dunite (Figure 2a,b). The dunite xenolith did not contain orthopyroxene.

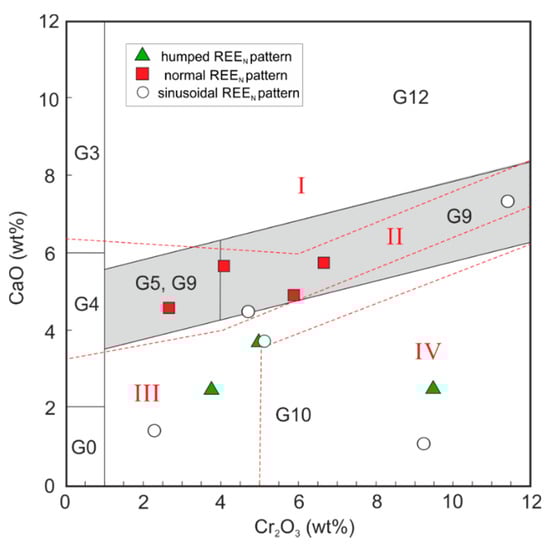

The classification proposed by Pearson and Brooks [48] corresponds to the garnet Ca–Cr systematic because the garnet composition in peridotite depends on the presence/absence of clinopyroxene and/or orthopyroxene [53,54]. Garnet from the six samples belongs to the G10 harzburgitic/dunitic group by [54] (Figure 3). The other garnets are plotted within the G9 lherzolite field [54] (Figure 3). However, one (AKM 58) of them neither contains clinopyroxene in the examined thin sections nor in the hand specimen and, thus, should be classified as a harzburgite according to [48].

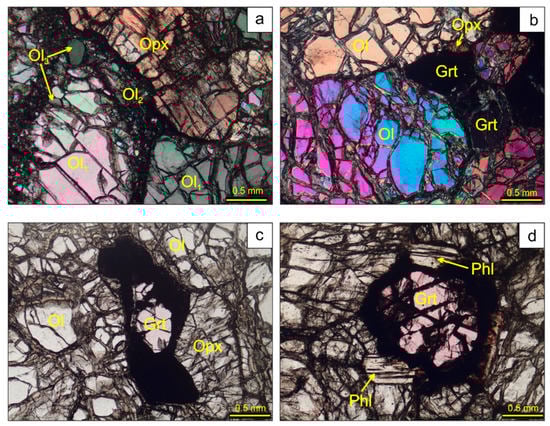

Eleven samples are coarse and two are porphyroclastic (Table 1, Figure 4a,b), based on the terminology of Harte [55], where textures are defined based on the presence and abundance of olivine porphyroclasts and neoblasts. The coarse peridotites contain granular olivine (up to 1.5 cm), orthopyroxene (0.1–3 mm), rounded garnets (1–5 mm) and irregularly shaped clinopyroxene (Figure 4b). The modal abundance of clinopyroxene in the studied peridotites is usually ≤1 vol% (Table 1). However, the TKM 16/11 sample has around 10 vol% of clinopyroxene (Figure 2a). Two coarse samples show that primary-textured equilibrated phlogopite occurred as large tabular grains (AKM 29l and AKM 36) (Figure 4d).

Generally, phlogopite is considered to be a product of the modal metasomatism in mantle peridotites [56]. “Primary-textured” or “primary-metasomatic” refers to phlogopite that was formed during mantle metasomatic events that clearly preceded eruption and do not relate to the host magma. Such phlogopite is unzoned and usually represented as large disseminated or clustered grains [57,58,59]. All studied xenoliths also contain secondary-textured phlogopite as a part of the keliphytic rims around garnets.

Samples AKM 54p and AKM 56 show porphyroclastic textures, where more than 50% of olivine grains are porphyroclasts. Three types of olivine were found in the AKM 54p peridotite: large porphyroclasts, small polygonal neoblasts and a tabular olivine. The last one is known as a tablet olivine. The tablet olivine is formed during annealing, postdating the deformation by replacing strained olivine porphyroclasts [60] (Figure 4a). The proportion of olivine neoblasts is higher in AKM 56 than AKM 54p.

All peridotite samples were serpentinized to varying degrees (10–30%).

3.2. Major- and Minor-Element Mineral Composition

Garnets are pyropes with Mg# (Mg#(molar) = 100 × Mg/(Mg + Fe²⁺)) ranging from 82.2 to 86.8 (Table 1). Seven garnets are lherzolitic (G9) in composition (Figure 3), with CaO concentrations from 4.42 to 7.32 wt% (Table S1) and Cr₂O₃ content from 2.6 to 11.4 wt%. Another six garnets are identified as harzburgitic/dunitic (G10) with CaO and Cr₂O₃ ranging from 1.42 to 3.74 wt% and form 2.24 to 9.48 wt%, respectively. Two samples fall into the sub-calcic harzburgitic garnet field with CaO < 2 wt%. Total iron, expressed as FeO, in garnets from the KM peridotites, ranges from 6.63 to 7.82 wt%. The garnet Fe³⁺/ΣFe measured using Mössbauer spectroscopy spans from 0.024 to 0.140 (Table 1 and Table S2).

Olivine is forsterite with Mg# ranging from 90.5 to 93.6 (Table S3). Orthopyroxene is identified as enstatite with Mg# = 91.4–93.5, Cr₂O₃ = 0.21–0.41 wt%, Al₂O₃ = 0.40–0.88 wt% and Na₂O = 0.03–0.23 wt% (Table S4). Clinopyroxene is a diopside with Ca# (Ca#(molar) = 100 × Ca/(Ca + Mg + Fe)) = 34.3–43.5, Mg# = 90.5–92.4, Cr₂O₃ = 0.67–2.45 wt% and Al₂O₃ = 1.78–3.42 wt% (Table S4).

3.3. Trace Element Composition of Minerals

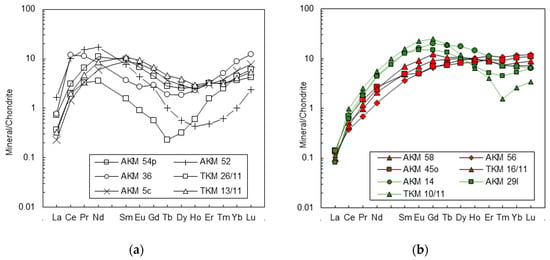

The trace element abundances in the KM garnets are provided in Table S1. Three different chondrite-normalized rare earth element (REE_N) patterns are observed for the xenolith garnets: (1) sinusoidal; (2) humped; and (3) normal (Figure 5) [13,61].

Sinusoidal patterns have two peaks—a positive peak at either Nd (samples AKM 52, TKM 26/11, AKM 54p) or Sm (TKM 13/11, AKM 5c) and a negative one at Er or Tb (TKM 26/11 and AKM 36) (Figure 5a). Humped patterns show a steep positive slope from La to Sm, an almost flat plateau from Sm to Tb at approximately 10–15 chondritic concentrations and a negative MREE to HREE slope (samples AKM 14, 29l and TKM 10/11) (Figure 5b). Garnets with humped REE_N patterns are relatively enriched in Ti, Y and Zr compared to garnets with sinusoidal patterns (Figure 6). Four samples (AKM 14, 45, 56 and 58) have normal REE_N patterns. They look similar to the humped garnets, but with nearly flat MREE_N–HREE_N. These garnets show high Y (up to 20 ppm), Ti (up to 2300 ppm) and moderate Zr (180 ppm) concentrations (Figure 6).

3.4. Oxythermobarometry

Equilibrated pressures and temperatures were calculated for the mantle xenoliths using conventional tools recommended by Nimis and Grütter [50] for mantle peridotites. We used the orthopyroxene–garnet barometer of Nickel and Green [52] (P_NG85), the clinopyroxene–orthopyroxene geothermometer of Taylor [51] ((T_T98) and the olivine–garnet geothermometer of O’Neill and Wood [49] (T_ONW79). Temperatures for clinopyroxene (Cpx)-free samples were obtained with the orthopyroxene–garnet geothermometer proposed by Nimis and Grütter [50] (T_NG10). Pressures and temperatures were calculated using the PTQuick software programmed by Dolivo-Dobrovolsky [64].

The geothermometers for mantle-derived garnet peridotites are not internally consistent and may diverge by over 200 °C for the well-equilibrated samples [50]. To assess whether the minerals were in equilibrium, we: (i) studied the core–rim zonation of the samples (only the core compositions were used for P–T calculations); (ii) calculated temperatures using the thermometers mentioned above at pressures obtained from the pair P_NG85 and T_T98 (or T_NG10 for Cpx-free samples). Difference between temperatures (ΔT) calculated for the orthopyroxene (Opx)–garnet (Grt) and Grt–olivine (Ol) pairs should be within the experimental error in case of an equilibrated assemblage of peridotite minerals [14,50]. All studied KM xenoliths show equilibrium between minerals. Differences between calculated temperatures is <95 °C and ten peridotites show ΔT < 60 °C (Table 1).

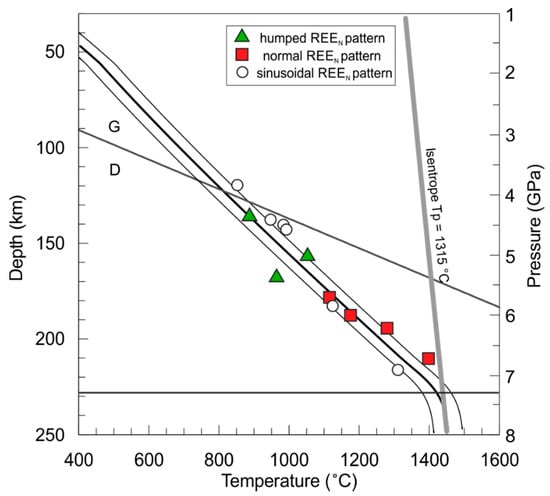

The samples exhibit a P–T path consistent with the cratonic geotherm with surface heat flux = 35 mW/m², recently obtained for the lithospheric mantle beneath the KM pipe [65] using the FITPLOT program [66] and for the nearby Novinka pipe [67] (Figure 7).

Oxygen fugacity was evaluated relative to the fayalite–magnetite–quartz buffer (∆logfO₂ (FMQ)) using the GtfO2 software by Miller et al. [12]. The approach proposed by Miller et al. [12] incorporates four independent oxybarometers and yields optimum logfO₂ estimated by the least squares method. To calculate ∆logfO₂, we chose to use a combination of P_NG85 and T_T98 (or T_NG10 for the clinopyroxene-free samples) because this pair was recommended as the most robust for mantle peridotites [50]. Oxygen fugacity expressed relative to the fayalite–magnetite–quartz buffer (FMQ) as a ∆logfO₂ (FMQ) for KM samples ranging from 0.26 to −2.64. The uncertainty reported in calculating the fO₂ calculated with this method ranges from 0.6–0.9 log units (Figure 8).

Additionally, the ∆logfO₂ (FMQ) calculated using the combination of T_ONW79 and P_NG85 are summarized in Table 1. We have excluded the Fe³⁺ determined by Mössbauer spectroscopy from the total Fe because T_ONW79 is sensitive to the presence of ferrous iron. We observed that for the low Fe³⁺/ΣFe values (up to 0.07), temperature increases by up to 60 °C, while for the oxidized samples with the higher Fe³⁺/ΣFe values, the discrepancy reaches 100–150 °C. Sample AKM 14 has the temperature differences of 270 °C between T_ONW79 and T_NG10. Nimis and Grütter [50], in their extensive review on geothermobarometry, concluded that T_ONW79 may provide inaccurate estimates, especially for highly oxidized samples (as AKM 14). The ∆logfO₂ (FMQ) varies within ±0.1–0.6-log unit for all samples comparing to the P_NG85/T_NG10/T98 pair, excluding AKM 14 due to the strong dependence of fO₂ on the pressure of garnet peridotites (Table 1).

4. Discussion

4.1. Mantle Metasomatism

The Siberian SCLM formed as a residue from a high-degree partial melting of fertile garnet peridotites [71,72]. After the consolidation, the lithosphere of the Siberian craton experienced multiple large-scale metasomatic events [63,73]. Two main types of mantle metasomatism have been described [74,75,76,77,78]: (a) a modal metasomatism, implying the formation of new minerals and (b) a cryptic metasomatism, suggesting changes in the composition of preexisting minerals only [56]. The metasomatic enrichment includes numerous types of metasomatic agents: hydrous and carbonatitic fluids, high-temperature silicate melts, Fe–Ti rich agents and kimberlite fluids [74,75,76,78,79,80,81].

REE_N patterns and trace elements such as Y, Ti and Zr are powerful indicators of metasomatic re-enrichment that occurred in the lithospheric mantle. The most depleted samples from the SCLM are represented by mineral inclusions in diamonds [63]. Griffin and Ryan [63] defined garnets from depleted peridotites as containing low abundances of TiO₂ (<2000 ppm), Zr (<25 ppm) and Y (<12 ppm), whereas metasomatically enriched garnets show higher contents of these elements (Figure 6). The most depleted harzburgitic garnets from diamonds have strongly sinusoidal REE_N patterns, indicating re-enrichment only by the most incompatible elements [61]. Meanwhile almost all SCLM peridotites experienced metasomatic overprint [74,75], except for preserved relicts with the ultra-depleted features [82,83]. Peridotitic garnets with normal and humped REE_N patterns may represent strong metasomatic re-enrichment [13,14].

For the Udachnaya mantle peridotites, Yaxley et al. [19] found that depleted low-Ti garnets have strongly sinusoidal REE_N patterns, whereas enriched high-Ti garnets show normal and weakly sinusoidal REE_N patterns. The enriched samples were equilibrated at pressures of 4.5–6.6 GPa, whereas pressures calculated for the depleted peridotites range wider from 2.6 to 7.1 GPa (Figure 9) [19,38]. This observation indicates that the SCLM beneath the Udachnaya pipe was mainly depleted and then became heterogeneously enriched at the 130–180 km depth range [19,38]. The chemical composition of clinopyroxene and garnet from the Udachnaya sheared peridotites came from the enriched layer, indicating a metasomatic, rather than residual, origin [74,84]. Some of the garnets were affected by silicate metasomatism and became lherzolitic in terms of major elements, but they retained sinusoidal REE_N patterns [74]. These patterns are similar to those of lherzolitic garnets found as inclusions in diamonds [85]. Garnet with normal REE_N patterns could have crystallized from silicate metasomatic melts together with clinopyroxene [74].

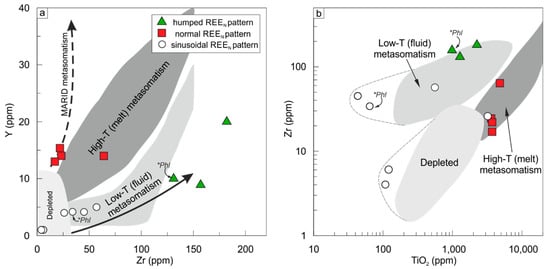

Two KM garnets (TKM 26/11 and AKM 52) with sinusoidal REE_N patterns show depletion in Ti (<70 ppm), Zr (<10 ppm) and Y (<4 ppm) (Figure 6a). Mineral modes (Cpx-free, low-Opx) and compositions (e.g., high-Cr subcalcic garnets, sinusoidal REE_N patterns) indicate that these xenoliths may represent the depleted residual peridotites with insignificant metasomatic alterations [77]. Another three samples contain garnets with weakly sinusoidal REE_N patterns and a slight enrichment in Zr (up to 58 ppm). These samples are clinopyroxene-free (AKM 5c has less than 1% Cpx) and according to Y–Zr systematics (Figure 6) they were affected by low-temperature fluid metasomatism.

We also studied peridotites that contain garnets with humped REE_N patterns and a high Zr content (130–180 ppm). One of these peridotites (AKM 29l) comprises primary-textured phlogopite indicating a low-temperature metasomatism. Notably, although the KM garnets with the humped REE_N patterns contain, in general, more Zr (130–180 ppm) than garnets from the Udachnaya peridotites (<140 ppm) (Figure 9), rare garnet xenocrysts with Zr content > 100 ppm were described from the Udachnaya kimberlites [38].

Phlogopite may be related to different types of metasomatic agents. Some researchers [86,87] provided data on the crystallization of phlogopite together with clinopyroxene in the lithospheric mantle in the presence of kimberlite-related melts: garnet + orthopyroxene + melt = phlogopite + diopside [88,89]. The KM harzburgite xenoliths (AKM 36 and AKM 29l with G10 garnets) contain primary-textured phlogopite, but no clinopyroxene. This may indicate that the KM harzburgites were metasomatized by a hydrous fluid enriched in mobile potassium and depleted in calcium rather than a kimberlite-related melt. The low-temperature phlogopite metasomatism is accompanied by increasing Zr content. Three out of thirteen KM peridotites have garnets with a Zr content much higher than that reported for garnets from the Udachnaya peridotites (Figure 9) [19,84]. Thus, the SCLM beneath the KM pipe at 130–170 km depth was reworked by the low-temperature phlogopite metasomatism more significantly than the SCLM beneath the Udachnaya pipe.

The KM garnets with normal REE_N patterns are enriched in Ti (>2200 ppm), Zr (>20 ppm) and Y (>13 ppm). Four samples with such garnets also contain a lot of clinopyroxene (up to 10 vol%) and may indicate interaction with the silicate melt or the MARID type of metasomatism as suggested by garnet Y–Zr systematics [63]. On the one hand, Creighton et al. [13] described garnets with Y enrichment and low Zr content and interpreted such geochemical signatures as fingerprints of a melt/fluid metasomatism similar to the mica–amphibole–rutile–ilmenite–diopside (MARID) type. However, silicate modal and cryptic metasomatisms initiated by asthenospheric melts with a composition resembling a mix of ocean island basalts (OIB) and kimberlites have been established in mantle peridotites from the Udachnaya pipe [74].

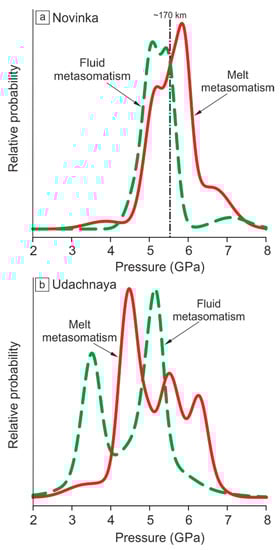

Ionov et al. [78] showed that the base of the Siberian lithosphere was affected by different metasomatic agents. The sheared Siberian peridotites were subdivided into two groups based on the modal amount of rock-forming minerals (clinopyroxene and garnet), their compositions and garnet REE_N patterns [78]. The first group of peridotites contain high amount of clinopyroxene and garnets with normal REE_N patterns; thus, they were strongly affected by metasomatic agents. The second group is presented by Cpx-poor peridotites with garnets that have a sinusoidal REE_N pattern; thus, such peridotites were slightly metasomatized comparing to the first group. Some KM xenoliths were also identified as sheared peridotites. They have different modal abundances of clinopyroxene and garnet. The AKM56 sheared peridotite contains >6 vol% clinopyroxenes and >10 vol% garnets with normal REE_N patterns. The AKM54p is a sheared Cpx-poor peridotite containing garnet with sinusoidal REE_N patterns. Thus, metasomatic interaction at the base of the lithospheric mantle beneath the KM pipe may have a localized nature and a different degree similar to the SCLM beneath the Udachnaya pipe [78]. Agashev et al. [74] defined three different types of metasomatic enrichment related to the Udachnaya sheared peridotite xenoliths: hydrous or carbonatitic fluid, silicate and an Fe-rich metasomatic. Additional studies are required to describe the composition of the metasomatic melts/fluids at the base of the SCLM beneath the KM pipe.

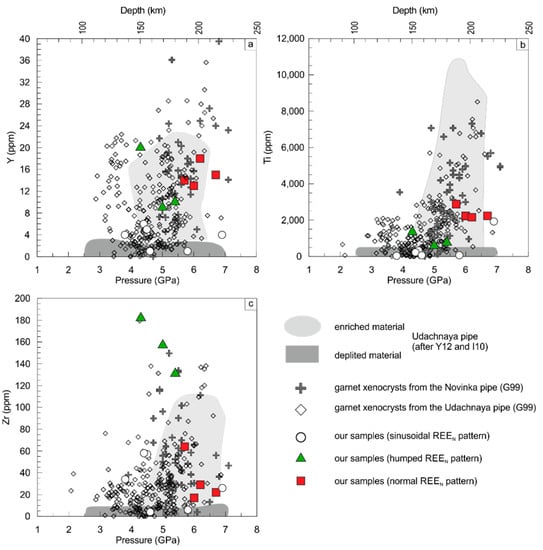

The KM xenoliths are represented only as peridotites derived from the depth range of 120–230 km (4–7 GPa) and do not cover the entire SCLM column beneath the KM pipe. We described the extensively developed fluid (phlogopite) metasomatism at 130–170 km depth caused by hydrous fluid enriched in K and depleted in Ca. The melt metasomatism beneath the KM pipe was revealed at a 170–220 km depth. Griffin et al. [38] reported geochemical data for the peridotite-derived garnet xenocrysts from the Novinka pipe. The Novinka and KM pipes are situated in 50 m apart and may have a single feeder dike [36] and, thus, could sample the same mantle column. The provided data confirm that the SCLM beneath the Upper Muna field was predominantly affected by a melt metasomatism at depths of 170 km and deeper, whereas the fluid metasomatism was prevalent at shallower depths (Figure 10a). The distribution of fluid and melt-metasomatized garnet peridotites in the SCLM beneath the Udachnaya pipe is more complex [38]. Several peaks indicating different metasomatic events at a wide range of depths (100–210 km) have been revealed (Figure 10b).

4.2. Oxidation State of SCLM Beneath the KM Pipe

Experimental studies propose the relatively incompatible behavior of Fe³⁺ in comparison with Fe²⁺ during the partial melting of peridotitic mantle [5,90,91]. High degrees of partial melting (20–40%), typical for cratonic peridotites, lead to a progressive decrease in fO₂ for solid residue (e.g., [17,90,91]). Metasomatisms can both oxidize and reduce mantle minerals, depending on the type of metasomatic agent (e.g., CO₂-rich melt vs. CH₄ fluid) [7,8,92]. However, mantle peridotites showing modal and cryptic metasomatic signatures, in general, have higher fO₂ values in contrast to depleted peridotites [13,19]. Thus, the lowest fO₂ of pre-metasomatized SCLM can be potentially estimated from xenoliths of depleted peridotites, which show evidence of a slight metasomatic alteration. Frost and McCammon [8] calculated the depth–fO₂ curve for the garnet peridotite (trend #1 in Figure 11a), which is usually used as a reference trend for the pre-metasomatic SCLM [13,21].

Yaxley et al. [19] showed that depleted garnet peridotites from the Udachnaya pipe form an approximately linear trend where fO₂ decreases with depth. This trend is almost identical to curve of the “pre-metasomatic” SCLM from [8] (trend #2 Figure 11). This means that the depleted samples from the Udachnaya pipe underwent only minor metasomatic oxidation and reenrichment. Enriched garnet peridotites from the Udachnaya pipe show ∆logfO₂ (FMQ) of 1–2 units higher than the depleted samples. This difference indicates a clear link between metasomatism and oxidation [19] (Figure 11). Oxygen fugacity estimates for the Udachnaya peridotites obtained by Goncharov et al. [21] are consistent with the data published by Yaxley et al. [19].

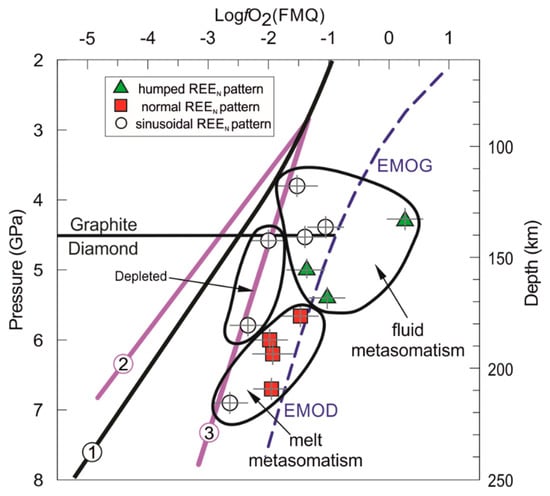

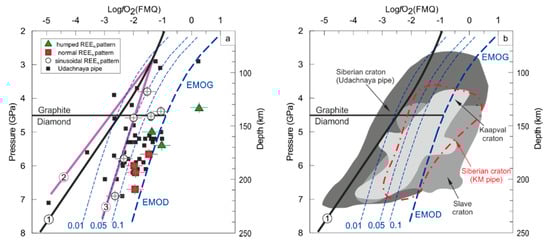

The KM-depleted peridotites (trend #3 in Figure 11a) are generally more oxidized than the depleted peridotites from the Udachnaya pipe (trend #2 in Figure 11a) [19] at depths of 120–220 km. Moreover, KM harzburgites/dunites, representing the most depleted peridotites, are more oxidized than some Udachnaya enriched lherzolites. The comparison point out that the SCLM beneath the Daldyn field (Udachnaya pipe) consists of more heterogeneous material (−4.95–0.23 ∆logfO₂ (FMQ)) than the SCLM beneath the Upper Muna field (KM pipe) (−2.6–0.3 ∆logfO₂ (FMQ)). Although the ∆logfO₂ (FMQ) estimations for the KM and Udachnaya peridotites overlap, it cannot be denied that some peridotites from the Udachnaya pipe are more reduced (the difference can reach up to 2.5 ∆logfO₂ (FMQ)). This may indicate reduced domains of depleted peridotites in the SCLM beneath the Udachnaya pipe.

The reduced depleted samples from the Udachnaya pipe give evidence of the absence of carbonate or carbonated silicate melts at the depths of 170–220 km, but they are also in agreement with the reduced CH₄ + H₂O asthenospheric fluids [19,21,93] or reduced silicate melts [94]. The KM samples are too oxidized to be in equilibrium with highly reduced fluids. The depleted peridotites, from a depth of 170–220 km, overlap with the stability field of the melt, which scan contain up to 0.05 moles of CO₂ (Figure 11).

Different types of metasomatic agents (low-T fluid and melt/MARID) could affect the fO₂, as suggested by the REE_N patterns in garnets, and the Y–Zr–TiO₂ systematics. Fluid-metasomatized samples from the KM pipe do not show an apparent depth–fO₂ trend, but, instead, span the range from −1.5 to 0.3 ∆logfO₂ (FMQ) between 135 and 165 km (Figure 11a). All samples, including those with sinusoidal REE_N patterns in garnets, are more oxidized than the oxidation predicted by trend #1 (Figure 11a). This suggests that fluid-metasomatized agents may cause extensive oxidation of the lithospheric mantle. The most oxidized KM samples cross the enstatite–magnesite–olivine–diamond/graphite (EMOG/D) reaction boundary [70] (Figure 11) and, therefore, the carbon in these peridotites is able to exist in the form of carbonate phases.

The melt-metasomatized samples show a decrease in the ∆logfO₂ (FMQ) from −1.5 at ~170 km to −2.6 at ~220 km (Figure 11b). The trend formed by these samples is close to the enstatite–magnesite–olivine–diamond/graphite (EMOD/EMOG) buffer [70]. Peridotites containing garnets with normal REE_N patterns may intersect the buffer, taking the uncertainties into account. The presence of a carbonate-bearing oxidized melt (e.g., carbonate or carbonated silicate) shifts the diamond/graphite–carbonate equilibrium towards the lower fO₂ and constricts the stability field of diamond/graphite [6,70,95,96]. All studied KM samples are beyond the diamond stability field if the melt contains 0.05 moles of CO₂ (Figure 11). Thus, the interaction of the carbonatitic and/or carbonated silicate melt with the peridotitic mantle beneath the KM pipe could produce a destructive environment for diamonds.

In contrast to the Daldyn field, diamond deposits in the Upper Muna field are characterized by a higher content of rounded diamonds. For instance, the KM and Novinka pipes have 33% and 17% of rounded diamonds, respectively, vs. 12% of rounded diamonds in the Udachnaya pipe [97,98]. The rounded shape of diamonds is interpreted as a result of a dissolution into melts/fluids [99,100,101]. The dissolution of diamonds may occur in kimberlite magma during their transportation from the mantle to the Earth’s surface or in situ in the mantle due to the metasomatic reaction of diamond-bearing rocks with oxidizing melt/fluid [101,102,103,104,105,106]. The SCLM beneath the Udachnaya pipe is more heterogeneous in terms of fO₂ than the SCLM beneath the KM pipe (Figure 11). The amount of depleted material, expressed as a percentage of depleted garnet xenocrysts (based on the data from [38]) beneath the Udachnaya pipe (23%) is much higher than beneath the pipes within the Upper Muna field (5%). A combination of these facts may explain the lower amounts of resorbed diamonds in the Udahcnaya pipe in comparison with the KM and Novinka kimberlites. It is interesting to note that the Mir and Internationalnaya pipes (Mirny field, Magan terrane) are characterized by the absence of rounded diamonds [36,107,108]. This motivates us to continue our research on the oxidation state of the Siberian SCLM.

A review of the redox state of the SCLM beneath different regions was published in a recent study by Rielli et al. [109] who reported that the oxygen fugacity of kimberlite xenoliths ranges from −4.9 to +1.5 ∆logfO₂ (FMQ). However, Rielli et al. [109] did not indicate particular cratons. Goncharov et al. [21] compared the SCLM of the Siberian, Slave and Kaapvaal cratons and showed that the first two are more oxidized. We observe that, at a similar depth, the fO₂ for garnet peridotites from KM varies over a broader range, both with more reduced and more oxidized values than those from the Kaapvaal craton [13,16,93,110] (Figure 11b). The ∆logfO₂ (FMQ) of the Slave peridotites varies from −4.11 to +0.95 log units using the oxybarometer by Stagno et al. [11] and from −3.85 to +0.44 log units using Miller et al. [12] over a P–T range from 2.0 to 8.4 GPa [12,14,15]. Thus, the redox conditions of the SCLM beneath the KM pipe, Kaapvaal and Slave cratons are comparable (Figure 11b). In general, the Siberian craton is more heterogeneous and shows wider variations in fO₂ (Figure 11b).

5. Conclusions

• The first Mössbauer-based oxygen fugacity estimations for 13 peridotite xenoliths from the KM pipe (Upper Muna field) showed a relatively narrow range, from −2.6 to 0.3 ∆logfO₂ (FMQ) at depths of 120–220 km;
• The SCLM beneath the Upper Muna filed was affected by a melt metasomatism at depths of 170 km and deeper, whereas a fluid metasomatism was prevalent at shallower depths. In the Udachnaya pipe (Daldyn field), fluid- and melt-metasomatized garnet xenoliths had a more complex distribution in the lithospheric column;
• Garnets from three out of thirteen studied KM peridotite xenoliths show a much higher Zr content (up to 180 ppm) than garnets from the Udachnaya peridotites (135 ppm). This indicates that the SCLM beneath the KM pipe at a 130–170-km depth was reworked by a low-temperature phlogopite metasomatism more significantly than the SCLM beneath the Udachnaya pipe;
• The redox conditions recorded by the studied KM peridotites (−2.6 to 0.3 ∆logfO₂ (FMQ)) are comparable to the redox state of the SCLM beneath the Udachnaya pipe (−4.95 to 0.23 ∆logfO₂ (FMQ)). However, the SCLM beneath the Udachnaya pipe may comprise more reduced mantle domains. Thus, the established difference between the KM and Udachnaya peridotites may indicate a lateral heterogeneity in the oxidation conditions of the Siberian SCLM.
