Equation of State, Compressibility, and Vibrational Properties of Brucite over Wide Pressure and Temperature Ranges: Atomistic Computer Simulations with the Modified ClayFF Classical Force Field

Abstract

The behavior of brucite over wide ranges of temperatures and pressures is of great interest for fundamental geochemistry and geophysics. Brucite layers and their octahedral Mg(OH)₆ structural units constitute an important structural part of layered dense magnesium hydrous silicates (DMHS), which play a major role in mineral equilibria controlling water balance in the subduction zones of the upper mantle. The ClayFF force field was originally developed for atomistic computer simulations of clays and other layered minerals and their hydrated interfaces. The crystallographic parameters of brucite at 25 °C and 1 bar were used, among several others, to develop the original ClayFF parametrization. Its new recent modification, ClayFF-MOH, can more accurately account for the bending of Mg–O–H angles in the brucite structure, and it was used here to test the applicability of this simple classical model over very wide ranges of temperature and pressure well beyond the range of its original implementation (up to 600 °C and 15 GPa). The pressure and temperature dependencies of brucite crystallographic parameters, the compressibility of the crystal lattice, the coefficients of thermal expansion, and the vibrational spectra were calculated in a series of classical molecular dynamics simulations using the ClayFF-MOH model and compared with a diverse set of available experimental data, including X-ray diffractometry, neutron scattering, IR and Raman spectroscopy. These new results demonstrated that ClayFF-MOH, as simple and approximate as it is, can be quite accurate in predicting many mineral properties at subduction zone conditions, which greatly expands the area of its applicability.

1. Introduction

Brucite is a typical layered hydroxide mineral, M(OH)₂, where M is a divalent metal (M = Mg, Ca, Fe, Ni, etc.). Most such hydroxides relate to the layered brucite-type structure [1]. At ambient conditions, brucite crystal structure has a space group P$\overline{3}$m1 symmetry with layers consisting of edge-sharing [MgO₆] octahedra. Hydrogen atoms attached to each oxygen form hydroxyl groups located above and below the octahedral layer and oriented along the c-axis. Despite the fact that the local environment of the OH groups appears to be quite unfavorable for hydrogen bonding between the layers, most authors argue that the nature of the interlayer interactions is due precisely to the hydrogen bonding [2].

The thermodynamic and elastic properties of brucite, Mg(OH)₂, especially at high pressures and temperatures, are of great importance in mineralogy and geophysics because brucite itself plays a major role in mineral equilibria controlling water balance in the subduction zones of the Earth’s mantle, but also because the octahedral Mg(OH)₆ structural units and brucite-type layers constitute an important part of other minerals, such as layered dense magnesium hydrous silicates (DMHS) important in mantle mineralogy [3,4,5,6].

Therefore, the properties of brucite have been extensively studied experimentally by various techniques over wide ranges of temperature and pressure [2,7,8,9]. One of the most interesting crystallographic questions is the behavior of hydrogen (deuterium) atoms and the nature of hydrogen bonds under these conditions [8,10,11,12,13].

The structural and vibrational properties of brucite have been investigated in a number of experimental studies. In studying the structural parameters of brucite, depending on pressure and temperature, the positions of atoms and the distances between them are of interest [11,12,14,15,16] as well as the unit cell parameters (a, c, c/a, V) [7,8,9,11,12,14,15,16,17,18,19]. Such structural parameters of brucite were obtained using powder X-ray diffraction [7,8,9,15,16,18], single-crystal X-ray diffraction [17] and powder neutron diffraction [20,21]. The mechanical parameters of brucite are also of great interest, such as isothermal compressibility, bulk modulus, elastic constants, and thermal expansion coefficient [8,9,15,16,17,19,20,21,22]. Vibration properties of brucite under high pressure and temperature were also investigated in situ by Raman spectroscopy [2] and infrared spectroscopy [1,9,23,24,25]. The most attention has been paid to the study of OH librations, OH stretching, and the lattice vibrations at various values of pressure and temperature.

In addition to experimental studies, the structure, and vibrational properties of brucite were also evaluated by first-principles molecular dynamics simulations based on the density functional theory (DFT) and by classical molecular dynamic (MD) simulations [2,6,10,12,13,26,27,28,29,30,31,32,33,34]. Such simulations allow data to be obtained on the crystal lattice parameters, interatomic distances (O–H, O–Mg), elastic constants and bulk modulus, the coefficients of compressibility and thermal expansion of the brucite crystals, as well as their vibrational spectra. In addition, DFT modeling allows for the quantitative probing of the proton disorder [12,30] and dispersive interactions [13] in layered materials. For classical MD simulations of brucite, the ClayFF force field is most frequently used [26,27,28]. ClayFF is a nonbonded force field for classical atomistic simulations of a wide range of clay-related and cement-related materials [31,32,33,34,35,36,37]. In addition to modeling bulk mineral phases, ClayFF is also well suited for MD simulations of the interaction of water and aqueous solutions with mineral surfaces [26,28,31,32,33,34,35,36,37]. This force field was recently upgraded by adding several new terms that allow for a more accurate description of the M–O–H angular bending in hydroxide crystals [33,34,38].

In this study, we used this modified version of ClayFF to test its applicability in atomistic simulations of layered hydroxide minerals at high temperatures and high pressures by simulating the structural and vibrational properties of brucite. The atomistic model of brucite was isothermally compressed to 19.86 GPa at 300 K, to 15.15 GPa at 473 K, and to 14.56 GPa at 673 K. The simulation results were then carefully compared with all available experimental data and with the simulation results with the original version of ClayFF force field [31]. These new results clearly demonstrated that the ClayFF-MOH model can quite accurately predict many mineral properties under conditions well beyond its original range of parametrization [31]. This conclusion greatly expands the area of the applicability for this simple model, in particular for atomistic simulations of minerals and mineral-water interactions at subduction zone conditions.

2. Models and Methods

2.1. Structural Models

A brucite crystal model was constructed based on the structural data from powder neutron diffraction measurements at room temperature and pressure with the lattice parameters corresponding to a trigonal, P$\overline{3}$m1, unit cell (a = b = 3.14979 Å; c = 4.7702 Å; α = β = 90°; γ = 120°) [21]. This unit cell was used as the initial building block for a simulation supercell containing 968 units (11 × 11 × 8 along the a, b, and c crystallographic directions, respectively). As a result, the simulation supercell contained 4840 atoms and had total dimensions of 34.65 × 34.65 × 38.16 ų (see Figure S1 in the Supplementary Materials). Periodic boundary conditions were then applied in all three dimensions of the supercell to produce a continuous model of the crystal [39].

2.2. Force Field Parameters

All interatomic interactions were calculated using the ClayFF force field [1,34], which has already proven to be highly effective in modeling the structures of many oxides, hydroxides, clays, and other layered materials [33,34,35,36,37]. One of the objectives of the present work was to compare the results obtained by the original ClayFF version [1], further referred to as ClayFF-orig, and its recently developed modification, ClayFF-MOH, [31,33], which more accurately accounts for the bending of M–O–H angles of the hydroxide groups in the crystal by introducing an additional harmonic term to the force field expression:

$$E_{\mathrm{MOH}}^{}=k{\left({\theta -\theta }_0\right)}^2$$

(1)

where θ_0,MgOH = 110° and k_MgOH = 6 kcal·mol⁻¹·rad⁻² were used for brucite [33]. For a more accurate modeling of the vibrational properties of brucite, the Morse potential was used to describe the hydroxide O–H stretching vibrations instead the original harmonic potential [28,40]:

$$E_{\mathrm{OH}}^{}=D_0{\left[{1-\mathrm{e}}^{-\alpha \left({r-r}_0\right)}\right]}^2$$

(2)

where D₀ = 132.2491 kcal·mol⁻¹, α = 2.1350 Å⁻¹, r₀ = 0.9572 Å.

However, the primary objective of the present work was to test the temperature and pressure limits of the ClayFF applicability for the modeling of mineral properties by classical atomistic simulations at thermodynamic conditions beyond the range of original ClayFF parametrization [31].

2.3. Simulation Details

LAMMPS simulation package [41,42] was used to perform the MD simulations. As the first step, the potential energy of the brucite model supercell was minimized. Then an MD simulation run in NPT-ensemble was used to bring the supercell to equilibrium at the desired temperature and pressure. The Nosé–Hoover algorithm [39] was employed to control the temperature and pressure in the NPT-simulations. The NPT-simulation run lasted for 0.5 ns using the velocity Verlet’s algorithm [39], which then followed by the NVT-simulation run for another 0.5 ns. The NVT-simulation was used to collect the equilibrium dynamic trajectories of all atoms for further statistical analyses. The coordinates and velocities of all atoms were recorded every 100 fs, which is enough to guarantee the statistical stability of data analysis. A timestep of 1.0 fs was always used for numerical integration of the equations of atomic motions.

2.4. Simulation Analysis

Structural and vibrational properties were evaluated in this study by time averaging over the entire simulated equilibrium MD trajectories. In particular, the lattice parameters of the bricute unit cell (a, c, c/a, V) and volume compression of brucite, isothermal bulk moduli, power spectra of vibrational density of states were calculated, as well as maps of atomic density and angular distributions for hydroxyls in the octahedral sheets of brucite.

The unit cell parameters of brucite were directly calculated as averages from the equilibrium NPT-simulations. The isothermal volume compression of the unit cell, V/V₀, was also calculated for the corresponding pressures from the equilibrium NPT-simulations.

The isothermal bulk modulus and its pressure derivative were calculated by least squares fitting the third-order Birch–Murnaghan equation of state in the Eulerian finite strain parameter [43,44] to the simulated pressure–volume data:

$$P=\frac{3}{2}{K}_{T0}\left[{\left(\frac{V_0}{V}\right)}^{\frac{7}{3}}-{\left(\frac{V_0}{V}\right)}^{\frac{5}{3}}\right]·\left\{1+\frac{3}{4}\left(K_{T0}^{\prime }-4\right)·\left[{\left(\frac{V_0}{V}\right)}^{\frac{2}{3}}-1\right]\right\}$$

(3)

where $K_{T0}\mathrm{and} K_{T0}^{\prime }$ are the isothermal bulk elastic modulus and its pressure derivative, respectively.

The volumetric thermal expansion coefficient of brucite was obtained by fitting the P-V-T simulation data via constraints on the thermoelastic properties at high-pressure [15,45]. The third-order Birch–Murnaghan equation of state was used to calculate the thermal expansion coefficient through the fitting to a liner relationship [15]:

$$\alpha \left(T\right)={\alpha }_0+{\alpha }_{1}T$$

(4)

The amplitudes of atomic vibrations in the brucite crystal were visualized by calculating the time-averaged contour maps of atomic densities for a slice of the crystal starting from the positions of Mg atoms to the positions of H atoms of the corresponding hydroxyl groups. The thickness of this slice was ~3.0 Å. The atomic density of an atom α, ρ_α(x,y), was evaluated on the square grid and the time-averaged number of atoms 〈N_α(ΔxΔy)〉 in each grid cell normalized by the surface area of the cell:

$${\rho }_{\alpha }\left(x,y\right)=\frac{\langle N_{\alpha }\left(\mathsf{\Delta }x\mathsf{\Delta }y\right)\rangle }{\mathsf{\Delta }x\mathsf{\Delta }y}$$

(5)

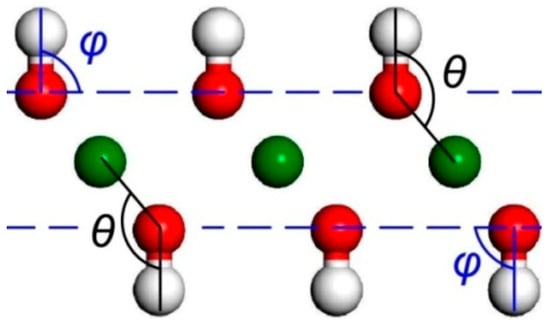

For geometrical analyses of the hydroxyl (O–H bond) angular distributions the angles θ and φ were calculated for both versions of the ClayFF force field, as defined in Figure 1.

The power spectra (PS), providing the quantitative information about the frequencies of atomic vibrations in the system, were obtained as Fourier transformations of the velocity autocorrelation function (VACF) of the corresponding atoms (e.g., [27,37,46,47]):

$$PS\left(\omega \right)=\sum _{t=1}^{n_{\mathrm{VACF}}}\mathrm{VACF}\left(t\right)·\cos \left(\frac{\pi }{n_{\mathrm{VACF}}}·t·\omega \right)$$

(6)

where n_VACF is the number of trajectory ‘windows’ used in a particular VACF calculation. The normalized VACFs were calculated from the MD-simulated equilibrium NVT trajectories of the atoms in the modeled system [47]:

$$\mathrm{VACF}\left(t\right)=\frac{{\sum }_{f=1}^{n-n_{\mathrm{VACF}}}{\sum }_{sel.atoms}{\overrightarrow{\upsilon }}_f·{\overrightarrow{\upsilon }}_{f+t}}{{\sum }_{f=1}^{n-n_{\mathrm{VACF}}}{\sum }_{sel.atoms}{\overrightarrow{\upsilon }}_f·{\overrightarrow{\upsilon }}_f}$$

(7)

where n is the total number of the trajectory ‘windows’; υ_f and υ_f+t are velocities at times f and f + t, respectively. They were smoothed by applying a filtering function [47]:

$$\mathrm{VACF}\left(t\right)=\mathrm{VACF}\left(t\right)·exp\left(-\frac{t}{\tau }\right)$$

(8)

The VACF and PS were calculated for all atoms of the crystal and separately for each atom type (magnesium, oxygen, and hydrogen). We also analyzed the xy and zz components of the VACF tensor to obtain PS in the xy direction (parallel to the plane of brucite layers) and zz direction (perpendicular to the layering).

3. Results and Discussion

3.1. Compressibility and Lattice Parameters

First, we checked how the original and modified versions of the ClayFF force field reproduce the elastic properties of brucite. The compressibility of brucite was studied at temperatures 300, 473, and 673 K and compared with the experimental data [8,9]. For the ClayFF-orig model, the calculations were carried out only up to T = 473 K, because at T = 673 K, the brucite supercell became already unstable. For the ClayFF-MOH model, the supercell remains stable up to T = 673 K, but even with that modification the supercell loses stability at T = 873 K.

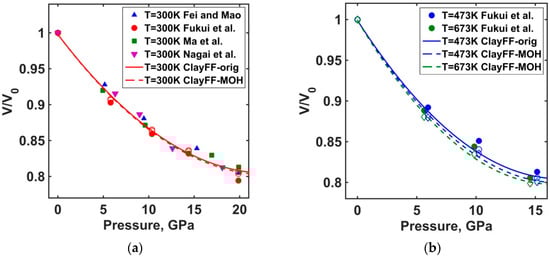

The compressibility was calculated at pressures up to 20 GPa at T = 300 K and up to 15 GPa at 473 K and 673 K. The experimental data and the calculated values of compressibility at T = 300 K shown in Figure 2. In this case, good agreement with experimental data is observed in the entire pressure range. A slightly larger deviation is observed for the ClayFF-MOH force field for higher pressures of ~20 GPa. The compressibility of brucite at temperatures of 473 K and 673 K is shown in Figure 2. At 473 K, a good agreement with the experimental data is found again, and the ClayFF-MOH force field results in slightly larger deviations from the experiment. However, only the ClayFF-MOH results are available for T = 673 K, as the brucite supercell decomposes with the ClayFF-orig simulations at that temperature even at normal pressure.

A comparison of the crystallographic parameters of brucite at high temperatures and high pressures with experimental data [8] show quite a good agreement (see Figure S2 in the Supplementary Materials). The lattice parameters of the unit cell for ambient conditions calculated in this work virtually coincide with the lattice parameters reported by Pouvreau et al. [33] for the ClayFF-orig version, while for the ClayFF-MOH version of the force field our simulations results (a = 3.29 Å, c = 4.77 Å, V = 44.12 ų) are slightly higher. The maximum deviation of the unit cell volume from experimental values is 9% at the highest pressures for both versions of the ClayFF force field at temperatures 300 and 473 K. At T = 673 K, the maximum deviation of the unit cell volume for the ClayFF-MOH model is 11%.

The agreement of the parameter a of the unit cell with experiment [8] is fairly good, with the discrepancy from the experimental value no more than 5%. There is also a good agreement in the uniaxial compression curve along the a axis, including the high-temperature calculations.

For ambient conditions, the deviations from the experimental data [8] for the c axis are −1% and −2% for the ClayFF-orig and ClayFF-MOH versions, respectively. However, both versions of the force field do not reproduce the c axis temperature dependence. At high pressures, the discrepancy reaches up to 5%. This leads to an incorrect trend of the c/a ratio dependence on pressure (Figure S2 in the Supplementary Materials).

3.2. Bulk Modulus

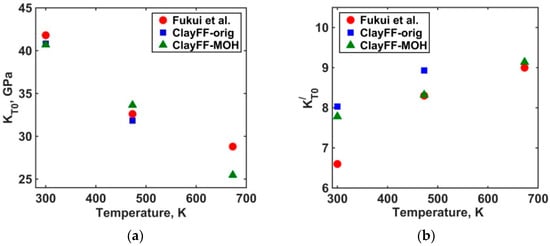

The values of bulk modulus K_T0 and its pressure derivative K′_T0 computed from Equation (3) are shown in Figure 3 in comparison with the experimental data of Fukui et al. [8]. Other experimental data at room temperature, e.g., [15,17,18,21] and the data of DFT(GGA) calculations, e.g., [10,12], are not shown in Figure 3, as they are very close to the data of Fukui et al. [8]. The calculated bulk elastic modulus at temperatures of 300 K and 473 K for both versions of the ClayFF force field shows a good agreement with the experimental data [8], and the maximum discrepancy is only ~3% for the ClayFF-MOH model. For a higher temperature of 673 K, the deviation of the bulk modulus from the experiment for the ClayFF-MOH force field is ~11%, which is also not bad.

The pressure derivatives of the bulk modulus at T = 300 K gave the largest deviation from the experimental data, with the maximum difference of ~21% for the ClayFF-orig model. In fact, the calculated pressure derivatives at room temperature closely agree with the pressure derivatives measured by Catty et al. [21], the largest difference being ~6% for the ClayFF-orig model. With increasing temperature, the first derivative gives a better agreement with experiment [8], and for a T = 673 K the difference is ~2% for the ClayFF-MOH model.

3.3. Thermal Expansion Coefficient

The values of the two coefficients of thermal expansion (α₀ and α₁ in Equation (4)) were only calculated from the MD results obtained for the ClayFF-MOH model due to the instability of the brucite supercell at T = 673 K for the ClayFF-orig model. The values of the coefficients for the ClayFF-MOH model are α₀ = 9.04 × 10⁻⁵ K⁻¹ and α₁ = 13.00 × 10⁻⁸ K⁻². The value of α₀ is close to the experimentally determined value of α₀ = 7.3(3) × 10⁻⁵ K⁻¹ [15], while the value of α₁ differs more from the experiment (α₁ = 3.6(13) × 10⁻⁸ K⁻² [15]).

3.4. Structural Parameters

Nearest-neighbor Mg–O distances were calculated for both ClayFF versions (Figure S3a). At ambient conditions, both versions of the force field give slightly larger Mg–O distances (2.2–2.3 Å) compared to the experimental [21] and DFT [28] results (2.12–2.13 Å). With increasing pressure, at T = 300 K, the Mg–O distance reduces, as well as its mean-squared deviation. Overall, the agreement in the Mg–O distances between the ClayFF models and experimental data [16,21] even improves at higher pressures. The same trends of decreasing Mg–O distance and its fluctuations with increasing pressure are maintained at higher temperatures (473 and 673 K). The distances obtained by both ClayFF models virtually coincide, the difference is only in a larger fluctuation for the ClayFF-orig version, which indicates a more stable brucite structure when the M–O–H angles in the ClayFF-MOH model are more accurately constrained.

The distributions and averages of the hydroxyl O–H distances in brucite for both versions of the ClayFF force field were also calculated. At ambient pressure, the O–H distance is close to the O–H bond length corrected for thermal motion [21] and the bond lengths calculated by DFT [10]. The average O–H distance slightly increases with increasing pressure, which does not agree with experimental data [21] but agrees well with the DFT results at high pressures [10]. The tendency to increase the O–H distance with increasing pressure persists at elevated temperatures. Similar to the Mg–O distance, increasing temperature leads to a slight increase of the average O–H bond length and its dispersion. The lack of good agreement with these experimental data at elevated pressures can be explained by the behavior of the Morse potential used here for modeling the O–H bond of hydroxyls, which has a fairly strong repulsive branch of the potential when hydrogen atom approaches the oxygen. On the other hand, an increase in O–D distance with increasing pressures is indeed experimentally observed for deuterated brucite [20]. So, a better judgement about the quality of the description of this parameter with the ClayFF model could probably be made when more experimental data are available. All the comparisons are shown in Figure S3b in the Supplementary Materials.

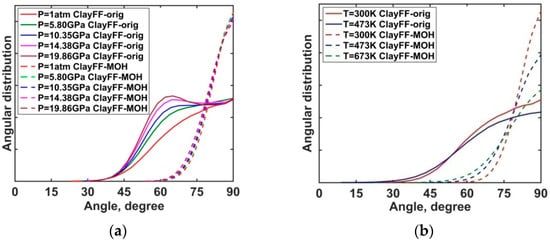

The angular distribution of the hydroxyl orientations relative to the brucite (001) plane of layering at T = 300 K and high pressures for both versions of the ClayFF model are shown in Figure 4. These distributions are qualitatively different between the two ClayFF versions. At ambient pressure, the direction normal to the brucite layers is the most probable hydroxyl orientation. However, the distribution is significantly broader for the ClayFF-orig model where hydroxyl orientations are not constrained and have the ability to lean toward the brucite layer. With increasing pressure, the orientation normal to the layering remains the most probable for the ClayFF-MOH model, but the earlier ClayFF-orig model demonstrates the appearance of another probability maximum. For example, the most probable orientation is ~63° at P = 10.35 GPa. Small deviations of hydroxyl orientations from the normal to the brucite surfaces at ambient pressure is in good agreement with the angles calculated from experimental data [48]. According to experimental data [21], angle φ (see Figure 1) deviates from the normal by only 6.8° at P = 10.9 GPa, compared to the same angle under ambient conditions, which, in turn, indicates that hydroxyls remain nearly normal to the layering even at very high pressures, so that the angular distributions for the ClayFF-orig model exhibit unphysical behavior under these conditions. At higher temperatures, in all cases, the overall shape of the hydroxyl orientational distribution remains the same (Figure 4b), but a broadening is observed, consistent with higher thermal energies of angular vibrations at higher temperatures.

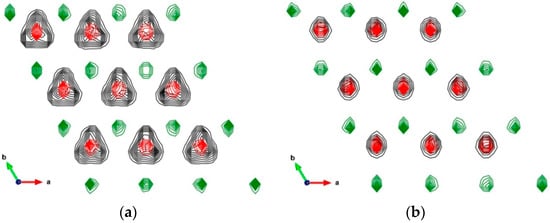

The nature of the second maximum at ~60° for the ClayFF-orig model can be understood by considering the distribution of atomic densities projected onto the brucite ab crystallographic plane. Atomic density maps for brucite layer at T = 473 K and P = 15.15 GPa for both ClayFF versions are shown in Figure 5.

The ClayFF-orig model shows three predominant orientations of the O–H groups forming an equilateral triangle of probability distributions. These orientations are not accidental, they emerge because the H atoms of the unconstrained O–H groups can easily form hydrogen bonds with one of the three O atoms of the opposite brucite layer. For the ClayFF-MOH model, the atomic density maps look quite different, the O–H groups are now constrained in their orientations and their H atoms are located more or less above the respective O atoms. In this case, hydrogen bonds with the opposite layer are also formed, but instead of one strong bond towards one of the opposing O atoms, three weaker bonds with three nearest O atoms exist simultaneously. In other words, due to the energy penalty from the new M–O–H angle bending terms of the force field, this interaction is not chaotic and H atom stays near the center of a triangle formed by the closest opposite-layer O atoms.

3.5. Power Spectra

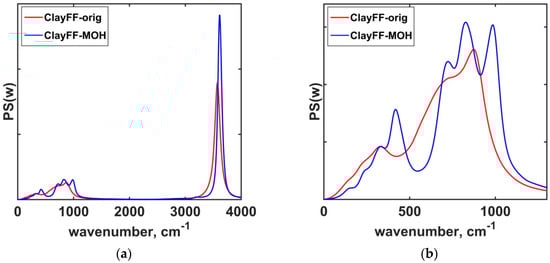

The spectra of vibrational density of states, or so-called power spectra (Equations (6)–(8)) were calculated for both ClayFF versions and shown in Figure 6. Experimental studies [1,2,9,14,23,24,25] and atomistic simulations [6,10,13,27,28] indicate that the most intense vibrational bands of brucite under ambient conditions are in the frequency ranges of 270–900 cm⁻¹ and 3550–3890 cm⁻¹. The lower frequency bands correspond to the O–H librational modes (E_g and E_u) and to the lattice vibrations (A_1g, A_2u, E_g and E_u). The higher frequency bands correspond to the O–H stretching modes (A_1g and A_2u) [1,2,9,10,13,14,25,27].

The calculated power spectra of brucite under ambient conditions are in good agreement with the previous results [28] for the ClayFF force field with the constrained Mg–O–H angles. Zeitler et al. [28] have already conducted a detailed analysis of the peak positions in the low-frequency range of the spectrum. In particular, they have shown that taking into account the Mg–O–H angle allows for a slightly better agreement between the calculated classical MD and DFT results for the O–H librational modes, as it was also later confirmed by Pouvreau et al. [33]. Our decomposition of the total vibrational spectra of brucite into the contributions due to O and H atomic motions in the xy plane also shows the difference in the O–H librational modes between the two ClayFF versions (Figure S4 in the Supplementary Materials).

Our calculations show the following features of the spectral peaks in the lower frequency range at high pressures and temperatures:

• most peaks exhibit a red shift, and their intensity decreases with increasing temperature (Figure S5 in the Supplementary Materials);
• the peaks exhibit blue shift, and their intensity decreases with increasing pressure (Figure S6 in the Supplementary Materials).

Such tendencies at high pressures agree with the experimental data [2]. Also, at high pressures there is a merging and splitting of some peaks (Figure S6 in the Supplementary Materials).

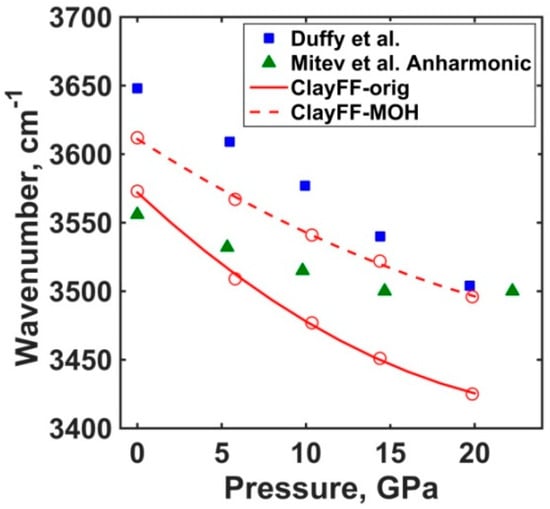

The higher frequency range of the spectra describes the O–H bond-stretching modes, which correspond to the modes A_1g (Raman) and A_2u (infrared) in experiments. For these modes, the peaks are located at 3573 cm⁻¹ and 3612 cm⁻¹ for the ClayFF-orig and ClayFF-MOH models, respectively (Figure 6). As the frequency is mainly determined by the O–H bond parameters, the peak positions are in good agreement with experimental studies and DFT calculations [1,2,6,9,10,13,14,15,24,27] for both ClayFF versions. However, the ClayFF versions differ in the width and intensity of the peaks: the O–H stretching peak is narrower and more intense for the ClayFF-MOH, compared to ClayFF-orig model.

At ambient pressure, the O–H stretching peak does not change its position with temperature in the ClayFF-MOH model. The increasing temperature broadens the peak and reduces its intensity due to the thermal motion (Figure S5 in the Supplementary Materials). However, the peaks shift with the increasing pressure indicating a change in the effective bond stiffness due to the interaction with the neighboring atoms. The computed O–H stretching peak positions for both versions of the ClayFF force field are shown in Figure 7 together with Raman experimental data and DFT results. One can observe that the change of the peak position is smaller for ClayFF-MOH than for ClayFF-orig. Such a difference is likely caused by the difference in the orientational dynamics of the O–H bonds between the two force field versions: as discussed in Section 3.4, the O–H bonds in ClayFF-orig are inclined towards a specific oxygen atom, while in ClayFF-MOH they stay more or less normal to the surface. That difference in the local atomic environments produces the difference in the stiffness of the O–H groups, in addition to the bond potential. Overall, ClayFF-MOH shows a better agreement with the experimental data [2] and DFT calculations [10], especially at the highest pressures (~15 GPa and ~20 GPa), showing that the constrained O–H orientation leads to a better description of the vibrational dynamics. The above-described behavior of the peaks at high pressures persists at elevated temperatures as well (Figure S7 in the Supplementary Materials).

4. Conclusions

The properties of brucite under ambient conditions and up to high temperature and high-pressure conditions were investigated by classical MD simulations using the original ClayFF force field [31] and its more recent modification ClayFF-MOH [34], where the bending motions of the Mg–O–H angles are more accurately constrained by additional terms based on the DFT calculations [33]. For both models, the crystallographic, elastic, and vibrational properties acceptably agreed with available experimental data and the results of more rigorous DFT calculations. However, the introduction of the Mg–O–H angle bending term made it possible to simulate brucite at higher temperatures and pressures (T = 673 K and P = 15 GPa) than with the original ClayFF parameterization. The isothermal compressibility of brucite was also reproduced well by both versions of the force field, including at high temperatures. The bulk modulus was also well reproduced, while at higher temperatures the agreement with the experimental data worsened. The crystal lattice unit cell parameters (a, c, V and c/a) were reproduced with acceptable accuracy. In most cases (a, c and V), the trends of the lattice parameters’ dependence on pressure and temperature for the ClayFF model agreed well with the experimental data and DFT results. The application of the new more accurate ClayFF-MOH force field results in the formation of a more realistic hydrogen bonding structure between brucite layers, which leads to a more stable brucite structure at higher temperatures and pressures, and a more realistic description of its vibrational spectrum.

It is important to emphasize that both versions of the ClayFF model were intentionally used here well beyond the range of temperatures and pressures for which this model was initially parameterized [31,33,34]. Therefore, the results of this work are quite encouraging in view of the applicability of these simple models to the classical atomistic simulations of more complex hydrous minerals under the subduction zone conditions (e.g., [49,50]). This will be the focus of our further investigation.
