Chemical Abrasion Applied to LA-ICP-MS U–Pb Zircon Geochronology

Abstract

Zircon (ZrSiO₄) is the most commonly used mineral in U–Pb geochronology. Although it has proven to be a robust chronometer, it can suffer from Pb-loss or elevated common Pb, both of which impede precision and accuracy of age determinations. Chemical abrasion of zircon involves thermal annealing followed by relatively low temperature partial dissolution in HF acid. It was specifically developed to minimize or eliminate the effects of Pb-loss prior to analysis using Thermal Ionization Mass Spectrometry (TIMS). Here we test the application of chemical abrasion to Laser Ablation Inductively Coupled Plasma Mass Spectrometry (LA-ICP-MS) by analyzing zircons from both untreated and chemically abraded samples. Rates of ablation for high alpha-dose non-treated zircons are up to 25% faster than chemically abraded equivalents. Ablation of 91500 zircon reference material demonstrates a ca. 3% greater down-hole fractionation of ²⁰⁶Pb/²³⁸U for non-treated zircons. These disparities necessitate using chemical abrasion for both primary reference material and unknowns to avoid applying an incorrect laser induced fractionation correction. All treated samples display a marked increase in the degree of concordance and/or lowering of common Pb, thereby illustrating the effectiveness of chemical abrasion to LA-ICP-MS U–Pb zircon geochronology.

1. Introduction

U–Pb geochronology is a widely used radiometric dating tool applied to geological time-scales from 800 thousand years to >4 billion years. This is made possible due to dual uranium parent isotopes of ²³⁵U and ²³⁸U decaying to ²⁰⁷Pb and ²⁰⁶Pb with half-lives of ca. 704 million years and ca. 4.468 billion years respectively. U–Pb geochronology was initially developed in the mid-1950s [1,2,3] and only made possible by earlier advances in mass spectrometry [4]. Thermal Ionization Mass Spectrometry (TIMS) is the method of choice for studies requiring the highest precision U–Pb data. Micro-beam techniques such as Secondary Ionization Mass Spectrometry (SIMS) and Laser Ablation Inductively Coupled Plasma Ionization Mass Spectrometry (LA-ICP-MS) are generally used when there is a requirement for a greater number of analyses at a lower analytical precision, or where a spatially resolved analysis is beneficial. Zircon (ZrSiO₄) is the most commonly used mineral in U–Pb geochronology and is found in a wide compositional range of igneous, metamorphic and sedimentary rocks. In terms of crystal structure and composition, zircon has a tetrahedral Si site and a distorted octahedral Zr site [5]. Hf, U, Th, Ti, rare earth elements, Y and Sc may enter the Zr site, but only relatively small amounts of Pb are accepted. As a result of this, U is compatible but Pb is incompatible in the zircon crystal structure, so that common (or initial) Pb is preferentially excluded at the time of zircon formation, whereas ²⁰⁶Pb and ²⁰⁷Pb can reside within zircon following in-situ radioactive decay from the parent U isotopes. The exact mode of incorporation and place of residence of radiogenic Pb in the zircon crystal structure is thought to be strongly dependent on composition, such as the presence or absence of phosphate or hydrous phases [6].

Zircon commonly occurs as an accessory phase following high-grade metamorphism and partial melting and demonstrates a high closure temperature for Pb (>900 °C [7,8]), yet paradoxically the U–Pb isotope system may be disturbed at low temperatures resulting in Pb-loss. Conditions resulting in zircon being susceptible to Pb-loss may arise from the crystal lattice being damaged by the emission of alpha particles and alpha recoil processes [9]. In this manner, high-U zircons or high-U domains within zircons may accumulate radiation damage and be susceptible to Pb-loss. This effect is particularly pronounced at low temperatures where there is insufficient thermal energy to repair (anneal) radiation damage to the crystal lattice. The seemingly contradictory behavior of Pb in zircon may be explained by a general difference in valence states for ²⁰⁴Pb, compared to ²⁰⁶Pb and ²⁰⁷Pb; although uncertainty exists, it is possible that ²⁰⁴Pb is divalent, whereas ²⁰⁶Pb and ²⁰⁷Pb may originally exist in tetravalent states at the site of production in the zircon crystal lattice [10,11]. Prevalence of tetravalent Pb in zircon may be enhanced by a strong oxidizing environment at alpha-recoil sites and would be maintained by the continuous loss of beta-particles [12]. Radiogenic Pb however, may subsequently be reduced during alteration processes, so divalent lead which previously existed in tetravalent form in the zircon crystal lattice may have a tendency to occupy sites affected by both accumulated radiation damage and alteration. Common Pb is incorporated into the zircon crystal lattice in small amounts, or present in micro-inclusions. Considering that divalent Pb is incompatible in zircon, any fluid-induced reduction of Pb⁴⁺ to Pb²⁺ may result in loss of Pb. Aside from Pb-loss being related to radiation damage, it can also arise following physical distortion of the crystal lattice structure during rock deformation processes (e.g., shearing). This phenomenon results in mobilization of Pb from distorted zircons and can occur at lower metamorphic grade than in undistorted counterparts [13]. The U–Pb isotope system in zircon may therefore be disturbed by a process of Pb-loss causing erroneous younger apparent ages.

Although it is possible to obtain meaningful radiometric ages from zircons that have suffered Pb-loss, a greater number of analyses are usually required to construct a statistically valid Discordia array and intercept ages. Additionally, these intercept ages are generally less precise than ages (e.g., a Concordia age or weighted mean ²⁰⁶Pb/²³⁸U age) calculated from a uniform population of zircons with no Pb-loss. In order to reduce uncertainties due to Pb-loss a method of “air-abrasion” was developed to physically abrade the exterior portions of zircons [14]. As the outer portions of zircons are more susceptible to Pb-loss due to either higher-U domains, and/or contact with alteration fluids, removal of these outer domains results in less discordant or concordant zircon analyses when compared with non-abraded samples. The amount of zircon removed during air-abrasion is primarily dependent on the duration of treatment, with more zircon being removed for longer abrasion periods. It is not suited to all grain morphologies (e.g., delicate acicular needles) and runs the risk of removing narrow rims which may be of a different age compared to the bulk of the zircon grain. The air abrasion method was widely adopted for over two decades as a zircon pretreatment for TIMS, where whole grains, or multi-grain fractions are subsequently dissolved and purified prior to U–Pb isotope analysis. Although air-abrasion is still used for combating the effects of Pb-loss in minerals other than zircon (e.g., titanite), it has largely been replaced by a newly developed technique termed chemical abrasion [15]. The chemical abrasion protocol was perfected following a series of similar, but less successful attempts [16,17,18,19,20], to chemically pre-treat zircons and lessen, or remove, the effects of Pb-loss. Chemical abrasion of zircon involves two steps: (1) thermally annealing grains between 850 and 1000 °C for 48 h; and (2) subjecting annealed grains to HF acid attack for 12 h at temperatures below which full dissolution normally takes place. This two-step process whereby alpha track damage is thermally annealed and higher-U domains are preferentially dissolved from the entire grain also has the effect of removing more soluble forms of Pb (i.e., Pb²⁺).

Chemical abrasion has been adapted for incrementally dissolving complex single grains to produce high-precision TIMS ages not discernible using micro-beam techniques [21]. It has also been demonstrated to be effective for SIMS U–Pb zircon geochronology [22]. This study aims to investigate if chemical abrasion can be applied to LA-ICP-MS U–Pb zircon geochronology to reduce discordance. Although the technique has previously been applied to a small number of LA-ICP-MS U–Pb zircon studies [23,24,25], this particular application has not been rigorously assessed. We test a modified chemical abrasion technique by applying an annealing-leaching treatment to zircon reference materials and a range of zircons of unknown age. Comparisons of data are made between treated and un-treated zircons to assess any physical and chemical effects and to evaluate the method as a pretreatment utility prior to LA-ICP-MS analysis.

2. Experimental Section

2.1. Sample Description

Untreated and/or chemically abraded zircons were analyzed from five samples, comprising three natural reference materials 91500 [26], Plešovice [27] and Penglai [28] and two unknowns TSUPB021 and 10/225. Non-treated Plešovice was used as a secondary reference material for non-treated samples only and is not described below.

The 91500 zircon reference material is thought to have come from a syenite pegmatite near Kuehl Lake in Ontario, Canada. The original sample consisted of a single 238 g crystal, part of which was split into a large number of 200 µm to 2 mm fragments and made available to geochronology laboratories worldwide. 91500 zircon has an accepted U–Pb age of 1062.4 ± 0.4 million years (Ma) [26]. Secondary electron (SEM) and cathodoluminesence (CL) images of a chemically abraded 91500 zircon fragment (Figure 1a) show pitting in the grain interior, resulting from etching by HF acid. Note that this pitting is not present in untreated 91500 zircon reference material [26]. All zircons were polished down to reveal grain interiors after chemical abrasion; this signifies that HF acid vapour penetrated into central portions of even large (ca. 150 µm diameter) grains.

Figure 1. Secondary electron (left) and cathodoluminesence (right) images of representative zircons from: (a) 91500-CA; (b) Penglai-CA; (c) TSUPB021; (d) TSUPB021-CA; (e) 10/225; and (f) 10/225-CA. Note that “-CA” indicates zircons have been subjected to chemical abrasion.

Figure 1. Secondary electron (left) and cathodoluminesence (right) images of representative zircons from: (a) 91500-CA; (b) Penglai-CA; (c) TSUPB021; (d) TSUPB021-CA; (e) 10/225; and (f) 10/225-CA. Note that “-CA” indicates zircons have been subjected to chemical abrasion.

Penglai zircons are sourced from early Pliocene alkaline basalts from the northern Hainan Island of South China. Due to their abundance and large size (>10 mm), they were originally suggested as reference material for micro-beam analysis of Hf–O isotopes and for U–Pb geochronology [28]. Penglai zircons however, define a linear discordant array on a Tera-Wasserburg diagram with a “preferred” ²⁰⁶Pb/²³⁸U age of 4.4 ± 0.1 Ma [28]. This discordance makes Penglai unsuitable for use as a primary reference material for U–Pb geochronology, unless a common Pb correction is undertaken [29]. As with 91500, slight pitting due to chemical abrasion is evident in the SEM image. Oscillatory zoning is obvious in CL (Figure 1b), consistent with an igneous origin.

TSUPB021 is an Archean greywacke from the Tasiast terrane of Mauritania, West Africa. Zircons are sub-angular to rounded, 150–100 × 100–80 × 80–60 µm and typically display oscillatory zoning in CL images (Figure 1c) indicating an igneous provenance. Metamict zircons with chaotic CL patterns are also evident, indicating that substantial radiation damage has occurred. TSUPB021 zircons subjected to chemical abrasion have been visibly and severely affected, with widespread partial dissolution along micro-cracks, radiating fractures and dark CL (high U) domains throughout the grains (Figure 1d).

Sample 10/225 is a granite cobble from an Ordovician sedimentary sequence in South Mayo, west of Ireland. Zircons are euhedral to subhedral, 180–50 × 80–60 × 60–40 µm and typically display oscillatory zoning and metamict domains in CL (Figure 1e–f). Chemically abraded zircons from this sample display widespread severe pitting and dissolution zones along fractures through entire grains (Figure 1e).

2.2. Sample Preparation

Samples TSUPB021 and 10/225 were crushed and zircons separated by standard techniques (Rogers water table, Frantz magnetic separation, and methylene iodide heavy-liquid separation). Several hundred zircons from these samples were hand-picked under a binocular microscope, in order to ensure representative populations. Fragments of 91500 and Penglai zircon reference materials and representative zircons separated from TSUPB021 and 10/225 were thermally annealed at 850 °C in quartz glass beakers for 60 h. The annealed crystals were then ultrasonically washed in 4 N HNO₃, rinsed in ultra-pure water, then further washed in warm 4 N HNO₃ prior to rinsing with ultra-pure water to remove surface contamination. The annealed and cleaned zircon fractions were then chemically abraded in 200 µL 29 N HF and 20 µL 8 N HNO₃ at 180 °C in modified 1.5 mL Teflon micro-centrifuge tubes in a Parr bomb for 12 h. Following three separate cleaning steps in 3 N HCl and ultra-pure water, treated and untreated zircons were mounted in separate epoxy plugs, ground down to expose grain interiors and polished with 6 µm and 1 µm diamond paste. All sample preparation was undertaken at the Department of Geology, Trinity College Dublin (TCD).

2.3. Instrumentation

Untreated zircons from sample 10/225 were analyzed at the Department of Earth Science, University of California Santa Barbara, USA (UCSB), by Multi-Collector (MC) LA-ICP-MS (Nu Plasma, Nu Instruments Ltd., Wrexham, UK) [30], whereas all others presented in this study were analyzed by Quadrupole (Q-) LA-ICP-MS (Thermo Scientific iCAP Qs, Thermo Fisher Scientific, Waltham, MA, USA) at the Department of Geology, TCD, Dublin Ireland. Both laboratories utilized a Photon Machines 193 nm ArF Excimer laser equipped with a HeLex ablation cell, 91500 zircon [26] as a primary reference material and Plešovice zircon [27] as a secondary reference material. A standard-sample bracketing approach was utilized using 91500 as the primary reference material after every ca. 10 analyses of unknowns. Chemically abraded samples were matched with chemically abraded reference materials in the same analytical session. For analyses conducted at TCD the LA-ICP-MS system was tuned while ablating a line raster on NIST SRM (National Institute of Standards, Standard Reference Material) 612 synthetic glass reference material in order to obtain optimal sensitivity for Pb, Th and U, while keeping ThO+/Th low and Th/U close to 1. ThO+/Th and Th/U were typically < 0.002 and > 0.9, respectively. Full instrument set-up conditions are given in Table 1.

Table 1. Running conditions for ICP-MS and laser ablation at University of California, Santa Barbara (UCSB), and Trinity College, Dublin (TCD). Note that for analyses performed at TCD ⁹¹Zr was included to monitor general signal intensity and ⁸⁸Sr was monitored to evaluate alteration (pristine or non-hydrothermal zircon does not contain significant levels of Sr).

Parameter	UCSB	TCD
ICP instrument model	Nu Plasma HR MC-ICP-MS	Thermo-Scientific iCAP-Qs (quadrupole)
Plasma RF power (W)	1300	1450
Plasma gas flow (L/min)	0.8	0.7
Monitored masses	238U, 232Th, 208Pb, 207Pb, 206Pb, 204Pb/204Hg	238U, 232Th, 208Pb, 207Pb, 206Pb, 204Pb/204Hg, 200Hg, 91Zr, 88Sr
LA instrument model	Photon Machines Analyte 193	Photon Machines Analyte 193
Laser	ATLEX-SI 193 nm ArF excimer	ATLEX-SI 193 nm ArF excimer
Fluence (J/cm2)	3.5	ca. 3.3
Repetition rate (Hz)	4	4
Delay between analyses (s)	20	15
Ablation duration (s)	30	30
Carrier gas flow (L/min)	0.25 (He)	0.70 (He), 0.006 (N2)
Spot diameter (µm)	30	30

Table 1. Running conditions for ICP-MS and laser ablation at University of California, Santa Barbara (UCSB), and Trinity College, Dublin (TCD). Note that for analyses performed at TCD ⁹¹Zr was included to monitor general signal intensity and ⁸⁸Sr was monitored to evaluate alteration (pristine or non-hydrothermal zircon does not contain significant levels of Sr).

Parameter	UCSB	TCD
ICP instrument model	Nu Plasma HR MC-ICP-MS	Thermo-Scientific iCAP-Qs (quadrupole)
Plasma RF power (W)	1300	1450
Plasma gas flow (L/min)	0.8	0.7
Monitored masses	238U, 232Th, 208Pb, 207Pb, 206Pb, 204Pb/204Hg	238U, 232Th, 208Pb, 207Pb, 206Pb, 204Pb/204Hg, 200Hg, 91Zr, 88Sr
LA instrument model	Photon Machines Analyte 193	Photon Machines Analyte 193
Laser	ATLEX-SI 193 nm ArF excimer	ATLEX-SI 193 nm ArF excimer
Fluence (J/cm2)	3.5	ca. 3.3
Repetition rate (Hz)	4	4
Delay between analyses (s)	20	15
Ablation duration (s)	30	30
Carrier gas flow (L/min)	0.25 (He)	0.70 (He), 0.006 (N2)
Spot diameter (µm)	30	30

2.4. Data Processing

All data reduction was performed using the Iolite software package [31,32,33,34] which operates within Igor Pro [35]. Although Iolite has been available for only a few years, it has become widely adopted for its visual and interactive approach to processing very large time-integrated datasets. Once raw data have been imported from the mass spectrometer software, Iolite uses several steps to carry out data processing. These include: (1) baseline corrections; (2) defining integrations for U–Pb primary reference materials; (3) calculating a down-hole U–Th–Pb fractionation correction; (4) defining integrations for secondary reference materials and unknowns; and (5) applying a session-wide fractionation and instrumental drift corrections. Applying a session-wide correction is a widely used approach, as it is deemed a robust way to correct for laser-induced fractionation correction [31,33]. Other methods of applying an inter-element fractionation include correction by linear regression, whereby the intercept gives a “true” ratio at the initial stage of ablation [36]. The VizualAge data reduction scheme [37] within Iolite was used to process data presented here. It has the capability of producing “live Concordia” diagrams for visualising data while selecting integration intervals during data processing. Isoplot [38] was used for plotting U–Pb data. The “TuffZirc” algorithm [39] is used to calculate an age for sample 10/225. If this algorithm can find a coherent group of at least five analyses (or 0.3 × total number of analyses, whichever is larger), the age and uncertainty of the median of the coherent group is calculated. This function can tolerate up to 70% of the data being non-cogenetic (i.e., xenocrystic or suffered from Pb-loss) and produces an asymmetrical uncertainty expanded in the direction of most complexity. At best it will produce an error comparable to that of the most precise analysis used in the calculation.

3. Results and Discussion

3.1. Characterizing Ablation Profiles and Down-Hole Fractionation

Natural variation in the U and Th concentration of zircon, and hence the amount of accumulated radiation damage [9], has a direct influence on zircon ablation rates [40,41]. Generally, high U zircons (e.g., up to 3000 ppm U; Plešovice zircon reference material [27]) are expected to ablate at higher rates than those with lower U concentrations. Untreated and chemically abraded zircons from sample TSUPB021 were ablated during two separate analytical sessions. Measurement of ablation pit profiles from these zircons was carried out at the Centre for Microscopy and Analysis at TCD using an Omniscan MicroXan White Light Interferometer. This technique measures surface roughness and texture and is capable of rapid 3-dimensional scanning to capture data for off-line plotting and visualization. Optical interferometry has revealed differences in ablation profiles from non-treated and chemically abraded zircons (Figure 2). In general, untreated zircons ablated in a more uniform manner (Figure 2a,c). In terms of ablation depths, untreated zircons have pits which are ca. 25% deeper than chemically abraded counterparts (Figure 2b,d). This equates to ca. 67 nm and ca. 50 nm ablation depths per laser shot for untreated and chemically abraded zircons respectively.

The reasons for such a disparity in pit depths from TSUPB021 zircons are unclear but may be due to elimination of alpha-dose-induced crystal lattice damage in annealed zircons, a factor which contributes to a so-called “matrix effect” in LA-ICP-MS analyses [40,41]. A ca. 5%–6% difference in the ablation rate of several untreated and annealed zircon reference materials, including Plešovice, has previously been documented [41]. By virtue of their relatively high U and Th concentrations and Archean age, untreated zircons from sample TSUPB021 have a higher alpha-dose and lower density compared with most commonly used zircon reference materials. Thermal annealing of zircons results in higher densities and a corresponding shallower pit depth [41]. The considerable difference in ablation depths between pre- and post-annealed TSUPB021 zircons is presumably due to a greater disparity in crystal density when compared to similarly treated zircon reference materials [41]. At least some of the observed difference in ablation rates in untreated and chemically abraded zircons may also result from less effective laser coupling in chemically abraded zircons due to small-scale etching and creation of a 3-dimensional porous texture. This observation has important implications for the use of chemical abrasion in LA-ICP-MS analyses of zircon since down-hole fractionation increases with an increase in ablation pit depth. Assessment of down-hole fractionation of ²⁰⁶Pb/²³⁸U for untreated and chemically abraded 91500 zircons reveals a distinct difference (Figure 3), with a ca. 3% higher fractionation factor calculated for untreated analyses. This demonstrates chemical abrasion of zircons affects their physical response to ablation, which in turn influences laser-induced fractionation.

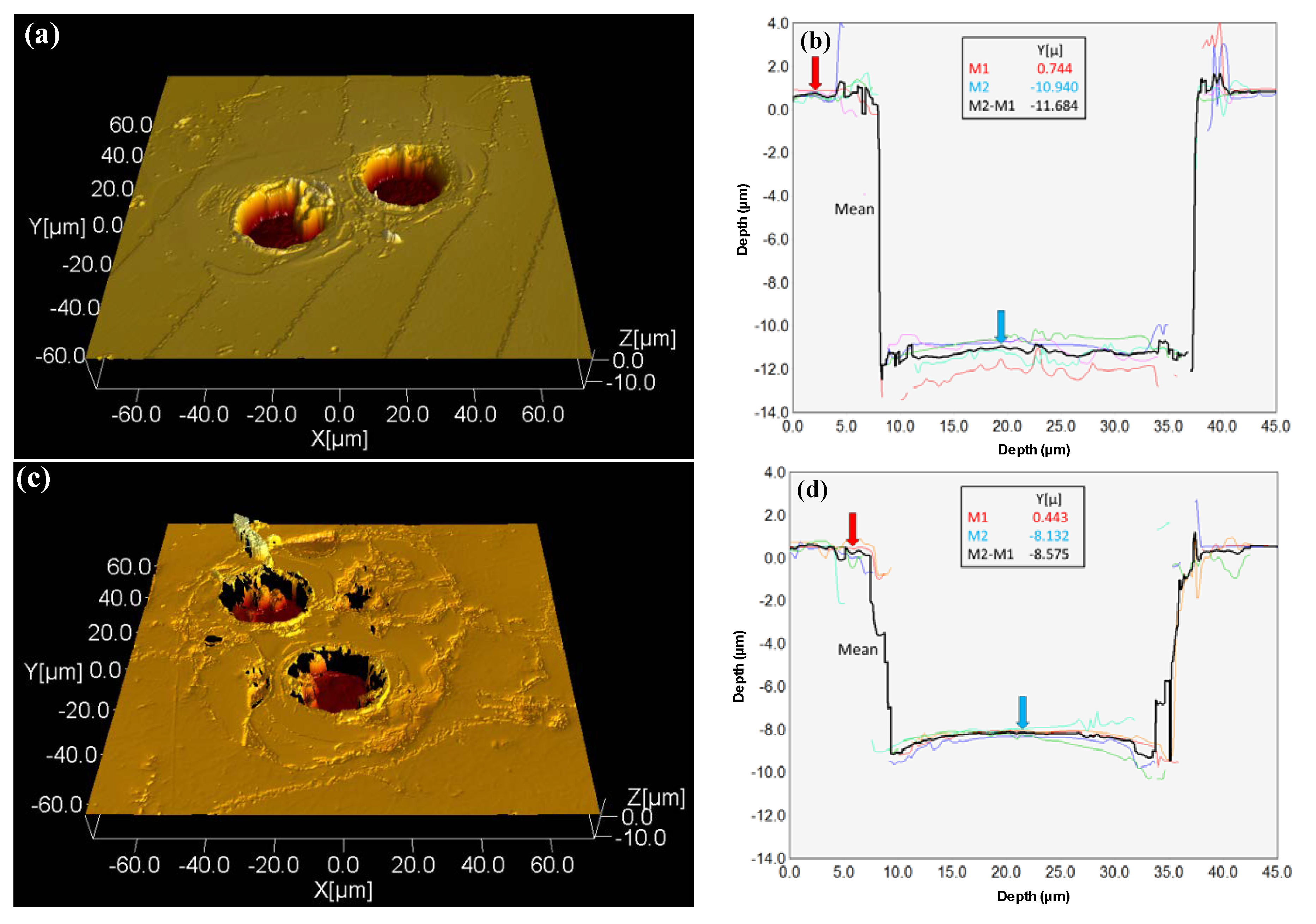

Figure 2. Ablation pit profiles from sample TSUPB021: (a) 3D view of untreated zircons; (b) cross-sectional view of untreated zircons; (c) 3D view of chemically abraded zircons; and (d) cross-sectional view of chemically abraded zircons.

Figure 2. Ablation pit profiles from sample TSUPB021: (a) 3D view of untreated zircons; (b) cross-sectional view of untreated zircons; (c) 3D view of chemically abraded zircons; and (d) cross-sectional view of chemically abraded zircons.

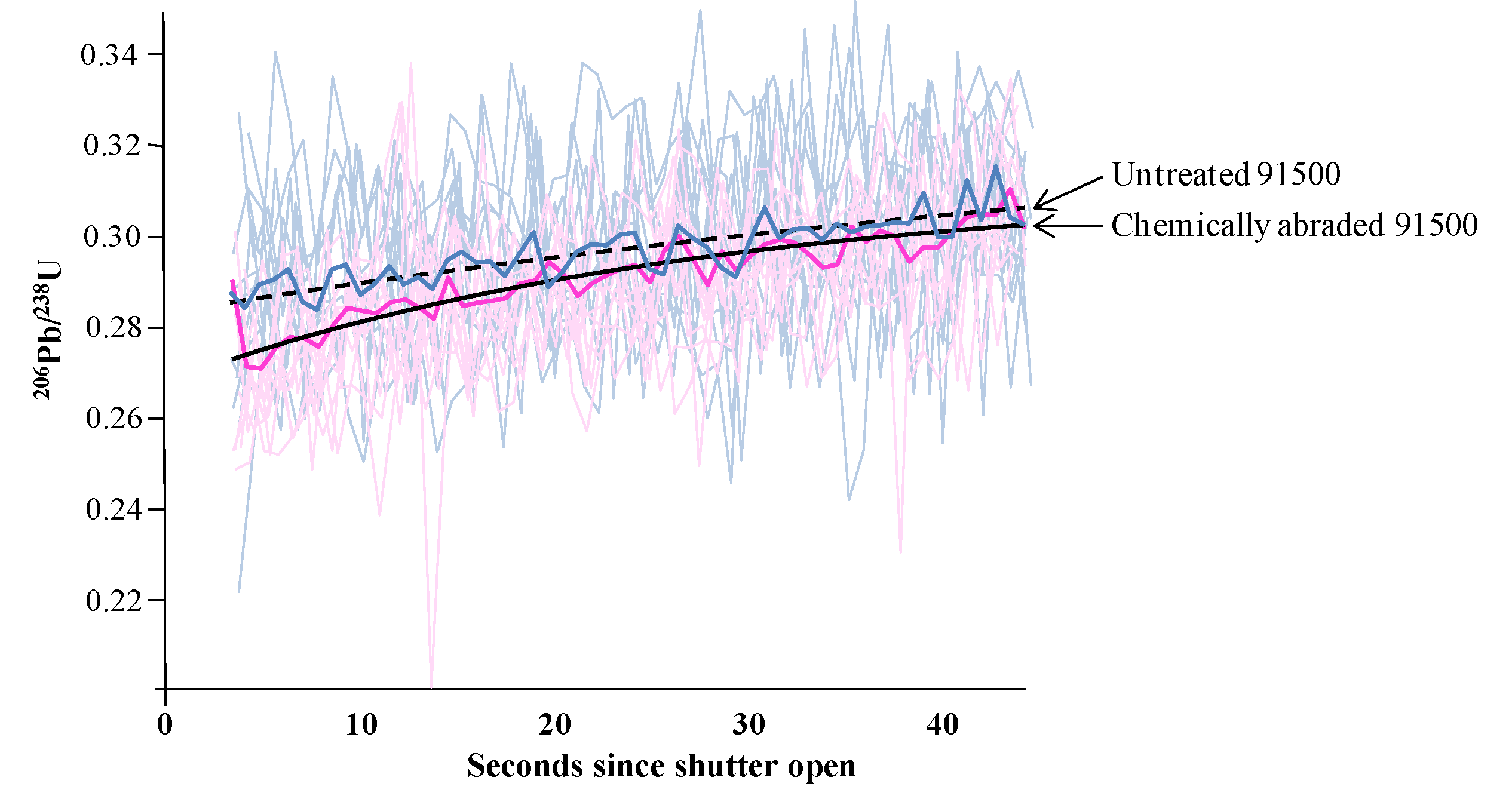

Figure 3. Comparison of time-resolved ²⁰⁶Pb/²³⁸U down-hole fractionation from static ablations (30 µm spot diameter) of untreated 91500 zircon (blue lines and dashed curve) and chemically abraded 91500 zircon (pink lines and solid curve) reference materials. Pale coloured lines indicate ratios from individual analyses, whereas heavy-coloured lines represent a time-resolved mean value calculated from all analyses. Black curves are calculated as a best-fit exponential spline through mean values. There is a ca. 3% difference between the two curves, taken as an average over the full duration of ablation.

Figure 3. Comparison of time-resolved ²⁰⁶Pb/²³⁸U down-hole fractionation from static ablations (30 µm spot diameter) of untreated 91500 zircon (blue lines and dashed curve) and chemically abraded 91500 zircon (pink lines and solid curve) reference materials. Pale coloured lines indicate ratios from individual analyses, whereas heavy-coloured lines represent a time-resolved mean value calculated from all analyses. Black curves are calculated as a best-fit exponential spline through mean values. There is a ca. 3% difference between the two curves, taken as an average over the full duration of ablation.

3.2. U–Th–Pb Data

U–Th–Pb data for Penglai, TSUPB021 and 10/225 are provided in the supplementary material. Errors and uncertainties are presented at a 2σ confidence level. Chemically abraded 91500 zircon was used as a primary reference material for chemically abraded secondary reference material and chemically abraded unknowns. Plešovice zircon, which was used as a secondary reference material at both UCSB and TCD gave mean ²⁰⁶Pb/²³⁸U ages of 342 ± 23 Ma (Mean Square of Weighted Deviation (MSWD) = 0.86) and 337.8 ± 3 Ma (MSWD = 5.0) respectively, both within error of the accepted age of 337.13 ± 0.37 Ma [27]. All reported data are non-common Pb corrected.

3.2.1. Penglai Zircon Reference Material

Representative sub-samples of several large mm-size zircon fragments were chemically abraded and analysed by Q-ICP-MS at TCD. All 20 analyses are concordant and define a mean ²⁰⁶Pb/²³⁸U age of 4.3 ± 0.2 Ma (Figure 4), within error of the “preferred age” of 4.4 ± 0.1 Ma [28].

For consistency between analytical protocols, a 30 µm spot diameter was used for all analyses in this study. The resultant error of our calculated mean ²⁰⁶Pb/²³⁸U age for Penglai zircons (4.7% 2σ, including decay constant uncertainties) could likely be reduced with a larger spot size. The concordant nature of our data is in contrast to all published U–Pb data for this reference material [28,29,37]. This demonstrates that chemical abrasion has preferentially and effectively removed common Pb from these zircons and opens the possibility of using Penglai as a primary reference material for micro-beam U–Pb zircon geochronology, especially when analysing young (<10 Ma) material.

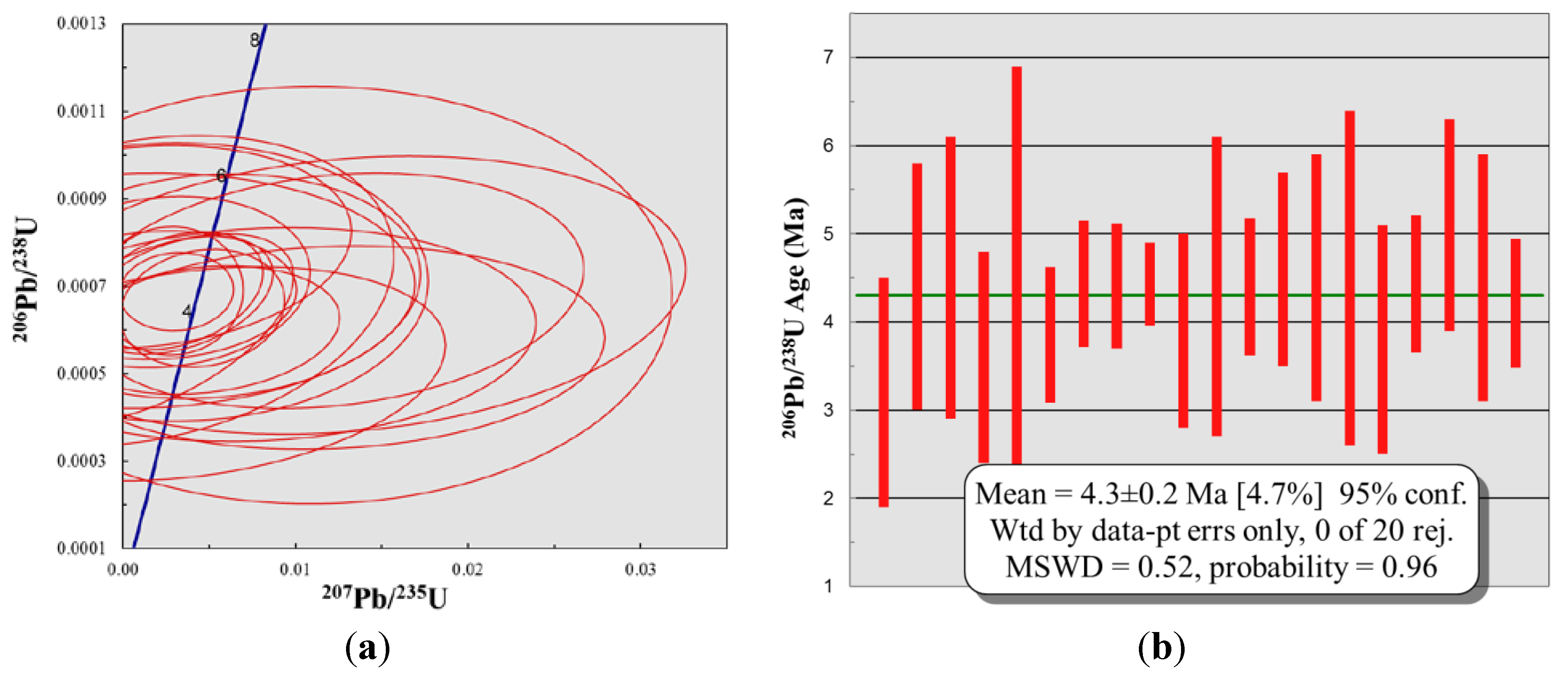

Figure 4. U–Pb data for chemically abraded Penglai zircon reference material: (a) Concordia plot; and (b) weighted mean ²⁰⁶Pb/²³⁸U age. Error ellipses and box heights are 2σ. Conf.: Confidence; Wtd: weighted; Rej.: rejected; MSWD: Mean Square of Weighted Deviation.

Figure 4. U–Pb data for chemically abraded Penglai zircon reference material: (a) Concordia plot; and (b) weighted mean ²⁰⁶Pb/²³⁸U age. Error ellipses and box heights are 2σ. Conf.: Confidence; Wtd: weighted; Rej.: rejected; MSWD: Mean Square of Weighted Deviation.

3.2.2. Sample TSUPB021

Both untreated (n = 77) and chemically abraded (n = 60) zircons from this sample were analysed by Q-ICP-MS at TCD. A significant proportion of untreated zircons (ca. 30%) are discordant due to severe Pb-loss (Figure 5a), which is quite typical of zircons from Archean rocks. This contrasts dramatically with chemically abraded zircons from the same sample where only 3% of analyses are >10% discordant and the remaining analyses plot close to, or overlap with, the Concordia curve (Figure 5b). Although untreated zircons from this sample display a greater range of U concentration (ca. 30 to 7300 ppm, but mostly within ca. 30 to 1000 ppm) compared to those which were chemically abraded (ca. 70 to 500 ppm) (Figure 6a), importantly all main age spectra present in the untreated sample are evident in the chemically abraded counterpart (Figure 6b). Minor peaks appearing in only the untreated zircons at ca. 2910 and 3120 are likely an artefact of the relatively small number or zircons analysed.

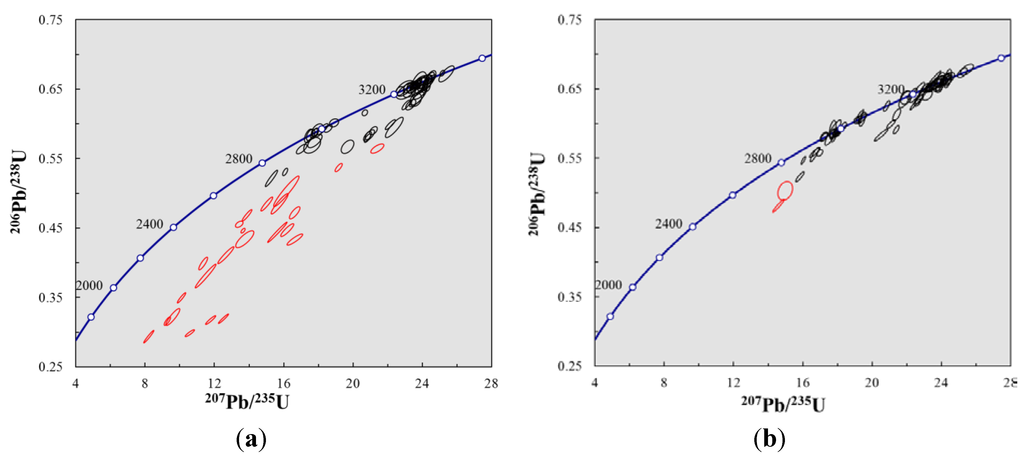

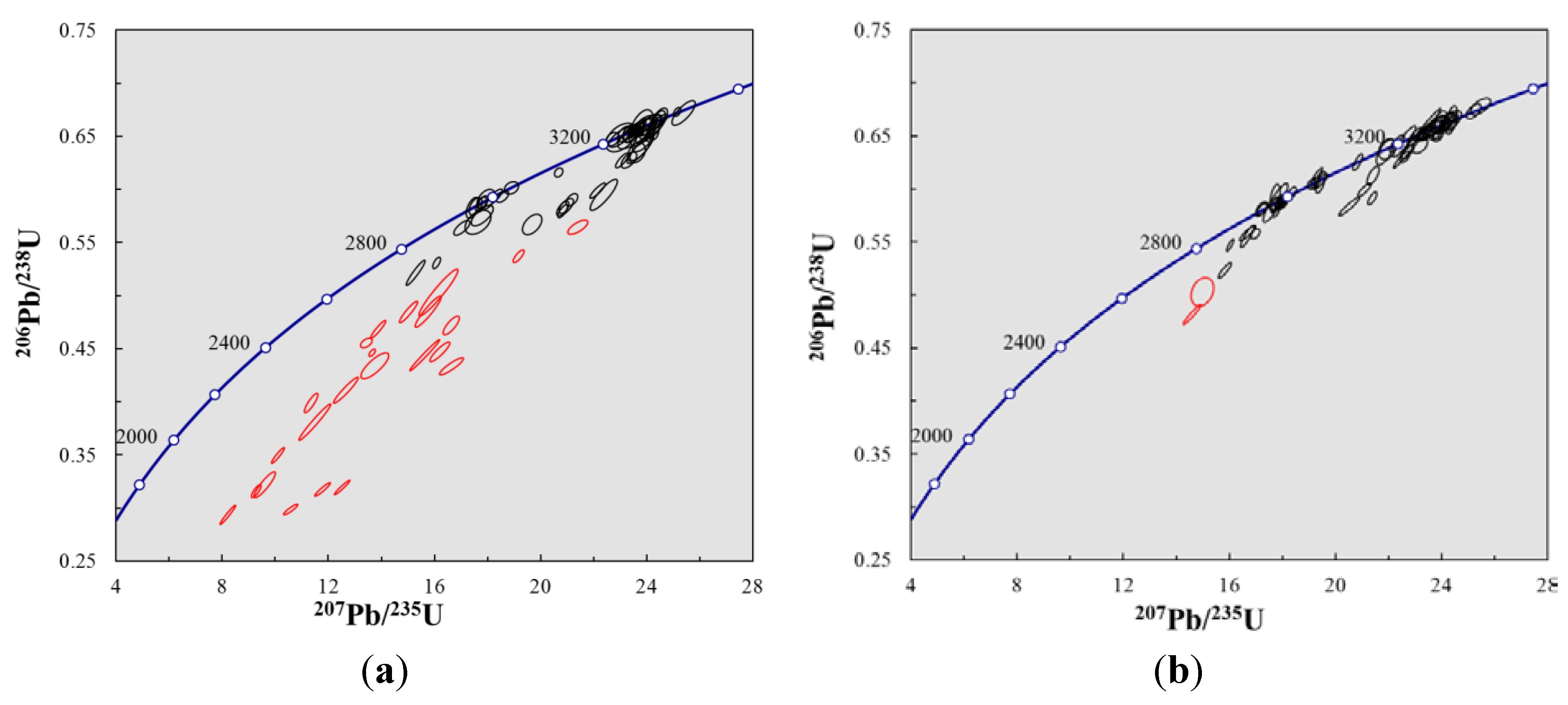

Figure 5. U–Pb Concordia diagrams for sample TSUPB021: (a) Non-treated zircons; and (b) chemically abraded zircons. Data-point error ellipses are 2σ. Red ellipses: analyses > 10% discordant. Black ellipses: analyses < 10% discordant.

Figure 5. U–Pb Concordia diagrams for sample TSUPB021: (a) Non-treated zircons; and (b) chemically abraded zircons. Data-point error ellipses are 2σ. Red ellipses: analyses > 10% discordant. Black ellipses: analyses < 10% discordant.

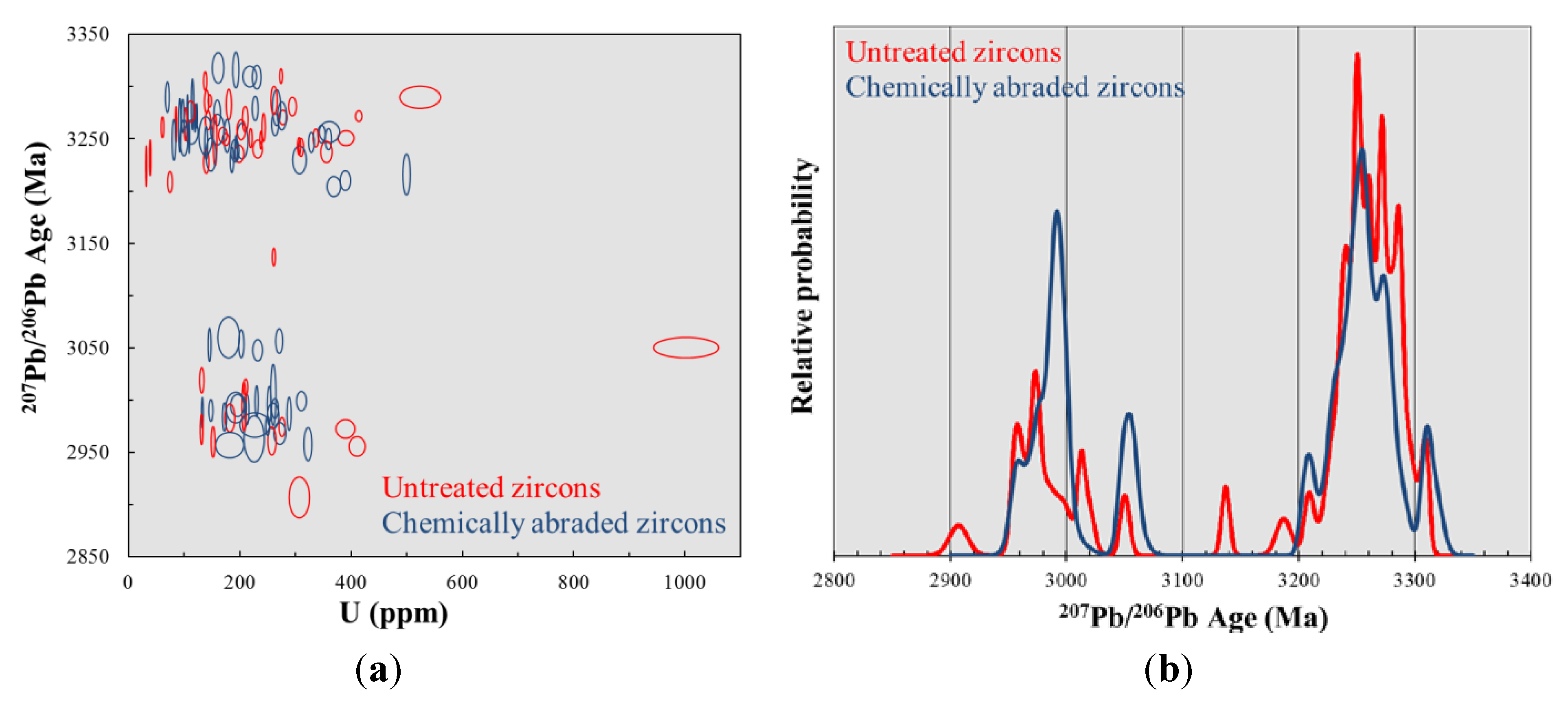

Figure 6. Chemical and age data for sample TSUPB021: (a) U ppm vs. ²⁰⁷Pb/²⁰⁶Pb age (Ma), note that analyses > ca. 1100 ppm U have not been plotted but do not define any ages not already represented in the diagram. Error ellipses are 2σ. (b) Probability-age plot for both untreated and chemically abraded zircons for analyses < 10% discordant.

Figure 6. Chemical and age data for sample TSUPB021: (a) U ppm vs. ²⁰⁷Pb/²⁰⁶Pb age (Ma), note that analyses > ca. 1100 ppm U have not been plotted but do not define any ages not already represented in the diagram. Error ellipses are 2σ. (b) Probability-age plot for both untreated and chemically abraded zircons for analyses < 10% discordant.

3.2.3. Sample 10/225

Untreated zircons from sample 10/225 were analysed at the UCSB facility. U–Pb data show a concordant cluster at ca. 480 Ma and a large number of discordant analyses with a high degree of scatter (Figure 7a). This scatter and discordance most likely result from a combination of elevated common Pb, Pb-loss and possibly some degree of inheritance. Despite the large number of analyses (n = 109) and the relatively high-precision nature of the U–Pb data, this scatter impedes a robust weighted mean age determination. Analysis of chemically abraded zircons from the same sample (n = 33) demonstrates a tight cluster of data overlapping with the Concordia curve and four discordant analyses (Figure 7b), with the latter likely reflecting “mixed ages” due to sampling of an inherited component and magmatic overgrowth. The “TuffZirc” algorithm [39] returns an age of 479.90 ± 1.2 Ma for the non-treated (n = 46/109) and 479.7 +5.3/−2.2 Ma for the chemically abraded (n = 24/33) zircon populations respectively.

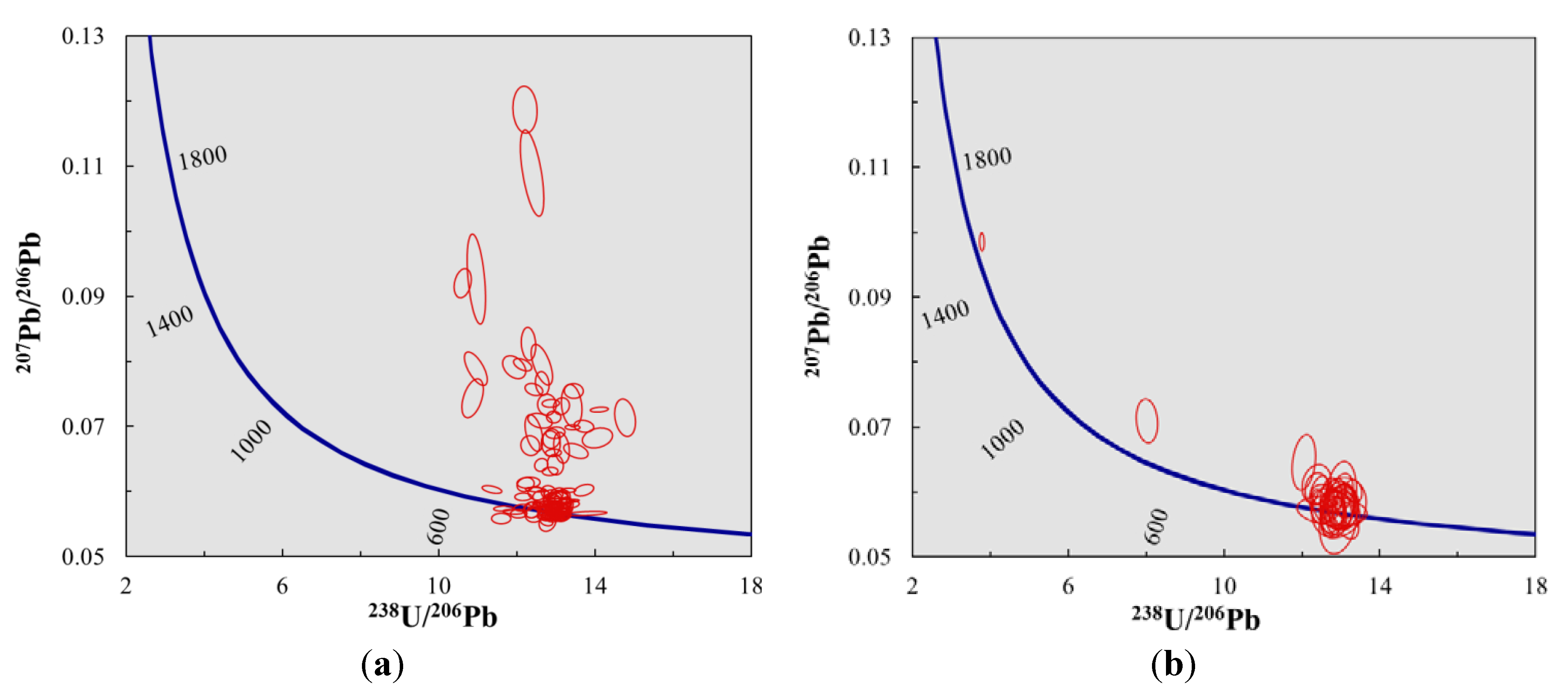

Figure 7. Tera-Wasserburg plots for sample 10/225, error ellipses are 2σ: (a) untreated zircons analysed at UCSB by LA-MC-ICP-MS; and (b) chemically abraded zircons analysed by LA-Q-ICP-MS at TCD.

Figure 7. Tera-Wasserburg plots for sample 10/225, error ellipses are 2σ: (a) untreated zircons analysed at UCSB by LA-MC-ICP-MS; and (b) chemically abraded zircons analysed by LA-Q-ICP-MS at TCD.

4. Conclusions

Chemical abrasion of zircon is an effective pre-treatment to minimize Pb-loss and elevated common Pb in zircon prior to LA-ICP-MS U–Pb analysis. All our chemically abraded U–Pb zircon data demonstrate a substantial improvement in concordance when compared with untreated zircon analyses from the same samples. Discordance is eliminated or minimized by removal of divalent Pb during exposure to HF acid at moderate temperatures (180 °C), while leaving the remainder of the zircon crystal lattice relatively unaffected. The extent to which zircon is visibly affected by chemical abrasion, however, seems to primarily depend on U concentration and the presence of physical defects, such as fractures. Zircons that display some or all of these attributes are inherently more likely to have suffered Pb-loss, so there is an apparent correlation between the extent of Pb-loss and the physical effects of chemical abrasion. Although this physical effect on concordant zircons appears minimal, comparison of down-hole fractionation of ²⁰⁶Pb/²³⁸U in untreated and chemically abraded 91500 reference material reveals a ca. 3% difference, with the untreated zircons displaying a greater degree of laser-induced fractionation effects. This disparity is likely depth dependant, as ablated pits in chemically abraded high alpha-dose zircons known to have suffered Pb-loss are up to 25% shallower than ablation pits in untreated zircons from the same sample. Although this may be an extreme example, it illustrates that primary reference materials should be chemically abraded when analysing chemically abraded unknowns and secondary reference materials. It does not, however, eliminate the possibility that reference materials and unknowns will respond differently to the treatment, thereby resulting in differing down-hole fractionation of U–Pb and Th–Pb isotopes. Accurate measurement and comparison of ablation depths may help to minimize a mismatch between reference materials and sample down-hole fractionation corrections.

Analysis of zircons from an Archean sample (TSUPB021) demonstrates preferential dissolution of zircon at U concentrations greater than ca. 1100 ppm, the majority of which are severely discordant as measured in untreated counterparts. In this particular case the main age spectra between untreated and chemically abraded zircons are identical, although it would in theory be possible to bias a sample by preferential dissolution of high-U zircons with a distinct age signature. Although higher U zircons (up to 1400 ppm) have been reported to have survived intact following chemical abrasion [22], these instances have been from considerably younger zircons. The chemical abrasion technique should therefore be used with caution when dealing with Archean zircons with elevated U concentrations.

In summary, although initially developed for TIMS U–Pb geochronology, chemical abrasion can easily and routinely be applied as a pre-treatment protocol to improve concordance for the majority of samples for LA-ICP-MS U–Pb geochronology.
