Geodynamic Significance of the Mesoproterozoic Magmatism of the Udzha Paleo-Rift (Northern Siberian Craton) Based on U-Pb Geochronology and Paleomagnetic Data

Abstract

The emplacement age of the Great Udzha Dyke (northern Siberian Craton) was determined by the U-Pb dating of apatite using laser ablation inductively coupled plasma mass spectrometry (LA-ICPMS). This produced an age of 1386 ± 30 Ma. This dyke along with two other adjacent intrusions, which cross-cut the sedimentary units of the Udzha paleo-rift, were subjected to paleomagnetic investigation. The paleomagnetic poles for the Udzha paleo-rift intrusions are consistent with previous results published for the Chieress dyke in the Anabar shield of the Siberian Craton (1384 ± 2 Ma). Our results suggest that there was a period of intense volcanism in the northern Siberian Craton, as well as allow us to reconstruct the apparent migration of the Siberian Craton during the Mesoproterozoic.

1. Introduction

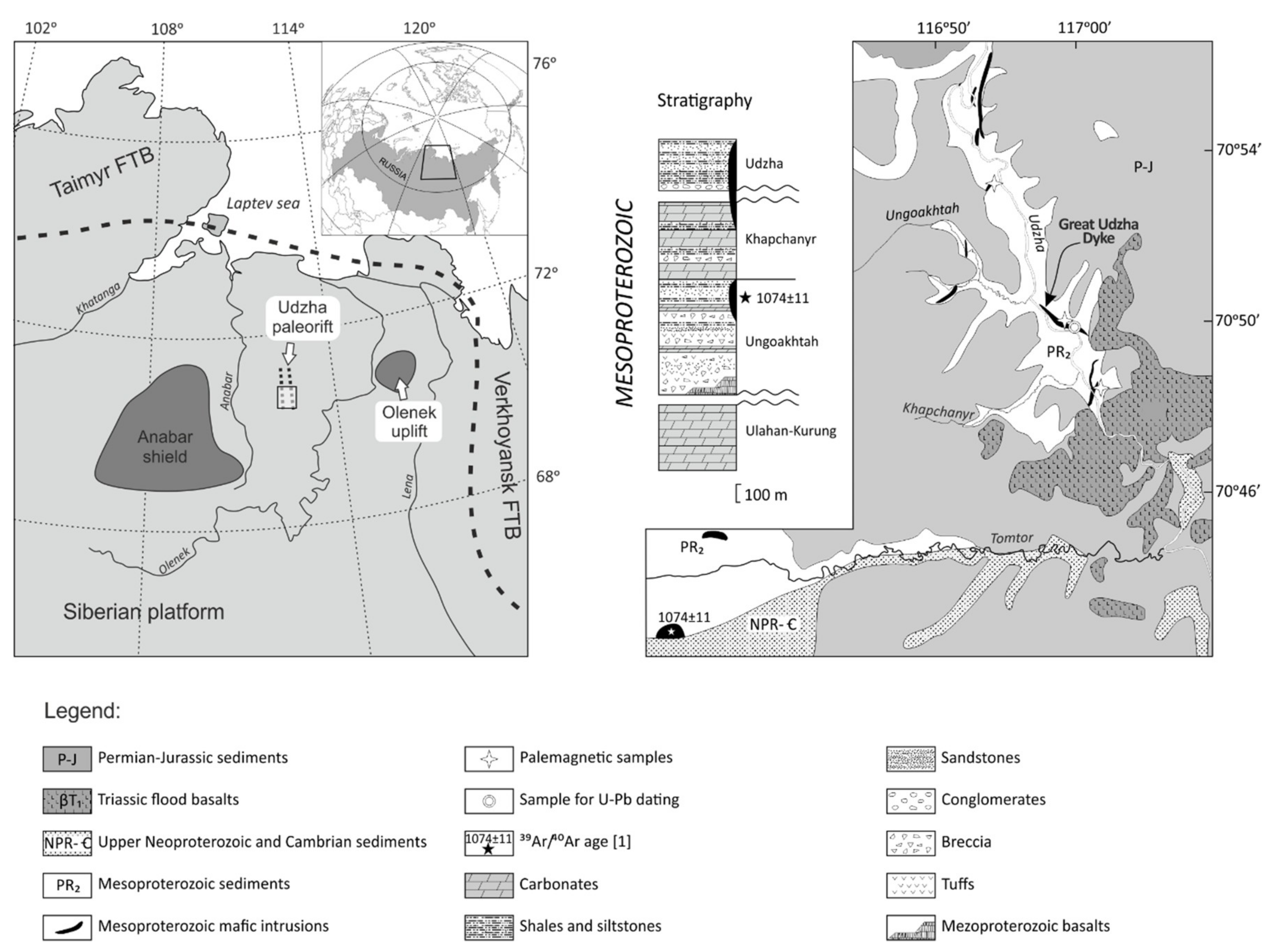

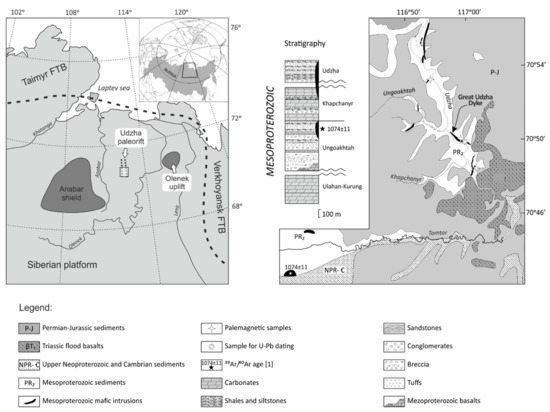

The Udzha structure is located between the Anabar shield and Olenek uplift in the northern part of the Siberian Craton (Russia) and is orientated along a north–south trending paleo-rift [1] (Figure 1). Inside the Udzha paleo-rift, Meso- and Neoproterozoic volcano-sedimentary rocks are exposed, which are cross-cut by mafic intrusions. Precambrian successions are covered by Phanerozoic sediments along an unconformity. The pre-Late Neoproterozoic sequence is divided into two units: (i) Limey-shales with tuff interbeds of the Ulahan-Kurung and Ungoakhtah formation, (ii) carbonate-dominated Khapchanyr formation and terrigenous Udzha formation, which has an overall thickness of ~1500 m. The depositional age of this part of the succession was estimated to range from 1320 Ma to 820 Ma, based on the K-Ar dating of the intrusions and sedimentary glauconite, and regional correlations of stromatolites. Therefore, the Udzha basin is considered to be a long-lived basin, which evolved over a period of at least 500 Ma. Gladkochub et al. [1] disputed this age after obtaining a new Ar-Ar age of 1074 ± 11 Ma for magmatic plagioclase from a mafic dyke, which cross-cuts the Ungoakhtah formation. Based on this age, Gladkochub et al. [1] constrained a Mesoproterozoic age for the mafic magmatic complex of the Udzha paleo-rift [1]. Furthermore, some of the adjacent dykes of the Udzha magmatic complex cross-cut the Udzha formation, which was used by Gladkochub et al. [1] to constrain a minimum age of 1074 ± 11 Ma of sedimentation. However, we do not consider this age to be a conclusive estimate for this intrusion, as the Ar-Ar age spectra did not yield a statistically acceptable plateau. In this study, we apply the U-Pb method to date the Great Udzha Dyke. This dyke cross-cuts the pre-Neoproterozoic sedimentary successions, which can provide new constraints on the minimum age of sedimentation in the Udzha paleo-rift. In addition, we employed paleomagnetic analyses in order to correlate this dyke with the other dykes from the Udzha paleo-rift and discuss the possible, apparent migration of the Siberian Craton during the Mesoproterozoic.

2. Samples and Methodology

The regionally largest dyke—the Great Udzha Dyke (GUD), located on the eastern bank of the Udzha River (70°49′50.70″ N, 117°0′7.50″ E), was selected for U-Pb dating. The GUD has a northwest–southeast trending strike, is roughly 200 m in thickness and cross-cuts the Khapchanyr and Udzha sedimentary formations. The dyke is a medium-grained dolerite with ophitic and coarse grain textures and is composed of plagioclase (60–65 vol. %), clinopyroxene (20–25 vol. %), quartz (~10 vol. %) and hornblende (5 vol. %). Secondary minerals, such as saussurite, sericite and chlorite are common, due to low temperature alteration. The chemical composition of these rocks corresponds to moderately alkaline basalts (SiO₂ = 46–52%; K₂O + Na₂O = 1.7–4.4%).

Samples were collected from the coarsest grain central part of the dyke and heavy mineral fractions were extracted, which contain transparent green–yellow apatite without apparent signs of secondary alteration or recrystallization. No zircon or baddeleyite were found. Therefore apatite was employed for U-Pb dating, which was performed at the University of Tasmania (Hobart, Australia) by laser ablation inductively coupled plasma mass spectrometry (LA-ICPMS) using an Agilent 7900 quadrupole mass-spectrometer connected to a 193 nm Coherent Ar-F excimer laser and Resonetics S155 ablation cell [2,3]. Details of the procedure are provided in the Supplementary File along with the full analytical dataset.

Paleomagnetic studies were carried out to correlate the GUD with other intrusive bodies. In addition to the GUD we sampled a sill, which is located within the Udzha formation near the junction of the Hapchanyr and Udzha rivers (70°48′43.80″ N, 117°2′0.78″ E) and a dyke located 2.4 km to the north along the Udzha River from the mouth of the Ungoakhtah River (70°53′07.8″ N, 116°53′56.4″ E). For each intrusive body we collected 7–15 oriented blocks, which were later prepared as oriented ~8 cm³ cubic samples for analyses. Samples for paleomagnetic measurements have been taken from various parts of intrusive bodies, including both the endocontact zones of the intrusions and central parts. Well-exposed endocontact zones were prioritized. Samples were oriented using a magnetic compass with controls employed to mitigate possible deflection of the compass needle caused by the strongly magnetized rocks. Samples were then cut using a water-cooled rock saw to prevent the heating of the samples.

To isolate the components of magnetization, the samples were subjected to stepwise temperature demagnetization in the Laboratory of the Main Geomagnetic Field and Petromagnetism at the Institute of the Physics of the Earth (Moscow, Russia). All samples were thermally demagnetized between 560–580 °C with an average of 12 to 15 steps to isolate the components of natural remnant magnetization (NRM). The paleomagnetic directions were determined from the principal component analysis [4]. Site mean directions based on 4 to 14 samples results were calculated using Fisher statistics [5]. The paleomagnetic measurements were conducted using a 2G-Enterprise cryogenic magnetometer and a JR-6 spinner magnetometer (AGICO). Heating was performed in a MMTD-80 (Magnetic Measurements Ltd., Aughton, UK) thermal demagnetizer.

In order to identify magnetic minerals, measurements of coercivity and thermomagnetic properties were carried out. Hysteretic parameters were obtained by a PMC MicroMag 3900 VSM vibromagnetometer (Lake Shore Cryotronics, Westerville, OH, USA) in a maximum field of 1.6T and then corrected for paramagnetic/diamagnetic substance contribution. Temperature dependences of magnetic susceptibility were measured using an MFK-1A kappabridge (AGICO, Brno, Czech Republic). The measurement of saturation magnetization versus temperature was carried out in the field ~800 mT with a vibrating sample magnetometer designed by Y. Vinogradov.

Electron microscope analyses were used to determine the structure and composition of magnetic minerals. Back scattered electrons (BSE) images were acquired at accelerating voltage 20 kV and beam current 10 nA using Jeol JSM-6480 electron microscope (Faculty of Geology, MSU, Moscow, Russia). Phase identification was conducted by energy-dispersive spectrometry (EDS) analyses.

The directional data were processed by the least squares method [4] using the Enkin package [6]. Reconstructions were made using the GMAP-2003 freeware package [7]. The local magnetic declination was calculated using the IGRF-12 model (British Geological Survey, Nottingham, UK).

3. U-Pb Dating Results

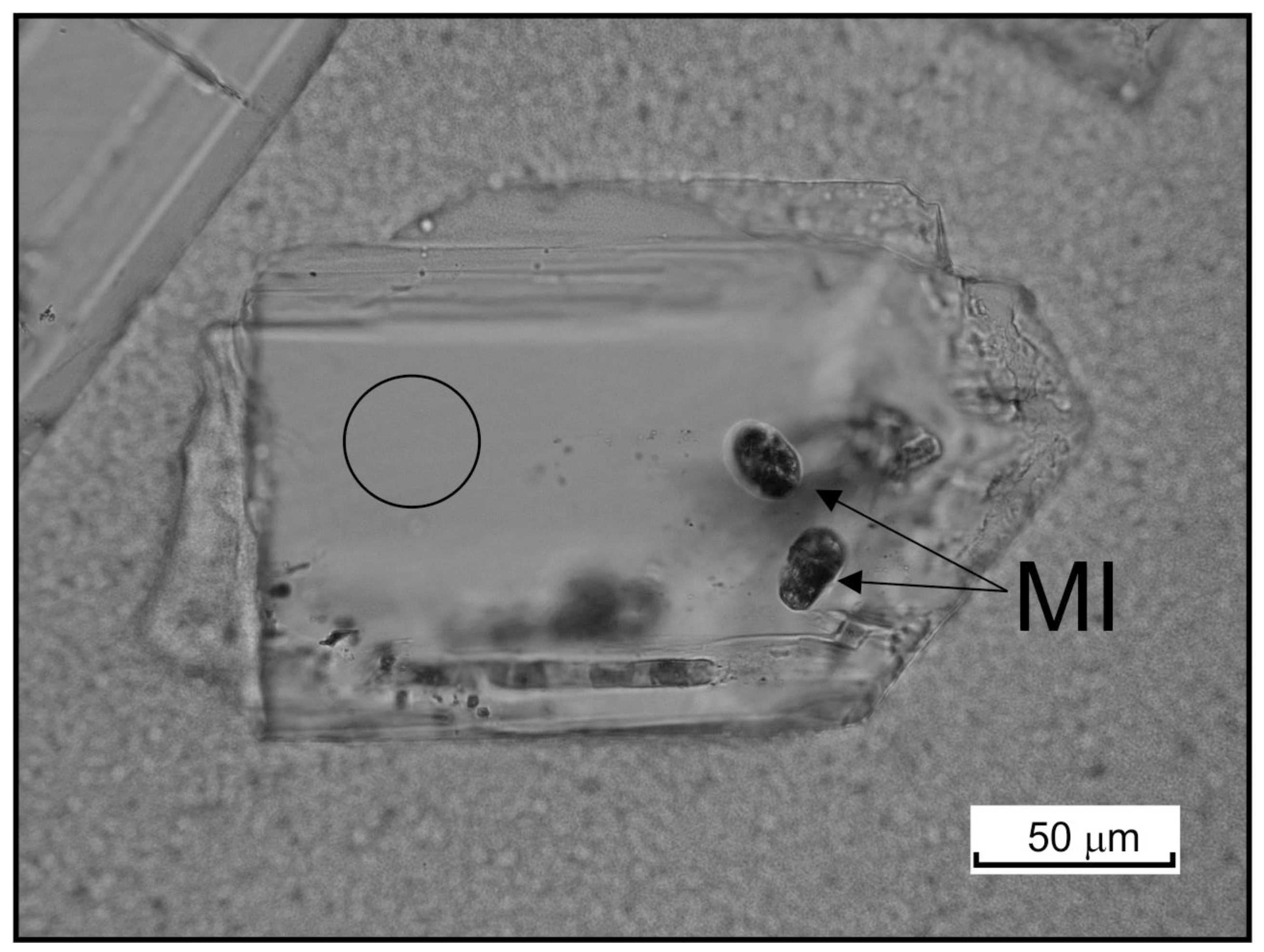

A typical apatite grain used for the U-Pb dating is shown in Figure 2. It hosts primary melt inclusions, which support a magmatic origin. The apatite grain was large enough to employ 30 µm diameter laser ablation spots to grain regions free of mineral and melt inclusions.

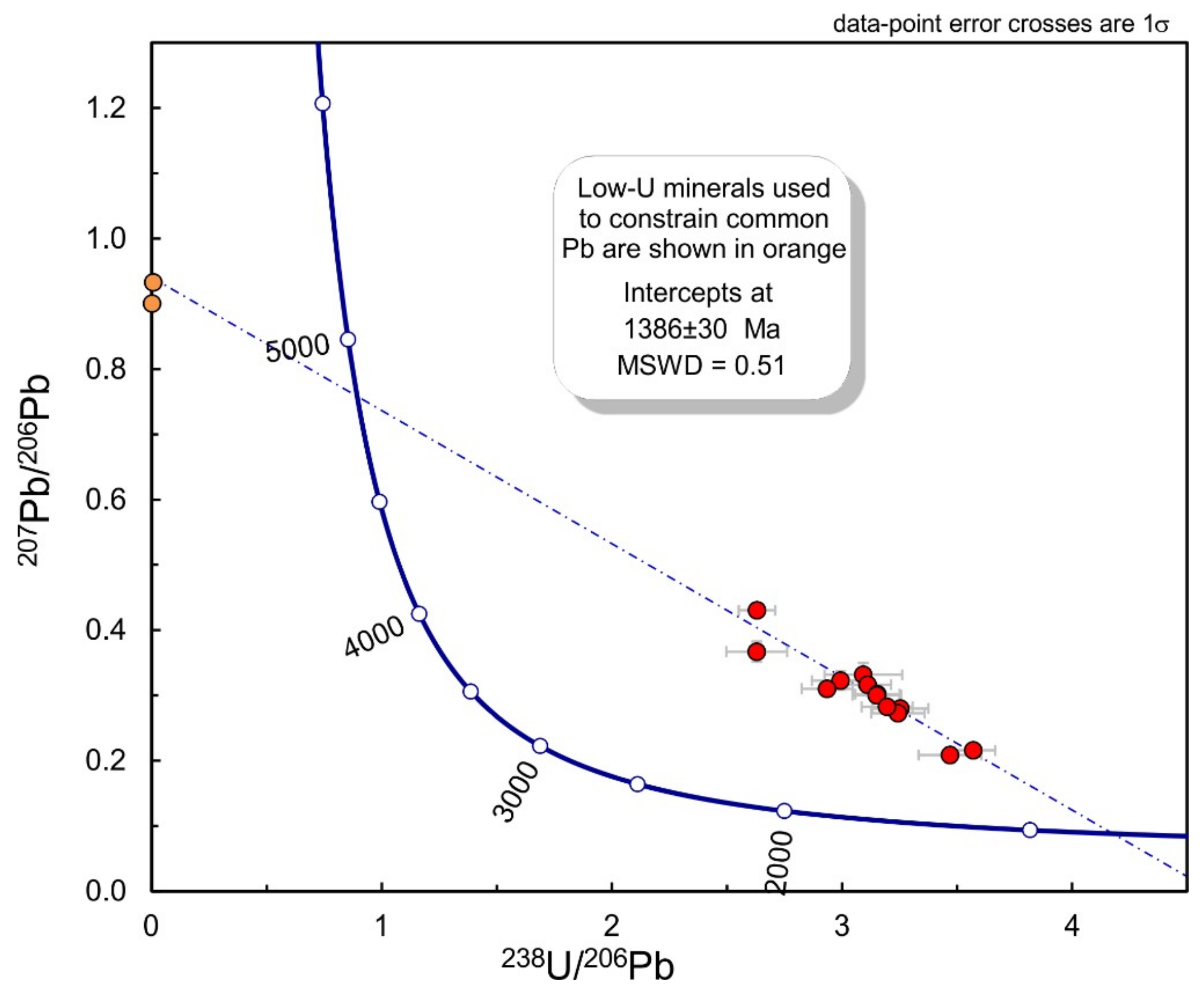

On the Tera-Wasserburg diagram, the analyzed apatite grains are discordant, but form a pronounced regression line. At zero ²³⁸U/²⁰⁶Pb, this regression line is anchored using the isotope composition of lead obtained from calcite from the same dyke, and in the lower part of the concordia, the regression line intercepts it at 1386 ± 30 Ma (Figure 3).

4. Paleomagnetic Results

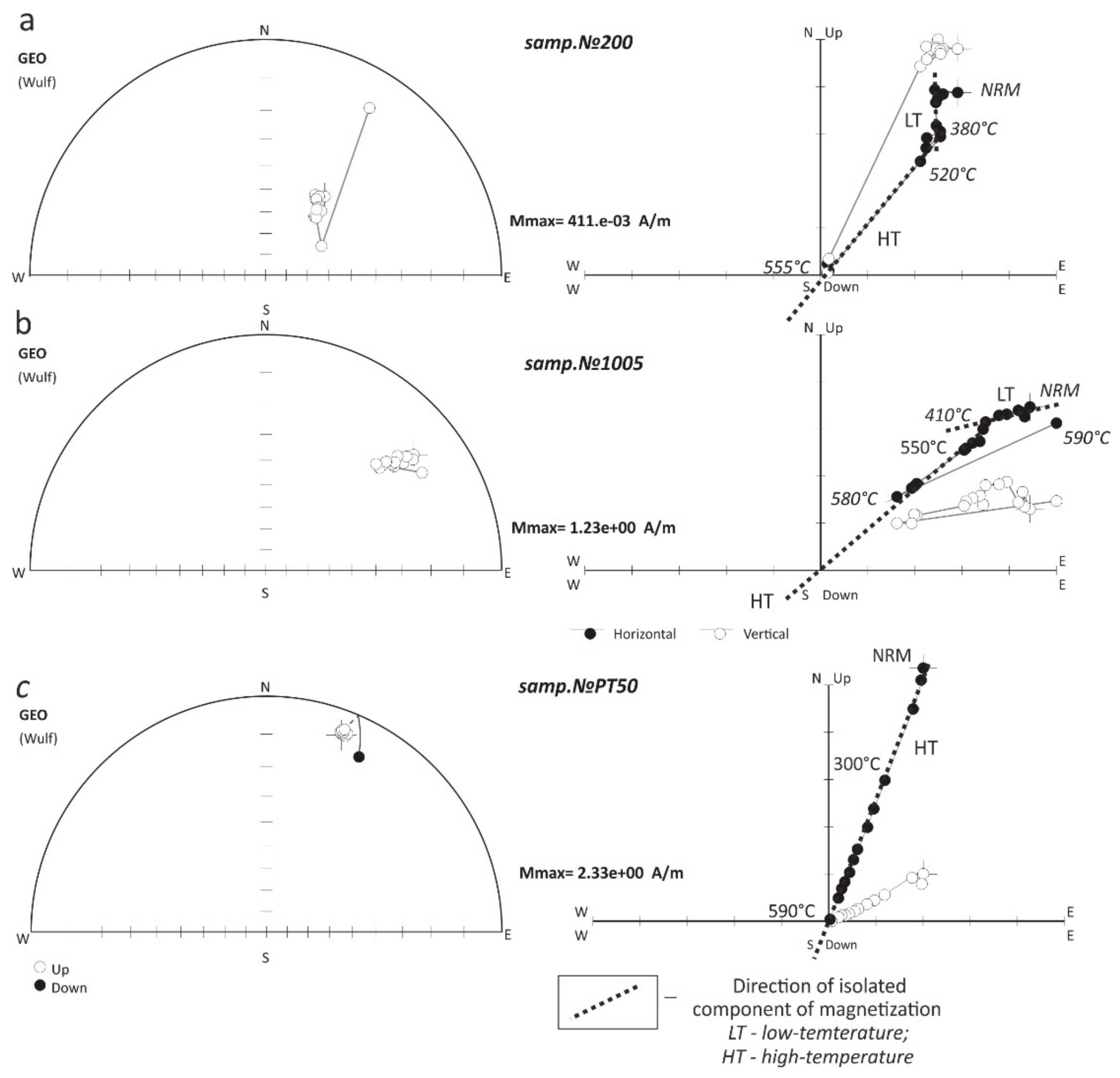

The paleomagnetic and rock-magnetic properties of samples collected from the studied magmatic bodies are quite similar. The thermal demagnetization of the natural remnant magnetization (NRM) of most studied samples revealed (Figure 4) the presence of two magnetization components: Low and high temperature ones (LT and HT). Several samples also contain a middle temperature (MT) component, which is destroyed between 350–500 °C. The projections of this component form a quasi-random distribution on a stereogram, which makes it impractical for any meaningful interpretation. Regardless of the origin of this component (e.g., lightning, transformation of minerals during oxidation, etc.), it seems unlikely that it carries any useful information for purposes of the present study. Therefore, we will not consider this component further.

The direction of the LT component was isolated between 120–150 °C and is scattered around the direction of the modern geomagnetic field. Therefore, we consider it as a mixture of a laboratory viscous component and a component of recent origin (viscous or chemical) acquired in situ (Figure 5,

Table 1. Paleomagnetic data from the Udzha paleorift and Anabar shield, northern Siberian Craton.

Leading Title	n/N	Dec (°)	Inc (°)	k	α95 (°)	Plat (°N)	Plong (°E)	A95 (°)	Coordinates	Ref.
	Average Direction of HT-Component					Virtual Geomagnetic Poles
The Great Udzha dyke (1)	8/10	37.4	−29.5	30.4	10.2	0.3	81.2	8.4	N 70.83075° E 117.0021°	This study
Sill at the Udzha and Hapchanyr river junction (2).	13/14	32.4	−22.8	50.3	5.9	−4.4	85.3	4.6	N 70.81217° E 117.0336°	This study
Dyke (3)	4/7	20.5	−9.2	105	9	−13.3	95.9	6.5	N 70.8855° E 116.899°	This study
Sill of Hapchanyr riv. *	10	32.3	−22.4	-	4.9	−4.5	85.3	3.8	N 71° E 117°	[14]
Dykes of Kotuy-Olenek complex *	38	33	−15	-	5.7	−8.3	83.9	4.2	N 71° E 118°	[14]
Pole of Chieress Dyke 1384 ± 2 Ma (Anabar shield)	-	-	-	-	-	−4	78	7	-	[24]
Lt-components of Udzha intrusions	13/22	89.9	72.5	11.1	13.0	-	-	-	-	-
VGP for the Siberian Craton for 1380 Ma by the Udzha’s intrusions	3	210 **	21 **		10.9 **	−5.8	87.4	15.6	-	This study
P–T Udzha Traps	18	109.1	80.3	18.6	5.7	60.3	152.4	11.2	N 71.4°E 115.3°	[17]
Paleomagnetic pole of the Udzha formation	35	237	7	8	9	−6	59	6.7	-	[15]

Notes: n/N = number of samples in mean direction/ number analyzed; Dec/Inc = declination/inclination of the magnetization vector; k, A95 = Fisher’s precision parameter [5], radius (°) of the 95% cone of confidence about the mean direction; Plat, Plong = virtual geomagnetic pole latitude, longitude; HT—high-temperature component of magnetization; * sill at the Udzha and Hapchanyr river junction was sampled in different places (sites), the distance between its ~2 km; ** direction, calculated from pole (VGP) coordinates and geographic coordinates (N 70.82°; E 117.00°).

).

The most stable HT component is isolated between 550–580 °C (Figure 4). These unblocking temperatures indicate that magnetite and/or low-titanium titanomagnetite dominate the magnetic mineralogy in the studied samples. This conclusion is further supported by the results of the coercivity and thermomagnetic measurements.

Mean directions of HT components isolated for studied magmatic bodies are presented in Table 1. They all have moderate to shallow negative inclinations and north–north–eastern declinations. We note that the success rate is diverse for different magmatic bodies. Virtually all samples from the sill at the Udzha and Hapchanyr rivers junction contain HT components, and only a few samples from the studied dyke show a clear paleomagnetic record (see Table 1).

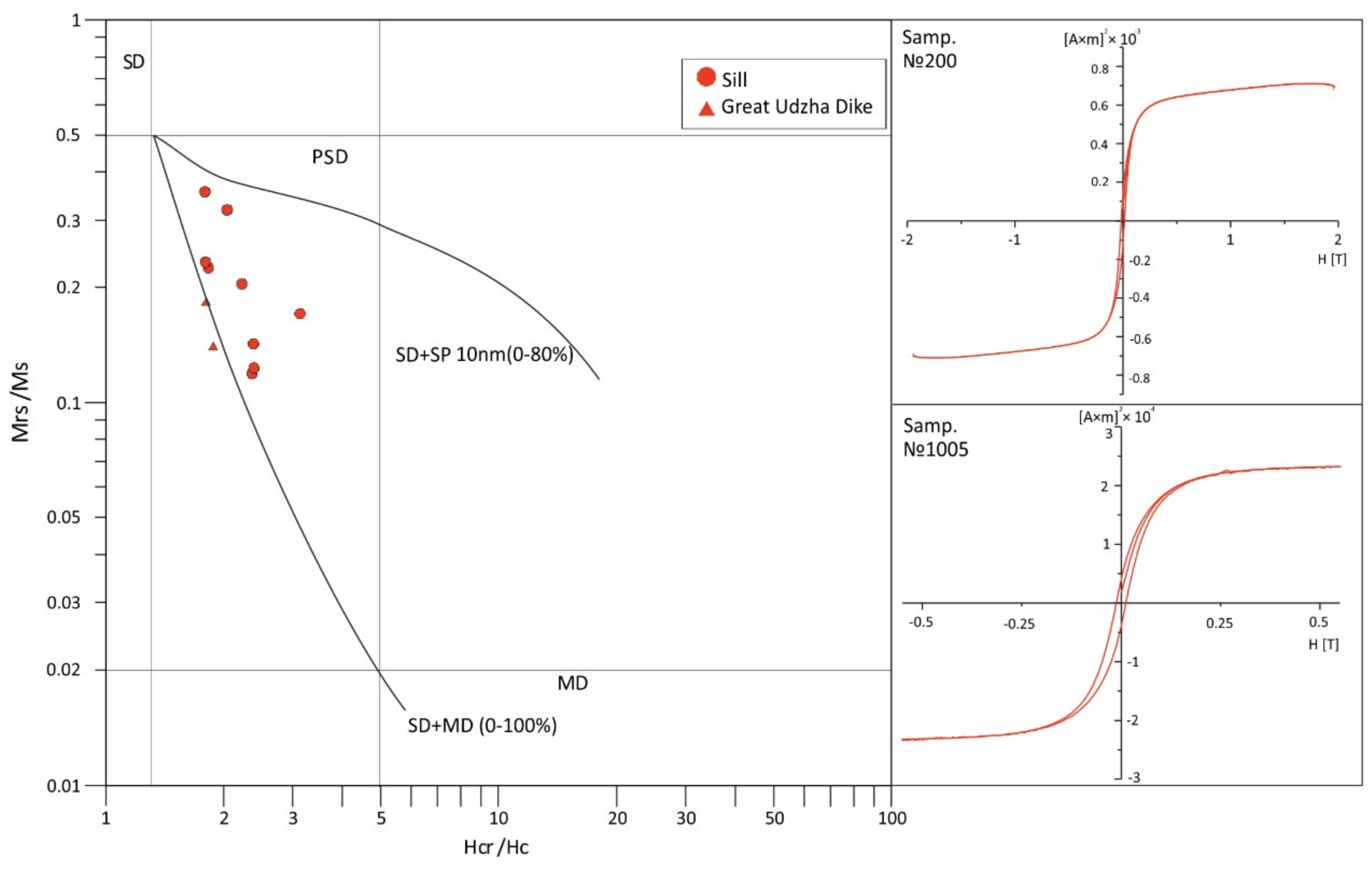

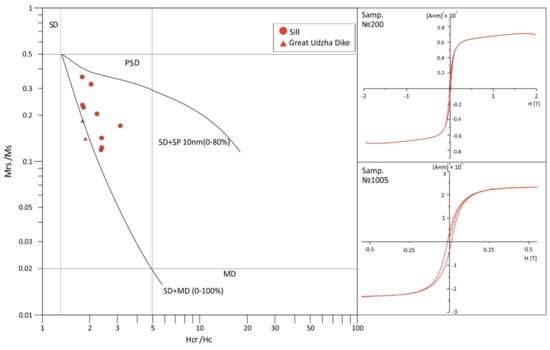

For studied samples, the hysteresis loop closes below 0.3 T (Figure 6). This points towards the low coercivity of the magnetic minerals (i.e., carriers of the magnetization). Hysteretic parameters summarized on the Day-Dunlop plot (Figure 7) [8,9,10] show that our samples contain pseudo-single-domain (PSD) magnetic particles. The latter is also evidenced from the observed Hopkinson peak on the temperature dependence on the magnetic susceptibility (Figure 6). Note that PSD grains are usually considered to be stable magnetic carriers over large geological timescales [11]. Thermomagnetic analyses indicate that the main magnetic carrier in the studied rock is the mineral with the Curie point around ~570 °C (Figure 6). Thus, all obtained rock-magnetic data, including the maximum values of the unblocking temperatures, thermomagnetic and coercivity properties indicate that the HT component in the studied samples is hosted in PSD magnetite or low titanium titanomagnetite [11,12].

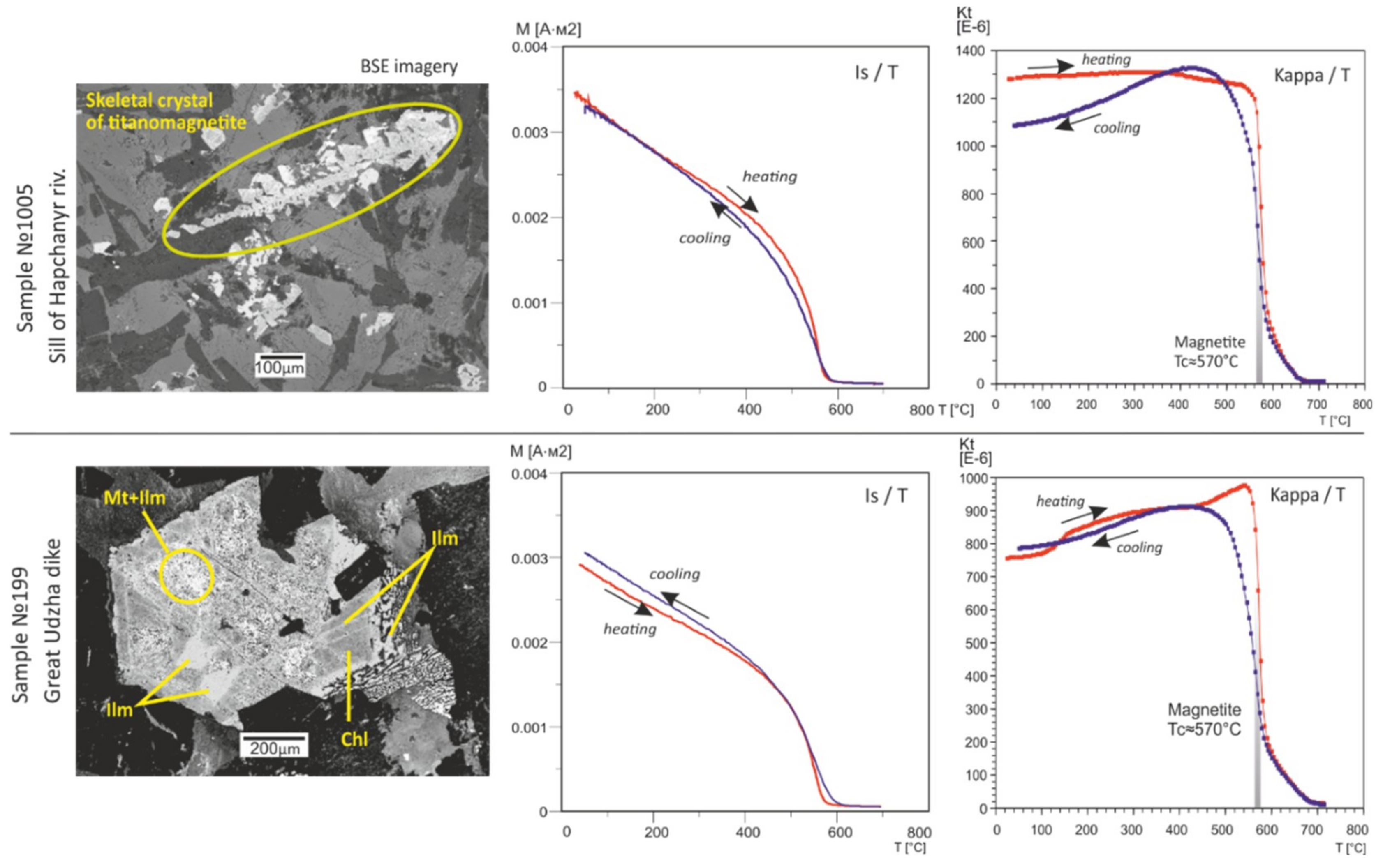

The examination of polished sections show the occurrence of the titanomagnetite grains with magnetite/ilmenite intergrowths (exsolution lamellae) or with dendritic-skeletal structures (Figure 6). The former feature is a clear indication of the high-temperature oxidation of primary titanomagnetite grains. This forms deuterically during the rapid cooling of the intruded rocks between 900 °C to 500 °C [13]. This is strong evidence for the very quick formation of the grains during cooling and their primary origin.

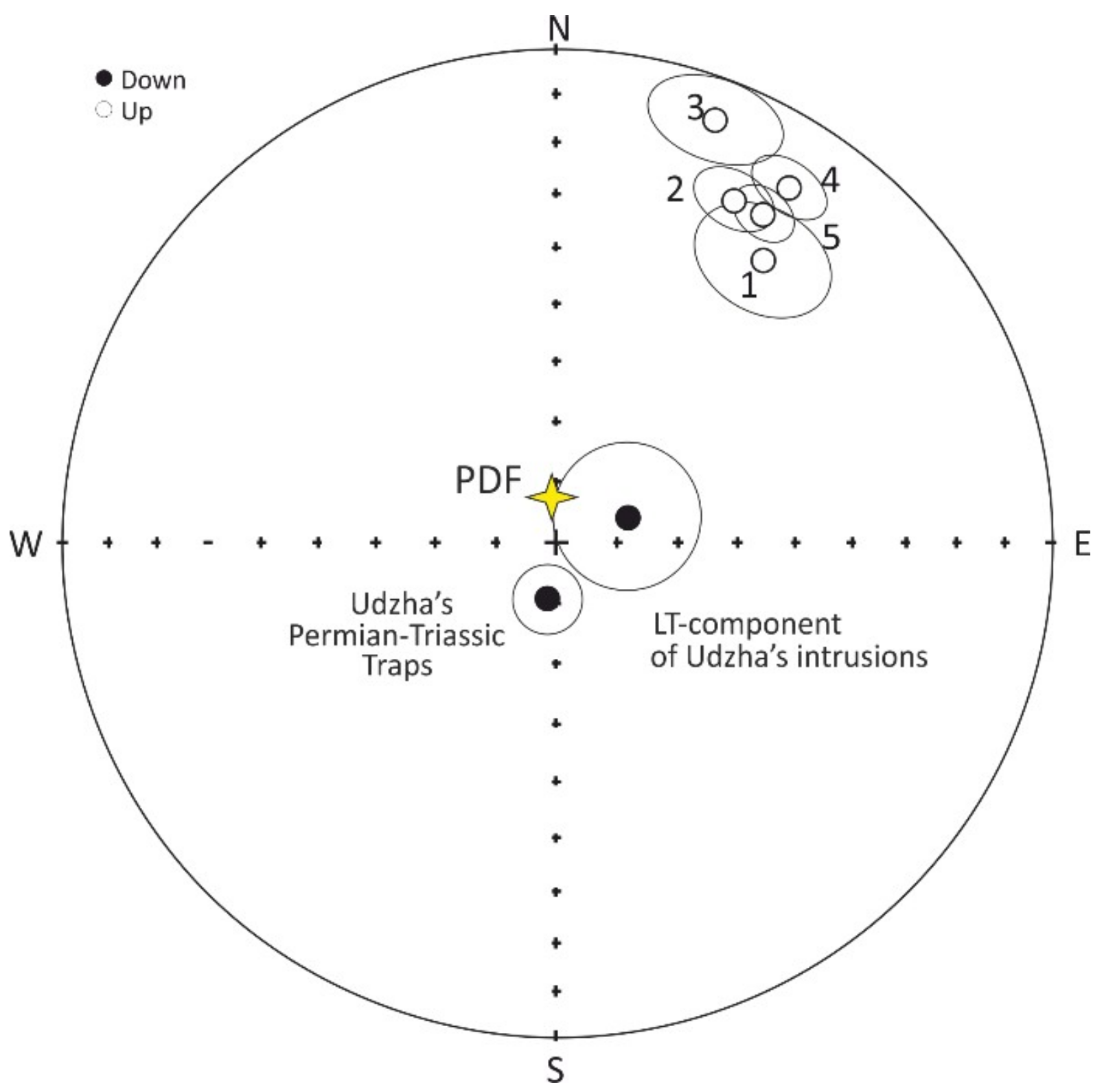

The mean directions of the HT components of magnetization isolated in the studied magmatic bodies, as well as the directions of the HT components of the magnetization, determined by Konstantinov [14] in numerous other intrusions of the Udzha River Valley are listed in Table 1 (Figure 7). However, the results of Konstantinov [14] are only presented in the abstract as finite directions without a detailed description of the results. Consequently, this does not allow us to consider this data for the calculation of the paleomagnetic pole. However, it is noteworthy that the proximity of these directions with ours indicates that the intrusive bodies in this study are possibly of the same age.

The available geological samples limit the ability to apply field tests to constrain the timing of formation of the isolated HT-component. Nevertheless, several lines of evidence can be cited to support its primary origin. This includes:

• Statistically significant differences (γ/γ_cr = 29.62°/30.52°) between the mean direction of the HT component and the mean paleomagnetic direction obtained from the unbaked host rocks of the Udzha formation (Table 1, Figure 7) [15,16]. Unfortunately, baked contacts themselves are not exposed, and therefore we must treat this result only as a conditional positive contact test. Nevertheless, the obtained data clearly support the absence of large regional remagnetization events after the accumulation of rocks of the Udzha formation, and the emplacement of the studied intrusions.
• With the exception of Siberian traps, which are widespread in the lower course of the Udzha River, there are no traces of any magmatic events in the studied region that could lead to the remagnetization of the studied rocks. In the paleomagnetic recording of the studied rocks, there are no any indications of remagnetization by Permian-Triassic traps. The directions of all the selected components are noticeably different from the average paleomagnetic direction obtained earlier from the Udzha traps [17]. Thus, the probability of the remagnetization of the studied rocks by the Siberian traps can be excluded. The influence of a partial remagnetization of the present magnetic field (LT component) is easily removed by heating to 120 °C. The character of the distribution of MT vectors, as noted above, does not allow the association of it with some general remagnetization event, moreover, this component is also easily removed during the demagnetization. Thus, the formation of HT components in the studied magmatic bodies and in the host rocks due to the subsequent remagnetization events is very unlikely.
• The virtual geomagnetic pole (VGP) calculated from the HT component (

  Table 2. Precambrian paleomagnetic poles for Siberian Craton shown in Figure 8.

  Rock Unit	Code	Age (Ma)	Pole (°N)	Pole (°E)	A95 (°)	References
  Nersa compex	Ner	1641 ± 8	−23	130	12	[19,21]
  Ilya-Burdur Fm	Il-B	1690–1500	−4	120	9	[19]
  Labaztakh-Kotuykan	Lb-Kt	<Il-B	0	94	5	[19]
  West Anabar Intrusions	WAI	1503 ± 2	−25	61	5	[19,22]
  North Anabar Intrusions	NAI	1483 ± 17	−24	75	8	[19,22]
  Sololi-Kyutingde	Sl-Kt	1473 ± 24	−34	73	10	[23]
  Ungoakhtakh Fm	Ung	ca. 1500	−23	75	9	[15], estimate age from paleomagnetic correlation
  Udzha Fm	Ud	1500–1386	−6	59	7	[15]
  Chieress Anabar Dyke	Chrs	1384 ± 2	−4	78	7	[24]
  Udzha Intrusions	Ud_In	1386 ± 30	−6	87	16	* This study
  Totta Fm	Tt	<1100	14	85	9	[25]
  Malgina Fm	Mlg	1043 ± 14	15	70	3	[28,29]
  Linok Fm	Lnk	= Mlg	15	76	8	[28], age from correlation
  Lakhanda Fm	Lhd	1025–930	2	45	11	[18]
  Derevnya Fm	Der	= Lhd	−5	31	8	[18]
  Kandyk mafic sills	Knd	942 ± 19	−8	19	4	[27]
  Ust’-Kirba Fm	U-K	950–930	−3	25	10	[27]
  Kitoi mafic intusions	Kt	758	1	22	7	[20]

  Notes: *—VGP poles; Mlg, Tt, Lhd, Knd, U-K poles have been restored to the Anabar reference frame in pre-Devonian time [30]; Euler parameters from [31].

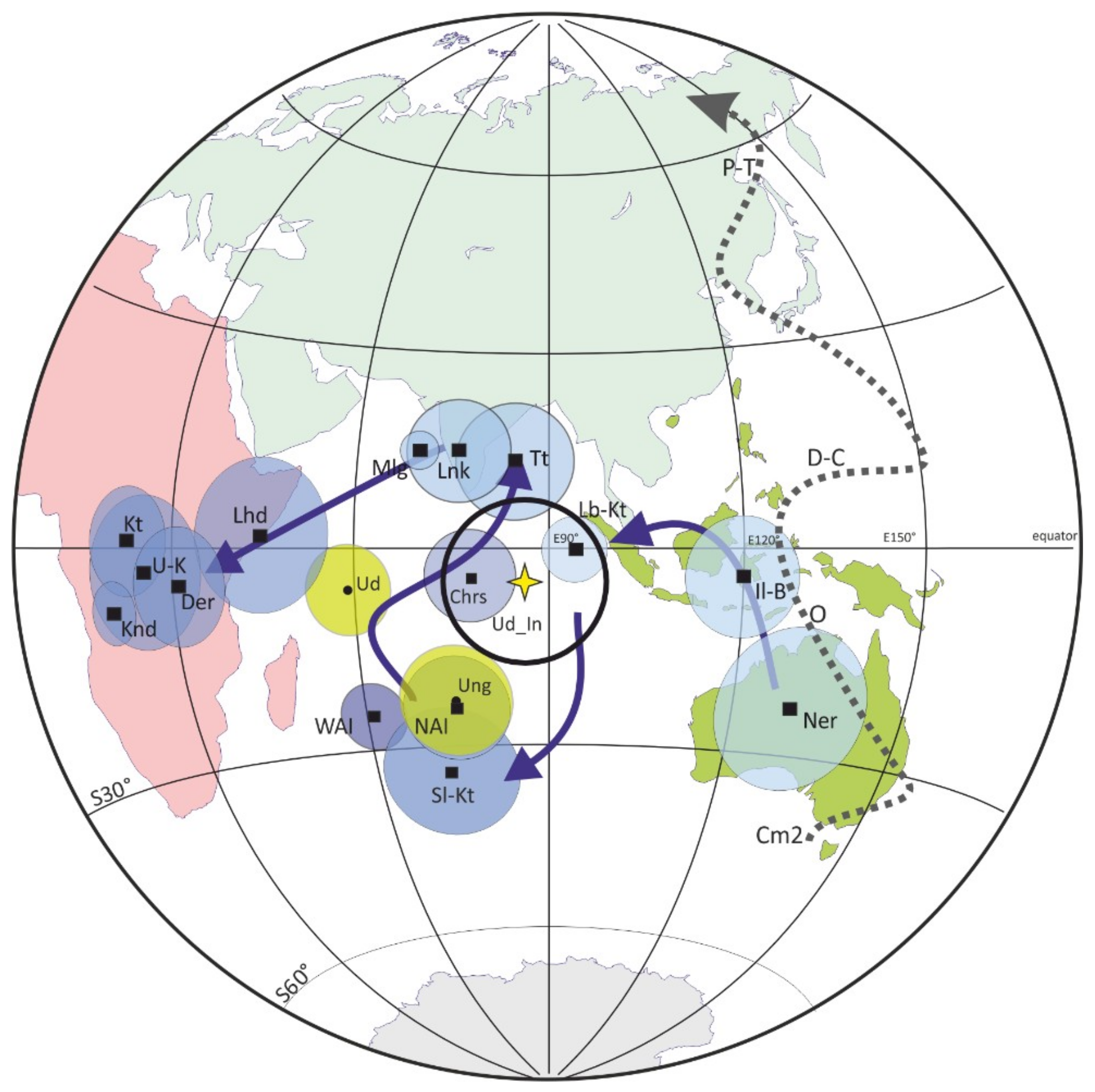

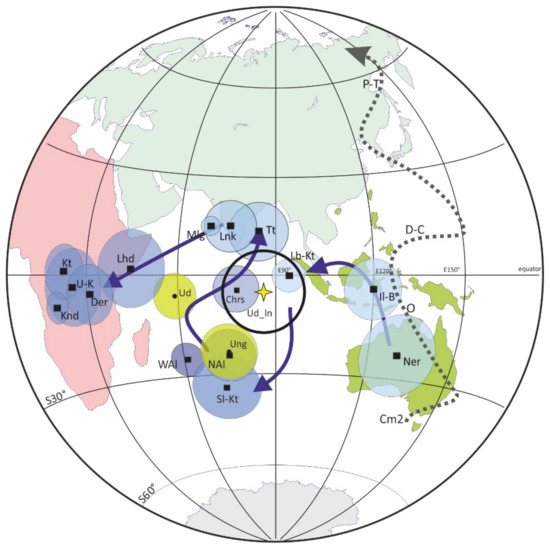

  ) is located at a considerable distance from any known Neoproterozoic and Phanerozoic poles in the Siberian platform (e.g., References [18,19]) (Figure 8). This observation advocates the early formation of the HT component, however, the Siberian Meso-Neoproterozoic apparent polar wander path (APWP) is poorly established, and therefore cannot be considered as a decisive argument. Nevertheless, this presents substantial support for our assertion.
• The resulting pole matches well with a small number of currently known Mesoproterozoic poles of the Siberian platform. It is positioned between the reliable paleomagnetic poles of Siberia for 1500 Ma and 1045 Ma (Figure 8; [15,18,19,20,21,22,23,24,25,26,27]) and is concordant with the hypothesis for the primary origin of the HT component.
• Electron microscope data indicate that grains of magnetic minerals were formed during the emplacement and cooling of the studied intrusions.
• Data from rock magnetic studies confirm that magnetization is carried by PSD grains, which can retain the primary magnetization for large geological time scales.

Studies by Konstantinov [14] of Precambrian intrusions exposed in the valley of the Udzha River (Table 1) support our conclusion. Unfortunately, these data were not properly presented and only the mean direction is currently known [14]. Nevertheless, there is good agreement with our data and the independent data of Konstantinov [14].

5. Discussion and Geodynamic Significance

New U-Pb dating of apatite from the GUD produced an age of 1386 ± 30 Ma, which is indistinguishable from the age of the Chieress dyke (Anabar Shield, 1384 ± 2 Ma [24]).

The proximity of the ages of the Anabar and Udzha intrusions is further supported by the similarity of the VGPs obtained from the corresponding magmatic bodies (Figure 7). The geographical positions of these poles are very close (Figure 7) and their 95% confidence circles overlap. The combined data mutually supports each other and supports the occurrence of a large magmatic event which took place in the north of the Siberian platform around ~1380 Ma ago.

The obtained age yields new constraints on the timing of sedimentation in the Udzha paleo-rift (Ulahan-Kurung, Ungoakhtah, Khapchanyr and Udzha formations) and indicates the presence of a large ~800 Ma gap in the Udzha section between ~1380 Ma and ~600 Ma (the timing of the deposition of the Ediacarian sediments of the Udzha paleo-rift). Similar large gaps in the sedimentary record were suggested for other regions of the Siberian Craton for time periods ranging from ~1.86 Ga to ~800 Ma [32].

The mean VGP based on data from the studied Udzha intrusions and the Chieress dyke (although not completely averaging the geomagnetic secular geomagnetic variations) can nevertheless be used for the preliminary calculation of the Siberian Craton’s paleogeographic position (Figure 8). This calculation indicates that ~1380 million years ago, the northern (in modern coordinates) regions of the Siberian Craton were located at near-equatorial latitudes, and the craton itself was turned relative to its current position by 140 degrees clockwise (Figure 9).
