Initial Investigation into the Leaching of Manganese from Nodules at Room Temperature with the Use of Sulfuric Acid and the Addition of Foundry Slag—Part I

Abstract

In this study, the surface optimization methodology was used to assess the effect of three independent variables—time, particle size and sulfuric acid concentration—on Mn extraction from marine nodules during leaching with H₂SO₄ in the presence of foundry slag. The effect of the MnO₂/Fe ratio and particle size (MnO₂) was also investigated. The maximum Mn extraction rate was obtained when a MnO₂ to Fe molar ratio of 0.5, 1 M of H₂SO₄, −320 + 400 Tyler mesh (−47 + 38 μm) nodule particle size and a leaching time of 30 min were used.

1. Introduction

Oceans cover almost three-quarters of the Earth’s surface and contain nine-tenths of its water, while being the habitat for 97% of the living things on the planet. Oceans are an essential part of the biosphere, influencing climate, health and wellbeing. Ocean sea beds comprise more than 60% of the earth’s surface and contain great wealth, either in the form of Fe-Mn crust or Mn nodules [1].

Polymetallic nodules, also called manganese nodules, are rock concretions formed by concentric layers of Fe and Mn hydroxides. These polymetallic ores are a suitable alternative source of base metals for the growing manganese demand for steel production since high-grade ores are being depleted [2]. They were first discovered in the Siberian Arctic Ocean in 1968 [3]. Since then, new hydrometallurgical methods have been developed to extract valuable metals from nodules, including the use of sulfuric acid as an oxidation agent and other additives as reducing agents to extract manganese. Reductants such as iron from pyrite ore [4,5], ferrous ions [6] and wastewater from molasses-based alcohol production have been used [7]. Based on previous investigations, the advantages of iron as a reducing agent are its abundance, low cost and apparent efficiency [4,5,6,8].

Bafghi et al. [8] investigated the effect of elemental Fe (sponge iron at μm −600 + 250, −250 + 150) as a reducing agent at different iron to MnO₂ molar ratios (0.67, 0.80, 1.0, 1.2), and different acid to MnO₂ molar ratios (2.0, 2.4, 3.0) with a particle size of −600 + 250 µm and −250 + 150 µm of manganese ore. Considerable Mn extraction rates (98%) were obtained at room temperature and for short leaching periods (20 min). They concluded that the most important variables for extracting Mn from nodules are the Fe concentration and nodule particle size. They also compared their results with those of Zakeri et al. [6], noting that sponge iron performs better as a reducing agent than ferrous ions.

Kanungo and Das [9] conducted leaching tests of marine nodules in different acidic media. They obtained the maximum Mn extraction rates (100%) with concentrated HCl (11 mol·dm⁻³) at 90–100 °C. Other studies report positive results for Mn extraction from marine nodules during leaching with HCl, with the co-dissolution of considerable amounts of Cu (II), Ni (II) and Co (II) [10,11].

Han et al. [12] conducted reactor-based leaching tests of marine nodules with sulfuric acid, and observed that low levels of manganese recovery (1%) were obtained with H₂SO₄ at room temperature (25 °C). They concluded that high temperature is required during the leaching of marine nodules in order to improve recovery, selectivity and kinetics. This indicates the need to use a reducing agent to obtain good results, since manganese oxides like pyrolusite are relatively insoluble in conventional leaching media [13].

Reducing agents such as SO₂ [14], pyrite iron [4,5], ferrous ions [6], molasses-based alcohol wastewater [7], H₂O₂ [15] and hydroxylammonium chloride [16] have been used to increase leaching kinetics.

Several authors have investigated Mn extraction from nodules during leaching with the use of sulfuric acid at different temperature in the presence of magnetite (1) and illite (2) marine nodules [17,18,19,20,21]. The most important reactions are shown below. These reactions indicate the important role of iron in extracting manganese in acidic environments.

[Fe²⁺ Fe₂³⁺]O₄(s) + 2H⁺(aq) = [Fe₂³⁺]O₃ + Fe²⁺(aq) + H₂O(l)

(1)

3[Fe²⁺ Ti]O₃ (s) + 6H⁺(aq) = 3[Ti]O₂ + 3Fe²⁺ (aq) + 3H₂O(l)

(2)

Fe₂O₃ + H₂SO₄ = Fe₂(SO₄)₃ + H₂O(l)

(3)

Fe₃O₄(s) + 4H₂SO₄(aq) = FeSO₄ + Fe₂(SO₄)₃ + 4H₂O(l)

(4)

Fe₂(SO₄)₃ + H₂O = Fe(OH)₃ + Fe(s) + H₂ (aq) + H₂SO₄ (aq) + O₂

(5)

FeSO₄(s) + H₂O(aq) = Fe(s) + H₂SO₄ (aq) + O₂

(6)

MnO₂(s) + Fe²⁺(aq) + H⁺(aq) = Fe³⁺(aq) + Mn²⁺(aq) + H₂O(l)

(7)

MnO₂(s) + Fe(s) + 8H⁺(aq) = 2Fe³⁺(aq) + Mn²⁺(aq) + 2H₂O(l) + 2H₂(g)

(8)

MnO₂(s) + 2/3Fe(s) + 4H⁺(aq) = Mn²⁺(aq) + 2/3Fe³⁺(aq) + 2H₂O(l)

(9)

The present study investigates the extraction of manganese from marine nodules in an acid medium (H₂SO₄) at room temperature using smelter slag as a source of iron. Currently in Chile, approximately 80 t of tailings and 1.8 t of smelter slag are generated during the production of one ton of copper. According to the Chilean National Service of Geology and Mining [22], there are 740 tailing dams in the country, of which 469 are inactive and 170 are abandoned. The volume of generated tailings increased by 213.8% from 2000 to 2016 [23].

2. Materials and Methods

2.1. Manganese Nodule Sample

The marine nodules used in this research were collected in the 1970s from the Blake Plateau in the Atlantic Ocean. The nodules were ground in a porcelain mortar to sizes ranging from −140 to +100 μm. The ground samples were analyzed by atomic emission spectrometry via induction-coupled plasma (ICP-AES), in the applied geochemistry laboratory of the Department of Geological Sciences of the Universidad Católica del Norte.

Table 1. Chemical analysis of the manganese ore.

Component	Mn	Fe	Cu	Co
Mass (%)	15.96	0.45	0.12	0.29

shows the chemical composition of the samples.

Table 2. Mineralogical analysis of the manganese ore.

Component	MgO	Al2O3	SiO2	P2O5	SO3	K2O	CaO	TiO2	MnO2	Fe2O3
Mass (%)	3.54	3.69	2.97	7.20	1.17	0.33	22.48	1.07	29.85	26.02

shows the results of the elemental characterization of the manganese–iron nodules. The sample material was analyzed using Bruker^® M4-Tornado µ-FRX table-top equipment (Fremont, CA, USA). µ-XRF data interpretation shows that the nodules were composed of pre-existing nodule fragments that formed their core, with concentric layers that precipitated around the core at later stages. The experiments showed that pyrolusite (MnO₂) was the predominant phase.

2.2. Smelter Slag

The reducing agent (iron) was obtained in the form of slag from the Altonorte smelting plant. The same methods were used to determine the chemical and mineralogical composition of the slag as those used with the manganese nodules. Figure 1 shows the chemical species using QEMSCAN, several iron-containing phases are present while the content of Fe is estimated at 37.52%.

Table 3. The mineralogical composition of the slag as determined by QEMSCAN.

Mineral	Amount % w/w
Chalcopyrite/bornite	6.05
Tennantite/tetraedrite	0.24
Other Cu minerals	5.22
Cu-Fe hydroxides	1.80
Pyrite	0.18
Magnetite	52.11
Specular hematite	0.47
Hematite	3.79
Ilminite/titanite/rutile	0.03
Siderite	0.07
Chlorite/biotite	2.55
Other phyllosilicates	13.14
Others	14.35
Total	100.00

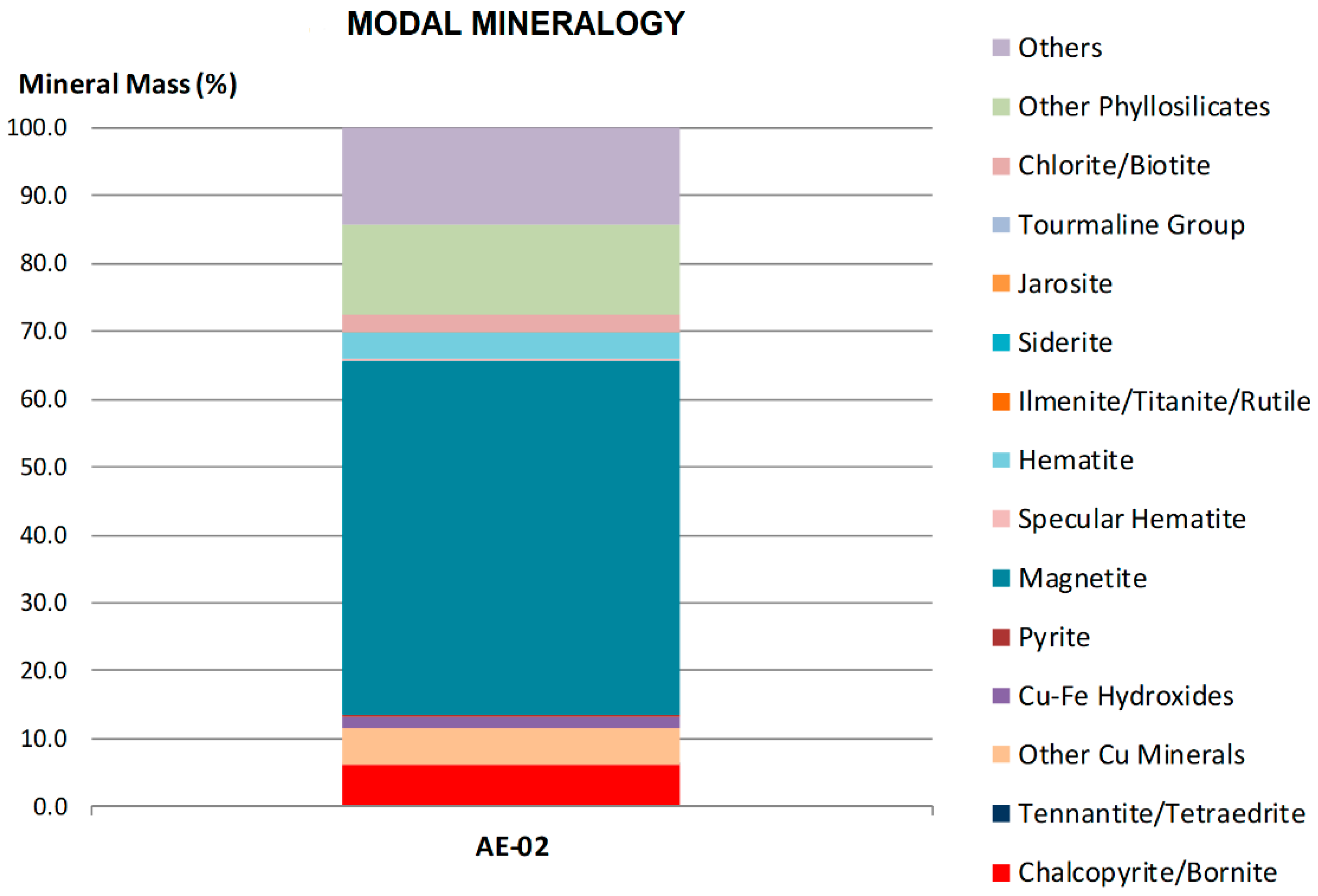

shows the mineralogical composition of the slag. The Fe in the slag was mainly in the form of magnetite.

2.3. Reagent and Leaching Test

The sulfuric acid used for the leaching tests was grade P.A., with a 95–97% purity, a density of 1.84 kg/L and a molecular weight of 98.8 g/mol.

Leaching tests were carried out in a 50 mL glass reactor with a 0.01 S/L ratio of leaching solution. A total of 200 mg of Mn nodules were maintained in agitation and suspension with the use of a 5-position magnetic stirrer (IKA ROS, CEP 13087-534, Campinas, Brasil) at a speed of 600 rpm. The tests were conducted at room temperature of 25 °C, with variations in additives, particle size and leaching time.

2.4. Experimental Design

The effects of independent variables on the Mn extraction rates from manganese nodules were studied using the response surface optimization method [24,25]. The central composite face (CCF) design and a quadratic model were applied to the experimental design.

Twenty-seven experimental tests were carried out to study the effects of H₂SO₄ concentration, particle size and time as dependent variables. Minitab 18 software was used for modeling and experimental design, which allowed for the study of the linear and quadratic effects of the independent variables. The experimental data were adjusted by a multiple regression analysis [26] to a quadratic model, considering only those factors that helped to explain the variability of the model.

Slag was used for all the tests and the experimental model, thus the MnO₂ and Fe ratio was 1 molar.

Table 4. Experimental configuration and Mn extraction data.

Exp. No.	Time (min)	Sieve Fraction (Tyler Mesh)	Particle Size (µm)	Sulphuric Acid (M)	Mn Extraction (%)
1	10	−200 + 270	−75 + 53	0.1	8.77
2	20	−100 + 140	−150 + 106	0.5	30.08
3	20	−200 + 270	−75 + 53	1.0	58.27
4	30	−200 + 270	−75 + 53	1.0	69.55
5	10	−320 + 400	−47 + 38	0.5	22.56
6	20	−100 + 140	−150 + 106	0.1	11.28
7	30	−100 + 140	−150 + 106	1.0	57.64
8	30	−320 + 400	−47 + 38	0.1	15.04
9	10	−100 + 140	−150 + 106	0.5	16.92
10	10	−100 + 140	−150 + 106	1.0	38.22
11	20	−200 + 270	−75 + 53	0.5	53.88
12	30	−100 + 140	−150 + 106	0.1	11.90
13	20	−200 + 270	−75 + 53	0.1	17.54
14	10	−100 + 140	−150 + 106	0.1	6.27
15	10	−200 + 270	−75 + 53	1.0	45.74
16	10	−320 + 400	−47 + 38	0.1	8.15
17	20	−320 + 400	−47 + 38	0.1	10.65
18	20	−320 + 400	−47 + 38	0.5	27.57
19	30	−200 + 270	−75 + 53	0.1	20.05
20	30	−200 + 270	−75 + 53	0.5	60.78
21	10	−320 + 400	−47 + 38	1.0	44.49
22	20	−320 + 400	−47 + 38	1.0	55.14
23	20	−100 + 140	−150 + 106	1.0	49.50
24	30	−320 + 400	−47 + 38	0.5	35.09
25	10	−200 + 270	−75 + 53	0.5	39.47
26	30	−320 + 400	−47 + 38	1.0	61.40
27	30	−100 + 140	−150 + 106	0.5	35.09

shows the experimental parameters for the central composite face design and data for Mn from H₂SO₄ extraction optimization.

The general form of the experimental model is represented by:

$$\begin{array}{c}Y=(\mathrm{overall} \mathrm{constant})+(\mathrm{linear} \mathrm{effects})+(\mathrm{interaction} \mathrm{effects})+(\mathrm{curvature} \mathrm{effects})\\ Y=b_0+b_1{x}_1+b_2{x}_2+b_3{x}_3+b_{12}{x}_1{x}_2+b_{13}{x}_1{x}_3+b_{23}{x}_2{x}_3+b_{11}{x}_1^2+b_{22}{x}_2^2+b_{33}{x}_3^2\end{array}$$

(10)

where $x_1$ is time; $x_2$ is mesh size; $x_3$ is $H_{2}S{O}_4$ concentration, and b is the variable coefficients.

Table 4 presents the ranges of parameter values used in the experimental model. The variable values were codified in the model. Equation (11) transforms a real value ($Z_i$) into a coded value ($X_i$) according to the experimental design:

The Equation (11) coded value was found as follows:

$$X_i=\frac{Z_i-\frac{Z_{high} + Z_{low}}{2}}{\frac{Z_{high} - Z_{low}}{2}}$$

(11)

where $Z_{high}$ and $Z_{low}$ are respectively the highest and lowest level of a variable [27].

The statistical R², R² (pred), p values and Mallows’s Cp indicate whether the model obtained is adequate to describe Mn extraction under a given domain. The R² coefficient is a measure of the goodness of fit, that is, it measures the proportion of total variability of the dependent variable with respect to its mean, which is explained by the regression model. The p values represent statistical significance, which indicates whether there is a statistically significant association between the response variable and the term. The predicted R² was used to determine how well the model predicts the response for new observations. Finally, Mallows's Cp is a precise measure in the model, estimating the true parameter regression [27].

2.5. MnO₂/Fe Ratio Effect

The experimental design was used to assess the interaction among the sulfuric acid concentration, manganese nodule particle size and leaching time, with foundry slag as an additive. Bafghi et al. [8] conducted experiments with sponge iron at different MnO₂/Fe ratios in acid media, and concluded that the amount of sponge iron is more crucial for manganese dioxide leaching than the sulfuric acid concentration. Zakeri et al. [6] concluded that the excess amounts of ferrous ions with reference to the Fe²⁺/MnO₂ stoichiometric molar ratio of 3 was crucial for successful manganese dissolution.

In the present study, the effect of the MnO₂/Fe ratio was evaluated with the use of foundry slag over time. A particle size of −200 + 270 Tyler mesh (−75 + 53 µm), with a stirring speed of 600 rpm and 20 mL 1 M sulfuric acid concentration, and 200 mg of Mn nodules were used at a room temperature (25 °C).

2.6. The Effect of Particle Size

The effect of the manganese nodule particle size was evaluated by adding Fe slag at different sulfuric acid concentrations over time under the conditions shown in

Table 5. Experimental conditions for the study of the effect of manganese nodule particle size.

Parameters	Values
Sieve fraction (Tyler mesh)	−100 + 140, −200 + 270, −320 + 400
Particle size (µm)	−150 + 106, −75 + 53, −47 + 38
Time (in min)	5, 10, 20, 30, 40
H2SO4 (M)	0.1, 0.5, 0.75, 1
MnO2/Fe (slag)	1/1

.

3. Results and Discussion

3.1. Methodology

An ANOVA analysis (

Table 6. ANOVA Mn extraction.

Source	F-Value	p-Value
Regression	38.11	0.000
Time	36.29	0.000
Mesh size	26.95	0.000
H2SO4	269.22	0.000
Time × Mesh size	0.51	0.485
Time × H2SO4	3.89	0.065
Mesh size × H2SO4	0.37	0.549
Time × Time	0.62	0.443
Mesh size × Mesh size	3.28	0.088
H2SO4 × H2SO4	1.86	0.191

) showed no significant effect of the interactions (time, particle size) and {particle size, concentration} (p > 0.05) on the manganese extraction rate. However, the interaction {time, concentration} must also be considered (p < 0.1). The effects of the curvature of time and concentration are not significant in explaining the variability of the model.

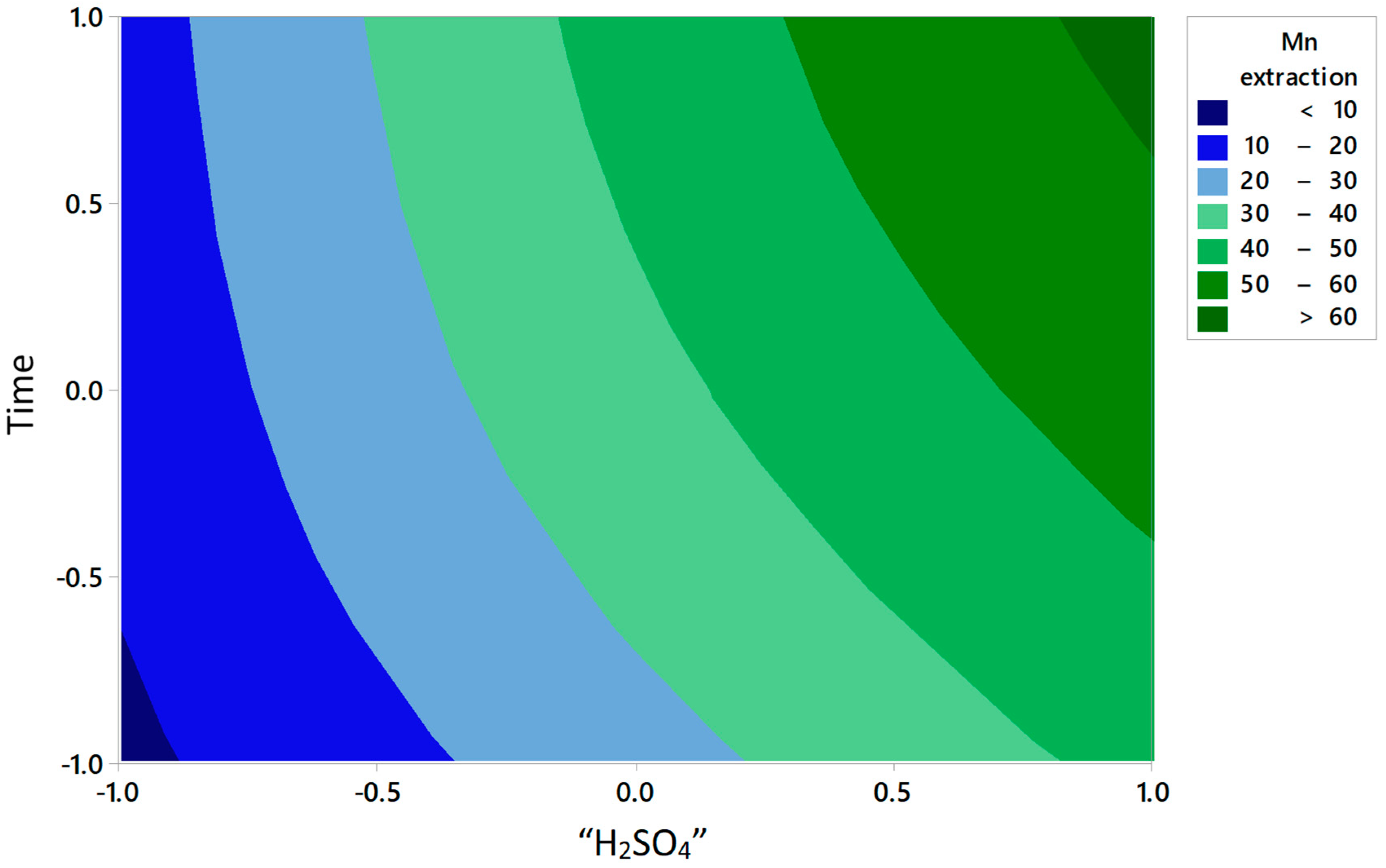

The linear effects of time and H₂SO₄ concentration contributed greatly to explaining the experimental model, as shown in the contour plot in Figure 2.

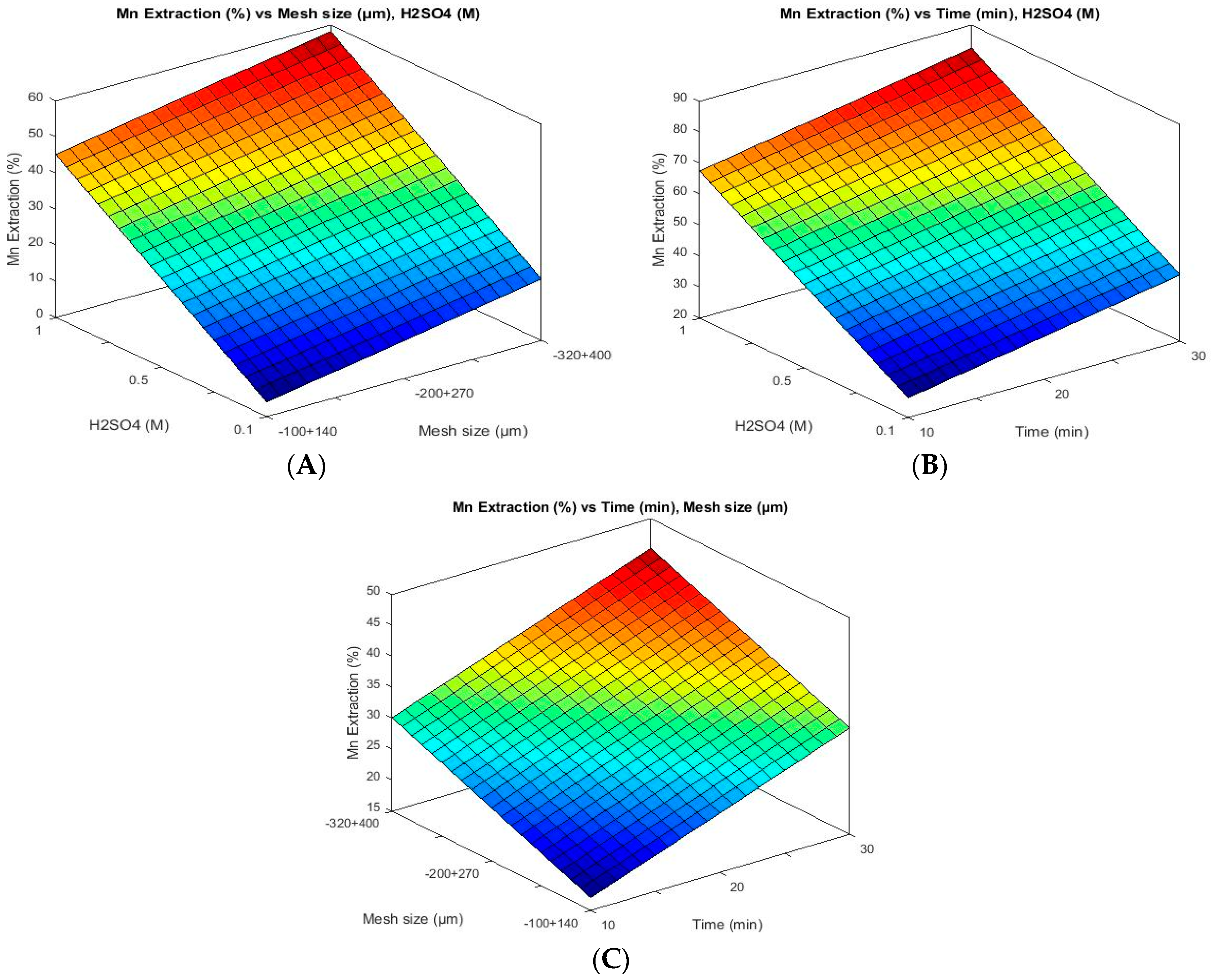

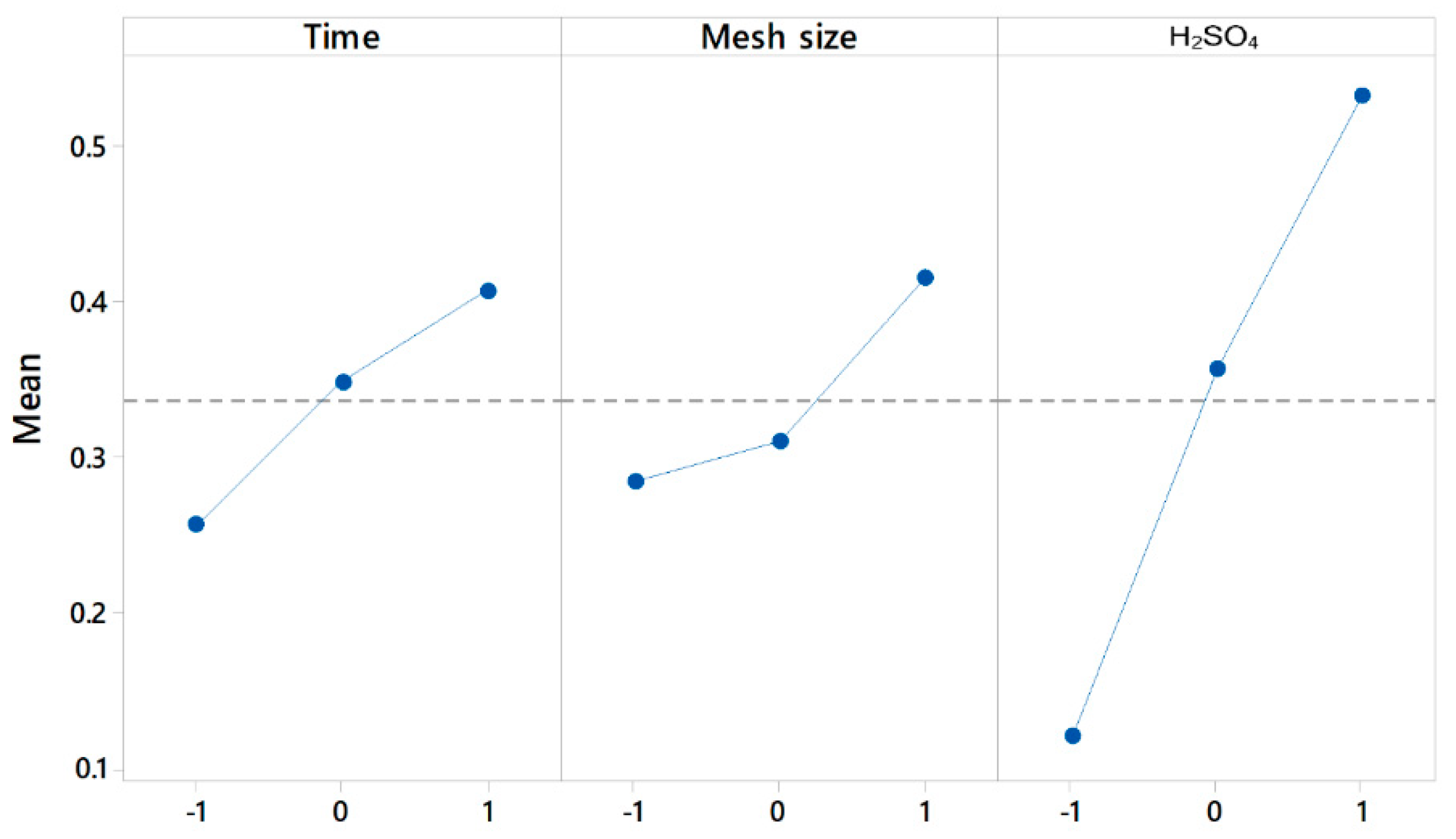

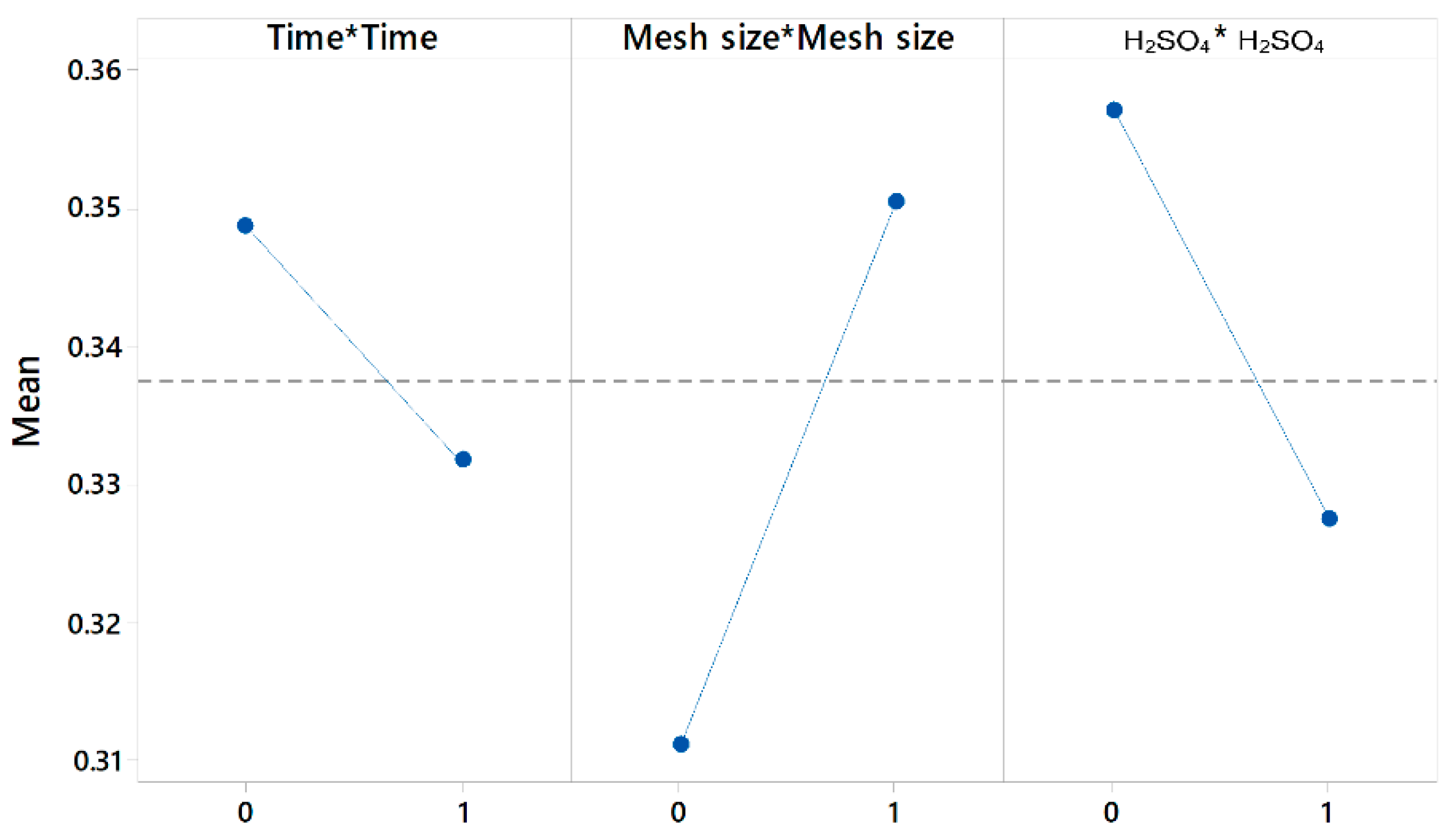

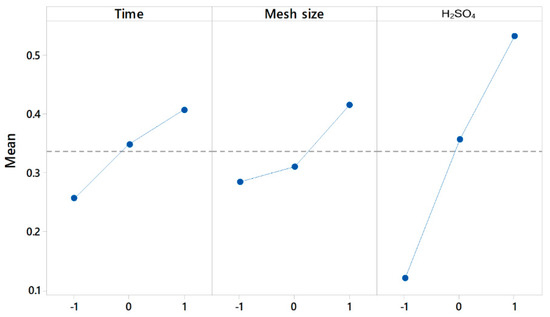

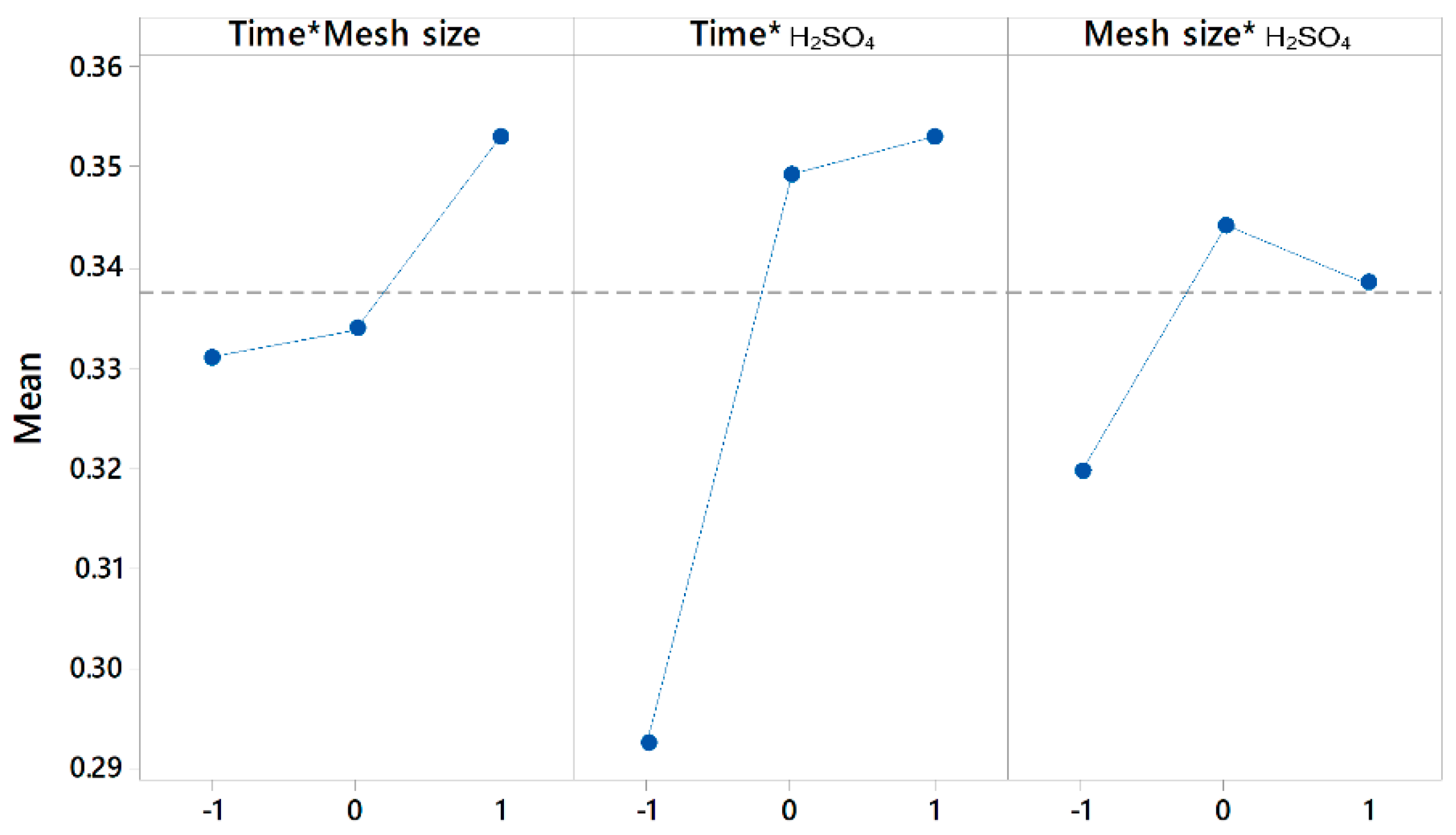

Figure 3, Figure 4 and Figure 5 show that time, size range and H₂SO₄ concentration, as well as the interaction of time and H₂SO₄, and particle size curvature significantly affected the Mn extraction.

Equation (12) presents the Mn extraction model over the range of experimental conditions after eliminating the non-significant coefficients.

$$\%Extraction=0.3112+0.0755X_1+0.0651X_2 +0.2057X_3 +0.0303X_1{X}_3 - 0.0393X_2^2$$

(12)

where $x_1$, $x_2$ and $x_3$ are coded variables that respectively represent time, particle size and H₂SO₄ concentration.

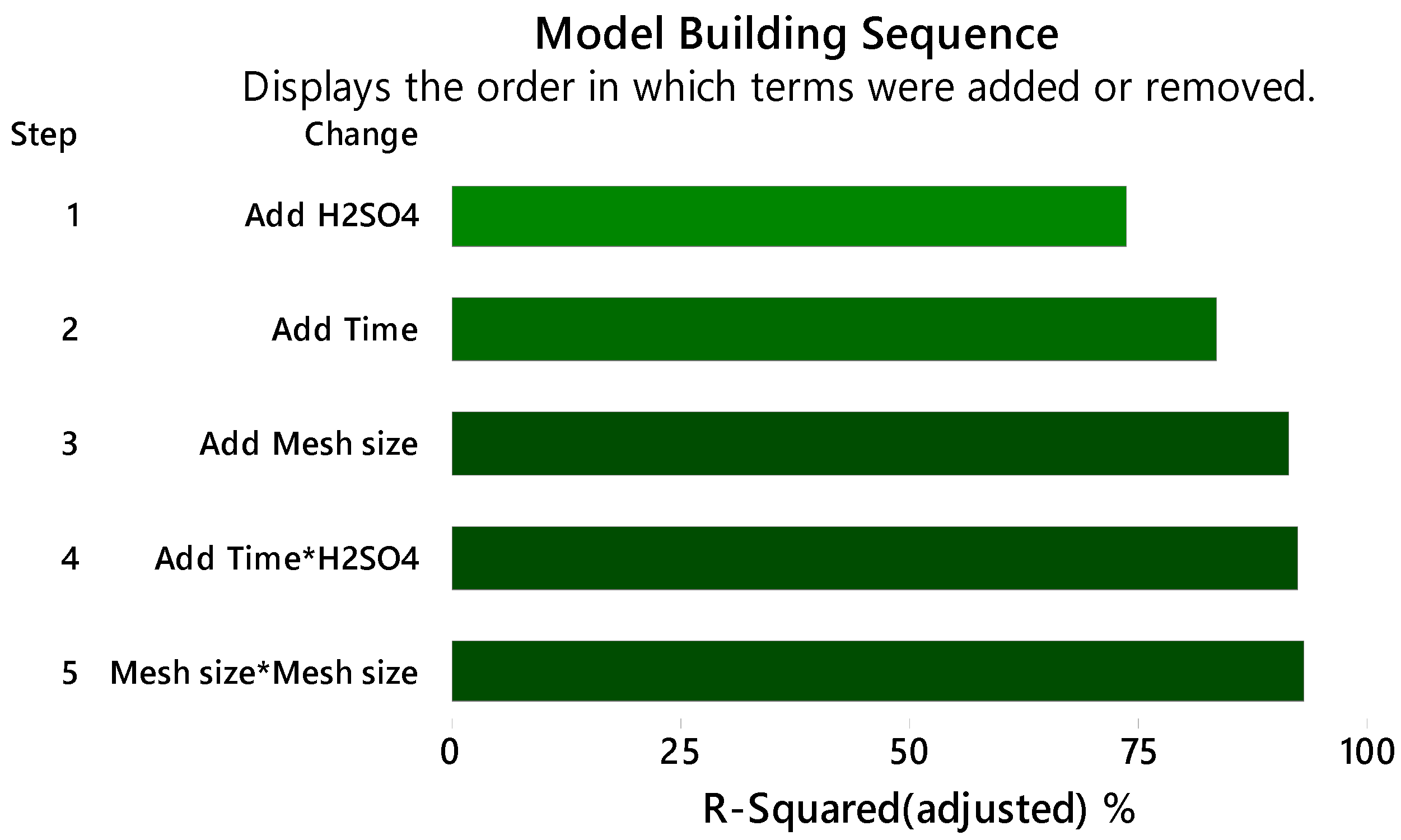

Figure 6 graphically represents the order in which parameters were added to the model, with the contribution of each variable to explaining variability.

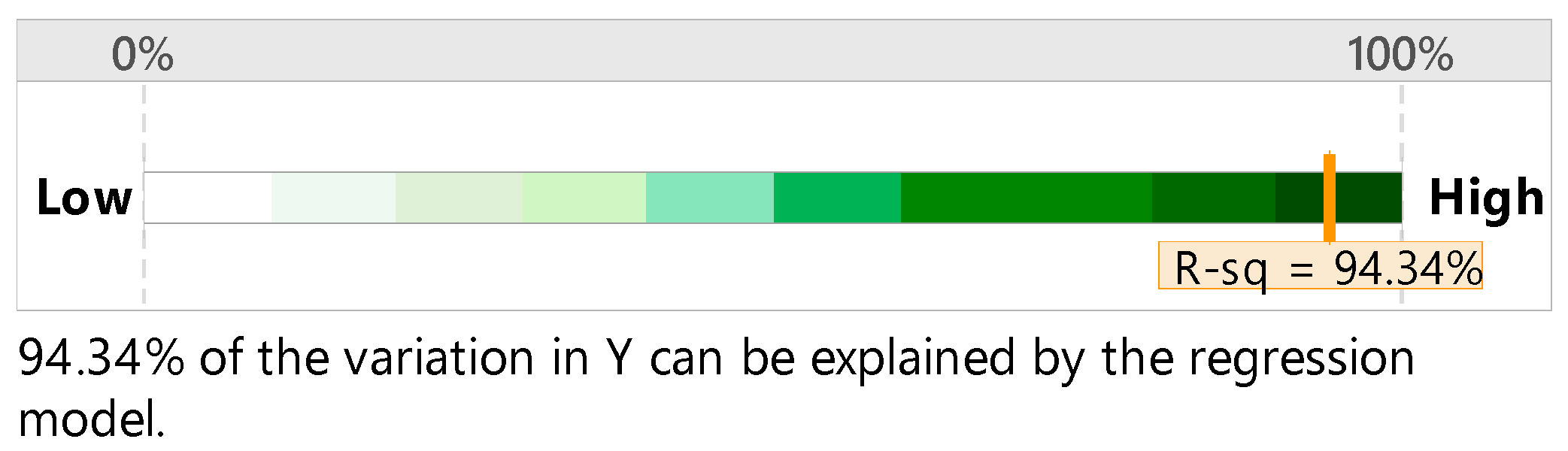

An ANOVA test indicated that the quadratic model adequately represented Mn extraction under the established parameter ranges. The model did not require adjustment and it was validated by the R² value (94.34%) (Figure 7). The ANOVA analysis showed that the indicated factors influenced the manganese extraction from regression (70.07), 5% confidence level F4.22 (2.8167).

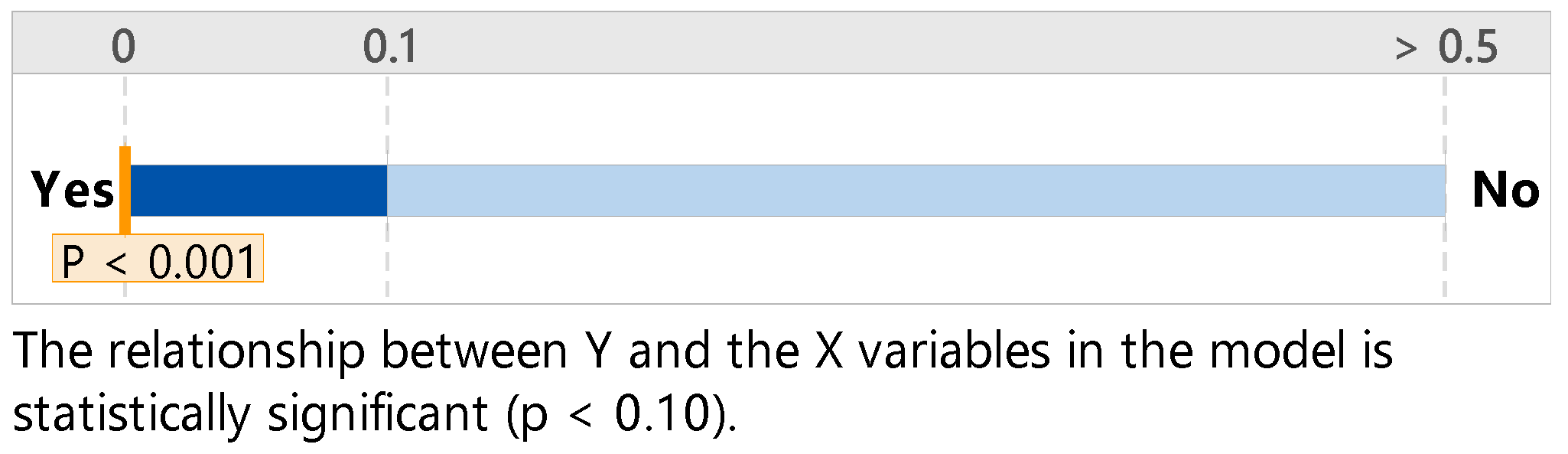

The p value (Figure 8) of the model, as represented by Equation (12), indicated that the model was statistically significant.

The Mallows’s Cp indicated that the model was relatively accurate and did not present bias in estimating the true regression coefficients. It also allows for prediction with an acceptable future forecast margin of error of R_pred = 91.13%. The response surface graphs in Figure 9A show that Mn extraction increased with a larger particle size and higher H₂SO₄ concentration. Figure 9B shows the effect of increased time and H₂SO₄ concentration, which significantly increased extraction. Finally, Figure 9C shows that Mn extraction increased with increased mesh size and time, in the context of the size parameters used in the experiment.

Finally, from the adjustment of the ANOVA analysis, it was found that the factors considered, after analysis of the main components, explained the variation in the response. The difference between the predictive R² and R² of the model was minimal, thus reducing the risk that the model was over adjusted, that is, the probability that the model fits only the sample data is lower. The ANOVA analysis indicated that H₂SO₄, time, size and curvature of the mesh are the factors that explain to a greater extent the behavior of the system for the sampled data set.

3.2. Effect of the MnO₂/Fe Ratio

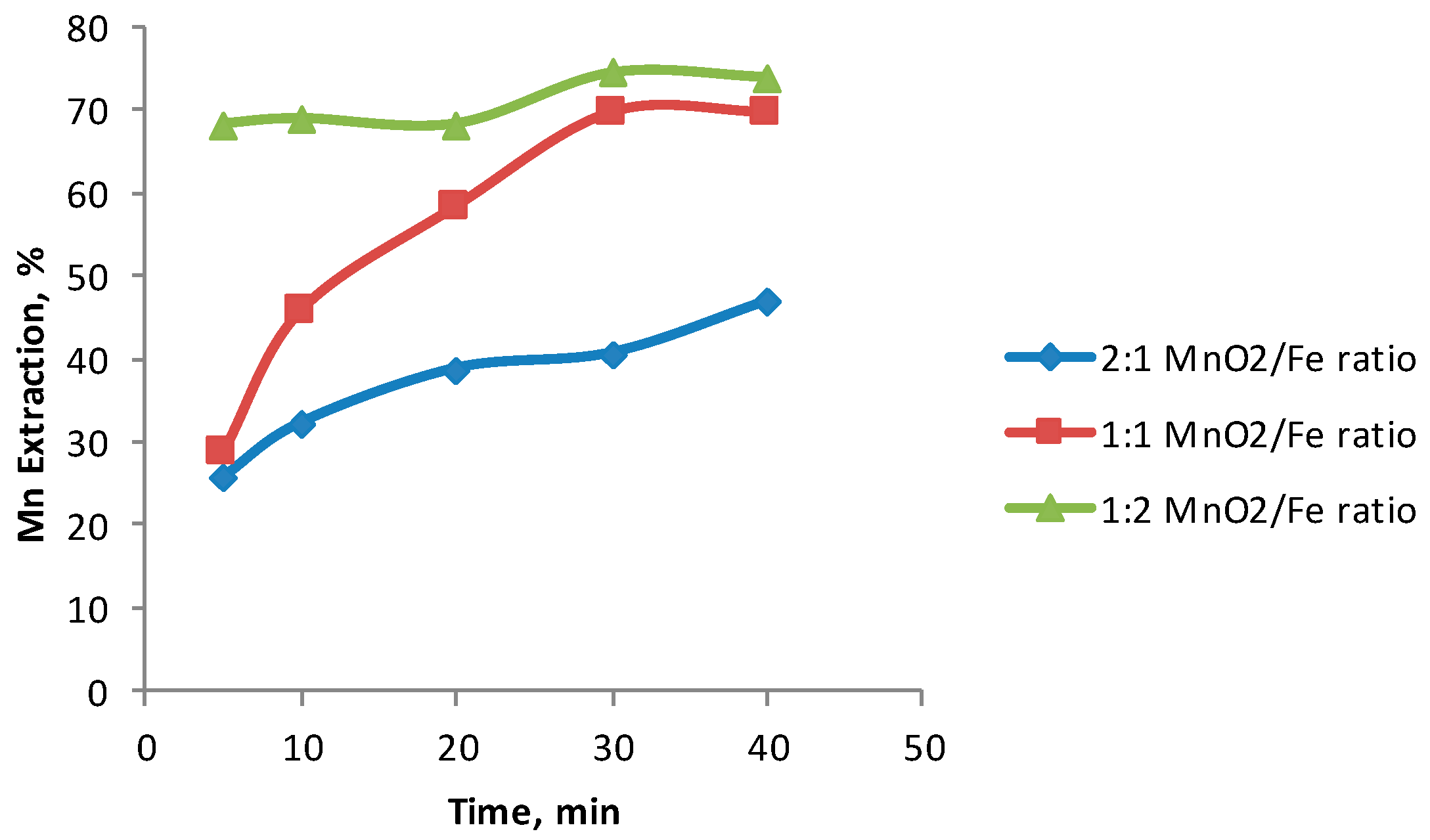

The results shown in Figure 10 indicate that the Mn extraction rates increased with higher Fe concentrations, which concurs with the conclusions of Zakeri et al. [6] and Bafghi et al. [8]. The highest Mn extraction rates were obtained with a MnO₂/Fe ratio of 1/2. However, the extraction did not tend to increase much with time. It was emphasized that this MnO₂/Fe ratio 1/ 2 resulted in high extraction rates in short periods of time, such as 68% Mn extraction in only 5 min; by decreasing the MnO₂/Fe ratio to 1/1, it was possible to obtain an Mn extraction rate of 70% in 30 min. The same tendency was noted with a 0.5 ratio, where there was a small extraction rate at 40 min, and the extraction rates were lower with shorter periods of time (5, 10 min). A low extraction rate of 47% in 40 min was obtained with an MnO₂/Fe ratio of 2/1. The leaching results support the principle of dissolution using two rate-balancing corrosion couples, MnO₂/Fe²⁺ and FeS₂/Fe³⁺, and form the theoretical background [28]. Zakeri et al. [6] obtained better results during the leaching of Mn from marine nodules using iron instead of ferrous sulphate. This is because the iron in the system maintains ferrous ion regeneration, resulting in high levels of ferrous ion and ferric ion activity [8]. Under the ranges of pH (−2 to 0.1) and potential (−0.4 to 1.4), Mn ions remain in solution and do not precipitate through oxidation-reduction reactions, given the presence of ions Fe²⁺ and Fe³⁺ [29]. Based on the positive results shown in Figure 10, slag is a viable reducing agent for Mn dissolution from marine nodules.

3.3. Effect of Particle Size

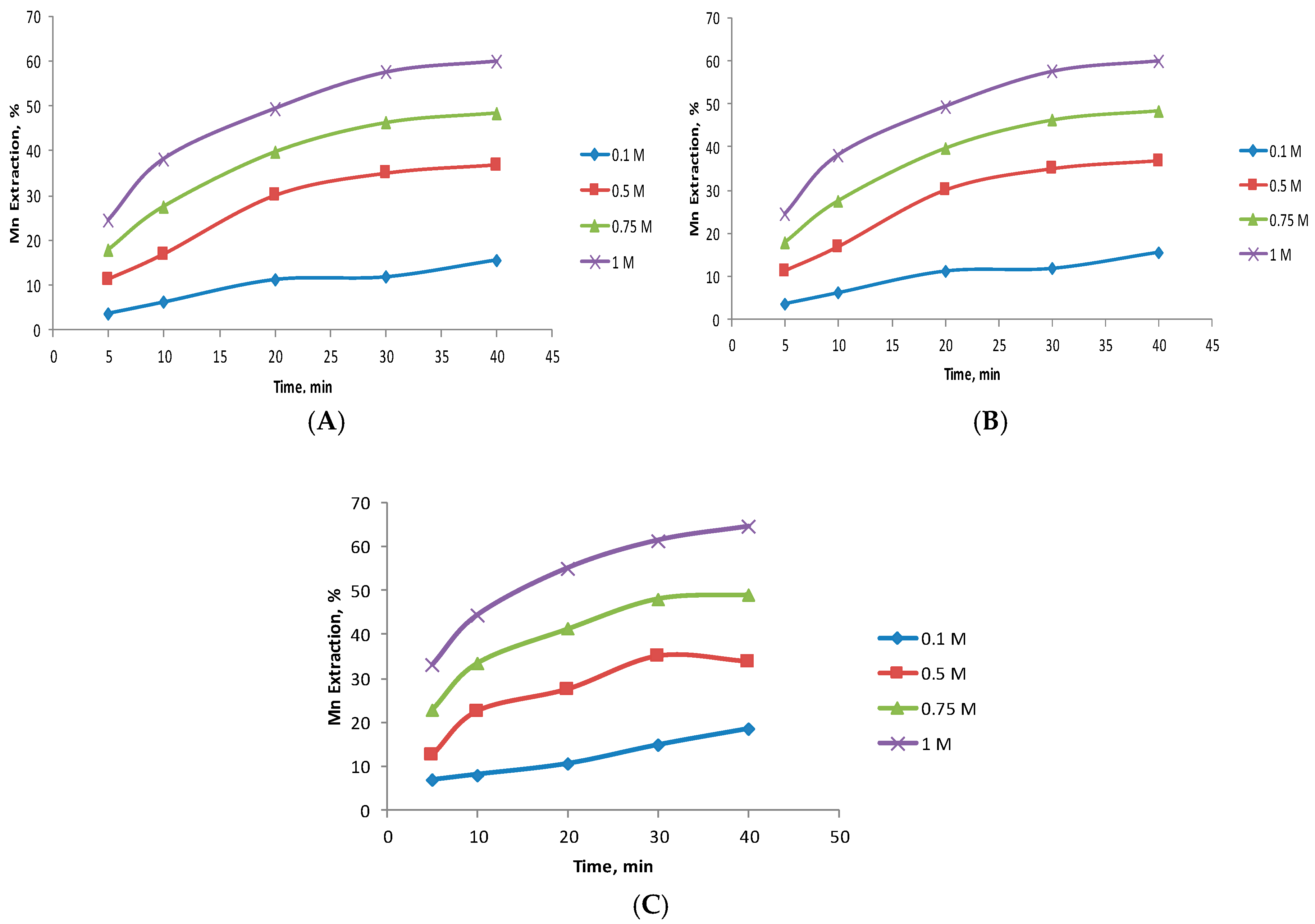

Figure 11 shows that the effect of particle size on Mn extraction was not as significant as the effect of sulfuric acid concentration. Particle size is important in the context of a sulfuric acid concentration of 1 M. The highest Mn extraction rate of 70% was obtained for particle sizes between −320 + 400 Tyler (−47 + 38 µm) mesh and an H₂SO₄ concentration of 1 M (Figure 11B). However, a similar result, with a 65% extraction rate, was obtained with the same parameters and sizes ranging between −200 + 270 Tyler mesh (−75 + 53 µm) (Figure 11C). The lowest extraction rate (60%) was obtained for particle sizes between −150 + 106 µm and 1M H₂SO₄ (Figure 11A).

Figure 11C shows that Mn extraction rates are lower with higher H₂SO₄ concentrations. Extraction did not exceed 3% with H₂SO₄ concentrations of 0.5, 0.75 and 1 M. The results obtained in this research (Figure 10 and Figure 11) indicate the promising use of an industrial waste in dissolving Mn from marine nodules. There is a need for additional research to overcome production barriers and provide technological alternatives as a viable option for extracting metals from raw materials [30]. Reusing smelter slag in element extraction also produces considerable savings in disposal costs and reduces environmental impacts, which can result in greater social acceptance of the industry.

4. Conclusions

The present investigation presents the laboratory results for dissolving Mn from marine nodules in an acid medium at room temperature (25 °C) with the use of foundry slag. The iron metal proved to be a good reducer when leaching MnO₂ in acid media. The findings of this study were:

(1) High ratios of MnO₂/Fe (0.5) and 1 M H₂SO₄ significantly shorten the manganese dissolution time (from 30 to 5 min).

(2) The MnO₂ particle size is not as significant for the extraction of Mn in solution as the concentration of H₂SO₄ in the presence of Fe from foundry slag.

(3) At low granulometries (−47 + 38 µm) the Mn extraction margins were narrower when higher H₂SO₄ concentrations were used.

(4) The highest Mn extraction obtained in this experimental study at a MnO₂ ratio of 0.5, 1 M H₂SO₄, −320 + 400 Tyler mesh (−47 + 38 µm), with 30 min of leaching was 61.4%.
