Design and Experiments of a Two-Stage Fuzzy Controller for the Off-Center Steer-by-Wire System of an Agricultural Mobile Robot

Abstract

This paper focuses on the steering motion control of an in-wheel motor-drive robot. The influence of the pulse-width modulation (PWM) duty cycle on steering motion and the steering control method have not yet been proved. Thus, this study aimed to design a steering controller for the off-center steer-by-wire system of a robot. The influence of the PWM duty cycle on the steering motion under different conditions is firstly tested on a test bench. Based on the optimal duty cycles of different cases found in the test, a two-stage fuzzy controller of the duty cycle is designed for the steering system. The first stage of the controller is used to dynamically adjust the PWM duty cycle of the electromagnetic friction lock (EFL). The second stage is designed to realize the self-tuning of the fuzzy controller’s quantization factor and the scale factor. Through two-stage control, the motion of the in-wheel motor and the EFL can be coordinated to realize stable and rapid steering. Considering the robots’ primary application in field roads at present, road tests were ultimately conducted to verify the proposed method. The test results show that the angle response rate of the steering arm is elevated with the increase in the steering angle signal. The proposed controller can sensitively track the target angles with smaller overshoot, yaw rate and lateral acceleration, and better steering accuracy than the PID (proportional–integral–differential) controller under different working conditions.

1. Introduction

The technological advancement of wheeled mobile robots opens the door to many new applications in digital farming [1]. Wheeled robots are widely used for repetitive, strenuous, or dull tasks [2,3,4]. Different wheeled robots have different steering systems, such as the in-wheel-motor steering system, Mecanum wheel steering system, and wheel–leg steering system [5,6]. In-wheel motor driving is of interest for its advantages of energy saving and flexibility [7]. Motion control of the steering system is a core issue for in-wheel motor-driven mobile robots. However, working conditions change continuously, presenting difficulties and challenges to steering controllers. Therefore, a steering motion controller that can quickly adapt to various steering demands is essential for an agricultural wheeled robot.

Increasing effort has been devoted to developing a steering controller for a wheeled robot. Some researchers designed a wheel force distribution controller to achieve the resultant active control moment by controlling the drive motor, steer motor, and suspension actuator [8]. In the literature, the authors of [9] proposed a steering-motor–turning-angle-based model to estimate the steering angles according to the motor turning angle and the wheel steering angles. A dual-steering mode based on direct yaw moment control was developed for multiwheel-hub-motor-driven vehicles [10]. An improved sliding mode controller was designed to adapt to the uncertainty of parameters with stable posture control performance [11]. A nonlinear decoupling control method was proposed to improve the stability and robustness of an in-wheel motor-drive electric vehicle [12]. Zhang et al. [13] proposed a disturbance observer by which the motor torque could be implemented according to wheel torque allocation. On the whole, the abovementioned research indicated that the motion control of the steering system is important for wheeled robot performance, and it is necessary to further study the steering motion controller of a wheeled robot in changing conditions.

However, the dynamics of these wheeled robots are highly coupled, nonlinear, and time-varying, presenting great challenges to motion control [14]. Additionally, the structure composed of numerous motors and electronic control units also makes the driving and steering control of mobile robots extremely complex [15]. Wheeled mobile robots face severe uncertainties in diversified working environments, making it challenging to build accurate system models for control. In these cases, traditional model-based control methods may cause divergence with their long running time or large oscillation [16]. For electrical mobile robots, intelligent steering control is very important in the control of navigation, wheel slip, stability, and braking [17,18,19,20,21,22]. An artificial neural network, genetic algorithm, and fuzzy logic can solve nonlinear problems when developing algorithms for robot controls. These methods can directly establish the controllers by avoiding the least important parameters, creating a fast response, and having easy troubleshooting and uncomplicated coding [23]. It is imperative to develop an intelligent controller to improve the steering performance of wheeled robots.

The objective of this study is to design a steering controller for the off-center steer-by-wire system of an in-wheel motor-drive robot. During the steering process, to ensure stable and effective operation, the motion of the off-center arm (OCA) needs to change dynamically according to the steering intention. Because the robot is a pure wire control structure, it is essential to study its control method to adapt to working conditions quickly. Therefore, it is necessary to study the parameter dynamic control method for the off-center steering system of the wheeled robot. We propose a two-stage fuzzy controller to match the motion of the steering mechanism to the steering intention. First, based on the character influence test of the pulse-width modulation (PWM) parameters of the electromagnetic friction lock (EFL), the influence law of the PWM parameters on an off-center steering system under different working conditions is proved. Secondly, the control method of an off-center steering system based on two-stage fuzzy logic is designed, enabling the wheeled robot to adapt to different steering intentions. Finally, the control method verification test is carried out on the road. This research can provide support for the steering motion control of this kind of wheeled robot.

The rest of the paper is organized as follows. Section 2 describes the materials and methods, including the system structure, test design, and a description of the control method. Section 3 is dedicated to the analysis of the results. Finally, the discussion and conclusion are provided in Section 4.

2. Materials and Methods

2.1. System Structure Design

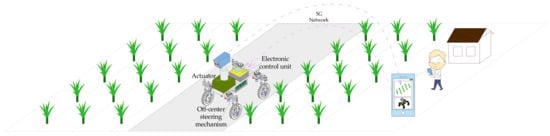

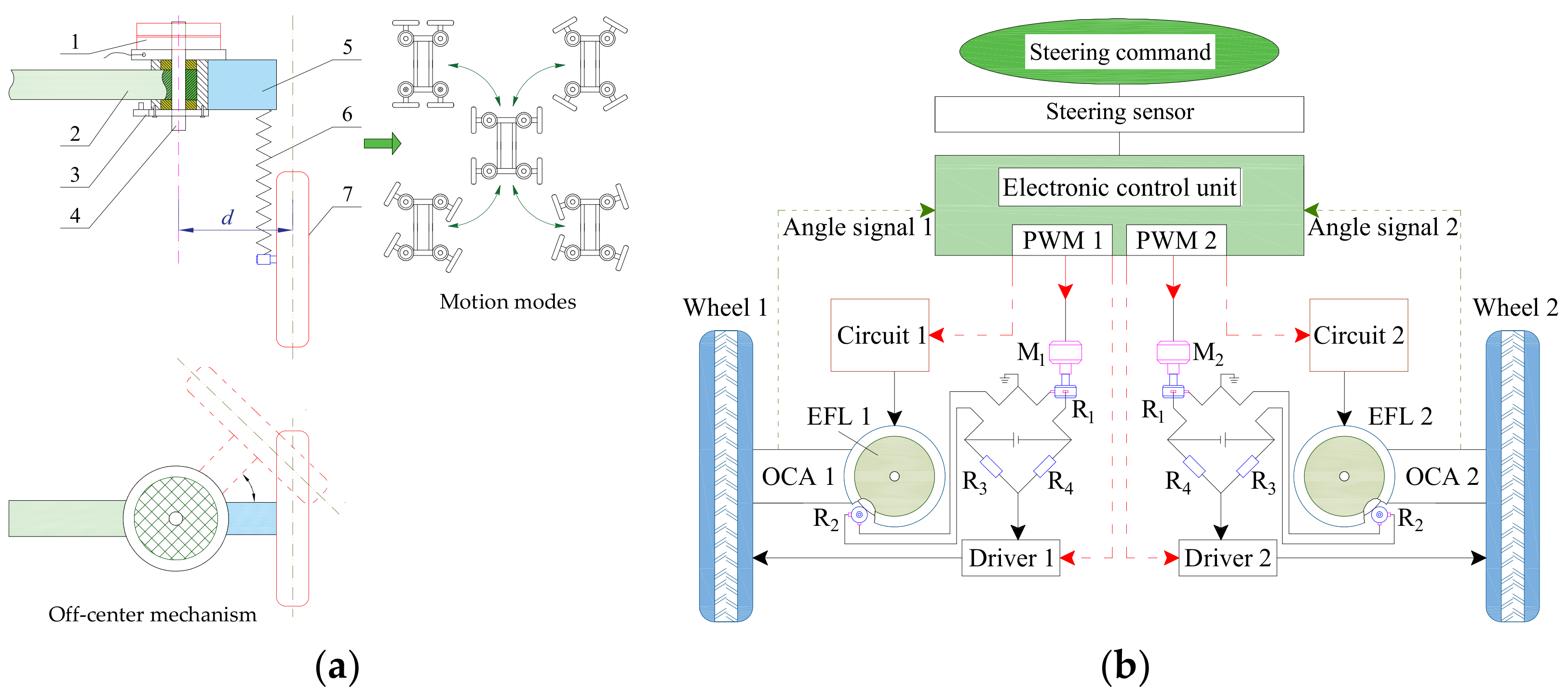

The overall structure and work scenario of the robot chassis is shown in Figure 1. The chassis mainly includes four off-center steering mechanisms, an electronic control unit, and an actuator. The field information collected by the robot is transmitted to the terminal platform through the mobile network, and the background manager can remotely control the robot and terminal actuator. Each off-center steering mechanism consists of an EFL, an off-center axis, an OCA, and an in-wheel motor (Figure 2a). By employing an off-center steering mechanism, the driving and steering systems of the robot can be combined because both the driving force and steering force come from the in-wheel motor [24]. Compared with the conventional steering system, the structure is greatly simplified. It can achieve multiple motion modes for flexible working in a narrow or closed environment [25] (Figure 2a). A tracking system based on a Wheatstone bridge circuit is used to transfer the target steering signals to the steering system [26]. Then, PWM technology is employed to control the releasing and locking of the EFL [27]. If the PWM signal is at a low level, the EFL is released. Driven by the in-wheel motor, the OCA can rotate around the steering axis in this case. If the PWM signal is at a high level, the EFL is locked, and the OCA can transfer the driving force of the wheel to the chassis.

Figure 2b shows three control signals cooperating to complete the steering. The first is the steering signal, which controls the in-wheel motor, causing it to accelerate or decelerate through the bridge circuit and motor driver, allowing the electric wheel to turn around the off-center axis. The second is the PWM signal, which controls the opening and closing of the EFL and further adjusts the angular velocity of the OCA to match the motion of the electric wheel. The third is the feedback signal of the electric wheel state, which enables the steering angle of the OCA to be constantly fed back to the electronic control unit and the steering process to achieve a closed-loop control. To maintain smooth steering, the steering command issued must enable the steering arm to rotate rapidly around the steering axis. To achieve this function, the duty cycle of the PWM control signal of the EFL must be adjusted in real time to match this movement. The PWM parameters should be dynamically adjusted according to the steering command size and driving speed to adapt to the current steering target of the robot.

2.2. Test of Steering Control Parameters

2.2.1. Test Factors and Indexes

To obtain the PWM duty cycles suitable for steering under different working conditions, this study uses a self-made steering arm test bench for duty cycle selection tests. This section discusses the influence of the PWM duty cycle on the steering performance of the OCA under different driving speeds, steering angle signal sizes, and the change rate of the steering angle. According to previous research [28], the available range of the PWM duty cycle is 20~80% and the duty cycle is set at 13 levels: 20%, 25%, 30%, 35%, 40%, 45%, 50%, 55%, 60%, 65%, 70%, 75%, and 80%. Each treatment was repeated three times and averaged.

The performance of the steering system is determined by the speed of the steering response, the accuracy of the steering angle, and the suction force between the locking plates of the EFL. The suction force only depends on the electric current of the EFL. Therefore, this test uses three indicators to evaluate the steering performance: the angular velocity of the steering arm, the angle error, and the electric current of the EFL.

2.2.2. Steering Condition Setting

Four test conditions impact the steering process, including the change value of the angle signal, angle signal change rate, traveling speed of the wheeled robot, and steering form of the off-center steering mechanism. Selecting typical working conditions for the tests is necessary to explore the steering characteristics effectively. The details are as follows:

Angle signal δ_t (target angle): During the wheeled robot’s steering process, the steering arm’s rotation angle range is 0~40°. Thus, three typical target angles are set in this test, 10°, 20°, and 30°, represented by δ_t1, δ_t2, and δ_t3 for the sake of brevity, respectively.

Angular velocity signal ω_t (target angular velocity): According to the steering requirements of the wheeled robot, three typical target angular velocities are set, 1.05 rad·s⁻¹, 3.14 rad·s⁻¹, and 5.23 rad·s⁻¹, which are represented by ω_t1, ω_t2, and ω_t3, respectively.

Rotation speed of in-wheel motor n_t: The rotation speed of the in-wheel motor can be divided into three typical speeds: slow, medium, and fast, namely, 30, 60, and 90 r·min⁻¹. These speeds are represented by n_t1, n_t2, and n_t3, respectively.

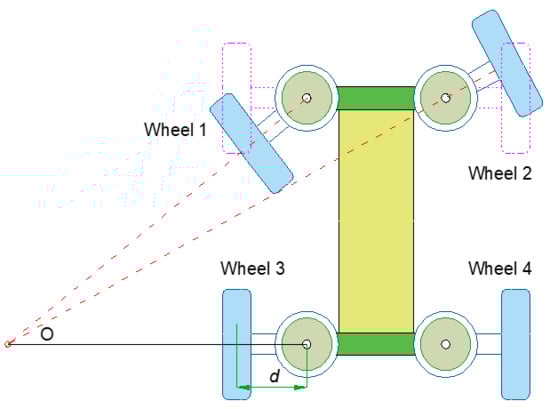

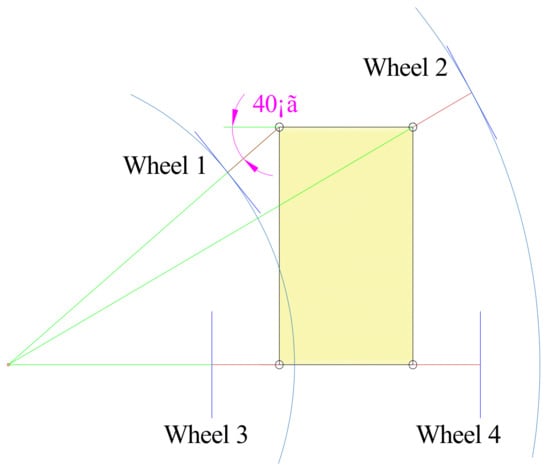

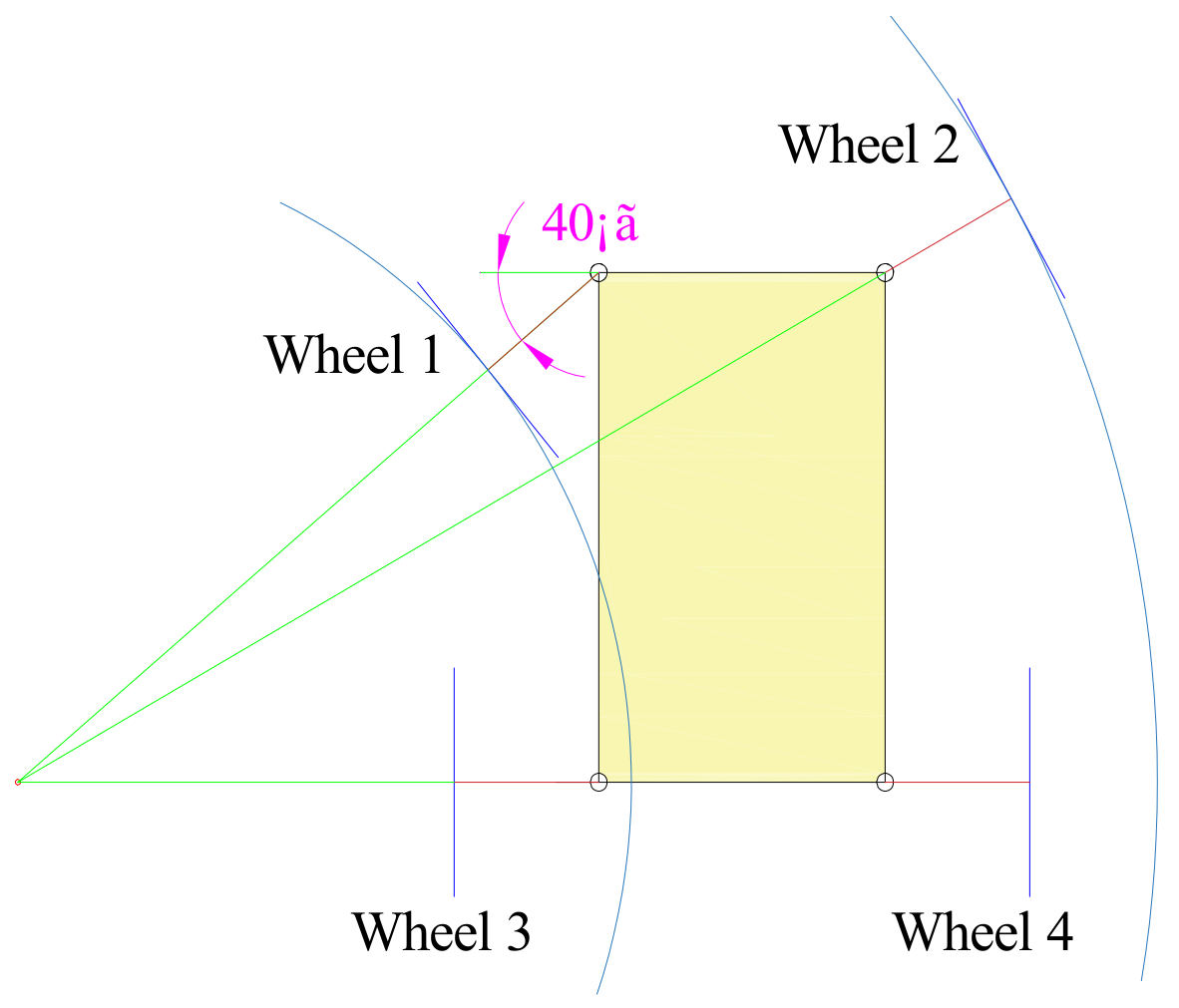

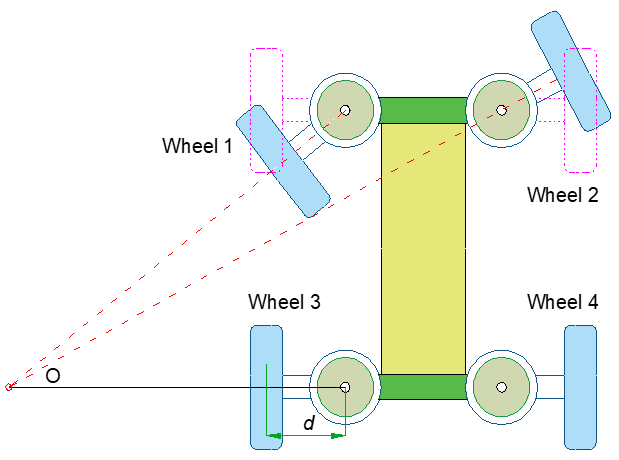

Steering form of the off-center steering mechanism: When the robot turns its two front wheels, the motion of the in-wheel motor of the left front wheel is different from that of the right front wheel (Figure 3). When the robot turns to the left direction, wheel 1 on the inner side (the wheel near the turning center O) reaches the target angle through deceleration, and wheel 2 on the outer side (the wheel away from the turning center O) reaches the target angle through acceleration. When the robot turns to the right, the principle is just the opposite. The motion state of the outer steering arm is denoted as m_t1, and the motion state of the inner steering arm is denoted as m_t2. The parameter codes are presented in

Table 1. List of test cases.

Steering Form		Rotation Speed of In-Wheel Motor (r·min−1)		Angle Signal (°)		Angular Velocity Signal (rad·s−1)
mt1	Motion of inner side wheel	nt1	30	δt1	10	ωt1	1.05
		nt2	60	δt2	20	ωt2	3.14
mt2	Motion of outer side wheel	nt3	90	δt3	30	ωt3	5.23

. In total, there are 54 combinations of the abovementioned working conditions.

2.2.3. Test Method

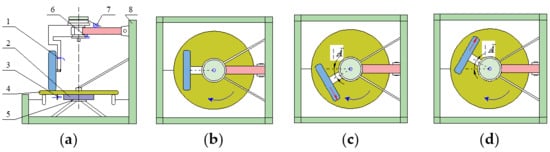

Figure 4 shows the structural diagram of the steering arm test bench [29]. The steering arm can rotate around the steering axis on the test bench. The wheel is placed vertically on the horizontal turntable. During the test, the horizontal turntable and the in-wheel motor run at the same initial rotation speed through the controller. The steering arm’s movement under different initial in-wheel motor rotation speeds can be simulated in the test bench. After the test, the data acquisition and data storage are stopped. The equipment returns to zero and waits for the next test. Section 2.2.2 describes the initial rotation speed, divided into 30, 60, and 90 r·min⁻¹. Then, the tests are carried out according to different combinations of steering form, angle signal, and angular velocity signal.

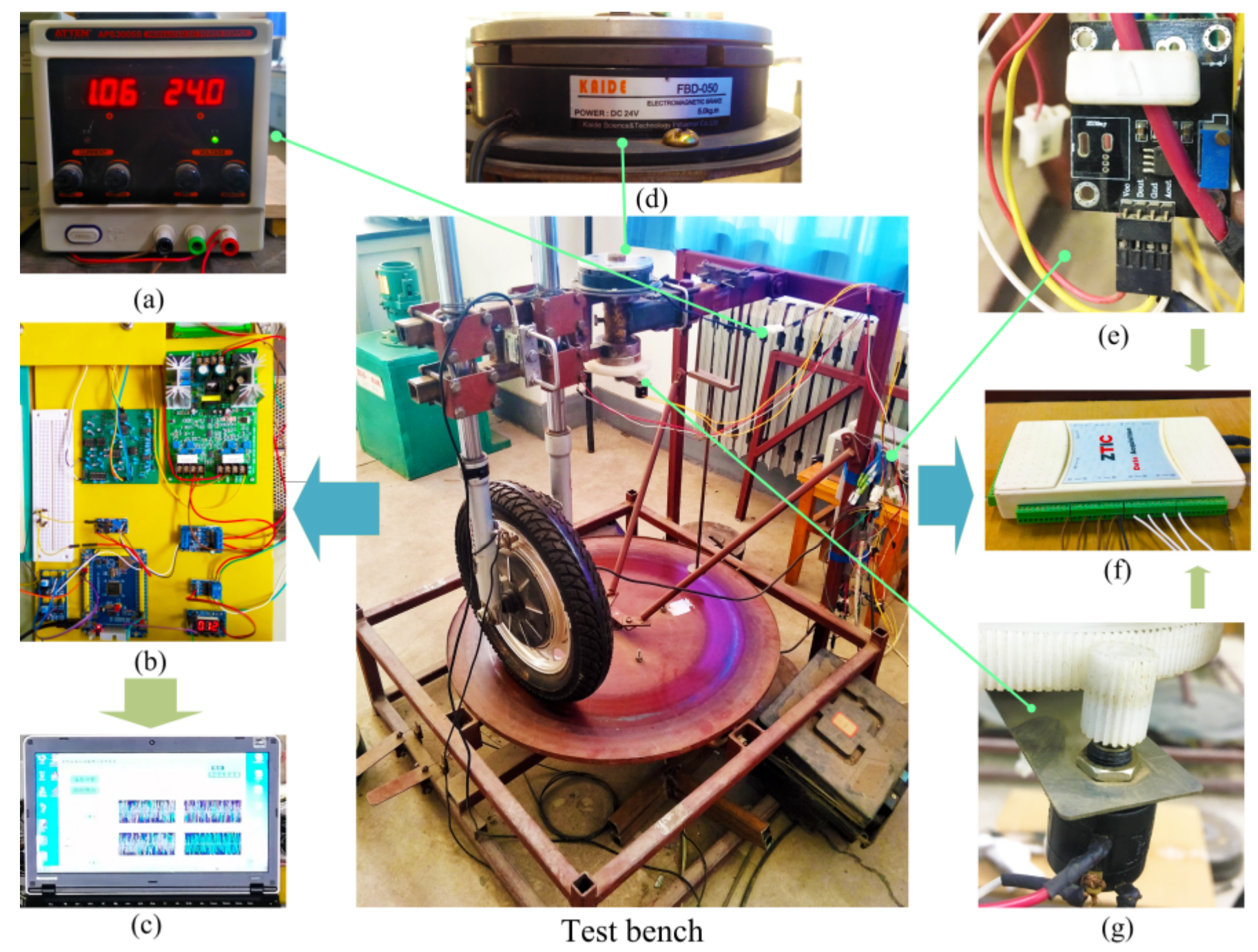

Figure 4a shows the composition of the test bench. The angular transducer (22hp-10, 0–5 KΩ, Sakae Company, Japan) is used to detect the steering angle of the OCA, and the electric current sensor is used to obtain the electric current of the EFL. The accurate process time is obtained from the clock of the data acquisition system. Figure 4b shows the initial position before the test. Figure 4c simulates the rotation process of the left front wheel when the robot moves forward, and Figure 4d simulates the rotation process of the right front wheel. The object of the steering test bench is shown in Figure 5.

The steering duration t is obtained through the data acquisition system (Figure 5b,f), and the angular velocity of the steering arm is computed as follows:

$${\omega }_s=\frac{{\delta }_s}{t}$$

(1)

where t is the steering duration (s) and δ_s is the actual angle of steering (°).

Since the angle signal collected by the angular transducer (Figure 5g) is a voltage signal, it is necessary to calibrate the numerical relationship between the angle δ_s and the voltage U_δ. After calibration, there is a linear relationship between them, shown as Equation (2).

$${\delta }_s=0.7109 U_{\delta }$$

(2)

where U_δ is the voltage difference caused by the change in the angular transducer (V).

The rotation angle error δ_er is the difference between the actual angle and the target angle, presented as Equation (3).

$${\delta }_{er}={\delta }_s-{\delta }_t$$

(3)

where δ_t is the target angle (°).

The electric current measured by the Hall current sensor (Figure 5e) is presented as voltage in the data acquisition system. Through calibration, the relationship between the electric current and voltage is shown, as follows:

$$I_c=0.0167 U_I$$

(4)

where U_I is the voltage difference caused by the electric current change in the EFL (V).

2.2.4. Analysis of Optimal Duty Cycle

As this test has three indexes, it is necessary to consider all indexes for a comprehensive evaluation. Methods for the weight allocation of each index in comprehensive evaluation can be classified into the objective method and the subjective method. Subjective weight is determined only by the experience of the decision-maker. Objective weight is decided by solving mathematical models without the decision-maker’s preferences, for example, the entropy method, principal element analysis, multiple objective programming, etc. Compared with subjective methods, the entropy method can avoid the error caused by the human factor [30]. The index weight is determined by the observation value of each index [31]. The entropy method has simple operation and is suitable for the comprehensive evaluation of this study. Thus, the angular velocity of the OCA ω_s, rotation angle error δ_er and electric current of EFL I_c are unified as a comprehensive evaluation index through the entropy method. It is assumed that there are a (a = 13) test groups and b (b = 3) indexes, while λ_ij is introduced to denote the j indexes of the i test group (i represents 1, 2, …, and a, j denotes 1, 2, …, and b). The process of the entropy method is summarized as follows.

(1) Standardization of the index.

Because larger values of ω_s lead to a better index, a positive index equation is used:

$$\lambda {\prime }_{ij}=\frac{{\lambda }_{ij}-\min \{{\lambda }_{1j},\cdot \cdot \cdot ,{\lambda }_{aj}\}}{\max \{{\lambda }_{1j},\cdot \cdot \cdot ,{\lambda }_{aj}\}-\min \{{\lambda }_{1j},\cdot \cdot \cdot ,{\lambda }_{aj}\}}$$

(5)

Smaller values of δ_er and I_c lead to a better index, so a negative index equation is used:

$$\lambda {\prime }_{ij}=\frac{\max \{{\lambda }_{1j},\cdot \cdot \cdot ,{\lambda }_{aj}\}-{\lambda }_{ij}}{\max \{{\lambda }_{1j},\cdot \cdot \cdot ,{\lambda }_{aj}\}-\min \{{\lambda }_{1j},\cdot \cdot \cdot ,{\lambda }_{aj}\}}$$

(6)

(2) The weight of each index is computed as:

$$p_{ij}=\lambda {\prime }_{ij}/({\displaystyle \sum _{i=1}^a\lambda {\prime }_{ij}})$$

(7)

(3) The entropy value of the j index is given by:

$$e_j=-k{\displaystyle \sum _{i=1}^a{p}_{ij}}\ln (p_{ij})(k=1/\ln (a))$$

(8)

(4) The information entropy redundancy of the j index is expressed as:

$$r_j=1-e_j$$

(9)

(5) The weight of the j index is computed as:

$$g_j=r_j/({\displaystyle \sum _{j=1}^b{r}_j})$$

(10)

(6) The comprehensive evaluation index is expressed as:

$$Y_i={\displaystyle \sum _{j=1}^a{g}_j{p}_{ij}}$$

(11)

Based on the above evaluation procedure, the comprehensive evaluation index value can be obtained (cf. Equation (11)). The closer the index comprehensive evaluation index is to 1, the better the performance of the steering.

Deduced by the entropy method, the average angular velocity of the steering arm, angle error, and electric current of the EFL are 0.3, 0.3, and 0.4, respectively. Finally, the comprehensive indexes under various working conditions are drawn into a scatter curve, as presented in Figure 6.

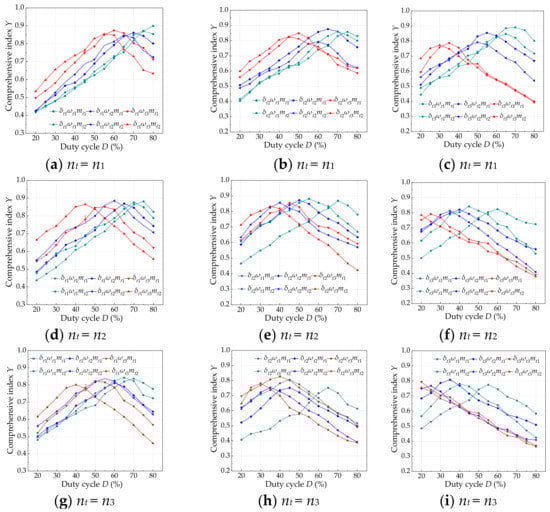

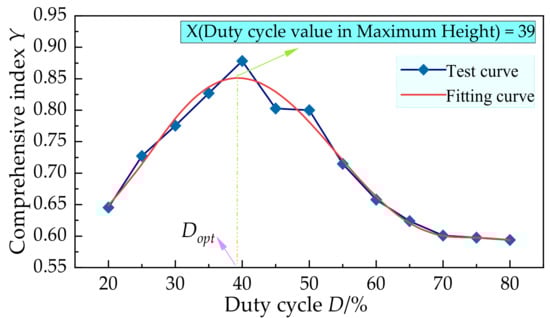

From Figure 6, under the test condition of n_t1-δ_t1-ω_t1, the comprehensive index shows an increasing linear trend with the growth of the duty cycle. Except for under the n_t1-δ_t1-ω_t1 condition, the comprehensive indexes increase until reaching the maximum point and decrease afterwards under all other test conditions. The comprehensive index has a maximum value for each working condition and the corresponding duty cycle of the maximum index value is the optimal duty cycle (denoted as D_opt) under each condition.

In order to obtain the optimal duty cycle under all test conditions, the 1stOpt software (15 Pro; 7D High Technology Inc., China) was used to conduct nonlinear regression on the relationship between the index value and the duty cycle. For example, in the n_t2-δ_t2-ω_t2-m_t2 case, the fitting curve is shown in Figure 7 and the regression equation is presented as Equation (12). The duty cycle corresponding to the peak value of the fitting curve is the optimal duty cycle. With this method, the optimal duty cycle under all test conditions can be obtained, and the results are shown in

Table 2. Optimal duty cycles under different test conditions.

Steering Cases (mt1)			Dopt (%)	Steering Cases (mt2)			Dopt (%)
nt (r·min−1)	δt (°)	ωt (rad·s−1)		nt (r·min−1)	δt (°)	ωt (rad·s−1)
nt1 (30)	δt1 (10)	ωt1 (1.05)	80	nt1 (30)	δt1 (10)	ωt1 (1.05)	76
nt1 (30)	δt1 (10)	ωt2 (3.14)	71	nt1 (30)	δt1 (10)	ωt2 (3.14)	67
nt1 (30)	δt1 (10)	ωt3 (5.23)	59	nt1 (30)	δt1 (10)	ωt3 (5.23)	55
nt1 (30)	δt2 (20)	ωt1 (1.05)	77	nt1 (30)	δt2 (20)	ωt1 (1.05)	72
nt1 (30)	δt2 (20)	ωt2 (3.14)	66	nt1 (30)	δt2 (20)	ωt2 (3.14)	59
nt1 (30)	δt2 (20)	ωt3 (5.23)	51	nt1 (30)	δt2 (20)	ωt3 (5.23)	45
nt1 (30)	δt3 (30)	ωt1 (1.05)	69	nt1 (30)	δt3 (30)	ωt1 (1.05)	65
nt1 (30)	δt3 (30)	ωt2 (3.14)	54	nt1 (30)	δt3 (30)	ωt2 (3.14)	50
nt1 (30)	δt3 (30)	ωt3 (5.23)	36	nt1 (30)	δt3 (30)	ωt3 (5.23)	30
nt2 (60)	δt1 (10)	ωt1 (1.05)	76	nt2 (60)	δt1 (10)	ωt1 (1.05)	71
nt2 (60)	δt1 (10)	ωt2 (3.14)	66	nt2 (60)	δt1 (10)	ωt2 (3.14)	60
nt2 (60)	δt1 (10)	ωt3 (5.23)	54	nt2 (60)	δt1 (10)	ωt3 (5.23)	44
nt2 (60)	δt2 (20)	ωt1 (1.05)	71	nt2 (60)	δt2 (20)	ωt1 (1.05)	57
nt2 (60)	δt2 (20)	ωt2 (3.14)	50	nt2 (60)	δt2 (20)	ωt2 (3.14)	39
nt2 (60)	δt2 (20)	ωt3 (5.23)	46	nt2 (60)	δt2 (20)	ωt3 (5.23)	36
nt2 (60)	δt3 (30)	ωt1 (1.05)	59	nt2 (60)	δt3 (30)	ωt1 (1.05)	43
nt2 (60)	δt3 (30)	ωt2 (3.14)	39	nt2 (60)	δt3 (30)	ωt2 (3.14)	34
nt2 (60)	δt3 (30)	ωt3 (5.23)	24	nt2 (60)	δt3 (30)	ωt3 (5.23)	20
nt3 (90)	δt1 (10)	ωt1 (1.05)	71	nt3 (90)	δt1 (10)	ωt1 (1.05)	64
nt3 (90)	δt1 (10)	ωt2 (3.14)	60	nt3 (90)	δt1 (10)	ωt2 (3.14)	55
nt3 (90)	δt1 (10)	ωt3 (5.23)	52	nt3 (90)	δt1 (10)	ωt3 (5.23)	39
nt3 (90)	δt2 (20)	ωt1 (1.05)	65	nt3 (90)	δt2 (20)	ωt1 (1.05)	44
nt3 (90)	δt2 (20)	ωt2 (3.14)	44	nt3 (90)	δt2 (20)	ωt2 (3.14)	36
nt3 (90)	δt2 (20)	ωt3 (5.23)	40	nt3 (90)	δt2 (20)	ωt3 (5.23)	28
nt3 (90)	δt3 (30)	ωt1 (1.05)	55	nt3 (90)	δt3 (30)	ωt1 (1.05)	41
nt3 (90)	δt3 (30)	ωt2 (3.14)	35	nt3 (90)	δt3 (30)	ωt2 (3.14)	23
nt3 (90)	δt3 (30)	ωt3 (5.23)	20	nt3 (90)	δt3 (30)	ωt3 (5.23)	20

. From Table 2, it can be seen that the optimal duty cycle varies under different test conditions. To maintain the good steering performance of the robot, the duty cycle of the PWM signal should be adjusted in real time to adapt to dynamic driving conditions according to the optimal duty cycles obtained.

Y(D) = 1.85 − 0.194D + 0.0108D² − 2.54 × 10⁻⁴D³ + 2.67 × 10⁻⁶D⁴ − 1.04 × 10⁻⁸D⁵ (R² = 0.9801)

(12)

2.3. Control Method Design for Steering

2.3.1. Structure of the Control System

As the working condition of the wheeled robot is nonlinear and random, it is difficult to conduct steering control only based on the mathematical model. To adjust the PWM signal according to the obtained optimal duty cycles, it is necessary to find a method to quickly identify the steering signal, including the change value of the angle signal and angular velocity signal. There are two methods for signal identification: fuzzy logic and artificial neural networks. Artificial neural networks need a considerable amount of basic data for network training. The fuzzy control method does not need a precise mathematical model of the system and too much data for rule-making. Thus, this paper introduces a fuzzy control method to identify the change value of the angle signal and angular velocity signal.

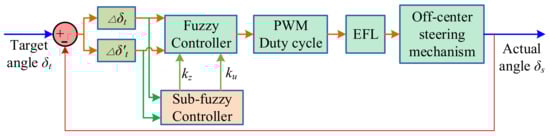

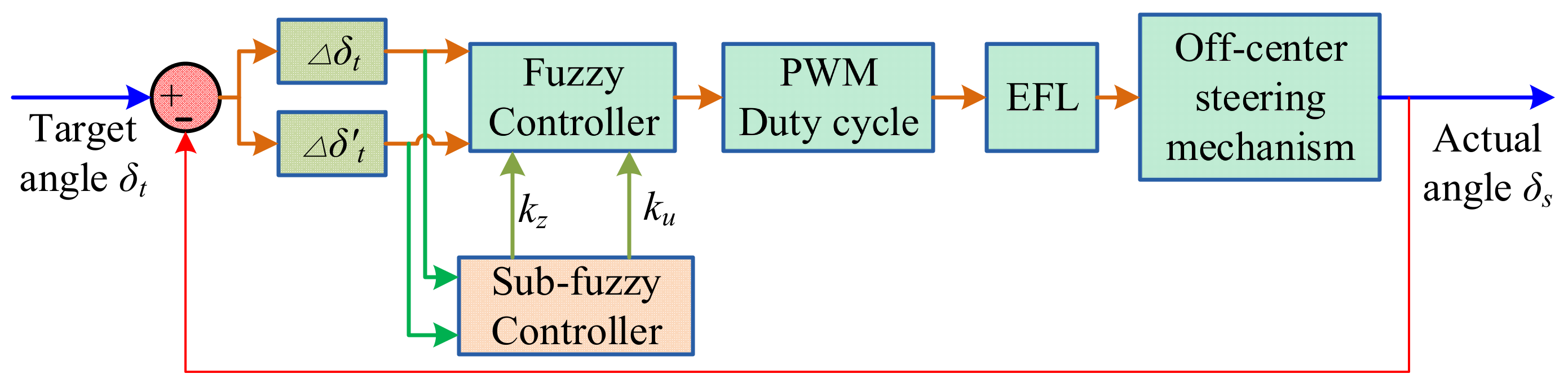

The structure of the PWM duty cycle fuzzy control method of the steering system is presented in Figure 8. The system’s input is the target angle signal (δ_t) and the output is the actual steering angle (δ_s). The input signal is then decomposed into the change value of the angle signal and angular velocity signal (denoted as ∆δ_t and ∆δ′_t, respectively), and both are input into the fuzzy controller. The fuzzy control rules are designed to judge the input working conditions composed of these two signals. The quantization factor (k_z) and scale factor (k_u) are adjusted by a sub-fuzzy controller. The duty cycle is then adjusted according to the optimal PWM duty cycle obtained previously. In this way, the angular velocity of the OCA, steering angle error, and electric current of the EFL can be dynamically adjusted, and the steering effect can be improved. Therefore, the proper design of a fuzzy controller is the key to the dynamic control of the PWM signal.

2.3.2. Design of Fuzzy Controller

As the fuzzy controller has two input signals, a two-dimensional controller is adopted in this study. The inputs of the fuzzy control are the change value of the angle signal and angular velocity signal. The output is the duty cycle of the PWM signal (D_c). To increase the controller’s sensitivity, the input/output language variable values are divided into seven fuzzy subsets from small to large: NB, NM, NS, ZE, PS, PM, and PB. As shown in Figure 9, the maximum steering angle of the wheel is 40°. The angle is denoted as +40° when the OCA turns clockwise around the off-center axis, and −40° when it turns counterclockwise. Thus, the basic domain of the fuzzy controller is set as [−40°, +40°].

It can be found from the pretest that the maximum angular velocity of the OCA is 0.52 rad·s⁻¹. Therefore, considering the direction of rotation, the basic domain of the angle transformation rate is [−0.52 rad·s⁻¹, +0.52 rad·s⁻¹]. The range of the duty cycle is [20%, 80%]. To facilitate the implementation of fuzzy control, the basic domain is set as [0.2, 0.8].

In fuzzy control, it is necessary to convert the basic domain into a fuzzy domain for easy implementation, which is converted by Equation (13). Here, [α, β] is the basic domain of the variable. By this method, the fuzzy domain of ∆δ_t, ∆δ′_t, and D_c is set as [−6, 6], [−6, 6], and [−6, 6], respectively.

$$y=\frac{12}{\alpha -\beta }\left[x-\frac{\alpha +\beta }{2}\right]$$

(13)

where x denotes the actual value of the variable and y denotes the value of the variable in the fuzzy domain.

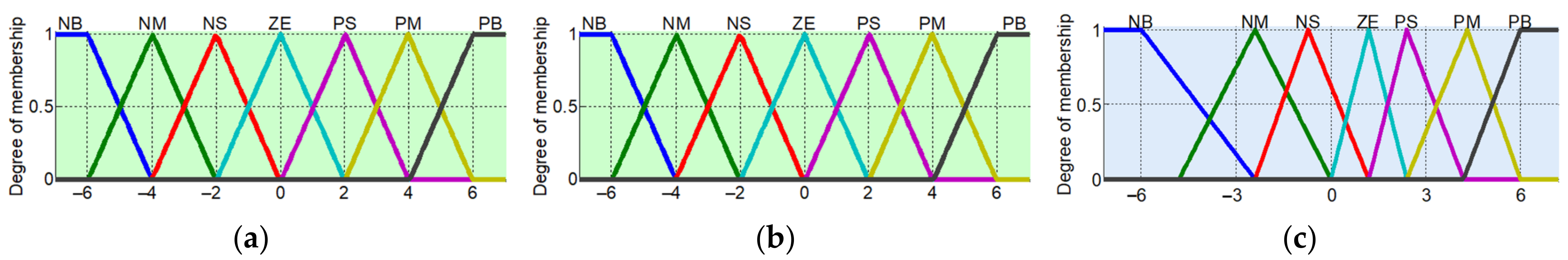

When ∆δ_t and ∆δ′_t are zero, they are used as a ZE subset. The trigonometric function with high sensitivity is selected as the membership function for input and output. The membership function curve is shown in Figure 10. According to the steering control demands, the fuzzy rules are formulated, as shown in

Table 3. Fuzzy control rules of PWM duty cycle.

Fuzzy Rules	Change in Angular Velocity
		NB	NM	NS	ZE	PS	PM	PB
Change in angle signal	NB	PB	PB	PM	PM	PS	PS	ZE
	NM	PB	PB	PM	PM	PS	ZE	NS
	NS	PM	PM	PS	PS	ZE	NS	NS
	ZE	PM	PM	PS	ZE	NS	NM	NM
	PS	PS	PS	ZE	NS	NS	NM	NM
	PM	PS	ZE	NS	NM	NM	NB	NB
	PB	ZE	NS	NS	NM	NM	NB	NB

. The center of gravity method is used to solve the fuzzy rules, as shown in Equation (14).

$$\eta =\frac{{\displaystyle \sum {\mu }_i\cdot f({\mu }_i)}}{{\displaystyle \sum f({\mu }_i)}}$$

(14)

where η denotes the output value of the fuzzy controller, μ_i denotes the membership, and f(μ_i) denotes the trigonometric membership function.

2.3.3. Parameter Self-Tuning of Fuzzy Controller

(1)

Definition of quantization factor and scale factor

The quantization factor and scale factor are key parameters that affect the impact of fuzzy control. If the basic domain of the input of the fuzzy controller is [−x₁, x₂] and the corresponding fuzzy domain is [−r, -r + 1, …, 0, r − 1, r], the quantization factor of the fuzzy controller can be expressed as k_z = r/x. The basic domain of the quantization factor is [−r/x₁, r/x₂]. If the basic domain of the output of the fuzzy controller is [−y₁, y₂] and the corresponding fuzzy domain is [−l, −l + 1, …, 0, l − 1, l], the scale factor of the fuzzy controller can be expressed as k_u = y/l. The basic domain of the scale factor is [−y₁/l, y₂/l].

However, achieving a good control effect by only using fixed quantization and scale factors is difficult. Thus, this study uses the self-tuning method of the quantization factor and scale factor to continuously adjust the fuzzy controller parameters based on the changing conditions. The adaptive performance of the system can be enhanced in this way.

The quantization factor of the change value of the angle signal and angular velocity, and the scale factor of the PWM signal duty cycle, is denoted as k_z1, k_z2, and k_uo, respectively. According to the steering demands of the robot, when both ∆δ_t and ∆δ′_t have high values, it is necessary to properly reduce k_z1 and k_z2 to cut the resolution of the working conditions and increase k_uo to improve the response rate. When both ∆δ_t and ∆δ′_t have low values, it is necessary to increase k_z1 and k_z2 to improve the resolution of the working conditions and the response rate and reduce k_uo to diminish overshoot.

(2)

Self-correction of quantization factor and scale factor

A secondary fuzzy controller is designed to realize the self-tuning of fuzzy controller’s quantization and scale factors. The initial quantization factors of ∆δ_t and ∆δ′_t are 2 and 20, respectively, and the initial scale factor of D_c is 1. The basic domain of k_z1, k_z2, and k_uo is [−2, 2], [−20, 20], and [0.2, 0.8], respectively. After transformation by Equation (13), the fuzzy domain of k_z1, k_z2, and k_uo, is [−6, 6], [−6, 6], and [−6, 6], respectively. Since the high sensitivity in the self-tuning process is not conducive to steering control, the convex function membership curve is selected in the secondary controller, as shown in Figure 11. The input/output language variable values are divided into five fuzzy subsets from small to large: NB, NS, ZE, PS, and PB. Based on this, the fuzzy rules of k_z1 and k_z2 are shown in

Table 4. Fuzzy control rules of quantization factor/scale factor.

Fuzzy Rules for Quantization Factor/Scale Factor	Change in Angular Velocity
		NB	NS	ZE	PS	PB
Change in angle signal	NB	PB/NB	PM/NM	PM/NS	PS/NS	ZE/ZE
	NS	PM/NM	PS/NS	PS/NS	ZE/ZE	NS/PS
	ZE	PM/NM	PS/NS	ZE/ZE	NS/PS	NM/PM
	PS	PS/NS	ZE/ZE	NS/PS	NS/PS	NB/PB
	PB	ZE/ZE	NS/NS	NM/PM	NM/PM	NB/PB

. The center of gravity method is also used to solve the fuzzy rules.

2.4. Verification Test for the Steering Control Method

2.4.1. Test Instrument

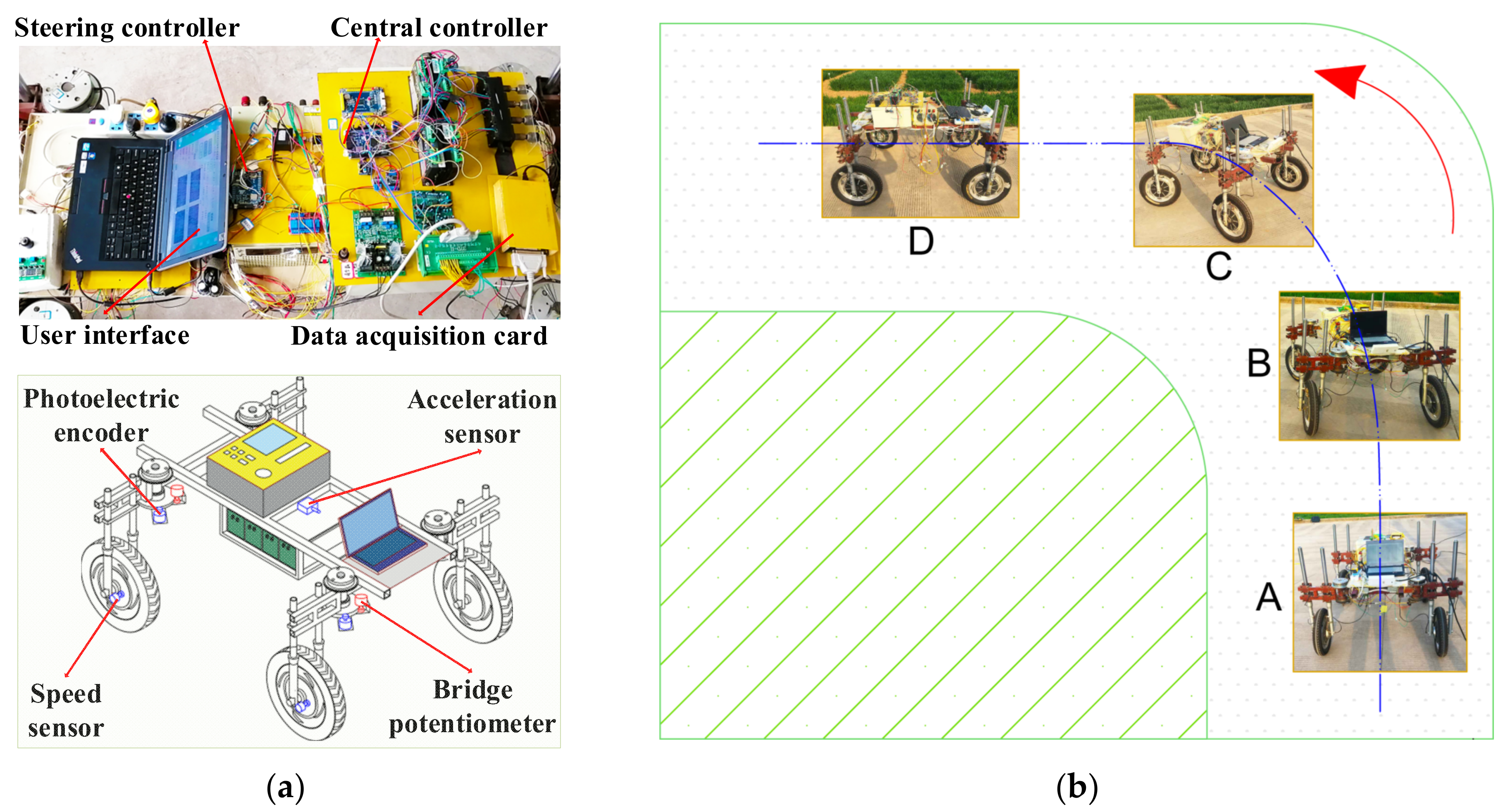

The controller’s hardware is developed for the robot prototype to verify the effectiveness of the proposed control method. The controller mainly consists of single-chip modules (STM32F103ZET6, STMicroelectronics Company, Switzerland), bridge circuit modules, accessory circuits, and stepper motors (YH42BYGH47-401A, MICROSTEP, Wenzhou, China) and their drivers. The C language control program edited by Keil uVision 5 software (v5.35; Keil Software Company, the United States) is loaded into the MicroAutoBox real-time system. The embedded electronic control units are implemented on STM32 units to perform tests on the road. The control panel is presented in Figure 12a.

The steering angles are detected using an angular transducer (22HP-10, SAKAE Company, Tokyo, Japan; 0–5 kΩ). The speed sensors (D046, Guangzhou Logo Electronics Company, Guangzhou, China; 0–1000 r/min) are used to measure the speeds of the in-wheel motors. The duration of steering is calculated by a clock integrated into the data-acquisition system. The acquisition system includes an industrial personal computer (610H, Advantech Technology Corporation, Beijing, China) and a data-acquisition card (USB7648B, Beijing Zhongtai Research Ltd., Beijing, China). An inertial sensor (WT61C232, Shenzhen Wiite Intelligent Technology Company, Shenzhen, China) is used to measure the acceleration.

2.4.2. Test Method and Process

Hardened roads are the main working scenario of the robot chassis, so we carried out the verification test under these conditions. According to the working conditions set in Section 2.2.2, this study adopts three typical combined working conditions for the verification test: n_t1-δ_t1-ω_t1, n_t2-δ_t2-ω_t2, and n_t3-δ_t3-ω_t3. From condition n_t1-δ_t1-ω_t1 to n_t3-δ_t3-ω_t3, the change value of the angle signal, steering angle change rate, and traveling speed show an increasing trend. The steering test scenario is presented in Figure 12b. The specific test process is as follows.

First, the stability of various mechanical connections of the wheeled-robot chassis and the correct connection of various control and power supply lines are checked before the tests. Second, the data acquisition system starts collecting data. The wheeled robot travels in a straight line at an in-wheel-motor-rotation speed of 30 r·min⁻¹ (n_t1), and then sends out an angle signal with a size of 10° (δ_t1) and angular velocity of 1.05 rad·s⁻¹ (ω_t1) to perform the steering operation. Then, a steering signal of the same size but opposite direction is used to realize the righting of robot steering. After the test is completed, the tests under working conditions n_t2-δ_t2-ω_t2 and n_t3-δ_t3-ω_t3 are carried out successively. Finally, the steering motion and the data acquisition are complete, and the data are stored in the controller.

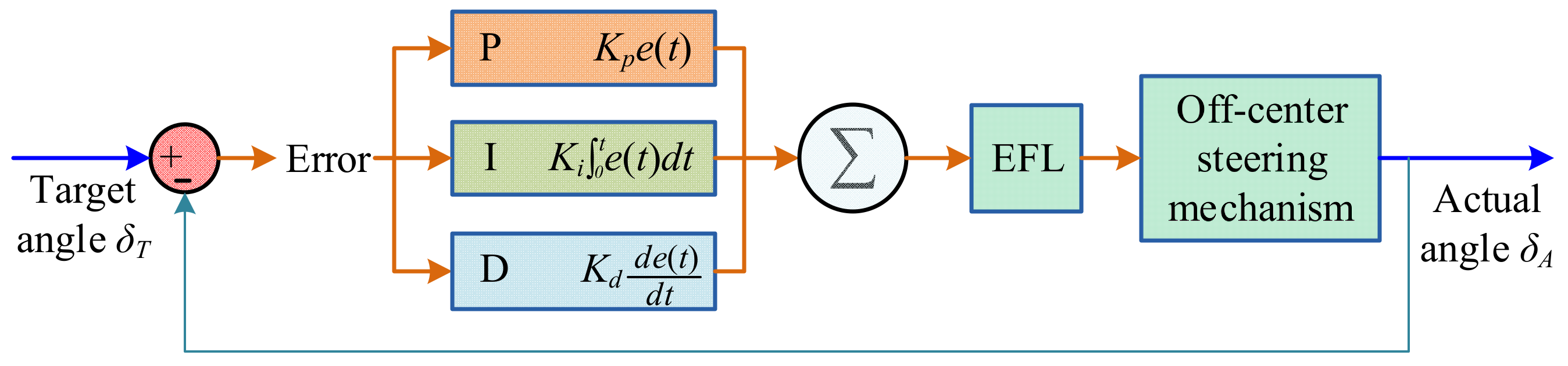

In order to observe the superiority of the controller, the control performance of this method is compared with that of the PID control method. The system structure design of the PID control method is presented in Figure 13. The system’s input is the target angle signal and the output is the actual angle of the steering arm. The difference between the actual steering angle and the target steering angle is constantly input to the PID controller. After the calculation of proportion, integral, and derivative, an adjustment value is generated to change the electric current of EFL and further control the steering motion of the OCAs. In this way, the angular velocity of the OCAs and the angle error can be adjusted and the OCAs can quickly track the target steering angle.

3. Results

3.1. Analysis of Steering Angle Changes

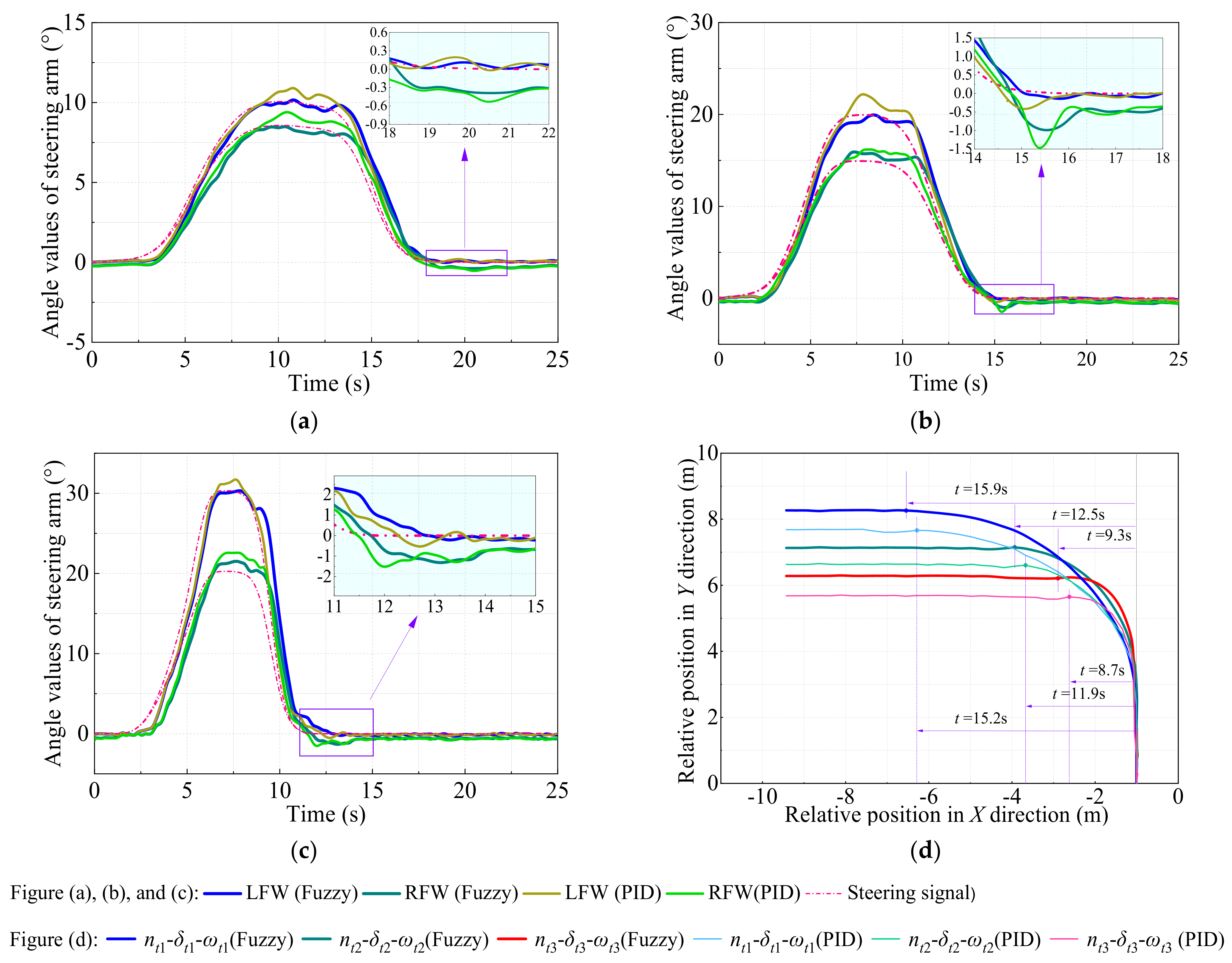

Figure 14 shows the angle changes of the left and right front steering arms, and the motion trajectories under the three working conditions. From Figure 14a–c, it can be seen that the steering responses are rapid under PID control. However, there are large overshoots of steering angle which occur in all three tests. In these three cases, the maximum overshoots relative to the target angles are 2.03°, 2.31°, and 2.65°, respectively. The maximum time delays between the actual angle and angle signal in the working conditions n_t1-δ_t1-ω_t1, n_t2-δ_t2-ω_t2, and n_t3-δ_t3-ω_t3 are 0.9 s, 1.4 s, and 1.3 s, respectively.

Under the proposed method, the actual angle curve is in good agreement with the input angle signal (Figure 14a–c). The maximum time delay between the actual angle and angle signal in the working conditions n_t1-δ_t1-ω_t1, n_t2-δ_t2-ω_t2 and n_t3-δ_t3-ω_t3 is 0.8 s, 1.3 s, and 1.2 s, respectively. Although there are certain delays in the angle response of the steering arm, these delays are all within the acceptable range (0 to 2 s) and the angle response is rapid in terms of the low-speed application of the wheeled-robot chassis. In these three cases, the maximum overshoots relative to the target angles of 10°, 20°, and 30° are 0.92°, 1.43°, and 1.91°, respectively, for the left wheel. From condition n_t1-δ_t1-ω_t1 (Figure 14a) to condition n_t3-δ_t3-ω_t3 (Figure 14b), the curve slope of the rising and falling sections of the steering arm increases, indicating that the angle response rate of the steering arm is elevated with the increase in the angular velocity. The proposed method can dynamically adjust the movement of the steering arm with the change in steering signal. Due to the influence of random factors on the road surface, there is a certain fluctuation in the angle change in the steering arm, especially during the process of switching the rotation direction of OCA. When the steering arm returns to the initial position again, there is a deviation between the target angle and the actual steering angle. However, these deviations are within the acceptable range in robot applications. Therefore, according to the above analysis, the proposed controller can sensitively track the target angles with only a slight overshoot under different working conditions. Compared with the traditional PID control, the proposed method improves the control effect.

Figure 14d shows the centroid trajectories of the robot under different conditions. The turning radius under PID control is less than that of fuzzy control in three cases. However, due to the large overshoot of the steering angle, the trajectories of turning have poor smoothness under PID control. The steering time for conditions n_t1-δ_t1-ω_t1, n_t2-δ_t2-ω_t2, and n_t3-δ_t3-ω_t3 is 14.8 s, 11.3 s, and 10.1 s, respectively. Under fuzzy control, in conditions n_t3-δ_t3-ω_t3, the rotation speed of the in-wheel motor, change in the angle signal, and angular velocity are larger than those of the other two conditions. The OCAs rotate fast in this case, and the time required for the robot to turn to the target direction is the shortest among these three conditions, at approximately 9.3 s. The turning radius is also the minimum among these three conditions. The steering time of condition n_t1-δ_t1-ω_t1 and condition n_t2-δ_t2-ω_t2 is 15.9 s and 12.5 s, respectively. There is an excellent correlation between the actual steering angle and the steering signal for the left front wheel in all conditions. It is thus clear that the angle of the OCAs can track the target angle, and the steering motion of the off-center steering mechanisms can adapt to the changes in the steering signal.

3.2. Analysis of Motion Posture Stability

The lateral acceleration and yaw rate are two key indexes used to evaluate the motion stability of the robot chassis. The changes in yaw rate during steering are shown in Figure 15a. Under fuzzy control, the yaw rate peaks for the conditions n_t1-δ_t1-ω_t1, n_t2-δ_t2-ω_t2, and n_t3-δ_t3-ω_t3 are 8.12, 12.35, and 23.91 deg·s⁻¹, respectively. In condition n_t3-δ_t3-ω_t3, the yaw rate quickly rises to a peak and then falls in 2 s, with minor fluctuations. Thus, the initial speed has a significant influence on the yaw rate. Specifically, the amplitude of the yaw rate rises with the increase in driving speed. Under PID control, the yaw rate is higher than that of fuzzy control, and the difference becomes obvious at high speeds. The maximum difference in yaw rate between the PID control and fuzzy control is 5 deg·s⁻¹, which occurs in condition n_t3-δ_t3-ω_t3.

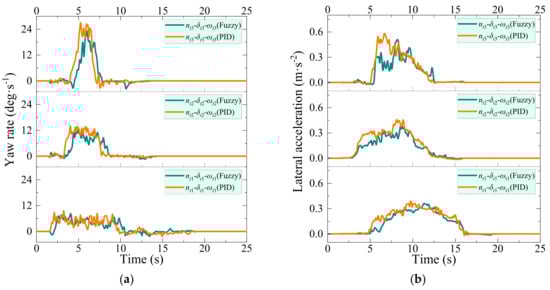

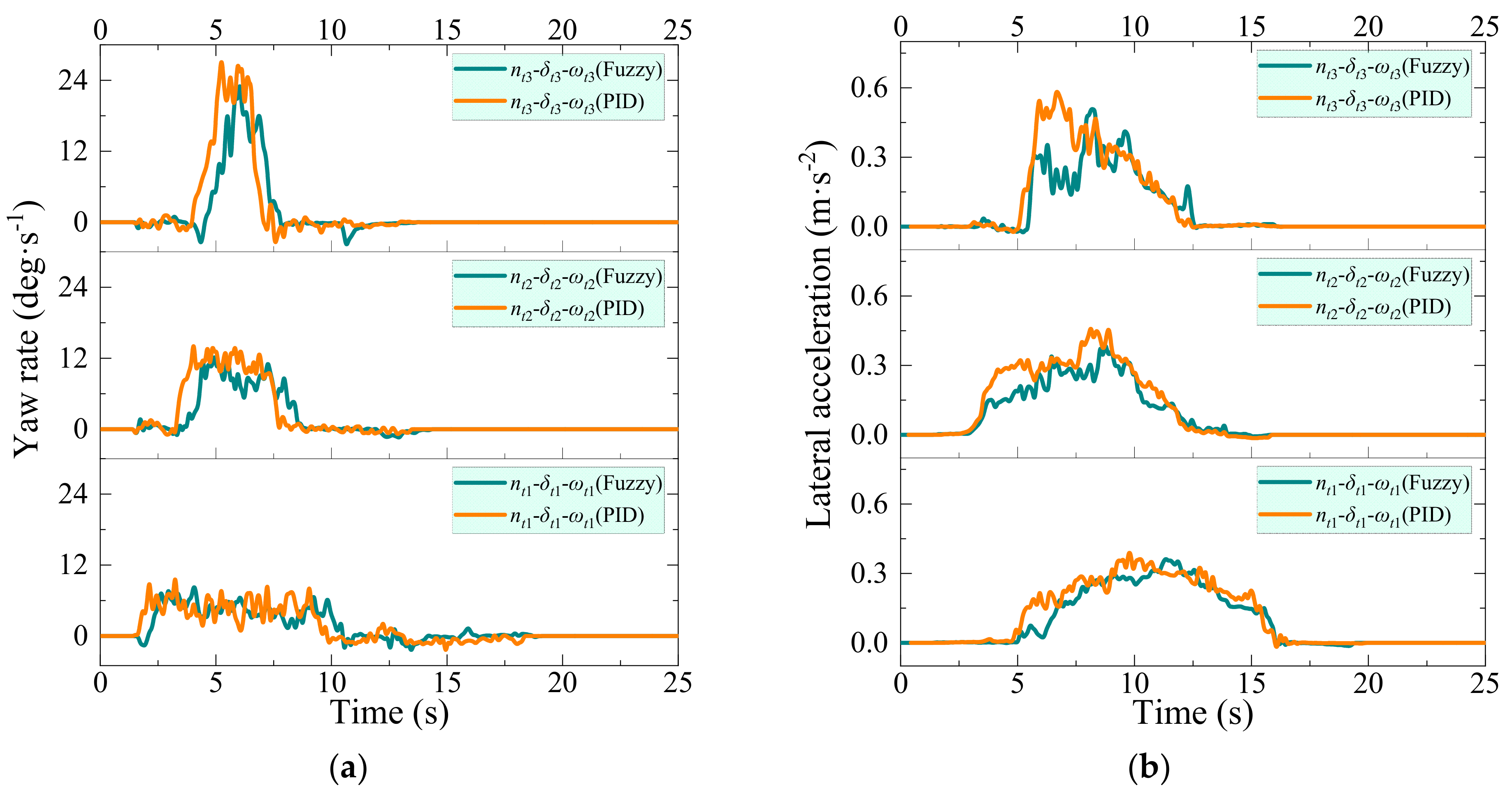

The changes in lateral acceleration during steering are shown in Figure 15b. The lateral acceleration peaks are 0.37, 0.39, and 0.53 m·s⁻² in conditions n_t1-δ_t1-ω_t1, n_t2-δ_t2-ω_t2, and n_t3-δ_t3-ω_t3, respectively. The higher the driving speed, the greater the peak value of lateral acceleration. With the increase in driving speed, the fluctuation in lateral acceleration increases. Under condition n_t3-δ_t3-ω_t3, the rising and falling sections of the lateral acceleration are steep, but relatively gentle under conditions n_t1-δ_t1-ω_t1 and n_t2-δ_t2-ω_t2. To achieve the steering target, the steering arm must rotate quickly under the high travelling speed of condition n_t3-δ_t3-ω_t3. Thus, the turning process of the robot is extremely short, resulting in sizeable lateral acceleration. The lateral acceleration under PID control is higher than that of fuzzy control, and the difference also becomes obvious in the case of high speed. The maximum difference in lateral acceleration between the PID control and fuzzy control is 0.15 m·s⁻², which occurs in condition n_t3-δ_t3-ω_t3. Generally, the yaw rate and lateral acceleration under fuzzy control are within the normal range. Fuzzy control is superior to PID control for the off-center steer-by-wire system. The previous road test shows that the robot chassis will roll over or drift when the yaw rate is greater than 34 deg·s⁻¹ and the lateral acceleration is greater than 0.95 m·s⁻². In this test, the yaw rate and lateral acceleration in the extreme case n_t3-δ_t3-ω_t3 did not reach the extreme value [26,29]. The steering system has acceptable stability and good agility, indicating that the controller is feasible.

4. Discussion and Conclusions

This paper proposes a steering motion controller for the off-center steering mechanism for an agricultural wheeled robot. The main advantage of our method is that no complicated mathematical models are needed. The control algorithm is easy to implement in hardware, making it more practical.

There are several existing structures similar to the proposed robot; for example, a tomato-harvesting robot designed for greenhouses [32], a platform for autonomous navigation in kiwifruit orchards [33], and a robot for the in-row weed control of vegetables [34]. However, most of these studies use additional auxiliary mechanisms for steering. For this reason, the control principles of the steering system are essentially different from this study. The coordination between steering motors during travelling needs to be controlled separately. In this paper, the off-center steering mechanism with the combined driving and steering system is expected to simplify the steering system of the wheeled robot and reduce control difficulty.

The motion control of the steering mechanism is crucial to the regular and stable travelling of a wheeled robot. Various studies have adopted a cooperative control method for wheeled robots. For example, the coordinated motion control system proposed by Liu et al. [35] achieved a significant performance in the coordinated motion control of four-wheel-leg robotic systems. The double closed-loop joint control strategy designed by Li et al. [36] optimized a four-in-wheel motor-driven electric vehicle torque distribution of hub motors. Ding et al. [37] presented an optimum velocity model using a predictive control method for a redundantly actuated mobile robot under steering strategy constraints. Sorour et al. [38] proposed a complementary route with an instantaneous center of rotation controller for steerable wheeled mobile robots using a novel evaluation metric of the command fulfillment index. It should be noted that there are pronounced differences from our study. Most of these studies use conventional mathematical control models and focus on theoretical and simulation analyses. Few studies have been conducted on a special test bench to acquire the control parameters. To allow the dynamic adaptation of the motion of the off-center steering mechanism with real-time demand, this study first finds the optimal control parameters through experimentation. Then, a two-stage fuzzy control method is implemented on the prototype of the robot chassis. The control feature extraction based on the test data brings more practicability to the control strategy, making it especially suitable for controlling the discrete PWM signal duty cycle.

The results show that the overall effect of fuzzy control is better than that of PID control. In PID control, the tracking of the angle to the target angle is achieved according to the feedback of steering angle error. However, the off-center steering mechanism of the robot is a steer-by-wire structure, and the steering angle is controlled by electromagnetic attraction. In the process of robot steering, it is necessary to identify the steering intention in advance, which cannot be achieved by PID control. The adopted fuzzy controller can prejudge the steering trend according to the change in angle signal and angular velocity signal. Thus, timely handling can be achieved. Additionally, the secondary fuzzy controller also improves the adjustment accuracy. Therefore, under fuzzy control, the overshoot of the angle and the peak values of yaw rate and lateral acceleration are smaller than those of PID control. In this paper, due to the nonlinear effect of EFL of the steer-by-wire system and the demand for steering signal identification, the fuzzy control method is adopted. In a similar steer-by-wire system of wheeled robots or an electric vehicle chassis with independent driving and steering structures, such as greenhouse transportation wheeled robots, logistics wheeled robots, and explosion-proof wheeled robots, this method can be used to overcome the difficulties of steering control based on accurate models. This method can also be used to identify the steering command and improve the target angle following the performance of the steering system.

Occasionally, individual tests demonstrated extreme results. The steering angle of the left front wheel presented a large overshoot when returning to the initial position. This is mainly caused by small changes in the electric current of the EFL. Additionally, large fluctuations occasionally occurred with lateral acceleration in condition n_t3-δ_t3-ω_t3 of the road test. In this case, the chassis’ speed is relatively fast and the influence of random factors on the pavement is enhanced. However, these changes have little impact on the overall test effect and are within an acceptable range.

There are several limitations of this study. The fuzzy method has an empirical dependence and the coordination of the steering motion may deteriorate under some conditions. Given this, the fuzzy rules may need to be adjusted according to the actual operating conditions of the robot chassis. An experimental test on hardened pavement verified the control method. There are differences from a real environment, and further farmland tests are needed in future research.

In conclusion, the present study proposed a fuzzy controller to solve the dynamic control for the off-center steer-by-wire system of an agricultural monitoring robot. Through analyses of the influence of the PWM duty cycle on the steering performance, a fuzzy dynamic control method for the PWM signal duty cycle is designed. Specifically, a two-stage fuzzy control regulation is presented to realize the self-calibration of controller parameters, which can be used to obtain excellent steering angle tracking performances. A hardened pavement test ultimately verifies the feasibility and effectiveness of the steering control method. The proposed control strategy has the advantages of high responsiveness and accuracy with no complicated mathematical model and can be easily implemented in hardware. Compared with the traditional PID control method, the proposed control methodology can effectively enable the motion of the OCAs to adapt to changes in the steering signal and reduce the angle error, yaw rate, and lateral acceleration. Improving the interwheel coupling control algorithm through machine learning could be an area of interest for future work.
