Sarcopenia, Precardial Adipose Tissue and High Tumor Volume as Outcome Predictors in Surgically Treated Pleural Mesothelioma

by
Oliver Guido Verhoek
1,2,
Lisa Jungblut
1,2,
Olivia Lauk
2,3,
Christian Blüthgen
1,2,
Isabelle Opitz
2,3,
Thomas Frauenfelder
1,2 and
Katharina Martini
1,2,*
1
Institute of Diagnostic and Interventional Radiology, University Hospital Zurich, Rämistrasse 100, 8091 Zurich, Switzerland
2
Faculty of Medicine, University of Zurich, Rämistrasse 71, 8006 Zurich, Switzerland
3
Department of Thoracic Surgery, University Hospital Zurich, Rämistrasse 100, 8091 Zurich, Switzerland
*
Author to whom correspondence should be addressed.
Diagnostics 2022, 12(1), 99; https://doi.org/10.3390/diagnostics12010099
Submission received: 17 November 2021 / Revised: 22 December 2021 / Accepted: 28 December 2021 / Published: 3 January 2022
(This article belongs to the Topic Cancer Biology and Therapy)
Browse Figures
Versions Notes

Abstract

:
Background: We evaluated the prognostic value of Sarcopenia, low precardial adipose-tissue (PAT), and high tumor-volume in the outcome of surgically-treated pleural mesothelioma (PM). Methods: From 2005 to 2020, consecutive surgically-treated PM-patients having a pre-operative computed tomography (CT) scan were retrospectively included. Sarcopenia was assessed by CT-based parameters measured at the level of the fifth thoracic vertebra (TH5) by excluding fatty-infiltration based on CT-attenuation. The findings were stratified for gender, and a threshold of the 33rd percentile was set to define sarcopenia. Additionally, tumor volume as well as PAT were measured. The findings were correlated with progression-free survival and long-term mortality. Results: Two-hundred-seventy-eight PM-patients (252 male; 70.2 ± 9 years) were included. The mean progression-free survival was 18.6 ± 12.2 months, and the mean survival time was 23.3 ± 24 months. Progression was associated with chronic obstructive pulmonary disease (COPD) (p = <0.001), tumor-stage (p = 0.001), and type of surgery (p = 0.026). Three-year mortality was associated with higher patient age (p = 0.005), presence of COPD (p < 0.001), higher tumor-stage (p = 0.015), and higher tumor-volume (p < 0.001). Kaplan-Meier statistics showed that sarcopenic patients have a higher three-year mortality (p = 0.002). While there was a negative correlation of progression-free survival and mortality with tumor volume (r = 0.281, p = 0.001 and r = −0.240, p < 0.001; respectively), a correlation with PAT could only be shown for epithelioid PM (p = 0.040). Conclusions: Sarcopenia as well as tumor volume are associated with long-term mortality in surgically treated PM-patients. Further, while there was a negative correlation of progression-free survival and mortality with tumor volume, a correlation with PAT could only be shown for epithelioid PM.

1. Introduction

Pleural mesothelioma (PM) is a malignant and very aggressive cancer of the pleural surface [1]. The PM incidence has risen in the last ten years and predictions indicate that it will continue rising [2]. Patient survival in PM is very poor; even with the most advanced surgical techniques, median survival ranges only from 15 to 22 months [3,4]. Further, due to the radical and extensive nature of surgical techniques employed in PM, patients have a high post-operative morbidity and mortality [5,6]. Thus, thorough patient selection is of utmost importance to only select individuals with a positive predicted outcome and minimal risk of mortality for this extensive surgery.
There are already several clinico-pathological features to predict the outcome of surgery in patients with PM. These variables include age, weight loss, dyspnea, anemia, leukocytosis, thrombocytosis, tumor volume, C-reactive protein (CPR) level, epithelial tumor histology, and white blood cell count [7,8]. To more accurately predict the outcome of patients undergoing surgery in PM, the identification of further clinical and biological markers is the goal of ongoing research.
Cachexia comes with a host of complications and is estimated to be the main cause of death in up to 50% of cancer patients [9]. Cachexia is defined by loose of adipose tissue, lean body mass (LBM) and muscle tissue [10,11]. These parameters are quantifiable and a muscle-loss below a certain threshold is called sarcopenia. There have been several studies, including a large meta-analysis, which have shown a significant increase in mortality for cancer patients who are suffering from sarcopenia [12,13]. However, this correlation has not yet been investigated for patients suffering from PM.
Another aspect of cachexia, as described above, is the loss of adipose tissue. A relatively new but established method of measuring fatty tissue is to estimate the amount of mediastinal or precardial adipose tissue (PAT) in computer tomography scans [14,15]. There have been studies which showed that PAT can be used as pre-operative outcome predictors in some surgical treatments [16]. Similar correlations with post-operative outcome in PM-patients have not yet been showed.
Another key feature of predicting the outcome of any kind of oncological surgery is the volume of the tumor involved [17,18,19]. There have already been some studies which analyzed the effect of tumor volume as a prognostic marker for the surgical treatment of PM patients [20,21,22].
The purpose of this study was to evaluate if different CT derived morphometric measures, such as the 33rd percentile of muscle area at the fifth thoracic vertebra as a surrogate for sarcopenia, precradial adipose-tissue and high-tumor volume can be used to predict the outcome of surgically treated PM-patients. Furthermore, the aim of this analysis is to define selection criteria for surgical candidates in PM, which can indicate positive outcomes and minimal risk of postoperative mortality more accurately.

2. Materials and Methods

2.1. Patients

From September 2005 to November 2020, consecutive surgically-treated PM patients having a pre-operative computed tomography (CT) scan were retrospectively included. The study protocol was approved by the institutional review board and local ethics committee (StV 29-2009, EK-ZH 2012-0094; 07.03.2019 EK-ZH 2019-00369) and written informed consent was obtained from all patients. The work has been carried out in accordance with The Code of Ethics of the World Medical Association (Declaration of Helsinki).

2.2. Imaging

All included patients underwent routine preoperative CT on 16 to 64-detector CT units from different vendors at tube voltages of 100 to 140 kVp with or without contrast media injection. Images were reconstructed with a soft tissue convolution kernel at slice thicknesses from 0.75 to 3.0 mm.

2.3. Morphometric Measurements

2.3.1. Muscle Area and Sarcopenia

Sarcopenia was semiautomatically assessed by CT-based parameters measured at the level of the fifth thoracic vertebra by excluding fatty-infiltration using a CT-attenuation threshold of −29 to 150 Hounsfield units (HU). According to the literature [23], sarcopenia was defined as less than the sex-matched 33rd percentile of the respective muscle area: cross-sectional total paraspinal area (TPA), total rotator-cuff area (TRA), and total pectoral area (TPeA). Total muscle area (TMA) was defined as the sum of the former three measurements (Figure 1).

2.3.2. Mediastinal Fat

Mediastinal fat was semi-automatically assessed by outlining the mediastinal fat using a CT-attenuation threshold between −195 and −15 HU (Figure 2).

2.3.3. Tumor Volume

Tumor volume was assessed by outlining the tumor burden in the thoracic cage. Metastasis or lymph node metastasis were not measured (Figure 3).

2.4. Long-Term Outcome

As long-term outcome after surgically treated PM overall mortality and tumor progression were assessed. Progression was defined as tumor recurrence, tumor progression or death.

Statistical Analysis

Continuous variables were expressed as mean ± SD, and categorical variables were expressed as frequencies or percentages. Mann-Whitney and Kruskal-Wallis tests were used to perform group comparisons as appropriate. Further, survival analysis was performed using Kaplan-Meier statistics. Tumor volume as well as anterior mediastinal fat volume were correlated to tumor progression and survival using Pearson correlation (r) and linear logistic regression (R). All statistical analyses were conducted with the statistical software SPSS (SPSS, release 26.0; SPSS, Chicago, IL, USA).

3. Results

3.1. Patient Population

Overall, from September 2005 to November 2020 two-hundred-seventy-eight consecutive surgically-treated PM patients (252 male; 70.2 ± 9 years) having a pre-operative computed tomography (CT) scan were retrospectively included. Two-hundred-three patients (94%) additionally underwent neoadjuvant chemotherapy before undergoing surgical treatment. One-hundred-twenty patients (43.2%) underwent pleurectomy/decortication (P/D), thirty-seven (13.3%) partial pleurectomy, ninety-five (34.2%) extrapleural pneumonectomy (EPP), and twenty-five (9.2%) other types of surgery. Mean time interval from pre-operative CT to surgery was 20 days (SD 23). Overall, 161 patients (63%) had epithelioid PM, 9 patients (4%) sarcomatoid PM, 76 patients (30%) biphasic PM, and in 8 patients (3%) histologic type was not defined.

3.2. Morphometric Measurements

3.2.1. Muscle Area and Sarcopenia

Mean total muscle area was of 18,661.9 ± 4517 mm2. Muscle area in males was significantly higher compared to their female counterparts (19,191.7 mm2 vs. 13,526.5 mm2; p = <0.001) (Table 1).

3.2.2. Anterior Mediastinal Fat Volume

Mean anterior mediastinal fat volume was of 25.6 ± 15 cm3. Anterior mediastinal fat volume in males was significantly higher compared to their female counterparts (27.0 cm3 vs. 13.0 cm3; p = 0.001) (Table 1).

3.2.3. Tumor Volume

Mean tumor volume was of 225.3 ± 268 mm3. Tumor volume in males was not significantly different from values of their female counterparts (228.6 cm3 vs. 198.5 cm3; p = 0.590) (Table 1). Tumor volume in male subjects with a history of asbestos exposure was significantly lower than tumor volume in male patients without a history of asbestos exposure (194.2 cm3 vs. 331.9 cm3; p = 0.035).

3.3. Outcome

Mean time to progression was of 18.6 months (SD 11.7). Mean survival time was of 23.3 months (SD 24).

3.3.1. Progression Free Survival

Progression was associated with higher tumor stage (p = 0.001), presence of chronic obstructive pulmonary disease (p = 0.015) in patients where P/D was performed (p = 0.026), as well as PAT in epithelioid PM (p = 0.044). The different muscle surface values defining sarcopenia were not associated with tumor progression (Table 2).
Pearson correlation showed a negative correlation between tumor progression and tumor volume (r = −0.281, p < 0.001) as well as with PAT (r = −0.152, p < 0.037). While linear regression confirmed this correlation for tumor volume (R = 0.281, R2 0.079, p < 0.001), the correlation between progression free survival and PAT could not be confirmed (R = 0.152, R2 0.023, p = 0.073). However, when evaluating epithelioid PM separately, linear regression showed a correlation between progression free survival and PAT (epithelioid: R = 0.320, R2 0.102, p = 0.004).

3.3.2. Mortality

Three-year mortality was associated with higher patient age (p = 0.005), presence of COPD (p = <0.001), higher tumor stage (p = 0.015), and higher tumor volume (p < 0.001) (Table 2, Figure 4).
Kaplan-Meier statistics showed that sarcopenic patients have higher three-year mortality after surgically treated PM, with TPA performing best (p = 0.002) (Table 3).
While there was a negative correlation between mortality and tumor volume (r = −0.240, p < 0.001), correlation between mortality and PAT could not be shown (overall r = −0.066, p = 0.251; epithelioid r = 0.208, p = 0.0.64; biphasic r = −0.102, p = 0.594). Linear regression showed a correlation between mortality and tumor volume (R = 0.240, R2 0.058, p < 0.001). Overall, linear regression did not show any correlation between mortality and PAT (R = 0.066, R2 0.004, p = 0.503). However, when evaluating epithelioid and biphasic PM separately, linear regression showed a correlation between mortality and PAT (epithelioid: R = 0.063, R2 0.004, p < 0.001; biphasic: R = 0.018, R2 0.000, p < 0.001).

4. Discussion

The understanding of body composition in relation to chronic illnesses has been the focus of several studies in the last years. Sarcopenia, high tumor-volume, and low precardial adipose-tissue were reported to be associated with poor post-operative outcome in cancer-patients [13,14,15,21,24,25] In this study, we hypothesized that outcome in PM patients is affected by these factors in a similar way and could show that sarcopenia defined as the sex-related 33rd percentile of TPA at the level of the fifth thoracic vertebra as well as tumor volume are associated with long-term mortality in surgically treated PM patients. While there was a negative correlation of progression-free survival and mortality with tumor volume, correlation with PAT could only be shown for epithelioid PM.
There have been several studies who have shown that sarcopenia has a strong connection with overall survival in cancer patients [26,27,28,29,30] and patients with chronic disease [30,31,32,33,34,35,36]. Martini et al., evaluated the short-term outcome after pneumonectomy in lung cancer patients and found that sarcopenia defined as the gender-related 33rd percentile of fat-excluded total muscle area at the level of the third lumbar vertebra was associated with higher incidence of respiratory failure, ARDS and 30-day mortality [27]. Hsu and Kao et al. [35] analyzed the impact of sarcopenia on patients with chronic liver disease and concluded that Sarcopenia was not only a predictor for survival of patients on the waitlist of liver transplants, but also correlated with the pre-/and post-transplant adverse outcomes. Otten et al. [12], who evaluated the value of sarcopenia in different cancer patients, showed that the presence of sarcopenia correlated very strongly as a predictor of 1-year mortality and correlated nearly as strongly as advanced tumor stage.
In line with these studies, to the best of our knowledge we were the first to show that sarcopenia is associated with shorter three-year survival in surgically treated PM-patients. While tumor progression was associated with higher tumor stage, presence of chronic obstructive pulmonary disease, and type of operation, progression was not associated with the different muscle surface values defining sarcopenia.
At the moment, there is no consensus on the definition criteria of sarcopenia [37,38]. Traditionally, walking speed or general musculoskeletal activity were used to assess frailty of patients [39,40]. These measures, however, are very difficult if not impossible to objectify. In an attempt to make the evaluation more precise, different other approaches have been evaluated in the last years: Hasselager at al. [38] quantified sarcopenia by evaluating tricipital skin fold thickness and brachial circumference and could show that these measurements predicted poor long-term survival of patients suffering from surgically treated non-small cell lung cancer. Ruby et al. [41] used speed of sound ultrasound as a quantitative indicator for muscle loss and fatty muscular degeneration in seniors. A widely used and established approach to determine sarcopenia is the quantification of muscle tissue on cross sectional images [25,26,27,28]. Some authors propose to perform measurements at the third lumbar vertebra, others at the thoracic level [28,38,42,43,44,45,46]. Additionally, there are some studies to give evidence, that the heights of measurements do not play a major role in the definition: Nemec et al. [43] compared muscle mass at the level of TH12 and TH7 and found very strong correlation with the muscle mass measured at L3. Swartz et al. [44] showed that muscle mass measurements at the level of the third cervical vertebra correlate very strongly with the one measured at the level of the third lumbar vertebra. In our study, we measured the muscle mass according to Fintelmann et al. [47] at the thoracic level at height of the fifth thoracic vertebra (TH5). This was motivated by practical reasons, since chest CT is part of the routine workup in all PM-patients and therefore all PM patients from our department could be included.
The main interest in recognizing sarcopenia as risk-factor resides on its potential reversibility. Rehabilitation programs, physical therapy and proper nutrition can potentially reverse sarcopenia and have a favorable impact on surgical outcome. Further studies are needed to show if in patients where sarcopenia could be reversed with preoperative rehabilitations programs have better outcome as those who were not.
Mediastinal adipose tissue was shown to be a potential predictor for the frailty of patients [14,15,48] and there have been studies which showed that PAT can be used as pre-operative outcome predictor in some surgical treatments [16]. In our study overall, we did not find evidence to support this claim in PM patients. Correlation of progression-free survival and mortality with PAT could only be shown in a subgroup of patients, namely for epithelioid PM. One aspect of this is that it is very difficult to accurately measure PAT in patients with PM since the tumor is often located in close proximity to the mediastinum or infiltration of mediastinal fat is present. These factors make a differentiation of tumor mass from mediastinal fatty tissue potentially difficult and measurements prone to segmentation errors. With a significantly lager patient population this measurement errors could possibly be minimized and there could have potentially been significant results.
Interestingly, while asbestos exposure correlated with worse outcome in terms of death and progression free survival, male patients having asbestos exposure in their history showed to have lower tumor volume compared to their male counterparts without asbestos exposure.
As already shown in different malignancies [17,18,49], it was not surprising that in our study cohort tumor volume also correlated well with time to progression and survival. This goes in line with Pass et al. [50], who showed that tumor volume is a very good and accurate predictor for overall and progression-free survival in PM patients.
The limitations of this study are as follows. First, we measured muscle mass at TH5. Although, the most common assessment method to quantify skeletal muscle area are measurements at the level of the third lumbar vertebra, there have been studies as described above who have shown that measurements at different locations in the thoracoabdominal region have strong correlations [44, 44]. Second, tissue measurements were performed on contrast and non-contrast enhanced scans with the same HU thresholds. Even though this approach might lead to small measurement errors, previous studies have used the same technique and could show positive results [28, 28]. Third, slice thicknesses in CT images ranged from 0.75 to 3.0 mm. Different slice thicknesses result in different image noise levels and have different impact on partial volume which can result in measurement errors. The software we used for semiautomatic volume measurements takes into account different slice thicknesses in volume calculation, and since the threshold to defined sarcopenia was set on the base of the evaluated cohort, the measurement error plays a minor role in our study. Fourth, measurements were only performed by one reader. Due to the semiautomated process of deriving data with the help of sophisticated computer software, we would expect similar results for additional observers. Fifth, the retrospective nature of the study leading to an inhomogeneous patient cohort undergoing different therapy approaches. Sixth, we did not distinguish if patients underwent surgery with a curative or a palliative intent. This will have a negative impact on overall survival time and time to progression. However, the impact of PAT and sarcopenia will not be affected.
In conclusion, our study shows that tumor volume and sarcopenia are predictive markers for patient outcome in surgically treated PM. While there was a negative correlation of progression-free survival and mortality with tumor volume, a correlation with PAT could only be shown for epithelioid PM.

Author Contributions

O.G.V.: data curation, formal analysis, investigation, software, visualization, roles/writing—original draft. L.J.: software, data curation, formal analysis, investigation, writing—review and editing. O.L.: formal analysis, investigation, resources, writing—review and editing. C.B.: investigation, software, writing—review and editing. I.O.: conceptualization, methodology, resources, writing—review and editing. T.F.: conceptualization, methodology, project administration, resources, supervision, validation, writing—review and editing. K.M.: conceptualization, data curation, formal analysis, methodology, project administration, supervision, validation, writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Iten-Kohaut Foundation, Switzerland.

Institutional Review Board Statement

The study protocol was approved by the institutional review board and local ethics committee (StV 29-2009, EK-ZH 2012-0094; 7 March 2019 EK-ZH 2019-00369).

Informed Consent Statement

Written informed consent has been obtained from the patient(s) to publish this paper.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to ethical reasons.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Committee BTSS of C. BTS statement on malignant mesothelioma in the UK, 2007. Thorax 2007, 62, ii1–ii19. [Google Scholar]
  2. Scherpereel, A.; Astoul, P.; Baas, P.; Berghmans, T.; Clayson, H.; De Vuyst, P.; Dienemann, H.; Galateau-Salle, F.; Hennequin, C.; Hillerdal, G.; et al. Guidelines of the European Respiratory Society and the European Society of Thoracic Surgeons for the management of malignant pleural mesothelioma. Eur. Respir. J. 2009, 35, 479–495. [Google Scholar] [CrossRef] [PubMed]
  3. Kucukoner, M.; Kaplan, M.A.; Inal, A.; Urakcı, Z.; Abakay, O.; Tanrıkulu, A.; Abakay, A.; Senyigit, A.; Isikdogan, A. Clinical characteristics, treatment, and survival outcomes in malignant pleural mesothelioma: A institution experience in Turkey. J. Clin. Oncol. 2013, 31, e18544. [Google Scholar] [CrossRef]
  4. Schmid, S.; Zhan, L.; Dietrich, K.; Khan, K.; Chowdhury, M.; Herman, M.; Patel, D.; Zaeimi, F.; Leighl, N.B.; Sacher, A.; et al. Treatment Patterns and Outcomes of Patients with Advanced Pleural Mesothelioma at an Academic Referral Centre. Clin. Lung Cancer 2021, 10, S1525-7304[21)00207-2. [Google Scholar] [CrossRef]
  5. Opitz, I.; Weder, W. Pleural mesothelioma: Is the surgeon still there? Ann. Oncol. 2018, 29, 1710–1717. [Google Scholar] [CrossRef]
  6. Bueno, R.; Opitz, I. Surgery in Malignant Pleural Mesothelioma. J. Thorac. Oncol. 2018, 13, 1638–1654. [Google Scholar] [CrossRef] [Green Version]
  7. Opitz, I.; Friess, M.; Kestenholz, P.; Schneiter, D.; Frauenfelder, T.; Nguyen-Kim, D.L.; Seifert, B.; Hoda, M.A.; Klepetko, W.; Stahel, R.A.; et al. A new prognostic score supporting treatment allocation for multimodality therapy for malignant pleural mesothelioma—A review of 12 years’ experience. J. Thorac. Oncol. 2015, 10, 1634–1641. [Google Scholar] [CrossRef] [Green Version]
  8. Sugarbaker, D.J.; Wolf, A.S.; Chirieac, L.R.; Godleski, J.J.; Tilleman, T.R.; Jaklitsch, M.T.; Bueno, R.; Richards, W.G. Clinical and pathological features of three-year survivors of malignant pleural mesothelioma following extrapleural pneumonectomy. Eur. J. Cardio-Thoracic Surg. 2011, 40, 298–303. [Google Scholar] [CrossRef] [Green Version]
  9. Argiles, J.M.; Busquets, S.; Stemmler, B.; López-Soriano, F.J. Cancer cachexia: Understanding the molecular basis. Nat. Cancer 2014, 14, 754–762. [Google Scholar] [CrossRef]
  10. Gomes da Rocha, I.M.; Marcadenti, A.; de Medeiros, G.O.C.; Bezerra, R.A.; Rego, J.F.D.M.; Gonzalez, M.C.; Fayh, A.P.T. Is cachexia associated with chemotherapy toxicities in gastrointestinal cancer patients? A prospective study. J. Cachex-Sarcopenia Muscle 2019, 10, 445–454. [Google Scholar] [CrossRef] [Green Version]
  11. Han, J.S.; Ryu, H.; Park, I.J.; Kim, K.W.; Shin, Y.; Kim, S.O.; Lim, S.-B.; Kim, C.W.; Yoon, Y.S.; Lee, J.L.; et al. Association of Body Composition with Long-Term Survival in Non-metastatic Rectal Cancer Patients. Cancer Res. Treat. 2020, 52, 563–572. [Google Scholar] [CrossRef] [Green Version]
  12. Otten, L.; Stobäus, N.; Franz, K.; Genton, L.; Müller-Werdan, U.; Wirth, R.; Norman, K. Impact of sarcopenia on 1-year mortality in older patients with cancer. Age Ageing 2019, 48, 413–418. [Google Scholar] [CrossRef]
  13. Zhang, X.-M.; Dou, Q.-L.; Zeng, Y.; Yang, Y.; Cheng, A.S.K.; Zhang, W.-W. Sarcopenia as a predictor of mortality in women with breast cancer: A meta-analysis and systematic review. BMC Cancer 2020, 20, 1–11. [Google Scholar] [CrossRef]
  14. Chen, O.; Sharma, A.; Ahmad, I.; Bourji, N.; Nestoiter, K.; Hua, P.; Hua, B.; Ivanov, A.; Yossef, J.; Klem, I.; et al. Correlation between pericardial, mediastinal, and intrathoracic fat volumes with the presence and severity of coronary artery disease, metabolic syndrome, and cardiac risk factors. Eur. Hear. J.—Cardiovasc. Imaging 2014, 16, 37–46. [Google Scholar] [CrossRef] [Green Version]
  15. Megías, M.C.; Vasco, P.G.; Bouarich, H.; Aguilera, I.L.; Fuente, G.D.A.-D.L.; Rodríguez-Puyol, D. Epicardial fat tissue, coronary arterial calcification and mortality in patients with advanced chronic kidney disease and he-modialysis. Nefrologia 2021, 41, 174–181. [Google Scholar]
  16. Rozenberg, D.; Orsso, C.E.; Chohan, K.; Orchanian-Cheff, A.; Nourouzpour, S.; Nicholson, J.M.; Elangeswaran, B.; Vagaon, A.; Fidler, L.; Singer, L.G.; et al. Clinical outcomes associated with computed tomography-based body composition measures in lung transplantation: A systematic review. Transpl. Int. 2020, 33, 1610–1625. [Google Scholar] [CrossRef]
  17. Dejaco, D.; Steinbichler, T.; Fischer, N.; Anegg, M.; Dudás, J.; Posch, A.; Widmann, G.; Riechelmann, H.; Schartinger, V.H. Prognostic value of tumor volume in patients with head and neck squamous cell carcinoma treated with primary surgery. Head Neck 2018, 40, 728–739. [Google Scholar] [CrossRef]
  18. Miyamoto, H.; Kunisaki, C.; Sato, S.; Tanaka, Y.; Sato, K.; Kosaka, T.; Yukawa, N.; Akiyama, H.; Saigusa, Y.; Endo, I. Tumor Volume Index as a Prognostic Factor in Patients after Curative Esophageal Cancer Resection. Ann. Surg. Oncol. 2019, 26, 1909–1915. [Google Scholar] [CrossRef]
  19. Voss, B.; Wilop, S.; Jonas, S.; El-Komy, M.; Schaller, J.; Von Felbert, V.; Megahed, M. Tumor Volume as a Prognostic Factor in Resectable Malignant Melanoma. Dermatology 2013, 228, 66–70. [Google Scholar] [CrossRef]
  20. Gill, R.R.; Richards, W.G.; Yeap, B.Y.; Matsuoka, S.; Wolf, A.S.; Gerbaudo, V.H.; Bueno, R.; Sugarbaker, D.J.; Hatabu, H. Epithelial Malignant Pleural Mesothelioma After Extrapleural Pneumonectomy: Stratification of Survival with CT-Derived Tumor Volume. Am. J. Roentgenol. 2012, 198, 359–363. [Google Scholar] [CrossRef]
  21. Proto, C.; Signorelli, D.; Mallone, S.; Prelaj, A.; Russo, G.L.; Imbimbo, M.; Galli, G.; Ferrara, R.; Ganzinelli, M.; Leuzzi, G.; et al. The Prognostic Role of TNM Staging Compared with Tumor Volume and Number of Pleural Sites in Malignant Pleural Mesothelioma. Clin. Lung Cancer 2019, 20, e652–e660. [Google Scholar] [CrossRef] [PubMed]
  22. Murphy, D.J.; Gill, R.R. Volumetric assessment in malignant pleural mesothelioma. Ann. Transl. Med. 2017, 5, 241. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Hervochon, R.; Bobbio, A.; Guinet, C.; Mansuet-Lupo, A.; Rabbat, A.; Régnard, J.-F.; Roche, N.; Damotte, D.; Iannelli, A.; Alifano, M. Body Mass Index and Total Psoas Area Affect Outcomes in Patients Undergoing Pneumonectomy for Cancer. Ann. Thorac. Surg. 2017, 103, 287–295. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Prado, C.M.; Baracos, V.E.; McCargar, L.J.; Mourtzakis, M.; Mulder, K.E.; Reiman, T.; Butts, C.A.; Scarfe, A.G.; Sawyer, M.B. Body Composition as an Independent Determinant of 5-Fluorouracil–Based Chemotherapy Toxicity. Clin. Cancer Res. 2007, 13, 3264–3268. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Icard, P.; Iannelli, A.; Lincet, H.; Alifano, M. Sarcopenia in resected non-small cell lung cancer: Let’s move to patient-directed strategies. J. Thorac. Dis. 2018, 10, S3138–S3142. [Google Scholar] [CrossRef]
  26. Icard, P.; Schussler, O.; Loi, M.; Bobbio, A.; Lupo, A.M.; Wislez, M.; Iannelli, A.; Fournel, L.; Damotte, D.; Alifano, M. Pre-Disease and Pre-Surgery BMI, Weight Loss and Sarcopenia Impact Survival of Resected Lung Cancer Independently of Tumor Stage. Cancers 2020, 12, 266. [Google Scholar] [CrossRef] [Green Version]
  27. Martini, K.; Chassagnon, G.; Fournel, L.; Prieto, M.; Hoang-Thi, T.-N.; Halm, N.; Bobbio, A.; Revel, M.-P.; Alifano, M. Sarcopenia as independent risk factor of postpneumonectomy respiratory failure, ARDS and mortality. Lung Cancer 2020, 149, 130–136. [Google Scholar] [CrossRef]
  28. Daffrè, E.; Prieto, M.; Martini, K.; Hoang-Thi, T.-N.; Halm, N.; Dermine, H.; Bobbio, A.; Chassagnon, G.; Revel, M.; Alifano, M. Total Psoas Area and Total Muscular Parietal Area Affect Long-Term Survival of Patients Undergoing Pneumonectomy for Non-Small Cell Lung Cancer. Cancers 2021, 13, 1888. [Google Scholar] [CrossRef]
  29. Caan, B.J.; Feliciano, E.M.C.; Prado, C.M.; Alexeeff, S.; Kroenke, C.H.; Bradshaw, P.; Quesenberry, C.P.; Weltzien, E.K.; Castillo, A.L.; Olobatuyi, T.A.; et al. Association of Muscle and Adiposity Measured by Computed Tomography with Survival in Patients with Nonmetastatic Breast Cancer. JAMA Oncol. 2018, 4, 798–804. [Google Scholar] [CrossRef]
  30. Shachar, S.S.; Williams, G.; Muss, H.B.; Nishijima, T.F. Prognostic value of sarcopenia in adults with solid tumours: A meta-analysis and systematic review. Eur. J. Cancer 2016, 57, 58–67. [Google Scholar] [CrossRef]
  31. Baracos, V.; Kazemi-Bajestani, S.M.R. Clinical outcomes related to muscle mass in humans with cancer and catabolic illnesses. Int. J. Biochem. Cell Biol. 2013, 45, 2302–2308. [Google Scholar] [CrossRef]
  32. Hanna, R.M.; Ghobry, L.; Wassef, O.; Rhee, C.M.; Kalantar-Zadeh, K. A Practical Approach to Nutrition, Protein-Energy Wasting, Sarcopenia, and Cachexia in Patients with Chronic Kidney Disease. Blood Purif. 2020, 49, 202–211. [Google Scholar] [CrossRef]
  33. Moorthi, R.N.; Avin, K.G. Clinical relevance of sarcopenia in chronic kidney disease. Curr. Opin. Nephrol. Hypertens. 2017, 26, 219–228. [Google Scholar] [CrossRef] [Green Version]
  34. Angulo, J.; El Assar, M.; Rodríguez-Mañas, L. Frailty and sarcopenia as the basis for the phenotypic manifestation of chronic diseases in older adults. Mol. Asp. Med. 2016, 50, 1–32. [Google Scholar] [CrossRef]
  35. Hsu, C.-S.; Kao, J.-H. Sarcopenia and chronic liver diseases. Expert Rev. Gastroenterol. Hepatol. 2018, 12, 1229–1244. [Google Scholar] [CrossRef]
  36. Bone, A.E.; Hepgul, N.; Kon, S.; Maddocks, M. Sarcopenia and frailty in chronic respiratory disease. Chronic Respir. Dis. 2017, 14, 85–99. [Google Scholar] [CrossRef] [Green Version]
  37. Kinugasa, Y.; Yamamoto, K. The challenge of frailty and sarcopenia in heart failure with preserved ejection fraction. Heart 2016, 103, 184–189. [Google Scholar] [CrossRef]
  38. Hasselager, R.; Gögenur, I. Core muscle size assessed by perioperative abdominal CT scan is related to mortality, postoperative complications, and hospitalization after major abdominal surgery: A systematic review. Langenbeck’s Arch. Surg. 2014, 399, 287–295. [Google Scholar] [CrossRef]
  39. Jadczak, A.D.; Makwana, N.; Luscombe-Marsh, N.; Visvanathan, R.; Schultz, T. Effectiveness of exercise interventions on physical function in community-dwelling frail older people: An umbrella review of systematic reviews. JBI Database Syst. Rev. Implement. Rep. 2018, 16, 752–775. [Google Scholar] [CrossRef]
  40. Bernabei, R.; Martone, A.M.; Vetrano, D.L.; Calvani, R.; Landi, F.; Marzetti, E. Frailty, Physical Frailty, Sarcopenia: A New Conceptual Model. Stud. Health Technol. Inform. 2014, 203, 78–84. [Google Scholar]
  41. Sanabria, S.J.; Martín, S.J.S.; Freystätter, G.; Ruby, L.; Goksel, O.; Frauenfelder, T.; Rominger, M.B. Speed of sound ultrasound: A pilot study on a novel technique to identify sarcopenia in seniors. Eur. Radiol. 2018, 29, 3–12. [Google Scholar] [CrossRef]
  42. Albano, D.; Messina, C.; Vitale, J.A.; Sconfienza, L.M. Imaging of sarcopenia: Old evidence and new insights. Eur. Radiol. 2020, 30, 2199–2208. [Google Scholar] [CrossRef]
  43. Nemec, U.; Heidinger, B.; Sokas, C.; Chu, L.; Eisenberg, R.L. Diagnosing Sarcopenia on Thoracic Computed Tomography: Quanti-tative Assessment of Skeletal Muscle Mass in Patients Undergoing Transcatheter Aortic Valve Replacement. Acad. Radiol. 2017, 24, 1154–1161. [Google Scholar] [CrossRef]
  44. Swartz, J.E.; Pothen, A.J.; Wegner, I.; Smid, E.J.; Swart, K.M.; de Bree, R.; Leenen, L.P.; Grolman, W. Feasibility of using head and neck CT imaging to assess skeletal muscle mass in head and neck cancer patients. Oral Oncol. 2016, 62, 28–33. [Google Scholar] [CrossRef]
  45. Lang, T.; Koyama, A.; Li, C.; Li, J.; Lu, Y.; Saeed, I.; Gazze, E.; Keyak, J.; Harris, T.; Cheng, X. Pelvic body composition measurements by quantitative computed tomography: Association with recent hip fracture. Bone 2008, 42, 798–805. [Google Scholar] [CrossRef]
  46. Amini, B.; Boyle, S.P.; Boutin, R.D.; Lenchik, L. Approaches to Assessment of Muscle Mass and Myosteatosis on Computed Tomography: A Systematic Review. J. Gerontol. Ser. A 2019, 74, 1671–1678. [Google Scholar] [CrossRef]
  47. Fintelmann, F.J.; Troschel, F.M.; Mario, J.; Chretien, Y.R.; Knoll, S.J.; Muniappan, A.; Gaissert, H.A. Thoracic Skeletal Muscle Is Associated with Adverse Outcomes After Lobectomy for Lung Cancer. Ann. Thorac. Surg. 2018, 105, 1507–1515. [Google Scholar] [CrossRef] [Green Version]
  48. Cikim, A.S.; Topal, E.; Harputluoglu, M.; Keskin, L.; Zengin, Z.; Cikim, K.; Ozdemir, R.; Aladag, M.; Yologlu, S. Epicardial adipose tissue, hepatic steatosis and obesity. J. Endocrinol. Investig. 2007, 30, 459–464. [Google Scholar] [CrossRef]
  49. Strijker, M.; Soer, E.C.; De Pastena, M.; Creemers, A.; Balduzzi, A.; Beagan, J.; Busch, O.R.; Van Delden, O.M.; Halfwerk, H.; Van Hooft, J.E.; et al. Circulating tumor DNA quantity is related to tumor volume and both predict survival in metastatic pancreatic ductal adenocarcinoma. Int. J. Cancer 2019, 146, 1445–1456. [Google Scholar] [CrossRef]
  50. Pass, H.I.; Giroux, D.; Kennedy, C.; Ruffini, E.; Cangir, A.K.; Rice, D.; Asamura, H.; Waller, D.; Edwards, J.; Weder, W.; et al. Supplementary Prognostic Variables for Pleural Mesothelioma: A Report from the IASLC Staging Committee. J. Thorac. Oncol. 2014, 9, 856–864. [Google Scholar] [CrossRef] [Green Version]
Diagnostics 12 00099 g001 550
Figure 1. Morphometric measurements cross-sectional total paraspinal area (TPA, green), total rotator-cuff area (TRA, red), and total pectoral area (TPeA, yellow). Total muscle area (TMA) was defined as the sum of the former three measurements segmented on axial cross-sectional plane at the level of the fifth thoracic vertebra. Both transverse processes are visible in this plane.
Figure 1. Morphometric measurements cross-sectional total paraspinal area (TPA, green), total rotator-cuff area (TRA, red), and total pectoral area (TPeA, yellow). Total muscle area (TMA) was defined as the sum of the former three measurements segmented on axial cross-sectional plane at the level of the fifth thoracic vertebra. Both transverse processes are visible in this plane.
Diagnostics 12 00099 g001
Diagnostics 12 00099 g002 550
Figure 2. Morphometric measurements of anterior mediastinal fat on (a) axial and (b) sagittal reformations.
Figure 2. Morphometric measurements of anterior mediastinal fat on (a) axial and (b) sagittal reformations.
Diagnostics 12 00099 g002
Diagnostics 12 00099 g003 550
Figure 3. Morphometric measurements of tumor volume on (a) axial and (b) coronal reformations.
Figure 3. Morphometric measurements of tumor volume on (a) axial and (b) coronal reformations.
Diagnostics 12 00099 g003
Diagnostics 12 00099 g004 550

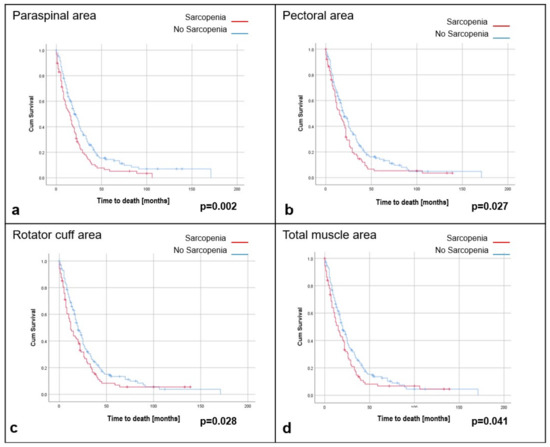

Figure 4. Kaplan-Meier statistics for surgically treated PM-patients with or without sarcopenia, defined as the sex-related 33rd percentile of the (a) paraspinal area, (b) pectoral area, (c) rotator cuff area, and (d) total muscle area at the 5th thoracic vertebra.
Figure 4. Kaplan-Meier statistics for surgically treated PM-patients with or without sarcopenia, defined as the sex-related 33rd percentile of the (a) paraspinal area, (b) pectoral area, (c) rotator cuff area, and (d) total muscle area at the 5th thoracic vertebra.
Diagnostics 12 00099 g004
Table
Table 1. Morphometric measurements.
Table 1. Morphometric measurements.
Overall
(Mean ± SD)		Male
(Mean ± SD)		Female
(Mean ± SD)		p-Value
Muscle area (mm2)
Pectoral area at TH53759.1 ± 11413883.6 ± 11052552.1 ± 711<0.001
Rotator cuff area at TH510,699.7 ± 250310,996.8 ± 23827820.4 ± 1709<0.001
Paraspinal area at TH54203.1 ± 18544311.3 ± 19033154.1 ± 6700.002
Total muscle area at TH518,661.9 ± 451719,191.7 ± 432413,526.5 ± 2849<0.001
Precardial fat volume (cm3)25.6 ± 1527.0 ± 1513.0 ± 90.001
Tumor volume (mm3)225.3 ± 268228.6 ± 272198.5 ± 2420.590
Patients with Asbestos exposure194.2 ± 194194.2 ± 194*
Patients without Asbestos exposure286.9 ± 287331.9 ± 307200.9 ± 2420.095
TH5 Level of the fifth thoracic vertebra, SD Standard deviation. * no female subject with asbestos exposure.
Table
Table 2. Patient characteristics—post operative outcome.
Table 2. Patient characteristics—post operative outcome.
Total
n = 250 *		3-Year Death
n = 199
(72.6%)		3-Year Alive
n = 51
(18.3%)		p-ValueTotal
n = 249 *		3-Year Progress
n = 241
(96.8%)		No 3-Year Progress
n = 8
(3.2%)		p Value
Male gender, n (%)226 (90)183 (92)43 (84)0.09921 (8)18 (25)2 (8)0.087
Age (years), mean (±SD)70.4 (9)71.2 (8)67.3 (11)0.00570.6 (9)70.6 (9)70.5 (9)0.737
Asbestos exposure, n (%)136 (54)130 (65)6 (12)<0.001136 (55)134 (56)2 (25)<0.001
Chronic cardiac disease, n (%)17 (7)12 (6)5 (10)0.35217 (7)17 (7)0 (0)0.420
COPD, n (%)13 (5)5 (3)8 (16)<0.00113 (5)11 (5)2 (25)0.015
Diabetes mellitus, n (%)23 (9)18 (6)5 (10)0.88721 (8)20 (8)1 (13)0.727
Preoperative FEV1 (% predicted), mean (±SD)80.7 (19)78.7 (18)87.9 (20)0.00580.2 (19)79.8 (18)91.3 (26)0.081
FEV1/FVC, mean (±SD)88.6 (16)88.2 (17)89.9 (15)0.56788.3 (16)88.3 (16)88.7 (19)0.588
Neoadjuvant Chemotherapy, n (%)203 (81)126 (63)41 (75)0.125203 (82)198 (82)5 (63)0.440
Histologyc type
epithelioid, n (%)159 (74)142 (71)17 (33)<0.001159 (64)152 (63)7 (89)0.157
sarcomatoid, n (%)9 (4)8 (4)1 (2)0.4819 (4)9 (4)0 (0)0.268
biphasic, n (%)74 (34)71 (36)3 (6)<0.00174 (30)73 (30)1 (13)0.279
not defined, n (%)8 (4)7 (4)1 (2)0.5738 (3)7 (3)1 (13)0.130
IMIG stage, n (%) n = 238 0.015 0.001
I & II144 (58)114 (57)30 (59) 166 (67)162 (67)4 (49)
III & IV1 (1)0 (0)1 (2) 45 (18)43 (18)2 (25)
Type of surgery
P/D103 (41)82 (41)21 (41)0.919101 (41)101 (42)1 (13)0.026
Partial pleurectomy31 (12)23 (12)8 (16)0.39634 (14)33 (14)1 (13)0.964
EPP92 (37)74 (37)18 (35)0.87790 (36)86 (36)4 (50)0.241
Other23 (9)20 (10)3 (6)0.2150 (0)0 (0)0 (0)---
Sarcopenia (calculated on muscle surface (cm2)), mean (±SD)
Pectoral area at TH53754.6 (1166)3701.1 (1110)3963.2 (1355)0.1523740.6 (1119)3743.5 (1124)3652.4 (995)0.391
Rotator cuff area at TH510,678.1 (2545)10,584 (2540)11,043.5 (2558)0.25110,692.0 (2534)10,695.5 (2558)10,586.9 (1739)0.338
Paraspinal area at TH54212.5 (1940)4106.8 (1501)4624.8 (3098)0.0894205.5 (1942)4218.9 (1965)3802.4 (1000)0.739
Total muscle area at TH518,645.1 (4630)18,392.3 (4450)18,811.1 (3410)0.08818,638.1 (4587)18,657.9 (4628)18,041.7 (3272)0.340
Precardial fat volume (cm3)25.1 (15)26.9 (16)20.1 (10)0.13025.6 (15)26.1 (16)24.3 (14)0.863
epithelioid PM21.4 (8)22.1 (8)18.0 (6)0.04422.0 (22)22.4 (7)7.9 (13)**
biphasic PM23.4 (10)23.5 (10)23.6 (9)0.98923.5 (10)23.5 (10)30.5 (19)0.656
Tumor volume (mm3)232.3 (273)265.6 (290)109.2 (146)<0.001242.6 (275)245.2 (278)152.4 (150)0.329
epithelioid PM236.2 (310)250.8 (263)107.3 (187)0.023248.9 (312)251.6 (315)154.3 (18)0.372
biphasic PM237.6 (181)237.8 (182)219.3 (189)0.540236.2 (181)236.4 (182)312.0 (215)0.624
Clinical continuous variables are reported as mean ± standard deviation (SD). Categorical variables are reported as number (percentages). COPD, chronic obstructive pulmonary disease; FEV, forced expiratory volume; FVC, forced vital capacity; IMIG stage, International Mesothelioma Interest Group (8th Edition). P/D, pleurectomy/decortication; EPP, extrapleural pneumonectomy. Sarcopenia was defined as less than the gender specific 33rd percentile of the respective muscle area, thoracic vertebra level 5 (TH5). Pleural mesothelioma (PM). * patients were excluded due to a follow-up period < 36 months. ** not calculated, less than five patients in one group.
Table
Table 3. Kaplan Meier—Survival.
Table 3. Kaplan Meier—Survival.
No SarcopeniaSarcopeniap-Value
Mean 3-Year Survival
[95% CI]		Mean 3-Year Survival
[95% CI]
Sarcopenia (calculated on Total muscle surface (cm2))
Pectoral area at TH532.3 [26–39]22.8 [17–29]0.027
Rotator cuff area at TH531.7 [25–38]23.6 [17–30]0.028
Paraspinal area at TH534.5 [27–42]20.4 [15–25]0.002
Total muscle area at TH531.7 [25–38]23.9 [25–35]0.041
Confidence interval (CI), thoracic vertebra level 5 (TH5).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Verhoek, O.G.; Jungblut, L.; Lauk, O.; Blüthgen, C.; Opitz, I.; Frauenfelder, T.; Martini, K. Sarcopenia, Precardial Adipose Tissue and High Tumor Volume as Outcome Predictors in Surgically Treated Pleural Mesothelioma. Diagnostics 2022, 12, 99. https://doi.org/10.3390/diagnostics12010099

AMA Style

Verhoek OG, Jungblut L, Lauk O, Blüthgen C, Opitz I, Frauenfelder T, Martini K. Sarcopenia, Precardial Adipose Tissue and High Tumor Volume as Outcome Predictors in Surgically Treated Pleural Mesothelioma. Diagnostics. 2022; 12(1):99. https://doi.org/10.3390/diagnostics12010099

Chicago/Turabian Style

Verhoek, Oliver Guido, Lisa Jungblut, Olivia Lauk, Christian Blüthgen, Isabelle Opitz, Thomas Frauenfelder, and Katharina Martini. 2022. "Sarcopenia, Precardial Adipose Tissue and High Tumor Volume as Outcome Predictors in Surgically Treated Pleural Mesothelioma" Diagnostics 12, no. 1: 99. https://doi.org/10.3390/diagnostics12010099

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
