Interexaminer Reliability and Validity of Quantity of Cervical Mobility during Online Dynamic Inspection

by
Leire Leonet-Tijero
1,
Jaime Corral-de-Toro
1,2,
Jacobo Rodríguez-Sanz
3,4,
Mar Hernández-Secorún
1,2,
Hugo Abenia-Benedí
1,2,
María Orosia Lucha-López
1,2,*,
Sofía Monti-Ballano
1,2,
Julián Müller-Thyssen-Uriarte
1,2,
Héctor Tricás-Vidal
2,
César Hidalgo-García
1,2,* and
José Miguel Tricás-Moreno
1,2
1
Faculty of Health Sciences, University of Zaragoza, C/Domingo Miral s/n, 50009 Zaragoza, Spain
2
Physiotherapy Research Unit, University of Zaragoza, C/Domingo Miral s/n, 50009 Zaragoza, Spain
3
Faculty of Medicine and Health Sciences, Universitat Internacional de Catalunya, Sant Cugat del Vallès, 08195 Barcelona, Spain
4
ACTIUM Functional Anatomy Group, 08028 Barcelona, Spain
*
Authors to whom correspondence should be addressed.
Diagnostics 2022, 12(2), 546; https://doi.org/10.3390/diagnostics12020546
Submission received: 26 January 2022 / Revised: 17 February 2022 / Accepted: 18 February 2022 / Published: 21 February 2022
(This article belongs to the Special Issue Innovative Diagnostics Tools in Physiotherapy: from the Laboratory to the Clinical Setting 2.0)
Browse Figures
Versions Notes

Abstract

:
Background: Physical therapists routinely measure range of motion (ROM) of cervical spine. The reliability of the cervical range of motion (CROM) device has been demonstrated in several studies, but current evidence on the validity and reliability of the visual inspection is contradictory. The aim is to assess the validity and interexaminer reliability of the online visual inspection of active cervical ROM in physiotherapy students. Methods: Flexion, extension, both lateral flexions and rotations of a single participant were measured using CROM. Online visual inspection of 18 physiotherapy students against CROM was registered. Results: The validity, against CROM, of the online visual inspection of the active ROM ranged from good to excellent (Intraclass Correlation Coefficient (ICC) 0.83–0.97). Interexaminer reliability of the online visual inspection had favorable outcomes in all cervical movements in the three physiotherapy courses (ICC 0.70–0.96), with the visual inspection of the rotations being the most reliable (ICC 0.93–0.97). Interexaminer reliability of the classification of mobility was poor to good (Kappa 0.03–0.90). Conclusions: The interexaminer reliability and validity of the quantification of active cervical movement during online visual inspection was shown to be good to excellent for flexion-extension and lateral flexions and excellent for rotations.

1. Introduction

During the physical examination of the cervical spine, physiotherapists routinely assess the range of movement (ROM) [1,2]. Cervical ROM examination is a basic component for patients with cervical pain [3,4] and the need for a quantification of the functional loss has been raised [5].
The physical examination consists of asking the patient to perform the basic kinesiological movements, including the active ROM for the flexion, extension, both lateral flexions and rotations [2,6] in a sitting position [6]. According to Magee et al. [7], tests of active range of movement (AROM) are used to identify or determinate limitation on motion, patient’s willingness to move, and to identify the ROM in which the patient reports symptoms. Many non-radiological instruments have been developed in recent years, including goniometry, inclinometry [8], electrogoniometry, electromagnetic, ultrasonic and optoelectronic systems [9] and smartphone apps [10,11,12], those being a cheaper and more accessible option for physiotherapists.
Additionally, physical therapists can measure a patient’s ROM using “Cervical Range of Motion device” (CROM) [13]. In recent years, several studies have been developed to determine normal ranges of cervical ROM using this device [5,14]. All cervical spine movements can be measured without manual adjustment, eliminating a deficient manual technique possibility [15], and this can be managed by a single evaluator [16] with the patient seated [17]. Moreover, it does not require advanced calculations that would require loss of extra time [16] and it measures flexion, extension, lateral flexions and rotations through a compass-like instrument with a magnetic booster [13]. It has been suggested that with an experienced professional in the CROM use and with a standardized method, cervical active ROM is reproducible enough in a single session for patients with or without cervical pain [18]. Studies have demonstrated CROM reliability measuring cervical movements in the three movement planes, for both healthy [17,19] and symptomatic subjects [13,20]. Furthermore, it was found in several studies that the intra- and interexaminer reliability in the evaluation of active cervical ROM was moderately higher when the subjects were measured through the CROM device [15,21,22].
Another tool used for the cervical spine study is the visual estimation (VE) or visual inspection [13], which aims to document visible defects, general positioning and posture, functional deficits or lesions detectable by the eye with or without the assistance of devices. Recent evidence is contradictory about the measurement of cervical ROM through visual inspection [23] and the need for protocols and tools for clinical assessment [24], and to investigate the ROM, measurement techniques for different joints have been suggested [25]. Some studies declare that visual inspection may be the least reliable and valuable method for cervical ROM evaluation [1,17,23,26], while others conclude that cervical active ROM can be measured by visual inspection, being just as reliable as a measurement tool and with a moderate to significant interexaminer reliability [27,28]. Another study found intra- and interexaminer reliability ranges from significant to perfect for the ROM estimation through visual estimation [23].
It is known that cervical spine examination can not only be carried out in face-to-face interviews, but also that the visualization of videos can be a possible new way of observing patients [29,30]. Thus, “telemedicine” has been reported as a useful means for professionals who run many physical exploration components [30] to provide remote rehabilitation services [31] for people who are physically or geographically isolated from the rehabilitation specialists [32,33,34]. It can also be useful for health emergency situations, such as the one currently experienced due to the COVID-19 pandemic [35]. Moreover, some reviews demonstrated that the objective physiotherapy assessment of musculoskeletal injuries using telemedicine was technically feasible, since validity and reliability ranged from good to excellent [31,34], and a previous study analyzing telerehabilitation on chronic low back pain showed an accurate interexaminer reliability of ROM and orthopedic test [36].
The main aim of the current study was to analyze the interexaminer reliability and validity of online visual inspection of the quantity of active cervical movement. The secondary aims were to analyze the interexaminer reliability of a classification of cervical mobility and to collate the difficulties and potential improvements while analyzing online visual estimation of cervical ROM.

2. Materials and Methods

2.1. Study Type and Sample

The following is a descriptive validity and reliability study. This validity and reliability study was carried out at the University of Zaragoza (Spain). The study was approved by the local ethics committee “Comité Ético de Investigación Clínica de Aragón” (PI21/432). One asymptomatic physiotherapist was repeatedly filmed performing different cervical motions with different ROM and in the three cardinal planes. This physiotherapist was informed about the procedure and signed the informed consent form.
Inclusion criteria for the filmed subject were: (1) being a physiotherapist who is over 18 years of age; and (2) being able to simulate different ranges of movement of the cervical spine in all cardinal planes of movement.
An exclusion criterion for the filmed subject was the presence of any contraindication for movement in the cervical spine [1,9,37,38].
Inclusion criteria for the examiners were: (1) to be students in the second, third, or fourth year/course of the Degree of Physiotherapy (PT) [39]. The students in the first course were excluded as they had not taken the course “Kinesiology” yet. Of all volunteers, six from each course were randomly chosen. Thus, 18 physiotherapy students took part as examiners of the videos.
The subject was sitting in a 0.45-meter-high backless chair, with the knees bent at 90°, looking ahead, the arms were hanging and the feet were flat on the floor. The CROM device (Floating compass; Plastimo Airguide, Inc., Buffalo Groove, IL, USA) was positioned on the subject´s head to measure the movements in the sagittal and frontal plane with an inclinometer and in the transversal plane with a compass stabilized by a magnetic equipment installed around the subject´s neck (Figure 1).
The subject was instructed to perform 8 movements with different ROM in each one of the cardinal planes of the cervical spine (flexion, extension, both lateral flexions and rotations) [1,9,18]. The final ROM of every 8 videos in each of the three cardinal planes (flexion–extension, right–left lateral flexions and right–left rotations) were registered by another physiotherapist with the CROM device. The final ROM of each video in each of the three cardinal planes (flexion–extension, right–left lateral flexions and right–left rotations) was registered by another physiotherapist with the CROM device. This register constituted the “gold standard” for the validity study and the variable was denominated “ROM of CROM device”. Various studies have achieved a moderate to excellent reliability and validity of the CROM to measure active cervical movement [14,17,22,40]. All movements were recorded with a Huawei P20 phone that was placed on a tripod at a height of 1.05 m and at a distance of 1 m from the subject [18].
Finally, twenty-four videos were recorded, eight videos for each plane of movement. Videos were included to be analyzed in three questionnaires created in the Google Forms platform, with questions related to the degrees of movement in visual inspection and the qualitative classification of normal or impaired mobility (hypomobility or hypermobility) observed in the different videos. One questionnaire was created for the 8 videos of flexion-extension, one for the 8 videos of the lateral flexion, and a third one for the 8 videos of rotation. Among the 18 examiners, 6 answered the flexion–extension questionnaire (2 examiners from the second course, 2 examiners from the third course and 2 examiners from the fourth course), 6 answered lateral flexions and 6 answered rotations, with the same distribution [39].

2.2. Study Outcomes

The examiners were asked to perform a visual inspection of the 8 videos of the corresponding cervical movement while watching each video a maximum of three times. The questionnaires were answered anonymously, and they gathered data on participants’ gender and physiotherapy course, defined as sociodemographic variables.
The examiner answered four questions related to each video and completed the questionnaire after answering the questions about the 8 videos (4 questions for each video, 2 questions for each of the senses of movement for each video).
The first question was related to the ROM in visual inspection (quantitative variable) in cervical active ROM observed for each movement in the analyzed cardinal plane. Examiners would answer with an absolute angular value for the flexion as well as for the extension, following the same procedure in both lateral flexions and both rotations. This variable was registered as “ROM in visual inspection” for each movement.
The second question was related to the classification of mobility (qualitative variable), in cervical active ROM observed for each movement in the analyzed cardinal plane. Examiners would judge if the watched motion was hypomobile, normal or hypermobile [27,41]. This variable was registered as “classification of mobility” for each movement.
Furthermore, two questions were added at the end of the questionnaire for the students to evaluate their participation subjectively [42], expressing their difficulties in determining the ROM, and suggesting new ideas for the videos in the online measurement.

2.3. Statistical Analysis

The software IBM SPSS Statistics 21.0 for Windows was used [43]. Descriptive statistics were calculated for the examiners’ sample, analyzing frequencies and percentages for gender, as a qualitative variable, and relating them with the qualitative variable named “physiotherapy course” of the examiners.
Interexaminer reliability of the quantitative variable named “ROM in visual inspection” was analyzed calculating the Intraclass Correlation Coefficient (ICC) with a confidence interval of 95% [19,44]. The estimation of the ICC was based on the two-factor random effects model, in which both the effects of individuals and the effects of the measures were random and the “consistency” agreement between examiners was chosen [18].
Interexaminer reliability of the qualitative variable named “classification of mobility” was analyzed calculating the Kappa index with a confidence interval of 95% [45].
ICC was calculated to measure validity of online visual inspection for the quantitative variable named “ROM in visual inspection” in comparison to the gold standard, “ROM of CROM device”. The estimation of the ICC was based on the two-factor random effects model, in which both the effects of individuals and the effects of the measures were random and the “consistency” agreement between examiners was chosen [46].
ICC or Kappa value (from 0 to 1) for validity and reliability was interpreted according to the following classification: poor <0.5; moderate <0.5 to 0.75; good 0.75 to 0.90; and excellent >0.90 [9,46].

3. Results

3.1. Sociodemographic Variables

Of the 18 examiners, 44% were men and 56% were women. Regarding students’ gender according to physiotherapy course, three women and three men from the third and fourth courses and four women and two men from the second course participated.

3.2. Reliability and Validity Studies

3.2.1. Interexaminer Reliability of the “ROM in Visual Inspection”

The interexaminer reliability results related to degrees of movement showed good to excellent value for flexion–extension (ICC 0.75–0.96) and lateral flexions (ICC 0.81–0.93), and excellent value for rotations (ICC 0.93–0.97) for each physiotherapy grade. ICC with the lower bound and upper bound of the 95% confidence interval are listed in Table 1.

3.2.2. Interexaminer Reliability of the “Classification of Mobility”

The interexaminer reliability results related to classification of mobility showed poor to moderate value for flexion-extension (Kappa 0.03–0.62) and lateral flexions (Kappa 0.26–0.54), and moderate to good values for rotations (Kappa 0.58–0.90) for each physio-therapy grade. Kappa index values are shown in Table 1.

3.2.3. Validity of “ROM in Visual Inspection”

The validity of “ROM in visual inspection” when compared to CROM device demonstrated good to excellent values in all movements, with ICC values from 0.83 to 0.96 (Table 2).

3.3. Examiners Difficulties and Advice

Figure 2 shows the examiners’ answers to the question regarding difficulties in measuring cervical ROM. Determining lateral flexions and rotations ROMs was the most difficult issue for the students.
Figure 3 shows the potential improvements for the recording methodology of cervical ROM that examiners suggested. Stopping or dividing the movement in the sagittal plane in two different flexion and extension sequences and a change of perspective in transversal plane movements for the video capturing were the main proposed solutions by the examiners.

4. Discussion

This study examined the validity, compared with a gold standard (CROM device), and the interexaminer reliability of online visual inspection of the quantity (ROM and classification of mobility) of active cervical movements.
The results indicated that the interexaminer reliability ranged from good to excellent for ROM in visual inspection and the interexaminer reliability of classification of mobility was poor to good. The validity of online visual inspection of the ROM of the active cervical movement ranged from good to excellent.
Contradictory findings can be found in the literature regarding the reliability of visual estimation of the cervical movement. According to Nordin et al. [2], interexaminer reliability (Kappa 0.96–1.00) increased as the level of disease prevalence decreased, in healthy controls of cervical spine. Whitcroft et al. [27] found in their study good to excellent intra- and interexaminer reliability (ICC 0.75–0.99) for cervical active ROM, and Hoppenbrouwers et al. [39] found moderate reproducibility in active and passive cervical examination, in which early graduated physiotherapists participated. However, other studies suggest that visual inspection of the cervical spine is not consistent for flexion, extension and lateral flexions [23] and according to Pool et al. [46], interexaminer reproducibility of cervical spine physical exploration is not reliable, except when following a standardized protocol. Youdas et al. [21] also studied visual inspection reliability to evaluate the cervical spine and in spite of following defined protocols, their study obtained from poor to moderate reliability.
Our study showed an interexaminer reliability of online visual inspection of cervical active ROM from good to excellent in flexion and extension movements for second- and fourth-course PT students and from good to excellent reliability for third-course PT students. According to lateral flexions exploration, many studies [21,23,24,39] conclude that cervical range of movement measurement is not reliable, although our study has shown moderate to excellent interexaminer reliability, with third-course students being the most reliable.
In relation to the variable “classification of mobility”, our study showed poor to moderate interrater reliability for flexion–extension and lateral flexions and from moderate to good in rotation. The level of PT course did not seem to influence the degree of reliability. Vikari et al. [24] determined concrete angular values to classify a movement as hyper/hypomobile or normal obtaining from poor to moderate reliability (Kappa 0.41–0.56). However, Hoppenbrouwers et al. [39] classified extension as restricted if the line between the nose and forehead did not reach horizontality. For lateral flexions and rotations, measurements were taken from tragus to acromion and from chin to acromion, obtaining moderate interexaminer reliability (Kappa 0.53). All these studies classified mobility according to a range of degrees of movement, while, in our study, we did not provide any standardized amount of degrees of ROM to classify a normal or an impaired motion. It is possible that providing a proper training guided by determined standardized ROM in the different planes, according to the age of the videotaped subject, as promoted by Swinkels et al. [1], would improve interrater reliability.
It is considered that cervical ROM should be easily estimated via video during a videocall [47]. However, there is an absence of validity studies for visual estimation of the cervical ROM via video [48]. Our study analyzed the validity of online visual inspection of the active ROM compared with the CROM. The CROM device has been considered as a reference standard for measuring cervical ROM [18,49,50,51]. Whitcroft et al. [27] ran a similar study, obtaining visual feedback through photos, where they obtained moderate validity. Instead, our study obtained from good to excellent validity in all planes of movement, similarly to Allahyari et al. [52], finding a good to excellent validity between a Kinect sensor and an electrogoniometer. Both Kinect and video recording require that the tracked region face the sensor or be visible to the camera. Christensen et al. [48] achieved greater accuracy with a 2D video analysis via software than visual estimation for lateral flexion and right rotation in infants. However, their visual estimation of the ROM was consistent and the time and technology necessary for the evaluation was lower than with video analysis via software.
Nevertheless, in their systematic review, Williams et al. [17] classified visual inspection as the least reliable method to assess cervical ROM. However, although it is necessary to investigate visual inspection validity with larger samples and symptomatic subjects, statistically significant results were obtained in our study and validity was provided through the standardization of the recording methodology [21,24,27,46,51].
On the other hand, the singularity of our study is that visual inspection of the cervical spine is performed via online. The current implication of technology in physiotherapy has driven investigators to compare visual inspection with bidimensional analysis [48], photography [27], photogrammetry [53] or 3D systems of movement analysis obtaining a considerable reliability [9,37,38,46], although their clinical utility becomes challenged as they require complicated and expensive measurement procedures [9,54]. In contrast, our study has demonstrated the possibility of using online visual inspection for determining the quantity of movement in a reliable way without having a complicated and expensive measurement protocol.
Likewise, online visual inspection focused on the ROM measurement could be used as a tool in telemedicine [26,30,31,36,55]. Until now, telerehabilitation utility has been studied among different body regions as lumbar spine, ankle, elbow or knee [30,31,34,36,56,57], obtaining favorable reliability for ROM [35,58]. Our study could provide a new line of research focused specifically on visual inspection of cervical active ROM. Thus, it could be interesting to integrate this online tool in the physiotherapy degree, as well as in physiotherapists’ continuous training [59,60,61] with platforms like Google Forms, the one used in our study [62,63,64]. Video analysis of the cervical ROM could be a part of an effective screening evaluation during pandemics, and with patients who live far away from the health professional or with complications in traveling caused by neck dysfunction or medication [65].
Our study presents the following limitations. As a result of COVID-19 safety precautions, our sample was reduced from 8 asymptomatic subjects [1,9,37,38] to a single asymptomatic subject who simulated different ROMs. Otherwise, the students found it difficult to determine end of movements by the measurement methodology such as video perspective or video sequencing. Those considerations must be considered for further studies. Additionally, our study does not provide the values of validity and reliability in a clinical background and focuses only on the analysis of cervical ROM and not on a full telemedicine evaluation for neck pain including also clinical history, inspection, functional movement patterns, strength and provocative testing [47], so we should be cautious when extrapolating these data clinically.
For further studies we suggest to improve the screening capacity of this telemedicine evaluation, adding other components of the cervical evaluation, trained physiotherapists to the examiners group [41,66] and symptomatic subjects [21,24,27,51,66]. Additionally, regarding ROM clinical evaluation, examiners should be trained to increase their accuracy by describing normal cervical ROM, including schematic images with ROM reference according to different positions in each spatial plane and through successive real videos together with the values of the movement performed according to the CROM.

5. Conclusions

The interexaminer reliability and validity of the quantification of active cervical movement during online visual inspection was shown to be good to excellent for flexion-extension and lateral flexions and excellent for rotations.

Author Contributions

Conceptualization, C.H.-G., J.M.T.-M. and M.O.L.-L.; methodology, C.H.-G., L.L.-T. and M.H.-S.; software, H.T.-V.; validation, S.M.-B., J.M.-T.-U. and J.C.-d.-T.; formal analysis, L.L.-T., M.H.-S., J.R.-S. and M.O.L.-L.; investigation, L.L.-T., C.H.-G. and J.R.-S.; resources, J.M.T.-M.; data curation, M.H.-S., L.L.-T. and H.A.-B.; writing—original draft preparation, L.L.-T., M.H.-S. and H.A.-B.; writing—review and editing, L.L.-T., M.H.-S., H.A.-B., M.O.L.-L., C.H.-G. and H.T.-V.; visualization, S.M.-B., J.M.-T.-U. and J.C.-d.-T.; supervision, M.O.L.-L.; project administration, C.H.-G., J.M.T.-M. and M.O.L.-L. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki and approved by the local ethics committee “Comité Ético de Investigación Clínica de Aragón” (PI21/432) Date: 26 January 2022.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study. Written informed consent has been obtained from the patient to publish this paper.

Data Availability Statement

The data sets analyzed during the current study are available from the corresponding author on reasonable request. All data analyzed during this study are included in this published article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Swinkels, R.A.H.M.; Swinkels-Meewisse, I.E.J.C.M. Normal Values for Cervical Range of Motion. Spine 2014, 39, 362–367. [Google Scholar] [CrossRef] [PubMed]
  2. Nordin, M.; Carragee, E.J.; Hogg-Johnson, S.; Weiner, S.S.; Hurwitz, E.L.; Peloso, P.M.; Guzman, J.; van der Velde, G.; Carroll, L.; Holm, L.W.; et al. Assessment of Neck Pain and Its Associated Disorders. J. Manip. Physiol. Ther. 2009, 32, S117–S140. [Google Scholar] [CrossRef] [PubMed]
  3. Pan, F.; Arshad, R.; Zander, T.; Reitmaier, S.; Schroll, A.; Schmidt, H. The effect of age and sex on the cervical range of motion—A systematic review and meta-analysis. J. Biomech. 2018, 75, 13–27. [Google Scholar] [CrossRef] [PubMed]
  4. Schaufele, M.K.; Boden, S.D. Physical function measurements in neck pain. Phys. Med. Rehabil. Clin. N. Am. 2003, 14, 569–588. [Google Scholar] [CrossRef]
  5. Feipel, V.; Rondelet, B.; Le Pallec, J.-P.; Rooze, M. Normal global motion of the cervical spine: An electrogoniometric study. Clin. Biomech. 1999, 14, 462–470. [Google Scholar] [CrossRef]
  6. Torres-Cueco, R. La Columna Cervical: Síndromes Clínicos y su Tratamiento Manipulativo, 1st ed.; Editorial Médica Panamericana: Madrid, Spain, 2008; pp. 207–249. [Google Scholar]
  7. Magee, D. Orthopedic Physical Assessment, 6th ed.; Elsevier: Maryland Heights, MO, USA, 1997; pp. 9–120. [Google Scholar]
  8. Lynch-Caris, T.; Majeske, K.D.; Brelin-Fornari, J.; Nashi, S. Establishing reference values for cervical spine range of motion in pre-pubescent children. J. Biomech. 2008, 41, 2714–2719. [Google Scholar] [CrossRef]
  9. Song, H.; Zhai, X.; Gao, Z.; Lu, T.; Tian, Q.; Li, H.; He, X. Reliability and validity of a Coda Motion 3-D Analysis system for measuring cervical range of motion in healthy subjects. J. Electromyogr. Kinesiol. 2018, 38, 56–66. [Google Scholar] [CrossRef]
  10. Rodríguez-Sanz, J.; Carrasco-Uribarren, A.; Cabanillas-Barea, S.; Hidalgo-García, C.; Fanlo-Mazas, P.; Lucha-López, M.O.; Tricás-Moreno, J.M. Validity and reliability of two Smartphone applications to measure the lower and upper cervical spine range of motion in subjects with chronic cervical pain. J. Back Musculoskelet. Rehabil. 2019, 32, 619–627. [Google Scholar] [CrossRef] [Green Version]
  11. Ghorbani, F.; Kamyab, M.; Azadinia, F. Smartphone Applications as a Suitable Alternative to CROM Device and Inclinometers in Assessing the Cervical Range of Motion in Patients with Nonspecific Neck Pain. J. Chiropr. Med. 2020, 19, 38–48. [Google Scholar] [CrossRef]
  12. Sedrez, J.A.; Furlanetto, T.S.; Gelain, G.M.; Candotti, C.T. Validity and Reliability of Smartphones in Assessing Spinal Kinematics: A Systematic Review and Meta-analysis. J. Manip. Physiol. Ther. 2020, 43, 635–645. [Google Scholar] [CrossRef]
  13. Law, E.Y.H.; Chiu, T.T.-W. Measurement of Cervical Range of Motion (CROM) by electronic CROM goniometer: A test of relia-bility and validity. J. Back Musculoskelet. Rehabil. 2013, 26, 141–148. [Google Scholar] [CrossRef] [PubMed]
  14. Youdas, J.W.; Garrett, T.R.; Suman, V.J.; Bogard, C.L.; O Hallman, H.; Carey, J.R. Normal Range of Motion of the Cervical Spine: An Initial Goniometric Study. Phys. Ther. 1992, 72, 770–780. [Google Scholar] [CrossRef] [PubMed]
  15. Rheault, W.; Albright, B.; Byers, C.; Franta, M.; Johnson, A.; Skowronek, M.; Dougherty, J. Intertester Reliability of the Cervical Range of Motion Device. J. Orthop. Sports Phys. Ther. 1992, 15, 147–150. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Wibault, J.; Vaillant, J.; Vuillerme, N.; Dedering, A.; Peolsson, A. Using the cervical range of motion (CROM) device to assess head repositioning accuracy in individuals with cervical radiculopathy in comparison to neck- healthy individuals. Man Ther. 2013, 18, 403–409. [Google Scholar] [CrossRef] [Green Version]
  17. Williams, M.A.; McCarthy, C.; Chorti, A.; Cooke, M.W.; Gates, S. A Systematic Review of Reliability and Validity Studies of Methods for Measuring Active and Passive Cervical Range of Motion. J. Manip. Physiol. Ther. 2010, 33, 138–155. [Google Scholar] [CrossRef]
  18. Fletcher, J.P.; Bandy, W.D. Intrarater Reliability of CROM Measurement of Cervical Spine Active Range of Motion in Persons with and Without Neck Pain. J. Orthop. Sports Phys. Ther. 2008, 38, 640–645. [Google Scholar] [CrossRef]
  19. Audette, I.; Dumas, J.-P.; Côté, J.N.; De Serres, S.J. Validity and Between-Day Reliability of the Cervical Range of Motion (CROM) Device. J. Orthop. Sports Phys. Ther. 2010, 40, 318–323. [Google Scholar] [CrossRef]
  20. Wolan-Nieroda, A.; Guzik, A.; Mocur, P.; Drużbicki, M.; Maciejczak, A. Assessment of Interrater and Intrarater Reliability of Cervical Range of Motion (CROM) Goniometer. BioMed Res. Int. 2020, 2020, 1–8. [Google Scholar] [CrossRef]
  21. Youdas, J.W.; Carey, J.R.; Garrett, T.R. Reliability of Measurements of Cervical Spine Range of Motion—Comparison of Three Methods. Phys. Ther. 1991, 71, 98–104. [Google Scholar] [CrossRef]
  22. Hole, D.; Cook, J.; Bolton, J. Reliability and concurrent validity of two instruments for measuring cervical range of motion: Effects of age and gender. Man Ther. 1995, 1, 36–42. [Google Scholar] [CrossRef]
  23. Lemeunier, N.; Jeoun, E.; Suri, M.; Tuff, T.; Shearer, H.; Mior, S.; Wong, J.; da Silva-Oolup, S.; Torres, P.; D’Silva, C.; et al. Reliability and validity of clinical tests to assess posture, pain location, and cervical spine mobility in adults with neck pain and its associated disorders: Part 4. A systematic review from the cervical assessment and diagnosis research evaluation (CADRE) collaboration. Musculoskelet. Sci. Pract. 2018, 38, 128–147. [Google Scholar] [CrossRef] [PubMed]
  24. Viikari-Juntura, E. Interexaminer Reliability of Observations in Physical Examinations of the Neck. Phys. Ther. 1987, 67, 1526–1532. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Dunleavy, K.; Neil, J.; Tallon, A.; Adamo, D.E. Reliability and validity of cervical position measurements in individuals with and without chronic neck pain. J. Man Manip. Ther. 2014, 23, 188–196. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Good, D.W.; Lui, D.F.; Leonard, M.; Morris, S.; McElwain, J.P. Skype: A tool for functional assessment in orthopaedic research. J. Telemed. Telecare 2012, 18, 94–98. [Google Scholar] [CrossRef]
  27. Whitcroft, K.L.; Massouh, L.; Amirfeyz, R.; Bannister, G. Comparison of Methods of Measuring Active Cervical Range of Motion. Spine 2010, 35, E976–E980. [Google Scholar] [CrossRef]
  28. Toomingas, A.; Németh, G.; Alfredsson, L. Self-administered examination versus conventional medical examination of the musculoskeletal system in the neck, shoulders, and upper limbs. J. Clin. Epidemiol. 1995, 48, 1473–1483. [Google Scholar] [CrossRef]
  29. Anton, D.; Berges, I.; Bermúdez, J.; Goñi, A.; Illarramendi, A. A Telerehabilitation System for the Selection, Evaluation and Remote Management of Therapies. Sensors 2018, 18, 1459. [Google Scholar] [CrossRef] [Green Version]
  30. Lade, H.; McKenzie, S.; Steele, L.; Russell, T.G. Validity and reliability of the assessment and diagnosis of musculoskeletal elbow disorders using telerehabilitation. J. Telemed. Telecare 2012, 18, 413–418. [Google Scholar] [CrossRef]
  31. Mani, S.; Sharma, S.; Omar, B.; Paungmali, A.; Joseph, L. Validity and reliability of Internet-based physiotherapy assessment for musculoskeletal disorders: A systematic review. J. Telemed. Telecare 2017, 23, 379–391. [Google Scholar] [CrossRef]
  32. Durfee, W.K.; Savard, L.; Weinstein, S. Technical Feasibility of Teleassessments for Rehabilitation. IEEE Trans. Neural Syst. Rehabil. Eng. 2007, 15, 23–29. [Google Scholar] [CrossRef]
  33. Russell, T. Goniometry via the internet. Aust. J. Physiother. 2007, 53, 136. [Google Scholar] [CrossRef]
  34. Russell, T.G.; Blumke, R.; Richardson, B.; Truter, P. Telerehabilitation mediated physiotherapy assessment of ankle disorders. Physiother. Res. Int. 2010, 15, 167–175. [Google Scholar] [CrossRef] [PubMed]
  35. Chiang, C.; Singh, R.H.; Lalvani, N.; Stein, K.S.; Lorenz, D.H.; Lay, C.; Dodick, D.W.; Newman, L.C. Patient experience of telemedicine for headache care during the COVID-19 pandemic: An American Migraine Foundation survey study. Headache J. Head Face Pain 2021, 61, 734–739. [Google Scholar] [CrossRef] [PubMed]
  36. Palacín-Marín, F.; Esteban-Moreno, B.; Olea, N.; Herrera-Viedma, E.; Arroyo-Morales, M. Agreement Between Telerehabilitation and Face-to-Face Clinical Outcome Assessments for Low Back Pain in Primary Care. Spine 2013, 38, 947–952. [Google Scholar] [CrossRef] [PubMed]
  37. Wilke, J.; Niederer, D.; Vogt, L.; Banzer, W. Reliability of measuring half-cycle cervical range of motion may be increased using a spirit level for calibration. Musculoskelet. Sci. Pract. 2018, 33, 99–104. [Google Scholar] [CrossRef]
  38. Inokuchi, H.; Tojima, M.; Mano, H.; Ishikawa, Y.; Ogata, N.; Haga, N. Neck range of motion measurements using a new three-dimensional motion analysis system: Validity and repeatability. Eur. Spine J. 2015, 24, 2807–2815. [Google Scholar] [CrossRef]
  39. Hoppenbrouwers, M.; Eckhardt, M.M.; Verkerk, K.; Verhagen, A. Reproducibility of the Measurement of Active and Passive Cervical Range of Motion. J. Manip. Physiol. Ther. 2006, 29, 363–367. [Google Scholar] [CrossRef]
  40. De Koning, C.H.P.; Van Den Heuvel, S.P.; Staal, J.B.; Smits-Engelsman, B.C.M.; Hendriks, E.J.M. Clinimetric evaluation of active range of motion measures in patients with non-specific neck pain: A systematic review. Eur. Spine J. 2008, 17, 905–921. [Google Scholar] [CrossRef] [Green Version]
  41. Piva, S.R.; Erhard, R.E.; Childs, J.D.; Browder, D.A. Inter-tester reliability of passive intervertebral and active movements of the cervical spine. Man Ther. 2006, 11, 321–330. [Google Scholar] [CrossRef]
  42. Jones, A.Y.; Dean, E.; Hui-Chan, C. Comparison of teaching and learning outcomes between video-linked, web-based, and classroom tutorials: An innovative international study of profession education in physical therapy. Comput. Educ. 2010, 54, 1193–1201. [Google Scholar] [CrossRef]
  43. Ullucci, P.A.; Tudini, F.; Moran, M. Reliability of Smartphone Inclinometry to Measure Upper Cervical Range of Motion. J. Sport Rehabil. 2019, 28, 1–12. [Google Scholar] [CrossRef] [PubMed]
  44. Cleland, J.A.; Childs, J.D.; Fritz, J.M.; Whitman, J.M. Interrater Reliability of the History and Physical Examination in Patients With Mechanical Neck Pain. Arch. Phys. Med. Rehabil. 2006, 87, 1388–1395. [Google Scholar] [CrossRef] [PubMed]
  45. Fjellner, A.; Bexander, C.; Faleij, R.; Strender, L.-E. Interexaminer reliability in physical examination of the cervical spine. J. Manip. Physiol. Ther. 1999, 22, 511–516. [Google Scholar] [CrossRef]
  46. Koo, T.K.; Li, M.Y. A Guideline of Selecting and Reporting Intraclass Correlation Coefficients for Reliability Research. J. Chiropr. Med. 2016, 15, 155–163. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Pujalte, G.; Loeffert, J.R.; Bertasi, T.G.O.; Bertasi, R.A.O.; Anderson, T.F.; Esser, S.M.; Paredes-Molina, C.S.; Albano-Aluquin, S.A. Cervical Spine Evaluation by Telephone and Video Visit. Cureus 2021, 13, e19741. [Google Scholar] [CrossRef] [PubMed]
  48. Christensen, E.; Castle, K.B.; Hussey, E. Clinical Feasibility of 2-Dimensional Video Analysis of Active Cervical Motion in Congenital Muscular Torticollis. Pediatr. Phys. Ther. 2015, 27, 276–283. [Google Scholar] [CrossRef]
  49. Pool, J.J.; Hoving, J.L.; de Vet, H.C.; van Mameren, H.; Bouter, L. The interexaminer reproducibility of physical examination of the cervical spine. J. Manip. Physiol. Ther. 2004, 27, 84–90. [Google Scholar] [CrossRef] [Green Version]
  50. Jasiewicz, J.M.; Treleaven, J.; Condie, P.; Jull, G. Wireless orientation sensors: Their suitability to measure head movement for neck pain assessment. Man Ther. 2007, 12, 380–385. [Google Scholar] [CrossRef]
  51. Van Suijlekom, H.A.; de Vet, H.C.W.; van den Berg, S.G.M.; Weber, W.E.J. Interobserver Reliability in Physical Examination of the Cervical Spine in Patients with Headache. Headache 2000, 40, 581–586. [Google Scholar] [CrossRef] [Green Version]
  52. Allahyari, T.; Sahraneshin Samani, A.; Khalkhali, H.R. Validity of the Microsoft Kinect for measurement of neck angle: Comparison with electrogoniometry. Int. J. Occup. Saf. Ergon. 2017, 23, 524–532. [Google Scholar] [CrossRef]
  53. Strimpakos, N. The assessment of the cervical spine. Part 1: Range of motion and proprioception. J. Bodyw. Mov. Ther. 2011, 15, 114–124. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Schiefer, C.; Kraus, T.; Ellegast, R.P.; Ochsmann, E. A technical support tool for joint range of motion determination in functional diagnostics—An inter-rater study. J. Occup. Med. Toxicol. 2015, 10, 1–13. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Vieira Érica, E.C.; Meziat-Filho, N.A.; Ferreira, A.S. Photogrammetric Variables Used by Physical Therapists to Detect Neck Pain and to Refer for Physiotherapeutic Intervention: A Cross-Sectional Study. J. Manip. Physiol. Ther. 2019, 42, 254–266. [Google Scholar] [CrossRef] [PubMed]
  56. O’leary, S.; Christensen, S.W.; Verouhis, A.; Pape, M.; Nilsen, O.; McPhail, S.M. Agreement between physiotherapists rating scapular posture in multiple planes in patients with neck pain: Reliability study. Physiotherapy 2015, 101, 381–388. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Cabana, F.; Boissy, P.; Tousignant, M.; Moffet, H.; Corriveau, H.; Dumais, R. Interrater Agreement Between Telerehabilitation and Face-to-Face Clinical Outcome Measurements for Total Knee Arthroplasty. Telemed. e-Health 2010, 16, 293–298. [Google Scholar] [CrossRef] [PubMed]
  58. Truter, P.; Russell, T.; Fary, R. The Validity of Physical Therapy Assessment of Low Back Pain via Telerehabilitation in a Clinical Setting. Telemed. e-Health 2014, 20, 161–167. [Google Scholar] [CrossRef] [PubMed]
  59. Russell, T.; Jull, G.; Wootton, R. Can the Internet be used as a medium to evaluate knee angle? Man Ther. 2003, 8, 242–246. [Google Scholar] [CrossRef]
  60. Basteris, A.; Pedler, A.; Sterling, M. Evaluating the neck joint position sense error with a standard computer and a webcam. Man Ther. 2016, 26, 231–234. [Google Scholar] [CrossRef]
  61. Maloney, S.; Chamberlain, M.; Morrison, S.; Kotsanas, G.; Keating, J.L.; Ilic, D. Health Professional Learner Attitudes and Use of Digital Learning Resources. J. Med. Internet Res. 2013, 15, e7. [Google Scholar] [CrossRef]
  62. Stander, J.; Grimmer, K.; Brink, Y. Learning styles of physiotherapists: A systematic scoping review. BMC Med. Educ. 2019, 19, 2. [Google Scholar] [CrossRef]
  63. Mącznik, A.K.; Ribeiro, D.C.; Baxter, G.D. Online technology use in physiotherapy teaching and learning: A systematic review of effectiveness and users’ perceptions. BMC Med. Educ. 2015, 15, 160. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Brown, G.A.; Bice, M.R.; Shaw, B.S.; Shaw, I. Online quizzes promote inconsistent improvements on in-class test performance in introductory anatomy and physiology. Adv. Physiol. Educ. 2015, 39, 63–66. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Guzman, J.; Haldeman, S.; Carroll, L.J.; Carragee, E.J.; Hurwitz, E.L.; Peloso, P.; Nordin, M.; Cassidy, J.D.; Holm, L.W.; Côté, P.; et al. Clinical practice implications of the Bone and Joint Decade 2000–2010 Task Force on Neck Pain and Its Associated Disorders: From concepts and findings to recommendations. J. Manip. Physiol. 2009, 32 (Suppl. 2), S227–S243. [Google Scholar] [CrossRef] [PubMed]
  66. Orr, R.; Foster, S. Increasing Student Success Using Online Quizzing in Introductory (Majors) Biology. CBE—Life Sci. Educ. 2013, 12, 509–514. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Diagnostics 12 00546 g001 550

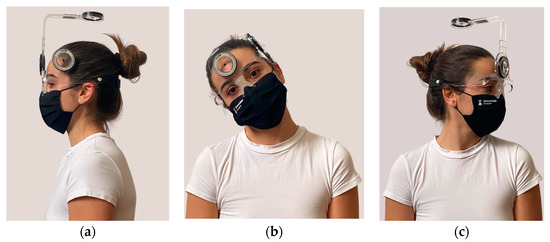

Figure 1. Position of CROM device for: (a) Sagittal plane for flexion-extension movement; (b) Frontal plane for lateral flexion movement; (c) Transversal plane for rotation movement.
Figure 1. Position of CROM device for: (a) Sagittal plane for flexion-extension movement; (b) Frontal plane for lateral flexion movement; (c) Transversal plane for rotation movement.
Diagnostics 12 00546 g001
Diagnostics 12 00546 g002 550

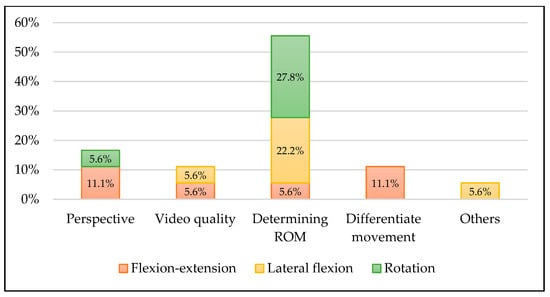

Figure 2. Difficulties of range of motion estimation described by the examiners.
Figure 2. Difficulties of range of motion estimation described by the examiners.
Diagnostics 12 00546 g002
Diagnostics 12 00546 g003 550

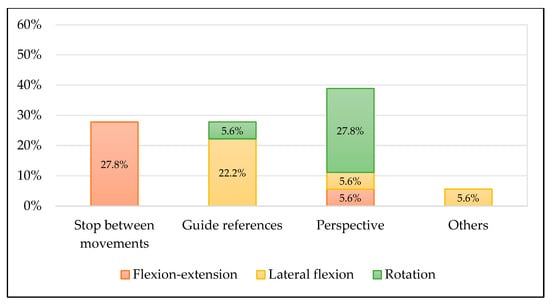

Figure 3. Potential improvements proposed by the examiners.
Figure 3. Potential improvements proposed by the examiners.
Diagnostics 12 00546 g003
Table
Table 1. Reliability of quantity of motion with online visual estimation vs. CROM, for flexion-extension, lateral flexions and rotations.
Table 1. Reliability of quantity of motion with online visual estimation vs. CROM, for flexion-extension, lateral flexions and rotations.
Physiotherapy CourseReliability of “ROM in Visual
Inspection”		Reliability of “Classification of Mobility”
FLEXION–EXTENSION
2nd Course0.75 (0.30–0.91)0.03
3rd Course0.96 (0.88–0.98)0.62
4th Course0.81 (0.47–0.98)0.52
LATERAL FLEXIONS
2nd Course0.91 (0.75–0.97)0.51
3rd Course0.93 (0.81–0.98)0.54
4th Course0.81 (0.45–0.93)0.26
ROTATIONS
2nd Course0.93 (0.80–0.98)0.90
3rd Course0.97 (0.90–0.90)0.58
4th Course0.96 (0.90–0.99)0.74
ROM in visual inspection: ICC (lower bound and upper bound of the 95% confidence interval); Classification of mobility: Kappa index. Poor <0.5; Moderate 0.5–0.75; Good 0.75–0.90; Excellent >0.90.
Table
Table 2. Validity of online visual estimation vs. CROM for flexion-extension, lateral flexions and rotations.
Table 2. Validity of online visual estimation vs. CROM for flexion-extension, lateral flexions and rotations.
Physiotherapy GradeValidity of “ROM in Visual Inspection”
FLEXION–EXTENSION
2nd Course0.94 (0.83–0.98)
3rd Course0.83 (0.50–0.94)
4th Course0.96 (0.88–0.99)
LATERAL FLEXIONS
2nd Course0.88 (0.67–0.96)
3rd Course0.91 (0.75–0.97)
4th Course0.90 (0.72–0.97)
ROTATIONS
2nd Course0.90 (0.71–0.96)
3rd Course0.96 (0.88–0.99)
4th Course0.93 (0.80–0.88)
ROM in visual inspection: ICC (lower bound and upper bound of the 95% confidence interval).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Leonet-Tijero, L.; Corral-de-Toro, J.; Rodríguez-Sanz, J.; Hernández-Secorún, M.; Abenia-Benedí, H.; Lucha-López, M.O.; Monti-Ballano, S.; Müller-Thyssen-Uriarte, J.; Tricás-Vidal, H.; Hidalgo-García, C.; et al. Interexaminer Reliability and Validity of Quantity of Cervical Mobility during Online Dynamic Inspection. Diagnostics 2022, 12, 546. https://doi.org/10.3390/diagnostics12020546

AMA Style

Leonet-Tijero L, Corral-de-Toro J, Rodríguez-Sanz J, Hernández-Secorún M, Abenia-Benedí H, Lucha-López MO, Monti-Ballano S, Müller-Thyssen-Uriarte J, Tricás-Vidal H, Hidalgo-García C, et al. Interexaminer Reliability and Validity of Quantity of Cervical Mobility during Online Dynamic Inspection. Diagnostics. 2022; 12(2):546. https://doi.org/10.3390/diagnostics12020546

Chicago/Turabian Style

Leonet-Tijero, Leire, Jaime Corral-de-Toro, Jacobo Rodríguez-Sanz, Mar Hernández-Secorún, Hugo Abenia-Benedí, María Orosia Lucha-López, Sofía Monti-Ballano, Julián Müller-Thyssen-Uriarte, Héctor Tricás-Vidal, César Hidalgo-García, and et al. 2022. "Interexaminer Reliability and Validity of Quantity of Cervical Mobility during Online Dynamic Inspection" Diagnostics 12, no. 2: 546. https://doi.org/10.3390/diagnostics12020546

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
