User Perceptions of Avatar-Based Patient Monitoring for Intensive Care Units: An International Exploratory Sequential Mixed-Methods Study

by
Justyna Lunkiewicz
1,†,
Greta Gasciauskaite
1,†,
Tadzio Raoul Roche
1,
Samira Akbas
1,
Christoph B. Nöthiger
1,
Michael T. Ganter
2,
Patrick Meybohm
3,
Sebastian Hottenrott
3,
Kai Zacharowski
4,
Florian Jürgen Raimann
4,
Eva Rivas
5,
Manuel López-Baamonde
5,
Elisabeth Anna Beller
1,
David Werner Tscholl
1,* and
Lisa Bergauer
1
1
Department of Anesthesiology, University Hospital Zurich, Raemistrasse 100, 8091 Zurich, Switzerland
2
Institute of Anesthesiology and Critical Care Medicine, Clinic Hirslanden Zurich, 8032 Zurich, Switzerland
3
Department of Anesthesiology, Intensive Care, Emergency and Pain Medicine, University Hospital Wuerzburg, University of Wuerzburg, 97070 Wuerzburg, Germany
4
Department of Anesthesiology, Intensive Care Medicine and Pain Therapy, University Hospital Frankfurt, Goethe University Frankfurt, 60629 Frankfurt, Germany
5
Department of Anesthesiology, Intensive Care Medicine and Pain Therapy, Hospital Clinic of Barcelona, University of Barcelona, 08007 Barcelona, Spain
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Diagnostics 2023, 13(21), 3391; https://doi.org/10.3390/diagnostics13213391
Submission received: 5 September 2023 / Revised: 18 October 2023 / Accepted: 27 October 2023 / Published: 6 November 2023
(This article belongs to the Special Issue Point-of-Care Diagnostics Technology and Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
Visual Patient Avatar ICU is an innovative approach to patient monitoring, enhancing the user’s situation awareness in intensive care settings. It dynamically displays the patient’s current vital signs using changes in color, shape, and animation. The technology can also indicate patient-inserted devices, such as arterial lines, central lines, and urinary catheters, along with their insertion locations. We conducted an international, multi-center study using a sequential qualitative-quantitative design to evaluate users’ perception of Visual Patient Avatar ICU among physicians and nurses. Twenty-five nurses and twenty-five physicians from the ICU participated in the structured interviews. Forty of them completed the online survey. Overall, ICU professionals expressed a positive outlook on Visual Patient Avatar ICU. They described Visual Patient Avatar ICU as a simple and intuitive tool that improved information retention and facilitated problem identification. However, a subset of participants expressed concerns about potential information overload and a sense of incompleteness due to missing exact numerical values. These findings provide valuable insights into user perceptions of Visual Patient Avatar ICU and encourage further technology development before clinical implementation.

1. Introduction

In an intensive care unit (ICU), situation awareness and prompt response to patient status changes are crucial, particularly when looking after multiple potentially deteriorating patients [1,2]. With higher patient loads and an aging population, the patient-to-care provider ratio, particularly for nursing staff, has significantly increased [3]. In such circumstances, the risk of not promptly perceiving a potential problem and taking appropriate action raises the chances of medical errors and, consequently, patient morbidity and mortality [1,3,4,5]. Situation awareness plays a crucial role in medical settings. It is described as the cognitive process of perceiving, comprehending, and projecting the clinical situation, enabling healthcare professionals to make informed decisions and take timely actions to ensure patient safety and optimal outcomes [2,6,7]. The concept of situation awareness provides a framework for developing user-centered design systems [8]. Instead of simply presenting raw information, user-centered design integrates data in a way that aligns with users’ abilities and needs. This approach is motivated by the goal of achieving optimal functioning of the human–machine interaction as a whole and ensuring safety [8,9].
An example of user-centered visualization technology is Philips Visual Patient Avatar [10,11,12]. It is an innovative approach to patient monitoring that is designed to enhance user situation awareness [10,11]. This technique transforms alphanumeric monitoring data into a visual format represented by the avatar. Philips Visual Patient Avatar dynamically displays the patient’s current vital signs using modifications in color, shape, and animations. This technology is guided using a user-centered design philosophy inspired by Endsley [9], logical principles from Wittgenstein’s Tractatus Logico-Philosophicus [13], and insights from human–computer interaction as described in NASA’s publication “On Organization of Information: Approach and Early Work” by Degani et al. [14]. Since March 2023, this technique has been integrated into Philips® IntelliVue MX patient monitors [15]. This approach enables a more efficient perception of vital signs [10,16] and increases the likelihood of verbalizing the cause of the emergencies [17] compared to conventional monitoring. Furthermore, computer-based studies showed that Phillips Visual Patient Avatar significantly improves diagnostic confidence among anesthetists and reduces workload compared to standard monitoring [10,16,17,18,19].

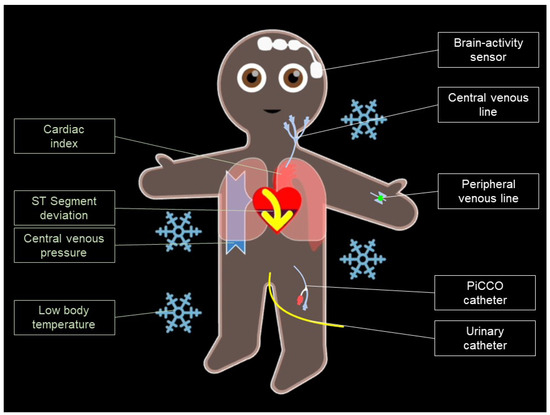

An extended version of Visual Patient Avatar, called Visual Patient Avatar ICU, is currently being developed and investigated. Visual Patient Avatar ICU can additionally display patient-inserted devices such as arterial, central lines, and urinary catheters along with their respective insertion locations (Figure 1) [19]. A previous computer-based study has demonstrated that the Visual Patient Avatar ICU improves information transfer, enhances diagnostic confidence, and reduces the perceived workload of ICU staff compared to conventional monitor modalities [19].
This study aimed to evaluate user perception of Visual Patient Avatar ICU among physicians and nurses in multiple intensive care units across various international hospitals. The feedback gathered from critical care staff helps identify the strengths and potential for improvement in this newly developed technology and contributes to its further improvement before clinical implementation.

2. Materials and Methods

2.1. Approval and Consent

Based on the local regulations in Switzerland, Germany, and Spain, ethical approval was not required, as this study did not fall within the scope of the Human Research Act. The leading ethics committee in Zurich, Switzerland, provided a declaration of non-jurisdiction. However, all participants provided written consent for recording, statistical analysis, and data publication.

2.2. Study Design

This was an international, multi-center, researcher-initiated study utilizing an exploratory sequential mixed-methods design. The study was conducted across five tertiary care hospitals, namely the University Hospital of Zurich and Hirslanden Clinic of Zurich in Switzerland, the University Hospital of Frankfurt and University Hospital of Wuerzburg in Germany, and the Hospital Clinic de Barcelona in Spain. We interviewed the participants between June and August 2021. The online survey was conducted between July and October 2021. In this study, we included the same 50 participants who were part of a previous computer-based study that compared two different patient monitoring modalities (Visual Patient Avatar ICU versus conventional monitor) [19].

2.3. Previous Study

In the previous computer-based study, a total of 50 participants, consisting of five ICU nurses and five physicians at each of the five study sites, engaged with five distinct patient scenarios [19]. These scenarios were presented twice, once as Visual Patient Avatar ICU and once as the conventional modality, resulting in a total of ten cases per participant. This study aimed to examine the impact of Visual Patient Avatar ICU on information transfer, which was assessed by accuracy in evaluating vital signs and installations [19]. Subsequent to the completion of all cases, structured interviews were conducted as an integral component of this mixed-methods study.

2.4. Participant Interviews and Online Survey

2.4.1. Part I: Participant Interviews

In the interview phase of our study, we requested input from all participants regarding two questions: “What did you like about Visual Patient Avatar ICU?” and “What did you dislike about Visual Patient Avatar ICU?” directly after they participated in the computer-based study. We aimed to investigate the positive and negative perceptions of Visual Patient Avatar ICU immediately after its use. Participants were instructed to record their thoughts as field notes using an iPad (Apple Inc., Cupertino, CA, USA), utilizing two separate text boxes. There was no specified time constraint, and we accommodated responses in German, Spanish, or English.
In addition, a brief demographic survey was conducted to collect participant characteristics. To commence the systematic analysis, the field notes provided by participants in German and Spanish were translated into English using the online translation service DeepL (DeepL GmbH, Cologne, Germany) (Appendix A). The translated results underwent individual assessment to ensure plausibility and accuracy. Subsequently, the two authors, EAB and LB, organized the translated field notes into separate statements based on content topics. The authors (EAB, SA, LB) identified recurring patterns in responses and developed a coding tree that encompassed the major topics and subthemes addressed by the participants (Figure 2) [20]. EAB and LB independently assigned all statements to the coding tree. To validate this process, percentage agreement and inter-rater reliability calculations were conducted. In divergent allocations, the two raters engaged in discussions and reached a mutual agreement to determine the appropriate coding.

2.4.2. Part II: Online Survey

For the second phase of the study, we formulated five statements based on the major topics identified using qualitative assessment. The statements were: Visual Patient’s ICU installation display is helpful. Visual Patient ICU provides a better overview. Sometimes, the Visual Patient ICU is overloaded with information. Although Visual Patient ICU is intuitive, I would need training before clinical use. In a critical situation, Visual Patient ICU enabled me to recognize pathological deviations more quickly. An online questionnaire was created using SurveyMonkey (SVMK Inc., San Mateo, CA, USA), and the corresponding link was emailed to all previous participants, inviting them to evaluate the statements on a 5-point Likert Scale ranging from strongly disagree to strongly agree. Additionally, we collected anonymous demographic data. Participation in the online survey required less than five minutes. A single reminder to complete the questionnaire was sent after ten days. After an additional week, the survey portal was closed, concluding the data collection process. To ensure consistent timing, we contacted the different study centers staggered, maintaining approximately 40-day intervals between the qualitative and quantitative phases of the study.

2.5. Statistical Analysis

Data management and creation of figures were performed with Microsoft Word, Excel, and PowerPoint (Microsoft Corporation, Redmond, Washington, DC, USA). In the qualitative study section, we present the number of statements and their respective percentages in relation to the total number of statements and major topics. To address the consistency of EAB and LB ratings, we calculated the percent agreement and inter-rater reliability using Cohen’s kappa in R version 4.0.5 (R Foundation for Statistical Computing, Vienna, Austria) [21,22]. The results of the quantitative study section are reported as medians with interquartile ranges. We used the one-sample Wilcoxon signed-rank test (IBM SPSS Statistics 26, International Business Machines Corporation, Armonk, New York, NY, USA) to evaluate the symmetry of the answer distribution to the given statements around the median (representing the neutral response) and to determine any tendency towards agreement or disagreement. Statistical significance was defined as p < 0.05.

3. Results

3.1. Study and Participant Characteristics

We recruited 25 nurses and 25 physicians from ICUs to participate in structured interviews. Of these, 40 participants (80%) later responded to the email invitation and completed the online survey. The characteristics of the participants are provided in Table 1.

3.2. Part I: Participant Interviews

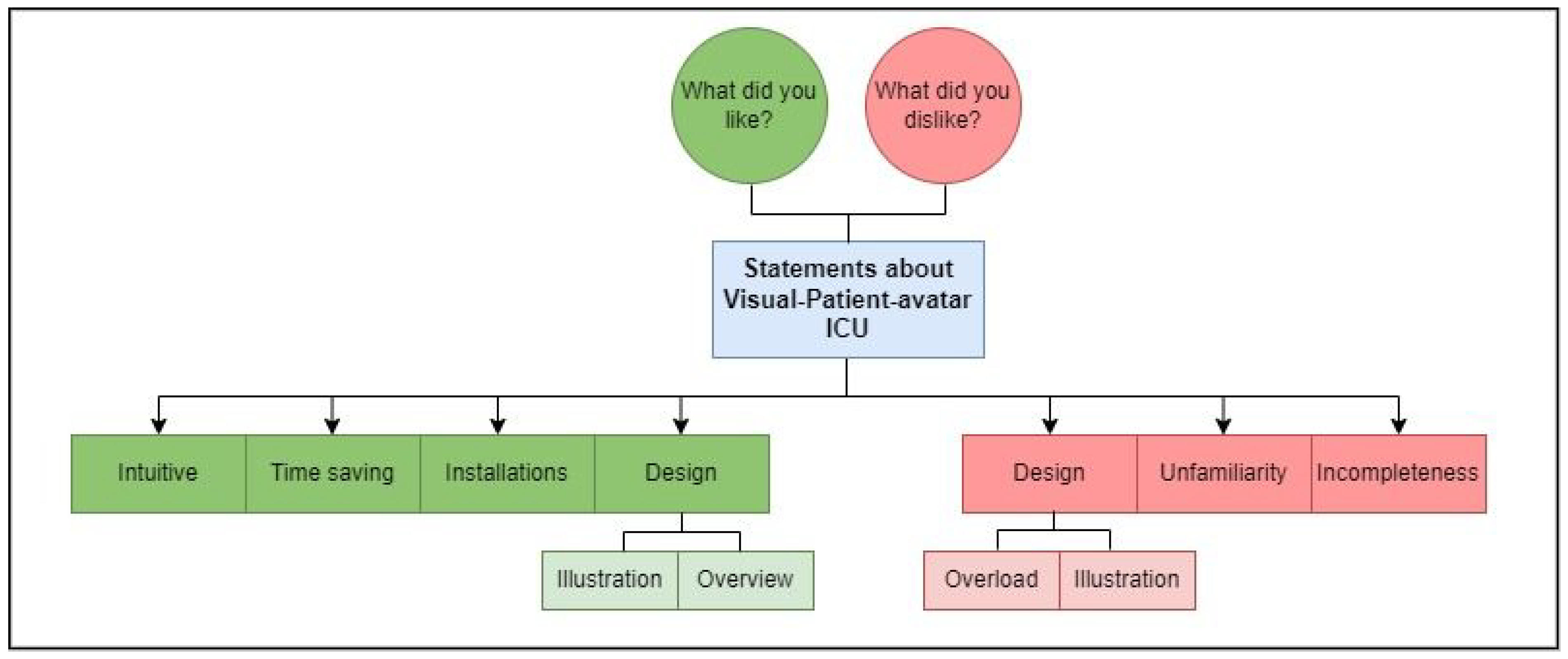

3.2.1. Coding Template

By analyzing the field notes obtained, we derived a total of 148 statements. Using an inductive free coding approach, we identified four major positive themes and three major negative themes [20] (Figure 2). Using the coding template, the percentage agreement between EAB and LB in assigning the 148 statements was 82.4%. The calculated inter-rater reliability, indicated by Cohen’s kappa of 0.802, demonstrated substantial agreement [23,24].
Despite several discussions, 9 out of the 148 statements (6%) remained unclear in terms of their meaning or intention and were classified as “not codable”. After this process was completed, the percentage agreement reached 100%, and the remaining 139 statements were used as a reference for further calculations.

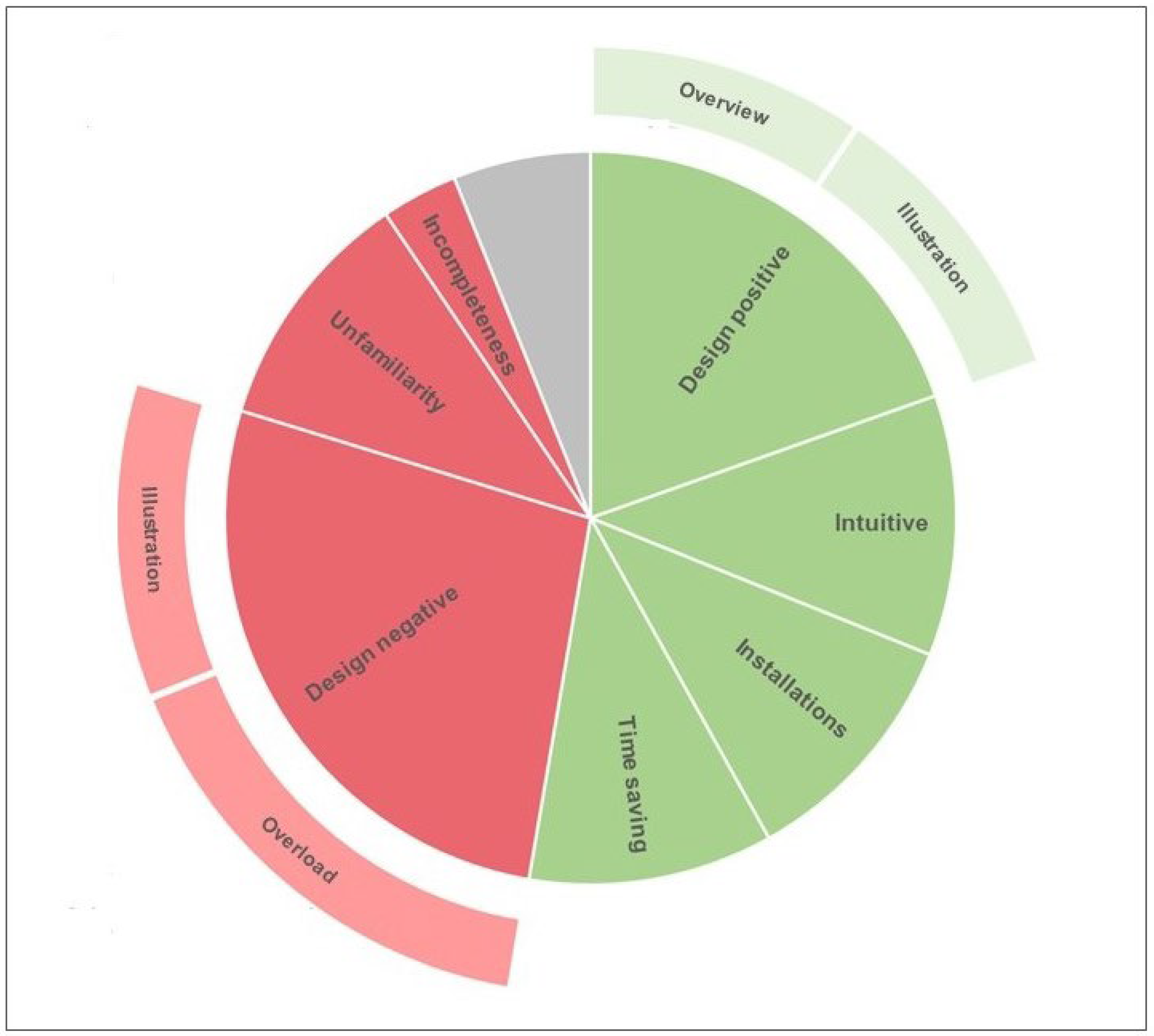

Overall, participants expressed moderately more positive statements (78/139, 56%) than statements regarding their dislikes of the Visual Patient Avatar ICU (61/139, 44%). Figure 3 provides an overview of the distribution of all statements derived from the field notes commenting on Visual Patient Avatar ICU. Table 2 outlines the major themes with their hierarchical subthemes and the corresponding percentages and examples. In the subsequent section, we provide a detailed description of the categories and participants’ perceptions.

3.2.2. Positive Statements about Visual Patient Avatar ICU

Design

Of the 139 statements analyzed, 29 (21%) were related to positive design features of Visual Patient Avatar ICU. We further categorized this major topic into two subthemes: “Overview”, comprising 14 of the 139 statements (10%), and “Illustration”, comprising 15 of the 139 statements (11%). Participants appreciated the presentation of information in a simple overview format, as it allowed them to grasp everything at a glance (participant #8). Regarding the Visual Patient Avatar ICU illustration, the use of colored markings (participant #6) was frequently mentioned as a positive design feature. Additionally, participants, such as Participant #12, expressed their liking for the visualization of organ systems.

Intuitiveness

Within the analyzed statements, 17 out of 139 (12%) highlighted characteristics such as simple handling and easy understanding (participant #26) associated with Visual Patient Avatar ICU. These findings were consolidated under the major topic “Intuitive” with agreement between the raters. Participant #7 mentioned that the system facilitated better retention of information, while Participant #3 emphasized a quick learning curve in interpreting the Visual Patient Avatar ICU.

Time Saving

We identified “Time saving” as another major topic, comprising 16 out of 139 (12%) statements. Participant #9 stated that serious problems were clearly presented immediately, enabling quick problem identification (participant #50).

Patient Inserted Devices

Among the positive statements, the feature of displaying patients’ installations was frequently highlighted, leading us to define it as another major topic, with 16 out of 139 (12%) statements. Participant #10 mentioned that the installations were immediately clear, making it easier for some participants to memorize the catheters (participant #5).

3.2.3. Negative Statements about Visual Patient Avatar ICU

Design

The design of the Visual Patient Avatar ICU received critical feedback in 40 out of 139 statements (29%), which we identified as a major topic. Two distinct subthemes emerged, namely “Overload” and “Illustration”, accounting for 24 out of 139 statements (17%) and 16 out of 139 statements (12%), respectively. Several participants raised concerns about overlapping information (participant #18) and a crowded visual representation (participant #21), resulting in sensory overload during initial exposure (participant #27). Moreover, specific aspects of the illustration were brought up in various statements. For instance, Participant #17 expressed the opinion that the graphics could benefit from a more professional appearance. Participant #12 commented on the lack of visual impact in the representation of the tidal volume, while Participant #16 criticized the central venous pressure visualization.

Unfamiliarity

Concerning the negative aspects of the Visual Patient Avatar ICU, the participants’ responses indicated a prevalent perception of “Unfamiliarity”, with 16 out of 139 statements (12%) addressing this issue. It became evident that similar to Participant #35, who mentioned that “It takes time to get used to it”, other participants also asserted the need for “A period of habituation” (participant #39) or emphasized the necessity for “more practice” (participant #49).

Incompleteness

Among the 139 statements analyzed, 5 (4%) expressed concerns regarding “Incompleteness”, which was identified as an additional major topic using inductive free coding. Participant #4 mentioned missing numbers as a specific example of this incompleteness. In another statement, Participant #20 critically questioned the level of saturation, asking, Saturation low: how low is it? 90% or 70%?”

3.3. Part II: Online Survey

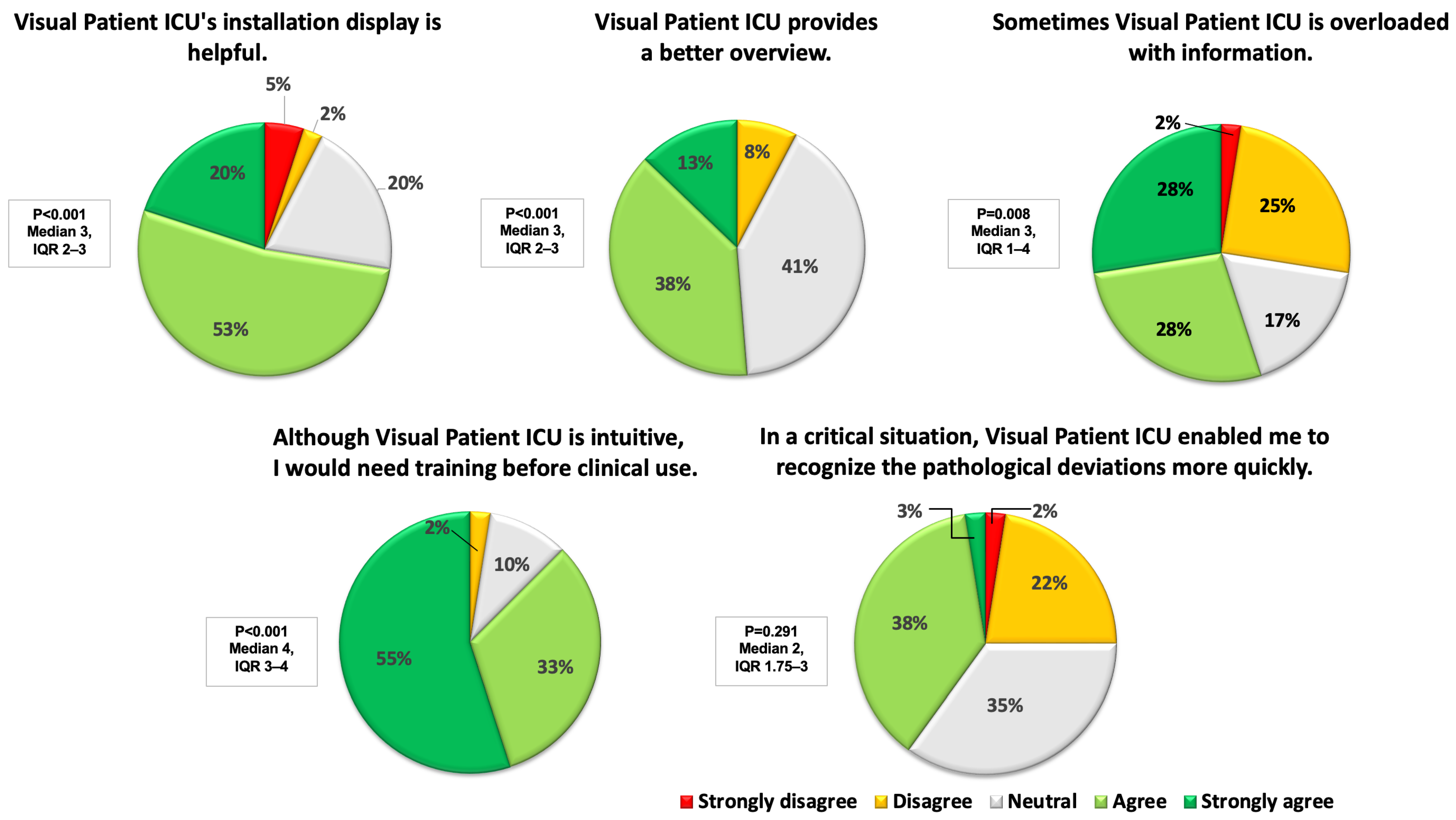

The results of the assessment of the five statements, based on the major topics identified during the qualitative analysis of the field notes, are graphically represented in Figure 4.

4. Discussion

4.1. Principal Findings

Visual Patient Avatar ICU received positive feedback regarding its design features, intuitiveness, time-saving aspect, and the display of patient-inserted devices. Participants appreciated the simple overview format, color markings, and visualization of organ systems. The system was perceived as easy to understand and facilitated information retention.
On the other hand, concerns were raised about crowded visual presentations and sensory overload. Unfamiliarity was a prevalent perception, emphasizing the need for time and practice to become accustomed to the system. Incompleteness was also mentioned, particularly regarding missing information and clarity of certain parameters.
Our data are consistent with previous studies investigating user perception of Visual Patient Avatar among anesthesiology personnel. One of the first studies researching Visual Patient Avatar monitoring in 2018 highlighted that over 80% of anesthesia providers found it intuitive and easy to learn [11,25]. Furthermore, study participants could correctly identify more than 70% of all vital signs visualizations without any prior training [15], confirming our results that users find Visual Patient Avatar intuitive. This further means that a Visual Patient Avatar can be easily thought of in a classroom-based setting. Rössler et al. compared different teaching settings for Visual Patient Avatar instructions on a one-to-one basis or classroom-based instructions [26]. Although one-to-one instructions were most effective, the class instructions showed also to be a highly effective teaching model. However, one needs to recognize the need for some critical care professionals to work over an extended period with the new visualization technology to have the feeling of familiarity and routine in daily practice.
The extended version of Visual Patient Avatar, Visual Patient Avatar ICU, additionally displays patient-inserted devices such as arterial and central lines, providing critical care staff with a better overview of a patient. This can provide critical care staff with a better overview of a patient. The authors believe that it may also potentially facilitate handover and prevent the omission of certain patient-inserted devices. The routine check of patient-inserted devices for signs of infection, change of dressing, and recognizing the extended period of the device in situ requiring removal is highly crucial and prevents nosocomial infections and subsequent complications [27,28,29,30,31]. The first step in care for patient-inserted devices care is the awareness that these are present.
On the other hand, extra visualizations providing us with valuable additional information may contribute to information overload. These have been described as “sensory overload during initial exposure” or “crowded” by less than 20% of study participants. There is a fine balance to find in providing medical staff with compact information and, at the same time, not overwhelming the clinical picture. Interestingly, Visual Patient Avatar ICU in its current form has been found to lower perceived workload in computer-based settings [19]. This implies that although to some participants, it may appear crowded, it is still simplifying the process of comprehension of patient monitoring. Furthermore, Görges et al. demonstrated that enhanced patient monitoring with additional information resulted in shorter median decision-making times, improved nurse triaging, and reduced frustration by implementing a broader perspective on ICU monitoring [1].
Another issue worth addressing is a sense of incompleteness that has been expressed in a qualitative part of our study. Missing numbers in Visual Patient Avatar ICU were for a few study participants, leading to uncertainty. This is consistent with data from other studies that investigated three different monitoring systems: Visual Patient Avatar, conventional monitor, and split screen, combining both modalities [32]. The positive response to the split screen monitoring system was that it provides a symbiotic modality that helps to focus on vital parameter changes, first spotting it on Phillips Visual Patient Avatar, followed by quantification on conventional monitoring and, thus, increasing its safety [32].

4.2. Strengths and Limitations

This study has its strengths and limitations. It was a multi-center, international study across three European countries, including large university hospitals. This design should reduce selection bias and confounding factors for intercultural differences, diverse clinical settings, and healthcare systems.
Qualitative research involves analyzing non-numeric data to uncover overall trends and deeper meanings in individual responses without assigning frequencies to the issues identified in the data [33]. This leads to equal attention to rare and frequently described points. Furthermore, the inability to test for statistical significance reduces the confidence in data generalizability compared to quantitative data [33]. To compensate for this, we performed a sequential mixed-methods study: the conclusions from the initial qualitative study served as the foundation for the second quantitative phase, which assessed the consistency and generalizability of the findings. Combining qualitative and quantitative approaches in a mixed-methods design allowed for the examination of complex phenomena and produced more robust results than using either method alone.
Furthermore, the study participants’ recruitment was not purely random and was dependent on the doctors’ and nurses’ availability and schedule of the initial simulation study [21]. There is, however, little reason to believe that staff availability would introduce significant bias for user perception of Visual Patient Avatar ICU.
This is the first time the Visual Patient Avatar ICU concept was examined and provided the general idea for the initial reactions of medical professionals towards it. Due to the small sample size and 80% response rate to the online survey, the results need to be interpreted with caution. The results provide a general idea of user perception and should be interpreted more as a result of the pilot study. Further studies are needed with a larger sample size to fully investigate user perception of Visual Patient Avatar ICU.

5. Conclusions

This was the first computer-based study to evaluate the user perception of Visual Patient Avatar ICU among physicians and nurses in multiple intensive care units across various international hospitals. The feedback gathered from critical care staff helps to identify the strengths and potential for improvement in this newly developed technology and contributes to its further development.
Overall, critical care professionals expressed a positive attitude towards Visual Patient Avatar ICU, describing it as an easy and intuitive tool that enhances information retention and facilitates problem identification. Participants appreciated the presentation of information in a simple overview format, as it allowed them to grasp everything at a glance. However, a subset of participants raised concerns about potential information overload, initial unfamiliarity with the technology, and a sense of incompleteness when patient monitoring numbers were not included. These findings offer valuable insights into the user perception of Visual Patient Avatar ICU and encourage further development before its clinical implementation.

Author Contributions

Conceptualization, L.B., E.A.B., T.R.R., S.A., M.T.G., P.M., S.H., K.Z., F.J.R., E.R., M.L.-B. and D.W.T.; Methodology, T.R.R., D.W.T. and L.B.; Software, T.R.R. and E.A.B.; Validation, T.R.R.; Formal Analysis, E.A.B., D.W.T. and L.B.; Investigation, L.B., P.M., T.R.R., S.A., E.A.B., M.T.G., S.H., K.Z., F.J.R., E.R., M.L.-B. and D.W.T.; Resources, D.W.T.; Data Curation, L.B. and J.L.; Writing—Original Draft Preparation, J.L., G.G., E.A.B. and L.B.; Writing—Review and Editing, J.L., T.R.R., G.G., C.B.N., L.B., P.M., S.H., K.Z., F.J.R., E.R. and M.L.-B.; Visualization, L.B., J.L. and G.G.; Supervision, J.L. and D.W.T.; Project Administration, J.L.; Funding Acquisition, D.W.T. All authors have read and agreed to the published version of the manuscript.

Funding

The Institute of Anesthesiology of the University Hospital of Zurich, Zurich, Switzerland, and the University of Zurich, Zurich, Switzerland, funded this project.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki. The Cantonal Ethics Committee of the Canton of Zurich in Switzerland reviewed the study protocol and issued a declaration of no jurisdiction (Business Management System for Ethics Committees Number Req-2021-00102). We obtained written informed consent from all participants for the use of their data.

Informed Consent Statement

Informed written consent was obtained from all subjects involved in the study to publish this paper. All participants provided written consent for recording, statistical analysis, and data publication.

Data Availability Statement

The datasets used and/or analyzed during the current study are available from the corresponding author upon reasonable request.

Acknowledgments

The authors are thankful to the study participants for their time and effort.

Conflicts of Interest

T.R.R. is an inventor of Visual Patient Predictive technology, for which the University of Zurich and Koninklijke Philips N.V. hold patent applications and design protections. Joint development and licensing agreements exist with Philips Medizin Systeme Böblingen GmbH, Böblingen, Germany; Koninklijke Philips N.V., Amsterdam, The Netherlands; Philips Research/Philips Electronics Nederland BV, Eindhoven, The Netherlands; and Philips USA, Cambridge, MA, USA. Within the framework of these agreements, T.R.R. receives travel support, lecturing, and consulting honoraria and may potentially receive royalties in the event of successful commercialization. T.R.R. is an inventor of Visual Blood technology, for which the University of Zurich holds patent applications and design protections; potential royalties may follow successful commercialization. C.B.N. is an inventor of Visual Patient and Visual Patient Predictive technologies, for which the University of Zurich and Koninklijke Philips N.V. hold patents, patent applications, design protections, and trademarks. Joint development and licensing agreements exist with Philips Medizin Systeme Böblingen GmbH, Böblingen, Germany; Koninklijke Philips N.V., Amsterdam, The Netherlands; Philips Research/Philips Electronics Nederland BV, Eindhoven, The Netherlands; and Philips USA, Cambridge, MA, USA. Within the framework of these agreements, C.B.N. receives travel support, lecturing, and consulting honoraria and may potentially receive royalties in the event of successful commercialization. C.B.N. is an inventor of Visual Clot technology, with patent applications, design protections, and trademarks held by the University of Zurich. In case of successful commercialization, C.B.N. may receive royalties. C.B.N. is an inventor of Visual Blood technology, for which the University of Zurich holds patent applications and design protections; potential royalties may follow successful commercialization. C.B.N. received travel support, lecturing, and consulting honoraria from Instrumentation Laboratory—Werfen, Bedford, MA, USA. D.W.T. is the first named inventor of Visual Patient and Visual Patient Predictive technologies, for which the University of Zurich and Koninklijke Philips N.V. hold patents, patent applications, design protections, and trademarks. Joint development and licensing agreements exist with Philips Medizin Systeme Böblingen GmbH, Böblingen, Germany; Koninklijke Philips N.V., Amsterdam, The Netherlands; Philips Research/Philips Electronics Nederland BV, Eindhoven, The Netherlands; and Philips USA, Cambridge, MA, USA. Within the framework of these agreements, D.W.T. receives research funding, travel support, lecturing, and consulting honoraria and may potentially receive royalties in the event of successful commercialization. D.W.T. also holds a position on the Philips Patient Safety Advisory Board. D.W.T. is the first named inventor of Visual Clot technology, with patent applications, design protections, and trademarks held by the University of Zurich. In the event of successful commercialization, D.W.T. may receive royalties. D.W.T. is the first named inventor of Visual Blood technology, for which the University of Zurich holds patent applications and design protections; potential royalties may follow successful commercialization. Additionally, D.W.T. received travel support, lecturing, and consulting honoraria from Instrumentation Laboratory—Werfen, Bedford, MA, USA, the Swiss Foundation for Anaesthesia Research in Zurich, Switzerland, and the International Symposium on Intensive Care and Emergency Medicine in Brussels, Belgium. K.Z. has received honoraria for participation in advisory board meetings for Haemonetics and Vifor and received speaker fees from CSL Behring, Masimo, Pharmacosmos, Boston Scientific, Salus, iSEP, Edwards, and GE Healthcare. He is the Principal Investigator of the EU-Horizon 2020 project ENVISION (Intelligent plug-and-play digital tool for real-time surveillance of COVID-19 patients and smart decision-making in Intensive Care Units) and Horizon Europe 2021 project COVend (Biomarker and AI-supported FX06 therapy to prevent progression from mild and moderate to severe stages of COVID-19). K.Z. leads as CEO of the Christoph Lohfert Foundation as well as the Health, Patient Safety and PBM Foundation. The other authors report no conflicts of interest regarding this paper.

Appendix A

Translated participants’ field notes
Translated field notes (in English) of 50 participants of this study. The brackets [ ] indicate which parts were each assessed as one statement.
  • Participant #01
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Installations are clearer]
    [Deviations can be detected more quickly]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Nothing]
  • Participant #02
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Easier visualization of devices]
    [Easier to see when something is REALLY wrong]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Takes time to get used (hard for an old dog to learn new tricks) to it but it seems rather intuitive after a while]
    [Too many parameters at once are hard to discern in 15 s when you are used to the monitor]
  • Participant #03
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [There is a lot of potential in recognizing pathological values more quickly with an additional visual aid.]
    [There is certainly a fast learning curve in interpreting the visual patient]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [but it is not completely intuitive and some amount of training is needed]
  • Participant #04
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Quicker overview than conventional monitor]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [No numbers]
    [Installations could be better visualized]
  • Participant #05
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Catheter easier to remember]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Too cluttered]
    [Too much information in one image]
  • Participant #06
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Installations]
    [Colored markings]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Overload of information]
    [Unclear]
  • Participant #07
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [You can remember more]
    [Especially installations]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Watch training videos several times, could not remember meaning of parameters]
  • Participant #08
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [You can see everything at a glance, you don’t have to switch to another line]
    [You can quickly see if everything is okay or not okay. In the recovery room, it is important to see whether I am within the normal range. Numbers are not so relevant at first.]
    [Colored markings]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [When some parameters are not in the normal range, it is harder to tell the difference]
    [For the recovery room, I would rather wish to be able to switch back and forth between the monitor types than to have a split monitor.]
  • Participant #09
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Serious problems are clearly presented immediately]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Training/some experience with it nevertheless necessary.]
    [Too many overlays in the torso area (colors Spo2, Fio2)]
    [Display of installations of questionable usefulness (pointless for supervisors, not useful for emergency intervention team for clarity)]
  • Participant #10
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Quick visual overview of the problems]
    [Color highlighting of complications]
    [Installations immediately clear]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Training]
  • Participant #11
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Single utilization with numerical trend display]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Split in In Norm Representation and Pathological]
  • Participant #12
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Visualization of the organ systems]
    [Installations seen at a glance]
    [Possibility to recognize the ST elevation by color]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Tidal volume not flashy enough]
  • Participant #13
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Simple overview of the overall situation]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU
    [Too many visual parameters in the thoracic area (CI, Tidal, etc…]
  • Participant #14
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Looks cute]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [I have to learn the particular look for what exactly stands for what. It’s a habit, of course. The values for conventional monitoring are learned during raining, but the appearance of the “symbols” is not]
  • Participant #15
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Better overview]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Some parameters displayed too complicated]
  • Participant #16
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Display heart rate and temperature]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Display ZVD]
  • Participant #17
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [You get a very fast first impression of the patient]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [The graphics could look more professional]
  • Participant #18
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Visual overview in less time than with formal parameters]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Overlapping information in the thoracic region]
  • Participant #19
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Intuitive]
    [Installations very well visualized]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [-]
  • Participant #20
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [The idea that “changes” pop up and are thus “differently” perceived]
    [Installations are more recognizable because you see where they are]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Saturation low: how low is it? 90% ? 70%?]
  • Participant #21
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Faster overview over medical installations]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Picture crowded]
  • Participant #22
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [The color marking is clear and pleasant]
    [With sufficient training it is certainly easier to quickly get an overview of the patient’s vital signs]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Partially very much, with overlapping of different vital parameters thereby the admission of individual parameters is felt more heavily one gets]
    [However with some practice out on which one to pay attention]
  • Participant #23
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Great if it works ]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Differences in respiration O2 capnometry etc. should be better distinguishable]
  • Participant #24
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Can imagine that you get good support in everyday work]
    [But serious things are noticed quickly!]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [With many parameters at the same time it looks a bit overloaded.]
    [It would be nice to have a function to visualize only values that deviate from the norm]
    [Once you have become familiar with it and have memorized the individual parameters, a matter of practice, like probably everything else]
  • Participant #25
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [I find the color representation good]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Realization of the catheter was complicated for me]
  • Participant #26
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Simple handling]
    [Easy understanding]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Colors sometimes a bit confusing]
  • Participant #27
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Positive overview]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Sensory overload in the first moment]
  • Participant #28
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Quick overview of critical parameters]
    [Very helpful when observing multiple patients at the same time]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [-]
  • Participant #29
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Alarm summary]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Complex visualization resp. Ventilation—relatively long period of observation concerning CO2 and respiratory rate]
  • Participant #30
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [You capture a lot of information at a glance]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [I could not intuitively interpret the colors]
  • Participant #31
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [In fact, the Visual Patient provides a quick and]
    [Sufficient overview of the measured parameters]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Color scheme partly in need of revision]
  • Participant #32
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Ground (intuitive?) feeling about the individual values is retained longer]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [“Actual”/acute problem of the patient is difficult to grasp (stimulus overload)]
  • Participant #33
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Accesses easier to detect (less urgent on intensive)]
    [Probably faster to learn]
    [Main problems more quickly detectable for the inexperienced]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [In unstable patients (especially tachycardia+tachypnea “overloaded” monitor]
  • Participant #34
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Isolated problems are better representable]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Partially too superimposed, especially with high blood pressure & fast heart rate]
    [“Strobe”]
  • Participant #35
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Catheters are quicker and easier to remember]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Too much information in one image]
    [It takes time to get used to it]
  • Participant #36
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Simple overview]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Overwhelming, if a lot of devices are installed]
  • Participant #37
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Accesses and vital signs can be acquired more quickly]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [For europe use, caucasian patients]
  • Participant #38
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Easy to learn]
    [Problems are quickly recognizable]
    [Good overview of the accesses]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Sometimes too confusing]
    [Difficult to get used to, when you are used to the old system]
    [Presentation sometimes not intuitive]
  • Participant #39
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Fewer values/numbers]
    [More intuitive decision-making possible after practice phase]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [A period of habituation is necessary]
  • Participant #40
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Situations are color-coded]
    [Accesses are easier to recognize]
    [Temperature is easier to recognize]
    [Oxygenation is easier to recognize]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Pictograms not easy to recognize for me]
    [Presentation a little too infantile for me]
  • Participant #41
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Simple and easy to understand]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Some parameters like arterial blood pressure are difficult to see]
  • Participant #42
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [It is much more intuitive]
    [and perhaps doesn’t make you think as much because it discerns what is right and what is wrong]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Too many variables are integrated in the same image]
    [Perhaps it would be useful to do it in two different figures]
  • Participant #43
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Global vision]
    [Useful maybe to screen stable vs unstable patient initially]
    [Cool for lines and devices]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Overlap of colors and parameters]
  • Participant #44
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [The practicality of easily recognizing slight alterations, when they are not yet established problems, to manage the threshold of complications and avoid them]
    [The visual memory is in occasions more complete and]
    [Provides data that a priori much ascended we do not take into account]
    [A different learning for a more complete approach.]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [The visualization of a doll omits all the information that gives us the morphology of the curves]
  • Participant #45
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [The simplicity of a more visual image]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [A very saturated drawing perhaps]
  • Participant #46
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [It is a good method of monitoring]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Training needed]
  • Participant #47
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [It is easy to visualize where devices such as IVs and catheters are located]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [It is quite overwhelming when you have a high heart rate and it blinks a lot]
  • Participant #48
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [Very intuitive]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Blood pressure, Oxygen Inspiration and Tidal Volume were confusing]
  • Participant #49
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [It’s easier to visualize]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [More practice is necessary]
  • Participant #50
    POSITIVE: What did you LIKE about Visual-Patient-avatar ICU?
    [See the problem quickly]
    NEGATIVE: What did you DISLIKE about Visual-Patient-avatar ICU?
    [Sometimes too much information]

References

  1. Görges, M.; Kück, K.; Koch, S.H.; Agutter, J.M.; Westenskow, D.R. A Far-View Intensive Care Unit Monitoring Display Enables Faster Triage. Dimens. Crit. Care Nurs. 2011, 30, 206–217. [Google Scholar] [CrossRef] [PubMed]
  2. Wright, M.C.; Taekman, J.M.; Endsley, M.R. Objective measures of situation awareness in a simulated medical environment. Heart 2004, 13, i65–i71. [Google Scholar] [CrossRef]
  3. Neuraz, A.; Guérin, C.; Payet, C.; Polazzi, S.; Aubrun, F.; Dailler, F.; Lehot, J.-J.; Piriou, V.; Neidecker, J.; Rimmelé, T.; et al. Patient Mortality Is Associated with Staff Resources and Workload in the ICU: A Multicenter Observational Study. Crit. Care Med. 2015, 43, 1587–1594. [Google Scholar] [CrossRef] [PubMed]
  4. Knight, L.D. Staffing Ratios and Patient Outcomes: Looking Beyond Nurses, Doctors, and Survival at ICU Discharge. Crit. Care Med. 2016, 44, e107–e108. [Google Scholar] [CrossRef] [PubMed]
  5. Pastores, S.M. Staffing Ratios and Workload in Critically Ill Patients: Do They Impact Outcomes? Crit. Care Med. 2015, 43, 1775–1776. [Google Scholar] [CrossRef] [PubMed]
  6. Endsley, M.R. A Systematic Review and Meta-Analysis of Direct Objective Measures of Situation Awareness: A Comparison of SAGAT and SPAM. Hum. Factors J. Hum. Factors Ergon. Soc. 2019, 63, 124–150. [Google Scholar] [CrossRef]
  7. Schulz, C.M.; Endsley, M.R.; Kochs, E.F.; Gelb, A.W.; Wagner, K.J. Situation awareness in anesthesia: Concept and research. Anesthesiology 2013, 118, 729–742. [Google Scholar] [CrossRef] [PubMed]
  8. Oury, J.D.; Ritter, F.E. How User-Centered Design Supports Situation Awareness for Complex Interfaces; Human–Computer Interaction Series; Vanderdonckt, J., Liao, Q.V., Eds.; Springer: Berlin/Heidelberg, Germany, 2021. [Google Scholar]
  9. Endsley, M.R. Designing for Situation Awareness an Approach to User-Centered Design, 2nd ed.; CRC Press Inc.: Boca Raton, FL, USA, 2011. [Google Scholar]
  10. Gasciauskaite, G.; Lunkiewicz, J.; Roche, T.R.; Spahn, D.R.; Nöthiger, C.B.; Tscholl, D.W. Human-centered visualization technologies for patient monitoring are the future: A narrative review. Crit. Care 2023, 27, 254. [Google Scholar] [CrossRef]
  11. Tscholl, D.W.; Rössler, J.; Said, S.; Kaserer, A.; Spahn, D.R.; Nöthiger, C.B. Situation Awareness-Oriented Patient Monitoring with Visual Patient Technology: A Qualitative Review of the Primary Research. Sensors 2020, 20, 2112. [Google Scholar] [CrossRef] [PubMed]
  12. Philips. A New Way to See Your Patient’s Vitals Takes Shape. Available online: https://www.philips.co.uk/healthcare/technology/visual-patient-avatar (accessed on 23 September 2023).
  13. Wittgenstein, L. Tractatus Logico-Philosophicus; Routledge & Kegan Paul: London, UK, 1922. [Google Scholar]
  14. Degani, A.; Jorgensen, C.C.; Iverson, D.; Shafto, M.; Olson, L. On Organization of Information: Approach and Early Work; NASA Ames Research Center: Mountain View, CA, USA, 2009.
  15. Wetli, D.J.; Bergauer, L.; Nöthiger, C.B.; Roche, T.R.; Spahn, D.R.; Tscholl, D.W.; Said, S. Improving Visual-Patient-Avatar Design Prior to Its Clinical Release: A Mixed Qualitative and Quantitative Study. Diagnostics 2022, 12, 555. [Google Scholar] [CrossRef]
  16. Tscholl, D.W.; Handschin, L.; Neubauer, P.; Weiss, M.; Seifert, B.; Spahn, D.R.; Noethiger, C.B. Using an animated patient avatar to improve perception of vital sign information by an-aesthesia professionals. Br. J. Anaesth. 2018, 121, 662–671. [Google Scholar] [CrossRef]
  17. Roche, T.R.; Said, S.; Braun, J.; Maas, E.J.; Machado, C.; Grande, B.; Kolbe, M.; Spahn, D.R.; Nöthiger, C.B.; Tscholl, D.W. Avatar-based patient monitoring in critical anaesthesia events: A randomised high-fidelity simulation study. Br. J. Anaesth. 2021, 126, 1046–1054. [Google Scholar] [CrossRef]
  18. Garot, O.; Rössler, J.; Pfarr, J.; Ganter, M.T.; Spahn, D.R.; Nöthiger, C.B.; Tscholl, D.W. Avatar-based versus conventional vital sign display in a central monitor for monitoring multiple patients: A multicenter computer-based laboratory study. BMC Med. Inform. Decis. Mak. 2020, 20, 26. [Google Scholar] [CrossRef] [PubMed]
  19. Bergauer, L.; Braun, J.; Roche, T.R.; Meybohm, P.; Hottenrott, S.; Zacharowski, K.; Raimann, F.J.; Rivas, E.; López-Baamonde, M.; Ganter, M.T.; et al. Avatar-based patient monitoring improves information transfer, diagnostic confidence and reduces perceived workload in intensive care units: Computer-based, multicentre comparison study. Sci. Rep. 2023, 13, 5908. [Google Scholar] [CrossRef] [PubMed]
  20. Guetterman, T.C.; Fetters, M.D.; Creswell, J.W. Integrating Quantitative and Qualitative Results in Health Science Mixed Methods Research through Joint Displays. Ann. Fam. Med. 2015, 13, 554–561. [Google Scholar] [CrossRef] [PubMed]
  21. McHugh, M.L. Interrater reliability: The kappa statistic. Biochem. Med. 2012, 22, 276–282. [Google Scholar] [CrossRef]
  22. Landis, J.R.; Koch, G.G. The Measurement of Observer Agreement for Categorical Data. Biometrics 1977, 33, 159–174. [Google Scholar] [CrossRef]
  23. Viera, A.J.; Garrett, J.M. Understanding interobserver agreement: The kappa statistic. Fam. Med. 2005, 37, 360–363. [Google Scholar]
  24. Koch, G.G.; Landis, J.R.; Freeman, J.L.; Freeman, D.H., Jr.; Lehnen, R.G. A general methodology for the analysis of experiments with repeated measurement of cate-gorical data. Biometrics 1977, 33, 133–158. [Google Scholar] [CrossRef]
  25. Tscholl, D.W.; Weiss, M.; Handschin, L.; Spahn, D.R.; Nöthiger, C.B. User perceptions of avatar-based patient monitoring: A mixed qualitative and quantitative study. BMC Anesthesiol. 2018, 18, 188. [Google Scholar] [CrossRef] [PubMed]
  26. Rössler, J.; Kaserer, A.; Albiez, B.; Braun, J.; Breckwoldt, J.; Spahn, D.R.; Nöthiger, C.; Tscholl, D.W. Correction: Comparing Classroom Instruction to Individual Instruction as an Approach to Teach Avatar-Based Patient Monitoring with Visual Patient: Simulation Study. JMIR Med. Educ. 2020, 6, e24459. [Google Scholar] [CrossRef] [PubMed]
  27. Pitiriga, V.; Bakalis, J.; Theodoridou, K.; Kanellopoulos, P.; Saroglou, G.; Tsakris, A. Lower risk of bloodstream infections for peripherally inserted central catheters compared to central venous catheters in critically ill patients. Antimicrob. Resist. Infect. Control 2022, 11, 137. [Google Scholar] [CrossRef] [PubMed]
  28. Mimoz, O.; Moreira, R.; Frasca, D.; Boisson, M.; Dahyot-Fizelier, C. Practice assessment of central venous lines care in surgical ICU of French university hospitals. Ann. Fr. Anesth. Reanim. 2010, 29, 104–112. [Google Scholar] [CrossRef] [PubMed]
  29. Carrer, S.; Bocchi, A.; Bortolotti, M.; Braga, N.; Gilli, G.; Candini, M.; Tartari, S. Effect of different sterile barrier precautions and central venous catheter dressing on the skin colonization around the insertion site. Minerva Anestesiol. 2005, 71, 197–206. [Google Scholar]
  30. Bacuzzi, A.; Cecchin, A.; Bosco, A.D.; Cantone, G.; Cuffari, S. Recommendations and reports about central venous catheter-related infection. Surg. Infect. 2006, 7 (Suppl. S2), S65–S67. [Google Scholar] [CrossRef] [PubMed]
  31. Alanazi, F.K.; Lapkin, S.; Molloy, L.; Sim, J. Healthcare-associated infections in adult intensive care units: A multisource study examining nurses’ safety attitudes, quality of care, missed care, and nurse staffing. Intensive Crit. Care Nurs. 2023, 78, 103480. [Google Scholar] [CrossRef]
  32. Akbas, S.; Said, S.; Roche, T.R.; Nöthiger, C.B.; Spahn, D.R.; Tscholl, D.W.; Bergauer, L. User Perceptions of Different Vital Signs Monitor Modalities during High-Fidelity Simulation: Semiquantitative Analysis. JMIR Hum. Factors 2022, 9, e34677. [Google Scholar] [CrossRef]
  33. Ochieng, P.A. An Analysis of the Strengths and Limitation of Qualitative and Quantitative Research Paradigms. Probl. Educ. 21st Century 2009, 13, 13–38. [Google Scholar]
Diagnostics 13 03391 g001
Figure 1. Exemplary presentation of Visual Patient ICU. The avatar’s eyes are open, indicating a high bispectral index as measured using the brain-activity sensor installed on the forehead. A central venous catheter is inserted into the left jugular vein, and the animation of the vena cava symbolizes the central venous pressure. Additionally, the VP ICU avatar has a PiCCO catheter inserted to measure the cardiac index. This is illustrated by the schematic representation of the aorta and the amount of red blood cells being ejected. The avatar’s beige skin tone represents a normal peripheral oxygen saturation. The yellow arrow within the heart corresponds to the connected electrocardiogram. The lower half of the heart being darkened indicates the presence of a detected ST-Segment deviation. Finally, the presence of ice crystals surrounding the avatar symbolizes a low patient temperature.
Figure 1. Exemplary presentation of Visual Patient ICU. The avatar’s eyes are open, indicating a high bispectral index as measured using the brain-activity sensor installed on the forehead. A central venous catheter is inserted into the left jugular vein, and the animation of the vena cava symbolizes the central venous pressure. Additionally, the VP ICU avatar has a PiCCO catheter inserted to measure the cardiac index. This is illustrated by the schematic representation of the aorta and the amount of red blood cells being ejected. The avatar’s beige skin tone represents a normal peripheral oxygen saturation. The yellow arrow within the heart corresponds to the connected electrocardiogram. The lower half of the heart being darkened indicates the presence of a detected ST-Segment deviation. Finally, the presence of ice crystals surrounding the avatar symbolizes a low patient temperature.
Diagnostics 13 03391 g001
Diagnostics 13 03391 g002
Figure 2. The coding tree depicts the positive and negative perceptions of the Visual Patient ICU. Using word counts and inductive coding, we identified the main themes along with their corresponding subthemes. The data for this analysis came from field notes collected from a total of 50 participants.
Figure 2. The coding tree depicts the positive and negative perceptions of the Visual Patient ICU. Using word counts and inductive coding, we identified the main themes along with their corresponding subthemes. The data for this analysis came from field notes collected from a total of 50 participants.
Diagnostics 13 03391 g002
Diagnostics 13 03391 g003
Figure 3. This two-level chart depicts the distribution of statements derived from field notes. The innermost circle encompasses the seven major topics, with a designated “not codable” section represented by a grey field. Moving towards the outer circle, the associated subthemes are displayed. The width of each section indicates the corresponding percentage of statements relating to the topic out of the total statements collected (N = 148).
Figure 3. This two-level chart depicts the distribution of statements derived from field notes. The innermost circle encompasses the seven major topics, with a designated “not codable” section represented by a grey field. Moving towards the outer circle, the associated subthemes are displayed. The width of each section indicates the corresponding percentage of statements relating to the topic out of the total statements collected (N = 148).
Diagnostics 13 03391 g003
Diagnostics 13 03391 g004
Figure 4. Graphical presentation of the online survey ratings as half doughnut charts. Results are shown as median and interquartile range (IQR). One-sample Wilcoxon signed-rank tests were used to determine whether the answers differed from neutral (p < 0.05). N = 40 for each statement.
Figure 4. Graphical presentation of the online survey ratings as half doughnut charts. Results are shown as median and interquartile range (IQR). One-sample Wilcoxon signed-rank tests were used to determine whether the answers differed from neutral (p < 0.05). N = 40 for each statement.
Diagnostics 13 03391 g004
Table 1. Study and participant characteristics.
Table 1. Study and participant characteristics.
Part I: Participant InterviewsPart II: Online Survey
Period of data collection23 June 2021–27 August 202128 July 2021–15 October 2021
Total number of participants5040
Number of nurses (%)25 (50%)21 (52.5%)
Number of physicians (%)25 (50%)19 (47.5%)
Number of female participants (%)19 (38%)17(42.5%)
Median (IQR) age in years37.0 (33.0–43.8)37 (32.75–42.75)
Median (IQR) work experience in years10.5 (7.2–16.8)10 (7–17.25)
Table 2. The major topics and subthemes with counts, percentages, and selected examples. The field notes obtained from 50 participants gave a total of 148 statements. The percentages refer to all codable statements (N = 139).
Table 2. The major topics and subthemes with counts, percentages, and selected examples. The field notes obtained from 50 participants gave a total of 148 statements. The percentages refer to all codable statements (N = 139).
Major TopicSubthemeExamples
Design positive
29 of 139 (21%) statements		Overview
14 of 139 (10%) statements		Participant #15: Better overview.
Participant #30: You capture a lot of information at a glance.
Illustration positive
15 of 139 (11%) statements		Participant #12: Possibility to recognize the ST elevation by color.
Participant #40: Situations are color-coded.
Intuitive
17 of 139 (12%) statements		 Participant #26: Easy understanding.
Participant #42: It is much more intuitive.
Time saving
16 of 139 (12%) statements		 Participant #1: Deviations can be detected more quickly.
Participant #8: You can quickly see if everything is okay or not okay.
Installations
16 of 139 (12%) statements		 Participant #10: Installations immediately clear.
Participant #43: Cool for lines and devices.
Design negative
40 of 139 (29%) statements		Overload
24 of 139 (17%) statements		Participant #5: Too much information in one image.
Participant #38: Sometimes too confusing.
Illustration negative
16 of 139 (12%) statements		Participant #17: The graphics could look more professional.
Participant #41: Some parameters, like arterial blood pressure are difficult to see.
Unfamiliarity
16 of 139 (12%) statements		 Participant #35: It takes time to get used to it.
Participant #46: Training needed.
Incompleteness
5 of 139 (4%) statements		 Participant #20: Saturation low: how low is it? 90% or 70%?
Participant #44: Omits all the information that gives us the morphology of the curves.
Not codable
9 of 148 (6%) statements		 Participant #1: Nothing.
Participant # 23: Great, if it works.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Lunkiewicz, J.; Gasciauskaite, G.; Roche, T.R.; Akbas, S.; Nöthiger, C.B.; Ganter, M.T.; Meybohm, P.; Hottenrott, S.; Zacharowski, K.; Raimann, F.J.; et al. User Perceptions of Avatar-Based Patient Monitoring for Intensive Care Units: An International Exploratory Sequential Mixed-Methods Study. Diagnostics 2023, 13, 3391. https://doi.org/10.3390/diagnostics13213391

AMA Style

Lunkiewicz J, Gasciauskaite G, Roche TR, Akbas S, Nöthiger CB, Ganter MT, Meybohm P, Hottenrott S, Zacharowski K, Raimann FJ, et al. User Perceptions of Avatar-Based Patient Monitoring for Intensive Care Units: An International Exploratory Sequential Mixed-Methods Study. Diagnostics. 2023; 13(21):3391. https://doi.org/10.3390/diagnostics13213391

Chicago/Turabian Style

Lunkiewicz, Justyna, Greta Gasciauskaite, Tadzio Raoul Roche, Samira Akbas, Christoph B. Nöthiger, Michael T. Ganter, Patrick Meybohm, Sebastian Hottenrott, Kai Zacharowski, Florian Jürgen Raimann, and et al. 2023. "User Perceptions of Avatar-Based Patient Monitoring for Intensive Care Units: An International Exploratory Sequential Mixed-Methods Study" Diagnostics 13, no. 21: 3391. https://doi.org/10.3390/diagnostics13213391

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
