Comparison of Machine Learning Models and the Fatty Liver Index in Predicting Lean Fatty Liver

by
Pei-Yuan Su
1,2,*,
Yang-Yuan Chen
1,3,
Chun-Yu Lin
4,
Wei-Wen Su
1,
Siou-Ping Huang
1 and
Hsu-Heng Yen
1,2,5,6,7
1
Department of Internal Medicine, Division of Gastroenterology, Changhua Christian Hospital, Changhua 500, Taiwan
2
College of Medicine, National Chung Hsing University, Taichung 400, Taiwan
3
Department of Hospitality Management, MingDao University, Changhua 500, Taiwan
4
Department of Family Medicine, Yumin Hospital, Nantou 540, Taiwan
5
General Education Center, Chienkuo Technology University, Changhua 500, Taiwan
6
Department of Electrical Engineering, Chung Yuan Christian University, Taoyuan 320, Taiwan
7
Artificial Intelligence Development Center, Changhua Christian Hospital, Changhua 500, Taiwan
*
Author to whom correspondence should be addressed.
Diagnostics 2023, 13(8), 1407; https://doi.org/10.3390/diagnostics13081407
Submission received: 27 February 2023 / Revised: 3 April 2023 / Accepted: 11 April 2023 / Published: 13 April 2023
(This article belongs to the Special Issue Artificial Intelligence in Gastrointestinal Disease: Diagnosis and Management)
Browse Figures
Review Reports Versions Notes

Abstract

:
The reported prevalence of non-alcoholic fatty liver disease in studies of lean individuals ranges from 7.6% to 19.3%. The aim of the study was to develop machine-learning models for the prediction of fatty liver disease in lean individuals. The present retrospective study included 12,191 lean subjects with a body mass index < 23 kg/m2 who had undergone a health checkup from January 2009 to January 2019. Participants were divided into a training (70%, 8533 subjects) and a testing group (30%, 3568 subjects). A total of 27 clinical features were analyzed, except for medical history and history of alcohol or tobacco consumption. Among the 12,191 lean individuals included in the present study, 741 (6.1%) had fatty liver. The machine learning model comprising a two-class neural network using 10 features had the highest area under the receiver operating characteristic curve (AUROC) value (0.885) among all other algorithms. When applied to the testing group, we found the two-class neural network exhibited a slightly higher AUROC value for predicting fatty liver (0.868, 0.841–0.894) compared to the fatty liver index (FLI; 0.852, 0.824–0.81). In conclusion, the two-class neural network had greater predictive value for fatty liver than the FLI in lean individuals.

1. Introduction

Non-alcoholic fatty liver disease (NAFLD) is one of the most prevalent forms of liver disease worldwide and is associated with increased risks of cirrhosis and hepatocellular carcinoma (HCC) [1]. Incidence rates of HCC have been higher in patients with nonalcoholic steatohepatitis (NASH) cirrhosis than in those with non-cirrhotic NAFLD. In Asian populations, a Japanese study revealed a 5-year HCC incidence of 11.3% among patients with NASH cirrhosis [2]. The global prevalence of NAFLD has been reported as 25.24%, with a regional prevalence of 27.37% in Asia [3]. Fatty liver in lean individuals has similar clinical characteristics to NAFLD [4]. In fact, a Swedish registry study found that although lean individuals with NAFLD had a lower baseline fibrosis severity than did non-lean individuals, they were still at high risk for developing severe liver disease [5]. Lean individuals with NAFLD are at increased risk of developing type 2 diabetes mellitus (DM) and metabolic syndrome and increased risk of mortality from cardiovascular and liver diseases [4,6]. Lean and non-lean individuals with NAFLD share several metabolic risk factors, including hypertriglyceridemia, low high-density lipoprotein (HDL) levels, type 2 DM, hypertension, metabolic syndrome, increased body mass index (BMI) and increased waist circumference. Generic characteristics, such as the PNPLA3 G allele, also play an important role in the development of NAFLD among lean individuals. The prevalence of NAFLD in lean individuals according to different BMI criteria (23–25 kg/m2) reportedly ranges from 7.6% to 19.3% [7]. The prevalence of NAFLD in a population with a BMI < 24 kg/m2 from south Taiwan was reported as 18.5% [8].
NAFLD can be diagnosed by liver biopsy or image. The gold standard method for the diagnosis of steatosis is liver biopsy; however, this approach is invasive and carries some bleeding risk. Meanwhile, diagnostic imaging, such as ultrasonography, computed tomography and magnetic resonance imaging, is time-consuming, costly and not always available in remote areas. Early diagnosis of hepatic steatosis based on risk factors helps clinicians identify the adverse events of NAFLD and prescribe more lifestyle interventions to prevent them. In addition, the diagnosis of NAFLD in lean individuals can easily be missed. Several biomarkers have been investigated as predictors of fatty liver, including markers of apoptosis and oxidative stress, the BARD score and the fatty liver index (FLI) [9]. The FLI is the most validated tool for predicting hepatic steatosis in the general and lean population [10]. Artificial intelligence (AI) has also been used to predict NAFLD for several years. Electronic health records and imaging data are the two main sources of data used to develop machine-learning models [11]. The area under the receiver operating characteristic (AUROC) for predicting NAFLD was higher for AI-assisted ultrasound (0.98) compared to AI-assisted clinical data sets (0.85). Our previous report demonstrated that a machine learning model using extreme gradient boosting (XGBoost) had a greater predictive value for fatty liver [12]. However, there was limited data on using machine learning models to predict lean fatty liver in the world. The aim of our study is trying to develop machine learning models for the prediction of lean fatty liver and to compare these models with FLI in the lean population.

2. Materials and Methods

2.1. Patient Selection

This retrospective study included subjects that had received a health checkup at Changhua Christian Hospital between January 2009 and January 2019. All subjects were adults (20–80 years old) and “lean,” as defined by a BMI < 23 kg/m2. Collected clinical data and ultrasound findings were from the same day. Only subjects with complete data for all parameters, including complete blood counts and biochemistry and lipid profiles, were included in the study analysis. We excluded subjects with incomplete clinical parameters and those whose BMI was ≥23 kg/m2. Initially, 45,006 subjects were enrolled. We then excluded 13,076 subjects with incomplete clinical datasets and 19,739 subjects whose BMI was ≥ 23 kg/m2. Finally, a total of 12,191 subjects were included in the study (Figure 1). The present study was approved by the Ethics Committee of Changhua Christian Hospital (CCH IRB No: 191012), and informed consent was waived as all data were deidentified.

2.2. Ultrasound Imaging

Fatty liver disease was defined as moderate-to-severe fatty change on ultrasonography. All participants fasted for at least 6 h prior to ultrasound examinations. Ultrasonography was performed by three independent ultrasound operators who were blinded to clinical data. Moderate-to-severe fatty changes on ultrasound were defined as the presence of at least 3 of the following 4 features: (1) hepatorenal echo contrast, (2) liver brightness, (3) deep attenuation and (4) vascular blurring [13,14].

2.3. Model Construction and Validation

The dataset was divided into a training group (70%, 8533 subjects) and a testing group (30%, 3568 subjects) using a randomized 70–30 split. Due to the low prevalence of fatty liver among the lean individuals included in the present study, healthy controls and participants with fatty liver disease were randomized into each group using a 2:1 ratio (Figure 1). The training set and validation set were randomly selected from the training group using an 80–20 split and a 10-fold cross-validation model. The machine learning platform used in the present study was Azure Machine Learning, a cloud-based computing platform (Azure ML; Microsoft, Redmond, WA, USA). Nine 2-class classification algorithms were compared, including a neural network, averaged perceptron, a locally-deep support vector machine, logistic regression, a support vector machine, a Bayes point machine, a decision jungle, a boosted decision tree and a decision forest. After building the machine learning algorithms, the testing group was used to identify the algorithm with the greatest predictive power for fatty liver compared to the FLI.

2.4. Feature Selection

The clinical features included in our dataset were age, gender, height, weight, waist, BMI, systolic blood pressure (SBP), diastolic blood pressure (DBP), white blood cell count, red blood cell, hemoglobin, platelet, mean corpuscular volume, mean corpuscular hemoglobin, mean corpuscular hemoglobin concentration, red cell distribution width, aspartate aminotransferase, alanine aminotransferase (ALT), r-glutamyl transpeptidase (r-GT), total cholesterol, HDL, low-density lipoprotein, triglyceride (TG), creatinine, fasting serum glucose, Fibrosis-4 (FIB-4) score and FLI. Filter-based feature selection was used to rank each feature according to the calculated scores for each feature. Six feature scoring methods were used in the present study: Pearson’s correlation, mutual information, Kendall correlation, Spearman’s correlation, the chi-squared test and the Fisher score. After comparisons between ranking lists, we selected the 10 features most commonly used in clinical practice to build a prediction model.

2.5. FLI

The FLI was developed to predict hepatic steatosis in the general population by Giorgio Bedogni et al. [15] The FLI was calculated using the following equation:
(e0.953 × loge (triglycerides) + 0.139 ×BMI + 0.718 × loge (r-GT) + 0.053 × waist circumference − 15.745)/(1 + e0.953 × loge (triglycerides) + 0.139 × BMI + 0.718 × loge (r-GT) + 0.053 × waist circumference − 15.745) × 100

2.6. Statistical Analysis

The chi-squared test was used to compare categorical variables, and the Mann–Whitney U test was used to compare continuous variables between groups. AUROC values were calculated using optimal cut-off values identified using the Youden index test. All statistical analyses were performed using SPSS version 22.0 (IBM Corp., Armonk, NY, USA), with 2-tailed p values < 0.05 indicating statistical significance.

3. Results

3.1. Clinical Characteristics of the Participants

Of the 12191 lean subjects, 741 (6.1%) had fatty liver. The training group comprised 8533 subjects (70%), of which 508 (6%) had fatty liver. The testing group comprised 3568 subjects (30%), of which 233 (6.4%) had fatty liver. The clinical characteristics of study subjects in the training group according to the presence or absence of fatty liver are shown in Table 1. Subjects with fatty liver were older, with a male predominance, compared to subjects without fatty liver. Significant differences in waist circumference, BMI, blood pressure, white blood cell count, serum hemoglobin, platelet count, serum glucose, serum biochemistry parameters, serum lipid profiles and FLI were observed between subjects with and without fatty liver. Histogram findings for both groups are shown in Figure 2. Accordingly, the figure shows that the distribution of the FLI is skewed to the right, with a slight difference between the two groups.

3.2. Feature Selection and Comparison of Classification Algorithms in the Training Set

Table 2 shows the 10 features selected by the six different scoring methods. The 10 highest scoring features were BMI, waist circumference, weight, age, serum TG, serum HDL, serum glucose, serum ALT, SBP and DBP. Table 3 shows the nine different classification algorithms of the machine learning models using the 10 selected features and all 27 features. The best predictive model was the two-class neural network using 10 features, with an AUROC value of 0.885, an accuracy of 0.816, a recall of 0.661, an F1 score of 0.72 and a precision of 0.791. (Figure 3).

3.3. Comparison of Machine Learning Models and the FLI Using the Testing Set

The FLI index was calculated in the testing group and compared to the machine learning model comprising a two-class neural network. The AUROC value was higher for the machine learning model using 10 selected features (above-mentioned; 0.868, 95% CI 0.841–0.894) compared to the FLI (0.852, 95% CI 0.824–0.881) and machine learning model using four selected features (same as factors in FLI including waist, BMI, r-GT and TG) (0.851, 95% CI 0.823–0.879; Figure 4). The optimal cut-off value, according to the Youden index test for the FLI, was 9, with a sensitivity of 82.4% and specificity of 74.9%.

4. Discussion

The present study is the first to use machine learning models to predict fatty liver in lean individuals. Our results demonstrate that a machine learning model had a slightly greater ability to discriminate between fatty liver and non-fatty liver in lean subjects from an Asian population compared to a conventional scoring system for predicting fatty liver (FLI). These machine learning algorithms may have utility in predicting fatty liver in regions where ultrasonography is not available and in analyzing pathophysiologic correlations with other clinical outcomes, such as cardiovascular events or mortality.
There is significant heterogeneity in the reported prevalence of fatty liver in lean individuals from previous studies due to the use of an upper limit of BMI ranging from 23 to 25 kg/m2 to define “lean” individuals in different populations. Two previous meta-analyses reported an overall prevalence of NAFLD in lean populations of 10.2% and 10.6% [16,17]. A lower prevalence of NAFLD was observed when lower BMI criteria were used and in populations based on patients attending health check-ups. The definition of “lean” in the present study was a BMI < 23 kg/m2, and the prevalence of fatty liver in lean individuals was 6.1%. This prevalence of NAFLD in lean individuals was lower than reported by a similar study in a Taiwanese population conducted in 2019 which reported a prevalence of NAFLD of 18.5% in individuals with a BMI < 24 kg/m2 [8]. Other than differences in BMI cut-off values, criteria for diagnosing NAFLD using ultrasound may represent a further confounding factor as fatty liver was defined as moderate-to-severe fatty change on ultrasound in the present study. A similar prevalence (10.37%) of NAFLD in a non-obese population (BMI < 25 kg/m2) was reported from a study conducted in China which observed a higher prevalence of NAFLD in patients aged 50–59 years [18].
Differing factors are associated with NAFLD in lean and obese patients. The most common factors related to NAFLD in lean patients included BMI, waist circumference, serum triglyceride levels, serum HDL levels, DM, metabolic syndrome, blood pressure and serum liver enzyme levels [5]. Genetic factors are associated with the development of NAFLD in lean individuals, including patatin-like phospholipase domain-containing 3 (PNPLA3, rs738409 C > G) and transmembrane 6 superfamily member 2 (TM6SF2, rs58542926 C > T) [19,20]. The FLI contains four risk factors, including triglyceride, BMI, r-GT and waist circumference. Age is also an important risk of NAFLD in lean people. According to a meta-analysis, lean individuals with NAFLD were older than lean controls, with a mean difference of 2.87 years [21]. Sex differences have also been noted in NAFLD, such that a higher prevalence of NAFLD was found among males than among females. Liver outcomes in both sexes have been controversial, given that the effects of a dysmetabolic state might be greater in females than in males [22]. However, studies on the effects of sex on NAFLD in lean individuals have currently been limited. The present study used a cloud-based computing platform and filter-based selection to identify waist circumference, serum TG, BMI, weight, serum HDL, serum glucose, SBP, serum ALT, DBP and age as the 10 highest scoring factors. Although baseline characteristics showed male predominant in lean fatty liver, sex was not identified as an important feature in our model. These findings were similar to the results of previous studies [23,24].
AI has been used to predict NAFLD and classify the severity of liver fibrosis for many years [25]. A range of machine learning models and deep learning modules have been developed using large-scale electronic health records and images from clinical investigations, including histology, ultrasonography, computed tomography and magnetic resonance imaging [26]. Several public cloud-based platforms can be used to develop machine learning models, including Tensorflow (Google Brain Team, Menlo Park, CA, USA), WEKA (University of Waikato, Hamilton, New Zealand), the Orange Data Mining platform (Bioinformatics Lab, University of Ljubljana, Slovenia) and Azure Machine Learning (Microsoft, Redmond, WA, USA) [11]. According to a meta-analysis, AI-assisted ultrasonography had a higher area under the curve for the detection of NAFLD than an AI-assisted clinical data set (0.98 vs. 0.85) [9]. Several machine learning algorithms have been used to predict NAFLD, including extreme gradient boosting (XGBoost), neural network, support vector machine, logistic regression, decision forests and decision jungles. XGBoost is easy to interpret and has been shown to have good predictive utility in diagnosing NAFLD (AUROC, 0.882–0.931) in several studies [12,27,28]. While neural networks can address non-linear correlations and complex models, they require large computer resources and have a tendency to overfit. Meanwhile, support vector machines can handle high-dimensional data and non-linear correlations but have low efficacy due to their high computational costs. Logistic regression models are easy to train and interpret but cannot address non-linear problems. There was no available publication that used machine learning for the detection of lean NAFLD in the lean population. This is the first study to predict fatty liver in lean individuals using Azure Machine Learning which utilized nine different machine learning tools with a two-class neural network found to be the best machine learning algorithm (AUROC, 0.885). The predictive power is better in machine learning algorithms using 10 features than 27 features. The situation that performance was reduced by adding features may be explained by two possible reasons. First, when too many features are added to a machine learning model, it can lead to overfitting and influence the results from validation and test sets. Second, some features may not be useful in predicting outcomes or may be highly correlated with other features. When these features are added to the machine learning model, they can introduce noise and reduce the predictive value. After incorporating the neural network and the FLI into the testing group, we found that the neural network using 10 selected features had a slightly greater AUROC than did the FLI and neural network using four selected features (same as factors in FLI). This suggests the presence of non-linear correlations between these 10 features, which can be detected using certain specific machine learning algorithms. However, better information quality may be another possible explanation because the AUROCs are similar between the machine learning model using four features and FLI.
Scoring algorithms have been developed to predict hepatic steatosis. The FLI was developed in 2006 and had an accuracy for predicting steatosis of 0.84 [15]. Recently, the FLI has also been used to predict 10-year cardiovascular disease risks and mortality. [29] A study including a Korean population showed the individual who had a higher FLI (≥60) had a higher Framingham 10-year CVD risk (odds ratio 2.56). Another study from Korea showed that FLI could be a poor prognostic factor, particularly in the underweight population (BMI < 18.5 kg/m2). [30] Moreover, a study from China showed that a triglyceride and glucose index (TyG) developed to predict insulin resistance could also be used to identify NAFLD, although its AUROC was not particularly good (0.782). [31] Different cut-off values for the FLI for the prediction of fatty liver have been assessed in lean populations, with a previous study conducted in Taiwan demonstrating a cut-off value of 15 had the highest discriminant ability in a lean population and a further study conducted in Turkey demonstrated a cut-off value of 5.68 had the highest AUROC (0.748) for predicting NAFLD in lean females with polycystic ovary syndrome [8,32]. In the present study, the FLI had an AUROC value of 0.852 for predicting steatosis in lean individuals using a cut-off value of 9 identified using the Youden index test. We compared FLI cut-off values of 9 and 15 using a machine learning model in the testing group, with AUROC values of 0.784 for the FLI using a cut-off value of 9, 0.752 for the two-class neural network (scored probability > 0.5) and 0.722 for the FLI using a cut-off value of 15.
The present study had some limitations. First, we did not collect data on hepatitis B and C virus status or history of alcohol consumption or diabetes. The present study comprised subjects with fatty liver on ultrasound which may have included patients with NAFLD and alcoholic fatty disease. Although patients with viral hepatitis and alcohol liver disease may have been included in the present study, further studies are required to determine the predictive ability of machine learning models in detecting steatosis in populations with a single liver disease etiology. Metabolic-associated fatty liver disease (MAFLD) is not a suitable representation of our study subjects, given that our subjects do not satisfy the diagnostic criteria for MAFLD. Second, some clinical parameters were not included in the present study, such as uric acid, HbA1C, C-reactive protein and homeostasis model assessment for insulin resistance (HOMA-IR). These parameters have been shown to be associated with lean NAFLD [21,33]. Third, we did not collect histological data from liver biopsies or other non-invasive imaging techniques, such as the controlled attenuation parameter measured by FibroScan® or magnetic resonance imaging-derived proton density fat fraction to confirm the degree of the steatosis. Our use of ultrasonography may have resulted in the underdiagnosis of hepatic steatosis in our patients relative to that using histology. Accordingly, the prevalence of fatty liver may have been underestimated in the present study. This would suggest that the machine learning model cannot be used to predict mild steatosis in the general population.

5. Conclusions

The present study describes the development of machine learning models to predict fatty liver in lean individuals, with a two-class neural network model found to have the greatest predictive ability. The AUROC value was slightly higher using the machine learning model than the FLI. In addition, the prevalence of fatty liver in lean individuals was 6.1%, and the optimal FLI cut-off value was 9 in the present study. These results can help clinicians promptly and accurately diagnose fatty liver disease in lean subjects considering that hepatic steatosis in lean populations can be easily overlooked or treated late. Further studies with larger sample sizes using other forms of clinical information and image are required to validate the utility of novel machine-learning models in predicting steatosis and fibrosis.

Author Contributions

Conceptualization and methodology of the study, H.-H.Y. and Y.-Y.C.; manuscript drafting, P.-Y.S.; data collection, C.-Y.L.; validation, S.-P.H.; revision and editing of the manuscript, W.-W.S. and H.-H.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Changhua Christian Hospital (111-CCH-IRP-107).

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki and approved by the institutional review board of Changhua Christian Hospital (IRB Number: 191012).

Informed Consent Statement

Patient consent was waived due to all data were deidentified.

Data Availability Statement

Data are available on reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Huang, D.Q.; El-Serag, H.B.; Loomba, R. Global epidemiology of NAFLD-related HCC: Trends, predictions, risk factors and prevention. Nat. Rev. Gastroenterol. Hepatol. 2021, 18, 223–238. [Google Scholar] [CrossRef] [PubMed]
  2. Yatsuji, S.; Hashimoto, E.; Tobari, M.; Taniai, M.; Tokushige, K.; Shiratori, K. Clinical features and outcomes of cirrhosis due to non-alcoholic steatohepatitis compared with cirrhosis caused by chronic hepatitis C. J. Gastroenterol. Hepatol. 2009, 24, 248–254. [Google Scholar] [CrossRef] [PubMed]
  3. Younossi, Z.M.; Koenig, A.B.; Abdelatif, D.; Fazel, Y.; Henry, L.; Wymer, M. Global epidemiology of nonalcoholic fatty liver disease—Meta-analytic assessment of prevalence, incidence, and outcomes. Hepatology 2016, 64, 73–84. [Google Scholar] [CrossRef] [Green Version]
  4. Long, M.T.; Noureddin, M.; Lim, J.K. AGA clinical practice update: Diagnosis and management of nonalcoholic fatty liver disease in lean individuals: Expert review. Gastroenterology 2022, 163, 764–774.e1. [Google Scholar] [CrossRef] [PubMed]
  5. Hagström, H.; Nasr, P.; Ekstedt, M.; Hammar, U.; Stål, P.; Hultcrantz, R.; Kechagias, S. Risk for development of severe liver disease in lean patients with nonalcoholic fatty liver disease: A long-term follow-up study. Hepatol. Commun. 2017, 2, 48–57. [Google Scholar] [CrossRef] [Green Version]
  6. Zou, Z.Y.; Wong, V.W.S.; Fan, J.G. Epidemiology of nonalcoholic fatty liver disease in non-obese populations: Meta-analytic assessment of its prevalence, genetic, metabolic, and histological profiles. J. Dig. Dis. 2020, 21, 372–384. [Google Scholar] [CrossRef]
  7. Maier, S.; Wieland, A.; Cree-Green, M.; Nadeau, K.; Sullivan, S.; Lanaspa, M.; Johnson, R.; Jensen, T. Lean NAFLD: An underrecognized and challenging disorder in medicine. Rev. Endocr. Metab. Disord. 2021, 22, 351–366. [Google Scholar] [CrossRef]
  8. Hsu, C.L.; Wu, F.Z.; Lin, K.H.; Chen, Y.H.; Wu, P.C.; Chen, Y.H.; Chen, C.S.; Wang, W.W.; Ynan, G.Y.; Yu, H.C. Role of fatty liver index and metabolic factors in the prediction of nonalcoholic fatty liver disease in a lean population receiving health checkup. Clin. Transl. Gastroenterol. 2019, 10, 1–8. [Google Scholar] [CrossRef]
  9. Decharatanachart, P.; Chaiteerakij, R.; Tiyarattanachai, T.; Treeprasertsuk, S. Application of artificial intelligence in non-alcoholic fatty liver disease and liver fibrosis: A systematic review and meta-analysis. Ther. Adv. Gastroenterol. 2021, 14, 17562848211062807. [Google Scholar] [CrossRef]
  10. Castellana, M.; Donghia, R.; Guerra, V.; Procino, F.; Lampignano, L.; Castellana, F.; Zupo, R.; Sardone, R.; De Pergola, G.; Romanelli, F.; et al. Performance of Fatty Liver Index in Identifying Non-Alcoholic Fatty Liver Disease in Population Studies. A Meta-Analysis. J. Clin. Med. 2021, 10, 1877. [Google Scholar] [CrossRef]
  11. Wong, G.L.H.; Yuen, P.C.; Ma, A.J.; Chan, A.W.H.; Leung, H.H.W.; Wong, V.W.S. Artificial intelligence in prediction of non-alcoholic fatty liver disease and fibrosis. J. Gastroenterol. Hepatol. 2021, 36, 543–550. [Google Scholar] [CrossRef] [PubMed]
  12. Chen, Y.Y.; Lin, C.Y.; Yen, H.H.; Su, P.Y.; Zeng, Y.H.; Huang, S.P.; Liu, I.L. Machine-learning algorithm for predicting fatty liver disease in a Taiwanese population. J. Pers. Med. 2022, 12, 1026. [Google Scholar] [CrossRef] [PubMed]
  13. Scatarige, J.C.; Scott, W.W.; Donovan, P.J.; Siegelman, S.S.; Sanders, R.C. Fatty infiltration of the liver: Ultrasonographic and computed tomographic correlation. J. Ultrasound Med. 1984, 3, 9–14. [Google Scholar] [CrossRef] [PubMed]
  14. Hamaguchi, M.; Kojima, T.; Itoh, Y.; Harano, Y.; Fujii, K.; Nakajima, T.; Kato, T.; Takeda, N.; Okuda, J.; Ida, K.; et al. The severity of ultrasonographic findings in nonalcoholic fatty liver disease reflects the metabolic syndrome and visceral fat accumulation. Am. J. Gastroenterol. 2007, 102, 2708–2715. [Google Scholar] [CrossRef]
  15. Bedogni, G.; Bellentani, S.; Miglioli, L.; Masutti, F.; Passalacqua, M.; Castiglione, A.; Tiribelli, C. The fatty liver index: A simple and accurate predictor of hepatic steatosis in the general population. BMC Gastroenterol. 2006, 6, 33. [Google Scholar] [CrossRef] [Green Version]
  16. Ye, Q.; Zou, B.; Yeo, Y.H.; Li, J.; Huang, D.Q.; Yang, H.; Liu, C.; Kam, L.Y.; Tan, X.X.E.; Chien, N.; et al. Global prevalence, incidence, and outcomes of non-obese or lean non-alcoholic fatty liver disease: A systematic review and meta-analysis. Lancet Gastroenterol. Hepatol. 2020, 5, 739–752. [Google Scholar] [CrossRef]
  17. Shi, Y.; Wang, Q.; Sun, Y.; Zhao, X.; Kong, Y.; Ou, X.; Jia, J.; Wu, S.; You, H. The prevalence of lean/nonobese nonalcoholic fatty liver disease: A systematic review and meta-analysis. J. Clin. Gastroenterol. 2020, 54, 378–387. [Google Scholar] [CrossRef]
  18. Li, Y.; Chen, Y.; Tian, X.; Zhang, S.; Jiao, J. Comparison of clinical characteristics between obese and non-obese patients with nonalcoholic fatty liver disease (Nafld). Diabetes Metab. Syndr. Obes. 2021, 14, 2029–2039. [Google Scholar] [CrossRef]
  19. Ahadi, M.; Molooghi, K.; Masoudifar, N.; Namdar, A.B.; Vossoughinia, H.; Farzanehfar, M. A review of non-alcoholic fatty liver disease in non-obese and lean individuals. J. Gastroenterol. Hepatol. 2021, 36, 1497–1507. [Google Scholar] [CrossRef]
  20. Chahal, D.; Sharma, D.; Keshavarzi, S.; Arisar, F.A.Q.; Patel, K.; Xu, W.; Bhat, M. Distinctive clinical and genetic features of lean vs overweight fatty liver disease using the UK biobank. Hepatol. Int. 2022, 16, 325–336. [Google Scholar] [CrossRef]
  21. Alam, S.; Eslam, M.; Hasan, N.S.; Anam, K.; Chowdhury, M.A.B.; Khan, M.A.S.; Hasan, M.J.; Mohamed, R. Risk factors of nonalcoholic fatty liver disease in lean body mass population: A systematic review and meta-analysis. JGH Open 2021, 5, 1236–1249. [Google Scholar] [CrossRef] [PubMed]
  22. Fresneda, S.; Abbate, M.; Busquets-Cortés, C.; López-González, A.; Fuster-Parra, P.; Bennasar-Veny, M.; Yáñez, A.M. Sex and age differences in the association of fatty liver index-defined non-alcoholic fatty liver disease with cardiometabolic risk factors: A cross-sectional study. Biol. Sex Differ. 2022, 13, 64. [Google Scholar] [CrossRef] [PubMed]
  23. Cho, H.C. Prevalence and factors associated with nonalcoholic fatty liver disease in a nonobese Korean population. Gut Liver 2016, 10, 117–125. [Google Scholar] [CrossRef] [PubMed]
  24. Trifan, A.; Rotaru, A.; Stafie, R.; Stratina, E.; Zenovia, S.; Nastasa, R.; Huiban, L.; Cuciureanu, T.; Muzîca, C.; Chiriac, S.; et al. Clinical and laboratory characteristics of normal weight and obese individuals with non-alcoholic fatty liver disease. Diagnostics 2022, 12, 801. [Google Scholar] [CrossRef] [PubMed]
  25. Li, Y.; Wang, X.; Zhang, J.; Zhang, S.; Jiao, J. Applications of artificial intelligence (AI) in researches on non-alcoholic fatty liver disease (NAFLD): A systematic review. Rev. Endocr. Metab. Disord. 2022, 23, 387–400. [Google Scholar] [CrossRef] [PubMed]
  26. Nam, D.; Chapiro, J.; Paradis, V.; Seraphin, T.P.; Kather, J.N. Artificial intelligence in liver diseases: Improving diagnostics, prognostics and response prediction. JHEP Rep. 2022, 4, 100443. [Google Scholar] [CrossRef]
  27. Pei, X.; Deng, Q.; Liu, Z.; Yan, X.; Sun, W. Machine learning algorithms for predicting fatty liver disease. Ann. Nutr. Metab. 2021, 77, 38–45. [Google Scholar] [CrossRef]
  28. Liu, Y.X.; Liu, X.; Cen, C.; Li, X.; Liu, J.M.; Ming, Z.Y.; Yu, S.F.; Tang, X.F.; Zhou, L.; Yu, J.; et al. Comparison and development of advanced machine learning tools to predict nonalcoholic fatty liver disease: An extended study. Hepatobiliary Pancreat. Dis. Int. 2021, 20, 409–415. [Google Scholar] [CrossRef]
  29. Chung, T.H.; Kim, J.K.; Kim, J.H.; Lee, Y.J. Fatty Liver Index as a Simple and Useful Predictor for 10-year Cardiovascular Disease Risks Determined by Framingham Risk Score in the General Korean Population. J. Gastrointest. Liver Dis. 2021, 30, 221–226. [Google Scholar] [CrossRef]
  30. Chung, G.E.; Jeong, S.-M.; Cho, E.J.; Yoo, J.-J.; Cho, Y.; Na Lee, K.; Shin, D.W.; Kim, Y.J.; Yoon, J.-H.; Han, K.; et al. Association of fatty liver index with all-cause and disease-specific mortality: A nationwide cohort study. Metabolism 2022, 133, 155222. [Google Scholar] [CrossRef]
  31. Zhang, S.; Du, T.; Zhang, J.; Lu, H.; Lin, X.; Xie, J.; Yang, Y.; Yu, X. The triglyceride and glucose index (TyG) is an effective biomarker to identify nonalcoholic fatty liver disease. Lipids Health Dis. 2017, 16, 15. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Arıkan, D.; Önmez, A.; Aksu, E.; Taşdemir, N. Predictivity of fatty liver index for non-alcoholic fatty liver disease in lean females with polycystic ovary syndrome. Afr. Health Sci. 2022, 22, 648–656. [Google Scholar] [CrossRef] [PubMed]
  33. Young, S.; Tariq, R.; Provenza, J.; Satapathy, S.K.; Faisal, K.; Choudhry, A.; Friedman, S.L.; Singal, A.K. Prevalence and profile of nonalcoholic fatty liver disease in lean adults: Systematic review and meta-analysis. Hepatol. Commun. 2020, 4, 953–972. [Google Scholar] [CrossRef] [PubMed]
Diagnostics 13 01407 g001 550

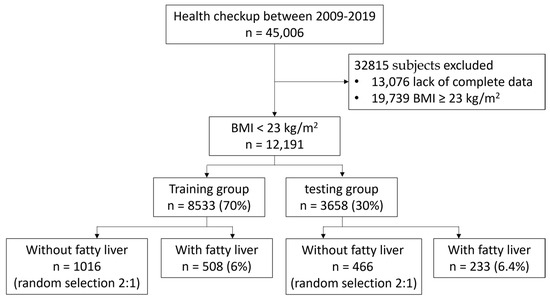

Figure 1. Participant flow chart for the training and testing groups in the present study.
Figure 1. Participant flow chart for the training and testing groups in the present study.
Diagnostics 13 01407 g001
Diagnostics 13 01407 g002 550

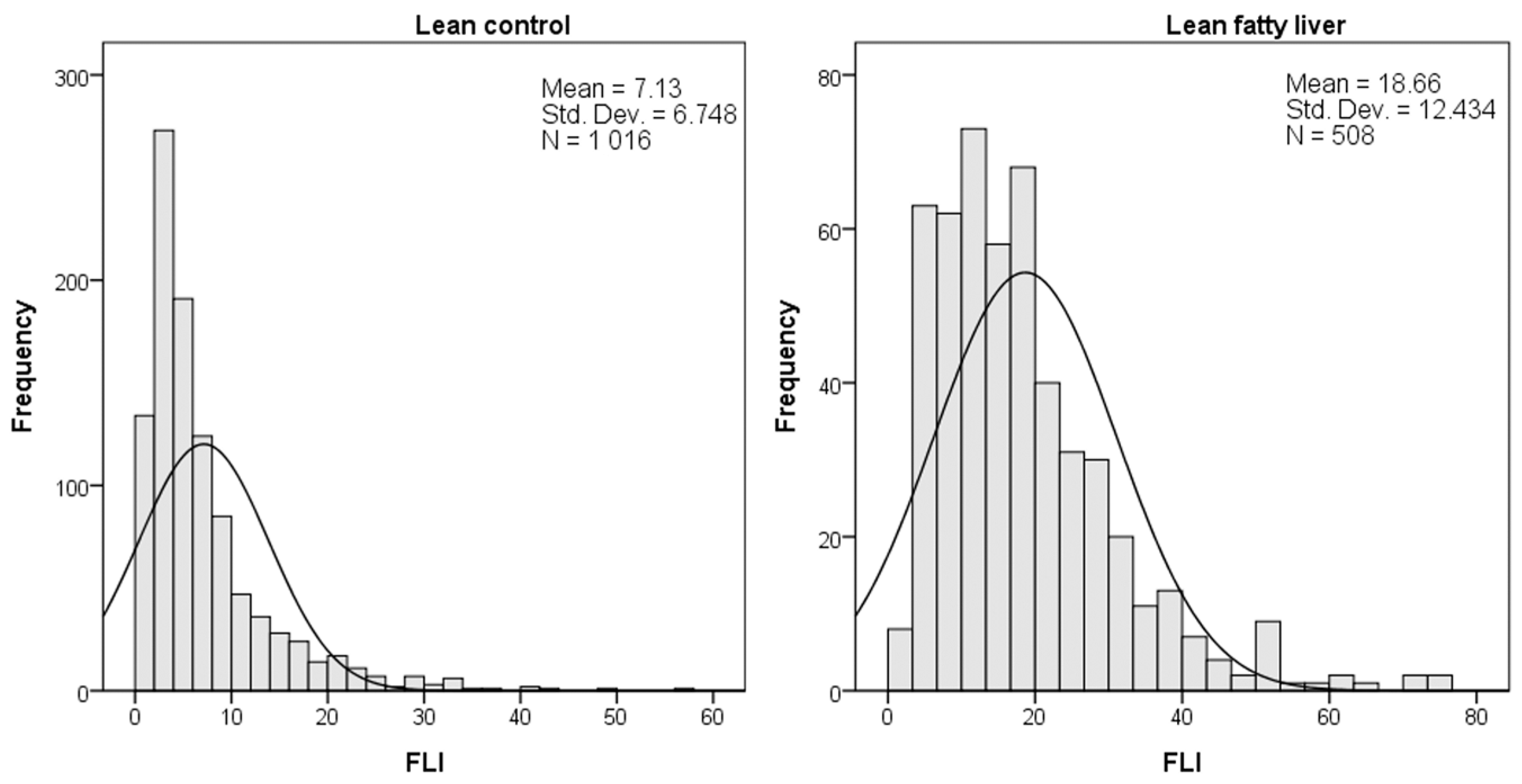

Figure 2. Histogram of fatty liver index (FLI) from lean fatty liver and control in the training group.
Figure 2. Histogram of fatty liver index (FLI) from lean fatty liver and control in the training group.
Diagnostics 13 01407 g002
Diagnostics 13 01407 g003 550
Figure 3. Area under the receiver operating characteristic curve for the machine learning model using a two-class neural network (AUROC value, 0.885).
Figure 3. Area under the receiver operating characteristic curve for the machine learning model using a two-class neural network (AUROC value, 0.885).
Diagnostics 13 01407 g003
Diagnostics 13 01407 g004 550

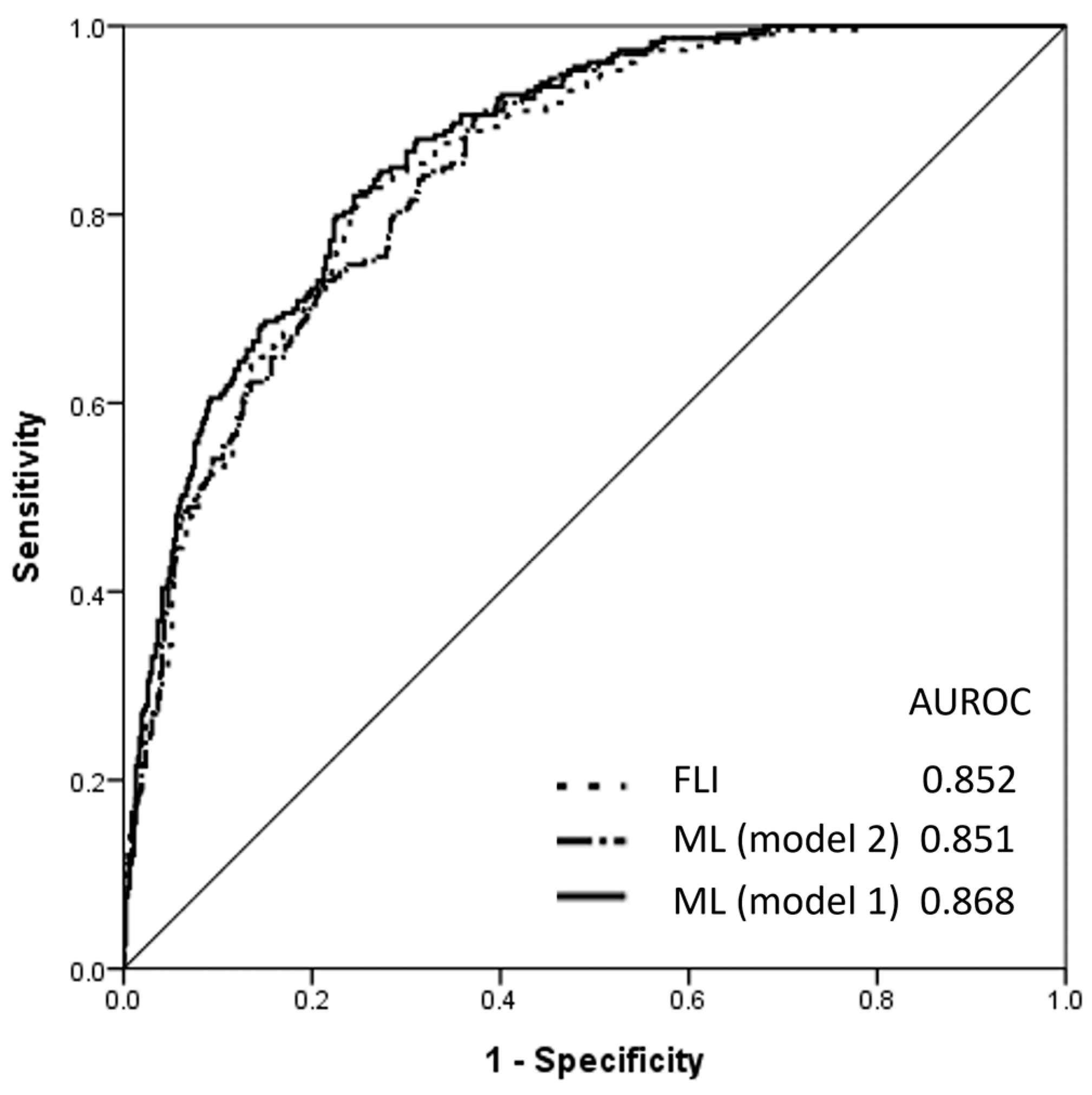

Figure 4. Area under the receiver operating characteristic (AUROC) curves of the machine learning (ML) model 1 comprising a two-class neural network using 10 selected features (body mass index, waist, weight, age, triglyceride (TG), high-density lipoprotein, glucose, alanine aminotransferase, systolic blood pressure and diastolic blood pressure), ML model 2 comprising a two-class neural network using four selected features (body mass index, waist, TG and r-glutamyl transpeptidase) and the fatty liver index (FLI) for predicting steatosis in lean individuals using the testing set.
Figure 4. Area under the receiver operating characteristic (AUROC) curves of the machine learning (ML) model 1 comprising a two-class neural network using 10 selected features (body mass index, waist, weight, age, triglyceride (TG), high-density lipoprotein, glucose, alanine aminotransferase, systolic blood pressure and diastolic blood pressure), ML model 2 comprising a two-class neural network using four selected features (body mass index, waist, TG and r-glutamyl transpeptidase) and the fatty liver index (FLI) for predicting steatosis in lean individuals using the testing set.
Diagnostics 13 01407 g004
Table
Table 1. Clinical parameters in lean subjects with and without fatty liver.
Table 1. Clinical parameters in lean subjects with and without fatty liver.
With Fatty Liver
(n = 508)		Without Fatty Liver
(n = 1016)		p-Value
Age (years)52.69 ± 8.9747.32 ± 11.17<0.001
Gender, male304 (59.8%)438 (43.1%)<0.001
Height (cm)164.47 ± 8.11163.52 ± 7.80.010
Weight (kg)59.8 ± 6.3156.04 ± 6.95<0.001
Waist circumference (cm)78.54 ± 5.173.14 ± 5.77<0.001
SBP (mmHg)127.24 ± 15.82116.44 ± 14.57<0.001
DBP (mmHg)80.44 ± 9.574.42 ± 9.21<0.001
BMI (kg/m2)22.05 ± 0.7820.9 ± 1.48<0.001
WBC (×109/L)5.84 ± 1.495.18 ± 1.44<0.001
RBC count (×109/L)4.76 ± 0.544.58 ± 0.48<0.001
Hb (g/dL)14.28 ± 1.3613.73 ± 1.48<0.001
MCV (fL)42.57 ± 3.8241.06 ± 4.1<0.001
RBC volume (fL)90.02 ± 7.4690.1 ± 7.320.568
MCH (pg)30.23 ± 2.9530.14 ± 2.860.387
MCHC (g/dL)33.54 ± 0.9533.41 ± 0.880.001
Platelet (×103/L)226.59 ± 52.13219.24 ± 49.680.009
RBC-RDW (%)13.32 ± 1.0413.51 ± 1.220.004
Glucose (mg/dL)106.73 ± 31.2191.48 ± 13.12<0.001
AST (IU/L)28.04 ± 15.4223.03 ± 10.01<0.001
ALT (IU/L)31.36 ± 19.9320.7 ± 12.26<0.001
r-GT (U/L)31.39 ± 56.9417.68 ± 12.91<0.001
Total cholesterol (mg/dL)198.89 ± 37.48190.62 ± 33.34<0.001
HDL (mg/dL)46.82 ± 10.6657.06 ± 13.96<0.001
LDL (mg/dL)124.6 ± 34.5115.23 ± 28.68<0.001
Triglyceride (mg/dL)138.14 ± 78.581.93 ± 45.67<0.001
Cr (mg/dL)0.78 ± 0.20.75 ± 0.180.001
FIB-41.26 ± 0.61.21 ± 0.630.014
FLI18.66 ± 12.437.13 ± 6.75<0.001
Abbreviations: SBP, systolic blood pressure; DBP, diastolic blood pressure; BMI, body mass index; WBC, white blood cell count; RBC, red blood cell; Hb, hemoglobin; MCV, mean corpuscular volume; MCH, mean corpuscular hemoglobin; MCHC, mean corpuscular hemoglobin concentration; RDW, red cell distribution width; AST, aspartate aminotransferase; ALT, alanine aminotransferase; r-GT, r-glutamyl transpeptidase; HDL, high-density lipoprotein; LDL, low-density lipoprotein; Cr, creatinine; FIB-4, fibrosis index based on four factors; FLI, fatty liver index.
Table
Table 2. The 10 features selected by the six different scoring methods.
Table 2. The 10 features selected by the six different scoring methods.
Method
(Correlation Coefficient)		Scored Features
Steatosis Waist TG BMI HDL Glucose SBP ALT DBP Weight Age
Pearson correlation 1 0.417 0.412 0.388 0.349 0.325 0.321 0.313 0.292 0.254 0.235
Steatosis TG BMI Waist rGT ALT Glucose HDL SBP DBP Age
Mutual information 1 0.105 0.097 0.094 0.089 0.086 0.078 0.067 0.055 0.045 0.039
Steatosis TG Waist rGT ALT BMI Glucose HDL SBP DBP AST
Kendall correlation 1 0.364 0.348 0.341 0.334 0.325 0.310 0.297 0.264 0.243 0.212
Steatosis TG Waist rGT ALT BMI Glucose HDL SBP DBP Weight
Spearman correlation 1 0.444 0.419 0.409 0.403 0.398 0.374 0.359 0.320 0.293 0.258
Steatosis TG Waist ALT BMI rGT Glucose HDL SBP DBP AST
Chi-squared 1 316.830 272.800 264.647 260.506 255.513 236.273 197.071 164.514 136.655 117.880
Steatosis Waist TG BMI HDL Glucose SBP ALT DBP Weight Age
Fisher Score 1 0.210 0.204 0.177 0.139 0.118 0.115 0.109 0.093 0.069 0.058
Abbreviations: TG, triglycerides; ALT, alanine aminotransferase; r-GT, r-glutamyl transpeptidase; BMI, body mass index; SBP, systolic blood pressure; DBP, diastolic blood pressure; AST, aspartate aminotransferase; HDL, high-density lipoprotein.
Table
Table 3. Results from the nine machine learning models using the 10 selected features and all 27 features.
Table 3. Results from the nine machine learning models using the 10 selected features and all 27 features.
ModelFeaturesAUROCAccuracyRecallF1 ScorePrecision
Two-class neural network 10 0.885 0.816 0.661 0.72 0.791
27 0.877 0.793 0.624 0.683 0.756
Two-class averaged perceptron 10 0.875 0.8 0.624 0.69 0.773
27 0.874 0.79 0.615 0.677 0.753
Two-class locally-deep support vector machine 10 0.845 0.797 0.569 0.667 0.805
27 0.833 0.77 0.505 0.611 0.775
Two-class logistic regression 10 0.867 0.793 0.596 0.674 0.774
27 0.874 0.787 0.596 0.667 0.756
Two-class support vector machine 10 0.872 0.8 0.633 0.693 0.767
27 0.866 0.793 0.642 0.69 0.745
Two-class Bayes point machine 10 0.86 0.77 0.505 0.611 0.775
27 0.878 0.77 0.495 0.607 0.783
Two-class decision jungle 10 0.849 0.78 0.624 0.67 0.723
27 0.851 0.784 0.578 0.656 0.759
Two-class boosted decision tree 10 0.859 0.764 0.624 0.654 0.687
27 0.871 0.793 0.67 0.699 0.73
Two-class decision forest 10 0.852 0.784 0.56 0.649 0.772
27 0.846 0.774 0.578 0.646 0.733
Abbreviations: AUROC, area under the receiver operating characteristic.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Su, P.-Y.; Chen, Y.-Y.; Lin, C.-Y.; Su, W.-W.; Huang, S.-P.; Yen, H.-H. Comparison of Machine Learning Models and the Fatty Liver Index in Predicting Lean Fatty Liver. Diagnostics 2023, 13, 1407. https://doi.org/10.3390/diagnostics13081407

AMA Style

Su P-Y, Chen Y-Y, Lin C-Y, Su W-W, Huang S-P, Yen H-H. Comparison of Machine Learning Models and the Fatty Liver Index in Predicting Lean Fatty Liver. Diagnostics. 2023; 13(8):1407. https://doi.org/10.3390/diagnostics13081407

Chicago/Turabian Style

Su, Pei-Yuan, Yang-Yuan Chen, Chun-Yu Lin, Wei-Wen Su, Siou-Ping Huang, and Hsu-Heng Yen. 2023. "Comparison of Machine Learning Models and the Fatty Liver Index in Predicting Lean Fatty Liver" Diagnostics 13, no. 8: 1407. https://doi.org/10.3390/diagnostics13081407

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
