CT Perfusion as a Predictor of the Final Infarct Volume in Patients with Tandem Occlusion

by
Giordano Lacidogna
1,*,
Francesca Pitocchi
2,
Alfredo Paolo Mascolo
1,
Federico Marrama
1,
Federica D’Agostino
1,
Alessandro Rocco
1,
Francesco Mori
1,
Ilaria Maestrini
1,
Federico Sabuzi
3,
Armando Cavallo
2,
Daniele Morosetti
3,
Francesco Garaci
2,
Francesca Di Giuliano
2,
Roberto Floris
2,
Fabrizio Sallustio
1,
Marina Diomedi
1 and
Valerio Da Ros
3
1
Stroke Center, Department of Systems Medicine, University Hospital of Rome “Tor Vergata”, Viale Oxford 81, 00133 Rome, Italy
2
Diagnostic Imaging Unit, Department of Biomedicine and Prevention, University of Rome Tor Vergata, Viale Oxford 81, 00133 Rome, Italy
3
Interventional Radiology Unit, Department of Biomedicine and Prevention, University Hospital of Rome “Tor Vergata”, Viale Oxford 81, 00133 Rome, Italy
*
Author to whom correspondence should be addressed.
J. Pers. Med. 2023, 13(2), 342; https://doi.org/10.3390/jpm13020342
Submission received: 21 December 2022 / Revised: 1 February 2023 / Accepted: 8 February 2023 / Published: 16 February 2023
(This article belongs to the Section Clinical Medicine, Cell, and Organism Physiology)
Browse Figures
Review Reports Versions Notes

Abstract

:
Background: CT perfusion (CTP) is used in patients with anterior circulation acute ischemic stroke (AIS) for predicting the final infarct volume (FIV). Tandem occlusion (TO), involving both intracranial large vessels and the ipsilateral cervical internal carotid artery could generate hemodynamic changes altering perfusion parameters. Our aim is to evaluate the accuracy of CTP in the prediction of the FIV in TOs. Methods: consecutive patients with AIS due to middle cerebral artery occlusion, referred to a tertiary stroke center between March 2019 and January 2021, with an automated CTP and successful recanalization (mTICI = 2b − 3) after endovascular treatment were retrospectively included in the tandem group (TG) or in the control group (CG). Patients with parenchymal hematoma type 2, according to ECASS II classification of hemorrhagic transformations, were excluded in a secondary analysis. Demographic, clinical, radiological, time intervals, safety, and outcome measures were collected. Results: among 319 patients analyzed, a comparison between the TG (N = 22) and CG (n = 37) revealed similar cerebral blood flow (CBF) > 30% (29.50 ± 32.33 vs. 15.76 ± 20.93 p = 0.18) and FIV (54.67 ± 65.73 vs. 55.14 ± 64.64 p = 0.875). Predicted ischemic core (PIC) and FIV correlated in both TG (tau = 0.761, p < 0.001) and CG (tau = 0.315, p = 0.029). The Bland–Altmann plot showed agreement between PIC and FIV for both groups, mainly in the secondary analysis. Conclusion: automated CTP could represent a good predictor of FIV in patients with AIS due to TO.

1. Introduction

In acute ischemic stroke (AIS) due to large vessel occlusion (LVO) of the anterior brain circulation, endovascular treatment (EVT) is considered effective both alone or in combination with intravenous rTPA administration in the first 6 h [1,2,3,4,5,6]. After 6 h, the combined use of CT perfusion (CTP) and multiphasic CT angiography (mCTA) enables the selection of patients with LVO who may still benefit from EVT by discriminating among definitive ischemic core volume and still salvageable brain tissue (penumbra) [7,8,9,10,11,12,13,14], finally predicting functional outcome [15].
The CTP technique is essentially based on the dynamic detection of time–density curves (TDC) for a selected brain area generated after bolus injection of contrast medium. In the post-processing of CTP images, it is necessary to select an input artery as a reference to determine the start time of the first circulation and then analyze the cerebral parenchyma blood perfusion. Then, different mathematical models are applied to calculate the perfusion parameters including cerebral blood flow (CBF), cerebral blood volume (CBV), mean transit time (MTT), time to peak, and time to maximum (Tmax). Each parameter is displayed as a parametric map of the brain with a color scale representing the values [16,17,18].
The automated CTP system RAPID (iSchemaView, Inc., Menlo Park, CA, USA) was implemented in clinical trials in order to provide an accurate prediction of ischemic core volumes by estimating CBF reduction < 30% with respect to the contralateral hemisphere, and the surrounding penumbra, detected by prolonged time-to-maximum peak (Tmax > 6 s). Nowadays it is an essential tool for treatment decision making outside the 6 h time window [7,8,16,17,18].
Tandem occlusions (TOs), consisting of a simultaneous extracranial internal carotid artery (ICA) and intracranial LVO, represent about 15% of all LVO strokes [19,20,21]. There are relatively few patients with TOs included in the major randomized controlled trials of EVT and a lack of robust data prevents the delineation of definitive treatment recommendations [22,23,24,25].
From a CT perfusion perspective, it is not completely clear if the concomitant occlusion of the extracranial ICA can influence the pharmacokinetic deconvolution model needed to create the density–time curve and the colorimetric maps [26,27,28,29].
Just a few works, with conflicting results, explore the accuracy of perfusion parameters according to different arterial input function (AIF) locations, such as when a stenosis is present before the intracranial occlusion, increasing the uncertainty in CTP accuracy in discriminating ischemic core [30,31,32].
In clinical settings, both Haussen et al. and Albers et al. [9,24] found CTP reliable enough in predicting ischemic core volume in ipsilateral extracranial steno-occlusive disease, when appropriate delay correction was applied to CTP analysis, in spite of the coexistence of delay and dispersion effects due to an extracranial occlusion.
However, we noticed that in both studies the Bland–Altmann plot, employed for evaluating the degree of agreement between predicted infarct core (PIC) and final infarct volume (FIV), showed a positional bias. Namely, PIC and FIV mean differences directly correlated with PIC and FIV means, as if the accuracy in predicting FIV was dependent on final ischemic core volumes [9,24,32,33].
In this study, we aimed to evaluate the possible differences between the PIC, estimated with automated CTP, and the FIV, in patients with AIS due to TO that underwent successful recanalization with EVT. Then, we tried to disentangle if biological factors which could finally interfere with FIV estimation, such as parenchymal hemorrhages with mass effect (PH2) and successful but partial recanalization (i.e., modified thrombolysis in cerebral infarction [mTICI] 2b-2c), could influence the prediction accuracy.

2. Methods

2.1. Clinical Data and Procedural Times

A single center and prospectively collected database of patients with AIS treated with EVT from a tertiary care academic institution was retrospectively reviewed. Between March 2019 and January 2021, all consecutive patients with AIS due to middle cerebral artery (MCA) occlusion with a pretreatment CTP with automated RAPID software post-processing and who underwent EVT and achieved a successful recanalization were collected. According to the presence of a concomitant extracranial ICA occlusion, patients were classified into two groups: the tandem group (extracranial ICA + MCA) (TG) and the control group (MCA occlusion only) (CG). The MCA occlusion patients were furtherly divided into the proximal M1, distal M1 (beyond perforating artery emergency), and M2 segments. T occlusion were excluded from the analysis in order to avoid further uncertainty in perfusion patterns. Successful recanalization was defined as a final mTICI grade of 2b, 2c, or 3 [34]. Full recanalization was defined as an mTICI of 3. Baseline demographic data, medical history, pre-stroke modified Rankin scale (mRS) score, and baseline National Institute of Health Stroke Scale (NIHSS) were collected by a neurologist from the neurovascular unit at admission. All patients in the proper time window who received rTPA according to the most recent stroke guidelines were recorded, too. Due to the influence of time on the dynamic ischemic core development, onset to CTP, CTP to recanalization, and onset to recanalization times were also recorded. Due to the uncertain onset time, both “wake up stroke” and “unknown time of onset stroke” were excluded from the analysis regarding the “onset to recanalization” and the “onset to reperfusion” analysis.

2.2. Radiological Measures

The imaging protocol included in order: non-contrast CT (NCCT), CT angiography (CTA), and CT perfusion (CTP); these were performed using a 128-slice CT scanner (Revolution; General Electric Healthcare, Waukesha, WI, USA). NCCT parameters were: scan type: axial; gantry tilt: orbitomeatal plane; slice thickness: 2.5 mm/5 mm base/cerebrum; interval: 20 mm; kV: 120; mA: 120–300; rotation time: 1 s; and matrix: 512 × 512. To define the presence of TO occlusion (extracranial ICA stenosis > 90%) a bolus of 70 mL iodinated contrast agent was administered at a flow rate of 3.5–4 mL/s. The CTA was acquired in a volumetric way including the epiaortic vessels. The vessel occlusion was defined first on the mCTA and then confirmed on conventional angiography. The CTP protocol was the subsequent 50 mL of iodinated contrast agent (370 mgI/mL) that was power-injected at a rate of 5 mL/s followed by 50 mL saline bolus at 5 mL/s. The large detector array (8 cm) allowed evaluation of all the MCA territory. The protocol included 2 phases (scan type: axial-shuttle; slice thickness: 5 mm; kV: 80; mA: 200; rotation time: 0.5 s): The first phase started with a 5-second delay from contrast injection, and 22 acquisitions were repeated on the same 8 cm section (total scan duration: 60.6 s); the second phase was delayed 15 s and consisted of one acquisition on the same section (total scan duration: 15 s). Images were processed using a commercially available software tool (RAPID version 4.5.0). The total hypoperfused volume was defined by a >6 s delay for the maximum of the tissue residue function (Tmax > 6 s). The ischemic core lesion was defined by a cerebral blood flow (CBF) reduction to <30% of the corresponding contralateral territory. The target mismatch profile was defined as a core ≤ 50 cm3, absolute mismatch ≥ 15 cm3, Tmax > 10 s ≤ 100 cm3, and the mismatch ratio > 1.8, with processed parametric maps overlaid upon the source CTP data for review purposes. Furthermore, 2 neuroradiologists with at least 5 years of experience performed a case-by-case check of the AIF and VOF curves parameters necessary to create the density/time curves and the colorimetric maps through the deconvolution algorithm [26,27,28]. After EVT, an MRI within 24–36 h of symptom onset was performed in a subgroup of patients with a 1.5 T scanner system (Intera, Philips Medical System, Best, The Netherlands) using an 8-channel head coil; the MRI protocol included an axial T2-weighted fluid-attenuated inversion recovery (FLAIR) sequence (repetition time (TR) 6000 ms, echo time (TE) 120 ms, at 5 mm) and diffusion-weighted imaging (DWI) (TR 3023 ms, TE 89 ms, at 5 mm) acquired using a single-shot echo-planar sequence with fat suppression in the axial plane with 3 b values (0, 500 and 1000 s/mm2). In case of contraindications to perform the MRI (metallic implants, claustrophobia, pacemakers (although new protocols allow imaging in selected cases), MR-incompatible prosthetic heart valves, body weight (MRI tables have specific weight limitations)), a non-contrast CT was performed. The final infarct volume was measured using a dedicated computing platform (3D Slicer software) [35] by 2 neuroradiologists with 5 years of experience who outlined the ischemic core on ADC images (DWI images with b = 1000 s/mm2).

2.3. Procedural Details and Measures

In patients with airway impairment, general anesthesia was administered. The stability on common carotid artery was reached with a 6 cm diameter long sheath. After diagnostic arteriograms and the identification of target lesions, the operator decided between a proximal–distal or distal–proximal approach. The ICA and intracranial vessels were navigated with a guiding catheter and the EVT was performed using either direct aspiration thrombectomy or the “Solumbra” technique (combination of stent retriever and direct aspiration thrombectomy).
The clot burden score (CBS) and the collateral score (CS) were evaluated on the basis of the Tan et al. [36] study. CS was further subdivided in a dichotomous way (CS > 1 (Tan CS > 1) = good; CS < 1 (Tan CS < 1) = poor).

2.4. Outcome Measures

Functional outcome was recorded by means of mRS at 3 months both in an ordinal and dichotomous way. Namely, mRS scores between 0 and 2 were considered a good functional outcome (functional independence), scores of 3 and 4 were considered a poor functional outcome, and mRS scores of 5 and 6 were considered an unfavorable outcome. As per safety measures, hemorrhagic transformation (HT) was graded based on the ECASS II classification [37]. Symptomatic HT was defined as an intracerebral hemorrhage (ICH) with an increase in the NIHSS Score of ≥4 points. Since PH2 presumably altered the accuracy of the final infarct volume determination, all subjects who suffered a massive parenchymal hemorrhage in the 24–48 h after EVT were excluded from the secondary analysis. Since according to ECASS II classification, smaller hemorrhagic transformations should not significantly influence FIV evaluation, we retained such cases in the analysis. Reocclusion, vasospasm, and arterial embolism in another vascular territory were also recorded. Patients who experienced any of these procedural complications were excluded from the analysis.

2.5. Statistical Analysis

Continuous variables are expressed as means (±SD) or medians (IQR). Categorical variables are expressed as the sample absolute number (N) and proportions (%). Between-groups comparisons of continuous or ordinal variables were made with Student’s t-test or the Mann–Whitney U test, as appropriate. Categorical variables were compared by the χ2 or Fisher exact test, as appropriate. Correlation coefficients were calculated with non-parametric Kendall’s Tau-b statistic. The Bland–Altman plot was performed to evaluate the degree of agreement of measurements between predicted core infarct by CTP CBF < 30% volume and final infarct volume in patients with TO and those without [33]. Significance was set at p < 0.05. Statistical analyses were performed using SPSS® Statistics 21 (IBM®, Armonk, NY, USA). The study was approved by the local ethical committee.

3. Results

Between March 2019 and January 2021, among 319 patients with AIS who underwent EVT, 59 patients met the inclusion criteria. A total of 22 (37%) were treated for concomitant extracranial ICA and MCA occlusion (TG) while 37 (63%) experienced an AIS exclusively due to a MCA occlusion (CG) (detailed description of patient selection in Supplementary Materials, Figure S1). Groups’ baseline, clinical, interventional, and outcome measures are reported in Table 1 and Table 2. TG showed significantly higher median NIHSS (U = 544.000; p = 0.031) and lower CBS (U = 60.5; p < 0.001). In the TG a large artery occlusion etiology prevailed, while in the CG a cardioembolic one prevailed. In the CG, two patients with ICA dissection and one patient with aortic complicated plaque were included. The TG showed significant longer times from CTP to recanalization (mean 135.74 ± 48.51 vs. 107.49 ± 37.93; U = 534.00; p = 0.46) due to longer procedural times (67.68 ± 47.09 vs. 40.14 ± 26.95; U = 566.00; p = 0.013), and needed a higher median number of passages (2 vs. 1, U = 576.500; p = 0.004) to achieve successful recanalization. The “Solumbra” technique was significantly more employed in the TG than CG (χ2 = 9.394; p = 0.02). No significant differences were detected between groups for outcome variables (outcome data are reported in Figure S2 for the whole sample and in Figure S3 according to the hemorrhagic subtype in the Supplementary Materials). PH2 in the 24–48 h after EVT was found in 4 patients (18.2%) in the TG and in 9 patients (24.3%) in the CG and they were omitted from a secondary analysis (data are shown in Table 2).
The comparison between the tandem and the control group revealed similar baseline PIC (29.50 ± 32.33 vs. 15.76 ± 20.93 p = 0.18), Tmax > 6 s (131.45 ± 44.66 vs. 121.70 ± 73.40 p = 0.1), Tmax > 10 s (69.27 ± 40.91 vs. 57.57 ± 44.47 p = 0.252), and FIV (54.67 ± 65.73 vs. 55.14 ± 64.64 p = 0.875). The presence of a target mismatch profile (and each subcomponent) was similar between the groups (data are shown in Table 3a). All patients had an absolute mismatch >15 cm3. Notably, mean differences between predicted and final infarct volume were not significantly different between groups (25.27 ± 46.23 vs. 39.38 ± 60.29 p = 0.615).
In patients who achieved a full recanalization, no significant correlation was found between mean core difference PIC to FIV and, respectively, CTP to recanalization time (tau-b = −0.15 p = 0.865) and procedural length (tau-b = 0.78 p = 0.394).
A tau-B Kendall correlation analysis showed a significant correlation between PIC and FIV both in tandem (tau = 0.743 p < 0.001) and in the control group (tau = 0.358 p = 0.003) (Figure 1).
The Bland–Altman plot showed how 95% of the differences between PIC and FIV fall in the ±2SD range with respect to the mean difference, pointing to a general agreement with the symmetric distribution of bias between the 2 groups studied (Figure 2). A linear regression analysis showed a significant relationship between PIC and FIV means and PIC and FIV differences (β = 0.761 p < 0.0001), stressing the presence of a positional bias in both groups.
In the secondary analysis, performed excluding patients who suffered a PH2 infarction (4 subjects in the TG and 9 subjects in the CG), there were no significant differences in demographic, clinical, radiological, interventional, and outcome features among groups as for the whole sample (data are shown in Tables S2 and S3 in the Supplementary Materials). Patients achieving a full recanalization showed a significant lower mean in absolute core difference between PIC and FIV, with a small to medium effect size (8.74 ± 17.42 vs. 23.22 ± 32.68 U = 147.00 p = 0.044 r = 0.3) with respect to patients achieving a partial recanalization (data are shown in Table 4).
Again, no significant correlation between mean core difference and CTP to recanalization time (n = 31, tau-b = −0.03 p = 0.321) or procedural length (n = 31, tau-b = 0.09 p = 0.837) in patients with a full recanalization was detected (data are shown in Table 4).
A tau-B Kendall correlation analysis showed significant correlation between the baseline PIV and FIV in both the tandem (tau = 0.761 p < 0.001) and the control group (tau = 0.315 p = 0.029) (Figure 3).
The Bland–Altman plot showed how 95% of the differences between PIC and FIV fall in the ±2 SD range with respect to the mean difference, pointing to a general agreement with the symmetric distribution of bias between the 2 groups studied (Figure 4. A linear regression analysis showed a borderline significant relationship between PIC and FIV means and PIC and FIV differences (β = 0.457 p < 0.057) reducing the presence of the positional bias in the tandem group reported in the whole sample analysis (Figure 4).

4. Discussion

In AIS due to the LVO the accurate prediction of the FIV is crucial to guide the correct treatment decision making and predict functional outcome [7,8,9,10,11]. However, in spite of the availability of different techniques and progresses in mathematical models, ischemic core detection and its spatiotemporal dynamic evolution still presents several challenges in the neuroimaging field [38,39,40,41,42,43,44]. CTP is a widely accepted tool to predict FIV [9,10,11,12,13,14] in LVO by estimating CBV, CBF, or different Tmax depending on the mathematical model used by the software. Such parameters grossly rely upon the time–density curves generated by the scanning contrast bolus passage in different arterial vessels [45,46,47]. AIF location is crucial to allow the correct comparison between perfusion parameters of the two hemispheres [30,31] in the RAPID software which utilizes an automated AIF algorithm optimized for detection of candidate voxels and delay; it is corrected but uninformed about site occlusion [18,24].
In TO, the extracranial ICA occlusion is supposed to alter cerebral perfusion by bolus delay and dispersion, finally affecting main dynamic perfusion parameters such as flow or Tmax [26,27,28,29]. Collateral status and nonlinear time-dependent evolution of ischemic core from stroke onset could generally contribute to anomalous perfusion patterns in TO [48,49].
In our study, both groups were homogenous for demographic features, clinical histories, treatment times, and outcomes (efficacy and safety of EVT) (data are shown in Table 1). As expected for the occlusion site, TG showed a higher incidence of atherothrombotic etiology, a higher median NIHSS, and a higher CBS, while from a procedural standpoint, it showed a higher number of EVT passages, longer procedural times, and a longer interval from CTP to recanalization. This last feature did not cause a disproportionate impact on FIV for TG since no significant difference was detected among groups for FIV, maybe due to the highly overlapping “onset to recanalization times” between the two groups (data are shown Table 2). Furthermore, all perfusion parameters were homogenous between the two groups (data are shown in Table 3).
The correlation analysis (Figure 1) and the Bland–Altman plot (Figure 2) showed a significant correlation and a concordance between PIC and FIV for both groups. However, as occurred in Haussen et al. and Albers et al. [9,24], a significative direct correlation between mean PIC and FIV means and mean PIC and FIV differences, visually detected as a higher dispersion of mean differences at higher core volumes (Figure 2), prevented generalization of the validity of the Bland–Altman plot [32,33]. We suppose this phenomenon could be due to an overestimation of the FIV due to the increased risk of hemorrhagic infarction after EVT, mostly in the case of greater baseline ischemic cores.
In our sample, the overall rate of post-procedural hemorrhagic transformations is 52% (50% in TG and 54% in CG), with parenchymal hematoma type 2 (PH2) representing 42% of the total (18.2% in TG and 24.3% in the CG) (data are shown in Table S2 and Figure S3 in the Supplementary Materials). This is a high incidence with respect to data coming from large registries and metanalyses [50,51]. This could be a reflection of a selection bias due to inclusion criteria. In fact, high onset to treatment times (clinical indication for CTP is beyond 6 h from stroke onset or unknown time of onset), high baseline ischemic cores (8 patients were treated with ischemic core > 50 cm3), and a relatively high proportion of patients with TO (37%), which showed higher median NIHSS and are at relatively higher risk of post-procedural hemorrhagic transformation [52], are reported in our study. A hemorrhagic infarction, as occurs in PH2, should alter the correct evaluation of the FIV, as per the PH2 definition itself [37]. Moreover, a significant difference was found between the FIV and FIV-PIC differences between PH2 and other subtypes of hemorrhagic transformation (data and statistical analysis are reported in the Supplementary Materials, Table S1). Overestimating FIV by including PH2 cases in the analysis could justify the higher difference between PIC and FIV in the primary analysis for both groups (data are shown in Table 3a) and the unexpected similarity of the mean difference between PIC and FIV both in partial and full recanalization (data are shown in Table 3b).
In the secondary analysis, performed by excluding PH2 cases, we observed an important reduction in the mean difference between PIC and FIV: 9.33 mL ± 16.06 vs. 25.27 ± 46.23 for the tandem group and 16.11 mL ± 27.84 vs. 39.38 ± 60.29 for the control group. In the Bland–Altman plot, the differences between PIC and FIV were more equally distributed across the mean differences irrespective of PIC and FIVs means for both groups (Figure 4); moreover, considering only fully recanalized patients (mTICI 3), the whole sample mean difference between PIC and FIV lowered to 8.74 mL ± 16.06, which was very close to the median difference of 11.0 cm3 as recorded in the SWIFT-PRIME trial and 8 cm3 in Haussen et al. [24].
This study presents several limits; first of all, the retrospective observational design and the small sample size that prevented conducting a reliable analysis for the main determinants of clinical outcomes. Patients were selected for CTP perfusion not only according to the DEFUSE and DAWN criteria (>6 h from stroke onset) and the sample included some wake-up and unknown onset strokes. Accordingly, some PIC determination could be influenced by the early time window [44]. Intracranial occlusions such as T occlusion or concomitant anterior cerebral artery + MCA occlusion were not represented in the sample so as to minimize errors in FIV and PIC calculation, reducing the generalizability of the results. Despite the non-significant differences detected among TG and CG in our study, perfusion parameters such as Tmax, MTT, and CBV, whose threshold values could be affected by delay and dispersion phenomena in TO, remain somewhat elusive; this could be clinically relevant since the actual treatment criteria are based on the mismatch between the ischemic core and the penumbra tissue. Further investigations are needed to implement the reliability of CTP in predicting the pathophysiological evolution of ischemic tissue in more complicated intracranial LVOs.

5. Conclusions

In the case of a full recanalization and in the absence of procedural complications such as large hemorrhagic transformations, an automated CTP with rigorous normalization, thresholding, and voxel-wise analysis does not seem to be affected by concomitant extracranial ICA occlusion in predicting ischemic core in AIS due to the LVO of the anterior circulation.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/jpm13020342/s1, Figure S1: recruitment flow chart; Figure S2: Distribution of mRS outcome; Figure S3: Oucome distributions between different subtypes of postprocedural hemorrhagic transformation; Table S1: Means and standard deviations of FIV and differences between PIC and FIV among hemorrhage subtypes; Table S2: Comparisons between groups for baseline features.; Table S3: Procedural times and strategies.

Author Contributions

G.L., V.D.R., F.S. (Fabrizio Sallustio), M.D., R.F., F.D.G., F.G. and I.M.: conceptualization and methodology; F.P., F.D., F.M. (Federico Marrama), A.R., A.C., D.M. and F.S. (Federico Sabuzzi): data acquisition and curation; G.L. and A.P.M.: statistical analysis; G.L., V.D.R., F.P. and A.P.M.: interpretation of data; G.L., F.P. and V.D.R.: writing original draft; F.M. (Francesco Mori), F.M. (Federico Marrama), G.L., A.P.M. and V.D.R.: review and editing of the work. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The study was approved by the local ethical committee (R.S. 25/18).

Informed Consent Statement

Informed consent was obtained from all subjects or their guardians involved in the study.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to privacy.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Goyal, M.; Demchuk, A.M.; Menon, B.K.; Eesa, M.; Rempel, J.L.; Thornton, J.; Roy, D.; Jovin, T.G.; Willinsky, R.A.; Sapkota, B.L.; et al. Randomized assessment of rapid endovascular treatment of ischemic stroke. N. Engl. J. Med. 2015, 372, 1019–1030. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Saver, J.L.; Goyal, M.; Bonafe, A.; Diener, H.C.; Levy, E.I.; Pereira, V.M.; Albers, G.W.; Cognard, C.; Cohen, D.J.; Hacke, W.; et al. Stent-retriever thrombectomy after intravenous t-PA vs. t-PA alone in stroke. N. Engl. J. Med. 2015, 372, 2285–2295. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Berkhemer, O.A.; Fransen, P.S.; Beumer, D.; Van Den Berg, L.A.; Lingsma, H.F.; Yoo, A.J.; Schonewille, W.J.; Vos, J.A.; Nederkoorn, P.J.; Wermer, M.J.; et al. A randomized trial of intraarterial treatment for acute ischemic stroke. N. Engl. J. Med. 2015, 372, 11–20. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Turc, G.; Bhogal, P.; Fischer, U.; Khatri, P.; Lobotesis, K.; Mazighi, M.; Schellinger, P.D.; Toni, D.; de Vries, J.; White, P.; et al. European Stroke Organisation (ESO)—European Society for Minimally Invasive Neurological Therapy (ESMINT) Guidelines on Mechanical Thrombectomy in Acute Ischemic Stroke. J. Neurointerv. Surg. 2019. [Google Scholar] [CrossRef] [Green Version]
  5. Jovin, T.G.; Chamorro, A.; Cobo, E.; de Miquel, M.A.; Molina, C.A.; Rovira, A.; San Román, L.; Serena, J.; Abilleira, S.; Ribó, M. Thrombectomy within 8 hours after symptom onset in ischemic stroke. N. Engl. J. Med. 2015, 372, 2296–2306. [Google Scholar] [CrossRef] [Green Version]
  6. Campbell, B.C.; Mitchell, P.J.; Kleinig, T.J.; Dewey, H.M.; Churilov, L.; Yassi, N.; Yan, B.; Dowling, R.J.; Parsons, M.W.; Oxley, T.J.; et al. Endovascular therapy for ischemic stroke with perfusion-imaging selection. N. Engl. J. Med. 2015, 372, 1009–1018. [Google Scholar] [CrossRef] [Green Version]
  7. Nogueira, R.G.; Jadhav, A.P.; Haussen, D.C.; Bonafe, A.; Budzik, R.F.; Bhuva, P.; Yavagal, D.R.; Ribo, M.; Cognard, C.; Hanel, R.A.; et al. Thrombectomy 6 to 24 hours after Stroke with a Mismatch between Deficit and Infarct. N. Engl. J. Med. 2018, 378, 11–21. [Google Scholar] [CrossRef]
  8. Albers, G.W.; Lansberg, M.G.; Kemp, S.; Tsai, J.P.; Lavori, P.; Christensen, S.; Mlynash, M.; Kim, S.; Hamilton, S.; Yeatts, S.D.; et al. A multicenter randomized controlled trial of endovascular therapy following imaging evaluation for ischemic stroke (DEFUSE 3). Int. J. Stroke 2017, 12, 896–905. [Google Scholar] [CrossRef] [Green Version]
  9. Albers, G.W.; Goyal, M.; Jahan, R.; Bonafe, A.; Diener, H.-C.; Levy, E.I.; Pereira, V.M.; Cognard, C.; Cohen, D.J.; Hacke, W.; et al. Ischemic core and hypoperfusion volumes predict infarct size in SWIFT PRIME. Ann. Neurol. 2016, 79, 76–89. [Google Scholar] [CrossRef]
  10. Campbell, B.C.; Yassi, N.; Ma, H.; Sharma, G.; Salinas, S.; Churilov, L.; Meretoja, A.; Parsons, M.W.; Desmond, P.M.; Lansberg, M.G.; et al. Imaging selection in ischemic stroke: Feasibility of automated CT-perfusion analysis. Int. J. Stroke. 2015, 10, 51–54. [Google Scholar] [CrossRef]
  11. Bivard, A.; Levi, C.; Krishnamurthy, V.; Hislop-Jambrich, J.; Salazar, P.; Jackson, B.; Davis, S.; Parsons, M. Defining acute ischemic stroke tissue pathophysiology with whole brain CT perfusion. J. Neuroradiol. 2014, 41, 307–315. [Google Scholar] [CrossRef]
  12. Biesbroek, J.; Niesten, J.; Dankbaar, J.; Biessels, G.; Velthuis, B.; Reitsma, J.; van der Schaaf, I. Diagnostic accuracy of CT perfusion imaging for detecting acute ischemic stroke: A systematic review and meta-analysis. Cerebrovasc. Dis. 2013, 35, 493–501. [Google Scholar] [CrossRef]
  13. Xin, Y.; Han, F.-G. Diagnostic accuracy of computed tomography perfusion in patients with acute stroke: A meta-analysis. J. Neurol. Sci. 2016, 360, 125–130. [Google Scholar] [CrossRef] [Green Version]
  14. Lim, N.E.; Chia, B.; Bulsara, M.K.; Parsons, M.; Hankey, G.J.; Bivard, A. Automated CT Perfusion Detection of the Acute Infarct Core in Ischemic Stroke: A Systematic Review and Meta-Analysis. Cerebrovasc. Dis. 2022, 52, 97–109. [Google Scholar] [CrossRef]
  15. Di Giuliano, F.; Picchi, E.; Sallustio, F.; Ferrazzoli, V.; Alemseged, F.; Greco, L.; Minosse, S.; Da Ros, V.; Diomedi, M.; Garaci, F.; et al. Accuracy of advanced CT imaging in prediction of functional outcome after endovascular treatment in patients with large-vessel occlusion. Neuroradiol. J. 2019, 32, 62–70. [Google Scholar] [CrossRef]
  16. Mokin, M.; Levy, E.I.; Saver, J.L.; Siddiqui, A.H.; Goyal, M.; Bonafé, A.; Cognard, C.; Jahan, R.; Albers, G.W. Predictive Value of RAPID Assessed Perfusion Thresholds on Final Infarct Volume in SWIFT PRIME (Solitaire with the Intention for Thrombectomy as Primary Endovascular Treatment). Stroke 2017, 48, 932–938. [Google Scholar] [CrossRef]
  17. Vagal, A.; Wintermark, M.; Nael, K.; Bivard, A.; Parsons, M.; Grossman, A.W.; Khatri, P. Automated CT perfusion imaging for acute ischemic stroke: Pearls and pitfalls for real-world use. Neurology 2019, 93, 888–898. [Google Scholar] [CrossRef]
  18. Laughlin, B.S.; Chan, A.; Tai, W.A.; Moftakhar, P. RAPID Automated CT Perfusion in Clinical Practice. 2019. Available online: https://practicalneurology.com/articles/2019-nov-dec/rapid-automated-ct-perfusion-in-clinical-practice?c4src=top5 (accessed on 7 February 2023).
  19. Jadhav, A.P.; Zaidat, O.O.; Liebeskind, D.S.; Yavagal, D.R.; Haussen, D.C.; HellingerJr, F.R.; Jahan, R.; Jumaa, M.A.; Szeder, V.; Nogueira, R.G.; et al. Emergent management of tandem lesions in acute ischemic stroke. Stroke 2019, 50, 428–433. [Google Scholar] [CrossRef]
  20. Anadani, M.; Marnat, G.; Consoli, A.; Papanagiotou, P.; Nogueira, R.G.; Siddiqui, A.; Ribo, M.; Spiotta, A.M.; Bourcier, R.; Kyheng, M.; et al. Endovascular Therapy of Anterior Circulation Tandem Occlusions: Pooled Analysis from the TITAN and ETIS Registries. Stroke 2021, 52, 3097–3105. [Google Scholar] [CrossRef]
  21. Marko, M.; Cimflova, P.; Poppe, A.Y.; Kashani, N.; Singh, N.; Ospel, J.; Mayank, A.; van Adel, B.; McTaggart, R.A.; Nogueira, R.G.; et al. Management and outcome of patients with acute ischemic stroke and tandem carotid occlusion in the ESCAPE-NA1 trial. J. Neurointerv. Surg. 2022, 14. [Google Scholar] [CrossRef]
  22. Feil, K.; Herzberg, M.; Dorn, F.; Tiedt, S.; Küpper, C.; Thunstedt, D.C.; Papanagiotou, P.; Meyer, L.; Kastrup, A.; Dimitriadis, K.; et al. Tandem Lesions in Anterior Circulation Stroke. Stroke 2021, 52, 1265–1275. [Google Scholar] [CrossRef] [PubMed]
  23. Powers, W.J.; Rabinstein, A.A.; Ackerson, T.; Adeoye, O.M.; Bambakidis, N.C.; Becker, K.; Biller, J.; Brown, M.; Demaerschalk, B.M.; Hoh, B. 2018 Guidelines for the early management of patients with acute ischemic stroke: A guideline for healthcare professionals from the American Heart Association/American Stroke Association. Stroke 2018, 49, e46–e110. [Google Scholar] [CrossRef] [PubMed]
  24. Haussen, D.C.; Dehkharghani, S.; Grigoryan, M.; Bowen, M.; Rebello, L.C.; Nogueira, R.G. Automated CT Perfusion for Ischemic Core Volume Prediction in Tandem Anterior Circulation Occlusions. Interv. Neurol. 2016, 5, 81–88. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Gupta, V.; Parthasarathy, R.; Goel, G.; Singhal, V.; Sehgal, J.; Garg, A.; Singh, S. Acute ischemic stroke with tandem/terminal ICA occlusion-CT perfusion based case selection for mechanical recanalization. Neurol. India 2015, 63, 369–377. [Google Scholar] [CrossRef]
  26. Calamante, F.; Christensen, S.; Desmond, P.M.; Østergaard, L.; Davis, S.M.; Connelly, A. The physiological significance of the time-to-maximum (Tmax) parameter in perfusion MRI. Stroke 2010, 41, 1169–1174. [Google Scholar] [CrossRef] [Green Version]
  27. Sasaki, M.; Kudo, K.; Ogasawara, K.; Fujiwara, S. Tracer delay-insensitive algorithm can improve reliability of CT perfusion imaging for cerebrovascular steno-occlusive disease: Comparison with quantitative single-photon emission CT. Am. J. Neuroradiol. 2009, 30, 188–193. [Google Scholar] [CrossRef] [Green Version]
  28. Kudo, K.; Christensen, S.; Sasaki, M.; Østergaard, L.; Shirato, H.; Ogasawara, K.; Wintermark, M.; Warach, S. Accuracy and reliability assessment of CT and MR perfusion analysis software using a digital phantom. Radiology 2013, 267, 201–211. [Google Scholar] [CrossRef] [Green Version]
  29. Kudo, K.; Sasaki, M.; Østergaard, L.; Christensen, S.; Uwano, I.; Suzuki, M.; Ogasawara, K.; Shirato, H.; Ogawa, A. Susceptibility of T max to tracer delay on perfusion analysis: Quantitative evaluation of various deconvolution algorithms using digital phantoms. J. Cereb. Blood Flow Metab. 2011, 31, 908–912. [Google Scholar] [CrossRef] [Green Version]
  30. Ferreira, R.M.; Lev, M.H.; Goldmakher, G.V.; Kamalian, S.; Schaefer, P.W.; Furie, K.L.; Gonzalez, R.G.; Sanelli, P.C. Arterial input function placement for accurate CT perfusion map construction in acute stroke. Am. J. Roentgenol. 2010, 194, 1330–1336. [Google Scholar] [CrossRef] [Green Version]
  31. Chen, X.; Zou, J.; Bao, L.; Hu, J.; Ye, G. Computed Tomography Perfusion Imaging Quality Affected by different Input Arteries in Patients of Internal Carotid Artery Stenosis. Med. Sci. Monit. 2019, 25, 9067–9072. [Google Scholar] [CrossRef]
  32. Giavarina, D. Understanding Bland Altman analysis. Biochem. Med. 2015, 25, 141–151. [Google Scholar] [CrossRef] [Green Version]
  33. Bland, J.M.; Altman, D.G. Statistical methods for assessing agreement between two methods of clinical measurement. Lancet 1986, 1, 307–310. [Google Scholar] [CrossRef]
  34. Zaidat, O.O.; Yoo, A.J.; Khatri, P.; Tomsick, T.A.; von Kummer, R.; Saver, J.L.; Marks, M.P.; Prabhakaran, S.; Kallmes, D.F.; Fitzsimmons, B.-F.M.; et al. Cerebral Angiographic Revascularization Grading (CARG) Collaborators; STIR Revascularization Working Group; STIR Thrombolysis in Cerebral Infarction (TICI) Task Force: Recommendations on angiographic revascularization grading standards for acute ischemic stroke: A consensus statement. Stroke 2013, 44, 2650–2663. [Google Scholar] [CrossRef] [Green Version]
  35. Fedorov, A.; Beichel, R.; Kalpathy-Cramer, J.; Finet, J.; Fillion-Robin, J.-C.; Pujol, S.; Bauer, C.; Jennings, D.; Fennessy, F.; Sonka, M.; et al. 3D Slicer as an image computing platform for the quantitative imaging network. Magn. Reason. Imaging 2012, 30, 1323–1341. [Google Scholar] [CrossRef] [Green Version]
  36. TTan, I.; Demchuk, A.; Hopyan, J.; Zhang, L.; Gladstone, D.; Wong, K.; Martin, M.; Symons, S.; Fox, A.; Aviv, R. CT angiography clot burden score and collateral score: Correlation with clinical and radiologic outcomes in acute middle cerebral artery infarct. Am. J. Neuroradiol. 2009, 30, 525–531. [Google Scholar] [CrossRef] [Green Version]
  37. Ford, G.; Freemantle, N. ECASS-II: Intravenous alteplase in acute ischaemic stroke. European Co-operative Acute Stroke Study-II. Lancet 1999, 353, 65, 67–68. [Google Scholar] [CrossRef]
  38. Goyal, M.; Ospel, J.M.; Menon, B.; Almekhlafi, M.; Jayaraman, M.; Fiehler, J.; Psychogios, M.; Chapot, R.; Van Der Lugt, A.; Liu, J.; et al. Challenging the Ischemic Core Concept in Acute Ischemic Stroke Imaging. Stroke 2020, 51, 3147–3155, Erratum in Stroke 2021, 52, e49. [Google Scholar] [CrossRef]
  39. Parsons, M.W. Automated measurement of computed tomography acute ischemic core in stroke: Does the emperor have no clothes? Stroke 2021, 52, 642–644. [Google Scholar] [CrossRef]
  40. Bouslama, M.; Ravindran, K.; Harston, G.; Rodrigues, G.M.; Pisani, L.; Haussen, D.C.; Frankel, M.R.; Nogueira, R.G. Noncontrast computed tomography e-stroke infarct volume is similar to RAPID computed tomography perfusion in estimating postreperfusion infarct volumes. Stroke 2021, 52, 634–641. [Google Scholar] [CrossRef]
  41. Borst, J.; Marquering, H.A.; Beenen, L.F.M.; Berkhemer, O.A.; Dankbaar, J.W.; Riordan, A.J.; Majoie, C.B.L.M. Effect of extended CT perfusion acquisition time on ischemic core and penumbra volume estimation in patients with acute ischemic stroke due to a large vessel occlusion. PLoS ONE 2015, 10, e0119409. [Google Scholar] [CrossRef] [Green Version]
  42. Laredo, C.; Renú, A.; Tudela, R.; Lopez-Rueda, A.; Urra, X.; Llull, L.; Macías, N.G.; Rudilosso, S.; Obach, V.; Amaro, S.; et al. The accuracy of ischemic core perfusion thresholds varies according to time to recanalization in stroke patients treated with mechanical thrombectomy: A comprehensive whole-brain computed tomography perfusion study. J. Cereb. Blood Flow Metab. 2020, 40, 966–977. [Google Scholar] [CrossRef] [PubMed]
  43. Hoving, J.W.; Marquering, H.; Majoie, C.B.; Yassi, N.; Sharma, G.; Liebeskind, D.S.; van der Lugt, A.; Roos, Y.B.; van Zwam, W.; van Oostenbrugge, R.J.; et al. Volumetric and Spatial Accuracy of Computed Tomography Perfusion Estimated Ischemic Core Volume in Patients with Acute Ischemic Stroke. Stroke 2018, 49, 2368–2375. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Martins, N.; Aires, A.; Mendez, B.; Boned, S.; Rubiera, M.; Tomasello, A.; Coscojuela, P.; Hernandez, D.; Muchada, M.; Rodriguez-Luna, D.; et al. Ghost Infarct Core and Admission Computed Tomography Perfusion: Redefining the Role of Neuroimaging in Acute Ischemic Stroke. Interv. Neurol. 2018, 7, 513–521. [Google Scholar] [CrossRef] [PubMed]
  45. Koopman, M.S.; Berkhemer, O.A.; Geuskens, R.R.E.G.; Emmer, B.J.; van Walderveen, M.A.A.; Jenniskens, S.F.M.; van Zwam, W.H.; van Oostenbrugge, R.J.; van der Lugt, A.; Dippel, D.W.J.; et al. Comparison of three commonly used CT perfusion software packages in patients with acute ischemic stroke. J. Neurointerv. Surg. 2019, 11, 1249–1256. [Google Scholar] [CrossRef]
  46. Bivard, A.; McElduff, P.; Spratt, N.; Levi, C.; Parsons, M. Defining the extent of irreversible brain ischemia using perfusion computed tomography. Cerebrovasc. Dis. 2011, 31, 238–245. [Google Scholar] [CrossRef]
  47. Xiong, Y.; Huang, C.C.; Fisher, M.; Hackney, D.B.; Bhadelia, R.A.; Selim, M.H. Comparison of automated CT perfusion softwares in evaluation of acute ischemic stroke. J. Stroke Cerebrovasc. Dis. 2019, 28, 104392. [Google Scholar] [CrossRef]
  48. Lu, S.-S.; Zhang, X.; Xu, X.-Q.; Cao, Y.-Z.; Zhao, L.B.; Liu, Q.-H.; Wu, F.-Y.; Liu, S.; Shi, H.-B. Comparison of CT angiography collaterals for predicting target perfusion profile and clinical outcome in patients with acute ischemic stroke. Eur. Radiol. 2019, 29, 4922–4929. [Google Scholar] [CrossRef]
  49. Saber, H.; Liebeskind, D.S. Infarct Progression in the Early and Late Phases of Acute Ischemic Stroke. Neurology 2021, 97 (Suppl. S2), S60–S67. [Google Scholar] [CrossRef]
  50. Csecsei, P.; Tarkanyi, G.; Bosnyak, E.; Szapary, L.; Lenzser, G.; Szolics, A.; Buki, A.; Hegyi, P.; Abada, A.; Molnar, T. Risk analysis of post-procedural intracranial hemorrhage based on STAY ALIVE Acute Stroke Registry. J. Stroke Cerebrovasc. Dis. 2020, 29, 104851. [Google Scholar] [CrossRef]
  51. Hao, Y.; Zhang, Z.; Zhang, H.; Xu, L.; Ye, Z.; Dai, Q.; Liu, X.; Xu, G. Risk of Intracranial Hemorrhage after Endovascular Treatment for Acute Ischemic Stroke: Systematic Review and Meta-Analysis. Interv. Neurol. 2017, 6, 57–64. [Google Scholar] [CrossRef] [Green Version]
  52. Zhu, F.; Labreuche, J.; Haussen, D.C.; Piotin, M.; Steglich-Arnholm, H.; Taschner, C.; Papanagiotou, P.; Lapergue, B.; Dorn, F.; Cognard, C.; et al. Hemorrhagic Transformation After Thrombectomy for Tandem Occlusions. Stroke 2019, 50, 516–519. [Google Scholar] [CrossRef] [Green Version]
Jpm 13 00342 g001 550

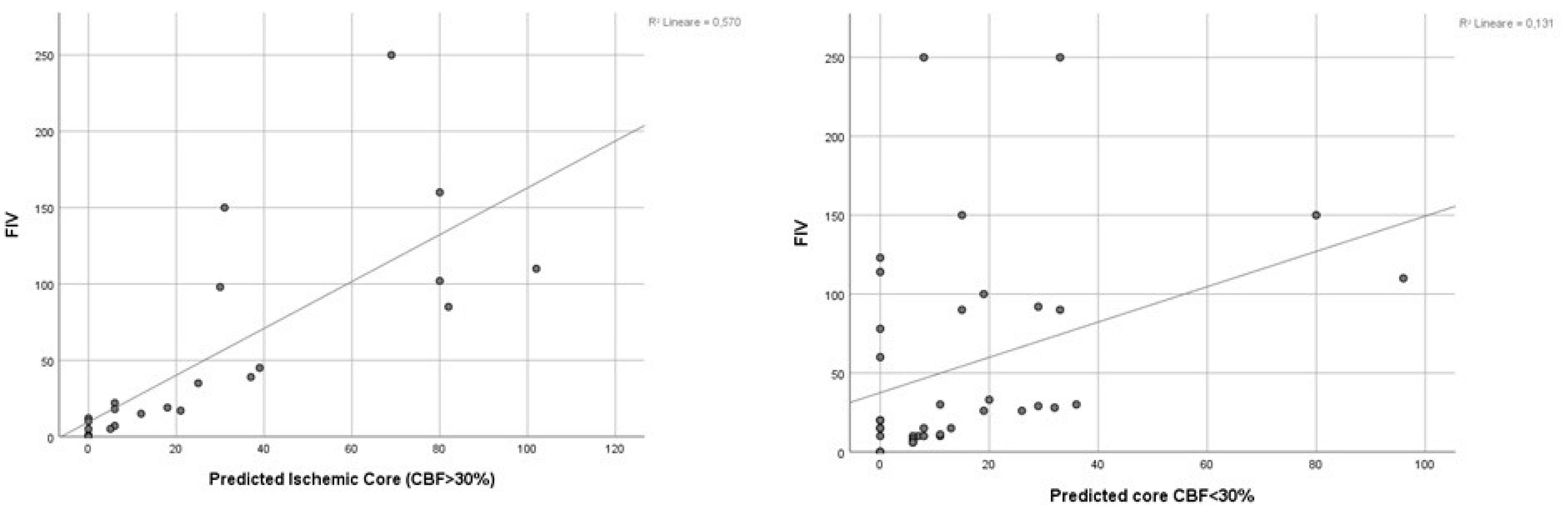

Figure 1. Scatter plot of PIC and FIV in the tandem group (on the left) and in the MCA-LVO control group (on the right).
Figure 1. Scatter plot of PIC and FIV in the tandem group (on the left) and in the MCA-LVO control group (on the right).
Jpm 13 00342 g001
Jpm 13 00342 g002 550

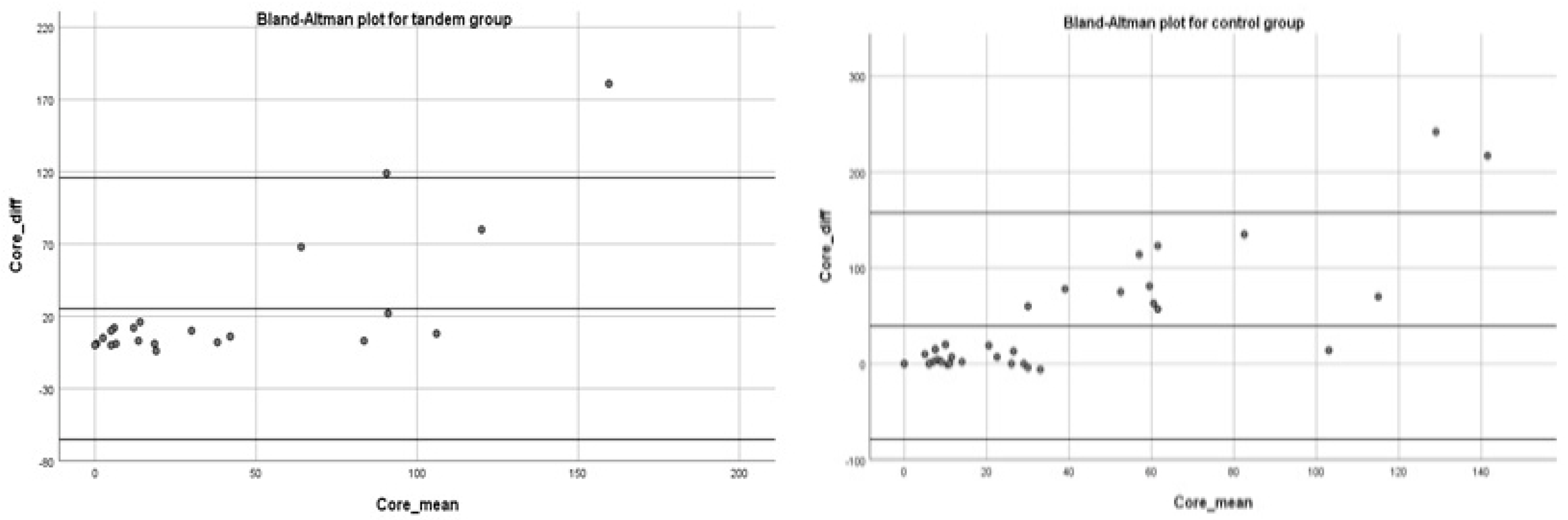

Figure 2. Bland–Altman plot for the tandem group (on the left) and the MCA–LVO control group (on the right).
Figure 2. Bland–Altman plot for the tandem group (on the left) and the MCA–LVO control group (on the right).
Jpm 13 00342 g002
Jpm 13 00342 g003 550

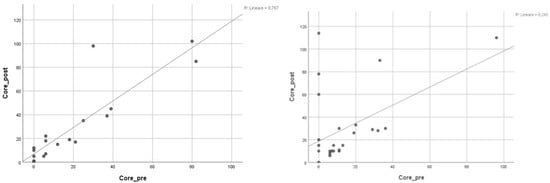

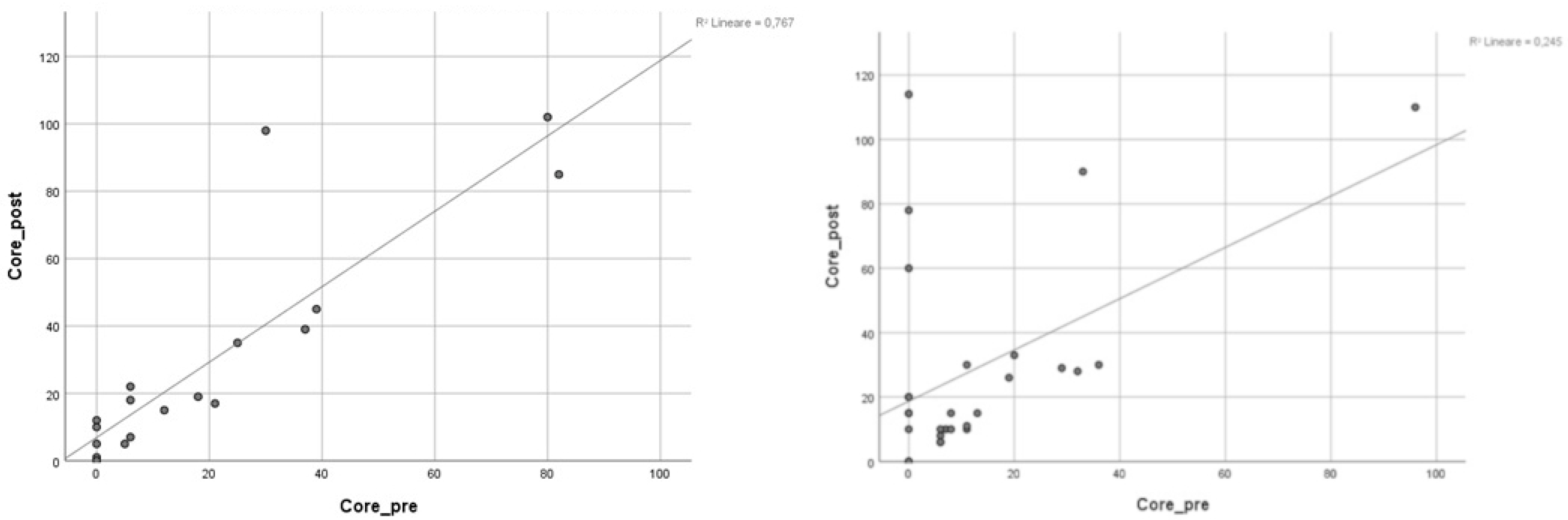

Figure 3. Secondary analysis scatter plot between PIC and FIV in the tandem group (on the left) and the MCA-LVO control group (on the right).
Figure 3. Secondary analysis scatter plot between PIC and FIV in the tandem group (on the left) and the MCA-LVO control group (on the right).
Jpm 13 00342 g003
Jpm 13 00342 g004 550

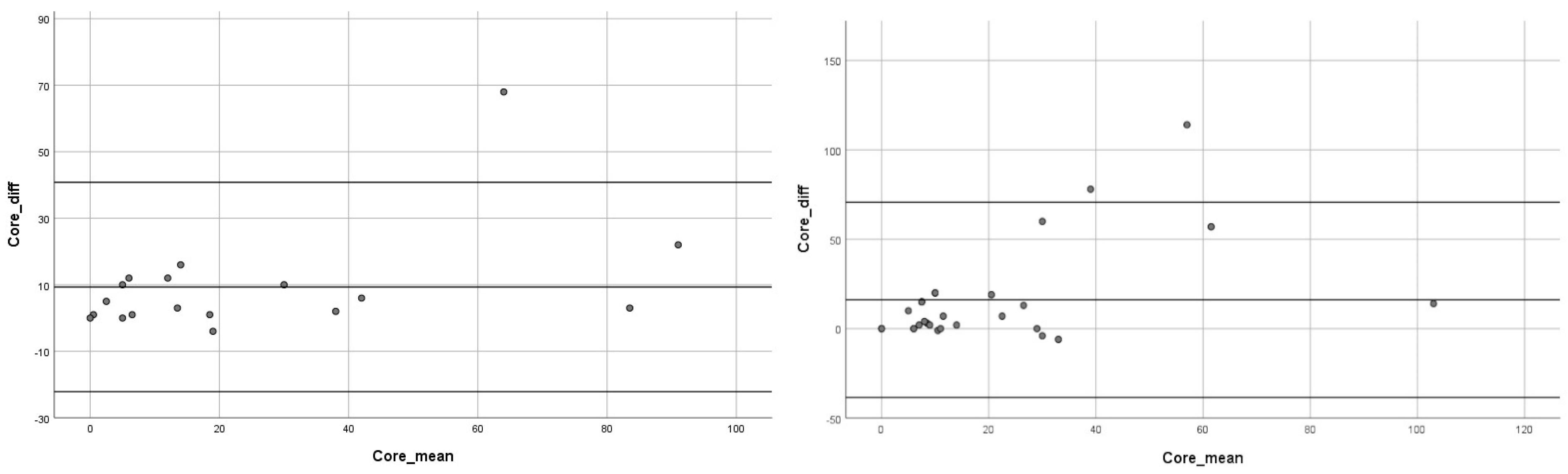

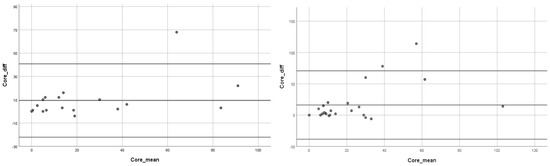

Figure 4. Secondary analysis Bland–Altman plot for the tandem group (on the left) and the MCA–LVO control group (on the right).
Figure 4. Secondary analysis Bland–Altman plot for the tandem group (on the left) and the MCA–LVO control group (on the right).
Jpm 13 00342 g004
Table
Table 1. Comparison between groups for baseline characteristics.
Table 1. Comparison between groups for baseline characteristics.
Tandem Group (22)Control Group (37)p
Gender, n (%)
   Male10 (45.5)13 (34.5)0.268
   Female12 (54.5)24 (65.5)0.268
Age, median (IQR a)69.5 (15)76 (16)0.242
Pre-stroke mRS b, median (IQR)0 (0)0 (0)>0.05
Arterial hypertension, n (%) *18 (81.8)25 (69.4)1.00
Atrial fibrillation, n (%) *9 (37.8)14 (40.9)0.852
Hypercholesterolemia (%) *4 (18.2)13 (36.1)0.234
Diabetes, n (%) *2 (9.1)7 (19.4)0.459
Smoking, n (%) *3 (13.6)4 (11.1)0.775
Alcohol (%) *2 (9.1%)00.066
Etiology-TOAST (%) 0.055°
   Undetermined3 (13.6)13 (35.1)
   Large artery11 (45.5)7 (18.9)
   Cardioembolic7 (31.8)16 (43.2)
   Other2 (9.1)1 (2.7)
ASPECTS c, median (IQR)9 (2)9 (3)0.704
Good Collateral Score, n (%)13 (72.2)26 (59.1)0.301
NIHSS d, median (IQR)19 (6)15 (8)0.031
Clot Burden Score, median (IQR)3 (3)6 (2)0.000
Occlusion site, n (%) 0.247
   M1 e proximal18 (81.8)24 (64.9)
   M1 distal03 (8.1)
   M2 f4 (18.2)10 (27)
Occlusion side, n (%) 0.712
   left10 (45.5)15 (40.5)
   right12 (54.5)22 (59.5)
Systolic blood pressure **139.4 (28.38)134.71 (22.43)0.591
Diastolic blood pressure **86.35 (22.91)76.34 (12.9)0.024
Glycaemia *138. 14 (44.15)130.36 (62.63)0.265
a IQR: interquartile range; b mRS: modified Rankin Scale; c ASPECTS: Alberta Stroke Program Early CT Score; d NIHSS: National Institute of Health Stroke Scale; e M1: middle cerebral artery M1 tract; f M2: middle cerebral artery M2 tract; * Missing N = 1; ** Missing N = 2 for control group and N = 2 for tandem group.
Table
Table 2. Comparisons between groups for interventional and outcome measures.
Table 2. Comparisons between groups for interventional and outcome measures.
Tandem Group (22)Control Group (37)p
Onset to groin (SD a) **269.56 (185.56)277.04 (119.03)0.228
Onset to CTP b (SD) **212.38 (196.72)214.19 (112.71)0.157
CTP to recanalization (SD)135.74 (48.51)107.49 (37.93)0.046
Onset to reperfusion, mean *** (SD)337.31 (195.41)321.13 (117.12)0.662
Procedural time, mean (SD)67.68 (47.09)40.14 (26.95)0.013
rTPA c, n (%)7 (31.8)7 (18.9)0.345
General anesthesia02 (5.4)0.267
Passages:
   Median (IQR d)2 (2)1 (1)0.004
Technique: 0.02
   Direct aspiration (%)14 (63.6)35 (94.6)X2 = 9.394
   Stent retriever (%)00
   Solumbra (%)8 (36.4) *2 (5.4)
   Successful recanalization
   (mTICI e 2b − 3)		14 (63.6)25 (67.6)0.758
Functional independence, n (%) *9 (47.4)16 (45.7)0.907
Hemorrhages (%) 0.924
   Total11 (50)20 (54.9)
   HI1 f2 (9.1)2 (5.4)
   HI23 (13.1)4 (10.8)
   PH1 g2 (9.1)5 (13.5)
   PH24 (18.2)9 (24.3)
sICH h (%)3 (13.6)4 (10.8)0.746
Unfavorable outcome, n (%)8 (40)15 (42.9)0.836
a SD: standard deviation; b CTP: computed tomography perfusion; c rTPA: recombinant tissue plasminogen activator d IQR: interquartile range; e mTICI: modified thrombolysis in cerebral infarction; f HI: hemorrhagic infarction; g PH: parenchymal hemorrhage; h sICH: symptomatic intracranial hemorrhage; * missing n = 3 in tandem group, n = 2 in control group; ** missing n = 6 in tandem group and 14 in control group; *** missing n = 5 in tandem group and n = 13 in control group.
Table
Table 3. Comparisons between groups for perfusional parameters.
Table 3. Comparisons between groups for perfusional parameters.
(a)
Tandem Group (n = 22)Control Group (n = 37)p
PIC a (SD b)29.50 (32.33)15.76 (20.93)0.180
FIV c * (SD)54.67 (65.73)55.14 (64.64)0.875
Mean difference
PIC-FIV (SD)		25.27 (46.23)39.38 (60.29)0.615
Core> 50 cm3 (%)5 (22.7)3 (8.1)0.234
Tmax d 6 sec (SD)131.45 (44.66)121.70 (73.40)0.100
Tmax 10 sec (SD)69.27 (40.91)57.57 (44.47)0.252
Tmax > 10 > 100 cm3 (%)6 (16.2)6 (27.3)0.308
Hypoperfusion Index0.48 (0.22)0.44 (0.22)0.359
(b)
mTICI e 2b (n = 20)mTICI 3 (n = 39)p
Mean absolute core difference FIV—PIC32.30 (41.11)35.50 (30.67)0.328
a PIC: predicted ischemic core volume by CBF reduction < 30%; b SD: standard deviation; c FIV: final infarct volume; d Tmax: time to maximum; e mTICI: modified thrombolysis in cerebral infarction; * determined by MRI ≤ 48 h hours in n = 55 cases (96%).
Table
Table 4. Comparisons between groups for perfusion parameters—secondary analysis.
Table 4. Comparisons between groups for perfusion parameters—secondary analysis.
(a)
Tandem Group (18)Control Group (28)p
PIC a (SD b)20.39 (25.51)12.79 (19.72)0.383
FIV c * (SD)29.72 (32.65)28.89 (31.71)0.973
Mean difference FIV-PIC (SD)9.33 (16.06)16.11 (27.84)0.821
Core > 50 cm3 (%)4 (11.1)00.145
Tmax d 6 s (SD)126.67 (47.18)127.00 (77.08)0.380
Tmax 10 s (SD)62.44 (41.73)57.29 (46.01)0.599
Tmax > 10 s > 100 cm3 (%)4 (22.2)4 (14.3)0.693
Hypoperfusion Index0.44 (0.21)0.41 (0.22)0.558
(b)
mTICI e 2b (n = 15)mTICI 3 (n = 31)p
Mean absolute core difference FIV—PIC23.22 (32.68)8.74 (17.42)0.044
a PIC: predicted ischemic core volume by CBF reduction < 30%; b SD: standard deviation; c FIV: final infarct volume; d Tmax: time to maximum; e mTICI: modified thrombolysis in cerebral infarction; * determined by MRI ≤ 48 h hours in n = 55 cases (96%).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Lacidogna, G.; Pitocchi, F.; Mascolo, A.P.; Marrama, F.; D’Agostino, F.; Rocco, A.; Mori, F.; Maestrini, I.; Sabuzi, F.; Cavallo, A.; et al. CT Perfusion as a Predictor of the Final Infarct Volume in Patients with Tandem Occlusion. J. Pers. Med. 2023, 13, 342. https://doi.org/10.3390/jpm13020342

AMA Style

Lacidogna G, Pitocchi F, Mascolo AP, Marrama F, D’Agostino F, Rocco A, Mori F, Maestrini I, Sabuzi F, Cavallo A, et al. CT Perfusion as a Predictor of the Final Infarct Volume in Patients with Tandem Occlusion. Journal of Personalized Medicine. 2023; 13(2):342. https://doi.org/10.3390/jpm13020342

Chicago/Turabian Style

Lacidogna, Giordano, Francesca Pitocchi, Alfredo Paolo Mascolo, Federico Marrama, Federica D’Agostino, Alessandro Rocco, Francesco Mori, Ilaria Maestrini, Federico Sabuzi, Armando Cavallo, and et al. 2023. "CT Perfusion as a Predictor of the Final Infarct Volume in Patients with Tandem Occlusion" Journal of Personalized Medicine 13, no. 2: 342. https://doi.org/10.3390/jpm13020342

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
