Selection and Validation of Reference Genes for Gene Expression Analysis in Tuta absoluta Meyrick (Lepidoptera: Gelechiidae)

by
Xin Yan
1,
Yibo Zhang
2,*,
Kangkang Xu
1,
Yawei Wang
1 and
Wenjia Yang
1,2,*
1
Guizhou Provincial Key Laboratory for Rare Animal and Economic Insect of the Mountainous Region, College of Biology and Environmental Engineering, Guiyang University, Guiyang 550005, China
2
State Key Laboratory for Biology of Plant Diseases and Insect Pests, Institute of Plant Protection, Chinese Academy of Agricultural Sciences, Beijing 100193, China
*
Authors to whom correspondence should be addressed.
Insects 2021, 12(7), 589; https://doi.org/10.3390/insects12070589
Submission received: 22 May 2021 / Revised: 23 June 2021 / Accepted: 26 June 2021 / Published: 29 June 2021
Browse Figures
Versions Notes

Abstract

:

Simple Summary

Reference genes are critical for standardizing expression data of RT-qPCR across samples of organisms under different experimental conditions. However, most commonly used reference genes may not be stably expressed leading to a risk of misinterpretation of results. In our study, nine reference genes were evaluated in Tuta absoluta (a destructive pest of tomato) at different developmental stages, tissues, 20-hydroxyecdysone (20E) and insecticide treatments. Finally, the expression profile of indicator gene EcR after 20E treatment was evaluated to verify the accuracy of the results. This study is essential for improving accuracy and reliability to normalize gene expression data in T. absoluta and provides a useful strategy for other insects.

Abstract

The tomato leaf miner, Tuta absoluta is a destructive pest of tomato. The leaf-mining activities of its larvae can cause significant yield losses. Real-time quantitative polymerase chain reaction (RT-qPCR) is commonly used to measure gene expression, and the selection of stable reference genes for calibration and standardization is critical for accurate use of RT-qPCR. We studied the stable expression of nine common housekeeping genes in T. absoluta. These were examined at different developmental stages, in larval tissues, as well as those induced by exposure to 20E and insecticides. Four dedicated algorithms (geNorm, BestKeeper, NormFinder, and ΔCt method) and online tool (RefFinder) were used to analyze and rank the tested reference genes. Based on the standardized gene expression data of target gene ecdysone receptor (EcR), the applicability of specific reference genes was verified. The results clarify that the optimal internal reference genes vary greatly under different experimental conditions. GAPDH and RPS11 were the best reference genes for developmental stages; RPL28 and RPL10 for different tissues; EF1α and RPL28 for 20E treatment; EF1α and RPL7A for insecticide treatments. The most suitable reference genes in all experimental conditions are EF1α and RPL28.

1. Introduction

Real-time quantitative polymerase chain reaction (RT-qPCR) is a powerful tool for nucleic acid quantification due to its sensitivity, specificity, and reproducibility [1]. However, the accuracy and reliability of RT-qPCR results are affected by several factors, including the quality and quantity of the initial RNA, primer specificity, reverse transcription efficiency, amplification efficiency, PCR conditions, reference genes, and transcript standardization [2,3]. For accurate quantification, stable reference genes are necessary for normalization [4]. The reference genes used in an RT-qPCR experiment can significantly influence the calculation of the expression levels of target genes [5].
Due to the temporal and spatial specificity of gene expression, the stability and effectiveness of internal reference genes are limited to specific conditions [3,6]. Therefore, the reference genes usually chosen include housekeeping genes that have stable expression in different cells or during different physiological states [7]. Elongation factor 1-α (EF1α), glyceraldehyde-3-phosphate dehydrogenase (GAPDH), and β-actin (ACT) are constitutively expressed genes that are commonly used as reference genes [8,9]. However, it is unclear if the expression of these genes are always stable. There is no single “universal” reference gene [10]. To obtain accurate results, the exact experimental conditions for the expression of each candidate reference gene must be verified to avoid the ambiguity of data in RT-qPCR analysis [11].
The stability of reference genes has been studied in many lepidopteran insects. For example, GAPDH was found to be the most appropriate reference gene for different developmental stages and tissues in Thitarodes armilicanus [12]. In Diaphania caesalis, ACT and 60S ribosomal protein L13a (RPL13a) were the most stable reference genes in different developmental stages, ACT and eukaryotic initiation factor 4A (EIF4A) were recommended as stable reference genes in various tissues [13]. Three genes, 18S ribosomal RNA (18S), ribosomal protein S20 (RPS20), and α-tubulin (α-TUB), were most suitable for gene expression in fifth-instar larvae of Sesamia inferens exposed to temperature stresses [14]. The stability of reference genes can greatly differ in the same insect under different conditions. Two or more reference genes may be necessary for some species, as a single reference gene cannot satisfy experimental requirements [9,11].
The tomato leaf miner, Tuta absoluta Meyrick (Lepidoptera: Gelechiidae), is a worldwide pest native to Peru. It occurs in South America, Europe, Africa, and Asia [15,16]. Recently, it was discovered on open-field tomatoes in Ili, Xinjiang Uygur Autonomous Region of China [17]. T. absoluta mainly feeds on the leaves of Solanaceous plants such as tomatoes, potatoes, and eggplants. It also feeds on fruits, apical buds, tender shoots, and tender stems, and can greatly reduce crop yield [15]. Although the requirements for accurate verification of reference genes in RT-qPCR studies have been described, the normalization procedure for T. absoluta has not been reported. Our goal was to identify endogenous reference genes that are suitable for gene expression profile analysis under a variety of experimental conditions. Nine commonly used reference genes, arginine kinase (AK), superoxide dismutase (SOD), ribosomal protein L7A (RPL7A), ribosomal protein L10 (RPL10), ribosomal protein L28 (RPL28), ribosomal protein S11 (RPS11), EF1α, GAPDH, and ACT were selected for analyzing their expression stability under different experimental conditions in T. absoluta. Four dedicated algorithms (geNorm, NormFinder, BestKeeper, and ΔCt method) were used to analyze quantifiable data [18]. The online tool RefFinder combines the above-mentioned algorithms to compare and ranked the tested reference genes. RefFinder also assigns a suitable weight to each gene and calculates the geomean of the weights to provide an overall ranking [19]. Finally, the expression profile of EcR was evaluated after 20E treatment to validate the results.

2. Materials and Methods

2.1. Insect Rearing

Tuta absoluta was originally collected from Solanum lycopersicum in Yuxi city, Yunnan Province, China, and reared for more than ten generations in the laboratory. The larvae were reared on tomato plants, where fed on leaves. The adults were fed with 10% honey solution in a greenhouse. The colonies were kept at 26 ± 1 °C under 60 ± 5% humidity and a 16:8 h light/dark (L:D) photoperiod.

2.2. Biotic Factors

Different developmental stages of T. absoluta were prepared. The insect culture was initiated with uniform aged eggs to collect insects in different, but uniform developmental stages, including the first-, second-, third-, fourth-instar larvae, pupae, and adults (including both males and females) of T. absoluta. All samples were immediately frozen in liquid nitrogen for RNA extraction. Three biological replicates were collected for each stage.
Seven tissues, including head, integument, fat body, foregut, midgut, hindgut, and Malpighian tubule, were dissected from the third-instar larvae in pre-cooled PBS solution [8,11]. The total RNA for each sample was extracted as described below.

2.3. Abiotic Stresses

The leaf-dip bioassay method suitable for T. absoluta was slightly modified from a previous report [20,21]. We dissolved 4 mg 20E (Sigma-Aldrich, St. Louis, MO, USA) in 95% ethanol as the stock solution with a concentration of 10 μg/μL, and then were diluted to 1 μg/μL with distilled water. We selected third-instar larvae with uniform size and good health for continued feeding following exposure to 20E solution by leaf immersion while feeding 0.1% ethanol as a control. Treated larvae were reared under the same conditions as the stock insects. At 12, 24, 48, and 72 h after treatment, the whole bodies of surviving insects were randomly selected and frozen in the liquid nitrogen for RNA extraction.
The insecticides used were abamectin, spinosad, chlorantraniliprole, and indoxacarb, as these are commonly used for the control of lepidopteran pest [22,23]. Tomato discs of 3 cm diameter were cut and then dipped in different concentrations of insecticides containing 0.1% Triton X-100. Each disc was immersed for 10 s and allowed to air dry at room temperature for three minutes. The discs were then individually placed into plastic Petri dishes. A total of 20 third-instar larvae were transferred into each dish, and three biological replicates were conducted. Tomato discs treated with the 0.1% Triton X-100 without insecticides were used as controls. All the larvae were reared under normal conditions, and mortality was checked after 24 h. The 50% lethal dose (LD50) values for each insecticide were assessed by probit analysis after 24 h. The third-instar larvae were then treated with the LD50 dosage of each insecticide. The surviving larvae were collected 24 h after the insecticide treatment and then frozen in the liquid nitrogen before RNA extraction.

2.4. Total RNA Extraction and Reverse Transcription

Total RNA was extracted from each sample using MiniBEST Universal Extraction Kit (TaKaRa, Dalian, China). RNA quantity were measured by a NanoDrop 2000c spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA) with absorbance levels of 260 nm and 280 nm. RNA integrity was checked by 1.0% agarose gel electrophoresis. One microgram of RNA was used to synthesize the first-strand cDNA by TransScript Synthesis Supermix (TransGen Biotech, Beijing, China). The concentration of all cDNA samples was normalized to 500 ng/μL. The cDNAs were stored at −20 °C for later RT-qPCR experiments.

2.5. Candidate Reference Genes and Primer Design

Based on the T. absoluta transcriptomic data (SRR13065833), nine commonly used reference genes were selected, including EF1α, AK, SOD, RPL7A, ACT, GAPDH, RPL10, RPL28, and RPS11. The functions of these genes are listed in Table 1. The primers were designed using NCBI Primer-BLAST (https://www.ncbi.nlm.nih.gov/tools/primer-blast/, accessed on 15 March 2021), and primer sequences are listed in Table 2.

2.6. RT-qPCR Analysis

The RT-qPCR was carried out on a CFX-96 real-time PCR system (BioRad, Hercules, CA, USA) using 20 μL reaction mixtures containing GoTaq® qPCR Master Mix (Promega, Madison, WI, USA), 10 μM each gene-specific primer, and cDNA template. The reaction conditions were as follows: an initial denaturation at 95 °C for 5 min, followed by 40 cycles at 95 °C for 5 s, 55 °C for 30 s, and 72 °C for 30 s. A melting curve step cycle (55 °C for 10 s, and then 0.5 °C for 10 s until 95 °C) followed the amplification and was added to ensure the specificity of the primers. Three technical replicates were run for each biological replicate. One unique peak in the melting curve confirmed the gene-specific amplification in each pair of primers. The quantitative data for each gene was analyzed for the slopes with a linear regression model. Standard curves were generated based on a 4-fold dilution series of cDNA (1/4, 1/16, 1/64, 1/256, and 1/1024). The corresponding amplification efficiencies were calculated according to the equation: E = (10[−1/slope] − 1) × 100%.

2.7. Stability of Gene Expression

The expression stability of each candidate reference gene was evaluated by geNorm, NormFinder, BestKeeper, and ΔCt method, followed by a comprehensive ranking by RefFinder (http://www.ciidirsinaloa.com.mx/RefFinder-master/ accessed on 15 March 2021). The optimal number of reference genes for target gene expression normalization was determined by pair-wise variation (Vn/Vn+1) using V-values that were calculated using geNorm. A Vn/Vn+1 cut-off value of ≤0.15 signified that the additional n+1 reference gene was unnecessary and confirmed the appropriate number of reference genes for RT-qPCR data normalization [24].

2.8. Validation of Selected Reference Genes

The ecdysone receptor (EcR) of T. absoluta was selected as the target gene for stability validation. The relative expression of EcR in the 20E treatment was quantified according to threshold cycle (Ct) value by the 2−ΔΔCt method [13]. Differences in gene expression were compared using SPSS 20.0 software (IBM, Armonk, NY, USA) (ANOVA, LSD method). All data were visualized using the GraphPad Prism version 8.0.1 (GraphPad Software, La Jolla, CA, USA) and presented as mean ± standard error.

3. Results

3.1. Total RNA Quality and Amplification Efficiencies

The A260/280 ratios ranged from 1.81 to 2.25, indicating the high purity of all the RNA samples. Gene-specific amplification of nine genes was verified in T. absoluta larvae by a single, sharply defined peak in the melting curve analysis, suggesting a high level of specificity (Figure S1). The RT-qPCR efficiency ranged from 92.9% (RPL28) to 109.1% (SOD), and regression coefficient ranged from 0.991 (ACT) to 0.998 (AK and RPL10) (Table 2). The results indicated that all primers met the standard requirement for RT-qPCR analyses [6].

3.2. Expression Profiles of Nine Candidate Reference Genes

The expression level was determined as the number of cycles required for amplification to reach the threshold (500) in the exponential phase of the PCR reaction [17]. The overall threshold cycle (Ct) values were compared to evaluate the expression levels of reference genes under different experimental conditions. The raw Cq values ranged from 17.49 (AK) to 34.3 (SOD) for the various developmental stages, from 16.67 (EF1α) to 29.55 (SOD) for the different tissues, from 12.39 (RPL7A) to 26.42 (SOD) under 20E treatments, and from 17.25 (AK) to 30.97 (RPL28) under the insecticide treatments (Figure 1). The average Ct values ranged from 13.63 (RPL7A) to 28.64 (RPL28) under the four experimental conditions. RPL7A, EF1α, and AK were the most abundant reference genes, whereas RPL28 and SOD were the least expressed genes (Figure 1).

3.3. Stability of the Reference Genes under Different Experimental Conditions

The mRNA levels of nine candidate reference genes were described using their mean Ct values. To evaluate the stability of reference genes among four experiments, we compared the four algorithms NormFinder, BestKeeper, geNorm, and ΔCt method. Simultaneously, the overall stability ranking was calculated by RefFinder.

3.3.1. Biotic Factors

Developmental stages: Expression analysis of each gene was performed on a complete sample set, including adults, pupae, and larval individuals at different developmental stages. All four programs identified that SOD as the least stable gene. RPS11 was one of the most stable gene calculated by NormFinder and BestKeeper, while geNorm identified GAPDH as the most stable reference gene (Table 3). RefFinder ranked the genes from the most stable to the least stable as follows: GAPDH > RPS11 > EF1α > RPL28 > ACT > RPL10 > RPL7A > AK > SOD (Figure 2). Pair-wise variation analysis for the six developmental stages indicated that the V2/3 values were less than 0.15 (Figure 3). The results suggested that GAPDH and RPS11 were the best for normalization of developmental stage experiments.
Tissue: All three programs, except BestKeeper, showed that RPL28 and RPL10 were the most stable genes, and that SOD was the least stable gene. BestKeeper identified RLP28 and GAPDH were the most stable gene. RefFinder showed a comprehensive ranking order from the most stable to the least stable gene: RPL28 > RPL10 > RPL7A > EF1α > GAPDH > ACT > AK > SOD > RPS11 (Figure 2). GeNorm analysis suggested that the pair-wise variation value V2/3 was less than 0.15 (Figure 3). Thus, the two best reference genes (RPL28 and RPL10) should be used to optimize gene expression studies of various tissues.

3.3.2. Abiotic Stresses

20E treatment: After 20E induction in T. absoluta larva, geNorm and NormFinder identified EF1α and RPL28 were the most stable reference genes. The ΔCt method and NormFinder showed that RPL28 and GAPDH were the most stable genes, respectively. Using geNorm and NormFinder, ACT was the least stable gene for expression analysis in 20E induction, whereas the ΔCt method and BestKeeper ranked SOD and RPL10 as least stable, respectively (Table 3). RefFinder showed the stability of nine reference genes decreased in the following order: EF1α > RPL28 > RPL7A > AK > GAPDH > RPL10 > RPS11 > SOD > ACT (Figure 2). GeNorm analysis revealed that V2/3 was less than 0.15 (Figure 3). Thus, the two reference genes, EF1α and RPL28, were the best to normalize gene expression.
Insecticide treatments: Prior to the insecticide induction, we performed a bioassay to determine the LD50 dosage of four insecticides. The LD50 values for larva stressed by abamectin, spinosad, chlorantraniliprole, and indoxacarb were 23.838, 779.915, 0.259, and 336.704 mg/L, respectively (Table 4).
The mortality of the larvae in the control group, without insecticide stress, was less than 5%. The stability rankings produced by geNorm and NormFinder were similar, EF1α and RPL7A were the most stable genes, while RPL10 was the least stable reference gene. BestKeeper identified ACT as the most stable reference gene. The ΔCt method showed that RPL28 was the most stable reference gene (Table 3). According to the RefFinder results, the stability rankings were as follows: EF1α > RPL7A > RPS11 > GAPDH > ACT > AK > RPL28 > SOD > RPL10 (Figure 2). GeNorm analysis showed that V2/3 was less than 0.15 (Figure 3). Thus, EF1α and RPL7A were the best reference genes for normalizing RT-qPCR data in the insecticide treatments.

3.4. Validation of Reference Genes with EcR

To assess the stability of selected reference genes, the expression level of EcR was analyzed after 20E treatment. The expression of EcR was compared using the following internal references, EF1α, EF1α and RPL28 (most stable reference genes), and SOD (the least stable reference gene). The significant differences were evaluated by normalizing EcR expression in larvae stressed by 20E using the most stable reference genes and the least stable reference genes. Across 12, 24, 48, and 72 h after 20E treatments, EcR transcript levels increased significantly in 20E treatments compared with controls no matter whether it was normalized by the most stable reference gene (EF1a), the combination of the two most stable reference genes (EF1a and RPL28), or the least stable reference gene (SOD) (Figure 4). However, the expression level of EcR normalized by the most stable reference gene or the combination of the two best reference genes was significantly different from the expression level calculated using the least suitable reference gene among all treatments (p < 0.01). At 48 and 72 h after 20E treatment, normalization with the least stable reference gene SOD resulted in increased gene expression levels (Figure 4).

4. Discussion

RT-qPCR is the most extensively method for measurement of gene expression. However, its accuracy and reliability depend on stable reference genes for proper data normalization. To avoid data ambiguity, each candidate reference gene must be verified against certain experimental conditions. Research on reliable reference gene selection has been included in quantitative expression analysis of animals [25,26] and plants [27]. Our study is the first direct evaluation of the expression stability of candidate reference genes in T. absoluta. The main goal in this study was to identify stable reference genes among the candidate genes for use in accurate normalization of gene expression in T. absoluta. We used four different algorithms to assess their stabilities at different developmental stages, among tissues, and changes induced by 20E and insecticide treatments.
Two or more reference genes are often used for more accurate quantitative analysis. More than one reference gene was helpful to reduce the deviation of data normalization [11,12,13]. As there is no universal candidate reference gene that can be used for all conditions, the most suitable reference genes will vary with specific experiments [13,24]. Evaluation of primer efficiency must be conducted before gene expression analysis. In this study, all reference genes varied according to conditions, but EF1α, RPL28, and GAPDH seem to best fit the universality criteria of reference genes for T. absoluta. These genes may be the best first choices for standardization in gene expression analysis. Due to differences in program algorithms [8,28], we found that individual ranking of the tested reference genes varied when using different computational programs.
In Spodoptera exigua, β-actin1 (ACT1), β-actin2 (ACT2), SOD, EF1, and GAPDH were stably expressed at different developmental stages [29]. In Spodoptera litura, GAPDH and ubiquinol-cytochrome C reductase (UCCR) were the best reference genes for developmental stages [30]. Among the different development stages, the optimal reference gene was EF1 in Plutella xylostella [31]. Our research showed that GAPDH and RPL28 were stably expressed at all developmental stages of T. absoluta. Several studies on reference genes have been conducted in tissues. RPL10, elongation factor 2 (EF2), and RPL17A were highly ranked as reference genes in all tissues of S. exigua [29]. In S. litura, RPL10, AK, and EF1 were the most appropriate reference genes for different tissues [30]. In P. xylostella tissues, the most suitable gene for internal control was EF1 [31]. In the present study, we showed that RPL28, RPL10, and GAPDH comprised the best set of reference genes for T. absoluta. GAPDH plays an important role in energy metabolism and encodes an enzyme in the glycolytic pathway [29]. Stable expression of this gene appears common in lepidopteran insects such as Helicoverpa armigera [32] and T. armoricanus [12]. In the following gene expression analysis, the best combination was GAPDH and RPL28. Ribosomal protein (RP) is the main component of ribosomes and mainly function in the intracellular protein biosynthesis in cells. In this study, the expression stabilities of RPL7A, RPL10, RPL28, and RPS11 in T. absoluta were evaluated under four different experimental conditions. The assessment of RP in insects suggests that RP is stable gene and can be used in gene expression studies. RPL9 and RPL10 were stable in different developmental stages, tissues, and temperature stresses of Sogatella furcifera [33].
Under different abiotic factors and experimental conditions, the best combinations of reference genes were as follows: EF1α and RPL28 for 20E induction; EF1α and RPL7A for insecticide treatments. EF1α is vital for the translation of genes to proteins by catalyzing GTP-dependent binding of aminoacyl-tRNA to the receptor site of the ribosome [34,35]. This gene exhibited the most stable expression among various biotic and abiotic factors in insects. For example, EF1α was an optimal reference gene for normalization in Agrilus planipennis [36], S. litura [30], and Rhodnius prolixus [27], which also ranked EF1α as the most stable reference gene. However, EF1α was not an acceptable gene in Bemisia tabaci [37]. In addition, the gene that codes for ribosomal protein RPL28 and RPL7A were the most suitable genes under certain conditions, such as insecticide treatments.
To validate our findings, we analyzed the expression of EcR in response to 20E stress. EcR is a direct response gene, and 20E treatment enhances the production of EcR transcripts. A heterodimer formed by the insect ecdysone receptor and ultraspiracle mediates the ecdysone signal [38]. It initiates the ecdysis cascade, including the expression of transcription factors so that the insect can successfully complete ecdysis and metamorphosis and acquire innate immunity [39]. At the start of the fifth-instar larvae of Bombyx mori, the rising steroid titers favor EcR expression [40]. In S. exigua, the relative mRNA expression of SeEcR after 20E injection was assayed using RT-qPCR. There was a burst in SeEcR transcription after 20E injection, which increased compared to the mRNA level in control insects [40]. In addition, results on ultraspiracle (USP), which is also the molecular target of ecdysone, showed that in the presence of 20E, the level of PIUSP-2 expression peaked at 18 h [41]. Our results demonstrated that EcR was consistently highly expressed at 12, 24, 48, and 72 h after 20E stress in T. absoluta when the most stable genes were used for normalizing expression. However, the expression profile of EcR was significantly altered when an unstable reference gene was used for the normalization. Therefore, the selection of appropriate reference genes for normalization is important for accurate estimation of target gene expression. For the first time, this study laid a methodological foundation for the development of T. absoluta functional gene expression analysis.

5. Conclusions

In conclusion, nine candidate reference genes were studied using four dedicated algorithms, and EF1α and RPL28 were found to be the most stable reference genes for T. absoluta at different stages, in various tissues, under 20E and insecticide treatments. These results provide reference gene standardization for RT-qPCR technology. Several potential references were identified to accurately assess the target gene expression profile in T. absoluta. The data presented here offers insight into expression profiling in gene functional studies in T. absoluta. This study documents the stability of a reference genes in T. absoluta. The information will help future studies that seek to understand how T. absoluta adapts to adverse environmental conditions.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/insects12070589/s1, Figure S1: Melting curves of nine candidate reference genes show single peaks.

Author Contributions

Conceptualization, W.Y. and X.Y.; methodology, X.Y.; formal analysis, W.Y. and K.X.; investigation, X.Y. and Y.W.; writing—original draft preparation, X.Y.; validation, K.X. writing—review and editing, Y.Z. and W.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported in part by the National Natural Science Foundation of China (32072495), the Open Project of State Key Laboratory for Biology of Plant Diseases and Insect Pests (SKLOF202012), the special funding of Guiyang Science and Technology Bureau and Guiyang University (GYU-KY-2021), and the Program for First-class Discipline Construction in Guizhou Province (201785).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sun, K.Q.; Zhang, Y.J.; D’Alessandro, A.; Nemkov, T.; Song, A.; Wu, H.Y.; Liu, H.; Adebiyi, V.; Huang, A.J.; Wen, Y.E.; et al. Sphingosine-1-phosphate promotes erythrocyte glycolysis and oxygen release for adaptation to high-altitude hypoxia. Nat. Commun. 2016, 7, 12086. [Google Scholar] [CrossRef] [PubMed]
  2. Guo, J.L.; Ling, H.; Wu, Q.B.; Xu, L.P.; Que, Y.X. The choice of reference genes for assessing gene expression in sugarcane under salinity and drought stresses. Sci. Rep. 2014, 4, 7042. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Shi, X.Q.; Guo, W.C.; Wan, P.J.; Zhou, L.T.; Ren, X.L.; Ahmat, T.; Fu, K.Y.; Li, G.Q. Validation of reference genes for expression analysis by quantitative real-time PCR in Leptinotarsa decemlineata (Say). BMC Res. Notes 2013, 6, 1–10. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Hu, Y.N.; Fu, H.T.; Qiao, H.; Sun, S.M.; Zhang, W.Y.; Jin, S.B.; Jiang, S.F.; Gong, Y.S.; Xiong, Y.W.; Wu, Y. Validation and evaluation of reference genes for quantitative real-time PCR in Macrobrachium Nipponense. Int. J. Mol. Sci. 2018, 19, 2258. [Google Scholar] [CrossRef] [Green Version]
  5. Bagnall, N.H.; Kotze, A.C. Evaluation of reference genes for real-time PCR quantification of gene expression in the Australian sheep blowfly, Lucilia cuprina. Med. Vet. Entomol. 2010, 24, 176–181. [Google Scholar] [CrossRef]
  6. Bustin, S.A.; Benes, V.; Garson, J.A.; Hellemans, J.; Huggett, J.; Kubist, M.; Mueller, R.; Nolan, T.; Pfaffl, M.W.; Shipley, G.L.; et al. The MIQE guidelines: Minimum information for publication of quantitative real-time PCR experiments. Clin. Chem. 2009, 55, 611–622. [Google Scholar] [CrossRef] [Green Version]
  7. Derveaux, S.; Vandesompele, J.; Hellemans, J. How to do successful gene expression analysis using real-time PCR. Methods 2010, 50, 227–230. [Google Scholar] [CrossRef]
  8. Koramutla, M.K.; Aminedi, R.; Bhattacharya, R. Comprehensive evaluation of candidate reference genes for qRT-PCR studies of gene expression in mustard aphid, Lipaphis erysimi (Kalt). Sci. Rep. 2016, 6, 25883. [Google Scholar] [CrossRef]
  9. Nakamura, A.M.; Chahad-Ehlers, S.; Lima, A.L.A.; Taniguti, C.H.; Sobrinho, I.; Torres, F.R.; Torres, F.R. Reference genes for accessing differential expression among developmental stages and analysis of differential expression of OBP genes in Anastrepha obliqua. Sci. Rep. 2015, 6, 17480. [Google Scholar] [CrossRef]
  10. Nolan, T.; Hands, R.; Bustin, S. Quantification of mRNA using real-time RT-PCR. Nat Protoc. 2006, 1, 1559–1582. [Google Scholar] [CrossRef]
  11. Kang, Z.W.; Liu, F.H.; Tian, H.G.; Zhang, M.; Guo, S.S.; Liu, T.X. Evaluation of the reference genes for expression analysis using quantitative real-time polymerase chain reaction in the green peach aphid, Myzus persicae. Insect Sci. 2017, 24, 222–234. [Google Scholar] [CrossRef]
  12. Liu, G.; Qiu, X.; Li, C.; Zhang, Y.; Zhan, Z.; Han, R. Evaluation of reference genes for reverse transcription quantitative PCR studies of physiological responses in the Ghost Moth, Thitarodes armoricanus (Lepidoptera, Hepialidae). PLoS ONE 2016, 11, e0159060. [Google Scholar] [CrossRef] [PubMed]
  13. Wang, Z.; Meng, Q.Q.; Zhu, X.; Sun, S.W.; Liu, A.Q.; Gao, S.F.; Gou, Y.F. Identification and evaluation of reference genes for normalization of gene expression in developmental stages, sexes, and tissues of Diaphania caesalis (Lepidoptera, Pyralidae). J. Insect Sci. 2020, 6, 1–9. [Google Scholar] [CrossRef] [PubMed]
  14. Sun, M.; Lu, M.X.; Tang, X.T.; Du, Y.Z. Exploring valid reference genes for quantitative real-time PCR analysis in Sesamia inferens (Lepidoptera: Noctuidae). PLoS ONE 2015, 10, e0115979. [Google Scholar] [CrossRef]
  15. Han, P.; Bayram, Y.; Shaltiel-Harpaz, L.; Sohrabi, F.; Saji, A.; Esenali, U.T.; Jalilov, A.; Shashank, P.R.; Wang, S.; Zhang, G.F.; et al. Tuta absoluta continues to disperse in Asia: Damage, ongoing management and future challenges. J. Pest Sci. 2019, 92, 1317–1327. [Google Scholar] [CrossRef]
  16. Zhang, G.F.; Ma, D.Y.; Wang, Y.S.; Gao, Y.H.; Liu, W.X.; Zhang, R.; Fu, W.J.; Xian, X.Q.; Wang, J.; Kuang, M.; et al. First report of the south American tomato leafminer, Tuta absoluta (Meyrick), in China. J. Integr. Agric. 2020, 19, 1912–1917. [Google Scholar] [CrossRef]
  17. Biondi, A.; Guedes, R.N.C.; Wan, F.H.; Desneux, N. Ecology, worldwide spread, and management of the invasive South American tomato pinworm, Tuta absoluta: Past, present, and future. Annu. Rev. Entomol. 2018, 63, 239–258. [Google Scholar] [CrossRef]
  18. Scharlaken, B.; Graaf, D.C.; Goossens, K.; Brunain, M.; Peelman, L.; Jacobs, F.J. Reference gene selection for insect expression studies using quantitative real-time pcr: The head of the honeybee, Apis mellifera, after a bacterial challenge. J. Insect Sci. 2008, 1, 1–10. [Google Scholar] [CrossRef] [Green Version]
  19. Szabo, A.; Perou, C.M.; Karaca, M.; Perreard, L.; Bernard, P.S. Statistical modeling for selecting housekeeper genes. Genome Biol. 2008, 9, 405. [Google Scholar] [CrossRef] [Green Version]
  20. Shelton, A.M.; Robertson, J.L.; Tang, J.D.; Perez, C.; Eigenbrode, S.D.; Preisler, H.K.; Wilsey, W.T.; Cooley, R.J. Resistance of diamondback moth (Lepidoptera: Yponomeutidae) to Bacillus thuringiensis subspecies in the field. J. Econ. Entomol. 1993, 86, 697–705. [Google Scholar] [CrossRef] [Green Version]
  21. Liang, P.; Gao, X.W.; Zheng, B.Z. Genetic basis of resistance and studies on cross-resistance in a population of diamondback moth, Plutella xylostella (Lepidoptera: Plutellidae). Pest Manag. Sci. 2003, 59, 1232–1236. [Google Scholar] [CrossRef]
  22. Konuş, M. Analysing resistance of different Tuta absoluta (Meyrick) (Lepidoptera: Gelechiidae) strains to abamectin insecticide. Turk. J. Biochem. 2014, 39, 291–297. [Google Scholar] [CrossRef]
  23. Rastall, K.; Kondo, V.; Strazanac, J.S.; Butler, L. Lethal effects of biological insecticide applications on nontarget lepidopterans in two appalachian forests. Environ. Entomol. 2003, 32, 1364–1369. [Google Scholar] [CrossRef] [Green Version]
  24. Vandesompele, J.; Preter, K.D.; Pattyn, F.; Poppe, B.; Roy, N.V.; Paepe, A.D.; Speleman, F. Accurate normalization of real-time quantitative RT-PCR data by geometric averaging of multiple internal control genes. Genome Biol. 2002, 3, 1–11. [Google Scholar] [CrossRef] [Green Version]
  25. Silver, N.; Best, S.; Jiang, J.; Thein, S.L. Selection of housekeeping genes for gene expression studies in human reticulocytes using real-time PCR. BMC Mol. Biol. 2006, 7, 1–9. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Nijhof, A.M.; Balk, J.A.; Postigo, M.; Jongejan, F. Selection of reference genes for quantitative RT-PCR studies in Rhipicephalus (Boophilus) microplus and Rhipicephalus appendiculatus ticks and determination of the expression profile of Bm86. BMC Mol. Biol. 2009, 10, 112. [Google Scholar] [CrossRef] [Green Version]
  27. Majerowicz, D.; Alves-Bezerra, M.; Logullo, R.; Fonseca-De-Souza, A.L.; Meyer-Fernandes, J.R.; Braz, G.R.C.; Gondim, K.C. Looking for reference genes for real-time quantitative PCR experiments in Rhodnius prolixus (Hemiptera: Reduviidae). Insect Mol. Biol. 2011, 20, 713–722. [Google Scholar] [CrossRef] [PubMed]
  28. Ibanez, F.; Tamborindeguy, C. Selection of reference genes for expression analysis in the potato psyllid, Bactericera Cockerelli. Insect Mol. Biol. 2016, 25, 227–238. [Google Scholar] [CrossRef]
  29. Zhu, X.; Yuan, M.; Shakeel, M.; Zhang, Y.J.; Wang, S.L.; Wang, X.; Zhanm, S.; Kang, T.K.; Li, J.H. Selection and evaluation of reference genes for expression analysis using qRT-PCR in the beet armyworm Spodoptera exigua (Hübner) (Lepidoptera: Noctuidae). PLoS ONE 2014, 9, e84730. [Google Scholar] [CrossRef] [PubMed]
  30. Lu, Y.H.; Yuan, M.; Gao, X.W.; Kang, T.H.; Zhan, S.; Wan, H.; Li, J.H. Identification and validation of reference genes for gene expression analysis using quantitative PCR in Spodoptera litura (Lepidoptera: Noctuidae). PLoS ONE 2013, 8, e68059. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Fu, W.; Xie, W.; Zhang, Z.; Wang, S.L.; Wu, Q.J.; Liu, Y.; Zhou, X.M.; Zhou, X.G.; Zhang, Y.J. Exploring valid reference genes for quantitative real-time PCR analysis in Plutella xylostella (Lepidoptera: Plutellidae). Int. J. Biol. Sci. 2013, 9, 792–802. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Chandra, G.S.; Asokan, R.; Manamohan, M.; Krishna, K.N.K.; Sita, T. Evaluation of reference genes for quantitative real-time PCR normalization in cotton bollworm Helicoverpa armigera. Mol. Biol. 2014, 48, 813–822. [Google Scholar] [CrossRef]
  33. An, X.K.; Hou, M.L.; Liu, Y.D. Reference gene selection and evaluation for gene expression studies using qRT-PCR in the white-backed planthopper, Sogatella furcifera (Hemiptera: Delphacidae). J. Econ. Entomol. 2016, 2, 879. [Google Scholar] [CrossRef]
  34. Ponton, F.; Chapuis, M.P.; Pernice, M.; Sword, G.A.; Simpson, S.J. Evaluation of potential reference genes for reverse transcription-qPCR studies of physiological responses in Drosophila melanogaster. J. Insect Physiol. 2011, 57, 840–850. [Google Scholar] [CrossRef] [PubMed]
  35. Shang, F.; Wei, D.D.; Jiang, X.Z.; Wei, D.; Shen, G.M.; Feng, Y.C.; Li, T.; Wang, J.J. Reference gene validation for quantitative PCR under various biotic and abiotic stress conditions in Toxoptera citricida (Hemiptera, Aphidiae). J. Econ. Entomol. 2015, 108, 2040–2047. [Google Scholar] [CrossRef]
  36. Rajarapu, S.P.; Mamidala, P.; Mittapalli, O. Validation of reference genes for gene expression studies in the emerald ash borer (Agrilus planipennis). Insect Sci. 2012, 19, 41–46. [Google Scholar] [CrossRef]
  37. Collins, C.; Patel, M.V.; Colvin, J.; Bailey, D.; Seal, S. Identification and evaluation of suitable reference genes for gene expression studies in the whitefly Bemisia tabaci (Asia I) by reverse transcription quantitative real-time pcr. J. Insect Sci. 2014, 14, 1–25. [Google Scholar] [CrossRef]
  38. Xu, Q.Y.; Deng, P.; Zhang, Q.; Li, A.; Fu, K.Y.; Guo, W.C.; Li, G.Q. Ecdysone receptor isoforms play distinct roles in larval-pupal-adult transition in Leptinotarsa Decemlineata. Insect Sci. 2020, 27, 487–499. [Google Scholar] [CrossRef]
  39. Henrich, V.C.; Brown, N.E. Insect nuclear receptors: A developmental and comparative perspective. Insect Biochem. Molec. 1995, 25, 881–897. [Google Scholar] [CrossRef]
  40. Kamimura, M.; Takahashi, M.; Tomita, S.; Fujiwara, H.; Kiuchi, M. Expression of ecdysone receptor isoforms and trehalase in the anterior silk gland of Bombyx mori during an extra larval molt and precocious pupation induced by 20-hydroxyecdysone administration. Arch. Insect Biochem. 2010, 41, 79–88. [Google Scholar] [CrossRef]
  41. Siaussat, D.; Bozzolan, F.; Queguiner, I.; Porcheron, P.; Debernard, S. Cell cycle profiles of EcR, USP, HR3 and B cyclin mRNAs associated to 20E-induced G2 arrest of Plodia interpunctella imaginal wing cells. Insect Mol. Biol. 2010, 14, 151–161. [Google Scholar] [CrossRef] [PubMed]
Insects 12 00589 g001 550

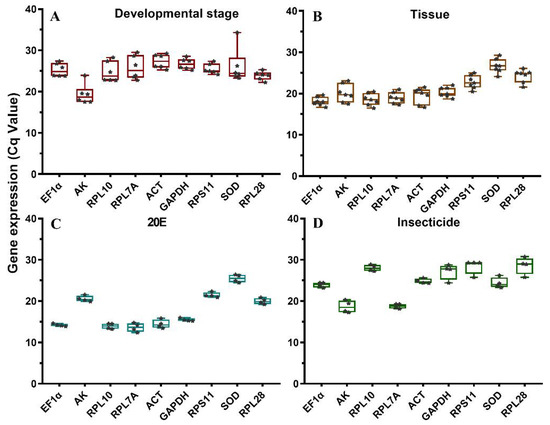

Figure 1. Box and whisker plots of expression profiles of candidate reference genes under four experimental conditions. (A) Different developmental stages; (B) different tissues; (C) 20E treatment; (D) insecticide treatments. The expression levels of candidate reference genes are shown as the mean of Ct values. The Ct values of each biological replicate in each treatment is represented as each data points. Lines across the boxes depicted the medians of Cq values, and the 25/75 percentiles were indicated by the lower and upper lines of boxes.
Figure 1. Box and whisker plots of expression profiles of candidate reference genes under four experimental conditions. (A) Different developmental stages; (B) different tissues; (C) 20E treatment; (D) insecticide treatments. The expression levels of candidate reference genes are shown as the mean of Ct values. The Ct values of each biological replicate in each treatment is represented as each data points. Lines across the boxes depicted the medians of Cq values, and the 25/75 percentiles were indicated by the lower and upper lines of boxes.
Insects 12 00589 g001
Insects 12 00589 g002 550

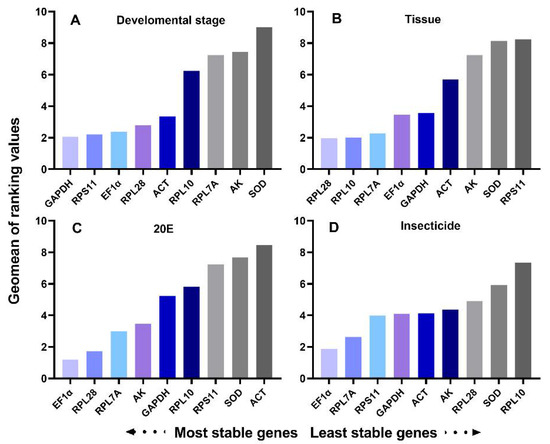

Figure 2. Expression stability of the candidate reference genes under four experimental conditions calculated by RefFinder: (A) developmental stages; (B) different tissues; (C) 20E treatment; (D) insecticide treatments. A lower Geomean order indicates more stable expression.
Figure 2. Expression stability of the candidate reference genes under four experimental conditions calculated by RefFinder: (A) developmental stages; (B) different tissues; (C) 20E treatment; (D) insecticide treatments. A lower Geomean order indicates more stable expression.
Insects 12 00589 g002
Insects 12 00589 g003 550

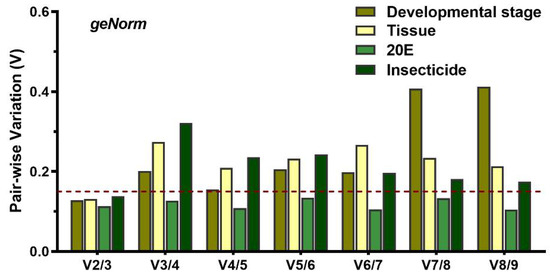

Figure 3. Determining the optimal number of reference genes for normalization by geNorm analysis. Average pair-wise variations (Vn/Vn+1) were calculated by geNorm between the normalization factors NFn and NFn+1. A value above 0.15 indicates that an additional reference gene will significantly improve normalization.
Figure 3. Determining the optimal number of reference genes for normalization by geNorm analysis. Average pair-wise variations (Vn/Vn+1) were calculated by geNorm between the normalization factors NFn and NFn+1. A value above 0.15 indicates that an additional reference gene will significantly improve normalization.
Insects 12 00589 g003
Insects 12 00589 g004 550

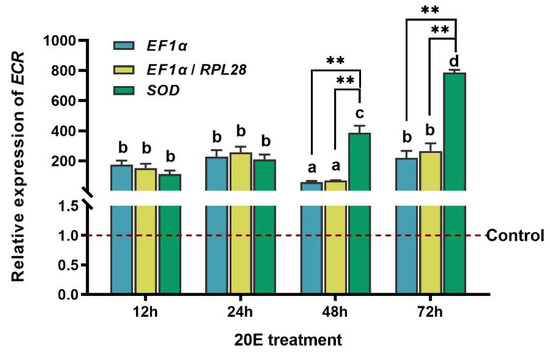

Figure 4. Validation of reference genes. Relative expression level of EcR was detected by RT-qPCR at 12, 24, 48, and 72 h after 20E treatment. Three reference genes combination (EF1α, EF1α+RPL28, SOD) were used for the normalization. The data are denoted as mean ± standard error (SE). Asterisk indicates that the expression of EcR normalized by each reference gene(s) was significantly different (p < 0.01, two-way ANOVA followed by Tukey’s multiple comparison test).
Figure 4. Validation of reference genes. Relative expression level of EcR was detected by RT-qPCR at 12, 24, 48, and 72 h after 20E treatment. Three reference genes combination (EF1α, EF1α+RPL28, SOD) were used for the normalization. The data are denoted as mean ± standard error (SE). Asterisk indicates that the expression of EcR normalized by each reference gene(s) was significantly different (p < 0.01, two-way ANOVA followed by Tukey’s multiple comparison test).
Insects 12 00589 g004
Table
Table 1. GenBank accession numbers and functions of candidate reference genes.
Table 1. GenBank accession numbers and functions of candidate reference genes.
Gene SymbolGene NameAccession Number(Putative) Function
EF1αElongation factor 1 αMZ054826Mediates recruitment of aminoacyl-transfer RNA to ribosome
AKArginine kinaseMZ054821Key enzyme for cellular energy metabolism
SODSuperoxide dismutaseMZ054825Highly specific superoxide dismutase activity
ACTβ-actinMZ054824Cell motility, structure and integrity
GAPDHGlyceraldehyde-3-
Phosphate dehydrogenase		MZ054823Glycolytic enzyme
RPL7ARibosomal protein L7AMZ054828Structural constituent of ribosome
RPL10Ribosomal protein L10MZ054827Structural constituent of ribosome
RPL28Ribosomal protein L28MZ054829Structural constituent of ribosome
RPS11Ribosomal protein S11MZ054830Structural constituent of ribosome
Table
Table 2. Primers of reference genes in T. absoluta.
Table 2. Primers of reference genes in T. absoluta.
GenePrimer Sequence (5′–3′)Product Size (bp)E (%)R2
EF1αF: CCTGGGCACAGAGATTTCAT
R: GATCAGCTGCTTGACACCAA		17198.30.997
AKF: GCCCAGTACAAGGAGATGGA
R: ACCACACGAGGAAGGTCTTG		23899.30.998
SODF: GGGCCTCATTTCATTGCTTA
R: CTTCGCCACTGCTTATAGCC		190109.10.996
ACTF: GCGACATCAAGGAGAAGCTC
R: CAAGCTTCCATACCCAGGAA		18797.20.991
GAPDHF: GCGTCAACCTTGAAGCCTAC
R: TTACCAGAGGGACCGTCAAC		1811020.993
RPL7AF: TCAACCAGTTCACCCAGACA
R: CACGAGCTGAGCCTTCTTCT		227100.80.995
RPL10F: CTTCATCCCTTCCACGTCAT
R: TGAAACCCCACTTCTTGGAC		25095.60.998
RPL28F: TCAGACGTGCTGAACACACA
R: GCCAGTCTTGGACAACCATT		18592.90.995
RPS11F: AAGACCTGCCGATATGCAAC
R: TAGCCGTAGTCTGAGCAGCA		15698.40.994
E, RT-qPCR efficiency; R2, regression coefficient; F, forward primer; R, reverse primer.
Table
Table 3. Ranking of the T. absoluta reference genes under four experimental conditions.
Table 3. Ranking of the T. absoluta reference genes under four experimental conditions.
Biotic ConditionsRankgeNormNormfinderBestKeeperΔCt
GeneStabilityGeneStabilityGeneStabilityGeneStability
Developmental stage1GAPDH1.654RPS110.110RPL280.785 RPL280.889
2EF1α1.669GAPDH0.189RPS111.001 RPL100.916
3RPS111.776RPL280.240GAPDH1.129 ACT0.944
4RPL281.781EF1α0.576EF1α1.422 EF1α0.976
5ACT1.875ACT0.901ACT1.526 RPS110.979
6RPL102.078RPL101.131AK1.643 AK0.987
7RPL7A2.354RPL7A1.424RPL102.016 RPL7A1.025
8AK3.187AK1.845RPL7A2.386 GAPDH1.031
9SOD4.567SOD2.110SOD2.797 SOD1.359
Tissues1RPL281.343RPL280.235RPL280.779 RPL280.825
2RPL101.348RPL100.385GAPDH1.023 RPL100.912
3RPL7A1.364RPL7A0.435RPL7A1.033 ACT0.924
4GAPDH1.668GAPDH0.772RPL101.121 RPS110.955
5ACT1.697ACT0.829EF1α1.206 EF1α0.961
6EF1α1.823EF1α1.013SOD1.250 AK0.982
7AK1.990AK1.106Actin1.503 RPL7A1.013
8RPS112.184RPS111.287AK1.656 GAPDH1.032
9SOD2.205SOD1.297RPS111.909 SOD1.264
20E1EF1α0.651EF1α0.161GAPDH0.440RPL280.946
2RPL280.710RPL280.235RPL280.496RPL100.969
3RPL7A0.741AK0.280AK0.510ACT0.973
4AK0.753RPL7A0.342EF1α0.628RPS110.991
5RPS110.852SOD0.473RPS110.923EF1α0.995
6SOD0.900RPS110.493SOD1.234AK0.995
7RPL100.906RPL100.502RPL7A1.316RPL7A1.003
8GAPDH0.989GAPDH0.630ACT1.378GAPDH1.020
9ACT0.989ACT0.630RPL101.419SOD1.097
Insecticide1EF1α1.303EF1α0.391ACT0.440RPL280.819
2RPL7A1.350RPL7A0.559RPL7A0.496RPS110.959
3RPS111.474AK0.675EF1α0.510RPL100.968
4AK1.490RPS110.734RPL100.628ACT0.987
5GAPDH1.545SOD0.795SOD0.923EF1α0.988
6ACT1.558ACT0.844AK1.234AK0.990
7SOD1.569GAPDH0.877RPS111.316RPL7A1.005
8RPL281.728RPL281.054GAPDH1.378GAPDH1.057
9RPL101.755RPL101.057RPL281.419SOD1.106
Table
Table 4. Toxicity of four insecticides to third-instar larvae of T. absoluta.
Table 4. Toxicity of four insecticides to third-instar larvae of T. absoluta.
InsecticidesN aSlope ± SE bLD50 (95% CL) c
mg/L		χ2 d
Abamectin3002.167 ± 0.24223.838 (20.021–28.819)0.981
Spinosad3000.880 ± 0.089779.915 (504.427–1227.212)0.348
Chlorantraniliprole3001.824 ± 0.2110.259 (0.187–0.366)1.990
Indoxacarb3000.976 ± 0.131336.704 (188.020–642.933)1.739
a The total number of tested individuals. b SE = standard error. c 95% CL = 95% confidence limit. d Chi-square testing linearity of dose-mortality responses.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Yan, X.; Zhang, Y.; Xu, K.; Wang, Y.; Yang, W. Selection and Validation of Reference Genes for Gene Expression Analysis in Tuta absoluta Meyrick (Lepidoptera: Gelechiidae). Insects 2021, 12, 589. https://doi.org/10.3390/insects12070589

AMA Style

Yan X, Zhang Y, Xu K, Wang Y, Yang W. Selection and Validation of Reference Genes for Gene Expression Analysis in Tuta absoluta Meyrick (Lepidoptera: Gelechiidae). Insects. 2021; 12(7):589. https://doi.org/10.3390/insects12070589

Chicago/Turabian Style

Yan, Xin, Yibo Zhang, Kangkang Xu, Yawei Wang, and Wenjia Yang. 2021. "Selection and Validation of Reference Genes for Gene Expression Analysis in Tuta absoluta Meyrick (Lepidoptera: Gelechiidae)" Insects 12, no. 7: 589. https://doi.org/10.3390/insects12070589

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
