Article

Purification and Functional Characterization of a Soluble Trehalase in Lissorhoptrus oryzophilus (Coleoptera: Curculionidae)

1
College of Plant Science, Jilin University, Changchun 130062, China
2
Technical Center of Kunming Customs, Kunming 650228, China
*
Authors to whom correspondence should be addressed.
Insects 2022, 13(10), 867; https://doi.org/10.3390/insects13100867
Submission received: 1 September 2022 / Revised: 16 September 2022 / Accepted: 20 September 2022 / Published: 24 September 2022
(This article belongs to the Special Issue Environmentally-Friendly Pest Control Approaches for Invasive Insects)

Abstract

:

Simple Summary

The rice water weevil, Lissorhoptrus oryzophilus Kuschel (Coleoptera: Curculionidae), is indigenous to the United States and has become a significant invasive agricultural pest in China. In this study, we identified and cloned one trehalase gene (LoTRE1) encoding a soluble protein in L. oryzophilus and compared the relative expression levels of LoTRE1 in different tissues. The purified LoTRE1 protein was obtained using a prokaryotic expression system, and its enzymatic properties were explored. Amino acid sequence homology modeling of LoTRE1 and molecular docking between the LoTRE1 protein and substrate trehalose were simulated, which further provided a theoretical basis for revealing the role of LoTRE1 in the degradation mechanism of trehalose. In addition, the LoTRE1 double-stranded RNA (dsRNA) was synthesized in vitro, and its RNAi effect in L. oryzophilus was detected via feeding. The results suggested that LoTRE1 played a vital role in L. oryzophilus development, which could be useful for providing information for insect pest control in the future.

Abstract

Trehalase is the only enzyme known for the irreversible splitting of trehalose and plays a major role in insect growth and development. In this report, we describe a basic study of the trehalase gene fragment encoding a soluble trehalase from Lissorhoptrus oryzophilus (LoTRE1). Sequence alignment and phylogenetic analysis suggested that LoTRE1 was similar to some known insect trehalases and belongs to the Coleoptera trehalase group. Additionally, LoTRE1 was expressed mainly in the fat body. Purified protein was obtained using heterologous expression of LoTRE1 in Escherichia coli, and the recombinant protein exhibited the ability to decompose trehalose. Enzyme–substrate docking indicated the potential involvement of other residues in the catalytic activity, in addition to Asp 333. Moreover, feeding of adults on LoTRE1 dsRNA silenced the transcription of LoTRE1 and thereby reduced the activity of trehalase and increased the trehalose content; it also led to a 12% death rate. This study reveals essential molecular features of trehalase and offers insights into the structural aspects of this enzyme, which might be related to its function. Taken together, the findings demonstrate that LoTRE1 is indispensable for adults of this pest and provide a new target for the control of L. oryzophilus.

1. Introduction

Trehalose is a nonreducing disaccharide that consists of two α-glycosidically linked glucose units. This disaccharide is found in many organisms, such as plants, nematodes, bacteria, insects, and some other invertebrates; however, it does not exist in mammals [1]. Trehalose is mainly considered an important cell protective metabolite in vivo, and cells can synthesize trehalose in large quantities under stress and degrade it rapidly under normal conditions [2]. Trehalose exhibits multiple physiological effects in various organisms, and it has been shown that trehalose can shield proteins and cellular membranes from inactivation or denaturation caused by a range of stress conditions, including dehydration, desiccation, cold, heat, and oxidation [3,4,5,6,7,8]. Additionally, trehalose is the major blood sugar in insects, playing an important role as an instant source of energy and in the response to abiotic stresses. Trehalose is specifically synthesized in insect fat bodies and quickly discharged into the hemolymph and other tissues [7,8]. To utilize hemolymph trehalose, insect tissues contain trehalases (EC 3.2.1.28) that catalyze the hydrolysis of one mole of trehalose to two moles of glucose. Thus, trehalase is the enzyme that is required for the uptake or utilization of trehalose in the hemolymph of insects. Two types of trehalase, soluble trehalase (TRE1) and membrane-bound trehalase (TRE2), have been cloned and characterized in several insect species, such as Acyrthosiphon pisum, Bombyx mori, Helicoverpa armigera, and Harmonia axyridis [9,10,11,12]. Both TRE1 and TRE2 include a signal peptide, two signature motifs (PGGRFREFYYWDSY and QWDYPNAWPP), and one glycine-rich region [13]. Gibson et al. [14] have shown that the catalytic domain of E. coli trehalase displays an aspartate (Asp312) and a glutamate (Glu496) residue, which play the role of a general acid and a general base, respectively, similarly to hydrolases from the GH37 family. By site-directed mutagenesis in Spodoptera frugiperda, three arginine residues essential to the enzyme activity were identified inside the active site [15]. To date, no three-dimensional (3D) structure is available from experimental data for TREs from plants, animals, or fungi, whereas molecular modeling studies have predicted the 3D structure of insect TREs in Bombyx mori [10], Helicoverpa armigera [11], Drosophila melanogaster [16], Chironomus riparius [17], and Delia antiqua [18]. There are also individual protein differences among different insects [10,17]. In vivo, soluble trehalase accounts for the majority of the overall trehalase enzyme activity, according to previous studies [19]. The main function of TRE1 is to decompose trehalose in cells. TRE1 is an essential enzyme in insect energy metabolism and the first enzyme in the chitin synthesis pathway in insects [11].
The rice water weevil, Lissorhoptrus oryzophilus Kuschel (Coleoptera: Curculionidae), is the most harmful and widely distributed early-season pest of rice in the USA [20] and causes serious economic issues in wetland rice agriculture, resulting in losses of up to 25% in untreated fields [21]. Parthenogenetic female Lissorhoptrus oryzophilus (L. oryzophilus) have quickly invaded many rice-growing regions around the world [20,22,23]. In China, L. oryzophilus were first discovered in 1998; they have rapidly invaded 78% of the provinces and have become the foremost widespread invasive pest [24]. L. oryzophilus have caused serious harm to the rice in the invaded area.
In this paper, we analyzed the sequence, structural characteristics, and expression patterns of LoTRE1. We also expressed recombinant LoTRE1 and studied its physicochemical properties to gain insight into the optimum conditions for its activity, including temperature and pH. Furthermore, we used RNAi to study the function of the LoTRE1 gene and detected changes in target gene expression, trehalase activity, and trehalose content. The findings of our research are critical for understanding the performance of trehalase at the molecular level, as well as the potential to adapt to future invasions. The characterization of trehalase genes could facilitate the development of novel ways to manage L. oryzophilus.

2. Materials and Methods

2.1. Insect Culture and Tissue Collection

L. oryzophilus adults were collected from Changchun, Jilin Province, China, and reared on rice seedlings under a 16 h light/8 h dark photoperiod at 26 ± 1 °C with 80 ± 5% relative humidity. The adults and different tissues (hemolymph, midgut, head, wing, fat body, and leg) of dissected L. oryzophilus were promptly immersed in liquid nitrogen and stored at −80 °C until use.

2.2. Total RNA Extraction and cDNA Synthesis

Total RNA was extracted from adults and different tissues using RNAiso Plus (Takara, Dalian, China) according to the manufacturer’s instructions for gene cloning and spatial expression. The RNA integrity and concentration were checked using agarose gel electrophoresis and spectrophotometry (NanoDrop2000, Wilmington, DE, USA), respectively. Then, approximately 1 μg of total RNA was utilized for the synthesis of first-strand cDNA by using the PrimeScript™ RT Reagent Kit with gDNA Eraser (Takara, Dalian, China). The synthesized cDNA was stored at −20 °C until use.

2.3. Identification of the LoTRE1 Gene and Bioinformatics Analysis

The sequence of LoTRE1 was identified using our unpublished transcriptome data. The amino acid sequence of LoTRE1 was deduced using DNAMAN software. Open reading frames (ORFs) of genes were predicted using ORF finder (https://www.ncbi.nlm.nih.gov/orffinder/, accessed Date: 25 June 2021). Signal peptides and transmembrane domains were predicted using SignalP-5.0 (http://www.cbs.dtu.dk/services/SignalP/, accessed Date: 25 June 2021) and TMHMM2.0 (http://www.cbs.dtu.dk/services/TMHMM/, accessed Date: 25 June 2021), respectively. The molecular weight and theoretical isoelectric point of the deduced protein were calculated using the ExPASy Compute pI/Mw tool (http://web.expasy.org/compute_pi/, accessed Date: 25 June 2021) [25]. Multiple amino acid sequence alignments were performed by using DNAMAN software (http://www.lynnon.com/pc/alignm.html, accessed Date: 25 June 2021). The tertiary structures of LoTRE1 proteins were predicted using SOPMA (https://npsa-prabi.ibcp.fr/cgi-bin/secpred_sopma.pl, accessed Date: 25 June 2021) and SWISS-MODEL (https://swissmodel.expasy.org/, accessed Date: 25 June 2021). PDB files and molecular ligand data were obtained from ZINC (http://zinc15.docking.org/substances/home/, accessed Date: 25 June 2021). The molecular model docking calculations of LoTRE1 with ligands were performed by using the Autodock 4.2 program. BLASTX best hits were found using the BLASTX program provided by NCBI (http://blast.ncbi.nlm.nih.gov/Blast.cgi, accessed Date: 25 June 2021). Phylogenetic trees were constructed using MEGA 6.0 software with maximum-likelihood phylogenetic analysis. The tree was colored and arranged using iTOL (https://itol.embl.de/upload.cgi, accessed Date: 25 June 2021).

2.4. Quantitative Real-Time PCR

Primer pairs for qPCR were designed using Primer 5 software, as shown in Table 1. GAPDH was used as a reference gene. mRNA expression levels were measured using qPCR using SYBR qPCR SuperMix (TransGen, Beijing, China). Each amplification reaction was carried out in a total volume of 20 μL, with 1 µL of cDNA, 10 µL of green qPCR SuperMix, 0.4 µL of forward primer, 0.4 µL of reverse primer, and 8.2 µL RNase-free water. qPCR was performed on an ABI 7500 Real-Time PCR System (Applied Biosystems, Carlsbad, CA, USA) under the following conditions: initial denaturation at 94 °C for 30 s, followed by 40 cycles of denaturation at 94 °C for 5 s, annealing at 55 °C for 15 s, and extension at 72 °C for 10 s. To calculate the relative expression levels, melting curves were evaluated to confirm the single peak and check amplification specificity after qPCR. Standard deviations and means were obtained from the mean of three biological replicates with three corresponding technical replicates. The relative expression value of the LoTRE1 gene was calculated using the 2−ΔΔCt method [26].

2.5. Protein Expression and Purification

The coding region of the LoTRE1 gene was subcloned into the BamHI/XhoI sites of the pET28a (+) vector and then transformed into Rosetta (DE3) E. coli competent cells. The colonies were grown on Luria–Bertani culture medium with kanamycin (50 mg/mL). The positive monoclones were cultured in liquid LB medium (supplemented with 50 mg/mL kanamycin) overnight at 37 °C. The culture was diluted at 1:100 in liquid LB and incubated at 37 °C for 3–4 h until the OD600 reached 0.4–0.6. Isopropyl-β-d-thiogalactoside (IPTG) was added at final concentrations of 0.1, 0.4, 0.8, and 1.0 mmol/L, and then the culture was incubated at different temperatures (28 and 37 °C) for 8 h. Centrifugation (5000 rpm, 5 min, 4 °C) was performed to harvest the cells, and the collected cells were suspended in 1× phosphate-buffered saline (PBS). The suspension was sonicated on ice and centrifuged (5000 rpm, 5 min, 4 °C) for a second time. Protein present in the supernatant was purified with a Ni-NTA Gravity Column (Sangon, Shanghai, China). The purified protein was assessed using SDS–PAGE and then quantified via the Bradford assay with BSA as the standard.

2.6. Western Blot Analysis

The purified protein was separated using 10% SDS–PAGE and then transferred to a polyvinylidene fluoride (PVDF) membrane (100 V, 1 h). The membrane was treated with 5% blocking protein powder in TBST (1 M Tris-HCl pH 7.5, 500 mM NaCl, and 0.2% Tween 20) for 1 h at room temperature and reacted with the anti-6 × His tag mouse monoclonal antibody (Sangon, Shanghai, China) in TBST for 1.5 h at room temperature. The membrane was washed with TBST 4 times for 5 min each time and then incubated with AP-conjugated goat anti-mouse IgG (Sangon, Shanghai, China) in TBST for 1 h at room temperature. The NBT/BCIP substrate solution (Sangon, Shanghai, China) was utilized to visualize the protein band after the PVDF membrane was washed again.

2.7. Enzyme Activity Assay In Vitro

The 3,5-dinitrosalicylic acid technique was used to indirectly measure trehalase activity [27]. The reaction mixture (1 mL) consisted of 10 µL purified protein, 50 µL trehalose (200 mmol/L), and 940 µL PBS. PBS was prepared for a pH range of 3.0–7.0 The mixture was incubated in each pH buffer at 25 °C for 30 min and subjected to boiling for 5 min. The coagulated protein was removed by centrifugation at 12,000 rpm for 10 min at 4 °C. Trehalase activity was determined by measuring the content of glucose released during incubation. Similarly, for the measurement of trehalase activity at different temperatures, the mixture containing PBS (pH 7.0) and other components was incubated at the 9 individual temperatures, which ranged from 5 to 75 °C. To determine the kinetic parameters (Km and Vmax) of trehalase, substrates at different concentrations (1, 2.5, 5, 7.5, and 10 mmol/L) were added to the reaction mixture and incubated at 50 °C and pH 7.0 for 30 min. The trehalase activity was recorded with a UV-2450 spectrophotometer (Shimadzu, Japan). One unit of enzyme activity (U) was defined as the amount of protein that released 1 μmol of glucose in 1 min. Each experiment was replicated three times.

2.8. dsRNA Synthesis and Feeding

The dsRNA of LoTRE1 was synthesized using the T7 RioMAX Express RNAi System (Promega, San Luis Obispo, CA, USA) according to the manufacturer’s recommendations. Green fluorescent protein (GFP) dsRNA was used as the control. The primers used to synthesize the dsRNA are listed in Table 1.
A total of 270 L. oryzophilus adults were divided into three groups, and each group was fed rice leaves with dsGFP, dsLoTRE1, and RNase-free water. Approximately 30 individuals were fed per treatment. Each group contained three biological replicates. Edges of approximately 1 cm were cut from both ends of fresh rice leaves, and the leaves were dried for 30 s at 55 °C in a drying oven. The rice leaves were immersed in 10 mL centrifuge tubes containing 500 ng/µL dsRNA for 6 h. The adults of L. oryzophilus were transferred to a new 10 mL centrifuge tube, and each tube contained 30 insects. The treated rice leaves were put into the centrifuge tubes containing L. oryzophilus adults, and then the centrifuge tubes were sealed with gauze. dsRNA feeding was continued for 12 h, and the leaves were replaced with fresh rice leaves without dsRNA every 24 h. The dead insects were picked out with a brush, and the number of dead insects was recorded. Fresh leaves and dsGFP-treated leaves were used as controls. Total RNA from treated L. oryzophilus adults was extracted as a template, and specific primers (Table 1) were used for quantitative RT–qPCR. Each RT–qPCR biological replicate contained three surviving L. oryzophilus adults. Three biological replicates and three technical replicates were set for each treatment group.

2.9. Determination of Trehalase Activity and Sugar Content In Vivo

A total of 30 L. oryzophilus adults were placed in a 10 mL centrifuge tube and fed with rice leaves treated with dsRNA for 12 h, then transferred to fresh rice leaves without dsRNA. The surviving individuals were picked out with a brush after 48 h. The enzymatic analysis of the activity of trehalase (THL) was performed using a THL kit according to the manufacturer’s instructions (Solarbio, Beijing, China), and the trehalose content was determined according to the manufacturer’s instructions for the Trehalose Content Kit (Solarbio, Beijing, China). Each experiment was replicated three times.

2.10. Statistical Analysis

All data obtained during this study were expressed as the means ± standard deviations of three replicates and were tested with a one-way ANOVA and t tests using SPSS 22.0. p values of less than 0.01 indicated significant (**) differences.

3. Results

3.1. Sequence Analysis of LoTRE1

LoTRE1 was identified from our unpublished transcriptome data of L. oryzophilus. Through homology searching in our transcriptional sets, the sequence of LoTRE1 was found to contain an 1839 bp-long open reading frame encoding 612 amino acid residues (approximately 70833 Da and a theoretical isoelectric point (pI) of 5.38). A signal peptide of 25 amino acids and a cleavage site (IAI-YK) between residues 25 and 26 were identified (Figure 1). LoTRE1 had two signature motifs (PGGRFREFYYWDSY and QWDYPNAWPP) and a highly conserved glycine-rich region (GGGGEY). Four N-glycosylation sites (residues 336, 579, 580, and 581) were identified in the LoTRE1 sequence (Figure 1). TMHMM predicted that there were no transmembrane domains.
Multiple sequence alignment was performed to analyze evolutionarily or structurally related positions between LoTRE1 and its homologues based on the amino acid sequence (Figure 2). LoTRE1 showed approximately 55–72% sequence identity with other Coleoptera insect trehalases. The greatest sequence identity (72%) was with trehalase (GenBank ID: XP 030756586.1) from Sitophilus oryzae, and the lowest sequence identity (55%) was with trehalase (GenBank ID: XP_031336857.1) from Photinus pyralis. To investigate the evolutionary relationships of LoTRE1, a phylogenetic tree of LoTRE1 was constructed along with several previously studied TREs from 24 species of Coleoptera, Hemiptera, Blattaria, and Hymenoptera using maximum-likelihood phylogenetic analysis (Figure 3). The results showed that LoTRE1 shared the highest homology with the genes from Sitophilus oryzae and Rhynchophorus ferrugineus.

3.2. Spatial Expression Patterns of LoTRE1

The expression profiles of LoTRE1 in numerous tissues were probed using qPCR. LoTRE1 was shown to be expressed in a variety of tissues, including the head, midgut, hemolymph, wing, leg, and fat body (Figure 4). Remarkably, LoTRE1 had high expression within the fat body; however, it had the lowest expression in the wing. The relative expression in the fat body was 120 times that in the wing.

3.3. Molecular Docking and Key Binding Sites of LoTRE1

The SWISS-MODEL service was used to predict the three-dimensional structure of LoTRE1 based on the resolved crystal structure of the periplasmic trehalase of E. coli (PDB ID 2WYN; Figure 5). A Ramachandran plot and the Procheck server were used to verify the homology model’s dependability (Figure 6). A total of 89.7% of amino acid residues were in the most favored regions, 9.9% of amino acid residues were in the additional regions, and 0.2% of amino acid residues were in the disallowed regions. Thus, this was a high-quality model. The predicted α-toroidal structure of LoTRE1 was very similar to that of the periplasmic trehalase of E. coli, but one β-sheet was absent in LoTRE1 at position 1.
A molecular docking study was performed to further understand the interaction of trehalose with trehalase and to obtain insight into the binding location of this molecule on trehalase. The 3D protein structure with small molecular compounds was studied using molecular docking simulations (Figure 7). The results showed that trehalose bound tightly to LoTRE1 (G = −1.36 kcal/mol). The docking results revealed that the interactions of trehalose with LoTRE1 were mediated by ARG 179, TRP 186, ASN 223, ARG 232, GLN 234, ARG 297, GLU 299, GLY331, ASP 333, and TRP 477.

3.4. Protein Expression and Purification

To obtain recombinant LoTRE1 protein in large quantities, we induced protein production in E. coli Rosetta (DE3) cells under different induction conditions (Figure 8A). The molecular weight of the trehalase protein was found to be close to the predicted size in all the tests (70 kDa). Therefore, we chose a final concentration of 0.1 mmol/L IPTG at 28 °C to obtain large quantities of recombinant protein. In addition, the LoTRE1 recombinant protein was mostly expressed as soluble protein (Figure 8B). The purified LoTRE1 protein was analyzed using SDS–PAGE (Figure 8C), and one obvious unique band appeared at the predicted size (70 kDa). The expression of the recombinant LoTRE1 protein was verified using Western blotting (Figure 8D). The concentration of the purified LoTRE1 protein was 0.98 mg/mL.

3.5. Enzymatic Assays of LoTRE1 In Vitro

The enzyme activity increased with increasing temperature and pH. The optimum activity of LoTRE1 was found at 50 °C and pH 7.0, beyond which the enzyme activity decreased. No catalytic ability was found at temperatures above 75 °C or below 5 °C, indicating that the catalytic performance of LoTRE1 had a restricted temperature range. Under the optimal conditions, the specific activity of purified LoTRE1 was 58.47 ± 1.74 U/mg. The kinetic parameters km and Vmax of LoTRE1 were 48.6 mmol/L and 1.108 mmol/(L·min), respectively (Figure 9).

3.6. Silencing of LoTRE1 by RNAi

qPCR was performed to prove the effectiveness of RNAi in L. oryzophilus. Feeding dsRNA-LoTRE1 significantly reduced the expression levels of trehalase in the rice water weevil compared with that in the nontarget control group within 24 and 48 h (p < 0.01). The results showed that RNAi reduced the expression levels of LoTRE1 to 40 % at 24 h and 56 % at 48 h in L. oryzophilus (Figure 10A). The mortality rate of L. oryzophilus increased significantly (p < 0.01) at 24 h (9%) and 48 h (12%) after dsTRE1 feeding (Figure 10B).

3.7. The Effect of LoTRE1 Silencing on Trehalose Metabolism

At 48 h after feeding dsRNA-LoTRE1, the trehalase activity of L. oryzophilus was 13.14 ± 0.47 U/g, which was 31.6% lower than that of the control group (Figure 11A), and there was a significant difference compared with the control group (p < 0.01). The trehalose content of L. oryzophilus was 5.73 ± 0.60 mg/g, which was 130% higher than that of the control group (Figure 11B), and there was a significant difference compared with the control group (p < 0.01).

4. Discussion

Trehalase catalyzes the hydrolysis of trehalose and plays a vital role in insect metabolism. The amount of trehalases has been found to differ among insect species. A total of three trehalase genes were found in N. lugens, and three trehalase genes were identified in Tribolium castaneum [28,29]. One trehalase gene, LoTRE1, was identified from our previous transcriptome database of L. oryzophilus, and the analysis of the deduced amino acid sequence demonstrated that LoTRE1 encodes a soluble trehalase. LoTRE1 contained some conserved regions, including one signal peptide, two signature motifs, four putative glycosylation sites, and a highly conserved glycine-rich sequence. The findings were consistent with those for trehalase genes found in other Coleoptera species. Amino acid sequence alignment showed that LoTRE1 shared high identity with some known insect trehalases. The LoTRE1 sequence shared the highest identity with that of S. oryzae (72% identity GenBank ID: XP 030756586.1), followed by those of R. ferrugineus (70% identity GenBank ID: KAF7271780.1), A. planipennis (65% identity GenBank ID: XP_018322659.1), H. axyridis (59% identity GenBank ID: AOT82130.1), and P. pyralis (55% identity GenBank ID: XP_031336857.1). The phylogenetic tree revealed that LoTRE1 shared the highest homology with the genes from Sitophilus oryzae and Rhynchophorus ferrugineus.
The model of LoTRE1 shared a general α-toroidal architecture with the template protein. According to the CAZy database, insect trehalases are mostly members of GH family 37 and possess glutamic acid (Glu) as a nucleophile, while their proton donor is aspartic acid (Asp) [16]. We identified Asp 333 and Glu 299 as important catalytic residues in the LoTRE1 model by comparing it to the E. coli periplasmic trehalase. The trehalose molecule occupies a space in the active center pocket of the enzyme that contains potential acid (Asp 333) and base (Glu 299) residues, as well as three conserved Arg residues (R 179, R 232, R 297). Our results with LoTRE1 were consistent with those reported in other insect trehalases [9,30]. The primary three-dimensional structure of LoTRE1 was similar to the periplasmic trehalase of E. coli. Both structures mainly consisted of α-helixes and were surrounded by α-toroidal structures. This structure was also observed in the trehalase of other insects [9,17]. According to Silva et al., guanidine groups and Arg residues are required for soluble trehalase activity, and chemical alteration of these residues results in enzyme inactivation. This was later confirmed by site-directed alterations in three Arg residues within the enzyme’s active site pocket [15].
In some insect species, TRE1 has been purified from the goblet cell cavity, hemolymph, egg homogenates, and midgut [31]. The tissue expression pattern analysis revealed that LoTRE1 was most highly expressed in the fat body, followed by the midgut. Yu et al. (2021) found that trehalase was most highly expressed in the head and wings of Diaphorina citr [32]. Ma et al. (2015) found the highest expression of trehalase in the midgut in Helicoverpa armigera [33]. These results indicate that TRE1 could serve completely different functions in several tissues during the development of various insects. The insect fat body functions as an energy storage center. It is also the organization center of the metabolic processes of insects, such as growth, development, metamorphosis, and reproduction. Trehalase could cooperate with the hormones in fat to dynamically control the concentrations of trehalose and glucose in insects [34].
Trehalases can be divided into acidic trehalases and neutral trehalases according to their optimal pH. Inagaki et al. (2001) found that the optimum pH of the trehalase from Acidobacterium capsulatum was 2.5 [35]. Lee et al. (2001) revealed that the optimum pH of the trehalase from Apis mellifera was 6.7 [36]. In this study, the recombinant LoTRE1 protein had enzyme activity in the range of pH 3.0~9.0, but the highest activity was observed at pH 7.0, which indicated that the LoTRE1 protein has the best enzyme activity in neutral environments. Previous studies have shown that the optimum temperature of trehalase is generally high, usually at 40~65 °C [37]. In this experiment, LoTRE1 had no activity at temperatures below 5 °C, and the enzyme activity increased gradually with increasing temperature. When the system temperature exceeded 75 °C, LoTRE1 activity was lost. Shukla et al. (2016) revealed that the optimum temperature of the trehalase from Drosophila melanogaster was 55 °C [16], Ai et al. (2018) revealed that the optimum temperature of the trehalase from Helicoverpa armigera was 55 °C [11]. Since trehalase remains the only enzyme known for the irreversible splitting of trehalose under physiological conditions, heterologous expression of LoTRE1 can be used to explore the biochemical characteristics and kinetic properties of the enzyme.
RNAi is a highly conserved mechanism initiated by sequence-specific double-stranded RNA (dsRNA), leading to target-specific endogenous gene silencing [38]. RNAi has been widely accepted as a powerful tool for gene function research and is relatively well-established in a variety of insects, such as Bemisia tabacii [39] and Hemiptera [40]. Previous studies have shown that silencing trehalase in Leptinotarsa decemlineata caused larval death [32]. Silencing of trehalase in Nilaparvata lugens caused phenotypic deformities [41]. These results suggested that trehalase has a biological function in insect development and survival. In this study, RNAi was performed to determine whether the levels of LoTRE1 would affect L. oryzophilus development and survival. The results indicated that dsRNA feeding-mediated silencing of the LoTRE1 gene caused not only downregulation of the transcript level of LoTRE1 but also decreased trehalase activity in treated adults. In contrast, silencing of LoTRE1 increased the trehalose content and resulted in lethal effects in adults. In agreement with our results, knockdown of the trehalase gene led to mortality in treated Harmonia axyridis and Spodoptera exigua [12,42]. In addition, silencing HaTRE1 led to significant decreases in the ability of females to attract males and successful mating proportions [43]. Trehalose has been well demonstrated in insect physiology as an energy source for insects, maintaining the glucose level [44]. The energy level and blood glucose content are affected in various cells of insects when the hydrolysis of trehalose to glucose is inhibited, and thus other physiological pathways are affected [42,45]. Trehalase can decompose the important energy storage material and the stress metabolite trehalose in insects. The changes in gene expression and enzyme activity affect the life processes of insects, including molting, metamorphosis, and reproduction [34]. Studies have shown that the TRE gene affects the levels of three sugars by regulating gene expression and enzyme activity [44,46]. These results collectively indicated that the LoTRE1 gene plays a vital role in L. oryzophilus by regulating the trehalose content. Feeding with dsTRE1 can disrupt the metabolism of trehalose in the body. The results lay a foundation for exploring the potential functions and regulatory mechanisms of insect TRE1, which could be useful for providing information for insect pest control in the future.
In conclusion, we identified one soluble trehalase gene from L. oryzophilus, analyzed its molecular characteristics, and explored its biochemical characteristics, kinetic properties, and optimum reaction conditions through heterologous expression analysis. The importance of LoTRE1 was inferred through RNAi. LoTRE1 is a key gene regulating the expression of trehalase and the trehalose content. However, the particular role of this gene is still unknown, and more research is needed to gain better knowledge of LoTRE1’s functions. The results of this study provide a good basis for further studies on the regulation of the expression of this gene and provide a potential target for the control of L. oryzophilus in the field.

Author Contributions

Formal analysis, K.F., L.Q., Y.P. and Y.L.; resources, Q.W., L.Q., X.W., and Y.L.; software, K.F., L.Q., X.W., Y.P. and Y.L.; supervision, Y.P., J.Z. and J.X.; investigation, K.F. and X.W.; conceptualization, Q.W., K.F. and J.X.; validation, L.Q.; methodology, Q.W. and Y.L.; funding acquisition, J.Z. and J.X.; project administration, J.Z. and J.X.; conceptualization, Q.W., K.F. and J.X.; writing—original draft, Q.W. and X.W.; writing—review and editing, Q.W., Y.P. and J.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Natural Science Foundation of Jilin province (20200201128JC).

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Elbein, A.D.; Pan, Y.T.; Pastuszak, I.; Carroll, D. New insights on trehalose: A multifunctional molecule. Glycobiology 2003, 13, 17R–27R. [Google Scholar] [CrossRef]
  2. Sakaguchi, M. Diverse and common features of trehalases and their contributions to microbial trehalose metabolism. Appl. Microbiol. Biotechnol. 2020, 104, 1837–1847. [Google Scholar] [CrossRef] [PubMed]
  3. Liu, X.-M.; Wu, X.-l.; Gao, W.; Qu, J.-B.; Chen, Q.; Huang, C.-Y.; Zhang, J.-X. Protective roles of trehalose in Pleurotus pulmonarius during heat stress response. J. Integr. Agric. 2019, 18, 428–437. [Google Scholar] [CrossRef]
  4. Shukla, E.; Thorat, L.; Bendre, A.D.; Jadhav, S.; Pal, J.K.; Nath, B.B.; Gaikwad, S.M. Cloning and characterization of trehalase: A conserved glycosidase from oriental midge, Chironomus ramosus. 3 Biotech 2018, 8, 7. [Google Scholar] [CrossRef]
  5. Tamang, A.M.; Kalra, B.; Parkash, R. Cold and desiccation stress induced changes in the accumulation and utilization of proline and trehalose in seasonal populations of Drosophila immigrans. Comp. Biochem. Physiol. Part A 2017, 203, 304–313. [Google Scholar] [CrossRef]
  6. Banaroudj, N.; Lee, D.H.; Goldberg, A.L. Trehalose accumulation during cellular stress protects cells and cellular proteins from damage by oxygen radicals. J. Biol. Chem. 2001, 276, 24261–24267. [Google Scholar] [CrossRef] [PubMed]
  7. Becker, A.; Schloder, P.; Steele, J.E.; Wegener, G. The regulation of trehalose metabolism in insects. Experientia 1996, 52, 433–439. [Google Scholar] [CrossRef]
  8. Thompson, S.N. Trehalose—The insect ‘blood’ sugar. In Advances in Insect Physiology; Simpson, S.J., Ed.; Advances in Insect Physiology; Academic Press Ltd-Elsevier Science Ltd.: London, UK, 2003; Volume 31, pp. 205–285. [Google Scholar]
  9. Neyman, V.; Francis, F.; Matagne, A.; Dieu, M.; Michaux, C.; Perpète, E.A. Purification and characterization of trehalase from Acyrthosiphon pisum, a target for pest control. Protein J. 2022, 41, 189–200. [Google Scholar] [CrossRef] [PubMed]
  10. Mitsumasu, K.; Azuma, M.; Niimi, T.; Yamashita, O.; Yaginuma, T. Membrane-penetrating trehalase from silkworm Bombyx mori. Molecular cloning and localization in larval midgut. Insect Mol. Biol. 2005, 14, 501–508. [Google Scholar] [CrossRef] [PubMed]
  11. Ai, D.; Cheng, S.H.; Chang, H.T.; Yang, T.; Wang, G.R.; Yu, C.H. Gene Cloning, Prokaryotic Expression, and Biochemical Characterization of a Soluble Trehalase in Helicoverpa armigera Hubner (Lepidoptera: Noctuidae). J. Insect Sci. 2018, 18, 8. [Google Scholar] [CrossRef] [PubMed]
  12. Li, Y.; Chen, X.; Wang, S.S.; Pan, B.Y.; Wang, S.G.; Wang, S.; Tang, B. Evaluation of the Expression and Function of the TRE2-like and TRE2 Genes in Ecdysis of Harmonia axyridis. Front. Physiol. 2019, 10, 11. [Google Scholar] [CrossRef]
  13. Tang, B.; Chen, X.F.; Liu, Y.; Tian, H.G.; Liu, J.; Hu, J.; Xu, W.H.; Zhang, W.Q. Characterization and expression patterns of a membrane-bound trehalase from Spodoptera exigua. BMC Mol. Biol. 2008, 9, 12. [Google Scholar] [CrossRef]
  14. Gibson, R.P.; Gloster, T.M.; Roberts, S.; Warren, R.A.J.; Storchde Gracia, I.; García, Á.; Chiara, J.L.; Davies, G.J. Molecular Basis for Trehalase Inhibition Revealed by the Structure of Trehalase in Complex with Potent Inhibitors. Angew. Chem. 2007, 119, 4193–4197. [Google Scholar] [CrossRef]
  15. Silva, M.C.; Terra, W.R.; Ferreira, C. The catalytic and other residues essential for the activity of the midgut trehalase from Spodoptera frugiperda. Insect Biochem. Mol. Biol 2010, 40, 733–741. [Google Scholar] [CrossRef]
  16. Shukla, E.; Thorat, L.; Bhavnani, V.; Bendre, A.D.; Pal, J.K.; Nath, B.B.; Gaikwad, S.M. Molecular cloning and in silico studies of physiologically significant trehalase from Drosophila melanogaster. Int. J. Biol. Macromol. 2016, 92, 282–292. [Google Scholar] [CrossRef]
  17. Forcella, M.; Mozzi, A.; Bigi, A.; Parenti, P.; Fusi, P. Molecular cloning of soluble trehalase from Chironomus riparius larvae, its heterologous expression in escherichia coli and bioinformatic analysis. Arch. Insect Biochem. Physiol. 2012, 81, 77–89. [Google Scholar] [CrossRef]
  18. Guo, Q.; Hao, Y.J.; Li, Y.; Zhang, Y.J.; Ren, S.; Si, F.L.; Chen, B. Gene cloning, characterization and expression and enzymatic activities related to trehalose metabolism during diapause of the onion maggot Delia antiqua (Diptera: Anthomyiidae). Gene 2015, 565, 106–115. [Google Scholar] [CrossRef]
  19. Tatun, N.; Singtripop, T.; Tungjitwitayakul, J.; Sakurai, S. Regulation of soluble and membrane-bound trehalase activity and expression of the enzyme in the larval midgut of the bamboo borer Omphisa fuscidentalis. Insect Biochem. Mol. Biol. 2008, 38, 788–795. [Google Scholar] [CrossRef]
  20. Aghaee, M.-A.; Godfrey, L.D. A Century of Rice Water Weevil (Coleoptera: Curculionidae): A History of Research and Management with an Emphasis on the United States. J. Integr. Pest. Manag. 2014, 5, D1–D14. [Google Scholar] [CrossRef]
  21. Reay-Jones, F.P.F.; Way, M.O.; Tarpley, L. Nitrogen fertilization at the rice panicle differentiation stage to compensate for rice water weevil (Coleoptera: Curculionidae) injury. Crop. Prot. 2008, 27, 84–89. [Google Scholar] [CrossRef]
  22. Saito, T.; Hirai, K.; Way, M.O. The rice water weevil, Lissorhoptrus oryzophilus Kuschel (Coleoptera: Curculionidae). Appl. Entomol. Zoolog. 2005, 40, 31–39. [Google Scholar] [CrossRef]
  23. Lupi, D.; Giudici, M.L.; Cenghialta, C.; Rocco, A.; Jucker, C.; Colombo, M. Japonica cultivars’ susceptibility to the rice water weevil Lissorhoptrus oryzophilus (Coleoptera: Curculionoidea: Brachyceridae). J. Appl. Entomol. 2013, 137, 355–364. [Google Scholar] [CrossRef]
  24. Gao, Y.L.; Reitz, S.R. Emerging Themes in Our Understanding of Species Displacements. Annu Rev Entomol. 2017, 62, 165–183. [Google Scholar] [CrossRef] [PubMed]
  25. Gasteiger, E.; Gattiker, A.; Hoogland, C.; Ivanyi, I.; Appel, R.D.; Bairoch, A. ExPASy: The proteomics server for in-depth protein knowledge and analysis. Nucleic Acids Res. 2003, 31, 3784–3788. [Google Scholar] [CrossRef]
  26. Pfaffl, M.W. A new mathematical model for relative quantification in real-time RT-PCR. Nucleic Acids Res. 2001, 29, 6. [Google Scholar] [CrossRef]
  27. Lindsay, H. A colorimetric estimation of reducing sugars in potatoes with 3,5-dinitrosalicylic acid. Potato Res. 1973, 16, 176–179. [Google Scholar] [CrossRef]
  28. Chen, J.Y.; Zhang, S.S.; Wang, Y.J.; Ding, L.N.; Zhao, S.G.; Tang, B. Molecular characterization of soluble trehalase and expression of dsRNA in Nilaparvata lugens. J. Hangzhou Norm. Univ. 2017, 16, 260–267. [Google Scholar]
  29. Tang, B.; Xiao, Z.J.; Zeng, B.P. Characteristics analysis of TRE gene and RNAi suppression expression effect of Tribolium castaneum. J. Environ. Entomol. 2019, 41, 1311–1320. [Google Scholar]
  30. Zou, Q.; Wei, P.; Xu, Q.; Zheng , H.Z.; Tang, B.; Wang, S.G. cDNA cloning and characterization of two trehalases from Spodoptera litura (Lepidoptera; Noctuidade). Genet. Mol. Res. 2013, 12, 901–915. [Google Scholar] [CrossRef]
  31. Silva, M.C.P.; Ribeiro, A.F.; Terra, W.R.; Ferreira, C. Sequencing of Spodoptera frugiperda midgut trehalases and demonstration of secretion of soluble trehalase by midgut columnar cells. Insect Mol. Biol. 2009, 18, 769–784. [Google Scholar] [CrossRef]
  32. Yu, H.Z.; Huang, Y.L.; Lu, Z.J.; Zhang, Q.; Su, H.N.; Du, Y.M.; Yi, L.; Zhong, B.L.; Chen, C.X. Inhibition of trehalase affects the trehalose and chitin metabolism pathways in Diaphorina citri (Hemiptera: Psyllidae). Insect Sci. 2021, 28, 718–734. [Google Scholar] [CrossRef] [PubMed]
  33. Ma, L.; Dai, W.; Li, X.C.; Zhang, Y.L.; Zhang, C.N. Molecular cloning and expression analysis of soluble and membrane-bound trehalase genes in the cotton bollworm, Helicaverpa armigera. J. Asia-Pac. Entomol. 2015, 18, 187–195. [Google Scholar] [CrossRef]
  34. Tang, B.; Xu, Q.; Zou, Q.; Fang, Q.; Wang, S.G.; Ye, G.Y. Sequencing and characterization of glycogen synthase and glycogen phosphorylase genes from Spodoptera exigua and analysis of their function in starvation and excessive sugar intake. Arch. Insect Biochem. Physiol. 2012, 80, 42–62. [Google Scholar] [CrossRef] [PubMed]
  35. Inagaki, K.; Ueno, N.; Tamura, T.; Tanaka, H. Purification and characterization of an acid trehalase from Acidobacterium capsulatum. J. Biosci. Bioeng. 2001, 91, 141–146. [Google Scholar] [CrossRef]
  36. Lee, J.H.; Tsuji, M.; Nakamura, M.; Nishimoto, M.; Okuyama, M.; Mori, H.; Kimura, A.; Matsui, H.; Chiba, S. Purification and identification of the essential ionizable groups of honeybee, Apis mellifera L., trehalase. Biosci. Biotechnol. Biochem. 2001, 65, 2657–2665. [Google Scholar] [CrossRef]
  37. Gu, J.; Ying, S.; Zhang, C.; Liu, Z.; Zhang, Y. Characterization of putative soluble and membrane-bound trehalases in a hemipteran insect, Nilaparvata lugens. J. Insect Physiol. 2009, 55, 997–1002. [Google Scholar] [CrossRef]
  38. Vogel, E.; Santos, D.; Mingels, L.; Verdonckt, T.W.; Broeck, J.V. RNA Interference in Insects: Protecting Beneficials and Controlling Pests. Front. Physiol. 2018, 9, 1912. [Google Scholar] [CrossRef]
  39. Tian, L.; Zeng, Y.; Xie, W.; Wu, Q.; Wang, S.; Zhou, X.; Zhang, Y. Genome-wide identification and analysis of genes associated with RNA interference in Bemisia tabaci. Pest Manag. Sci. 2019, 75, 3005–3014. [Google Scholar] [CrossRef]
  40. Jain, R.G.; Robinson, K.E.; Fletcher, S.J.; Mitter, N. RNAi-Based Functional Genomics in Hemiptera. Insects 2020, 11, 557. [Google Scholar] [CrossRef]
  41. Zhao, L.N.; Yang, M.M.; Shen, Q.D.; Liu, X.J.; Shi, Z.K.; Wang, S.G.; Tang, B. Functional characterization of three trehalase genes regulating the chitin metabolism pathway in rice brown planthopper using RNA interference. Sci. Rep. 2016, 6, 14. [Google Scholar] [CrossRef]
  42. Chen, J.; Tang, B.; Chen, H.X.; Yao, Q.; Huang, X.F.; Chen, J.; Zhang, D.W.; Zhang, W.Q. Different Functions of the Insect Soluble and Membrane-Bound Trehalase Genes in Chitin Biosynthesis Revealed by RNA Interference. PLoS ONE 2010, 5, 13. [Google Scholar] [CrossRef] [PubMed]
  43. Zhang, B.; Zhang, Y.H.; Guan, R.B.; Du, M.F.; Yin, X.M.; Zhao, W.L.; An, S.H. Trehalase is required for sex pheromone biosynthesis in Helicoverpa armigera. Insect Mol. Biol. 2022, 31, 334–345. [Google Scholar] [CrossRef] [PubMed]
  44. Santos, R.; Alves-Bezerra, M.; Rosas-Oliveira, R.; Majerowicz, D.; Meyer-Fernandes, J.R.; Gondim, K.C.; Meyer-Fernandes, J.R.; Gondim, K.C. Gene identification and enzymatic properties of a membrane-bound trehalase from the ovary of rhodnius prolixus. Arch. Insect Biochem. Physiol. 2012, 81, 199–213. [Google Scholar] [CrossRef]
  45. Shao, Z.M.; Ding, J.H.; Jiang, D.L.; Liu, Z.X.; Li, Y.J.C.; Wang, J.; Wang, J.; Sheng, S.; Wu, F.A. Characterization and Functional Analysis of trehalase Related to Chitin Metabolism in Glyphodes pyloalis Walker (Lepidoptera: Pyralidae). Insects 2021, 12, 370. [Google Scholar] [CrossRef]
  46. Shi, Z.K.; Liu, X.J.; Xu, Q.Y.; Qin, Z.; Wang, S.; Zhang, F.; Wang, S.G.; Tang, B. Two novel soluble trehalase genes cloned from Harmonia axyridis and regulation of the enzyme in a rapid changing temperature. Comp. Biochem. Physiol. B-Biochem. Mol. Biol. 2016, 198, 10–18. [Google Scholar] [CrossRef]

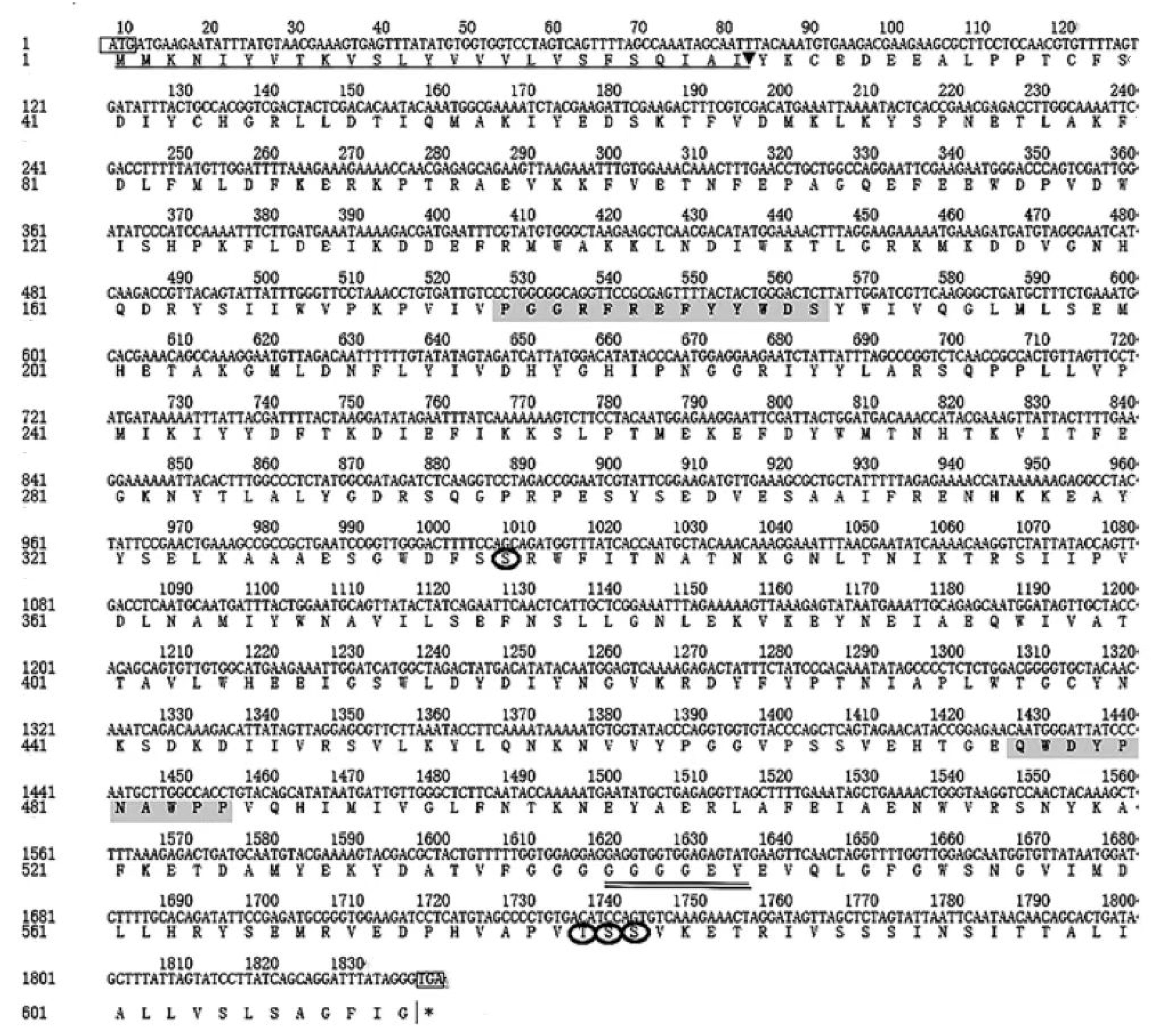

Figure 1. Nucleotide sequence and deduced amino acid sequence of LoTRE1. The black box in the figure indicates the start codon (ATG) and stop codon (TGA). Underlined amino acid residues (1–25) and the arrowhead represent the signal peptide and putative cleavage site, respectively. Trehalase signature motifs (amino acid residues 176–189 and 476–485) are shaded. Four potential N-glycosylation sites (amino acid residues 336, 579, 580, and 581) are encircled. The highly conserved glycine-rich region is double underlined.
Figure 1. Nucleotide sequence and deduced amino acid sequence of LoTRE1. The black box in the figure indicates the start codon (ATG) and stop codon (TGA). Underlined amino acid residues (1–25) and the arrowhead represent the signal peptide and putative cleavage site, respectively. Trehalase signature motifs (amino acid residues 176–189 and 476–485) are shaded. Four potential N-glycosylation sites (amino acid residues 336, 579, 580, and 581) are encircled. The highly conserved glycine-rich region is double underlined.
Insects 13 00867 g001

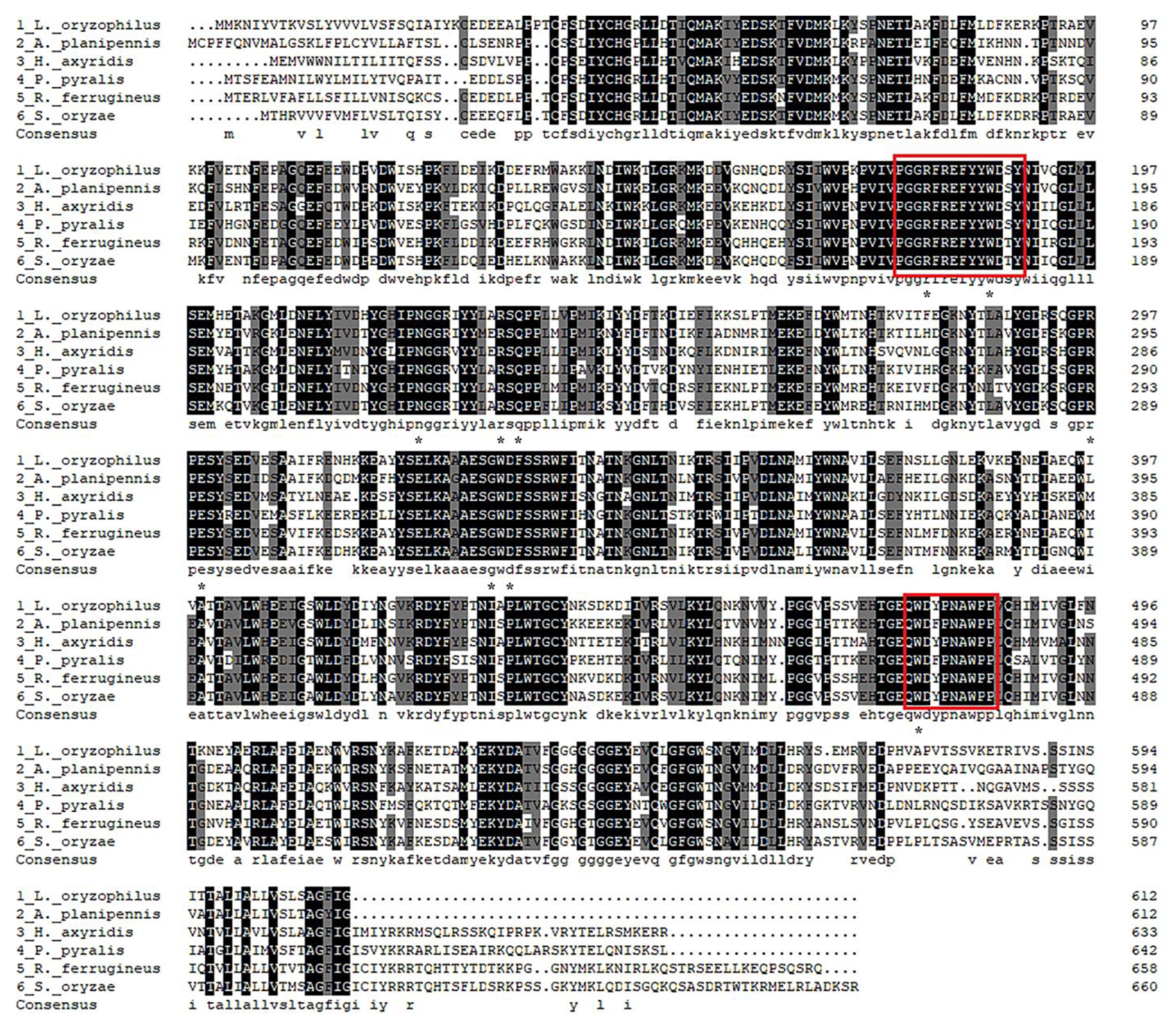

Figure 2. Multiple alignment of soluble trehalase amino acid sequences from Coleoptera insects. The following sequences were utilized in the alignment: ApTRE from Agrilus planipennis (XP_018322659.1), HaTRE from Harmonia axyridis (AOT82130.1), PpTRE from Photinus pyralis (XP_031336857.1), RfTRE from Rhynchophorus ferrugineus (KAF7271780.1), and SoTRE from Sitophilus oryzae (XP 030756586.1). Alignments were performed with ClustalX2. The interaction sites between trehalose and LoTRE1 are indicated by (*). The two signature motifs based on Lissorhoptrus oryzophilus TRE1 are in red boxes in the alignment. Conserved and highly conserved amino acid residues are highlighted in grey and black, respectively.
Figure 2. Multiple alignment of soluble trehalase amino acid sequences from Coleoptera insects. The following sequences were utilized in the alignment: ApTRE from Agrilus planipennis (XP_018322659.1), HaTRE from Harmonia axyridis (AOT82130.1), PpTRE from Photinus pyralis (XP_031336857.1), RfTRE from Rhynchophorus ferrugineus (KAF7271780.1), and SoTRE from Sitophilus oryzae (XP 030756586.1). Alignments were performed with ClustalX2. The interaction sites between trehalose and LoTRE1 are indicated by (*). The two signature motifs based on Lissorhoptrus oryzophilus TRE1 are in red boxes in the alignment. Conserved and highly conserved amino acid residues are highlighted in grey and black, respectively.
Insects 13 00867 g002

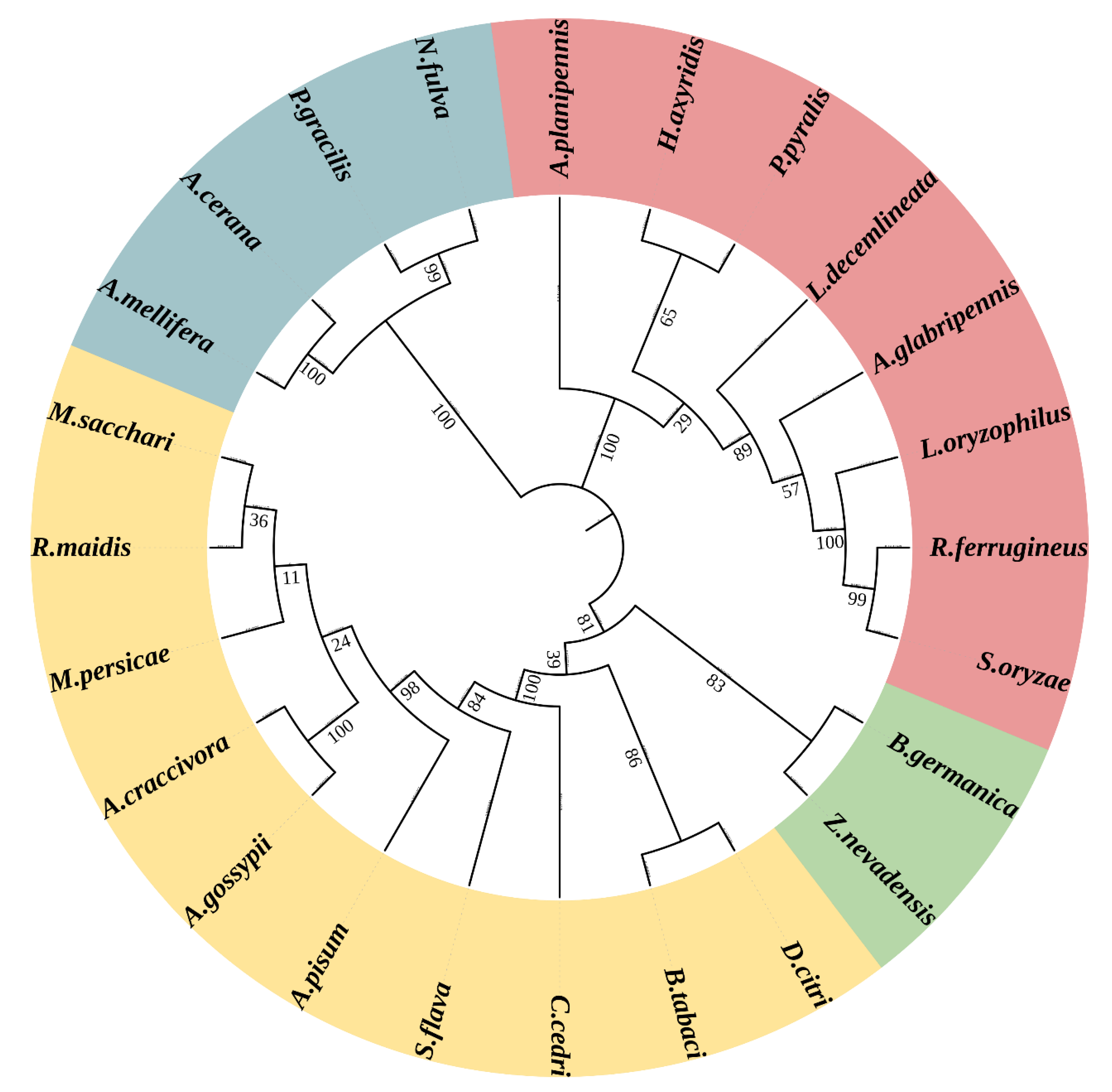

Figure 3. The phylogenetic tree was constructed using the maximum-likelihood method based on amino acid sequence alignment. Full-length amino acid sequences were aligned using the Mega 6 program to generate a phylogenetic tree. A bootstrap analysis was carried out, and the robustness of each cluster was verified in 1000 replications. Red represents Coleoptera, brown represents Hemiptera, green represents Blattaria, and blue represents Hymenoptera. A. mellifera, NP_001106141.1; A. cerana, XP_016903816.1; P. gracilis, XP_020290660.1; N. fulva, XP_029165580.1; A. planipennis, XP_018322659.1; H. axyridis, AOT82130.1; P. pyralis, XP_031336857.1; L. decemlineata, XP_023020910.1; A. glabripennis, XP_018571289.1; R. ferrugineus, KAF7271780.1; S. oryzae, XP 030756586.1; B. germanica, PSN49112.1; Z. nevadensis, KDR17472.1; D. citri, P_008474901.1; B. tabaci, XP_018905428.1; C. cedri, VVC30114.1; S. flava, XP_025410170.1; A. pisum, XP_003248025.1; A. craccivora, KAF0772952.1; M. persicae, XP_022174955.1; R. maidis, XP_026821537.1; M. sacchari, XP_025190889.1.
Figure 3. The phylogenetic tree was constructed using the maximum-likelihood method based on amino acid sequence alignment. Full-length amino acid sequences were aligned using the Mega 6 program to generate a phylogenetic tree. A bootstrap analysis was carried out, and the robustness of each cluster was verified in 1000 replications. Red represents Coleoptera, brown represents Hemiptera, green represents Blattaria, and blue represents Hymenoptera. A. mellifera, NP_001106141.1; A. cerana, XP_016903816.1; P. gracilis, XP_020290660.1; N. fulva, XP_029165580.1; A. planipennis, XP_018322659.1; H. axyridis, AOT82130.1; P. pyralis, XP_031336857.1; L. decemlineata, XP_023020910.1; A. glabripennis, XP_018571289.1; R. ferrugineus, KAF7271780.1; S. oryzae, XP 030756586.1; B. germanica, PSN49112.1; Z. nevadensis, KDR17472.1; D. citri, P_008474901.1; B. tabaci, XP_018905428.1; C. cedri, VVC30114.1; S. flava, XP_025410170.1; A. pisum, XP_003248025.1; A. craccivora, KAF0772952.1; M. persicae, XP_022174955.1; R. maidis, XP_026821537.1; M. sacchari, XP_025190889.1.
Insects 13 00867 g003

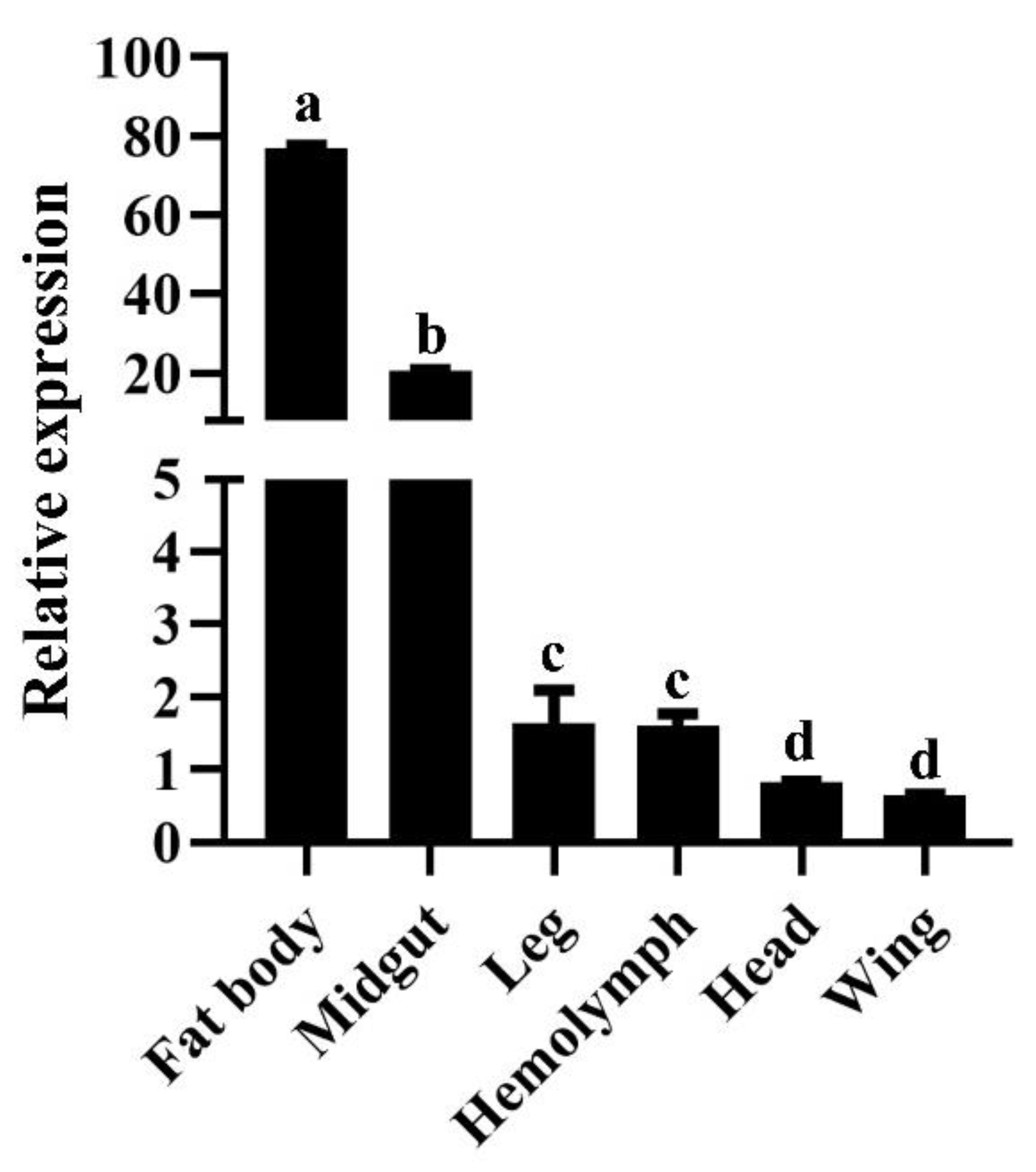

Figure 4. Relative expression levels of LoTRE1 in different tissues of adult L. oryzophilus. All data obtained were expressed as the means ± standard deviations of three replicates and were tested using a one-way ANOVA and t tests using SPSS 22.0. The significant changes are indicated by different letters above the bars. (p < 0.05).
Figure 4. Relative expression levels of LoTRE1 in different tissues of adult L. oryzophilus. All data obtained were expressed as the means ± standard deviations of three replicates and were tested using a one-way ANOVA and t tests using SPSS 22.0. The significant changes are indicated by different letters above the bars. (p < 0.05).
Insects 13 00867 g004

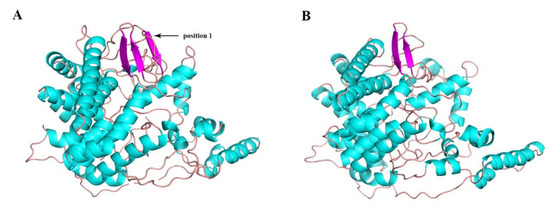

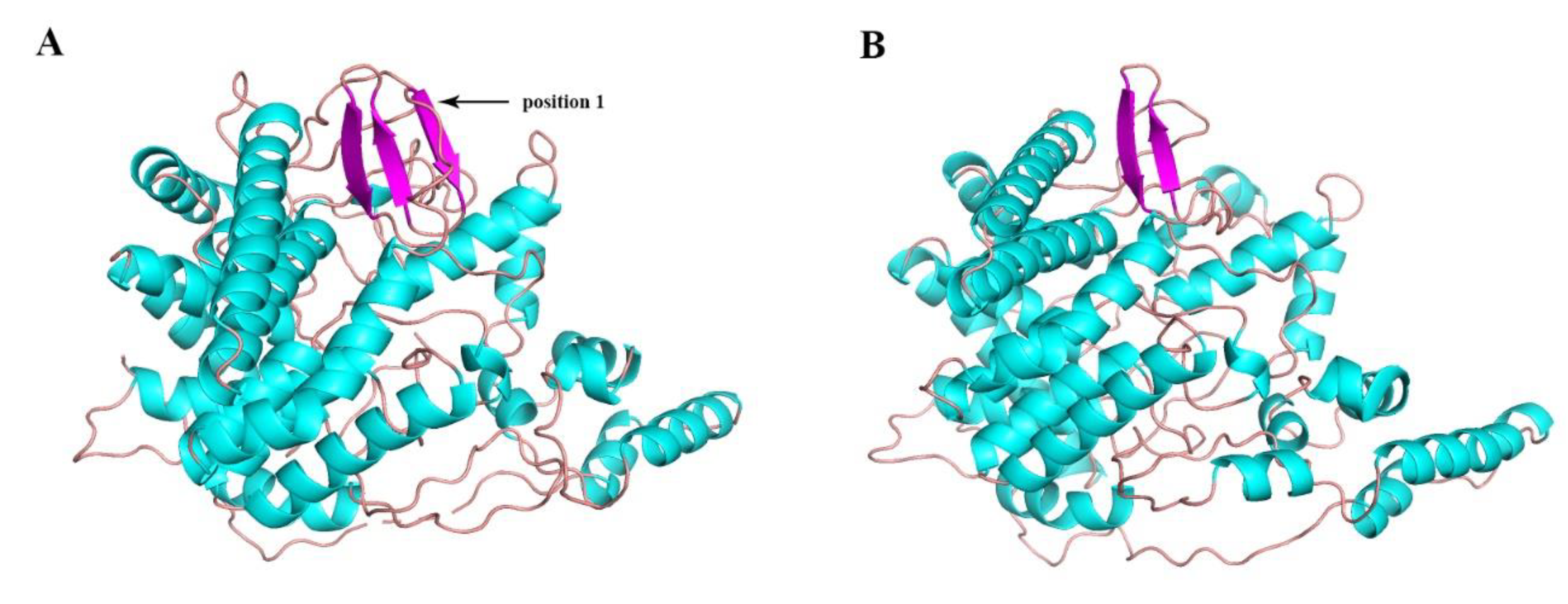

Figure 5. Three-dimensional structure of the E. coli periplasmic trehalase (A) and the homology model of the L. oryzophilus trehalase (B). The differences between the structures are highlighted with arrows.
Figure 5. Three-dimensional structure of the E. coli periplasmic trehalase (A) and the homology model of the L. oryzophilus trehalase (B). The differences between the structures are highlighted with arrows.
Insects 13 00867 g005

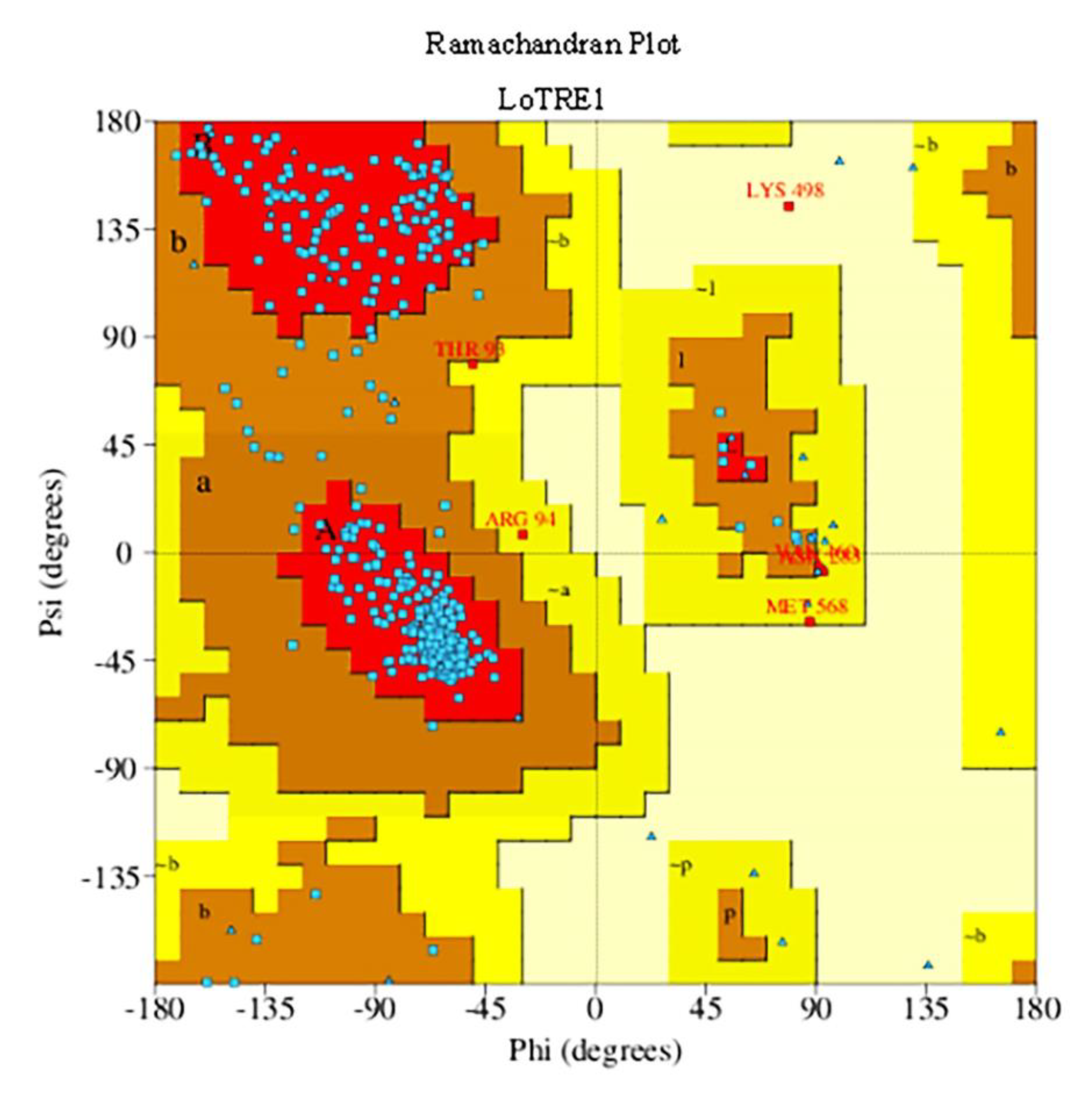

Figure 6. Ramachandran plot of LoTRE1.
Figure 6. Ramachandran plot of LoTRE1.
Insects 13 00867 g006

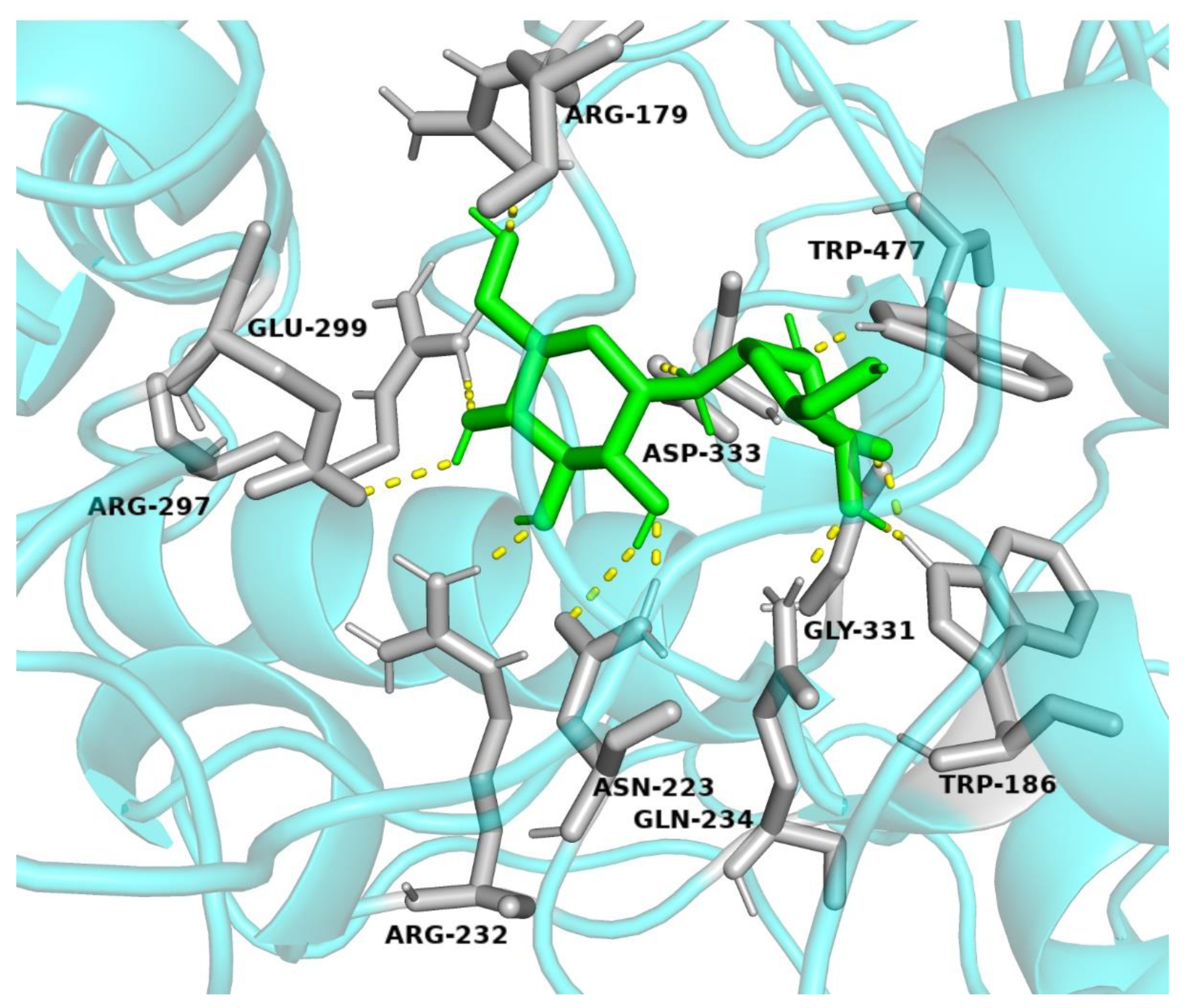

Figure 7. Molecular docking of LoTRE1. The ligands and the key residues are shown as stick models. Hydrogen bonds are shown as yellow lines, ligands are shown in green, and key residues are shown in grey. The figure was drawn using PyMOL.
Figure 7. Molecular docking of LoTRE1. The ligands and the key residues are shown as stick models. Hydrogen bonds are shown as yellow lines, ligands are shown in green, and key residues are shown in grey. The figure was drawn using PyMOL.
Insects 13 00867 g007

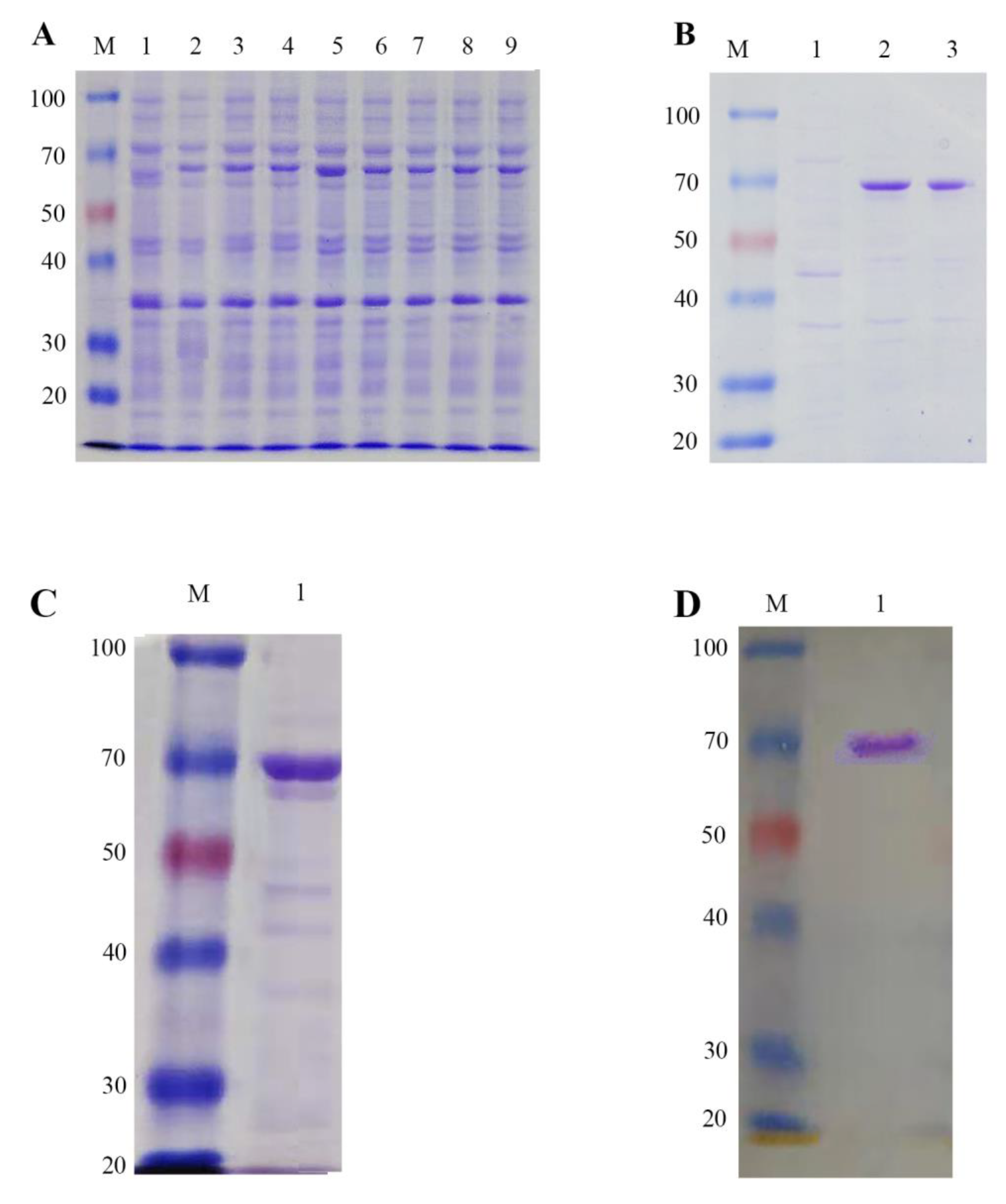

Figure 8. The recombinant protein LoTRE1 was expressed and purified. (A) Expression of recombinant LoTRE1 protein induced with IPTG under various conditions. Lane M: molecular weight marker. Lane 1: Uninduced cells of E. coli Rosetta (DE3). Lanes 2–4: The protein production in the E. coli Rosetta (DE3) cells induced with 0.1, 0.4, 0.8, and 1.0 mmol/L IPTG at 28 °C. Lanes 5–9: Protein production in the E. coli Rosetta (DE3) cells induced with 0.1, 0.4, 0.8, and 1.0 mmol/L IPTG at 37 °C. (B) Determination of the target protein’s expression form. Lane M: molecular weight marker. Lane 1: Uninduced cells of E. coli Rosetta (DE3). Lane 2: The target protein in the supernatant after sonication and centrifugation. Lane 3: The target protein in the sediments after sonication and centrifugation. (C) Purification of the LoTRE1 recombinant protein. Lane M: Molecular weight marker. Lane 1: Purified target protein. (D) Western blot. Lane M: Molecular weight marker. Lane 1: Purified target protein.
Figure 8. The recombinant protein LoTRE1 was expressed and purified. (A) Expression of recombinant LoTRE1 protein induced with IPTG under various conditions. Lane M: molecular weight marker. Lane 1: Uninduced cells of E. coli Rosetta (DE3). Lanes 2–4: The protein production in the E. coli Rosetta (DE3) cells induced with 0.1, 0.4, 0.8, and 1.0 mmol/L IPTG at 28 °C. Lanes 5–9: Protein production in the E. coli Rosetta (DE3) cells induced with 0.1, 0.4, 0.8, and 1.0 mmol/L IPTG at 37 °C. (B) Determination of the target protein’s expression form. Lane M: molecular weight marker. Lane 1: Uninduced cells of E. coli Rosetta (DE3). Lane 2: The target protein in the supernatant after sonication and centrifugation. Lane 3: The target protein in the sediments after sonication and centrifugation. (C) Purification of the LoTRE1 recombinant protein. Lane M: Molecular weight marker. Lane 1: Purified target protein. (D) Western blot. Lane M: Molecular weight marker. Lane 1: Purified target protein.
Insects 13 00867 g008

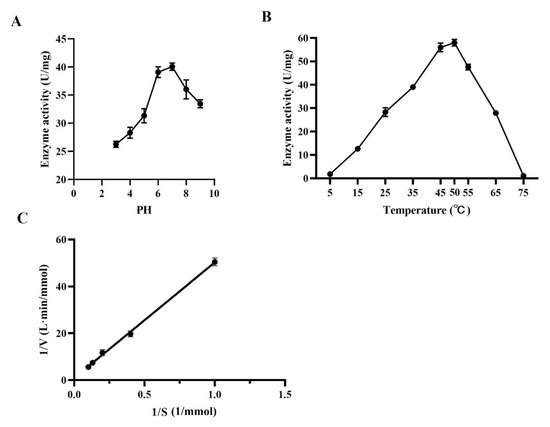

Figure 9. Enzymatic properties of the LoTRE1 recombinant protein. (A) Enzyme activity of trehalose under different pH conditions. (B) Enzyme activity of trehalose under different temperature conditions. (C) Steady state kinetic equation of LoTRE1.
Figure 9. Enzymatic properties of the LoTRE1 recombinant protein. (A) Enzyme activity of trehalose under different pH conditions. (B) Enzyme activity of trehalose under different temperature conditions. (C) Steady state kinetic equation of LoTRE1.
Insects 13 00867 g009

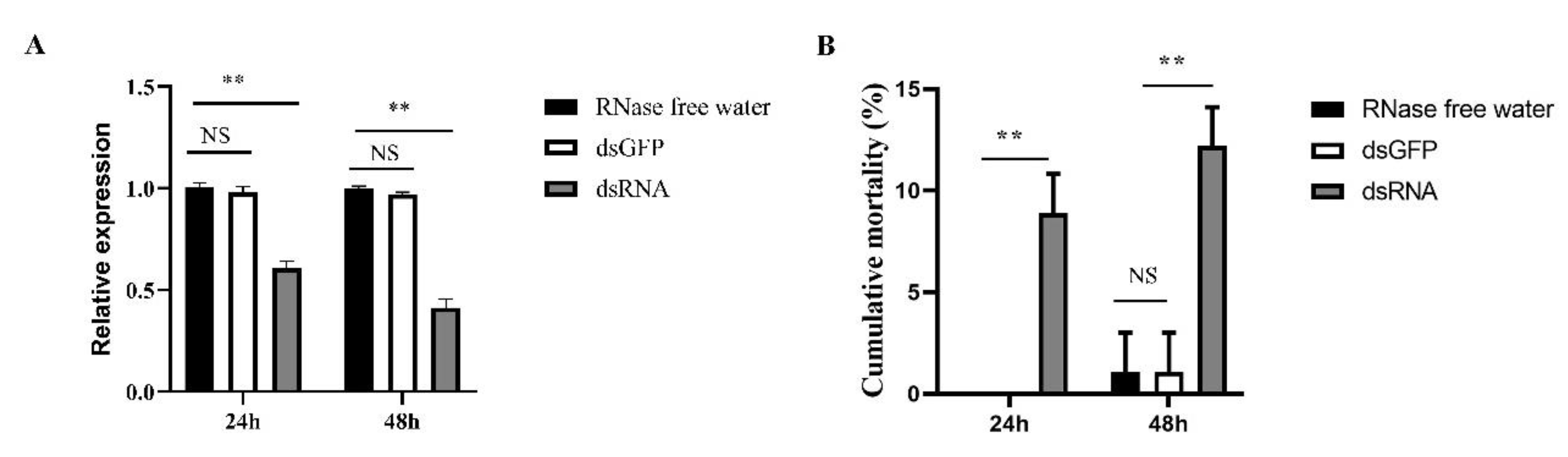

Figure 10. Silencing of LoTRE1 using RNAi. (A) The relative expression levels of the LoTRE1 gene after silencing for 24 and 48 h. (B) The mortality rates of adults after feeding on different treated leaves for 24 and 48 h. All data obtained were expressed as the means ± standard deviations of three replicates and were tested using a one-way ANOVA and t tests using SPSS 22.0. No significant differences are indicated by NS. The significant differences are indicated by ** (p < 0.01).
Figure 10. Silencing of LoTRE1 using RNAi. (A) The relative expression levels of the LoTRE1 gene after silencing for 24 and 48 h. (B) The mortality rates of adults after feeding on different treated leaves for 24 and 48 h. All data obtained were expressed as the means ± standard deviations of three replicates and were tested using a one-way ANOVA and t tests using SPSS 22.0. No significant differences are indicated by NS. The significant differences are indicated by ** (p < 0.01).
Insects 13 00867 g010

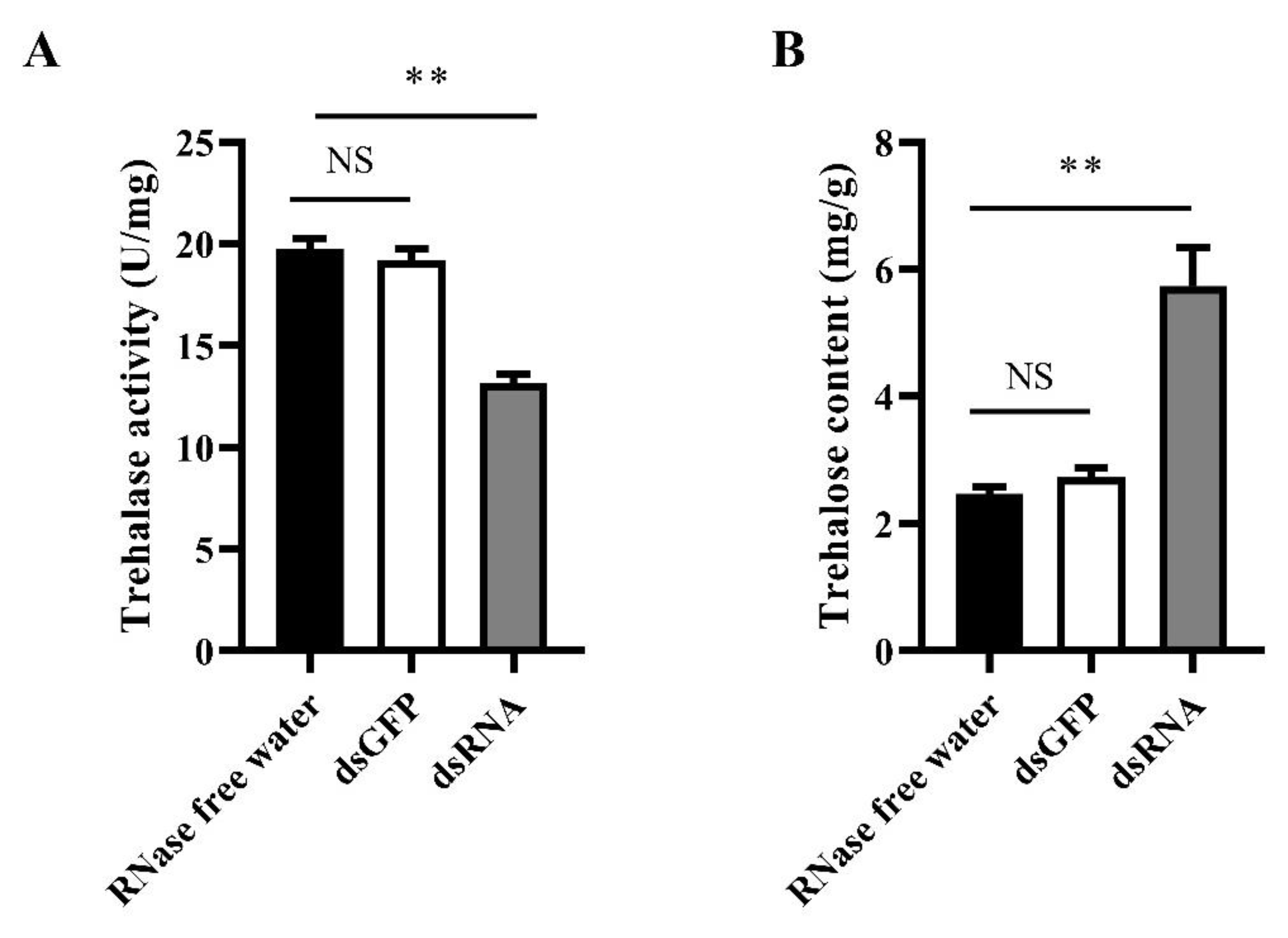

Figure 11. Detection of enzyme activity and trehalase content after RNAi treatment. (A) Trehalase activity after RNAi treatment. (B) Trehalose content after RNAi treatment. All data obtained were expressed as the means ± standard deviations of three replicates and were tested using a one-way ANOVA and t tests using SPSS 22.0. The standard deviation of the computed means based on three biological replicates is represented by the error bars. No significant differences are indicated by NS. The significant differences are indicated by ** (p < 0.01).
Figure 11. Detection of enzyme activity and trehalase content after RNAi treatment. (A) Trehalase activity after RNAi treatment. (B) Trehalose content after RNAi treatment. All data obtained were expressed as the means ± standard deviations of three replicates and were tested using a one-way ANOVA and t tests using SPSS 22.0. The standard deviation of the computed means based on three biological replicates is represented by the error bars. No significant differences are indicated by NS. The significant differences are indicated by ** (p < 0.01).
Insects 13 00867 g011
Table 1. Primer information.
Table 1. Primer information.
Primer NamePrimer Sequence (5′-3′)Purpose
TRE1F: CGCGGATCCATGATGAAGAATATTTATGTAACGA
R: CCGCTCGAGTCACCCTATAAATCCTGCTGATAAG
Prokaryotic expression
dsRNA-TREF: TAATACACTCACTATAGGGGTGGGCTAAGAAGCTCAACG
R: TAATACACTCACTATAGGGCCGAATACGATTCCGGTCTA
RNAi
dsRNA-GFPF: TAATACGACTCACTATAGGGGACGTAAACGGCCACAAGTT
R: TAATACGACTCACTATAGGGTGTTCTGCTGGTAGTGGTCG
RNAi
TRE1-qF: AAAATTACACTTTGGCCCTCTA
R: GTCCCAACCGGATTCAGC
RT–qPCR
GADPHF: ACCACTGTCCACGCAACT
R: ACTCTGAAGGCCATACCG
RT–qPCR
The boxes mark the restriction sites and the T7 promoter sequence is underlined.
