Reaction Mechanism and Process Control of Hydrogen Reduction of Ammonium Perrhenate

by
Junjie Tang
1,2,
Yuan Sun
2,*,
Chunwei Zhang
2,3,
Long Wang
2,
Yizhou Zhou
2,*,
Dawei Fang
3 and
Yan Liu
4
1
School of Biomedical & Chemical Engineering, Liaoning Institute of Science and Technology, Benxi 117004, China
2
Superalloys research department, Institute of Metal Research, Chinese Academy of Sciences, Shenyang 110016, China
3
College of chemistry, Liaoning University, Shenyang 110036, China
4
Key Laboratory for Ecological Utilization of Multimetallic Mineral, Ministry of Education, Northeastern University, Shenyang 110819, China
*
Authors to whom correspondence should be addressed.
Metals 2020, 10(5), 640; https://doi.org/10.3390/met10050640
Submission received: 17 April 2020 / Revised: 8 May 2020 / Accepted: 13 May 2020 / Published: 15 May 2020
(This article belongs to the Special Issue Advances in Synthesis of Metallic, Oxidic and Composite Powders)
Browse Figures
Review Reports Versions Notes

Abstract

:
The preparation of rhenium powder by a hydrogen reduction of ammonium perrhenate is the only industrial production method. However, due to the uneven particle size distribution and large particle size of rhenium powder, it is difficult to prepare high-density rhenium ingot. Moreover, the existing process requires a secondary high-temperature reduction and the deoxidization process is complex and requires a high-temperature resistance of the equipment. Attempting to tackle the difficulties, this paper described a novel process to improve the particle size distribution uniformity and reduce the particle size of rhenium powder, aiming to produce a high-density rhenium ingot, and ammonium perrhenate is completely reduced by hydrogen at a low temperature. When the particle size of the rhenium powder was 19.74 µm, the density of the pressed rhenium ingot was 20.106 g/cm3, which was close to the theoretical density of rhenium. In addition, the hydrogen reduction mechanism of ammonium perrhenate was investigated in this paper. The results showed that the disproportionation of ReO3 decreased the rate of the reduction reaction, and the XRD and XPS patterns showed that the increase in the reduction temperature was conducive to increasing the reduction reaction rate and reducing the influence of disproportionation on the reduction process. At the same reduction temperature, reducing the particle sizes of ammonium perrhenate was conducive to increasing the hydrogen reduction rate and reducing the influence of the disproportionation.

Graphical Abstract

1. Introduction

Rhenium as an important rare metal is widely used in metallurgy and the aerospace industry [1]. The plasma method, electrolysis method, vapor deposition method, and powder metallurgy are the main processes for the preparation of rhenium [2,3]. Jurewicz et al. [4] prepared a high-purity nanometer rhenium powder by the plasma method. Leonhardt et al. [5] used plasma spray spheroidization to control the microstructure of rhenium and obtained spherical rhenium powders. Schrebler et al. [6] also prepared spherical rhenium powder from a mixture of rhenic acid and sodium sulfate by electrolysis. Liu et al. [7] prepared small particles of superfine spherical rhenium powder by vapor deposition. The rhenium powders prepared by the above processes have a uniform particle size distribution and large specific surface area, and the pure rhenium materials prepared from these rhenium powders have high densities. However, due to the complexity of the above processes and high equipment requirements, none of the above processes have been industrialized. The hydrogen reduction of ammonium perrhenate is a commonly used process to prepare rhenium powder in industry, which has the characteristics of a simple process flow, low production cost, and low equipment requirements [8,9]. The preparation process flow chart of rhenium ingot is shown in Figure 1. However, the rhenium powders that are produced by this preparation technology have an uneven particle size distribution, small specific surface area, and the rhenium ingots produced have poor compactness. Moreover, due to the low efficiency of the mass and heat transfer in the traditional process, the reaction with hydrogen is not complete and the second reduction step at a high temperature is required [10,11,12].
In order to optimize the process of preparing rhenium by a high-temperature reduction, we can look into work dealing with the preparation of other metal powders by a high-temperature reduction. In recent years, there have been many studies on the preparation of metal powders by a high-temperature hydrogen reduction [13,14,15,16,17,18,19,20,21]. For instance, Wang et al. [22] proposed a novel route to synthesize Mo powders via a carbothermic prereduction of molybdenum oxide followed by a reduction by hydrogen; they removed oxygen from the samples by a secondary reduction. Kanga et al. [23] prepared nanosized W and W-Ni powders by applying ball milling and a hydrogen reduction of oxide powders. Gua et al. [24] prepared Mo nanopowders through a hydrogen reduction of a combustion-synthesized foam-like MoO2 precursor. All of the above studies are based on a reducing substance pretreatment, which provides a certain reference experience for this study. However, the hydrogen reduction reaction of ammonium perrhenate is a complicated process. This process not only involves reduction, but also a disproportionation reaction. Colton [25] pointed out that the disproportionation of ReO3 occurred above 300 °C to produce Re2O7 and ReO2. This disproportionation reaction is the main reason why ammonium perrhenate cannot be completely reduced to rhenium at a low temperature. There are few reports on the preparation of a high-quality Re powder by a hydrogen reduction at present. Bai et al. [26] reduced volatile rhenium oxide to prepare Re powder. However, due to the high equipment requirements of this process, it cannot be used for industrial production.

Chemical Reaction Considerations

Ammonium perrhenate decomposes into oxides with different valence states when reduced at a high temperature, and the main oxides are Re2O7, ReO3, and ReO2 [27]. The total equation for the reduction of ammonium perrhenate in hydrogen is represented by Equation (1). Ammonium perrhenate is decomposed by heat to Re2O7, which is gradually recombined with hydrogen and finally reduced to Re, as shown in Equations (2)–(4). ReO3 is very reactive; ReO3 is disproportionated at a high temperature to produce ReO2 and Re2O7, as shown in Equation (5).
2NH4ReO4 (s) + 7H2 (g) = 2Re (s) + 8H2O (g) + 2NH3 (g)
Re2O7 (s) + H2 (g) = 2ReO3 (s) + H2O (g)
ReO3 (s) + H2 (g) = ReO2 (s) + H2O (g)
ReO2 (s) + 2H2 (g) = Re (s) + 2H2O (g)
3ReO3 (s) = Re2O7 (s) + ReO2 (s)
In the present work, we determined the reduction mechanism of ammonium perrhenate through a differential thermal analysis, and innovatively proposed that the disproportionation reaction in the reduction process was the main reason affecting the complete reduction of ammonium perrhenate. This work also determined an innovative process for reducing the particle size and reduction temperature of rhenium powder, aiming to produce a high-density rhenium ingot, and ammonium perrhenate is completely reduced by hydrogen at a low temperature. This is the technological innovation point of this paper. Moreover, the optimization and innovation of this process is based on the already industrialized hydrogen reduction process to produce rhenium ingot, which makes it easy to realize as an industrialized production process.

2. Materials and Methods

2.1. Instrument

Instrument: The following instruments were used herein: RE-2000A rotary evaporator, Qiqiang instrument manufacturing co. LTD, Shanghai, China; SSX-550 scanning electron microscope, Shimadzu, Osaka, Japan; PW3040/60 X-ray diffractometer (XRD), Panalytical Company, Almelo, Netherlands; Escalab250 250 X-ray photoelectron spectroscopy (XPS), Hewlett-Packard Company, Palo alto, CA, USA; VEP223 high-temperature vacuum sintering furnace, Beizhen Vacuum Technology Co. Ltd., Shenyang, China; HYL-1076 laser particle size analyzer, Haoyu Technology Co. Ltd., Dandong, China; the self-developed recrystallization reactor, Institute of metals, Chinese academy of sciences, Shenyang, China; STA PT1600 Differential Thermal Analysis (DTA), Linseis Co. Ltd., Selb, Germany.

2.2. Materials

Materials: NH4ReO4 (99.99%, Re ≥ 69.4%) from Halin Chemical Co. LTD, Weifang, China.

2.3. Analytical Methods

XRD detection: The light tube type was a Cu target, ceramic X light tube. λ = 0.15406 nm, scan range was 10–90 degrees, the scanning speed was 2 degrees/min.
DTA detection: The temperature ranged from 300 to 700 °C, and the gas atmosphere was nitrogen.
Particle size distribution detection: the test medium was ethanol, the optical model was Mie, and the distribution type was volume distribution.
The parameters of SEM: The electron acceleration voltage was 20.0 KV, the working distance was 21.8 mm, and the magnification was 15,000 times.
XPS analysis parameters: The fitting software was XPSPEAK (XPSPEAK.41, Hewlett-Packard Company, Palo alto, CA, USA). The read base pressure was 2.4 × 10−8 Pa, utilizing monochromatic Al Kα radiation operating at 1486.6 eV. At the pass energy of 50  eV, with a 0.1  eV step, the high-resolution scans were performed. At the pass energy of 100  eV and a step size of 1  eV, the survey spectra were acquired. The reproducible C (1 s) binding energy of all samples was 284.6  eV and the charge neutralization was achieved using low-energy electrons and argon ions. The spin–orbit splitting was 2.4 eV, and the spin orbital split intensity ratio of 4f7/2 and 4f5/2 was 4:3.

2.4. Experimental Procedure

As illustrated by Figure 2 was the experimental flow chart of a hydrogen reduction of ammonium perrhenate in this study. Ammonium perrhenate (99.99%, Re ≥ 69.4%) was prepared with deionized water into a saturated solution at room temperature, the room temperature was about 25 °C. Then the saturated solution of ammonium perrhenate at room temperature was placed in an RE-2000A rotary evaporator, and part of the water was evaporated to form a hot saturated solution at 120 °C [28]. The thermally saturated solution of ammonium perrhenate was introduced into the recrystallization condensation reactor; the stirring speed and cooling temperature were adjusted and recrystallized at 5 °C for 3 h. Finally, the cooled solid–liquid mixture was filtered and dried to obtain ammonium perrhenate crystals. The SEM diagrams of the recrystallized ammonium perrhenate are shown in Figure 3 [29], and the median diameters (D50) and specific surface area are shown in Table 1. The recrystallization ammonium perrhenate particles (60 g) were reduced with the different temperatures (300–900 °C) in the high-temperature vacuum sintering furnace; the hydrogen flow rate was 500 mL/min, and the heating rate was 10 °C/min. After 3 h of reduction, the reduction product of ammonium perrhenate was obtained.
Preparation of rhenium ingots: 20 g rhenium powder was put into the powder press mold (the height was 32.00 mm and the inner diameter of the mould was 16.60 mm) to press. The pressure of the powder press was 74,000 N, the sintering furnace temperature was 2300 °C, and the sintering time was 3 h. The theoretical density of rhenium is 21.04 g/cm3.

3. Results and Discussion

3.1. Reduction Mechanism Analysis

In order to research the reaction mechanism of ammonium perrhenate in the reduction process, the decomposition products of ammonium perrhenate (Re, ReO2, and ReO3) were analyzed by a differential thermal analysis (DTA), and the differential thermal analysis curve is shown in Figure 4. It can be seen that an obvious endothermic peak appeared at 350 to 400 °C. Re is stable at a high temperature, and the decomposition temperature of ReO2 is 700 °C. Therefore, the generation of this endothermic peak can only be due to the disproportionation of ReO3. The disproportionation reaction products of ReO3 are ReO2 and Re2O7, and the reaction equation is shown in Equation (5). In the hydrogen reduction process, the ammonium perrhenate is firstly decomposed into Re2O7, the Re2O7 reacts with hydrogen to form ReO3, and ReO3 reacts with hydrogen to form ReO2 until they are reduced to Re. In the process of a hydrogen reduction of ammonium perrhenate, if the disproportionation reaction and reduction reaction exist simultaneously, the disproportionation reaction will be the main reason affecting the complete reduction of ammonium perrhenate at a low temperature.
In order to research the effect of disproportionation on the hydrogen reduction of ammonium perrhenate, the hydrogen reduction experiments of ammonium perrhenate were carried out at the same reduction time and at different reduction temperatures. The reducing substance was recrystallized ammonium perrhenate at a 200 rpm stirring strength (D50 was 71.17 µm, specific surface was 26.93 m2/kg). The XRD patterns of the reduction products of ammonium perrhenate at different temperatures are shown in Figure 5. The characteristic peaks of the reduction products were complex at lower temperatures (300–600 °C), and the diffraction peaks of the reduction products indicated Re and ReO2, and ReO3. The characteristic peaks of Re did not change obviously from 400 to 600 °C. However, in the range of 300 to 400 °C, the characteristic peaks of ReO3 were enhanced. In the range of 400 to 600 °C, the characteristic peaks of ReO2 were enhanced, while that of ReO3 were weakened. When the temperature reached 700 °C, the characteristic peaks of the reduction products were Re, and other crystal peaks were not observed. This result suggested that the contents of ReO3 in the reduction products increased in the range of 300 to 400 °C. However, within the temperature range of 400 to 600 °C, the content of Re in the reduction products did not increase significantly, while the content of ReO2 increased significantly.
In order to further clarify the influences of reduction temperatures on an ammonium perrhenate hydrogen reduction, X-ray photoelectron spectroscopy was used for the rhenium atomic quantitative analysis in different valence states. According to the references [30,31,32], a rhenium atom has a split energy level (f), where the spin–orbit splitting was 2.4 eV, and the spin orbital split intensity ratio of Re 4f7/2 and Re 4f5/2 was 4:3. The background was a mixed Shirley background (Shirley + straight line) [33], and the slope of the line was eight. The peak positions and fit paramters for all samples are given in Table 2. The X-ray photoelectron spectroscopy of the reduced products at the different reduction temperatures are shown in Figure A1.
The X-ray photoelectron spectroscopy of the reduced products at different reduction temperatures are shown in Figure A1. According to the peak areas of the different valence states of rhenium, the content of each valence state was calculated, as shown in Table 2. The percent of rhenium atom in each valence state was calculated, as shown in Table 3.
According to the results in Table 3, the percents of rhenium atom in each valence state of the reduced products at different temperatures were plotted, as shown in Figure 6. Combined with Table 2 and Figure 6, it can be concluded that the percent of Re6+ in the reduction products increased in the range of 300 to 400 °C, and within the temperature range of 400 to 600 °C, the percent of Re in the reduction products did not increase significantly, while the content of Re4+ increased significantly. These results showed that the ReO3 content in the reduction products increased in the temperature range of 300–400 °C and decreased with the increase in the reduction temperature; the Re content decreased in the temperature range of 300–400 °C and increased with the increase in the reduction temperature. In order to explain this rule, the following conclusions were obtained by combining the XRD and DTA detection results: the disproportionation reaction of ReO3 occurred between 350 and 400 °C, ReO3 decomposed into ReO2 and Re2O7, and Re2O7 was converted to ReO3 by a hydrogen reduction. Therefore, in the temperature range of 350 to 400 °C, the effect of disproportionation hindered the normal reduction process, and this is why ammonium perrhenate cannot be reduced to more rhenium at 350 to 400 °C in the same reduction time. This phenomenon shows that the disproportionation of ReO3 hindered the normal reduction reaction in a certain temperature range, but with the increase in the temperature, the reduction reaction rate gradually increased, and the content of rhenium in the reduction products also increased. At the reduction temperature of 300 °C, the disproportionation of ReO3 did not occur, and only the reduction reaction was carried out. Therefore, the content of Re in the reduction products was higher. As discussed above, in the process of a hydrogen reduction of ammonium perrhenate, the disproportionation of ReO3 decreased the rate of the reduction reaction, and the increase in the temperature can increase the reduction reaction rate and reduce the effect of disproportionation on the reduction process. Increasing the reduction time and lowering the reduction temperature below the temperature at which the disproportionation of ReO3 occurs can also increase the content of Re in the reduction products.

3.2. Influence of Particle Size on Reduction

In the solid-state reaction system, the reaction rate is related not only to the temperature but also to the diffusion rate of the reactant [34]. The particle size of the reactant decreases, which is conducive to increasing the diffusion rate [35]. In order to research the effects of particle sizes of ammonium perrhenate on the reduction effect, the recrystallized ammonium perrhenate (D50 81.05 µm) was used for the reduction experiments under the same operating conditions. The XRD patterns of the reduction products of ammonium perrhenate at different temperatures are shown in Figure 7. The characteristic peaks of the reduction products were complex at lower temperatures (300–700 °C), and the diffraction peaks of the reduction products indicated Re and ReO2, and ReO3. The characteristic peaks of Re did not change obviously from 500 to 800 °C. However, in the range of 300 to 400 °C, the characteristic peaks of ReO3 were enhanced. In the range of 500 to 800 °C, the characteristic peaks of ReO2 were enhanced, while that of ReO3 were weakened. When the temperature reached 900 °C, the characteristic peaks of the reduction products were Re and ReO2, and other crystal peaks were not observed. This result suggested that the contents of ReO3 in the reduction products increased in the range of 300 to 400 °C. However, within the temperature range of 500 to 800 °C, the content of Re in the reduction products did not increase significantly, while the content of ReO2 increased significantly.
In order to further clarify the influence of particle sizes on an ammonium perrhenate hydrogen reduction, X-ray photoelectron spectroscopy was used to quantitatively analyze this feature. The X-ray photoelectron spectroscopy of the reduced products at different reduction temperatures are shown in Figure A2. The percent of rhenium atom in each valence state was calculated, as shown in Table 4. According to the results in Table 4, the percents of rhenium atom in each valence state of the reduced products at different temperatures were plotted, as shown in Figure 8. Combined with Table 4 and Figure 8, it can be concluded that the content of Re in the reduction products increased with the decrease of ReO3 between 350 and 800 °C. At the reduction temperature of 300 °C, the disproportionation of rhenium trioxide did not occur and the content of rhenium was higher. The composition law of the reduction products was the same as that of previous reduction experiments, which proved the accuracy of the reduction mechanism analysis. When the reduction temperature reached 800 °C, rhenium trioxide still existd. It can be concluded that the disproportionation of ReO3 existed in the range of 350 to 800 °C. Compared with the previous reduction experiment, the temperature range at which the disproportionation reaction occurs had increased. This was because the particle size of ammonium perrhenate increased, the solid reaction diffusion rate decreased, and the contact between the reactant and hydrogen was not ideal. Therefore, under the same operating conditions, reducing the particle size of ammonium perrhenate can increase the hydrogen reduction diffusion rate and reduce the influence of the disproportionation on the reduction process.

3.3. Analysis of the Products of the Rhenium Ingots

The Re powders were prepared by unrecrystallized ammonium perrhenate and recrystallized ammonium perrhenate with a different D50, and the rhenium ingots were prepared from these rhenium powders. The relevant physical parameters of the products are shown in Table 5. The particle size distribution of the rhenium powder is shown in Figure 9. It can be seen from Table 5 and Figure 9 that the rhenium powder prepared by ammonium perrhenate with a small particle size is also of relatively small particle size; the particle size distribution uniformity of rhenium powder prepared by recrystallized ammonium perrhenate was improved obviously, and the rhenium ingot prepared has a higher density. The theoretical density of rhenium is 21.04 g/cm3, and the density of the rhenium ingot prepared by D50 71.17 µm ammonium perrhenate reached 20.106 g/cm3. The rhenium ingot prepared under this condition was close to the theoretical density. The SEM images of the surface defects of the rhenium ingots are shown in Figure 10. It can be seen that the rhenium ingot prepared by the small particle size rhenium powder not only has a high density but also has a small surface hole defect. Therefore, reducing the particle size of the rhenium powder is a key factor in preparing a high-density rhenium ingot.

3.4. Proposed Flow Sheet

Based on the experimental results, the flow sheet for the processing of rhenium ingots by ammonium perrhenate was tentatively suggested, which is shown in Figure 11. The ammonium perrhenate particles were refined by homogeneous recrystallization, and the D50 of the ammonium perrhenate particles was refined from 123.90 to 71.17 µm. The recrystallized ammonium perrhenate was completely reduced by hydrogen at 700 °C for 3 h, and the D50 of 19.74 µm rhenium powder was obtained. The density of the rhenium ingots pressed by these rhenium powders was 20.106 g/cm3. The theoretical density of rhenium is 21.04 g/cm3, and a rhenium ingot that reaches the theoretical density of more than 90% is a high-quality product. In this study, the rhenium ingot density was 95.56% of the theoretical density, which reached the high-quality product standard. The optimized production process of rhenium ingot not only realized a low-temperature reduction, but also increased the density of the rhenium ingot, which can provide a theoretical basis and practical experience for industrial production.

4. Conclusions

In this study, the influences of disproportionation on the hydrogen reduction of ammonium perrhenate were investigated and the following conclusions were drawn:
(1) In the process of a hydrogen reduction of ammonium perrhenate, the disproportionation of ReO3 decreased the rate of the reduction reaction, and the increase in the reduction temperature was conducive to increasing the reduction reaction rate and reducing the influence of disproportionation on the reduction process.
(2) At the same reduction temperature, reducing the particle sizes of ammonium perrhenate was conducive to increasing the hydrogen reduction rate and reducing the influence of the disproportionation on the reduction process.
(3) The rhenium ingot prepared by the small particle size rhenium powder not only has a high density but also has a small surface hole defect. Therefore, reducing the particle size of the rhenium powder is a key factor in preparing high-density rhenium ingot.
(4) It is feasible to increase the density of rhenium ingot by reducing the particle size of the rhenium powder. The particle size of ammonium perrhenate was reduced to a rhenium powder with a D50 of 19.74 µm and a specific surface area of 163.70 m2/kg, which was pressed into a rhenium ingot with a density of 20.106 g/cm3, close to the theoretical density of rhenium.

Author Contributions

J.T.: Writing—original draft; Data curation; Formal analysis; Investigation; Funding acquisition. Y.S.: Data curation; Formal analysis; Funding acquisition; Resources. C.Z.: Data curation; Software. L.W.: Resources; Writing—review and editing. Y.Z.: Investigation; Supervision; Funding acquisition; Resources. D.F.: Writing—review and editing; Resources. Y.L.: Writing—review and editing; Funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

Liaoning provincial department of science and technology doctoral research initiation fund, grant number 2019-BS-130; Open project fund of key laboratory of ecological metallurgy of polymetallic symbiosis in ministry of education, Northeastern University, grant number NEMM2019003.

Acknowledgments

School of Biomedical & Chemical Engineering, Liaoning Institute of Science and Technology and the analysis and test center of institute of metals, Chinese academy of sciences undertook the sample test for this study. The authors are grateful for these supports.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Metals 10 00640 g0a1 550

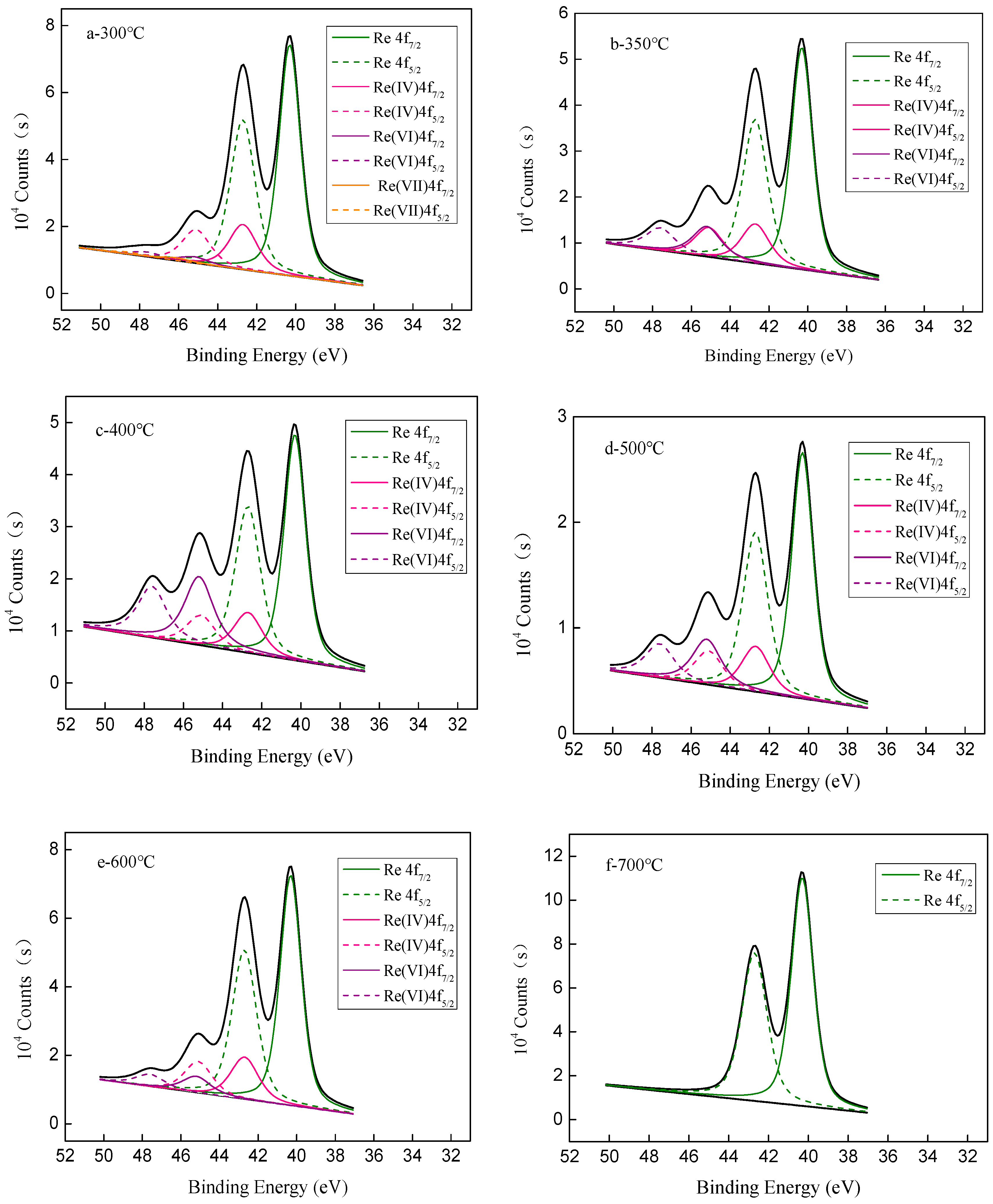

Figure A1. X-ray photoelectron spectroscopy of the reduction products of ammonium perrhenate (D50 was 71.17 µm, specific surface was 26.93 m2/kg) at different temperatures.
Figure A1. X-ray photoelectron spectroscopy of the reduction products of ammonium perrhenate (D50 was 71.17 µm, specific surface was 26.93 m2/kg) at different temperatures.
Metals 10 00640 g0a1
Metals 10 00640 g0a2 550

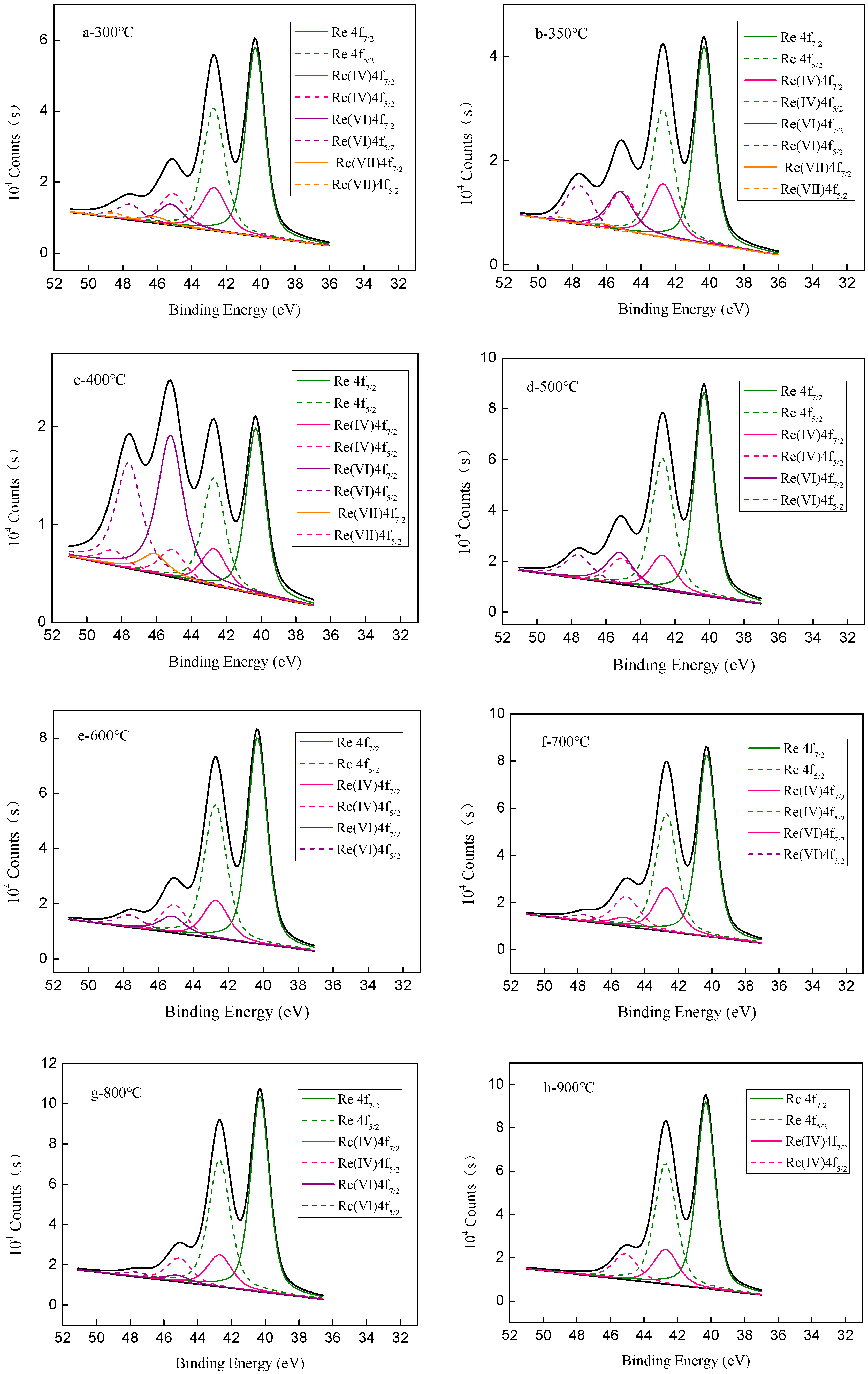

Figure A2. X-ray photoelectron spectroscopy of the reduction products of ammonium perrhenate (D50 was 81.05 µm, specific surface was 21.72 m2/kg) at different temperatures.
Figure A2. X-ray photoelectron spectroscopy of the reduction products of ammonium perrhenate (D50 was 81.05 µm, specific surface was 21.72 m2/kg) at different temperatures.
Metals 10 00640 g0a2

References

  1. Li, L.P.; Liu, Y.; Zhang, W.; Jiang, L.J.; Zhang, W.Z. Recent Development of Rhenium Technology. China Molybdenum Ind. 2016, 40, 1–6. [Google Scholar]
  2. Noar, A.; Eliaz, N.; Gileadi, E.; Taylor, S.R. Properties and applications of rhenium and its alloys. AMMTIAC Q. 2010, 5, 11–14. [Google Scholar]
  3. Li, H.M.; He, X.T.; Zhou, Y.; Guo, J.M.; Han, S.L.; Wang, H.; Li, Y.; Tan, M.L. Resources, Application and Extraction Status of Rhenium. Precious Met. 2014, 35, 77–81. [Google Scholar]
  4. Jurewicz, J.W.; Guo, J.Y. Process for Plasma Synthesis of Rhenium Nano and Micro Powders, and for Coating and New Net Shape Deposits Thereof and Apparatus Therefor. U.S. Patent 2005/0211018A1, 29 September 2005. [Google Scholar]
  5. Leonhardt, T.; Trybus, C.; Hickman, R. Consolidation Methods for Spherical Rhenium and Rhenium Alloys. Powder Metall. 2003, 46, 148–153. [Google Scholar] [CrossRef]
  6. Schrebler, R.; Cury, P.; Orellana, M.; Gómez, H.; Córdova, R.; Dalchiele, E.A. Electrochemical and Nanoelectrogravimetric Studies of the Nucleation and Growth Mechanisms of Rhenium on Polycrystalline Gold Electrode. Electrochim. Acta 2001, 46, 4309–4318. [Google Scholar] [CrossRef]
  7. Liu, Z.H.; Zhang, S.Y.; Liu, Z.Y.; Li, Y.H.; Wang, J. Principle and Research Development of Powder Materials Prepared by Chemical Vapor Deposition. Mater. Sci. Eng. Powder Metall. 2009, 14, 359–364. [Google Scholar]
  8. Stefan, L.; Helumt, A. Hydrogen as a reducing agent: State-of-the-art science and technology. JOM 2007, 59, 20–26. [Google Scholar]
  9. Mannheim, R.L.; Garin, J.L. Microstructural characterization of rhenium powder obtained at various temperatures. Adv. Powder Technol. 2003, 416, 273–282. [Google Scholar] [CrossRef]
  10. Trybus, C.L.; Wang, C.M.; Pandheeradi, M.; Meglio, C.A. Powder metallurgical processing of rhenium. Adv. Mater. Process. 2002, 160, 23–26. [Google Scholar]
  11. Shen, Y.Y.; Yi, X.M.; Liao, B.B. A Preparation Method of High Purity Rhenium Powders. CN Patent NO. 1396027, 12 February 2003. [Google Scholar]
  12. Yang, H.B.; Peng, J.Y.; Cheng, T.Y.; Xiong, N.; Yin, J.C.; Chen, F.X. A Manufacturing Method of Pure Rhenium Flakes with Difficulty in Deformation. CN Patent NO. 101177748A, 14 May 2008. [Google Scholar]
  13. Bartosz, T.; Beata, B.; Kusz, B. A study of a reduction of a micro-and nanometric bismuth oxide in hydrogen atmosphere. Ther. Acta 2018, 669, 99–108. [Google Scholar]
  14. Dang, J.; Wu, Y.J.; Lv, Z.P.; You, Z.X.; Zhang, S.F.; Lv, X.W. A new kinetic model for hydrogen reduction of metal oxides under external gas diffusion controlling condition. Int. J. Refract. Met. Hard Mater. 2018, 77, 90–96. [Google Scholar] [CrossRef]
  15. Liu, Q.P.; Bai, Y.; Yi, S.F.; An, P.F. The Effect of Hydrogen Dew Point on the Properties of Molybdenum Dioxide and Molybdenum Powder. China Tungsten Ind. 2018, 33, 42–46. [Google Scholar]
  16. Zhuo, H.O.; Ye, N.; Zhou, Q.; Liu, W.S.; Tang, J.C. Comparative study of tungsten powders prepared by carbon-hydrogen co-reduction and common hydrogen reduction. Chin. J. Nonferrous Met. 2018, 28, 743–748. [Google Scholar]
  17. Chen, L.J.; Xie, Z.H.; Wang, R.X.; Tian, L.; Nie, H.P. Reduction Carbonization Mechanism Analysis of Tungsten Oxide Powder and Preparation of Ultrafine Tungsten Carbide Powder. Rare Met. Cem. Carbides 2018, 46, 11–20. [Google Scholar]
  18. Song, H.L.; Jiang, P.G.; Liu, W.J.; Wang, Z.B. Research progress on hydrogen reduction kinetics of tungsten oxide. Nonferrous Met. Sci. Eng. 2017, 8, 64–69. [Google Scholar]
  19. Vesel, A.; MoZetic, M.; Marianne, B.P. Sequential oxidation and reduction of tungsten/tungsten oxide. Thin Solid Film 2015, 591, 174–181. [Google Scholar] [CrossRef]
  20. Yu, K.N.; Mao, M.H.; Liang, H.Z.; Xu, J. Preparation of Ultrafine Co Powder from Basic Co(OH)2 Slurry by Hydrogen Reduction. Chin. J. Process Eng. 2001, 1, 62–65. [Google Scholar]
  21. Fang, Z.Z.; Wang, H.; Kumar, V. Coarsening, densification, and grain growth during sintering of nano-sized powders—A perspective. Int. J. Refract. Met. Hard Mater. 2017, 62, 110–117. [Google Scholar] [CrossRef] [Green Version]
  22. Wang, D.H.; Sun, G.D.; Zhang, G.H. Preparation of ultrafine Mo powders via carbothermic pre-reduction of molybdenum oxide and deep reduction by hydrogen. Int. J. Refract. Met. Hard Mater. 2018, 75, 70–77. [Google Scholar] [CrossRef]
  23. Kang, H.J.; Jeong, Y.K.; Oh, S.T. Hydrogen reduction behavior and microstructural characteristics of WO3 and WO3-NiO powders. Int. J. Refract. Met. Hard Mater. 2019, 80, 69–72. [Google Scholar] [CrossRef]
  24. Gu, S.Y.; Qin, M.L.; Zhang, H.A.; Ma, J.D.; Qu, X.H. Preparation of Mo nanopowders through hydrogen reduction of a combustion synthesized foam-like MoO2 precursor. Int. J. Refract. Met. Hard Mater. 2018, 76, 90–98. [Google Scholar] [CrossRef]
  25. Colton, R. Some Complex anioks containing rhenium. Aust. J. Chem. 1965, 18, 435–439. [Google Scholar] [CrossRef]
  26. Bai, M.; Liu, Z.H.; Zhou, L.J.; Liu, Z.Y.; Zhang, C.F. Preparation of ultrafine rhenium powders by CVD hydrogen reduction of volatile rhenium oxides. Trans. Nonferrous Met. Soc. China 2013, 23, 538–542. [Google Scholar] [CrossRef]
  27. Zhou, L.J. Research on Preparation of Ultrafine Rhenium Powder by Chemical Vapor Deposition. Master’s Thesis, Central South University, Hunan, China, 2010. [Google Scholar]
  28. Tang, J.J.; Sun, Y.; Hou, G.C.; Ding, Y.T.; He, F.; Zhou, Y.Z. Studies on Influencing Factors of Ammonium Rhenate Recovery from Waste Superalloy. Appl. Sci. 2018, 8, 2016. [Google Scholar] [CrossRef] [Green Version]
  29. Tang, J.J.; Feng, L.; Zhang, C.W.; Sun, Y.; Wang, L.; Zhou, Y.Z.; Fang, D.W.; Liu, Y. The Influences of Stirring on the Recrystallization of Ammonium Perrhenate. Appl. Sci. 2020, 10, 656. [Google Scholar] [CrossRef] [Green Version]
  30. Okal, J.; Tylus, W.; Kepi´nski, L. XPS study of oxidation of rhenium metal on γ-Al2 O3 support. J. Catal. 2004, 225, 498–509. [Google Scholar] [CrossRef]
  31. Kuznetsov, V.V.; Gamburg, Y.D.; Zhulikov, V.V.; Batalov, R.S.; Filatova, E.A. Re-Ni cathodes obtained by electrodeposition as a promising electrode material for hydrogen evolution reaction in alkaline solutions. Electrochim. Acta 2019, 317, 358–366. [Google Scholar] [CrossRef]
  32. Iqbal, S.; Shozi, M.L.; Morgan, D.J. X-ray induced reduction of rhenium salts and supported oxide catalysts. Surf. Interface Anal. 2017, 49, 223–226. [Google Scholar] [CrossRef]
  33. Zhang, B.; Sun, Y.Z.; Wang, W.H. Line Shapes Used in XPS and Background Subtraction. Phys. Exam. Test. 2011, 1, 18–23. [Google Scholar]
  34. Hillig, W.B.; Adjerid, S.; Flaherty, J.E.; Hudson, J.B. The effect of combined diffusion and kinetic transport barriers on multi-phase solid state reactions with a vapour reactant. J. Mater. Sci. 1996, 31, 5865–5871. [Google Scholar] [CrossRef]
  35. Ler, K.M.K.; Götze, L.C.; Rybacki, E.; Dresen, G.; Abart, R. Enhancement of solid-state reaction rates by non-hydrostatic stress effects on polycrystalline diffusion kinetics. Am. Mineral. 2010, 95, 1399–1407. [Google Scholar]
Metals 10 00640 g001 550

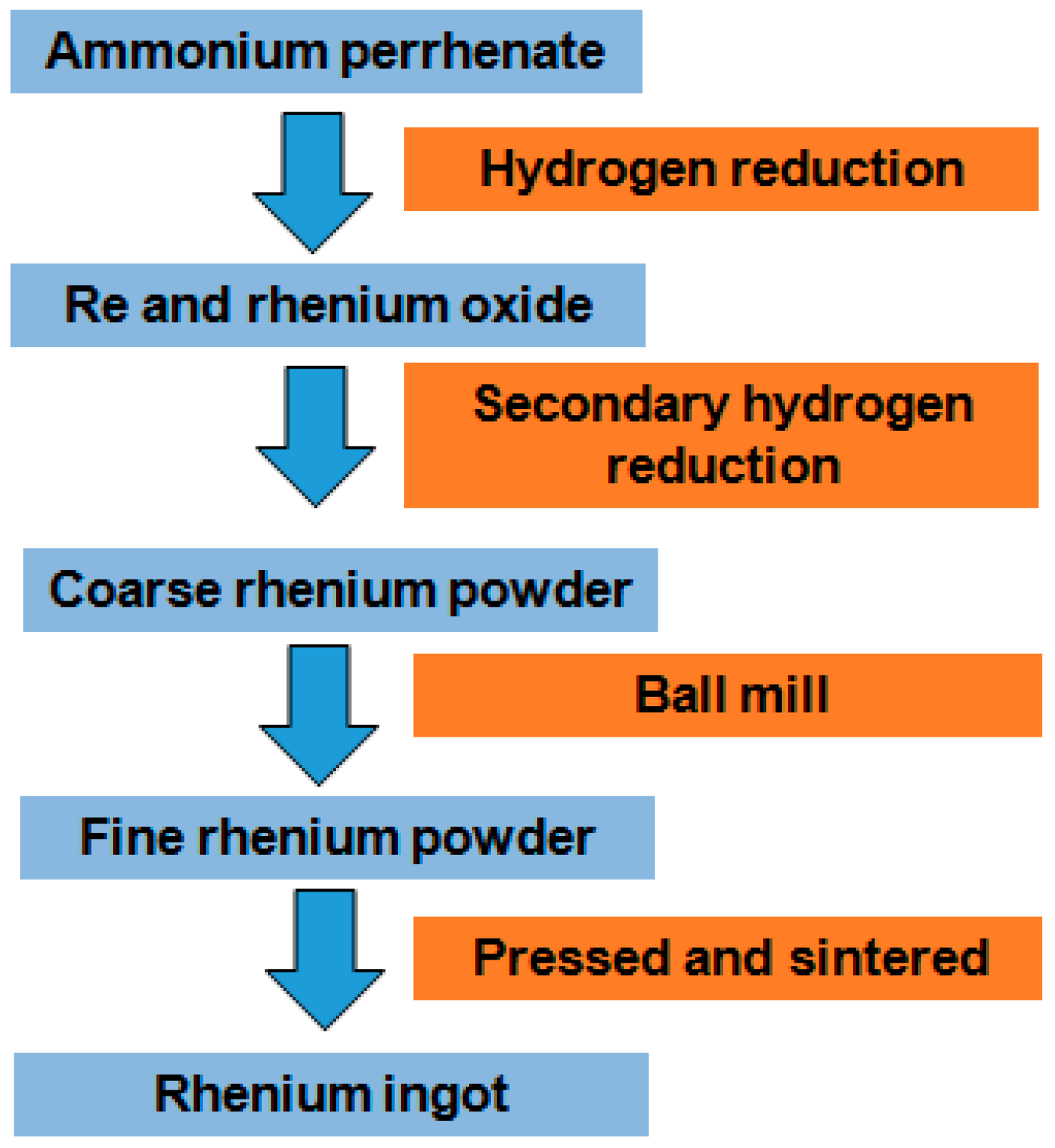

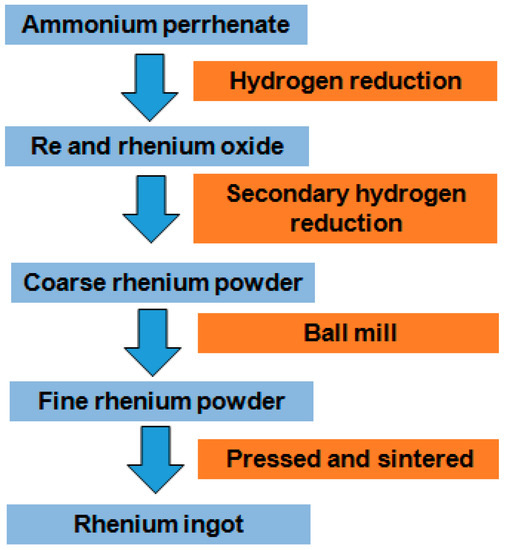

Figure 1. Industrial preparation of rhenium ingots.
Figure 1. Industrial preparation of rhenium ingots.
Metals 10 00640 g001
Metals 10 00640 g002 550

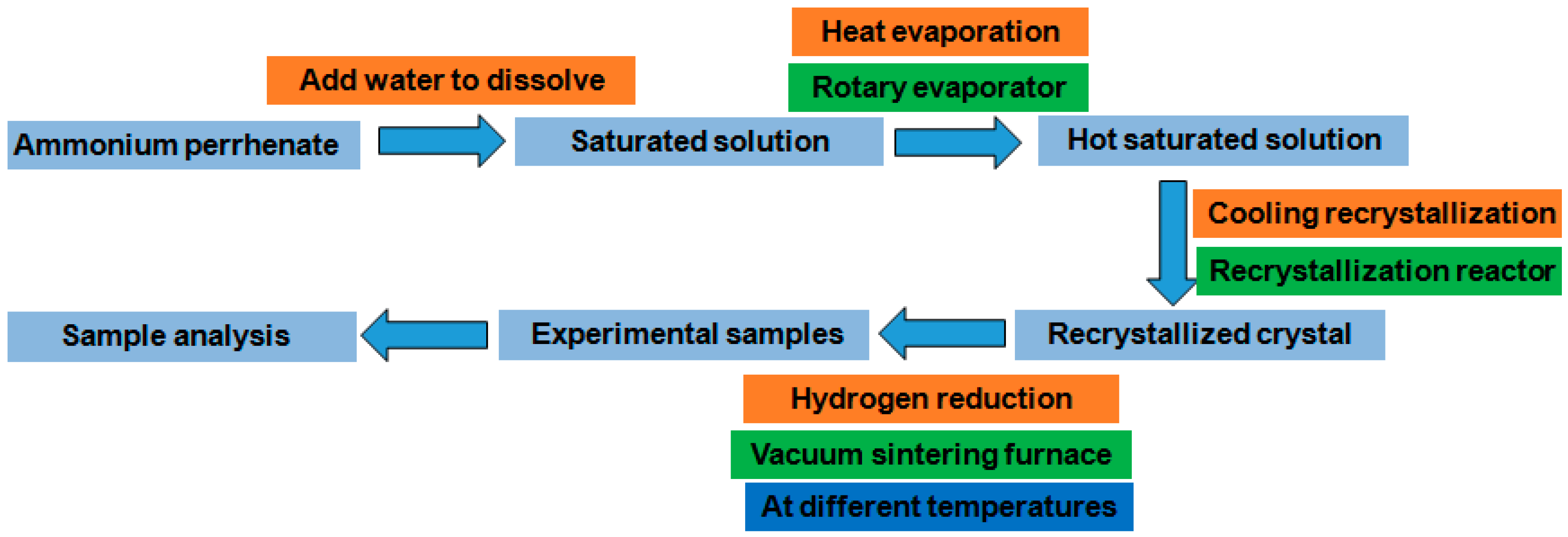

Figure 2. The experimental working procedure diagram.
Figure 2. The experimental working procedure diagram.
Metals 10 00640 g002
Metals 10 00640 g003 550
Figure 3. SEM images of recrystallized ammonium perrhenate particles at different agitation intensities and ammonium perrhenate raw material particles (a) ammonium perrhenate raw material particles, (b) 100 rpm stirring strength recrystallized particles, and (c) 200 rpm stirring strength recrystallized particles) [29].
Figure 3. SEM images of recrystallized ammonium perrhenate particles at different agitation intensities and ammonium perrhenate raw material particles (a) ammonium perrhenate raw material particles, (b) 100 rpm stirring strength recrystallized particles, and (c) 200 rpm stirring strength recrystallized particles) [29].
Metals 10 00640 g003
Metals 10 00640 g004 550

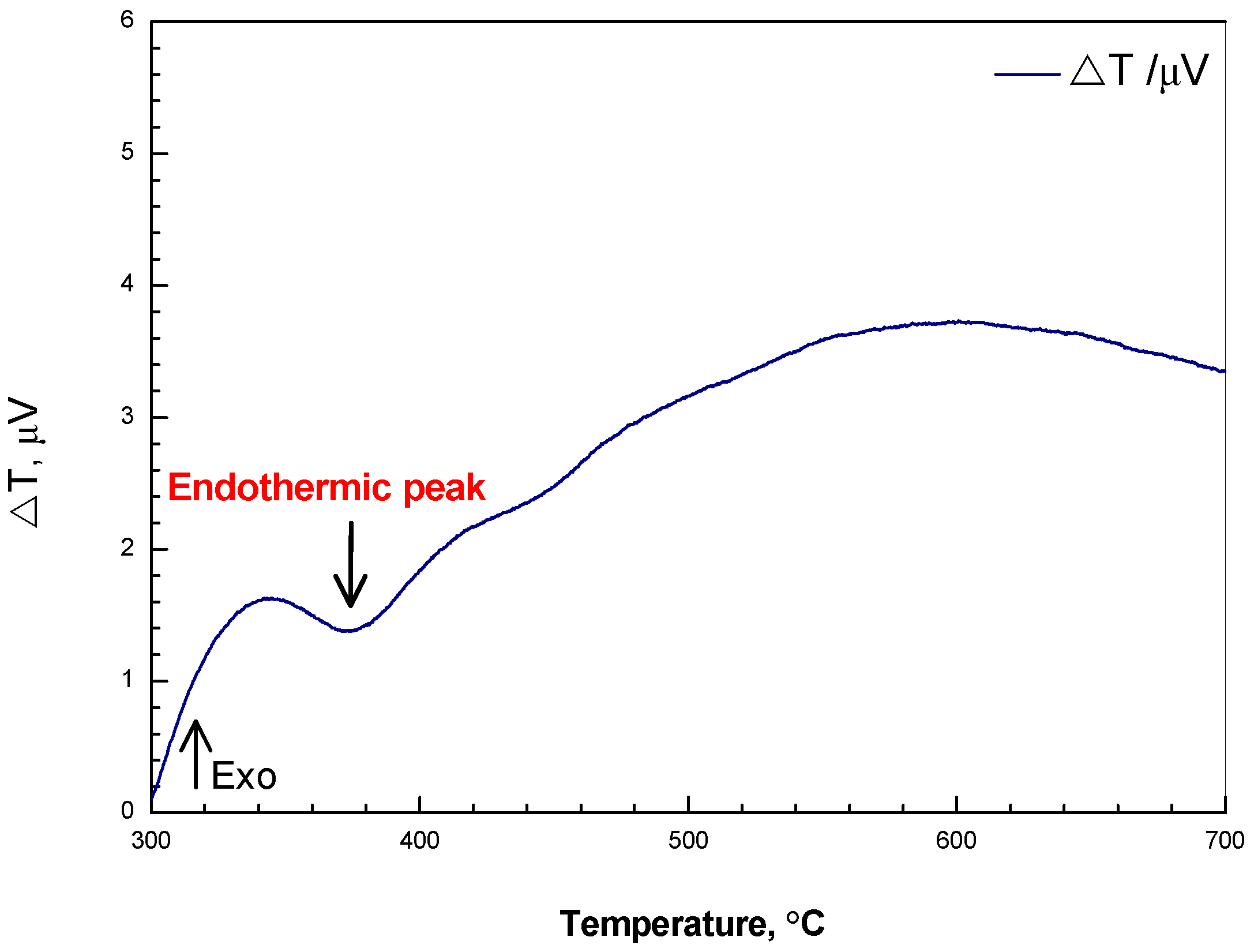

Figure 4. The differential thermal analysis curve of Re, ReO2, and ReO3.
Figure 4. The differential thermal analysis curve of Re, ReO2, and ReO3.
Metals 10 00640 g004
Metals 10 00640 g005 550

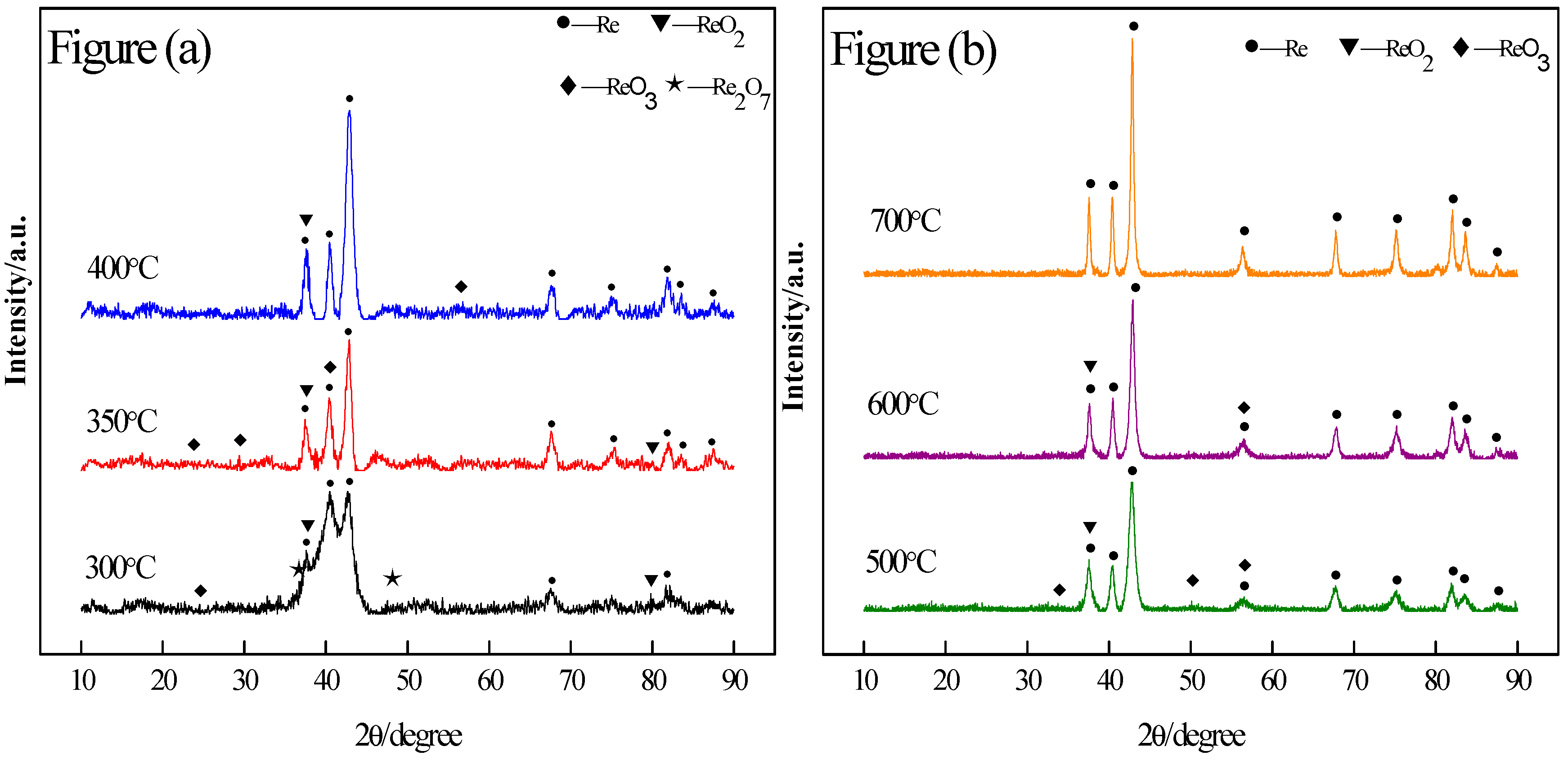

Figure 5. XRD patterns of the reduction products of ammonium perrhenate (D50 was 71.17 µm, specific surface was 26.93 m2/kg) at different temperatures. Figure (a) was the XRD diffraction pattern of the reduced product at 300 to 400 °C; Figure (b) was the XRD diffraction pattern of the reduced product at 500 to 700 °C.
Figure 5. XRD patterns of the reduction products of ammonium perrhenate (D50 was 71.17 µm, specific surface was 26.93 m2/kg) at different temperatures. Figure (a) was the XRD diffraction pattern of the reduced product at 300 to 400 °C; Figure (b) was the XRD diffraction pattern of the reduced product at 500 to 700 °C.
Metals 10 00640 g005
Metals 10 00640 g006 550
Figure 6. Oxidation state atomic content changes of ammonium perrhenate (D50 was 71.17 µm, specific surface was 26.93 m2/kg) hydrogen reduction reaction at different temperatures.
Figure 6. Oxidation state atomic content changes of ammonium perrhenate (D50 was 71.17 µm, specific surface was 26.93 m2/kg) hydrogen reduction reaction at different temperatures.
Metals 10 00640 g006
Metals 10 00640 g007 550
Figure 7. XRD patterns of the reduction products of ammonium perrhenate (D50 was 81.05 µm, specific surface was 21.72 m2/kg) at different temperatures. Figure (a) was the XRD diffraction pattern of the reduced product at 300 to 400 °C; Figure (b) was the XRD diffraction pattern of the reduced product at 500 to 900 °C.
Figure 7. XRD patterns of the reduction products of ammonium perrhenate (D50 was 81.05 µm, specific surface was 21.72 m2/kg) at different temperatures. Figure (a) was the XRD diffraction pattern of the reduced product at 300 to 400 °C; Figure (b) was the XRD diffraction pattern of the reduced product at 500 to 900 °C.
Metals 10 00640 g007
Metals 10 00640 g008 550
Figure 8. Oxidation state atomic content changes of ammonium perrhenate (D50 was 81.05 µm, specific surface was 21.72 m2/kg) hydrogen reduction reaction at different temperatures.
Figure 8. Oxidation state atomic content changes of ammonium perrhenate (D50 was 81.05 µm, specific surface was 21.72 m2/kg) hydrogen reduction reaction at different temperatures.
Metals 10 00640 g008
Metals 10 00640 g009 550

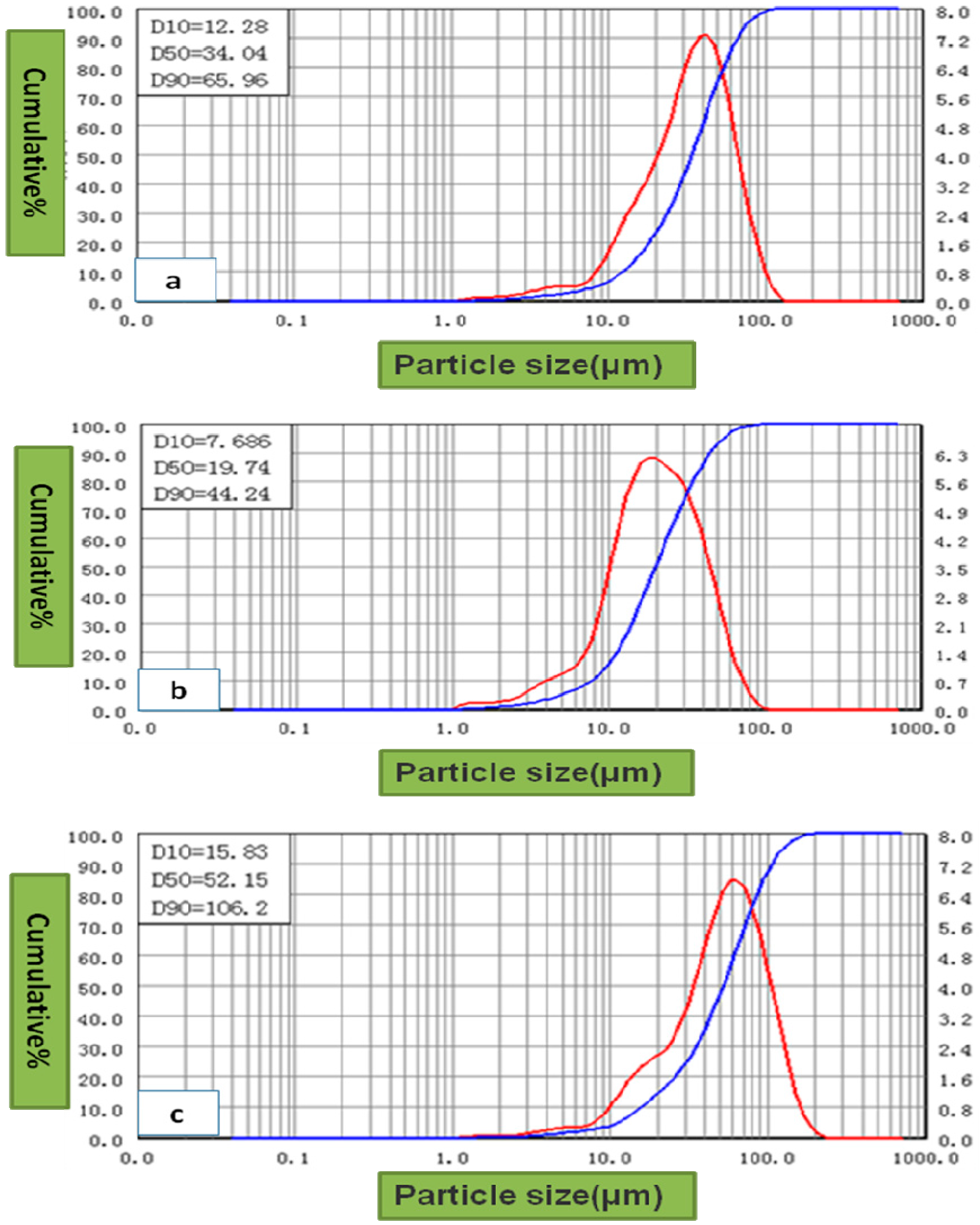

Figure 9. The particle size distribution of rhenium powder prepared by ammonium perrhenate with different particle sizes ((a) prepared by 81.05 µm D50 ammonium perrhenate, (b) prepared by 71.17 µm D50 ammonium perrhenate, (c) prepared by 123.90 µm D50 ammonium perrhenate).
Figure 9. The particle size distribution of rhenium powder prepared by ammonium perrhenate with different particle sizes ((a) prepared by 81.05 µm D50 ammonium perrhenate, (b) prepared by 71.17 µm D50 ammonium perrhenate, (c) prepared by 123.90 µm D50 ammonium perrhenate).
Metals 10 00640 g009
Metals 10 00640 g010 550
Figure 10. SEM images of the surface defects of the rhenium ingots ((a) prepared by 52.15 µm D50 Re powders, (b) prepared by 34.04 µm D50 Re powders, (c) prepared by 19.74 µm D50 Re powders).
Figure 10. SEM images of the surface defects of the rhenium ingots ((a) prepared by 52.15 µm D50 Re powders, (b) prepared by 34.04 µm D50 Re powders, (c) prepared by 19.74 µm D50 Re powders).
Metals 10 00640 g010
Metals 10 00640 g011 550

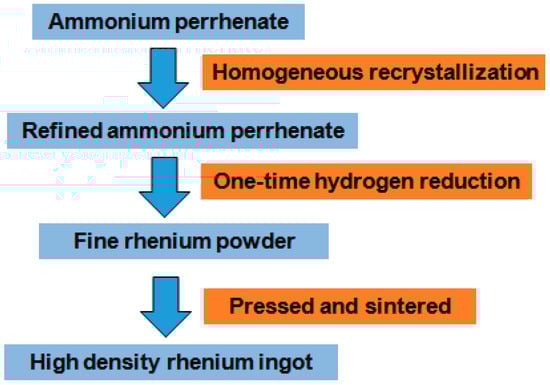

Figure 11. Proposed flow sheet for the preparation of high-density rhenium ingot by homogeneous recrystallization of ammonium perrhenate by a hydrogen reduction.
Figure 11. Proposed flow sheet for the preparation of high-density rhenium ingot by homogeneous recrystallization of ammonium perrhenate by a hydrogen reduction.
Metals 10 00640 g011
Table
Table 1. Specific surfaces and median diameters (D50s) of the NH4ReO4 particles.
Table 1. Specific surfaces and median diameters (D50s) of the NH4ReO4 particles.
Ammonium PerrhenateSpecific Surface (m2/kg)D50 (µm)
100 rpm stirring strength recrystallized21.7281.05
200 rpm stirring strength recrystallized26.9371.17
Raw material particles14.79123.90
Table
Table 2. The peak positions and fit paramters for Re 4f7/2 and Re 4f5/2.
Table 2. The peak positions and fit paramters for Re 4f7/2 and Re 4f5/2.
Fitting ParametersReRe4+Re6+Re7+
B.E (4f7/2)40.3142.745.246.1
B.E (4f5/2)42.7145.147.648.5
FWHM1.31.71.751.8
Table
Table 3. The percent of rhenium atom in each valence state of the reduction products of ammonium perrhenate (D50 was 71.17 µm, specific surface was 26.93 m2/kg) at different temperatures.
Table 3. The percent of rhenium atom in each valence state of the reduction products of ammonium perrhenate (D50 was 71.17 µm, specific surface was 26.93 m2/kg) at different temperatures.
Reduction Temperature (°C)Re (%)Re4+ (%)Re6+ (%)Re7+ (%)
30075.920.03.01.1
35069.616.424.00.0
40059.314.126.60.0
50065.916.217.90.0
60076.118.17.80.0
7001000.00.00.0
Table
Table 4. The percents of rhenium atom in each valence state of the reduction products of ammonium perrhenate (D50 was 81.05 µm, specific surface was 21.72 m2/kg) at different temperatures.
Table 4. The percents of rhenium atom in each valence state of the reduction products of ammonium perrhenate (D50 was 81.05 µm, specific surface was 21.72 m2/kg) at different temperatures.
Reduction Temperature (°C)Re (%)Re4+ (%)Re6+ (%)Re7+ (%)
30065.720.010.83.5
35058.921.819.10.2
40036.310.745.97.1
50068.115.716.20.0
60072.218.29.60.0
70072.722.05.30.0
80079.017.23.80.0
90080.119.90.00.0
Table
Table 5. The rhenium materials prepared from ammonium perrhenate of different particle sizes.
Table 5. The rhenium materials prepared from ammonium perrhenate of different particle sizes.
D50 of Ammonium Perrhenate (µm)D50 of Re Powders (µm)Specific Surface Area of Re (m2/kg)Density of Rhenium Ingots (g/cm3)
81.0534.0497.5418.779
71.1719.74163.7020.106
123.9052.1572.7317.726

Share and Cite

MDPI and ACS Style

Tang, J.; Sun, Y.; Zhang, C.; Wang, L.; Zhou, Y.; Fang, D.; Liu, Y. Reaction Mechanism and Process Control of Hydrogen Reduction of Ammonium Perrhenate. Metals 2020, 10, 640. https://doi.org/10.3390/met10050640

AMA Style

Tang J, Sun Y, Zhang C, Wang L, Zhou Y, Fang D, Liu Y. Reaction Mechanism and Process Control of Hydrogen Reduction of Ammonium Perrhenate. Metals. 2020; 10(5):640. https://doi.org/10.3390/met10050640

Chicago/Turabian Style

Tang, Junjie, Yuan Sun, Chunwei Zhang, Long Wang, Yizhou Zhou, Dawei Fang, and Yan Liu. 2020. "Reaction Mechanism and Process Control of Hydrogen Reduction of Ammonium Perrhenate" Metals 10, no. 5: 640. https://doi.org/10.3390/met10050640

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
