Role of Severe Plastic Deformation in Suppressing Formation of R Phase and Ni₄Ti₃ Precipitate of NiTi Shape Memory Alloy

Abstract

Microstructural evolution of NiTi shape memory alloy (SMA) with a nominal composition of Ni_50.9Ti_49.1 (at %) is investigated on the basis of heat treatment and severe plastic deformation (SPD). As for as-rolled NiTi SMA samples subjected to aging, plenty of R phases appear in the austenite matrix. In terms of as-rolled NiTi SMA samples undergoing solution treatment and aging, Ni₄Ti₃ precipitates arise in the austenite matrix. In the case of as-rolled NiTi SMA samples subjected to SPD and aging, martensitic twins are observed in the matrix of NiTi SMA. With respect to as-rolled NiTi SMA samples subjected to solution treatment, SPD, and aging, neither R phases nor Ni₄Ti₃ precipitates are observed in the matrix of NiTi SMA. The dislocation networks play an important role in the formation of the R phase. SPD leads to amorphization of NiTi SMA, and in the case of annealing, amorphous NiTi SMA samples are subjected to crystallization. This contributes to suppressing the occurrence of R phase and Ni₄Ti₃ precipitate in NiTi SMA.

1. Introduction

NiTi shape memory alloys (SMAs) have been widely used in aviation, medical, dental, and automotive fields because of their excellent abrasion resistance, good functional properties, and high mechanical properties [1,2]. Furthermore, plastic deformation and heat treatment have a significant influence on the microstructures of SMAs, which consequently affect their operation performance [3,4,5]. In general, solution treatment leads to one-step transformation of NiTi SMAs from austenite (B2 structure) to martensite (B19′ structure). Solution treatment along with aging results in the precipitation of Ni₄Ti₃ phase, which further contributes to the occurrence of two-stage transformation, three-stage transformation, or even four-stage transformation of NiTi SMAs [6,7,8,9]. It has been proposed that the existence of Ni₄Ti₃ precipitates contribute to the emergence of the R phase, which plays a significant role in multiple-stage transformation of SMAs. Severe plastic deformation (SPD) methods, such as high pressure torsion (HPT) [10,11], cold drawing [12,13], cold rolling [14], surface mechanical attrition treatment (SMAT) [15], and local canning compression [16], can lead to amorphization of NiTi SMAs at lower temperatures. In addition, amorphous NiTi SMA induced by means of SPD is able to be subjected to crystallization in the case of proper heat treatment, where even nanocrystalline NiTi SMA can be produced. However, almost no literature has reported the influence of SPD and subsequent heat treatment on the formation of Ni₄Ti₃ precipitates and the R phase.

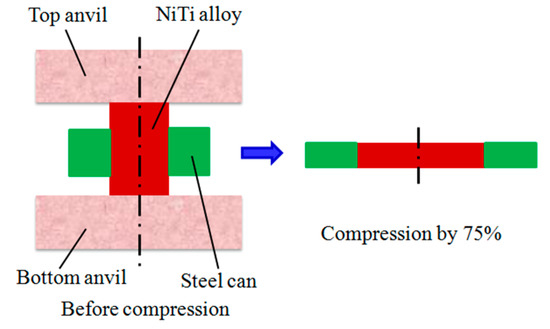

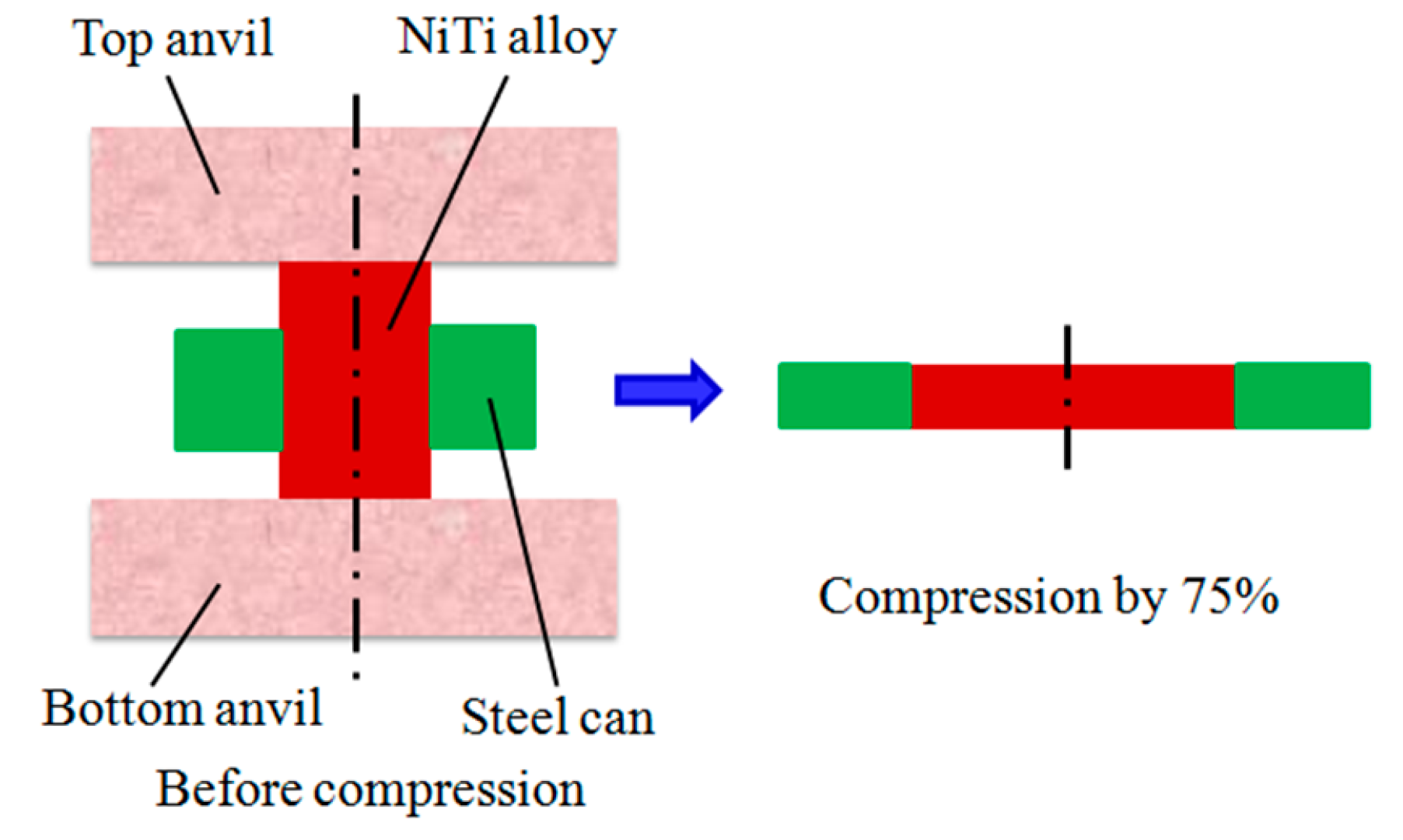

Based on local canning compression, comprehensive influence of heat treatment, as well as SPD on microstructural evolution of NiTi SMA was investigated in the present work. The influence of SPD and subsequent heat treatment on the formation of Ni₄Ti₃ precipitate and R phase, in particular, have been emphasized.

2. Materials and Methods

A NiTi SMA bar, which possesses the nominal composition of Ni_50.9Ti_49.1 (at %), was manufactured by virtue of vacuum induction melting followed by hot rolling. In order to obtain the transformation temperatures of the NiTi SMA bar, differential scanning calorimetry (DSC) test was conducted on a DSC-204 type equipment (Netzsch Group, Freistaat Bayern, Germany). During the DSC test, both the heating rate and cooling rate were set as 10 °C/min and the temperatures ranged from −100 to 100 °C. Consequently, the transformation temperatures of NiTi SMA bar are determined as: Ms = −27.2 °C, Mf = −41.7 °C, As = −17.3 °C, Af = −4.1 °C. The as-rolled NiTi SMA bar was cut into halves, where one half was subjected to a solution treatment at 850 °C for 2 h and subsequently was quenched into ice water, and the other half was used for a contrast sample. Subsequently, the samples with the a diameter of 4 mm and the height of 6 mm were removed from the as-rolled and solution-treated NiTi SMA samples by virtue of electro-discharge machining (EDM) (DK7725, Jiangsu Dongqing CNC Machine Tool Co., Ltd., Taizhou, China), respectively. Afterward, these NiTi SMA samples were inserted into low carbon steel cans (Baosteel, Shanghai, China) which possess an inner diameter of 4 mm, outer diameter of 10 mm, and height of 3 mm. The locally canned NiTi SMA samples were compressed between the two anvils of the INSTRON 5500R equipment (Instron Corporation, Norwood, MA, USA) by 75% in height at the strain rate of 0.05 s⁻¹ and at room temperature, as shown in Figure 1. It can be noted that the NiTi SMA samples are under a three-dimensional compressive stress state due to the constraint of the steel cans. After the compression, the NiTi SMA samples were removed from the steel cans, respectively. Two samples with the diameter of 4 mm and the height of 6 mm were cut from the as-rolled NiTi SMA bar and the solution-treated NiTi SMA bar, respectively. Finally, the two samples along with a compressed sample were aged for 2 h at 600 °C and then they were cooled to room temperature in the ambient atmosphere. All the NiTi SMA samples that were subjected to heat treatment were vacuum-sealed in quartz tubes separately.

Microstructural evolution of the NiTi SMA samples was characterized using transmission electron microscopy (TEM). Foils used for TEM characterization were ground to 70 μm by virtue of mechanical method and subsequently were thinned by means of twin-jet polishing in an electrolyte with the composition of 6% HClO₄, 34% C₄H₁₀O and 60% CH₃OH (volume fraction). TEM observations were implemented on a FEI TECNAI G2 F30 type microscope (FEI Corporation, Hillsboro, OR, USA), which possesses a side-entry and double-tilt specimen stage with an angular range of ±40°.

3. Results

3.1. Microstructures of As-Rolled and Solution-Treated NiTi SMA Samples

The microstructures of as-rolled NiTi SMA sample are shown in Figure 2. It can be found from Figure 2 that plenty of dislocations are distributed in the B2 austenite matrix. It can be deduced that plenty of dislocations are induced by plastic deformation. However, in the case of solution treatment, plenty of dislocations have disappeared in the B2 austenite matrix, as shown in Figure 3.

3.2. Microstructures of NiTi SMA Samples Subjected to SPD

In the case of local canning compression, the as-rolled NiTi SMA sample is subjected to SPD so that a mixture of amorphous and nanocrystalline phases appears, where a small amount of nanocrystalline phase is distributed in the dominant amorphous matrix, as shown in Figure 4. In the same manner, solution-treated NiTi SMA samples exhibit a mixture of amorphous and nanocrystalline phases after suffering from SPD as well, but the amorphization seems to be completed more thoroughly, as shown in Figure 5.

3.3. Microstructures of As-Rolled NiTi SMA Sample Subjected to Aging

Figure 6 shows TEM micrographs of as-rolled NiTi SMA sample subjected to aging. It can be observed from Figure 6 that R phase appears in the B2 austenite matrix of NiTi SMA. In addition, there is a certain orientation relationship between R phase and B2 austenite. It is generally accepted that the appearance of the R phase is attributed to the existence of Ni₄Ti₃ precipitate. However, it seems that no obvious diffraction pattern with respect to Ni₄Ti₃ precipitate is captured in the present work.

3.4. Microstructures of NiTi SMA Sample Subjected to Solution Treatment and Aging

Figure 7 shows TEM micrographs of NiTi SMA sample subjected to solution treatment and aging. It can be found from Figure 7 that the Ni₄Ti₃ precipitates exhibit the inhomogeneous distribution in the matrix of NiTi SMA sample and they are characterized by a typical lenticular shape [9]. In addition, it can be observed from Figure 6 that the Ni₄Ti₃ precipitates arise in the grain interior as well as in the grain boundary pinned by TiC phase and they are obviously coarser in the grain interior than in the grain boundary.

3.5. Microstructures of As-Rolled NiTi SMA Sample Subjected to SPD and Aging

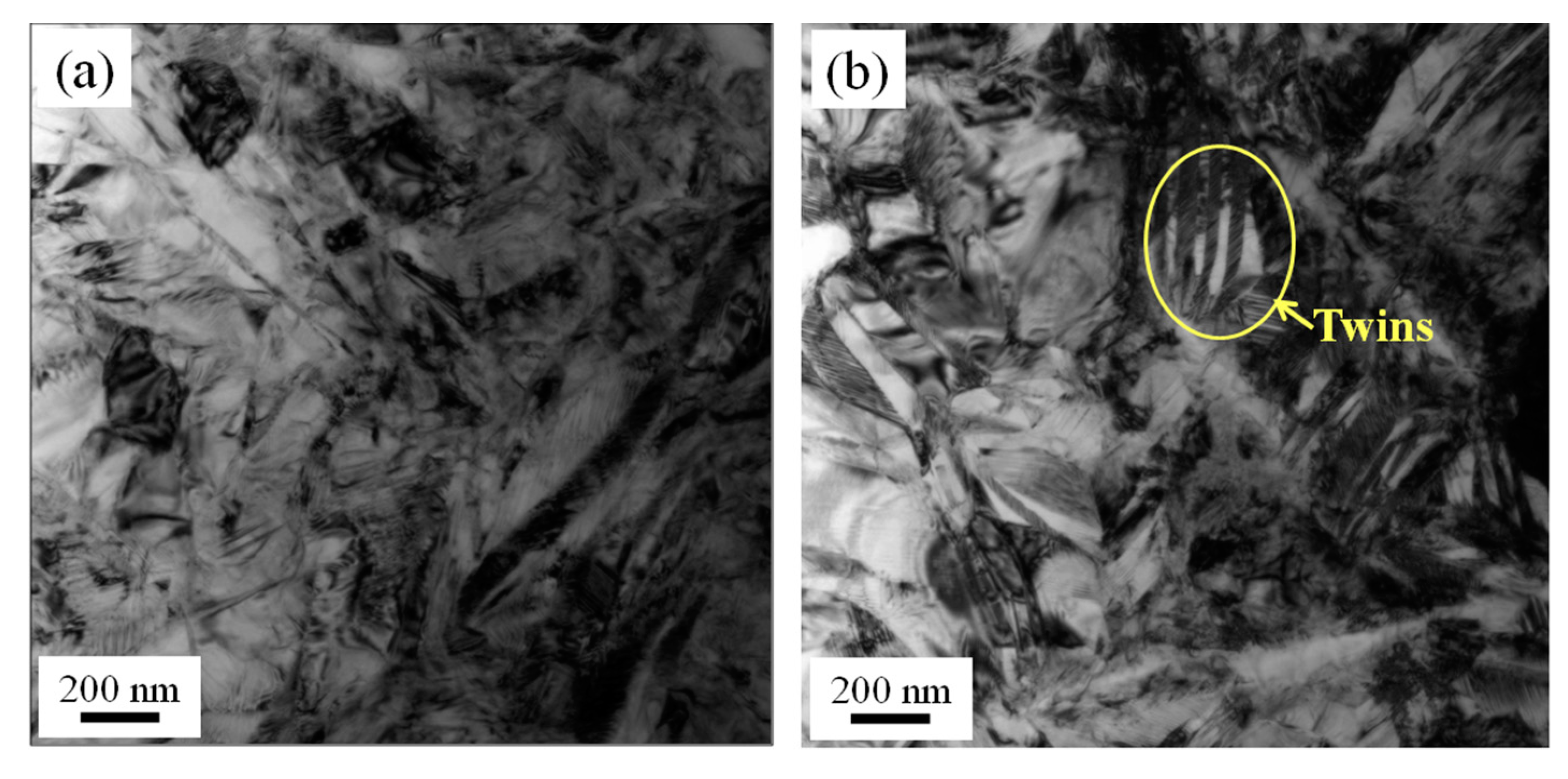

Figure 8 shows the microstructures of an as-rolled NiTi SMA sample subjected to SPD and subsequent aging. It can be observed from Figure 8 that the microstructure of NiTi SMA sample has a feature of martensite morphology. Furthermore, it can be found that martensite twins are distributed in the matrix. The phenomenon has been validated by the previous study [17]. In addition, neither R phase nor Ni₄Ti₃ precipitate appear in the matrix of NiTi SMA.

3.6. Microstructures of Solution-Treated NiTi SMA Sample Subjected to SPD and Aging

Figure 9 TEM micrographs of solution-treated NiTi SMA sample subjected to SPD and subsequent aging. It can be found from Figure 9 that, as for solution-treated NiTi SMA samples subjected to SPD and subsequent aging, B2 austenite phase and B19′ martensite phase coexist in the matrix of NiTi SMA. In particular, neither R phase nor Ni₄Ti₃ precipitate appear in the matrix of NiTi SMA as well.

4. Discussion

In general, Ni₄Ti₃ precipitates are nucleated and grow preferentially at the grain boundary on the basis of the theory for phase transformation kinetics. The nucleation rate of the Ni₄Ti₃ precipitates at the grain boundary is greater than that in the grain interior because nucleation barrier of the former is lower than that of the latter. Furthermore, the grain boundary energy plays an important role in accelerating the nucleation of Ni₄Ti₃ precipitates at the grain boundary. However, in the present study, the curvature of the grain boundary pinned occurs due to the pinning effect of the secondary phase TiC at the grain boundary. As a consequence, the grain boundary energy is reduced as compared to the original grain boundary, which suppresses the nucleation and growth of the Ni₄Ti₃ precipitates to a certain degree. However, whether the grain boundary is pinned or not, the nucleation rate of these Ni₄Ti₃ precipitates at the grain boundary is always greater than that in the grain interior. Firstly, the nucleation and growth of Ni₄Ti₃ precipitates at the grain boundary results in the Ni concentration at grain boundary being lowered as compared to the grain interior, which causes the Ni atoms in the interior of grain to diffuse towards the grain boundary. However, coherent interface is unable to be formed between the Ni₄Ti₃ precipitates at grain boundary and the B2 matrix, so the Ni₄Ti₃ phases at the grain boundary are hard to grow towards the grain interior due to the impediment of grain boundary. With the proceeding of aging, the Ni₄Ti₃ precipitates are nucleated and grow along the coherent interface between them and the B2 matrix in the grain interior. In addition, because the Ni₄Ti₃ phases in the grain interior can absorb Ni atoms from the B2 austenite matrix around them, they grow to be larger and larger, and consequently the smaller Ni₄Ti₃ precipitates are gradually merged by the larger Ni₄Ti₃ precipitates.

It is generally accepted that the existence of the Ni₄Ti₃ phases is able to suppress the transformation of martensite, which consequently promotes the occurrence of R phase. Because R phase plays an important role in multi-stage phase transformation of NiTi SMAs, the occurrence of two-stage phase transformation (B2-R-B19′) is regarded as a reasonable phenomenon in Ni-rich NiTi SMAs subjected to aging. However, abnormal three-stage transformation often appears in the aged Ni-rich NiTi SMAs. Bataillard et al. [18] suggested that the small-scale stress inhomogeneity in the B2 austenite matrix around Ni₄Ti₃ precipitates is responsible for the emergence of three-stage transformation during cooling, where the three-stage transformation includes an one-stage transformation from B2 austenite to R phase and a two-stage transformation from R phase to B19′ martensite, which corresponds to the high stress region near Ni₄Ti₃ precipitate and the low stress region away from Ni₄Ti₃ precipitate, respectively. Khalil Allafi et al. [19] suggested that the three-stage transformation during cooling is induced by the small-scale chemical composition inhomogeneity in the B2 austenite matrix and between the Ni₄Ti₃ precipitates, which leads to one B2-R transformation as well as two R-B19′ transformations. Furthermore, the two R-B19′ transformations occur in a low Ni region near Ni₄Ti₃ precipitate or at high Ni region away from Ni₄Ti₃ precipitate. Dlouhý et al. [20] gave microstructural evidence that R phase is nucleated at the interface between the B2 austenite matrix and Ni₄Ti₃ precipitate and B19′ martensite is nucleated at the interface between R phase and Ni₄Ti₃ precipitate. According to the aforementioned literatures, it can be proposed that the occurrence of R phase is mainly attributed to the inhomogeneous stress filed or the heterogeneous chemical composition, which results from the existence of Ni₄Ti₃ precipitates. However, in the present study, it seems that the dislocation networks lay the foundation for the formation of R phase. Under the condition of aging for 2 h at 600 °C, the Ni₄Ti₃ precipitates are easier to occur in the solution-treated NiTi SMA as compared to NiTi SMA which contains plenty of dislocations due to previous processing history.

When NiTi SMA is subjected to local canning compression, SPD results in amorphization of NiTi SMA. Crystallization of the amorphous NiTi SMA takes place in the course of subsequent aging for 2 h at 600 °C. As a matter of fact, SPD results in a mixture containing the amorphous phase and the retained nanocrystalline phase. The crystallization mechanism for the amorphous phase accompanied by the retained nanocrystalline phase can be summarized as the following procedures. Firstly, the retained nanocrystalline phase preferentially acts as the nucleus under the action of thermal driving force. In addition, a high density of dislocations is able to be induced in the retained nanocrystalline phase, where the stored energy is enhanced. As a consequence, the release of the stored energy makes a contribution to the formation of the crystal nucleus. With the proceeding of aging time, new crystals are nucleated in the amorphous matrix because the stored energy aroused by the lattice defects of the amorphous phase is relaxed, and simultaneously the retained nanocrystals continue to grow up under the thermal driving force. Once all the grains impinge each other, complete crystallization occurs in the NiTi SMA sample suffering from SPD. Consequently, the amorphous phase is preferentially crystallized in the studied NiTi SMA, which contributes to suppressing the formation of Ni₄Ti₃ precipitates because the crystallized NiTi SMA is unable to meet the requirements for the precipitation of Ni₄Ti₃ phase. On the one hand, the energy has been consumed by the crystallization process and consequently the crystallized NiTi SMA is unable to meet the requirements for the precipitation of Ni₄Ti₃ phase in terms of energy. On the other hand, the crystallized NiTi SMA does not meet the requirements for the precipitation of Ni₄Ti₃ phase in terms of chemical composition. It can be concluded that SPD plays a significant role in suppressing the formation of R phase and Ni₄Ti₃ precipitate of NiTi SMA.

5. Conclusions

(1)

In the case of as-rolled NiTi SMA sample subjected to aging for 2 h at 600 °C, R phase appears in the B2 austenite matrix. The as-rolled NiTi SMA sample contains plenty of dislocation networks aroused by previous processing history. The dislocation networks are responsible for the formation of the R phase.

(2)

Solution treatment for 2 h at 850 °C can result in the annihilation of the dislocations in the as-rolled NiTi SMA sample. As a consequence, the Ni₄Ti₃ precipitates more easily arise in a solution-treated NiTi SMA sample when aged for 2 h at 600 °C.

(3)

SPD is capable of inducing amorphization of a NiTi SMA sample at room temperature. Amorphous NiTi SMA is able to be subjected to crystallization when aged for 2 h at 600 °C. Consequently, SPD and subsequent aging contribute to enhancing the transformation temperature of martensite. In addition, SPD plays an important role in suppressing the occurrence of R phase and Ni₄Ti₃ precipitate.
