Open AccessArticle
Metals 2017, 7(8), 308; doi:10.3390/met7080308

Surface Characterization and Corrosion Resistance of 36Cr-Ni-Mo4 Steel Coated by WC-Co Cermet Electrode Using Micro-Electro Welding

Department of Materials Engineering, University of Tabriz, Tabriz 51368, Iran
*
Author to whom correspondence should be addressed.
Received: 5 July 2017 / Revised: 24 July 2017 / Accepted: 25 July 2017 / Published: 12 August 2017
(This article belongs to the Special Issue Cermets and Hardmetals)
View Full-Text   |   Download PDF [4157 KB, uploaded 12 August 2017]   |

Abstract

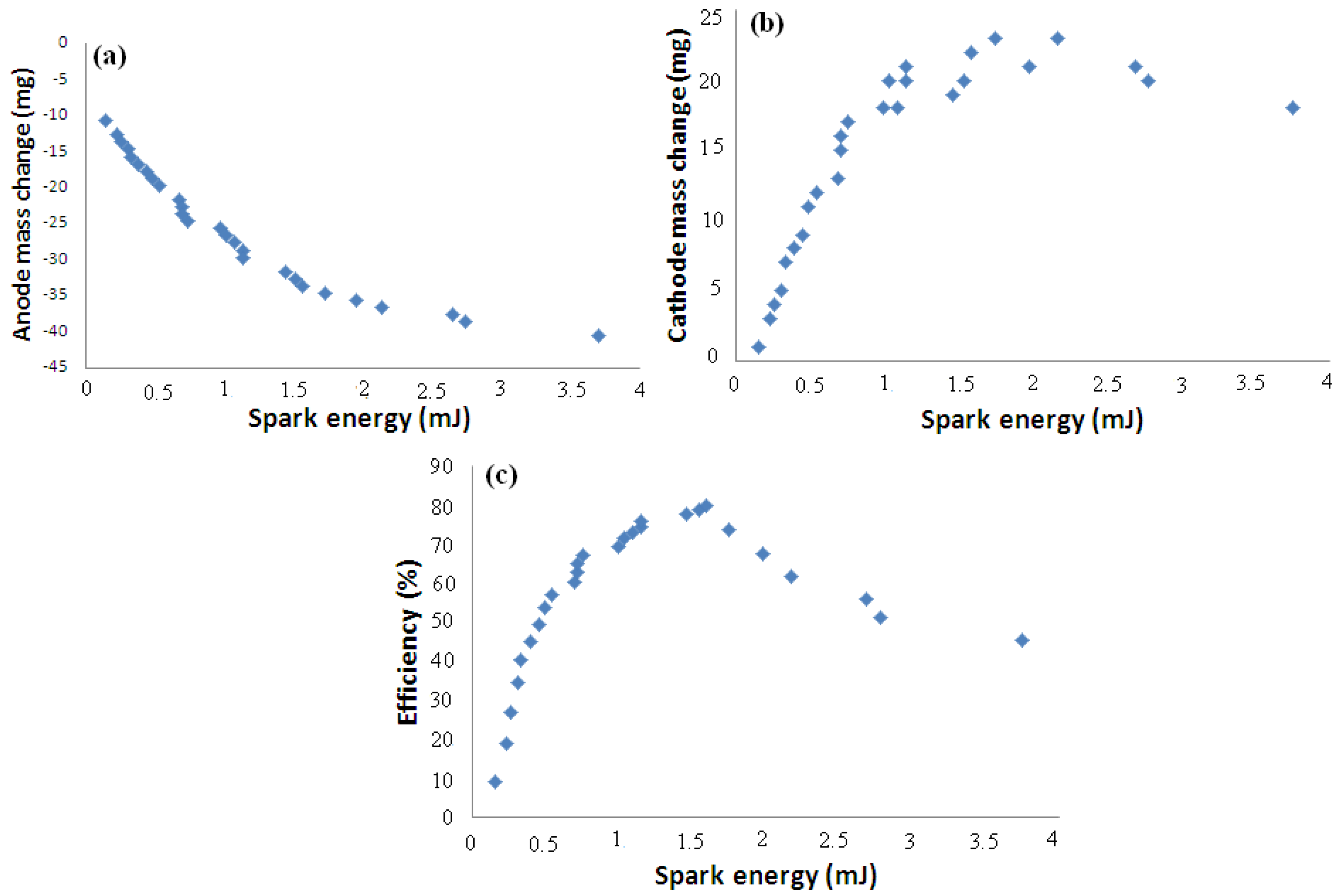

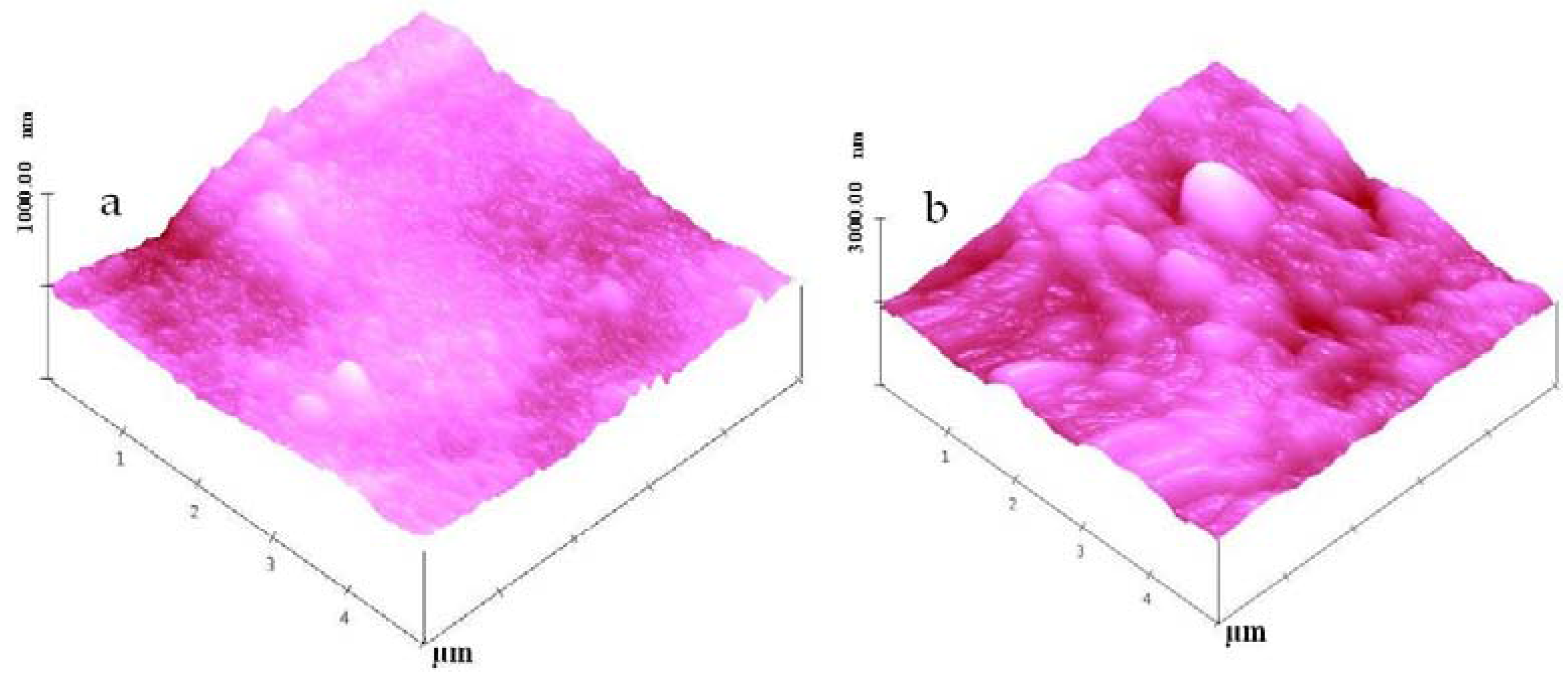

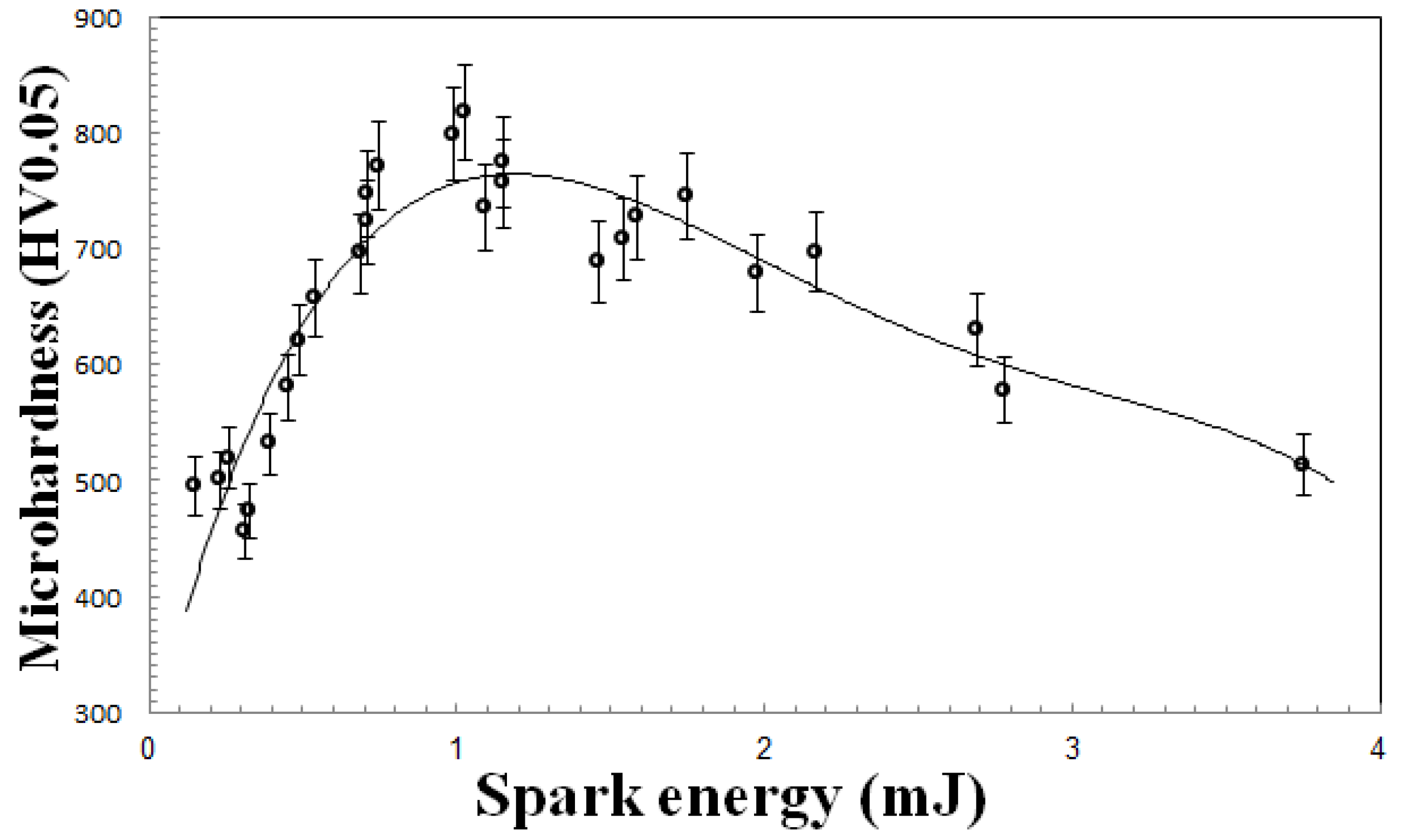

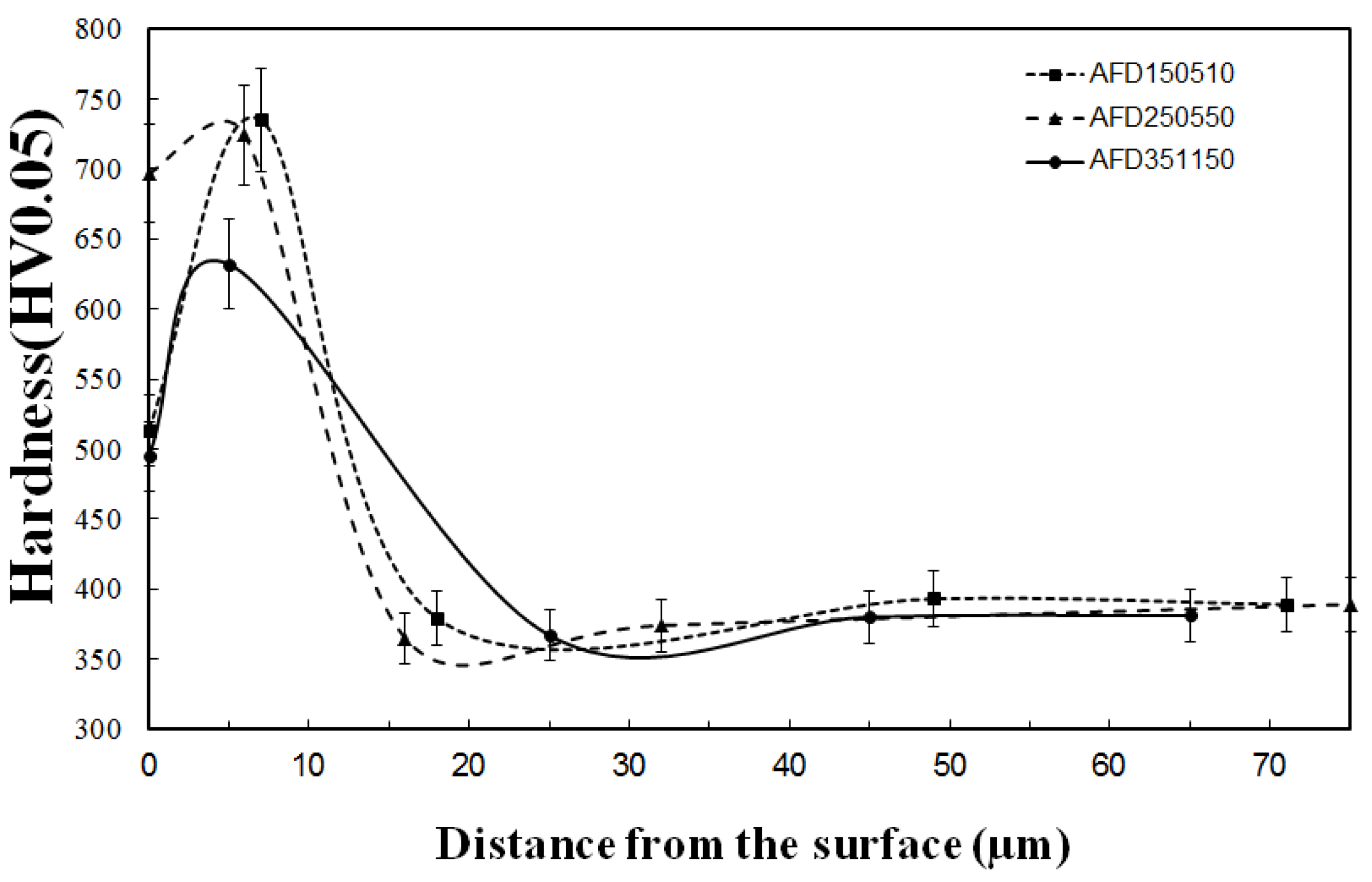

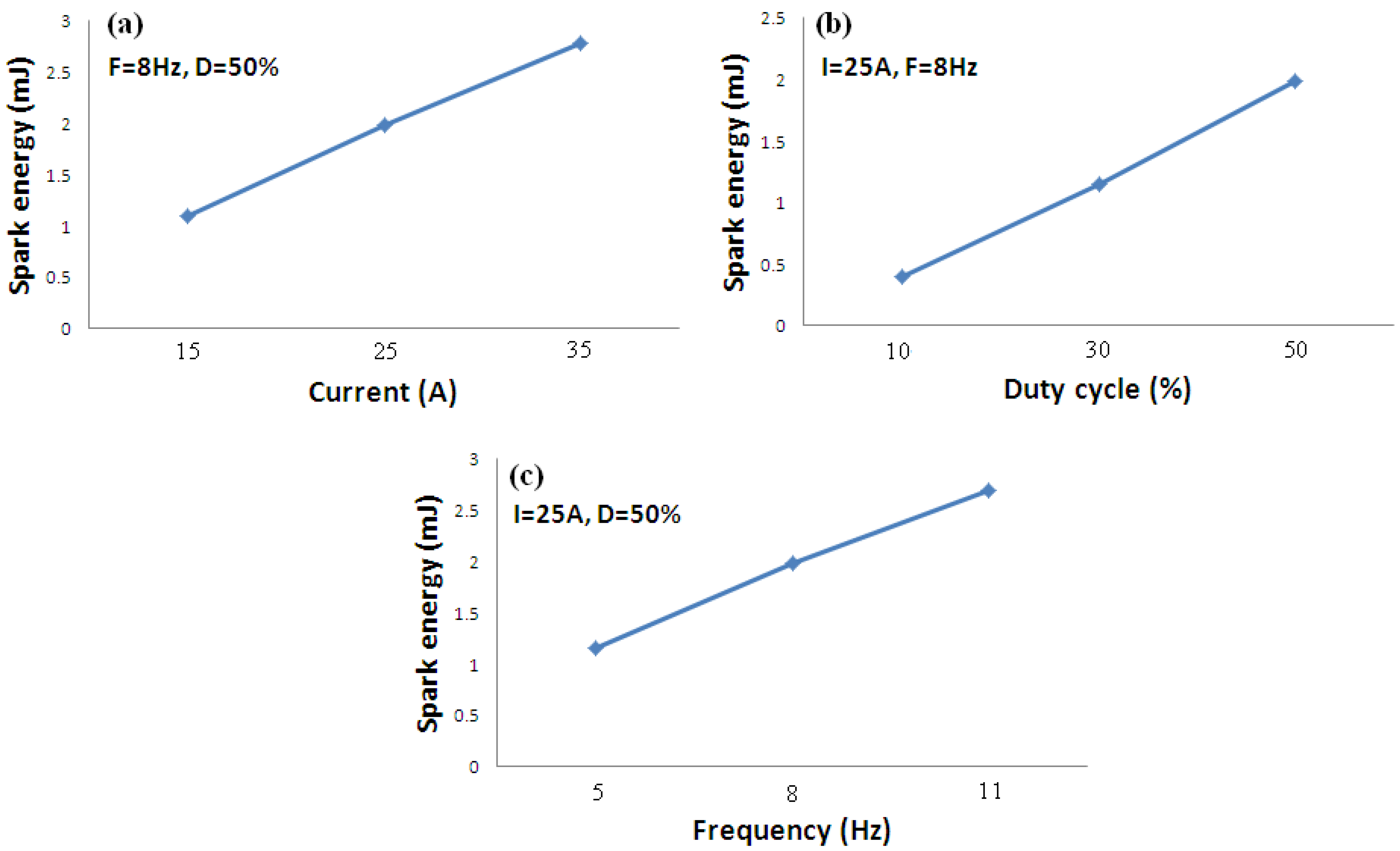

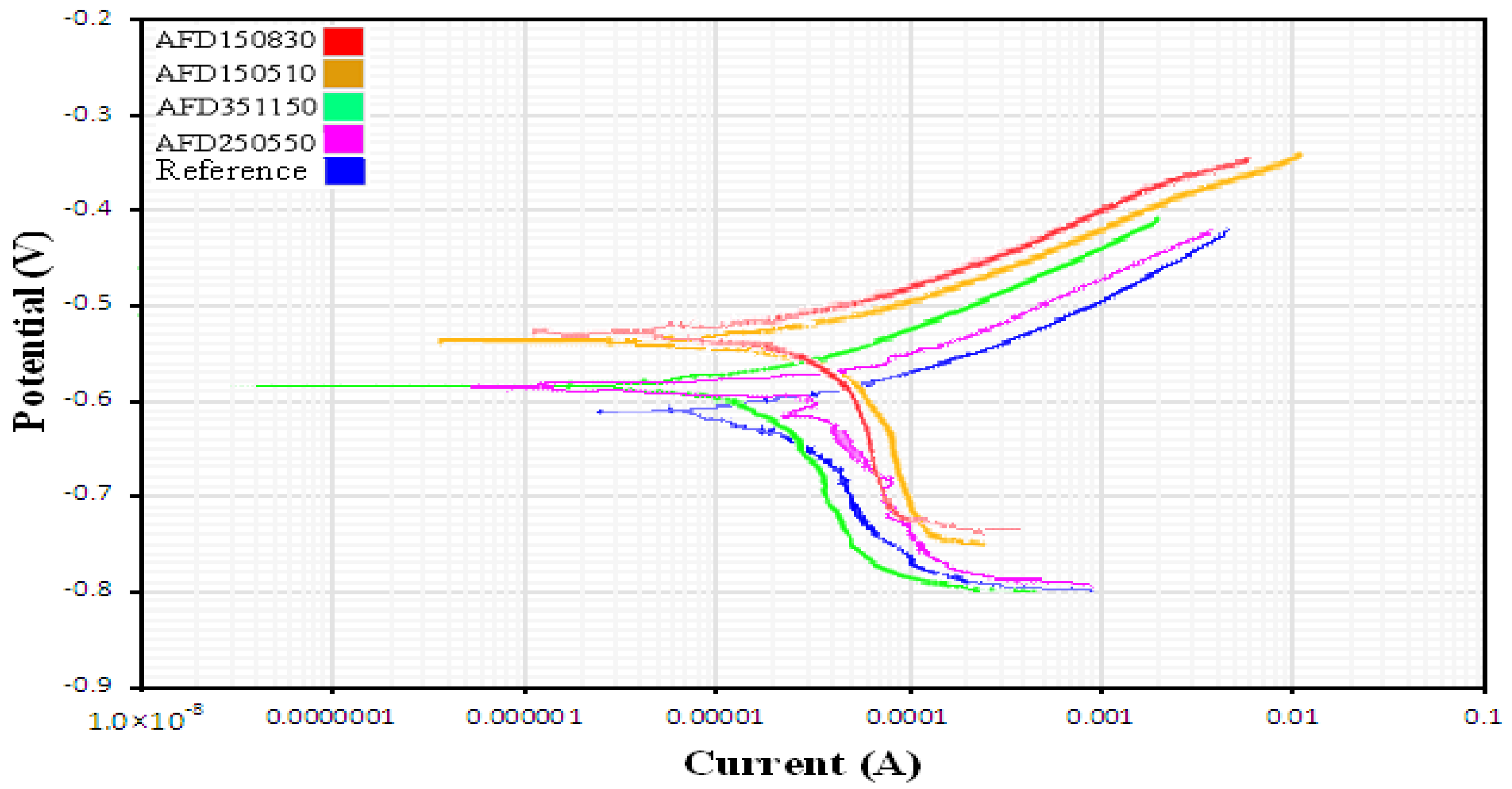

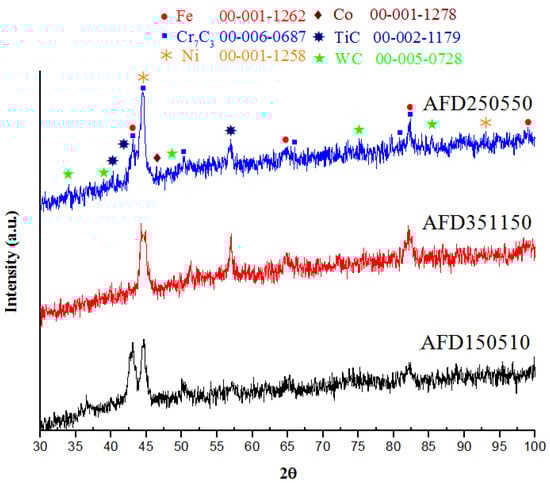

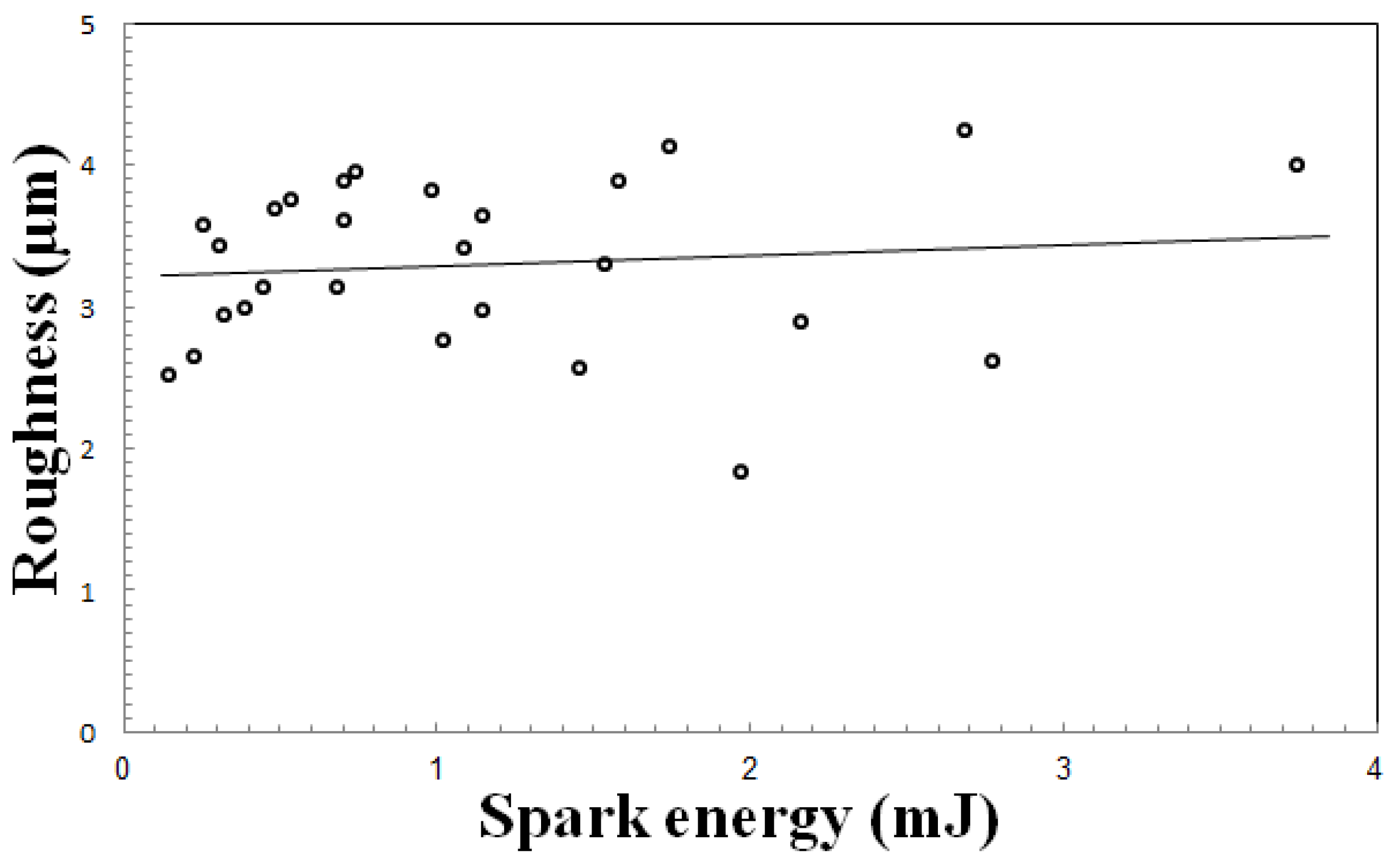

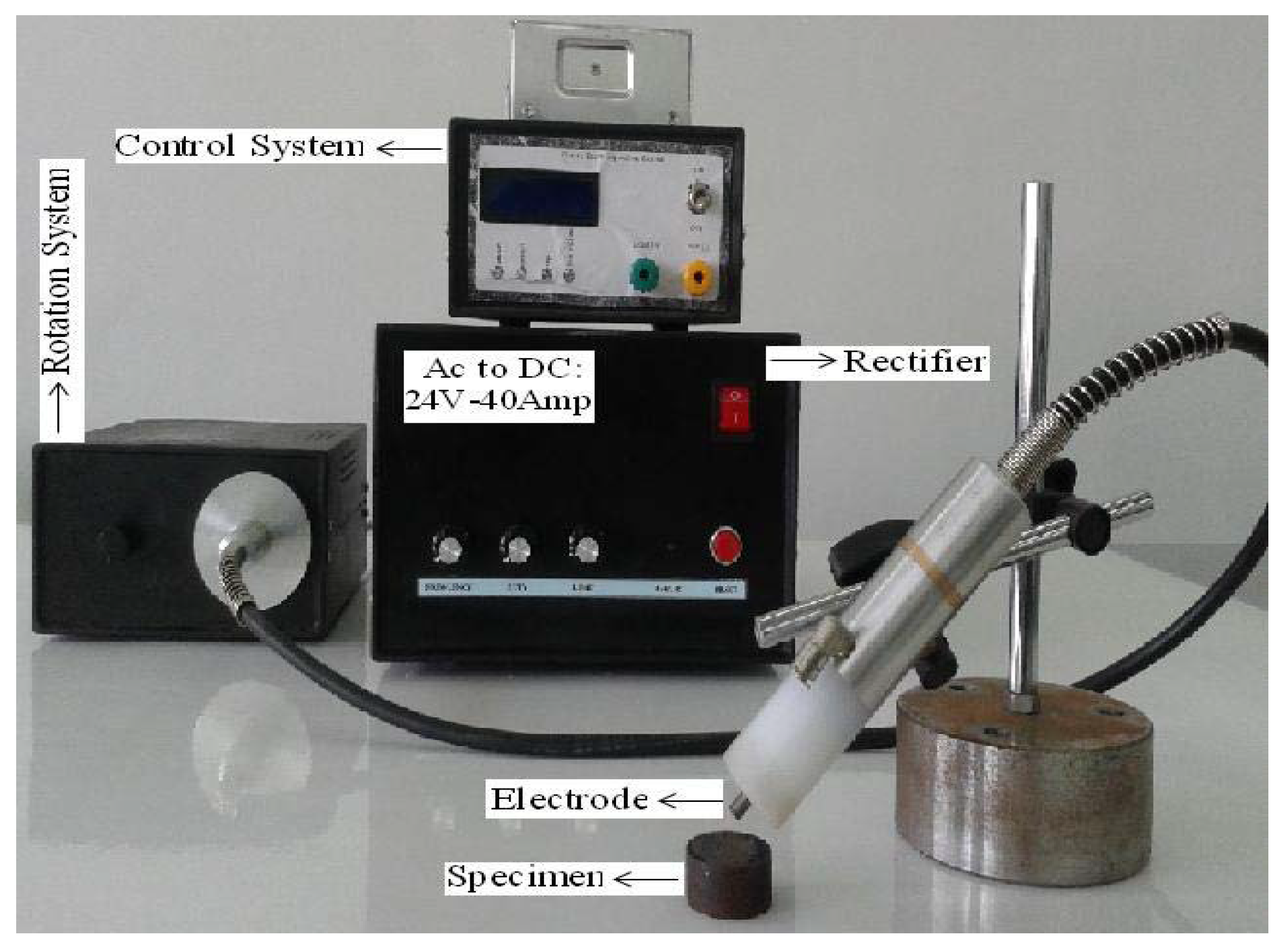

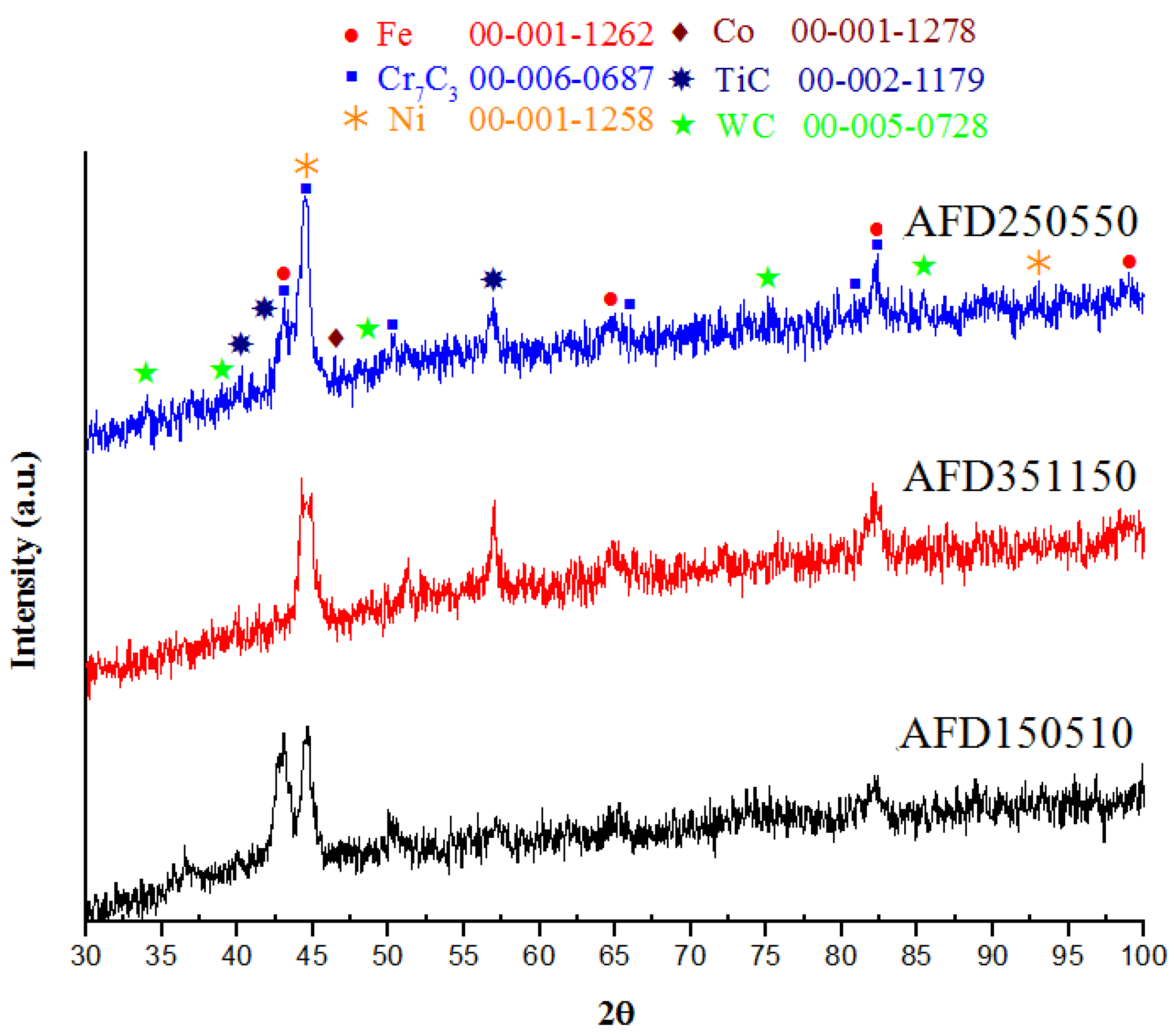

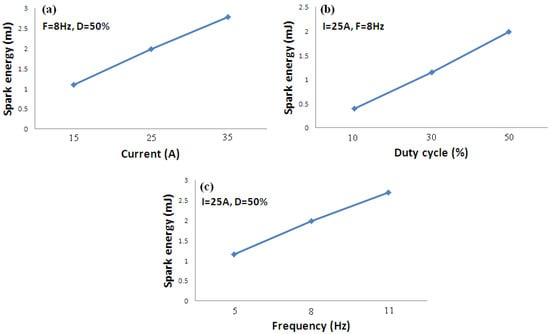

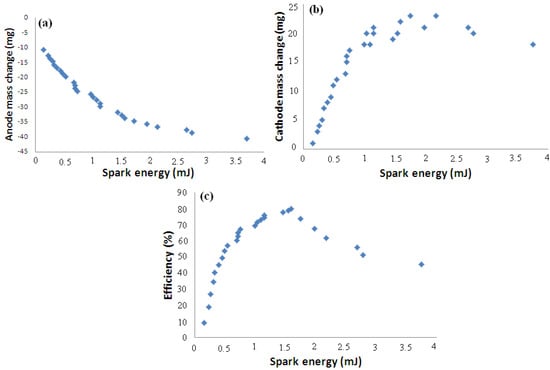

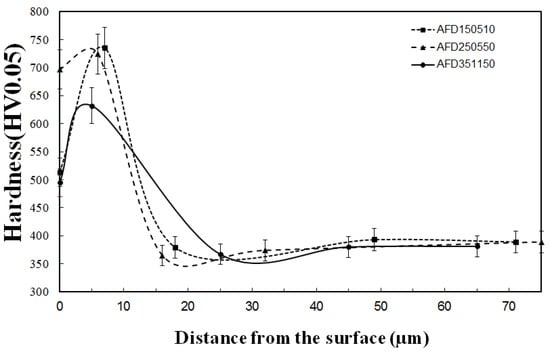

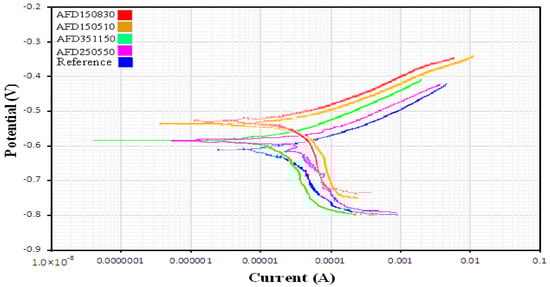

In this paper the influence of spark energy on corrosion resistance, hardness, surface roughness and morphology of WC-Co coated 36Cr-Ni-Mo4 steel by Micro-Electro Welding (MEW) was investigated. Frequencies of 5, 8 and 11 kHz, currents of 15, 25 and 35 A and duty cycles of 10, 30 and 50 % were applied for coating of the samples using a WC-Co cermet electrode. The results indicate that increasing the current, Duty cycle and frequency of the process increases spark energy. As spark energy increases, efficiency of coating increases to 80% and then decreases. X-ray diffraction (XRD) analysis was used to identify the phases. The results indicated that other than the peaks obtained for the metallic Iron with BCC (Body Centered Cubic) structure, Tungsten Carbide, Cr7C3 and Titanium Carbide phases were also seen on the surface. Vickers micro hardness method was used for hardness measurement of the samples. Surface hardness increases to 817.33 HV0.05 with spark energy increasing up to 1.03 mJ, and then reducing. Optical Microscopy (OM) and scanning electron microscopy (SEM) to study Microstructural and atomic force microscopy (AFM) to study the topography, morphology and roughness were used. Polarization technique in 3.5 wt % NaCl solution was used to evaluate the corrosion properties. The results of the energy dispersive X-ray spectroscopy (EDS) analysis indicate that with increasing spark energy, the amount of Tungsten in surface increases to 41.95 wt % and then decreases. As spark energy increases up to 2.17 mJ, thickness of coating increases to 8.31 μm and then decreases. As spark energy increases, surface roughness is also increased. Corrosion test results indicated that the lowest corrosion rate (2.6 × 10−8 mpy) is related to the sample with the highest level of efficiency. View Full-Text
Keywords: MEW operation; WC-Co cermet electrode; 36Cr-Ni-Mo4 steel; spark energy; roughness; corrosion MEW operation; WC-Co cermet electrode; 36Cr-Ni-Mo4 steel; spark energy; roughness; corrosion
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
