Next Article in Journal
Compositional Approach to Designing Fcc High-Entropy Alloys that Have an Enlarged Equiaxed Zone
Previous Article in Journal
Influence of Extrusion Temperature on the Aging Behavior and Mechanical Properties of an AA6060 Aluminum Alloy
Article Menu

Export Article

Open AccessArticle
Metals 2018, 8(1), 53; doi:10.3390/met8010053 (registering DOI)

Austempered Ductile Iron (ADI): Influence of Austempering Temperature on Microstructure, Mechanical and Wear Properties and Energy Consumption

1
Department of Mechanical Engineering, Hindustan Institute of Technology and Science, Chennai 603103, India
2
Research and Development, Nelcast Private Ltd., Chennai 600018, India
3
WMG, University of Warwick, Coventry CV4 7AL, UK
*
Author to whom correspondence should be addressed.
Received: 23 November 2017 / Revised: 18 December 2017 / Accepted: 22 December 2017 / Published: 12 January 2018
View Full-Text   |   Download PDF [5406 KB, uploaded 22 January 2018]   |

Abstract

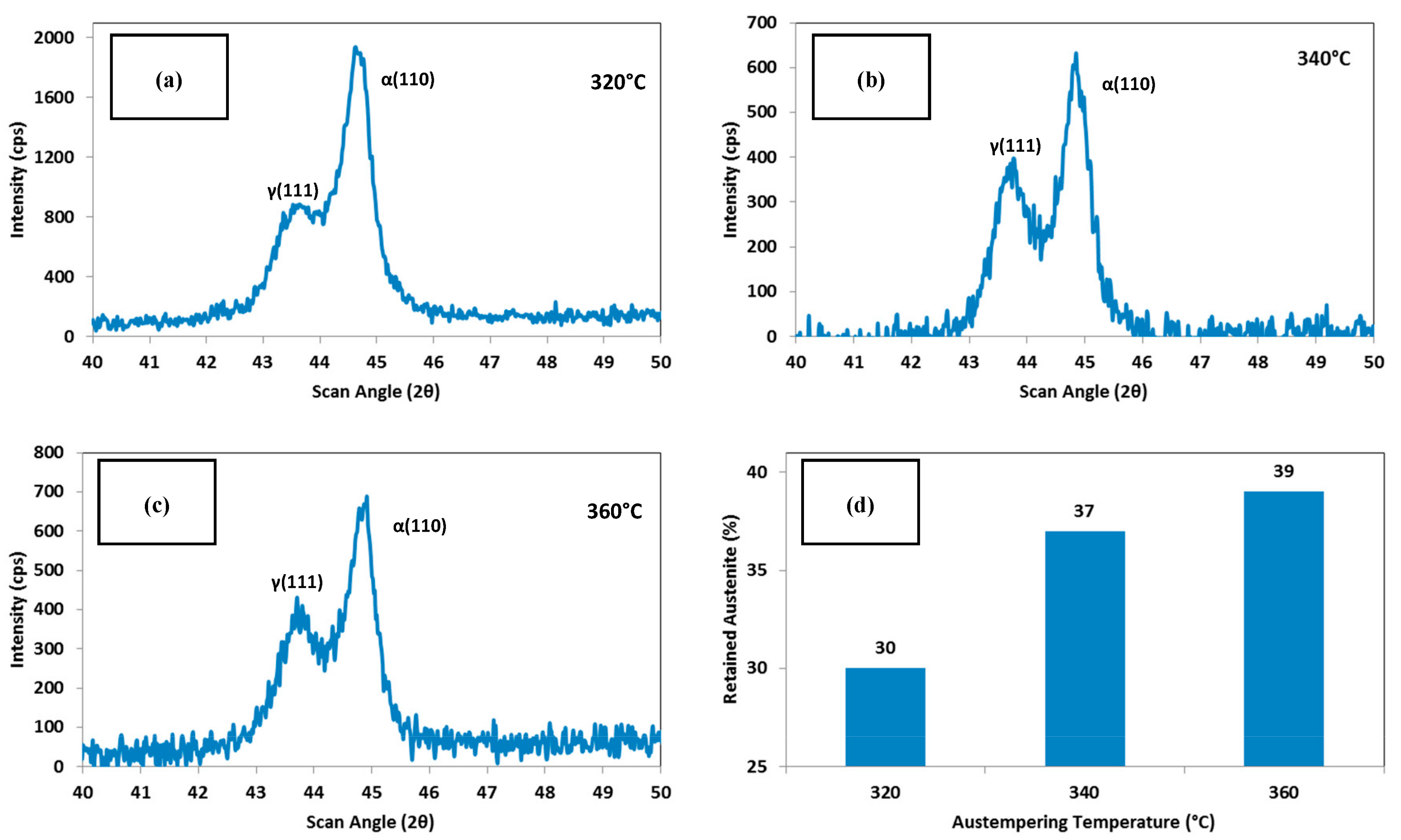

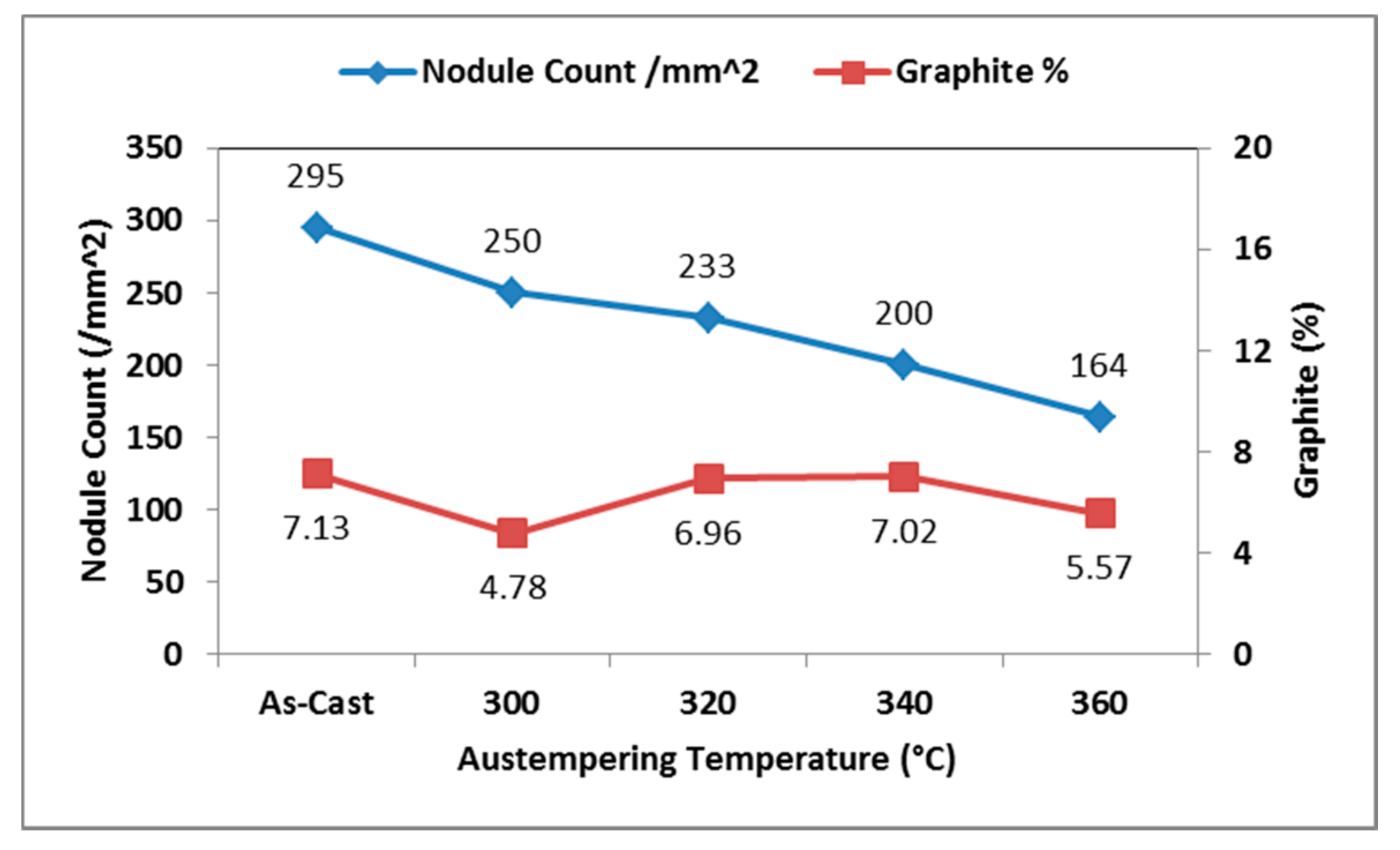

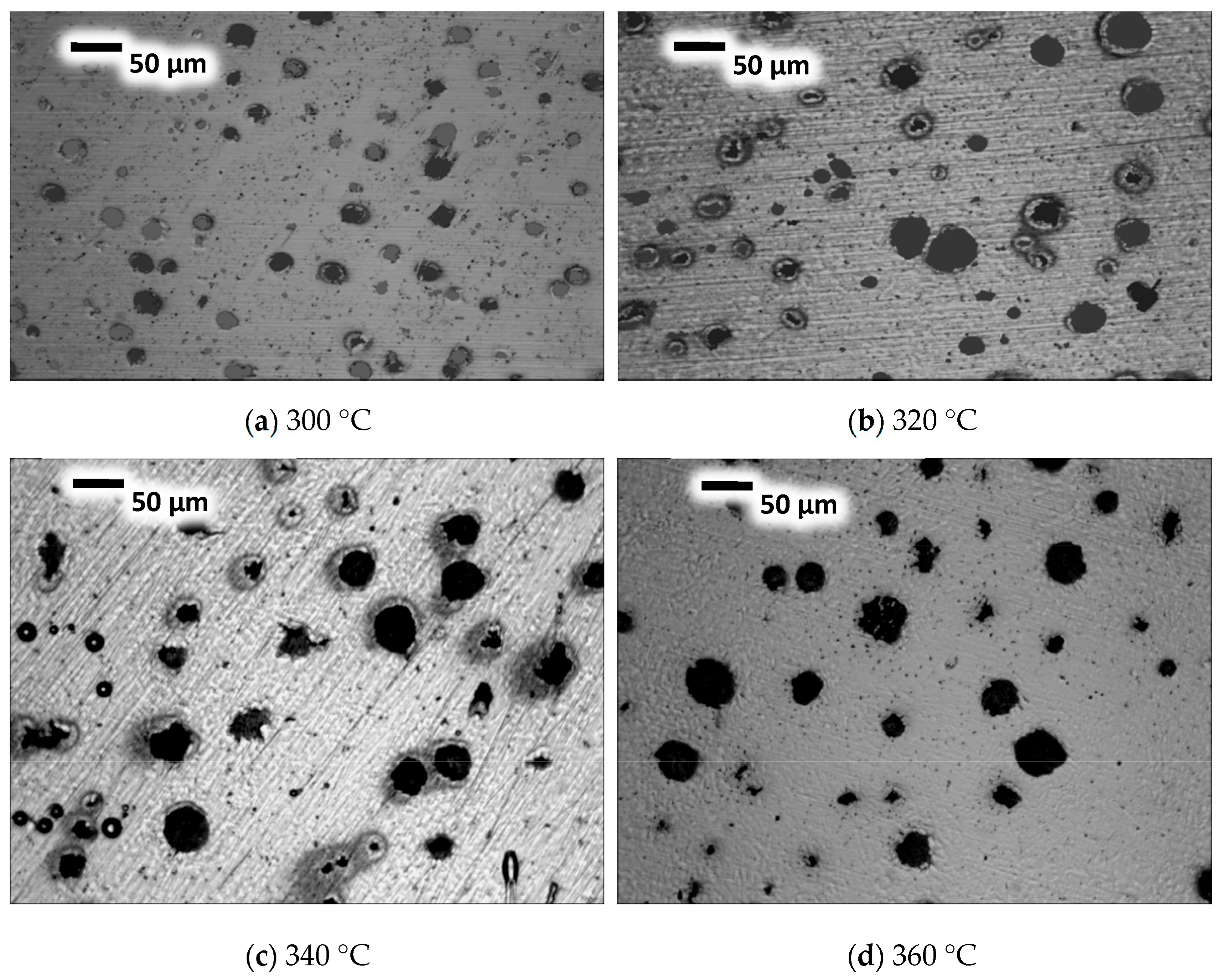

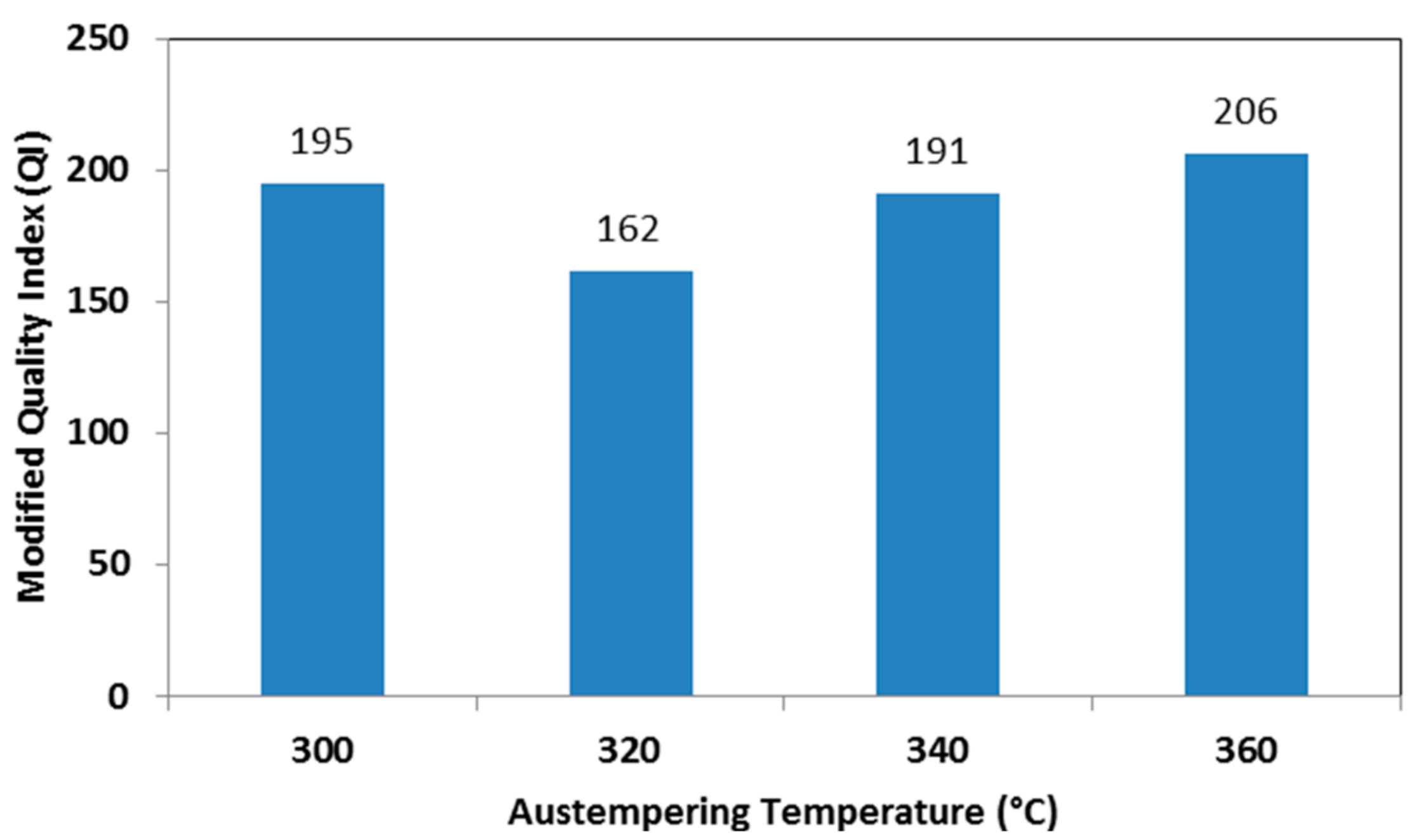

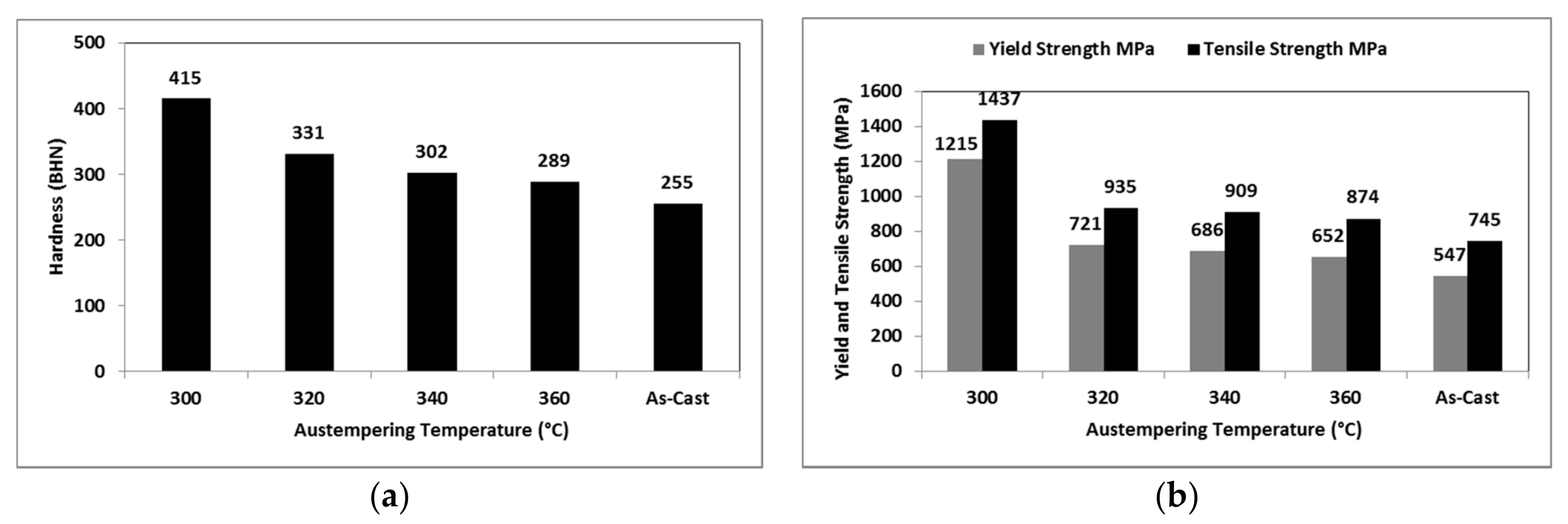

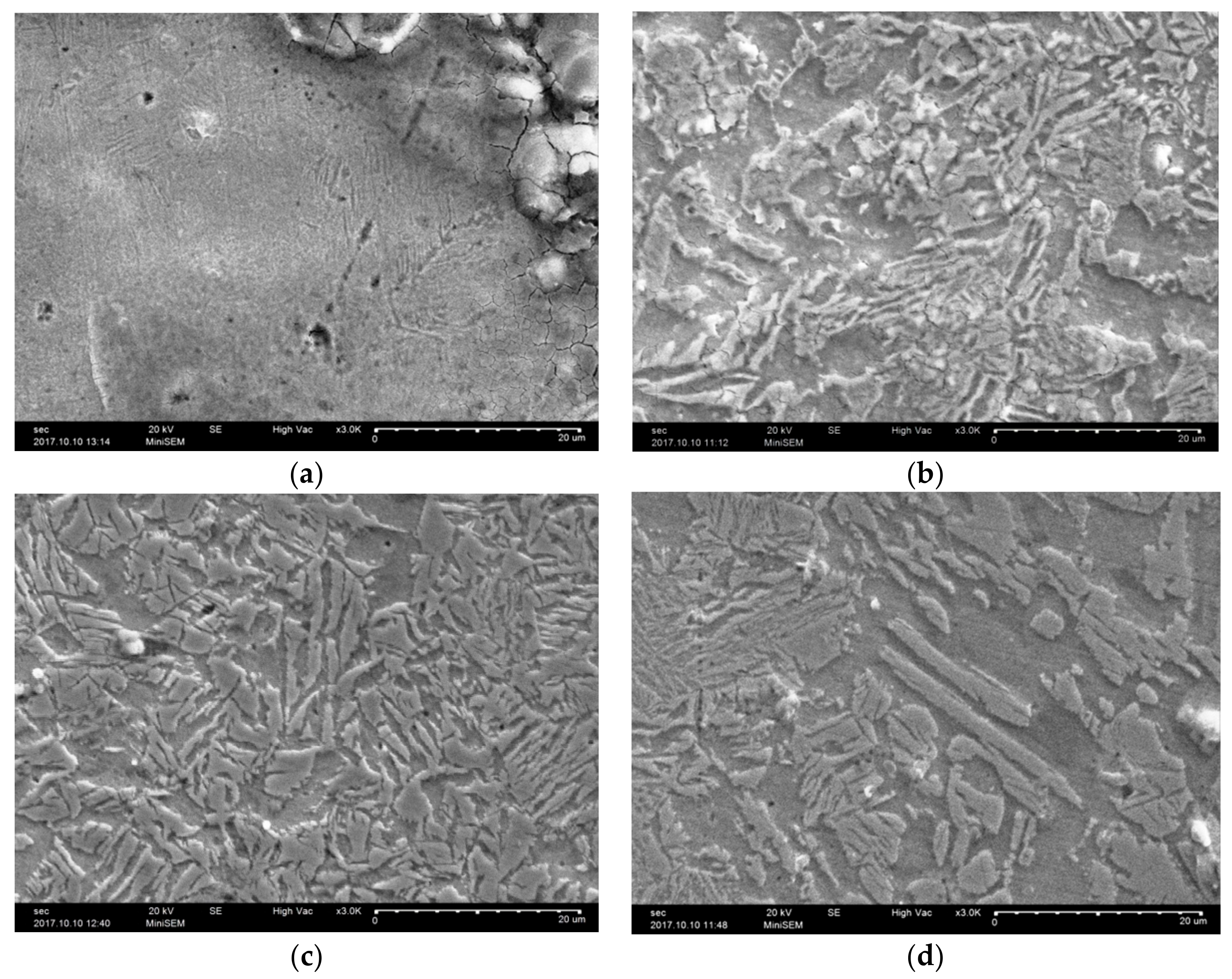

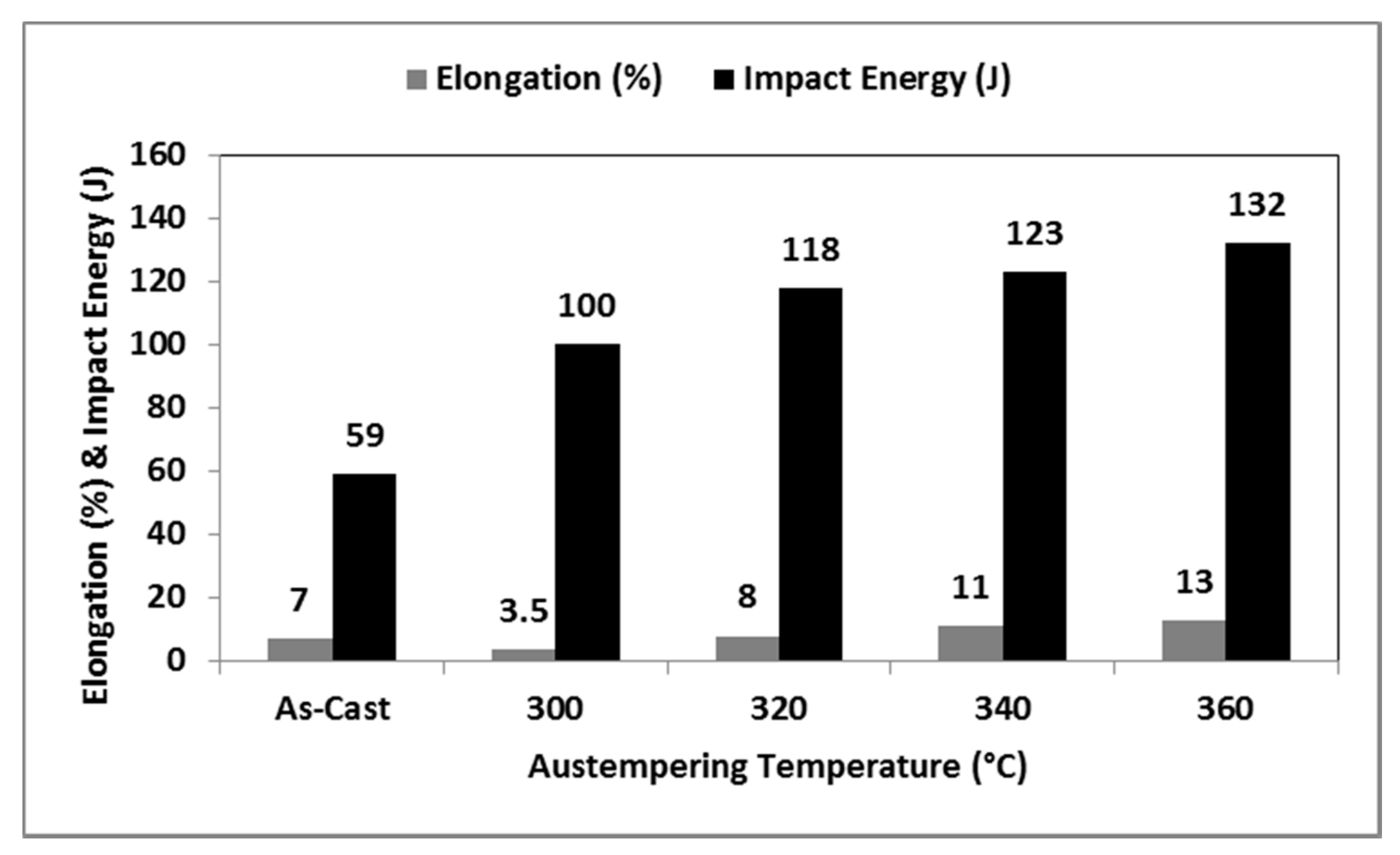

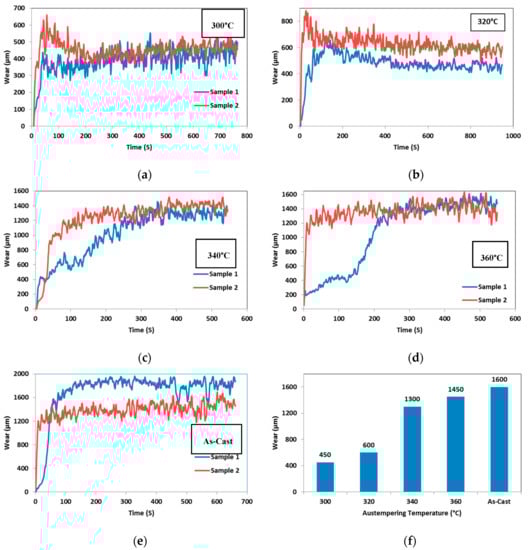

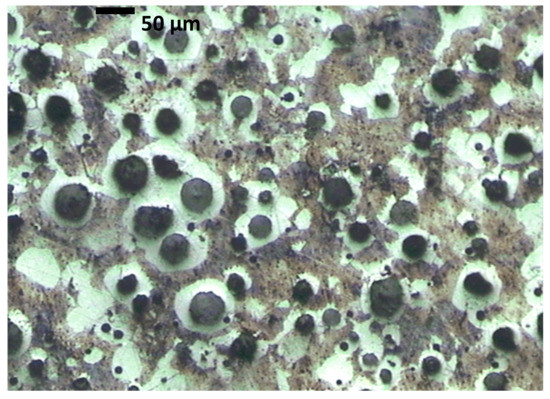

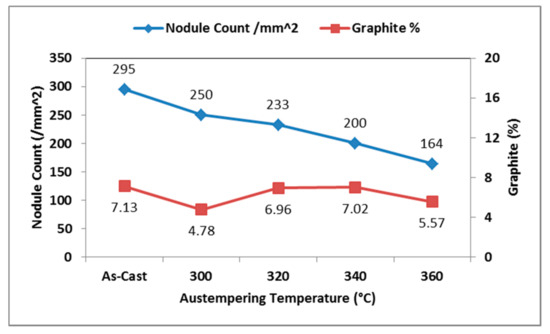

Alloyed Ductile iron, austenitized at 840 °C for 30 min in a special sealed austempering furnace, was austempered for 30 min in molten salt mixture at 4 trial temperatures of 300 °C, 320 °C, 340 °C and 360 °C. Tensile strength, yield strength, percentage elongation and impact energy were evaluated for the as-cast and austempered samples. Microstructures were investigated using microscopy, coupled with analyzing software and a scanning electron microscopy. The specific wear of samples was tested using pin-on-disc wear testing machine. X-ray diffraction was performed to calculate the amount of retained austenite present in the ausferrite matrix. As-cast microstructure consists of ferrite and pearlite, whereas austempered ductile iron (ADI) contains a mixture of acicular ferrite and carbon enriched austenite, called “ausferrite”. Hardness and strength decreased, whereas ductility and impact strength improved with an increase in the austempering temperature. XRD analysis revealed that the increase in austempering temperature increased the retained austenite content. A decrease in wear resistance with austempering temperature was observed. Modified Quality Index (MQI) values were envisaged, incorporating tensile strength, elongation and wear resistance. MQI for samples austempered at 340 °C and 360 °C showed a better combination of properties. About an 8% reduction in energy consumption was gained when the heat treatment parameters were optimized. View Full-Text
Keywords: austempered ductile iron (ADI); mechanical properties; impact energy; microstructure; wear austempered ductile iron (ADI); mechanical properties; impact energy; microstructure; wear
Figures

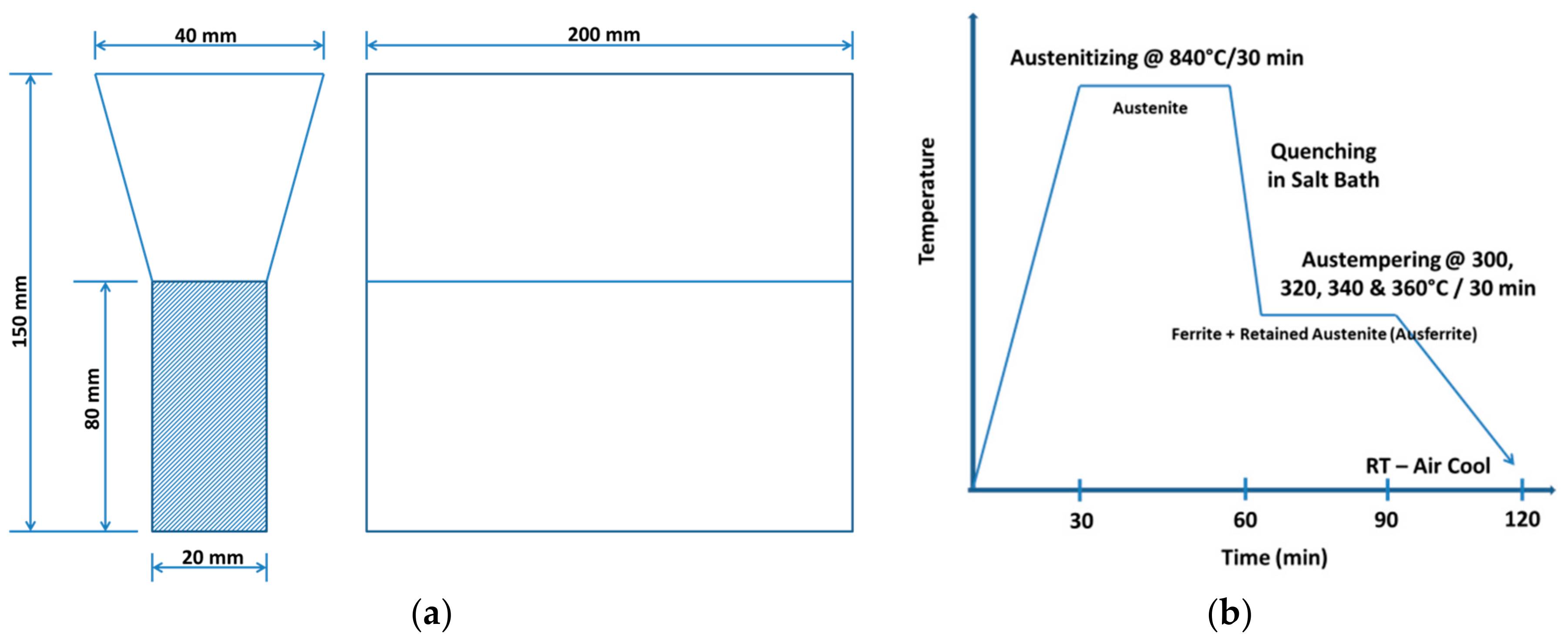

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Sellamuthu, P.; Samuel, D.G.H.; Dinakaran, D.; Premkumar, V.P.; Li, Z.; Seetharaman, S. Austempered Ductile Iron (ADI): Influence of Austempering Temperature on Microstructure, Mechanical and Wear Properties and Energy Consumption. Metals 2018, 8, 53.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
