The Influence of Warm Rolling Reduction on Microstructure Evolution, Tensile Deformation Mechanism and Mechanical Properties of an Fe-30Mn-4Si-2Al TRIP/TWIP Steel

Abstract

The effects of warm rolling reduction ratio ranging from 20% to 55% on microstructure evolution, the tensile deformation mechanism, and the associated mechanical properties of an Fe-30Mn-4Si-2Al TRIP/TWIP steel were studied. The warm rolling process resulted in the formation and proliferation of sub-structure, comprising dislocations, deformation twins as well as shear bands, and the densities of dislocation and twins were raised along with the increase in rolling reduction. The investigated steel, with a fully recrystallized state, exhibited a single ε-TRIP effect during the room temperature tensile deformation, on top of dislocation glide. However, the formation and growth of twin lamellae and ε-martensite were detected simultaneously during tensile deformation of the warm rolled specimen with rolling reduction of 35%, leading to a good balance between high yield strength of 785 MPa, good total ductility of 44%, and high work hardening rate. As the rolling reduction increased to 55%, the specimen revealed a relatively low work hardening rate, due to the high dislocation density, and dislocation glide was the main deformation mechanism. As a result, a tensile deformation mechanism that started from a single ε-martensitic transformation moved to a bi-mode of ε-martensitic transformation accompanied with deformation twinning, and finally to dislocation glide with the increasing warm rolling reduction was proposed.

1. Introduction

TRIP/TWIP steel with high strength-elongation product and high energy absorption capability offers a promising perspective for the automotive industry, since the attractive mechanical properties derive from the formation of ε/α’ martensite (TRIP effect, Transformation Induced Plasticity), or deformation twins (TWIP effect, Twinning Induced Plasticity) [1,2,3,4,5,6]. The occurrence of a TRIP and/or TWIP effect depends on the stacking fault energy (SFE) of the austenitic matrix, which is mainly governed by alloy content and deformation temperature [7]. It has been reported that deformation induced martensite transformation usually happens on steels with low SFE, whereas twinning occurs with elevated SFE [8].

However, a relatively low yield strength of TRIP/TWIP steel (approximately 200 to 400 MPa) has limited further industrial development, particularly with respect to crash-relevant parts [9]. Great efforts have been directed towards improving the yield strength of TRIP/TWIP steel [10,11,12]. Herein, strengthening by grain size refinement is shown to be an effective technique according to the Hall-Petch relationship [13]. The minimum grain size of around 2.5 μm was the limitation that could be achieved by conventional cold rolling and annealing treatments, by which the yield strength only could be improved to 450 MPa [9]. Severe plastic deformation, such as Equal Channel Angular Pressing (ECAP), could dramatically decrease the grain size to nano-scale [14]. However, it was still hindered by technological limitations regarding large-scale applications. Other methods, such as precipitation strengthening and pre-straining by cold rolling also improved the yield strength at the expense of ductility and work hardening rate [1,10,15,16].

In order to circumvent this intractable issue, a novel approach of temperature dependence of deformation mechanisms in TRIP/TWIP steel was proposed in our previous study [17]. The strategy is to introduce the deformation twin by controlling the pre-strain temperature. Based upon that, asynchronous synergy of pre-strain twinning and ε-martensite transformation took effect, resulting in improved performance of TRIP/TWIP steels dominated by bimodal microstructures. The results demonstrated that the deformation mechanism could change from ε-martensitic transformation to deformation twinning, then dislocation glide with an increase in rolling temperature. It is worth noting that a large amount of deformation twins was formed after rolling at 673 K, indicating the asynchronous synergy of pre-strain twinning and ε-martensite transformation could be effectively developed by warm rolling at 673 K. Therefore, further optimization of the deformation microstructure after warm rolling is crucially necessary.

In the present study, the influence of warm rolling reductions on the microstructure evolution, tensile deformation mechanism, and mechanical properties was analyzed. Particular focus was placed on the evolution of deformation twins and ε-martensite during the warm rolling process and subsequent plastic deformation at room temperature.

2. Experimental Procedures

2.1. Material and Processing

We selected a Fe-30Mn-4Si-2Al (wt. %) alloy for this purpose, which shows the single ε-TRIP effect at room temperature and mechanical γ-twinning when deformation temperature is elevated. A 50 kg ingot of Fe-30Mn-4Si-2Al alloy (wt. %) was produced by vaccum induction melting, followed by hot forging and hot rolling at 1473 K into a plate with the thickness of 5 mm. The exact chemical composition of the alloy is shown in

Table 1. Chemical composition of the experimental steels.

Element	Mn	Si	Al	C	P	Fe
(wt. %)	29.99	4.06	1.98	0.004	0.002	Bal.

. The homogenization heat treatment was performed at 1273 K for 1 h in a muffle furnace, followed by quenching in water in order to reduce segregation of the alloying elements. Subsequently, the as-annealed plates were warm rolled at 673 K to a 20%–55% reduction in thickness in several passes, using a laboratory scale rolling mill (here, the temperature range of warm rolling is 373–873 K for the experimental steel, considering the formation of a deformation twin [17]).

2.2. Microstructural Characterization

Microstructure observations were analyzed using optical microscopy (OM, Zeiss company, Berlin, Germany), electron back scattering diffraction (EBSD, JEOL, Tokyo, Japan), and X-ray diffraction (XRD, Zeiss company, Berlin, Germany). The surface of the samples was sandpapered, polished, and etched in a 10% nital solution. The EBSD measurement was conducted on a JEOL JSM-7100F field emission gun scanning electron microscope, equipped with a TSL orientation-imaging microscope (OIM) system. The step sizes used for the overview and details are 1 μm and 0.07 μm, respectively.

Phase analysis was performed by means of XRD with Cu Kα radiation. According to a Williamson-Hall plot, average values of crystallite size d and microstrain <${\epsilon }_{50}^2$> were estimated. Then, dislocation density can be given by the following equation:

$$\rho = \frac{3·{\left(2\pi \right)}^{1/2}{\text{<}\epsilon }_{50}^2>}{Db}$$

(1)

where b is the Burgers vector (2.5 × 10⁻¹⁰ m); D is the average value of the crystallite size, which is determined according to the Sherrer formula.

The Vickers Hardness (HV) values of the specimens before and after warm rolling were tested using a 980 mN load for 15 s dwelling time. Rectangular dog-bone shaped tensile specimens with gauge lengths of 25 mm and gauge width of 10 mm were machined from the as-annealed and as-rolled plates. The loading direction was parallel to the rolling direction (RD). Tensile tests were performed at an engineering strain rate of 6.7 × 10⁻⁴ s⁻¹, at room temperature.

3. Results and Discussion

3.1. Microstructure Evolution

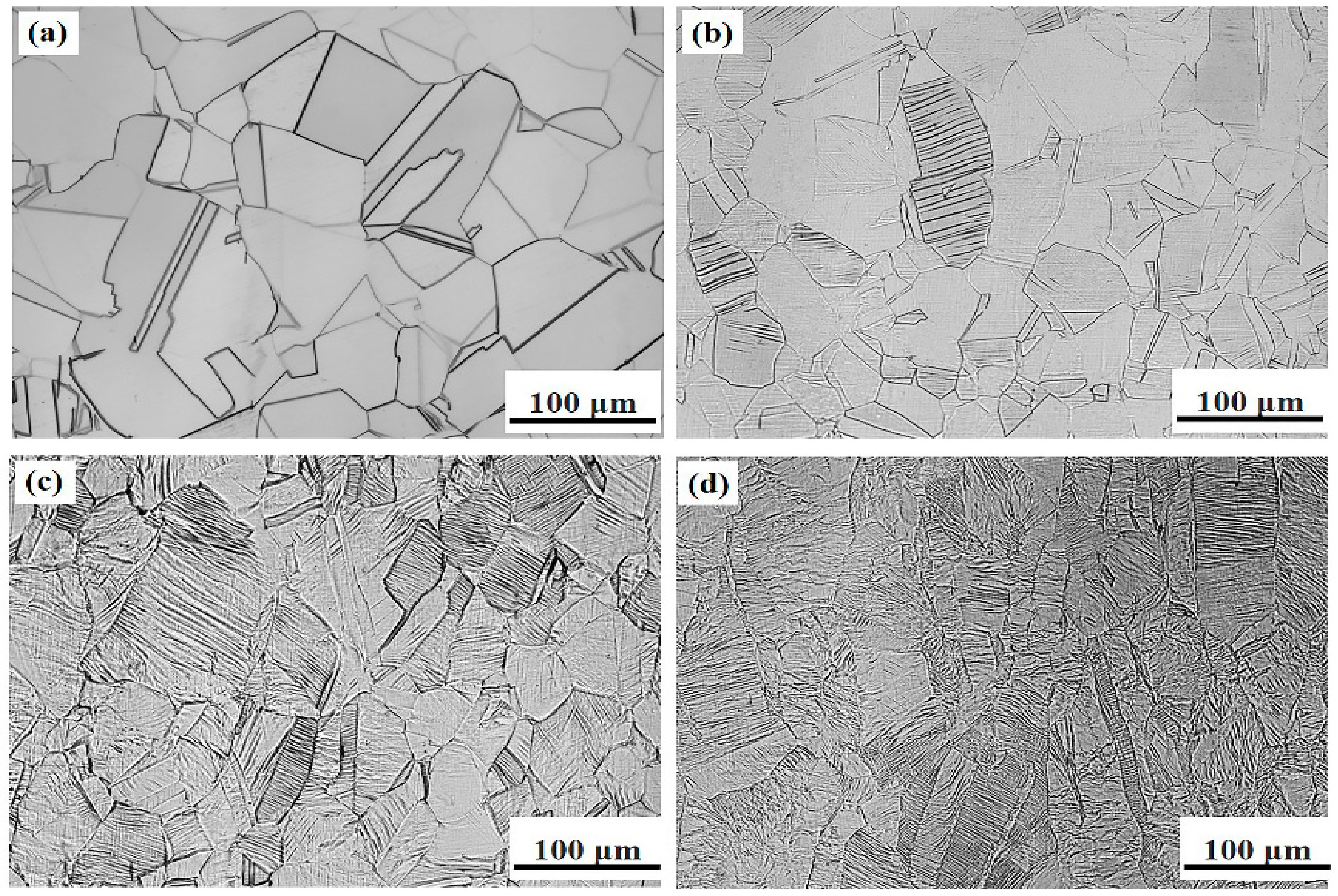

The optical micrographs of the investigated steels with different warm rolling reductions are shown in Figure 1. The initial state of the as-annealed alloy is single face centered cubic (FCC) phase. The microstructure consists of globulitic grains with an average grain size of around 59 μm, as well as some annealing twins (Figure 1a). Figure 1b–d illustrate the microstructure evolution of TRIP/TWIP steel with different warm rolling reduction ratios of 20%, 35%, and 55%, respectively. At the lowest reduction (20%), grains are slightly elongated along the RD, accompanied by a banded structure only in some favorably oriented grains (Figure 1b). Elongated grain structure is a common phenomenon during rolling deformation [18]. Kimura et al. reported that the mechanical properties are dramatically enhanced due to the ultrafine elongated grain structure processed by a thermomechanical treatment [18]. In specimens with rolling reductions of 35% and 55%, the grains are further elongated and the banded structure can be observed in almost all of grains. The elevated rolling reduction significantly increases the density of the banded structure, in which slip bands, deformation twins, or ε-martensite may be included. In our previous results, the banded structures were confirmed as deformation twins after warm rolling at 673 K with a reduction of 20%, although the steel in the fully recrystallized state exhibited the bare ε-TRIP effect after tensile deformation at room temperature [19]. This is because the SFE of the austenitic matrix is identified as the dominating factor that is mainly responsible for the deformation modes (deformation-induced martensitic transformation, dislocation slip, or twinning) in austenitic Fe-high Mn alloys. On the other hand, the temperature plays a key effect on the SFE, as the magnitude of SFE increases with temperature [20]. At a low deformation temperature (298 K), a low SFE results in deformation-induced martensitic transformation. At higher temperatures (373–673 K), an intermediate range of SFE leads to deformation twinning. As the temperature is further increased (873–1073 K), perfect dislocation glide with cross slip gradually replaces deformation twinning [17].

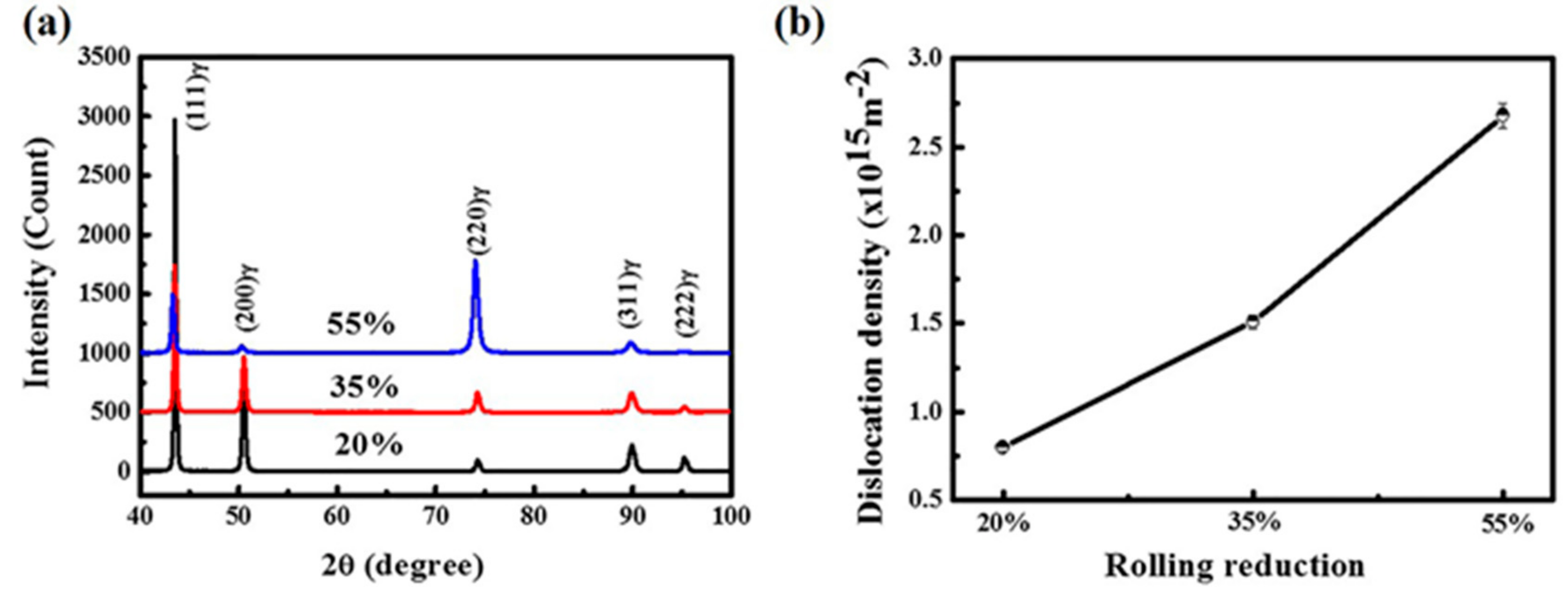

XRD was performed to identify the deformation microstructure features. X-ray diffraction profiles of TRIP/TWIP steel with different rolling reductions are shown in Figure 2a. The XRD line diagrams of all experimental cases are found to be the single austenite phase, implying no occurrence of ε-martensite transformation with the increase in rolling reduction. Figure 2b shows the effect of warm rolling reduction on dislocation density. The dislocation density is around 0.8 × 10¹⁵ m⁻² after warm rolling to a thickness reduction of 20%. Then, the dislocation density gradually increases with strain and reaches a high value of 2.68 × 10¹⁵ m⁻² at 55% rolling reduction. The dislocation density is closely related to the deformation behavior of metallic materials. On the one hand, the strength of steels monotonically increases with dislocation density, based on the Taylor hardening law [21]. Therefore, dislocation is an effective pathway for strengthening, however, accompanied with the cost of ductility is the increase in dislocation density. Interestingly, He et al. recently suggested that the high dislocation density also enabled a large ductility by the glide of existing mobile dislocation during the deformed and partitioned (D&P) process [22]. On the other hand, the density, characteristics, and distribution of dislocations exhibit a strong influence on SFE. A deformation-dependent SFE viewpoint is invoked to interpret the tensile deformation of a high Mn TWIP steel [23]. Pierce et al. indicated that effective SFE varied with the terms of density parameters and dislocation arrangement proportionally, besides alloy composition and deformation temperature [24]. Therefore, the effective SFE, which is the key parameter controlling the emergence of plasticity mechanisms, will increase with the increasing dislocation density. In other words, there is a close relationship between dislocation density and the plastic deformation mechanism.

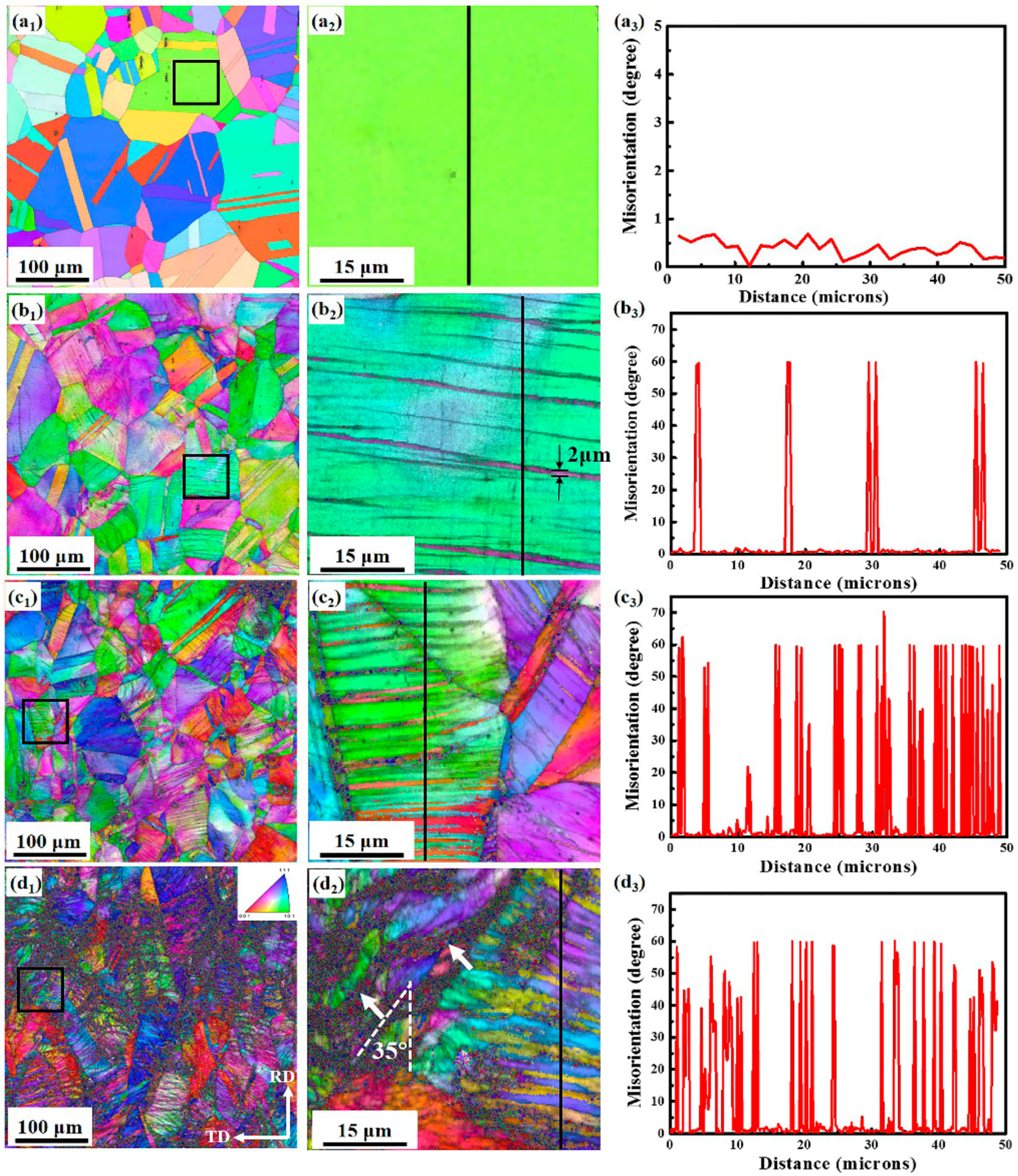

In order to further elucidate the microstructure evolution with the increasing rolling reduction, the EBSD results are shown in Figure 3. Figure 3a₁ showss typical recrystallized equiaxed grain structure with high fraction of annealing twins. The deformation grains are obviously elongated along the RD with increasing rolling reduction, consistent with the OM results, as shown in Figure 3b₁,c₁,d₁. At the 20% reduction state, the microstructure consists of small amounts of deformation twins (Figure 3b₁). After rolling to 35%, a gradual increase in the deformation twin density occurs (Figure 3c₁). With further rolling to 55%, formation of deformation twins can be observed in almost all of the grains. For analyzing the deformation microstructure in more detail, the corresponding enlarged images taken from the black framed areas in Figure 3a₁,b₁,c₁,d₁ are given, as shown in Figure 3a₂,b₂,c₂,d₂. At a reduction of 20%, the microstructure consists of a small amount of deformation twins with a few tenths of micrometer wide in red color and some unidentified banded structure in dark color, as shown in Figure 3b₂. The unidentified banded structure may be very thin deformation twins which can not be detected by the resolution of EBSD, or slip bands. Furthermore, the high number of misorientation angles along the misorientation line profile further demonstrate the presence of twin bundles (60°{1 1 1}), as shown in Figure 3b₃. At a rolling reduction of 35%, the number of deformation twins increases dramatically, and the twin plates become clearly thicker (Figure 3c₂,d₂). When the rolling reduction reaches 55%, the deformation microstructure becomes more complex. In addition to deformation twins and slip bands, another important feature is the appearance of shear bands. The shear band is a kind of highly strained bands inclined to the RD direction by 25°–40° [25]. In the present study, Fe-Mn-Si-Al steel rolled to 55% at 673 K and profuse shear bands inclined at 35° to the ND plane are observed in most of the grains, as indicated by arrows in Figure 3d₂. These areas with intensely shear bands shown as thick black markings exhibit a very low Confidence Index (CI) value, therefore, no effective orientation information can be detected by EBSD. Hirsch et al. suggested that shear bands are usually formed when the plastic deformation becomes harder to further proceed by dislocation glide [26].

3.2. Mechanical Properties

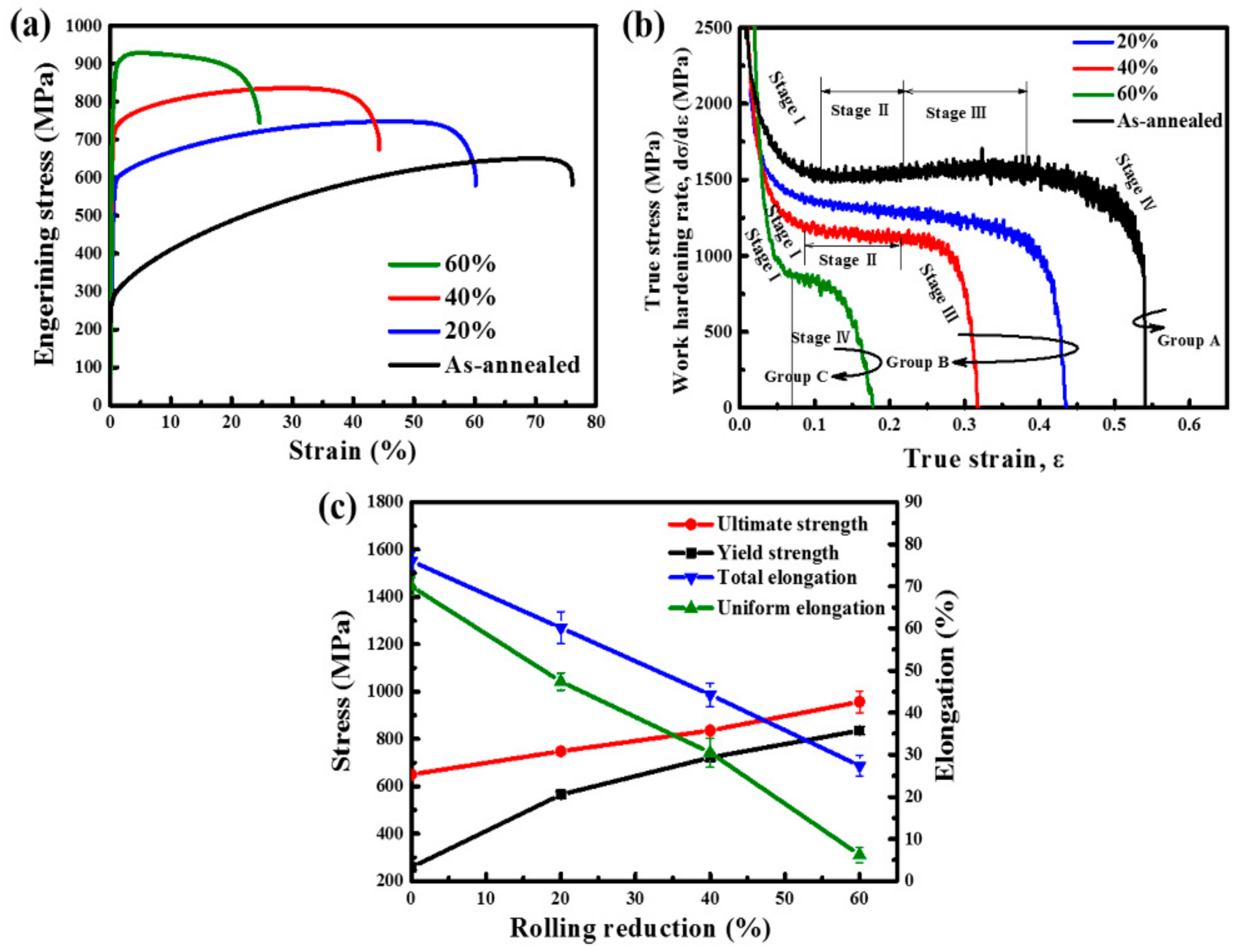

The uniaxial tensile results of the specimens with different rolling reductions are illustrated in Figure 4. A summary of the mechanical properties is also listed in

Table 2. Mechanical properties for the specimens with different rolling reductions.

Rolling Reduction (%)	Yield Strength (MPa)	Ultimate Strength (MPa)	Uniform Elongation (%)	Total Elongation (%)	Hardness (HV)
As-annealed	258	650	70	76	204
20	565	748	47	60	301
35	785	834	31	44	368
55	1036	1049	6	20	425

. The as-annealed specimen exhibits the lowest yield strength (0.2% proof stress) of about 258 MPa and the highest total elongation of about 76%. With the increasing rolling reduction, the yield strength is increased and total elongation is reduced. As compared to the as-annealed condition of warm rolled steel with rolling reduction ration of 55%, an obvious improvement in yield strength from 258 MPa to 1036 MPa, and a drop in total elongation from 76% to 20%, is obtained. It should be noted that a yield strength of 785 MPa and a total elongation of 44% in the case of a warm rolled specimen with rolling reduction of 35% highlights the potential of pre-strain treatment by warm rolling that could achieve high yield strength-ductility combinations in TRIP/TWIP steels.

Furthermore, three typical groups can be described with respect to the work-hardening behaviors in order to highlight the different deformation stages on the work-hardening rate as a function of true strain curves: Group A (as-annealed), which is characterized by four typical deformation stages; Group B (rolling reduction of 20%, 35%), in which three typical deformation stages can be identified obviously, and Group C (rolling reduction of 55%), which is characterized by two typical deformation stages.

It is well accepted that four stages can be defined according to the true strain dependency of work-hardening rate (dσ/dε) at the as-annealed condition during the tensile deformation [17,27]. The work-hardening rate drops pronouncedly according to the dynamic recovery of dislocations (stage I) [15,28,29]. Then, the primary ε-martensite initially nucleates and grows in stage II. At the gradual increase of true strain, the secondary ε-martensite starts to appear and intersect with the primary ε-martensite (stage III). Finally, a significant drop in the work-hardening rate occurs in stage IV, due to the retarded formation of ε-martensite, attributed to the high density of dislocation. The work-hardening rate profiles of the warm rolled specimens with rolling reduction of 55% exhibit only two stages, namely stage I and IV (Figure 4b). The absence of stage II and III is ascribed to the retarded formation of ε-martensite during tensile deformation at room temperature. Additionally, the corresponding work-hardening rate profiles of the specimens with rolling reductions of 20% and 35% show three different stages. It is worth noting that obvious platform can be observed in stage II, which is ascribed to the nucleation and growth of the primary ε-martensite/deformation twin. Meanwhile, the increase of the effective SFE hinders the formation of secondary ε-martensite/deformation twins, therefore, stage III disappears. Grajcar et al. proposed similar strengthening behavior in low C Fe-28Mn-4Si-2Al steel. They suggested that the dominant mechanism responsible for the work-hardening changes as a function of deformation temperature or strain rate, which is related to SFE [30,31].

3.3. Fractographic Features

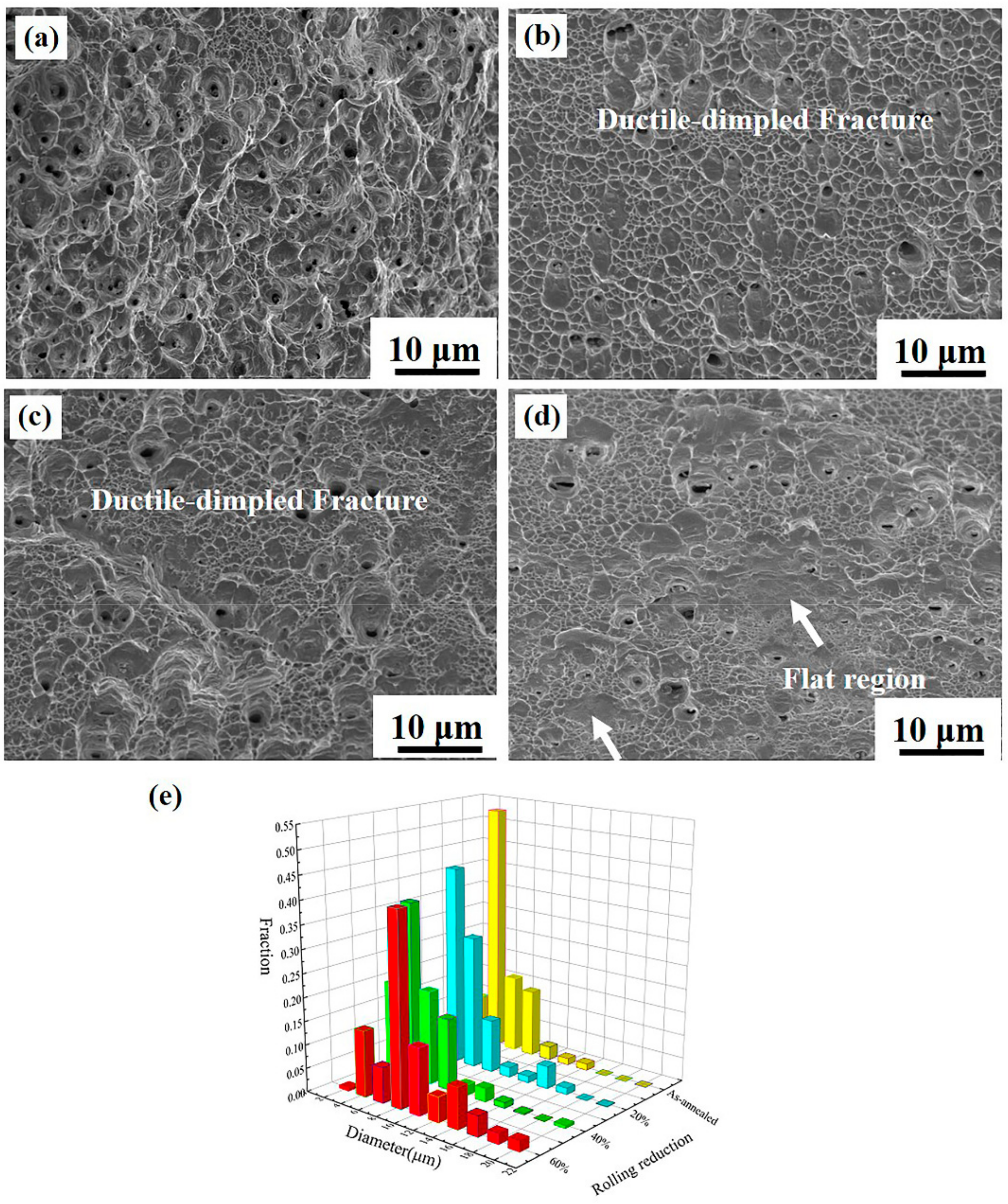

Characteristic features of the tensile fracture surfaces of the samples with different rolling reductions are presented in Figure 5. The fracture surface of the as-annealed specimen is the typical feature of ductile fracture by the presence of isometric dimples (Figure 5a). Furthermore, there are some flat regions marked with white arrows in Figure 5d, indicating failure due to grain boundary sliding in the 55% condition [32]. The corresponding dimple diameter distribution of samples at different rolling reductions is depicted in Figure 5e. Ductility is strongly related to the number density, depth, size, and distribution of dimples in the fracture surface [33]. It can be seen that different rolling reductions induce various distributions of the mean dimple diameter. In the specimen with rolling reduction of 20%, the mean size of ductile dimples is 3.52 μm, with a total elongation of 60%. In the specimen with rolling reduction of 25%, the size of ductile dimples is 5.69 μm, with an elongation of 44%. The size of ductile dimples in the specimen with rolling reduction of 55% is 8.24 μm, with an observed elongation of 20%. The mean size of the dimples increases, furthermore, the distribution of dimple dimensions exhibits a fluctuant trend with the increase of the rolling reduction, corresponding to the decrease in total elongation.

3.4. The Effect of Warm Rolling Reduction on Tensile Deformation Behavior

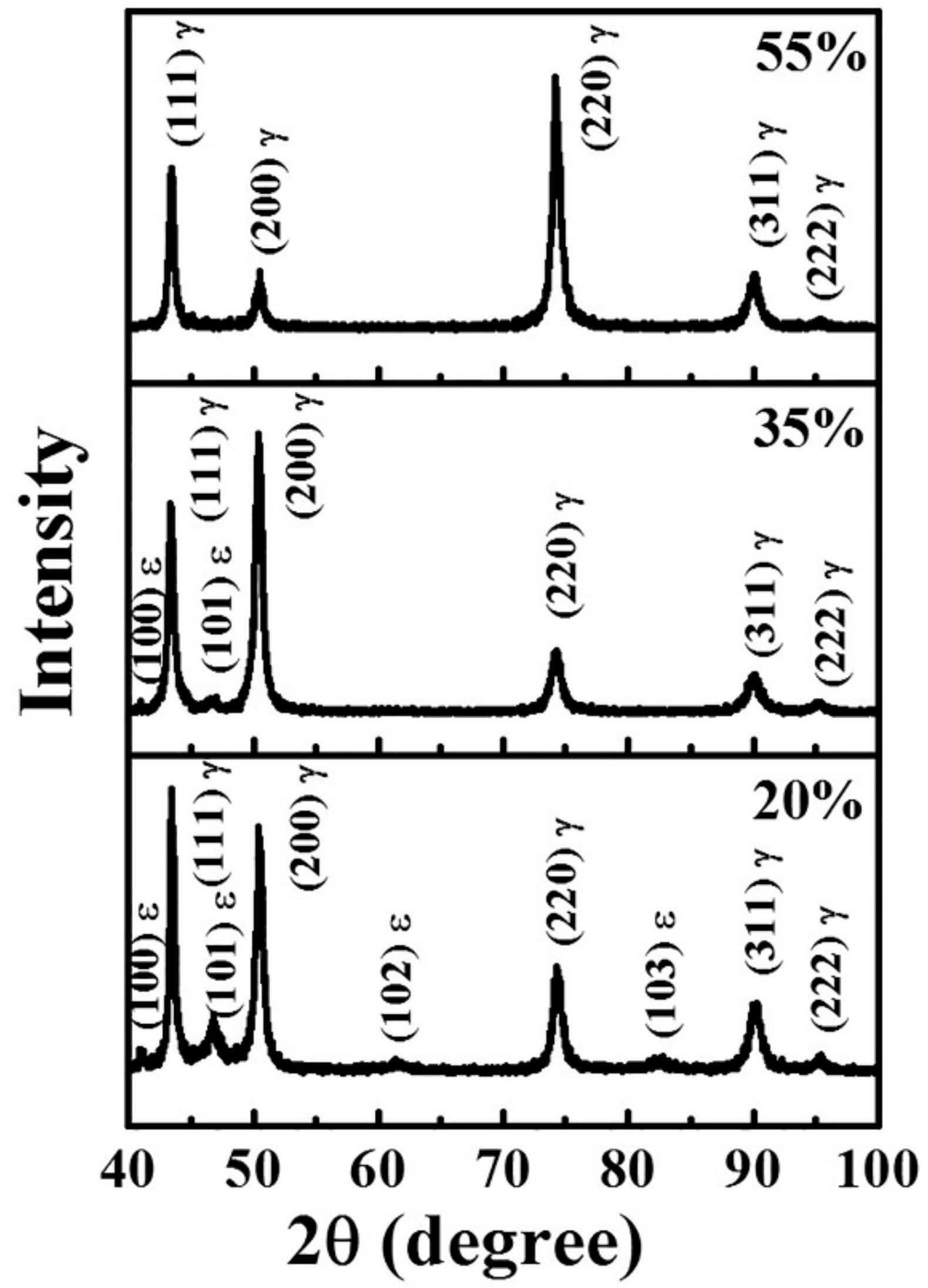

The XRD profiles for the warm rolled specimens with rolling reduction of 20%, 35%, and 55% after tensile fracture at room temperature are shown in Figure 6. It is interesting to note that the as-formed ε-martensite can be observed in the tensile fractured specimens with rolling reduction of 20% and 35%. However, no obvious diffraction peaks of ε-martensite can be identified from the XRD pattern with respect to the 55% rolled specimen after tensile deformation. This is indicative of the absence of deformation-induced ε-martensitic transformation at further tensile deformation condition, which may be ascribed to the derived high dislocation density.

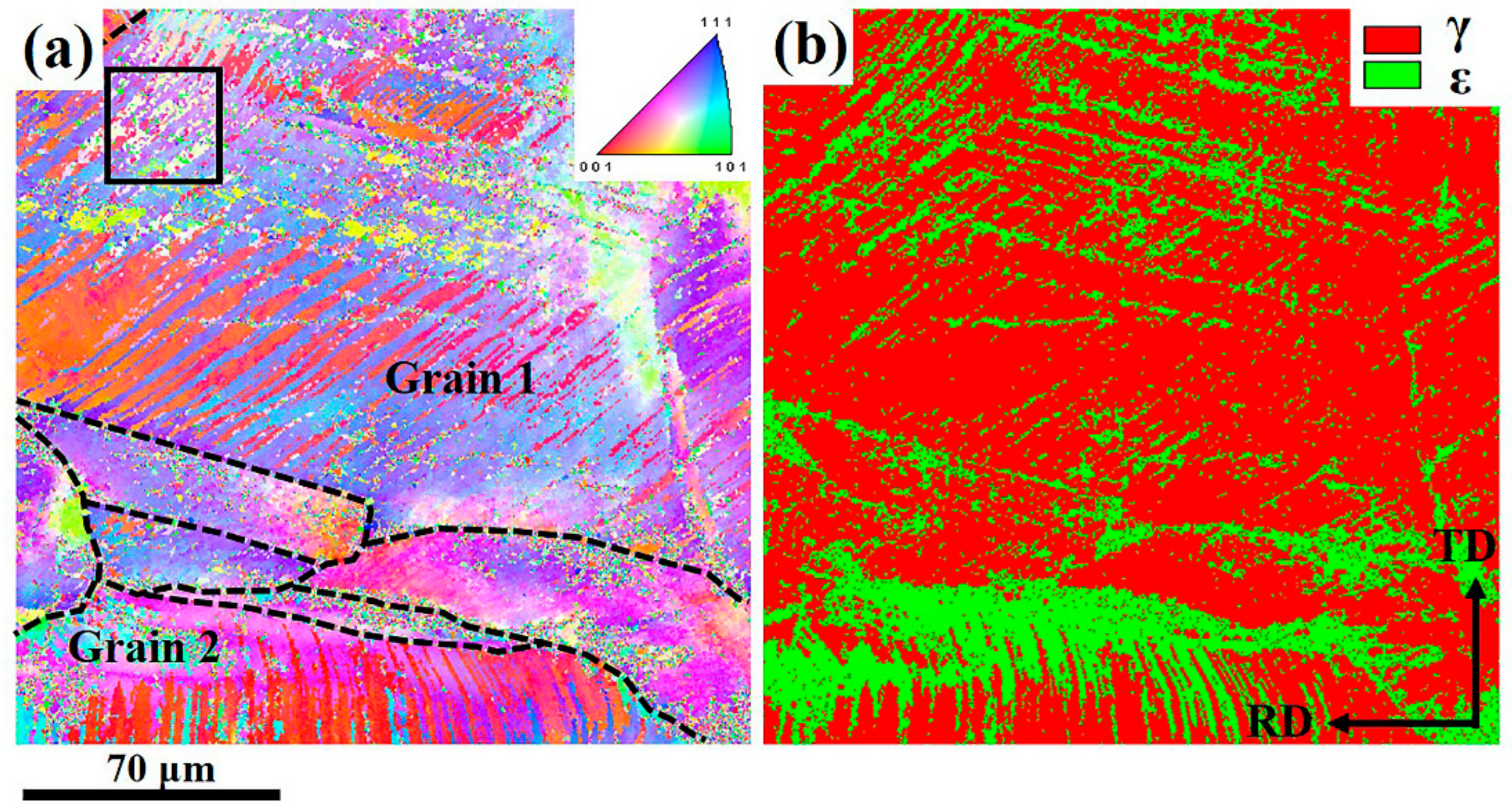

Figure 7 displays the tensile deformation microstructure of the specimen with 35% rolling reduction. The RD orientation map and phase map are given in Figure 7a,b, respectively. With the OIM analytical software, the area fraction of ε-martensite is estimated to be 21%. As observed in those maps, there are two grains (Grain 1 and Grain 2) which contain clear ε-martensite with banded structures. Furthermore, deformation twins with various thicknesses ranging from 5–50 μm, as shown by arrows, are observed. The thickness of the twin indicates that some of those deformation twins are formed during tensile deformation. For analyzing the microstructure after tensile deformation in more detail, a small region taken from the framed area in Grain 1 is observed in a fine step size, as show in Figure 8.

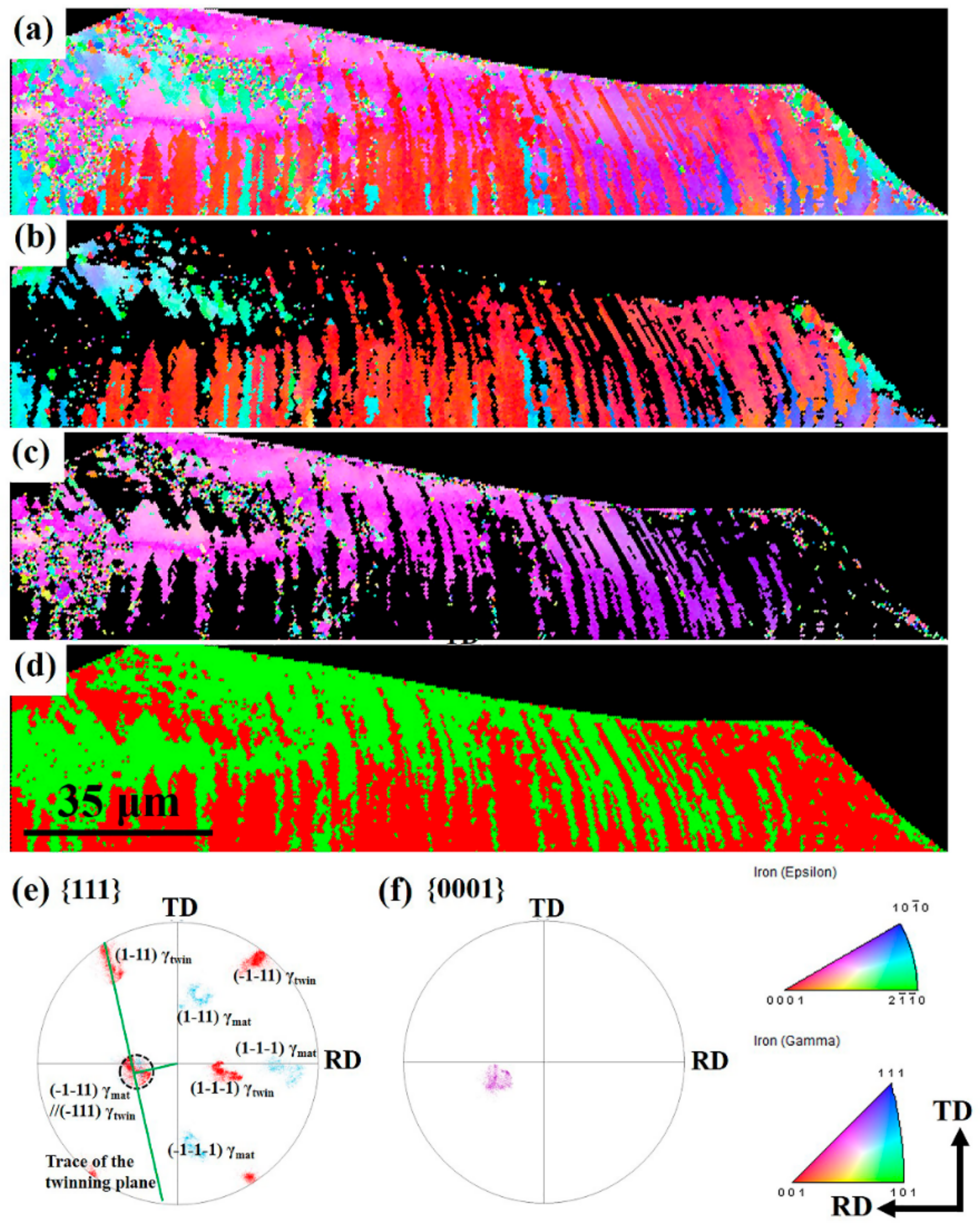

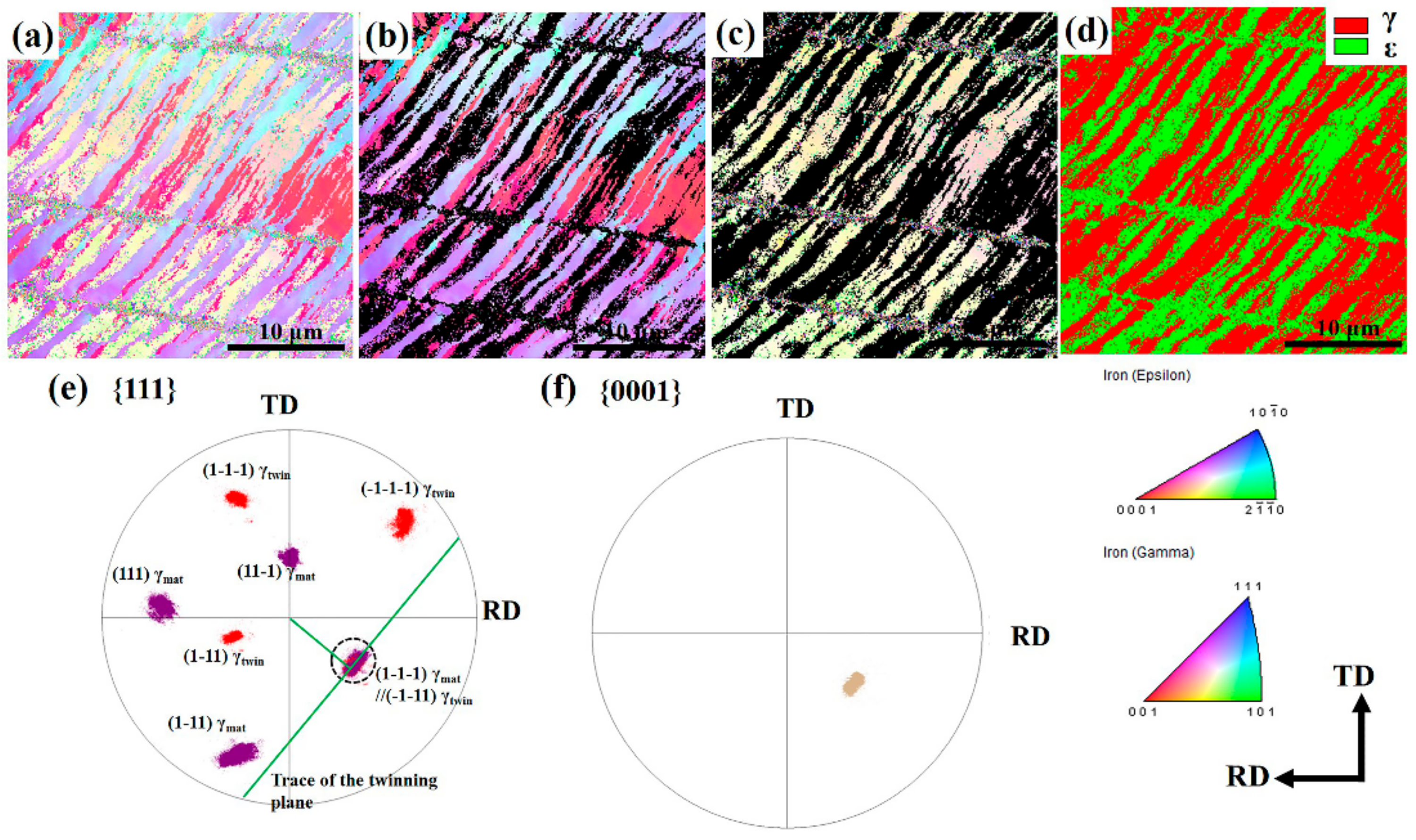

Figure 8b shows the RD orientation map for γ phase where the γ phases are colored depending on their orientation and ε phases are blacked out. In contrast, the colored and blacked out regions are inverted in ε orientation map (Figure 8c). The microstructure consists of γ matrix in purple, deformation twins in red, and some deformation induced ε-martensite in yellow (Figure 8a). The orientation of the γ matrix is determined at a scanning spot as ND//(20 4 −13), RD//(−2 −3 −4). It is observed that ε-martensite and the deformation twins with plate-like morphology are parallel to each other. Therefore, the primary (1 −1 −1)_matrix plane is defined as the habit plane of ε variant and twinning plane of deformation twin, as shown in Figure 8e,f. With respect to the Schmid law, the most plausible shear direction is [−2 −1 −1], with a Schmid factor of 0.477. The analogous results can also be observed in Grain 2. The matrix with blue color with the crystal orientation of the miller indices ND//(−3 −15 7), RD//(3 −2 −3), is shown in Figure 9a. The parallel ε martensite and deformation twin are induced by the most plausible shear direction as [1 −2 −1] on the primary (−1 −1 1)_matrix plane with a Schmid factor of 0.429. It should be noted that ε martensite and deformation twins are closely next to each other both in Grain 1 and Grain 2. Therefore, it can be speculated that ε martensitic transformation and twinning simultaneously operate during tensile deformation in the specimen with a rolling reduction of 35%.

It is well known that the mechanisms of formation of ε martensite and twins are similar [34]. Both ε and twins are formed by the movement of Shockley partial dislocations and subsequent intrusion of stacking faults, on every other {111} close-packed plane for the former and on every {111} plane for the latter. In Mahajan’s model, an ensemble of three Shockley partials on every second {111} plane are induced by two perfect dislocation reactions, which may govern the nucleation of six-layer HCP crystal. A macroscopic ε-martensite forms when these three Shockley partials on every second {111} plane grow into each other. These situations imply the stacking faults are required for ε-martensite nucleation. Furthermore, Inagaki et al. illustrated the reverse transformation of the ε-martensite by in-situ TEM observations [35]. They supported that the Shockley partial dislocations “at one end” moved towards the other “immobile end”, fixed at grain boundaries or interfaces of pre-existing ε plates. Therefore, all of the followings can be the possible nucleation sites of the ε-martensite: dislocations, grain boundaries, and pre-existing plates (or stacking faults). This is in accordance with our results that ε-martensite always emerges along the deformation twin boundaries.

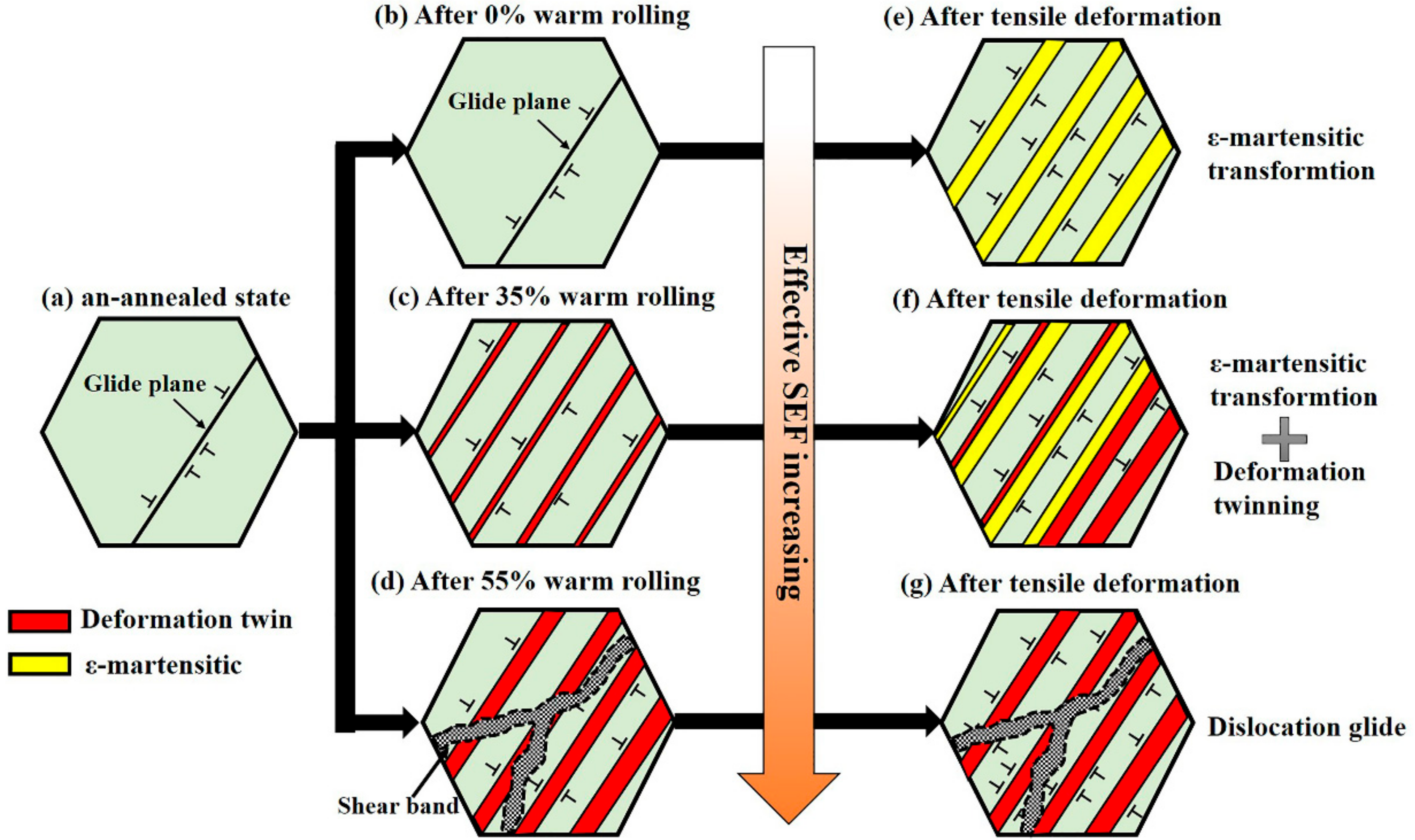

A schematic sketch of microstructure evolution during the warm rolling process and subsequent tensile deformation, exhibiting the mechanism of pre-strain twinning and ε-martensite transformation asynchronous deformation, is provided in Figure 10. In the as-annealed state, the microstructure consists of FCC γ matrix and quite a few dislocations (Figure 10a). The prior warm rolling results in the evolution of sub-structure, comprising dislocations, deformation twins and shear bands, depending on the warm rolling reduction (Figure 10b–d). It can be concluded that the deformation-induced ε-martensitic transformation is the single deformation mechanism that dominates plasticity, besides the dislocation glide, in a specimen without prior warm rolling (Figure 10e). However, ε-martensite and deformation twins form simultaneously when the prior warm rolling reduction reaches 35% (Figure 10f). Then, with further increasing warm rolling reduction to 55%, the deformation mechanism transits to dislocation glide (Figure 10g). The occurrence of this transition of deformation mechanism depends on effective SFE. It is well accepted that the ε-martensite occurs if the SFE is typically below 20 mJ·m⁻², whereas deformation twins form when the SFE lies between 15 and 30 mJ·m⁻² [8]. A higher SFE favors dislocation glide. Hence, ε-martensitic transformation and twinning occur simultaneously if the SFE is between 15 and 20 mJ·m⁻². Meanwhile, an increasing dislocation density with the increasing warm rolling reduction is expected to enhance effective SFE. Therefore, the warm rolling reduction has a strong effect on the transition of the tensile deformation mechanism.

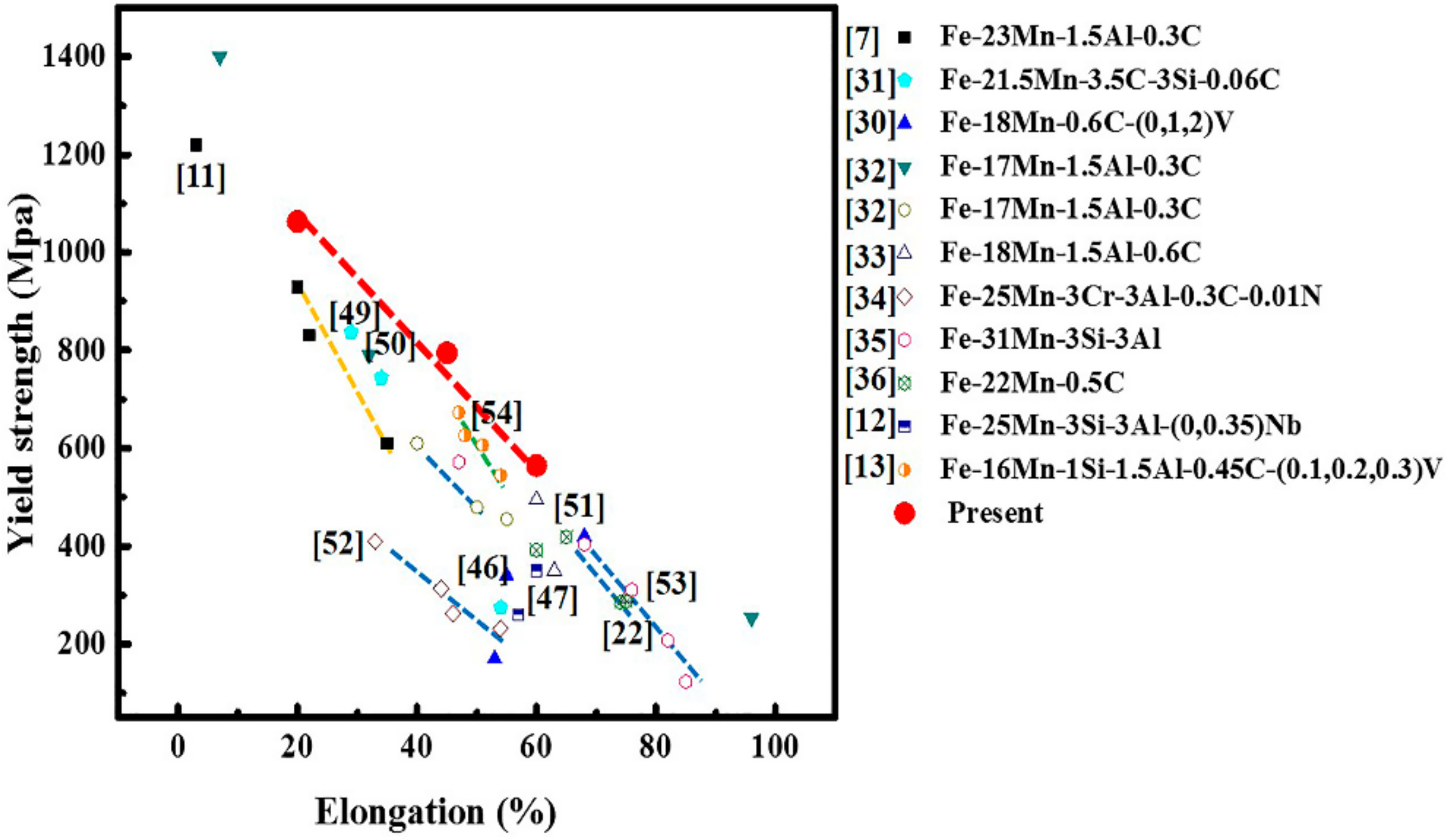

Figure 11 shows the resultant yield stress-ductility combination of Fe-30Mn-4Si-2Al TRIP/TWIP steel by prior warm rolling, together with the data from references [10,15,16,29,36,37,38,39,40,41]. First, previous reporting attempted to refine grain size to improve the yield stress by the conventional cold rolling and annealing treatment. This offer high ductility, but low yield stress (<500 MPa), as indicated by the blue dashed lines. Secondly, the precipitation strengthening strategy is one of the more efficient ways to increase yield stress. However, some precipitations formed at grain boundaries are harmful to toughness and ductility. Furthermore, the improvement of yield stress is limited by the addition of microalloy elements, as shown by the green dashed line. The third point to note in Figure 11 is that, comparing our results (red dashed line) with those by cold rolling (yellow dashed line), ductility is increased at any given yield stress. Therefore, this advantage of the present warm rolling strategy is especially pronounced at high yield strength toward 800 MPa and good ductility.

4. Conclusions

We have focused on the effect of prior warm rolling reduction on tensile deformation behavior and corresponding mechanical properties of an Fe-30Mn-4Si-2Al TRIP/TWIP steel. The mechanisms of pre-strain twinning and ε-martensite transformation asynchronous deformation were studied. The influence of rolling reduction on the work-hardening behavior was discussed. The main conclusions are as follows:

(1) The microstructure of the steel after 20% warm rolling was characterized by low dislocation density and thin deformation twins within the initial grains. The density of dislocation and deformation twins are raised at the increase of rolling reduction. After a 55% rolling reduction, shear bands appeared, as the plastic deformation becomes harder to further proceed by dislocation glide.

(2) After tensile deformation, the growth of deformation twins are observed, and the primary ε is always found to be parallel and close to a deformation twin, indicating that the possible nucleation sites of the ε-martensite may be the pre-existing twin boundaries, in the specimen with warm a rolling reduction of 35%.

(3) The experimental steel with a warm rolling reduction of 35% exhibits a superior combination of high yield strength and ductility (yield strength of 785 MPa and total elongation of 44%) as well as a high work hardening rate due to the coexistence of deformation twins and ε-martensite.

(4) A deformation mechanism was proposed that started from a single ε-martensitic transformation to a bi-mode of ε-martensitic transformation and was accompanied by deformation twinning, before finally moving to dislocation glide with the increase in warm rolling reduction.
