Interaction between Ni/Ti Nanomultilayers and Bulk Ti-6Al-4V during Heat Treatment

Abstract

The diffusion bonding of Ti-6Al-4V to NiTi alloys assisted by Ni/Ti reactive multilayer thin films indicates the diffusion of Ni from the filler material towards bulk Ti-6Al-4V. As a consequence, the fragile NiTi₂ intermetallic phase is formed at the joint interface. In this context, the aim of this work is to investigate the occurrence of Ni diffusion from Ni/Ti nanomultilayers towards Ti-6Al-4V substrates. For this purpose, multilayer coated Ti alloys were studied in situ at increasing temperatures using synchrotron radiation. After heat treatment, scanning electron microscopy (SEM) analyses were carried out and elemental map distributions were acquired by electron probe microanalysis (EPMA). The EPMA maps confirm the occurrence of Ni diffusion; the presence of Ni in the substrate regions immediately underneath the nanomultilayers is clearly indicated and becomes more pronounced as the temperature increases. The presence of Ni is observed in the same locations where V is found, thus in β-Ti grains of Ti-6Al-4V. At the same time, the synchrotron results together with SEM analyses allow the increase of the amount of β-Ti phase in Ti-6Al-4V to be identified, while the thin films are mainly constituted by NiTi₂. Therefore, the presence of the brittle NiTi₂ intermetallic phase can be avoided if Ni diffusion is prevented.

1. Introduction

Due to their high strength to weight ratio and good corrosion resistance, titanium and titanium based alloys have a wide range of applications, such as in aerospace and biomedical industries. The Ti-6Al-4V alloy, constituted by α-Ti grains surrounded by β-Ti grains, accounts for about 60% of the total titanium production because it is easy to work with and it presents good mechanical properties due to the α/β alloy duality [1]. In order to have β-Ti at room temperature it is necessary to add beta stabilizing elements, such as vanadium. There are two different groups of β alloying elements: β-isomorphous and β-eutectoid. Vanadium, which is β-isomorphous, has high solubility in titanium and as the V content increases the β phase will also increase. On the contrary, since nickel is a β-eutectoid element, beside β-Ti it leads to the formation of intermetallic compounds, even for low Ni contents [2].

To enlarge its field of application, appropriate techniques for joining Ti-6Al-4V to itself and to other materials, in particular to NiTi shape memory alloys, must be developed. However, joining of Ti alloys is difficult due to their high reactivity. The formation of oxides and brittle intermetallics can reduce joint strength. In particular, dissimilar joining can be challenging and often a filler material is required. Several joining attempts have been made by laser welding [3,4,5], brazing [6,7] and diffusion bonding [8,9,10]. Regarding the dissimilar diffusion bonding of Ti-6Al-4V, it is common to introduce metal foils as intermediate material [11]. In this context, to enhance the Ti-6Al-4V and NiTi diffusion bonding process, Ni/Ti multilayer thin films have been used [12,13]. These previous works reveal the formation of NiTi₂ at the bonding interface during the joining process. The presence of the brittle NiTi₂ phase led to joint failure. In order to increase joint strength, it is necessary to understand the mechanism behind the formation of the NiTi₂ phase and the role of the Ti-6Al-4V alloy. The NiTi₂ phase was detected by in situ synchrotron X-ray diffraction of Ni/Ti multilayers deposited onto Ti6Al4V [14]. After heat treatment (HT), the NiTi₂ phase was observed close to the Ti-6Al-4V substrate by transmission electron microscopy [14]. However, using conventional high-temperature X-ray diffraction, the formation of NiTi₂ in Ni/Ti multilayer thin films deposited onto stainless steel was not identified [15]. In a recent paper, Chen et al. [16] studied the diffusion behavior in Ti-6Al-4V alloys modified by the deposition of Cu/Ni bilayers using the electroplate method. The diffusion of Cu/Ni/Ti was significantly influenced by the HT temperature and caused the formation of several intermetallic phases, including NiTi, NiTi₂, and Ni₄Ti₃ at the Ni/Ti interface. In addition, the Ni layer could not prevent diffusion of Ti towards the Cu side [16].

The aim of this study is to understand the interaction between Ni and Ti-6Al-4V during heat treatment, to clarify the mechanism behind the formation of the NiTi₂ phase during diffusion bonding using Ni/Ti multilayer thin films. Two different Ni/Ti nanomultilayer configurations were deposited onto bulk Ti-6Al-4V. The bulk and filler materials were analyzed in situ using synchrotron X-ray diffraction during heat treatment at temperatures typical of those used in diffusion bonding. The evolution of the Ni/Ti nanomultilayers and the interaction with the Ti-6Al-4V substrate as a function of temperature were evaluated using scanning electron microscopy and elemental map distributions.

2. Experimental Details

2.1. Deposition Technique

Ti-6Al-4V from Goodfellow with a 2 mm thickness was cut into uniform 10 × 10 mm substrates. The substrates were polished up to 1 μm diamond suspension.

Ni/Ti reactive multilayer thin films with a total thickness close to 2.5 μm were deposited onto the polished Ti-6Al-4V substrates using a dual cathode magnetron sputtering equipment (Hartec, Stetten am kalten Markt, Germany). The substrates were mounted on a rotating copper block which acts as a heat sink, to avoid diffusion during the deposition process. The time that the substrates under rotation pass in front of each target, and consequently the individual layer thicknesses, depends on the substrates’ rotation speed. The deposition chamber was evacuated to approximately 3 × 10⁻⁴ Pa. Ni and Ti nanolayers were deposited by magnetron sputtering at 0.35 Pa from pure Ti (99.99%) and Ni (99.98%) targets. In order to obtain near equiatomic overall chemical compositions, the target power density used for the Ti and for Ni were 5.1 × 10⁻² W·mm⁻² and 2.5 × 10⁻² W·mm⁻², respectively. The magnetic Ni target had a reduced thickness of 1 mm. Multilayer thin films with 12 and 25 nm periods (bilayer thicknesses) were deposited by using different substrate rotation speeds.

In order to understand the NiTi₂ phase formation, two different configurations were studied: Ni/Ti multilayer thin films with periods of 12 and 25 nm were deposited onto Ti-6Al-4V with or without a tungsten interlayer. Ni was always the first layer of the Ni/Ti films. The W interlayer was ~12 nm thick. The diffusivity of Ni in tungsten is extremely reduced, suggesting that it can be used as a Ni diffusion barrier. In addition, W is also almost insoluble in the NiTi phase [17]. It should be noted that NiTi is the first phase to form upon heat treatment of Ni/Ti multilayers with nanometric periods [14,18]. Due to its atomic characteristics, tungsten is excellent for contrast, particularly in backscattered electron (BSE) scanning electron microscopy (SEM).

2.2. Characterization Technique

The phase evolution of the system with temperature was studied by synchrotron X-ray diffraction (XRD), in scanning mode, at the Materials Research station of the Rossendorf beam line in the European Synchrotron Radiation Facility (ESRF, Grenoble, France). The coated Ti-6Al-4V substrates were placed in a furnace mounted on a six-circle goniometer. The incident X-ray beam was monochromatized to 11.5 keV (λ = 0.1078 nm). A micro-strip detector system (Mythen) for time-resolved experiments with high angular accuracy was used. Steps of 50 °C were implemented up to the desired maximum temperature (850 or 900 °C). At each temperature step, θ-2θ isothermal scans (20° < 2θ < 42°) were acquired.

After the heat treatment carried out during the in situ XRD analysis, elemental distribution maps were obtained by electron probe microanalysis (EPMA) using a five-spectrometer Cameca SX 50 (CAMECA, Gennevilliers, France) equipment in order to visualize the relative variation of element concentrations as a result of diffusion. Scanning electron microscopy was used to characterize the heat treated coated Ti-6Al-4V. For comparison purposes, SEM after low temperature HT (600 °C) was also carried out. The analyses were performed at a 15 kV acceleration voltage in secondary and backscattered electron modes using a field emission gun FEI QUANTA 400F (FEI Company, Hillsboro, OR, USA) high-resolution SEM. The cross-sections for EPMA and SEM analyses were prepared by cutting the heat treated samples and mounting them transversely in resin. Following this, standard metallographic preparation was conducted to obtain flat and smooth surfaces.

3. Results

3.1. In Situ Characterization during Heat Treatment

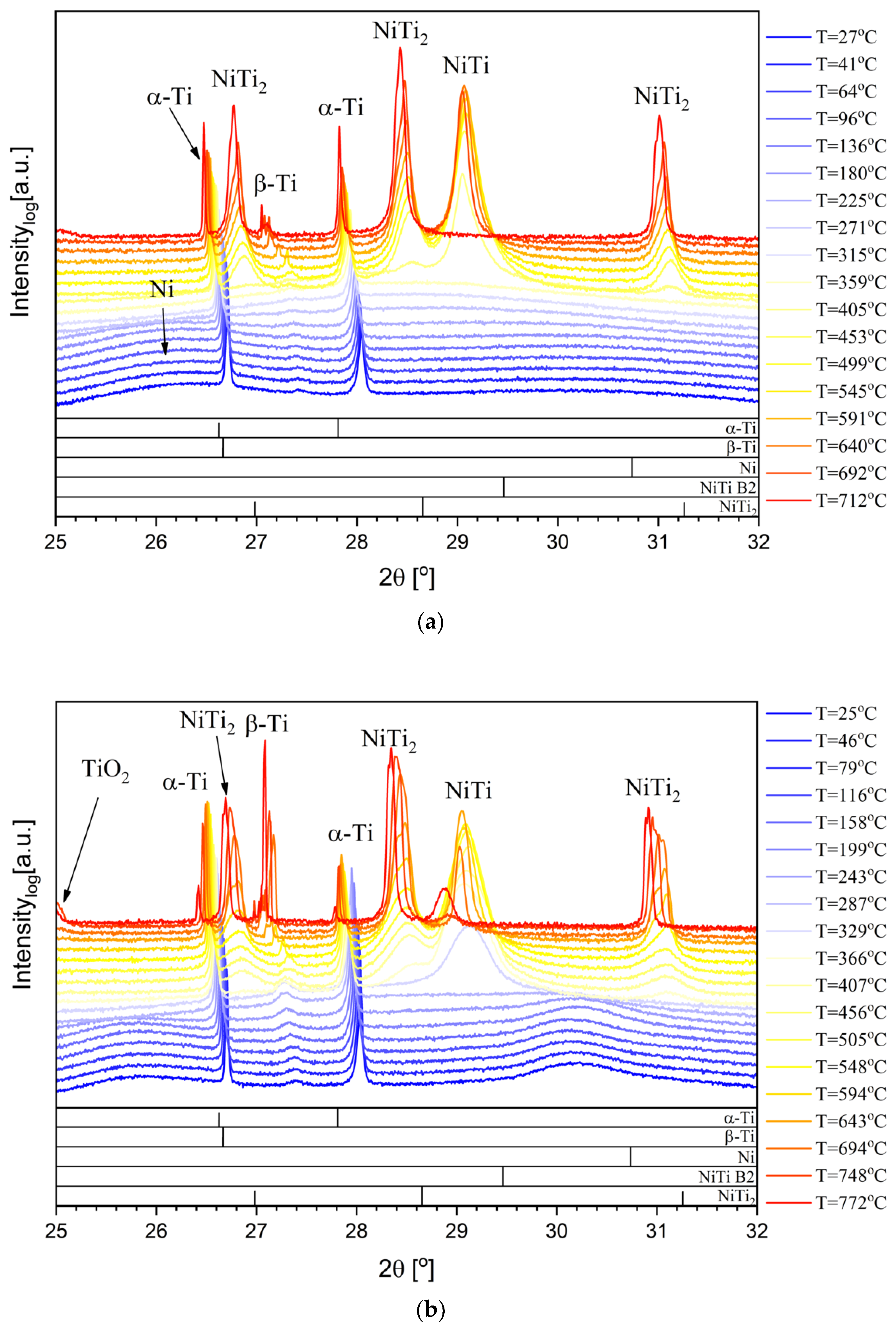

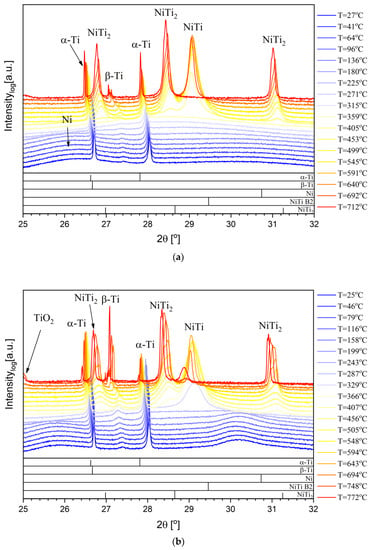

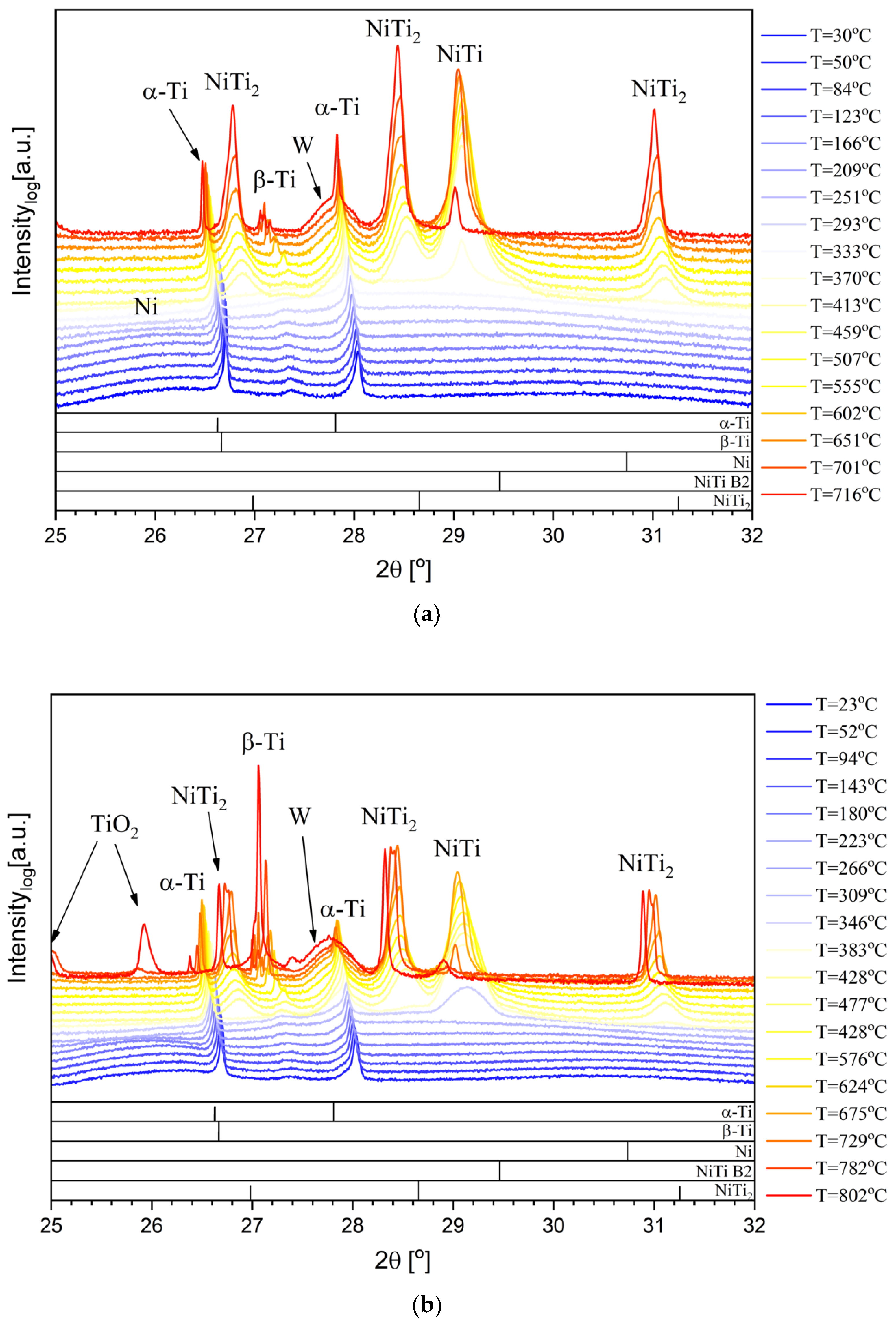

The Ni/Ti films were analyzed using the synchrotron based high-temperature X-ray diffraction procedure described. Figure 1 and Figure 2 present the phase evolution with temperature of the Ni/Ti films under study. It is important to notice that at the bottom of the XRD figures the diffraction peaks indicated for the different phases were based on ICDD (International Centre for Diffraction Data) standards collected at room temperature. Therefore, some deviation to low diffraction angles is expected as the temperature increases. The β-Ti peak presents a deviation to high diffraction angles due to residual stresses, since the β-Ti phase growth is trapped between α-Ti grains. For the multilayers with a Ni bottom layer (Figure 1), the evolution towards the B2-NiTi phase is similar to the multilayers starting with Ti, previously studied up to 600 °C [14]. However, in the present case, as the temperature increases the intensity of the B2-NiTi main diffraction peak diminishes and the NiTi₂ peak increases, suggesting a possible compromise between the formation of one phase and the decrease of the other. Moreover, the β-Ti peak shows a significant increase for high HT temperatures. These results can be explained by the diffusion of Ni from the thin film towards the Ti-6Al-4V alloy. For the 12 nm period multilayer (Figure 1a), no B2-NiTi peak can be discerned at the highest temperature (real temperature = 712 °C); only substrate and NiTi₂ peaks can be identified, indicating that at this temperature the phase evolution is complete. At temperatures above 700 °C, besides the diffusion of Ni, the diffusion of Ti from Ti-6Al-4V towards the thin films becomes important, especially for the lowest period multilayer which has an increased diffusivity. Therefore, at 712 °C for the 12 nm period multilayer, the thin film is only constituted by the NiTi₂ Ti-rich phase. Although the 25 nm period multilayer reached higher temperatures (real temperature = 772 °C) than the 12 nm period multilayer, the larger grain size, and consequently lower reactivity, may explain why it was still possible to identify residual B2-NiTi at the maximum temperature. As the temperature reaches ≈750 °C, the β-Ti peak becomes significant.

With or without W interlayer the structural evolution with temperature is similar (Figure 2). However, for films with Λ = 12 nm the B2-NiTi phase was still distinguishable at the maximum HT temperature (real temperature = 716 °C), meaning that the tungsten might have changed the Ni diffusion kinetics.

The photon absorption coefficient for 11.5 keV is ≈1.1 × 10⁴ mm²·g⁻¹ and ≈2.1 × 10⁴ mm²·g⁻¹ for Ti and Ni, respectively [19]. Since for compounds and mixtures the absorption is averaged using the weight content of each component, if the weight ratio increases in a lower absorption element (in this case, Ti), the overall absorption decreases. Before the phase transformation, the Ni/Ti multilayer thin films are near equiatomic, and at the end of the thermal cycle the NiTi₂ is the dominant phase, resulting in less absorption and enabling photons to reach the tungsten layer. The differences in photon absorption explain why at the beginning of the heat treatment the presence of W is not detected and, as soon as the NiTi₂ is formed, the tungsten peak starts to emerge.

Based on the synchrotron results, with or without W interlayer, it can be concluded that the formation of NiTi₂ is related with the disappearance of the B2-NiTi phase as well as with the formation of β-Ti. A possible explanation can be related with the diffusion of Ni from the multilayer thin film towards the bulk Ti-6Al-4V, because Ni is a betageneous element. Since this element is a titanium β-eutectoid, it signifies that besides increasing the β-Ti phase, Ni should also promote the formation of NiTi₂ on Ti-6Al-4V.

In this study, the Ni₄Ti₃ phase was not detected, as in the study of Chen et al. [16], due to the different coating chemical composition, configuration (nanoscale multilayer versus microscale bilayer), and processing technology.

3.2. Ex Situ Characterization after Heat Treatment

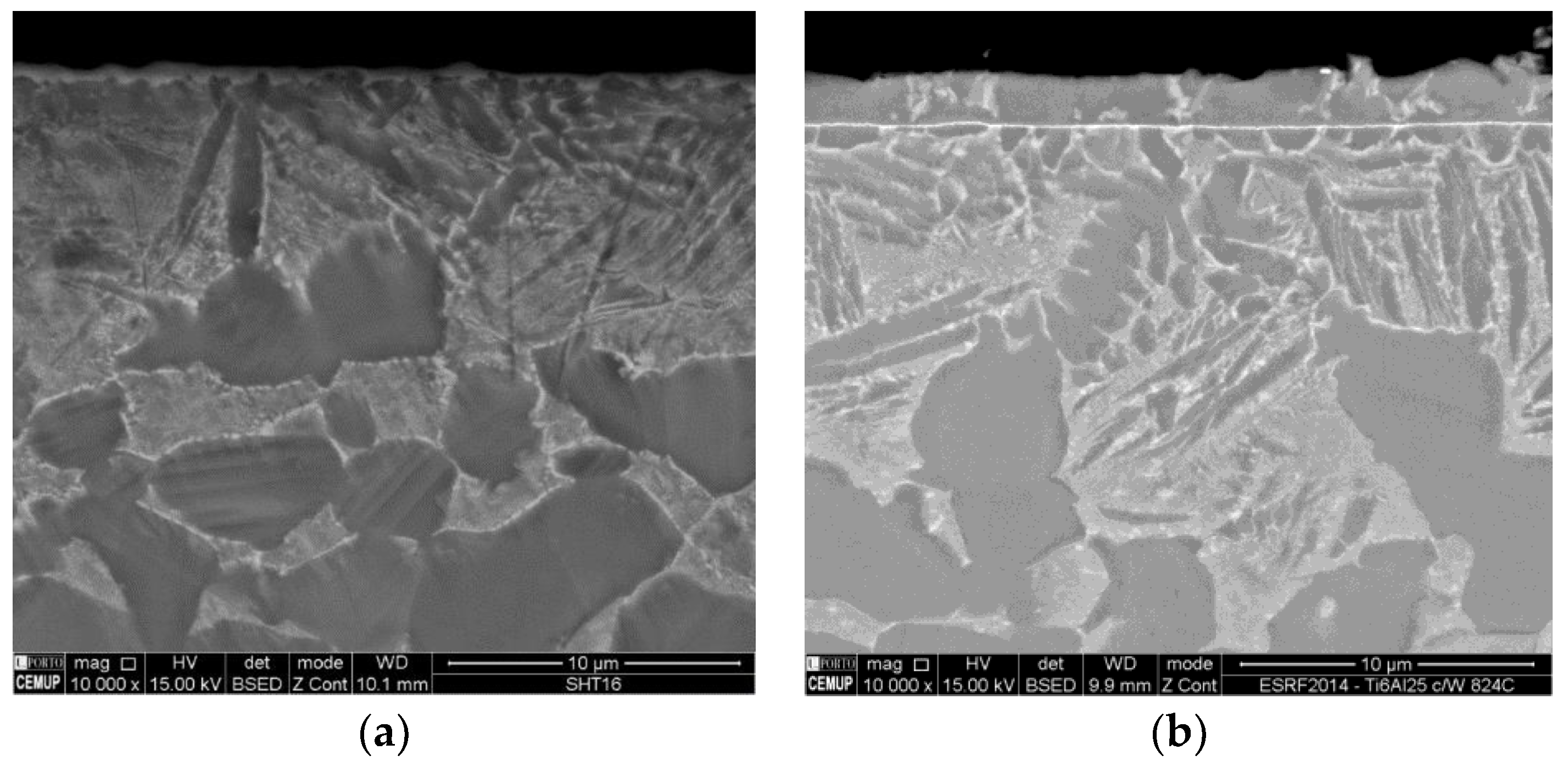

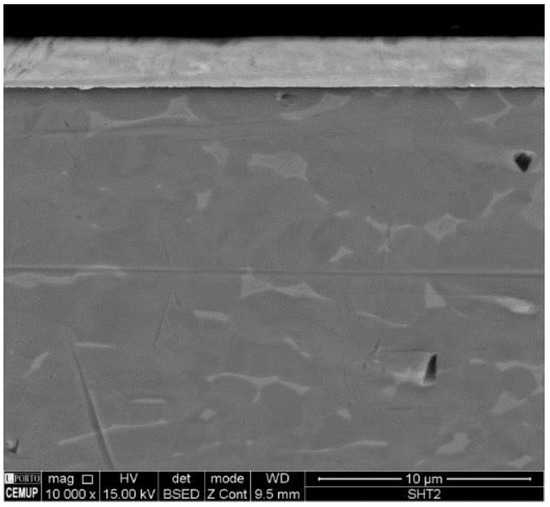

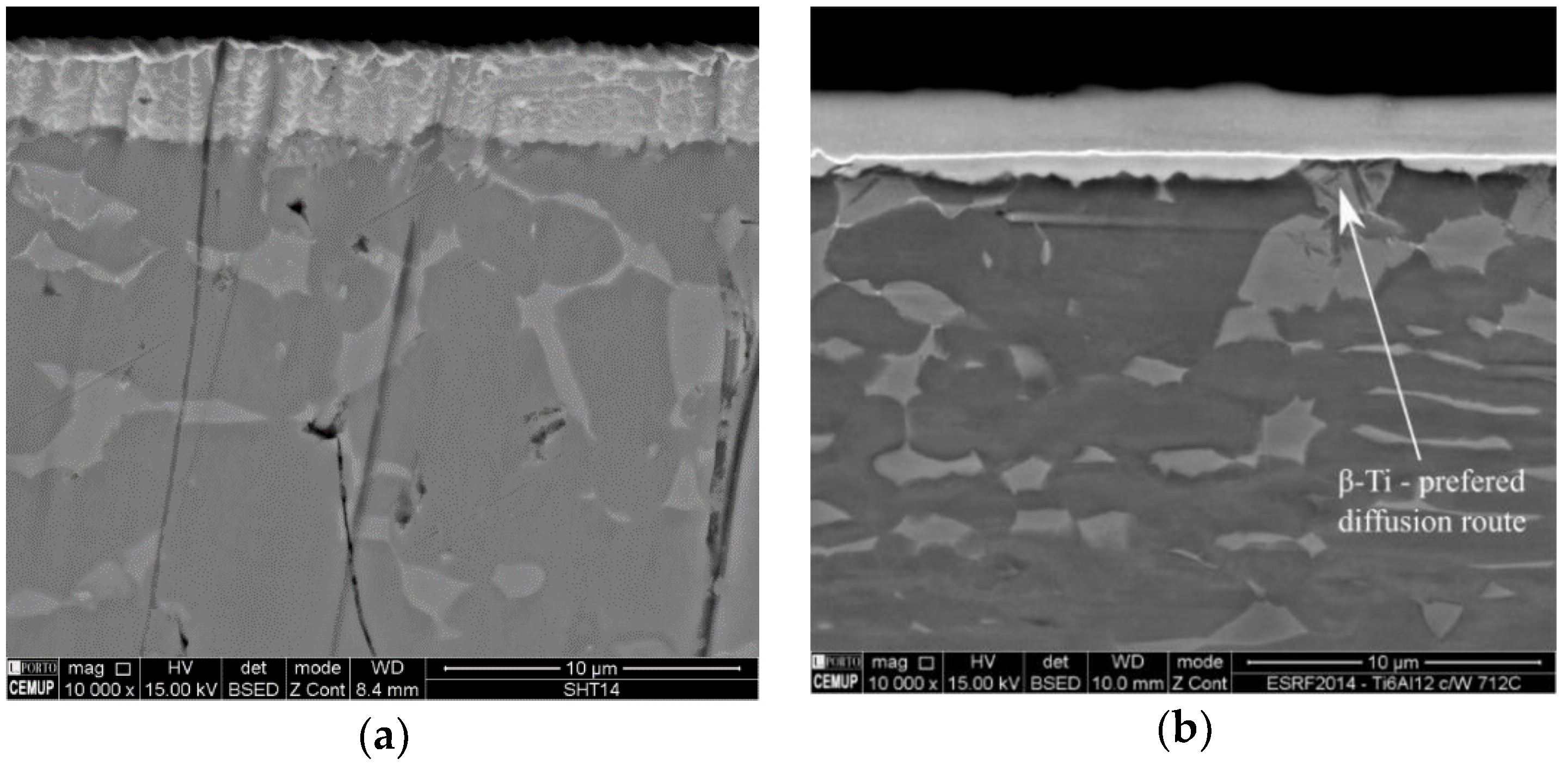

Figure 3 shows the presence of β-phase in the grain boundaries of α-Ti (dark-phase); neither the period nor the presence of the W interlayer seems to influence this microstructure after HT at 600 °C. However, the amount of β-phase increases after HT at temperatures higher than 600 °C (Figure 3 and Figure 4). β-Ti is much more evident close to the interface thin film/bulk material, which is attributed to the diffusion of Ni from the film towards Ti-6Al-4V. As a consequence, the films become depleted in Ni, giving rise to the formation of NiTi₂ as already confirmed by synchrotron XRD. The SEM (BSE) images clearly reveal the presence of the W interlayer (bright lines in Figure 4b and Figure 5b), which remains intact, even after HT, indicating unequivocally the initial location of the interface film/substrate. In the presence of the W interlayer, the 12 nm period multilayer image shows that when the NiTi₂ rich film is in direct contact with a β-Ti grain, the connection will be the preferential route for the Ni diffusion, while if the NiTi₂ only contacts the α-Ti phase, the NiTi₂ will grow over the W interlayer (Figure 4b). As expected, Ni preferentially diffuses towards the β-phase. Ni is a betageneous element and due to the different crystallographic structures (β-Ti is bcc while α-Ti is hcp), Ni diffusion is considerably higher on the β-Ti phase than in α-Ti. Regarding the film with a 25 nm period, the cross-section is similar without and with W interlayer (Figure 5). It should be noted that the 25 nm period films were treated at higher temperatures (900 °C), and it is probable that the W could not prevent the Ni diffusion. The increase of the HT temperature leads to deeper Ni diffusion, with film and substrate becoming almost indiscernible. Simultaneously, the presence of α-Ti significantly decreases (dark regions).

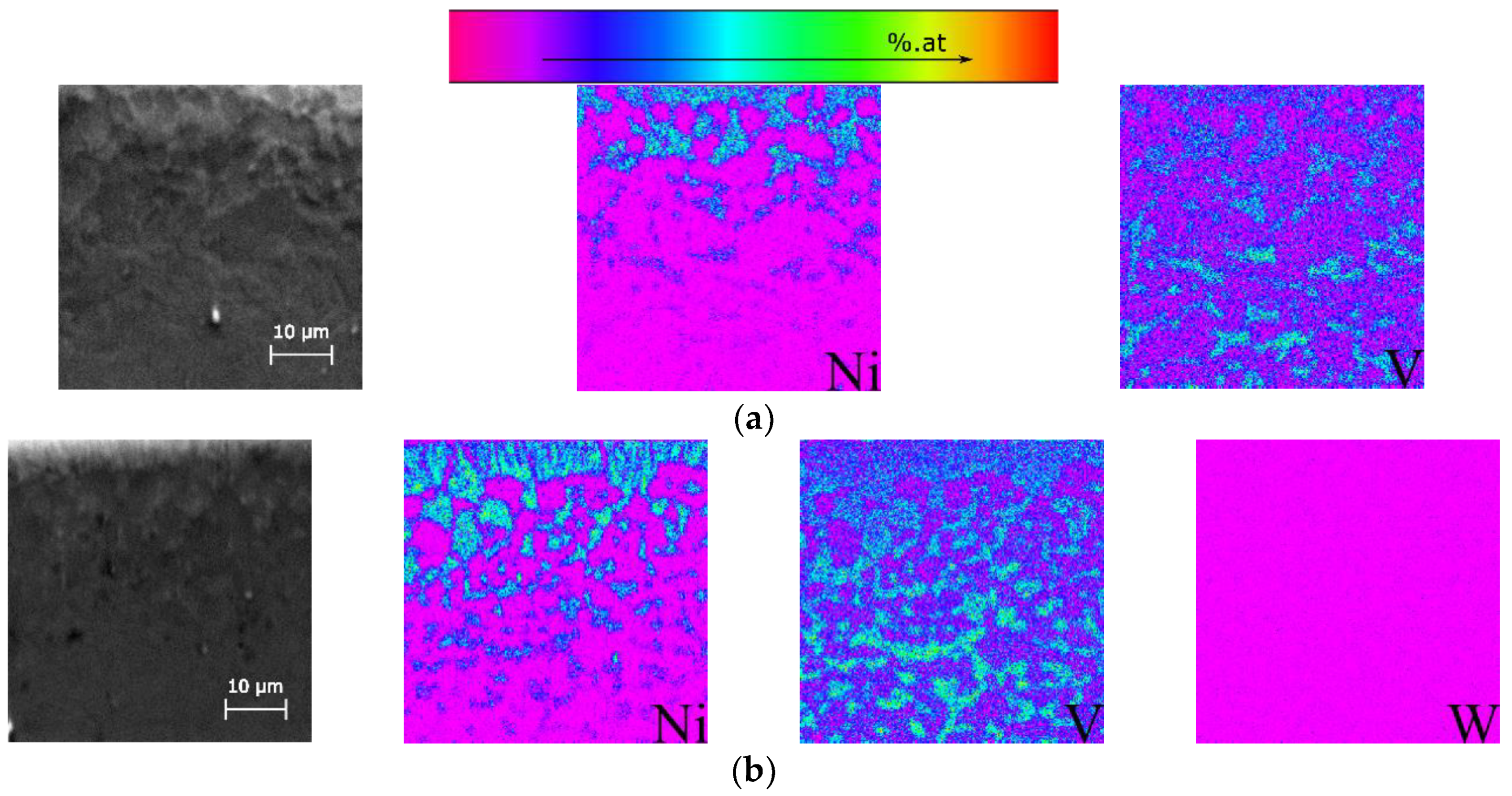

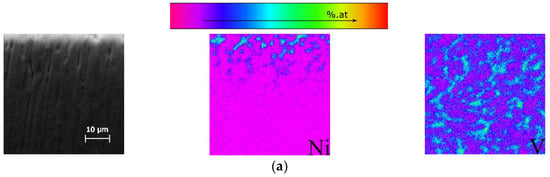

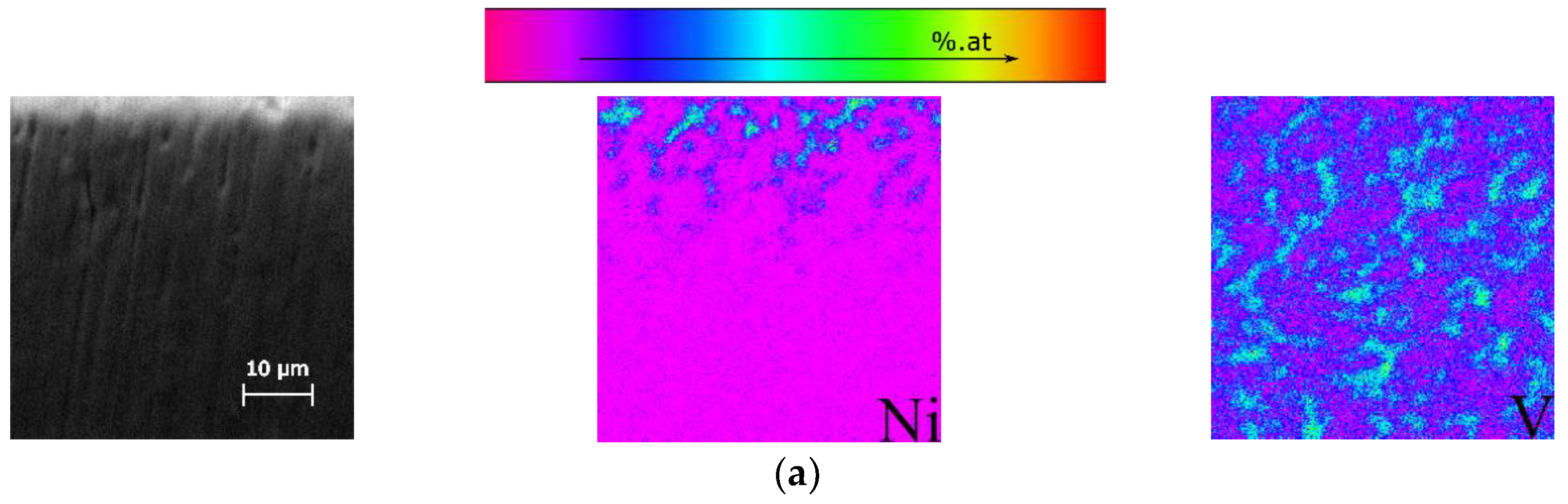

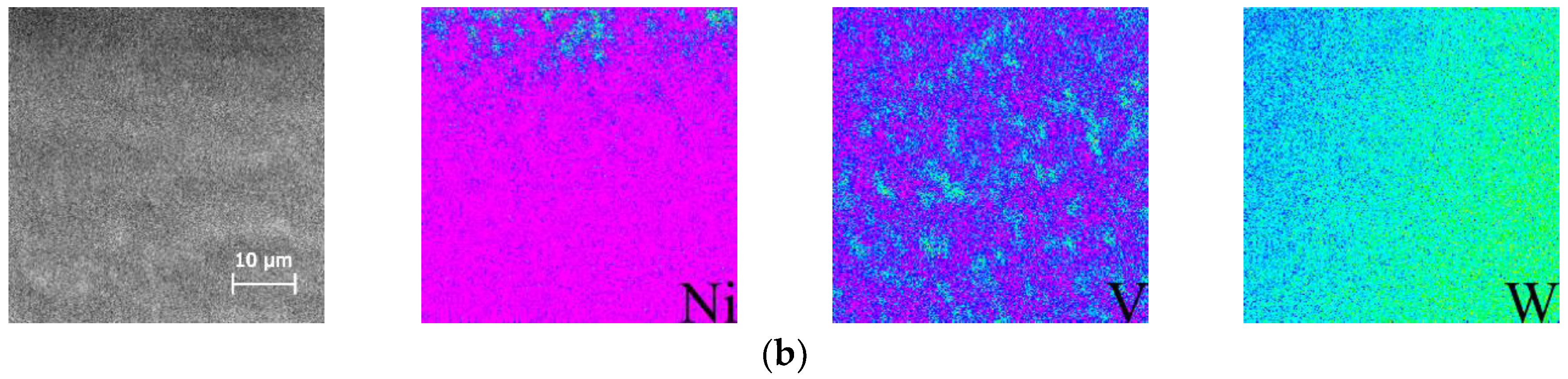

In order to analyze the diffusion phenomena in detail, cross-sections of the heat treated films were prepared and elemental (V, Ni and W) distributions over areas with 50 × 50 µm² were carried out by EPMA (Figure 6 and Figure 7). The cross-sections were analyzed starting from the thin film/substrate interface to the Ti-6Al-4V bulk material, to avoid the steep Ni increase due to the film. In Figure 6 and Figure 7, for each map the color scale is independent (from low concentration purple to high concentration red). As previously mentioned, in Ti-6Al-4V vanadium is added to induce the formation of the β-Ti phase, therefore this element can be used as a trace element for the location of this phase. From the elemental map distribution, it is possible to identify the vanadium in the β-Ti and this phase is distributed around α-Ti grains. The tungsten distribution maps do not show any diffusion of W towards the Ti-6Al-4V substrate.

The nickel distribution maps show that this element clearly diffuses to the same locations where V is detected (the β-Ti grains). Independent of the multilayer configuration, as the temperature increases, the Ni diffusion length increases. For the 12 nm period multilayer the maximum temperature was the same without and with interlayer, and even though the Ni diffusion length is almost the same, with the W interlayer the Ni diffusion length is slightly shorter (Figure 6). The small difference in the diffusion lengths confirms that the W interlayer works as a barrier, but since its thickness is relatively small (≈12 nm) it is not effective enough to completely prevent Ni migration. In the similar analysis of Ni/Ti multilayer thin films, starting with titanium and heat treated at lower temperatures (≤500 °C), it was not possible to identify any Ni diffusion, indicating that a minimum temperature must be reached in order to promote the diffusion of Ni towards the β-Ti phase (~700 °C for 12 nm period and ~750 °C for 25 nm). For the 25 nm period multilayer, the temperatures reached were higher, and as a consequence Ni diffusion is more pronounced and the amount of β-Ti phase also increases (Figure 7). For this period, the effect of the W interlayer cannot be evaluated because the temperature reached was different without and with interlayer. With the W interlayer, the sample attained 802 °C and the region adjacent to the thin film is only composed of β-Ti, as indicated by the V map. Once again it is confirmed that Ni diffuses to β grains and that the diffusion depth increases with temperature. According to Figure 7b, it is possible to find Ni up to a depth of close to 50 m. The fact that Ni diffusion can be clearly observed as the temperature increases, and that β-Ti and NiTi₂ phases can be clearly identified by XRD and SEM concurrently, confirms that the NiTi₂ phase formation is directly related to the Ni diffusion process. Therefore, if an effective barrier is placed between Ni/Ti nanomultilayers and Ti-6Al-4V substrates, it would be possible to prevent Ni diffusion and avoid the formation of the brittle NiTi₂ intermetallic compound. This would be particularly important when using Ni/Ti multilayer thin films to assist the similar and dissimilar diffusion bonding process of α/β Ti alloys.

4. Conclusions

During heat treatment of Ti-6Al-4V coated with Ni/Ti nanomultilayers, Ni diffusion from the thin films towards the bulk material is promoted. According to the results, the occurrence of Ni diffusion is determined by the HT temperature. Ni diffuses to the β-Ti grains of the Ti-6Al-4V alloy. Therefore, the presence of β-Ti in the Ti alloy substrates becomes more pronounced, while the films are mainly formed by the NiTi₂ intermetallic phase, although after deposition they had a near equiatomic overall chemical composition. Regarding Ni diffusion, no significant differences were detected for the two multilayer periods studied. The W interlayer deposited between bulk Ti-6Al-4V and multilayer thin film was too thin to prevent Ni diffusion. Nevertheless, the results indicate that W can be used as a diffusion barrier, which should be taken into consideration when using Ni/Ti multilayer thin films as fillers for joining Ti alloys, such as Ti-6Al-4V. This point must be confirmed with further scientific evidence.
