Recovery of Rare Earth Oxide from Waste NiMH Batteries by Simple Wet Chemical Valorization Process

Abstract

Nickel metal hydride (NiMH) batteries contain a significant amount of rare earth metals (REMs) such as Ce, La, and Nd, which are critical to the supply chain. Recovery of these metals from waste NiMH batteries can be a potential secondary resource for REMs. In our current REM recovery process, REM oxide from waste NiMH batteries was recovered by a simple wet chemical valorization process. The process followed the chemical metallurgy process to recover REM oxides and included the following stages: (1) H₂SO₄ leaching; (2) selective separation of REM as sulfate salt from Ni/Co sulfate solution; (3) metathesis purification reaction process for the conversion REM sulfate to REM carbonate; and (4) recovery of REM oxide from REM carbonate by heat treatment. Through H₂SO₄ leaching optimization, almost all the metal from the electrode active material of waste NiMH batteries was leached out. From the filtered leach liquor managing pH (at pH 1.8) with 10 M NaOH, REM was precipitated as hydrated NaREE(SO₄)₂·H₂O, which was then further valorized through the metathesis reaction process. From NaREE(SO₄)₂·H₂O through carbocation, REM was purified as hydrated (REM)₂CO₃·H₂O precipitate. From (REM)₂CO₃·H₂O through calcination at 800 °C, (REM)₂O₃ could be recovered.

1. Introduction

Owing to the strategic, economic, and industrial importance of rare earth metals (REMs), the EU has classified them as critical raw materials (CRMs). A criticality assessment of metals based on economic importance and supply risk done in 2017 resulted in the EU considering heavy rare earth metals (HREMs), light rare earth metals (LREM), and Sc as CRMs [1,2]. The EU, along with the US Department of Energy (DOE) [3] and the American Physical Society (APS), [4] have reported REM as critical for energy and emerging technologies. The global supply chain of critical metals like HREMs, LREMs, and Sc is mainly dominated by China, which has a market share of up to 95% [2]. The global distribution of primary resources for these critical REMs is quite uneven and currently dominated by China. Hence, the recovery of these CRMs from secondary resources is very important in order to secure these metals for industrial economies like Korea, where natural resources are scarce. The nickel metal hydride (NiMH) battery could be a secondary resource for REMs like Ce, La, and Nd, as it contains a significant amount of these elements (which are all REMs). By efficiently recycling NiMH waste batteries, the REMs can be recovered and circulated in the industrial ecosystem. This could simultaneously address issues like urban mining, environmental directive, and CRM supply chain challenges, and could secure the supply of these metals for industrial development.

With the emergence of more efficient batteries like the lithium-ion battery, the use of NiMH batteries has gradually decreased, which is leading to the NiMH batteries reaching end of life (EOL). Different industries around the world are recycling various batteries using either pyrometallurgy or hydrometallurgy processes, mainly targeting base metals like Co and Ni.

Table 1. Summary of battery recycling processes by various companies around the world (data from [5,6]).

Company	Battery Type	Process/Technology Used	Location
Retriev Technologies	All types	Pyrometallurgy Hydrometallurgy	Trail, BC, Canada; Baltimore, OH, USA
Salesco Systems	All types	Pyrometallurgy	Phoenix, AZ, USA
AERC	All types	Pyrometallurgy	Allentown PA, USA; Hayward CA, USA; West Melbourne FL, USA
Dowa	All types	Pyrometallurgy	Japan
Japan Recycle	All types	Pyrometallurgy	Osaka, Japan
Sony Corp. & Sumitomo Metals and Mining Co.	All types	Pyrometallurgy	Japan
XStrata	All types	Pyrometallurgy Electrowinning	Horne Que, Nikkelverk Norway; Sudbury, ON., Canada
Accurec	All types	Pyrometallurgy	Mulhiem, Grenada
DK	All types	Pyrometallurgy	Duisburg, Greece
AFE Group (Valdi)	All types	Pyrometallurgy	Zurich, Switzerland; Rogerville, France
Citron	All types	Pyrometallurgy	Zurich, Switzerland; Rogerville, France
Euro Dieuze/SARP	All types	Hydrometallurgy	Lorraine, France
SNAM	Cd, Ni, MH, Li	Pyrometallurgy	Saint Quentin Fallavier, France
IPGNA Ent. (Recupyl)	All types	Hydrometallurgy	Grenoble, France
Umicore	All types	Pyrometallurgy Hydrometallurgy Electrowinning	Hooboken, Belgium

summarizes battery industries worldwide who are treating or recycling NiMH batteries in particular, and all types of batteries in general [5,6]. Though an industrial recycling process is available for NiMH batteries, the industrial-scale recovery of REMs has hardly been available. Numerous authors have reported on NiMH battery recycling research by hydrometallurgy, pyrometallurgy, or a hybrid of both [7,8,9,10,11,12,13,14,15,16]. Xia et al. reported on REM recovery by leaching–solvent extraction route where battery powder was leached by H₂SO₄, and REMs were then purified by solvent extraction using Cyanex 923. REM oxide was recovered using oxalic acid [16]. Yang et al. reported a HCl leaching and oxalic acid precipitation route for the recovery of REM oxide by calcination [11]. Korkmaz et al. have reported H₂SO₄ + SO₂ mixing, drying at 110 °C, roasting 850 °C and water leaching routes for the recovery of REMs from NiMH anode active materials [17]. Korkmaz et al. also reported a HCl acid leaching and oxalic acid precipitation route for the recovery of REM from waste NiMH batteries [18]. Innocenzi and Vegliò reported REM recovery by H₂SO₄ leaching followed by a (REM)₂SO₄ precipitation route using NaOH [19]. Though there have been several reports on the recovery of REMs by leaching precipitation, the REM oxide recovery leaching–precipitation–metathesis reaction route has hardly been discussed in the literature. As the industrial-scale recovery of REMs from waste NiMH is the primary challenge, in our current research we developed an industrially feasible recycling process where the circular economy goal can be achieved.

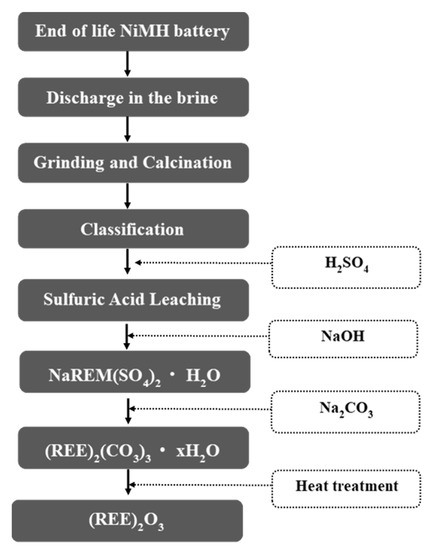

In our current investigation, we developed a simple yet industrially feasible and sustainable REM oxide recovery process. The complete process is depicted in a flowsheet in Figure 1. As shown in the figure, the developed process comprises sequential H₂SO₄ acid leaching followed by selective NaREE(SO₄)₂·H₂O precipitation and purification of (REM)₂CO₃·H₂O by carbocation–mixed REM oxide isolation by calcination. As shown in Figure 1, the process follows the integration of physical dismantling and classification followed by the chemical metallurgy process. The physical separation process comprises the following mechanical steps: (1) residual stored energy discharge; (2) grinding and calcination; and (3) classification and access of the electrode material. This is followed by the chemical metallurgy process, which has the following stages: (1) H₂SO₄ leaching; (2) separation of the REMs as sulfate salt from the Ni/Co sulfate solution; (3) the metathesis synthesis reaction process for conversion of REM sulfate to REM carbonate; and (4) REM oxide recovery by heat treatment. The novelty of this process is described below.

• All battery recycling processes by various companies around the world that have been reviewed mostly follow pyrometallurgical or pyrometallurgical-dominated processes, in contrast to our developed process which is hydrometallurical.
• It is a simple acid leaching and precipitation process for the recovery of REMs.
• Recovered REM sulfate is value-added through a simple carbocation reaction.

2. Materials and Methods

2.1. Materials

Waste NiMH battery modules (Model: HHR-33AH72W6) were imported from Japan by GM-Tech Co., KOREA. After dismantling, electrode active material was supplied for the current investigation by GM-Tech Co., KOREA. All chemicals, H₂SO₄ (97%), NaOH (97%), and Na₂CO₃ (97%), were of analytical grade purchased from Daejung, Korea. The composition of recovered NiMH battery powder was analyzed by XRD (X-ray diffraction spectroscopy, XRD-6100, Shimadzu, Kyoto, Japan), XRF (X-ray fluorescence spectroscopy, ZSX Primus Ⅱ, Rigaku, Houston, TX, USA) and MP-AES (Microwave Plasma-Atomic Emission Spectroscopy 4200, Agilent, Santa Clara, CA, USA). Thermal analysis was carried out by TGA (Thermo Gravimetric Analyzer, TG 8121, Houston, TX, USA).

2.2. Leaching and REM Separation

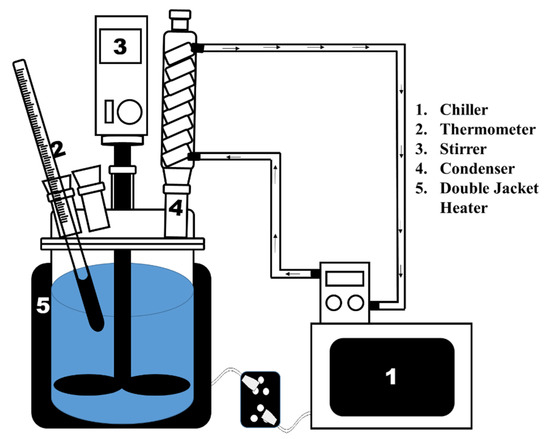

The leaching reactor used for leaching of the NiMH battery powder is shown in Figure 2. The reactor vessel was a three-necked round-bottom flask of 1 L capacity. The flask was jacketed for heating and controlling the reaction temperature. The reactor was equipped with an overhead agitator, and was driven by a variable-speed motor, a digital thermocouple to measure the temperature during continuous operation of the reactor, and a condenser for cooling. Before starting the leaching, the requisite volume of H₂SO₄ solution was added to the reaction flask and heated to the target temperature. Waste NiMH battery powder was added to the reaction vessel, which was then closed. After the reaction was complete, the leaching liquor was separated from residue through filtration. From the leach liquor, NaREE(SO₄)₂·H₂O was separated by precipitation, controlling pH using NaOH while stirring at 400 rpm under pH control. Isolated NaREE(SO₄)₂·H₂O was dried. For the metathesis reaction, the NaREE(SO₄)₂·H₂O was added to the Na₂CO₃ solution and the reaction was allowed to complete. After reaction completion was achieved, the (REM)₂CO₃ was precipitated out and recovered through filtration. After drying, the (REM)₂CO₃ was calcined for (REM)₂O₃ recovery.

2.3. Characterization

Each of the isolated samples, including NaREE(SO₄)₂·H₂O, (REM)₂CO₃, and(REM)₂O₃, were analyzed by XRD (X-ray diffraction spectroscopy, XRD-6100, Shimadzu). The thermal decomposition behavior of the recovered sample was also analyzed by TGA (Thermo Gravimetric Analyzer, TG 8121, Rigaku).

3. Results and Discussion

3.1. Characterization of Waste NiMH Battery Material

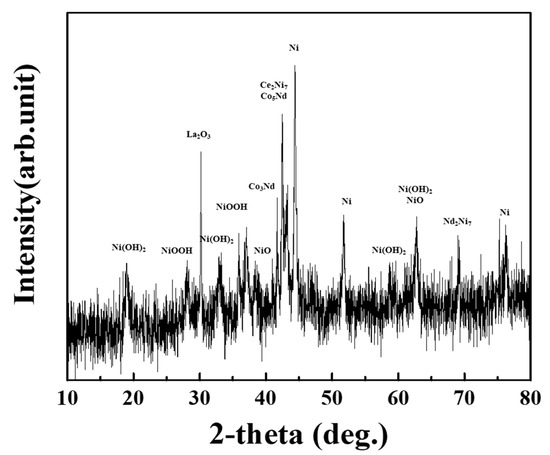

Prior to characterization, the waste NiMH battery material module was discharged inside the brine. Grinding was followed by classification, and electroactive material of 100 mesh-size powder was recovered using a pulverizer. XRD (Figure 3) of the waste NiMH battery powder was analyzed. From XRD analysis, major phases such as Ni(OH)₂, NiO, Ni, Ni₇Ce₂, Co₅Nd, and La₂O₃ and minor phases such as NiO, NiOOH, Ni₇Nd₂, and Co₃Nd were observed. XRF analysis for the same sample indicated Ni, Co, Ce, La, and Nd were the primary constituents in battery material with significant Ni content found in the waste NiMH battery. The composition of the recovered NiMH battery powder was also analyzed by MP-AES (Microwave Plasma Atomic Emission Spectroscopy 4200, Agilent). It was confirmed that Ni, Co, and REMs (La, Ce, Nd) comprised 45.8%, 8.5%, and 20.2% of the recovered battery powder, respectively (

Table 2. The composition (%w/w) of metal elements contained in the spent NiMH batteries.

	Rare Earth Elements (REMs)			Total REMs	Ni	Co	Others
	Ce	La	Nd
Weight (%)	10.4	6.7	3.1	20.2	45.8	8.5	25.5

). As Table 2 indicates, the NiMH battery waste contained a significant amount of REMs (20.2%), which would be valuable CRMs for Korean industries.

3.2. Leaching Optimization of Waste NiMH Battery Material

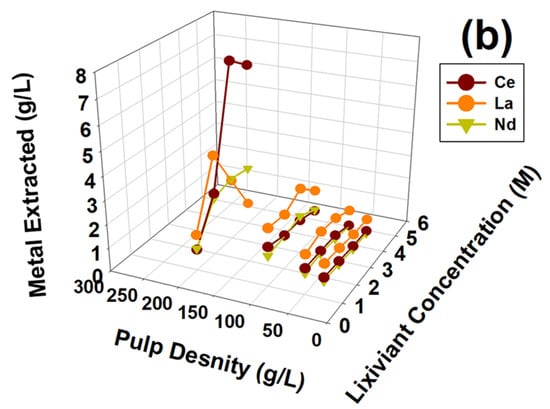

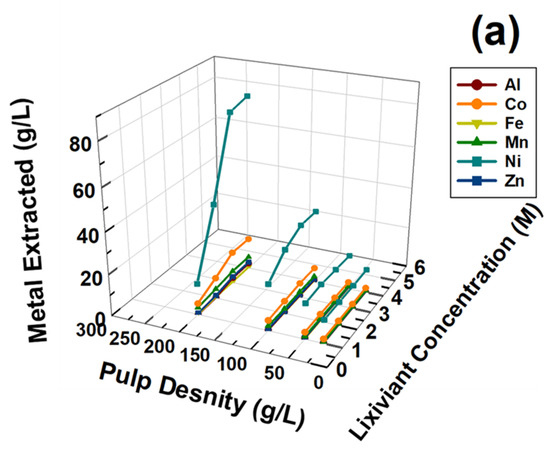

For the development of a simple REM valorization process from the waste NiMH battery module, leaching parameters like temperature and reaction time were selected from the literature survey. Pietrelli et al. reported REM recovery from NiMH spent batteries using H₂SO₄ as a suitable lixiviant [20]. For the extraction of valuable REMs like Ce, La, and Nd from waste NiMH battery modules, important leaching parameters like the lixiviant (H₂SO₄) concentration and pulp densities were optimized, keeping the leaching temperature constant at 90 °C and leaching reaction time of 4 h. Temperature and time were considered from the reported studies by Pietrelli et al. [20]. The leaching optimization experiments were carried out and both parameters were varied at the same time. The lixiviant concentration ranged from 1 to 4 M of H₂SO₄, while pulp density ranged from 25 to 200 g/L. The reaction temperature was 90 °C the reaction time was 4 h. Figure 4a depicts the leaching behavior of Al, Co, Fe, Mn, Ni, and Zn, and Figure 4b depicts the leaching behavior of Ce, La, and Nd as a function of lixiviant concentration and pulp density. Figure 4a shows that Al, Co, Fe, Mn, Ni, and Zn extraction gradually increased as a function of lixiviant concentration and pulp density when both were abundant in the leaching process. Hence, higher efficiency, higher pulp density, and higher H₂SO₄ acid concentration could be suitable for efficient leaching process development. Similarly, as shown in Figure 4b, Ce, La, and Nd extraction increased up to 3 M H₂SO₄. Extraction decreased gradually when 4 M H₂SO₄ was used as a lixiviant. The same figure also indicates a higher amount of Ce, La, and Nd were extracted as function of pulp density. To understand the variable leaching phenomena observed in Figure 4, the leaching chemistry needed to be understood. As the focus of the investigation is only REMs, the possible leaching reaction chemistry is explained below. As XRD indicated, La, Ce, and Nd (REMs) presented mainly as REM oxide and a Co/Ni alloy compound. Therefore the leaching chemistry can be explained using Equations (1)–(3) presented below.

$${\mathrm{La}}_2{\mathrm{O}}_3+3{\mathrm{H}}_2{\mathrm{SO}}_4\to {\mathrm{La}}_2{({\mathrm{SO}}_4)}_{3\left(\mathrm{aq}\right)}+3{\mathrm{H}}_2\mathrm{O}$$

(1)

$${\left(\mathrm{REM}\right)}_2{\mathrm{Ni}}_x+\left(x+2\right){\mathrm{H}}_2{\mathrm{SO}}_4\to {\left(\mathrm{REE}\right)}_2{({\mathrm{SO}}_4)}_{3\left(\mathrm{aq}\right)}+x{\mathrm{NiSO}}_{4\left(\mathrm{aq}\right)}+\left(x+2\right){\mathrm{H}}_3{\mathrm{O}}^{+}$$

(2)

$${\mathrm{Co}}_x\mathrm{Nd}+\left(x+3\right){\mathrm{H}}_2{\mathrm{SO}}_4\to {\mathrm{Nd}}_2{({\mathrm{SO}}_4)}_{3\left(\mathrm{aq}\right)}+x{\mathrm{CoS}\mathrm{O}}_{4\left(\mathrm{aq}\right)}+\left(x+3\right){\mathrm{H}}_3{\mathrm{O}}^{+}$$

(3)

3.3. Separation and Recovery of REM by Metathesis Reaction

Though base metal extraction for Ni and Co was more efficient with higher pulp density and higher lixiviant concentration, REM extraction was not much more efficient at higher lixiviant concentrations. As the main focus of the investigation was REM recovery, conditions such as using 1 M of H₂SO₄ acid as a lixiviant and a pulp density of 25 g/L were considered for further studies. Sufficient volume of leach liquor was generated using 1 M H₂SO₄ acid at a pulp density of 25 g/L, at a temperature of 90 °C with a reaction time of 4 h. Followed by solid–liquid separation, REMs were separated the leach liquor through precipitation using NaOH. The initial pH of the leaching liquor was about 0.05 after solid–liquid separation. The pH of leach liquor was adjusted by slowly adding 10 M NaOH to the leach liquor under constant stirring. As the pH of the solution was increased slowly to 1.8, REMs were precipitated, leaving Co, Ni, and other metals in the leach liquor. The precipitated REMs were separated from the solution by simple filtration and the sample was washed several times to remove soluble components. After washing, the samples were dried overnight in an oven at 80 °C, and were then characterized by XRD, ICP-MS, and TGA.

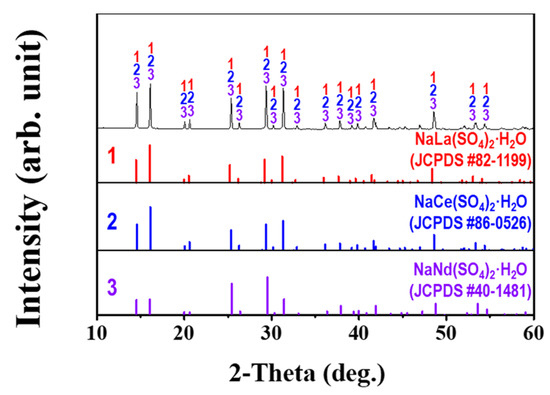

The recovered REM powder was analyzed by XRD and the obtained XRD pattern is presented in Figure 5. The powder was identified as a mixture of NaNd(SO₄)₂·H₂O, NaCe(SO₄)₂·H₂O, and NaLa(SO₄)₂·H₂O, which corresponded to JCPDS # 40–1481, JCPDS # 86–0526, and JCPDS # 82–1199, respectively. From now on, the NaNd(SO₄)₂·H₂O, NaCe(SO₄)₂·H₂O, and NaLa(SO₄)₂·H₂O mixture will be termed (NaREE(SO₄)₂·H₂O). The content of Ce, La, and Nd impurities including Ni and Co was analyzed by MP-AES by dissolving the powder. This is presented in

Table 3. The composition (%w/w) of the metal elements contained in NaREE(SO₄)₂·H₂O.

#	Rare Earth Elements			Ni + Co
	Ce	La	Nd
Weight (%)	17.2	13.1	5.44	0.01

. The MP-AES confirmed that Ce (17.2%), La (13.1%), and Nd (5.4%) were the main metal components in the precipitate, whereas Co and Ni impurities only made up 0.01%. Hence, selective separation of NaREE(SO₄)₂·H₂O using a precipitation technique by adding NaOH to the leachate is an efficient method to recover REMs from leach liquor.

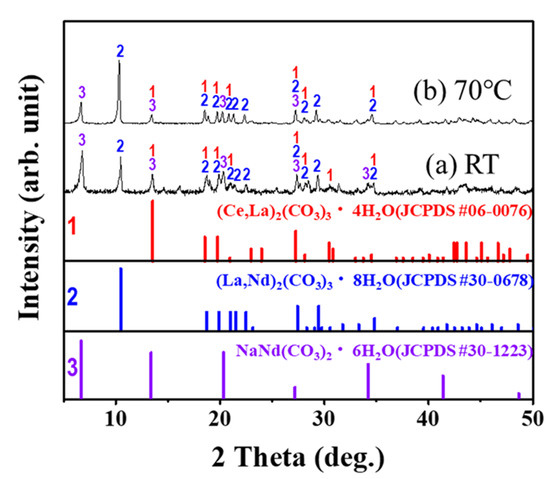

From the isolated NaREE(SO₄)₂·H₂O, a carbonation reaction using Na₂CO₃ was completed, and the REMs were purified as anhydrous (REE)₂(CO₃)₃·xH₂O. The carbonation reaction was carried out by adding the isolated NaREE(SO₄)₂·H₂O powder to 200 mL of Na₂CO₃ solution in 500 mL of reactor, and the reaction was carried out for 5 h. The stoichiometric ratio of 1:1.1 for REM(III) with CO₃²⁻ was maintained for the purification of anhydrous (REE)₂(CO₃)₃·xH₂O. The carbonation reaction was carried out in two different temperatures (i.e., room temperature (RT) and at 70 °C). After the reaction was completed, the isolated sample was dried and analyzed by XRD. The XRD pattern is depicted in Figure 6. The XRD pattern in Figure 6 indicates that there was almost no difference in XRD patterns between the two different samples isolated after the reaction at both room temperature and at 70 °C. The XRD pattern was confirmed to be (CeLa)₂(CO₃)₃·4H₂O, (LaNd)₂(CO₃)₃·8H₂O, and NaNd(CO₃)₂·6H₂O, which correspond to JCPDS #06–0076, #30–0678, and #30–1223, respectively.

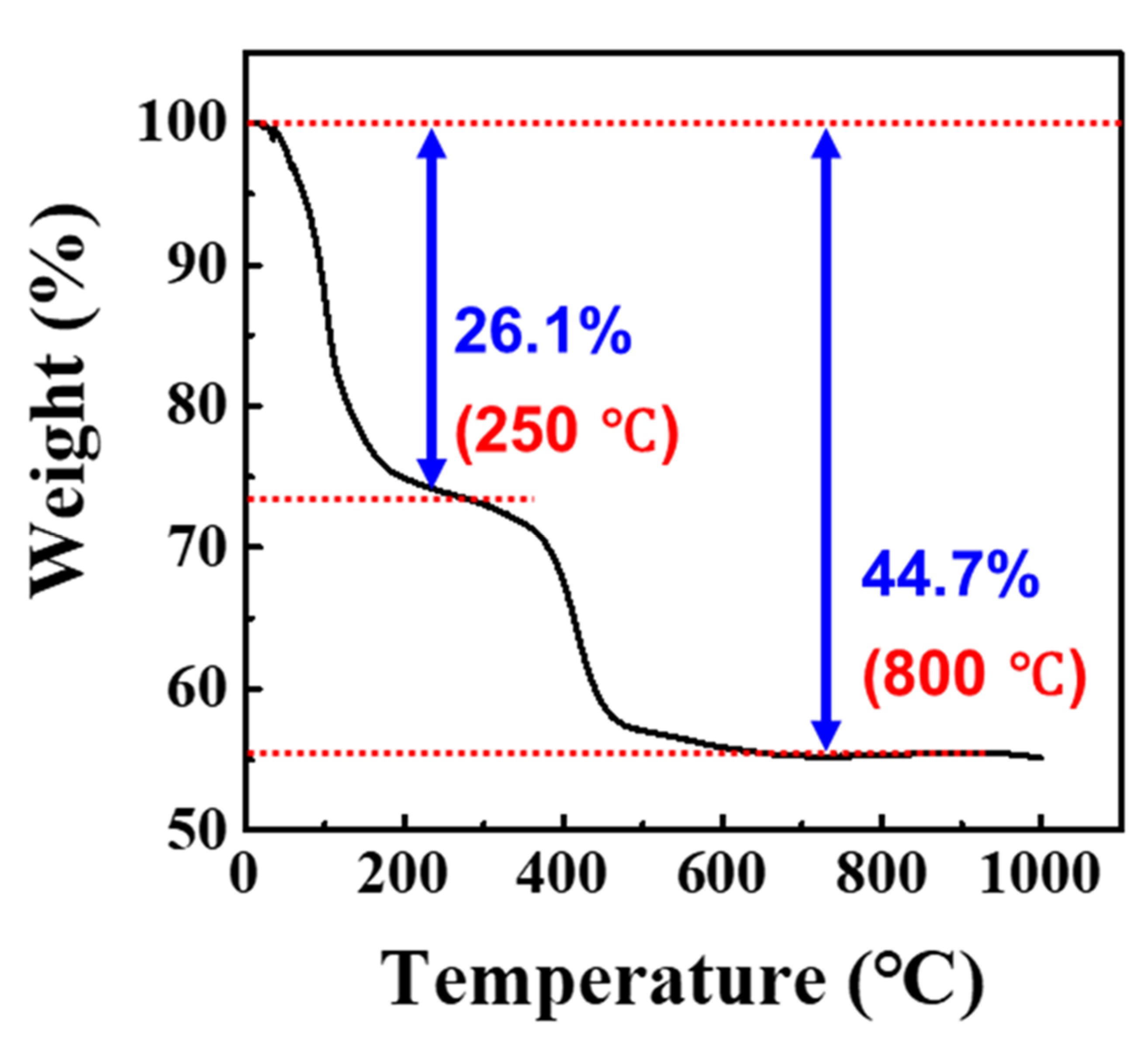

The XRD pattern observed is a mixture of all three REM carbonates, so it will be presented as (REM)₂CO₃. The (REM)₂CO₃ was analyzed by TGA (Figure 7). The TGA figure indicates two stages of weight loss as temperature increased to 1000 °C. In the first step, the weight loss was 26.1% between room temperature and 250 °C. The weight loss is associated with loss of water and conversion of hydrated (REM)₂CO₃·H₂O to anhydrous (REM)₂CO₃. In the second step, the weight loss was 44.7% from room temperature to 800 °C. At 800 °C, (REM)₂CO₃ was converted to (REM)₂O₃ by loss of CO₂. To understand the (REM)₂O₃ formation through the metathesis reaction, the (REM)₂CO₃·H₂O sample was calcined at 800 °C for 1 h and characterized by XRD analysis. The XRD pattern is represented in Figure 8. The XRD peak in the XRD analysis indicates that the sample was a mixture of three types of rare earth oxides (i.e., Nd_0.5Ce_0.5O_1.75, La₂O₃, and Nd₆O₁₁). Hence, pure (REM)₂O₃ can be valorized through heat treatment of (REM)₂CO₃ at 800 °C.

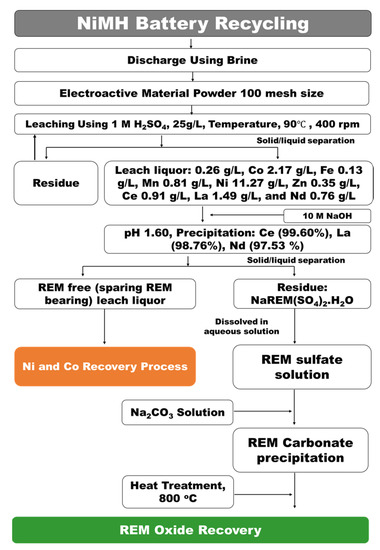

A complete flowsheet describing the recovery of (REM)₂O₃ from a waste NiMH battery via a simple wet chemical valorization process was developed and is shown in Figure 9. The figure depicts the sequential process, i.e., H₂SO₄ acid leaching, NaREE(SO₄)₂·H₂O precipitation, and metathesis reaction for the complete recycling of waste NiMH batteries. The process was completed with the integration of physical separation followed by the chemical metallurgy process. The physical separation process was followed by residual stored energy discharge, grinding and calcination, classification, and access to the electrode active material. In the chemical metallurgy process, the electrode active powder material was extracted by leaching, REMs were separated selectively by precipitation, and purified by carbocation and calcination processes. The chemical metallurgy process sequentially followed (i) 1 M H₂SO₄ leaching from a pulp density of 25 g/L at 90 °C, (ii) selective separation of REMs as NaREE(SO₄)₂·H₂O salt leaving Ni/Co sulfate solution, (iii) conversion of NaREE(SO₄)₂·H₂O to (REM)₂CO₃·H₂O through carbocation, and (iv) synthesis of REM oxide from (REM)₂CO₃·H₂O by calcination at 800 °C. The mixed REM oxide could be further purified to individual REMs by further investigations, mainly by hydrometallurgy. As this is a complete systematic sequential process for the recovery of mixed critical REMs like Ce, La, and Nd, it could address the circular economy and recycling challenges associated with waste NiMH batteries.

4. Conclusions

Through the H₂SO₄ leaching–selective precipitation–metathesis reaction route of waste NiMH batteries, REM oxide could be recovered quantitatively. Through H₂SO₄ leaching optimization, almost all metal from the electrode active material of waste NiMH batteries was leached out. From the filtered leach liquor with pH managed (pH 1.8) by 10 M NaOH, REMs were precipitated as hydrated NaREE(SO₄)₂·H₂O, which was further valorized through a metathesis reaction process. Isolated NaREE(SO₄)₂·H₂O was further purified through a carbocation reaction using Na₂CO₃. From NaREE(SO₄)₂·H₂O through carbocation, REMs were purified as hydrated (REM)₂CO₃·H₂O precipitate. From (REM)₂CO₃·H₂O through the calcination process at 800 °C, (REM)₂O₃ could be recovered. The mixed (REM)₂O₃ could be further purified through hydrometallurgy, such as dissolution followed by solvent extraction purification. The process is very simple, versatile, and easy to implement in the industry. Advantages of the process are that it is simple, versatile, and flexible, and industrial mass production is feasible. It is also sustainable and eco-efficient, and produces minimal waste emissions. The process addresses several issues concurrently, including waste valorization, environment management, critical REM circular economy, and urban mining.
