Article

Salmonella enterica Serovar Minnesota Biofilms, Susceptibility to Biocides, and Molecular Characterization

by
Roberta Torres de Melo
*,
Taciano dos Reis Cardoso
,
Phelipe Augusto Borba Martins Peres
,
Raquelline Figueiredo Braz
,
Guilherme Paz Monteiro
and
Daise Aparecida Rossi
Faculdade de MedicinaVeterinária, Universidade Federal de Uberlândia, Uberlândia 38402-018, Brazil
*
Author to whom correspondence should be addressed.
Pathogens 2021, 10(5), 581; https://doi.org/10.3390/pathogens10050581
Submission received: 18 March 2021 / Revised: 9 April 2021 / Accepted: 20 April 2021 / Published: 11 May 2021
(This article belongs to the Special Issue Avian and Food-Borne Zoonoses)
Browse Figures
Versions Notes

Abstract

:
The presence of virulence genes, phylogenetic relationships, biofilm formation index (BFI), and ultrastructure in S. Minnesota at different temperatures (4, 25, and 36 °C) were analyzed. In addition, the ability of biocidal agents (chlorhexidine1%, sodium hypochlorite 1%, and peracetic acid 0.8%) to inhibit biofilms formed by 20 strains isolated from broiler slaughter plants from two Brazilian companies in 2009, 2010, and 2014 was determined. The presence of specific genes was evaluated by PCR and phylogeny between strains by pulsed-field gel electrophoresis. The BFI was determined using tryptone soy broth with 5% of chicken juice, and its structure was observed by scanning electron microscopy. The presence of specific genes indicated that S. Minnesota has the potential to cause disease in humans, adapting to adverse conditions. Temperatures of 25 and 36 °C favored biofilm formation, although at 4 °C, there was still biomass that could contaminate the final product. Tolerance to all biocides was identified in 12/20 (60%), representing a real risk of adaptation mechanisms development, especially regarding to resistance to sodium hypochlorite. Phylogenetic analysis indicated cross-contamination and spread among companies, which was probably related to biofilms formation. Results show the necessity of attention to this serovar considering its resistance to sodium hypochlorite, including the need for rigorous control, adopting low temperatures to prevent biofilms formation in the poultry industry.

1. Introduction

The genus Salmonella comprises a group of zoonotic microorganisms frequently associated with foodborne diseases, having as the main source of human infection the ingestion of contaminated chicken meat [1,2]. The presence of the serotype S. Minnesota is already a reason for sanitary embargoes or international warnings due to compromised meat quality related to food security [3,4,5].
Brazil is one of the largest producers and exporters of chicken meat in the world [6]. Information about resistance to biocide agents, virulence factors of strains, its genetic diversity, and their ability to form biofilms in an industrial environment are extremely important, considering the difficulty of Salmonella control and the constant need for knowledge about the emergence of this microorganism in the country, which can contribute to the strategic development of measures for the control and prevention of salmonellosis at a global level [7,8,9,10].
In particular, serovars. Minnesota has been prominent among serovars due to the increasing number of isolations in the poultry production chain, prompting research to discover its danger as an agent of human salmonellosis. In Brazil, this serovar was of the second highest incidence between 2007 and 2011 in an investigation of 12,582 strains obtained from chicken carcasses and poultry products [3,11,12].
The participation of S. Minnesota in human infection and the strategies that this agent uses for its maintenance in the poultry chain is still little known, so more studies focused on the epidemiological characterization through phylogenetic analysis to understand its spread are necessary. Pulsed-field gel electrophoresis (PFGE) subtyping provides information that favors genotypic characterization, molecular grouping, and subsequently the creation of measures for its control, and it is particularly useful for defining clonal strains and their spread in different areas of industry or for different companies. This information provides the necessary support to trace the source of the problem and determine the most effective actions [13].
Considering the complexity of Salmonella and the host/environment interactions, investigations of virulence factors and their persistence in the environment via genotypic and phenotypic analysis allow a better understanding of the pathogen. The identification of genes associated with apoptosis (avrA), oxidative stress (sodC), invasion (invA), adhesion and biofilm (agfA, sefA and lpfA), and quorum sensing (luxS) [14,15] helps to characterize the pathogenic potential and to understand the strategies for perpetuation in the environment. At the same time, its ability to form biofilms stands out; this hinders its control in the food industry [16]. In this condition, microorganisms have different responses to heat treatments, biocides, and antimicrobials, and are therefore a constant source of contamination [17,18].
Knowing the emergence of S. Minnesota, the aim of this work was to evaluate the presence of virulence and environmental adaptation genes, the ability of biofilm formation under different conditions, and to establish the phylogenetic relationship of 20 strains of S. Minnesota and to elucidate the spread and potential danger that they may represent for human health together with possible control measures of the sessile structure.

2. Results and Discussion

2.1. Virulence Gene Characterization

The 20 S. Minnesota strains showed different frequencies of positivity for the studied genes. Genes linked to apoptosis induction in infected cells (avrA), oxidative stress (sodC), and invasion (invA) were present in 100% (20/20) of them. Those linked to adhesion (agfA), potential biofilm-forming capacity (lpfA), and quorum sensing (luxS) were identified in 95% (19/20), 75% (15/20), and 80% (16/20), respectively. The strains were discriminated into four distinct virulence profiles (P1, P2, P3, and P4). P1: positive for all genes (10/20–50.0%); P2: negative for luxS (4/20–20.0%); P3: negative for lpfA (5/20–25.0%); and P4: negative for agfA (1/20–5.0%), Table 1.
The detection of avrA, sodC, and invA genes was unanimous. For invA, this agrees with [19], who analyzed 237 strains of Salmonella spp. from food in Brazil and observed invA gene in all of them. According to Wang et al. [20], the invA seems to be very conserved in Salmonella spp., justifying its high occurrence.
All strains demonstrated the potential to survive under oxidative stress (sodC) and apoptosis induction in infected cells (avrA). The existence of these virulence mechanisms reinforces the pathogenic potential of the strains and, despite the absence of reported cases of salmonellosis by this serovar, demonstrates the possibility of its causing disease in humans.
Borges et al. [15] evaluated in 2013, 84 strains of S. Enteritidis isolated from 1996 to 2010 in Brazil and observed similar results, with the presence of the invA and avrA genes in 100% of the isolates and the IpfA and agfA genes in 99% (83/84) and 96% (81/84), respectively. In 2016, Ahmed et al. [21] also observed similar results in Egypt in 20 isolates of S. Typhimurium from chicken and in 10 isolates of human origin, with frequency of 100% of invA and avrA genes (30/30). They concluded that a high frequency of these genes is observed in serovars, and by that, it could represent a potential cause of salmonellosis in humans.
The absence of the sefA gene may be justified according to Amini et al. [22], who observed this specific being restricted to group D Salmonella, by classification according to the epizootiology and pathogenicity of different serotypes of Salmonellaenterica subspecies. Although not present in all strains, the genetic potential to form biofilms associated with the presence of agfA, lpfA, and luxS genes was observed in 75% (15/20) of the strains. Similar studies with different Salmonella serovars have shown the presence of the agfA gene in over 91.4%, the lfpA gene in 80.63%, and the three genes together in more than 73.34% of strains isolated from birds. The frequency of virulence determinants and the establishment of genetic profiles of isolates help to determine effective control protocols and prevention measures in the industry [15,23,24].

2.2. Biofilm Formation × Temperature

All strains (100%) were unable to form biofilm at 4 °C, according to classification by Naves et al. [25] (Table 1). Temperature increase (25 and 36 °C) favored sessile life forms, with the formation of weak biofilms (6/20 strains at 25 °C and 8/20 strains at 36 °C) and medium intensity (3/20 strains at 25 °C and 36 °C; Table 1). No strong BFI was identified at any of the tested temperatures.
These findings agree with of Dhakal et al. [26], who found optical density values equal to those of the negative control for six Salmonella serovars tested when kept at refrigeration temperature. However, a study conducted with a standard S. Minnesota strain showed that this serovar has the capacity to form medium-intensity biofilms under in vitro conditions using a traditional methodology [18,25].
The grouping of strains using the different BFI classification criteria identified at different temperatures (4, 25, and 36 °C) shows the diversity of biofilm formation dynamics among strains tested under the evaluated thermal conditions and allowed us to classify them into BFI profiles. Six BFI profiles were identified (A–F), the most prevalent being those classified as nonexistent at the three temperatures (9/20–45.0%; Table 1). The BFI classification for this serovar is strain-dependent, and there are probably other factors determining this variability, such as the presence and expression of genes linked to biofilm formation (agfA, lpfA, and luxS) that encode aggregative fimbriae and quorum sensing systems, whose functions favor the biofilm formation [24]. All strains had at least one of these genes, indicating the potential for sessile life that was expressed differently and according to external factors and the expression of this potential.
Temperatures of 25 °C and 36 °C favored the formation of S. Minnesota biofilms at the same intensity compared to a temperature of 4 °C (Figure 1a). The increase in biofilm intensity was related directly to the increase in temperature. This is consistent with Borges et al. [15], who studied biofilms of Salmonella spp. in 2013, at temperatures of 3, 12, 28, and 37 °C, whose BFIs ranged from nonexistent to moderate. Although thermal stress at low temperatures is an important trigger for the production of biofilms [27], the test at 4 °C may have made bacterial multiplication unfeasible due to its proximity to the minimum growth temperature [28].
Even under thermal stress conditions at low temperatures, S. Minnesota is still capable of forming a biomass allowing its viability, and representing a potential contamination. Considering the high prevalence of the microorganism in Brazilian broiler and poultry slaughterhouses [5], it is possible to suggest its permanence in the industrial environment, even under stress conditions, through the production of biofilm. This should warn the poultry industry to adopt more rigorous control measures for this agent.
Regarding the biofilm formation intensity, the same behavior was identified at temperatures of 25 and 36 °C; these findings contradicts the literature, which states that temperatures below the optimal growth and close to that of the environment intensify the biomass production in Salmonella biofilms [29]. According to Čabarkapa et al. [30], factors involved in biofilm production have different responses depending on bacterial strain and according to the temperature of incubation.
Significant differences (p < 0.05) considering the BFI within the same serotype indicate that there is probably an influence of intrinsic characteristics, such as the presence of fimbriae, flagella, membrane proteins, and others [31], which even at the molecular level may vary in their expression. Thus, environmental conditions alone are not decisive in the formation of biofilms. Genotypic diversity and the way those factors are expressed also influence the production of sessile biomass by S. Minnesota.
Figure 2a,b allow confirmation of the differences identified in the biofilm according to the temperature. The ultrastructure of the biofilm formed by S. Minnesota at temperatures of 25 and 36 °C showed a more stable and mature conformational characteristic compared to that at 4 °C, which is consistent with that found in different Salmonella serovars [18].

2.3. Performance of Chemical Agents in Sessile S. Minnesota

All chemical agents tested reduced sessile S. Minnesota counts after exposure for 15 min. However, significant differences were observed only for peracetic acid and chlorhexidine. In additiontoreducing the counts in 8/20 (40.0%) strains, no growth was observed after the test. Figure 1b illustrates the quantitative results obtained from untreated biofilms, which shows a mean value of 6.87 ± 0.38 log CFU/mL (p > 0.05) and from biofilms treated with different products, which showed growth after 15 min contact.
All strains (20/20–100.0%) showed resistance to 1% sodium hypochlorite, so the mean count (6.57 ± 0.55 log CFU/mL) did not differ from that obtained in the control group (p > 0.05). The use of peracetic acid or chlorhexidine gave the same results, reducing the counts significantly for resistant strains. The mean counts after treatments were 3.63 ± 2.84 and 2.96 ± 2.55 log CFU/mL, respectively. Those results indicated an average decrease of 3.24 and 3.91 log cycles, respectively, compared to the control group. For both, reductions in the numbers of CFU varied significantly (p < 0.001) between tolerant strains. Four chemical resistance profiles were identified, with profile IV 12/20 (60%) showing resistance to all agents. This profile showed negative association when compared with the profile A, which is linked with strains with nonexistence biofilm classification (p < 0.0001—Fischer’s test—infinity odds ratio) (Table 1).
Peracetic acid, sodium hypochlorite, and chlorhexidine are chemical agents widely used in the cleaning of slaughterhouses. However, the use of peracetic acid and chlorhexidine demonstrated the same efficiency in significantly reducing counts for resistant strains, which is different from that observed for sodium hypochlorite, which showed resistance in all strains. This is alarming because sodium hypochlorite is one of the most widely used cleaning and disinfecting agents in the industry.
Studies performed in Australia and Brazil on chicken meat processing plants showed the efficiency of several chemical agents, including sodium hypochlorite, in reducing the microbial load of Salmonella and Campylobacter when used properly [32,33]. The strains identified in our study that were tolerant to different sanitizers suggests the inappropriate use of these agents in the routine of the industrial environment, posing a real risk of resistance and adaptation of these bacteria [34]. This can occur because of intrinsic factors of the bacteria, and the resistance may be due to repeated exposure to the agent or developed through genetic modifications [35]. In addition, there may be the appearance of cross-resistance and co-resistance between strains, from the initial resistance to a disinfectant compound, which is followed by the consequent resistance to another agent [35,36,37,38]. It can also be associated with the involvement of molecular factors, such as RpoS and Dps genes, which are linked to oxidative stress. These genes are actively expressed in S. Enteritidis SE86, which is resistant to the presence of sodium hypochlorite at 200 ppm [39]. It is also possible that for S. Minnesota, there are similar mechanisms at work in this process. In addition, the properties of this sanitizer can be altered according to pH and the presence of organic matter that alters the availability of hypochlorous acid, reducing its efficiency [40].
Variations in counts for different strains identified after contact with peracetic acid and chlorhexidine demonstrated that the persistence of these microorganisms may be strain-dependent. The existence of strains with a profile of resistance to all agents (profile IV; 12/20–60%; Table 1) indicates that there are probably intrinsic or extrinsic adaptive mechanisms allowing their survival. Although the use of chemical compounds brings benefits in disinfection, these agents usually have limitations, such as not destroying residual structures of the bacterial biofilm matrix, facilitating the resurgence or even maintaining these structures on surfaces [41]. We observed that the external matrix was maintained only when strains were treated with sodium hypochlorite. Thus, special efforts are required for the complete removal of S. Minnesota biofilms adapted to this biocide. It is probable that effectiveness in controlling these microorganisms will be achieved through sanitation plans combining cleaning measures focused on the elimination of the extrapolymeric matrix and using different agents in a periodic rotation.
In a different way, peracetic acid and chlorhexidine proved to be effective in eliminating the external matrix and disrupting the conformation of the mature biofilm. This profile may be associated with a mechanism of action aimed at the denaturation of proteins, cellular enzymes, increased permeability of the bacterial cell, and cell lysis [42].

2.4. Ultrastructure of Treated Biofilms

By SEM, mature biofilm was not characterized when the bacteria were kept at a temperature of 4 °C (Figure 2a). As in the microbiological test, the biofilm formed at this temperature was of low intensity, either at the start of its development process or as a result of a possible stagnation in the initial stages, and of which we detected only the presence of punctual microcolonies in the field. Temperatures of 25 and 36 °C (Figure 2b) allowed the development of dense clusters of bacteria with evident matrix production between the bacteria and in the outermost region providing the necessary protection to the bacterial community.
The biomass was maintained for the three strains and showed similar characteristics for all (Figure 2c–f). Figure 2c illustrates the maintenance of the integral structure of the biofilm without alteration in its three-dimensional conformation, which is highlighted by the bacterial agglomeration. This pattern was identified in water-treated biofilms for the three strains. The negative control allowed the characterization of the biofilm formed by this serovar and showed a denser and more stable architecture and presented a compact coverage along the surface associated with the presence of exchange channels.
The external cover of extracellular matrix was a less evident parameter in bacteria after treatment with sodium hypochlorite, but the maintenance of macro colonies showed a matrix connecting bacteria with the contact surface, which is a characteristic of a mature biofilm (Figure 2d). The treatment with chlorhexidine (Figure 2e) and peracetic acid (Figure 2f) promoted not only the reduction of the external EPS matrix but also a weakening of the connection between the bacteria and a greater access of the microorganism to the chemical agent, which is consistent with the logarithmic reduction that was identified in the counting analyses. The existence of dispersed groups of bacterial aggregates evidenced a loss of biofilm conformation and cellular viability or still immature biofilms with primary production of an extracellular matrix. Some of the bacterial cells showed altered morphology and impaired membrane integrity (Figure 2f).

2.5. Phylogenetic Analysis

The dendrogram constructed from the PFGE results was compared considering the isolation location, date of collection, and the evaluated genotypic and phenotypic characteristics. Similarity analysis of the 20 strains of S. Minnesota presented pulsotypes (A–N; Figure 3), in which three groups, C, K, and M, showed genotypic similarities above 80%.
Only pulsotypes C, K, and M contained strains that allowed an epidemiological evaluation. Pulsotype C contained two strains, M17 and M14, with a similarity of 82.8%, coming from the industry B in 2009 and 2010 and having the avrA, sodC, invA, agfA, and luxS genes in common. Although they were from the same industry (B), they were from distinct flocks, São Paulo and Mato Grosso do Sul, indicating possible dissemination of this profile by transport.
Pulsotype K contained four strains, two of them (M04 and M03) being clones isolated from the slaughterhouse of industry A in Minas Gerais, Brazil. Cross-contamination may explain the occurrence of this profile, since they were isolated at closely separated times, both dated November 2014. The presence of avrA, sodC, invA, agfA, and lpfA genes was common to both.
Other strains of the K (M20 and M16) pulsotypes were isolated in 2010: both in the aviary and in the industry B cutting room in Mato Grosso do Sul, Brazil. The avrA, sodC, invA, and luxS genes and resistance to sodium hypochlorite and peracetic acid in biofilms were common. These data indicate that the maintenance of these microorganisms in sessile form and contamination of the final product may be caused by cross-contamination [11].
There were also signs of neglect of biosecurity standards in the food industry environment due to the presence of the agent in clean and dirty processing areas. According to Moura et al. [43], this oversight is decisive in the maintenance of the microorganism in the environment. At the same time, pulsotype K indicated that there was spread of this profile, since there were similar strains in Mato Grosso do Sul and Minas Gerais, Brazil, in different slaughter units.
The pulsotype M contained three strains (M08, M07, and M05) with 83.6% of similarity to 2014, coming from the slaughterhouse of industry A in Minas Gerais, Brazil. The strains presented the avrA, sodC, invA, and agfA genes in common.It is possible to suggest that strains with homology greater than 80% persist in both the poultry and slaughterhouse environment, which is probably due to the presence of biofilms and, even if identified at low intensities in our assays, demonstrated the viability of the sessile bacterial strains at high counts, even in the presence of biocidal agents.
The presence of virulence characteristics associated with the high phylogenetic diversity of the strains indicates the zoonotic potential of this serovar and the possible risks associated with its ability to adapt due to its genetic plasticity. The ability to produce biofilms combined with resistance to chemical agents reveals the need for special attention to this serovar in chicken production, with a view to preventing, controlling, and constantly monitoring the sessile structure and its tolerance to sanitizers.

3. Materials and Methods

3.1. Samples and Sampling

Twenty S. Minnesota strains isolated from 2009, 2010, and 2014 were used, originating from broiler slaughtering plants of two Brazilian companies (A and B) with complete production cycles and integration systems inspected by the Federal Inspection Service SIF and qualified for internal and external trade. From company A, located in the state of Minas Gerais, nine isolates were used and from industry B, with slaughtering plants in the states of São Paulo and Mato Grosso do Sul, seven and four isolates were used, respectively.
Isolations were performed in industrial laboratories, with samples collected at previously established points in internal control programs and/or required by Bacteriological Analytical Manual, from U. S. Food and Drug Administration (BAM/FDA) (FDA, 2007). The strains were assigned to the study after biochemical identification, as recommended by the same official protocol [44] and serological analyses (Oswaldo Cruz Institute Foundation in the State of Rio de Janeiro—IOC/FIOCRUZ, Rio de Janeiro, Brazil), and were stored in the collection of the Applied Animal Biotechnology Laboratory of the Federal University of Uberlândia (LABIO/UFU, Minas Gerais, Brazil).

3.2. Reactivation of Strains and Extraction of Genomic DNA

The strains were obtained from pure cultures maintained on nutrient agar (AN–OXOID®, Roskilde, Denmark) under refrigeration and reactivated in brain heart infusion (BHI–OXOID®) broth followed by subculturing on tryptone soy agar (TSA–OXOID®), respecting the conditions of incubation at 37 °C for 24 h.
Bacterial suspension obtained in tryptone soy broth (TSB–OXOID®) overnight was used for the extraction of genomic DNA using the Wizard® Genomic DNA Purification commercial kit (Promega®, Madison, WI, USA).

3.3. Identification of Specific Genes

Conventional PCR was used to identify genes linked to the apoptosis process (avrA), potential survival under oxidative stress (sodC), invasion (invA), adhesion, and biofilm formation (agfA, sefA, and lpfA) and quorum sensing (luxS) (Table 2).The PCR reaction preparation consisted of 12.5 µL of GoTaq® Green Master Mix (Promega®), 1 µL of DNA at 10 ng/µL, 1 µL of the gene-specific primer pairs (Table 2), and 10.5 µL of Milli-Q® Water (Merck®, Darmstadt, Germany). The microtubes were transferred to a thermal cycler (Eppendorf®, Hamburg, Germany) for amplification: an initial denaturation cycle at 94 °C for 5min, 35cycles of denaturation at 94 °C for 45 s, annealing for 30 s at 58 °C (invA); 50 °C (sefA and 1pfA), 66 °C (agfA) or 62 °C (avrA, sodC and luxS); extension at 72 °C for 90 s, and a final extension at 72 °C for 10 min. The positive reaction control used was the strain S. Enteritidis ATCC13076 and, as negative control, sterile ultrapure water. Agarose gels (Afllymetrix®, Santa Clara, CA, USA) were stained with SYBR® Safe DNA gel stain solution (Invitrogen®) and visualized under UV light on a transilluminator (Loccus Biotechnology®, São Paulo, Brazil) after 90 min of running the gel at 100 W, 80 V, and 80 A.

3.4. Pulsed-Field Gel Electrophoresis (PFGE)

The PulseNet protocol, according to Ribot et al. [49] was used to conduce pulsed-field gel electrophoresis (PFGE). Bacteria grown at 37 °C overnight on TSA (OXOID®) were suspended in tubes containing 2mL of phosphate-buffered saline (PBS: 0.01 M phosphate buffer; pH 7.2; 0.85% NaCl). After agarose blocking, genomic DNA digestion was performed with 30 U of XbaI enzyme (Invitrogen®) for 2 h at 25 °C.The DNA fragments were separated on 1% agarose gel (SeaKem Gold®) in 0.5X TBE buffer in CHEF DRIII (Bio-Rad®, Hercules, CA, USA) for 18h with the following parameters: 200 V, 120° angle, 6 V/cm gradient, and 14 °C buffer temperature. The comparison of the band patterns was performed by the UPGMA analysis method, using the Dice similarity coefficient with a tolerance of 1.5% in the comparison of the position of the bands.

3.5. Biofilm Formation Index

The determination of biofilm formation index (BFI) was performed according to Kudirkienė et al. [50] and Naves et al. [25], with modifications. The strains, previously selected and serotyped by the supplier company, were cultivated in TSB (OXOID®) supplemented with 5% of chicken juice to simulate nutritional stress in a slaughterhouse environment [51]. Incubation was performed for 24 h at 37 °C under constant agitation (6.16 g) until reaching OD600close to 0.25. The suspension was centrifuged at 5031× g for 10 min at 4 °C, and the pellet obtained was washed with 0.9% NaCl solution in three successive centrifugations. The final wash suspension was added to TSB (OXOID®) supplemented with 5% of chicken juice at a 1:100 concentration, which was then added to a polystyrene microplate (Kasvi®, Paraná, Brazil) and incubated for 24 h at the three pre-set temperatures: 4, 25, and 36 °C. This procedure was performed individually for each strain. The strain S. Enteritidis ATCC13076 was used as control. Three repetitions were performed with eight replicates for each temperature. The biofilm formed at the bottom of the wells was washed twice with 0.9% NaCl solution and dried at 55 °C for 50 min. After drying, 200 µL of 1% crystal violet solution (Synth®, São Paulo, Brazil) was added to each well for 5 min. The plates were washed three times with ultrapure water and dried at 55 °C for 15 min, the dye was eluted with methyl alcohol solution (Synth®), and the absorbance was read at OD600. Results from suspended cells and adhered cells were tabulated to determine the BFI using the formula:
BFI = AB − PC/SB
where BFI is the result of the detected index, AB the reading of adherent bacteria, PC is the absorbance reading of the control wells without microorganisms, and SB is the absorbance reading of the suspended bacteria. They were classified as strong if ≥1.10, medium if 0.70–1.10, weak if 0.36–0.69, or nonexistent if ≤0.35.

3.6. Biofilm Formation Inhibition Test

A biofilm formation inhibition test was performed according to Lu et al. [52] individually for each strain. The biofilm formation was performed from a 100 µL of inoculum containing 107 CFU/mL of the bacteria on four cellulose membranes placed in TSA (OXOID®) agar plates incubated at 36 °C for 24 h. After incubation, membranes were removed and transferred to a new TSA plate (OXOID®), which was incubated under the same conditions and repeated after 24 h. On the third day, membranes were added to sterile vial treatments, the first being the TSB control, the second with 1% chlorhexidine (Vicpharma®, São Paulo, Brazil), the third with sodium hypochlorite 1% (Sanikoll®, São Paulo, Brazil), and the fourth with 0.8% peracetic acid (Synth®). Each treatment was incubated for 15 min at room temperature, respecting the company’s hygiene protocols. Membranes were washed with Letheen broth, and then, 1% trypsin solution (ThermoFisher®, Waltham, MA, USA) was added and maintained for 15 min. Serial dilutions of detached content were made in saline solution 0.9% to dilution 10–6, which were added to TSA plates and incubated at 36 °C for 24 h to perform counts.

3.7. Scanning Electron Microscopy

For confirmation of phenotypes obtained in biofilm formation assays, three randomly selected strains that showed resistance to the three chemical agents tested were evaluated for the ultrastructure formed at temperatures of 4, 25, and 36 °C and, separately, in treatments with 1% sodium hypochlorite,1% chlorhexidine, or 0.8% peracetic acid after production of the sessile structure at 36 °C. The assays were performed by scanning electron microscopy (SEM).The preparation of material for SEM analysis was according to Brown et al. [53]. Samples were dried on critical point drying (CPD; CPD 030, Baltec®, Liechtenstein, Deutsch) using liquid carbon dioxide as transition fluid; then, they were coated with a 20-nm gold layer (SCD 050, Baltec®) and examined by SEM (Zeiss Supra 55 FEG) operating at 20 kV.

3.8. Analysis of Results

Results of gene virulence were analyzed using descriptive statistics, with calculation of percentages. Analysis for dendrogram construction was performed using GelCompar II software. Interpretation of data related to biofilms was done using GraphPadPrism® software, version 7.0. Simple analysis of variance test (ANOVA) was applied for qualitative and quantitative biofilm formation tests and comparison between treatments. For biofilm inhibition test, a nonparametric Kruskal–Wallis test was used. For all tests, a 95% of confidence interval was used.

Author Contributions

R.T.d.M. and D.A.R. planned and developed the project. R.T.d.M. and T.d.R.C. analyzed and interpreted the data and wrote the manuscript. G.P.M. and P.A.B.M.P. performed the microbiological and molecular analyses. R.F.B. contributed to the SEM analyses, writing the article and the submission process. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Coordination for the Improvement of Higher Education Personnel—Brazil (CAPES) and Minas Gerais State Research Support Foundation (FAPEMIG).

Acknowledgments

This study was financed in part by the Coordenação de Aperfeiçoamento de Pessoal de Nível Superior—Brasil (CAPES)—Finance Code 001.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Centers for Disease Control and Prevention (CDC). Emerging and Zoonotic Infectious Diseases. Available online: https://www.cdc.gov/ncezid/what-we-do/our-topics.html (accessed on 3 April 2021).
  2. European Food Safety Authority. The European Union summary report on trends and sources of zoonoses, zoonotic agents and food-borne outbreaks in 2016. EFSA J. 2017, 15, 228. [Google Scholar] [CrossRef] [Green Version]
  3. Costa, R.G.; Festivo, M.L.; Araujo, M.S.; Reis, E.M.F.; Lázaro, N.S.; Rodrigues, D.P. Antimicrobial susceptibility and serovars of Salmonella circulating in commercial poultry carcasses and poultry products in Brazil. J. Food Prot. 2013, 76, 2011–2017. [Google Scholar] [CrossRef]
  4. Veterinary and Agrochemical Research Centre (CODA-CERVA). Scientific Report CODA-CERVA 2013–2014. Available online: https://www.sciensano.be/en/biblio/scientific-report-coda-cerva-2013-2014 (accessed on 21 April 2021).
  5. Voss-Rech, D.; Vaz, C.S.L.; Alves, L.; Coldebella, A.; Leão, J.A.; Rodrigues, D.P.; Back, A. A temporal study of Salmonellaenterica serotypes from broiler farms in Brazil. Poult. Sci. 2015, 94, 433–441. [Google Scholar] [CrossRef]
  6. Souza, A.P.O.; Taconeli, C.A.; Plugge, N.F.; Molento, C.F.M. Broiler Chicken Meat Inspection Data in Brazil: A First Glimpse into an Animal Welfare Approach. Braz. J. Poult. Sci. 2018, 20, 547–554. [Google Scholar] [CrossRef]
  7. Lambert, R.J.; Joynson, J.; Forbes, B. The relationships and susceptibilities of some industrial, laboratory and clinical isolates of Pseudomonas aeruginosa to some antibiotics and biocides. J. Appl. Microbiol. 2001, 91, 972–984. [Google Scholar] [CrossRef] [Green Version]
  8. Beier, R.C.; Callaway, T.R.; Andrews, K.; Poole, T.L.; Crippen, T.L.; Anderson, R.C.; Nisbet, D.J. Disinfectant and antimicrobial susceptibility profiles of Salmonella strains from feedlot water-sprinkled cattle: Hides and feces. J. Food Chem. Nanotechnol. 2017, 3, 50–59. [Google Scholar] [CrossRef]
  9. Beier, R.C.; Anderson, P.N.; Hume, M.E.; Poole, T.L.; Duke, S.E.; Crippen, T.L.; Sheffield, C.L.; Caldwell, D.J.; Byrd, J.A.; Anderson, R.C.; et al. Characterization of Salmonella enterica isolates from turkeys in commercial processing plants for resistance to antibiotics, disinfectants, and a growth promoter. Foodborne Pathog. Dis. 2011, 8, 593–600. [Google Scholar] [CrossRef] [PubMed]
  10. Nadi, Z.R.; Salehi, T.Z.; Tamai, I.A.; Foroushani, A.R.; Sillanpaa, M.; Dallal, M.M.S. Evaluation of antibiotic resistance and prevalence of common Salmonella enterica serovars isolated from foodborne outbreaks. Microchem. J. 2020, 155, 104660. [Google Scholar] [CrossRef]
  11. Brasão, S.C.; de Melo, R.T.; Prado, R.R.; Monteiro, G.P.; dos Santos, F.A.L.; Braz, R.F.; Rossi, D.A. Characterization and control of biofilms of Salmonella Minnesota of poultry origin. Food Biosci. 2021, 39, 100811. [Google Scholar] [CrossRef]
  12. Wang, H.; Hoffmann, M.; Laasri, A.; Jacobson, A.P.; Melka, D.; Curry, P.E.; Hammack, T.S.; Zheng, J. Complete genome sequence of Salmonellaenterica subsp. enterica serovar Minnesota Strain. Genome Biol. Evol. 2017, 9, 2727–2731. [Google Scholar] [CrossRef] [Green Version]
  13. Struelens, M.J.; De Ryck, R.; Deplano, A. Analysis of microbial genomic macrorestriction patterns by Pulsed-Field Gel Electrophoresis (PFGE) typing. In New Approaches for the Generation and Analysis of Microbial Typing Data; Dijkshoorn, L., Towner, K.J., Struelens, M., Eds.; Elsevier: Amsterdam, The Netherlands, 2001; pp. 159–176. [Google Scholar]
  14. Sanjay, M.K.; Shrideshikan, S.M.; Usha, M.S.; Philipraj, A.; Gaddad, S.M.; Shivannavar, C.T. Detection, amplification & sequence homology of sodC in clinical isolates of Salmonella sp. Indian J. Med. Res. 2010, 131, 565–570. [Google Scholar]
  15. Borges, K.A.; Furian, T.Q.; Borsoi, A.; Moraes, H.L.S.; Salle, C.T.P.; Nascimento, V.P. Detection of virulence-associated genes in Salmonella Enteritidis isolates from chicken in South of Brazil. Pesqui. Vet. Bras. 2013, 33, 1416–1422. [Google Scholar] [CrossRef]
  16. Ziech, R.E.; Perin, A.P.; Lampugnani, C.; Sereno, M.J.; Viana, C.; Soares, V.M.; Pereira, J.G.; Pinto, J.P.d.A.N.; dos Santos Bersot, L. Biofilm-producing ability and tolerance to industrial sanitizers in Salmonella spp. isolated from Brazilian poultry processing plants. LWTFood Sci. Technol. 2016, 68, 85–90. [Google Scholar] [CrossRef] [Green Version]
  17. Machado, S.; Pereira, V.; Aquino, M.; Santos, A.; Rodrigues, D.; Giombelli, A.; Nascimento, E. Serotyping and genotyping of Salmonella strains isolated from broilers, chicken carcasses before and after chilling, and frozen chicken breasts produced in the states of Mato Grosso do Sul and Santa Catarina, Brazil. Rev. Bras. Cienc. Avic. 2017, 19, 135–142. [Google Scholar] [CrossRef] [Green Version]
  18. Silva, P.L.A.P.A.; Goulart, L.R.; Reis, T.F.M.; Mendonça, E.P.; Melo, R.T.; Penha, V.A.S.; Peres, P.A.B.M.; Hoepers, P.G.; Beletti, M.E.; Fonseca, B.B. Biofilm formation in different Salmonella serotypes isolated from poultry. Curr. Microbiol. 2019, 76, 124–129. [Google Scholar] [CrossRef] [PubMed]
  19. Rowlands, R.E.G.; Ristori, C.A.; Ikuno, A.A.; Barbosa, M.L.; Jakabi, M.; Franco, B.D.G.d.M. Prevalence of drug resistance and irulence features in Salmonella spp. isolated from foods associated or not with salmonelosis in Brazil. Rev. Inst. Med. Trop. Sao Paulo 2014, 56, 461–467. [Google Scholar] [CrossRef]
  20. Wang, Y.P.; Li, L.; Shen, J.Z.; Yang, F.J.; Wu, Y.N. Quinolone-resistance in Salmonella is associated with decreased mRNA expression of virulence genes invA and avrA, growth and intracellular invasion and survival. Vet. Microbiol. 2009, 133, 328–334. [Google Scholar] [CrossRef] [PubMed]
  21. Ahmed, H.A.; El-Hofy, F.I.; Shafik, S.M.; Abdelrahman, M.A.; Elsaid, G.A. Characterization of virulence-associated genes, antimicrobial resistance genes, and class 1 Integrons in Salmonellaenterica serovar Typhimurium isolates from chicken meat and humans in Egypt. Foodborne Pathog. Dis. 2016, 13, 281–288. [Google Scholar] [CrossRef]
  22. Amini, K.; Salehi, T.Z.; Nikbakht, G.; Ranjbar, R.; Amini, J. Molecular detection of invA and spv virulence genes in Salmonella enteritidis isolated from human and animals in Iran. Afr. J. Microbiol. Res. 2010, 4, 2202–2210. [Google Scholar] [CrossRef]
  23. Yoo, A.Y.; Yu, J.E.; Yoo, H.; Lee, T.H.; Lee, W.H.; Oh, J.-I.; Kang, H.Y. Role of sigma factor E in regulation of SalmonellaAgf expression. Biochem. Biophys. Res. Commun. 2013, 430, 131–136. [Google Scholar] [CrossRef] [PubMed]
  24. Melo, R.T.; Resende, A.R.; Mendonça, E.P.; Nalevaiko, P.C.; Monteiro, G.P.; Buiatte, A.B.G.; Rossi, D.A. Salmonella Minnesota de origem avícola apresenta fatores de virulência e risco potencial aos humanos. Arq. Bras. Med. Vet. Zootec. 2020, 72, 1353–1362. [Google Scholar] [CrossRef]
  25. Naves, P.; del Prado, G.; Huelves, L.; Gracia, M.; Ruiz, V.; Blanco, J.; Rodriguez-Cerrato, V.; Ponte, M.C.; Soriano, F. Measurement of biofilm formation by clinical isolates of Escherichia coli is method-dependent. J. Appl. Microbiol. 2008, 105, 585–590. [Google Scholar] [CrossRef] [PubMed]
  26. Dhakal, J.; Sharma, C.S.; Nannapaneni, R.; McDaniel, C.D.; Kim, T.; Kiess, A. Effect of chlorine-induced sublethal oxidative stress on the biofilm-forming ability of Salmonella at different temperatures, nutrient conditions, and substrates. J. Food Prot. 2019, 82, 78–92. [Google Scholar] [CrossRef]
  27. Lamas, A.; Regal, P.; Vázquez, B.; Miranda, J.M.; Cepeda, A.; Franco, C.M. Salmonella and Campylobacter biofilm formation: A comparative assessment from farm to fork. J. Sci. Food Agric. 2018, 98, 4014–4032. [Google Scholar] [CrossRef] [PubMed]
  28. Matches, J.R.; Liston, J. Low temperature growth of Salmonella. J. Food Sci. 1968, 33, 641–645. [Google Scholar] [CrossRef]
  29. Ariafar, M.N.; Buzrul, S.; Akçelik, N. Modeling and predicting the biofilm formation of Salmonella Virchow with respect to temperature and pH. Acta Biol. Hung. 2016, 67, 99–111. [Google Scholar] [CrossRef] [Green Version]
  30. Čabarkapa, I.; Škrinjar, M.; Lević, J.; Kokić, B.; Blagojev, N.; Milanov, D.; Suvajdžić, L. Biofilm forming ability of SalmonellaEnteritidis in vitro. Acta. Vet. Belgrade. 2015, 65, 371–389. [Google Scholar] [CrossRef]
  31. Agarwal, R.K.; Singh, S.; Bhilegaonkar, K.N.; Singh, V.P. Optimization of microtitre plate assay for the testing of biofilm formation ability in different Salmonella serotypes. Int. Food Res. J. 2011, 18, 1493–1498. [Google Scholar]
  32. Chousalkar, K.; Sims, S.; McWhorter, A.; Khan, S.; Sexton, M. The effect of sanitizers on microbial levels of chicken meat collected from commercial processing plants. Int. J. Environ. Res. Public Health 2019, 16, 4807. [Google Scholar] [CrossRef] [Green Version]
  33. Guastalli, B.H.L.; Batista, D.F.A.; Souza, A.I.S.; Guastalli, E.A.L.; Lopes, P.D.; Almeida, A.M.; Prette, N.; Barbosa, F.O.; Stipp, D.T.; Freitas Neto, O.C. Evaluation of disinfectants used in pre-chilling water tanks of poultry processing plants. Braz. J. Poultry Sci. 2016, 18, 217–224. [Google Scholar] [CrossRef] [Green Version]
  34. Keeratipibul, S.; Techaruwichit, P. Tracking sources of Listeria contamination in a cooked chicken meat factory by PCR-RAPD-based DNA fingerprinting. Food Control 2012, 27, 64–72. [Google Scholar] [CrossRef]
  35. Maciel, M.J.; Machado, G.; Avancini, C.A.M. Investigation of resistance of Salmonella spp. isolated from products and raw material of animal origin (swine and poultry) to antibiotics and disinfectants. Rev. Bras. Saúde Prod. Anim. 2019, 20, e0162019. [Google Scholar] [CrossRef]
  36. Buffet-Bataillon, S.; Tattevin, P.; Bonnaure-Mallet, M.; Jolivet-Gougeon, A. Emergence of resistance to antibacterial agents: The role of quaternary ammonium compounds—A critical review. Int. J. Antimicrob. Agents 2012, 39, 381–389. [Google Scholar] [CrossRef]
  37. Lerma, L.L.; Benomar, N.; Muñoz, M.D.C.C.; Gálvez, A.; Abriouel, H. Correlation between antibiotic and biocide resistance in mesophilic and psychrotrophicPseudomonas spp. isolated from slaughterhouse surfaces throughout meat chain production. Food Microbiol. 2015, 51, 33–44. [Google Scholar] [CrossRef]
  38. Techaruvichit, P.; Takahashi, H.; Kuda, T.; Miya, S.; Keeratipibul, S.; Kimura, B. Adaptation of Campylobacter jejuni to biocides used in the food industry affects biofilm structure, adhesion strength, and cross-resistance to clinical antimicrobial compounds. Biofouling 2016, 32, 827–839. [Google Scholar] [CrossRef]
  39. Ritter, A.C.; Bacciu, D.; Santi, L.; da Silva, W.O.B.; Vainstein, M.H.; Rubino, S.; Uzzau, S.; Tondo, E.C. Investigation of rpoS and dps genes in sodium hypochlorite resistance of Salmonella Enteritidis SE86 isolated from foodborne illness outbreaks in southern Brazil. J. Food Prot. 2012, 75, 437–442. [Google Scholar] [CrossRef]
  40. Pfuntner, A. Sanitizers and disinfectants: The chemicals of prevention. Food Saf. Mag. 2011, 16, 18–19. [Google Scholar]
  41. Ohsumi, T.; Takenaka, S.; Wakamatsu, R.; Sakaue, Y.; Narisawa, N.; Senpuku, H.; Ohshima, H.; Terao, Y.; Okiji, T. Residual structure of Streptococcusmutans biofilm following complete disinfection favors secondary bacterial adhesion and biofilm re-development. PLoS ONE 2015, 10, e0116647. [Google Scholar] [CrossRef] [Green Version]
  42. Barah, F. Non-antibiotic biocides: An updated review. In Microbial Pathogens and Strategies for Combating Them: Science, Technology and Education; Méndez-Vilas, A., Ed.; Formatex: Badajóz, Spain, 2013; pp. 598–607. [Google Scholar]
  43. Moura, M.S.; Oliveira, R.P.; Melo, R.T.; Mendonça, E.P.; Fonseca, B.B.; Rossi, D.A. Genes de virulência e diversidade genética em Salmonella spp. isoladas de amostras de origem suína. Arq. Bras. Med. Vet. Zootec. 2014, 66, 1367–1375. [Google Scholar] [CrossRef] [Green Version]
  44. Food and Drug Administration (FDA). Bacteriological Analytical Manual Chapter 5: Salmonella. In Food and Drug Administration Bacteriological Analytical Manual; FDA: Silver Spring, MD, USA, 2007; pp. 1–21. [Google Scholar]
  45. Prager, R.; Rabsch, W.; Streckel, W.; Voigt, W.; Tietze, E.; Tschape, H. Molecular properties of Salmonellaenterica serotype Paratyphi B distinguish between its systemic and its enteric pathovars. J. Clin. Microbiol. 2003, 41, 4270–4278. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Oliveira, S.D.; Santos, L.R.; Schuch, D.M.T.; Silva, A.B.; Salle, C.T.P.; Canal, C.W. Detection and identification of salmonellas from poultry-related samples by PCR. Vet. Microbiol. 2002, 87, 25–35. [Google Scholar] [CrossRef]
  47. Collinson, S.K.; Doig, P.C.; Doran, J.L.; Clouthier, S.; Trust, T.J.; Kay, W.W. Thin, aggregative fimbriae mediate binding of Salmonella enteritidis to fibronectin. J. Bacteriol. 1993, 175, 12–18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Choi, J.; Shin, D.; Ryu, S. Implication of Quorum Sensing in Salmonellaenterica serovar Typhimurium Virulence: The luxS gene is necessary for expression of genes in pathogenicity island 1. Infect. Immun. 2007, 75, 4885–4890. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Ribot, E.M.; Fair, M.A.; Gautom, R.; Cameron, D.N.; Hunter, S.B.; Swaminathan, B.; Barrett, T.J. Standardization of Pulsed-Field Gel Electrophoresis protocols for the subtyping of Escherichia coli O157:H7, Salmonella, and Shigella for PulseNet. Foodborne Pathog. Dis. 2006, 3, 59–67. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Kudirkienė, E.; Cohn, M.T.; Stabler, R.A.; Strong, P.C.R.; Šernienė, L.; Wren, B.W.; Nielsen, E.M.; Malakauskas, M.; Brøndsted, L. Phenotypic and genotypic characterizations of Campylobacter jejuni isolated from the broiler meat production process. Curr. Microbiol. 2012, 65, 398–406. [Google Scholar] [CrossRef]
  51. Birk, T.; Ingmer, H.; Andersen, M.T.; Jorgensen, K.; Brondsted, L. Chicken juice, a food-based model system suitable to study survival of Campylobacter jejuni. Lett. Appl. Microbiol. 2004, 38, 66–71. [Google Scholar] [CrossRef]
  52. Lu, X.; Samuelson, D.R.; Rasco, B.A.; Konkel, M.E. Antimicrobial effect of diallyl sulphide on Campylobacter jejuni biofilms. J. Antimicrob. Chemother 2012, 67, 1915–1926. [Google Scholar] [CrossRef]
  53. Brown, H.L.; Reuter, M.; Salt, L.J.; Cross, K.L.; Betts, R.P.; van Vliet, A.H.M. Chicken juice enhances surface attachment and biofilm formation of Campylobacterjejuni. Appl. Environ. Microbiol. 2014, 80, 7053–7060. [Google Scholar] [CrossRef] [Green Version]
Pathogens 10 00581 g001 550

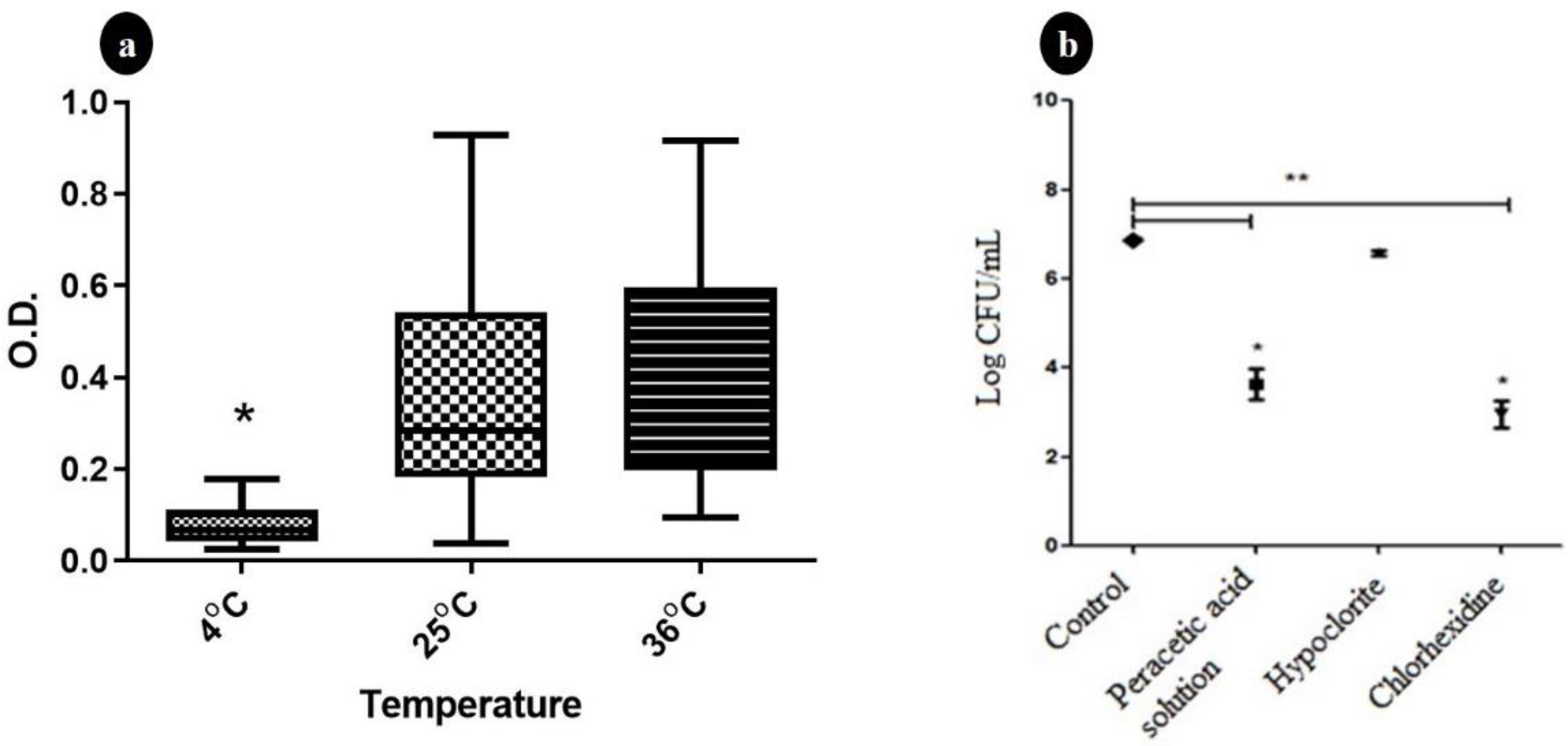

Figure 1. Biomass behavior of 20 S. Minnesota strains at different temperatures (a) and the counts (Log CFU.mL−1) before and after maintenance for 15 min in 0.8% peracetic acid solution, 1% sodium hypochlorite, and 1% chlorhexidine (b). O.D.: Optical density at 600 nm. Error bars indicate the standard deviation for the mean O.D. values obtained for each strain; * p < 0.001 in comparative analysis between treatments using one way.Anova (a). * p < 0.001 for counts on samples from the same treatment; ** p < 0.001 in the comparative analysis between control and treatments using Kruskal–Wallis (b).
Figure 1. Biomass behavior of 20 S. Minnesota strains at different temperatures (a) and the counts (Log CFU.mL−1) before and after maintenance for 15 min in 0.8% peracetic acid solution, 1% sodium hypochlorite, and 1% chlorhexidine (b). O.D.: Optical density at 600 nm. Error bars indicate the standard deviation for the mean O.D. values obtained for each strain; * p < 0.001 in comparative analysis between treatments using one way.Anova (a). * p < 0.001 for counts on samples from the same treatment; ** p < 0.001 in the comparative analysis between control and treatments using Kruskal–Wallis (b).
Pathogens 10 00581 g001
Pathogens 10 00581 g002 550
Figure 2. SEM images of biofilms production of three S. Minnesota strains at temperatures of 4 °C (a) and 36 °C (b), and after treatment with different sanitizing agents. (c): negative control treated with water. (d): treatment with 1% sodium hypochlorite, with maintenance of the structure of the mature biofilm. (e): treatment with 1% chlorhexidine. (f) (yellow arrows): morphological alteration and loss of membrane integrity in biofilm of S. Minnesota treated with 0.8% peracetic acid.
Figure 2. SEM images of biofilms production of three S. Minnesota strains at temperatures of 4 °C (a) and 36 °C (b), and after treatment with different sanitizing agents. (c): negative control treated with water. (d): treatment with 1% sodium hypochlorite, with maintenance of the structure of the mature biofilm. (e): treatment with 1% chlorhexidine. (f) (yellow arrows): morphological alteration and loss of membrane integrity in biofilm of S. Minnesota treated with 0.8% peracetic acid.
Pathogens 10 00581 g002
Pathogens 10 00581 g003 550

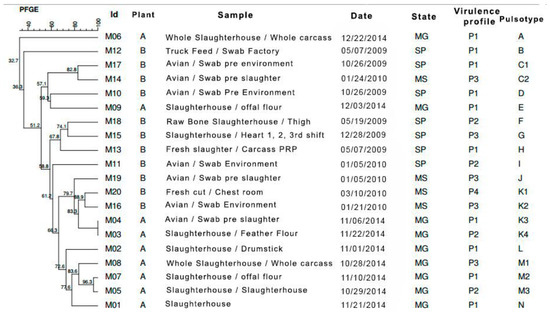

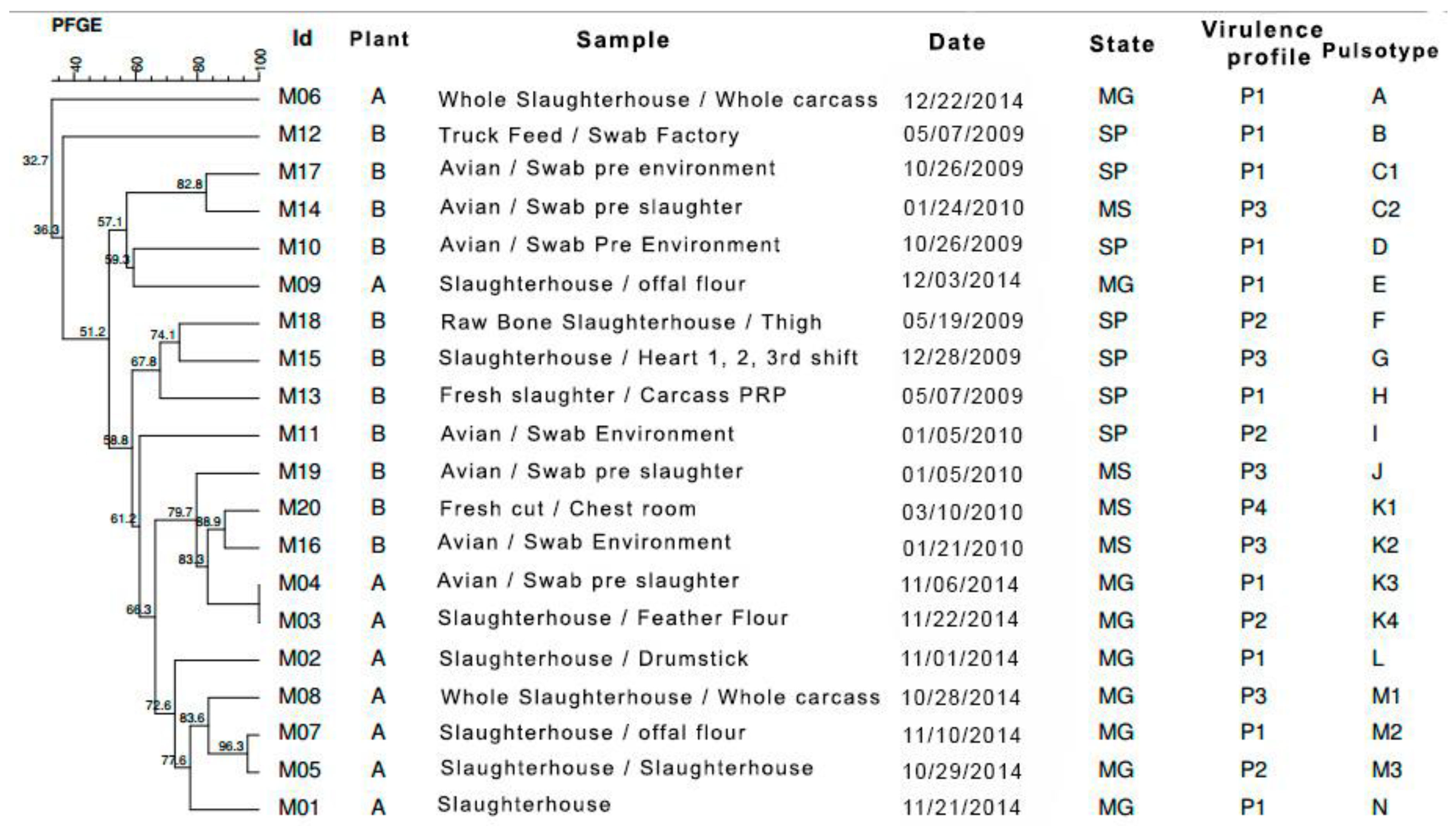

Figure 3. Comparative dendrogram of 20 S. Minnesota strains, constructed from PFGE results considering the isolation location, date of collection, and the presence or absence of avrA, sodC, invA, agfA, lpfA, and luxS genes using the Dice similarity coefficient with 1.5% tolerance and UPGMA method with 0.80% optimization. Presence of 14 pulsotypes (A to N)—three showed genotypic similarities above 80% “C”, “K”, and “M”.
Figure 3. Comparative dendrogram of 20 S. Minnesota strains, constructed from PFGE results considering the isolation location, date of collection, and the presence or absence of avrA, sodC, invA, agfA, lpfA, and luxS genes using the Dice similarity coefficient with 1.5% tolerance and UPGMA method with 0.80% optimization. Presence of 14 pulsotypes (A to N)—three showed genotypic similarities above 80% “C”, “K”, and “M”.
Pathogens 10 00581 g003
Table
Table 1. Classification of 20 S. Minnesota strains according to biofilm formation index (BFI) at different temperatures and the profiles of biofilm formation (a), virulence (b), and chemical resistance (c).
Table 1. Classification of 20 S. Minnesota strains according to biofilm formation index (BFI) at different temperatures and the profiles of biofilm formation (a), virulence (b), and chemical resistance (c).
Strains4 °C25 °C36 °CProfile (a)Profile (b)Profile (c)
BFIClassBFIClassBFIClass.
M020.144NE0.226NE0.217NEAP1I
M130.025NE0.284NE0.095NEAP1I
M170.056NE0.219NE0.206NEAP1I
M030.056NE0.175NE0.269NEAP2II
M110.037NE0.039NE0.136NEAP2II
M180.077NE0.173NE0.196NEAP2II
M140.059NE0.179NE0.105NEAP3III
M160.039NE0.179NE0.215NEAP3III
M200.030NE0.196NE0.118NEAP4IV
M100.039NE0.229NE0.537WBP1IV
M010.159NE0.284NE0.916MCP1IV
M060.162NE0.471W0.431WDP1IV
M120.067NE0.517W0.421WDP1IV
M050.079NE0.493W0.438WDP2IV
M150.088NE0.576W0.644WDP3IV
M070.118NE0.550W0.866MEP1IV
M190.054NE0.462W0.875MEP3IV
M040.066NE0.891M0.539WFP1IV
M090.179NE0.928M0.547WFP1IV
M080.074NE0.870M0.612WFP3IV
Total N (%)NE: 20 (100)NE: 11 (55)NE: 9 (45)A: 9 (45)P1: 10 (50)I: 3 (15)
W: 0W: 6 (30)W: 8 (40)B: 1 (5)P2: 4 (20)II: 3 (15)
M: 0M: 3 (15)M: 3 (15)C: 1 (5)P3: 5 (25)III: 2 (10)
D: 4 (20)P4: 1 (5)IV: 12 (60)
E: 2 (10)
F: 3 (15)
N (%): Number of strains and their percentage. Class: Classification; NE: nonexistent; W: weak; M: medium. A (NE, NE, NE); B (NE, NE, W); C (NE, NE, M); D (NE, W, W); E (NE, W, M); F (NE, M, W). P1 (avrA, sodC, invA, agfA, lpfA, luxS); P2 (avrA, sodC, invA, agfA, lpfA); P3 (avrA, sodC, invA, agfA, luxS); P4 (avrA, sodC, invA, lpfA, luxS). I (Hypochlorite); II (Hypochlorite, Acid Peracetic); III (Hypochlorite, Chlorhexidine), IV (Hypochlorite, Acid Peracetic, Chlorhexidine). Gray marking indicates positive correlation (p < 0.0001—Fischer test—CI 95% 8.244 to infinity).
Table
Table 2. Primers used to identify specific genes in S. Minnesota strains.
Table 2. Primers used to identify specific genes in S. Minnesota strains.
GeneConcentrationAmplicon (bp)PrimerReference
avrA20 pmol385GTTATGGACGGAACGACATCGG
ATTCTGCTTCCCGCCGCC		[45]
sodC20 pmol500ATGAAGCGATTAAGTTTAGCGATGG
TTTAATGACTCCGCAGGCGTAACGC		[14]
invA10 pmol284GTGAAATTATCGCCACGTTCGGGCAA
TCATCGCACCGTCAAAGGAACC		[46]
sefA10 pmol488GATACTGCTGAACGTAGAAGG
GCGTAAATCAGGATCTGCAGTAGC		[46]
agfA10 pmol350TCCACAATGGGGCGGCGGCG
CCTGACGCACCATTACGCTG		[47]
lpfA10 pmol250CTTTCGCTGCTGAATCTGGT
CAGTGTTAACAGAAACCAGT		[47]
luxS20 pmol1080GATAATCCTGAACTAAGCTTCTCCGC
GGTTATGAGAAAAGCATGCACCGATCA		[48]
bp: base pairs.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

de Melo, R.T.; dos Reis Cardoso, T.; Peres, P.A.B.M.; Braz, R.F.; Monteiro, G.P.; Rossi, D.A. Salmonella enterica Serovar Minnesota Biofilms, Susceptibility to Biocides, and Molecular Characterization. Pathogens 2021, 10, 581. https://doi.org/10.3390/pathogens10050581

AMA Style

de Melo RT, dos Reis Cardoso T, Peres PABM, Braz RF, Monteiro GP, Rossi DA. Salmonella enterica Serovar Minnesota Biofilms, Susceptibility to Biocides, and Molecular Characterization. Pathogens. 2021; 10(5):581. https://doi.org/10.3390/pathogens10050581

Chicago/Turabian Style

de Melo, Roberta Torres, Taciano dos Reis Cardoso, Phelipe Augusto Borba Martins Peres, Raquelline Figueiredo Braz, Guilherme Paz Monteiro, and Daise Aparecida Rossi. 2021. "Salmonella enterica Serovar Minnesota Biofilms, Susceptibility to Biocides, and Molecular Characterization" Pathogens 10, no. 5: 581. https://doi.org/10.3390/pathogens10050581

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
